INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
INA220 High- or Low-Side, Bidirectional Current and Power Monitor
With Two-Wire Interface
1 Features
3 Description
•
•
•
•
•
The INA220 is a current shunt and power monitor
with an I2C- or SMBUS-compatible interface. The
INA220 monitors both shunt drop and supply voltage.
A programmable calibration value, combined with an
internal multiplier, enables direct readouts in
amperes. An additional multiplying register calculates
power in watts. The I2C- or SMBUS-compatible
interface features 16 programmable addresses. The
separate shunt input on the INA220 allows it to be
used in systems with low-side sensing.
1
•
•
•
High- or Low-Side Sensing
Senses Bus Voltages from 0 V to 26 V
Reports Current, Voltage, and Power
16 Programmable Addresses
High Accuracy: 0.5% (Maximum) Over
Temperature (INA220B)
User-Programmable Calibration
Fast (2.56-MHz) I2C- or SMBUS-Compatible
Interface
VSSOP-10 Package
The INA220 is available in two grades: A and B. The
B grade version has higher accuracy and higher
precision specifications.
2 Applications
•
•
•
•
•
•
•
•
The INA220 senses across shunts on buses that can
vary from 0 to 26 V, useful for low-side sensing or
CPU power supplies. The device uses a single 3- to
5.5-V supply, drawing a maximum of 1 mA of supply
current. The INA220 operates from –40°C to 125°C.
Servers
Telecom Equipment
Notebook Computers
Power Management
Battery Chargers
Automotive
Power Supplies
Test Equipment

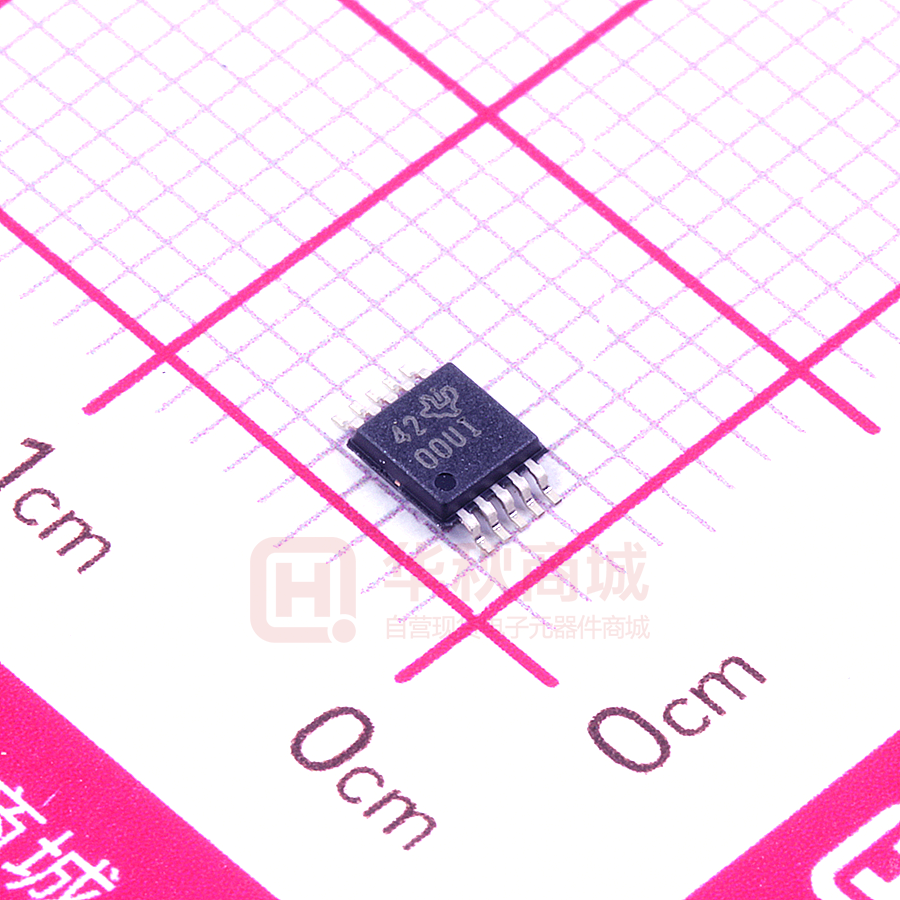

Device Information(1)
PART NUMBER
INA220
PACKAGE
VSSOP (10)
BODY SIZE (NOM)
3.00 mm × 3.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
General Load, Low- or High-Side Sensing
Supply (0 to 26V)
+3.3V to
+5V
CBYPASS
0.1µF
HighSide
Shunt
Bus Voltage Input
VS (Supply Voltage)
INA220
×
Load
SDA
Power Register
2
LowSide
Shunt
R2F
V
VIN+
Current Register
ADC
R1F CF
I C-/SMBUSCompatible
Interface
SCL
DATA
CLK
A0
A1
Voltage Register
VIN-
I
GND
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Related Products ...................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
4
4
5
7.1
7.2
7.3
7.4
7.5
7.6
7.7
5
5
5
5
6
7
8
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Bus Timing Diagram Definitions................................
Typical Characteristics ..............................................
Detailed Description ............................................ 10
8.1 Overview ................................................................. 10
8.2 Functional Block Diagram ....................................... 10
8.3 Feature Description................................................. 10
8.4 Device Functional Modes........................................ 11
8.5 Programming .......................................................... 12
8.6 Register Maps ......................................................... 18
9
Application and Implementation ........................ 25
9.1 Application Information............................................ 25
9.2 Typical Application .................................................. 25
10 Power Supply Recommendations ..................... 29
11 Layout................................................................... 29
11.1 Layout Guidelines ................................................. 29
11.2 Layout Example .................................................... 29
12 Device and Documentation Support ................. 30
12.1
12.2
12.3
12.4
12.5
Related Documentation.........................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
30
30
30
30
30
13 Mechanical, Packaging, and Orderable
Information ........................................................... 30
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision D (September 2010) to Revision E
Page
•
Added ESD Ratings table, Feature Description section, Device Functional Modes section, Application and
Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation
Support section, and Mechanical, Packaging, and Orderable Information section ............................................................... 1
•
Changed front page diagram. ................................................................................................................................................ 1
•
Changed pin names in the pin description. ............................................................................................................................ 4
•
Changed the temperature values in the Absolute Maximum Ratings table ........................................................................... 5
•
Changed Ambient temperature from –25 to –40 in the MIN column. .................................................................................... 5
•
Deleted Temperature Range parameters from Electrical Characteristics. ............................................................................. 7
•
Changed I2C timing spec change based on characterization data. ...................................................................................... 7
Changes from Revision C (September, 2009) to Revision D
Page
•
Changed High Accuracy bullet in Features from 1% to 0.5% for B-grade device.................................................................. 1
•
Added new paragraph to Description regarding A- and B-grade versions of the device ....................................................... 1
•
Added new row to Packaging Information table to show new B-grade device ...................................................................... 4
•
Added B-grade columns in Electrical Characteristics for MIN, TYP and MAX values ........................................................... 6
•
Changed Current Sense Gain Error over temperature specification from 10 ppm/°C to 1m%/°C ......................................... 6
•
Added Configure/Measure/Calculate Example..................................................................................................................... 25
2
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Changes from Revision B (June, 2009) to Revision C
Page
•
Changed specified temperature range from –25°C to –40°C................................................................................................. 6
•
Changed Offset Voltage (RTI) vs Temperature minimum specification from 0.1 μV/°C to 0.16 μV/°C.................................. 6
•
Changed Typical Characteristics: Figure 3, Figure 4, Figure 5, Figure 6 .............................................................................. 8
•
Changed Typical Characteristics: Figure 9, Figure 10 ........................................................................................................... 8
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
3
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
5 Related Products
DEVICE
DESCRIPTION
INA209
Current/power monitor with watchdog, peak-hold, and fast comparator functions
INA210, INA211, INA212, INA213, INA214
INA219
Zero-drift, low-cost, analog current shunt monitor series in small package
Zero-drift, bidirectional current power monitor with two-wire interface
6 Pin Configuration and Functions
DGS Package
10-PIN VSSOP
Top View
A1
1
10 IN+
A0
2
9
IN-
NC
3
8
VBUS
SDA
4
7
GND
SCL
5
6
VS
Pin Functions
PIN
NAME
NO.
I/O
DESCRIPTION
A1
1
Digital Input
Address pin. Connect to GND, SCL, SDA, or VS. Table 1 shows pin settings and corresponding addresses.
A0
2
Digital Input
Address pin. Connect to GND, SCL, SDA, or VS. Table 1 shows pin settings and corresponding addresses.
NC
3
—
SDA
4
Digital I/O
Serial bus data line
SCL
5
Digital Input
Serial bus clock line
VS
6
Analog
Power supply, 3 V to 5.5 V
GND
7
Analog
Ground
VBUS
8
Analog Input
Bus voltage input
IN–
9
Analog Input
Negative differential shunt voltage. Connect to negative side of shunt resistor. Bus voltage is measured
from this pin to ground.
IN+
10
Analog Input
Positive differential shunt voltage. Connect to positive side of shunt resistor.
4
No internal connection
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted). (1)
MIN
VS
MAX
UNIT
6
V
Supply voltage
(2)
Analog inputs Differential (VIN+) – (VIN–)
IN+, IN–
Common-mode (VIN+ + VIN-) / 2
–26
26
V
–0.3
26
V
VVBUS
Voltage at VBUS pin
–0.3
26
V
VSDA
Voltage at SDA pin
GND – 0.3
6
V
VSCL
Voltage at SCL pin
GND – 0.3
VS + 0.3
V
5
mA
Input current into any pin
Open-drain digital output current
Operating temperature
–40
TJ
Junction temperature
Tstg
Storage temperature
(1)
(2)
–65
10
mA
125
°C
150
°C
150
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
IN+ and IN– may have a differential voltage of –26 to 26 V; however, the voltage at these pins must not exceed the range of –0.3 to 26
V.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic
discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins (1)
±4000
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins (2)
±1000
Machine model (MM)
±150
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
NOM
MAX
UNIT
VCM
(VIN+ + VIN-) / 2
12
V
VS
Supply voltage
3.3
V
TA
Ambient temperature
–40
85
ºC
7.4 Thermal Information
INA220
THERMAL METRIC
(1)
DGS (VSSOP)
UNIT
10 PINS
RθJA
Junction-to-ambient thermal resistance
165.4
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
53.2
°C/W
RθJB
Junction-to-board thermal resistance
86.6
°C/W
ψJT
Junction-to-top characterization parameter
6.4
°C/W
ψJB
Junction-to-board characterization parameter
85.0
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
5
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
7.5 Electrical Characteristics
at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSHUNT = (VIN+ – VIN–) = 32 mV, VVBUS = 12 V, PGA = /1, and BRNG (1) = 1, unless
otherwise noted.
TEST CONDITIONS
INA220A
MIN
TYP
INA220B
MAX
MIN
TYP
MAX
UNIT
INPUT
Full-scale current sense (input) voltage
range
VSHUNT
Bus voltage (input voltage) (2)
Common-mode rejection
versus power
supply
0
±40
0
±40
mV
PGA = /2
0
±80
0
±80
mV
PGA = /4
0
±160
0
±160
mV
PGA = /8
0
±320
0
±320
mV
BRNG = 1
0
32
0
32
BRNG = 0
0
16
0
16
VIN+ = 0 to 26 V
VOS
Offset Voltage,
RTI (3)
PGA = /1
PSRR
Current sense gain error
100
120
100
120
V
V
dB
PGA = /1
±10
±100
±10
±50 (4)
μV
PGA = /2
±20
±125
±20
±75 (4)
μV
PGA = /4
±30
±150
±30
±75 (4)
μV
PGA = /8
±40
±200
±40
±100 (4)
TA = –40°C to 85°C
0.16
0.16
μV/°C
10
10
μV/V
±40
±40
1
1
m%/°C
μA
VS = 3 to 5.5 V
TA = –40°C to 85°C
μV
m%
IN+ pin input impedance
Active mode
20
20
IN– pin input impedance
Active mode
20
20
μA
VBUS pin input impedance (5)
Active mode
320
320
kΩ
IN+ pin input leakage (6)
Power-down mode
0.1
±0.5
0.1
±0.5
μA
IN– pin input leakage (6)
Power-down mode
0.1
±0.5
0.1
±0.5
μA
DC ACCURACY
ADC basic resolution
12
12
Shunt voltage
1-LSB step size
10
10
μV
Bus voltage
1-LSB step size
4
4
mV
±0.2%
Current measurement error
over Temperature
TA = –40°C to 85°C
±0.2%
±0.2%
over Temperature
TA = –40°C to 85°C
±0.5%
±0.2%
±1%
Differential nonlinearity
±0.3% (4)
±0.5% (4)
±1%
VBUS = 12 V
Bus voltage measurement error
±0.5%
bits
±0.5%
±1%
±0.1
±0.1
LSB
ADC TIMING
ADC conversion time
Minimum convert input low time
12-bit
532
586
532
586
μs
11-bit
276
304
276
304
μs
10-bit
148
163
148
163
μs
9-bit
84
93
84
93
μs
4
4
μs
SMBus
SMBus timeout (7)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
6
28
35
28
35
ms
BRNG is bit 13 of the Configuration Register 00h (see Figure 19).
This parameter only expresses the full-scale range of the ADC scaling. In no event should more than 26 V be applied to this device.
Referred-to-input (RTI)
Indicates improved specifications of the INA220B.
The input impedance of this pin may vary approximately ±15%.
Input leakage is positive (current flowing into the pin) for the conditions shown at the top of the table. Negative leakage currents can
occur under different input conditions.
SMBus timeout in the INA220 resets the interface any time SCL or SDA is low for more than 28 ms.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Electrical Characteristics (continued)
at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSHUNT = (VIN+ – VIN–) = 32 mV, VVBUS = 12 V, PGA = /1, and BRNG(1) = 1, unless
otherwise noted.
INA220A
TEST CONDITIONS
MIN
INA220B
TYP
MAX
MIN
TYP
UNIT
MAX
DIGITAL INPUTS (SDA as Input, SCL, A0, A1)
Input capacitance
3
0 ≤ VIN ≤ VS
Leakage input current
3
0.1
1
pF
0.1
1
μA
V
VIH input logic level
0.7 (VS)
6
0.7 (VS)
6
VIL input logic level
–0.3
0.3 (VS)
–0.3
0.3 (VS)
Hysteresis
500
V
500
mV
OPEN-DRAIN DIGITAL OUTPUTS (SDA)
Logic 0 output level
ISINK = 3 mA
High-level output leakage current
VOUT = VS
0.15
0.4
0.15
0.4
V
0.1
1
0.1
1
μA
POWER SUPPLY
Operating supply range
3
5.5
Quiescent current
3
5.5
V
0.7
1
0.7
1
mA
Quiescent current, power-down mode
6
15
6
15
μA
Power-on reset threshold
2
2
V
7.6 Bus Timing Diagram Definitions (1)
FAST MODE
MIN
HIGH-SPEED MODE
TYP
MAX
MIN
0.4
0.001
TYP
UNIT
MAX
ƒ(SCL)
SCL operating frequency
0.001
t(BUF)
Bus free time between STOP and START
condition
1300
160
ns
t(HDSTA)
Hold time after repeated START condition
After this period, the first clock is
generated.
600
160
ns
t(SUSTA)
Repeated START condition setup time
600
160
ns
t(SUSTO)
STOP condition setup time
600
t(HDDAT)
Data hold time
t(SUDAT)
Data setup time
t(LOW)
t(HIGH)
tFDA
Data fall time
300
150
ns
tFCL
Clock fall time
300
40
ns
tRCL
Clock rise time
300
40
ns
tRCL
Clock rise time for SCLK ≤ 100 kHz
(1)
2.56
MHz
160
0
900
ns
0
90
ns
100
10
ns
SCL clock LOW period
1300
250
ns
SCL clock HIGH period
600
60
ns
1000
ns
Values based on a statistical analysis of a one-time sample of devices. Minimum and maximum values are not ensured and not
production tested. Condition: A0=A1=0.
t(LOW)
tF
tR
t(HDSTA)
SCL
t(HDSTA)
t(HIGH)
t(HDDAT)
t(SUSTO)
t(SUSTA)
t(SUDAT)
SDA
t(BUF)
P
S
S
P
Figure 1. Bus Timing Diagram
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
7
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
7.7 Typical Characteristics
0
100
-10
80
-20
60
-30
40
Offset (mV)
Gain (dB)
at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSHUNT = (VIN+ – VIN–) = 32 mV, PGA = /1, and BRNG = 1, unless otherwise noted.
-40
-50
-60
20
0
-20
-70
-40
-80
-60
-90
-80
-100
-100
1k
100
10
10k
100k
320mV Range
160mV Range
1M
80mV Range
-50
0
-25
Input Frequency (Hz)
Figure 2. Frequency Response
75
100
125
Figure 3. ADC Shunt Offset vs Temperature
45
160mV Range
320mV Range
60
40
35
40
Offset (mV)
Gain Error (m%)
50
50
80
20
0
-40
25
Temperature (°C)
100
-20
40mV Range
80mV Range
40mV Range
30
25
20
-60
10
-80
5
16V Range
32V Range
15
0
-100
-50
-25
0
25
50
75
100
125
-50
-25
0
25
50
75
100
125
Temperature (°C)
Temperature (°C)
Figure 4. ADC Shunt Gain Error vs Temperature
Figure 5. ADC Bus Voltage Offset vs Temperature
100
20
80
15
10
40
16V
20
INL (mV)
Gain Error (m%)
60
0
-20
0
-5
32V
-40
5
-60
-10
-80
-15
-100
-50
-25
0
25
50
75
100
125
-20
-0.4
Temperature (°C)
-0.2
-0.1
0
0.1
0.2
0.3
0.4
Input Voltage (V)
Figure 6. ADC Bus Gain Error vs Temperature
8
-0.3
Figure 7. Integral Nonlinearity vs Input Voltage
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Typical Characteristics (continued)
at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSHUNT = (VIN+ – VIN–) = 32 mV, PGA = /1, and BRNG = 1, unless otherwise noted.
2.0
1.2
VS+ = 5V
1.0
1.0
VS = 5V
0.8
0.5
IQ (mA)
Input Currents (mA)
1.5
VS+ = 3V
0
VS+ = 3V
0.6
VS = 3V
0.4
-0.5
0.2
-1.0
VS+ = 5V
0
-1.5
10
5
0
15
20
25
-50
30
-25
0
VIN- Voltage (V)
50
75
16
1.0
14
0.9
125
VS = 5V
0.8
12
0.7
IQ (mA)
10
VS = 5V
8
6
VS = 3V
4
0.6
VS = 3V
0.5
0.4
0.3
0.2
2
0.1
0
0
-50
0
-25
25
50
75
100
1k
125
10k
100k
1M
10M
SCL Frequency (Hz)
Temperature (°C)
Figure 10. Shutdown IQ vs Temperature
Figure 11. Active IQ vs Two-Wire Clock Frequency
300
5
4
5V +Error
250
VS = 5V
3
3.3V +Error
2
200
1
IQ (mA)
% Bus Voltage Error
100
Figure 9. Active IQ vs Temperature
Figure 8. Input Currents With Large Differential Voltages
(VIN+ at 12 V, Sweep Of VIN–)
IQ (mA)
25
Temperature (°C)
0
-1
150
100
-2
-3
50
5V -Error
-4
VS = 3V
3.3V -Error
0
-5
0
1
2
3
4
5
24
25
26
1k
10k
100k
1M
10M
VBUS (V)
SCL Frequency (Hz)
Figure 12. Total Percent Bus Voltage Error
vs Supply Voltage
Figure 13. Shutdown IQ vs Two-Wire Clock Frequency
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
9
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
8 Detailed Description
8.1 Overview
The INA220 is a digital current sense amplifier with an I2C- and SMBus-compatible interface. It provides digital
current, voltage, and power readings necessary for accurate decision-making in precisely-controlled systems.
Programmable registers allow flexible configuration for measurement resolution as well as continuous-versustriggered operation. Detailed register information appears at the end of this data sheet, beginning with Table 2.
See Functional Block Diagram for a block diagram of the INA220 device.
8.2 Functional Block Diagram
Power
(1)
Bus Voltage
(1)
´
Shunt Voltage
Channel
Current
(1)
ADC
Bus Voltage
Channel
Full-Scale Calibration
(2)
´
Shunt Voltage
(1)
PGA
(In Configuration Register)
NOTES:
(1) Read-only
(2) Read/write
Data Registers
8.3 Feature Description
8.3.1 Basic ADC Functions
The two analog inputs to the INA220, IN+ and IN–, connect to a shunt resistor in the bus of interest. Bus voltage
is measured at VBUS pin. The INA220 is typically powered by a separate supply from 3 to 5.5 V. The bus being
sensed can vary from 0 to 26 V. It requires no special considerations for power-supply sequencing (for example,
a bus voltage can be present with the supply voltage off, and vice-versa). The INA220 senses the small drop
across the shunt for shunt voltage, and senses the voltage with respect to ground from VBUS pin for the bus
voltage.
When the INA220 is in the normal operating mode (that is, MODE bits of the Configuration register are set to
111), it continuously converts the shunt voltage up to the number set in the shunt voltage averaging function
(Configuration register, SADC bits). The device then converts the bus voltage up to the number set in the bus
voltage averaging (Configuration register, BADC bits). The Mode control in the Configuration register also
permits selecting modes to convert only voltage or current, either continuously or in response to an event
(triggered).
All current and power calculations are performed in the background and do not contribute to conversion time;
conversion times shown in Electrical Characteristics can be used to determine the actual conversion time.
Power-down mode reduces the quiescent current and turns off current into the INA220 inputs, avoiding any
supply drain. Full recovery from power-down requires 40 μs. ADC off mode (set by the Configuration register,
MODE bits) stops all conversions.
In triggered mode, writing any of the triggered convert modes into the Configuration register (even if the desired
mode is already programmed into the register) triggers a single-shot conversion.
10
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Feature Description (continued)
Although the INA220 can be read at any time, and the data from the last conversion remain available, the
Conversion Ready bit (Status register, CNVR bit) is provided to help coordinate one-shot or triggered
conversions. The Conversion Ready bit is set after all conversions, averaging, and multiplication operations are
complete.
The Conversion Ready bit clears under any of these conditions:
• Writing to the Configuration register, except when configuring the MODE bits for power down or ADC off
(disable) modes
• Reading the Status register
• Triggering a single-shot conversion with the convert pin
8.3.1.1 Power Measurement
Current and bus voltage are converted at different points in time, depending on the resolution and averaging
mode settings. For instance, when configured for 12-bit and 128-sample averaging, up to 68 ms in time between
sampling these two values is possible. Again, these calculations are performed in the background and do not add
to the overall conversion time.
8.3.1.2 PGA Function
If larger full-scale shunt voltages are desired, the INA220 provides a PGA function that increases the full-scale
range up to 2, 4, or 8 times (320 mV). Additionally, the bus voltage measurement has two full-scale ranges: 16 or
32 V.
8.3.1.3 Compatibility With TI Hot Swap Controllers
The INA220 is designed for compatibility with hot swap controllers such the TI TPS2490. The TPS2490 uses a
high-side shunt with a limit at 50 mV; the INA220 full-scale range of 40 mV enables the use of the same shunt for
current sensing below this limit. When sensing is required at (or through) the 50-mV sense point of the TPS2490,
the PGA of the INA220 can be set to /2 to provide an 80-mV full-scale range.
8.4 Device Functional Modes
8.4.1 Filtering and Input Considerations
Measuring current is often noisy, and such noise can be difficult to define. The INA220 offers several options for
filtering by choosing resolution and averaging in the Configuration register. These filtering options can be set
independently for either voltage or current measurement.
The internal ADC is based on a delta-sigma (ΔΣ) front-end with a 500-kHz (±30%) typical sampling rate. This
architecture has good inherent noise rejection; however, transients that occur at or very close to the sampling
rate harmonics can cause problems. Because these signals are at 1 MHz and higher, they can be dealt with by
incorporating filtering at the input of the INA220. The high frequency enables the use of low-value series resistors
on the filter for negligible effects on measurement accuracy. In general, filtering the INA220 input is only
necessary if there are transients at exact harmonics of the 500-kHz (±30%) sampling rate (>1 MHz). Filter using
the lowest possible series resistance and ceramic capacitor. TI recommends values of 0.1 to 1 μF. Figure 14
shows the INA220 with an additional filter added at the input.
Overload conditions are another consideration for the INA220 inputs. The INA220 inputs are specified to tolerate
26 V across the inputs. A large differential scenario might be a short to ground on the load side of the shunt. This
type of event can result in full power-supply voltage across the shunt (as long the power supply or energy
storage capacitors support it). It must be remembered that removing a short to ground can result in inductive
kickbacks that could exceed the 26-V differential and common-mode rating of the INA220. Inductive kickback
voltages are best dealt with by Zener-type transient-absorbing devices combined with sufficient energy storage
capacitance.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
11
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
Device Functional Modes (continued)
In applications that do not have large energy storage electrolytics on one or both sides of the shunt, an input
overstress condition may result from an excessive dV/dt of the voltage applied to the input. A hard physical short
is the most likely cause of this event, particularly in applications with no large electrolytics present. This problem
occurs because an excessive dV/dt can activate the ESD protection in the INA220 in systems where large
currents are available. Testing has demonstrated that the addition of 10-Ω resistors in series with each input of
the INA220 sufficiently protects the inputs against dV/dt failure up to the 26-V rating of the INA220. These
resistors have no significant effect on accuracy.
RSHUNT
Load
Supply
RFILTER 10Ω
RFILTER 10Ω
Supply Voltage
3.3V Supply
VBUS
0.1µF to 1µF
Ceramic Capacitor
VIN+ VIN-
VS
INA220
×
Power Register
Data (SDA)
Clock (SCL)
2
Current Register
ADC
I C-/SMBUS
Compatible
Interface
A0
A1
Voltage Register
GND
Figure 14. INA220 With Input Filtering
8.5 Programming
8.5.1 Programming the INA220 Calibration Register
Register Details shows the default power-up states of the registers. These registers are volatile, and if
programmed to anything other than default values, they must be reprogrammed at every device power-up. The
Calibration Register is calculated based on Equation 1. This equation includes the term Current_LSB, which is
the programmed value for the LSB for the Current Register (04h). The Current_LSB value is used to convert the
value in the Current Register (04h) to the actual current in amperes. The highest resolution for the Current
Register (04h) can be obtained by using the smallest allowable Current_LSB based on the maximum expected
current as shown in Equation 2. While this value yields the highest resolution, it is common to select a value for
the Current_LSB to the nearest round number above this value to simplify the conversion of the Current Register
(04h) and Power Register (03h) to amperes and watts respectively. The RSHUNT term is the value of the external
shunt used to develop the differential voltage across the input pins. The Power Register (03h) is internally set to
be 20 times the programmed Current_LSB (see Equation 3).
0.04096
Cal = trunc Current_LSB ´ R
SHUNT
where
•
•
0.04096 is an internal fixed value used to ensure scaling is maintained properly
Current_LSB is the programmed value for the LSB for the Current Register (04h)
Current _ LSB =
215
Power_LSB = 20 Current_LSB
12
(1)
Maximum Expected Current
(2)
(3)
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Programming (continued)
Shunt voltage is calculated by multiplying the Shunt Voltage Register contents with the Shunt Voltage LSB of 10
μV. The Bus Voltage register bits are not right-aligned. To compute the value of the Bus Voltage, Bus Voltage
Register contents must be shifted right by three bits. This shift puts the BD0 bit in the LSB position so that the
contents can be multiplied by the Bus Voltage LSB of 4-mV to compute the bus voltage measured by the device.
After programming the Calibration Register, the value expected in the Current Register (04h) can be calculated
by multiplying the Shunt Voltage register contents by the Calibration Register and then dividing by 4096 as
shown in Equation 4. To obtain a value in amperes, the Current register value is multiplied by the programmed
Current_LSB.
Shunt Voltage Re gister ´ Calibration Re gister
Current Register =
4096
(4)
The value expected in the Power register (03h) can be calculated by multiplying the Current register value by the
Bus Voltage register value and then dividing by 5000 as shown in Equation 5. Power Register content is
multiplied by Power LSB which is 20 times the Current_LSB for a power value in watts.
Current Re gister ´ Bus Voltage Re gister
Power Register =
5000
(5)
8.5.2 Programming the INA220 Power Measurement Engine
8.5.2.1 Calibration Register and Scaling
The Calibration register makes it possible to set the scaling of the Current and Power registers to whatever
values are most useful for a given application. One strategy may be to set the Calibration register such that the
largest possible number is generated in the Current register or Power register at the expected full-scale point;
this approach yields the highest resolution. The Calibration register can also be selected to provide values in the
Current and Power registers that either provide direct decimal equivalents of the values being measured, or yield
a round LSB number. After these choices have been made, the Calibration register also offers possibilities for
end-user system-level calibration, where the value is adjusted slightly to cancel total system error. After
determining the exact current by using an external ammeter, the value of the Calibration Register can then be
adjusted based on the measured current result of the INA220 to cancel the total system error as shown in
Equation 6.
Corrected_Full_Scale_Cal = trunc
Cal ´ MeasShuntCurrent
INA220_Current
(6)
8.5.3 Simple Current Shunt Monitor Usage (No Programming Necessary)
The INA220 can be used without any programming if it is only necessary to read a shunt voltage drop and bus
voltage with the default 12-bit resolution, 320-mV shunt full-scale range (PGA = /8), 32-V bus full-scale range,
and continuous conversion of shunt and bus voltage.
Without programming, current is measured by reading the shunt voltage. The Current register and Power register
are only available if the Calibration register contains a programmed value.
8.5.4 Bus Overview
The INA220 offers compatibility with both I2C and SMBus interfaces. The I2C and SMBus protocols are
essentially compatible with one another.
The I2C interface is used throughout this data sheet as the primary example, with SMBus protocol specified only
when a difference between the two systems is being addressed. Two lines, SCL and SDA, connect the INA220
to the bus. Both SCL and SDA are open-drain connections.
The device that initiates the transfer is called a master, and the devices controlled by the master are slaves. The
bus must be controlled by a master device that generates the serial clock (SCL), controls the bus access, and
generates START and STOP conditions.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
13
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
Programming (continued)
To address a specific device, the master initiates a START condition by pulling the data signal line (SDA) from a
high to a low logic level while SCL is high. All slaves on the bus shift in the slave address byte on the rising edge
of SCL, with the last bit indicating whether a read or write operation is intended. During the ninth clock pulse, the
slave being addressed responds to the master by generating an Acknowledge and pulling SDA low.
Data transfer is then initiated and eight bits of data are sent, followed by an Acknowledge bit. During data
transfer, SDA must remain stable while SCL is high. Any change in SDA while SCL is high is interpreted as a
START or STOP condition.
After all data have been transferred, the master generates a STOP condition, indicated by pulling SDA from low
to high while SCL is high. The INA220 includes a 28-ms timeout on its interface to prevent locking up an SMBus.
8.5.4.1 Serial Bus Address
To communicate with the INA220, the master must first address slave devices through a slave address byte. The
slave address byte consists of seven address bits, and a direction bit indicating the intent of executing a read or
write operation.
The INA220 has two address pins, A0 and A1. Table 1 describes the pin logic levels for each of the 16 possible
addresses. The state of pins A0 and A1 is sampled on every bus communication and should be set before any
activity on the interface occurs. The address pins are read at the start of each communication event.
Table 1. INA220 Address Pins and Slave Addresses
A1
A0
SLAVE ADDRESS
GND
GND
1000000
GND
VS
1000001
GND
SDA
1000010
GND
SCL
1000011
VS
GND
1000100
VS
VS
1000101
VS
SDA
1000110
VS
SCL
1000111
SDA
GND
1001000
SDA
VS
1001001
SDA
SDA
1001010
SDA
SCL
1001011
SCL
GND
1001100
SCL
VS
1001101
SCL
SDA
1001110
SCL
SCL
1001111
8.5.4.2 Serial Interface
The INA220 operates only as a slave device on the I2C bus and SMBus. Connections to the bus are made by the
open-drain I/O lines SDA and SCL. The SDA and SCL pins feature integrated spike suppression filters and
Schmitt triggers to minimize the effects of input spikes and bus noise. The INA220 supports the transmission
protocol for fast (1-kHz to 400-kHz) and high-speed (1-kHz to 2.56-MHz) modes. All data bytes are transmitted
most significant byte first.
8.5.5 Writing to and Reading from the INA220
Accessing a particular register on the INA220 is accomplished by writing the appropriate value to the register
pointer. Refer to Table 2 for a complete list of registers and corresponding addresses. The value for the register
pointer, as shown in Figure 18, is the first byte transferred after the slave address byte with the R/W bit LOW.
Every write operation to the INA220 requires a value for the register pointer.
14
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Writing to a register begins with the first byte transmitted by the master. This byte is the slave address, with the
R/W bit LOW. The INA220 then acknowledges receipt of a valid address. The next byte transmitted by the
master is the address of the register to which data will be written. This register address value updates the
register pointer to the desired register. The next two bytes are written to the register addressed by the register
pointer. The INA220 acknowledges receipt of each data byte. The master may terminate data transfer by
generating a START or STOP condition.
When reading from the INA220, the last value stored in the register pointer by a write operation determines
which register is read during a read operation. To change the register pointer for a read operation, a new value
must be written to the register pointer. This write is accomplished by issuing a slave address byte with the R/W
bit LOW, followed by the register pointer byte. No additional data are required. The master then generates a
START condition and sends the slave address byte with the R/W bit HIGH to initiate the read command. The
next byte is transmitted by the slave and is the most significant byte of the register indicated by the register
pointer. This byte is followed by an Acknowledge from the master; then the slave transmits the least significant
byte. The master acknowledges receipt of the data byte. The master may terminate data transfer by generating a
Not Acknowledge after receiving any data byte, or generating a START or STOP condition. If repeated reads
from the same register are desired, it is not necessary to continually send the register pointer bytes; the INA220
retains the register pointer value until it is changed by the next write operation.
Figure 15 and Figure 16 show write and read operation timing diagrams, respectively. Note that register bytes
are sent most-significant byte first, followed by the least significant byte. Figure 17 shows the timing diagram for
the SMBus Alert response operation. Figure 18 shows a typical register pointer configuration.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
15
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
1
9
1
9
1
9
1
9
SCL
SDA
1
0
0
A3
A2
A1
A0
R/W
Start By
Master
P7
P6
P5
P4
P3
P2
P1
ACK By
INA220
Frame 1 Two-Wire Slave Address Byte
P0
D15 D14
D13
D12 D11 D10
D9
D8
(1)
D7
D6
D5
D4
D3
D2
D1
D0
ACK By
INA220
ACK By
INA220
Frame 2 Register Pointer Byte
ACK By
INA220
Frame 3 Data MSByte
Stop By
Master
Frame 4 Data LSByte
NOTE (1): The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins. Refer to Table 1.
Figure 15. Timing Diagram for Write Word Format
1
9
1
9
1
9
SCL
SDA
1
0
0
A3
A2
A1
A0
R/W
Start By
Master
D15 D14
ACK By
INA220
Frame 1 Two-Wire Slave Address Byte
(1)
D13
D12
D11 D10
D9
From
INA220
Frame 2 Data MSByte
D7
D8
D6
ACK By
Master
(2)
D5
D4
D3
D2
D1
From
INA220
Frame 3 Data LSByte
D0
No ACK By
Master
(3)
Stop
(2)
NOTES: (1) The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins.
Refer to Table 1.
(2) Read data is from the last register pointer location. If a new register is desired, the register
pointer must be updated. See Figure 19.
(3) ACK by Master can also be sent.
Figure 16. Timing Diagram for Read Word Format
16
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
ALERT
1
9
1
9
SCL
SDA
0
0
0
1
1
0
0
1
R/W
Start By
Master
0
0
A3
A2
ACK By
INA220
A1
A0
0
From
INA220
Frame 1 SMBus ALERT Response Address Byte
Frame 2 Slave Address Byte
NACK By
Master
Stop By
Master
(1)
NOTE (1): The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins. Refer to Table 1.
Figure 17. Timing Diagram for SMBus Alert
1
9
1
9
SCL
¼
SDA
1
0
0
A3
A2
A1
A0
R/W
Start By
Master
P7
P6
P5
P4
P3
P2
P1
ACK By
INA220
Frame 1 Two-Wire Slave Address Byte
(1)
P0
Stop
ACK By
INA220
Frame 2 Register Pointer Byte
NOTE (1): The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins. Refer to Table 1.
Figure 18. Typical Register Pointer Set
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
17
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
8.5.5.1 High-Speed Two-Wire Mode
When the bus is idle, both the SDA and SCL lines are pulled high by the pullup devices. The master generates a
start condition followed by a valid serial byte containing high-speed (HS) master code 00001XXX. This
transmission is made in fast (400 kbps) or standard (100 kbps) (F/S) mode at no more than 400 kbps. The
INA220 does not acknowledge the HS master code, but does recognize it and switches its internal filters to
support 2.56-Mbps operation.
The master then generates a repeated start condition (a repeated start condition has the same timing as the start
condition). After this repeated start condition, the protocol is the same as F/S mode, except that transmission
speeds up to 2.56 Mbps are allowed. Instead of using a stop condition, repeated start conditions should be used
to secure the bus in HS-mode. A STOP condition ends the HS-mode and switches all the internal filters of the
INA220 to support the F/S mode. See Bus Timing Diagram Definitions (1) and Figure 1 for timing.
8.5.5.2 Power-Up Conditions
Power-up conditions apply to a software reset through the RST bit (bit 15) in the Configuration register, or the I2C
bus General Call Reset.
8.6 Register Maps
8.6.1 Register Information
The INA220 uses a bank of registers for holding configuration settings, measurement results, and status
information. Table 2 summarizes the INA220 registers; Functional Block Diagram illustrates the registers.
Register contents are updated 4 μs after completion of the write command. Therefore, a 4-μs delay is required
between completion of a write to a given register and a subsequent read of that register (without changing the
pointer) when using SCL frequencies in excess of 1 MHz.
Table 2. Summary of Register Set
POINTER
ADDRESS
REGISTER NAME
FUNCTION
HEX
(1)
(1)
(2)
18
POWER-ON RESET
TYPE (1)
BINARY
HEX
00111001 10011111
399F
R/W
Shunt voltage
—
R
Bus voltage
—
R
00
Configuration
All-register reset, settings for bus
voltage range, PGA gain, ADC
resolution/averaging.
01
Shunt voltage
Shunt voltage measurement data.
02
Bus voltage
03
Power (2)
Power measurement data.
00000000 00000000
0000
R
04
Current (2)
Contains the value of the current flowing
through the shunt resistor.
00000000 00000000
0000
R
05
Calibration
Sets full-scale range and LSB of current
and power measurements. Overall
system calibration.
00000000 00000000
0000
R/W
Bus voltage measurement data.
Values based on a statistical analysis of a one-time sample of devices. Minimum and maximum values are not ensured and not
production tested. Condition: A0=A1=0.
Type: R = Read only, R/W = Read/Write.
The Power register and Current register default to 0 because the Calibration register defaults to 0, yielding a zero current value until the
Calibration register is programmed.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
8.6.2 Register Details
All INA220 registers 16-bit registers are actually two 8-bit bytes through the I2C- or SMBUS-compatible interface.
8.6.2.1 Configuration Register (address = 00h) [reset = 399Fh]
Figure 19. Configuration Register
15
14
13
12
11
RST
—
BRNG
PG1
PG0
R/W0
R/W0
R/W-1
R/W-1
R/W-1
10
BADC
4
9
BADC
3
8
BADC
2
7
BADC
1
6
SADC
4
5
SADC
3
4
SADC
2
3
SADC
1
2
MODE
3
1
MODE
2
0
MODE
1
R/W-0
R/W-0
R/W-1
R/W-1
R/W-0
R/W-0
R/W-1
R/W-1
R/W-1
R/W-1
R/W-1
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
RST:
Reset Bit
Bit 15
Setting this bit to 1 generates a system reset that is the same as power-on reset. Resets all registers to default
values; this bit self-clears.
BRNG:
Bus Voltage Range
Bit 13
0 = 16-V FSR
1 = 32-V FSR (default value)
PG:
PGA (Shunt Voltage Only)
Bits 11, 12
Sets PGA gain and range. Note that the PGA defaults to ÷8 (320-mV range). Table 3 shows the gain and range for
the various product gain settings.
Table 3. PG Bit Settings [12:11]
(1)
(1)
PG1
PG0
GAIN
RANGE
0
0
1
±40 mV
0
1
/2
±80 mV
1
0
/4
±160 mV
1
1
/8
±320 mV
Shaded values are default.
BADC:
BADC Bus ADC Resolution/Averaging
Bits 7–10
These bits adjust the Bus ADC resolution (9-, 10-, 11-, or 12-bit) or set the number of samples used when
averaging results for the Bus Voltage Register (02h).
SADC:
SADC Shunt ADC Resolution/Averaging
Bits 3–6
These bits adjust the Shunt ADC resolution (9-, 10-, 11-, or 12-bit) or set the number of samples used when
averaging results for the Shunt Voltage Register (01h).
BADC (Bus) and SADC (Shunt) ADC resolution/averaging and conversion time settings are shown in Table 4.
Table 4. ADC Settings (SADC [6:3], BADC [10:7]) (1)
(1)
(2)
ADC4
ADC3
ADC2
ADC1
Mode/Samples
0
X (2)
0
0
9-bit
Conversion Time
84 μs
0
X (2)
0
1
10-bit
148 μs
0
X (2)
1
0
11-bit
276 μs
0
X (2)
1
1
12-bit
532 μs
1
0
0
0
12-bit
532 μs
1
0
0
1
2
1.06 ms
1
0
1
0
4
2.13 ms
1
0
1
1
8
4.26 ms
1
1
0
0
16
8.51 ms
1
1
0
1
32
17.02 ms
Shaded values are default.
X = Don't care
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
19
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
Table 4. ADC Settings (SADC [6:3], BADC [10:7])() (continued)
ADC4
ADC3
ADC2
ADC1
Mode/Samples
Conversion Time
1
1
1
0
64
34.05 ms
1
1
1
1
128
68.10 ms
MODE:
Operating Mode
Bits 0–2
Selects continuous, triggered, or power-down mode of operation. These bits default to continuous shunt and bus
measurement mode. The mode settings are shown in Table 5.
Table 5. Mode Settings [2:0] (1)
(1)
MODE3
MODE2
MODE1
0
0
0
Power-down
MODE
0
0
1
Shunt voltage, triggered
0
1
0
Bus voltage, triggered
0
1
1
Shunt and bus, triggered
1
0
0
ADC off (disabled)
1
0
1
Shunt voltage, continuous
1
1
0
Bus voltage, continuous
1
1
1
Shunt and bus, continuous
Shaded values are default.
8.6.3 Data Output Registers
8.6.3.1 Shunt Voltage Register (address = 01h)
The Shunt Voltage register stores the current shunt voltage reading, VSHUNT. Shunt Voltage register bits are
shifted according to the PGA setting selected in the Configuration register (00h). When multiple sign bits are
present, they are all the same value. Negative numbers are represented in 2's complement format. Generate the
2's complement of a negative number by complementing the absolute value binary number and adding 1. Extend
the sign, denoting a negative number by setting the MSB = 1. Extend the sign to any additional sign bits to form
the 16-bit word.
Example: For a value of VSHUNT = –320 mV:
1. Take the absolute value (include accuracy to 0.01 mV) → 320.00
2. Translate this number to a whole decimal number → 32000
3. Convert it to binary → 111 1101 0000 0000
4. Complement the binary result : 000 0010 1111 1111
5. Add 1 to the complement to create the 2's-complement formatted result → 000 0011 0000 0000
6. Extend the sign and create the 16-bit word: 1000 0011 0000 0000 = 8300h (Remember to extend the sign to
all sign-bits, as necessary based on the PGA setting.)
At PGA = /8, full-scale range = ±320 mV (decimal = 32000). For VSHUNT = +320 mV, Value = 7D00h; For VSHUNT
= –320 mV, Value =8300h; and LSB = 10 μV.
Figure 20. Shunt Voltage Register at PGA = /8
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
SD14_ SD13_ SD12_ SD11_ SD10_
SIGN
SD9_8 SD8_8 SD7_8 SD6_8 SD5_8 SD4_8 SD3_8 SD2_8 SD1_8 SD0_8
8
8
8
8
8
At PGA = /4, full-scale range = ±160 mV (decimal = 16000). For VSHUNT = +160 mV, Value = 3E80h; For VSHUNT
= –160 mV, Value = C180h; and LSB = 10 μV.
20
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Figure 21. Shunt Voltage Register at PGA = /4
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
SD13_ SD12_ SD11_ SD10_
SIGN SIGN
SD9_4 SD8_4 SD7_4 SD6_4 SD5_4 SD4_4 SD3_4 SD2_4 SD1_4 SD0_4
4
4
4
4
At PGA = /2, full-scale range = ±80 mV (decimal = 8000). For VSHUNT = +80 mV, Value = 1F40h; For VSHUNT =
–80 mV, Value = E0C0h; and LSB = 10 μV.
Figure 22. Shunt Voltage Register at PGA = /2
15
14
13
12
SD12_
SIGN SIGN SIGN
2
11
SD11_
2
10
SD10_
2
9
8
7
6
5
4
3
2
1
0
SD9_2
SD8_2
SD7_2
SD6_2
SD5_2
SD4_2
SD3_2
SD2_2
SD1_2
SD0_2
At PGA = /1, full-scale range = ±40 mV (decimal = 4000). For VSHUNT = +40 mV, Value = 0FA0h; For VSHUNT =
–40 mV, Value = F060h; and LSB = 10 μV.
Figure 23. Shunt Voltage Register at PGA = /1
15
14
13
12
SIGN
SIGN
SIGN
SIGN
11
10
9
8
7
6
5
4
3
2
1
0
SD11_ SD10_
SD9_1 SD8_1 SD7_1 SD6_1 SD5_1 SD4_1 SD3_1 SD2_1 SD1_1 SD0_1
1
1
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
21
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
Table 6. Shunt Voltage Register Format (1)
(1)
22
VSHUNT Reading (mV)
Decimal Value
PGA = /8
(D15:D0)
PGA = /4
(D15:D0)
PGA = /2
(D15:D0)
PGA = /1
(D15:D0)
320.02
32002
0111 1101 0000 0000
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
320.01
32001
0111 1101 0000 0000
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
320.00
32000
0111 1101 0000 0000
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
319.99
31999
0111 1100 1111 1111
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
319.98
31998
0111 1100 1111 1110
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
160.02
16002
0011 1110 1000 0010
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
160.01
16001
0011 1110 1000 0001
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
160.00
16000
0011 1110 1000 0000
0011 1110 1000 0000
0001 1111 0100 0000
0000 1111 1010 0000
159.99
15999
0011 1110 0111 1111
0011 1110 0111 1111
0001 1111 0100 0000
0000 1111 1010 0000
159.98
15998
0011 1110 0111 1110
0011 1110 0111 1110
0001 1111 0100 0000
0000 1111 1010 0000
80.02
8002
0001 1111 0100 0010
0001 1111 0100 0010
0001 1111 0100 0000
0000 1111 1010 0000
80.01
8001
0001 1111 0100 0001
0001 1111 0100 0001
0001 1111 0100 0000
0000 1111 1010 0000
80.00
8000
0001 1111 0100 0000
0001 1111 0100 0000
0001 1111 0100 0000
0000 1111 1010 0000
79.99
7999
0001 1111 0011 1111
0001 1111 0011 1111
0001 1111 0011 1111
0000 1111 1010 0000
79.98
7998
0001 1111 0011 1110
0001 1111 0011 1110
0001 1111 0011 1110
0000 1111 1010 0000
40.02
4002
0000 1111 1010 0010
0000 1111 1010 0010
0000 1111 1010 0010
0000 1111 1010 0000
40.01
4001
0000 1111 1010 0001
0000 1111 1010 0001
0000 1111 1010 0001
0000 1111 1010 0000
40.00
4000
0000 1111 1010 0000
0000 1111 1010 0000
0000 1111 1010 0000
0000 1111 1010 0000
39.99
3999
0000 1111 1001 1111
0000 1111 1001 1111
0000 1111 1001 1111
0000 1111 1001 1111
39.98
3998
0000 1111 1001 1110
0000 1111 1001 1110
0000 1111 1001 1110
0000 1111 1001 1110
0.02
2
0000 0000 0000 0010
0000 0000 0000 0010
0000 0000 0000 0010
0000 0000 0000 0010
0.01
1
0000 0000 0000 0001
0000 0000 0000 0001
0000 0000 0000 0001
0000 0000 0000 0001
0
0
0000 0000 0000 0000
0000 0000 0000 0000
0000 0000 0000 0000
0000 0000 0000 0000
–0.01
–1
1111 1111 1111 1111
1111 1111 1111 1111
1111 1111 1111 1111
1111 1111 1111 1111
–0.02
–2
1111 1111 1111 1110
1111 1111 1111 1110
1111 1111 1111 1110
1111 1111 1111 1110
–39.98
–3998
1111 0000 0110 0010
1111 0000 0110 0010
1111 0000 0110 0010
1111 0000 0110 0010
–39.99
–3999
1111 0000 0110 0001
1111 0000 0110 0001
1111 0000 0110 0001
1111 0000 0110 0001
–40.00
–4000
1111 0000 0110 0000
1111 0000 0110 0000
1111 0000 0110 0000
1111 0000 0110 0000
–40.01
–4001
1111 0000 0101 1111
1111 0000 0101 1111
1111 0000 0101 1111
1111 0000 0110 0000
–40.02
–4002
1111 0000 0101 1110
1111 0000 0101 1110
1111 0000 0101 1110
1111 0000 0110 0000
–79.98
–7998
1110 0000 1100 0010
1110 0000 1100 0010
1110 0000 1100 0010
1111 0000 0110 0000
–79.99
–7999
1110 0000 1100 0001
1110 0000 1100 0001
1110 0000 1100 0001
1111 0000 0110 0000
–80.00
–8000
1110 0000 1100 0000
1110 0000 1100 0000
1110 0000 1100 0000
1111 0000 0110 0000
–80.01
–8001
1110 0000 1011 1111
1110 0000 1011 1111
1110 0000 1100 0000
1111 0000 0110 0000
–80.02
–8002
1110 0000 1011 1110
1110 0000 1011 1110
1110 0000 1100 0000
1111 0000 0110 0000
–159.98
–15998
1100 0001 1000 0010
1100 0001 1000 0010
1110 0000 1100 0000
1111 0000 0110 0000
–159.99
–15999
1100 0001 1000 0001
1100 0001 1000 0001
1110 0000 1100 0000
1111 0000 0110 0000
–160.00
–16000
1100 0001 1000 0000
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
–160.01
–16001
1100 0001 0111 1111
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
–160.02
–16002
1100 0001 0111 1110
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
–319.98
–31998
1000 0011 0000 0010
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
–319.99
–31999
1000 0011 0000 0001
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
–320.00
–32000
1000 0011 0000 0000
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
–320.01
–32001
1000 0011 0000 0000
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
–320.02
–32002
1000 0011 0000 0000
1100 0001 1000 0000
1110 0000 1100 0000
1111 0000 0110 0000
Out-of-range values are shown in gray shading.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
8.6.3.2 Bus Voltage Register (address = 02h)
The Bus Voltage register stores the most recent bus voltage reading, VBUS.
At full-scale range = 32 V (decimal = 8000, hex = 1F40), and LSB = 4 mV.
Figure 24. Bus Voltage Register (BRNG = 1)
15
BD12
14
BD11
13
BD10
12
BD9
11
BD8
10
BD7
9
BD6
8
BD5
7
BD4
6
BD3
5
BD2
4
BD1
3
BD0
2
—
1
CNVR
0
OVF
3
BD0
2
—
1
CNVR
0
OVF
At full-scale range = 16 V (decimal = 4000, hex = 0FA0), and LSB = 4 mV.
Figure 25. Bus Voltage Register (BRNG = 0)
15
0
14
BD11
13
BD10
12
BD9
11
BD8
10
BD7
9
BD6
8
BD5
7
BD4
6
BD3
5
BD2
4
BD1
CNVR:
Conversion Ready
Bit 1
Although the data from the last conversion can be read at any time, the INA220 Conversion Ready bit (CNVR)
indicates when data from a conversion is available in the data output registers. The CNVR bit is set after all
conversions, averaging, and multiplications are complete. CNVR will clear under the following conditions:
1.) Writing a new mode into the Operating Mode bits in the Configuration Register (except for Power-Down or
Disable)
2.) Reading the Power Register
OVF:
Math Overflow Flag
Bit 0
The Math Overflow Flag (OVF) is set when the Power or Current calculations are out of range. It indicates that
current and power data may be meaningless.
8.6.3.3 Power Register (address = 03h) [reset = 00h]
Full-scale range and LSB are set by the Calibration register. See Programming the INA220 Calibration Register.
Figure 26. Power Register
15
PD15
R-0
14
PD14
R-0
13
PD13
R-0
12
PD12
R-0
11
PD11
R-0
10
PD10
R-0
9
PD9
R-0
8
PD8
R-0
7
PD7
R-0
6
PD6
R-0
5
PD5
R-0
4
PD4
R-0
3
PD3
R-0
2
PD2
R-0
1
PD1
R-0
0
PD0
R-0
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
The Power register records power in watts by multiplying the values of the current with the value of the bus
voltage according to the Equation 5:
8.6.3.4 Current Register (address = 04h) [reset =00h]
Full-scale range and LSB depend on the value entered in the Calibration register. See Programming the INA220
Calibration Register. Negative values are stored in 2's complement format.
Figure 27. Current Register
15
CSIGN
R-0
14
CD14
R-0
13
CD13
R-0
12
CD12
R-0
11
CD11
R-0
10
CD10
R-0
9
CD9
R-0
8
CD8
R-0
7
CD7
R-0
6
CD6
R-0
5
CD5
R-0
4
CD4
R-0
3
CD3
R-0
2
CD2
R-0
1
CD1
R-0
0
CD0
R-0
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
23
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
The value of the Current register is calculated by multiplying the value in the Shunt Voltage register with the
value in the Calibration register according to the Equation 4.
8.6.4 Calibration Register
8.6.4.1 Calibration Register (address = 05h) [reset = 00h]
Current and power calibration are set by bits FS15 to FS1 of the Calibration register. Note that bit FS0 is not
used in the calculation. This register sets the current that corresponds to a full-scale drop across the shunt. Fullscale range and the LSB of the current and power measurement depend on the value entered in this register.
See the Programming the INA220 Calibration Register. This register is suitable for use in overall system
calibration. Note that the 0 POR values are all default.
Figure 28. Calibration Register (1)
15
FS15
R/W-0
14
FS14
R/W-0
13
FS13
R/W-0
12
FS12
R/W-0
11
FS11
R/W-0
10
FS10
R/W-0
9
FS9
R/W-0
8
FS8
R/W-0
7
FS7
R/W-0
6
FS6
R/W-0
5
FS5
R/W-0
4
FS4
R/W-0
3
FS3
R/W-0
2
FS2
R/W-0
1
FS1
R/W-0
0
FS0
R-0
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
(1)
24
FS0 is a void bit and will always be 0. It is not possible to write a 1 to FS0. CALIBRATION is the value stored in FS15:FS1.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The INA220 is a digital current-shunt monitor with an I2C- and SMBus-compatible interface. It provides digital
current, voltage, and power readings necessary for accurate decision-making in precisely-controlled systems.
Programmable registers allow flexible configuration for measurement resolution, and continuous-versus-triggered
operation. See Table 2 for detailed register information. See Figure 29 for a block diagram of the INA220.
9.2 Typical Application
Figure 29 shows a typical application circuit for the INA220. Use a 0.1-μF ceramic capacitor for power-supply
bypassing, placed as closely as possible to the supply and ground pins.
The input filter circuit consisting of RF1, RF2, and CF is not necessary in most applications. If the need for filtering
is unknown, reserve board space for the components and install 0-Ω resistors unless a filter is needed. See
Filtering and Input Considerations.
Supply (0 to 26V)
+3.3V to
+5V
CBYPASS
0.1µF
HighSide
Shunt
Bus Voltage Input
VS (Supply Voltage)
INA220
×
Load
SDA
Power Register
2
LowSide
Shunt
R2F
V
VIN+
Current Register
I C-/SMBUSCompatible
Interface
ADC
R1F CF
SCL
DATA
CLK
A0
A1
Voltage Register
VIN-
I
GND
Figure 29. General Load, Low- or High-Side Sensing
9.2.1 Design Requirements
The INA220 measures the voltage across a current-sensing resistor (RSHUNT) when current passes through the
resistor. The device also measures the bus supply voltage, and calculates power when calibrated. This section
goes through the steps to program the device for power measurements, and shows the register results in
Table 7. The Conditions for the example circuit is: Maximum expected load current = 15 A, Nominal load current
= 10 A, VCM = 12 V, RSHUNT = 2 mΩ, VSHUNT FSR = 40 mV (PGA = /1), and BRNG = 0 (VBUS range = 16 V).
9.2.2 Detailed Design Procedure
In this example, the 10-A load creates a differential voltage of 20 mV across a 2-mΩ shunt resistor. The voltage
present at the IN– pin is equal to the common-mode voltage minus the differential drop across the resistor. The
bus voltage for the INA220 is measured at the external VBUS input pin, which in this example is connected to
the IN– pin to measure the voltage level delivered to the load. For this example, the voltage at the IN– pin is
11.98 V. For this particular range (40-mV full-scale), this small difference is not a significant deviation from the
12-V common-mode voltage. However, at larger full-scale ranges, this deviation can be much larger.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
25
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
Typical Application (continued)
Note that the Bus Voltage register bits are not right-aligned. To compute the value of the Bus Voltage register
contents using the LSB of 4 mV, the register must be shifted right by three bits. This shift puts the BD0 bit in the
LSB position so that the contents can be multiplied by the 4-mV LSB value to compute the bus voltage measured
by the device. The shifted value of the bus voltage register contents is now equal to BB3h, a decimal equivalent
of 2995. This value of 2995 multiplied by the 4-mV LSB results in a value of 11.98 V.
The Calibration register (05h) is set to provide the device information about the current shunt resistor that was
used to create the measured shunt voltage. By knowing the value of the shunt resistor, the device can then
calculate the amount of current that created the measured shunt voltage drop. The first step when calculating the
calibration value is setting the current LSB. The Calibration register value is based on a calculation that has its
precision capability limited by the size of the register and the Current register LSB. The device can measure
bidirectional current; thus, the MSB of the Current register is a sign bit that allows for the rest of the 15 bits to be
used for the Current register value. For this example, the minimum current LSB would be 457.78 µA/bit assuming
a maximum expected current of 15 A using Equation 2. For this example, a value of 1 mA/bit was chosen for the
current LSB. Setting the current LSB to this value allows for sufficient precision while serving to simplify the math
as well. Using Equation 1 results in a Calibration register value of 20480 or 5000h.
The Current register (04h) is internally calculated by multiplying the shunt voltage contents by the Calibration
register and then dividing by 4096 using Equation 4. For this example, the shunt voltage of 2000 is multiplied by
the Calibration register of 20480 and then divided by 4096 to yield a Current register value of 10000 (2710h).
The Power register (03h) is internally calculated by multiplying the Current register value of 10000 by the Bus
Voltage register value of 2995 and then dividing by 5000 using Equation 5. For this example, the Power register
contents are 5990 (1766h). Multiplying this result by the power LSB that is 20 times the 1 × 10–3 current LSB, or
20 × 10–3, results in a power calculation of 5990 × 20 mW/bit, which equals 119.8 W. This result matches what is
expected for this register. A manual calculation for the power being delivered to the load would use 11.98 V
(12 VCM – 20 mV shunt drop) multiplied by the load current of 10 A to give a 119.8-W result.
+3.3V to +5V
RSHUNT
2mΩ
+12V
VCM
10µF
10A
Load
0.1µF
VS (Supply Voltage)
×
V
VIN+
VIN-
SDA
Power Register
Current Register
Voltage Register
I2C-/
SMBUS
Compatible
Interface
SCK
A0
A1
I
GND
Figure 30. Example Circuit Configuration
26
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
Typical Application (continued)
9.2.2.1 Register Results for the Example Circuit
Table 7 shows the register readings for the Calibration example.
Table 7. Register Results (1)
(1)
REGISTER NAME
ADDRESS
CONTENTS
ADJ
Configuration
00h
019Fh
Shunt
01h
07D0h
Bus
02h
5D98h
Calibration
05h
5000h
20480
Current
04h
2710h
10000
1 mA
10.0 A
Power
03h
1766h
5990
20 mW
119.8 W
0BB3
DEC
LSB
VALUE
2000
10 µV
20 mV
2995
4 mV
11.98 V
Conditions: load = 10 A, VCM = 12 V, RSHUNT = 2 mΩ, VSHUNT FSR = 40 mV, and VBUS = 16 V.
9.2.3 Typical Application: –48-V Telecom Current/Voltage/Power Sense With Isolation
Figure 31, Figure 32, and Figure 33 show the INA220 in additional circuit configurations for current, voltage, and
power monitoring applications.
HCPL2300
0.1mF
+3.3V to +5V
1/4W Zener
or shunt reg
4.3kW
0.1mF
4.3kW
1W
10mF
-48V
Supply
8
1
7
2
6
3
5
4
SDA
0.1mF
35.7kW
+5V
HCPL2300
VBUS (Bus Voltage Input)
VS (Supply Voltage)
INA220
13.7kW
24V
Tranzorb
0.1mF
1
8
2
7
3
6
4
5
4.3kW
Power Register
Data
2
V
VIN+
Current Register
ADC
VIN-
I C-/SMBUS
Compatible
Interface
Voltage Register
I
GND
-48V
Supply
Clock
4.3kW
A1
HCPL2300
0.1mF
A0
8
1
7
2
6
3
5
4
4.3kW
SCL
-48V
to Load
Shunt
(40mV max
for 12-bit)
Figure 31. –48-V Telecom Current/Voltage/Power Sense With Isolation
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
27
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
9.2.4 Typical Application: 48-V Telecom Current/Voltage/Power Sense
Shunt
RSHUNT
From
Supply
Load
RG
+3.3V to
+5V
100Ω
MOSFET rated to
standoff supply voltage
such as BSS84 for
up to 50V
10kΩ
5.1V
Zener
0.1µF
35.7kΩ
OPA333
10µF
VBUS (Bus Voltage Input)
VS (Supply Voltage)
INA220
13.7kΩ
24V
Tranzorb
×
V
VIN+
RL
100Ω
Power Register
Current Register
ADC
VIN-
I2C-/SMBUS
Compatible
Interface
Data
(SDA)
Clock
(SCL)
A0
A1
Voltage Register
I
GND
Figure 32. 48-V Telecom Current/Voltage/Power Sense
9.2.5 Typical Application: General Source Low-Side Sensing
CBYPASS
0.1µF
+3.3V to
+5V
Bus Voltage Input
VS (Supply Voltage)
Load
INA220
Battery
×
SDA
Power Register
DATA
SCL
Shunt
(40mV
max
for
12-bit)
R2F
R1F
V
VIN+
Current Register
I2C-/SMBUS
Compatible
Interface
ADC
CF
CLK
A0
A1
Voltage Register
VIN-
I
Address
Select
GND
Figure 33. General Source Low-Side Sensing
28
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
10 Power Supply Recommendations
The input circuitry of the device can accurately measure signals on common-mode voltages beyond its power
supply voltage, VS. For example, the voltage applied to the VS power supply terminal can be 5 V, whereas the
load power-supply voltage being monitored (the common-mode voltage) can be as high as 26 V. Note also that
the device can withstand the full 0-V to 26-V range at the input terminals, regardless of whether the device has
power applied or not. Place the required power-supply bypass capacitors as close as possible to the supply and
ground terminals of the device to ensure stability. A typical value for this supply bypass capacitor is 0.1 μF.
Applications with noisy or high-impedance power supplies may require additional decoupling capacitors to reject
power-supply noise.
11 Layout
11.1 Layout Guidelines
Connect the input pins (IN+ and IN–) to the sensing resistor using a Kelvin connection or a 4-wire connection.
These connection techniques ensure that only the current-sensing resistor impedance is detected between the
input pins. Poor routing of the current-sensing resistor commonly results in additional resistance present between
the input pins. Given the very low ohmic value of the current-sensing resistor, any additional high-current carrying
impedance causes significant measurement errors. Place the power-supply bypass capacitor as close as
possible to the supply and ground pins.
11.2 Layout Example
A1
IN+
A0
IN±
Sense/Shunt
Resistor
(1)
NC
VBUS
SDA
GND
SCL
VS
2
I C/SMBUS
interface
Supply bypass
capacitor
Via to Ground Plane
Via to Power Plane
(1) Connect the VBUS pin to the power supply rail
Figure 34. Layout Recommendation
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
29
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
12 Device and Documentation Support
12.1 Related Documentation
For related documentation see the TPS2490/1 Positive High-Voltage Power-Limiting Hotswap Controller data
sheet (SLVS503).
12.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.3 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
30
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
PACKAGE OUTLINE
DGS0010A
VSSOP - 1.1 mm max height
SCALE 3.200
SMALL OUTLINE PACKAGE
C
5.05
TYP
4.75
SEATING PLANE
PIN 1 ID
AREA
A
0.1 C
8X 0.5
10
1
3.1
2.9
NOTE 3
2X
2
5
6
10X
B
3.1
2.9
NOTE 4
SEE DETAIL A
0.27
0.17
0.1
C A
1.1 MAX
B
0.23
TYP
0.13
0.25
GAGE PLANE
0 -8
0.15
0.05
0.7
0.4
DETAIL A
TYPICAL
4221984/A 05/2015
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.15 mm per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side.
5. Reference JEDEC registration MO-187, variation BA.
www.ti.com
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
31
INA220
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
www.ti.com
EXAMPLE BOARD LAYOUT
DGS0010A
VSSOP - 1.1 mm max height
SMALL OUTLINE PACKAGE
10X (1.45)
(R0.05)
TYP
SYMM
10X (0.3)
1
10
SYMM
8X (0.5)
6
5
(4.4)
LAND PATTERN EXAMPLE
SCALE:10X
SOLDER MASK
OPENING
METAL
SOLDER MASK
OPENING
METAL UNDER
SOLDER MASK
0.05 MAX
ALL AROUND
0.05 MIN
ALL AROUND
SOLDER MASK
DEFINED
NON SOLDER MASK
DEFINED
SOLDER MASK DETAILS
NOT TO SCALE
4221984/A 05/2015
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
www.ti.com
32
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
INA220
www.ti.com
SBOS459E – JUNE 2009 – REVISED JANUARY 2016
EXAMPLE STENCIL DESIGN
DGS0010A
VSSOP - 1.1 mm max height
SMALL OUTLINE PACKAGE
10X (1.45)
10X (0.3)
SYMM
(R0.05) TYP
1
10
SYMM
8X (0.5)
6
5
(4.4)
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE:10X
4221984/A 05/2015
NOTES: (continued)
8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
9. Board assembly site may have different recommendations for stencil design.
www.ti.com
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: INA220
33
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
INA220AIDGSR
ACTIVE
VSSOP
DGS
10
2500
RoHS & Green NIPDAU | NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
OOUI
INA220AIDGST
ACTIVE
VSSOP
DGS
10
250
RoHS & Green NIPDAU | NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
OOUI
INA220BIDGSR
ACTIVE
VSSOP
DGS
10
2500
RoHS & Green NIPDAU | NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
ZAEI
INA220BIDGST
ACTIVE
VSSOP
DGS
10
250
RoHS & Green NIPDAU | NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
ZAEI
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
