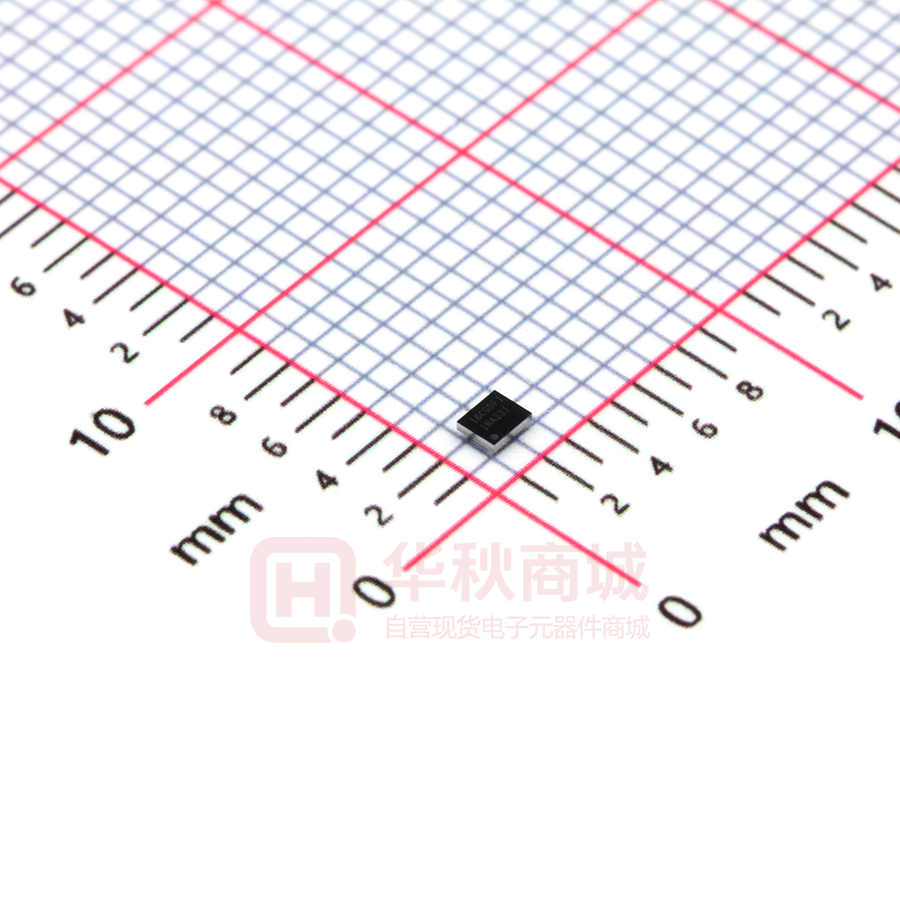

INA231AIYFFR

INA231 SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 INA231 28-V, 16-Bit, I2C Output Current, Voltage and Power Monitor With Alert in WCSP Package 1 Features 3 Description • • • • The INA231 is a current-shunt and power monitor with a 1.8-V compliant I2C interface that features 16 programmable addresses. The INA231 monitors both shunt voltage drops and bus supply voltage, providing increased protection by asserting the ALERT pin if the values are outside the programmed range. Programmable calibration value, conversion time, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts, thus reducing host processing. • • • • • Bus voltage sensing from 0 V to 28 V High- or low-side sensing Current, voltage, and power reporting High accuracy: – Gain error: 0.5% (maximum) – Offset: 50 μV (maximum) Configurable averaging options Programmable alert threshold 1.8-V I2C compliant Power-supply operation: 2.7 V to 5.5 V Start-up mode options: – INA231A: active conversion – INA231B: low-current power down The INA231 senses current on bus voltages that vary from 0 V to 28 V, with the device powered from a single 2.7-V to 5.5-V supply, drawing 330 μA (typical) of supply current. The INA231 is specified over the operating temperature range of –40°C to +125°C. 2 Applications • • • • • • • • Smartphones Tablets Servers Computers Power management Battery chargers Power supplies Test equipment The INA231 is available in two versions: the INA231A starts up performing continuous conversions of the shunt and bus voltage, whereas the INA231B starts up in low-current, power-down mode. Packaging Information(1) PART NUMBER PACKAGE YFF (DSBGA-12) YFD (DSBGA-12) 1.65 mm × 1.39 mm × 0.40 mm YFD (DSBGA-12) 1.65 mm × 1.39 mm × 0.40 mm INA231A INA231B (1) For all available packages, see the package option addendum at the end of the datasheet. Power Supply (0 V to 28 V) HighSide Shunt BODY SIZE (NOM) 1.65 mm × 1.39 mm × 0.62 mm CBYPASS 0.1 mF VS (Supply Voltage) BUS INA231 SDA SCL ´ Load Power Register V 2 Current Register ADC LowSide Shunt I Voltage Register IC Interface ALERT A0 Alert Register A1 GND High-or Low-Side Sensing An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 Table of Contents 1 Features............................................................................1 2 Applications..................................................................... 1 3 Description.......................................................................1 4 Revision History.............................................................. 2 5 Device Comparison......................................................... 3 6 Pin Configuration and Functions...................................3 7 Specifications.................................................................. 4 7.1 Absolute Maximum Ratings........................................ 4 7.2 ESD Ratings............................................................... 4 7.3 Recommended Operating Conditions.........................4 7.4 Thermal Information....................................................4 7.5 Electrical Characteristics.............................................5 7.6 Timing Requirements: I2C Bus....................................6 7.7 Typical Characteristics................................................ 7 8 Detailed Description......................................................10 8.1 Overview................................................................... 10 8.2 Functional Block Diagram......................................... 10 8.3 Feature Description...................................................10 8.4 Device Functional Modes..........................................14 8.5 Programming............................................................ 15 8.6 Register Maps...........................................................22 9 Application and Implementation.................................. 28 9.1 Application Information............................................. 28 9.2 Typical Applications.................................................. 30 9.3 Power Supply Recommendations.............................31 9.4 Layout....................................................................... 31 10 Device and Documentation Support..........................33 10.1 Documentation Support.......................................... 33 10.2 Receiving Notification of Documentation Updates..33 10.3 Support Resources................................................. 33 10.4 Trademarks............................................................. 33 10.5 Electrostatic Discharge Caution..............................33 10.6 Glossary..................................................................33 11 Mechanical, Packaging, and Orderable Information.................................................................... 33 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision C (March 2018) to Revision D (July 2022) Page • Updated the numbering format for tables, figures, and cross-references throughout the document..................1 • Added footnote to B2 and C2 pins......................................................................................................................3 • Changed value from 40 ms to 40 µs in sentence: Full recovery from power-down mode requires 40 µs........ 10 • Moved the Power Supply Recommendations and Layout sections to the Application and Implementation section.............................................................................................................................................................. 31 Changes from Revision B (August 2017) to Revision C (March 2018) Page • Added B version device and associated content ............................................................................................... 1 Changes from Revision A (June 2017) to Revision B (August 2017) Page • Changed NC pin description from "No internal connection" to "Do not connect, leave floating" ....................... 3 • Changed SCL max value from VS + 0.3 V to 6 V in Absolute Maximum Ratings table...................................... 4 • Added text to end of Layout Guidelines section clarifying no connection of NC pins....................................... 31 Changes from Revision * (February 2013) to Revision A (June 2017) Page • Added Device Information, Recommended Operating Conditions, and ESD Ratings tables, and Detailed Description , Application and Implementation, Power Supply Recommendations, Layout, Device and Documentation Support , and Mechanical, Packaging, and Orderable Information sections.............................1 • Added new WSCP-12 (YFD) package with 0.4-mm package height and associated content to data sheet......1 • Added operating ambient temperature, TA to Absolute Maximum Ratings table................................................4 • Added new note 1 to Timing Requirements: I2C Bus section ........................................................................... 6 • Added test condition to Figure 2 ........................................................................................................................ 7 2 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 5 Device Comparison Table 5-1. Device Comparison DEVICE DESCRIPTION INA209 Current and power monitor with watchdog, peak-hold, and fast comparator functions INA210, INA211, INA212, INA213, INA214, Zerø-drift, low-cost, analog current shunt monitor series in small package INA215 INA219 Zerø-drift, bidirectional current power monitor with two-wire interface INA226 High or Low-side, bidirectional current and power monitor with two-wire interface and programmable alert 6 Pin Configuration and Functions 1 2 3 A SCL SDA ALERT B VS NC A0 C GND NC A1 D BUS IN± IN+ Not to scale Figure 6-1. YFF and YFD Packages 12-Pin DSBGA Top View Table 6-1. Pin Functions PIN DESCRIPTION NO. A0 B3 Digital input Address pin. Connect to GND, SCL, SDA, or VS. Table 8-2 shows pin settings and corresponding addresses. A1 C3 Digital input Address pin. Connect to GND, SCL, SDA, or VS. Table 8-2 shows pin settings and corresponding addresses. ALERT A3 Digital output GND C1 Analog NC SCL (1) TYPE NAME B2, C2(1) — Multi-functional alert, open-drain output. Ground Do not connect, leave floating. A1 Digital input Serial bus clock line, open-drain input. SDA A2 Digital input/ output Serial bus data line, open-drain input/output. BUS D1 Analog input Bus voltage input. IN– D2 Analog input Negative differential shunt voltage input. Connect to load side of shunt resistor. IN+ D3 Analog input Positive differential shunt voltage input. Connect to supply side of shunt resistor. VS B1 Analog Power supply pin, 2.7 V to 5.5 V. Internally, B2 is connected to VS and C2 is connected to GND. Leave floating. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 3 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 7 Specifications 7.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted)(1) MIN MAX UNIT 6 V Supply voltage, VS )(2) Differential (VIN+) – (VIN– –30 30 V Common-mode –0.3 30 V SDA GND – 0.3 6 V SCL GND – 0.3 6 V Input current into any pin 5 mA Open-drain digital output current 10 mA 125 °C 150 °C 150 °C Analog inputs, IN+, IN– Operating ambient temperature, TA –40 Junction temperature, TJ Storage temperature, Tstg (1) (2) –65 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. VIN+ and VIN– may have a differential voltage of –30 V to +30 V; however, the voltage at these pins must not exceed the range –0.3 V to +30 V. 7.2 ESD Ratings VALUE Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) V(ESD) Electrostatic discharge Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) 1000 Machine model (MM) (1) (2) UNIT 2500 V 150 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 7.3 Recommended Operating Conditions MIN NOM MAX UNIT VCM Common-mode voltage 0 28 V VS Operating supply voltage 2.7 5.5 V TA Operating ambient temperature –40 125 °C 7.4 Thermal Information INA231 THERMAL METRIC(1) YFF (DSBGA) 12 PINS 12 PINS 83.8 90.2 °C/W RθJA Junction-to-ambient thermal resistance RθJC(top) Junction-to-case (top) thermal resistance 0.4 0.5 °C/W RθJB Junction-to-board thermal resistance 19.3 40.0 °C/W ψJT Junction-to-top characterization parameter 0.3 3.0 °C/W ψJB Junction-to-board characterization parameter 19.4 39.2 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance N/A N/A °C/W (1) 4 UNIT YFD (DSBGA) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 7.5 Electrical Characteristics at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV, and VBUS = 12 V (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT SHUNT INPUT Shunt voltage input CMR Common-mode rejection VOS Shunt offset voltage, RTI(1) PSRR vs power supply –81.92 VIN+ = 0 V to 28 V 100 81.9175 mV 120 dB ±10 ±50 μV TA = –40°C to +125°C 0.1 0.5 μV/°C VS = 2.7 V to 5.5 V 10 μV/V BUS INPUT Bus voltage input range(2) VOS Bus offset voltage, RTI(1) PSRR vs power supply 0 TA = –40°C to +125°C 28 ±5 ±30 mV 10 40 μV/°C 2 BUS pin input impedance V mV/V 830 kΩ INPUT IIN+, IIN- Input bias current Input leakage(3) 10 μA (VIN+) + (VIN–), Power-Down mode 0.1 0.5 μA Shunt voltage 2.5 μV 1.25 mV DC ACCURACY ADC native resolution 1 LSB step size Shunt voltage gain error Bus voltage gain error 16 Bus voltage 0.2% TA = –40°C to +125°C TA = –40°C to +125°C Differential nonlinearity ADC conversion time Bits 0.5% 10 50 0.2% 0.5% 10 50 ±0.1 ppm/°C ppm/°C LSB CT bit = 000 140 154 μs CT bit = 001 204 224 μs CT bit = 010 332 365 μs CT bit = 011 588 646 μs CT bit = 100 1.1 1.21 ms CT bit = 101 2.116 2.328 ms CT bit = 110 4.156 4.572 ms CT bit = 111 8.244 9.068 ms 28 35 ms 2 μA SMBus SMBus timeout(4) DIGITAL INPUT/OUTPUT Input capacitance Leakage input current 3 0 ≤ VIN ≤ VS 0.5 pF VIH High-level input voltage 1.4 6 V VIL Low-level input voltage –0.5 0.4 V VOL Low-level output voltage (SDA, ALERT) 0 0.4 V IOL = 3 mA Hysteresis 500 mV POWER SUPPLY Quiescent current Power-Down mode Power-on reset threshold (1) (2) 330 420 μA 3 7 μA 2 V RTI = Referred-to-input. Although the input range is 28 V, the full-scale range of the ADC scaling is 40.96 V. Do not apply more than 28 V. See the Basic Analog-to-Digital Converter (ADC) Functions section for more details Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 5 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 (3) (4) Input leakage is positive (current flowing into the pin) for the conditions shown at the top of this table. Negative leakage currents can occur under different input conditions. SMBus timeout in the INA231 resets the interface any time SCL is low for more than 28 ms. 7.6 Timing Requirements: I2C Bus see (1) FAST MODE MIN f(SCL) SCL operating frequency t(BUF) TYP MAX MIN TYP MAX INA231A 0.001 0.4 0.001 2.5 INA231B 0.01 0.4 0.01 2.5 Bus free time between stop and start conditions UNIT MHz 600 260 ns Hold time after repeated START condition. t(HDSTA) After this period, the first clock is generated. 100 100 ns t(SUSTA) Repeated start condition setup time 100 100 ns t(SUSTO) STOP condition setup time 100 100 ns t(HDDAT) Data hold time, VS ≤ 3.3 V 0 0 130 ns t(HDDAT) Data hold time, VS > 3.3 V 10 10 130 ns t(SUDAT) Data setup time (1) HIGH-SPEED MODE 100 50 ns t(LOW) SCL clock low period 1300 260 ns t(HIGH) SCL clock high period 600 60 ns tF Data fall time 300 80 ns tR Data rise time 300 80 ns tF Clock fall time 300 40 ns tR Clock rise time 300 40 ns tR Clock/data rise time for SCLK ≤ 100 kHz 1000 ns Values based on a statistical analysis of a one-time sample of devices. Minimum and maximum values are specified by design, but not production tested. t(LOW) tF tR t(HDSTA) SCL t(HDSTA) t(HIGH) t(HDDAT) t(SUSTO) t(SUSTA) t(SUDAT) SDA t(BUF) P S S P Figure 7-1. Bus Timing Diagram 6 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 7.7 Typical Characteristics at TA = 25°C, VS = 3.3 V,VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV, and VBUS = 12 V (unless otherwise noted) 0 −10 Population Gain (dB) −20 −30 −40 −50 1 10 100 1k Frequency (Hz) 10k 100k −50 −45 −40 −35 −30 −25 −20 −15 −10 −5 0 5 10 15 20 25 30 35 40 45 50 −60 G001 Conversion time = 1.1 ms Input Offset Voltage (µV) G002 Figure 7-3. Shunt Input Offset Voltage Production Distribution Figure 7-2. Frequency Response 170 Common-Mode Rejection Ratio (dB) 10 Offset (µV) 0 −10 −20 −50 −25 0 25 50 Temperature (°C) 75 100 160 150 140 −50 125 −25 0 25 50 Temperature (°C) G003 Figure 7-4. Shunt Input Offset Voltage vs Temperature 75 100 125 G004 Figure 7-5. Shunt Input Common-Mode Rejection Ratio vs Temperature 500 Population Gain Error (m%) 400 300 200 Shunt Gain Error (m%) 0 −50 500 400 300 200 100 0 −100 −200 −300 −400 −500 100 G005 Figure 7-6. Shunt Input Gain Error Production Distribution −25 0 25 50 Temperature (°C) 75 100 125 G006 Figure 7-7. Shunt Input Gain Error vs Temperature Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 7 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 7.7 Typical Characteristics (continued) at TA = 25°C, VS = 3.3 V,VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV, and VBUS = 12 V (unless otherwise noted) 300 250 Population Gain Error (m%) 200 150 100 50 G007 Figure 7-8. Shunt Input Gain Error vs Common-Mode Voltage 30 25 27.5 20 22.5 15 17.5 10 12.5 5 7.5 36 0 32 2.5 8 12 16 20 24 28 Common−Mode Input Voltage (V) −2.5 4 −5 0 −5 −50 −15 0 Input Offset Voltage (mV) G008 Figure 7-9. Bus Input Offset Voltage Production Distribution −0.6 Population Offset (mV) −0.8 −1 G009 500 25 400 20 300 200 100 0 −50 −25 0 25 50 Temperature (°C) 75 100 400 300 500 G010 125 15 10 5 0 0 G011 Figure 7-12. Bus Input Gain Error vs Temperature 8 Input Gain Error (m%) Figure 7-11. Bus Input Gain Error Production Distribution Input Bias Current (µA) Gain Error (m%) Figure 7-10. Bus Input Offset Voltage vs Temperature 200 125 100 100 0 75 −100 25 50 Temperature (°C) −200 0 −300 −25 −400 −1.4 −50 −500 −1.2 4 8 12 16 20 24 28 Common-Mode Input Voltage (V) 32 36 G012 Figure 7-13. Input Bias Current vs Common-Mode Voltage Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 7.7 Typical Characteristics (continued) at TA = 25°C, VS = 3.3 V,VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV, and VBUS = 12 V (unless otherwise noted) 260 Input Bias Current − Shutdown (nA) Input Bias Current (µA) 24 22 20 18 16 −50 −25 0 25 50 Temperature (°C) 75 100 140 100 60 −25 0 G013 25 50 Temperature (°C) 75 100 125 G014 Figure 7-15. Input Bias Current vs Temperature, Shutdown 2.6 Quiescent Current − Shutdown (µA) 500 Quiescent Current (µA) 180 20 −50 125 Figure 7-14. Input Bias Current vs Temperature 400 300 200 100 −50 220 −25 0 25 50 Temperature (°C) 75 100 2.4 2.2 2 1.8 1.6 −50 125 −25 0 G015 Figure 7-16. Active IQ vs Temperature 25 50 Temperature (°C) 75 100 125 G016 Figure 7-17. Shutdown IQ vs Temperature 500 300 250 Shutdown IQ (mA) IQ (mA) 450 400 200 150 100 350 50 300 0 1 10 100 1,000 10,000 1 Frequency (kHz) 10 100 1,000 10,000 Frequency (kHz) Figure 7-18. Active IQ vs I2C Clock Frequency Figure 7-19. Shutdown IQ vs I2C Clock Frequency Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 9 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8 Detailed Description 8.1 Overview The INA231 is a digital, current-sense amplifier with an I2C- and SMBus-compatible interface. It provides digital current, voltage, and power readings necessary for accurate decision-making in precisely controlled systems. Programmable registers allow flexible configuration for measurement resolution, as well as continuous-versustriggered operation. Detailed register information is shown in the Register Maps section. See the Functional Block Diagram section for a block diagram of the INA231 device. 8.2 Functional Block Diagram Power (1) Bus Voltage (1) ´ Shunt Voltage Channel Current (1) ADC Bus Voltage Channel Calibration (2) ´ Shunt Voltage (1) Data Registers A. B. Read-only Read/write Figure 8-1. Functional Block Diagram 8.3 Feature Description 8.3.1 Basic Analog-to-Digital Converter (ADC) Functions The INA231 performs two measurements on the power-supply bus of interest. The voltage developed from the load current that flows through a shunt resistor creates the shunt voltage signal that is measured at the IN+ and IN– pins. The device can also measure the power supply bus voltage by connecting this voltage to the BUS pin. The differential shunt voltage is measured with respect to the IN– pin whereas the bus voltage is measured with respect to ground. The INA231 is typically powered by a separate supply that can range from 2.7 V to 5.5 V. The bus that is being monitored can range in voltage from 0 V to 28 V. Note Based on the fixed 1.25 mV LSB for the bus voltage register, a full-scale register would result in a 40.96-V value. However, the actual voltage that is applied to the input pins of the INA231 should not exceed 28 V. There are no special considerations for power-supply sequencing because the common-mode input range and power-supply voltage are independent of each other; therefore, the bus voltage can be present with the supply voltage off, and vice-versa. As noted, the INA231 takes two measurements, shunt voltage and bus voltage. It then converts these measurements to current, based on the Calibration register value, and then calculates power. See the Configure, Measure, and Calculate Example section for additional information on programming the calibration register. 10 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 The INA231 has two operating modes, continuous and triggered, that determine how the ADC operates after these conversions. When the INA231 is in the normal operating mode (that is, the MODE bits of the Configuration register are set to '111'), it continuously converts a shunt voltage reading followed by a bus voltage reading. After the shunt voltage reading, the current value is calculated based on Equation 3. This current value is then used to calculate the power result using Equation 4. These values are subsequently stored in an accumulator, and the measurement and calculation sequence repeats until the number of averages set in the Configuration register is reached. Note that the current and power calculations are based on the value programmed into the Calibration register. If the Calibration register is not programmed, the result of the current and power calculations is zero. Following every sequence, the present set of measured and calculated values are appended to the previously collected values. After all of the averaging has been completed, the final values for shunt voltage, bus voltage, current, and power are updated in the corresponding registers and can then be read. These values remain in the data output registers until they are replaced by the next fully completed conversion results. Reading the data output registers does not affect a conversion in progress. The mode control bits in the Configuration register also permit selecting specific modes to convert only the shunt voltage or the bus voltage in order to further allow the monitoring function configuration to fit specific application requirements. All current and power calculations are performed in the background and do not contribute to conversion time. In triggered mode, writing any of the triggered convert modes into the Configuration register (that is, the MODE bits of the Configuration register are set to 001, 010, or 011) triggers a single-shot conversion. This action produces a single set of measurements. To trigger another single-shot conversion, the Configuration register must be written to again, even if the mode does not change. In addition to the two operating modes (continuous and triggered), the INA231 also has a power-down mode that reduces the quiescent current and turns off current into the INA231 inputs, which reduces the impact of supply drain when the device is not being used. Full recovery from power-down mode requires 40 μs. The registers of the INA231 can be written to and read from while the device is in power-down mode. The device remains in power-down mode until one of the active modes settings are written into the Configuration register. Although the INA231 can be read at any time, and the data from the last conversion remain available, the conversion ready flag bit (CVRF bit, Mask/Enable register) is provided to help coordinate single-shot or triggered conversions. The CVRF bit is set after all conversions, averaging, and multiplication operations are complete for a single cycle. The CVRF bit clears under these conditions: 1. Writing to the Configuration register, except when configuring the MODE bits for power-down mode; or 2. Reading the Status register. 8.3.1.1 Power Calculation The current and power are calculated after shunt voltage and bus voltage measurements, as shown in Figure 8-2. The current is calculated after a shunt voltage measurement based on the value set in the Calibration register. If there is no value loaded into the Calibration register, the current value stored is zero. Power is calculated following the bus voltage measurement based on the previous current calculation and bus voltage measurement. If there is no value loaded in the Calibration register, the power value stored is also zero. These calculations are performed in the background and do not add to the overall conversion time. These current and power values are considered intermediate results (unless the averaging is set to 1) and are stored in an internal accumulation register, not the corresponding output registers. Following every measured sample, the newly-calculated values for current and power are appended to this accumulation register until all of the samples have been measured and averaged based on the number of averages set in the Configuration register. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 11 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 Bus and Power Limit Detect Following Every Bus Voltage Conversion Current Limit Detect Following Every Shunt Voltage Conversion I V I P V I P V I V P I P V I P V I P V I P V I P V I V P I P V I P V I P V I P V I P V I P V P Power Average Bus Voltage Average Shunt Voltage Average Figure 8-2. Power Calculation Scheme In addition to the current and power accumulating after every sample, the shunt and bus voltage measurements are also collected. After all of the samples have been measured and the corresponding current and power calculations have been made, the accumulated average for each of these parameters is then loaded to the corresponding output registers where they can then be read. 8.3.1.2 ALERT Pin The INA231 has a single Alert Limit register (07h) that allows the ALERT pin to be programmed to respond to a single user-defined event or to a conversion ready notification if desired. The Mask/Enable register allows for selection from one of the five available functions to monitor and set the conversion ready bit (CNVR, Mask/ Enable register) to control the response of the ALERT pin. Based on the function being monitored, a value would then be entered into the Alert Limit register to set the corresponding threshold value that asserts the ALERT pin. The ALERT pin allows for one of several available alert functions to be monitored to determine if a user-defined threshold has been exceeded. The five alert functions that can be monitored are: • Shunt voltage overlimit (SOL) • Shunt voltage underlimit (SUL) • Bus voltage overlimit (BOL) • Bus voltage underlimit (BUL) • Power overlimit (POL) The ALERT pin is an open-drain output. This pin is asserted when the alert function selected in the Mask/Enable register exceeds the value programmed into the Alert Limit register. Only one of these alert functions can be enabled and monitored at a time. If multiple alert functions are enabled, the selected function in the highest significant bit position takes priority and responds to the Alert Limit register value. For example, if the SOL and the SUL are both selected, the ALERT pin asserts when the Shunt Voltage Over Limit register exceeds the value in the Alert Limit register. The conversion-ready state of the device can also be monitored at the ALERT pin to inform the user when the device has completed the previous conversion and is ready to begin a new conversion. The conversion ready flag (CVRF) bit can be monitored at the ALERT pin along with one of the alert functions. If an alert function and the CNVR bit are both enabled for monitoring at the ALERT pin, then after the ALERT pin is asserted, the CVRF bit (D3) and the AFF bit (D4) in the Mask/Enable register must be read following the alert to determine the source of the alert. If the conversion ready feature is not desired, and the CNVR bit is not set, the ALERT pin only responds to an exceeded alert limit based on the alert function enabled. If the alert function is not used, the ALERT pin can be left floating without impacting the operation of the device. Refer to Figure 8-2 to see the relative timing of when the value in the Alert Limit register is compared to the corresponding converted value. For example, if the alert function that is enabled is Shunt Voltage Over Limit (SOL), following every shunt voltage conversion the value in the Alert Limit register is compared to the measured shunt voltage to determine if the measurements have exceeded the programmed limit. The AFF bit (D4, Mask/ Enable register) asserts high any time the measured voltage exceeds the value programmed into the Alert Limit 12 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 register. In addition to the AFF bit being asserted, the ALERT pin is asserted based on the Alert Polarity bit (APOL, D1, Mask/Enable register). If the Alert Latch is enabled, the AFF bit and ALERT pin remain asserted until either the Configuration register is written to or the Mask/Enable register is read. The bus voltage alert functions (BOL and BUL, Mask/Enable register) compare the measured bus voltage to the Alert Limit register following every bus voltage conversion and assert the AFF bit and ALERT pin if the limit threshold is exceeded. The power overlimit alert function (POL, Mask/Enable register) is also compared to the calculated power value following every bus voltage measurement conversion and asserts the AFF bit and ALERT pin if the limit threshold is exceeded. The alert function compares the programmed alert limit value to the result of each corresponding conversion. Therefore, an alert can be issued during a conversion cycle where the averaged value of the signal does not exceed the alert limit. Triggering an alert based on this intermediate conversion allows for out-of-range events to be detected faster than the averaged output data registers are updated. This fast detection can be used to create alert limits for quickly changing conditions through the use of the alert function, as well as to create limits to longer-duration conditions through software monitoring of the averaged output values. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 13 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.4 Device Functional Modes 8.4.1 Averaging and Conversion Time Considerations The INA231 has programmable conversion times for both the shunt voltage and bus voltage measurements. The conversion times for these measurements can be selected from as fast as 140 μs to as long as 8.244 ms. The conversion time settings, along with the programmable averaging mode, allow the INA231 to be configured to optimize the available timing requirements in a given application. For example, if a system requires that data be read every 5 ms, the INA231 can be configured with the conversion times set to 588 μs and the averaging mode set to 4. This configuration results in the data updating approximately every 4.7 ms. The INA231 can also be configured with a different conversion time setting for the shunt and bus voltage measurements. This type of approach is common in applications where the bus voltage tends to be relatively stable. This situation allows for the time spent measuring the bus voltage to be reduced relative to the shunt voltage measurement. The shunt voltage conversion time can be set to 4.156 ms with the bus voltage conversion time set to 588 μs, and the averaging mode set to 1. This configuration also results in data updating approximately every 4.7 ms. There are trade-offs associated with the conversion time settings and the averaging mode used. The averaging feature can significantly improve the measurement accuracy by effectively filtering the signal. This approach allows the INA231 to reduce noise in the measurement that may be caused by noise coupling into the signal. A greater number of averages enables the INA231 to be more effective in reducing the noise component of the measurement. The conversion times selected can also have an impact on the measurement accuracy; this effect can be seen in Figure 8-3. Multiple conversion times are shown to illustrate the impact of noise on the measurement. In order to achieve the highest accuracy measurement possible, use a combination of the longest allowable conversion times and highest number of averages, based on the timing requirements of the system. 10mV/div Conversion Time: 140ms Conversion Time: 1.1ms Conversion Time: 8.244ms 0 200 400 600 800 1000 Number of Conversions Figure 8-3. Noise vs Conversion Time 14 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.5 Programming An important aspect of the INA231 is that it does not necessarily measure current or power. The INA231 measures both the differential voltage applied between the IN+ and IN– input pins and the voltage applied to the BUS pin. In order for the INA231 to report both current and power values, both the Current register resolution and the value of the shunt resistor present in the application that resulted in the differential voltage being developed must be programmed. The Power register is internally set to be 25 times the programmed least significant bit of the Current register (Current_LSB). Both the Current_LSB and shunt resistor value are used when calculating the Calibration register value. The INA231 uses this value to calculate the corresponding current and power values based on the measured shunt and bus voltages. The Calibration register is calculated based on Equation 1. This equation includes the term Current_LSB, the programmed value for the LSB for the Current register. This is the value used to convert the value in the Current register to the actual current in amps. The highest resolution for the Current register can be obtained by using the smallest allowable Current_LSB based on the maximum expected current, as shown in Equation 2. While this value yields the highest resolution, it is common to select a value for the Current_LSB to the nearest round number above this value to simplify the conversion of the Current register and Power register to amps and watts, respectively. RSHUNT is the value of the external shunt used to develop the differential voltage across the input pins. The 0.00512 value in Equation 1 is an internal fixed value used to make sure that scaling is properly maintained. 0.00512 CAL = Current_LSB · R SHUNT Current_LSB = (1) Maximum Expected Current 215 (2) After the Calibration register has been programmed, the Current register and Power register are updated accordingly based on the corresponding shunt voltage and bus voltage measurements. Until the Calibration register is programmed, the Current and Power registers remain at zero. 8.5.1 Configure, Measure, and Calculate Example In this example, shown in Figure 9-3, a nominal 10-A load creates a differential voltage of 20 mV across a 2-mΩ shunt resistor. The bus voltage for the INA231 is measured at the external BUS input pin; in this example, BUS is connected to the IN– pin to measure the voltage level delivered to the load. For this example, the BUS pin measures less than 12 V because the voltage at the IN– pin is 11.98 V as a result of the voltage drop across the shunt resistor. For this example, assuming a maximum expected current of 15 A, the Current_LSB is calculated to be 457.7 μA/bit using Equation 2. Using a value of 500 μA/bit or 1 mA/bit for the Current_LSB significantly simplifies the conversion from the Current register and Power register to amps and watts, respectively. For this example, a value of 1 mA/bit was chosen for the Current register LSB. Using this value for the Current_LSB trades a small amount of resolution for a simpler conversion process on the processor side. Using Equation 1 in this example with a current LSB of 1 mA/bit and a shunt resistor of 2 mΩ results in a Calibration register value of 2560, or A00h. The Current register (04h) is then calculated by multiplying the decimal value of the Shunt Voltage register contents by the decimal value of the Calibration register and then dividing by 2048, as shown in Equation 3. For this example, the Shunt Voltage register value of 8000 is multiplied by the Calibration register value of 2560 and then divided by 2048 to yield a decimal value for the Current register of 10000, or 2710h. Multiplying this value by 1 mA/bit results in the original 10-A level stated in the example. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 15 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 Current = ShuntVoltage · CalibrationRegister 2048 (3) The LSB for the Bus Voltage register (02h) is a fixed 1.25 mV/bit. This fixed value means that the 11.98 V present at the BUS pin results in a register value of 2570h, or a decimal equivalent of 9584. Note that the MSB of the Bus Voltage register is always zero because the BUS pin is only able to measure positive voltages. The Power register (03h) is then calculated by multiplying the decimal value of the Current register, 10000, by the decimal value of the Bus Voltage register, 9584, and then dividing by 20,000, as defined in Equation 4. For this example, the result for the Power register is 12B8h, or a decimal equivalent of 4792. Multiplying this result by the power LSB (25 times the [1 × 10–3 Current_LSB]) results in a power calculation of (4792 × 25 mW/bit), or 119.8 W. The Power register LSB has a fixed ratio to the Current register LSB of 25 W/bit to 1 A/bit. For this example, a programmed Current register LSB of 1 mA/bit results in a Power register LSB of 25 mW/bit. This ratio is internally programmed to make sure that the scaling of the power calculation is within an acceptable range. A manual calculation for the power being delivered to the load would use a bus voltage of 11.98 V (12VCM – 20 mV shunt drop) multiplied by the load current of 10 A to give a result of 119.8 W. Power = Current · BusVoltage 20,000 (4) Table 8-1 shows the steps for configuring, measuring, and calculating the values for current and power for this device. Table 8-1. Configure, Measure. and Calculate Example(1) (1) 16 STEP # REGISTER NAME ADDRESS CONTENTS DEC LSB VALUE Step 1 Configuration 00h 4127h — — — Step 2 Shunt 01h 1F40h 8000 2.5 µV 20m V Step 3 Bus 02h 2570h 9584 1.25 mV 11.98 V Step 4 Calibration 05h A00h 2560 — — Step 5 Current 04h 2710h 10000 1 mA 10 A Step 6 Power 03h 12B8h 4792 25 mW 119.8 W Conditions: Load = 10 A, VCM = 12 V, RSHUNT = 2 mΩ, and VBUS =11.98 V. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.5.2 Programming the Power Measurement Engine 8.5.2.1 Calibration Register and Scaling The Calibration register makes it possible to set the scaling of the Current and Power registers to the values that are most useful for a given application. One strategy may be to set the Calibration register so that the largest possible number is generated in the Current register or Power register at the expected full-scale point. This approach yields the highest resolution based on the previously-calculated minimum Current_LSB in the equation for the Calibration register (Equation 1). The Calibration register can also be selected to provide values in the Current and Power registers that either provide direct decimal equivalents of the values being measured, or yield a round LSB value for each corresponding register. After these choices have been made, the Calibration register also offers possibilities for end-user, system-level calibration. By physically measuring the current with an external ammeter, the exact current is known. The value of the Calibration register can then be adjusted based on the measured current result of the INA231 to cancel the total system error, as shown in Equation 5. Corrected_Full_Scale_Cal = trunc Cal ´ MeasShuntCurrent INA231_Current (5) 8.5.3 Simple Current Shunt Monitor Usage (No Programming Necessary) The INA231 does not require programming to read a shunt voltage drop and the bus voltage when using the default power-on reset configuration and running continuous conversions of the shunt and bus voltage. Without programming the INA231 Calibration register, the device is unable to provide either a valid current or power value because these outputs are both derived using the values loaded into the Calibration register. 8.5.4 Default INA231 Settings The default power-up states of the registers are shown in the Register Details section of this data sheet. These registers are volatile, and if programmed to a value other than the default values shown in Table 8-3, they must be reprogrammed at every device power-up. Detailed information on programming the Calibration register is given in the Configure/Measure/Calculate Example section and calculated based on Equation 1. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 17 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.5.5 Writing to and Reading from the INA231 8.5.5.1 Bus Overview The INA231 offers compatibility with both I2C and SMBus interfaces. The I2C and SMBus protocols are essentially compatible with one another. The I2C interface is used throughout this data sheet as the primary example, with SMBus protocol specified only when a difference between the two systems is discussed. Two bidirectional lines, SCL and SDA, connect the INA231 to the bus. Both SCL and SDA are open-drain connections. The device that initiates a data transfer is called a master, and the devices controlled by the master are slaves. The bus must be controlled by a master device that generates the serial clock (SCL), controls the bus access, and generates start and stop conditions. To address a specific device, the master initiates a start condition by pulling the data signal line (SDA) from a high to a low logic level while SCL is high. All slaves on the bus shift in the slave address byte on the rising edge of SCL, with the last bit indicating whether a read or write operation is intended. During the ninth clock pulse, the slave being addressed responds to the master by generating an Acknowledge bit (ACK) and pulling SDA low. Data transfer is then initiated and eight bits of data are sent, followed by an ACK. During data transfer, SDA must remain stable while SCL is high. Any change in SDA while SCL is high is interpreted as a start or stop condition. After all data have been transferred, the master generates a stop condition indicated by pulling SDA from low to high while SCL is high. The INA231 includes a 28-ms timeout on its interface to prevent locking up the bus. Accessing a specific register on the INA231 is accomplished by writing the appropriate value to the register pointer. Refer to Table 8-3 for a complete list of registers and corresponding addresses. The value for the register pointer (shown in Figure 8-7) is the first byte transferred after the slave address byte with the R/ W bit low. Every write operation to the INA231 requires a value for the register pointer. Writing to a register begins with the first byte transmitted by the master. This byte is the slave address, with the R/ W bit low. The INA231 then acknowledges receipt of a valid address. The next byte transmitted by the master is the address of the register that data are written to. This register address value updates the register pointer to the desired register. The next two bytes are written to the register addressed by the register pointer. The INA231 acknowledges receipt of each data byte. The master may terminate data transfer by generating a start or stop condition. When reading from the INA231, the last value stored in the register pointer by a write operation determines which register is read during a read operation. To change the register pointer for a read operation, a new value must be written to the register pointer. This write is accomplished by issuing a slave address byte with the R/ W bit low, followed by the register pointer byte. No additional data are required. The master then generates a start condition and sends the slave address byte with the R/ W bit high to initiate the read command. The next byte is transmitted by the slave and is the most significant byte of the register indicated by the register pointer. This byte is followed by an ACK from the master; then the slave transmits the least significant byte. The master acknowledges receipt of the data byte. The master may terminate data transfer by generating a Not-Acknowledge bit (No ACK) after receiving any data byte, or generating a start or stop condition. If repeated reads from the same register are desired, it is not necessary to continually send the register pointer bytes; the INA231 retains the register pointer value until it is changed by the next write operation. Figure 8-4 and Figure 8-5 show the write and read operation timing diagrams, respectively. Note that register bytes are sent most-significant byte first, followed by the least significant byte. 18 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 1 9 9 1 9 1 9 1 SCL SDA 1 0 0 A3 A2 A1 A0 R/W Start By Master Frame 1 Two-Wire Slave Address Byte A. P7 P6 P5 P4 P3 P2 P1 ACK By TI-Device D15 D14 P0 D13 D12 D11 D10 D9 D8 (1) D7 D6 D5 D4 D3 D2 D1 D0 ACK By TI-Device ACK By TI-Device Frame 2 Register Pointer Byte ACK By TI-Device Frame 3 Data MSByte Stop By Master Frame 4 Data LSByte The value of the slave address byte is determined by the settings of the A0 and A1 pins. Refer to Table 8-2. Figure 8-4. Timing Diagram for Write Word Format 1 9 1 1 9 9 SCL SDA 0 1 0 A3 A2 A1 A0 R/W Start By Master Frame 1 Two-Wire Slave Address Byte A. B. C. D15 D14 D13 D12 D11 D10 D9 (1) Frame 2 Data MSByte D7 D8 From TI Device ACK By TI Device D6 D5 D4 D3 D2 D1 D0 From TI Device ACK By Master (2) No ACK By Master Frame 3 Data LSByte (3) Stop (2) The value of the slave address byte is determined by the settings of the A0 and A1 pins. Refer to Table 8-2. Read data are from the last register pointer location. If a new register is desired, the register pointer must be updated. See Figure 8-7. ACK by Master can also be sent. Figure 8-5. Timing Diagram for Read Word Format Figure 8-6 shows the timing diagram for the SMBus alert response operation. Figure 8-7 illustrates a typical register pointer configuration. ALERT 1 9 1 9 SCL SDA 0 0 0 1 1 0 0 R/W Start By Master 1 0 A3 A2 A1 A0 ACK By From TI Device TI Device Frame 1 SMBus ALERT Response Address Byte A. 0 Frame 2 Slave Address Byte 0 NACK By Master Stop By Master (1) The slave address byte value is determined by the settings of the A0 and A1 pins. Refer to Table 8-2. Figure 8-6. Timing Diagram for SMBus Alert 1 9 1 9 SCL ¼ SDA 1 0 0 A3 A2 A1 A0 R/W Start By Master Frame 1 Two-Wire Slave Address Byte A. P7 P6 P5 P4 P3 P2 P1 P0 ACK By ACK By TI Device TI Device (1) Stop Frame 2 Register Pointer Byte The slave address byte value is determined by the settings of the A0 and A1 pins. Refer to Table 8-2. Figure 8-7. Typical Register Pointer Set Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 19 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.5.5.1.1 Serial Bus Address In order to communicate with the INA231, the master must first address slave devices using a corresponding slave address byte. The slave address byte consists of seven address bits and a direction bit that indicates whether the action is to be a read or write operation. The INA231 has two address pins: A0 and A1. Table 8-2 describes the pin logic levels for each of the 16 possible addresses. The state of pins A0 and A1 is sampled on every bus communication. Set these pins before any activity on the interface occurs. Table 8-2. Address Pins and Slave Addresses 20 A1 A0 SLAVE ADDRESS GND GND 1000000 GND VS 1000001 GND SDA 1000010 GND SCL 1000011 VS GND 1000100 VS VS 1000101 VS SDA 1000110 VS SCL 1000111 SDA GND 1001000 SDA VS 1001001 SDA SDA 1001010 SDA SCL 1001011 SCL GND 1001100 SCL VS 1001101 SCL SDA 1001110 SCL SCL 1001111 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.5.5.1.2 Serial Interface The INA231 operates only as a slave device on both the I2C bus and the SMBus. Connections to the bus are made through the open-drain I/O lines, SDA and SCL. The SDA and SCL pins feature integrated spikesuppression filters and Schmitt triggers to minimize the effects of input spikes and bus noise. Although there is spike suppression integrated into the digital I/O lines, use proper layout to minimize the amount of coupling into the communication lines. This noise introduction could occur from capacitively coupling signal edges between the two communication lines themselves or from other switching noise sources present in the system. Routing traces in parallel with ground in between layers on a printed circuit board (PCB) typically reduces the effects of coupling between the communication lines. Shielding communication lines in general is recommended to reduce to possibility of unintended noise coupling into the digital I/O lines that could be incorrectly interpreted as start or stop commands. The INA231 supports the transmission protocol for Fast (1 kHz to 400 kHz) and High-speed (1 kHz to 2.5 MHz) modes. All data bytes are transmitted most significant byte first. 8.5.5.2 High-Speed I2C Mode When the bus is idle, both the SDA and SCL lines are pulled high by the pull-up devices. The master generates a start condition followed by a valid serial byte containing High-Speed (HS) master code 00001XXX. This transmission is made in fast (400 kHz) or standard (100 kHz) (F/S) mode at no more than 400 kHz. The INA231 does not acknowledge the HS master code, but does recognize it and switches its internal filters to support 2.5-MHz operation. The master then generates a repeated start condition (a repeated start condition has the same timing as the start condition). After this repeated start condition, the protocol is the same as F/S mode except that transmission speeds up to 2.5 MHz are allowed. Instead of using a stop condition, use repeated start conditions to secure the bus in HS-mode. A stop condition ends the HS-mode and switches all the internal filters of the INA231 to support the F/S mode. A bus timing diagram is shown in Figure 7-1. 8.5.6 SMBus Alert Response The INA231 is designed to respond to the SMBus alert response address. The SMBus alert response provides a quick fault identification for simple slave devices. When an alert occurs, the master can broadcast the alert response slave address (0001 100) with the Read/Write bit set high. Following this alert response, any slave devices that generated an alert identify themselves by acknowledging the alert response and sending their respective address on the bus. The alert response can activate several different slave devices simultaneously, similar to the I2C general call. If more than one slave attempts to respond, bus arbitration rules apply. The losing device does not generate an acknowledge and continues to hold the ALERT line low until the interrupt is cleared. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 21 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.6 Register Maps The INA231 uses a bank of registers for holding configuration settings, measurement results, minimum/ maximum limits, and status information. Table 8-3 summarizes the INA231 registers; refer to Figure 8-1 for an illustration of the registers. All 16-bit INA231 registers are two 8-bit bytes through the I2C interface. Table 8-3. Summary of Register Set POINTER ADDRESS (1) (2) 22 POWER-ON RESET HEX REGISTER NAME FUNCTION BINARY HEX TYPE(1) 00 Configuration This register resets all registers and controls shunt voltage and bus voltage, ADC conversion times and averaging, as well as the device operating mode. 01000001 00100111 4127 R/ W 01 Shunt Voltage Shunt voltage measurement data 00000000 00000000 0000 R 02 Bus Voltage Bus voltage measurement data 00000000 00000000 0000 R 00000000 00000000 0000 R 03 Power(2) This register contains the value of the calculated power being delivered to the load. 04 Current(2) This register contains the value of the calculated current flowing through the shunt resistor. 00000000 00000000 0000 R 05 Calibration This register sets the full-scale range and LSB of the current and power measurements. This register sets the overall system calibration. 00000000 00000000 0000 R/ W 06 Mask/Enable This register sets the alert configuration and conversion ready flag. 00000000 00000000 0000 R/ W 07 Alert Limit This register contains the limit value to compare to the selected alert function. 00000000 00000000 0000 R/ W Type: R = read-only, R/ W = read/write. The Current register defaults to '0' because the Calibration register defaults to '0', yielding a zero current and power value until the Calibration register is programmed. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.6.1 Configuration Register (00h, Read/Write) Table 8-4. Configuration Register (00h, Read/Write) Descriptions BIT # D15 D14 D13 D12 D11 D10 D9 BIT NAME RST — — — AVG2 AVG1 AVG0 POR VALUE 0 1 0 0 0 0 0 D8 D7 D6 VBUSCT2 VBUSCT1 VBUSCT0 1 0 0 D5 D4 D3 D2 D1 D0 VSHCT2 VSHCT1 VSHCT0 MODE3 MODE2 MODE1 1 0 0 1 1 1 The Configuration register settings control the operating modes for the INA231. This register controls the conversion time settings for both the shunt and bus voltage measurements, as well as the averaging mode used. The operating mode that controls which signals are selected to be measured is also programmed in the Configuration register. The Configuration register can be read from at any time without impacting or affecting the device settings or a conversion in progress. Writing to the Configuration register halts any conversion in progress until the write sequence is complete, resulting in the start of a new conversion based on the new contents of the Configuration register. This feature prevents any uncertainty in the conditions used for the next completed conversion. RST: Reset Bit Bit 15 Setting this bit to 1 generates a system reset that is the same as a power-on reset; all registers are reset to default values. This bit self-clears. AVG: Averaging Mode Bits 9–11 These bits set the number of samples that are collected and averaged together. Table 8-5 summarizes the AVG bit settings and related number of averages for each bit. 8.6.1.1 AVG Bit Settings [11:9] Table 8-5. AVG Bit Settings [11:9](1) Description (1) AVG2 (D11) AVG1 (D10) AVG0 (D9) NUMBER OF AVERAGES 0 0 0 1 0 0 1 4 0 1 0 16 0 1 1 64 1 0 0 128 1 0 1 256 1 1 0 512 1 1 1 1024 Shaded values are default. VBUS CT: Bus Voltage Conversion Time Bits 6–8 These bits set the conversion time for the bus voltage measurement. Table 8-6 shows the VBUS CT bit options and related conversion times for each bit. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 23 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.6.1.2 VBUS CT Bit Settings [8:6] Table 8-6. VBUS CT Bit Settings [8:6](1) Description (1) VBUS CT2 (D8) VBUS CT1 (D7) VBUS CT0 (D6) CONVERSION TIME 0 0 0 140 µs 0 0 1 204 µs 0 1 0 332 µs 0 1 1 588 µs 1 0 0 1.1 ms 1 0 1 2.116 ms 1 1 0 4.156 ms 1 1 1 8.244 ms Shaded values are default. VSH CT: Shunt Voltage Conversion Time Bits 3–5 These bits set the conversion time for the shunt voltage measurement. Table 8-7 shows the VSH CT bit options and related conversion times for each bit. 8.6.1.3 VSH CT Bit Settings [5:3] Table 8-7. Register Description VSH CT Bit Settings [5:3](1) (1) VSH CT2 (D5) VSH CT1 (D4) VSH CT0 (D3) CONVERSION TIME 0 0 0 140 µs 0 0 1 204 µs 0 1 0 332 µs 0 1 1 588 µs 1 0 0 1.1 ms 1 0 1 2.116 ms 1 1 0 4.156 ms 1 1 1 8.244 ms Shaded values are default. MODE: Operating Mode Bits 0–2 These bits select continuous, triggered, or power-down mode of operation. These bits default to continuous shunt and bus measurement mode. The mode settings are shown in Table 8-8. 8.6.1.4 Mode Settings [2:0] Table 8-8. Mode Settings [2:0](1) (1) 24 MODE3 (D2) MODE2 (D1) MODE1 (D0) MODE 0 0 0 Power-down (INA231B default) 0 0 1 Shunt voltage, triggered 0 1 0 Bus voltage, triggered 0 1 1 Shunt and bus, triggered 1 0 0 Power-down 1 0 1 Shunt voltage, continuous 1 1 0 Bus voltage, continuous 1 1 1 Shunt and bus, continuous (INA231A default) Shaded values are default. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.6.2 Shunt Voltage Register (01h, Read-Only) The Shunt Voltage register stores the current shunt voltage reading, VSHUNT. Negative numbers are represented in twos complement format. Generate the two's complement of a negative number by complementing the absolute value binary number and adding 1. Extend the sign, denoting a negative number by setting the MSB = 1. Example: For a value of VSHUNT = –80 mV: 1. Take the absolute value: 80mV 2. Translate this number to a whole decimal number (80 mV ÷ 2.5 µV) = 32000 3. Convert this number to binary = 111 1101 0000 0000 4. Complement the binary result = 000 0010 1111 1111 5. Add '1' to the complement to create the two's complement result = 000 0011 0000 0000 6. Extend the sign and create the 16-bit word: 1000 0011 0000 0000 = 8300h This register displays the averaged value if averaging is enabled. Full-scale range = 81.9175 mV (decimal = 7FFF); LSB: 2.5 μV. Table 8-9. Shunt Voltage Register (01h, Read-Only) Description BIT # D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 BIT NAME SIGN SD14 SD13 SD12 SD11 SD10 SD9 SD8 SD7 SD6 SD5 SD4 SD3 SD2 SD1 SD0 POR VALUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 8.6.3 Bus Voltage Register (02h, Read-Only) The Bus Voltage register stores the most recent bus voltage reading, VBUS. This register displays the averaged value if averaging is enabled. Full-scale range = 40.95875 V (decimal = 7FFF); LSB = 1.25 mV. Do not apply more than 28 V on the BUS pin. Table 8-10. Bus Voltage Register (02h, Read-Only)(1) Description BIT # D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 BIT NAME — BD14 BD13 BD12 BD11 BD10 BD9 BD8 BD7 BD6 BD5 BD4 BD3 BD2 BD1 BD0 POR VALUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 (1) D15 is always zero because bus voltage can only be positive. 8.6.4 Power Register (03h, Read-Only) This register displays the averaged value if averaging is enabled. Table 8-11. Power Register (03h, Read-Only) Description BIT # D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 BIT NAME PD15 PD14 PD13 PD12 PD11 PD10 PD9 PD8 PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0 POR VALUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 The Power register LSB is internally programmed to equal 25 times the programmed value of the Current_LSB. The Power register records power in watts by multiplying the decimal values of the current register with the decimal value of the bus voltage register according to Equation 4. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 25 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 8.6.5 Current Register (04h, Read-Only) If averaging is enabled, this register displays the averaged value. Table 8-12. Current Register (04h, Read-Only) Description BIT # D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 BIT NAME CSIGN CD14 CD13 CD12 CD11 CD10 CD9 CD8 CD7 CD6 CD5 CD4 CD3 CD2 CD1 CD0 POR VALUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 The value of the Current register is calculated by multiplying the decimal value in the Shunt Voltage register with the decimal value of the Calibration register, according to Equation 3. 8.6.6 Calibration Register (05h, Read/Write) This register provides the INA231 with the shunt resistor value that was present to create the measured differential voltage. This register also sets the resolution of the Current register. The Current register LSB and Power register LSB are set through the programming of this register. This register is also used for overall system calibration. See the Configure, Measure, and Calculate Example for more information on programming this register. Table 8-13. Calibration Register (05h, Read/Write) Description BIT # D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 BIT NAME — FS14 FS13 FS12 FS11 FS10 FS9 FS8 FS7 FS6 FS5 FS4 FS3 FS2 FS1 FS0 POR VALUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 8.6.7 Mask/Enable Register (06h, Read/Write) The Mask/Enable register selects the function that controls the ALERT pin, as well as how that pin functions. If multiple functions are enabled, the highest significant bit position alert function (D15:D11) takes priority and responds to the Alert Limit register. Table 8-14. Mask/Enable Register (06h, Read/Write) Description BIT # D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 BIT NAME SOL SUL BOL BUL POL CNVR — — — — — AFF CVRF OVF APOL LEN POR VALUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 SOL: Shunt Voltage Overvoltage1 Bit 15 Setting this bit high configures the ALERT pin to be asserted when the shunt voltage conversion exceeds the value in the Alert Limit register. SUL: Shunt Voltage Undervoltage Bit 14 Setting this bit high configures the ALERT pin to be asserted when the shunt voltage conversion drops below the value in the Alert Limit register. BOL: Bus Voltage Overvoltage Bit 13 Setting this bit high configures the ALERT pin to be asserted when the bus voltage conversion exceeds the value in the Alert Limit register. BUL: Bus Voltage Undervoltage Bit 12 Setting this bit high configures the ALERT pin to be asserted when the bus voltage conversion drops below the value in the Alert Limit register. POL: Power Overlimit Bit 11 Setting this bit high configures the ALERT pin to be asserted when the power calculation exceeds the value in the Alert Limit register. 26 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 CNVR: Conversion Ready Bit 10 Setting this bit high configures the ALERT pin to be asserted when the Conversion Ready Flag bit (CVRF, bit 3) is asserted, indicating that the device is ready for the next conversion. AFF: Alert Function Flag Bit 4 Although only one alert function at a time can be monitored at the ALERT pin, the Conversion Ready bit (CNVR, bit 10) can also be enabled to assert the ALERT pin. Reading the Alert Function Flag bit after an alert can help determine if the alert function was the source of the alert. When the Alert Latch Enable bit is set to Latch mode, the Alert Function Flag bit clears only when the Mask/Enable register is read. When the Alert Latch Enable bit is set to Transparent mode, the Alert Function Flag bit is cleared after the next conversion that does not result in an alert condition. CVRF: Conversion Ready Flag Bit 3 Although the INA231 can be read at any time, and the data from the last conversion are available, this bit is provided to help coordinate single-shot or triggered conversions. This bit is set after all conversions, averaging, and multiplications are complete. This bit clears under the following conditions in single-shot mode: 1) Writing to the Configuration register (except for power-down or disable selections) 2) Reading the Mask/Enable register OVF: Math Overflow Flag Bit 2 This bit is set to 1 if an arithmetic operation results in an overflow error; it indicates that current and power data may be invalid. APOL: Alert Polarity Bit 1 Configures the latching feature of the ALERT pin and the flag bits. 1 = Inverted (active-high open collector) 0 = Normal (active-low open collector) (default) LEN: Alert Latch Enable Bit 0 Configures the latching feature of the ALERT pin and flag bits. 1 = Latch enabled 0 = Transparent (default) When the Alert Latch Enable bit is set to Transparent mode, the ALERT pin and flag bits reset to their idle states when the fault has been cleared. When the Alert Latch Enable bit is set to Latch mode, the ALERT pin and flag bits remain active following a fault until the Mask/Enable register has been read. 8.6.8 Alert Limit Register (07h, Read/Write) The Alert Limit register contains the value used to compare to the register selected in the Mask/Enable register to determine if a limit has been exceeded. Table 8-15. Alert Limit Register (07h, Read/Write) Description BIT # D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 BIT NAME AUL15 AUL14 AUL13 AUL12 AUL11 AUL10 AUL9 AUL8 AUL7 AUL6 AUL5 AUL4 AUL3 AUL2 AUL1 AUL0 POR VALUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 27 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 9 Application and Implementation Note Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes, as well as validating and testing their design implementation to confirm system functionality. 9.1 Application Information The INA231 is a digital current shunt monitor with an I2C- and SMBus-compatible interface. This device provides digital current, voltage, and power readings necessary for accurate decision-making in precisely-controlled systems. Programmable registers allow flexible configuration for measurement resolution, as well as continuousversus-triggered operation. Detailed register information appears towards the end of this data sheet, beginning with Table 8-3. See Figure 8-1 for a block diagram of the INA231. Figure 9-1 shows a typical application circuit for the INA231. For power-supply bypassing, place a 0.1-μF ceramic capacitor as close as possible to the supply and ground pins. Power Supply (0 V to 28 V) CBYPASS 0.1 mF VS (Supply Voltage) BUS HighSide Shunt INA231 SDA SCL ´ Load Power Register V 2 Current Register ADC LowSide Shunt I Voltage Register IC Interface ALERT A0 Alert Register A1 GND Figure 9-1. High- or Low-Side Sensing 9.1.1 Filtering and Input Considerations Measuring current is often a noisy task, and such noise can be difficult to define. The INA231 offers several options for filtering by allowing the conversion times and number of averages to be independently selected in the Configuration register. The conversion times can be independently set for the shunt voltage and bus voltage measurements to allow added flexibility in configuring the monitoring of the power-supply bus. The internal ADC is based on a delta-sigma (ΔΣ) front-end with a 500-kHz (±30%) typical sampling rate. This architecture has good inherent noise rejection; however, transients that occur at or very close to the sampling rate harmonics can cause problems. These signals are at 1 MHz and higher; therefore, manage them by incorporating filtering at the input of the INA231. The high frequency enables the use of low-value series resistors on the filter with negligible effects on measurement accuracy. In general, filtering the INA231 input is only necessary if there are transients at exact harmonics of the 500-kHz (±30%) sampling rate (greater than 1 MHz). Filter using the lowest possible series resistance (typically 10 Ω or less) and a ceramic capacitor. Recommended values for this capacitor are 0.1 μF to 1.0 μF. Figure 9-2 shows the INA231 with an additional filter added at the input. 28 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 Power Supply (0 V to 28 V) CBYPASS 0.1 mF VS (Supply Voltage) BUS CFILTER 0.1 mF to 1 mF Ceramic Capacitor SDA SCL ´ RFILTER £10 W IN+ Power Register V 2 Current Register ADC I Load RFILTER £10 W Voltage Register IC Interface ALERT A0 INAlert Register A1 GND Figure 9-2. INA231 With Input Filtering Overload conditions are another consideration for the INA231 inputs. The INA231 inputs are specified to tolerate 30 V across the inputs. A large differential scenario might be a short to ground on the load side of the shunt. This type of event can result in full power-supply voltage across the shunt (as long as the power supply or energy storage capacitors support it). Keep in mind that removing a short to ground can result in inductive kickbacks that could exceed the 30-V differential and common-mode rating of the INA231. Inductive kickback voltages are best controlled by zener-type transient-absorbing devices (commonly called transzorbs) combined with sufficient energy storage capacitance. In applications that do not have large energy-storage electrolytics on one or both sides of the shunt, an input overstress condition may result from an excessive dV/dt of the voltage applied to the input. A hard physical short is the most likely cause of this event, particularly in applications with no large electrolytics present. This problem occurs because an excessive dV/dt can activate the ESD protection in the INA231 in systems where large currents are available. Testing has demonstrated that the addition of 10-Ω resistors in series with each input of the INA231 sufficiently protect the inputs against this dV/dt failure up to the 30-V rating of the INA231. Selecting these resistors in the range noted has minimal effect on accuracy. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 29 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 9.2 Typical Applications +12-V Supply CBYPASS 0.1 mF VS (Supply Voltage) BUS SDA SCL ´ IN+ Power Register V 2 Current Register ADC RSHUNT 2 mW I Voltage Register IC Interface ALERT A0 INAlert Register 10A Load A1 GND Figure 9-3. Monitoring a 10-A Load 9.2.1 Design Requirements The INA231 measures the voltage developed across a current-sensing resistor (RSHUNT) when current passes through the resistor. The device also measures the bus supply voltage, and calculates power when calibrated. The INA231 comes with alert capability, where the alert pin can be programmed to respond to a user-defined event, or to a conversion-ready notification. This design illustrates the ability of the alert pin to respond to a set threshold. In this case, a 10 A are pulled through a 2-mΩ shunt resistor, generating a 20-mV shunt voltage drop that is measured by the INA231. The bus supply is 12 V, and the BUS pin is tied to the IN– pin, so that the power loss through the shunt resistor, however small, is not added to the power calculation performed by the INA231. This configuration provides an accurate measurement the power dissipated by the load. 9.2.2 Detailed Design Procedure The ALERT pin can be configured to respond to one of the five alert functions described in the ALERT Pin section. The ALERT pin must to be pulled up to the vs pin voltage using a pull-up resistor. The Configuration register is set based on the required conversion time and averaging. The Mask/Enable register is set to identify the required alert function and the Alert Limit register is set to the limit value used for comparison. 30 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 9.2.3 Application Curves SHUNT Voltage (50 mV/div) SHUNT Voltage (50 mV/div) ALERT (2 V/div) ALERT (2 V/div) Figure 9-4 shows the ALERT pin response to a shunt overvoltage of 50 mV for a conversion time (tCT) of 140 μs. and averaging set to 1. Figure 9-5 shows the response for the same limit, but with the conversion time reduced to 1.1 ms. Time (1 ms/div) Time (100 µs/div) Configuration register = 4005h Mask/Enable register = 8008h Alert Limit register = 4E20h, tCT = 140 µs Configuration register = 4125h Mask/Enable register = 8008h Alert Limit register = 4E20h, tCT = 1.1 ms Figure 9-4. Alert Response Figure 9-5. Alert Response 9.3 Power Supply Recommendations The INA231 input circuitry accurately measures signals on common-mode voltages beyond the device powersupply voltage, VS. For example, the voltage applied to the power-supply pin (VS) can be 5 V; however, the load power-supply voltage being monitored (the common-mode voltage) can be as high as 28 V. The device can also withstand the full 0-V to 28-V range at the input terminals, regardless of whether the device has power applied or not. Place the required power-supply bypass capacitors as close as possible to the supply and ground pins of the device. A typical value for this supply bypass capacitor is 0.1 μF. For more accurate results for applications with noisy or high-impedance power supplies, use additional decoupling capacitors to reject power-supply noise. 9.4 Layout 9.4.1 Layout Guidelines Connect the input pins (IN+ and IN–) to the sensing resistor using a Kelvin or 4-wire connection. These connection techniques make sure that only the current-sensing resistor impedance is detected between the input pins. Poor routing of the current-sensing resistor commonly results in additional resistance present between the input pins. Given the very low ohmic value of the current-sensing resistor, any additional high-current-carrying impedance causes significant measurement errors. Place the power-supply bypass capacitor as close as possible to the supply and ground pins. Make sure the NC pins (B2 and C2) are not connected to anything. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 31 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 9.4.2 Layout Example Tie to GND, VS, SCL, or SDA to set I2C address RPULLUP VIA to another layer A0 A1 IN+ SDA NC NC IN- SCL VS GND BUS RPULLUP RPULLUP I2C/SMBUS interface ALERT RSHUNT Alert output (Can be left floating if unused) VIA to GND CBYPASS VIA to another layer Connect to supply for VS Figure 9-6. Layout Example 32 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 10 Device and Documentation Support 10.1 Documentation Support 10.1.1 Related Documentation For related documentation see the following: INA231EVM Evaluation Board and Software Tutorial 10.2 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on Subscribe to updates to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 10.3 Support Resources TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight from the experts. Search existing answers or ask your own question to get the quick design help you need. Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. 10.4 Trademarks TI E2E™ is a trademark of Texas Instruments. All trademarks are the property of their respective owners. 10.5 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 10.6 Glossary TI Glossary This glossary lists and explains terms, acronyms, and definitions. 11 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 33 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 PACKAGE OUTLINE YFD0012 DSBGA - 0.4 mm max height SCALE 8.000 DIE SIZE BALL GRID ARRAY B A E BALL A1 CORNER D 0.4 MAX C SEATING PLANE 0.175 0.125 BALL TYP 0.05 C 0.8 TYP SYMM D 1.2 TYP C SYMM D: Max = 1.675 mm, Min =1.614 mm B 0.4 TYP 12X 0.015 0.243 0.226 C A B E: Max = 1.418 mm, Min =1.358 mm A 2 1 3 0.4 TYP 4223364/A 10/2016 NOTES: 1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M. 2. This drawing is subject to change without notice. 34 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 EXAMPLE BOARD LAYOUT YFD0012 DSBGA - 0.4 mm max height DIE SIZE BALL GRID ARRAY (0.4) TYP 12X ( 0.225) A (0.4) TYP B SYMM C D 1 2 3 SYMM LAND PATTERN EXAMPLE SCALE:40X 0.05 MAX ( 0.225) METAL METAL UNDER SOLDER MASK 0.05 MIN ( 0.225) SOLDER MASK OPENING SOLDER MASK OPENING NON-SOLDER MASK DEFINED (PREFERRED) SOLDER MASK DEFINED SOLDER MASK DETAILS NOT TO SCALE 4223364/A 10/2016 NOTES: (continued) 3. Final dimensions may vary due to manufacturing tolerance considerations and also routing constraints. Refer to Texas Instruments Literature No. SNVA009 (www.ti.com/lit/snva009). Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 35 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 EXAMPLE STENCIL DESIGN YFD0012 DSBGA - 0.4 mm max height DIE SIZE BALL GRID ARRAY (0.4) TYP (R0.05) TYP 12X ( 0.25) A (0.4) TYP B SYMM METAL TYP C D 1 2 SYMM 3 SOLDER PASTE EXAMPLE BASED ON 0.1 mm THICK STENCIL SCALE:40X 4223364/A 10/2016 NOTES: (continued) 4. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. 36 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 PACKAGE OUTLINE YFF0012 DSBGA - 0.625 mm max height SCALE 8.000 DIE SIZE BALL GRID ARRAY B A E BALL A1 CORNER D 0.625 MAX C SEATING PLANE BALL TYP 0.30 0.12 0.05 C 0.8 TYP 0.4 TYP D SYMM C 1.2 TYP B D: Max = 1.675 mm, Min =1.614 mm E: Max = 1.418 mm, Min =1.358 mm A 12X 0.015 0.3 0.2 C A 1 2 3 0.4 TYP SYMM B 4222191/A 07/2015 NOTES: 1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M. 2. This drawing is subject to change without notice. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 37 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 EXAMPLE BOARD LAYOUT YFF0012 DSBGA - 0.625 mm max height DIE SIZE BALL GRID ARRAY (0.4) TYP 12X ( 0.23) 1 2 3 A (0.4) TYP B SYMM C D SYMM LAND PATTERN EXAMPLE SCALE:30X 0.05 MAX ( 0.23) METAL METAL UNDER SOLDER MASK 0.05 MIN ( 0.23) SOLDER MASK OPENING SOLDER MASK OPENING NON-SOLDER MASK DEFINED (PREFERRED) SOLDER MASK DEFINED SOLDER MASK DETAILS NOT TO SCALE 4222191/A 07/2015 NOTES: (continued) 3. Final dimensions may vary due to manufacturing tolerance considerations and also routing constraints. For more information, see Texas Instruments literature number SNVA009 (www.ti.com/lit/snva009). 38 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 INA231 www.ti.com SBOS644D – FEBRUARY 2013 – REVISED JULY 2022 EXAMPLE STENCIL DESIGN YFF0012 DSBGA - 0.625 mm max height DIE SIZE BALL GRID ARRAY (0.4) TYP 12X ( 0.25) (R0.05) TYP 1 2 3 A (0.4) TYP B SYMM METAL TYP C D SYMM SOLDER PASTE EXAMPLE BASED ON 0.1 mm THICK STENCIL SCALE:30X 4222191/A 07/2015 NOTES: (continued) 4. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: INA231 39 PACKAGE OPTION ADDENDUM www.ti.com 19-Aug-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) INA231AIYFDR ACTIVE DSBGA YFD 12 3000 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 125 I231YFD INA231AIYFDT ACTIVE DSBGA YFD 12 250 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 125 I231YFD INA231AIYFFR ACTIVE DSBGA YFF 12 3000 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 125 INA231 INA231AIYFFT ACTIVE DSBGA YFF 12 250 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 125 INA231 INA231BIYFDR ACTIVE DSBGA YFD 12 3000 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 125 231BYFD INA231BIYFDT ACTIVE DSBGA YFD 12 250 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 125 231BYFD (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
