ISO1042-Q1
ISO1042-Q1
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER
2020
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
www.ti.com
ISO1042-Q1 Automotive Isolated CAN Transceiver With 70-V Bus Fault Protection and
Flexible Data Rate
1 Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
AEC Q100: Qualified for automotive applications
Grade 1: –40°C to 125°C ambient temperature
Functional Safety-Capable
– Documentation available to aid functional safety
system design
Meets the ISO 11898-2:2016 physical layer
standard
Supports classic CAN up to 1 Mbps and FD
(Flexible Data Rate) up to 5 Mbps
Low loop delay: 152 ns
Protection features
– DC bus fault protection voltage: ±70 V
– HBM ESD tolerance on bus pins: ±16 kV
– Driver Dominant Time Out (TXD DTO)
– Undervoltage protection on VCC1 and VCC2
Common-Mode Voltage Range: ±30 V
Ideal passive, high impedance bus terminals when
unpowered
High CMTI: 100 kV/µs
VCC1 voltage range: 1.71 V to 5.5 V
– Supports 1.8-V, 2.5-V, 3.3-V and 5.0-V logic
interface to the CAN controller
VCC2 Voltage Range: 4.5 V to 5.5 V
Robust Electromagnetic Compatibility (EMC)
– System-level ESD, EFT, and surge immunity
– Low emissions
16-SOIC and 8-SOIC package options
Industrial version available: ISO1042
Safety-related certifications:
– 7071-VPK VIOTM and 1500-VPK VIORM
(Reinforced and Basic Options) per DIN VDE V
0884-11:2017-01
– 5000-VRMS Isolation for 1 Minute per UL 1577
– CQC, TUV and CSA certifications
2 Applications
•
•
•
•
•
the specifications of the ISO11898-2 (2016) standard.
The ISO1042-Q1 device offers ±70-V DC bus fault
protection and ±30-V common-mode voltage range.
The device supports up to 5-Mbps data rate in CAN
FD mode allowing much faster transfer of payload
compared to classic CAN. This device uses a silicon
dioxide (SiO 2) insulation barrier with a withstand
voltage of 5000 VRMS and a working voltage of 1060 V
Electromagnetic compatibility has been
RMS.
significantly enhanced to enable system-level ESD,
EFT, surge, and emissions compliance. Used in
conjunction with isolated power supplies, the device
protects against high voltage, and prevents noise
currents from the bus from entering the local ground.
The ISO1042-Q1 device is available for both basic
and reinforced isolation (see Reinforced and Basic
Isolation Options). The ISO1042-Q1 device supports
a wide ambient temperature range of –40°C to
+125°C. The device is available in the SOIC-16 (DW)
package and a smaller SOIC-8 (DWV) package.
Device Information
PART NUMBER(1)
ISO1042-Q1
(1)
PACKAGE
SOIC (8)
5.85 mm × 7.50 mm
SOIC (16)
10.30 mm × 7.50 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
Reinforced and Basic Isolation Options
FEATURE
ISO1042x-Q1
Protection Level
Reinforced
Basic
Surge Test Voltage
10000 VPK
6000 VPK
5000 VRMS
5000 VRMS
Isolation Rating
Working Voltage
VCC1
VDD
TXD
MCU
RXD
DGND
Digital
Ground
ISO1042Bx-Q1
1060 VRMS / 1500 1060 VRMS / 1500
VPK
VPK
1
2
3
4
Starter/generator
Battery Management System (BMS)
DC/DC converter
On-Board (OBC) & wireless charger
Inverter & motor control
BODY SIZE (NOM)
VCC1
VCC2
8
7
TXD ISO1042-Q1CANH
6
CANL
RXD
GND1
GND2
Galvanic
Isolation Barrier
VCC2
CAN Bus
5
ISO
Ground
Application Diagram
3 Description
The ISO1042-Q1 device is a galvanically-isolated
controller area network (CAN) transceiver that meets
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
Submit Document Feedback
Copyright
© 2020 Texas
Instruments
Incorporated
intellectual
property
matters
and other important disclaimers. PRODUCTION DATA.
Product Folder Links: ISO1042-Q1
1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 5
6.1 Absolute Maximum Ratings........................................ 5
6.2 ESD Ratings............................................................... 5
6.3 Transient Immunity......................................................5
6.4 Recommended Operating Conditions.........................5
6.5 Thermal Information....................................................6
6.6 Power Ratings.............................................................6
6.7 Insulation Specifications............................................. 7
6.8 Safety-Related Certifications...................................... 8
6.9 Safety Limiting Values.................................................8
6.10 Electrical Characteristics - DC Specification...........10
6.11 Switching Characteristics........................................ 12
6.12 Insulation Characteristics Curves........................... 13
6.13 Typical Characteristics............................................ 14
7 Parameter Measurement Information.......................... 16
7.1 Test Circuits.............................................................. 16
8 Detailed Description......................................................20
8.1 Overview................................................................... 20
8.2 Functional Block Diagram......................................... 20
8.3 Feature Description...................................................20
8.4 Device Functional Modes..........................................23
9 Application and Implementation.................................. 25
9.1 Application Information............................................. 25
9.2 Typical Application.................................................... 25
10 Power Supply Recommendations..............................28
11 Layout........................................................................... 29
11.1 Layout Guidelines................................................... 29
11.2 Layout Example...................................................... 29
12 Device and Documentation Support..........................31
12.1 Documentation Support.......................................... 31
12.2 Receiving Notification of Documentation Updates..31
12.3 Support Resources................................................. 31
12.4 Trademarks............................................................. 31
12.5 Electrostatic Discharge Caution..............................31
12.6 Glossary..................................................................31
13 Mechanical, Packaging, and Orderable
Information.................................................................... 31
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (January 2020) to Revision B (October 2020)
Page
• Added Functional Safety Bullets.........................................................................................................................1
Changes from Revision * (October 2018) to Revision A (January 2020)
Page
• Changed new safety certification........................................................................................................................1
2
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
5 Pin Configuration and Functions
1
16
VCC2
GND1
2
15
GND2
TXD
3
14
NC
NC
4
13
CANH
RXD
5
12
CANL
NC
6
11
VCC2
NC
7
10
GND2
GND1
8
9
GND2
ISOLATION
VCC1
Not to scale
Figure 5-1. DW Package 16-Pin SOIC Top View
Table 5-1. Pin Functions—16 Pins
PIN
NO.
NAME
I/O
DESCRIPTION
1
VCC1
—
Digital-side supply voltage, Side 1
2
GND1
—
Digital-side ground connection, Side 1
3
TXD
I
4
NC
—
Not connected
5
RXD
O
CAN receive data output (LOW for dominant and HIGH for recessive bus states)
CAN transmit data input (LOW for dominant and HIGH for recessive bus states)
6
NC
—
Not connected
7
NC
—
Not connected
8
GND1
—
Digital-side ground connection, Side 1
GND2
—
Transceiver-side ground connection, Side 2
VCC2
—
Transceiver-side supply voltage, Side 2. Must be externally connected to pin 16.
12
CANL
I/O
Low-level CAN bus line
13
CANH
I/O
High-level CAN bus line
9
10
11
14
NC
—
Not connected
15
GND2
—
Transceiver-side ground connection, Side 2
16
VCC2
—
Transceiver-side supply voltage, Side 2. Must be externally connected to pin 11.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
3
ISO1042-Q1
www.ti.com
VCC1
1
TXD
2
RXD
3
GND1
4
ISOLATION
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
8
VCC2
7
CANH
6
CANL
5
GND2
Not to scale

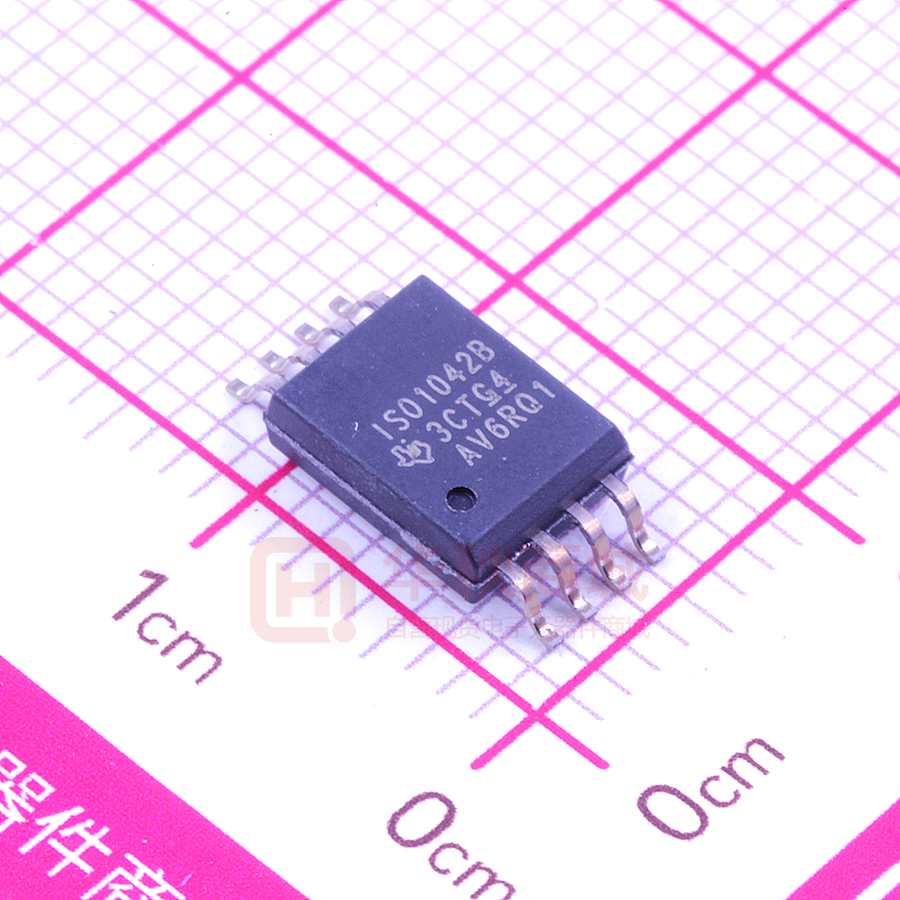

Figure 5-2. DWV Package 8-Pin SOIC Top View
Table 5-2. Pin Functions—8 Pins
PIN
NO.
1
4
NAME
VCC1
I/O
—
DESCRIPTION
Digital-side supply voltage, Side 1
2
TXD
I
CAN transmit data input (LOW for dominant and HIGH for recessive bus states)
3
RXD
O
CAN receive data output (LOW for dominant and HIGH for recessive bus states)
4
GND1
—
Digital-side ground connection, Side 1
5
GND2
—
Transceiver-side ground connection, Side 2
6
CANL
I/O
Low-level CAN bus line
7
CANH
I/O
High-level CAN bus line
8
VCC2
—
Transceiver-side supply voltage, Side 2
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
6 Specifications
6.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted)(1) (2)
MIN
MAX
Supply voltage, side 1
-0.5
6
V
VCC2
Supply voltage, side 2
-0.5
6
V
VIO
Logic input and output voltage range (TXD and
RXD)
-0.5
VCC1+0.5(3)
V
IO
Output current on RXD pin
-15
15
mA
VBUS
Voltage on bus pins (CANH, CANL)
-70
70
V
VBUS_DIFF
Differential voltage on bus pins (CANH-CANL)
-70
70
V
TJ
Junction temperature
-40
150
℃
TSTG
Storage temperature
-65
150
℃
VCC1
(1)
(2)
(3)
UNIT
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
All voltage values except differential I/O bus voltages are with respect to the local ground terminal (GND1 or GND2) and are peak
voltage values.
Maximum voltage must not exceed 6 V
6.2 ESD Ratings
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/
ESDA/JEDEC JS-001
Electrostatic discharge
Charged device model (CDM), per
JEDEC specification JESD22-C101
All pins(1)
CANH and CANL to
GND2(1)
VALUE
UNIT
±6000
V
±16000
V
All pins(2)
±1500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Transient Immunity
PARAMETER
VPULSE
TEST CONDITIONS
ISO7637-2 Transients according to GIFT - ICT
CAN EMC test specification
VALUE
UNIT
Pulse 1; CAN bus terminals (CANH, CANL) to
GND2
-100
V
Pulse 2; CAN bus terminals (CANH, CANL) to
GND2
75
V
Pulse 3a; CAN bus terminals (CANH, CANL) to
GND2
-150
V
Pulse 3b; CAN bus terminals (CANH, CANL) to
GND2
100
V
6.4 Recommended Operating Conditions
VCC1
MIN
MAX
UNIT
Supply Voltage, Side 1, 1.8-V operation
1.71
1.89
V
Supply Voltage, Side 1, 2.5-V, 3.3-V and 5.5-V operation
2.25
5.5
V
VCC2
Supply Voltage, Side 2
4.5
5.5
V
TA
Operating ambient temperature
-40
125
°C
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
5
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
6.5 Thermal Information
ISO1042-Q1
THERMAL
METRIC(1)
DW (SOIC)
DWV (SOIC)
16 PINS
8 PINS
UNIT
RΘJA
Junction-to-ambient thermal resistance
69.9
100
°C/W
RΘJC(top)
Junction-to-case (top) thermal resistance
31.8
40.8
°C/W
RΘJB
Junction-to-board thermal resistance
29.0
51.8
°C/W
ΨJT
Junction-to-top characterization parameter
13.2
16.8
°C/W
ΨJB
Junction-to-board characterization parameter
28.6
49.8
°C/W
RΘJC(bot)
Junction-to-case (bottom) thermal resistance
-
-
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
6.6 Power Ratings
PARAMETER
PD
PD1
PD2
6
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Maximum power dissipation (both sides)
See Figure 7-3, VCC1 = VCC2 = 5.5 V, TJ =
150°C, RL = 50 Ω, A repetitive pattern on
TXD with 1 ms time period, 990 µs LOW
time, and 10 µs HIGH time.
385
mW
Maximum power dissipation (side-1)
See Figure 7-5, VCC1 = VCC2 = 5.5 V, TJ =
150°C, RL = 50 Ω, Input a 2-V pk-pk 2.5MHz 50% duty cycle differential square
wave on CANH-CANL
25
mW
Maximum power dissipation (side-2)
See Figure 7-3, VCC1 = VCC2 = 5.5 V, TJ =
150°C, RL = 50 Ω, A repetitive pattern on
TXD with 1 ms time period, 990 µs LOW
time, and 10 µs HIGH time.
360
mW
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
6.7 Insulation Specifications
PARAMETER
SPECIFICATIONS
TEST CONDITIONS
DW-16
DWV-8
UNIT
IEC 60664-1
External clearance(1)
Side 1 to side 2 distance through air
>8
>8.5
mm
CPG
External Creepage(1)
Side 1 to side 2 distance across package
surface
>8
>8.5
mm
DTI
Distance through the insulation
Minimum internal gap (internal clearance)
>17
>17
µm
CTI
Comparative tracking index
IEC 60112; UL 746A
>600
>600
V
Material Group
According to IEC 60664-1
I
I
CLR
Overvoltage category
Rated mains voltage ≤ 600 VRMS
I-IV
I-IV
Rated mains voltage ≤ 1000 VRMS
I-III
I-III
DIN VDE V
0884-11:2017-01(2)
VIORM
Maximum repetitive peak isolation voltage
AC voltage (bipolar)
1500
1500
VPK
VIOWM
Maximum isolation working voltage
AC voltage (sine wave); time-dependent
dielectric breakdown (TDDB) test;
1060
1060
VRMS
DC voltage
1500
1500
VDC
Maximum transient isolation voltage
VTEST = VIOTM, t = 60 s (qualification); VTEST
= 1.2 × VIOTM, t = 1 s (100% production)
7071
7071
VPK
Maximum surge isolation voltage
ISO1042-Q1 (3)
Test method per IEC 62368-1, 1.2/50 µs
waveform, VTEST = 1.6 × VIOSM = 10000 VPK
(qualification)
6250
6250
VPK
Maximum surge isolation voltage
ISO1042B-Q1 (3)
Test method per IEC 62368-1, 1.2/50 µs
waveform, VTEST = 1.3 × VIOSM = 6000 VPK
(qualification)
4615
4615
VPK
VIOTM
VIOSM
Apparent charge(4)
qpd
Method a: After I/O safety test subgroup 2/3,
Vini = VIOTM, tini = 60 s; Vpd(m) = 1.2 × VIORM, t ≤ 5
m = 10 s
≤5
Method a: After environmental tests
subgroup 1, Vini = VIOTM, tini = 60 s;
ISO1042-Q1: Vpd(m) = 1.6 × VIORM, tm = 10 s
ISO1042B-Q1: Vpd(m) = 1.2 × VIORM, tm = 10
s
≤5
≤5
pC
Method b1: At routine test (100% production)
and preconditioning (type test), Vini = VIOTM, t
≤5
ini = 1 s;
ISO1042-Q1: Vpd(m) = 1.875 × VIORM, tm = 1 s
ISO1042B-Q1: Vpd(m) = 1.5 × VIORM, tm = 1 s
Barrier capacitance, input to output(5)
CIO
VIO = 0.4 × sin (2 πft), f = 1 MHz
1
1
VIO = 500 V, TA = 25°C
> 1012
> 1012
VIO = 500 V, 100°C ≤ TA ≤ 150°C
> 1011
> 1011
VIO = 500 V at TS = 150°C
> 109
> 109
Pollution degree
2
2
Climatic category
40/125/
21
40/125/
21
Insulation resistance, input to output(5)
RIO
≤5
pF
Ω
UL 1577
VISO
(1)
Withstand isolation voltage
VTEST = VISO , t = 60 s (qualification); VTEST =
5000
1.2 × VISO , t = 1 s (100% production)
5000
VRMS
Creepage and clearance requirements should be applied according to the specific equipment isolation standards of an application.
Care should be taken to maintain the creepage and clearance distance of a board design to ensure that the mounting pads of the
isolator on the printed-circuit board do not reduce this distance. Creepage and clearance on a printed-circuit board become equal in
certain cases. Techniques such as inserting grooves, ribs, or both on a printed circuit board are used to help increase these
specifications.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
7
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
(2)
(3)
(4)
(5)
ISO1042-Q1 is suitable for safe electrical insulation and ISO1042B-Q1 is suitable for basic electrical insulation only within the safety
ratings. Compliance with the safety ratings shall be ensured by means of suitable protective circuits.
Testing is carried out in air or oil to determine the intrinsic surge immunity of the isolation barrier.
Apparent charge is electrical discharge caused by a partial discharge (pd).
All pins on each side of the barrier tied together creating a two-pin device.
6.8 Safety-Related Certifications
VDE
CSA
UL
CQC
TUV
Certified according to
GB4943.1-2011
Certified according to EN
61010-1:2010/A1:2019,
EN 60950-1:2006/A2:2013
and EN 62368-1:2014
Maximum transient
isolation voltage,
7071 VPK;
Maximum repetitive peak
isolation voltage,
1500 VPK;
Maximum surge isolation
voltage,
ISO1042-Q1: 6250 VPK
(Reinforced)
ISO1042B-Q1: 4615 VPK
(Basic)
CSA 60950-1-07+A1+A2,
IEC 60950-1 2nd
Ed.+A1+A2 and IEC
62368-1 2nd Ed., for
pollution degree 2,
material group I
ISO1042-Q1: 800 VRMS
reinforced isolation
ISO1042B-Q1: 1060 VRMS Single protection,
basic isolation
5000 VRMS
---------------CSA 60601- 1:14 and IEC
60601-1 Ed. 3.1+A1,
ISO1042-Q1: 2 MOPP
(Means of Patient
Protection) 250 VRMS (354
VPK) maximum working
voltage
Reinforced insulation,
Altitude ≤ 5000 m, Tropical
Climate,
700 VRMS maximum working
voltage
EN 61010-1:2010 /
A1:2019
ISO1042-Q1: 600 VRMS
reinforced isolation
ISO1042B-Q1: 1000 VRMS
basic isolation
---------------EN 60950-1:2006/A2:2013
and EN 62368-1:2014
ISO1042-Q1: 800 VRMS
reinforced isolation
ISO1042B-Q1: 1060 VRMS
basic isolation
Certificates:
Reinforced: 40040142
Basic: 40047657
Master contract number:
220991
Certificate:
CQC15001121716 (DW-16)
CQC18001199096 (DWV-8)
Client ID number: 77311
Certified according to DIN
VDE V 0884-11:2017- 01
Certified according to IEC Recognized under UL
60950-1, IEC 62368-1 and 1577 Component
IEC 60601-1
Recognition Program
File number: E181974
6.9 Safety Limiting Values
Safety limiting(1) intends to minimize potential damage to the isolation barrier upon failure of input or output circuitry.
PARAMETER
TEST CONDITIONS
MIN TYP MAX UNIT
DW-16 PACKAGE
IS
Safety input, output, or supply
current
PS
Safety input, output, or total
power
TS
Maximum safety temperature
RθJA = 69.9°C/W, VI = 5.5 V, TJ = 150°C, TA = 25°C, see Figure 6-1
325
RθJA = 69.9°C/W, VI = 3.6 V, TJ = 150°C, TA = 25°C, see Figure 6-1
496
RθJA = 69.9°C/W, VI = 2.75 V, TJ = 150°C, TA = 25°C, see Figure 6-1
650
RθJA = 69.9°C/W, VI = 1.89 V, TJ = 150°C, TA = 25°C, see Figure 6-1
946
RθJA = 69.9°C/W, TJ = 150°C, TA = 25°C, see Figure 6-3
mA
1788 mW
150
°C
DWV-8 PACKAGE
IS
PS
Safety input, output, or total
power
TS
Maximum safety temperature
(1)
8
Safety input, output, or supply
current
RθJA = 100°C/W, VI = 5.5 V, TJ = 150°C, TA = 25°C, see Figure 6-2
227
RθJA = 100°C/W, VI = 3.6 V, TJ = 150°C, TA = 25°C, see Figure 6-2
347
RθJA = 100°C/W, VI = 2.75 V, TJ = 150°C, TA = 25°C, see Figure 6-2
454
RθJA = 100°C/W, VI = 1.89 V, TJ = 150°C, TA = 25°C, see Figure 6-2
661
RθJA = 100°C/W, TJ = 150°C, TA = 25°C, see Figure 6-4
mA
1250 mW
150
°C
The maximum safety temperature, TS, has the same value as the maximum junction temperature, TJ, specified for the device. The IS
and PS parameters represent the safety current and safety power respectively. The maximum limits of IS and PS should not be
exceeded. These limits vary with the ambient temperature, TA.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
The junction-to-air thermal resistance, RθJA, in the table is that of a device installed on a high-K test board for leaded surface-mount
packages. Use these equations to calculate the value for each parameter:
TJ = TA + RθJA × P, where P is the power dissipated in the device.
TJ(max) = TS = TA + RθJA × PS, where TJ(max) is the maximum allowed junction temperature.
PS = IS × VI, where VI is the maximum input voltage.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
9
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
6.10 Electrical Characteristics - DC Specification
Over recommended operating conditions (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
VCC1 =1.71 V to 1.89 V, TXD = 0 V, bus
dominant
2.3
3.5
mA
VCC1 = 2.25 V to 5.5 V, TXD = 0 V, bus
dominant
2.4
3.5
mA
VCC1 = 1.71 V to 1.89 V, TXD = VCC1, bus
recessive
1.2
2.1
mA
VCC1 = 2.25 V to 5.5 V, TXD = VCC1, bus
recessive
1.3
2.1
mA
TXD = 0 V, bus dominant, RL = 60 Ω
43
73.4
mA
TXD = VCC1, bus recessive, RL = 60 Ω
2.8
4.1
mA
1.7
V
SUPPLY CHARACTERISTICS
ICC1
Supply current Side 1
ICC2
Supply current Side 2
UVVCC1
Rising under voltage detection, Side 1
UVVCC1
Falling under voltage detection, Side 1
1.0
Hysterisis voltage on VCC1 undervoltage
lock-out
75
125
4.2
4.45
V
3.8
4.0
4.25
V
V
HYS(UVCC
1)
UVVCC2
Rising under voltage detection, side 2
UVVCC2
Falling under voltage detection, side 2
V
HYS(UVCC
2)
Hysterisis voltage on VCC2 undervoltage
lock-out
V
mV
200
mV
TXD TERMINAL
VIH
High level input voltage
VIL
Low level input voltage
0.7×VCC1
V
0.3×VCC1
IIH
High level input leakage current
TXD = VCC1
IIL
Low level input leakage current
TXD = 0V
CI
Input capacitance
VIN = 0.4 x sin(2 x π x 1E+6 x t) + 2.5 V,
VCC1 = 5 V
1
-20
V
uA
uA
3
pF
RXD TERMINAL
VOH - V
CC1
VOL
High level output voltage
Low level output voltage
See Figure 7-4, IO = -4 mA for 4.5 V ≤ V
CC1 ≤ 5.5 V
-0.4
-0.2
V
See Figure 7-4, IO = -2 mA for 3.0 V ≤ V
CC1 ≤ 3.6 V
-0.2
-0.07
V
See Figure 7-4, IO = -1 mA for 2.25 V ≤ V
CC1 ≤ 2.75 V
-0.1
-0.04
V
See Figure 7-4, IO = -1 mA for 1.71 V ≤ V
CC1 ≤ 1.89 V
-0.1
-0.045
V
See Figure 7-4, IO = 4 mA for 4.5 V ≤ V
CC1 ≤ 5.5 V
0.2
0.4
V
See Figure 7-4, IO = 2 mA for 3.0 V ≤ V
CC1 ≤ 3.6 V
0.07
0.2
V
See Figure 7-4, IO = 1 mA for 2.25 V ≤ V
CC1 ≤ 2.75 V
0.035
0.1
V
See Figure 7-4, IO = 1 mA for 1.71 V ≤ V
CC1 ≤ 1.89 V
0.04
0.1
V
DRIVER ELECTRICAL CHARACTERISTICS
Bus output voltage(Dominant), CANH
See Figure 7-1 and Figure 7-2, TXD = 0
V, 50 Ω ≤ RL ≤ 65 Ω, CL = open
2.75
4.5
V
Bus output voltage(Dominant), CANL
See Figure 7-1 and Figure 7-2, TXD = 0
V, 50 Ω ≤ RL ≤ 65 Ω, CL = open
0.5
2.25
V
VO(DOM)
10
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
Over recommended operating conditions (unless otherwise noted)
PARAMETER
VO(REC)
VOD(DOM)
VOD(REC)
VSYM_DC
I
SO(SS_DO
M)
I
SO(SS_RE
C)
MIN
TYP
MAX
Bus output voltage(recessive), CANH and See Figure 7-1 and Figure 7-2, TXD = V
CANL
CC1, RL = open
2.0
0.5 x
VCC2
3.0
V
Differential output voltage, CANH-CANL
(dominant)
See Figure 7-1 and Figure 7-2, TXD = 0
V, 45 Ω ≤ RL ≤ 50 Ω, CL = open
1.4
3.0
V
Differential output voltage, CANH-CANL
(dominant)
See Figure 7-1 and Figure 7-2, TXD = 0
V, 50 Ω ≤ RL ≤ 65 Ω, CL = open
1.5
3.0
V
Differential output voltage, CANH-CANL
(dominant)
See Figure 7-1 and Figure 7-2, TXD = 0
V, RL = 2240 Ω, CL = open
1.5
5.0
V
Differential output voltage, CANH-CANL
(recessive)
See Figure 7-1 and Figure 7-2, TXD = V
CC1, RL = 60 Ω, CL = open
-120.0
12.0
mV
Differential output voltage, CANH-CANL
(recessive)
CC1,
See Figure 7-1 and Figure 7-2, TXD = V
RL = open, CL = open
-50.0
50.0
mV
DC Output symmetry (VCC2 - VO(CANH) - V See Figure 7-1 and Figure 7-2, RL = 60
Ω, CL = open, TXD = VCC1 or 0 V
O(CANL))
-400.0
400.0
mV
See Figure 7-9, VCANH = -5 V to 40 V,
CANL = open, TXD = 0 V
-100.0
Short circuit current steady state output
current, dominant
Short circuit current steady state output
current, recessive
TEST CONDITIONS
mA
See Figure 7-9, VCANL = -5 V to 40 V,
CANH = open, TXD = 0 V
See Figure 7-9, -27 V ≤ VBUS ≤ 32 V,
VBUS = CANH = CANL, TXD = VCC1
UNIT
100.0
mA
-5.0
5.0
mA
RECEIVER ELECTRICAL CHARACTERISTICS
Differential input threshold voltage
See Figure 7-4 and Table 7-1, |VCM| ≤ 20
V
500.0
900.0
Differential input threshold voltage
See Figure 7-4 and Table 7-1, 20 V ≤ |
VCM| ≤ 30 V
400.0
1000.0
VHYS
Hysteresis voltage for differential input
threshold
See Figure 7-4 and Table 7-1
VCM
Input common mode range
See Figure 7-4 and Table 7-1
IOFF(LKG)
Power-off bus input leakage current
CANH = CANL = 5 V, VCC2 to GND via 0
Ω and 47 kΩ resistor
CI
Input capacitance to ground (CANH or
CANL)
TXD = VCC1
CID
Differential input capacitance (CANHCANL)
TXD = VCC1
RID
Differential input resistance
TXD = VCC1 ; -30 V ≤ VCM ≤ +30 V
30.0
80.0
kΩ
RIN
Input resistance (CANH or CANL)
TXD = VCC1 ; -30 V ≤ VCM ≤ +30 V
15.0
40.0
kΩ
RIN(M)
Input resistance matching: (1 - R
IN(CANH)/RIN(CANL)) x 100%
VCANH = VCANL = 5 V
-2.0
2.0
%
VIT
mV
120
-30.0
30.0
V
4.8
uA
24.0
30
pF
12.0
15
pF
THERMAL SHUTDOWN
TTSD
T
TSD_HYST
Thermal shutdown temperature
Thermal shutdown hysteresis
170
℃
5
℃
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
11
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
6.11 Switching Characteristics
Over recommended operating conditions (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
See Figure 7-6, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns; 1.71 V ≤ V
CC1 ≤ 1.89 V
70
125
198.0
ns
See Figure 7-6, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns; 2.25 V ≤ V
CC1 ≤ 5.5 V
70
122
192.0
ns
See Figure 7-6, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns; 1.71 V ≤ VCC1 ≤
1.89 V
70
155
215.0
ns
See Figure 7-6, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns; 2.25 V ≤ V
CC1 ≤ 5.5 V
70
152
215.0
ns
300.0
µs
DEVICE SWITCHING CHARACTERISTICS
t
PROP(LOO
P1)
t
PROP(LOO
P2)
Total loop delay, driver input TXD to
receiver RXD, recessive to dominant
Total loop delay, driver input TXD to
receiver RXD, dominant to recessive
t
UV_RE_EN
Re-enable time after Undervoltage event
Time for device to return to normal
operation from VCC1 or VCC2 under
voltage event
Common mode transient immunity
VCM = 1200 VPK, See Figure 7-10
ABLE
CMTI
85
100
kV/µs
DRIVER SWITCHING CHARACTERISTICS
tpHR
Propagation delay time, HIGH TXD to
driver recessive
tpLD
Propagation delay time, LOW TXD to
driver dominant
tsk(p)
Pulse skew (|tpHR - tpLD|)
tR
Differential output signal rise time
45
tF
Differential output signal fall time
45
VSYM
See Figure 7-3 and Figure 9-4 , RTERM =
Output symmetry (dominant or recessive)
60 Ω, CSPLIT = 4.7 nF, CL = open, RL =
(VO(CANH) + VO(CANL)) / VCC2
open, TXD = 250 kHz, 1 MHz
0.9
1.1
V/V
tTXD_DTO
Dominant time out
1.2
3.8
ms
75
130
ns
63
130
ns
See Figure 7-3, RL = 60 Ω and CL = 100
pF; input rise/fall time (10% to 90%) on
TXD =1 ns
See Figure 7-8, RL = 60 Ω and CL = open
76
120
61
120
ns
14
RECEIVER SWITCHING CHARACTERISTICS
tpRH
Propagation delay time, bus recessive
input to RXD high output
tpDL
Propogation delay time, bus dominant
input to RXD low output
tR
Output signal rise time(RXD)
1.4
ns
tF
Output signal fall time(RXD)
1.8
ns
See Figure 7-5, CL(RXD) = 15 pF
FD TIMING PARAMETERS
Bit time on CAN bus output pins with t
BIT(TXD) = 500 ns
See Figure 7-7, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns
435.0
530.0
ns
Bit time on CAN bus output pins with t
BIT(TXD) = 200 ns
See Figure 7-7, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns
155.0
210.0
ns
tBIT(BUS)
12
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
Over recommended operating conditions (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
MAX
UNIT
400
550.0
ns
See Figure 7-7, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns
120.0
220.0
ns
Receiver timing symmetry with tBIT(TXD) =
500 ns
See Figure 7-7, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns; ΔtREC = tBIT(RXD)
- tBIT(BUS)
-65.0
40.0
ns
Receiver timing symmetry with tBIT(TXD) =
200 ns
See Figure 7-7, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns; ΔtREC = tBIT(RXD)
- tBIT(BUS)
-45.0
15.0
ns
Bit time on RXD output pins with tBIT(TXD)
= 500 ns
See Figure 7-7, RL = 60 Ω, CL = 100 pF,
CL(RXD) = 15 pF; input rise/fall time (10%
to 90%) on TXD =1 ns
Bit time on RXD output pins with tBIT(TXD)
= 200 ns
tBIT(RXD)
∆tREC
TYP
6.12 Insulation Characteristics Curves
700
1000
VCC1 =1.89 V
VCC1 = 2.75 V
VCC1 = 3.6 V
VCC1 = VCC2 = 5.5 V
800
700
600
500
400
300
200
500
400
300
200
100
100
0
0
50
100
150
Ambient Temperature (qC)
0
200
0
50
D003
Figure 6-1. Thermal Derating Curve for Limiting
Current per VDE for DW-16 Package
100
150
Ambient Temperature (qC)
200
D001
Figure 6-2. Thermal Derating Curve for Limiting
Current per VDE for DWV-8 Package
1400
2000
1800
1200
1600
Safety Limiting Power (mW)
Safety Limiting Power (mW)
VCC1 = 1.89 V
VCC1 = 2.75 V
VCC1 = 3.6 V
VCC1 = VCC2 = 5.5 V
600
Safety Limiting Current (mA)
Safety Limiting Current (mA)
900
1400
1200
1000
800
600
400
1000
800
600
400
200
200
0
0
0
50
100
150
Ambient Temperature (qC)
200
0
D004
Figure 6-3. Thermal Derating Curve for Limiting
Power per VDE for DW-16 Package
50
100
150
Ambient Temperature (qC)
200
D002
Figure 6-4. Thermal Derating Curve for Limiting
Power per VDE for DWV-8 Package
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
13
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
6.13 Typical Characteristics
50
45
40
30
ICC1 (mA)
ICC2 (mA)
35
25
20
Recessive
Dominant
500 kbps
1 Mbps
15
10
2 Mbps
5 Mbps
5
0
4.5
4.6
4.7
4.8
VCC1 = 5 V
4.9
5
5.1
VCC2 (V)
5.2
RL = 60 Ω
5.3
5.4
2.3
2.25
2.2
2.15
2.1
2.05
2
1.95
1.9
1.85
1.8
1.75
1.7
1.65
1.6
1.55
5.5
VCC1=1.71 V
VCC1=1.8 V
VCC1=2.5 V
0
0.5
CL(RXD) = 15 pF
RL = 60 Ω
4
4.5
5
D002
CL(RXD) = 15 pF
Figure 6-6. ICC1 vs Datarate
45
3
40
2.75
35
Recessive
Dominant
500 kbps
1 Mbps
2 Mbps
5 Mbps
2.5
ICC1 (mA)
30
ICC2 (mA)
2
2.5
3
3.5
Data Rate (Mbps)
Temp = 25°C
Figure 6-5. ICC2 vs VCC2 for Recessive, Dominant
and Different CAN Datarates
25
20
Recessive
Dominant
500 kbps
15
10
1 Mbps
2 Mbps
5 Mbps
2.25
2
1.75
1.5
1.25
5
-40
-20
0
20
40
60
80
Temperature (qC)
VCC1 = VCC2 = 5 V
RL = 60 Ω
100
120
140
1
-60
-40
-20
D003
CL(RXD) = 15 pF
Figure 6-7. ICC2 vs Ambient Temperature for
Recessive, Dominant and Different CAN Datarates
14
1.5
VCC2 = 5 V
Temp = 25°C
0
-60
1
D001
VCC1=3.3 V
VCC1=5 V
VCC1=5.5 V
VCC1 = VCC2 = 5 V
0
20
40
60
Temperature (qC)
RL = 60 Ω
80
100
120
140
D004
CL(RXD) = 15 pF
Temp = 25°C
Figure 6-8. : ICC1 vs Ambient Temperature for
Recessive, Dominant and Different CAN Datarates.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
180
3
tPROP(LOOP1)
tPROP(LOOP2)
170
2.5
VOD(DOM) (V)
Loop Delay (ns)
160
150
140
130
2
1.5
1
120
0.5
110
100
-60
-40
-20
0
20
40
60
80
Temperature (qC)
VCC1 = VCC2 = 5 V
RL = 60 Ω
100
120
140
0
-55
-35
-15
D005
CL(RXD) = 15 pF
Figure 6-9. Loop Delay vs Ambient Temperature
VCC = 5 V
5
25
45
65
Temperature (°C)
VCC1 = 5 V
85
105
125
D001
RL = 60 Ω
CL = Open
Figure 6-10. VOD(DOM) Over Temperature
3
VOD(DOM) (V)
2.5
2
1.5
1
0.5
VCC1 = VCC2 = 5 V
0
4.5
4.6
4.7
4.8
4.9
5
5.1
VCC (V)
5.2
5.3
5.4
5.5
D002
VCC1 = 5 V
RL = 60 Ω
CL = Open
Temp = 25°C
RL = 60 Ω
CL = 100 pF
CL(RXD) = 15 pF
Figure 6-12. Typical TXD, RXD, CANH and CANL
Waveforms at 1 Mbps
Figure 6-11. VOD(DOM) Over VCC
TXD = VCC1
RL = 60 Ω
VCC1 = VCC2 = 5 V
Figure 6-13. Glitch Free Power Up on VCC1 – CAN
Bus Remains Recessive
TXD = VCC1
RL = 60 Ω
VCC1 = VCC2 = 5 V
Figure 6-14. Glitch Free Power Up on VCC2 – CAN
Bus Remains Recessive
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
15
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
7 Parameter Measurement Information
7.1 Test Circuits
IO(CANH)
CANH
II
0 or
Vcc 1
TXD
VOD
CANL
GND1
RL
VO(CANH) + VO(CANL )
2
IO(CANL )
GND2
VI
VOC
VO(CANL )
GND1
VO(CANH)
GND2
Figure 7-1. Driver Voltage, Current and Test Definitions
Dominant
VO (CANH)
» 3.5 V
Recessive
» 2.5 V
VO (CANL)
» 1.5 V
Figure 7-2. Bus Logic State Voltage Definitions
Vcc
VI
CANH
TXD
RL
VO
Vcc /2
0V
CL
CANL
VI
t PLH
t PHL
VO(D)
90%
0.9V
VO
(SEE NOTE A)
Vcc /2
0.5V
10%
tr
tf
VO(R)
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
Figure 7-3. Driver Test Circuit and Voltage Waveforms
CANH
VIC
=
VI(CANH) + VI(CANL)
2
RXD
VID
IO
CANL
VI(CANH)
VO
VI(CANL)
GND2
GND1
Figure 7-4. Receiver Voltage and Current Definitions
16
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
CANH
IO
3.5 V
RXD
V
I
2.4 V
2 V
CANL
1.5 V
t pHL
t pLH
VO
VI
(SEE NOTE A )
C L(RXD)
1 .5 V
V OH
90 %
0.7 Vcc 1
0.3 Vcc 1
V
O
10 %
GND 2
V OL
tf
tr
GND 1
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
Figure 7-5. Receiver Test Circuit and Voltage Waveforms
Table 7-1. Receiver Differential Input Voltage Threshold Test
INPUT
OUTPUT
VCANH
VCANL
|VID|
-29.5 V
-30.5 V
1000 mV
L
RXD
30.5 V
29.5 V
1000 mV
L
-19.55 V
-20.45 V
900 mV
L
20.45 V
19.55 V
900 mV
L
-19.75 V
-20.25 V
500 mV
H
20.25 V
19.75 V
500 mV
H
-29.8 V
-30.2 V
400 mV
H
30.2 V
29.8 V
400 mV
H
Open
Open
X
H
VOL
VOH
CANH
VI
TXD
RL
CANL
CL
TXD Input
Vcc
50%
t loop2
VOH
RXD
RXD Output
+
50%
50%
VOL
C L(RXD)
VO
_
0V
t loop 1
GND1
Figure 7-6. tLOOP Test Circuit and Voltage Waveforms
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
17
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
VI
70%
TXD
CANH
TXD
VI
0V
tBIT(TXD)
5 x tBIT
CL
RL
30%
30%
CANL
tBIT(BUS)
900 mV
VDIFF
RXD
500 mV
CL(RXD)
VO
VOH
GND1
70%
RXD
tBIT(RXD)
30%
VOL
Figure 7-7. CAN FD Timing Parameter Measurement
Vcc
VI
CANH
TXD
RL
0V
VOD
CL
V OD (D)
V I (see Note A )
CANH
VOD
900 mV
t TXD_DTO
500 mV
GND 1
0V
A. The input pulse is supplied by a generator having the following characteristics: tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
Figure 7-8. Dominant Time-out Test Circuit and Voltage Waveforms
IOS
CANH
200 s
IOS
TXD
VBUS
IOS
+
VBUS
CANL
VBUS
0V
±
GND2
or
0V
VBUS
VBUS
Figure 7-9. Driver Short-Circuit Current Test Circuit and Waveforms
18
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
C = 0.1 mF
± 1%
VCC 1
VCC 1
VCC2
CANH
C = 0.1 mF ±1%
+
GND1
GND2
TXD
60 W
S1
VOH or VOL
CANL
0V
RXD
VOH or VOL
1kW
GND 1
GND 2
CL = 15 pF
(includes probe and
jig capacitance )
V CM
Figure 7-10. Common-Mode Transient Immunity Test Circuit
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
19
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
8 Detailed Description
8.1 Overview
The ISO1042-Q1 device is a digitally isolated CAN transceiver that offers ±70-V DC bus fault protection and ±30V common-mode voltage range. The device supports up to 5-Mbps data rate in CAN FD mode allowing much
faster transfer of payload compared to classic CAN. The ISO1042-Q1 device has an isolation withstand voltage
of 5000 V RMS and is available in basic and reinforced isolation with a surge test voltage of 6 kV PK and 10 kV PK
respectively. The device can operate from 1.8-V, 2.5-V, 3.3-V, and 5-V supplies on side 1 and a 5-V supply on
side 2. This supply range is of particular advantage for applications operating in harsh industrial environments
because the low voltage on side 1 enables the connection to low-voltage microcontrollers for power
conservation, whereas the 5 V on side 2 maintains a high signal-to-noise ratio of the bus signals.
8.2 Functional Block Diagram
VCC2
VCC1
TXD
+
GALVANIC ISOLATION
RXD
±
CANH
CANL
GND2
GND1
8.3 Feature Description
8.3.1 CAN Bus States
The CAN bus has two states during operation: dominant and recessive. A dominant bus state, equivalent to logic
low, is when the bus is driven differentially by a driver. A recessive bus state is when the bus is biased to a
common mode of VCC / 2 through the high-resistance internal input resistors of the receiver, equivalent to a logic
high. The host microprocessor of the CAN node uses the TXD pin to drive the bus and receives data from the
bus on the RXD pin. See Figure 8-1 and Figure 8-2.
20
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
Typical Bus Voltage (V)
4
CANH
3
Vdiff(D)
2
Vdiff(R)
CANL
1
Time (t)
Recessive
Logic H
Dominant
Logic L
Recessive
Logic H
Figure 8-1. Bus States (Physical Bit Representation)
GALVANIC
ISOLATION
CANH
VCC / 2
RXD
CANL
Figure 8-2. Simplified Recessive Common Mode Bias and Receiver
8.3.2 Digital Inputs and Outputs: TXD (Input) and RXD (Output)
The VCC1 supply for the isolated digital input and output side of the device can be supplied by 1.8-V, 2.5-V, 3.3-V,
and 5-V supplies and therefore the digital inputs and outputs are 1.8-V, 2.5-V, 3.3-V, and 5-V compatible.
Note
The TXD pin is very weakly internally pulled up to V CC1. An external pullup resistor should be used to
make sure that the TXD pin is biased to recessive (high) level to avoid issues on the bus if the
microprocessor does not control the pin and the TXD pin floats. The TXD pullup strength and CAN bit
timing require special consideration when the device is used with an open-drain TXD output on the
CAN controller of the microprocessor. An adequate external pullup resistor must be used to make sure
that the TXD output of the microprocessor maintains adequate bit timing input to the input on the
transceiver.
8.3.3 Protection Features
8.3.3.1 TXD Dominant Timeout (DTO)
The TXD DTO circuit prevents the transceiver from blocking network communication in the event of a hardware
or software failure where the TXD pin is held dominant longer than the timeout period, tTXD_DTO. The DTO circuit
timer starts on a falling edge on the TXD pin. The DTO circuit disables the CAN bus driver if no rising edge
occurs before the timeout period expires, which frees the bus for communication between other nodes on the
network. The CAN driver is activated again when a recessive signal occurs on the TXD pin, clearing the TXD
DTO condition. The receiver and RXD pin still reflect activity on the CAN bus, and the bus terminals are biased
to the recessive level during a TXD dominant timeout.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
21
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
TXD fault stuck dominant
Example: PCB failure or bad software
TXD
(driver)
tTXD_DTO
Fault is repaired and transmission
capability is restored
Driver disabled freeing bus for other nodes
Bus would be stuck dominant, blocking communication for the
whole network but TXD DTO prevents this and frees the bus for
communication after the tTXD_DTO time.
Normal CAN
communication
CAN
Bus
Signal
tTXD_DTO
Communication from
repaired nodes
Communication from
other bus nodes
RXD
(receiver)
Communication from
local node
Communication from
other bus nodes
Communication from
repaired nodes
Figure 8-3. Example Timing Diagram for TXD DTO
Note
The minimum dominant TXD time (t TXD_DTO) allowed by the TXD DTO circuit limits the minimum
possible transmitted data rate of the device. The CAN protocol allows a maximum of eleven
successive dominant bits (on TXD) for the worst case, where five successive dominant bits are
followed immediately by an error frame. This, along with the t TXD_DTO minimum, limits the minimum
data rate. Calculate the minimum transmitted data rate with Equation 1.
Minimum Data Rate = 11 / tTXD_DTO
(1)
8.3.3.2 Thermal Shutdown (TSD)
If the junction temperature of the device exceeds the thermal shutdown threshold (TTSD), the device turns off the
CAN driver circuits, blocking the TXD-to-bus transmission path. The CAN bus terminals are biased to the
recessive level during a thermal shutdown, and the receiver-to-RXD path remains operational. The shutdown
condition is cleared when the junction temperature drops at least the thermal shutdown hysteresis temperature
(TTSD_HYST) below the thermal shutdown temperature (TTSD) of the device.
8.3.3.3 Undervoltage Lockout and Default State
The supply pins have undervoltage detection that places the device in protected or default mode which protects
the bus during an undervoltage event on the V CC1 or V CC2 supply pins. If the bus-side power supply, V CC2, is
less than about 4 V, the power shutdown circuits in the ISO1042-Q1 device disable the transceiver to prevent
false transmissions because of an unstable supply. If the VCC1 supply is still active when this occurs, the receiver
output (RXD) goes to a default HIGH (recessive) value. Table 8-1 summarizes the undervoltage lockout and failsafe behavior.
Table 8-1. Undervoltage Lockout and Default State
22
VCC1
VCC2
DEVICE STATE
BUS OUTPUT
RXD
> UVVCC1
> UVVCC2
Functional
Per Device State and TXD
Mirrors Bus
UVVCC2
Protected
Recessive
Undetermined
>UVVCC1
< UVVCC2
Protected
High Impedance
Recessive (Default High)
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
Note
After an undervoltage condition is cleared and the supplies have returned to valid levels, the device
typically resumes normal operation in 300 µs.
8.3.3.4 Floating Pins
Pullup and pulldown resistors should be used on critical pins to place the device into known states if the pins
float. The TXD pin should be pulled up through a resistor to the V CC1 pin to force a recessive input level if the
microprocessor output to the pin floats.
8.3.3.5 Unpowered Device
The device is designed to be ideal passive or no load to the CAN bus if it is unpowered. The bus pins (CANH,
CANL) have extremely low leakage currents when the device is unpowered to avoid loading down the bus which
is critical if some nodes of the network are unpowered while the rest of the of network remains in operation.
8.3.3.6 CAN Bus Short Circuit Current Limiting
The device has two protection features that limit the short circuit current when a CAN bus line has a short-circuit
fault condition. The first protection feature is driver current limiting (both dominant and recessive states) and the
second feature is TXD dominant state time out to prevent permanent higher short circuit current of the dominant
state during a system fault. During CAN communication the bus switches between dominant and recessive
states, therefore the short circuit current may be viewed either as the instantaneous current during each bus
state or as an average current of the two states. For system current (power supply) and power considerations in
the termination resistors and common-mode choke ratings, use the average short circuit current. Determine the
ratio of dominant and recessive bits by the data in the CAN frame plus the following factors of the protocol and
PHY that force either recessive or dominant at certain times:
•
•
•
•
Control fields with set bits
Bit stuffing
Interframe space
TXD dominant time out (fault case limiting)
These factors ensure a minimum recessive amount of time on the bus even if the data field contains a high
percentage of dominant bits. The short circuit current of the bus depends on the ratio of recessive to dominant
bits and their respective short circuit currents. Use Equation 2 to calculate the average short circuit current.
IOS(AVG) = %Transmit × [(%REC_Bits × IOS(SS)_REC) + (%DOM_Bits × IOS(SS)_DOM)] + [%Receive × I
(2)
OS(SS)_REC]
where
•
•
•
•
•
•
•
IOS(AVG) is the average short circuit current
%Transmit is the percentage the node is transmitting CAN messages
%Receive is the percentage the node is receiving CAN messages
%REC_Bits is the percentage of recessive bits in the transmitted CAN messages
%DOM_Bits is the percentage of dominant bits in the transmitted CAN messages
IOS(SS)_REC is the recessive steady state short circuit current
IOS(SS)_DOM is the dominant steady state short circuit current
Note
Consider the short circuit current and possible fault cases of the network when sizing the power
ratings of the termination resistance and other network components.
8.4 Device Functional Modes
Table 8-2 and Table 8-3 list the driver and receiver functions. Table 8-4 lists the functional modes for the
ISO1042-Q1 device.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
23
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
Table 8-2. Driver Function Table
INPUT
(1)
OUTPUTS
DRIVEN BUS STATE
TXD(1)
CANH(1)
CANL(1)
L
H
L
Dominant
H
Z
Z
Recessive
H = high level, L = low level, Z = common mode (recessive) bias to VCC / 2. See Figure 8-1 and
Figure 8-2 for bus state and common mode bias information.
Table 8-3. Receiver Function Table
DEVICE MODE
Normal
(1)
CAN DIFFERENTIAL INPUTS
VID = VCANH – VCANL (3)
BUS STATE
RXD PIN(1)
VID ≥ VIT(MAX)
Dominant
L
VIT(MIN) < VID < VIT(MAX)
?
?
VID ≤ VIT(MIN)
Recessive
H
Open (VID ≈ 0 V)
Open
H
H = high level, L = low level, ? = indeterminate.
Table 8-4. Function Table
DRIVER
INPUTS(1)
(1)
(2)
(3)
24
OUTPUTS
TXD
CANH
CANL
L(2)
H
L
H
Z
Z
Open
Z
Z
X
Z
Z
RECEIVER
DIFFERENTIAL INPUTS V
(3)
ID = CANH–CANL
OUTPUT
RXD
BUS STATE
DOMINANT
VID ≥ VIT(MAX)
L
DOMINANT
RECESSIVE
VIT(MIN) < VID < VIT(MAX)
?
?
RECESSIVE
VID ≤ VIT(MIN)
H
RECESSIVE
RECESSIVE
Open (VID ≈ 0 V)
H
RECESSIVE
BUS STATE
H = high level; L = low level; X = irrelevant; ? = indeterminate; Z = high impedance
Logic low pulses to prevent dominant time-out.
See Receiver Electrical Characteristics section for input thresholds.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
9 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and TI
does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes. Customers should validate and test their design
implementation to confirm system functionality.
9.1 Application Information
The ISO1042-Q1 device can be used with other components from Texas Instruments such as a microcontroller,
a transformer driver, and a linear voltage regulator to form a fully isolated CAN interface.
9.2 Typical Application
GND
EN
1
3
SN650 5-Q1
3.3 V
8
4
D2
VCC
3
2
7
6
1
5
2
CLK
D1
3.3 V
1
2
VDD
TXD
3
V
VCC1
CC1
VCC2
RXD
5
TXD
TXD
ISO104 2-Q1
EN
TPS763 50-Q1
GND
NC
4
NC 14
NC
CANH
CANH
RXD
RXD
CANL
13
12
NC
6 NC
Optiona l b us
protection
function
7 NC
NC
Digital
Gro und
5
11,16
DGND
8
OUT
GND1
GND1
4 NC
NC
MCU
IN
9,10,15
GND1
GND2
Gal van ic
Isol atio n B arrier
ISO
Gro und
Figure 9-1. Application Circuit With ISO1042-Q1 in 16-SOIC Package
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
25
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
GND
4
D2
3
SN6505-Q1
3.3 V
EN
VCC
CLK
D1
1
8
3
2
7
6
1
5
2
3.3 V
1
VDD
TXD
MCU
RXD
DGND
2
3
4
Digital
Ground
VCC1
VCC2
TXD
CANH
ISO1042-Q1CANL
OUT
5
EN
TPS76350-Q1
GND
NC
4
8
7
6
RXD
GND1
IN
Optional bus
protection
function
GND2
Galvanic
Isolation Barrier
5
ISO
Ground
Figure 9-2. Application Circuit With ISO1042-Q1 in 8-SOIC Package
9.2.1 Design Requirements
Unlike an optocoupler-based solution, which requires several external components to improve performance,
provide bias, or limit current, the ISO1042-Q1 device only requires external bypass capacitors to operate.
9.2.2 Detailed Design Procedure
9.2.2.1 Bus Loading, Length and Number of Nodes
The ISO 11898-2 Standard specifies a maximum bus length of 40 m and maximum stub length of 0.3 m.
However, with careful design, users can have longer cables, longer stub lengths, and many more nodes to a
bus. A large number of nodes requires transceivers with high input impedance such as the ISO1042-Q1
transceivers.
Many CAN organizations and standards have scaled the use of CAN for applications outside the original ISO
11898-2 Standard. These organizations and standards have made system-level trade-offs for data rate, cable
length, and parasitic loading of the bus. Examples of some of these specifications are ARINC825, CANopen,
DeviceNet, and NMEA2000.
The ISO1042-Q1 device is specified to meet the 1.5-V requirement with a 50-Ω load, incorporating the worst
case including parallel transceivers. The differential input resistance of the ISO1042-Q1 device is a minimum of
30 kΩ. If 100 ISO1042-Q1 transceivers are in parallel on a bus, this requirement is equivalent to a 300-Ω
differential load worst case. That transceiver load of 300 Ω in parallel with the 60 Ω gives an equivalent loading
of 50 Ω. Therefore, the ISO1042-Q1 device theoretically supports up to 100 transceivers on a single bus
segment. However, for CAN network design margin must be given for signal loss across the system and cabling,
parasitic loadings, network imbalances, ground offsets and signal integrity, therefore a practical maximum
number of nodes is typically much lower. Bus length may also be extended beyond the original ISO 11898
standard of 40 m by careful system design and data-rate tradeoffs. For example, CANopen network design
guidelines allow the network to be up to 1 km with changes in the termination resistance, cabling, less than 64
nodes, and a significantly lowered data rate.
This flexibility in CAN network design is one of the key strengths of the various extensions and additional
standards that have been built on the original ISO 11898-2 CAN standard. Using this flexibility requires the
responsibility of good network design and balancing these tradeoffs.
9.2.2.2 CAN Termination
The ISO11898 standard specifies the interconnect to be a single twisted pair cable (shielded or unshielded) with
120-Ω characteristic impedance (ZO). Resistors equal to the characteristic impedance of the line should be used
to terminate both ends of the cable to prevent signal reflections. Unterminated drop-lines (stubs) connecting
26
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
nodes to the bus should be kept as short as possible to minimize signal reflections. The termination may be in a
node, but if nodes are removed from the bus, the termination must be carefully placed so that it is not removed
from the bus.
Node 1
Node 2
Node 3
Node n
(with termination)
MCU or DSP
MCU or DSP
MCU or DSP
MCU or DSP
CAN
Controller
CAN
Controller
CAN
Controller
CAN
Controller
CAN
Transceiver
CAN
Transceiver
CAN
Transceiver
CAN
Transceiver
RTERM
RTERM
Figure 9-3. Typical CAN Bus
Termination may be a single 120-Ω resistor at the end of the bus, either on the cable or in a terminating node. If
filtering and stabilization of the common-mode voltage of the bus is desired, then split termination can be used.
(See Figure 9-4). Split termination improves the electromagnetic emissions behavior of the network by
eliminating fluctuations in the bus common-mode voltages at the start and end of message transmissions.
Standard Termination
Split Termination
CANH
CANH
RTERM / 2
CAN
Transceiver
RTERM
CAN
Transceiver
CSPLIT
RTERM / 2
CANL
CANL
Figure 9-4. CAN Bus Termination Concepts
9.2.3 Application Curve
Figure 9-5. Typical TXD, RXD, CANH and CANL Waveforms at 1 Mbps
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
27
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
10 Power Supply Recommendations
To make sure operation is reliable at all data rates and supply voltages, a 0.1-µF bypass capacitor is
recommended at the input and output supply pins (VCC1 and VCC2). The capacitors should be placed as close to
the supply pins as possible. In addition, a bulk capacitance, typically 4.7 μF, should be placed near the V CC2
supply pin. If only a single primary-side power supply is available in an application, isolated power can be
generated for the secondary-side with the help of a transformer driver such as TI's SN6505B. For such
applications, detailed power supply design, and transformer selection recommendations are available in the
SN6505 Low-Noise 1-A Transformer Drivers for Isolated Power Supplies data sheet.
28
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
11 Layout
11.1 Layout Guidelines
A minimum of four layers is required to accomplish a low EMI PCB design (see Section 11.2). Layer stacking
should be in the following order (top-to-bottom): high-speed signal layer, ground plane, power plane and lowfrequency signal layer.
•
•
•
•
Routing the high-speed traces on the top layer avoids the use of vias (and the introduction of their
inductances) and allows for clean interconnects between the isolator and the transmitter and receiver circuits
of the data link.
Placing a solid ground plane next to the high-speed signal layer establishes controlled impedance for
transmission line interconnects and provides an excellent low-inductance path for the return current flow.
Placing the power plane next to the ground plane creates additional high-frequency bypass capacitance of
approximately 100 pF/in2.
Routing the slower speed control signals on the bottom layer allows for greater flexibility as these signal links
usually have margin to tolerate discontinuities such as vias.
Suggested placement and routing of ISO1042-Q1 bypass capacitors and optional TVS diodes is shown in Figure
11-2 and Figure 11-3. In particular, place the VCC2 bypass capacitors on the top layer, as close to the device pins
as possible, and complete the connection to the V CC2 and G ND2 pins without using vias. Note that the SOIC-16
variant needs two VCC2 bypass capacitor, one on each VCC2 pin.
If an additional supply voltage plane or signal layer is needed, add a second power or ground plane system to
the stack to keep it symmetrical. This makes the stack mechanically stable and prevents it from warping. Also
the power and ground plane of each power system can be placed closer together, thus increasing the highfrequency bypass capacitance significantly.
For detailed layout recommendations, refer to the Digital Isolator Design Guide.
11.1.1 PCB Material
For digital circuit boards operating at less than 150 Mbps, (or rise and fall times greater than 1 ns), and trace
lengths of up to 10 inches, use standard FR-4 UL94V-0 printed circuit board. This PCB is preferred over lowercost alternatives because of lower dielectric losses at high frequencies, less moisture absorption, greater
strength and stiffness, and the self-extinguishing flammability-characteristics.
11.2 Layout Example
High-speed traces
10 mils
Ground plane
40 mils
Keep this space
free from planes,
traces, pads, and
vias
FR-4
0r ~ 4.5
Power plane
10 mils
Low-speed traces
Figure 11-1. Recommended Layer Stack
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
29
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
Minimize
distance to
VCC
VCC1
GND1
TXD
NC
MCU
RXD
x
NC
NC
GND1
GND1
0.1 µF
VCC2
VCC1
C
Isolation Capacitor
x
0.1 µF
C
GND2
NC
C1
CANH
CANL
VCC2
D1
0.1 µF
CAN
BUS
C2
C
GND2
GND2
PLANE
GND1
GND2
PLANE
PLANE
VCC2
Figure 11-2. 16-DW Layout Example
Minimize
distance to VCC
C
VCC1
TXD
RXD
MCU
GND1
GND1
PLANE
C
VCC2
Isolation
Capacitor
VCC1
VCC2
C1
CANH
D1
CANL
CAN
BUS
C2
GND2
GND2
PLANE
Figure 11-3. 8-DWV Layout Example
30
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
ISO1042-Q1
www.ti.com
SLLSFA5B – OCTOBER 2018 – REVISED OCTOBER 2020
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation see the following:
•
•
•
•
•
•
•
Texas Instruments, Digital Isolator Design Guide
Texas Instruments, ISO1042DW Isolated CAN Transceiver Evaluation Module User's Guide
Texas Instruments, Isolate your CAN systems without compromising on performance or space TI TechNote
Texas Instruments, Isolation Glossary
Texas Instruments, High-voltage reinforced isolation: Definitions and test methodologies
Texas Instruments, How to Isolate Signal and Power in Isolated CAN Systems TI TechNote
Texas Instruments, How to Design Isolated CAN Systems With Correct Bus Protection Application Report
12.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.3 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
12.4 Trademarks
TI E2E™ is a trademark of Texas Instruments.
All trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
12.6 Glossary
TI Glossary
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical packaging and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: ISO1042-Q1
31
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
ISO1042BQDWQ1
ACTIVE
SOIC
DW
16
40
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042BQ1
ISO1042BQDWRQ1
ACTIVE
SOIC
DW
16
2000
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042BQ1
ISO1042BQDWVQ1
ACTIVE
SOIC
DWV
8
64
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042B
Q1
ISO1042BQDWVRQ1
ACTIVE
SOIC
DWV
8
1000
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042B
Q1
ISO1042QDWQ1
ACTIVE
SOIC
DW
16
40
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042Q1
ISO1042QDWRQ1
ACTIVE
SOIC
DW
16
2000
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042Q1
ISO1042QDWVQ1
ACTIVE
SOIC
DWV
8
64
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042
Q1
ISO1042QDWVRQ1
ACTIVE
SOIC
DWV
8
1000
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
ISO1042
Q1
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
