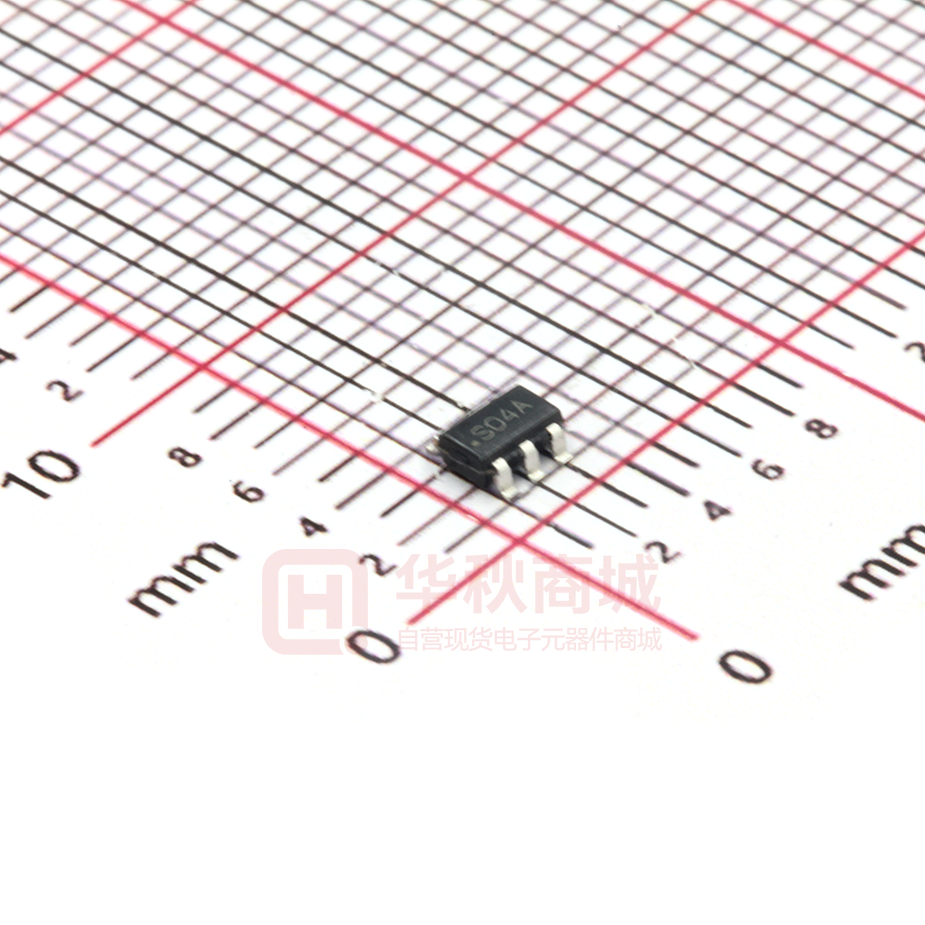

LM2665M6/NOPB

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 LM2665 Switched Capacitor Voltage Converter 1 Features 3 Description • • • • • • The LM2665 CMOS charge-pump voltage converter operates as a voltage doubler for an input voltage in the range of 2.5 V to 5.5 V. Two low-cost capacitors and a diode (needed during start-up) are used in this circuit to provide up to 40 mA of output current. The LM2665 can also work as a voltage divider to split a voltage in the range of 1.8 V to 11 V in half. 1 Input Voltage for Voltage Doubler: 2.5 V to 5.5 V Voltage Divider Splits Voltage: 1.8 V to 11 V Doubles or Splits Input Supply Voltage 12-Ω Typical Output Impedance 90% Typical Conversion Efficiency at 40 mA 1-µA Typical Shutdown Current 2 Applications • • • • • • • • • Cellular Phones Pagers PDAs Operational Amplifier Power Suppliers Interface Power Suppliers Handheld Instruments Fire Detection and Notification Industrial Handheld Radios Blood Pressure Monitors The LM2665 operates at 160-kHz oscillator frequency to reduce output resistance and voltage ripple. With an operating current of only 650 µA (operating efficiency greater than 90% with most loads) and 1-µA typical shutdown current, the LM2665 provides ideal performance for battery powered systems. Device Information(1) PART NUMBER LM2665 PACKAGE SOT-23 (6) BODY SIZE (NOM) 2.90 mm × 1.60 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Voltage Doubler Splitting Vin in Half 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 www.ti.com Table of Contents 1 2 3 4 5 6 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 4 4 4 4 5 5 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Typical Characteristics ............................................. 7 Parameter Measurement Information .................. 7 8 Detailed Description .............................................. 8 7.1 Test Circuit ................................................................ 7 8.1 Overview ................................................................... 8 8.2 Functional Block Diagram ......................................... 8 8.3 Feature Description................................................... 8 8.4 Device Functional Modes.......................................... 8 9 Application and Implementation .......................... 9 9.1 Application Information.............................................. 9 9.2 Typical Applications .................................................. 9 10 Power Supply Recommendations ..................... 12 11 Layout................................................................... 13 11.1 Layout Guidelines ................................................. 13 11.2 Layout Example .................................................... 13 12 Device and Documentation Support ................. 14 12.1 12.2 12.3 12.4 Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 14 14 14 14 13 Mechanical, Packaging, and Orderable Information ........................................................... 14 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision G (July 2015) to Revision H • Added several new "Applications" to page 1.......................................................................................................................... 1 Changes from Revision F (May 2013) to Revision G • 2 Page Added Pin Configuration and Functions section, ESD Rating table, Feature Description , Device Functional Modes, Application and Implementation, Power Supply Recommendations, Layout, Device and Documentation Support, and Mechanical, Packaging, and Orderable Information sections ................................................................................................ 1 Changes from Revision E (May 2013) to Revision F • Page Page Changed layout of National Data Sheet to TI format ........................................................................................................... 12 Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 LM2665 www.ti.com SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 5 Pin Configuration and Functions DBV Package 6-Pin SOT-23 Top View 1 6 2 5 3 4 Pin Functions PIN NO. NAME DESCRIPTION TYPE VOLTAGE DOUBLER VOLTAGE SPLIT 1 V+ Power Power supply positive voltage input Positive voltage output 2 GND Ground Power supply ground input Same as doubler Connect this pin to the negative terminal of the charge-pump capacitor. Same as doubler Shutdown control pin, tie this pin to ground in normal operation. Same as doubler 3 CAP− Power 4 SD Input 5 OUT Power Positive voltage output Power supply positive voltage input 6 CAP+ Power Connect this pin to the positive terminal of the charge-pump capacitor. Same as doubler Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 3 LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) (2) MAX UNIT V+ to GND voltage MIN 5.8 V OUT to GND voltage 11.6 V OUT to V+ voltage 5.8 V (GND − 0.3 V) SD (V+ + 0.3 V) V+ and OUT continuous output current 50 mA Output short-circuit duration to GND (3) 1 sec 600 mW 150 °C 300 °C 150 °C Continuous power dissipation (TA = 25°C) (4) TJ-MAX (4) Lead temperature (soldering, 10 sec.) −65 Storage temperature, Tstg (1) (2) (3) (4) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/ Distributors for availability and specifications. OUT may be shorted to GND for one second without damage. However, shorting OUT to V+ may damage the device and must be avoided. Also, for temperatures above 85°C, OUT must not be shorted to GND or V+, or device may be damaged. The maximum allowable power dissipation is calculated by using PD-MAX = (TJ-MAX − TA)/RθJA, where TJ-MAX is the maximum junction temperature, TA is the ambient temperature, and RθJA is the junction-to-ambient thermal resistance of the specified package. 6.2 ESD Ratings V(ESD) (1) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 VALUE UNIT ±2000 V (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) MIN Operating junction temperature NOM MAX –40 85 UNIT °C 6.4 Thermal Information LM2665 THERMAL METRIC (1) DBV (SOT-23) UNIT 6 PINS RθJA (1) 4 Junction-to-ambient thermal resistance 210 °C/W For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 LM2665 www.ti.com SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 6.5 Electrical Characteristics MIN and MAX limits apply over the full operating temperature range. Unless otherwise specified: TJ = 25°C, V+ = 5 V, C1 = C2 = 3.3 μF. (1) PARAMETER V+ Supply voltage IQ Supply current ISD Shutdown supply current MIN (2) TEST CONDITIONS TYP (3) MAX (2) 5.5 V 650 1250 µA 2.5 No load 1 µA 2 (4) Normal operation UNIT VSD Shutdown pin input voltage IL Output current RSW Sum of the Rds(on)of the four internal MOSFET switches IL = 40 mA ROUT Output resistance (6) IL = 40 mA ƒOSC Oscillator frequency See (7) 80 160 kHz ƒSW Switching frequency See (7) 40 80 kHz PEFF Power efficiency 90% 94% VOEFF Voltage conversion efficiency 99% 99.96% (1) (2) (3) (4) (5) (6) (7) 0.8 (5) Shutdown mode 40 12 IL = 40 mA to GND No load mA 3.5 RL (1 kΩ) between GND and OUT V 8 25 Ω Ω 90% In the test circuit, capacitors C1 and C2 are 3.3-µF, 0.3-Ω maximum ESR capacitors. Capacitors with higher ESR increase output resistance, reduce output voltage and efficiency. Min. and Max. limits are ensured by design, test, or statistical analysis. Typical numbers are not ensured but represent the most likely norm. The minimum input high for the SD pin equals 40% of V+. The maximum input low for the SD pin equals 20% of V+. Specified output resistance includes internal switch resistance and capacitor ESR. See the details in Application and Implementation for simple negative voltage converter. The output switches operate at one half of the oscillator frequency, ƒOSC = 2ƒSW. 6.6 Typical Characteristics (Circuit of Figure 9, V+ = 5 V unless otherwise specified) Figure 1. Supply Current vs Supply Voltage Figure 2. Supply Current vs Temperature Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 5 LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 www.ti.com Typical Characteristics (continued) (Circuit of Figure 9, V+ = 5 V unless otherwise specified) 6 Figure 3. Output Source Resistance vs Supply Voltage Figure 4. Output Source Resistance vs Temperature Figure 5. Output Voltage Drop vs Load Current Figure 6. Oscillator Frequency vs Supply Voltage Figure 7. Oscillator Frequency vs Temperature Figure 8. Shutdown Supply Current vs Temperature Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 LM2665 www.ti.com SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 7 Parameter Measurement Information 7.1 Test Circuit D1 1 V+ VIN OUT 5 VOUT IL LM2665 6 CAP+ CIN* SD 4 C2* ROUT C1* 3 CAP- GND 2 *CIN, C1 and C2 are 3.3 µF OS-CON capacitors. Figure 9. LM2665 Test Circuit Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 7 LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 www.ti.com 8 Detailed Description 8.1 Overview The LM2665 CMOS charge-pump voltage converter operates as a voltage doubler for an input voltage in the range of 2.5 V to 5.5 V. Two low-cost capacitors and a diode (needed during start-up) are used in this circuit to provide up to 40 mA of output current. The LM2665 can also work as a voltage divider to split a voltage in the range of 1.8 V to 11 V in half. 8.2 Functional Block Diagram LM2665 V+ SD OUT OSCILLATOR CAP+ Switch Array Switch Drivers CAPGND 8.3 Feature Description 8.3.1 Circuit Description The LM2665 contains four large CMOS switches which are switched in a sequence to double the input supply voltage. Energy transfer and storage are provided by external capacitors. Figure 10 illustrates the voltage conversion scheme. When S2 and S4 are closed, C1 charges to the supply voltage V+. During this time interval, switches S1 and S3 are open. In the next time interval, S2 and S4 are open; at the same time, S1 and S3 are closed, the sum of the input voltage V+ and the voltage across C1 gives the 2-V+ output voltage when there is no load. The output voltage drop when a load is added is determined by the parasitic resistance (RDS(on) of the MOSFET switches and the ESR of the capacitors) and the charge transfer loss between capacitors. Details are discussed in Application and Implementation. Figure 10. Voltage Doubling Principle 8.4 Device Functional Modes 8.4.1 Shutdown Mode A shutdown (SD) pin is available to disable the device and reduce the quiescent current to 1 µA. In normal operating mode, the SD pin is connected to ground. The device can be brought into the shutdown mode by applying to the SD pin a voltage greater than 40% of the V+ pin voltage. 8 Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 LM2665 www.ti.com SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers must validate and test their design implementation to confirm system functionality. 9.1 Application Information The LM2665 provides a simple and efficient means of creating an output voltage level equal to twice that of the input voltage. Without the need of an inductor, the application solution size can be reduced versus the magnetic DC-DC converter solution. 9.2 Typical Applications 9.2.1 Voltage Doubler The main application of the LM2665 is to double the input voltage. The range of the input supply voltage is 2.5 V to 5.5 V. Figure 11. Voltage Doubler 9.2.1.1 Design Requirements Example requirements for LM2665 device applications: DESIGN PARAMETER EXAMPLE VALUE Input voltage range 2.5 V to 5.5 V Output current 0 mA to 40 mA Boost switching frequency 80 kHz Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 9 LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 www.ti.com 9.2.1.2 Detailed Design Requirements 9.2.1.2.1 Positive Voltage Doubler The output characteristics of this circuit can be approximated by an ideal voltage source in series with a resistance. The voltage source equals 2 V+. The output resistance ROUT is a function of the ON resistance of the internal MOSFET switches, the oscillator frequency, the capacitance and equivalent series resistance (ESR) of C1 and C2. Since the switching current charging and discharging C1 is approximately twice as the output current, the effect of the ESR of the pumping capacitor C1 will be multiplied by four in the output resistance. The output capacitor C2 is charging and discharging at a current approximately equal to the output current, therefore, its ESR only counts when in the output resistance. A good approximation of ROUT is: 4176 2459 + 2 + 4'54%1 + '54%2 &15% × %1 where • RSW is the sum of the ON resistance of the internal MOSFET switches shown in Figure 10. (1) The peak-to-peak output voltage ripple is determined by the oscillator frequency, the capacitance and ESR of the output capacitor C2: 84+22.' = +. + 2 × +. × '54%2 &15% × %2 (2) High capacitance, low-ESR capacitors can reduce both the output resistance and the voltage ripple. The Schottky diode D1 is only needed for start-up. The internal oscillator circuit uses the OUT pin and the GND pin. Voltage across OUT and GND must be larger than 1.8 V to insure the operation of the oscillator. During start-up, D1 is used to charge up the voltage at the OUT pin to start the oscillator; also, it protects the device from turning-on its own parasitic diode and potentially latching-up. Therefore, the Schottky diode D1 must have enough current carrying capability to charge the output capacitor at start-up, as well as a low forward voltage to prevent the internal parasitic diode from turning-on. A Schottky diode like 1N5817 can be used for most applications. If the input voltage ramp is less than 10 V/ms, a smaller Schottky diode like MBR0520LT1 can be used to reduce the circuit size. 9.2.1.2.2 Capacitor Selection As discussed in Positive Voltage Doubler, the output resistance and ripple voltage are dependent on the capacitance and ESR values of the external capacitors. The output voltage drop is the load current times the output resistance, and the power efficiency is: 2176 +. 2 4. ß= = 2 2+0 +. 4. + +. 2 4176 + +3 (8+) where • • IQ(V+) is the quiescent power loss of the IC device; and IL2Rout is the conversion loss associated with the switch on-resistance, the two external capacitors and their ESRs. (3) The selection of capacitors is based on the specifications of the dropout voltage (which equals IOUT ROUT), the output voltage ripple, and the converter efficiency. Low ESR capacitors are recommended to maximize efficiency, reduce the output voltage drop and voltage ripple. 9.2.1.2.3 Paralleling Devices Any number of LM2665 devices can be paralleled to reduce the output resistance. Each device must have its own pumping capacitor C1, while only one output capacitor COUT is needed as shown in Figure 12. The composite output resistance is: 4176 = 10 4176 KBA=? D ./2665 0QI>AN KB &ARE?AO (4) Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 LM2665 www.ti.com SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 Figure 12. Lowering Output Resistance By Paralleling Devices 9.2.1.2.4 Cascading Devices Cascading the LM2665 devices is an easy way to produce a greater voltage (a two-stage cascade circuit is shown in Figure 13). The effective output resistance is equal to the weighted sum of each individual device: ROUT = 1.5 ROUT_1 + ROUT_2 (5) Note that the increasing of the number of cascading stages is pracitically limited since it significantly reduces the efficiency, increases the output resistance and output voltage ripple. Figure 13. Increasing Output Voltage By Cascading Devices 9.2.1.2.5 Regulating VOUT It is possible to regulate the output of the LM2665 by use of a low dropout regulator (such as LP2980-5.0). The whole converter is depicted in Figure 14. A different output voltage is possible by use of LP2980-3.3, LP2980-3.0, or LP2980-ADJ. Note that the following conditions must be satisfied simultaneously for worst-case design: 2VIN_MIN > VOUT_MIN + VDROP_MAX (LP2980) + IOUT_MAX × ROUT_MAX (LM2665) 2VIN_MAX < VOUT_MAX +VDROP_MIN (LP2980) + IOUT_MIN × ROUT_MIN (LM2665) (6) (7) Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 11 LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 www.ti.com Figure 14. Generate a Regulated 5-V from 3-V Input Voltage 9.2.1.3 Application Curve Figure 15. Efficiency vs Load Current 9.2.2 Splitting V+ In Half Another interesting application shown in Splitting Vin in Half is using the LM2665 as a precision voltage divider. This circuit can be derived from the voltage doubler by switching the input and output connections. In the voltage divider, the input voltage applies across the OUT pin and the GND pin (which are the power rails for the internal oscillator), therefore no start-up diode is needed. Also, since the off-voltage across each switch equals VIN/2, the input voltage can be raised to 11 V. Figure 16. Application Circuit for Splitting Voltage 10 Power Supply Recommendations The LM2665 is designed to operate from as an inverter over an input voltage supply range between 2.5 V and 5.5 V when the LV pin is grounded. This input supply must be well regulated and capable to supply the required input current. If the input supply is located far from the device, additional bulk capacitance may be required in addition to the ceramic bypass capacitors. 12 Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 LM2665 www.ti.com SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 11 Layout 11.1 Layout Guidelines The high switching frequency and large switching currents of the LM2665 make the choice of layout important. Use the following steps as a reference to ensure the device is stable and maintains proper LED current regulation across its intended operating voltage and current range. • Place CIN on the top layer (same layer as the LM2665) and as close to the device as possible. Connecting the input capacitor through short, wide traces to both the V+ and GND pins reduces the inductive voltage spikes that occur during switching which can corrupt the V+ line. • Place COUT on the top layer (same layer as the LM2665) and as close as possible to the OUT and GND pin. The returns for both CIN and COUT must come together at one point, as close to the GND pin as possible. Connecting COUT through short, wide traces reduce the series inductance on the OUT and GND pins that can corrupt the VOUT and GND lines and cause excessive noise in the device and surrounding circuitry. • Place C1 on the top layer (same layer as the LM2665 device) and as close to the device as possible. Connect the flying capacitor through short, wide traces to both the CAP+ and CAP– pins. 11.2 Layout Example LM2665 V+ CAP+ GND OUT CAP- SD Figure 17. Typical Layout for LM2665 Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 13 LM2665 SNVS009H – NOVEMBER 1999 – REVISED MARCH 2016 www.ti.com 12 Device and Documentation Support 12.1 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.2 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.3 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 12.4 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 14 Submit Documentation Feedback Copyright © 1999–2016, Texas Instruments Incorporated Product Folder Links: LM2665 PACKAGE OPTION ADDENDUM www.ti.com 30-Sep-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) LM2665M6 NRND SOT-23 DBV 6 1000 Non-RoHS & Green Call TI Level-1-260C-UNLIM -40 to 85 S04A LM2665M6/NOPB ACTIVE SOT-23 DBV 6 1000 RoHS & Green SN Level-1-260C-UNLIM -40 to 85 S04A LM2665M6X NRND SOT-23 DBV 6 3000 Non-RoHS & Green Call TI Level-1-260C-UNLIM -40 to 85 S04A LM2665M6X/NOPB ACTIVE SOT-23 DBV 6 3000 RoHS & Green SN Level-1-260C-UNLIM -40 to 85 S04A (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
