LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
LM339, LM239, LM139, LM2901 Quad Differential Comparators
1 Features
3 Description
•
The LMx39x and the LM2901x devices consist of four
independent voltage comparators that are designed
to operate from a single power supply over a wide
range of voltages. Operation from dual supplies also
is possible, as long as the difference between the two
supplies is 2 V to 36 V, and VCC is at least 1.5 V
more positive than the input common-mode voltage.
Current drain is independent of the supply voltage.
The outputs can be connected to other open-collector
outputs to achieve wired-AND relationships.
1
•
•
•
•
•
•
•
•
•
Wide Supply Ranges
– Single Supply: 2 V to 36 V
(Tested to 30 V for Non-V Devices and
32 V for V-Suffix Devices)
– Dual Supplies: ±1 V to ±18 V
(Tested to ±15 V for Non-V Devices and
±16 V for V-Suffix Devices)
Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA (Typical)
Low Input Bias Current: 25 nA (Typical)
Low Input Offset Current: 3 nA (Typical) (LM139)
Low Input Offset Voltage: 2 mV (Typical)
Common-Mode Input Voltage Range
Includes Ground
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36 V
Low Output Saturation Voltage
Output Compatible With TTL, MOS, and CMOS
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters.
2 Applications
•
•
•
•
•
•
Industrial
Automotive
– Infotainment and Clusters
– Body Control Modules
Power Supervision
Oscillators
Peak Detectors
Logic Voltage Translation
The LM139 and LM139A devices are characterized
for operation over the full military temperature range
of –55°C to +125°C. The LM239 and LM239A
devices are characterized for operation from –25°C to
+85°C. The LM339 and LM339A devices are
characterized for operation from 0°C to 70°C. The
LM2901, LM2901AV, and LM2901V devices are
characterized for operation from –40°C to +125°C.
Device Information(1)
PART NUMBER
PACKAGE
BODY SIZE (NOM)
CDIP (14)
21.30 mm × 7.60 mm
LCCC (20)
8.90 mm × 8.90 mm
CFP (14)
9.20 mm × 6.29 mm
LM139x,
LM239x,
LM339x,
LM2901x
SOIC (14)
8.70 mm × 3.90 mm
LM239, LM339x,
LM2901
PDIP (14)
19.30 mm × 6.40 mm
LM239, LM2901
TSSOP (14)
5.00 mm × 4.40 mm
LM139x
LM339x, LM2901 SO (14)
10.20 mm × 5.30 mm
LM339x
6.50 mm × 5.30 mm
SSOP (14)
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Simplified Schematic
IN+
OUT
IN−
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
On products compliant to MIL-PRF-38535, all parameters are
tested unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
1
1
1
2
3
4
5
Absolute Maximum Ratings ...................................... 5
ESD Ratings.............................................................. 5
Recommended Operating Conditions....................... 5
Thermal Information (14-Pin Packages) ................... 6
Thermal Information (20-Pin Packages) ................... 6
Electrical Characteristics for LM139 and LM139A.... 7
Electrical Characteristics for LMx39 and LMx39A .... 7
Electrical Characteristics for LM2901, LM2901V and
LM2901AV ................................................................. 8
7.9 Switching Characteristics for LM2901....................... 9
7.10 Switching Characteristics for LM139 and LM139A . 9
7.11 Switching Characteristics for LMx39 and LMx39A . 9
7.12 Typical Characteristics .......................................... 10
8
Detailed Description ............................................ 11
8.1
8.2
8.3
8.4
9
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
11
11
11
11
Application and Implementation ........................ 12
9.1 Application Information............................................ 12
9.2 Typical Application ................................................. 12
10 Power Supply Recommendations ..................... 14
11 Layout................................................................... 14
11.1 Layout Guidelines ................................................. 14
11.2 Layout Example .................................................... 14
12 Device and Documentation Support ................. 15
12.1
12.2
12.3
12.4
12.5
12.6
Related Links ........................................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
15
15
15
15
15
15
13 Mechanical, Packaging, and Orderable
Information ........................................................... 15
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision T (June 2015) to Revision U
Page
•
Changed LM239x temperature range from 125°C to 85°C in Description section................................................................. 1
•
Changed data sheet title ........................................................................................................................................................ 1
•
Changed LM293AD to LM239AD in Device Comparison Table............................................................................................. 3
•
Changed 'I' to dash in GND and VCC in I/O column of the Pin Functions table.................................................................... 4
•
Added Input Current and related footnote in Absolute Maximum Ratings ............................................................................. 5
•
Changed layout of Recommended Operating Conditions temperatures to separate rows .................................................... 5
•
Changed values in the Thermal Information table to align with JEDEC standards................................................................ 6
•
Added LM2901V and LMV2901AV to LM2901 Elect Char Table title to make more clear which devices are covered. ....... 8
•
Changed "Dual" to "Quad" and removed "Absolute Maximum" wording and mention of Q100 in Overview section text. .. 11
•
Changed and corrected text in Feature Description section ................................................................................................ 11
•
Changed Example Values in Typical Application Design Parameters table ....................................................................... 12
•
Added Receiving Notification of Documentation Updates section ....................................................................................... 15
Changes from Revision S (August 2012) to Revision T
Page
•
Deleted Ordering Information table. ...................................................................................................................................... 1
•
Added Military Disclaimer to Features list. ............................................................................................................................. 1
•
Added Applications, Device Information table, Pin Configuration and Functions section, ESD Ratings table, Thermal
Information table, Feature Description section, Device Functional Modes, Application and Implementation section,
Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section. No specification changes........................................................ 1
2
Submit Documentation Feedback
Copyright © 1979–2018, Texas Instruments Incorporated
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
5 Device Comparison Table
PART NUMBER
PACKAGE
BODY SIZE (NOM)
LM139J, LM139AJ
CDIP (14)
21.30 mm × 7.60 mm
LM139FK, LM139AFK
LCCC (20)
8.90 mm × 8.90 mm
LM139W, LM139AW
CFP (14)
9.20 mm × 6.29 mm
LM139D, LM139AD, LM239D, LM239AD, LM339D,
LM339AD, LM2901D
SOIC (14)
8.70 mm × 3.90 mm

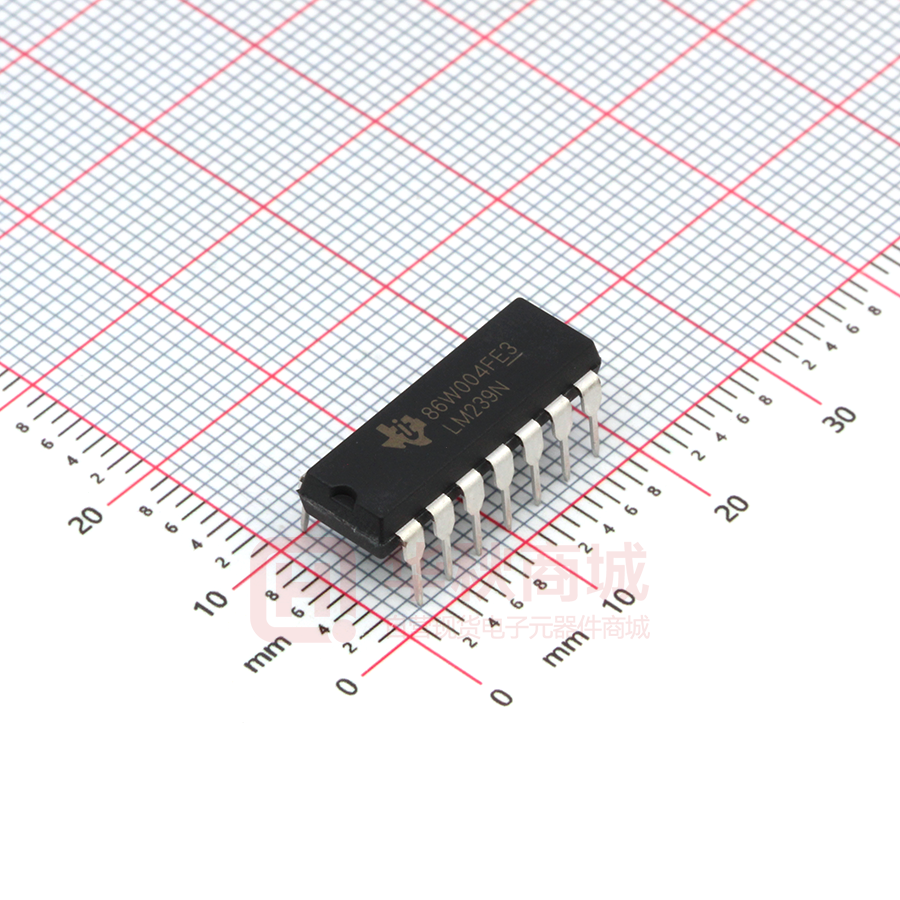

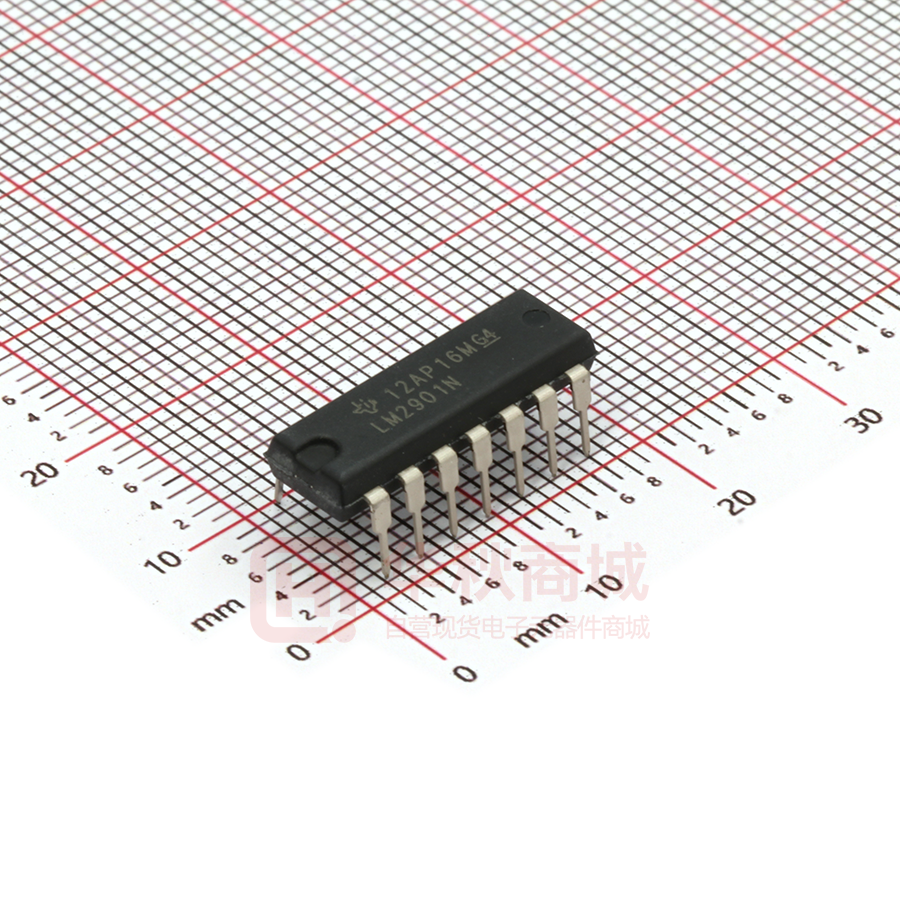

LM239N, LM339N, LM339AN, LM2901N
PDIP (14)
19.30 mm × 6.40 mm
LM239PW, LM2901PW
TSSOP (14)
5.00 mm × 4.40 mm
LM339NS, LM339ANS, LM2901NS
SOP (14)
10.20 mm × 5.30 mm
LM339DB, LM339ADB
SSOP (14)
6.50 mm × 5.30 mm
OTHER QUALIFIED VERSIONS OF LM139-SP, LM239A, LM2901, LM2901AV, LM2901V:
•
•
•
Automotive Q100: LM239A-Q1, LM2901-Q1, LM2901AV-Q1, LM2901V-Q1
Enhanced Product: LM239A-EP
Space: LM139-SP
Copyright © 1979–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
3
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
www.ti.com
6 Pin Configuration and Functions
D, DB, N, NS, PW, J, or W Package
SOIC, SSOP, PDIP, SO, TSSOP, CDIP, or CFP
Top View
14
2
13
3
12
4
11
5
10
6
9
7
8
2OUT
1OUT
NC
3OUT
4OUT
1
OUT3
OUT4
GND
4IN+
4IN−
3IN+
3IN−
3
VC C
NC
2IN−
NC
2IN+
4
2 1 20 19
18
17
16
5
6
15
7
8
14
9 10 11 12 13
GND
NC
4IN+
NC
4IN−
1IN−
1IN+
NC
3IN−
3IN+
1OUT
2OUT
VC C
2IN−
2IN+
1IN−
1IN+
FK Package
20-Pin LCCC(1)
Top View
(1)
NC = no internal connection.
Pin Functions
PIN
D, J, W, B,
PW, DB, N, NS
FK
1IN+
7
10
1IN–
6
1OUT
1
2IN+
NAME
I/O (1)
DESCRIPTION
I
Positive input pin of the comparator 1
9
I
Negative input pin of the comparator 1
2
O
Output pin of the comparator 1
5
8
I
Positive input pin of the comparator 2
2IN–
4
6
I
Negative input pin of the comparator 2
2OUT
2
3
O
Output pin of the comparator 2
3IN+
9
13
I
Positive input pin of the comparator 3
3IN–
8
12
I
Negative input pin of the comparator 3
3OUT
14
20
O
Output pin of the comparator 3
4IN+
11
16
I
Positive input pin of the comparator 4
4IN–
10
14
I
Negative input pin of the comparator 4
4OUT
13
19
O
Output pin of the comparator 4
GND
12
18
—
Ground
VCC
3
4
—
Supply pin
—
No connect (no internal connection)
1
5
NC
—
7
11
15
17
(1)
4
I = Input, O = Output
Submit Documentation Feedback
Copyright © 1979–2018, Texas Instruments Incorporated
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
36
V
±36
V
Supply voltage (2)
VCC
(3)
VID
Differential input voltage
VI
Input voltage range (either input)
IK
–0.3
36
V
Input current (4)
–50
mA
VO
Output voltage
36
V
IO
Output current
20
mA
Duration of output short circuit to ground (5)
TJ
Operating virtual-junction temperature
Tstg
(1)
(2)
(3)
(4)
(5)
Unlimited
150
°C
Case temperature for 60 s
FK package
260
°C
Lead temperature 1.6 mm (1/16 in) from case for 60 s
J package
300
°C
150
°C
Storage temperature
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values, except differential voltages, are with respect to network ground.
Differential voltages are at xIN+ with respect to xIN–.
Input current flows through parasitic diode to ground and will turn on parasitic transistors that will increase ICC and may cause output to
be incorrect. Normal operation resumes when input is removed.
Short circuits from outputs to VCC can cause excessive heating and eventual destruction.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
UNIT
±500
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
V
±750
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
VCC
TJ
Supply voltage
Junction temperature
Non-V devices
V devices
MIN
MAX
UNIT
2
30
V
V
2
32
LM139x
–55
125
LM239x
–25
85
LM339x
–0
70
LM2901x
–40
125
Copyright © 1979–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
°C
5
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
www.ti.com
7.4 Thermal Information (14-Pin Packages)
LMx39, LM2901x
THERMAL METRIC (1)
D
(SOIC)
DB
(SSOP)
N
(PDIP)
NS
(SO)
PW
(TSSOP)
J
(CDIP)
W
(CFP)
UNIT
120
89.5
156.2
°C/W
RθJA
Junction-to-ambient thermal resistance
98.8
111.8
79
96.2
RθJC(top)
Junction-to-case (top) thermal resistance
64.3
63.6
73.4
56.1
59
46.1
86.7
°C/W
RθJB
Junction-to-board thermal resistance
59.7
60.5
58.7
56.9
68.8
78.7
154.6
°C/W
ψJT
Junction-to-top characterization parameter
25.7
26.2
48.3
24.8
9.9
3
56.5
°C/W
ψJB
Junction-to-board characterization
parameter
59.3
59.8
58.5
56.4
68.2
71.8
133.5
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal
resistance
—
—
—
—
—
24.2
14.3
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
7.5 Thermal Information (20-Pin Packages)
THERMAL METRIC (1)
LM139x
FK (LCCC)
UNIT
RθJA
Junction-to-ambient thermal resistance
82.5
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
60.7
°C/W
RθJB
Junction-to-board thermal resistance
59.4
°C/W
ψJT
Junction-to-top characterization parameter
53
°C/W
ψJB
Junction-to-board characterization parameter
58.4
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
9.7
°C/W
(1)
6
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Documentation Feedback
Copyright © 1979–2018, Texas Instruments Incorporated
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
7.6 Electrical Characteristics for LM139 and LM139A
at specified free-air temperature, VCC = 5 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS (1)
VIO
Input offset voltage
VCC = 5 V to 30 V,
VIC = VICR min,
VO = 1.4 V
IIO
Input offset current
VO = 1.4 V
IIB
Input bias current
VO = 1.4 V
VICR
Common-mode inputvoltage range (3)
25°C
TYP MAX
2
3
Full range
AVD
IOH
High-level output current
VID = 1 V
25
–300
–300
0 to
VCC – 1.5
0 to
–2
0 to
–2
VCC
25°C
0.1
VOH = 30 V
Full range
IOL
Low-level output current
VID = –1 V,
VOL = 1.5 V
25°C
ICC
Supply current
(four comparators)
VO = 2.5 V,
No load
25°C
50
150
200
V/mV
0.1
nA
150
mV
700
16
6
0.8
μA
400
700
6
nA
1
400
Full range
nA
V
1
25°C
IOL = 4 mA
25
–25 –100
VOH = 5 V
VID = –1 V,
3
0 to
VCC – 1.5
VCC
mV
4
–25 –100
200
Low-level output voltage
2
100
25°C
VOL
1
100
Full range
UNIT
TYP MAX
9
25°C
25°C
MIN
5
Full range
25°C
VCC+ = ±7.5 V,
VO = –5 V to 5 V
(3)
MIN
LM139A
Full range
Large-signal differentialvoltage amplification
(1)
(2)
LM139
TA (2)
2
16
mA
0.8
2
mA
All characteristics are measured with zero common-mode input voltage, unless otherwise specified.
Full range (MIN to MAX) for LM139 and LM139A is –55°C to +125°C. All characteristics are measured with zero common-mode input
voltage, unless otherwise specified.
The voltage at either input or common-mode must not be allowed to go negative by more than 0.3 V. The upper end of the commonmode voltage range is VCC+ – 1.5 V; however, one input can exceed VCC, and the comparator will provide a proper output state as long
as the other input remains in the common-mode range. Either or both inputs can go to 30 V without damage.
7.7 Electrical Characteristics for LMx39 and LMx39A
at specified free-air temperature, VCC = 5 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS (1)
LM239
LM339
TA (2)
MIN
VIO
Input offset voltage
VCC = 5 V to 30 V,
VIC = VICR min,
VO = 1.4 V
IIO
Input offset current
VO = 1.4 V
IIB
Input bias current
VO = 1.4 V
VICR
Common-mode inputvoltage range (3)
AVD
(1)
(2)
(3)
Large-signal differentialvoltage amplification
25°C
TYP MAX
2
Full range
25°C
5
25°C
25°C
5
1
50
5
50
150
–25 –250
–25 –250
–400
–400
0 to
VCC – 1.5
0 to
–2
0 to
–2
50
3
4
0 to
VCC – 1.5
VCC
UNIT
TYP MAX
150
Full range
Full range
MIN
9
Full range
25°C
VCC = 15 V,
VO = 1.4 V to 11.4 V,
RL ≥ 15 kΩ to VCC
LM239A
LM339A
VCC
200
50
mV
nA
nA
V
200
V/mV
All characteristics are measured with zero common-mode input voltage, unless otherwise specified.
Full range (MIN to MAX) for LM239/LM239A is –25°C to +85°C, and for LM339/LM339A is 0°C to 70°C. All characteristics are measured
with zero common-mode input voltage, unless otherwise specified.
The voltage at either input or common-mode must not be allowed to go negative by more than 0.3 V. The upper end of the commonmode voltage range is VCC+ – 1.5 V; however, one input can exceed VCC, and the comparator will provide a proper output state as long
as the other input remains in the common-mode range. Either or both inputs can go to 30 V without damage.
Copyright © 1979–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
7
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
www.ti.com
Electrical Characteristics for LMx39 and LMx39A (continued)
at specified free-air temperature, VCC = 5 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS (1)
TA (2)
LM239
LM339
MIN
VOH = 5 V
25°C
VOH = 30 V
Full range
IOH
High-level output current
VID = 1 V
VOL
Low-level output voltage
VID = –1 V,
IOL = 4 mA
IOL
Low-level output current
VID = –1 V,
VOL = 1.5 V
25°C
ICC
Supply current
(four comparators)
VO = 2.5 V,
No load
25°C
LM239A
LM339A
TYP MAX
0.1
MIN
UNIT
TYP MAX
50
0.1
1
25°C
150
Full range
400
150
700
6
nA
1
μA
400
700
16
0.8
50
6
16
2
mV
mA
0.8
2
mA
7.8 Electrical Characteristics for LM2901, LM2901V and LM2901AV
at specified free-air temperature, VCC = 5 V (unless otherwise noted)
TEST CONDITIONS (1)
PARAMETER
VIO
Input offset voltage
VIC = VICR min,
VO = 1.4 V,
VCC = 5 V to MAX (3)
IIO
Input offset current
VO = 1.4 V
IIB
Input bias current
VO = 1.4 V
VICR
Common-mode inputvoltage range (4)
Non-A devices
A-suffix devices
2
Full range
25°C
2
5
50
IOH
High-level output current
VID = 1 V
VOL
Low-level output voltage
VID = –1 V,
IOL = 4 mA
VOH = 5 V
VOH = VCC MAX (3)
Non-V devices
V-suffix devices
25°C
200
–25
Low-level output current
VID = –1 V,
VOL = 1.5 V
ICC
Supply current
(four comparators)
VO = 2.5 V,
No load
VCC = 5 V
VCC = MAX (3)
VCC
25
25°C
nA
nA
V
0 to
–2
100
0.1
25°C
25°C
IOL
0 to
VCC – 1.5
25°C
Full range
–250
–500
Full range
All devices
mV
4
25°C
Full range
UNIT
7
1
Full range
25°C
MAX
15
Full range
VCC = 15 V, VO = 1.4 V to 11.4 V,
RL ≥ 15 kΩ to VCC
8
25°C
TYP
Full range
Large-signal differentialvoltage amplification
(3)
(4)
MIN
25°C
AVD
(1)
(2)
LM2901
TA (2)
V/mV
50
nA
1
μA
150
500
150
400
mV
700
6
16
mA
0.8
2
1
2.5
mA
All characteristics are measured with zero common-mode input voltage, unless otherwise specified.
Full range (MIN to MAX) for LM2901 is –40°C to +125°C. All characteristics are measured with zero common-mode input voltage,
unless otherwise specified.
VCC MAX = 30 V for non-V devices, and 32 V for V-suffix devices
The voltage at either input or common-mode must not be allowed to go negative by more than 0.3 V. The upper end of the commonmode voltage range is VCC+ – 1.5 V; however, one input can exceed VCC, and the comparator will provide a proper output state as long
as the other input remains in the common-mode range. Either or both inputs can go to VCC MAX without damage.
Submit Documentation Feedback
Copyright © 1979–2018, Texas Instruments Incorporated
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
7.9 Switching Characteristics for LM2901
VCC = 5 V, TA = 25°C
PARAMETER
RL connected to 5 V through 5.1 kΩ,
CL = 15 pF (1) (2)
Response time
(1)
(2)
LM2901
TEST CONDITIONS
TYP
100-mV input step with 5-mV overdrive
1.3
TTL-level input step
0.3
UNIT
μs
CL includes probe and jig capacitance.
The response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
7.10 Switching Characteristics for LM139 and LM139A
VCC = 5 V, TA = 25°C
PARAMETER
LM139
LM139A
TEST CONDITIONS
UNIT
TYP
RL connected to 5 V through 5.1 kΩ,
CL = 15 pF (1) (2)
Response time
(1)
(2)
100-mV input step with 5-mV overdrive
1.3
TTL-level input step
0.3
μs
CL includes probe and jig capacitance.
The response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
7.11 Switching Characteristics for LMx39 and LMx39A
VCC = 5 V, TA = 25°C
PARAMETER
LM239
LM239A
LM339
LM339A
TEST CONDITIONS
UNIT
TYP
Response time
(1)
(2)
RL connected to 5 V through 5.1 kΩ,
CL = 15 pF (1) (2)
100-mV input step with 5-mV overdrive
1.3
TTL-level input step
0.3
μs
CL includes probe and jig capacitance.
The response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
Copyright © 1979–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
9
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
www.ti.com
7.12 Typical Characteristics
80
1.8
1.6
IIN – Input Bias Current – nA
ICC – Supply Current – mA
70
TA = –55°C
1.4
TA = 25°C
TA = 0°C
1.2
1
TA = 70°C
0.8
TA = 125°C
0.6
0.4
TA = –55°C
60
TA = 0°C
50
TA = 25°C
40
TA = 70°C
30
TA = 125°C
20
10
0.2
0
0
0
5
10
15
20
25
30
35
0
5
10
15
20
25
30
35
VCC – Supply Voltage – V
VCC – Supply Voltage – V
Figure 1. Supply Current vs Supply Voltage
Figure 2. Input Bias Current vs Supply Voltage
6
10
Overdrive = 5 mV
1
VO – Output Voltage – V
VO – Saturation Voltage – V
5
TA = 125°C
TA = 25°C
0.1
TA = –55°C
0.01
4
Overdrive = 20 mV
3
Overdrive = 100 mV
2
1
0
0.001
0.01
0.1
1
10
-1
-0.3
100
0
0.25 0.5 0.75
1
1.25 1.5 1.75
2
2.25
t – Time – µs
IO – Output Sink Current – mA
Figure 4. Response Time for Various Overdrives
Negative Transition
Figure 3. Output Saturation Voltage
6
VO – Output Voltage – V
5
Overdrive = 5 mV
4
Overdrive = 20 mV
3
Overdrive = 100 mV
2
1
0
-1
-0.3
0
0.25 0.5 0.75
1
1.25 1.5 1.75
2
2.25
t – Time – µs
Figure 5. Response Time for Various Overdrives
Positive Transition
10
Submit Documentation Feedback
Copyright © 1979–2018, Texas Instruments Incorporated
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
8 Detailed Description
8.1 Overview
The LMx39 and LM2901x are quad comparators with the ability to operate up to an absolute maximum of 36 V
on the supply pin. This standard device has proven ubiquity and versatility across a wide range of applications.
This is due to very wide supply voltages range (2 V up to 32 V), low Iq, and fast response of the device.
The open-drain output allows the user to configure the output logic low voltage (VOL) and allows the comparator
to be used in AND functionality.
8.2 Functional Block Diagram
VCC
80-µA
Current Regulator
60 µA
10 µA
IN+
10 µA
80 µA
COMPONENT COUNT
OUT
Epi-FET
Diodes
Resistors
Transistors
1
2
2
30
IN−
GND
Figure 6. Schematic (Each Comparator)
8.3 Feature Description
The comparator consists of a PNP Darlington pair input, allowing the device to operate with very high gain and
fast response with minimal input bias current. The input Darlington pair creates a limit on the input commonmode voltage capability, allowing the comparator to accurately function from ground to (VCC – 1.5 V) differential
input. Allow for (VCC – 2 V) at cold temperature.
The output consists of an open-collector NPN (pulldown or low-side) transistor. The output NPN sinks current
when the negative input voltage is higher than the positive input voltage and the offset voltage. The VOL is
resistive and scales with the output current. See the Specifications section for VOL values with respect to the
output current.
8.4 Device Functional Modes
8.4.1 Voltage Comparison
The comparator operates solely as a voltage comparator, comparing the differential voltage between the positive
and negative pins and outputting a logic low or high impedance (logic high with pullup) based on the input
differential polarity.
Copyright © 1979–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
11
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Validate and test
the design implementation to confirm system functionality.
9.1 Application Information
Typically, a comparator compares either a single signal to a reference, or to two differnt signals. Many users take
advantage of the open-drain output to drive the comparison logic output to a logic voltage level to an MCU or
logic device. The wide supply range and high voltage capability makes LMx39 or LM2901x optimal for level
shifting to a higher or lower voltage.
9.2 Typical Application
VLOGIC
VLOGIC
VSUP
Vin
VSUP
Rpullup
+
Vin+
LM2901
Rpullup
+
LM2901
Vin-
Vref
CL
CL
Figure 7. Single-ended and Differential Comparator Configurations
9.2.1 Design Requirements
For this design example, use the parameters listed in Table 1 as the input parameters.
Table 1. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
Input Voltage Range
0 V to Vsup-1.5 V
Supply Voltage
4.5 V to VCC maximum
Logic Supply Voltage
0 V to VCC maximum
Output Current (RPULLUP)
1 µA to 4 mA
Input Overdrive Voltage
100 mV
Reference Voltage
2.5 V
Load Capacitance (CL)
15 pF
9.2.2 Detailed Design Procedure
When using the LMx39 in a general comparator application, determine the following:
• Input voltage range
• Minimum overdrive voltage
• Output and drive current
• Response time
9.2.2.1 Input Voltage Range
When choosing the input voltage range, the input common-mode voltage range (VICR) must be taken in to
account. If temperature operation is above or below 25°C the VICR can range from 0 V to VCC– 2 V. This limits
the input voltage range to as high as VCC– 2 V and as low as 0 V. Operation outside of this range can yield
incorrect comparisons.
12
Submit Documentation Feedback
Copyright © 1979–2018, Texas Instruments Incorporated
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
The following list describes the outcomes of some input voltage situations.
•
•
•
•
When both IN– and IN+ are both within the common-mode range:
– If IN– is higher than IN+ and the offset voltage, the output is low and the output transistor is sinking
current
– If IN– is lower than IN+ and the offset voltage, the output is high impedance and the output transistor is
not conducting
When IN– is higher than common mode and IN+ is within common mode, the output is low and the output
transistor is sinking current
When IN+ is higher than common mode and IN– is within common mode, the output is high impedance and
the output transistor is not conducting
When IN– and IN+ are both higher than common mode, the output is low and the output transistor is sinking
current
9.2.2.2 Minimum Overdrive Voltage
Overdrive voltage is the differential voltage produced between the positive and negative inputs of the comparator
over the offset voltage (VIO). To make an accurate comparison, the overdrive voltage (VOD) must be higher than
the input offset voltage (VIO). Overdrive voltage can also determine the response time of the comparator, with the
response time decreasing with increasing overdrive. Figure 8 and Figure 9 show positive and negative response
times with respect to overdrive voltage.
9.2.2.3 Output and Drive Current
Output current is determined by the load and pullup resistance and logic and pullup voltage. The output current
produces a low-level output voltage (VOL) from the comparator, where VOL is proportional to the output current.
The output current can also effect the transient response.
9.2.2.4 Response Time
Response time is a function of input over-drive. See the Typical Characteristics graphs for typical response
times. The rise and fall times can be determined by the load capacitance (CL), load/pull-up resistance (RPULLUP)
and equivalent collector-emitter resistance (RCE).
•
•
The rise time (τR) is approximately τR~ RPULLUP × CL
The fall time (τF) is approximately τF ~ RCE × CL
– RCE can be determined by taking the slope of Figure 3 in its linear region at the desired temperature, or by
dividing the VOL by IOUT
Copyright © 1979–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
13
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
www.ti.com
9.2.3 Application Curves
6
6
5
5
Output Voltage (Vo)
Output Voltage, Vo(V)
Figure 8 and Figure 9 were generated with scope probe parasitic capacitance of 50 pF.
4
3
2
5mV OD
1
20mV OD
4
3
2
5mV OD
1
0
20mV OD
0
100mV OD
±1
-0.25
0.25
0.75
1.25
1.75
2.25
Time (usec)
VCC = 5 V
VLogic = 5 V
100mV OD
±1
±0.25 0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
Time (usec)
C004
RPULLUP = 5.1 kΩ
VCC = 5 V
Figure 8. Response Time vs Output Voltage
(Positive Transition)
VLogic = 5 V
2.00
C006
RPULLUP = 5.1 kΩ
Figure 9. Response Time vs Output Voltage
(Negative Transition)
10 Power Supply Recommendations
For fast response and comparison applications with noisy or AC inputs, use a bypass capacitor on the supply pin
to reject any variation on the supply voltage. This variation can affect the common-mode range of the comparator
input and create an inaccurate comparison.
11 Layout
11.1 Layout Guidelines
To create an accurate comparator application without hysteresis, maintain a stable power supply with minimized
noise and glitches, which can affect the high level input common-mode voltage range. To achieve this accuracy,
add a bypass capacitor between the supply voltage and ground. Place a bypass capacitor on the positive power
supply and negative supply (if available).
NOTE
If a negative supply is not being used, do not place a capacitor between the GND pin of
the device and system ground.
11.2 Layout Example
Ground
Bypass
Capacitor
0.1 μF
Positive Supply
1OUT
2OUT
VCC
2IN–
2IN+
1IN–
1IN+
1
2
14 3OUT
13 4OUT
3
12 GND
4
5
6
7
11 4IN+
10 4IN–
9 3IN+
8 3IN–
Negative Supply or Ground
Only needed
for dual power
0.1 μF
supplies
Ground
Figure 10. LMx39 Layout Example
14
Submit Documentation Feedback
Copyright © 1979–2018, Texas Instruments Incorporated
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339, LM139A
LM239A, LM339A, LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006U – OCTOBER 1979 – REVISED NOVEMBER 2018
12 Device and Documentation Support
12.1 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 2. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
LM139
Click here
Click here
Click here
Click here
Click here
LM239
Click here
Click here
Click here
Click here
Click here
LM339
Click here
Click here
Click here
Click here
Click here
LM139A
Click here
Click here
Click here
Click here
Click here
LM239A
Click here
Click here
Click here
Click here
Click here
LM339A
Click here
Click here
Click here
Click here
Click here
LM2901
Click here
Click here
Click here
Click here
Click here
LM2901AV
Click here
Click here
Click here
Click here
Click here
LM2901V
Click here
Click here
Click here
Click here
Click here
12.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.4 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical packaging and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser based versions of this data sheet, refer to the left hand navigation.
Copyright © 1979–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
15
PACKAGE OPTION ADDENDUM
www.ti.com
14-Oct-2022
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
LM139AD
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139A
Samples
LM139ADG4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139A
Samples
LM139ADR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139A
Samples
LM139ADRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139A
Samples
LM139D
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139
Samples
LM139DG4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139
Samples
LM139DR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139
Samples
LM139DRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
LM139
Samples
LM239AD
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239A
Samples
LM239ADE4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239A
Samples
LM239ADR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-25 to 85
LM239A
Samples
LM239ADRE4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239A
Samples
LM239ADRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239A
Samples
LM239D
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239
Samples
LM239DE4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239
Samples
LM239DG4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239
Samples
LM239DR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-25 to 85
LM239
Samples
LM239DRG3
ACTIVE
SOIC
D
14
2500
RoHS & Green
SN
Level-1-260C-UNLIM
-25 to 85
LM239
Samples
LM239DRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
LM239
Samples
LM239N
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU | SN
N / A for Pkg Type
-25 to 85
LM239N
Samples
Addendum-Page 1
PACKAGE OPTION ADDENDUM
www.ti.com
14-Oct-2022
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
LM239NE4
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU
N / A for Pkg Type
-25 to 85
LM239N
Samples
LM239PW
ACTIVE
TSSOP
PW
14
90
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
L239
Samples
LM239PWR
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-25 to 85
L239
Samples
LM239PWRG4
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-25 to 85
L239
Samples
LM2901AVQDR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901AV
Samples
LM2901AVQDRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901AV
Samples
LM2901AVQPWR
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901AV
Samples
LM2901AVQPWRG4
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901AV
Samples
LM2901D
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901DE4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901DG4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901DR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901DRE4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901DRG3
ACTIVE
SOIC
D
14
2500
RoHS & Green
SN
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901DRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901N
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU
N / A for Pkg Type
-40 to 125
LM2901N
Samples
LM2901NE4
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU
N / A for Pkg Type
-40 to 125
LM2901N
Samples
LM2901NSR
ACTIVE
SO
NS
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LM2901
Samples
LM2901PW
ACTIVE
TSSOP
PW
14
90
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901
Samples
LM2901PWG4
ACTIVE
TSSOP
PW
14
90
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901
Samples
LM2901PWR
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 125
L2901
Samples
Addendum-Page 2
PACKAGE OPTION ADDENDUM
www.ti.com
14-Oct-2022
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
LM2901PWRG3
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
SN
Level-1-260C-UNLIM
-40 to 125
L2901
Samples
LM2901PWRG4
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901
Samples
LM2901VQDR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901V
Samples
LM2901VQPWR
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901V
Samples
LM2901VQPWRG4
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
L2901V
Samples
LM339AD
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339ADBR
ACTIVE
SSOP
DB
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339A
Samples
LM339ADE4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339ADG4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339ADR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339ADRE4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339ADRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339AN
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU | SN
N / A for Pkg Type
0 to 70
LM339AN
Samples
LM339ANE4
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU
N / A for Pkg Type
0 to 70
LM339AN
Samples
LM339ANSR
ACTIVE
SO
NS
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339ANSRG4
ACTIVE
SO
NS
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339A
Samples
LM339APW
ACTIVE
TSSOP
PW
14
90
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339A
Samples
LM339APWG4
ACTIVE
TSSOP
PW
14
90
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339A
Samples
LM339APWR
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
0 to 70
L339A
Samples
LM339APWRG4
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339A
Samples
LM339D
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
Addendum-Page 3
PACKAGE OPTION ADDENDUM
www.ti.com
14-Oct-2022
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
LM339DBR
ACTIVE
SSOP
DB
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339DE4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339DG4
ACTIVE
SOIC
D
14
50
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339DR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339DRE4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339DRG3
ACTIVE
SOIC
D
14
2500
RoHS & Green
SN
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339DRG4
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339N
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU | SN
N / A for Pkg Type
0 to 70
LM339N
Samples
LM339NE3
ACTIVE
PDIP
N
14
25
RoHS &
Non-Green
SN
N / A for Pkg Type
0 to 70
LM339N
Samples
LM339NE4
ACTIVE
PDIP
N
14
25
RoHS & Green
NIPDAU
N / A for Pkg Type
0 to 70
LM339N
Samples
LM339NSR
ACTIVE
SO
NS
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339NSRG4
ACTIVE
SO
NS
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
LM339
Samples
LM339PW
ACTIVE
TSSOP
PW
14
90
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339
Samples
LM339PWG4
ACTIVE
TSSOP
PW
14
90
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339
Samples
LM339PWR
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
0 to 70
L339
Samples
LM339PWRE4
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339
Samples
LM339PWRG3
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
SN
Level-1-260C-UNLIM
0 to 70
L339
Samples
LM339PWRG4
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
0 to 70
L339
Samples
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
Addendum-Page 4
PACKAGE OPTION ADDENDUM
www.ti.com
14-Oct-2022
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
