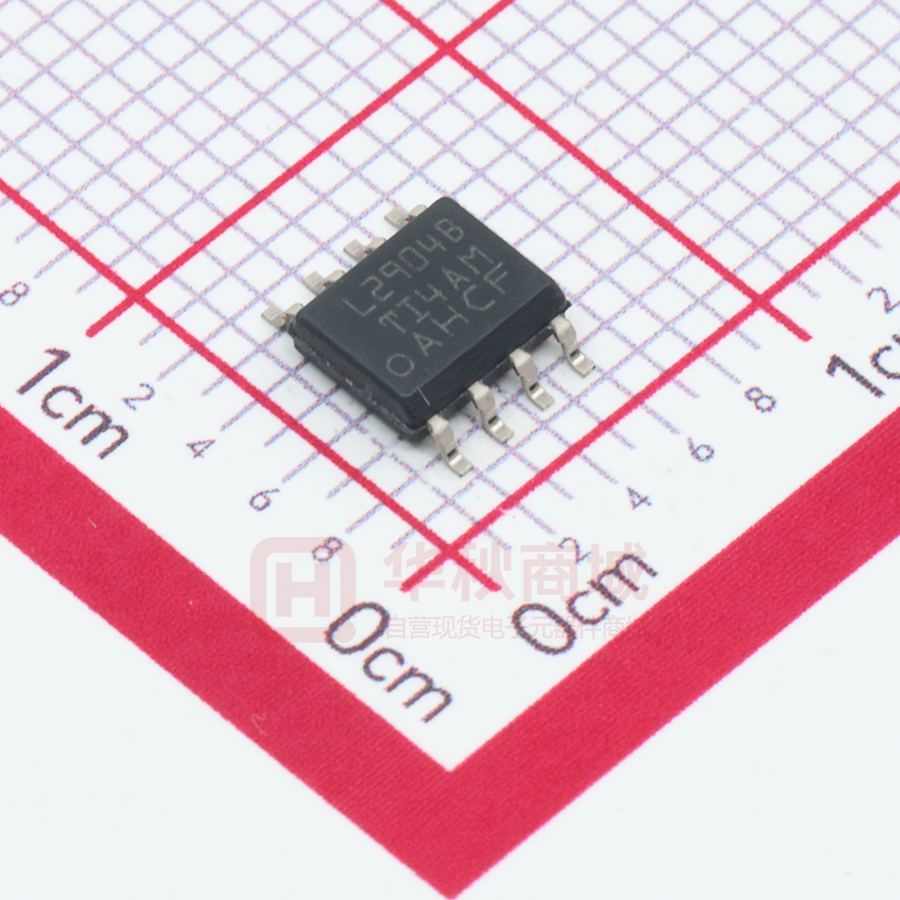

LM2904BIDR

LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA SLOS068Z – JUNE 1976 – REVISED JULY 2021 Industry-Standard Dual Operational Amplifiers 1 Features 3 Description • • The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36 V) op amps. These devices provide outstanding value for costsensitive applications, with features including low offset (300 µV, typical), common-mode input range to ground, and high differential input voltage capability. • • • • • Wide supply range of 3 V to 36 V (B version) Quiescent current: 300 µA per amplifier (B version, typical) Unity-gain bandwidth of 1.2 MHz (B version) Common-mode input voltage range includes ground, enabling direct sensing near ground Low input offset voltage of 3 mV at 25°C (A and B versions, maximum) Internal RF and EMI filter (B version) On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters. 2 Applications • • • • • • • • • • • Merchant network and server power supply units Multi-function printers Power supplies and mobile chargers Motor control: AC induction, brushed DC, brushless DC, high-voltage, low-voltage, permanent magnet, and stepper motor Desktop PC and motherboard Indoor and outdoor air conditioners Washers, dryers, and refrigerators AC inverters, string inverters, central inverters, and voltage frequency drives Uninterruptible power supplies Programmable logic controllers Electronic point-of-sale systems RG RF VIN C1 f-3 dB = ( The LM358B and LM2904B amplifiers are available in micro-sized packaging, such as the SOT23-8, as well as industry standard packages including SOIC, TSSOP, and VSSOP. Device Information PART NUMBER(1) (( 1 1 + sR1C1 1 2pR1C1 PACKAGE BODY SIZE (NOM) LM358B, LM2904B, LM358, LM358A, LM2904, LM2904V, LM258, LM258A SOIC (8) 4.90 mm × 3.90 mm LM358B, LM2904B, LM358, LM358A, LM2904, LM2490V TSSOP (8) 3.00 mm × 4.40 mm LM358B, LM2904B, LM358, LM358A, LM2904, LM2904V, LM258, LM258A VSSOP (8) 3.00 mm × 3.00 mm LM358B, LM2904B SOT-23 (8) 2.90 mm × 1.60 mm LM358, LM2904 SO (8) 5.20 mm × 5.30 mm PDIP (8) 9.81 mm × 6.35 mm LM158, LM158A CDIP (8) 9.60 mm × 6.67 mm LM158, LM158A LCCC (20) 8.89 mm × 8.89 mm LM358, LM2904, LM358A, VOUT LM258, LM258A R1 RF VOUT = 1+ RG VIN The LM358B and LM2904B op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage of 3 mV (maximum at room temperature), and lower quiescent current of 300 µA per amplifier (typical). High ESD (2 kV, HBM) and integrated EMI and RF filters enable the LM358B and LM2904B devices to be used in the most rugged, environmentally challenging applications. (1) For all available packages, see the orderable addendum at the end of the data sheet. ( Single-Pole, Low-Pass Filter An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 Table of Contents 1 Features............................................................................1 2 Applications..................................................................... 1 3 Description.......................................................................1 4 Revision History.............................................................. 2 5 Device Comparison Table...............................................4 6 Pin Configuration and Functions...................................5 7 Specifications.................................................................. 6 7.1 Absolute Maximum Ratings........................................ 6 7.2 ESD Ratings............................................................... 6 7.3 Recommended Operating Conditions.........................7 7.4 Thermal Information....................................................7 7.5 Electrical Characteristics: LM358B and LM358BA..... 8 7.6 Electrical Characteristics: LM2904B and LM2904BA...................................................................10 7.7 Electrical Characteristics: LM358, LM358A.............. 12 7.8 Electrical Characteristics: LM2904, LM2904V.......... 13 7.9 Electrical Characteristics: LM158, LM158A.............. 14 7.10 Electrical Characteristics: LM258, LM258A............ 16 7.11 Typical Characteristics: LM358B and LM2904B..... 17 7.12 Typical Characteristics: LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, and LM2904V..................................................................... 24 8 Parameter Measurement Information.......................... 26 9 Detailed Description......................................................27 9.1 Overview................................................................... 27 9.2 Functional Block Diagram: LM358B, LM358BA, LM2904B, LM2904BA................................................. 27 9.3 Feature Description...................................................28 9.4 Device Functional Modes..........................................28 10 Application and Implementation................................ 29 10.1 Application Information........................................... 29 10.2 Typical Application.................................................. 29 11 Power Supply Recommendations..............................30 12 Layout...........................................................................30 12.1 Layout Guidelines................................................... 30 12.2 Layout Examples.................................................... 31 13 Device and Documentation Support..........................32 13.1 Receiving Notification of Documentation Updates..32 13.2 Support Resources................................................. 32 13.3 Trademarks............................................................. 32 13.4 Electrostatic Discharge Caution..............................32 13.5 Glossary..................................................................32 14 Mechanical, Packaging, and Orderable Information.................................................................... 33 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision Y (February 2021) to Revision Z (July 2021) Page • Deleted preview tag from LM358B and LM2904B SOT-23 (8) package in Device Information table................. 1 • Updated DDF (SOT-23) package thermal information in the Thermal Information table....................................7 • Deleted Related Links from the Device and Documentation Support section.................................................. 32 Changes from Revision X (June 2020) to Revision Y (February 2021) Page • Updated the numbering format for tables, figures, and cross-references throughout the document..................1 • Added SOT23-8 (DDF) package information throughout data sheet..................................................................1 • Deleted preview tag from LM358B and LM2904B VSSOP (8) package in Device Information table................. 1 • Added SOT23-8 (DDF) package information to Device Comparison Table .......................................................4 • Added SOT23-8 (DDF) package information to the Pin Configuration and Functions section........................... 5 • Added DDF (SOT-23) package to the Thermal Information table.......................................................................7 Changes from Revision W (October 2019) to Revision X (June 2020) Page • Added application links to Applications section.................................................................................................. 1 • Deleted preview tag from LM358B and LM2904B TSSOP (8) package in Device Information table ................ 1 Changes from Revision V (September 2018) to Revision W (October 2019) Page • Added specification in the Device Comparison Table ........................................................................................4 • Changed CDM ESD rating for LM358B and LM2904B in ESD Ratings ............................................................ 6 • Changed VS to V+ in Recommended Operating Conditions ..............................................................................7 • Changed Thermal Information for the LM158FK and LM158JG devices........................................................... 7 • Added Typical Characteristics section for the LM358B and LM2490B op amps.............................................. 17 2 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com • • SLOS068Z – JUNE 1976 – REVISED JULY 2021 Added test circuit for THD+N and small-signal step response, G = –1 in the Parameter Measurement Information section........................................................................................................................................... 26 Changed the Functional Block Diagram .......................................................................................................... 27 Changes from Revision U (January 2017) to Revision V (September 2018) Page • Changed the data sheet title ..............................................................................................................................1 • Changed first four items in the Features section ............................................................................................... 1 • Changed the first item in the Applications section and added four new items ...................................................1 • Changed voltage values in the first paragraph of the Description section..........................................................1 • Changed text in the second paragraph of the Description section..................................................................... 1 • Added devices LM358B and LM2904B to data sheet.........................................................................................1 • Changed the first three rows of the Device Information table and added a a cross-referenced note for PREVIEW-status devices................................................................................................................................... 1 • Added Device Comparison table ....................................................................................................................... 4 • Added a table note to the Pin Functions table ................................................................................................... 5 • Changed "free-air temperature" to "ambient temperature" in the Absolute Maximum Ratings condition statement............................................................................................................................................................ 6 • Changed all entries in the Absolute Maximum Ratings table except TJ and Tstg .............................................. 6 • Deleted lead temperature and case temperature from Absolute Maximum Ratings ......................................... 6 • Changed device listings and their voltage values in the ESD Ratings table ......................................................6 • Changed "free-air temperature" to "ambient temperature" in the Recommended Operating Conditions condition statement ............................................................................................................................................7 • Changed table entries for all parameters in the Recommended Operating Conditions table.............................7 • Added rows to the Thermal Information table, and a table note regarding device-package combinations ....... 7 • Deleted the Operating Conditions table............................................................................................................16 • Added a condition statement to the Typical Characteristics section.................................................................24 • Changed specific voltages to a Recommended Operating Conditions reference............................................ 27 • Changed unity-gain bandwidth from 0.7 MHz for all devices to 1.2 MHz for B-version devices.......................28 • Changed slew rate from.3 V/µs for all devices to o.5 V/µs for B-version devices............................................ 28 • Changed the Section 9.3.3 section in multiple places throughout.................................................................... 28 • Changed VCC to VS in the Section 10.1 section ...............................................................................................29 • Subscripted the suffixes fro RI and RF .............................................................................................................29 • Changed Operational Amplifier Board Layout for Noninverting Configuration with an image that includes a dual op amp...................................................................................................................................................... 31 Changes from Revision T (April 2015) to Revision U () Page • Changed data sheet title.....................................................................................................................................1 Changes from Revision S (January 2014) to Revision T (April 2015) Page • Added Applications section, ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ........... 1 Changes from Revision R (July 2010) to Revision S (Jauary 2014) Page • Converted this data sheet from the QS format to DocZone using the PDF on the web..................................... 1 • Deleted Ordering Information table.....................................................................................................................1 • Updated Features to include Military Disclaimer................................................................................................ 1 • Added Typical Characteristics section.............................................................................................................. 24 Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 3 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 5 Device Comparison Table 4 PART NUMBER SUPPLY VOLTAGE TEMPERATURE RANGE VOS (MAXIMUM AT 25°C) IQ / CH (TYPICAL AT 25°C) INTEGRATED EMI FILTER PACKAGE D, DDF, DGK, PW LM358B 3 V–36 V –40°C to 85°C 3 mV 300 µA Yes LM2904B 3 V–36 V –40°C to 125°C 3 mV 300 µA Yes D, DDF, DGK, PW LM358 3 V–32 V 0°C to 70°C 7 mV 350 µA No D, PW, DGK, P, PS LM2904 3 V–26 V –40°C to 125°C 7 mV 350 µA No D, PW, DGK, P, PS D, PW, DGK, P LM358A 3 V–32 V 0°C to 70°C 3 mV 350 µA No LM2904V 3 V–32 V –40°C to 125°C 7 mV 350 µA No D, PW LM158 3 V–32 V –55°C to 125°C 5 mV 350 µA No JG, FK LM158A 3 V–32 V –55°C to 125°C 3 mV 350 µA No JG, FK LM258 3 V–32 V –25°C to 85°C 5 mV 350 µA No D, DGK, P LM258A 3 V–32 V –25°C to 85°C 3 mV 350 µA No D, DGK, P Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 IN2+ Not to scale Figure 6-1. D, DDF, DGK, P, PS, PW, and JG Package 8-Pin SOIC, SOT23-8, VSSOP, PDIP, SO, TSSOP, and CDIP Top View V+ NC 20 19 NC IN1± 5 17 OUT2 NC 6 16 NC IN1+ 7 15 IN2± NC 8 14 NC 13 5 18 NC 4 4 12 V± NC IN2+ IN2± NC 6 1 3 11 IN1+ NC OUT2 OUT1 7 2 2 10 IN1± V± V+ NC 8 9 1 NC OUT1 3 6 Pin Configuration and Functions Not to scale NC - No internal connection Figure 6-2. FK Package 20-Pin LCCC Top View Table 6-1. Pin Functions PIN LCCC(1) SOIC, SOT23-8, VSSOP, CDIP, PDIP, SO, TSSOP, CFP(1) I/O IN1– 5 2 I Negative input IN1+ 7 3 I Positive input IN2– 15 6 I Negative input IN2+ 12 5 I Positive input OUT1 2 1 O Output OUT2 17 7 O Output V– 10 4 — Negative (lowest) supply or ground (for singlesupply operation) NC 1, 3, 4, 6, 8, 9, 11, 13, 14, 16, 18, 19 — — No internal connection V+ 20 8 — Positive (highest) supply NAME (1) DESCRIPTION For a listing of which devices are available in what packages, see Section 5. Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 5 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7 Specifications 7.1 Absolute Maximum Ratings over operating ambient temperature range (unless otherwise noted)(1) MIN Supply voltage, VS = ([V+] – [V–]) Differential input voltage, VID (2) Input voltage, VI Either input ±20 or 40 LM158, LM258, LM358, LM158A, LM258A, LM358A, LM2904V ±16 or 32 LM2904 ±13 or 26 LM358B, LM358BA, LM2904B, LM2904BA,LM158, LM258, LM358, LM158A, LM258A, LM358A, LM2904V –32 32 LM2904 –26 26 LM358B, LM358BA, LM2904B, LM2904BA –0.3 40 LM158, LM258, LM358, LM158A, LM258A, LM358A, LM2904V –0.3 32 LM2904 –0.3 26 Duration of output short circuit (one amplifier) to ground at (or below) TA = 25°C, VS ≤ 15 V(3) Operating ambient temperature, TA MAX LM358B, LM358BA, LM2904B, LM2904BA Unlimited LM158, LM158A –55 125 LM258, LM258A –25 85 LM358B, LM358BA –40 85 0 70 –40 125 LM358, LM358A LM2904B, LM2904BA, LM2904, LM2904V Operating virtual-junction temperature, TJ Storage temperature, Tstg (1) (2) (3) –65 UNIT V V V s °C 150 °C 150 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Differential voltages are at IN+, with respect to IN−. Short circuits from outputs to VS can cause excessive heating and eventual destruction. 7.2 ESD Ratings VALUE UNIT LM358B, LM358BA, LM2904B, AND LM2904BA V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1000 V LM158, LM258, LM358, LM158, LM258A, LM358A, LM2904, AND LM2904V V(ESD) (1) (2) 6 Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) Charged-device model (CDM), per JEDEC specification ±500 JESD22-C101(2) ±1000 V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.3 Recommended Operating Conditions over operating ambient temperature range (unless otherwise noted) VS Supply voltage, VS= ([V+] – [V–]) VCM MIN MAX LM358B, LM358BA, LM2904B, LM2904BA 3 36 LM158, LM258, LM358, LM158A, LM258A, LM358A, LM2904V 3 30 LM2904 3 26 Common-mode voltage TA Operating ambient temperature V– V+ – 2 LM358B, LM358BA –40 85 LM2904B, LM2904BA, LM2904, LM2904V –40 125 LM358, LM358A 0 70 LM258, LM258A –20 85 LM158, LM158A –55 125 UNIT V V °C 7.4 Thermal Information LM258, LM258A, LM358, LM358A, LM358B, LM358BA, LM2904, LM2904B, LM2904BA, LM2904V(2) THERMAL METRIC(1) LM158, LM158A D (SOIC) DGK (VSSOP) P (PDIP) PS (SO) PW (TSSOP) DDF (SOT-23) FK (LCCC) JG (CDIP) 8 PINS 8 PINS 8 PINS 8 PINS 8 PINS 8PINS 20 PINS 8 PINS UNIT RθJA Junction-to-ambient thermal resistance 124.7 181.4 80.9 116.9 171.7 164.3 84.0 112.4 °C/W RθJC(top) Junction-to-case (top) thermal resistance 66.9 69.4 70.4 62.5 68.8 98.1 56.9 63.6 °C/W RθJB Junction-to-board thermal resistance 67.9 102.9 57.4 68.6 99.2 82.1 57.5 100.3 °C/W ψJT Junction-to-top characterization parameter 19.2 11.8 40 21.9 11.5 11.4 51.7 35.7 °C/W ψJB Junction-to-board characterization parameter 67.2 101.2 56.9 67.6 97.9 81.7 57.1 93.3 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance — — — — — — 10.6 22.3 °C/W (1) (2) For more information about traditional and new thermal metrics, see Semiconductor and IC Package Thermal Metrics. For a listing of which devices are available in what packages, see Section 5. Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 7 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.5 Electrical Characteristics: LM358B and LM358BA VS = (V+) – (V–) = 5 V – 36 V (±2.5 V – ±18 V), TA = 25°C, VCM = VOUT = VS / 2, RL = 10k connected to VS / 2 (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT ±0.3 ±3.0 mV ±4 mV ±2.0 mV OFFSET VOLTAGE LM358B VOS TA = –40°C to +85°C Input offset voltage LM358BA dVOS/dT Input offset voltage drift PSRR Power supply rejection ratio Channel separation, dc TA = –40°C to +85°C ±2.5 TA = -40°C to +85°C(1) f = 1 kHz to 20 kHz mV ±3.5 11 µV/°C ±2 15 µV/V ±1 µV/V INPUT VOLTAGE RANGE VCM Common-mode voltage range CMRR Common-mode rejection ratio VS = 3 V to 36 V VS = 5 V to 36 V TA = –40°C to +85°C (V–) (V+) – 1.5 V (V–) (V+) – 2 V (V–) ≤ VCM ≤ (V+) – 1.5 V VS = 3 V to 36 V (V–) ≤ VCM ≤ (V+) – 2.0 V VS = 5 V to 36 V TA = –40°C to +85°C 20 100 25 316 ±10 ±35 nA ±50 nA 4 nA µV/V INPUT BIAS CURRENT IB Input bias current IOS Input offset current dIOS/dT Input offset current drift TA = –40°C to +85°C(1) 0.5 TA = –40°C to +85°C(1) 5 TA = –40°C to +85°C 10 nA pA/℃ NOISE En Input voltage noise f = 0.1 to 10 Hz en Input voltage noise density f = 1 kHz 3 µVPP 40 nV/√/Hz 10 || 0.1 MΩ|| pF 4 || 1.5 GΩ|| pF INPUT IMPEDANCE ZID Differential ZIC Common-mode OPEN-LOOP GAIN AOL Open-loop voltage gain VS = 15 V; VO = 1 V to 11 V; RL ≥ 10 kΩ, connected to (V–) 70 TA = –40°C to +85°C 140 V/mV 35 V/mV FREQUENCY RESPONSE GBW Gain bandwidth product 1.2 MHz SR Slew rate G=+1 0.5 V/µs Θm Phase margin G = + 1, RL = 10kΩ, CL = 20 pF 56 ° tOR Overload recovery time VIN × gain > VS 10 µs ts Settling time To 0.1%, VS = 5 V, 2-V step , G = +1, CL = 100 pF 4 µs THD+N Total harmonic distortion + noise G = + 1, f = 1 kHz, VO = 3.53 VRMS, VS = 36 V, RL = 100k, IOUT ≤ ±50 µA, BW = 80 kHz 0.001 % OUTPUT Positive rail (V+) VO Voltage output swing from rail Negative rail (V–) VS = 5 V, RL ≤ 10 kΩ connected to (V–) IO Output current VS = 15 V; VO = V–; VID = 1 V Source(1) VS = 15 V; VO = V+; VID = –1 V Sink(1) VID = –1 V; VO = (V–) + 200 mV 8 ISC Short-circuit current CLOAD Capacitive load drive RO Open-loop output resistance Submit Document Feedback VS = 20 V, (V+) = 10 V, (V–) = –10 V, VO = 0 V f = 1 MHz, IO = 0 A IOUT = 50 µA 1.35 1.42 V IOUT = 1 mA 1.4 1.48 V IOUT = 5 mA(1) 1.5 1.61 V IOUT = 50 µA 100 150 mV IOUT = 1 mA 0.75 1 V 5 20 mV TA = –40°C to +85°C -20 TA = –40°C to +85°C 10 TA = –40°C to +85°C -30 -10 mA 20 5 60 100 ±40 μA ±60 mA 100 pF 300 Ω Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.5 Electrical Characteristics: LM358B and LM358BA (continued) VS = (V+) – (V–) = 5 V – 36 V (±2.5 V – ±18 V), TA = 25°C, VCM = VOUT = VS / 2, RL = 10k connected to VS / 2 (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 300 460 µA 800 µA POWER SUPPLY IQ Quiescent current per amplifier VS = 5 V; IO = 0 A IQ Quiescent current per amplifier VS = 36 V; IO = 0 A (1) TA = –40°C to +85°C Specified by characterization only. Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 9 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.6 Electrical Characteristics: LM2904B and LM2904BA VS = (V+) – (V–) = 5 V – 36 V (±2.5 V – ±18 V), TA = 25°C, VCM = VOUT = VS / 2, RL = 10k connected to VS / 2 (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT ±0.3 ±3.0 mV ±4 mV ±2.0 mV OFFSET VOLTAGE LM2904B VOS TA = –40°C to +125°C Input offset voltage LM2904BA dVOS/dT Input offset voltage drift PSRR Power supply rejection ratio Channel separation, dc TA = –40°C to +125°C ±2.5 TA = –40°C to +125°C(1) f = 1 kHz to 20 kHz mV ±3.5 12 µV/°C ±2 15 µV/V ±1 µV/V INPUT VOLTAGE RANGE VCM Common-mode voltage range CMRR Common-mode rejection ratio VS = 3 V to 36 V VS = 5 V to 36 V TA = –40°C to +125°C (V–) (V+) – 1.5 V (V–) (V+) – 2 V (V–) ≤ VCM ≤ (V+) – 1.5 V VS = 3 V to 36 V (V–) ≤ VCM ≤ (V+) – 2.0 V VS = 5 V to 36 V TA = –40°C to +125°C 20 100 25 316 ±10 ±35 nA ±50 nA 4 nA µV/V INPUT BIAS CURRENT IB Input bias current IOS Input offset current dIOS/dT Input offset current drift TA = –40°C to +125°C(1) 0.5 TA = –40°C to +125°C(1) 5 TA = –40°C to +125°C 10 nA pA/℃ NOISE En Input voltage noise f = 0.1 to 10 Hz en Input voltage noise density f = 1 kHz 3 µVPP 40 nV/√/Hz 10 || 0.1 MΩ|| pF 4 || 1.5 GΩ|| pF INPUT IMPEDANCE ZID Differential ZIC Common-mode OPEN-LOOP GAIN AOL Open-loop voltage gain VS = 15 V; VO = 1 V to 11 V; RL ≥ 10 kΩ, connected to (V–) 70 TA = –40°C to +125°C 140 V/mV 35 V/mV FREQUENCY RESPONSE GBW Gain bandwidth product 1.2 MHz SR Slew rate G=+1 0.5 V/µs Θm Phase margin G = + 1, RL = 10kΩ, CL = 20 pF 56 ° tOR Overload recovery time VIN × gain > VS 10 µs ts Settling time To 0.1%, VS = 5 V, 2-V Step , G = +1, CL = 100 pF 4 µs THD+N Total harmonic distortion + noise G = + 1, f = 1 kHz, VO = 3.53 VRMS, VS = 36 V, RL = 100k, IOUT ≤ ±50 µA, BW = 80 kHz 0.001 % OUTPUT Positive rail (V+) VO Voltage output swing from rail Negative rail (V–) VS = 5 V, RL ≤ 10 kΩ connected to (V–) VS = 15 V; VO = V–; VID = Source(1) 1V IO Output current VS = 15 V; VO = V+; VID = Sink(1) –1 V VID = –1 V; VO = (V–) + 200 mV ISC Short-circuit current CLOAD Capacitive load drive RO Open-loop output resistance 10 Submit Document Feedback VS = 20 V, (V+) = 10 V, (V–) = –10 V, VO = 0 V f = 1 MHz, IO = 0 A IOUT = 50 µA 1.35 1.42 V IOUT = 1 mA 1.4 1.48 V IOUT = 5 mA(1) 1.5 1.61 V IOUT = 50 µA 100 150 mV IOUT = 1 mA 0.75 1 V 5 20 mV TA = –40°C to +125°C –20 TA = –40°C to +125°C 10 TA = –40°C to +125°C –30 –10 mA 20 5 60 100 ±40 μA ±60 mA 100 pF 300 Ω Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.6 Electrical Characteristics: LM2904B and LM2904BA (continued) VS = (V+) – (V–) = 5 V – 36 V (±2.5 V – ±18 V), TA = 25°C, VCM = VOUT = VS / 2, RL = 10k connected to VS / 2 (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 300 460 µA 800 µA POWER SUPPLY IQ Quiescent current per amplifier VS = 5 V; IO = 0 A IQ Quiescent current per amplifier VS = 36 V; IO = 0 A (1) TA = –40°C to +125°C Specified by characterization only. Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 11 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.7 Electrical Characteristics: LM358, LM358A For VS = (V+) – (V–) = 5 V, TA = 25°C (unless otherwise noted) TEST CONDITIONS(1) PARAMETER MIN TYP(2) MAX 3 7 UNIT OFFSET VOLTAGE LM358 VOS Input offset voltage VS = 5 V to 30 V; VC M = 0 V; VO = 1.4 V TA = 0°C to 70°C 9 LM358A 2 3 TA = 0°C to 70°C dVOS/dT Input offset voltage drift PSRR Input offset voltage vs power supply (ΔVIO/ΔVS) VS = 5 V to 30 V VO1/ VO2 Channel separation f = 1 kHz to 20 kHz mV 5 LM358 TA = 0°C to 70°C 7 LM358A TA = 0°C to 70°C 7 65 20 µV/°C 100 dB 120 dB INPUT VOLTAGE RANGE VCM Common-mode voltage range CMRR Common-mode rejection ratio VS = 5 V to 30 V LM358 VS = 30 V LM358A VS = 5 V to 30 V LM358 VS = 30 V LM358A (V–) (V+) – 1.5 (V–) (V+) – 2 V TA = 0°C to 70°C VS = 5 V to 30 V; VCM = 0 V 65 80 dB INPUT BIAS CURRENT LM358 IB Input bias current VO = 1.4 V LM358A LM358 IOS Input offset current VO = 1.4 V LM358A dIOS/dT –20 TA = 0°C to 70°C –250 –500 –15 TA = 0°C to 70°C –200 2 TA = 0°C to 70°C 50 150 2 TA = 0°C to 70°C LM358A nA 30 75 10 Input offset current drift nA –100 TA = 0°C to 70°C 300 pA/°C NOISE en Input voltage noise density f = 1 kHz 40 nV/√ Hz OPEN-LOOP GAIN AOL Open-loop voltage gain 25 VS = 15 V; VO = 1 V to 11 V; RL ≥ 2 kΩ TA = 0°C to 70°C 100 V/mV 15 FREQUENCY RESPONSE GBW Gain bandwidth product SR Slew rate G = +1 0.7 MHz 0.3 V/µs OUTPUT VS = 30 V; RL = 2 kΩ VO Voltage output swing from rail Positive rail TA = 0°C to 70°C 4 VS = 30 V; RL ≥ 10 kΩ 2 VS = 5 V; RL ≥ 2 kΩ Negative rail VS = 5 V; RL ≤ 10 kΩ TA = 0°C to 70°C 5 –20 VS = 15 V; VO = 0 V; VID Source =1V IO VS = 15 V; VO = 15 V; VID = –1 V Sink Short-circuit current 20 mV –60 TA = 0°C to 70°C 20 5 12 VS = 10 V; VO = VS / 2 mA –10 10 VID = –1 V; VO = 200 mV ISC V –30 LM358A TA = 0°C to 70°C Output current 3 1.5 30 ±40 µA ±60 mA POWER SUPPLY IQ (1) (2) 12 Quiescent current per amplifier VO = 2.5 V; IO = 0 A VS = 30 V; VO = 15 V; IO = 0 A TA = 0°C to 70°C 350 600 500 1000 µA All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. Maximum VS for testing purposes is 30 V for LM358 and LM358A. All typical values are TA = 25°C. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.8 Electrical Characteristics: LM2904, LM2904V For VS = (V+) – (V–) = 5 V, TA = 25°C (unless otherwise noted) TEST CONDITIONS(1) PARAMETER MIN (2) TYP MAX UNIT OFFSET VOLTAGE VOS Input offset voltage VS = 5 V to maximum; VC M = 0 V; VO = 1.4 V dVOS/dT Input offset voltage drift PSRR Input offset voltage vs power supply VS = 5 V to 30 V (ΔVIO/ΔVS) VO1/ VO2 Channel separation Non-A suffix devices A-suffix devices 3 TA = –40°C to 125°C 7 10 1 TA = –40°C to 125°C mV 2 4 TA = –40°C to 125°C 7 65 f = 1 kHz to 20 kHz µV/°C 100 dB 120 dB INPUT VOLTAGE RANGE VCM Common-mode voltage range VS = 5 V to maximum CMRR Common-mode rejection ratio VS = 5 V to maximum; VCM = 0 V TA = –40°C to 125°C (V–) (V+) – 1.5 (V–) (V+) – 2 65 V 80 dB INPUT BIAS CURRENT IB Input bias current –20 VO = 1.4 V TA = –40°C to 125°C Non-V suffix device IOS Input offset current VO = 1.4 V V-suffix device dIOS/dT Input offset current drift –250 nA –500 2 TA = –40°C to 125°C 50 300 2 TA = –40°C to 125°C nA 50 150 TA = –40°C to 125°C 10 pA/°C 40 nV/√ Hz NOISE en Input voltage noise density f = 1 kHz OPEN-LOOP GAIN AOL Open-loop voltage gain VS = 15 V; VO = 1 V to 11 V; RL ≥ 2 kΩ 25 TA = –40°C to 125°C 100 V/mV 15 FREQUENCY RESPONSE GBW Gain bandwidth product SR Slew rate G = +1 0.7 MHz 0.3 V/µs OUTPUT RL ≥ 10 kΩ Non-V suffix device VO Voltage output swing from rail Positive rail V-suffix device Negative rail IO Output current Short-circuit current VS = maximum; RL ≥ 10 kΩ VS = maximum; RL = 2 kΩ 4 2 VS = 5 V; RL ≤ 10 kΩ Source VS = 15 V; VO = 15 V; VID = –1 V Sink 3 TA = –40°C to 125°C V 6 VS = maximum; RL ≥ 10 kΩ VS = 15 V; VO = 0 V; VID = 1 V VID = -1 V; VO = 200 mV ISC VS – 1.5 VS = maximum; RL = 2 kΩ TA = –40°C to 125°C –20 TA = –40°C to 125°C 5 5 20 mA 20 5 Non-V suffix device 30 V-suffix device 12 VS = 10 V; VO = VS / 2 mV –30 –10 10 TA = –40°C to 125°C 4 µA 40 ±40 ±60 mA POWER SUPPLY IQ (1) (2) Quiescent current per amplifier VO = 2.5 V; IO = 0 A VS = maximum; VO = maximum / 2; IO = 0 A TA = –40°C to 125°C 350 600 500 1000 µA All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. Maximum VS for testing purposes is 26 V for LM2904 and 32 V for LM2904V. All typical values are TA = 25°C. Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 13 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.9 Electrical Characteristics: LM158, LM158A For VS = (V+) – (V–) = 5 V, TA = 25°C (unless otherwise noted) TEST CONDITIONS(1) PARAMETER MIN TYP(2) MAX 3 5 UNIT OFFSET VOLTAGE LM158 VOS Input offset voltage VS = 5 V to 30 V; VC M = 0 V; VO = 1.4 V LM158A dVOS/dT Input offset voltage drift PSRR Input offset voltage vs power supply (ΔVIO/ΔVS) VS = 5 V to 30 V VO1/ VO2 Channel separation f = 1 kHz to 20 kHz TA = –55°C to 125°C 7 2 TA = –55°C to 125°C mV 4 LM158 TA = –55°C to 125°C 7 LM158A TA = –55°C to 125°C 7 65 15(3) µV/°C 100 dB 120 dB INPUT VOLTAGE RANGE VCM Common-mode voltage range CMRR Common-mode rejection ratio VS = 5 V to 30 V LM158 VS = 30 V LM158A VS = 5 V to 30 V LM158 VS = 30 V LM158A (V–) (V+) – 1.5 (V–) (V+) – 2 V TA = –55°C to 125°C VS = 5 V to 30 V; VCM = 0 V 70 80 dB INPUT BIAS CURRENT LM158 IB Input bias current VO = 1.4 V LM158A LM158 IOS Input offset current VO = 1.4 V LM158A dIOS/dT –20 TA = –55°C to 125°C –150 –300 –15 TA = –55°C to 125°C –50 –100 2 TA = –55°C to 125°C 30 100 2 TA = –55°C to 125°C 10 LM158A nA 30 10 Input offset current drift nA TA = –55°C to 125°C 200 pA/°C NOISE en Input voltage noise density f = 1 kHz 40 nV/√ Hz OPEN-LOOP GAIN AOL Open-loop voltage gain 50 VS = 15 V; VO = 1 V to 11 V; RL ≥ 2 kΩ TA = –55°C to 125°C 100 V/mV 25 FREQUENCY RESPONSE GBW Gain bandwidth product SR Slew rate G = +1 0.7 MHz 0.3 V/µs OUTPUT VS = 30 V; RL = 2 kΩ VO Voltage output swing from rail Positive rail TA = –55°C to 125°C 4 VS = 30 V; RL ≥ 10 kΩ 2 VS = 5 V; RL ≥ 2 kΩ Negative rail VS = 5 V; RL ≤ 10 kΩ TA = –55°C to 125°C 5 –20 VS = 15 V; VO = 0 V; VID = 1 V IO Output current VID = –1 V; VO = 200 mV 14 Short-circuit current Submit Document Feedback VS = 10 V; VO = VS / 2 Sink V 20 mV –30 LM158A –60 TA = –55°C to 125°C VS = 15 V; VO = 15 V; VID = –1 V ISC Source 3 1.5 10 TA = –55°C to 125°C mA –10 20 5 12 30 ±40 µA ±60 mA Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.9 Electrical Characteristics: LM158, LM158A (continued) For VS = (V+) – (V–) = 5 V, TA = 25°C (unless otherwise noted) TEST CONDITIONS(1) PARAMETER MIN TYP(2) MAX UNIT POWER SUPPLY IQ (1) (2) (3) Quiescent current per amplifier VO = 2.5 V; IO = 0 A VS = 30 V; VO = 15 V; IO = 0 A TA = –55°C to 125°C 350 600 500 1000 µA All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. Maximum VS for testing purposes is 30 V for LM158 and LM158A. All typical values are TA = 25°C. On products compliant to MIL-PRF-38535, this parameter is not production tested. Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 15 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.10 Electrical Characteristics: LM258, LM258A For VS = (V+) – (V–) = 5 V, TA = 25°C (unless otherwise noted) TEST CONDITIONS(1) PARAMETER MIN TYP(2) MAX 3 5 UNIT OFFSET VOLTAGE LM258 VOS Input offset voltage VS = 5 V to 30 V; VC M = 0 V; VO = 1.4 V LM258A LM258 dVOS/dT Input offset voltage drift PSRR Input offset voltage vs power supply (ΔVIO/ΔVS) VS = 5 V to 30 V VO1/ VO2 Channel separation f = 1 kHz to 20 kHz LM258A TA = –25°C to 85°C 7 2 TA = –25°C to 85°C mV 3 4 7 TA = –25°C to 85°C 7 65 µV/°C 15 100 dB 120 dB INPUT VOLTAGE RANGE VCM Common-mode voltage range CMRR Common-mode rejection ratio VS = 5 V to 30 V LM258 VS = 30 V LM258A VS = 5 V to 30 V LM258 VS = 30 V LM258A (V–) (V+) – 1.5 (V–) (V+) – 2 V TA = –25°C to 85°C VS = 5 V to 30 V; VCM = 0 V 70 80 dB INPUT BIAS CURRENT LM258 IB Input bias current VO = 1.4 V LM258A LM258 IOS Input offset current VO = 1.4 V LM258A dIOS/dT –20 TA = –25°C to 85°C –150 –300 –15 TA = –25°C to 85°C nA –80 –100 2 TA = –25°C to 85°C 30 100 2 TA = –25°C to 85°C nA 15 30 10 Input offset current drift LM258A TA = –25°C to 85°C pA/°C 200 NOISE en Input voltage noise density f = 1 kHz 40 nV/√ Hz OPEN-LOOP GAIN AOL Open-loop voltage gain 50 VS = 15 V; VO = 1 V to 11 V; RL ≥ 2 kΩ TA = –25°C to 85°C 100 V/mV 25 FREQUENCY RESPONSE GBW Gain bandwidth product SR Slew rate G = +1 0.7 MHz 0.3 V/µs OUTPUT VS = 30 V; RL = 2 kΩ VO Voltage output swing from rail Positive rail TA = –25°C to 85°C 4 VS = 30 V; RL ≥ 10 kΩ 2 VS = 5 V; RL ≥ 2 kΩ Negative rail VS = 5 V; RL ≤ 10 kΩ TA = –25°C to 85°C 5 –20 VS = 15 V; VO = 0 V; VID = 1 V IO Source VS = 15 V; VO = 15 V; VID = –1 V Sink Short-circuit current 20 mV –60 TA = –25°C to 85°C 20 5 12 VS = 10 V; VO = VS / 2 mA –10 10 VID = –1 V; VO = 200 mV ISC V –30 LM258A TA = –25°C to 85°C Output current 3 1.5 30 ±40 µA ±60 mA POWER SUPPLY IQ (1) (2) 16 Quiescent current per amplifier VO = 2.5 V; IO = 0 A VS = 30 V; VO = 15 V; IO = 0 A TA = –25°C to 85°C 350 600 500 1000 µA All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. Maximum VS for testing purposes is 30 V for LM258 and LM258A. All typical values are TA = 25°C. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.11 Typical Characteristics: LM358B and LM2904B 20 30 18 27 16 24 14 21 Amplifiers (%) Amplifiers (%) This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted). 12 10 8 18 15 12 6 9 4 6 2 3 0 -1800 0 -1200 -600 0 600 Offset Voltage (µV) 1200 1800 0 DC11 750 500 450 300 150 -150 -450 -750 -40 -20 0 20 40 60 Temperature (°C) 80 100 100 -100 -500 -18 120 70 90 60 70 80 60 70 50 60 40 50 30 40 20 30 10 20 10 Gain (dB) Phase (°) -20 10k 100k Frequency (Hz) 12 17 DC10 40 30 20 10 0 -10 -20 -10 -30 1M G=1 G = 10 G = 100 G = 1000 G = –1 50 0 1k D012 Figure 7-5. Open-Loop Gain and Phase vs Frequency Copyright © 2021 Texas Instruments Incorporated Closed Lopp Voltage Gain (dB) 100 80 0 -6 0 6 Common-Mode Voltage (V) Figure 7-4. Offset Voltage vs Common-Mode Voltage 90 1k -12 DC10 Phase ( ) Open Loop Voltage Gain (dB) DC12 -300 Figure 7-3. Offset Voltage vs Temperature -10 2.25 2.5 2.75 Figure 7-2. Offset Voltage Drift Distribution Offset Voltage (µV) Offset Voltage (µV) Figure 7-1. Offset Voltage Production Distribution 0.25 0.5 0.75 1 1.25 1.5 1.75 2 Offset Voltage Drift (µV/°C) 10k 100k Frequency (Hz) 1M D017 Figure 7-6. Closed-Loop Gain vs Frequency Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 17 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.11 Typical Characteristics: LM358B and LM2904B (continued) This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted). -5 120 IB+ IB– Input Offset Current (pA) 100 Input Bias Current (nA) -7.5 -10 -12.5 80 60 40 20 0 -20 -15 -20 -15 -10 -5 0 5 10 Common-Mode Voltage (V) 15 -40 -20 20 -10 -5 0 5 10 Common-Mode Voltage (V) 15 20 DC3I Figure 7-8. Input Offset Current vs Common-Mode Voltage -6 0.06 -7 0.045 Input Offset Current (nA) Input Bias Current (nA) Figure 7-7. Input Bias Current vs Common-Mode Voltage -8 -9 IB+ IB– -10 -15 DC3I 0.03 0.015 0 -0.015 -11 -12 -40 -10 20 50 Temperature (°C) 80 110 -0.03 -40 130 -10 20 50 Temperature (°C) DCIB Figure 7-9. Input Bias Current vs Temperature 80 110 130 DCIO Figure 7-10. Input Offset Current vs Temperature V+ (V–) + 18 V –40 C 25 C 125 C (V–) + 15 V Output Voltage (V) Output Voltage (V) (V+) – 3 V (V+) – 6 V (V–) + 12 V (V–) + 9 V (V–) + 6 V (V+) – 9 V –40 C 25 C 125 C (V–) + 3 V V– (V+) – 12 V 0 10 20 30 Output Current (mA) 40 50 DC13 Figure 7-11. Output Voltage Swing vs Output Current (Sourcing) 18 Submit Document Feedback 0 5 10 15 20 25 Output Current (mA) 30 35 40 DC1- Figure 7-12. Output Voltage Swing vs Output Current (Sinking) Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.11 Typical Characteristics: LM358B and LM2904B (continued) This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted). 100 120 PSRR and CMRR (dB) 80 Common-Mode Rejection Ratio (dB) PSRR+ PSRRCMRR 90 70 60 50 40 30 20 10 0 1k 10k 100k Frequency (Hz) 115 110 105 100 95 90 85 -40 1M -10 20 50 Temperature (°C) D001 Figure 7-13. CMRR and PSRR vs Frequency 80 110 130 DC2_ Figure 7-14. Common-Mode Rejection Ratio vs Temperature (dB) 1.6 -118 1.2 -119 0.8 Voltage (µV) Power Supply Rejection Ratio (dB) VS = 36V VS = 5V -120 -121 0.4 0 -0.4 -0.8 -1.2 -122 -1.6 -123 -40 -2 -20 0 20 40 60 80 Temperature (°C) 100 120 0 140 1 2 DC8_ 3 4 5 6 Time (s) 7 8 9 10 D011 VS = 5 V to 36 V Figure 7-16. 0.1-Hz to 10-Hz Noise 100 -32 90 -40 80 -48 70 -56 THD+N (dB) Voltage Noise Spectral Density (nV/—Hz) Figure 7-15. Power Supply Rejection Ratio vs Temperature (dB) 60 50 40 -64 -72 -80 -88 30 20 -96 10 -104 0 10 10 k 2k -112 100 1k Frequency (Hz) 10k 100k D010 Figure 7-17. Input Voltage Noise Spectral Density vs Frequency 100 1k Frequency (Hz) 10k D013 G = 1, f = 1 kHz, BW = 80 kHz, VOUT = 10 VPP, RL connected to V– Figure 7-18. THD+N Ratio vs Frequency, G = 1 Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 19 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.11 Typical Characteristics: LM358B and LM2904B (continued) This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted). -32 -30 10 k 2k -40 -48 -50 -56 -60 THD+N (dB) THD+N (dB) -40 -64 -72 -70 -80 -80 -90 -88 -100 -96 -110 -104 100 1k Frequency (Hz) -120 0.001 10k 0.01 D014 G = –1, f = 1 kHz, BW = 80 kHz, VOUT = 10 VPP, RL connected to V– See Figure 8-3 0.1 Amplitude (VPP) 1 10 20 D015 G = 1, f = 1 kHz, BW = 80 kHz, RL connected to V– Figure 7-19. THD+N Ratio vs Frequency, G = –1 Figure 7-20. THD+N vs Output Amplitude, G = 1 -20 460 -35 430 Quiescent Current (µA) THD+N (dB) 10 k 2k -50 -65 -80 400 370 340 310 -95 10 k 2k 280 -110 0.001 0.01 0.1 Amplitude (VPP) 1 3 10 20 9 15 21 Supply Voltage (V) D016 27 33 36 DC_S G = –1, f = 1 kHz, BW = 80 kHz, RL connected to V– See Figure 8-3 Figure 7-21. THD+N vs Output Amplitude, G = –1 Figure 7-22. Quiescent Current vs Supply Voltage 540 500 VS = 36V VS = 5V Open Loop Output Impedance ( ) Quiescent Current per Amplifier (µA) 600 480 420 360 300 240 -40 -20 0 20 40 60 Temperature (°C) 80 100 120 Figure 7-23. Quiescent Current vs Temperature 20 Submit Document Feedback DC4_ 400 300 200 100 1k 10k 100k Frequency (Hz) 1M D006 Figure 7-24. Open-Loop Output Impedance vs Frequency Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.11 Typical Characteristics: LM358B and LM2904B (continued) This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted). 44 18 Overshoot (+) Overshoot (-) 36 14 32 12 28 24 20 10 8 6 16 4 12 2 0 40 8 0 40 80 Overshoot (+) Overshoot (–) 16 Overshoot (%) Overshoot (%) 40 120 160 200 240 Capacitance load (pF) 280 320 360 80 120 D019 160 200 240 Capacitance load (pF) 280 320 360 D020 G = –1, 100-mV output step, RL = open G = 1, 100-mV output step, RL = open Figure 7-25. Small-Signal Overshoot vs Capacitive Load Figure 7-26. Small-Signal Overshoot vs Capacitive Load 60 20 Input Output 57 10 51 Voltage (V) Phase Margin (°) 54 48 45 42 39 0 -10 36 33 -20 30 0 40 80 120 160 200 240 Capacitance Load (pF) 280 320 0 360 200 D018 400 600 Time ( s) 800 1000 D021 G = –10 Figure 7-28. Overload Recovery 10 10 7.5 7.5 5 5 Voltage (mV) Voltage (mV) Figure 7-27. Phase Margin vs Capacitive Load 2.5 0 -2.5 -5 2.5 0 -2.5 -5 -7.5 -7.5 Input Output -10 Input Output -10 0 20 40 60 80 Time ( s) G = 1, RL = open Figure 7-29. Small-Signal Step Response, G = 1 Copyright © 2021 Texas Instruments Incorporated 100 D022 0 20 40 60 80 100 Time ( s) D023 G = –1, RL = open, RFB = 10K See Figure 8-3 Figure 7-30. Small-Signal Step Response, G = –1 Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 21 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.11 Typical Characteristics: LM358B and LM2904B (continued) 20 40 16 32 Output Delta from Final Value (mV) Output Delta from Final Value (mV) This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted). 12 8 4 0 -4 -8 -12 -16 -20 24 16 8 0 -8 -16 -24 -32 -40 0 0.5 1 1.5 2 2.5 3 Time ( s) 3.5 4 4.5 5 0 0.5 1 G = 1, RL = open 2 2.5 3 Time ( s) 3.5 4 4.5 5 D004 G = 1, RL = open Figure 7-31. Large-Signal Step Response (Rising) Figure 7-32. Large-Signal Step Response (Falling) 0.675 2.5 Output Input 2 Positive Negative 1.5 0.625 Slew Rate(V/ s) 1 Votlage (V) 1.5 D003 0.5 0 -0.5 -1 -1.5 0.575 0.525 0.475 -2 -2.5 0 20 40 60 80 0.425 -40 100 Time (µs) -25 -10 5 20 AC_S 35 50 65 Temp( C) 80 95 110 125 D009 G = 1, RL = open Figure 7-34. Slew Rate vs Temperature Figure 7-33. Large-Signal Step Response Short-Circuit Current (mA) 40 20 Sinking Sourcing 0 -20 -40 -60 -40 -25 -10 5 20 35 50 65 Temperature (°C) 80 95 110 125 DC7_ Maximum Output Voltage (V PP) 60 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1k 10k 100k Frequency (Hz) 1M D005 VS = 15 V Figure 7-35. Short-Circuit Current vs Temperature 22 Submit Document Feedback Figure 7-36. Maximum Output Voltage vs Frequency Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.11 Typical Characteristics: LM358B and LM2904B (continued) This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted). 90 -75 84 78 72 -95 EMIRR (dB) Channel Separation (dB) -85 -105 -115 66 60 54 48 42 -125 36 30 -135 1k 10k 100k Frequency (Hz) Figure 7-37. Channel Separation vs Frequency Copyright © 2021 Texas Instruments Incorporated 24 1M 1M D008 10M 100M Frequency (Hz) 1G D007 Figure 7-38. EMIRR (Electromagnetic Interference Rejection Ratio) vs Frequency Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 23 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.12 Typical Characteristics: LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, and LM2904V Typical characteristics section is applicable for LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, and LM2904V. 20 0.36 18 0.34 –55C 0C 125C Supply Current (mA) Input Current (nAdc) 16 14 12 10 8 5Vdc 15Vdc 30Vdc 6 4 0.32 0.3 0.28 0.26 0.24 0.22 2 0 –55 –35 –15 5 45 25 65 Temperature (°C) 85 105 0.2 125 0 Figure 7-39. Input Current vs Temperature 30 CMRR 90 80 120 70 100 CMRR (dB) Avol Voltage Gain (dB) 25 100 RL=20K RL=2K 140 80 60 60 50 40 30 40 20 20 10 0 0 0 5 10 15 20 25 30 V+ Supply Voltage (Vdc) 35 0.1 40 1 10 100 1000 Frequency (kHz) Figure 7-41. Voltage Gain vs Supply Voltage C001 Figure 7-42. Common-Mode Rejection Ratio vs Frequency 3.5 0.50 VOUT 3.0 0.45 Voltage (V) 2.5 Voltage (V) 10 15 20 Supply Voltage (Vdc) Figure 7-40. Supply Current vs Supply Voltage 160 2.0 1.5 0.40 0.35 0.30 1.0 0.5 0.25 0.0 0.20 VOUT 0 4 8 12 16 20 24 Time ( s) 28 32 36 40 C001 Figure 7-43. Voltage Follower Large Signal Response (50 pF) 24 5 Submit Document Feedback 0 2 4 6 Time ( s) 8 10 C001 Figure 7-44. Voltage Follower Small Signal Response (50 pF) Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 7.12 Typical Characteristics: LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, and LM2904V (continued) Typical characteristics section is applicable for LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, and LM2904V. 8 Output Voltage (Vdc) relative to Vcc 20 17.5 Output Swing (Vp-p) 15 12.5 10 7.5 5 2.5 0 1 10 100 Frequency (kHz) 7 6 5 4 3 2 1 0.001 1k Figure 7-45. Maximum Output Swing vs Frequency (VCC = 15 V) 0.1 1 Output Sink Current (mAdc) 10 100 Figure 7-46. Output Sourcing Characteristics 90 10 5Vdc 15Vdc 30Vdc 80 Output Current (mAdc) Output Voltage (Vdc) 0.01 1 0.1 70 60 50 40 30 20 10 0.01 0.001 0 0.01 0.1 1 10 Output Sink Current (mAdc) Figure 7-47. Output Sinking Characteristics Copyright © 2021 Texas Instruments Incorporated 100 –55 –35 –15 5 45 25 65 Temperature (°C) 85 105 125 Figure 7-48. Source Current Limiting Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 25 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 8 Parameter Measurement Information 900 Ω VCC+ VCC+ − VI VO + 100 Ω − VI = 0 V RS VCC− CL RL VO + VCC− Figure 8-2. Noise-Test Circuit Figure 8-1. Unity-Gain Amplifier 10 k
– +18V VIN + RL -18V GND GND Figure 8-3. Test Circuit, G = –1, for THD+N and Small-Signal Step Response 26 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 9 Detailed Description 9.1 Overview These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is within the supply voltage range specified in Section 7.3 and VS is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, these devices can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5-V supplies. 9.2 Functional Block Diagram: LM358B, LM358BA, LM2904B, LM2904BA VCC+ ~6 µA Curren t Regula tor ~6 µA Curren t Regula tor ~100 µA Curren t Regula tor IN- OUT IN+ ~120 µA Curren t Regula tor Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 27 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 9.3 Feature Description 9.3.1 Unity-Gain Bandwidth The unity-gain bandwidth is the frequency up to which an amplifier with a unity gain may be operated without greatly distorting the signal. These devices have a 1.2-MHz unity-gain bandwidth (B Version). 9.3.2 Slew Rate The slew rate is the rate at which an operational amplifier can change its output when there is a change on the input. These devices have a 0.5-V/µs slew rate (B Version). 9.3.3 Input Common Mode Range The valid common mode range is from device ground to VS – 1.5 V (VS – 2 V across temperature). Inputs may exceed VS up to the maximum VS without device damage. At least one input must be in the valid input common-mode range for the output to be the correct phase. If both inputs exceed the valid range, then the output phase is undefined. If either input more than 0.3 V below V– then input current should be limited to 1 mA and the output phase is undefined. 9.4 Device Functional Modes These devices are powered on when the supply is connected. This device can be operated as a single-supply operational amplifier or dual-supply amplifier, depending on the application. 28 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 10 Application and Implementation Note Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 10.1 Application Information The LMx58 and LM2904 operational amplifiers are useful in a wide range of signal conditioning applications. Inputs can be powered before VSfor flexibility in multiple supply circuits. 10.2 Typical Application A typical application for an operational amplifier is an inverting amplifier. This amplifier takes a positive voltage on the input, and makes it a negative voltage of the same magnitude. In the same manner, it also makes negative voltages positive. RF RI Vsup+ VOUT VIN + Vsup- Figure 10-1. Application Schematic 10.2.1 Design Requirements The supply voltage must be chosen such that it is larger than the input voltage range and output range. For instance, this application scales a signal of ±0.5 V to ±1.8 V. Setting the supply at ±12 V is sufficient to accommodate this application. 10.2.2 Detailed Design Procedure Determine the gain required by the inverting amplifier using Equation 1 and Equation 2: AV VOUT VIN AV 1.8 0.5 (1) 3.6 (2) Once the desired gain is determined, choose a value for RI or RF. [Subscripts should be fixed in the accompanying figures and equations also.] Choosing a value in the kilohm range is desirable because the amplifier circuit uses currents in the milliampere range. This ensures the part does not draw too much current. This example uses 10 kΩ for RI which means 36 kΩ is used for RF. This was determined by Equation 3. AV RF RI (3) Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 29 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 10.2.3 Application Curve 2 VIN 1.5 VOUT 1 Volts 0.5 0 -0.5 -1 -1.5 -2 0 0.5 1 Time (ms) 1.5 2 Figure 10-2. Input and Output Voltages of the Inverting Amplifier 11 Power Supply Recommendations CAUTION Supply voltages larger than specified in the recommended operating region can permanently damage the device (see Section 7.1). Place 0.1-µF bypass capacitors close to the power-supply pins to reduce errors coupling in from noisy or high-impedance power supplies. For more detailed information on bypass capacitor placement, see Section 12. 12 Layout 12.1 Layout Guidelines For best operational performance of the device, use good PCB layout practices, including: • • • • • • 30 Noise can propagate into analog circuitry through the power pins of the circuit as a whole, as well as the operational amplifier. Bypass capacitors are used to reduce the coupled noise by providing low-impedance power sources local to the analog circuitry. – Connect low-ESR, 0.1-µF ceramic bypass capacitors between each supply pin and ground, placed as close to the device as possible. A single bypass capacitor from V+ to ground is applicable for singlesupply applications. Separate grounding for analog and digital portions of circuitry is one of the simplest and most-effective methods of noise suppression. One or more layers on multilayer PCBs are usually devoted to ground planes. A ground plane helps distribute heat and reduces EMI noise pickup. Make sure to physically separate digital and analog grounds, paying attention to the flow of the ground current. To reduce parasitic coupling, run the input traces as far away from the supply or output traces as possible. If it is not possible to keep them separate, it is much better to cross the sensitive trace perpendicular as opposed to in parallel with the noisy trace. Place the external components as close to the device as possible. Keeping RF and RG close to the inverting input minimizes parasitic capacitance, as shown in Section 12.2. Keep the length of input traces as short as possible. Always remember that the input traces are the most sensitive part of the circuit. Consider a driven, low-impedance guard ring around the critical traces. A guard ring can significantly reduce leakage currents from nearby traces that are at different potentials. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 12.2 Layout Examples Place components close to device and to each other to reduce parasitic errors Run the input traces as far away from the supply lines as possible VS+ RF OUT1 V+ GND IN1í OUT2 VIN IN1+ IN2í Ví IN2+ RG GND R IN Only needed for dual-supply operation GND Use low-ESR, ceramic bypass capacitor VSí (or GND for single supply) Ground (GND) plane on another layer Figure 12-1. Operational Amplifier Board Layout for Noninverting Configuration RIN VIN + VOUT RG RF Figure 12-2. Operational Amplifier Schematic for Noninverting Configuration Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 31 LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 13 Device and Documentation Support 13.1 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on Subscribe to updates to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 13.2 Support Resources TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight from the experts. Search existing answers or ask your own question to get the quick design help you need. Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. 13.3 Trademarks TI E2E™ is a trademark of Texas Instruments. All trademarks are the property of their respective owners. 13.4 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 13.5 Glossary TI Glossary 32 This glossary lists and explains terms, acronyms, and definitions. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA www.ti.com SLOS068Z – JUNE 1976 – REVISED JULY 2021 14 Mechanical, Packaging, and Orderable Information The following pages include mechanical packaging and orderable information. This information is the mostcurrent data available for the designated devices. This data is subject to change without notice and without revision of this document. For browser based versions of this data sheet, see the left-hand navigation pane. Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback Product Folder Links: LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 33 PACKAGE OPTION ADDENDUM www.ti.com 30-Nov-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) 5962-87710012A ACTIVE LCCC FK 20 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 596287710012A LM158FKB 5962-8771001PA ACTIVE CDIP JG 8 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 8771001PA LM158 5962-87710022A ACTIVE LCCC FK 20 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 596287710022A LM158AFKB 5962-8771002PA ACTIVE CDIP JG 8 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 8771002PA LM158A LM158 MW8 ACTIVE WAFERSALE YS 0 1 RoHS & Green Call TI Level-1-NA-UNLIM -55 to 125 LM158AFKB ACTIVE LCCC FK 20 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 596287710022A LM158AFKB LM158AJG ACTIVE CDIP JG 8 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 LM158AJG LM158AJGB ACTIVE CDIP JG 8 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 8771002PA LM158A LM158FKB ACTIVE LCCC FK 20 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 596287710012A LM158FKB LM158JG ACTIVE CDIP JG 8 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 LM158JG LM158JGB ACTIVE CDIP JG 8 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 8771001PA LM158 LM258AD LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 LM258A LM258ADGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green NIPDAU | SN | NIPDAUAG Level-1-260C-UNLIM -25 to 85 (M3L, M3P, M3S, M3 U) LM258ADR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -25 to 85 LM258A LM258ADRE4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 LM258A LM258ADRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 LM258A Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com 30-Nov-2021 Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) LM258AP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU | SN N / A for Pkg Type -25 to 85 LM258AP LM258APE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -25 to 85 LM258AP LM258D LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 LM258 LM258DG4 LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 LM258 LM258DGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green NIPDAU | SN | NIPDAUAG Level-1-260C-UNLIM -25 to 85 (M2L, M2P, M2S, M2 U) LM258DGKRG4 LIFEBUY VSSOP DGK 8 2500 RoHS & Green SN Level-1-260C-UNLIM -25 to 85 (M2L, M2P, M2S, M2 U) LM258DR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -25 to 85 LM258 LM258DRG3 ACTIVE SOIC D 8 2500 RoHS & Green SN Level-1-260C-UNLIM -25 to 85 LM258 LM258DRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -25 to 85 LM258 LM258P ACTIVE PDIP P 8 50 RoHS & Green NIPDAU | SN N / A for Pkg Type -25 to 85 LM258P LM258PE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -25 to 85 LM258P LM2904AVQDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904AV LM2904AVQDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904AV LM2904AVQPWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904AV LM2904AVQPWRG4 ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904AV LM2904BAIDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 2904BA LM2904BIDDFR ACTIVE SOT-23-THIN DDF 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904 LM2904BIDGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green SN Level-1-260C-UNLIM -40 to 125 28BB LM2904BIDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904B LM2904BIPWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904B LM2904D LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LM2904 LM2904DE4 LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LM2904 Addendum-Page 2 Samples PACKAGE OPTION ADDENDUM www.ti.com 30-Nov-2021 Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) LM2904DG4 LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LM2904 LM2904DGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green NIPDAU | SN | NIPDAUAG Level-1-260C-UNLIM -40 to 125 (MBL, MBP, MBS, MB U) LM2904DGKRG4 LIFEBUY VSSOP DGK 8 2500 RoHS & Green SN Level-1-260C-UNLIM -40 to 125 (MBL, MBP, MBS, MB U) LM2904DR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 125 LM2904 LM2904DRE4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LM2904 LM2904DRG3 ACTIVE SOIC D 8 2500 RoHS & Green SN Level-1-260C-UNLIM -40 to 125 LM2904 LM2904DRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LM2904 LM2904P ACTIVE PDIP P 8 50 RoHS & Green NIPDAU | SN N / A for Pkg Type -40 to 125 LM2904P LM2904PE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -40 to 125 LM2904P LM2904PSR ACTIVE SO PS 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904 LM2904PW ACTIVE TSSOP PW 8 150 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904 LM2904PWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 125 L2904 LM2904PWRG3 ACTIVE TSSOP PW 8 2000 RoHS & Green SN Level-1-260C-UNLIM -40 to 125 L2904 LM2904PWRG4 ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904 LM2904PWRG4-JF ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904 LM2904QDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 2904Q1 LM2904QDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 2904Q1 LM2904VQDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904V LM2904VQDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904V LM2904VQPWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904V LM2904VQPWRG4 ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 L2904V Addendum-Page 3 Samples PACKAGE OPTION ADDENDUM www.ti.com 30-Nov-2021 Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) LM358AD LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358A LM358ADE4 LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358A LM358ADG4 LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358A LM358ADGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green NIPDAU | SN | NIPDAUAG Level-1-260C-UNLIM 0 to 70 (M6L, M6P, M6S, M6 U) LM358ADGKRG4 LIFEBUY VSSOP DGK 8 2500 RoHS & Green SN Level-1-260C-UNLIM 0 to 70 (M6L, M6P, M6S, M6 U) LM358ADR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM 0 to 70 LM358A LM358ADRE4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358A LM358ADRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358A LM358AP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU | SN N / A for Pkg Type 0 to 70 LM358AP LM358APE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 LM358AP LM358APW ACTIVE TSSOP PW 8 150 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 L358A LM358APWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM 0 to 70 L358A LM358APWRG4 ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 L358A LM358BAIDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 L358BA LM358BIDDFR ACTIVE SOT-23-THIN DDF 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 LM358 LM358BIDGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green SN Level-1-260C-UNLIM -40 to 85 358B LM358BIDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 LM358B LM358BIPWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 LM358B LM358D LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358 LM358D-JF LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358 LM358DG4 LIFEBUY SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358 LM358DGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green NIPDAU | SN | NIPDAUAG Level-1-260C-UNLIM 0 to 70 (M5L, M5P, M5S, M5 U) LM358DGKRG4 LIFEBUY VSSOP DGK 8 2500 RoHS & Green SN Level-1-260C-UNLIM 0 to 70 (M5L, M5P, M5S, M5 Addendum-Page 4 Samples PACKAGE OPTION ADDENDUM www.ti.com 30-Nov-2021 Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) U) LM358DR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM 0 to 70 LM358 LM358DRE4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358 LM358DRG3 ACTIVE SOIC D 8 2500 RoHS & Green SN Level-1-260C-UNLIM 0 to 70 LM358 LM358DRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LM358 LM358P ACTIVE PDIP P 8 50 RoHS & Green NIPDAU | SN N / A for Pkg Type 0 to 70 LM358P LM358PE3 ACTIVE PDIP P 8 50 RoHS & Non-Green SN N / A for Pkg Type 0 to 70 LM358P LM358PE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 LM358P LM358PSR ACTIVE SO PS 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 L358 LM358PW ACTIVE TSSOP PW 8 150 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 L358 LM358PWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM 0 to 70 L358 LM358PWRG3 ACTIVE TSSOP PW 8 2000 RoHS & Green SN Level-1-260C-UNLIM 0 to 70 L358 LM358PWRG4 ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 L358 LM358PWRG4-JF ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 L358 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
