LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
LM2937 2.5-V and 3.3-V 400-mA and 500-mA Voltage Regulators
1 Features
3 Description
•
•
•
The LM2937-2.5 and LM2937-3.3 are positive voltage
regulators capable of supplying up to 500 mA of load
current. Both regulators are ideal for converting a
common 5-V logic supply, or higher input supply
voltage, to the lower 2.5-V and 3.3-V supplies to
power very-large-scale integrations (VLSI) ASICs and
microcontrollers.
Special
circuitry
has
been
incorporated to minimize the quiescent current to
typically only 10 mA with a full 500-mA load current
when the input to output voltage differential is greater
than 5 V.
1
•
•
•
•
•
Operating Input Voltage Range : 4.75 V to 26 V
Fully Specified for Operation Over −40°C to 125°C
Output Current in Excess of 500 mA (400 mA for
SOT-223 package)
Output Trimmed for 5% Tolerance Under All
Operating Conditions
Wide Output Capacitor ESR Range, 0.01 Ω up to
5Ω
Internal Short Circuit and Thermal Overload
Protection
Reverse Battery Input Protection
60-V Input Transient Protection
2 Applications
•
•
•
Automotive
Industrial Control
Point-of-Load Regulation
Simplified Schematic
The LM2937 requires an output bypass capacitor for
stability. As with most regulators utilizing a PNP pass
transistor, the ESR of this capacitor remains a critical
design parameter, but the LM2937-2.5 and LM29373.3 include special compensation circuitry that
relaxes ESR requirements. The LM2937 is stable for
all ESR ratings less than 5 Ω. This allows the use of
low ESR chip capacitors.
The regulators are also suited for automotive
applications, with built in protection from reverse
battery connections, two-battery jumps and up to +60
V/−50 V load dump transients. Familiar regulator
features such as short circuit and thermal shutdown
protection are also built in.
Device Information(1)
PART
NUMBER
* Required if the regulator is located more than 3
inches from the power supply filter capacitors.
** Required for stability. COUT must be at least 10 µF
(over full expected operating temperature range)
and located as close as possible to the regulator.
The equivalent series resistance, ESR, of this
capacitor may be as high as 3 Ω.
LM2937
PACKAGE
BODY SIZE (NOM)
TO-220 (3)
14.986 mm x 10.66 mm
SOT (4)
6.50 mm x 3.5 mm
TO-263 (3)
0.18 mm x 8.41 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
4
4
4
4
5
6
Absolute Maximum Ratings ......................................
Handling Ratings ......................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
Detailed Description .............................................. 9
7.1 Overview ................................................................... 9
7.2 Functional Block Diagram ......................................... 9
7.3 Feature Description................................................... 9
7.4 Device Functional Modes........................................ 10
8
Application and Implementation ........................ 11
8.1 Application Information............................................ 11
8.2 Typical Application ................................................. 11
9 Power Supply Recommendations...................... 13
10 Layout................................................................... 14
10.1
10.2
10.3
10.4
Layout Guidelines .................................................
Layout Example ....................................................
Heatsinking ...........................................................
SOT-223 Soldering Recommendations ................
14
14
14
17
11 Device and Documentation Support ................. 18
11.1
11.2
11.3
11.4
Related Links ........................................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
18
18
18
18
12 Mechanical, Packaging, and Orderable
Information ........................................................... 18
4 Revision History
Changes from Revision E (April 2013) to Revision F
•
2
Page
Added Device Information and Handling Rating tables, Feature Description, Device Functional Modes, Application
and Implementation, Power Supply Recommendations, Layout, Device and Documentation Support, and
Mechanical, Packaging, and Orderable Information sections; updated Thermal Information; moved some curves to
Application Curves section .................................................................................................................................................... 1
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
5 Pin Configuration and Functions
3 Pins
TO-220 (NDE)
Front View
INPUT
1
GND
2
OUTPUT
4 Pins

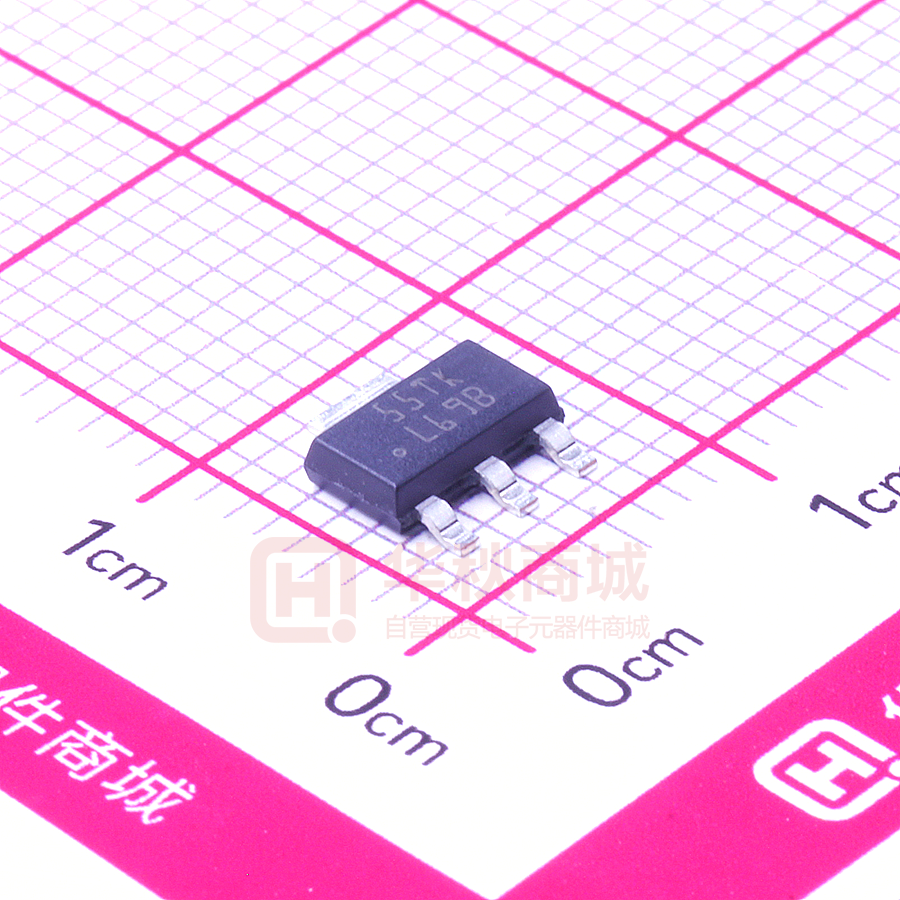

SOT-223 (DCY)
Top View
3
INPUT
1
GND
2
OUTPUT
3
4
(TAB)
TAB
3 Pins
DDPAK/TO-263 (KTT)
Top View
1
GND
2
OUTPUT
3
TAB
INPUT
Pin Functions
PIN
I/O
DESCRIPTION
NAME
NDE
KTT
DCY
INPUT
1
1
1
I
GND
2
2
2
—
Ground
OUTPUT
3
3
3
O
Regulated voltage output. This pin requires an output capacitor to maintain
stability. See the Detailed Design Procedure section for output capacitor
details.
GND
TAB
TAB
4
—
Thermal and ground connection. Connect the TAB to a large copper area to
remove heat from the device. The TAB is internally connected to device pin
2 (GND). Connect the TAB to GND or leave floating. Do not connect the
TAB to any potential other than GND at device pin 2.
Unregulated voltage input
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
3
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1) (2)
MIN
Input voltage (VIN)
26
Transient (t ≤ 100 ms)
60
Internal power dissipation (3)
(1)
(2)
(3)
MAX
Continuous
UNIT
V
Internally limited
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/Distributors for availability and
specifications.
The maximum allowable power dissipation at any ambient temperature is PMAX = (125°C − TA)/RθJA, where 125°C is the maximum
junction temperature for operation, TA is the ambient temperature, and RθJA is the junction-to-ambient thermal resistance. If this
dissipation is exceeded, the die temperature will rise above 125°C and the electrical specifications do not apply. If the die temperature
rises above 150°C, the LM2937 will go into thermal shutdown.
6.2 Handling Ratings
MIN
Tstg
Storage temperature range
V(ESD)
(1)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
pins (1)
MAX
UNIT
−65
150
°C
–2000
2000
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
MIN
Junction temperature (TJ)
(2)
(2)
MAX
−40
125
LM2937IMP (DCY)
−40
85
4.75
26
Input voltage (VIN)
(1)
NOM
LM2937ET (NDE), LM2937ES (KTT)
UNIT
°C
V
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The maximum allowable power dissipation at any ambient temperature is PMAX = (125°C − TA)/RθJA, where 125°C is the maximum
junction temperature for operation, TA is the ambient temperature, and RθJA is the junction-to-ambient thermal resistance. If this
dissipation is exceeded, the die temperature will rise above 125°C and the electrical specifications do not apply. If the die temperature
rises above 150°C, the LM2937 will go into thermal shutdown.
6.4 Thermal Information
LM2937
THERMAL METRIC (1)
NDE (2)
KTT
DCY
3 PINS
3 PINS
4 PINS
RθJA
Junction-to-ambient thermal resistance
77.9
41.8
58.3
RθJC(top)
Junction-to-case (top) thermal resistance
35.5
43.5
39.2
RθJB
Junction-to-board thermal resistance
70.6
23.5
7.0
ψJT
Junction-to-top characterization parameter
13
10.3
1.6
ψJB
Junction-to-board characterization parameter
70.6
22.5
6.9
RθJC(bot)
Junction-to-case (bottom) thermal resistance
1
0.8
N/A
(1)
(2)
4
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Thermal information for the TO-220 package is for a free-standing package vertically mounted in the middle of a PCB which is compliant
to the JEDEC HIGH-K 2s2p (JESD51-7) specifications. No additional heat sink is attached. See Heatsinking TO-220 Package Parts
section for more information.
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
6.5 Electrical Characteristics
VIN = VNOM + 5 V, IOUTmax = 500 mA for the TO-220 and DDPAK/TO-263 packages, IOUTmax = 400 mA for the SOT-223
package, COUT = 10 μF unless otherwise indicated. All other specifications are for TA = TJ = 25°C, unless otherwise specified
in the Test Conditions. (1)
OUTPUT VOLTAGE (VOUT)
PARAMETER
Output voltage
2.5 V
TEST CONDITIONS
TYP
MAX
MIN
TYP
MAX
5 mA ≤ IOUT ≤ IOUTmax
2.42
2.5
2.56
3.20
3.3
3.40
5 mA ≤ IOUT ≤ IOUTmax
-40°C ≤ TA ≤ 125°C
2.38
2.62
3.14
4.75 V ≤ VIN ≤ 26 V,
IOUT = 5 mA
Line regulation
(2)
7.5
9.9
33
2.5
5 mA ≤ IOUT ≤ IOUTmax
-40°C ≤ TA ≤ 125°C
3.3
25
2
10
VIN = (VOUT + 5V), IOUT = IOUTmax
10
20
VIN = 5 V, IOUT = IOUTmax
66
VIN = 5 V, IOUT = IOUTmax
–40°C ≤ TA ≤ 125°C
100
66
125
75
99
Long-term stability
1000 Hrs.
10
13.2
Peak line-transient
voltage
60
tf < 100 ms, RL = 100 Ω
Maximum
operational input
voltage
–40°C ≤ TA ≤ 125°C
Reverse DC input
voltage
VOUT ≥ −0.6 V, RL = 100 Ω
-40°C ≤ TA ≤ 125°C
1
60
75
mV
A
V
75
26
tr < 1 ms, RL = 100 Ω
-40°C ≤ TA ≤ 125°C
–15
V
V
–15
−30
–50
tr < 1 ms, RL = 100 Ω
(1)
(2)
μVrms
26
VOUT ≥ −0.6 V, RL = 100 Ω
Reverse transient
input voltage
mA
0.6
1
tf < 100 ms, RL = 100 Ω
-40°C ≤ TA ≤ 125°C
100
125
10 Hz–100 kHz,
IOUT = 5 mA
0.6
mA
20
Output noise voltage
–40°C ≤ TA ≤ 125°C
mA
10
10
VIN = (VOUT + 5V), IOUT = IOUTmax
-40°C ≤ TA ≤ 125°C
mV
33
2
7V ≤ VIN ≤ 26 V, IOUT = 5 mA
-40°C ≤ TA ≤ 125°C
Short-Circuit Current
V
3.46
25
7V ≤ VIN ≤ 26 V, IOUT = 5 mA
Quiescent current
UNIT
mV
4.75 V ≤ VIN ≤ 26 V,
IOUT = 5 mA
-40°C ≤ TA ≤ 125°C
5 mA ≤ IOUT ≤ IOUTmax
Load regulation
3.3 V
MIN
V
−30
50
−75
V
−75
Typicals are at TJ = 25°C and represent the most likely parametric norm.
The minimum input voltage required for proper biasing of these regulators is 4.75 V. Below this level the outputs will fall out of
regulation. This effect is not the normal dropout characteristic where the output falls out of regulation due to the PNP pass transistor
entering saturation. If a value for worst case effective input to output dropout voltage is required in a specification, the values should be
2.37 V maximum for the LM2937-2.5 and 1.6 V maximum for the LM2937-3.3.
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
5
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
6.6 Typical Characteristics
6
Figure 1. Output Voltage vs Temperature (2.5 V)
Figure 2. Output Voltage vs Temperature (3.3 V)
Figure 3. Quiescent Current vs Output Current (2.5 V)
Figure 4. Quiescent Current vs Output Current (3.3 V)
Figure 5. Quiescent Current vs Input Voltage (2.5 V)
Figure 6. Quiescent Current vs Input Voltage (3.3 V)
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
Typical Characteristics (continued)
Figure 7. Line Transient Response
Figure 8. Load Transient Response
Figure 9. Ripple Rejection
Figure 10. Output Impedance
Figure 11. Low Voltage Behavior (2.5 V)
Figure 12. Low Voltage Behavior (3.3 V)
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
7
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
Typical Characteristics (continued)
Figure 13. Output At Voltage Extremes
Figure 14. Output Capacitor ESR
Figure 15. Peak Output Current
Figure 16. Maximum Power Dissipation (TO-220)
Figure 17. Maximum Power Dissipation (DDPAK/TO-263)
(1)
8
(1)
The maximum allowable power dissipation at any ambient temperature is PMAX = (125°C − TA)/RθJA, where 125°C is the maximum
junction temperature for operation, TA is the ambient temperature, and RθJA is the junction-to-ambient thermal resistance. If this
dissipation is exceeded, the die temperature will rise above 125°C and the electrical specifications do not apply. If the die temperature
rises above 150°C, the regulator will go into thermal shutdown. The junction-to-ambient thermal resistance RθJA is 65°C/W, for the TO220 package, 73°C/W for the DDPAK/TO-263 package, and 174°C/W for the SOT-223 package. When used with a heatsink, RθJA is the
sum of the device junction-to-case thermal resistance RθJC of 3°C/W and the heatsink case-to-ambient thermal resistance. If the
DDPAK/TO-263 or SOT-223 packages are used, the thermal resistance can be reduced by increasing the P.C. board copper area
thermally connected to the package (see Heatsinking for more information on heatsinking).
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
7 Detailed Description
7.1 Overview
The LM2937 is a positive voltage regulator capable of supplying up to 500 mA of load current. The use of a PNP
power transistor provides a low dropout voltage characteristic. With a load current of 500 mA the minimum input
to output voltage differential required for the output to remain in regulation is typically 0.5 V (1 V ensured
maximum over the full operating temperature range). Special circuitry has been incorporated to minimize the
quiescent current to typically only 10 mA with a full 500-mA load current when the input to output voltage
differential is greater than 3 V.
7.2 Functional Block Diagram
INPUT
OUTPUT
PNP
OVSD
(§32V)
Current Limit
Thermal
Shutdown
+
Bandgap
Reference
LM2937
GND
7.3 Feature Description
7.3.1 Thermal Shutdown (TSD)
The Thermal Shutdown circuitry of the LM2937 has been designed to protect the device against temporary
thermal overload conditions. The TSD circuitry is not intended to replace proper heat-sinking. Continuously
running the LM2937 device at thermal shutdown may degrade device reliability as the junction temperature will
be exceeding the absolute maximum junction temperature rating.
7.3.2 Short Circuit Current Limit
The output current limiting circuitry of the LM2937 has been designed to limit the output current in cases where
the load impedance is unusually low. This includes situations where the output may be shorted directly to ground.
Continuous operation of the LM2937 at the current limit will typically result in the LM2937 transitioning into
Thermal Shutdown mode.
7.3.3 Overvoltage Shutdown (OVSD)
Input voltages greater than typically 32 V will cause the LM2937 output to be disabled. When operating with the
input voltage greater than the maximum recommended input voltage of 26 V the device performance is not
ensured. Continuous operation with the input voltage greater than the maximum recommended input voltage is
discouraged.
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
9
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
7.4 Device Functional Modes
The LM2937 design does not include any undervoltage lock-out (UVLO), or enable functions. Generally, once the
input voltage is greater than typically 3 V the output voltage will track the rising input voltage until the input
voltage is greater than the regulated output voltage.. When the input voltage is greater than 4.75 V the LM2937
will be in linear operation, and the output voltage will be regulated Device dynamic performance is improved
when the input voltage is at least 5 V greater than the regulated output voltage.
10
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The LM2937-3.3 and LM2937-2.5 are part of a specially modified series of LM2937 devices that brings the
desirable attributes of the LM2937 high voltage family to lower output voltage regulators. These devices deliver
the familiar LM2937 output regulation, current limit, and thermal protection in industry standard packages. The
known performance level makes these devices an ideal choice as companion regulators when powering multiple
rails from a common input supply. The LM2937 TO-220 and TO-263 packages are specified with an operating
junction temperature (TJ) of –40°C to 125°C. The LM2937 SOT-23 package is specified with an operating
junction temperature (TJ) of –40°C to 85°C.
8.2 Typical Application
Figure 18 shows the typical application circuit for the LM2937. The output capacitor, COUT, must have a
capacitance value of at least 10 µF with an ESR of at least 10 mΩ, but no more than 3 Ω. The minimum
capacitance value, and the ESR requirements apply across the entire expected operating ambient
temperature range.
Figure 18. LM2937 Typical Application
*Required if the regulator is located more than 3 inches from the power-supply-filter capacitors.
**Required for stability. COUT must be at least 10 µF (over full expected operating temperature range) and
located as close as possible to the regulator. The equivalent series resistance, ESR, of this capacitor may be
as high as 3 Ω.
8.2.1 Design Requirements
For this design example, use the parameters listed in Table 1:
Table 1. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
Output voltage
3.3 V
Input voltage
5 V to 8 V
Output current requirement
5 mA to IOUT(MAX) (see Electrical Characteristics for details)
Input capacitor value
0.1 µF
Output capacitor capacitance
value
10 µF minimum
Output capacitor ESR value
0.01 Ω to 3 Ω
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
11
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
8.2.2 Detailed Design Procedure
8.2.2.1 External Capacitors
The output capacitor is critical to maintaining regulator stability, and must meet the required conditions for both
Equivalent Series Resistance (ESR) and minimum amount of capacitance.
Minimum Capacitance:
The minimum output capacitance required to maintain stability is 10 μF. (This value may be increased without
limit.) Larger values of output capacitance will give improved transient response.
ESR Limits:
The ESR of the output capacitor will cause loop instability if it is too high or too low. The acceptable range of
ESR plotted versus load current is shown in the graph below. It is essential that the output capacitor meet
these requirements, or oscillations can result.
8.2.2.2 Output Capacitor ESR
Figure 19. ESR Limits
It is important to note that for most capacitors, ESR is specified only at room temperature. However, the designer
must ensure that the ESR will stay inside the limits shown over the entire operating temperature range for the
design.
For aluminum electrolytic capacitors, ESR will increase by about 30X as the temperature is reduced from 25°C to
−40°C. This type of capacitor is not well-suited for low temperature operation.
Solid tantalum capacitors have a more stable ESR over temperature, but are more expensive than aluminum
electrolytics. A cost-effective approach sometimes used is to parallel an aluminum electrolytic with a solid
Tantalum, with the total capacitance split about 75/25% with the Aluminum being the larger value.
If two capacitors are paralleled, the effective ESR is the parallel of the two individual values. The “flatter” ESR of
the Tantalum will keep the effective ESR from rising as quickly at low temperatures.
12
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
8.2.3 Application Curves
Figure 20. Output at Voltage Extremes
Figure 21. Dropout Voltage vs. Temperature
9 Power Supply Recommendations
This device is designed to operate from an input supply voltage from at least VOUT + 1 V up to a maximum of 26
V. The input supply should be well regulated and free of spurious noise. To ensure that the LM2937 output
voltage is well regulated the input supply should be at least VOUT + 2 V. A capacitor at the INPUT pin may not be
specifically required if the bulk input supply filter capacitors are within three inches of the INPUT pin, but adding
one will not be detrimental to operation.
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
13
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
10 Layout
10.1 Layout Guidelines
The dynamic performance of the LM2937 is dependent on the layout of the PCB. PCB layout practices that are
adequate for typical LDOs may degrade the PSRR, noise, or transient performance of the LM2937. Best
performance is achieved by placing CIN and COUT on the same side of the PCB as the LM2937, and as close as
is practical to the package. The ground connections for CIN and COUT should be back to the LM2937 ground pin
using as wide, and as short, of a copper trace as is practical.
Connections using long trace lengths, narrow trace widths, and/or connections through vias should be avoided
as these will add parasitic inductances and resistances that will give inferior performance, especially during
transient conditions
10.2 Layout Example
3
2
INPUT
COUT
1
CIN
OUTPUT
GND
Figure 22. LM2937 SOT-223-4 Layout
10.3 Heatsinking
A heatsink may be required depending on the maximum power dissipation and maximum ambient temperature of
the application. Under all possible operating conditions, the junction temperature must be within the range
specified under Absolute Maximum Ratings.
To determine if a heatsink is required, the power dissipated by the regulator, PD, must be calculated.
Figure 23 below shows the voltages and currents which are present in the circuit, as well as the formula for
calculating the power dissipated in the regulator:
IIN = IL + IG
PD = (VIN − VOUT) IL + (VIN) IG
Figure 23. Power Dissipation Diagram
14
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
Heatsinking (continued)
The next parameter which must be calculated is the maximum allowable temperature rise, TR (max). This is
calculated by using the formula:
TR (max) = TJ(max) − TA (max)
where
•
TJ (max) is the maximum allowable junction temperature, which is 125°C for the TO-220 and TO-263
packages and 85°C for the SOT-223 package.
TA (max) is the maximum ambient temperature which will be encountered in the application.
•
(1)
Using the calculated values for TR(max) and PD, the maximum allowable value for the junction-to-ambient
thermal resistance, RθJA, can now be found:
RθJA = TR (max)/PD
(2)
NOTE
IMPORTANT: If the maximum allowable value for RθJA is found to be ≥ 53°C/W for the
TO-220 package, ≥ 80°C/W for the DDPAK/TO-263 package, or ≥ 174°C/W for the SOT223 package, no heatsink is needed since the package alone will dissipate enough heat to
satisfy these requirements.
If the calculated value for R θJA falls below these limits, a heatsink is required.
10.3.1 Heatsinking TO-220 Package Parts
The TO-220 can be attached to a typical heatsink, or secured to a copper plane on a PC board. If a copper plane
is to be used, the values of RθJA will be the same as shown in the next section for the DDPAK/TO-263.
If a manufactured heatsink is to be selected, the value of heatsink-to-ambient thermal resistance, RθHA, must first
be calculated:
RθHA = RθJA − RθCH − RθJC
where
•
•
RθJC is defined as the thermal resistance from the junction to the surface of the case. A value of 3°C/W can be
assumed for RθJC for this calculation
RθCH is defined as the thermal resistance between the case and the surface of the heatsink. The value of RθCH
will vary from about 1.5°C/W to about 2.5°C/W (depending on method of attachment, insulator, etc.). If the
exact value is unknown, 2°C/W should be assumed for RθCH
(3)
When a value for RθHA is found using the equation shown, a heatsink must be selected that has a value that is
less than or equal to this number.
RθHA is specified numerically by the heatsink manufacturer in the catalog, or shown in a curve that plots
temperature rise vs power dissipation for the heatsink.
10.3.2 Heatsinking DDPAK/TO-263 and SOT-223 Package Parts
Both the DDPAK/TO-263 and SOT-223 packages use a copper plane on the PCB and the PCB itself as a
heatsink. To optimize the heat sinking ability of the plane and PCB, solder the tab of the package to the plane.
Figure 24 shows for the DDPAK/TO-263 the measured values of RθJA for different copper area sizes using a
typical PCB with 1 ounce copper and no solder mask over the copper area used for heatsinking.
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
15
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
Heatsinking (continued)
Figure 24. RθJA vs. Copper (1 ounce) Area for the DDPAK/TO-263 Package
As shown in Figure 24, increasing the copper area beyond 1 square inch produces very little improvement. It
should also be observed that the minimum value of RθJA for the DDPAK/TO-263 package mounted to a PCB is
32°C/W.
As a design aid, Figure 25 shows the maximum allowable power dissipation compared to ambient temperature
for the DDPAK/TO-263 device (assuming RθJA is 35°C/W and the maximum junction temperature is 125°C).
Figure 25. Maximum Power Dissipation vs. TAMB for the DDPAK/TO-263 Package
Figure 26 and Figure 27 show information for the SOT-223 package. Figure 27 assumes an RθJA of 74°C/W for 1
ounce copper and 51°C/W for 2 ounce copper and a maximum junction temperature of 85°C.
16
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
LM2937-2.5, LM2937-3.3
www.ti.com
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
Heatsinking (continued)
Figure 26. RθJA vs Copper (2 ounce) Area for the SOT-223
Package
Figure 27. Maximum Power Dissipation vs TAMB for the
SOT-223 Package
10.4 SOT-223 Soldering Recommendations
It is not recommended to use hand soldering or wave soldering to attach the small SOT-223 package to a printed
circuit board. The excessive temperatures involved may cause package cracking.
Either vapor phase or infrared reflow techniques are preferred soldering attachment methods for the SOT-223
package.
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
Submit Documentation Feedback
17
LM2937-2.5, LM2937-3.3
SNVS015F – FEBRUARY 1998 – REVISED NOVEMBER 2014
www.ti.com
11 Device and Documentation Support
11.1 Related Links
Table 2 lists quick access links. Categories include technical documents, support and community resources,
tools and software, and quick access to sample or buy.
Table 2. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
LM2937-2.5
Click here
Click here
Click here
Click here
Click here
LM2937-3.3
Click here
Click here
Click here
Click here
Click here
11.2 Trademarks
All trademarks are the property of their respective owners.
11.3 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.4 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
18
Submit Documentation Feedback
Copyright © 1998–2014, Texas Instruments Incorporated
Product Folder Links: LM2937-2.5 LM2937-3.3
PACKAGE OPTION ADDENDUM
www.ti.com
17-Mar-2017
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
LM2937ES-2.5/NOPB
ACTIVE
DDPAK/
TO-263
KTT
3
45
Pb-Free (RoHS
Exempt)
CU SN
Level-3-245C-168 HR
-40 to 125
LM2937ES
-2.5
LM2937ES-3.3
NRND
DDPAK/
TO-263
KTT
3
45
TBD
Call TI
Call TI
-40 to 125
LM2937ES
-3.3
LM2937ES-3.3/NOPB
ACTIVE
DDPAK/
TO-263
KTT
3
45
Pb-Free (RoHS
Exempt)
CU SN
Level-3-245C-168 HR
-40 to 125
LM2937ES
-3.3
LM2937ESX-3.3
NRND
DDPAK/
TO-263
KTT
3
500
TBD
Call TI
Call TI
-40 to 125
LM2937ES
-3.3
LM2937ESX-3.3/NOPB
ACTIVE
DDPAK/
TO-263
KTT
3
500
Pb-Free (RoHS
Exempt)
CU SN
Level-3-245C-168 HR
-40 to 125
LM2937ES
-3.3
LM2937ET-2.5/NOPB
ACTIVE
TO-220
NDE
3
45
Green (RoHS
& no Sb/Br)
CU SN
Level-1-NA-UNLIM
-40 to 125
LM2937ET
-2.5
LM2937ET-3.3
NRND
TO-220
NDE
3
45
TBD
Call TI
Call TI
-40 to 125
LM2937ET
-3.3
LM2937ET-3.3/NOPB
ACTIVE
TO-220
NDE
3
45
Green (RoHS
& no Sb/Br)
CU SN
Level-1-NA-UNLIM
-40 to 125
LM2937ET
-3.3
LM2937IMP-2.5/NOPB
ACTIVE
SOT-223
DCY
4
1000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 85
L68B
LM2937IMP-3.3
NRND
SOT-223
DCY
4
1000
TBD
Call TI
Call TI
-40 to 85
L69B
LM2937IMP-3.3/NOPB
ACTIVE
SOT-223
DCY
4
1000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 85
L69B
LM2937IMPX-2.5/NOPB
ACTIVE
SOT-223
DCY
4
2000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 85
L68B
LM2937IMPX-3.3
NRND
SOT-223
DCY
4
2000
TBD
Call TI
Call TI
-40 to 85
L69B
LM2937IMPX-3.3/NOPB
ACTIVE
SOT-223
DCY
4
2000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 85
L69B
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
17-Mar-2017
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3)
MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4)
There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5)
Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6)
Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish
value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
1-Oct-2016
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
LM2937ESX-3.3
DDPAK/
TO-263
KTT
3
500
330.0
24.4
LM2937ESX-3.3/NOPB
DDPAK/
TO-263
KTT
3
500
330.0
LM2937IMP-2.5/NOPB
SOT-223
DCY
4
1000
LM2937IMP-3.3
SOT-223
DCY
4
LM2937IMP-3.3/NOPB
SOT-223
DCY
4
LM2937IMPX-2.5/NOPB SOT-223
DCY
SOT-223
LM2937IMPX-3.3/NOPB SOT-223
LM2937IMPX-3.3
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
Pin1
(mm) Quadrant
10.75
14.85
5.0
16.0
24.0
Q2
24.4
10.75
14.85
5.0
16.0
24.0
Q2
330.0
16.4
7.0
7.5
2.2
12.0
16.0
Q3
1000
330.0
16.4
7.0
7.5
2.2
12.0
16.0
Q3
1000
330.0
16.4
7.0
7.5
2.2
12.0
16.0
Q3
4
2000
330.0
16.4
7.0
7.5
2.2
12.0
16.0
Q3
DCY
4
2000
330.0
16.4
7.0
7.5
2.2
12.0
16.0
Q3
DCY
4
2000
330.0
16.4
7.0
7.5
2.2
12.0
16.0
Q3
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
1-Oct-2016
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
LM2937ESX-3.3
DDPAK/TO-263
KTT
3
500
367.0
367.0
45.0
LM2937ESX-3.3/NOPB
DDPAK/TO-263
KTT
3
500
367.0
367.0
45.0
LM2937IMP-2.5/NOPB
SOT-223
DCY
4
1000
367.0
367.0
35.0
LM2937IMP-3.3
SOT-223
DCY
4
1000
367.0
367.0
35.0
LM2937IMP-3.3/NOPB
SOT-223
DCY
4
1000
367.0
367.0
35.0
LM2937IMPX-2.5/NOPB
SOT-223
DCY
4
2000
367.0
367.0
35.0
LM2937IMPX-3.3
SOT-223
DCY
4
2000
367.0
367.0
35.0
LM2937IMPX-3.3/NOPB
SOT-223
DCY
4
2000
367.0
367.0
35.0
Pack Materials-Page 2
MECHANICAL DATA
NDE0003B
www.ti.com
MECHANICAL DATA
KTT0003B
TS3B (Rev F)
BOTTOM SIDE OF PACKAGE
www.ti.com
MECHANICAL DATA
MPDS094A – APRIL 2001 – REVISED JUNE 2002
DCY (R-PDSO-G4)
PLASTIC SMALL-OUTLINE
6,70 (0.264)
6,30 (0.248)
3,10 (0.122)
2,90 (0.114)
4
0,10 (0.004) M
3,70 (0.146)
3,30 (0.130)
7,30 (0.287)
6,70 (0.264)
Gauge Plane
1
2
0,84 (0.033)
0,66 (0.026)
2,30 (0.091)
4,60 (0.181)
1,80 (0.071) MAX
3
0°–10°
0,10 (0.004) M
0,25 (0.010)
0,75 (0.030) MIN
1,70 (0.067)
1,50 (0.059)
0,35 (0.014)
0,23 (0.009)
Seating Plane
0,08 (0.003)
0,10 (0.0040)
0,02 (0.0008)
4202506/B 06/2002
NOTES: A.
B.
C.
D.
All linear dimensions are in millimeters (inches).
This drawing is subject to change without notice.
Body dimensions do not include mold flash or protrusion.
Falls within JEDEC TO-261 Variation AA.
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
IMPORTANT NOTICE
Texas Instruments Incorporated (TI) reserves the right to make corrections, enhancements, improvements and other changes to its
semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers
should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
TI’s published terms of sale for semiconductor products (http://www.ti.com/sc/docs/stdterms.htm) apply to the sale of packaged integrated
circuit products that TI has qualified and released to market. Additional terms may apply to the use or sale of other types of TI products and
services.
Reproduction of significant portions of TI information in TI data sheets is permissible only if reproduction is without alteration and is
accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such reproduced
documentation. Information of third parties may be subject to additional restrictions. Resale of TI products or services with statements
different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the
associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Buyers and others who are developing systems that incorporate TI products (collectively, “Designers”) understand and agree that Designers
remain responsible for using their independent analysis, evaluation and judgment in designing their applications and that Designers have
full and exclusive responsibility to assure the safety of Designers' applications and compliance of their applications (and of all TI products
used in or for Designers’ applications) with all applicable regulations, laws and other applicable requirements. Designer represents that, with
respect to their applications, Designer has all the necessary expertise to create and implement safeguards that (1) anticipate dangerous
consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that might cause harm and
take appropriate actions. Designer agrees that prior to using or distributing any applications that include TI products, Designer will
thoroughly test such applications and the functionality of such TI products as used in such applications.
TI’s provision of technical, application or other design advice, quality characterization, reliability data or other services or information,
including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to
assist designers who are developing applications that incorporate TI products; by downloading, accessing or using TI Resources in any
way, Designer (individually or, if Designer is acting on behalf of a company, Designer’s company) agrees to use any particular TI Resource
solely for this purpose and subject to the terms of this Notice.
TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI
products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections,
enhancements, improvements and other changes to its TI Resources. TI has not conducted any testing other than that specifically
described in the published documentation for a particular TI Resource.
Designer is authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that
include the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE
TO ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY
RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or
endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR
REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO
ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL
PROPERTY RIGHTS. TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY DESIGNER AGAINST ANY CLAIM,
INCLUDING BUT NOT LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF
PRODUCTS EVEN IF DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL,
DIRECT, SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN
CONNECTION WITH OR ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Unless TI has explicitly designated an individual product as meeting the requirements of a particular industry standard (e.g., ISO/TS 16949
and ISO 26262), TI is not responsible for any failure to meet such industry standard requirements.
Where TI specifically promotes products as facilitating functional safety or as compliant with industry functional safety standards, such
products are intended to help enable customers to design and create their own applications that meet applicable functional safety standards
and requirements. Using products in an application does not by itself establish any safety features in the application. Designers must
ensure compliance with safety-related requirements and standards applicable to their applications. Designer may not use any TI products in
life-critical medical equipment unless authorized officers of the parties have executed a special contract specifically governing such use.
Life-critical medical equipment is medical equipment where failure of such equipment would cause serious bodily injury or death (e.g., life
support, pacemakers, defibrillators, heart pumps, neurostimulators, and implantables). Such equipment includes, without limitation, all
medical devices identified by the U.S. Food and Drug Administration as Class III devices and equivalent classifications outside the U.S.
TI may expressly designate certain products as completing a particular qualification (e.g., Q100, Military Grade, or Enhanced Product).
Designers agree that it has the necessary expertise to select the product with the appropriate qualification designation for their applications
and that proper product selection is at Designers’ own risk. Designers are solely responsible for compliance with all legal and regulatory
requirements in connection with such selection.
Designer will fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of Designer’s noncompliance with the terms and provisions of this Notice.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
