LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
LM321 Low Power Single Operational Amplifier
1 Features
3 Description
•
The LM321 brings performance and economy to low
power systems. With a high unity gain frequency and
a specified 0.4-V/µs slew rate, the quiescent current
is only 430-µA/amplifier (5 V). The input common
mode range includes ground and therefore the device
is able to operate in single supply applications as well
as in dual supply applications. It is also capable of
comfortably driving large capacitive loads.
1
•
•
•
•
•
•
(VCC = 5 V, TA = 25°C. Typical values unless
specified.)
Gain-Bandwidth Product 1 MHz
Low Supply Current 430 µA
Low Input Bias Current 45 nA
Wide Supply Voltage Range 3 V to 32 V
Stable With High Capacitive Loads
Single Version of LM324
2 Applications
•
•
•
•
•
Chargers
Power Supplies
Industrial: Controls, Instruments
Desktops
Communications Infrastructure

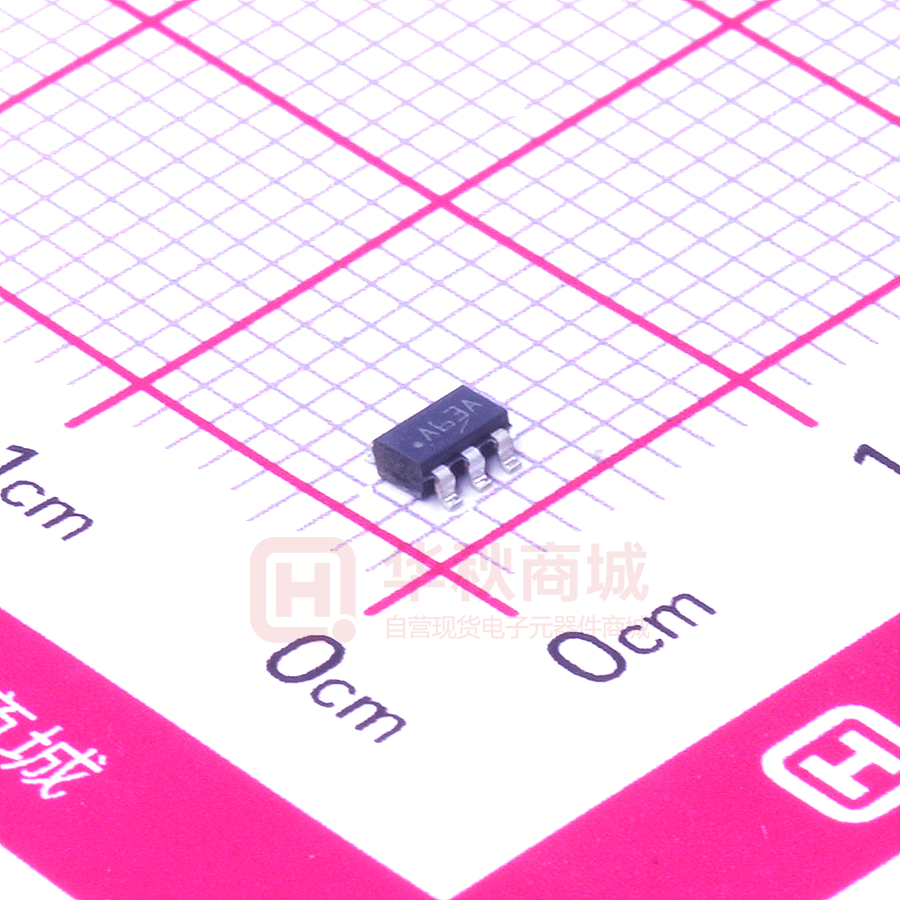

The LM321 is available in the SOT-23 package.
Overall the LM321 is a low power, wide supply range
performance operational amplifier that can be
designed into a wide range of applications at an
economical price without sacrificing valuable board
space.
Device Information(1)
PART NUMBER
LM321
PACKAGE
BODY SIZE (NOM)
SOT (5)
2.90 mm × 1.60 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
Simplified Schematic
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
3
6.1
6.2
6.3
6.4
6.5
6.6
3
3
4
4
4
6
Absolute Maximum Ratings .....................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
7.3 Feature Description................................................... 7
7.4 Device Functional Modes.......................................... 8
8
Application and Implementation .......................... 9
8.1 Application Information.............................................. 9
8.2 Typical Applications ................................................ 10
9 Power Supply Recommendations...................... 13
10 Layout................................................................... 13
10.1 Layout Guidelines ................................................. 13
10.2 Layout Example .................................................... 14
11 Device and Documentation Support ................. 15
Detailed Description .............................................. 7
11.1 Trademarks ........................................................... 15
11.2 Electrostatic Discharge Caution ............................ 15
11.3 Glossary ................................................................ 15
7.1 Overview ................................................................... 7
7.2 Functional Block Diagram ......................................... 7
12 Mechanical, Packaging, and Orderable
Information ........................................................... 15
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (March 2013) to Revision C
•
Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional
Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1
Changes from Revision A (March 2013) to Revision B
•
2
Page
Page
Changed layout of National Data Sheet to TI format ........................................................................................................... 13
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
LM321
www.ti.com
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
5 Pin Configuration and Functions
DBV Package
5-Pin SOT-23
Top View
Pin Functions
PIN
NAME
I/O
NO.
DESCRIPTION
+IN
1
I
Noninverting input
V–
2
—
–IN
3
I
Inverting input
OUTPUT
4
O
Output
V+
5
—
Positive (highest) power supply
Negative (lowest) power supply
6 Specifications
6.1 Absolute Maximum Ratings
(1)
MIN
Differential Input Voltage
Input Current (VIN < −0.3 V)
MAX
±Supply Voltage
(2)
Supply Voltage (V+ - V−)
−0.3
Input Voltage
Output Short Circuit to GND, V+ ≤ 15 V and TA = 25°C
Junction Temperature
(3)
(4)
Mounting Temperature: Infrared (10 sec)
Storage temperature, Tstg
(2)
(3)
(4)
50
mA
32
V
32
V
150
°C
260
°C
215
°C
150
°C
Continuous
Mounting Temperature: Lead temperature (Soldering, 10 sec)
(1)
UNIT
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
This input current will only exist when the voltage at any of the input leads is driven negative. It is due to the collector base junction of
the input PNP transistors becoming forward biased and thereby acting as input diode clamps. In addition to this diode action, there is
also lateral NPN parasitic transistor action on the IC chip. This transistor action can cause the output voltages of the operational amplifer
to go to the V+ voltage level (or to ground for a large overdrive) for the time duration that an input is driven negative. This is not
destructive and normal output states will re-establish when the input voltage, which was negative, again returns to a value greater than
−0.36V (at 25°C).
Short circuits from the output V+ can cause excessive heating and eventual destruction. When considering short circuits to ground the
maximum output current is approximately 40mA independent of the magnitude of V+. At values of supply voltage in excess of +15V,
continuous short circuits can exceed the power dissipation ratings and cause eventual destruction.
The maximum power dissipation is a function of TJ(MAX), θJA , and TA. The maximum allowable power dissipation at any ambient
temperature is PD = (TJ(MAX) - TA)/ θJA. All numbers apply for packages soldered directly onto a PC board.
6.2 ESD Ratings
V(ESD)
(1)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
VALUE
UNIT
±300
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
3
LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
www.ti.com
6.3 Recommended Operating Conditions
Temperature Range
MIN
MAX
−40
85
°C
3
30
V
Supply Voltage
UNIT
6.4 Thermal Information
LM321
THERMAL METRIC (1)
DBV
UNIT
5 PINS
RθJA
(1)
Junction-to-ambient thermal resistance
265
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
6.5 Electrical Characteristics
Unless otherwise specified, all limits specified for at TA = 25°C; V+ = 5 V, V− = 0 V, VO = 1.4 V
PARAMETER
VOS
TEST CONDITIONS
MIN
TYP
(1)
Input Offset Voltage
2
(1)
, –40°C ≤ TJ ≤ 85°C
IOS
5
–40°C ≤ TJ ≤ 85°C
Input Bias Current
(2)
45
AV
(3)
V+ = 30 V
Large Signal Voltage Gain
(V+ = 15 V, RL = 2kΩ, VO = 1.4 V to 11.4
V)
25
(V+ = 15 V, RL = 2kΩ, VO = 1.4 V to 11.4
V), –40°C ≤ TJ ≤ 85°C
15
, for CMRR > = 50dB
V+ - 2
, for CMRR > = 50dB, –40°C ≤
RS ≤ 10kΩ,
V+ ≤ 5 V to 30 V
65
100
CMRR
Common Mode Rejection
Ratio
RS ≤ 10kΩ
65
85
Output Swing
VOH
VOL
IS
Supply Current, No Load
V = 30 V, RL = 2kΩ, –40°C ≤ TJ ≤ 85°C
26
V+ = 30 V, RL = 10kΩ, –40°C ≤ TJ ≤ 85°C
27
V+ = 5 V, RL = 10kΩ, –40°C ≤ TJ ≤ 85°C
V+ = 5 V
V+ = 5 V, –40°C ≤ TJ ≤ 85°C
V+ = 30 V
V+ = 30 V, –40°C ≤ TJ ≤ 85°C
ISOURCE
ISINK
Output Current Sourcing
Output Current Sinking
(1)
(2)
(3)
4
V
dB
V
5
20
0.430
1.15
0.7
1.2
0.660
2.85
1.5
3
20
40
VID = +1 V, V+ = 15 V, VO = 2 V, –40°C ≤
TJ ≤ 85°C
10
20
VID = −1 V, V+ = 15 V, VO = 2 V
10
20
5
8
12
100
VID = −1 V, V+ = 15 V, VO = 0.2 V
nA
dB
28
VID = +1 V, V+ = 15 V, VO = 2 V
VID = −1 V, V+ = 15 V, VO = 2 V, –40°C ≤
TJ ≤ 85°C
nA
V/mV
Power Supply Rejection Ratio
VO
mV
100
PSRR
+
UNIT
V+ - 1.5
0
(3)
V = 30 V
TJ ≤ 85°C
250
500
Input Common-Mode Voltage
Range
+
50
150
–40°C ≤ TJ ≤ 85°C
VCM
7
9
Input Offset Current
IB
MAX
mV
mA
mA
mA
µA
VO ≅ 1.4 V, RS = 0Ω with V+ from 5 V to 30 V; and over the full input common-mode range (0 V to V+ - 1.5 V) at 25°C.
The direction of the input current is out of the IC due to the PNP input stage. This current is essentially constant, independent of the
state of the output so no loading change exists on the input lines.
The input common-mode voltage of either input signal voltage should not be allowed to go negative by more than 0.3 V (at 25°C). The
upper end of the common-mode voltage range is V+ - 1.5 V at 25°C, but either or both inputs can go to +32 V without damage,
independent of the magnitude of V+.
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
LM321
www.ti.com
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
Electrical Characteristics (continued)
Unless otherwise specified, all limits specified for at TA = 25°C; V+ = 5 V, V− = 0 V, VO = 1.4 V
PARAMETER
TEST CONDITIONS
+
IO
Output Short Circuit to Ground V = 15 V
(4)
Slew Rate
V = 15 V, RL = 2kΩ, VIN = 0.5 to 3 V, CL =
100pF, Unity Gain
GBW
Gain Bandwidth Product
V+ = 30 V, f = 100kHz, VIN = 10 mV, RL
=2kΩ, CL = 100 pF
φm
Phase Margin
THD
Total Harmonic Distortion
(4)
TYP
MAX
40
85
UNIT
mA
+
SR
en
MIN
f = 1kHz, AV = 20dB, RL = 2kΩ, VO = 2VPP,
CL = 100 pF, V+ = 30 V
+
Equivalent Input Noise Voltage f = 1kHz, RS = 100Ω, V = 30 V
0.4
V/µs
1
MHz
60
degrees
0.015%
40
nV/√Hz
Short circuits from the output V+ can cause excessive heating and eventual destruction. When considering short circuits to ground the
maximum output current is approximately 40mA independent of the magnitude of V+. At values of supply voltage in excess of +15V,
continuous short circuits can exceed the power dissipation ratings and cause eventual destruction.
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
5
LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
www.ti.com
6.6 Typical Characteristics
Unless otherwise specified, VS = 5 V, single supply, TA = 25°C.
6
Figure 1. Small Signal Pulse Response
Figure 2. Large Signal Pulse Response
Figure 3. Supply Current vs. Supply Voltage
Figure 4. Sinking Current vs Output Voltage
Figure 5. Source Current vs. Output Voltage
Figure 6. Open Loop Frequency Response
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
LM321
www.ti.com
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
7 Detailed Description
7.1 Overview
The LM321 operational amplifer can operate with a single or dual power supply voltage, has true-differential
inputs, and remains in the linear mode with an input common-mode voltage of 0 VDC. This amplifier operates
over a wide range of power supply voltages, with little change in performance characteristics. At 25°C amplifier
operation is possible down to a minimum supply voltage of 3 V. Large differential input voltages can be easily
accommodated and, as input differential voltage protection diodes are not needed, no large input currents result
from large differential input voltages. The differential input voltage may be larger than V+ without damaging the
device. Protection should be provided to prevent the input voltages from going negative more than −0.3 VDC (at
25°C). An input clamp diode with a resistor to the IC input terminal can be used.
7.2 Functional Block Diagram
7.3 Feature Description
To reduce the power supply drain, the amplifier has a class A output stage for small signal levels which converts
to class B in a large signal mode. This allows the amplifiers to both source and sinks large output currents.
Therefore both NPN and PNP external current boost transistors can be used to extend the power capability of
the basic amplifiers. The output voltage needs to raise approximately 1 diode drop above ground to bias the on
chip vertical PNP transistor for output current sinking applications.
For AC applications, where the load is capacitively coupled to the output of the amplifier, a resistor should be
used, from the output of the amplifier to ground to increase the class A bias current and to reduce distortion.
Capacitive loads which are applied directly to the output of the amplifier reduce the loop stability margin. Values
of 50 pF can be accommodated using the worst-case non-inverting unity gain connection. Large closed loop
gains or resistive isolation should be used if large load capacitance must be driven by the amplifier.
The bias network of the LM321 establishes a supply current which is independent of the magnitude of the power
supply voltage over the range of from 3 VDC to 30 VDC.
Output short circuits either to ground or to the positive power supply should be of short time duration. Units can
be destroyed, not as a result of the short circuit current causing metal fusing, but rather due to the large increase
in IC chip dissipation which will cause eventual failure due to excessive junction temperatures. The larger value
of output source current which is available at 25°C provides a larger output current capability at elevated
temperatures than a standard IC operational amplifer.
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
7
LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
www.ti.com
7.4 Device Functional Modes
7.4.1 Common-Mode Voltage Range
The input common-mode voltage range of the LM321 series extends from 300 mV below ground to 32 V for
normal operation. The typical performance in this range is summarized in Table 1:
Table 1. Typical Performance Range (Vs = 5 V)
PARAMETER
Input voltage range
MIN
TYP
–0.3
Offset voltage
32
2
Offset voltage drift (TA = –40°C to 85°C)
CMRR
65
85
PSRR
65
100
Gain bandwidth product (GBP)
MAX
UNIT
V
7
mV
9
µV/°C
dB
dB
1
MHz
Slew rate
0.4
V/µs
Phase margin
60
°
Equivalent input noise voltage
40
nV/√Hz
8
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
LM321
www.ti.com
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The LM321 operational amplifer can operate with a single or dual power supply voltage, has true-differential
inputs, and remain in the linear mode with an input common-mode voltage of 0 VDC. This amplifier operates over
a wide range of power supply voltages, with little change in performance characteristics. At 25°C amplifier
operation is possible down to a minimum supply voltage of 3 V.
Large differential input voltages can be easily accommodated and, as input differential voltage protection diodes
are not needed, no large input currents result from large differential input voltages. The differential input voltage
may be larger than V+ without damaging the device. Protection should be provided to prevent the input voltages
from going negative more than −0.3 VDC (at 25°C).An input clamp diode with a resistor to the IC input terminal
can be used.
To reduce the power supply drain, the amplifier has a class A output stage for small signal levels which converts
to class B in a large signal mode. This allows the amplifiers to both source and sink large output currents.
Therefore both NPN and PNP external current boost transistors can be used to extend the power capability of
the basic amplifiers. The output voltage needs to raise approximately 1 diode drop above ground to bias the onchip vertical PNP transistor for output current sinking applications.
For AC applications, where the load is capacitively coupled to the output of the amplifier, a resistor should be
used, from the output of the amplifier to ground to increase the class A bias current and to reduce distortion.
Capacitive loads which are applied directly to the output of the amplifier reduce the loop stability margin. Values
of 50pF can be accommodated using the worst-case non-inverting unity gain connection. Large closed loop
gains or resistive isolation should be used if large load capacitance must be driven by the amplifier.
The bias network of the LM321 establishes a supply current which is independent of the magnitude of the power
supply voltage over the range of from 3 VDC to 30 VDC.
Output short circuits either to ground or to the positive power supply should be of short time duration. Units can
be destroyed, not as a result of the short circuit current causing metal fusing, but rather due to the large increase
in IC chip dissipation which will cause eventual failure due to excessive junction temperatures. The larger value
of output source current which is available at 25°C provides a larger output current capability at elevated
temperatures than a standard IC operational amplifer.
The circuits presented in the section on typical applications emphasize operation on only a single power supply
voltage. If complementary power supplies are available, all of the standard operational amplifer circuits can be
used. In general, introducing a pseudo-ground (a bias voltage reference of V+/2) will allow operation above and
below this value in single power supply systems. Many application circuits are shown which take advantage of
the wide input common-mode voltage range which includes ground. In most cases, input biasing is not required
and input voltages which range to ground can easily be accommodated.
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
9
LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
www.ti.com
8.2 Typical Applications
8.2.1 Noninverting DC Gain (0-V Input = 0-V Output)
Figure 7. Non-Inverting DC Gain Schematic (0-V Input = 0-V Output)
8.2.1.1 Design Requirements
•
•
Supply voltage (up to 32 V)
Phase margin: 60°
8.2.1.2 Detailed Design Procedure
•
•
•
Connect 1-MΩ feedback resistor between the output and the inverting terminal of the amplifier.
Connect 10-kΩ resistor between the inverting terminal and ground. Place the resistor as close to the inverting
pin as possible.
Connect power supply and input voltages.
8.2.1.3 Application Curve
* R not needed due to temperature independent
Figure 8. Gain of the Noninverting Amplifier
10
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
LM321
www.ti.com
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
Typical Applications (continued)
8.2.2 DC Summing Amplifier (VIN's ≥ 0 VDC and VO ≥ VDC)
The summing amplifier, a special case of the inverting amplifier, is shown in Figure 7. The circuit gives an
inverted output which is equal to the weighted algebraic sum of all four inputs. The gain of any input of this circuit
is equal to the ratio of the appropriate input resistor to the feedback resistor. The advantage of this circuit is that
there is no interaction between inputs and operations such as summing and weighted averaging are
implemented very easily.
Where: V0 = V1 + V2 - V3 - V4, (V1 + V2) ≥ (V3 + V4) to keep VO > 0 VDC
Figure 9. DC Summing Amplifier Schematic
(VIN's ≥ 0 VDC and VO ≥ VDC)
8.2.3 Amplitude Modulator Circuit
The modulator circuit is shown in Figure 10. PWM signal is used to switch the MOSFET. When the MOSFET is
on, the circuit acts as an inverting amplifier with gain 1. When The MOSFET is off, the inverting and non-inverting
signals cancel each other out. Therefore, the output switches from –VIN to GND at the carrier frequency.
Figure 10. Amplitude Modulator Circuit Schematic
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
11
LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
www.ti.com
Typical Applications (continued)
8.2.4 Power Amplifier
Power amplifier application circuit is shown in Figure 11. Voltage gain is set by R1 and R2. The output of the
amplifier is connected to the base of BJT which amplifies the current. Current gain is set by β, current gain of a
BJT. The resulting output provides high power to the load. Differential voltage supplies are necessary.
V0 = 0 VDC for VIN = 0 VDC, AV = 10
Figure 11. Power Amplifier Schematic
8.2.5 LED Driver
LM321 operating as an LED driver is shown in Figure 12. The output of the amplifier sets the current through the
diode. The voltage across the LED is assumed constant.
Figure 12. LED Driver Schematic
8.2.6 Fixed Current Sources
Operational amplifier can be used to provide fixed current source to multiple loads. The output voltage of the
amplifier is connected to bases of bipolar transistors. The feedback is provided from the drain of a BJT to the
inverting terminal of the amplifier. Currents in the second and later BJTs are set by the ratio of R1 and R2.
Figure 13. Fixed Current Sources Schematic
12
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
LM321
www.ti.com
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
Typical Applications (continued)
8.2.7 Lamp Driver
Similar to the LED driver, LM321 can be used as a lamp driver. The output of the amplifier is to be connected to
the base of a bipolar transistor which will drive β*output current of the amplifier through the lamp.
Figure 14. Lamp Driver Schematic
9 Power Supply Recommendations
The LM321 is specified for operation up to 32 V; many specifications apply from –40°C to 85°C. Parameters that
can exhibit significant variance with regard to operating voltage or temperature are presented in Typical
Characteristics. Place 0.1-μF bypass capacitors close to the power-supply terminals to reduce errors coupling in
from noisy or high-impedance power supplies. For more detailed information on bypass capacitor placement, see
Layout.
10 Layout
10.1 Layout Guidelines
For best operational performance of the device, use good printed circuit board (PCB) layout practices, including:
• Noise can propagate into analog circuitry through the power pins of the circuit as a whole and operational
amplifer itself. Bypass capacitors are used to reduce the coupled noise by providing low-impedance power
sources local to the analog circuitry.
– Connect low-ESR, 0.1-μF ceramic bypass capacitors between each supply pin and ground, placed as
close to the device as possible. A single bypass capacitor from V+ to ground is applicable for single
supply applications.
• Separate grounding for analog and digital portions of circuitry is one of the simplest and most-effective
methods of noise suppression. One or more layers on multilayer PCBs are usually devoted to ground planes.
A ground plane helps distribute heat and reduces EMI noise pickup. Make sure to physically separate digital
and analog grounds paying attention to the flow of the ground current. For more detailed information refer to
Circuit Board Layout Techniques, SLOA089.
• In order to reduce parasitic coupling, run the input traces as far away from the supply or output traces as
possible. If it is not possible to keep them separate, it is much better to cross the sensitive trace perpendicular
as opposed to in parallel with the noisy trace.
• Place the external components as close to the device as possible. As shown in Figure 15, keeping RF and
RG close to the inverting input minimizes parasitic capacitance.
• Keep the length of input traces as short as possible. Always remember that the input traces are the most
sensitive part of the circuit.
• Consider a driven, low-impedance guard ring around the critical traces. A guard ring can significantly reduce
leakage currents from nearby traces that are at different potentials.
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
13
LM321
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
www.ti.com
10.2 Layout Example
Figure 15. PCB Layout Example
14
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
LM321
www.ti.com
SNOS935C – FEBRUARY 2001 – REVISED DECEMBER 2014
11 Device and Documentation Support
11.1 Trademarks
All trademarks are the property of their respective owners.
11.2 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.3 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2001–2014, Texas Instruments Incorporated
Product Folder Links: LM321
15
PACKAGE OPTION ADDENDUM
www.ti.com
3-May-2022
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
LM321MF
NRND
SOT-23
DBV
5
1000
Non-RoHS
& Green
Call TI
Level-1-260C-UNLIM
-40 to 85
A63A
LM321MF/NOPB
ACTIVE
SOT-23
DBV
5
1000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 85
A63A
LM321MFX
NRND
SOT-23
DBV
5
3000
Non-RoHS
& Green
Call TI
Level-1-260C-UNLIM
-40 to 85
A63A
LM321MFX/NOPB
ACTIVE
SOT-23
DBV
5
3000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 85
A63A
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
