LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
LM5005 75-V, 2.5-A Step-Down Switching Regulator With Wide Input Voltage Range
1 Features
3 Description
•
The LM5005 high-voltage buck converter features all
of the functions necessary to implement an efficient
high-voltage switching regulator with a minimum
number of external components. This easy-to-use
converter operates over an input voltage range from
7 V to 75 V and delivers a maximum output current of
2.5 A. The control loop architecture is based upon
current-mode control using an emulated current ramp
for high noise immunity. Current-mode control
provides inherent line feed-forward, cycle-by-cycle
overcurrent protection and straightforward loop
compensation. The use of an emulated control ramp
reduces noise sensitivity of the PWM circuit, allowing
reliable control of small duty cycles necessary in high
input voltage applications.
1
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
High-Efficiency DC-DC Buck Converter
– Wide Input Voltage Range From 7 V to 75 V
– Adjustable Output Voltage as Low as 1.225 V
– Output Current as High as 2.5 A
– Junction Temperature Range –40°C to 125°C
Integrated 75-V, 160-mΩ Buck MOSFET
Meets EN55022 and CISPR 22 EMI Standards
±1.5% Feedback Voltage Accuracy
Emulated Peak Current-Mode Control
– Ultra-Fast Line and Load Transient Response
Switching Frequency From 50 kHz to 500 kHz
Master or Slave Frequency Synchronization Input
80-ns Minimum PWM ON Time For Low VOUT
Monotonic Start-up into Prebiased Output
Internal High-Voltage VCC Bias Supply Regulator
Auxiliary Bias Supply Option to VCC
Configurable Soft Start With Tracking
Precision Standby and Shutdown Input
– Programmable Input UVLO With Hysteresis
Remote Shutdown and Standby Control
Cycle-by-Cycle Overcurrent Protection
VCC and Gate Drive UVLO Protection
Thermal Shutdown Protection With Hysteresis
Thermally-Enhanced 20-Pin HTSSOP Package
The switching frequency is resistor-programmable
from 50 kHz to 500 kHz. To reduce EMI, an oscillator
synchronization pin allows multiple LM5005
regulators to self-synchronize or be synchronized to
an external clock signal. Additional protection
features include configurable soft start, external
power supply tracking, thermal shutdown with
automatic recovery, and remote shutdown capability.

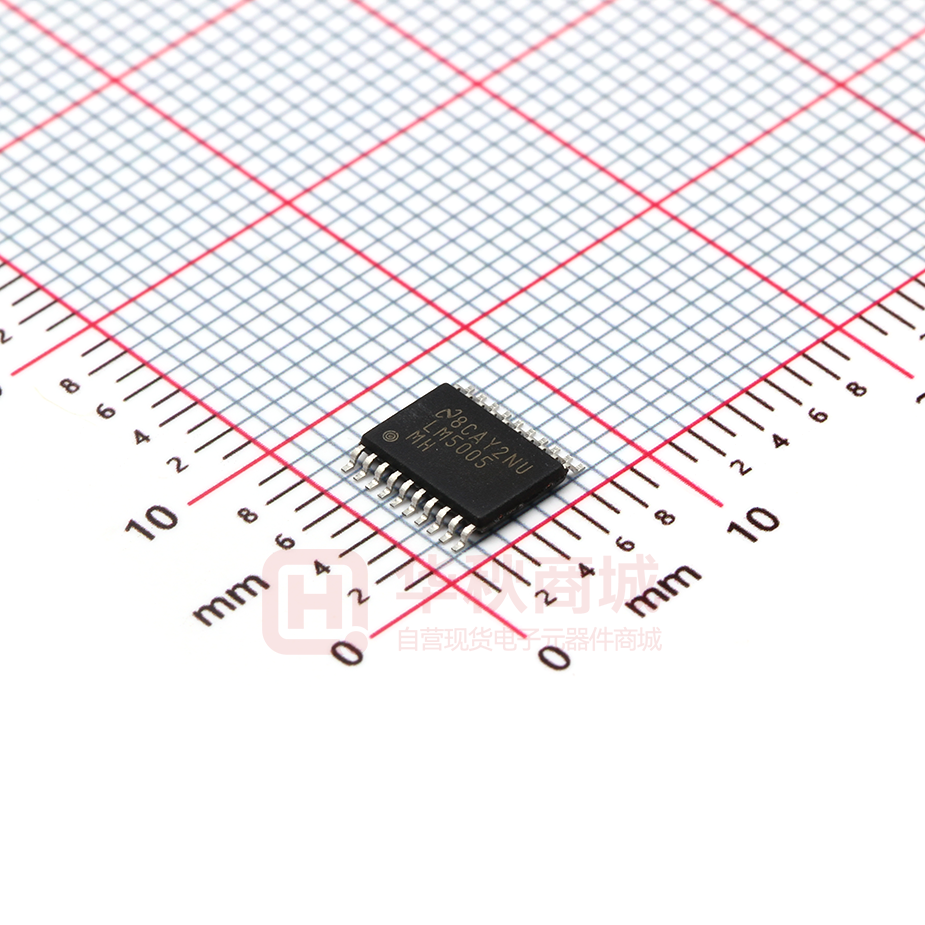

The LM5005 is available in an 20-pin HTSSOP
package with an exposed pad that is soldered to the
PCB to achieve a low junction-to-board thermal
impedance. To create a custom regulator design, use
the LM5005 with WEBENCH® Power Designer.
Device Information(1)
PART NUMBER
2 Applications
LM5005
High-Efficiency Point-of-Load Regulators
Telecommunications Infrastructure
Factory Automation and Control
SPACER
Typical Application Circuit
VIN
3,4
CIN
2
VIN
BST
SD
1
8
CVCC
VCC
PRE
RT
IS
RT
OUT
SYNC
5
9
optional
11
CRAMP
100
20
CBST
90
LF
17,18
LM5005
CSS
SYNC
FB
RAMP
COMP
SS
VOUT
80
19
COUT
DF
15,16
12
RFB1
10
70
60
50
VIN = 12 V
VIN = 24 V
VIN = 36 V
VIN = 48 V
VIN = 60 V
VIN = 75 V
7
6
40
CC1 RC1
RFB2
PGND AGND
13,14
6.50 mm × 4.40 mm
Typical Efficiency, VOUT = 5 V
SW
optional
HTSSOP (20)
BODY SIZE (NOM)
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Efficiency ( )
•
•
•
PACKAGE
CC2
30
20
0
Copyright © 2016, Texas Instruments Incorporated
0.5
1
1.5
Output Current (A)
2
2.5
D001
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
5
6.1
6.2
6.3
6.4
6.5
6.6
6.7
5
5
5
5
6
7
7
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Switching Characteristics ..........................................
Typical Characteristics ..............................................
Detailed Description .............................................. 9
7.1
7.2
7.3
7.4
Overview ................................................................... 9
Functional Block Diagram ......................................... 9
Feature Description................................................... 9
Device Functional Modes ....................................... 14
8
Application and Implementation ........................ 15
8.1 Application Information............................................ 15
8.2 Typical Application .................................................. 17
9 Power Supply Recommendations...................... 26
10 Layout................................................................... 26
10.1 Layout Guidelines ................................................. 26
10.2 Layout Example .................................................... 29
11 Device and Documentation Support ................. 31
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
Third-Party Products Disclaimer ...........................
Device Support ....................................................
Documentation Support ........................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
31
31
31
31
32
32
32
32
12 Mechanical, Packaging, and Orderable
Information ........................................................... 32
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision D (March 2013) to Revision E
Page
•
Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section .................................................................................................. 1
•
Deleted Simplified Application Schematic image ................................................................................................................... 1
•
Added Typical Application Circuit image ................................................................................................................................ 1
•
Changed Junction to Ambient, RθJA, value in the Thermal Information table From: 40 To: 35.2 ........................................... 5
•
Changed Junction to Case, RθJC(bot), value in the Thermal Information table From: 4 To: 1.2............................................... 5
•
Changed Efficiency vs IOUT and VIN graph.............................................................................................................................. 7
•
Deleted RRAMP to VCC for VOUT > 7.5V figure ........................................................................................................................ 13
•
Added Connection of External Ramp Resistor to VCC when VOUT > 7.5 V figure............................................................. 13
Changes from Revision C (March 2013) to Revision D
•
2
Page
Changed layout of National Semiconductor Data Sheet to TI format .................................................................................... 1
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
5 Pin Configuration and Functions
PWP Package
20-Pin HTSSOP
Top View
VCC
1
20
BST
SD
2
19
PRE
VIN
3
18
SW
VIN
4
17
SW
16
IS
15
IS
SYNC
5
COMP
6
Exposed Pad
FB
7
14
PGND
RT
8
13
PGND
RAMP
9
12
OUT
AGND
10
11
SS
Not to scale
Pin Functions
PIN
NO.
NAME
1
VCC
TYPE (1)
DESCRIPTION
I
Output of the bias regulator. VCC tracks VIN up to 9 V. Beyond 9 V, VCC is regulated to 7 V. A 0.1-µF to
1-µF ceramic decoupling capacitor is required. An external voltage (7.5 V to 14 V) can be applied to this
pin to reduce internal power dissipation.
2
SD
I
Shutdown or UVLO input. If the SD pin voltage is below 0.7 V, the regulator is in a low power state. If the
SD pin voltage is between 0.7 V and 1.225 V, the regulator is in standby mode. If the SD pin voltage is
above 1.225 V, the regulator is operational. Use an external voltage divider to set a line undervoltage
shutdown threshold. If the SD pin is left open circuit, a 5-µA pullup current source configures the regulator
as fully operational.
3, 4
VIN
P
Input supply voltage, nominal operating range: 7 V to 75 V.
5
SYNC
I/O
Oscillator synchronization input or output. The internal oscillator can be synchronized to an external clock
with an external pulldown device. Multiple LM5005 regulators can be synchronized together by connection
of their SYNC pins.
6
COMP
O
Output of the internal error amplifier, the loop compensation network must be connected between this pin
and the FB pin.
7
FB
I
Feedback signal from the regulated output. This pin is connected to the inverting input of the internal error
amplifier. The regulation threshold is 1.225 V.
8
RT
I
Internal oscillator frequency set input. The internal oscillator is set with a single resistor connected between
RT and AGND pins. The recommended switching frequency range is 50 kHz to 500 kHz.
9
RAMP
I
Ramp control signal. An external capacitor connected between RAMP and AGND pins sets the ramp slope
used for emulated peak current-mode control. Recommended capacitance range is 50 pF to 2 nF.
10
AGND
G
Analog ground. Internal reference for the regulator control functions.
11
SS
I
Soft-start. An external capacitor and an internal 10-µA current source set the ramp rate for the rise of the
error amplifier's reference. The SS pin is held low during standby, VCC UVLO and thermal shutdown.
12
OUT
I
Output voltage connection. Connect directly to the regulated output voltage.
13, 14
PGND
G
Power ground. Low-side reference for the integrated PRE switch and the IS current sense resistor.
15, 16
IS
P
Current sense. Current measurement connection for the freewheeling Schottky diode. An internal sense
resistor and a sample-and-hold circuit sense the diode current near the conclusion of the off-time. This
current measurement provides the DC level of the emulated current ramp.
17, 18
SW
P
Switching node. The source terminal of the internal buck switch. Connect the SW pin to the external
Schottky diode and to the buck inductor.
(1)
G = Ground, I = Input, O = Output, P = Power
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
3
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Pin Functions (continued)
PIN
NO.
NAME
TYPE (1)
DESCRIPTION
19
PRE
P
Precharge assist for the bootstrap capacitor. Connect this open-drain output to the SW pins to aid charging
the bootstrap capacitor during light-load conditions or in applications where the output may be precharged
before the LM5005 is enabled. An internal precharge MOSFET is turned on for 250 ns each cycle just prior
to the on-time interval of the buck switch.
20
BST
P
Boost input for bootstrap capacitor. Connect an external capacitor between the BST and SW pins. A 22-nF
ceramic capacitor is recommended. The capacitor is charged from VCC through an internal bootstrap
diode during the off-time of the buck switch when the SW-node voltage is low.
—
EP
P
Exposed pad. Exposed metal pad on the underside of the device. Connect this pad to the PCB ground
plane to assist with heat spreading.
4
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
6 Specifications
6.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted) (1) (2)
MAX
UNIT
VIN to GND
MIN
76
V
BST to GND
90
V
PRE to GND
76
V
76
V
BST to VCC
76
V
VCC to GND
14
V
BST to SW
14
V
SW to GND (steady state)
–1.5
OUT to GND
Limited to VVIN
SD, SYNC, SS, FB to GND
V
7
V
Junction temperature, TJ
–40
150
°C
Storage temperature, Tstg
–65
150
°C
(1)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/Distributors for availability and
specifications.
(2)
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic
discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±2000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
±750
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
Over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
VIN
Input voltage
7
75
IOUT
Output current
0
2.5
A
TJ
Operating junction temperature
–40
125
°C
(1)
V
Recommended Operating Conditions are conditions under which operation of the device is intended to be functional. For ensured
specifications and test conditions, see the Electrical Characteristics.
6.4 Thermal Information
LM5005
THERMAL METRIC
(1)
PWP (HTSSOP)
UNIT
20 PINS
RθJA
Junction-to-ambient thermal resistance
35.2
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
17.8
°C/W
RθJB
Junction-to-board thermal resistance
15.5
°C/W
ψJT
Junction-to-top characterization parameter
0.4
°C/W
ψJB
Junction-to-board characterization parameter
15.3
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
1.2
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
5
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
6.5 Electrical Characteristics
Typical values correspond to TJ = 25°C. Minimum and maximum limits apply over the –40°C to 125°C junction temperature
range. VIN = 48 V and RT = 32.4 kΩ (unless otherwise noted). (1)
PARAMETER
TEST CONDITIONS
MIN (2)
TYP
MAX (2)
6.85
7.15
7.45
UNIT
START-UP REGULATOR
VVCC-REG
VCC regulator output
VVCC-EXT
VCC LDO mode turnoff
IVCC-CL
VCC current limit
VVCC = 0 V
V
9
V
20
mA
VCC SUPPLY
VVCC-UV
VCC UVLO threshold
VVCC-HYS
VCC undervoltage hysteresis
VVCC increasing
IVCC
Bias current, IIN
VFB = 1.3 V
ISD
Shutdown current, IIN
VSD = 0 V
5.95
6.35
6.75
1
V
V
5
mA
60
100
µA
0.5
0.7
0.9
V
1.18
1.225
SHUTDOWN THRESHOLDS
VSD-TH
Shutdown threshold
VSD-HYS
Shutdown hysteresis
VSBY-TH
Standby threshold
VSBY-HYS
Standby hysteresis
ISD
SD pullup current source
0.1
V
1.27
V
0.1
V
5
µA
BUCK SWITCH
RDS-ON
Buck switch, RDS(on)
160
VBST-UV
BOOST UVLO
3.8
320
mΩ
VBST-UV-HYS
BOOST UVLO hysteresis
0.56
V
RPRE
Precharge switch, RDS(on)
75
Ω
V
CURRENT LIMIT
ICL
Cycle-by-cycle current limit
RAMP = 0 V
TCL-DLY
Cycle-by-cycle current limit delay
RAMP = 2.5 V
3
3.5
4.25
100
A
ns
SOFT-START
ISS
SS current source
7
10
13
µA
180
200
220
kHz
425
485
525
kHz
OSCILLATOR
FSW1
Switching frequency 1
FSW2
Switching frequency 2
RSYNC-SRC
SYNC source impedance
10
kΩ
RSYNC-SINK
SYNC sink impedance
160
Ω
VSYNC-FALL
SYNC threshold (falling)
1.4
V
FSYNC-MAX
SYNC frequency
TSYNC-MIN
SYNC pulse width minimum
RT = 11 kΩ
550
15
kHz
ns
RAMP GENERATOR
IRAMP1
Ramp current 1
VIN = 60 V, VOUT = 10 V
234
275
316
µA
IRAMP2
Ramp current 2
VIN = 10 V, VOUT = 10 V
20
25
30
µA
PWM COMPARATOR
VCOMP-OFS
(1)
(2)
6
COMP to PWM comparator offset
0.7
V
The junction temperature (TJ in °C) is calculated from the ambient temperature (TA in °C) and power dissipation (PD in Watts) as follows:
TJ = TA + (PD × RθJA) where RθJA (in °C/W) is the package thermal impedance provided in Thermal Information.
Minimum and maximum limits are 100% production tested at 25°C. Limits over the operating temperature range are ensured through
correlation using Statistical Quality Control (SQC) methods. Limits are used to calculate Average Outgoing Quality Level (AOQL).
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
Electrical Characteristics (continued)
Typical values correspond to TJ = 25°C. Minimum and maximum limits apply over the –40°C to 125°C junction temperature
range. VIN = 48 V and RT = 32.4 kΩ (unless otherwise noted).(1)
PARAMETER
TEST CONDITIONS
MIN (2)
TYP
MAX (2)
1.207
1.225
1.243
UNIT
ERROR AMPLIFIER
VFB
Feedback voltage
IFB-BIAS
FB bias current
VFB = VCOMP
10
nA
AOL
DC gain
70
dB
ICOMP
COMP sink and source current
FBW
Unity gain bandwidth
3
MHz
3
V
mA
THERMAL SHUTDOWN
TSD
Thermal shutdown threshold
165
°C
TSD-HYS
Thermal shutdown hysteresis
25
°C
6.6 Switching Characteristics
Over operating free-air temperature range (unless otherwise noted).
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
TON-MIN
Minimum controllable PWM on-time
80
ns
TOFF-MIN
Forced PWM off-time
500
ns
TPRE
Precharge switch on-time
275
ns
6.7 Typical Characteristics
Unless otherwise specified, VIN = 48 V and VOUT = 5 V (see Typical Application for circuit designs).
NORMALIZED OSCILLATOR FREQUENCY
OSCILLATOR FREQUENCY (kHz)
1000
100
10
1
10
100
1.010
1.005
1.000
0.995
0.990
-50
-25
0
25
50
75
100
125
1000
o
TEMPERATURE ( C)
RT (k:)
FOSC = 200 kHz
Figure 1. Oscillator Frequency vs RT
Figure 2. Oscillator Frequency
vs Temperature
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
7
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Typical Characteristics (continued)
1.10
8
1.05
6
VCC (V)
NORMALIZED SOFTSTART CURRENT
Unless otherwise specified, VIN = 48 V and VOUT = 5 V (see Typical Application for circuit designs).
1.00
4
0.95
2
0.90
-50
-25
0
25
50
75
100
0
125
12
8
4
0
o
TEMPERATURE ( C)
16
20
24
ICC (mA)
VIN = 12 V
Figure 4. VCC vs ICC
Figure 3. Soft-Start Current vs Temperature
10
50
225
40
180
30
135
4
Ramp Down
20
PHASE
10
45
0
0
GAIN
-10
2
90
PHASE (°)
6
GAIN (dB)
VCC (V)
8
-45
Ramp Up
-20
0
0
2
4
6
8
-90
-30
10k
10
100k
VIN (V)
1M
10M
-135
100M
FREQUENCY (Hz)
RL = 7 kΩ
AVCL = 101
Figure 5. VCC vs VIN
Figure 6. Error Amplifier Gain and Phase
100
90
Efficiency ( )
80
70
60
50
VIN = 12 V
VIN = 24 V
VIN = 36 V
VIN = 48 V
VIN = 60 V
VIN = 75 V
40
30
20
0
0.5
1
1.5
Output Current (A)
2
2.5
D001
Figure 7. LM5005 Evaluation Board Efficiency vs IOUT and VIN
8
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
7 Detailed Description
7.1 Overview
The LM5005 high-voltage switching regulator features all of the functions necessary to implement an efficient
high-voltage buck regulator using a minimum of external components. This easy-to-use regulator integrates a
75-V N-channel buck switch with an output current capability of 2.5 A. The regulator control method is based on
current mode control using an emulated current ramp. Peak current mode control provides inherent line feedforward, cycle-by-cycle current limiting and simple loop compensation. The use of an emulated control ramp
reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable processing of small duty cycles
necessary in high input voltage applications. The operating frequency is user programmable from 50 kHz to
500 kHz. An oscillator synchronization pin allows multiple LM5005 regulators to self-synchronize or be
synchronized to an external clock. The output voltage can be set at or above 1.225 V. Fault protection features
include cycle-by-cycle current limiting, thermal shutdown and remote shutdown capability. The device is available
in the 20-pin HTSSOP package featuring an exposed pad to aid thermal dissipation.
The LM5005's functional block diagram and typical application are shown in the following section. The LM5005
can be applied in numerous applications to efficiently step down from an unregulated input voltage. The device is
well suited for telecom, industrial, and automotive power bus voltage ranges.
7.2 Functional Block Diagram
VIN = 7V to 75V
CIN1
2.2PF
LM5005
3, 4 VIN
CIN2
2.2PF
7V
REGULATOR
5 PA
RUV1
N/A
VCC
1.225V
STANDBY
BST
SHUTDOWN
SD
0.7V
CUV
N/A
RUV2
N/A
11 SS
UVLO
CBST
22nF
LF
33 PH
DRIVER
S Q
1.225V
20
VIN
DIS
CLK
10 PA
CSS
10nF
CVCC
0.47PF
THERMAL
SHUTDOWN
UVLO
2 SD
1
R Q
LEVEL
SHIFT
PWM
0.7V
CS
330pF
PRE 19
CC2
open
ERROR
AMP
1.75V
0.5V/A
RC1
49.9k:
+
6 COMP
CLK
Ir
OSCILLATOR
SYNC
SYNC
5
RT
8
VIN
TRACK
SAMPLE
and
HOLD
RAMP GENERATOR
IRAMP = 5 PA u (VIN ± VOUT)
+ 25 PA
IS
COUT1
150PF
COUT2
22PF
RS
10:
15, 16
PGND 13, 14
RFB1
5.11k:
AGND 10
CLK
OUT
RAMP
9
RT
20.5k:
D1
CSHD6-100C
CLK
C_LIMIT
7 FB
CC1
10nF
VOUT = 5V
SW 17, 18
RFB2
1.65k:
12
CRAMP
330pF
Copyright © 2016, Texas Instruments Incorporated
7.3 Feature Description
7.3.1 High-Voltage Start-Up Regulator
The LM5005 contains a dual-mode internal high-voltage start-up regulator that provides the VCC bias supply for
the PWM controller and bootstrap MOSFET gate driver. The VIN pins can be connected directly to the input
voltage, as high as 75 V. For input voltages below 9 V, a low dropout switch connects VCC directly to VIN. In this
supply range, VCC is approximately equal to VIN. For input voltages greater than 9 V, the low dropout switch is
disabled and the VCC regulator is enabled to maintain VCC at approximately 7 V. The wide operating range of
7 V to 75 V is achieved through the use of this dual-mode regulator.
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
9
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Feature Description (continued)
The output of the VCC regulator is current limited to 20 mA. Upon power up, the regulator sources current into
the capacitor connected to the VCC pin. When the voltage at the VCC pin exceeds the VCC UVLO threshold of
6.3 V and the SD pin is greater than 1.225 V, a soft-start sequence begins. Switching continues until VCC falls
below 5.3 V or the SD pin falls below 1.125 V.
An auxiliary supply voltage can be applied to the VCC pin to reduce the IC power dissipation. If the auxiliary
voltage is greater than 7.3 V, the internal regulator essentially shuts off, reducing the IC power dissipation. The
VCC regulator series pass transistor includes a diode between VCC and VIN that must not be forward biased in
normal operation. Therefore the auxiliary VCC voltage must never exceed the VIN voltage.
Take extra care in high-voltage applications to ensure the VIN and PRE pin voltages do not exceed their
absolute maximum voltage ratings of 76 V. During line or load transients, voltage ringing on the input bus that
exceeds the Absolute Maximum Ratings can damage the IC. Careful PC board layout and the use of quality
input bypass capacitors placed close to the VIN and PGND pins are essential. See Layout Guidelines for more
detail.
VIN
9V
VCC
7V
6.3V
Internal Enable Signal
Figure 8. VIN and VCC Sequencing
7.3.2 Shutdown and Standby
The LM5005 contains a dual-level shutdown (SD) circuit. When the SD pin voltage is below 0.7 V, the regulator
is in a low-current shutdown mode. When the SD pin voltage is greater than 0.7 V but less than 1.225 V, the
regulator is in standby mode. In standby mode the VCC regulator is active but MOSFET switching is disabled.
When the SD pin voltage exceeds 1.225 V, switching is enabled and normal operation begins. An internal 5-µA
pullup current source configures the regulator to be fully operational if the SD pin is left open.
An external voltage divider from VIN to GND can be used to set the operational input range of the regulator. The
divider must be designed such that the voltage at the SD pin is greater than 1.225 V when VIN is in the desired
operating range. The internal 5-µA pullup current source must be included in calculations of the external set-point
divider. Hysteresis of 0.1 V is included for both the shutdown and standby thresholds. The voltage at the SD pin
must never exceed 7 V. When using an external divider, it may be necessary to clamp the SD pin to limit its
voltage at high input voltage conditions.
7.3.3 Oscillator and Synchronization Capability
The LM5005 oscillator frequency is set by a single external resistor designated RT connected between the RT
and AGND pins. Place the RT resistor close to the LM5005's RT and AGND pins. Calculate the resistance of RT
from Equation 1 to set a desired switching frequency, FSW.
7407
RT ª¬k: º¼
4.3
FSW ª¬kHz º¼
(1)
10
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
Feature Description (continued)
The SYNC pin can be used to synchronize the internal oscillator to an external clock. The external clock signal
must be of higher frequency than the free-running frequency of the LM5005 set by the RT resistor. A clock circuit
with an open-drain output as shown in Figure 9 is the recommended interface to the SYNC pin. The clock pulse
duration must be greater than 15 ns.
LM5005
LM5005
SYNC
SW
SYNC
SYNC
AGND
CLK
LM5005
SW
SYNC
500 ns
Copyright © 2016, Texas Instruments Incorporated
Up to Five
Total Devices
Copyright © 2016,
Texas Instruments Incorporated
Figure 9. External Clock Synchronization
Figure 10. Self-Synchronization of Multiple
LM5005 Regulators
Multiple LM5005 devices can be synchronized together simply by connecting the SYNC pins together. In this
configuration all of the devices are synchronized to the highest frequency device. The diagram in Figure 11
illustrates the SYNC input/output features of the LM5005. The internal oscillator circuit drives the SYNC pin with
a strong pulldown and weak pullup inverter. When the SYNC pin is pulled low either by the internal oscillator or
an external clock, the ramp cycle of the oscillator is terminated and a new oscillator cycle begins. Thus, if the
SYNC pins of several LM5005 IC's are connected together, the IC with the highest internal clock frequency pulls
the connected SYNC pins low first and terminates the oscillator ramp cycles of the other IC’s. The LM5005 with
the highest programmed clock frequency serves as the master and controls the switching frequency of all the
devices with lower oscillator frequency.
5V
10k
SYNC
I = f (RT)
2.5V
Q
S
Q
R
DEADTIME
ONE-SHOT
Figure 11. Simplified Oscillator Block Diagram and SYNC I/O Circuit
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
11
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
7.3.4 Error Amplifier and PWM Comparator
The internal high-gain error amplifier generates an error signal proportional to the difference between the
regulated output voltage and an internal precision reference of 1.225 V. The output of the error amplifier is at the
COMP pin, allowing the user to connect loop compensation components, generally a type-II network, from
COMP to FB as illustrated in the Functional Block Diagram. This network creates a pole at unity frequency, a
zero, and a noise-attenuating high-frequency pole. The PWM comparator compares the emulated current sense
signal from the RAMP generator to the error amplifier's output voltage at the COMP pin.
7.3.5 RAMP Generator
The ramp signal used in the pulse width modulator for current-mode control is typically derived directly from the
buck switch current. This switch current corresponds to the positive slope portion of the output inductor current.
Using this signal for the PWM ramp simplifies the control loop transfer function to a single pole response and
provides inherent input voltage feedforward compensation. The disadvantage of using the buck switch current
signal for PWM control is the large leading-edge spike due to circuit parasitics that must be filtered or blanked.
Also, the current measurement may introduce significant propagation delays. The filtering, blanking time and
propagation delay limit the minimum achievable pulse-width. In applications where the input voltage may be
relatively large in comparison to the output voltage, controlling small pulse-widths and duty cycles is necessary
for regulation. The LM5005 uses a unique ramp generator, which does not actually measure the buck switch
current but rather reconstructs the current signal. Reconstructing or emulating the inductor current provides a
ramp signal to the PWM comparator that is free of leading-edge spikes and measurement or filtering delays. The
current reconstruction is comprised of two elements: a sample-and-hold DC level and an emulated current ramp.
RAMP
(5P x (VIN ± VOUT) + 25P) x
tON
CRAMP
Sample and
Hold DC Level
0.5V/A
TON
Figure 12. Emulated Current-Sense Ramp Waveform
The sample-and-hold DC level illustrated in Figure 12 is derived from a measurement of the current flowing in the
freewheeling Schottky diode. Connect the freewheeling diode's anode terminal to the LM5005's IS pin. The diode
current flows through an internal current sense resistor between the IS and PGND pins. The voltage level across
the sense resistor is sampled and held just prior to the onset of the next conduction interval of the buck switch.
The diode current sensing and sample-and-hold provide the DC level for the reconstructed current signal. The
positive slope inductor current ramp is emulated by an internal voltage-controlled current source and an external
capacitor connected between the RAMP and AGND pins. The ramp current source that emulates the inductor
current is a function of the input and output voltages given by Equation 2.
IRAMP
5 $ ˜ 9IN
9OUT
$
(2)
Proper selection of the RAMP capacitor depends upon the selected output inductance. Select the capacitance of
CRAMP using Equation 3.
CRAMP
LF ˜ 10
5
where
•
12
LF is the output inductance in Henrys
Submit Documentation Feedback
(3)
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
With this value, the scale factor of the emulated current ramp is approximately equal to the scale factor of the DC
level sample-and-hold (0.5 V/A). Place the CRAMP capacitor close to the LM5005's RAMP and AGND pins.
For duty cycles greater than 50%, peak current-mode control circuits are subject to subharmonic oscillation.
Subharmonic oscillation is normally characterized by observing alternating wide and narrow pulses of the switchnode voltage waveform. Adding a fixed-slope voltage ramp (slope compensation) to the current sense signal
prevents this oscillation. The 25 µA of offset current provided from the emulated current source adds some fixed
slope to the ramp signal. In some high output voltage and high duty cycle applications, additional slope may be
required. In these applications, add a pullup resistor between the VCC and RAMP pins to increase the ramp
slope compensation.
For VOUT > 7.5 V, calculate the optimal slope current with Equation 4.
IOS = VOUT × 5 µA/V
(4)
For example, at VOUT = 10 V, IOS = 50 µA.
Install a resistor from the RAMP pin to VCC using Equation 5.
RRAMP = VVCC / (IOS – 25 µA)
(5)
LM5005
VCC
CVCC
RRAMP
RAMP
CRAMP
AGND
Copyright © 2016, Texas Instruments Incorporated
Figure 13. Connection of External Ramp Resistor to VCC when VOUT > 7.5 V
7.3.6 Current Limit
The LM5005 contains a unique current monitoring scheme for control and overcurrent protection. When set
correctly, the emulated current sense signal provides a signal that is proportional to the buck switch current with
a scale factor of 0.5 V/A. The emulated ramp signal is applied to the current limit comparator. If the emulated
ramp signal exceeds 1.75 V (3.5 A), the present cycle is terminated (cycle-by-cycle current limiting). In
applications with small output inductance and high input voltage, the switch current may overshoot due to the
propagation delay of the current limit comparator. If an overshoot must occur, the diode current sampling circuit
detects the excess inductor current during the off-time of the buck switch. If the sample-and-hold DC level
exceeds the 1.75-V current limit threshold, the buck switch is disabled and skip pulses until the diode current
sampling circuit detects that the inductor current has decayed below the current limit threshold. This approach
prevents current runaway conditions due to propagation delays or inductor saturation, because the inductor
current is forced to decay following any current overshoot.
7.3.7 Soft-Start Capability
The soft-start feature prevents inrush current impacting the LM5005 regulator and the input supply when power is
first applied. Output voltage soft-start is achieved by slowly ramping up the target regulation voltage when the
device is first enabled or powered up. The internal soft-start current source of 10 µA gradually increases the
voltage of an external soft-start capacitor connected to the SS pin. The soft-start capacitor voltage is connected
to the noninverting input of the error amplifier. Various sequencing and tracking schemes can be implemented
using external circuits that limit or clamp the voltage level of the SS pin.
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
13
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
In the event a fault is detected, including overtemperature, VCC UVLO or shutdown, the soft-start capacitor is
discharged. When the fault condition is no longer present, a new soft-start sequence commences.
7.3.8 MOSFET Gate Driver
The LM5005 integrates an N-channel high-side MOSFET and associated floating high-voltage gate driver. This
gate driver circuit works in conjunction with an internal bootstrap diode and an external bootstrap capacitor. A
22-nF ceramic capacitor, connected with short traces between the BST and SW pins, is recommended. During
the off time of the buck switch, the SW voltage is approximately –0.5 V and the bootstrap capacitor is charged
from VCC through the internal bootstrap diode. When operating at a high PWM duty cycle, the buck switch is
forced off each cycle for 500 ns to ensure that the bootstrap capacitor is recharged.
Under light-load conditions or when the output voltage is precharged, the SW voltage may not remain low during
the off-time of the buck switch. If the inductor current falls to zero and the SW voltage rises, the bootstrap
capacitor may not have sufficient voltage to operate the buck switch gate driver. For these applications, connect
the PRE pin to the SW pins to precharge the bootstrap capacitor. The internal precharge MOSFET and diode
connected between the PRE and PGND pins turns on each cycle for 250 ns just prior to the onset of a new
switching cycle. If the SW pin is at a normal negative voltage level (continuous conduction mode), then no
current flows through the precharge MOSFET and diode.
7.4 Device Functional Modes
7.4.1 Shutdown Mode
The SD pin provides ON and OFF control for the LM5005. When VSD is below approximately 0.6 V, the device is
in shutdown mode. Both the internal LDO and the switching regulator are off. The quiescent current in shutdown
mode drops to 60 µA at VIN = 48 V. The LM5005 also employs VCC bias rail undervoltage protection. If the VCC
bias supply voltage is below its UV threshold, the regulator remains off.
7.4.2 Standby Mode
The bias supply subregulator has a lower enable threshold than the regulator itself. When VSD is above 0.6 V
and below the standby threshold (1.225 V typically), the VCC supply is on and regulating. Switching action and
output voltage regulation are not enabled until VSD rises above the standby threshold.
7.4.3 Light-Load Operation
The LM5005 maintains high efficiency when operating at light loads. Whenever the load current is reduced to a
level less than half the peak-to-peak inductor ripple current, the device enters discontinuous conduction mode
(DCM). Calculate the critical conduction boundary using Equation 6.
IBOUNDARY
'IL
2
VOUT ˜ 1 D
2 ˜ LF ˜ FSW
(6)
When the inductor current reaches zero, the SW node becomes high impedance. Resonant ringing occurs at SW
as a result of the LC tank circuit formed by the buck inductor and the parasitic capacitance at the SW node. At
light loads, typically below 100 mA, several pulses may be skipped in between switching cycles, effectively
reducing the switching frequency and further improving light-load efficiency.
7.4.4 Thermal Shutdown Protection
Internal thermal shutdown circuitry is provided to protect the regulator in the event that the maximum junction
temperature is exceeded. When activated, typically at 165°C, the regulator is forced into a low power reset state,
disabling the output driver and the bias regulator. This feature is provided to prevent catastrophic failures from
accidental device overheating.
14
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
8.1.1 Reducing Bias Power Dissipation
The LM5005 is a wide input voltage range buck regulator with a maximum output current of 2.5 A. In general,
buck regulators operating at high input voltage can dissipate a significant amount of bias power. The VCC
regulator must step-down the input voltage to a nominal VCC level of 7 V. A large voltage drop across the VCC
regulator implies a large power dissipation in the LM5005. There are several techniques that can significantly
reduce this bias regulator power dissipation.
Figure 14 and Figure 15 depict two methods to bias the IC from the output voltage. In each case the internal
VCC regulator is used to initially bias the VCC rail. After the output voltage is established, the voltage at VCC is
raised above the nominal 7-V regulation level, which effectively disables the internal VCC regulator. The voltage
applied to the VCC pin must never exceed 14 V. The voltage at the VCC pin must not exceed the input voltage,
VIN.
RBST
BST
CBST
LF
VOUT
SW
LM5005
PRE
DF
IS
DVCC
COUT
VCC
PGND
CVCC
Copyright © 2016, Texas Instruments Incorporated
Figure 14. VCC Bias From the Output Voltage for 8 V < VOUT < 14 V
RBST
BST
CBST
LF
VOUT
SW
LM5005
PRE
DF
IS
DVCC
COUT
VCC
PGND
CVCC
Copyright © 2016, Texas Instruments Incorporated
Figure 15. VCC Bias Using an Additional Winding on the Buck Inductor
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
15
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Application Information (continued)
Given the increased gate drive capability with a higher VCC voltage, use a resistor RBST of 5 Ω to 10 Ω in series
with the bootstrap capacitor to reduce the turnon speed of the power MOSFET and curtail SW node voltage
overshoot and ringing.
8.1.2 Input Voltage UVLO Protection
The SD input supports adjustable input voltage undervoltage lockout (UVLO) with hysteresis for application
specific power-up and power-down requirements. SD connects to a comparator-based input referenced to a
1.225-V bandgap voltage with 100-mV hysteresis. An external logic signal can be used to drive the SD input to
toggle the output ON and OFF and for system sequencing or protection.
LM5005
VIN
5 A
RUV1
SD
+
RUV2
1.225V
1.125V
Shutdown/Standby
Comparator
Copyright © 2016, Texas Instruments Incorporated
Figure 16. Programmable Input Voltage UVLO With Hysteresis
If the SD pin is not used, it can be left open circuit as it is pulled high by an internal 5-µA current source. This
allows self-start-up of the LM5005 when VCC is within its valid operating range above its UVLO threshold.
However, many applications benefit from using a resistor divider RUV1 and RUV2 as shown in Figure 16 to
establish a precision input voltage UVLO level.
Given VIN(on) and VIN(off) as the input voltage turnon and turnoff thresholds, respectively, select the UVLO
resistors using Equation 7 and Equation 8.
1.225V
VIN(off) ˜
VIN(on)
1.125V
RUV1
5 $
(7)
1.225V
RUV2 RUV1 ˜
VIN(on) 1.225V 5 $ ˜ 5UV1
(8)
An optional capacitor CUV in parallel with RUV2 provides filtering for the divider. If the input UVLO level is set at a
low input voltage, it is possible that the maximum SD pin voltage of 7 V could be exceeded at the higher end of
the input voltage operating range. In this case, use a small 6.2-V Zener diode clamp from SD to AGND such that
the maximum SD operating voltage is never exceeded.
16
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
8.2 Typical Application
The following design procedure assists with component selection for the LM5005. Alternately, the WEBENCH®
Design Tool is available to generate a complete design. With access to a comprehensive component database,
this online tool uses an iterative design procedure to create an optimized design, allowing the user to experiment
with various design options.
The schematic diagram of a 5-V, 2.5-A regulator with an input voltage range is 7 V to 75 V is given in Figure 17.
The free-running switching frequency (with the SYNC pin open circuit) is 300 kHz. In terms of control loop
performance, the target loop crossover frequency is 20 kHz with a phase margin in excess of 55°.
LM5005
VIN = 7V to 75V
CIN1
CIN2
2.2PF
100V
CUV
N/A
3,4
RUV1
N/A
2
20
CBST
22nF
SD
LF
33PH
17,18
RUV2
N/A
CS
330pF 100V
19
8
PRE
VCC
DF
U1
RT
IS
RT
20.5k:
VOUT = 5V
OUT
RS
10:
COUT1
COUT2
150PF
6.3V
22PF
16V
15,16
CDSH6-100C
12
RFB1
SYNC
5
9
optional
11
CRAMP
330pF
BST
SW
1
CVCC
0.47PF
VIN
SYNC
FB
7
RAMP
SS
CSS
COMP
5.11k:
6
CC1
10nF
RC1
49.9k:
RFB2
1.65k:
PGND AGND
10nF
13,14
10
CC2
N/A
Copyright © 2016, Texas Instruments Incorporated
Figure 17. LM5005 Circuit Schematic
8.2.1 Design Requirements
An example of the step-by-step procedure to generate power stage and compensation component values using
the typical application setup of Figure 17 is given below.
The circuit shown in Figure 17 is configured for the following specifications:
• VIN = 7 V to 75 V
• VOUT = 5 V
• IOUT(max) = 2.5 A
• FSW = 300 kHz
• Minimum load current for CCM = 250 mA
• Line and load regulation less than 1% and 0.1%, respectively
The Bill of Materials for this design is listed in Table 1.
8.2.2 Detailed Design Procedure
8.2.2.1 Frequency Set Resistor (RT)
Resistor RT sets the switching frequency. Generally, higher frequency applications are smaller but have higher
losses. A switching frequency of 300 kHz is selected in this example as a reasonable compromise for small
solution size and high efficiency. Calculate the resistance of RT for a 300-kHz switching frequency with
Equation 9.
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
17
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Typical Application (continued)
7407
FSW ª¬kHz º¼
RT ª¬k: º¼
4.3
(9)
Choose the nearest standard resistor value of 20.5 kΩ for RT.
8.2.2.2 Inductor (LF)
Inductor Current
The inductance is determined based on the switching frequency, load current, inductor ripple current, and the
minimum and maximum input voltages designated VIN(min) and VIN(max), respectively.
IPEAK
IOUT
'IL
IVALLEY
0A
TS
t
1
FSW
Figure 18. Inductor Current Waveform
To keep the converter operating in CCM, the maximum inductor ripple current ΔIL must be less than twice the
minimum load current, or 0.5-A peak-to-peak. Using this value of ripple current, calculate the inductance using
Equation 10.
LF
VOUT ˜ VIN(max)
VOUT
'IL ˜ FSW ˜ VIN(max)
5V ˜ 75V 5V
0.5A ˜ 300kHz ˜ 75V
31 +
(10)
Use the nearest standard value of 33 µH. An alternative method is to choose an inductance that gives an
inductor ripple current of 30% to 50% of the rated full load current at the nominal input voltage.
Note that the inductor must be rated for the peak inductor current, denoted as IPEAK in Figure 18, to prevent
saturation. During normal loading conditions, the peak inductor current corresponds to maximum load current
plus half the maximum peak-to-peak ripple current. The peak inductor current during an overload condition is
limited to 3.5 A nominal (4.25 A maximum). The selected inductor in this design example (see Table 1) has a
conservative 6.2-A saturation current rating. The saturation current is defined by this inductor manufacturer as
the current required for the inductance to reduce by 30% at 20°C.
8.2.2.3 Ramp Capacitor (CRAMP)
With the inductor selected, calculate the value of CRAMP necessary for the emulation ramp circuit using
Equation 11.
CRAMP ¬ªpF¼º
10 ˜LF ¬ª +¼º
(11)
With LF selected as 33 µH, the recommended CRAMP is 330 pF. Use a capacitor with NP0 or C0G dielectric.
8.2.2.4 Output Capacitors (COUT)
The output capacitor filters the inductor ripple current and provides a source of charge for transient load
conditions. A wide range of output capacitors may be used with the LM5005 that provide various advantages.
The best performance is typically obtained using ceramic or polymer electrolytic type components. Typical tradeoffs are that the ceramic capacitor provides extremely low ESR to reduce the output ripple voltage and noise
spikes, while electrolytic capacitors provide a large bulk capacitance in a small volume for transient loading
conditions.
When selecting an output capacitor, the two performance characteristics to consider are the output voltage ripple
and load transient response. Approximate the output voltage ripple with Equation 12.
18
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
Typical Application (continued)
'VOUT
'IL RESR
2
§
·
1
¨
¸
© 8 ˜ FSW ˜ COUT ¹
2
where
•
•
•
•
ΔVOUT is the peak-to-peak output voltage ripple
RESR is the effective series resistance (ESR) of the output capacitor
FSW is the switching frequency
COUT is the effective output capacitance
(12)
The amount of output voltage ripple is application specific. A general recommendation is to keep the output ripple
less than 1% of the rated output voltage.
Bear in mind that ceramic capacitors are sometimes preferred because they have low ESR. However, depending
on package and voltage rating of the capacitor, the effective in-circuit capacitance can drop significantly with
applied voltage. The output capacitor selection also affects the output voltage droop during a load transient. The
peak deviation of the output voltage during a load transient is dependent on many factors. An approximation of
the transient dip ignoring loop bandwidth is obtained using Equation 13:
VDROOP
'IOUT
STEP ˜ RESR
LF ˜ 'IOUT STEP2
COUT ˜ VIN VOUT
where
•
•
•
•
•
•
•
COUT is the minimum required output capacitance
LF is the buck filter inductance
VDROOP is the output voltage deviation ignoring loop bandwidth considerations
ΔIOUT-STEP is the load step change
RESR is the output capacitor ESR
VIN is the input voltage
VOUT is the output voltage setpoint
(13)
A 22-µF, 16-V ceramic capacitor with X7R dielectric and 1210 footprint and a 150-µF, 6.3-V polymer electrolytic
capacitor are selected here based on a review of each capacitor's tolerance and voltage coefficient to meet
output ripple specification. The ceramic capacitor provides ultra-low ESR to reduce the output ripple voltage and
noise spikes, while the electrolytic capacitor provides a large bulk capacitance in a small volume for transient
loading conditions.
8.2.2.5 Schottky Diode (DF)
A Schottky type freewheeling diode is required for all LM5005 applications. Select the diode's reverse breakdown
rating for the maximum VIN plus some safety margin. Ultra-fast diodes are not recommended and may result in
damage to the regulator due to reverse recovery current transients. The near ideal reverse recovery
characteristics and low forward voltage drop of a Schottky diode are particularly important diode characteristics
for high input voltage and low output voltage applications common to the LM5005.
The reverse recovery characteristic determines how long the current surge lasts each cycle when the buck
switch is turned on. The benign reverse recovery characteristics of a Schottky diode minimizes the peak
instantaneous power in the buck switch occurring during turnon each cycle, and the resulting switching losses of
the buck switch are significantly reduced.
The diode's forward voltage drop has a significant impact on the conversion efficiency, especially for applications
with a low output voltage. Rated current for diodes vary widely from various manufactures. The worst case is to
assume a short-circuit load condition. In this case the diode conducts the output current almost continuously. For
the LM5005 this current can be as high as 3.5 A. Assuming a worst-case 1-V drop across the diode, the
maximum diode power dissipation can be as high as 3.5 W. For this design example, a 100-V, 6-A Schottky in a
DPAK package is selected.
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
19
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Typical Application (continued)
8.2.2.6 Input Capacitors (CIN)
The regulator supply voltage has a large source impedance at the switching frequency. Good quality input
capacitors are necessary to limit the ripple voltage at the VIN pin while supplying most of the switch current
during the on-time. When the buck switch turns on, the current into the VIN pins steps to the lower peak of the
inductor current waveform, ramps up to the peak value, then drops to zero at turnoff. The average current into
VIN during the on-time is the load current. The input capacitance must be selected for RMS current rating and
minimum ripple voltage. A good approximation for the required ripple current rating necessary is IRMS > IOUT / 2.
Select ceramic capacitors with a low ESR for the input filter. To allow for capacitor tolerances and voltage
derating effects, two 2.2-µF, 100-V ceramic capacitors are used. If step input voltage transients are expected
near the maximum rating of the LM5005, a careful evaluation of ringing and possible spikes at the VIN pin id
required. An additional damping network, snubber circuit or input voltage clamp may be required in these cases.
8.2.2.7 VCC Capacitor (CVCC)
The capacitor at the VCC pin provides noise filtering and stability for the VCC regulator. The recommended value
of CVCC is 0.47 µF and must be a low-ESR ceramic capacitor of X7R dielectric rated for at least 16 V.
8.2.2.8 Bootstrap Capacitor (CBST)
The bootstrap capacitor connected between the BST and SW pins supplies the gate current to charge the buck
switch gate at turnon. The recommended value of CBST is 22 nF. Choose a low ESR ceramic capacitor with X7R
dielectric rated for at least 16 V.
8.2.2.9 Soft Start Capacitor (CSS)
The capacitor connected to the SS pin determines the soft-start time, or the time for the reference voltage and
the output voltage to reach their final regulated values. If tSS is the required soft-start time, calculate the soft-start
capacitance using Equation 14 or more simply with Equation 15.
t SS ˜ ISS t SS ˜ 10 $
CSS
VREF
1.225 V
(14)
CSS ª¬nF º¼
8.16 ˜ t SS ª¬ms º¼
(15)
Choose a CSS of 10 nF corresponding to a soft-start time of 1.2 ms for this application.
8.2.2.10 Feedback Resistors (RFB1 and RFB2)
Resistors RFB1 and RFB2 establish the output voltage setpoint. Based on a selected value for the lower feedback
resistor RFB2, calculate the upper feedback resistor RFB1 from Equation 16.
VOUT 1.225V
RFB1
˜ RFB2
1.225V
(16)
In general, a good starting point for RFB2 is in the range of 1 kΩ to 10 kΩ. Resistances of 5.11 kΩ and 1.65 kΩ
are selected for RFB1 and RFB2 (respectively) to achieve a 5-V output setpoint for this design example.
8.2.2.11 RC Snubber (RS and CS)
A snubber network across the power diode reduces ringing and spikes at the switching node. Excessive ringing
and spikes can cause erratic operation and couple spikes and noise to the output. Ultimately, excessive spikes
beyond the rating of the LM5005 or the freewheeling diode can damage these devices. Selecting the values for
the snubber is best accomplished through empirical methods. First, make sure the lead lengths for the snubber
connections are short. For the current levels typical of the LM5005 converter, a snubber resistance RS between
2 Ω and 10 Ω is adequate. Increasing the value of the snubber capacitor results in more damping but higher
losses. Select a minimum value of CS that provides adequate damping of the SW voltage waveform at full load
(see PCB Layout for EMI Reduction for more details).
20
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
Typical Application (continued)
8.2.2.12 Compensation Components (RC1, CC1, CC2)
These components configure the error amplifier gain characteristics to accomplish a stable overall loop gain. One
advantage of current-mode control is the ability to close the loop with only two feedback components, RC1 and
CC1. The overall loop gain is the product of the modulator gain and the error amplifier gain. The DC modulator
gain of the LM5005 is calculated with Equation 17.
GAINMOD-DC
Gm(MOD) ˜ RLOAD
2 ˜ RLOAD
(17)
The dominant low-frequency pole of the modulator is determined by the load resistance, RLOAD, and the output
capacitance, COUT. Calculate the corner frequency of this pole with Equation 18.
1
fp(MOD)
2S ˜ RLOAD ˜ COUT
(18)
For RLOAD = 5 Ω and COUT = 177 µF, then fp(MOD) = 180 Hz
GAINMOD-DC = 2 A/V × 5 Ω = 10 = 20 dB
For this design example given RLOAD = 5 Ω and COUT = 177 µF, Figure 19 shows the experimentally measured
modulator gain versus frequency characteristic.
REF LEVEL
0.000 dB
0.0 deg
/DIV
10.000 dB
45.000 deg
GAIN
0
PHASE
100
1k
START 50.000 Hz
10k
STOP 50 000.000 Hz
Figure 19. PWM Modulator Gain and Phase Plot
Components RC1 and CC1 configure the error amplifier as a Type-II configuration, giving a pole at the origin and a
zero at fZ = 1 / (2π RC1 CC1). The error amplifier zero cancels the modulator pole leaving a single pole response
at the crossover frequency of the loop gain. A single pole response at the crossover frequency yields a stable
loop with 90° of phase margin.
For the design example, select a target loop bandwidth (crossover frequency) of 20 kHz. Place the compensator
zero frequency, fZ, an order of magnitude less than the target crossover frequency. This constrains the product of
RC1 and CC1 for a desired compensation network zero frequency to be less than 2 kHz. Increasing RC1 while
proportionally decreasing CC1 increases the error amp gain. Conversely, decreasing RC1 while proportionally
increasing CC1, decreases the error amp gain. Select RC1 of 49.9 kΩ and CC1 of 10 nF. These values configure
the compensation network zero at 320 Hz. The compensator gain at frequencies greater than fZ is RC1 / RFB1,
which is approximately 20 dB.
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
21
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Typical Application (continued)
The compensator's bode plot is shown by Figure 20. The overall loop is predicted as the sum (in dB) of the
modulator gain and the compensator gain as shown in Figure 21.
REF LEVEL
0.000 dB
0.0 deg
/DIV
10.000 dB
45.000 deg
REF LEVEL
0.000 dB
0.0 deg
/DIV
10.000 dB
45.000 deg
PHASE
GAIN
GAIN
PHASE
0
0
100
1k
START 50.000 Hz
10k
STOP 50 000.000 Hz
100
1k
START 50.000 Hz
10k
STOP 50 000.000 Hz
Figure 20. Compensator Gain and Phase Plot
Figure 21. Overall Loop Gain and Phase Plot
If a network analyzer is available, measure the modulator gain and configure the compensator gain for the
desired loop transfer function. If a network analyzer is not available, design the error amplifier's compensation
components using the guidelines provided. Perform step-load transient tests to verify acceptable performance.
The step load goal is minimum overshoot with a damped response. Add a capacitor CC2 to the compensation
network to decrease noise susceptibility of the error amplifier. The value of CC2 must be sufficiently small,
because the addition of this capacitor adds a pole in the compensator transfer function. This pole must be well
beyond the loop crossover frequency. A good approximation of the location of the pole added by CC2 is
Equation 19.
fp2 = fZ × CC1 / CC2
(19)
An alternative method to decrease the error amplifier noise susceptibility is to connect a capacitor from COMP to
AGND. When using this method, the capacitance of CC2 must not exceed 100 pF.
22
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
8.2.2.13 Bill of Materials
Table 1 lists the bill of materials for the design example.
Table 1. LM5005 Buck Regulator Bill of Materials (1), VOUT = 5 V, IOUT = 2.5 A
REF DES
CIN1, CIN2
COUT1
CAPACITOR, SP, 150 µF, 6.3 V, 12 mΩ
COUT2
CAPACITOR, CER, 22 µF, 16 V, X7R, 1210
VENDOR
PART NUMBER
QUANTITY
TDK
C3225X7R2A225M
2
Panasonic
EEFHE0J151R
1
TDK
C3225X7R1C226M
1
CS
CAPACITOR, CER, 330 pF, 100 V, 0603
Kemet
C0603C331G1GAC
1
CC1, CSS
CAPACITOR, CER, 10 nF, 100 V, 0603
TDK
C1608X7R2A103K
2
CBST
CAPACITOR, CER, 22 nF, 100 V, 0603
TDK
C1608X7R2A223K
1
CVCC
CAPACITOR, CER, 0.47 µF, 16 V, 0604
TDK
C1608X7R1C474M
1
CRAMP
CAPACITOR, CER, 330 pF, 100 V, 0603
Kemet
C0603C331G1GAC
1
Central Semi
CSHD6-100C
IR
6CWQ10FN
DIODE, 100 V, 6 A, Schottky, DPAK
DF
(1)
DESCRIPTION
CAPACITOR, CER, 2.2 µF, 100 V, X7R, 1210
DIODE, 100 V, 6 A, Schottky (alternative)
1
LF
INDUCTOR, 33 µH, ISAT 6.22 A, DCR 60 mΩ
Coiltronics/Eaton
DR127-330-R
1
RT
RESISTOR, 20.5 kΩ, 0603
Vishay Dale
CRCW06032052F
1
RC1
RESISTOR, 49.9 kΩ, 0603
Vishay Dale
CRCW06034992F
1
RFB1
RESISTOR, 5.11 kΩ, 0603
Vishay Dale
CRCW06035111F
1
RFB2
RESISTOR, 1.65 kΩ, 0603
Vishay Dale
CRCW06031651F
1
RS
RESISTOR, 10 Ω, 1 W, 1206
Vishay Dale
CRCW1206100J
1
U1
Wide VIN Regulator, 75 V, 2.5 A
Texas Instruments
LM5005
1
See Third-Party Products Disclaimer.
8.2.3 Application Curves
Converter efficiency and performance waveforms are shown from Figure 22 to Figure 32. Unless indicated
otherwise, all waveforms are taken at VIN = 48 V.
100
90
Efficiency ( )
80
VOUT 10 mV/DIV
70
60
50
VIN = 12 V
VIN = 24 V
VIN = 36 V
VIN = 48 V
VIN = 60 V
VIN = 75 V
40
30
20
0
0.5
1
1.5
Output Current (A)
2
2.5
D001
Figure 22. Typical Efficiency vs Input Voltage
and Output Current, 5-V Output
2 Ps/DIV
Figure 23. Output Voltage Ripple, 2.5-A Load
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
23
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
VSW 10 V/DIV
VSW 10 V/DIV
1 Ps/DIV
1 Ps/DIV
Figure 24. SW Node Voltage, 2.5-A Load
VOUT 1 V/DIV
Figure 25. SW Node Voltage, 0.1-A Load
VOUT 1 V/DIV
VSD 1 V/DIV
VSD 1 V/DIV
IOUT 1 A/DIV
IOUT 1 A/DIV
1 ms/DIV
1 ms/DIV
Figure 26. Start-Up Using SD Pin, 2.5-A Resistive Load
Figure 27. Shutdown Using SD Pin, 2.5-A Resistive Load
VOUT 1 V/DIV
VOUT 1 V/DIV
VIN 10 V/DIV
IOUT 1 A/DIV
VSD 1 V/DIV
1 ms/DIV
1 ms/DIV
Figure 28. Start-Up Using SD Pin, Pre-biased Output
24
Figure 29. Start-Up by Applying VIN, 2.5-A Resistive Load
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
VOUT 100 mV/DIV
VOUT 100 mV/DIV
IOUT 1 A/DIV
IOUT 1 A/DIV
1 ms/DIV
1 ms/DIV
Figure 30. Load Transient Response, 0.1-A to 2.5-A Load
Figure 31. Load Transient Response, 1.25-A to 2.5-A Load
VIN 10 V/DIV
VSW 10 V/DIV
VOUT 20 mV/DIV
VSYNC 1 V/DIV
IOUT 1 A/DIV
20 ms/DIV
1 Ps/DIV
Figure 32. Line Transient, 12 V to 60 V, 2.5-A Load
Figure 33. SYNC IN Operation at 350 kHz
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
25
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
9 Power Supply Recommendations
The LM5005 converter is designed to operate from a wide input voltage range from 7 V to 75 V. The
characteristics of the input supply must be compatible with the Absolute Maximum Ratings and Recommended
Operating Conditions. In addition, the input supply must be capable of delivering the required input current to the
fully-loaded regulator. Estimate the average input current with Equation 20.
VOUT ˜ IOUT
VIN ˜ K
IIN
where
•
η is the efficiency
(20)
If the converter is connected to an input supply through long wires or PCB traces with large impedance, special
care is required to achieve stable performance. The parasitic inductance and resistance of the input cables may
have an adverse affect on converter operation. The parasitic inductance in combination with the low ESR
ceramic input capacitors form an underdamped resonant circuit. This circuit can cause overvoltage transients at
VIN each time the input supply is cycled ON and OFF. The parasitic resistance causes the input voltage to dip
during a load transient. If the regulator is operating close to the minimum input voltage, this dip can cause false
UVLO fault triggering and a system reset. The best way to solve such issues is to reduce the distance from the
input supply to the regulator and use an aluminum or tantalum input capacitor in parallel with the ceramics. The
moderate ESR of the electrolytic capacitors helps to damp the input resonant circuit and reduce any voltage
overshoots. A capacitance in the range of 10 µF to 47 µF is usually sufficient to provide input damping and helps
to hold the input voltage steady during large load transients.
An EMI input filter is often used in front of the regulator that, unless carefully designed, can lead to instability as
well as some of the effects mentioned above. The user's guide Simple Success with Conducted EMI for DC-DC
Converters (SNVA489) provides helpful suggestions when designing an input filter for any switching regulator.
10 Layout
10.1 Layout Guidelines
PC board layout is an important and critical part of any DC-DC converter design. The performance of any
switching converter depends as much upon the layout of the PCB as the component selection. Poor layout
disrupts the performance of a switching converter and surrounding circuitry by contributing to EMI, ground
bounce, conduction loss in the traces, and thermal problems. Erroneous signals can reach the DC-DC converter,
possibly resulting in poor regulation or instability. There are several paths that conduct high slew-rate currents or
voltages that can interact with stray inductance or parasitic capacitance to generate noise and EMI or degrade
the power-supply performance.
The following guidelines serve to help users to design a PCB with the best power conversion performance,
thermal performance, and minimized generation of unwanted EMI.
1. In a buck regulator there are two critical current conduction loops. The first loop starts from the input
capacitors to the LM5005's VIN pins, to the SW pin, to the inductor and then out to the load. The second
loop starts from the output capacitors' return terminals, to the LM5005's PGND pins, to the IS pins, to the
freewheeling diode's anode, to the inductor and then out to the load. Minimizing the effective area of these
two loops reduces the stray inductance and minimizes noise and possible erratic operation.
2. Place the input capacitors close to the LM5005's VIN pins and exposed pad that is connected to PGND pins.
Place the inductor as close as possible to the SW pins and output capacitors. As described further in PCB
Layout for EMI Reduction, this placement serves to minimize the area of switching current loops and reduce
the resistive loss of the high current path. Ideally, use a ground plane on the top layer that connects the
PGND pins, the exposed pad of the device, and the return terminals of the input and output capacitors. For
more details, see the board layout detailed in LM5005 EVM user's guide AN-1748 LM5005 Evaluation Board
(SNVA298).
3. Minimize the copper area of the switch node. Route the two SW pins on a single top-layer plane to the
inductor terminal using a wide trace to minimize conduction loss. The inductor can be placed on the bottom
side of the PCB relative to the LM5005, but take care to avoid any coupling of the inductor's magnetic field to
sensitive feedback or compensation traces.
4. Use a solid ground plane on layer two of the PCB, particularly underneath the LM5005 and power stage
26
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
Layout Guidelines (continued)
components. This plane functions as a noise shield and also as a heat dissipation path.
5. Make input and output power bus connections as wide and short as possible to reduce voltage drops on the
input and output of the converter and to improve efficiency. Use copper planes on top to connect the multiple
VIN pins and PGND pins together.
6. Provide enough PCB area for proper heat-sinking. As stated in Thermal Design, use enough copper area to
ensure a low RθJA commensurate with the maximum load current and ambient temperature. Make the top
and bottom PCB layers with two ounce copper thickness and no less than one ounce. Use an array of heatsinking vias to connect the exposed pad to the ground plane on the bottom PCB layer. If the PCB has
multiple copper layers as recommended, connect these thermal vias to the inner layer heat-spreading ground
planes.
7. Route the sense trace from the VOUT point of regulation to the feedback resistors away from the SW pins
and inductor to avoid contaminating this feedback signal with switching noise. This routing is most important
when high resistances are used to set the output voltage. Routing the feedback trace on a different layer
than the inductor and SW node trace is recommended such that a ground plane exists between the sense
trace and inductor or SW node polygon to provide further cancellation of EMI on the feedback trace.
8. If voltage accuracy at the load is important, ensure that the feedback voltage sense is made directly at the
load terminals. Doing so corrects for voltage drops in the PCB planes and traces and provides optimal output
voltage set-point accuracy and load regulation. Place the feedback resistor divider closer to the FB pin,
rather than close to the load, because the FB node is the input to the error amplifier and is thus noise
sensitive.
9. COMP is a also noise-sensitive node. Place the compensation components as close as possible to the FB
and COMP pins.
10. Place the components for RT, CSS, CRAMP and CVCC close to their respective pins. Connect all of the signal
components' ground return connections directly to the LM5005's AGND pin. Connect the AGND and PGND
pins together at the LM5005's exposed pad using the topside copper area covering the entire underside of
the device. Connect several vias within this underside copper area to the PCB's internal ground plane.
11. See Related Documentation for additional important guidelines.
10.1.1 PCB Layout for EMI Reduction
Radiated EMI generated by high slew-rate current edges relates to pulsating currents in switching converters.
The larger area covered by the path of a pulsing current, the more electromagnetic emission is generated. The
key to reducing radiated EMI is to identify the pulsing current path and minimize the area of that path.
The important high-frequency switching power loop (or hot loop) of the LM5005 power stage is denoted in blue in
Figure 34. The topological architecture of a buck converter means that particularly high di/dt current exists in this
loop as current commutates between the externally-connected Schottky diode and the integrated high-side
MOSFET during switching transitions. As such, it becomes mandatory to minimize this effective loop area, with
an eye to reducing the layout-induced parasitic or stray inductances that cause excessive SW voltage overshoot
and ringing, noise and ground bounce.
In general, MOSFET switching behavior and the consequences for waveform ringing, power dissipation, device
stress and EMI are correlated with the parasitic inductances of the power loop. It follows that the cumulative
benefits of reducing the switching loop area are increased reliability and robustness owing to lower power
MOSFET voltage and current stress, increased margin for input voltage transients, and easier EMI filtering
(particularly in the more challenging high-frequency band above 30 MHz).
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
27
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Layout Guidelines (continued)
CBST
SW
BST
VCC
CVCC
VIN
VIN
Q1
High
frequency
power
loop
CIN
LF
VOUT
SW
High-side
MOSFET
gate driver
DF
COUT
IS
RCS
LM5005
PGND
GND
Figure 34. LM5005 Power Stage Circuit Switching Loops
High-frequency ceramic bypass capacitors at the input side provide the primary path for the high di/dt
components of the pulsing current. Position low-ESL ceramic bypass capacitors with low-inductance, short trace
routes to the VIN and PGND pins. Keep the SW trace connecting to the inductor as short as possible, and just
wide enough to carry the load current without excessive heating. Use short, thick traces or copper polygon pours
(shapes) for current conduction paths to minimize parasitic resistance. Place the output capacitors close to the
VOUT side of the inductor and route the return connection using GND plane copper back to the PGND pins and
the exposed pad of the LM5005.
10.1.2 Thermal Design
As with any power conversion device, the LM5005 dissipates internal power while operating. The effect of this
power dissipation is to raise the internal junction temperature of the LM5005 above ambient. The junction
temperature (TJ) is a function of the ambient temperature (TA), the power dissipation (PD) and the effective
thermal resistance of the device and PCB combination (RθJA). The maximum operating junction temperature for
the LM5005 is 125°C, thus establishing a limit on the maximum device power dissipation and therefore the load
current at high ambient temperatures. Equation 21 and Equation 22 show the relationships between these
parameters.
PD
TJ
§1 K·
POUT ˜ ¨
¸ VF ˜ IOUT ˜ 1 D
© K ¹
PD ˜ TJA TA
IOUT 2 ˜ RDCR ˜ 1.5
(21)
(22)
An approximation for the inductor power loss in Equation 21 includes a factor of 1.5 for the core losses. Also, if a
snubber is used, estimate its power loss by observation of the resistor voltage drop at both turnon and turnoff
switching transitions.
High ambient temperatures and large values of RθJA reduce the maximum available output current. If the junction
temperature exceeds 165°C, the LM5005 cycles in and out of thermal shutdown. Thermal shutdown may be a
sign of inadequate heat-sinking or excessive power dissipation. Improve PCB heat-sinking by using more thermal
vias, a larger board, or more heat-spreading layers within that board.
28
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
Layout Guidelines (continued)
As stated in Semiconductor and IC Package Thermal Metrics (SPRA953), the values given in Thermal
Information are not always valid for design purposes to estimate the thermal performance of the application. The
values reported in this table are measured under a specific set of conditions that are seldom obtained in an
actual application. The effective RθJA is a critical parameter and depends on many factors (such as power
dissipation, air temperature, PCB area, copper heat-sink area, number of thermal vias under the package, air
flow, and adjacent component placement). The LM5005's exposed pad has a direct thermal connection to
PGND. This pad must be soldered directly to the PCB copper ground plane to provide an effective heat-sink and
proper electrical connection. Use the documents listed in Documentation Support as a guide for optimized
thermal PCB design and estimating RθJA for a given application environment.
10.1.3 Ground Plane Design
As mentioned previously, using one of the inner PCB layers as a solid ground plane is recommended. A ground
plane offers shielding for sensitive circuits and traces and also provides a quiet reference potential for the control
circuitry. Connect the PGND pins to the system ground plane using an array of vias under the LM5005's exposed
pad. Also connect the PGND pins directly to the return terminals of the input and output capacitors. The PGND
net contains noise at the switching frequency and can bounce because of load current variations. The power
traces for PGND, VIN, and SW can be restricted to one side of the ground plane. The other side of the ground
plane contains much less noise and is ideal for sensitive analog trace routes.
10.2 Layout Example
Place boot cap close
to BST and SW pins
Keep diode close
to SW and IS pins
SD
Connect ceramic input
cap(s) close to VIN pin
VIN
SYNC
SW
GND
IS
VOUT
Keep COMP network close
to COMP and FB pins
Place FB resistors close to FB pin
Thermal vias under
LM5005 pad
GND
Figure 35. Component Side
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
29
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
Layout Example (continued)
Figure 36. Solder Side (Viewed From Top)
Texas Instruments
SD
GND VOUT
VIN GND
SYNC
Figure 37. Silkscreen
30
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
LM5005
www.ti.com
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
11 Device and Documentation Support
11.1 Third-Party Products Disclaimer
TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT
CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES
OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER
ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.
11.2 Device Support
11.2.1 Development Support
For development support see the following:
• For TI's reference design library, visit TI Designs
• For TI's WEBENCH Design Environments, visit WEBENCH® Design Center
11.3 Documentation Support
11.3.1 Related Documentation
For related documentation see the following:
• AN-1748 LM5005 Evaluation Board (SNVA298)
• Buck Regulator Topologies for Wide Input/Output Voltage Differentials (SNVA594)
• White Papers:
– Valuing Wide VIN, Low EMI Synchronous Buck Circuits for Cost-Effective, Demanding Applications
(SLYY104)
– Wide VIN Power Management ICs Simplify Design, Reduce BOM Cost, and Enhance Reliability
(SLYY037)
11.3.1.1 PCB Layout Resources
• AN-1149 Layout Guidelines for Switching Power Supplies (SNVA021)
• AN-1229 Simple Switcher PCB Layout Guidelines (SNVA054)
• Constructing Your Power Supply – Layout Considerations (SLUP230)
• Low Radiated EMI Layout Made SIMPLE with LM4360x and LM4600x (SNVA721)
• AN-2162 Simple Success With Conducted EMI From DC-DC Converters (SNVA489)
• Reduce Buck-Converter EMI and Voltage Stress by Minimizing Inductive Parasitics (SLYT682)
11.3.1.2 Thermal Design Resources
• AN-2020 Thermal Design By Insight, Not Hindsight (SNVA419)
• AN-1520 A Guide to Board Layout for Best Thermal Resistance for Exposed Pad Packages (SNVA183)
• Semiconductor and IC Package Thermal Metrics (SPRA953)
• Thermal Design Made Simple with LM43603 and LM43602 (SNVA719)
• PowerPAD™Thermally Enhanced Package (SLMA002)
• PowerPAD Made Easy (SLMA004)
• Using New Thermal Metrics (SBVA025)
11.4 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
31
LM5005
SNVS397E – SEPTEMBER 2005 – REVISED NOVEMBER 2016
www.ti.com
11.5 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.6 Trademarks
PowerPAD, E2E are trademarks of Texas Instruments.
WEBENCH is a registered trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.7 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.8 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
32
Submit Documentation Feedback
Copyright © 2005–2016, Texas Instruments Incorporated
Product Folder Links: LM5005
PACKAGE OPTION ADDENDUM
www.ti.com
18-Feb-2016
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
LM5005MH
NRND
HTSSOP
PWP
20
73
TBD
Call TI
Call TI
-40 to 125
LM5005
MH
LM5005MH/NOPB
ACTIVE
HTSSOP
PWP
20
73
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
LM5005
MH
LM5005MHX/NOPB
ACTIVE
HTSSOP
PWP
20
2500
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
LM5005
MH
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3)
MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4)
There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5)
Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6)
Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish
value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
18-Feb-2016
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
18-Feb-2016
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
LM5005MHX/NOPB
Package Package Pins
Type Drawing
SPQ
HTSSOP
2500
PWP
20
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
330.0
16.4
Pack Materials-Page 1
6.95
B0
(mm)
K0
(mm)
P1
(mm)
7.1
1.6
8.0
W
Pin1
(mm) Quadrant
16.0
Q1
PACKAGE MATERIALS INFORMATION
www.ti.com
18-Feb-2016
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
LM5005MHX/NOPB
HTSSOP
PWP
20
2500
367.0
367.0
35.0
Pack Materials-Page 2
MECHANICAL DATA
PWP0020A
MXA20A (Rev C)
www.ti.com
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2016, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
