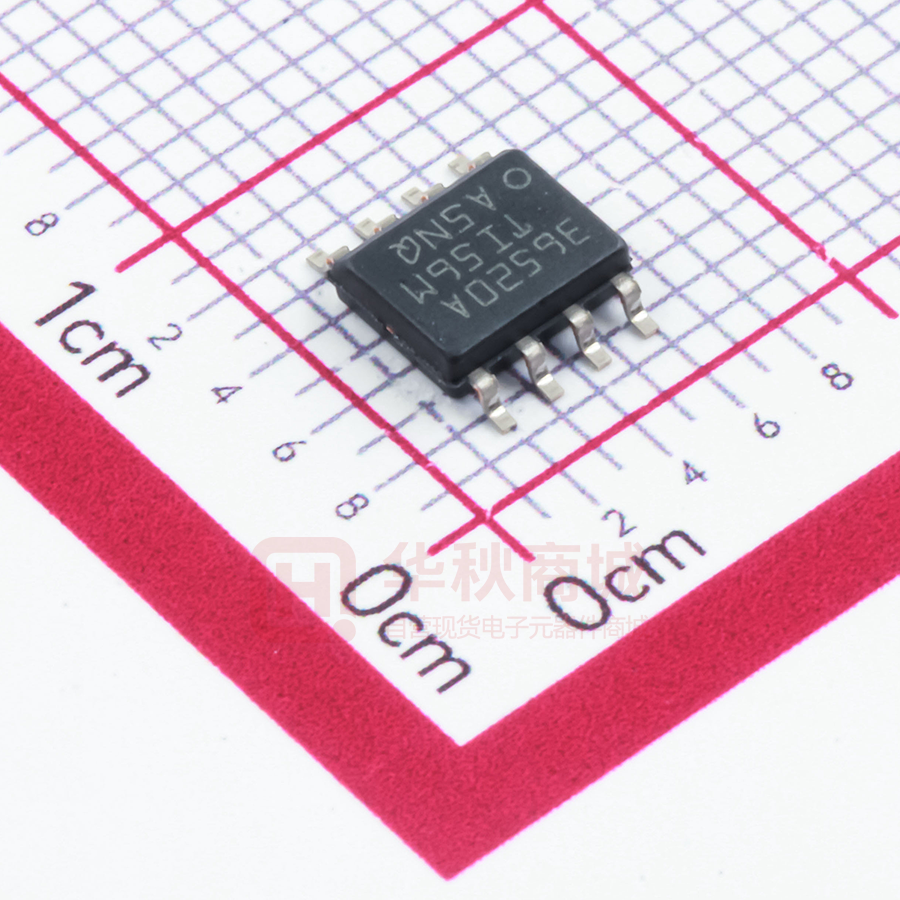

LMR36520ADDAR

Order Now Product Folder Technical Documents Support & Community Tools & Software LMR36520 SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 LMR36520 SIMPLE SWITCHER® 4.2-V to 65-V, 2-A Synchronous Step-down Converter 1 Features 3 Description • The LMR36520 regulator is an easy-to-use, synchronous, step-down DC/DC SIMPLE SWITCHER converter. With integrated high-side and low-side power MOSFETs, output current up to 2 A is delivered over a wide input voltage range of 4.2 V to 65 V. The transient tolerance that goes up to 70 V reduces the solution size and cost to protect against overvoltages and meets the surge immunity requirements of IEC 61000-4-5. 1 • • • • Designed for reliable and rugged applications – Input transient protection up to 70 V – Protection features: thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, hiccup short-circuit protection Well-suited for scalable industrial power supplies – Pin compatible with: – LMR36510 (65 V, 1 A) – LMR33610/LMR33620/LMR33630/ LMR33640 (36 V, 1 A, 2 A, 3 A, or 4 A) – Internal compensation helps reduce solution size, cost and design complexity – 400-kHz frequency Wide conversion range – Input voltage range: 4.2 V to 65 V – Output voltage range: 1 V to 95% of VIN Low-power dissipation across load spectrum – 90% efficiency: 24 VIN, 5 VOUT, 1 A at 400 kHz – Increased light-load efficiency in PFM mode – Low operating quiescent current of 26 µA Power-good output with filter and delayed release 2 Applications • • • • • • IP network cameras Analog security cameras HVAC valve and actuator control AC drive and servo drive control modules Analog input modules and mixed IO modules General purpose wide VIN power supply The LMR36520 uses peak-current mode control to provide optimal efficiency and output voltage accuracy. Precision enable gives flexibility by enabling a direct connection to the wide input voltage or precise control over device start-up and shutdown. The power-good flag, with built-in filtering and delay, offers a true indication of system status, eliminating the requirement for an external supervisor. Integration and internal compensation eliminates many external components and provides a pinout designed for a simple PCB layout. The feature set of the device is designed to simplify implementation for a wide range of end equipment. The LMR36520 is pin-to-pin compatible with the LMR36510 (65 V, 1 A) and LMR33610, LMR33620, LMR33630 and LMR33640 (36 V, 1 A/2 A/3 A/4 A), completing the latest family of SIMPLE SWITCHER converters. This increases the ease of use and scalability of wide Vin converters across various commonly used voltage and current ratings without having the need to redesign the board layout. As a result, the overall cost, design effort and time to market are optimized. The LMR36520 is in an 8-pin HSOIC package. Device Information(1) PART NUMBER LMR36520 PACKAGE HSOIC (8) BODY SIZE (NOM) 5.00 mm × 4.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Efficiency versus Output Current VOUT = 5 V, 400 kHz BOOT 100 VIN 90 Efficiency (%) Simplified Schematic VIN CBOOT CIN EN SW L1 VOUT COUT 80 PGND 70 VCC 60 50 40 0.001 0.005 0.02 0.05 0.1 Load (A) 0.20.3 0.5 1 PG RFBT CVCC VIN = 12V VIN = 24V VIN = 36V VIN = 48V FB RFBB 2 Effi 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. LMR36520 SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Device Comparison Table..................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 5 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 7.9 5 5 5 6 6 7 7 8 9 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions ...................... Thermal Information .................................................. Electrical Characteristics........................................... Timing Requirements ................................................ Switching Characteristics .......................................... System Characteristics ............................................. Typical Characteristics .............................................. Detailed Description ............................................ 10 8.1 Overview ................................................................. 10 8.2 Functional Block Diagram ....................................... 10 8.3 Feature Description................................................. 10 8.4 Device Functional Modes........................................ 14 9 Application and Implementation ........................ 17 9.1 Application Information............................................ 17 9.2 Typical Application .................................................. 17 9.3 What to Do and What Not to Do ............................. 26 10 Power Supply Recommendations ..................... 27 11 Layout................................................................... 28 11.1 Layout Guidelines ................................................. 28 11.2 Layout Example .................................................... 30 12 Device and Documentation Support ................. 31 12.1 12.2 12.3 12.4 12.5 12.6 12.7 Device Support .................................................... Documentation Support ........................................ Receiving Notification of Documentation Updates Support Resources ............................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 31 31 31 31 31 31 31 13 Mechanical, Packaging, and Orderable Information ........................................................... 32 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision A (February 2020) to Revision B • Removed the availability column on the Device Comparison Table ...................................................................................... 3 Changes from Original (September 2019) to Revision A • 2 Page Page Changed device status from Advance Information to Production Data ................................................................................. 1 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 LMR36520 www.ti.com SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 5 Device Comparison Table ORDERABLE PART NUMBER CURRENT FPWM fSW LMR36520ADDAR 2A No 400 kHz LMR36520FADDAR 2A Yes 400 kHz Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 3 LMR36520 SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 www.ti.com 6 Pin Configuration and Functions DDA Package 8-Pin HSOIC Top View PGND 1 VIN 2 8 SW 7 BOOT THERMAL PAD EN 3 6 VCC PG 4 5 FB Not to scale Pin Functions PIN I/O DESCRIPTION NAME NO. PGND 1 G Power and analog ground terminal. Connect to bypass capacitor with short, wide traces. Ground reference for internal references and logic. All electrical parameters are measured with respect to this pin. VIN 2 P Input supply to regulator. Connect a high-quality bypass capacitor or capacitors directly to this pin and PGND. EN 3 A Enable input to regulator. High = ON, low = OFF. Can be connected directly to VIN; Do not float. PG 4 A Open-drain power-good flag output. Connect to suitable voltage supply through a current limiting resistor. High = power OK, low = power bad. Flag pulls low when EN = Low. Can be left open when not used. FB 5 A Feedback input to regulator. Connect to tap point of feedback voltage divider. Do not float. Do not ground. VCC 6 P Internal 5-V LDO output. Used as supply to internal control circuits. Do not connect to external loads. Can be used as logic supply for power-good flag. Connect a high-quality 1-µF capacitor from this pin to PGND. BOOT 7 P Bootstrap supply voltage for internal high-side driver. Connect a high-quality 100-nF capacitor from this pin to the SW pin. SW 8 P Regulator switch node. Connect to a power inductor. PAD THERMAL PAD Thermal Major heat dissipation path of the device. A direct thermal connection to a ground plane is required. The PAD is not meant as an electrical interconnect. Electrical characteristics are not ensured. A = Analog, P = Power, G = Ground 4 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 LMR36520 www.ti.com SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 7 Specifications 7.1 Absolute Maximum Ratings Over junction temperature range of -40°C to 150°C (unless otherwise noted) (1) MIN MAX Input voltage VIN to PGND –0.3 70 UNIT V Input voltage EN to PGND –0.3 70.3 V Input voltage FB to PGND –0.3 5.5 V Input voltage PG to PGND –0.3 20 V Output voltage SW to PGND –0.3 70.3 V Output voltage SW to PGND less than 10-ns transients –3.5 70 V Output voltage CBOOT to SW –0.3 5.5 V Output voltage VCC to PGND –0.3 5.5 V Junction Temperature TJ -40 150 °C Storage temperature, Tstg –65 150 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 7.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human-body model (HBM) (1) ±2500 Charged-device model (CDM) (2) ±750 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 7.3 Recommended Operating Conditions Over the recommended operating junction temperature range of –40 ℃ to 125 ℃ (unless otherwise noted) (1) MIN MAX 4.2 65 V EN to PGND (2) 0 65 V PG to PGND (2) 0 18 V Output voltage VOUT 1 28 V Output current IOUT 0 2 A VIN to PGND Input voltage (1) (2) UNIT Recommended operating conditions indicate conditions for which the device is intended to be functional, but do not ensure specific performance limits. For ensured specifications, see Electrical Characteristics. The voltage on this pin must not exceed the voltage on the VIN pin by more than 0.3 V. Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 5 LMR36520 SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 www.ti.com 7.4 Thermal Information LMR36520 THERMAL METRIC (1) DDA (HSOIC) UNIT 8 PINS RθJA Junction-to-ambient thermal resistance RθJC(top) Junction-to-case (top) thermal resistance RθJB Junction-to-board thermal resistance ψJT Junction-to-top characterization parameter 4.3 °C/W ψJB Junction-to-board characterization parameter 13.8 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance 4.3 °C/W (1) 42.9 °C/W 54 °C/W 13.6 °C/W For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. 7.5 Electrical Characteristics Limits apply over operating junction temperature (TJ ) range of –40°C to +125°C, unless otherwise stated. Minimum and Maximum limits (1) are specified through test, design or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference purposes only. Unless otherwise stated, the following conditions apply: VIN = 24 V. PARAMETER TEST CONDITIONS MIN TYP MAX 36 UNIT SUPPLY VOLTAGE (VIN PIN) IQ-nonSW Operating quiescent current (nonswitching) (2) VEN = 3.3 V (PFM variant only) 26 ISD Shutdown quiescent current; measured at VIN pin VEN = 0 V 5.3 µA µA ENABLE (EN PIN) VEN-VCC-H Enable input high level for VCC output VENABLE rising VEN-VCC-L Enable input low level for VCC output VENABLE falling 0.3 1.14 V VEN-VOUT-H Enable input high level for VOUT VENABLE rising 1.157 VEN-VOUT-HYS Enable input hysteresis for VOUT Hysteresis below VENABLE-H; falling 110 mV ILKG-EN Enable input leakage current VEN = 3.3V 2.7 nA V 1.231 1.3 V INTERNAL LDO (VCC PIN) VCC VCC-UVLORising VCC-UVLOFalling Internal VCC voltage 6 V ≤ VIN ≤ 65 V Internal VCC undervoltage lockout Internal VCC undervoltage lockout 4.75 5 5.25 V VCC rising 3.6 3.8 4.0 V VCC falling 3.1 3.3 3.5 V 1 1.015 VOLTAGE REFERENCE (FB PIN) VFB Feedback voltage ILKG-FB Feedback leakage current 0.985 FB = 1 V 2.1 V nA CURRENT LIMITS AND HICCUP High-side current limit (3) ISC ILS-LIMIT Low-side current limit IL-ZC Zero cross detector threshold IPEAK-MIN Minimum inductor peak current (3) IL-NEG (1) (2) (3) 6 Negative current limit 2.4 (3) (3) 1.8 PFM variants only FPWM variant only 3 3.6 A 2.3 2.8 A 0.04 A 0.59 A –1.7 A MIN and MAX limits are 100% production tested at 25℃. Limits over the operating temperature range verified through correlation using Statistical Quality Control (SQC) methods. Limits are used to calculate Average Outgoing Quality Level (AOQL). This is the current used by the device open loop. It does not represent the total input current of the system when in regulation. The current limit values in this table are tested, open loop, in production. They may differ from those found in a closed loop application. Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 LMR36520 www.ti.com SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 Electrical Characteristics (continued) Limits apply over operating junction temperature (TJ ) range of –40°C to +125°C, unless otherwise stated. Minimum and Maximum limits(1) are specified through test, design or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference purposes only. Unless otherwise stated, the following conditions apply: VIN = 24 V. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT POWER GOOD (PGOOD PIN) VPG-HIGH-UP Power-Good upper threshold - rising % of FB voltage 105% 107% 110% VPG-LOW-DN Power-Good lower threshold - falling % of FB voltage 90% 93% 95% VPG-HYS Power-Good hysteresis (rising & falling) % of FB voltage VPG-VALID Minimum input voltage for proper Power-Good function RPG Power-Good on-resistance VEN = 2.5 V RPG Power-Good on-resistance VEN = 0 V RDS-ON-HS High-side MOSFET ON-resistance RDS-ON-LS Low-side MOSFET ON-resistance 1.5% 2 V 80 165 Ω 35 90 Ω IOUT = 0.5 A 245 465 mΩ IOUT = 0.5 A 165 310 mΩ MOSFETS 7.6 Timing Requirements Limits apply over operating junction temperature (TJ ) range of –40°C to +125°C, unless otherwise stated. Minimum and Maximum limits (1) are specified through test, design or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference purposes only. Unless otherwise stated, the following conditions apply: VIN = 24 V. MIN NOM MAX UNIT tON-MIN Minimum switch on-time 92 tOFF-MIN Minimum switch off-time 80 102 ns tON-MAX Maximum switch on-time 7 12 µs tSS Internal soft-start time 4.5 6 ms (1) 3 ns MIN and MAX limits are 100% production tested at 25℃. Limits over the operating temperature range verified through correlation using Statistical Quality Control (SQC) methods. Limits are used to calculate Average Outgoing Quality Level (AOQL). 7.7 Switching Characteristics TJ = -40°C to 125°C, VIN = 24 V (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 340 400 460 kHz OSCILLATOR FOSC Internal oscillator frequency 400-kHz variant Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 7 LMR36520 SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 www.ti.com 7.8 System Characteristics The following specifications apply to a typical application circuit with nominal component values. Specifications in the typical (TYP) column apply to TJ = 25℃ only. Specifications in the minimum (MIN) and maximum (MAX) columns apply to the case of typical components over the temperature range of TJ = –40℃ to 125℃. These specifications are not ensured by production testing. PARAMETER TEST CONDITIONS VIN Operating input voltage range VOUT Adjustable output voltage regulation (1) VOUT ISUPPLY MIN TYP MAX 4.2 65 PFM operation –1.5% 2.5% Adjustable output voltage regulation (1) FPWM operation –1.5% 1.5% Input supply current when in regulation VIN = 24 V, VOUT = 3.3 V, IOUT = 0 A, RFBT = 1 MΩ, PFM variant (2) 26 UNIT V µA DMAX Maximum switch duty cycle VHC FB pin voltage required to trip short-circuit hiccup mode tD Switch voltage dead time 2 ns TSD Thermal shutdown temperature Shutdown temperature 170 °C TSD Thermal shutdown temperature Recovery temperature 158 °C (1) (2) 8 98% 0.4 V Deviation in VOUT from nominal output voltage value at VIN = 24 V, IOUT = 0 A to full load In dropout the switching frequency drops to increase the effective duty cycle. The lowest frequency is clamped at approximately: FMIN = 1 / (tON-MAX + tOFF-MIN). DMAX = tON-MAX /(tON-MAX + tOFF-MIN). Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 LMR36520 www.ti.com SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 7.9 Typical Characteristics Unless otherwise specified the following conditions apply: TA = 25°C and VIN = 24 V. 12 850 Peak Inductor Current (mA) Shutdown Current (PA) 10 8 6 4 25qC 125qC -40qC 2 800 750 700 650 25qC 125qC -40qC 600 550 5 10 15 20 25 30 35 40 45 Input Voltage (V) 50 55 60 65 5 10 Shut EN = 0 V IOUT = 0 A Figure 1. Shutdown Supply Current 15 20 25 30 35 40 45 Input Voltage (V) VOUT = 3.3 V See Figure 32 50 55 60 Imin ƒSW = 400 kHz Figure 2. IPEAK-MIN Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 65 9 LMR36520 SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 www.ti.com 8 Detailed Description 8.1 Overview The LMR36520 is a synchronous peak-current mode buck regulator designed for a wide variety of industrial applications. The regulator automatically switches modes between PFM and PWM, depending on load. At heavy loads, the device operates in PWM at a constant switching frequency. At light loads, the mode changes to PFM with diode emulation, allowing DCM. This reduces the input supply current and keeps efficiency high. The device features internal loop compensation, which reduces design time and requires fewer external components than externally compensated regulators. 8.2 Functional Block Diagram VCC INT. REG. BIAS OSCILLATOR EN VIN ENABLE LOGIC BOOT HS CURRENT SENSE 1.0 V Reference ERROR AMPLIFIER FB + ± + ± PWM COMP CONTROL LOGIC PFM MODE CONTROL PG DRIVER SW LS CURRENT SENSE POWER GOOD CONTROL PGND 8.3 Feature Description 8.3.1 Power-Good Flag Output The power-good flag function (PG output pin) of the LMR36520 can be used to reset a system microprocessor whenever the output voltage is out of regulation. This open-drain output goes low under fault conditions, such as current limit and thermal shutdown, as well as during normal start-up. A glitch filter prevents false flag operation for short excursions of the output voltage, such as during line and load transients. Output voltage excursions lasting less than tPG do not trip the power-good flag. Power-good operation can best be understood by referencing Figure 3 and Figure 4. Note that during initial power-up, a delay of about 4 ms (typical) is inserted from the time that EN is asserted to the time that the power-good flag goes high. This delay only occurs during start-up and is not encountered during normal operation of the power-good function. The power-good output consists of an open-drain NMOS, requiring an external pullup resistor to a suitable logic supply. It can also be pulled up to either VCC or VOUT through an appropriate resistor, as desired. If this function is not needed, the PG pin must be grounded. When EN is pulled low, the flag output is also forced low. With EN low, power good remains valid as long as the input voltage is ≥ 2 V (typical). Limit the current into this pin to ≤ 4 mA. 10 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated Product Folder Links: LMR36520 LMR36520 www.ti.com SNVSBF0B – SEPTEMBER 2019 – REVISED APRIL 2020 Feature Description (continued) Glitches do not cause false operation nor reset timer VOUT VPG-LOW-UP (95%) VPG-LOW-DN (93%)
