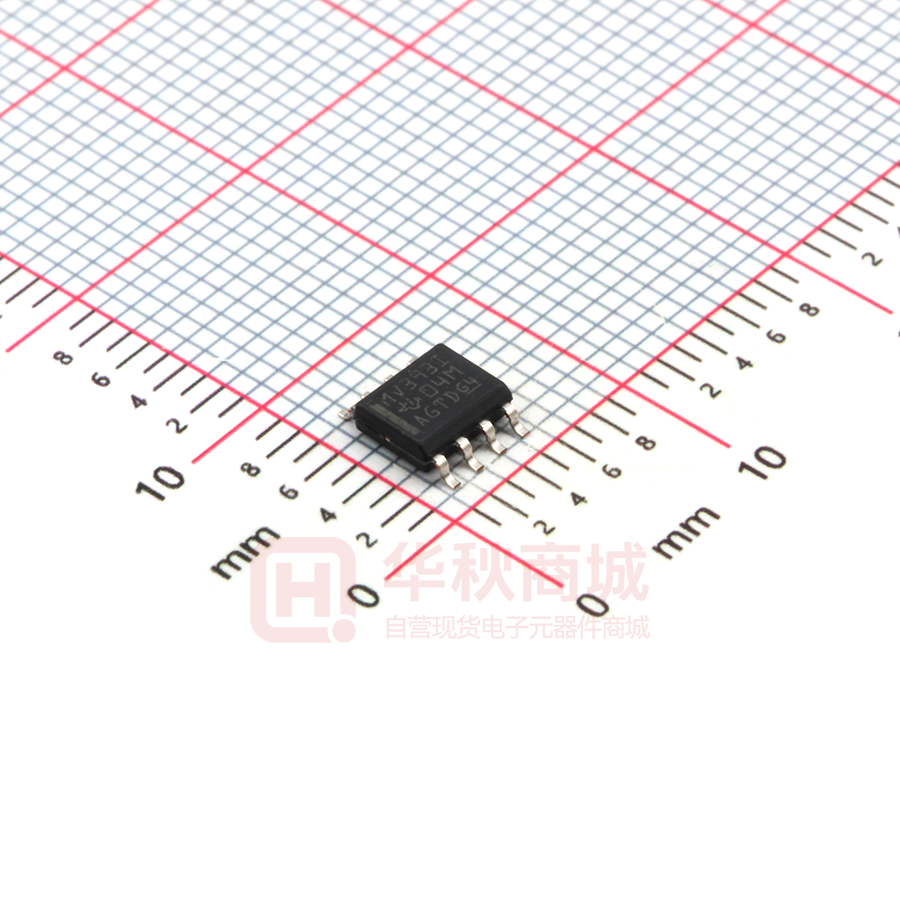

LMV393IDR

LMV393IDR

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    SOIC8_150MIL

  • 描述:

    双路通用低电压比较器

  • 数据手册
  • 价格&库存
LMV393IDR 数据手册
LMV331, LMV393, LMV339 LMV393, LMV339 SLCS136U – AUGUSTLMV331, 1999 – REVISED OCTOBER 2020 SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 www.ti.com LMV331 Single, LMV393 Dual, LMV339 Quad General-purpose Low-voltage Comparators 1 Features 3 Description • • The LMV393 and LMV339 devices are low-voltage (2.7 V to 5.5 V) versions of the dual and quad comparators, LM393 and LM339, which operate from 5 V to 30 V. The LMV331 is the single-comparator version. • • • 2.7-V and 5-V Performance Low Supply Current – LMV331 130 μA Typ – LMV393 210 μA Typ – LMV339 410 μA Typ Input Common-Mode Voltage Range Includes Ground Low Output Saturation Voltage 200 mV Typical Open-Collector Output for Maximum Flexibility The LMV331, LMV339, and LMV393 are the most cost-effective solutions for applications where lowvoltage operation, low power, and space saving are the primary specifications in circuit design for portable consumer products. These devices offer specifications that meet or exceed the familiar LM339 and LM393 devices at a fraction of the supply current. 2 Applications • • • • • Hysteresis Comparators Oscillators Window Comparators Industrial Equipment Test and Measurement Device Information PART NUMBER BODY SIZE (NOM) LMV339 SOIC (14) 8.65 mm x 3.90 mm LMV393 SOIC (8) 4.90 mm x 3.90 mm LMV331 SC70 (5) 2.00 mm x 1.25 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. – IN– PACKAGE (PIN)(1) OUT + IN+ Simplified Schematic An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated intellectual property matters and other important disclaimers. PRODUCTION DATA. Product Folder Links: LMV331 LMV393 LMV339 1 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 Table of Contents 1 Features............................................................................1 2 Applications..................................................................... 1 3 Description.......................................................................1 4 Revision History.............................................................. 2 5 Pin Configuration and Functions...................................3 6 Specifications.................................................................. 4 6.1 Absolute Maximum Ratings........................................ 4 6.2 ESD Ratings............................................................... 4 6.3 Recommended Operating Conditions.........................4 6.4 Thermal Information....................................................4 6.5 Electrical Characteristics, VCC+ = 2.7 V...................... 5 6.6 Electrical Characteristics, VCC+ = 5 V......................... 6 6.7 Switching Characteristics, VCC+ = 2.7 V..................... 6 6.8 Switching Characteristics, VCC+ = 5 V........................ 7 6.9 Typical Characteristics................................................ 7 7 Detailed Description........................................................9 7.1 Overview..................................................................... 9 7.2 Functional Block Diagram........................................... 9 7.3 Feature Description.....................................................9 7.4 Device Functional Modes............................................9 8 Application and Implementation.................................. 10 8.1 Application Information............................................. 10 8.2 Typical Application.................................................... 10 9 Power Supply Recommendations................................12 10 Layout...........................................................................12 10.1 Layout Guidelines................................................... 12 10.2 Layout Example...................................................... 12 11 Device and Documentation Support..........................13 11.1 Related Links.......................................................... 13 11.2 Trademarks............................................................. 13 11.3 Electrostatic Discharge Caution.............................. 13 11.4 Glossary.................................................................. 13 12 Mechanical, Packaging, and Orderable Information.................................................................... 13 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision T (January 2015) to Revision U (October 2020) Page • Updated the numbering format for tables, figures and cross-references throughout the document...................1 Changes from Revision S (October 2012) to Revision T (January 2015) Page • Added Applications, Device Information table, Pin Functions table, ESD Ratings table, Thermal Information table, Typical Characteristics, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section................... 1 • Deleted Ordering Information table.....................................................................................................................1 Changes from Revision R (May 2012) to Revision S (October 2012) Page • Updated operating temperature range................................................................................................................4 Changes from Revision N (April 2011) to Revision O (February 2012) Page • Changed VI in the Absolute Maximum Ratings from 5.5 V to VCC+ ................................................................... 4 Changes from Revision M (November 2005) to Revision N (April 2011) Page • Changed document format from Quicksilver to DocZone...................................................................................1 • Added RUC package pin out drawing.................................................................................................................3 2 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 5 Pin Configuration and Functions 13 3 12 4 11 5 10 6 9 7 8 3OUT 4OUT GND 4IN+ 4IN– 3IN+ 3IN– LMV393 . . . D, DDU, DGK OR PW PACKAGE (TOP VIEW) 1OUT 1IN– 1IN+ GND 1 VCC+ 2OUT 2IN– 2IN+ 8 2 7 3 6 4 5 3OUT 14 2 14 13 12 4OUT 2 11 GND 1IN– 3 10 4IN+ 1IN+ 4 9 4IN– 2IN– 5 8 3IN+ 1OUT 1 VCC+ 6 7 3IN– 1 2IN+ 2OUT 1OUT VCC+ 1IN– 1IN+ 2IN– 2IN+ 2OUT LMV339 . . . RUC PACKAGE (TOP VIEW) LMV339 . . . D OR PW PACKAGE (TOP VIEW) LMV331 . . . DBV OR DCK PACKAGE (TOP VIEW) 1IN+ 1 GND 2 1IN– 3 5 VCC+ 4 OUT Table 5-1. Pin Functions PIN NAME LMV331 LMV393 DBV or DCK D, DDU, DGK or PW LMV339 D or PW TYPE DESCRIPTION RUC 1IN– , 2IN–, 3IN–, 4IN– 3 2, 6 4, 6, 8, 10 3, 5, 7, 9 I Comparator(s) negative input pin(s) 1IN+ , 2IN+, 3IN+, 4IN+ 1 3, 5 5, 7, 9, 11 4, 6, 8, 10 I Comparator(s) positive input pin(s) GND 2 4 12 11 I Ground 1OUT, 2OUT, 3OUT, 4OUT 4 1, 7 2, 1, 14, 13 1, 14, 13, 12 O Comparator(s) output pin(s) VCC+ 5 8 3 2 I Supply Pin Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 3 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted)(1) MIN MAX Supply voltage(2) VCC 5.5 voltage(3) VID Differential input VI Input voltage range (either input) 0 At or below TA = 25°C, VCC ≤ 5.5 V Duration of output short circuit (one amplifier) to ground(4) TJ Operating virtual junction temperature Tstg Storage temperature range (1) UNIT V ±5.5 V VCC+ V Unlimited –65 150 °C 150 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Section 6.3 is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage values (except differential voltages and VCC specified for the measurement of IOS) are with respect to the network GND. Differential voltages are at IN+ with respect to IN–. Short circuits from outputs to VCC can cause excessive heating and eventual destruction. (2) (3) (4) 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±1000 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions MIN VCC Supply voltage (single-supply operation) VOUT Output voltage TA Operating free-air temperature MAX 2.7 UNIT 5.5 V VCC+ + 0.3 V 125 °C –40 6.4 Thermal Information LMV339 THERMAL METRIC(1) D PW LMV393 RUC D DDU 14 PINS RθJA Junction-to-ambient thermal resistance RθJC(top) Junction-to-case (top) thermal resistance PW DBV 8 PINS DCK UNIT 5 PINS 86 113 216 97 210 172 149 206 252 — — 51.3 — — — — — — — 59.0 — — — — — — RθJB Junction-to-board thermal resistance — ψJT Junction-to-top characterization parameter — — 1.2 — — — — — — ψJB Junction-to-board characterization parameter — — 59.0 — — — — — — (1) 4 LMV331 DGK °C/W For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 6.5 Electrical Characteristics, VCC+ = 2.7 V VCC+ = 2.7 V, GND = 0 V, at specified free-air temperature (unless otherwise noted) PARAMETER TEST CONDITIONS TA VIO Input offset voltage αVIO Average temperature coefficient of input offset voltage IIB Input bias current –40°C to 125°C IIO Input offset current –40°C to 125°C IO Output current (sinking) MIN 25°C VICR Common-mode input voltage range VSAT Saturation voltage ICC Supply current 1.7 7 5 25°C 15 25°C 25°C Output Leakage Current MAX –40°C to 125°C 5 mV 250 nA 50 150 5 UNIT μV/°C 400 25°C VO ≤ 1.5 V TYP 23 nA mA 0.003 –40°C to 125°C 1 25°C –0.1 to 2 IO ≤ 1.5 mA 25°C 200 LMV331 25°C 40 100 µA V mV LMV393 (both comparators) 25°C 70 140 LMV339 (all four comparators) 25°C 140 200 μA Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 5 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 6.6 Electrical Characteristics, VCC+ = 5 V VCC+ = 5 V, GND = 0 V, at specified free-air temperature (unless otherwise noted) PARAMETER TEST CONDITIONS TA MIN 25°C VIO Input offset voltage αVIO Average temperature coefficient of input offset voltage IIB Input bias current –40°C to 125°C IIO Input offset current –40°C to 125°C IO Output current (sinking) VO ≤ 1.5 V 1.7 7 9 25°C 5 25°C 25 25°C 2 Common-mode input voltage range 25°C AVD Large-signal differential voltage gain 25°C VSAT Saturation voltage 25°C IO ≤ 4 mA 84 25°C mA 1 –0.1 to 4.2 20 200 25°C –40°C to 125°C LMV339 (all four comparators) –40°C to 125°C 25°C V/mV 400 700 60 µA V 50 –40°C to 125°C LMV393 (both comparators) nA 0.003 –40°C to 125°C LMV331 nA 50 –40°C to 125°C VICR mV 250 150 10 UNIT μV/°C 400 25°C Output Leakage Current Supply current MAX –40°C to 125°C 25°C ICC TYP mV 120 150 100 200 250 170 μA 300 350 6.7 Switching Characteristics, VCC+ = 2.7 V TA = 25°C, VCC+ = 2.7 V, RL = 5.1 kΩ, GND = 0 V (unless otherwise noted) PARAMETER 6 TEST CONDITIONS tPHL Propagation delay high to low level output switching tPLH Propagation delay low to high level output switching TYP Input overdrive = 10 mV 1000 Input overdrive = 100 mV 350 Input overdrive = 10 mV 500 Input overdrive = 100 mV 400 Submit Document Feedback UNIT ns ns Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 6.8 Switching Characteristics, VCC+ = 5 V TA = 25°C, VCC+ = 5 V, RL = 5.1 kΩ, GND = 0 V (unless otherwise noted) PARAMETER TEST CONDITIONS TYP tPHL Propagation delay high to low level output switching Input overdrive = 10 mV 600 Input overdrive = 100 mV 200 tPLH Propagation delay low to high level output switching Input overdrive = 10 mV 450 Input overdrive = 100 mV 300 UNIT ns ns 6.9 Typical Characteristics 70 65 60 55 50 45 40 35 30 25 20 15 10 5 0 -40C 25C 85C Suppply Current (PA) Suppply Current (PA) Unless otherwise specified, VS = +5V, single supply, TA = 25°C 1 1.5 2 2.5 3 3.5 Volts (V) 4 4.5 5 Figure 6-1. Supply Current vs Supply Voltage Output High (LMV33x) -40C 25C 85C 1 1.5 2 2.5 3 3.5 Volts (V) 4 4.5 5 Figure 6-2. Supply Current vs Supply Voltage Output Low (LMV33x) 700 55 -40C 25C 85C 650 600 50 550 500 450 400 350 300 250 47.5 45 42.5 40 37.5 35 32.5 200 30 150 27.5 100 0 5 10 15 -40C 25C 85C 52.5 Input Bias Current (nA) Output Voltage (mV) 95 90 85 80 75 70 65 60 55 50 45 40 35 30 25 20 25 30 35 Output Current (mA) 40 45 50 Figure 6-3. Output Voltage vs Output Current 25 2.4 2.7 3 3.3 3.6 3.9 4.2 4.5 Supply Voltage (V) 4.8 5.1 5.4 5.7 Figure 6-4. Input Bias Current vs Supply Voltage Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 7 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 310 176.1 175.8 305 175.2 295 174.9 Time (ns) Time (ns) 175.5 300 290 285 174 173.4 275 173.1 270 172.8 265 172.5 0 10 20 30 40 50 60 Overdrive (mV) 70 80 90 0 100 Figure 6-5. Response Time vs Input Overdrives Negative Transition (VCC=5 V) 648 189 645 188.7 642 188.4 639 188.1 636 187.8 633 630 627 10 20 30 40 50 60 Overdrive (mV) 70 80 90 100 Figure 6-6. Response Time vs Input Overdrives Positive Transition (VCC = 5 V) Time (ns) Time (ns) 174.3 173.7 280 187.5 187.2 186.9 624 186.6 621 186.3 618 186 615 185.7 185.4 612 0 10 20 30 40 50 60 Overdrive (mV) 70 80 90 100 Figure 6-7. Response Time vs Input Overdrives Negative Transition (VCC = 2.7 V) 8 174.6 0 10 20 30 40 50 60 Overdrive (mV) 70 80 90 100 Figure 6-8. Response Time vs Input Overdrives Positive Transition (VCC = 2.7 V) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 7 Detailed Description 7.1 Overview The LMV331, LMV393 and LMV339 family of comparators have the ability to operate up to 5 V on the supply pin. This standard device has proven ubiquity and versatility across a wide range of applications. This is due to it's low Iq and fast response. The open-drain output allows the user to configure the output's logic low voltage (VOL) and can be utilized to enable the comparator to be used in AND functionality. 7.2 Functional Block Diagram VCC+ Q6 Q7 Q8 OUT IN+ Q1 Q2 Q3 Q4 Q5 Q9 IN− R1 R3 R2 GND 7.3 Feature Description The LMV331, LMV393 and LMV339 consists of a PNP input, whose Vbe creates a limit on the input common mode voltage capability, allowing LMV33x to accurately function from ground to VCC–Vbe(~700mV) differential input. This enables much head room for modern day supplies of 3.3 V and 5.0 V. The output consists of an open drain NPN (pull-down or low side) transistor. The output NPN will sink current when the positive input voltage is higher than the negative input voltage and the offset voltage. The VOL is resistive and will scale with the output current. Please see Figure 6-3 for VOL values with respect to the output current. 7.4 Device Functional Modes 7.4.1 Voltage Comparison The LMV33x operates solely as a voltage comparator, comparing the differential voltage between the positive and negative pins and outputs a logic low or high impedance (logic high with pull-up) based on the input differential polarity. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 9 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 8 Application and Implementation Note Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 8.1 Application Information LMV331, LMV393, and LMV339 will typically be used to compare a single signal to a reference or two signals against each other. Many users take advantage of the open drain output to drive the comparison logic output to a logic voltage level to an MCU or logic device. The wide supply range and high voltage capability makes LMV331, LMV393, and LMV33 optimal for level shifting to a higher or lower voltage. 8.2 Typical Application VLOGIC VLOGIC VSUP Vin VSUP Rpullup + Vin+ LMV33x Rpullup + LMV33x Vin- Vref CL CL Figure 8-1. Typical Application Schematic 8.2.1 Design Requirements For this design example, use the parameters listed in Table 8-1 as the input parameters. Table 8-1. Design Parameters DESIGN PARAMETER EXAMPLE VALUE Input Voltage Range 0 V to 4.2 V Supply Voltage 2.7 V to 5V Logic Supply Voltage (RPULLUP Voltage) 1 V to 5 V Output Current (VLOGIC/RPULLUP) 1 µA to 20 mA Input Overdrive Voltage 100 mV Reference Voltage 2.5 V Load Capacitance (CL) 15 pF 8.2.2 Detailed Design Procedure When using LMV331, LMV393, and LMV33 in a general comparator application, determine the following: • • • • 10 Input Voltage Range Minimum Overdrive Voltage Output and Drive Current Response Time Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 8.2.2.1 Input Voltage Range When choosing the input voltage range, the input common mode voltage range (VICR) must be taken in to account. If operating temperature is above or below 25°C the VICR can range from 0 V to VCC– 0.7 V. This limits the input voltage range to as high as VCC– 0.7 V and as low as 0 V. Operation outside of this range can yield incorrect comparisons. Below is a possible list of input voltage situation and their outcomes: 1. When both IN- and IN+ are both within the common mode range: a. If IN- is higher than IN+ and the offset voltage, the output is low and the output transistor is sinking current b. If IN- is lower than IN+ and the offset voltage, the output is high impedance and the output transistor is not conducting 2. When IN- is higher than common mode and IN+ is within common mode, the output is low and the output transistor is sinking current 3. When IN+ is higher than common mode and IN- is within common mode, the output is high impedance and the output transistor is not conducting 4. When IN- and IN+ are both higher than common mode, the output is low and the output transistor is sinking current 8.2.2.2 Minimum Overdrive Voltage Overdrive Voltage is the differential voltage produced between the positive and negative inputs of the comparator over the offset voltage (VIO). In order to make an accurate comparison; the Overdrive Voltage (VOD) should be higher than the input offset voltage (VIO). Overdrive voltage can also determine the response time of the comparator, with the response time decreasing with increasing overdrive. Figure 8-2 show positive and negative response times with respect to overdrive voltage. 8.2.2.3 Output and Drive Current Output current is determined by the pull-up resistance (Rpullup) and Vlogic voltage, refer to Figure 8-1. The output current will produce a output low voltage (VOL) from the comparator. In which VOL is proportional to the output current. Use Figure 6-3 to determine VOL based on the output current. The output current can also effect the transient response. More will be explained in the next section. 8.2.2.4 Response Time The transient response can be determined by the load capacitance (CL), load/pull-up resistance (RPULLUP) and equivalent collector-emitter resistance (RCE). • • The positive response time (τp) is approximately τP ~ RPULLUP × CL The negative response time (τN) is approximately τN ~ RCE × CL – RCE can be determine by taking the slope of Figure 6-3 in it's linear region at the desired temperature, or by dividing the VOL by Iout 8.2.3 Application Curves The following curves were generated with 5 V on VCC and VLogic, RPULLUP = 5.1 kΩ, and 50 pF scope probe. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 11 LMV331, LMV393, LMV339 www.ti.com Voltage (V) SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 6 5.5 5 4.5 4 3.5 3 2.5 2 1.5 1 0.5 0 -0.5 -1 0.2 5mV OD 20mV OD 100mV OD 0.22 0.24 0.26 0.28 0.3 0.32 0.34 0.36 0.38 Time (uS) 0.4 Figure 8-2. Response Time for Various Overdrives (Negative Transition) 9 Power Supply Recommendations For fast response and comparison applications with noisy or AC inputs, it is recommended to use a bypass capacitor on the supply pin to reject any variation on the supply voltage. This variation cause temporary fluctuations in the comparator's input common mode range and create an inaccurate comparison. 10 Layout 10.1 Layout Guidelines For accurate comparator applications without hysteresis it is important maintain a stable power supply with minimized noise and glitches, which can affect the high level input common mode voltage range. In order to achieve this, it is best to add a bypass capacitor between the supply voltage and ground. This should be implemented on the positive power supply and negative supply (if available). If a negative supply is not being used, do not put a capacitor between the IC's GND pin and system ground. 10.2 Layout Example Ground Bypass Capacitor 0.1 μF Negative Supply or Ground Only needed for dual power supplies IN– 1 GND IN+ 3 5 V CC 4 OUT Positive Supply 2 0.1 μF Ground Figure 10-1. LMV331 Layout Example 12 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 LMV331, LMV393, LMV339 www.ti.com SLCS136U – AUGUST 1999 – REVISED OCTOBER 2020 11 Device and Documentation Support 11.1 Related Links The table below lists quick access links. Categories include technical documents, support and community resources, tools and software, and quick access to sample or buy. Table 11-1. Related Links PARTS PRODUCT FOLDER SAMPLE & BUY TECHNICAL DOCUMENTS TOOLS & SOFTWARE SUPPORT & COMMUNITY LMV331 Click here Click here Click here Click here Click here LMV393 Click here Click here Click here Click here Click here LMV339 Click here Click here Click here Click here Click here 11.2 Trademarks All other trademarks are the property of their respective owners. 11.3 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 11.4 Glossary TI Glossary This glossary lists and explains terms, acronyms, and definitions. 12 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: LMV331 LMV393 LMV339 13 PACKAGE OPTION ADDENDUM www.ti.com 14-Oct-2022 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) Samples (4/5) (6) LMV331IDBVR ACTIVE SOT-23 DBV 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R1IF, R1IK) Samples LMV331IDBVRE4 ACTIVE SOT-23 DBV 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R1IF, R1IK) Samples LMV331IDBVRG4 ACTIVE SOT-23 DBV 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R1IF, R1IK) Samples LMV331IDBVT ACTIVE SOT-23 DBV 5 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R1IF, R1IK) Samples LMV331IDBVTG4 ACTIVE SOT-23 DBV 5 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R1IF, R1IK) Samples LMV331IDCKR ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU | NIPDAUAG Level-1-260C-UNLIM -40 to 125 (R2F, R2K, R2R) Samples LMV331IDCKRE4 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R2F, R2K, R2R) Samples LMV331IDCKRG4 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R2F, R2K, R2R) Samples LMV331IDCKT ACTIVE SC70 DCK 5 250 RoHS & Green NIPDAU | NIPDAUAG Level-1-260C-UNLIM -40 to 125 (R2C, R2F, R2R) Samples LMV331IDCKTE4 ACTIVE SC70 DCK 5 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R2C, R2F, R2R) Samples LMV331IDCKTG4 ACTIVE SC70 DCK 5 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R2C, R2F, R2R) Samples LMV339ID ACTIVE SOIC D 14 50 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LMV339I Samples LMV339IDR ACTIVE SOIC D 14 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LMV339I Samples LMV339IPW ACTIVE TSSOP PW 14 90 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV339I Samples LMV339IPWR ACTIVE TSSOP PW 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV339I Samples LMV339IPWRG4 ACTIVE TSSOP PW 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV339I Samples LMV339IRUCR ACTIVE QFN RUC 14 3000 RoHS & Green NIPDAUAG Level-1-260C-UNLIM -40 to 125 (RT, RTR) Samples LMV393ID ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV393I Samples LMV393IDDUR ACTIVE VSSOP DDU 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 RABR Samples LMV393IDGKR ACTIVE VSSOP DGK 8 2500 RoHS & Green NIPDAU | NIPDAUAG Level-1-260C-UNLIM -40 to 125 (R9B, R9Q, R9R) Samples Addendum-Page 1 PACKAGE OPTION ADDENDUM www.ti.com 14-Oct-2022 Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) Samples (4/5) (6) LMV393IDGKRG4 ACTIVE VSSOP DGK 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 (R9B, R9Q, R9R) Samples LMV393IDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 125 MV393I Samples LMV393IDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV393I Samples LMV393IPW ACTIVE TSSOP PW 8 150 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV393I Samples LMV393IPWG4 ACTIVE TSSOP PW 8 150 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV393I Samples LMV393IPWR ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV393I Samples LMV393IPWRG4 ACTIVE TSSOP PW 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 MV393I Samples (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
