LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
LMZ23605 5-A SIMPLE SWITCHER® Power Module With 36-V Maximum Input Voltage
1
1 Features
•
•
•
•
•
•
•
•
•
•
•
Integrated Shielded Inductor
Simple PCB Layout
Frequency Synchronization Input (650 kHz to 950
kHz)
Flexible Start-up Sequencing Using External SoftStart, Tracking and Precision Enable
Protection Against Inrush Currents and Faults
such as Input UVLO and Output Short Circuit
Junction Temperature Range –40°C to +125°C
Single Exposed Pad and Standard Pinout for Easy
Mounting and Manufacturing
Fast Transient Response for Powering FPGAs
and ASICs
Fully Enabled for WEBENCH® Power Designer
Pin Compatible With
LMZ22005/LMZ23603/LMZ22003
Performance Benefits
– High Efficiency Reduces System Heat
Generation
– Tested to EN55022 Class B
– See SNVA473 and Layout for Information
on Device Under Test.
– Vin = 24 V Vo = 3.3 V Io = 5 A
NOTE: EN 55022:2006, +A1:2007, FCC Part 15 Subpart B: 2007.
•
– Low Component Count, only 5 External
Components
– Low Output Voltage Ripple
– Uses PCB as Heat Sink, no Airflow Required
Electrical Specifications
– 30-W Maximum Total Output Power
– Up to 5-A Output Current
– Input Voltage Range 6 V to 36 V
– Output Voltage Range 0.8 V to 6 V
– Efficiency up to 92%
Simplified Application Schematic
2 Applications
•
•
•
•
Point-of-load Conversions from 12-V and 24-V
Input Rail
Time-Critical Projects
Space Constrained / High Thermal Requirement
Applications
Negative Output Voltage Applications See
SNVA425
3 Description
The LMZ23605 SIMPLE SWITCHER® power module
is an easy-to-use step-down DC – DC solution
capable of driving up to 5-A load. The LMZ23605 is
available in an innovative package that enhances
thermal performance and allows for hand or machine
soldering.
The LMZ23605 can accept an input voltage rail
between 6 V and 36 V and can deliver an adjustable
and highly accurate output voltage as low as 0.8 V.
The LMZ23605 only requires two external resistors
and three external capacitors to complete the power
solution. The LMZ23605 is a reliable and robust
design with the following protection features: thermal
shutdown, programmable input undervoltage lockout,
output overvoltage protection, short circuit protection,
output current limit, and the device allows start-up
into a prebiased output. The sync input allows
synchronization over the 650- to 950-kHz switching
frequency range.
Device Information(1)(2)
PART NUMBER
PACKAGE

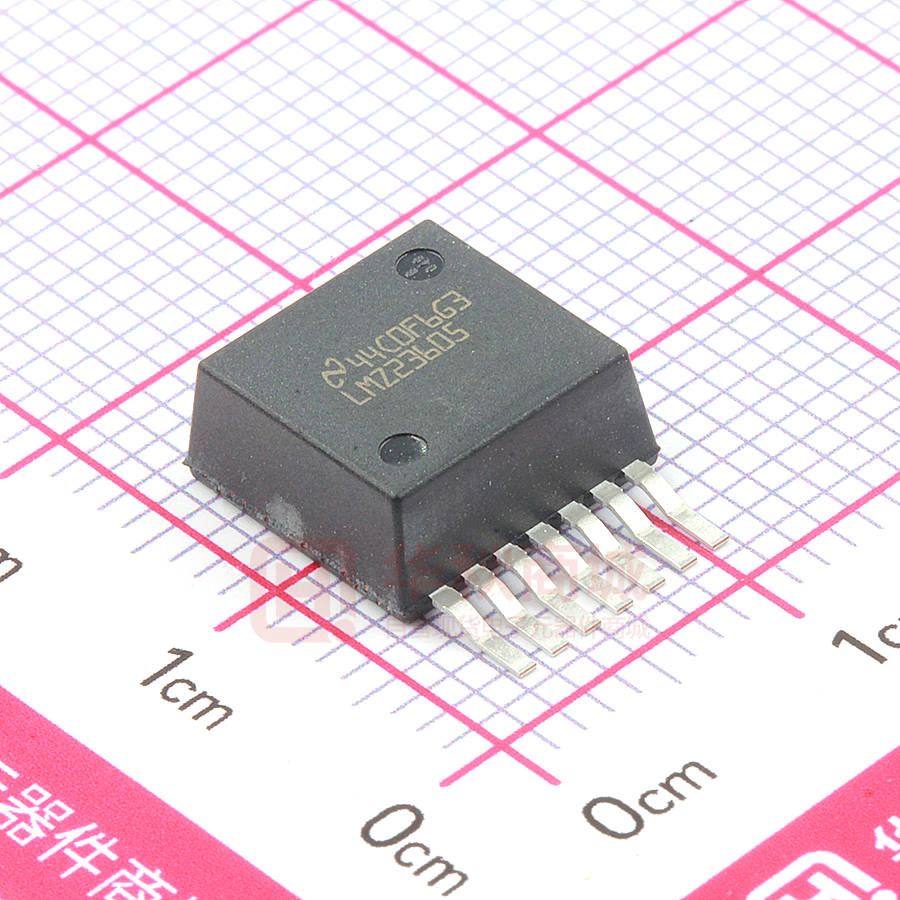

LMZ23605
NDW (7)
BODY SIZE (NOM)
10.16 mm × 9.85 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
(2) Peak reflow temperature equals 245°C. See SNAA214 for
more details.
Efficiency 5-V Output at 25°C Ambient
100
VOUT @ 5A
RFBT
Enable
See Table
CIN
CSS
RFBB
22 PF
0.47 PF
See Table
EFFICIENCY (%)
90
VOUT
SS/TRK
FB
AGND
PGND
EN
VIN
VIN
SYNC
LMZ23605
80
70
60
9 VIn
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
50
Co
220 PF
40
0
1
2
3
4
OUTPUT CURRENT (A)
5
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
3
6.1
6.2
6.3
6.4
6.5
6.6
3
3
4
4
4
6
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
Detailed Description ............................................ 14
7.1
7.2
7.3
7.4
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
14
14
14
16
8
Application and Implementation ........................ 17
8.1 Application Information............................................ 17
8.2 Typical Application ................................................. 17
9 Power Supply Recommendations...................... 22
10 Layout................................................................... 22
10.1
10.2
10.3
10.4
Layout Guidelines .................................................
Layout Examples...................................................
Power Dissipation and Thermal Considerations ...
Power Module SMT Guidelines ............................
22
23
24
25
11 Device and Documentation Support ................. 26
11.1
11.2
11.3
11.4
11.5
11.6
Device Support......................................................
Documentation Support ........................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
26
26
26
26
26
26
12 Mechanical, Packaging, and Orderable
Information ........................................................... 27
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision H (October 2013) to Revision I
Page
•
Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional
Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1
•
Removed Easy-To-Use PFM 7-Pin Package image ............................................................................................................. 1
Changes from Revision G (December 2012) to Revision H
Page
•
Deleted 10 mil......................................................................................................................................................................... 4
•
Changed 10 mil .................................................................................................................................................................... 22
•
Changed 10 mil .................................................................................................................................................................... 25
•
Added Power Module SMT Guidelines................................................................................................................................. 25
2
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
5 Pin Configuration and Functions
NDW Package
7-Pin
Top View
PGND/EP
Connect to AGND
VOUT
SS/TRK
FB
AGND
EN
SYNC
VIN
7
6
5
4
3
2
1
Pin Functions
PIN
I/O
DESCRIPTION
NAME
NO.
AGND
4
Ground
Analog Ground — Reference point for all stated voltages. Must be externally connected to PGND (EP).
EN
3
Analog
Enable — Input to the precision enable comparator. Rising threshold is 1.279 V typical. Once the module
is enabled, a 21-µA source current is internally activated to facilitate programmable hysteresis.
FB
5
Analog
Feedback — Internally connected to the regulation amplifier, over-voltage comparators. The regulation
reference point is 0.796V at this input pin. Connect the feedback resistor divider between the output and
AGND to set the output voltage.
PGND
—
Ground
Exposed Pad / Power Ground Electrical path for the power circuits within the module. — NOT Internally
connected to AGND / pin 4. Used to dissipate heat from the package during operation. Must be electrically
connected to pin 4 external to the package.
SS/TRK
6
Analog
Soft-Start/Track — To extend the 1.6-ms internal soft-start connect an external soft-start capacitor. For
tracking connect to an external resistive divider connected to a higher priority supply rail.
SYNC
2
Analog
Sync Input — Apply a CMOS logic level square wave whose frequency is between 650 kHz and 950 kHz
to synchronize the PWM operating frequency to an external frequency source. When not using
synchronization connect to ground. The module free running PWM frequency is 812 kHz (typical).
VIN
1
Power
Supply input — Nominal operating range is 6 V to 36 V. A small amount of internal capacitance is
contained within the package assembly. Additional external input capacitance is required between this pin
and exposed pad (PGND).
VOUT
7
Power
Output Voltage — Output from the internal inductor. Connect the output capacitor between this pin and
exposed pad.
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1) (2)
MIN
MAX
UNIT
VIN to PGND
–0.3
40
V
EN, SYNC to AGND
–0.3
5.5
V
SS/TRK, FB to AGND
–0.3
2.5
V
AGND to PGND
–0.3
0.3
V
150
°C
245
°C
150
°C
Junction temperature
Peak reflow case temperature (30 sec)
Storage temperature, Tstg
(1)
(2)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
For soldering specifications, refer to the following document: SNOA549
6.2 ESD Ratings
V(ESD)
(1)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
VALUE
UNIT
±2000
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
3
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
VIN
6
36
EN, SYNC
0
5
V
−40
125
°C
Operation junction temperature
UNIT
V
6.4 Thermal Information
LMZ23605
THERMAL METRIC (1)
NDW
UNIT
7 PINS
RθJA
Junction-to-ambient thermal
resistancet (2)
RθJC(top)
(1)
(2)
4-layer Evaluation Printed-Circuit-Board, 60 vias, No air
flow
12
2-layer JEDEC Printed-Circuit-Board, No air flow
°C/W
21.5
Junction-to-case (top) thermal resistance
1.9
°C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
RθJA measured on a 3.5-in × 3.5-in 4-layer board, with 3-oz. copper on outer layers and 2-oz. copper on inner layers, sixty thermal vias,
no air flow, and 1-W power dissipation. Refer to application note layout diagrams.
6.5 Electrical Characteristics
Limits in standard type are for TJ = 25°C unless otherwise specified. Minimum and maximum limits are ensured through test,
design or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for
reference purposes only. Unless otherwise stated the following conditions apply: VIN = 12 V, VOUT = 3.3 V
PARAMETER
MIN (1)
TEST CONDITIONS
TYP (2)
MAX (1)
UNIT
SYSTEM PARAMETERS
ENABLE CONTROL
1.279
VEN
EN threshold trip point
VEN rising
VEN-HYS
EN input hysteresis
current
VEN > 1.279 V
ISS
SS source current
VSS = 0 V
tSS
Internal soft-start interval
over the junction temperature
(TJ) range of –40°C to +125°C
1.1
V
1.458
–21
µA
50
µA
SOFT-START
over the junction temperature
(TJ) range of –40°C to +125°C
40
60
1.6
ms
CURRENT LIMIT
ICL
Current limit threshold
DC average
over the junction temperature
(TJ) range of –40°C to +125°C
5.4
A
INTERNAL SWITCHING OSCILLATOR
fosc
Free-running oscillator
frequency
fsync
Synchronization range
VIL-sync
Synchronization logic zero
amplitude
Relative to AGND
over the junction temperature
(TJ) range of –40°C to +125°C
VIH-sync
Synchronization logic one
amplitude
Relative to AGND.
over the junction temperature
(TJ) range of –40°C to +125°C
Sync DC
Synchronization duty cycle
range
Dmax
Maximum Duty Factor
(1)
(2)
4
711
Sync input connected to ground.
812
650
914
kHz
950
kHz
0.4
V
1.5
15%
V
50%
85%
83%
Minimum and Maximum limits are 100% production tested at 25°C. Limits over the operating temperature range are ensured through
correlation using Statistical Quality Control (SQC) methods. Limits are used to calculate Average Outgoing Quality Level (AOQL).
Typical numbers are at 25°C and represent the most likely parametric norm.
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Electrical Characteristics (continued)
Limits in standard type are for TJ = 25°C unless otherwise specified. Minimum and maximum limits are ensured through test,
design or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for
reference purposes only. Unless otherwise stated the following conditions apply: VIN = 12 V, VOUT = 3.3 V
PARAMETER
MIN (1)
TEST CONDITIONS
TYP (2)
MAX (1)
UNIT
REGULATION AND OVERVOLTAGE COMPARATOR
VFB
In-regulation feedback
voltage
VSS >+ 0.8 V
IO = 5 A
VFB-OV
Feedback overvoltage
protection threshold
IFB
Feedback input bias
current
IQ
Non-switching input
current
VFB= 0.86 V
ISD
Shutdown quiescent
current
VEN= 0 V
0.796
over the junction temperature
(TJ) range of –40°C to +125°C
0.776
V
0.816
0.86
V
5
nA
2.6
mA
70
μA
165
°C
15
°C
9
mVPP
THERMAL CHARACTERISTICS
TSD
Thermal shutdown
TSD-HYST
Thermal shutdown
hysteresis
Rising
Falling
PERFORMANCE PARAMETERS (3)
ΔVO
Output voltage ripple
Cout = 220 uF with 7 mΩ ESR + 100 uF X7R + 2 x
0.047 uF BW at 20 MHz
ΔVO/ΔVIN
Line regulation
VIN = 12 V to 36 V, IO= 0.001 A
ΔVO/ΔIOUT
Load regulation
VIN = 12 V, IO= 0.001 A to 5 A
η
Peak efficiency
η
Full load efficiency
(3)
±0.02%
1
VIN = 12 V VO = 3.3 V, IO = 1 A
86%
VIN = 24 V VO = 3.3 V, IO = 2 A
80%
VIN = 12 V VO = 3.3 V, IO = 5 A
81.5%
VIN = 24 V VO = 3.3 V, IO = 5 A
76%
mV/A
Refer to BOM in Table 1.
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
5
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
6.6 Typical Characteristics
100
7
90
6
DISSIPATION (W)
EFFICIENCY (%)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
80
70
10 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
60
50
1
2
3
4
OUTPUT CURRENT (A)
3
2
5
Figure 1. Efficiency 6-V Output at 25°C Ambient
0
7
90
6
80
70
60
9 VIn
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
50
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 2. Dissipation 6-V Output at 25°C Ambient
100
DISSIPATION (W)
EFFICIENCY (%)
4
0
0
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
5
4
3
2
1
40
0
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 3. Efficiency 5-V Output at 25°C Ambient
0
7
90
6
80
70
60
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
50
40
0
1
2
3
4
OUTPUT CURRENT (A)
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 4. Dissipation 5-V Output at 25°C Ambient
100
DISSIPATION (W)
EFFICIENCY (%)
5
1
40
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
5
4
3
2
1
0
5
Figure 5. Efficiency 3.3-V Output at 25°C Ambient
6
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
10 Vin
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 6. Dissipation 3.3-V Output at 25°C Ambient
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Typical Characteristics (continued)
90
7
80
6
DISSIPATION (W)
EFFICIENCY (%)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
70
60
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
50
40
30
0
1
2
3
4
OUTPUT CURRENT (A)
3
2
0
5
0
7
80
6
70
60
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin*
30
0
1
2
3
4
OUTPUT CURRENT (A)
36 Vin*
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
5
4
3
2
0
5
0
7
DISSIPATION (W)
55
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin*
36 Vin*
1
2
3
4
OUTPUT CURRENT (A)
5
4
3
2
1
0
25
0
5
36 Vin*
30 Vin*
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
6
75
65
1
2
3
4
OUTPUT CURRENT (A)
Figure 10. Dissipation 1.8-V Output at 25°C Ambient
85
35
5
1
Figure 9. Efficiency 1.8-V Output at 25°C Ambient
45
1
2
3
4
OUTPUT CURRENT (A)
Figure 8. Dissipation 2.5-V Output at 25°C Ambient
DISSIPATION (W)
EFFICIENCY (%)
4
90
40
EFFICIENCY (%)
5
1
Figure 7. Efficiency 2.5-V Output at 25°C Ambient
50
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
5
Figure 11. Efficiency 1.5-V Output at 25°C Ambient
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 12. Dissipation 1.5-V Output at 25°C Ambient
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
7
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
Typical Characteristics (continued)
80
7
70
6
DISSIPATION (W)
EFFICIENCY (%)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
60
50
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin*
36 Vin*
40
30
20
0
1
2
3
4
OUTPUT CURRENT (A)
2
0
5
0
70
6
60
50
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin*
30 Vin*
36 Vin*
0
1
2
3
4
OUTPUT CURRENT (A)
4
3
2
0
5
0
6
DISSIPATION (W)
60
50
40
6 Vin
9 Vin
12 Vin
20 Vin*
24 Vin*
30 Vin*
36 Vin*
0
1
2
3
4
OUTPUT CURRENT (A)
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 16. Dissipation 1-V Output at 25°C Ambient
7
10
36 Vin*
30 Vin*
24 Vin*
20 Vin
12 Vin
9 VIn
6 Vin
5
70
20
5
1
Figure 15. Efficiency 1-V Output at 25°C Ambient
30
1
2
3
4
OUTPUT CURRENT (A)
Figure 14. Dissipation 1.2-V Output at 25°C Ambient
DISSIPATION (W)
EFFICIENCY (%)
3
7
20
EFFICIENCY (%)
4
80
30
36 Vin*
30 Vin*
24 Vin*
20 Vin*
12 Vin
9 Vin
6 Vin
5
4
3
2
1
0
5
Figure 17. Efficiency 0.8-V Output at 25°C Ambient
8
5
1
Figure 13. Efficiency 1.2-V Output at 25°C Ambient
40
36 Vin*
30 Vin*
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 18. Dissipation 0.8-V Output at 25°C Ambient
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Typical Characteristics (continued)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
100
8
DISSIPATION (W)
EFFICIENCY (%)
90
80
70
60
10 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
50
5
4
3
2
0
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 19. Efficiency 6-V Output at 85°C Ambient
0
8
DISSIPATION (W)
90
70
60
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
50
5
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
7
80
1
2
3
4
OUTPUT CURRENT (A)
Figure 20. Dissipation 6-V Output at 85°C Ambient
100
EFFICIENCY (%)
6
1
40
6
5
4
3
2
1
40
0
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 21. Efficiency 5-V Output at 85°C Ambient
0
8
DISSIPATION (W)
60
50
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
40
30
0
1
2
3
4
OUTPUT CURRENT (A)
5
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
7
80
70
1
2
3
4
OUTPUT CURRENT (A)
Figure 22. Dissipation 5-V Output at 85°C Ambient
90
EFFICIENCY (%)
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
10 Vin
7
6
5
4
3
2
1
0
5
Figure 23. Efficiency 3.3-V Output at 85°C Ambient
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 24. Dissipation 3.3-V Output at 85°C Ambient
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
9
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
Typical Characteristics (continued)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
90
8
DISSIPATION (W)
EFFICIENCY (%)
80
70
60
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
50
40
1
2
3
4
OUTPUT CURRENT (A)
4
3
2
5
Figure 25. Efficiency 2.5-V Output at 85°C Ambient
0
8
DISSIPATION (W)
80
60
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin*
50
40
30
0
1
2
3
4
OUTPUT CURRENT (A)
6
5
4
3
2
1
0
5
Figure 27. Efficiency 1.8-V Output at 85°C Ambient
0
8
DISSIPATION (W)
50
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin*
36 Vin*
30
20
0
1
2
3
4
OUTPUT CURRENT (A)
5
36 Vin*
30 Vin*
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
7
70
60
1
2
3
4
OUTPUT CURRENT (A)
Figure 28. Dissipation 1.8-V Output at 85°C Ambient
80
40
5
36 Vin*
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
7
70
1
2
3
4
OUTPUT CURRENT (A)
Figure 26. Dissipation 2.5-V Output at 85°C Ambient
90
EFFICIENCY (%)
5
0
0
EFFICIENCY (%)
6
1
30
6
5
4
3
2
1
0
5
Figure 29. Efficiency 1.5-V Output at 85°C Ambient
10
36 Vin
30 Vin
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
7
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 30. Dissipation 1.5-V Output at 85°C Ambient
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Typical Characteristics (continued)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
80
8
DISSIPATION (W)
EFFICIENCY (%)
70
60
50
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin*
36 Vin*
40
30
20
0
1
2
3
4
OUTPUT CURRENT (A)
6
5
4
3
2
1
0
5
Figure 31. Efficiency 1.2-V Output at 85°C Ambient
0
8
DISSIPATION (W)
65
45
6 Vin
9 Vin
12 Vin
20 Vin
24 Vin*
30 Vin*
36 Vin*
35
25
1
2
3
4
OUTPUT CURRENT (A)
6
5
4
3
2
1
0
15
0
5
Figure 33. Efficiency 1-V Output at 85°C Ambient
0
8
DISSIPATION (W)
EFFICIENCY (%)
60
6 Vin
9 Vin
12 Vin
20 Vin*
24 Vin*
30 Vin*
36 Vin*
30
20
0
1
2
3
4
OUTPUT CURRENT (A)
5
36 Vin*
30 Vin*
24 Vin*
20 Vin*
12 Vin
9 Vin
6 Vin
7
50
1
2
3
4
OUTPUT CURRENT (A)
Figure 34. Dissipation 1-V Output at 85°C Ambient
70
40
5
36 Vin*
30 Vin*
24 Vin*
20 Vin
12 Vin
9 Vin
6 Vin
7
55
1
2
3
4
OUTPUT CURRENT (A)
Figure 32. Dissipation 1.2-V Output at 85°C Ambient
75
EFFICIENCY (%)
36 Vin*
30 Vin*
24 Vin
20 Vin
12 Vin
9 Vin
6 Vin
7
6
5
4
3
2
1
0
5
Figure 35. Efficiency 0.8-V Output at 85°C Ambient
0
1
2
3
4
OUTPUT CURRENT (A)
5
Figure 36. Dissipation 0.8-V Output at 85°C Ambient
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
11
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
Typical Characteristics (continued)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
6
MAXIMUM OUTPUT CURRENT (A)
MAXIMUM OUTPUT CURRENT (A)
6
5
4
3
2
1
JA=12°C/W
0
5
4
3
2
1
JA = 12 °C/W
0
30 40 50 60 70 80 90 100 110 120 130
AMBIENT TEMPERATURE (°C)
VIN = 12 V, VOUT = 5 V
30 40 50 60 70 80 90 100 110 120 130
TEMPERATURE (°C)
VIN= 12 V, VOUT = 3.3 V
Figure 37. Thermal Derating
Figure 38. Thermal Derating
6
MAXCIMUM OUTPUT CURRENT (A)
MAXIMUM OUTPUT CURRENT (A)
6
5
4
3
2
1
JA=12°C/W
0
30 40 50 60 70 80 90 100 110 120 130
AMBIENT TEMPERATURE (°C)
VIN = 24 V, VOUT = 5 V
NORMALLIZED OUTPUT VOLTAGE (V/V)
4
3
2
1
JA=12°C/W
0
30 40 50 60 70 80 90 100 110 120 130
AMBIENT TEMPERATURE (°C)
VIN = 24 V, VOUT = 3.3 V
Figure 39. Thermal Derating
Figure 40. Thermal Derating
1.002
1.001
1.000
9 Vin
12 Vin
20 Vin
24 Vin
30 Vin
36 Vin
0.999
0.998
0
1
2
3
4
OUTPUT CURRENT (A)
10 mV/Div
500 ns/Div
5
12 VIN 3.3 VO at 5 A, BW = 20 MHz
VOUT = 3.3 V
Figure 41. Normalized Line and Load Regulation
12
5
Submit Documentation Feedback
Figure 42. Output Ripple
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Typical Characteristics (continued)
Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = 2 x 10 μF + 1-μF X7R Ceramic; CO = 220 μF
Specialty Polymer + 10-µF Ceramic; TA = 25° C for waveforms. Efficiency and dissipation plots marked with * have cycle
skipping at light loads resulting in slightly higher Output ripple.
2A/Div
10 mV/Div
500 ns/Div
100 mV/Div
12 VIN 3.3 VOat 5 A BW = 250 MHz
500 µs/Div
12 VIN 3.3 VO0.5 to 5-A Step
Figure 43. Output ripple
Figure 44. Transient response
9
8
CURRENT (A)
7
6
Output Current
5
4
3
2
Input Current
1
0
0
4
8 12 16 20 24 28 32 36
INPUT VOLTAGE (V)
Figure 45. Short Circuit Current vs Input Voltage
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
13
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
7 Detailed Description
7.1 Overview
The architecture used is an internally compensated emulated peak current mode control, based on a monolithic
synchronous SIMPLE SWITCHER core capable of supporting high load currents. The output voltage is
maintained through feedback compared with an internal 0.8-V reference. For emulated peak current-mode, the
valley current is sampled on the down-slope of the inductor current. This is used as the DC value of current to
start the next cycle.
The primary application for emulated peak current-mode is high input voltage to low output voltage operating at a
narrow duty cycle. By sampling the inductor current at the end of the switching cycle and adding an external
ramp, the minimum ON-time can be significantly reduced, without the need for blanking or filtering which is
normally required for peak current-mode control.
7.2 Functional Block Diagram
Linear
Regulator
2M
VIN
1
3
3
CIN
EN
CBST
CINint
1
SYNC
CSS
2
800 kHz
PWM
SS/TRK
3.3 uH VOUT
VREF
3
RFBT
CO
FB
1
2
Comp
RFBB
AGND
Regulator IC
EP/
PGND
Internal Passives
7.3 Feature Description
7.3.1 Synchronization Input
The PWM switching frequency can be synchronized to an external frequency source. If this feature is not used,
connect this input either directly to ground, or connect to ground through a resistor of 1.5 kΩ or less. The allowed
synchronization frequency range is 650 kHz to 950 kHz. The typical input threshold is 1.4-V transition level.
Ideally the input clock must overdrive the threshold by a factor of 2, so direct drive from 3.3-V logic through a 1.5kΩ Thevenin source resistance is recommended.
NOTE
Applying a sustained logic 1 corresponds to zero hertz PWM frequency and will cause the
module to stop switching.
7.3.2 Output Overvoltage Protection
If the voltage at FB is greater than a 0.86-V internal reference, the output of the error amplifier is pulled toward
ground, causing VO to fall.
14
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Feature Description (continued)
7.3.3 Current Limit
The LMZ23605 is protected by both low-side (LS) and high-side (HS) current limit circuitry. The LS current limit
detection is carried out during the OFF-time by monitoring the current through the LS synchronous MOSFET.
Referring to the Functional Block Diagram, when the top MOSFET is turned off, the inductor current flows
through the load, the PGND pin and the internal synchronous MOSFET. If this current exceeds 5.4 A (typical) the
current limit comparator disables the start of the next switching period. Switching cycles are prohibited until
current drops below the limit. DC current limit is dependent on both duty cycle as illustrated in the graph in the
Typical Characteristics section. The HS current limit monitors the current of top side MOSFET. Once HS current
limit is detected (7 A typical) , the HS MOSFET is shut off immediately, until the next cycle. Exceeding HS
current limit causes VO to fall. Typical behavior of exceeding LS current limit is that fSW drops to 1/2 of the
operating frequency.
7.3.4 Thermal Protection
The junction temperature of the LMZ23605 must not be allowed to exceed its maximum ratings. Thermal
protection is implemented by an internal Thermal Shutdown circuit which activates at 165°C (typical) causing the
device to enter a low power standby state. In this state the main MOSFET remains off causing VO to fall, and
additionally the CSS capacitor is discharged to ground. Thermal protection helps prevent catastrophic failures for
accidental device overheating. When the junction temperature falls back below 150°C (typical hysteresis = 15°C)
the SS pin is released, VO rises smoothly, and normal operation resumes.
Applications requiring maximum output current especially those at high input voltage may require additional
derating at elevated temperatures.
7.3.5 Prebiased Start-Up
The LMZ23605 will properly start up into a prebiased output. This start-up situation is common in multiple rail
logic applications where current paths may exist between different power rails during the start-up sequence.
Figure 46 shows proper behavior in this mode. Trace one is Enable going high. Trace two is 1.5-V prebias rising
to 3.3 V. Rise-time determined by CSS, trace three.
Figure 46. Prebiased Start-Up
7.3.6 Tracking Supply Divider Option
The tracking function allows the module to be connected as a slave supply to a primary voltage rail (often the
3.3-V system rail) where the slave module output voltage is lower than that of the master. Proper configuration
allows the slave rail to power up coincident with the master rail such that the voltage difference between the rails
during ramp-up is small (that is, < 0.15 V typical). The values for the tracking resistive divider must be selected
such that the effect of the internal 50-µA current source is minimized. In most cases the ratio of the tracking
divider resistors is the same as the ratio of the output voltage setting divider. Proper operation in tracking mode
dictates the soft-start time of the slave rail be shorter than the master rail; a condition that is easy satisfy
because the CSS cap is replaced by RTKB. The tracking function is only supported for the power up interval of the
master supply; once the SS/TRK rises past 0.8 V the input is no longer enabled and the 50-µA internal current
source is switched off.
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
15
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
Feature Description (continued)
3.3V Master
2.5Vout
Int VCC
50 PA
Rtkt
226
Rfbt
2.26k
SS/TRK
FB
Rtkb
107
Rfbb
1.07k
Figure 47. Tracking Option Input Detail
7.4 Device Functional Modes
7.4.1 Discontinuous Conduction and Continuous Conduction Modes
At light load the regulator will operate in discontinuous conduction mode (DCM). With load currents above the
critical conduction point, it will operate in continuous conduction mode (CCM). In CCM, current flows through the
inductor through the entire switching cycle and never falls to zero during the OFF-time. When operating in DCM,
inductor current is maintained to an average value equaling IOUT. Inductor current exhibits normal behavior for
the emulated current mode control method used. Output voltage ripple typically increases during this mode of
operation.
Figure 48 is a comparison pair of waveforms of the showing both CCM (upper) and DCM operating modes.
VIN = 12 V, VO = 3.3 V, IO = 3 A / 0.3 A 2 μs/div
Figure 48. CCM and DCM Operating Modes
16
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The LMZ23605 is a step-down DC-to-DC power module. It is typically used to convert a higher DC voltage to a
lower DC voltage with a maximum output current of 5 A. The following design procedure can be used to select
components for the LMZ23605. Alternately, the WEBENCH software may be used to generate complete designs.
When generating a design, the WEBENCH software uses iterative design procedure and accesses
comprehensive databases of components. Please go to www.ti.com for more details.
8.2 Typical Application
U1
7V to 36V
PGND/EP
VIN
Enable
VOUT
SS
3.3VO @ 5A
7
AGND
EN
FB
6
5
4
3
1
CIN6 OPT
150 PF
2
VIN
SYNC
LMZ23605TZ
+
RENT
42.2k
SYNC
D1 OPT
5.1V
RENB
12.7k
RENH OPT
100
CIN2,3
10 PF
CIN1,5
0.047 PF
RSNOPT
1.50 k:
RFBT
3.32k
CSS
0.47 PF
RFBB
1.07k
CO1,6
0.047 PF
RFRA OPT
23.7:
CO2
100 PF
OPT
+
CO5
220 PF
Figure 49. Typical Application Schematic
8.2.1 Design Requirements
For this example the following application parameters exist:
• VIN Range = Up to 36 V
• VOUT = 0.8 V to 6 V
• IOUT = 5 A
8.2.2 Detailed Design Procedure
8.2.2.1 Design Steps
The LMZ23605 is fully supported by WEBENCH which offers: component selection, electrical and thermal
simulations. Additionally there are both evaluation and demonstration boards that may be used as a starting point
for design. The following list of steps can be used to manually design the LMZ23605 application.
All references to values refer to the Figure 49.
1. Select minimum operating VIN with enable divider resistors
2. Program VO with resistor divider selection
3. Select CO
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
17
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
Typical Application (continued)
4. Select CIN
5. Determine module power dissipation
6. Layout PCB for required thermal performance
8.2.2.2 Enable Divider, RENT, RENB and RENH Selection
Internal to the module is a 2-MΩ pullup resistor connected from VIN to Enable. For applications not requiring
precision undervoltage lockout (UVLO), the Enable input may be left open circuit and the internal resistor will
always enable the module. In such case, the internal UVLO occurs typically at 4.3 V (VINrising).
In applications with separate supervisory circuits Enable can be directly interfaced to a logic source. In the case
of sequencing supplies, the divider is connected to a rail that becomes active earlier in the power-up cycle than
the LMZ23605 output rail.
Enable provides a precise 1.279-V threshold to allow direct logic drive or connection to a voltage divider from a
higher enable voltage such as VIN. Additionally there is 21 μA (typical) of switched offset current allowing
programmable hysteresis. See Figure 50.
The function of the enable divider is to allow the designer to choose an input voltage below which the circuit will
be disabled. This implements the feature of programmable UVLO. The two resistors must be chosen based on
the following ratio:
RENT / RENB = (VIN UVLO / 1.279 V) – 1
(1)
The LMZ23605 typical application shows 12.7 kΩ for RENB and 42.2 kΩ for RENT resulting in a rising UVLO of
5.46 V. This divider presents 8.33 V to the input when the divider is raised to 36 V which would exceed the
recommended 5.5-V limit for Enable. A midpoint 5.1-V Zener clamp is applied to allow the application to cover
the full 6 V to 36 V range of operation. The Zener clamp is not required if the target application prohibits the
maximum Enable input voltage from being exceeded.
Additional enable voltage hysteresis can be added with the inclusion of RENH. It is possible to select values for
RENT and RENB such that RENH is a value of zero allowing it to be omitted from the design.
Rising threshold can be calculated as follows:
VEN(rising) = 1.279 ( 1 + (RENT|| 2 meg)/ RENB)
(2)
Whereas the falling threshold level can be calculated using:
VEN(falling) = VEN(rising) – 21 µA ( RENT|| 2 meg || RENTB + RENH )
VIN
(3)
INT-VCC (5V)
21 PA
2.0M
RENT
42.2k
RENH
ENABLE
RUN
100:
5.1V
RENB
12.7k
1.279V
Figure 50. Enable input detail
18
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Typical Application (continued)
8.2.2.3 Output Voltage Selection
Output voltage is determined by a divider of two resistors connected between VO and ground. The midpoint of
the divider is connected to the FB input.
The regulated output voltage determined by the external divider resistors RFBT and RFBB is:
VO = 0.796 V × (1 + RFBT / RFBB)
(4)
Rearranging terms; the ratio of the feedback resistors for a desired output voltage is:
RFBT / RFBB = (VO / 0.796 V) - 1
(5)
These resistors must generally be chosen from values in the range of 1.0 kΩ to 10.0 kΩ.
For VO = 0.8 V the FB pin can be connected to the output directly and RFBB can be set to 8.06 kΩ to provide
minimum output load.
Table 1 lists the values for RFBT and RFBB.
Table 1. Typical Application Bill of Materials
REF DES
DESCRIPTION
CASE SIZE
MANUFACTURER
MANUFACTURER P/N
U1
SIMPLE SWITCHER
PFM-7
Texas Instruments
LMZ23605TZ
Cin1,5
0.047 µF, 50 V, X7R
1206
Yageo America
CC1206KRX7R9BB473
Cin2,3
10 µF, 50 V, X7R
1210
Taiyo Yuden
UMK325BJ106MM-T
Cin6 (OPT)
CAP, AL, 150 µF, 50 V
Radial G
Panasonic
EEE-FK1H151P
CO1,6
0.047 µF, 50 V, X7R
1206
Yageo America
CC1206KRX7R9BB473
CO2 (OPT)
100 µF, 6.3 V, X7R
1210
TDK
C3225X5R0J107M
CO5
220 μF, 6.3 V, SP-Cap
(7343)
Panasonic
EEF-UE0J221LR
RFBT
3.32 kΩ
0805
Panasonic
ERJ-6ENF3321V
RFBB
1.07 kΩ
0805
Panasonic
ERJ-6ENF1071V
RSN (OPT)
1.50 kΩ
0805
Vishay Dale
CRCW08051K50FKEA
ERJ-6ENF4222V
RENT
42.2 kΩ
0805
Panasonic
RENB
12.7 kΩ
0805
Panasonic
ERJ-6ENF1272V
RFRA(OPT)
23.7Ω
0805
Vishay Dale
CRCW080523R7FKEA
RENH (OPT)
100 Ω
0805
Vishay Dale
CRCW0805100RFKEA
CSS
0.47 μF, ±10%, X7R, 16 V
0805
AVX
0805YC474KAT2A
D1(OPT)
5.1V, 0.5 W
SOD-123
Diodes Inc.
MMSZ5231BS-7-F
8.2.2.4 Soft-Start Capacitor Selection
Programmable soft-start permits the regulator to slowly ramp to its steady-state operating point after being
enabled, thereby reducing current inrush from the input supply and slowing the output voltage rise-time.
Upon turnon, after all UVLO conditions have been passed, an internal 1.6-ms circuit slowly ramps the SS/TRK
input to implement internal soft-start. If 2 ms is an adequate turnon time then the Css capacitor can be left
unpopulated. Longer soft-start periods are achieved by adding an external capacitor to this input.
Soft-start duration is given by the formula:
tSS = VREF × CSS / Iss = 0.796 V × CSS / 50 µA
(6)
This equation can be rearranged as follows:
CSS = tSS × 50 μA / 0.796 V
(7)
Using a 0.22-μF capacitor results in 3.5 ms typical soft-start duration; and 0.47 μF results in 7.5 ms typical. 0.47
μF is a recommended initial value.
As the soft-start input exceeds 0.796 V the output of the power stage will be in regulation and the 50-μA current
is deactivated. The following conditions will reset the soft-start capacitor by discharging the SS input to ground
with an internal current sink.
• The Enable input being pulled low
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
19
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
•
•
www.ti.com
Thermal shutdown condition
Internal VCC UVLO (Approx 4.3-V input to VIN)
8.2.2.5 CO Selection
None of the required CO output capacitance is contained within the module. A minimum value of 200 μF is
required based on the values of internal compensation in the error amplifier. Low ESR tantalum, organic
semiconductor or specialty polymer capacitor types are recommended for obtaining lowest ripple. The output
capacitor CO may consist of several capacitors in parallel placed in close proximity to the module. The output
capacitor assembly must also meet the worst case minimum ripple current rating of 0.5 × ILR P-P, as calculated in
Equation 14 below. Beyond that, additional capacitance will reduce output ripple so long as the ESR is low
enough to permit it. Loop response verification is also valuable to confirm closed loop behavior.
For applications with dynamic load steps; the following equation provides a good first pass approximation of CO
for load transient requirements. Where VO-Tran is 100 mV on a 3.3-V output design.
CO ≥ IO-Tran / (VO-Tran – ESR × IO-Tran) × (Fsw / VO)
(8)
Solving:
CO ≥ 4.5 A / (0.1 V – .007 × 4.5) × ( 800000 / 3.3) ≥ 271 μF
(9)
NOTE
The stability requirement for 200 µF minimum output capacitance will take precedence.
One recommended output capacitor combination is a 220-µF, 7-mΩ ESR specialty polymer cap in parallel with a
100-µF 6.3-V X5R ceramic. This combination provides excellent performance that may exceed the requirements
of certain applications. Additionally some small ceramic capacitors can be used for high frequency EMI
suppression.
8.2.2.6 CIN Selection
The LMZ23605 module contains a small amount of internal ceramic input capacitors. Additional input
capacitance is required external to the module to handle the input ripple current of the application. The input
capacitor can be several capacitors in parallel. This input capacitance must be located in very close proximity to
the module. Input capacitor selection is generally directed to satisfy the input ripple current requirements rather
than by capacitance value. Input ripple current rating is dictated by the equation:
I(CIN(RMS)) ≊ 1 / 2 × IO × SQRT (D / 1 – D)
where
•
D ≊ VO / VIN
(10)
As a point of reference, the worst case ripple current will occur when the module is presented with full load
current and when VIN = 2 × VO
Recommended minimum input capacitance is 22uF X7R (or X5R) ceramic with a voltage rating at least 25%
higher than the maximum applied input voltage for the application. It is also recommended that attention be paid
to the voltage and temperature derating of the capacitor selected.
NOTE
The ripple current rating of ceramic capacitors may be missing from the capacitor data
sheet and you may have to contact the capacitor manufacturer for this parameter.
If the system design requires a certain minimum value of peak-to-peak input ripple voltage (ΔVIN) be maintained
then the following equation may be used.
CIN ≥ IO × D × (1 – D) / fSW-CCM × ΔVIN
(11)
If ΔVIN is 1% of VIN for a 12-V input to 3.3-V output application this equals 120 mV and fSW = 812 kHz.
CIN ≥ 5 A × 3.3 V / 12 V × (1 – 3.3 V / 12 V) / (812000 × 0.12 V)
≥ 10.2 μF
20
Submit Documentation Feedback
(12)
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Additional bulk capacitance with higher ESR may be required to damp any resonant effects of the input
capacitance and parasitic inductance of the incoming supply lines. The LMZ23605 typical applications schematic
and evaluation board include a 150-μF 50-V aluminum capacitor for this function. There are many situations
where this capacitor is not necessary.
8.2.2.7 Discontinuous Conduction and Continuous Conduction Mode Selection
The approximate formula for determining the DCM/CCM boundary is as follows:
IDCB ≊ VO × (VIN – VO) / (2 × 3.3 μH × fSW(CCM) × VIN)
(13)
The inductor internal to the module is 3.3 μH. This value was chosen as a good balance between low and high
input voltage applications. The main parameter affected by the inductor is the amplitude of the inductor ripple
current (ILR). ILR can be calculated with:
ILR P-P = VO × (VIN– VO) / (3.3 µH × fSW × VIN)
Where
•
•
VIN is the maximum input voltage
fSW is typically 812 kHz
(14)
If the output current IO is determined by assuming that IO = IL, the higher and lower peak of ILR can be
determined.
8.2.3 Application Curves
100
6
4
70
60
3
50
40
2
30
20
1
10
0
DISSIPATION (W)
EFFICIENCY (%)
80
MAXIMUM OUTPUT CURRENT (A)
5
90
1
2
3
4
OUTPUT CURRENT (A)
4
3
2
1
JA=12°C/W
0
0
0
5
5
30 40 50 60 70 80 90 100 110 120 130
AMBIENT TEMPERATURE (°C)
VIN = 12 V, VOUT = 5 V
VIN = 12 V, VOUT = 5 V
Figure 52. Thermal Derating Curve
Figure 51. Efficiency
50
AMPLITUDE (dBuV/m)
45
40
35
30
25
20
15
Class A Limit
Class B Limit
Horiz Peak
Horiz Quasi-peak
10
5
0
0
200
400
600
800
FREQUENCY (MHz)
1000
Figure 53. Radiated EMI (EN 55022)
of Demo Board (See SNVA473)
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
21
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
9 Power Supply Recommendations
The LMZ23605 device is designed to operate from an input voltage supply range between 6 V and 36 V. This
input supply must be well regulated and able to withstand maximum input current and maintain a stable voltage.
The resistance of the input supply rail must be low enough that an input current transient does not cause a high
enough drop at the LMZ23605 supply voltage that can cause a false UVLO fault triggering and system reset. If
the input supply is more than a few inches from the LMZ23605, additional bulk capacitance may be required in
addition to the ceramic bypass capacitors. The amount of bulk capacitance is not critical, but a 47-μF or 100-μF
electrolytic capacitor is a typical choice.
10 Layout
10.1 Layout Guidelines
PCB layout is an important part of DC-DC converter design. Poor board layout can disrupt the performance of a
DC-DC converter and surrounding circuitry by contributing to EMI, ground bounce and resistive voltage drop in
the traces. These can send erroneous signals to the DC-DC converter resulting in poor regulation or instability.
Good layout can be implemented by following a few simple design rules.
1. Minimize area of switched current loops.
From an EMI reduction standpoint, it is imperative to minimize the high di/dt paths during PCB layout as
shown in the figure above. The high current loops that do not overlap have high di/dt content that will cause
observable high frequency noise on the output pin if the input capacitor (CIN1) is placed at a distance away
from the LMZ23605. Therefore place CIN1 as close as possible to the LMZ23605 VIN and PGND exposed
pad. This will minimize the high di/dt area and reduce radiated EMI. Additionally, grounding for both the input
and output capacitor must consist of a localized top side plane that connects to the PGND exposed pad
(EP).
2. Have a single point ground.
The ground connections for the feedback, soft-start, and enable components must be routed to the AGND
pin of the device. This prevents any switched or load currents from flowing in the analog ground traces. If not
properly handled, poor grounding can result in degraded load regulation or erratic output voltage ripple
behavior. Additionally provide the single point ground connection from pin 4 (AGND) to EP/PGND.
3. Minimize trace length to the FB pin.
Both feedback resistors, RFBT and RFBB must be located close to the FB pin. Since the FB node is high
impedance, maintain the copper area as small as possible. The traces from RFBT, RFBB must be routed away
from the body of the LMZ23605 to minimize possible noise pickup.
4. Make input and output bus connections as wide as possible.
This reduces any voltage drops on the input or output of the converter and maximizes efficiency. To optimize
voltage accuracy at the load, ensure that a separate feedback voltage sense trace is made to the load. Doing
so will correct for voltage drops and provide optimum output accuracy.
5. Provide adequate device heat-sinking.
Use an array of heat-sinking vias to connect the exposed pad to the ground plane on the bottom PCB layer.
If the PCB has a plurality of copper layers, these thermal vias can also be employed to make connection to
inner layer heat-spreading ground planes. For best results use a 6 × 10 via array with a minimum via
diameter of 8 mils thermal vias spaced 39 mils (1.0 mm). Ensure enough copper area is used for heatsinking to keep the junction temperature below 125°C.
22
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
10.2 Layout Examples
VIN
VO
LMZ23605
VOUT
VIN
High
di/dt
Cin1
CO1
GND
Loop 2
Loop 1
Figure 54. Critical Current Loops to Minimize
Top View
Thermal Vias
GND
GND
EPAD
1
2
3
4 5
6 7
VIN
EN
SYNC
FB
GND
VOUT
SS
CIN
VIN
RENT
SYNC
CSS
RENB
COUT
VOUT
RFBT
CFF
RFBB
GND Plane
Figure 55. PCB Layout Guide
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
23
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
Layout Examples (continued)
Figure 56. Top View Evaluation Board – See AN–2085 SNVA457
Figure 57. Bottom View Demonstration Board
10.3 Power Dissipation and Thermal Considerations
When calculating module dissipation use the maximum input voltage and the average output current for the
application. Many common operating conditions are provided in the characteristic curves such that less common
applications can be derived through interpolation. In all designs, the junction temperature must be kept below the
rated maximum of 125°C.
For the design case of VIN = 24 V, VO = 3.3 V, IO = 5 A, and TAMB(MAX) = 85°C, the module must see a thermal
resistance from case to ambient of less than:
RθCA< (TJ-MAX – TA-MAX) / PIC-LOSS – RθJC
(15)
Given the typical thermal resistance from junction to case to be 1.9°C/W. Use the 85°C power dissipation curves
in the Typical Characteristics section to estimate the PIC-LOSS for the application being designed. In this
application it is 5.5 W.
24
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
Power Dissipation and Thermal Considerations (continued)
NOTE
For package dissipations above 5-W air flow or external heat sinking may be required.
RθCA = (125 – 85) / 5.5 W – 1.9 = 5.37
(16)
To reach RθCA = 5.37, the PCB is required to dissipate heat effectively. With no airflow and no external heat-sink,
a good estimate of the required board area covered by 2-oz. copper on both the top and bottom metal layers is:
Board_Area_cm2 = 500°C × cm2 / W / RθCA
(17)
As a result, approximately 93 square cm of 2-oz. copper on top and bottom layers is required for the PCB
design. The PCB copper heat sink must be connected to the exposed pad. Approximately sixty, 8 mil thermal
vias spaced 39 mils (1.0 mm) apart connect the top copper to the bottom copper. For an example of a high
thermal performance PCB layout for SIMPLE SWITCHER power modules, refer to SNVA457, SNVA473,
SNVA419 and SNVA424.
10.4 Power Module SMT Guidelines
The recommendations below are for a standard module surface mount assembly
• Land Pattern — Follow the PCB land pattern with either soldermask defined or non-soldermask defined pads
• Stencil Aperture
– For the exposed die attach pad (DAP), adjust the stencil for approximately 80% coverage of the PCB land
pattern
– For all other I/O pads use a 1:1 ratio between the aperture and the land pattern recommendation
• Solder Paste — Use a standard SAC Alloy such as SAC 305, type 3 or higher
• Stencil Thickness — 0.125 to 0.15 mm
• Reflow — Refer to solder paste supplier recommendation and optimized per board size and density
• Refer to Design Summary LMZ1xxx and LMZ2xxx Power Modules Family (SNAA214) for reflow information.
• Maximum number of reflows allowed is one
Figure 58. Sample Reflow Profile
Table 2. Sample Reflow Profile Table
PROBE
MAX TEMP
(°C)
REACHED
MAX TEMP
TIME ABOVE
235°C
REACHED
235°C
TIME ABOVE
245°C
REACHED
245°C
TIME ABOVE
260°C
REACHED
260°C
1
242.5
6.58
0.49
6.39
2
242.5
7.10
0.55
6.31
0.00
–
0.00
–
0.00
7.10
0.00
3
241.0
7.09
0.42
6.44
–
0.00
–
0.00
–
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
25
LMZ23605
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
www.ti.com
11 Device and Documentation Support
11.1 Device Support
11.1.1 Third-Party Products Disclaimer
TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT
CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES
OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER
ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.
11.1.2 Development Support
For developmental support, see the following:
WEBENCH Tool, http://www.ti.com/webench
11.2 Documentation Support
11.2.1 Related Documentation
For related documentation, see the following:
• AN-2027 Inverting Application for the LMZ14203 SIMPLE SWITCHER Power Module, (SNVA425)
• Absolute Maximum Ratings for Soldering, (SNOA549)
• AN-2024 LMZ1420x / LMZ1200x Evaluation Board (SNVA422)
• AN-2085 LMZ23605/03, LMZ22005/03 Evaluation Board (SNVA457)
• AN-2054 Evaluation Board for LM10000 - PowerWise AVS System Controller (SNVA437)
• Step-Down DC-DC Converter with Integrated Low Dropout Regulator and Startup Mode (SNVA473)
• AN-2020 Thermal Design By Insight, Not Hindsight (SNVA419)
• AN-2026 Effect of PCB Design on Thermal Performance of SIMPLE SWITCHER Power Modules (SNVA424)
• Design Summary LMZ1xxx and LMZ2xxx Power Modules Family (SNAA214)
11.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.4 Trademarks
E2E is a trademark of Texas Instruments.
SIMPLE SWITCHER, WEBENCH are registered trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
11.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
26
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
LMZ23605
www.ti.com
SNVS659I – MARCH 2011 – REVISED AUGUST 2015
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: LMZ23605
27
PACKAGE OPTION ADDENDUM
www.ti.com
6-Feb-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
LMZ23605TZ/NOPB
ACTIVE
TO-PMOD
NDW
7
45
RoHS & Green
SN
Level-3-245C-168 HR
-40 to 85
LMZ23605
LMZ23605TZE/NOPB
ACTIVE
TO-PMOD
NDW
7
250
RoHS & Green
SN
Level-3-245C-168 HR
-40 to 85
LMZ23605
LMZ23605TZX/NOPB
ACTIVE
TO-PMOD
NDW
7
500
RoHS & Green
SN
Level-3-245C-168 HR
-40 to 85
LMZ23605
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
