LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
LP3850x-ADJ, LP3850xA-ADJ 3-A FlexCap Low Dropout Linear Regulator for
2.7-V to 5.5-V Inputs
1 Features
3 Description
•
•
•
TI's FlexCap low-dropout (LDO) linear regulators
feature unique compensation that allow use of any
type of output capacitor with no limits on minimum or
maximum equivalent series resistance (ESR). The
LP38501 and LP38503 series of LDOs operate from
a 2.7-V to 5.5-V input supply. These ultra-low-dropout
linear regulators respond very quickly to step
changes in load, making them suitable for low-voltage
microprocessor applications. Developed on a CMOS
process (utilizing a PMOS pass transistor) the
LP38501-ADJ and LP38503-ADJ have low quiescent
currents that change little with load current.
• GND Pin Current: Typically 2 mA at 3-A load
current.
• Disable Mode: Typically 25-nA quiescent current
when the EN pin is pulled low.
• Simplified Compensation: Stable with any type of
output capacitor, regardless of ESR.
• Precision Output: A grade versions available with
1.5% VADJ tolerance (25°C) and 3% over line,
load, and temperature.
1
•
•
•
•
•
•
•
•
•
Input Voltage: 2.7 V to 5.5 V
Adjustable Output Voltage: 0.6 V to 5 V
FlexCap: Stable with Ceramic, Tantalum, or
Aluminum Capacitors
Stable With 10-µF Input and Output Capacitors
Low Ground-Pin Current
25-nA Quiescent Current in Shutdown Mode
Ensured Output Current of 3 A
Ensured VADJ Accuracy of ±1.5% at 25°C (A
Grade)
Ensured Accuracy of ±3.5% at 25°C (STD)
Overtemperature and Overcurrent Protection
ENABLE (EN) Pin (LP38501 only)
–40°C to +125°C Operating Temperature Range
2 Applications
•
•
•
•
ASIC Power Supplies In:
–
Printers, Graphics Cards, DVD Players
–
Set Top Boxes, Copiers, Routers
DSP and FPGA Power Supplies
SMPS Regulator
Conversion from 3.3-V or 5-V Rail
Device Information(1)
PART NUMBER
LP38501
LP38503
PACKAGE
BODY SIZE (NOM)
DDPAK/TO-263 (5)
10.16 mm x 8.42 mm
TO-263 (5)
10.16 mm x 9.85 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Typical Application Circuits
*Minimum capacitance required (see Application and Implementation).
*Minimum capacitance required (see Application and Implementation).
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configurations and Functions .......................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
4
4
4
4
5
7
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
Detailed Description .............................................. 9
7.1 Overview ................................................................... 9
7.2 Functional Block Diagrams ....................................... 9
7.3 Feature Description................................................... 9
7.4 Device Functional Modes........................................ 14
8
Application and Implementation ........................ 15
8.1 Application Information............................................ 15
8.2 Typical Applications ............................................... 15
9 Power Supply Recommendations...................... 18
10 Layout................................................................... 19
10.1 Layout Guidelines ................................................. 19
10.2 Layout Examples................................................... 19
11 Device and Documentation Support ................. 20
11.1
11.2
11.3
11.4
11.5
Documentation Support ........................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
20
20
20
20
20
12 Mechanical, Packaging, and Orderable
Information ........................................................... 20
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision H (April 2013) to Revision I
Page
•
Added Device Information and Pin Configuration and Functions sections, ESD Rating and updated Thermal
Information tables, Feature Description, Device Functional Modes, Application and Implementation, Power Supply
Recommendations, Layout, Device and Documentation Support, and Mechanical, Packaging, and Orderable
Information sections; remove lead temp from Abs Max table (in POA); remove obsolete heatsinking content; update
thermal values ........................................................................................................................................................................ 1
•
Deleted obsolete heatsinking information for DDPAK/TO-263 package ............................................................................. 18
Changes from Revision G (April 2013) to Revision H
•
2
Page
Changed layout of National data sheet to TI format .............................................................................................................. 1
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
5 Pin Configurations and Functions

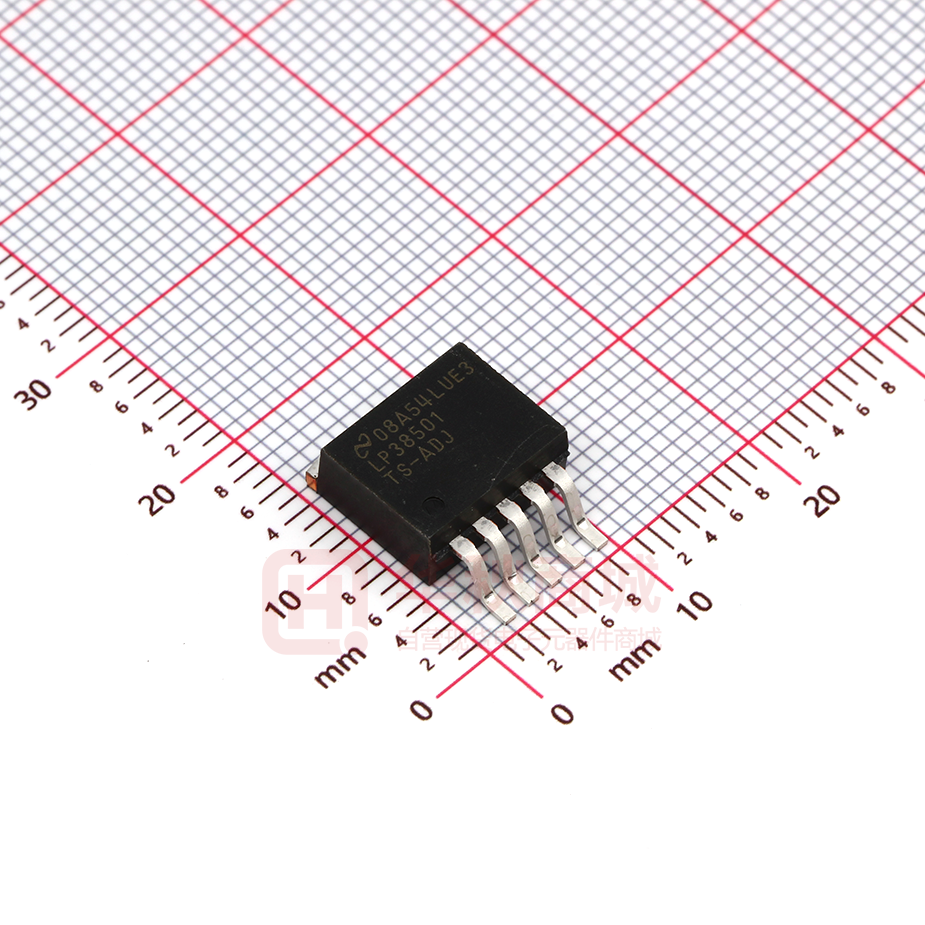

KTT Package (LP38501)
5-Pin DDPAK/TO-263
Top View
KTT Package (LP38503)
5-Pin DDPAK/TO-263
Top View
NDQ Package (LP38501)
5-Pin TO-263
Top View
NDQ Package (LP38503)
5-Pin TO-263
Top View
Pin Functions
PIN
LP38501
NAME
LP38503
LP38501
DDPAK/TO-263
LP38503
TYPE
DESCRIPTION
TO-263
ADJ
5
5
5
5
O
Sets output voltage.
EN
1
—
1
—
I
Enable (LP38501-ADJ only). Pull high to enable the output,
low to disable the output. This pin has no internal bias and
must be either tied to the input voltage, or actively driven.
GND
3
3
3
3
G
Ground
IN
2
2
2
2
I
Input supply pin.
N/C
—
1
—
1
—
In the LP38503-ADJ, this pin has no internal connections. It
can be left floating or used for trace routing.
OUT
4
4
4
4
O
Regulated output voltage pin.
—
The DAP is used as a thermal connection to remove heat from
the device to the circuit board DAP copper clad area which
acts as the heatsink. The DAP is electrically connected to the
backside of the die. The DAP must be connected to ground
potential, but can not be used as the only ground connection.
DAP
√
√
√
√
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
3
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
IN pin voltage (survival)
−0.3
6
V
EN pin voltage (survival)
−0.3
6
V
OUT pin voltage (survival)
−0.3
6
V
IOUT (survival)
Internally limited
Power dissipation (2)
Internally limited
−65
Storage temperature, Tstg
(1)
(2)
150
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
Operating junction temperature must be evaluated, and derated as needed, based on ambient temperature (TA), power dissipation (PD),
maximum allowable operating junction temperature (TJ(MAX)), and package thermal resistance (RθJA). See Application and
Implementation.
6.2 ESD Ratings
VESD
(1)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins
(1)
VALUE
UNIT
±2000
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
MIN
NOM
MAX
UNIT
Input supply voltage
2.7
5.5
V
Enable input voltage
0
5.5
V
Output current (DC)
0
3
A
VOUT
Junction temperature (2)
(1)
(2)
0.6
5
V
−40
125
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
Operating junction temperature must be evaluated, and derated as needed, based on ambient temperature (TA), power dissipation (PD),
maximum allowable operating junction temperature (TJ(MAX)), and package thermal resistance (RθJA). See Application and
Implementation.
6.4 Thermal Information
LP38501 and LP38503
THERMAL METRIC
(1)
KTT(DDPAK/TO-263)
NDQ (TO-263)
5 PINS
5 PINS
UNIT
RθJA
Junction-to-ambient thermal resistance
41.8
33.3
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
45.0
22.1
°C/W
RθJB
Junction-to-board thermal resistance
24.8
16.9
°C/W
ψJT
Junction-to-top characterization parameter
13.1
5.8
°C/W
ψJB
Junction-to-board characterization parameter
23.8
16.8
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
2.4
2.3
°C/W
(1)
4
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
6.5 Electrical Characteristics
Unless otherwise specified VIN = 3.3 V, IOUT = 10 mA, CIN = 10 μF, COUT = 10 μF, VEN = VIN, VOUT = 1.8 V. Minimum and
maximum limits apply over the junction temperature (TJ) range of –40°C to +125°C and are specified through test, design, or
statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference
purposes only.
PARAMETER
VADJ
VADJ
IADJ
TEST CONDITIONS
ADJ pin voltage (1)
ADJ pin voltage (A grade) (1)
MIN
TYP
MAX
2.7 V ≤ VIN ≤ 5.5 V
10 mA ≤ IOUT ≤ 3 A
TJ = 25°C
0.584
0.605
0.626
2.7 V ≤ VIN ≤ 5.5 V
10 mA ≤ IOUT ≤ 3 A
0.575
2.7 V ≤ VIN ≤ 5.5 V
10 mA ≤ IOUT ≤ 3 A
TJ = 25°C
0.596
2.7 V ≤ VIN ≤ 5.5 V
10 mA ≤ IOUT ≤ 3 A
0.587
V
0.635
0.605
0.623
50
2.7 V ≤ VIN ≤ 5.5 V
IOUT = 3 A
TJ = 25°C
Dropout voltage (2)
VDO
420
IOUT = 3 A
ΔVOUT /
ΔVIN
Output voltage line regulation (1) (3)
ΔVOUT /
ΔIOUT
Output voltage load regulation (1)
IGND
(4)
Ground pin current in normal
operation mode
IDISABLED
Ground pin current
IOUT(PK)GND
Peak output current
ISC
Short-circuit current
0.614
V
2.7 V ≤ VIN ≤ 5.5 V
TJ = 25°C
ADJ pin bias current
UNIT
2.7 V ≤ VIN ≤ 5.5 V
TJ = 25°C
0.04
2.7 V ≤ VIN ≤ 5.5 V
0.05
10 mA < IOUT < 3 A
TJ = 25°C
0.12
10 mA < IOUT < 3 A
0.24
10 mA < IOUT < 3 A
TJ = 25°C
2
10 mA < IOUT < 1.5 A
nA
750
nA
550
mV
665
mV
%/V
%/A
4
mA
5
VEN < VIL(EN), TJ = 25°C
0.025
VEN < VIL(EN)
0.125
15
VOUT ≥ VOUT(NOM) – 5%
6
VOUT = 0 V
A
6
VOUT = 0 V, TJ = 25°C
3.5
1.4
µA
A
ENABLE INPUT (LP38501 Only)
VIH(EN)
Enable logic high
VOUT = ON
VIL(EN)
Enable logic low
VOUT = OFF
td(off)
Turnoff delay
Time from VEN < VIL(EN) to VOUT = OFF
ILOAD = 3 A
25
µs
td(on)
Turnon delay
Time from VEN > VIH(EN) to VOUT = ON
ILOAD = 3 A
25
µs
IIH(EN)
Enable pin high current
VEN = VIN
35
IIL(EN)
Enable pin low current
VEN = 0 V
35
(1)
(2)
(3)
(4)
0.65
V
nA
The line and load regulation specification contains only the typical number. However, the limits for line and load regulation are included
in the adjust voltage tolerance specification.
Dropout voltage is defined as the minimum input to output differential voltage at which the output drops 2% below the nominal value. For
any output voltage less than 2.5 V, the minimum VIN operating voltage is the limiting factor.
Output voltage line regulation is defined as the change in output voltage from the nominal value due to change in the input line voltage.
Output voltage load regulation is defined as the change in output voltage from the nominal value due to change in the load current.
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
5
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
Electrical Characteristics (continued)
Unless otherwise specified VIN = 3.3 V, IOUT = 10 mA, CIN = 10 μF, COUT = 10 μF, VEN = VIN, VOUT = 1.8 V. Minimum and
maximum limits apply over the junction temperature (TJ) range of –40°C to +125°C and are specified through test, design, or
statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference
purposes only.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
AC PARAMETERS
VIN = 3 V, IOUT = 3 A, ƒ = 120 Hz
58
VIN = 3 V, IOUT = 3 A, ƒ = 1 kHz
56
Output noise density
ƒ = 120 Hz, COUT = 10 µF CER
1
µV/√Hz
Output noise voltage
BW = 100 Hz – 100 kHz
COUT = 10 µF CER
100
µV(RMS)
TSD
Thermal shutdown
TJ rising
170
—
°C
ΔTSD
Thermal shutdown hysteresis
TJ falling from TSD
10
—
°C
PSRR
Ripple rejection
ρn(l/f)
en
dB
THERMALS
6
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
6.6 Typical Characteristics
Unless otherwise specified: TJ = 25°C, VIN = 2.7 V, VEN = VIN, CIN = 10 µF, COUT = 10 µF, IOUT = 10 mA, VOUT = 1.8 V.
Figure 1. Noise Density
Figure 2. Noise Density
Figure 3. IGND vs Load Current
Figure 4. IGND(OFF) vs Temperature
Figure 5. VADJ vs Temperature
Figure 6. Dropout Voltage vs Load Current
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
7
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
Typical Characteristics (continued)
Unless otherwise specified: TJ = 25°C, VIN = 2.7 V, VEN = VIN, CIN = 10 µF, COUT = 10 µF, IOUT = 10 mA, VOUT = 1.8 V.
8
Figure 7. VEN vs Temperature
Figure 8. Turnon Characteristics
Figure 9. Load Regulation vs Temperature
Figure 10. PSRR
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
7 Detailed Description
7.1 Overview
The LP38501-ADJ and LP38503-ADJ are FlexCap and low-dropout adjustable regulators, the output voltage can
be set from 0.6 V to 5 V. Standard regulator features, such as overcurrent and overtemperature protections, are
also included.
The LP38501-ADJ and LP38503-ADJ contain several features:
• Stable with any type of output capacitor
• Fast load transient response
• Disable Mode (LP38501-ADJ only)
7.2 Functional Block Diagrams
Figure 11. LP38501-ADJ Block Diagram
Figure 12. LP38503-ADJ Block Diagram
7.3 Feature Description
7.3.1 Stability and Phase Margin
Any regulator which operates using a feedback loop must be compensated in such a way as to ensure adequate
phase margin, which is defined as the difference between the phase shift and –180 degrees at the frequency
where the loop gain crosses unity (0 dB). For most LDO regulators, the ESR of the output capacitor is required to
create a zero to add enough phase lead to ensure stable operation.
Figure 13 shows the gain/phase plot of the LP38501-ADJ and LP38503-ADJ with an output of 1.2 V, a 10-µF
ceramic output capacitor, delivering 2 A of load current. The unity-gain crossover occurs at 300 kHz, and the
phase margin is about 40° (which is very stable).
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
9
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
Feature Description (continued)
Figure 13. Gain-Bandwidth Plot for 2-A Load
Figure 14 shows the gain and phase with no external load. In this case, the only load is provided by the gain
setting resistors (about 12 kΩ total in this test). It is immediately obvious that the unity-gain frequency is
significantly lower (dropping to about 500 Hz), at which point the phase margin is 125°.
Figure 14. Gain-Bandwidth Plot for No Load
The reduction in unity-gain bandwidth as load current is reduced is normal for any LDO regulator using a P-FET
or PNP pass transistor, because they have a pole in the loop gain function given by:
1
FP
2 u S u RL u COUT
(1)
Equation 1 calculates how the pole goes to the highest frequency when RL is minimum value (maximum load
current). In general, LDOs have maximum bandwidth (and lowest phase margin) at full load current. In the case
of the LP38501-ADJ, good phase margin is seen even when using ceramic capacitors with ESR values of only a
few mΩ.
7.3.2 Load Transient Response
Load transient response is defined as the change in regulated output voltage which occurs as a result of a
change in load current. Many applications have loads which vary, and the control loop of the voltage regulator
must adjust the current in the pass FET transistor in response to load current changes. For this reason,
regulators with wider bandwidths often have better transient response.
The LP38501-ADJ employs an internal feed-forward design which makes the load transient response much
faster than would be predicted simply by loop speed; this feedforward means any voltage changes appearing on
the output are coupled through to the high-speed driver used to control the gate of the pass FET along a signal
path using very fast FET devices. Because of this, the pass transistor’s current can change very quickly.
10
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
Feature Description (continued)
Figure 15 shows the output transient response resulting from a change in load current of 0.1 A – 3 A, and then 3
A – 0.1 A with a load current slew rate of 500 mA/µs. As shown in Figure 15, the resulting change in output
voltage is only about 40 mV (peak), which is just slightly over 2% for the 1.8-V output used for this test. This is
excellent performance for such a small output capacitor.
Figure 15. Load Transient Response: 10-µF Ceramic, 0.5-A/µs Di/Dt
When the load current changes much more quickly, the output voltage will show more change because the loop
and internal feedforward circuitry are not able to react as fast as the load changes. In such cases, it is the output
capacitor which must supply load current during the transition until the loop responds and changes the pass
transistor’s drive to deliver the new value of load current. As an example, the slew rate of the load current will be
increased to 75 A/μs and the same test will be performed. In Figure 16, it can be seen that the peak excursion of
the output voltage during the transient has now increased to about 200 mV, which is just slightly over 11% for the
1.8-V output.
Figure 16. Load Transient Response: 10-μF Ceramic, 75 A/μs di/dt
A better understanding of the load transient can be obtained when the load’s rising edge is expanded in time
scale (Figure 16).
Figure 17. Rising Edge, 10-µF Ceramic, 75 A/µs di/dt
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
11
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
Feature Description (continued)
Figure 16 shows that the output voltage starts “correcting” back upwards after less than a microsecond, and has
fully reversed direction after about 1.2 µs. This very rapid reaction is a result of the maximum loop bandwidth (full
load is being delivered) and the feedforward effect kicking on the drive to the FET before feedback gets fully
around the loop.
In cases where extremely fast load changes occur, and output voltage regulation better than 10% is required, the
output capacitance must be increased. When selecting capacitors, it must be understood that the better
performing ones usually cost the most. For fast changing loads, the internal parasitics of ESR (equivalent series
resistance) and ESL (equivalent series inductance) degrade the capacitor’s ability to source current quickly to the
load. The best capacitor types for transient performance are (in order):
1. Multilayer Ceramic: with the lowest values of ESR and ESL, they can have ESR values in the range of a few
milli Ohms. Disadvantage: capacitance values above about 22 µF significantly increase in cost.
2. Low-ESR Aluminum Electrolytics: these are aluminum types (like OSCON) with a special electrolyte which
provides extremely low ESR values, and are the closest to ceramic performance while still providing large
amounts of capacitance. These are cheaper (by capacitance) than ceramic.
3. Solid tantalum: can provide several hundred µF of capacitance, transient performance is slightly worse than
OSCON type capacitors, cheaper than ceramic in large values.
4. General purpose aluminum electrolytics: cheap and provide a lot of capacitance, but give the worst
performance.
As a first example, larger values of ceramic capacitance show how much reduction can be obtained from the
200-mV output change (Figure 16) which was seen with only a 10-µF ceramic output capacitor. In Figure 18, the
10-µF output capacitor is increased to 22 µF. The 200-mV transient is reduced to about 160 mV, which is from
about 11% of VOUT down to about 9%.
Figure 18. 22-µF Ceramic Output Capacitor
In Figure 19, the output capacitance is increased to 47 µF ceramic. It can be seen that the output transient is
further reduced down to about 120 mV, which is still about 6.6% of the output voltage. This shows that a 5X
increase in ceramic capacitance from the original 10 µF only reduced the peak voltage transient amplitude by
about 40%.
Figure 19. 47-µF Ceramic Output Capacitor
12
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
Feature Description (continued)
In general, managing load transients is done by paralleling ceramic capacitance with a larger bulk capacitance.
In this way, the ceramic can source current during the rapidly changing edge and the bulk capacitor can support
the load current after the first initial spike in current.
In the next test, the same 10-µF ceramic capacitor is paralleled with a general-purpose (less expensive)
aluminum electrolytic whose capacitance is 220 µF. As shown in Figure 20, there is a small improvement over
the 200 mV peak seen with the 10-µF ceramic capacitor alone. By adding the 220 µF aluminum capacitor, the
peak is reduced to about 160 mV (the same peak value as seen with a 22-µF ceramic capacitor alone).
Figure 20. 10-µF Ceramic Paralleled by 220-µF Generic Aluminum Electrolytic
A solid Tantalum works better, so the aluminum electrolytic is replaced by a 220-µF Tantalum (Figure 21). The
peak amplitude of the output transient is now reduced to about 130 mV, just slightly less efficient than the value
of the 47-µF ceramic capacitor alone.
Figure 21. 10-µF Ceramic Paralleled by 220-µF Tantalum
The OSCON (ultra low ESR) aluminum electrolytic is the best of the electrolytics. Figure 22 shows the output
voltage transient is reduced down to about 90 mV (about 5% of VOUT) when a 220-µF OSCON is added to the 10
µF ceramic. This indicates that some kind of ultra-low ESR aluminum electrolytic used in parallel with some
ceramic capacitance is probably the best approach for extremely fast transients, but each application must be
dialed in for it’s specific load requirements.
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
13
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
Feature Description (continued)
Figure 22. 10-µF Ceramic Paralleled by 220-µF OSCON
7.3.3 Dropout Voltage
The dropout voltage of a regulator is defined as the input-to-output differential required by the regulator to keep
the output voltage within 2% of the nominal value. For CMOS LDOs, the dropout voltage is the product of the
load current and the RDS(on) of the internal MOSFET pass element.
Because the output voltage is beginning to “drop out” of regulation when it drops by 2%, electrical performance
of the device is reduced compared to the values listed in Electrical Characteristics for some parameters (line and
load regulation and PSRR would be affected).
7.3.4 Reverse Current Path
The internal MOSFET pass element in the LP38501-ADJ and LP38503-ADJ has an inherent parasitic diode.
During normal operation, the input voltage is higher than the output voltage and the parasitic diode is reverse
biased. However, if the output is pulled above the input in an application, then current flows from the output to
the input as the parasitic diode gets forward biased. The output can be pulled above the input as long as the
current in the parasitic diode is limited to 200-mA continuous and 1-A peak. The regulator output pin must not be
taken below ground potential. If the LP38501-ADJ and LP38503-ADJ is used in a dual-supply system where the
regulator load is returned to a negative supply, the output must be diode-clamped to ground.
7.3.5 Short-Circuit Protection
The LP38501-ADJ and LP38503-ADJ contain internal current limiting which reduces output current to a safe
value if the output is overloaded or shorted. Depending upon the value of VIN, thermal limiting may also become
active as the average power dissipated causes the die temperature to increase to the limit value (about 170°C).
The hysteresis of the thermal shutdown circuitry can result in a “cyclic” behavior on the output as the die
temperature heats and cools.
7.4 Device Functional Modes
7.4.1 Enable Operation (LP38501-ADJ Only)
The ENABLE pin (EN) must be actively terminated by either a 10-kΩ pullup resistor to VIN, or a driver which
actively pulls high and low (such as a CMOS rail to rail comparator). If active drive is used, the pullup resistor is
not required. This pin must be tied to VIN if not used (it must not be left floating).
14
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The LP38501-ADJ and LP38503-ADJ devices can provide 3-A output current with 2.7-V to 5.5-V input voltage.
These ultra-low-dropout linear regulators respond very quickly to step changes in load, making them suitable for
low-voltage microprocessor applications. Input and output capacitors of at least 10 µF are required.
8.2 Typical Applications
*Minimum capacitance required (see Detailed Design Procedure).
Figure 23. Typical Circuit (LP38501)
*Minimum capacitance required (see Detailed Design Procedure).
Figure 24. Typical Circuit (LP38503)
8.2.1 Design Requirements
For LP3850x-ADJ typical applications, use the parameters listed in Table 1 as the input parameters.
Table 1. Design Parameters
DESIGN PARAMETERS
VALUE
Input voltage
2.7 V to 5.5 V
Output voltage
0.6 V to 5 V (adjustable)
Output current
3 A (maximum)
Input capacitor
10 µF (minimum)
Output capacitor
10 µF (minimum)
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
15
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
8.2.2 Detailed Design Procedure
8.2.2.1 External Capacitors
The LP38501-ADJ and LP38503-ADJ require that at least 10-µF (±20%) capacitors be used at the input and
output pins located within one cm of the device. Larger capacitors may be used without limit on size for both CIN
and COUT. Capacitor tolerances such as temperature variation and voltage loading effects must be considered
when selecting capacitors to ensure that they provide the minimum required amount of capacitance under all
operating conditions for the application.
In general, ceramic capacitors are best for noise bypassing and transient response because of their ultra low
ESR. It must be noted that if ceramics are used, only the types with X5R or X7R dielectric ratings must be used
(never Z5U or Y5F). Capacitors which have the Z5U or Y5F characteristics have a drop in capacitance of as
much as 50% if their temperature increases from 25°C to 85°C. In addition, the capacitance drops significantly
with applied voltage: a typical Z5U or Y5F capacitor can lose as much as 60% of its rated capacitance if only half
of the rated voltage is applied to it. For these reasons, only X5R and X7R ceramics must be used.
8.2.2.2 Input Capacitor
All linear regulators can be affected by the source impedance of the voltage which is connected to the input. If
the source impedance is too high, the reactive component of the source may affect the control loop’s phase
margin. To ensure proper loop operation, the ESR of the capacitor used for CIN must not exceed 0.5 Ω. Any
good quality ceramic capacitor meets this requirement, as well as many good quality tantalums. Aluminum
electrolytic capacitors may also work, but can possibly have an ESR which increases significantly at cold
temperatures. If the ESR of the input capacitor may exceed 0.5 Ω, it is recommended that a 2.2-µF ceramic
capacitor be used in parallel, as this assures stable loop operation.
8.2.2.3 Output Capacitor
Any type of capacitor may be used for COUT, with no limitations on minimum or maximum ESR, as long as the
minimum amount of capacitance is present. The amount of capacitance can be increased without limit.
Increasing the size of COUT typically gives improved load transient response.
8.2.2.4 Setting The Output Voltage
The output voltage of the LP38501-ADJ and LP38503-ADJ can be set to any value between 0.6 V and 5 V using
two external resistors shown as R1 and R2 in Figure 25.
Figure 25. Setting Output Voltage
The value of R2 must always be less than or equal to 10 kΩ for good loop compensation. R1 can be selected for
a given VOUT using the following formula:
VOUT = VADJ (1 + R1/R2) + IADJ (R1)
where
•
•
16
VADJ is the adjust pin voltage
IADJ is the bias current flowing into the adjust pin
Submit Documentation Feedback
(2)
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
8.2.2.5 RFI/EMI Susceptibility
Radio frequency interference (RFI) and electro-magnetic interference (EMI) can degrade any integrated circuit's
performance because of the small dimensions of the geometries inside the device. In applications where circuit
sources are present which generate signals with significant high frequency energy content (> 1 MHz), care must
be taken to ensure that this does not affect the device regulator.
If RFI/EMI noise is present on the input side of the regulator (such as applications where the input source comes
from the output of a switching regulator), good ceramic bypass capacitors must be used at the input pin of the
device to reduce the amount of EMI conducted into the device.
If the LP38501-ADJ or LP38503-ADJ output is connected to a load which switches at high speed (such as a
clock), the high-frequency current pulses required by the load must be supplied by the capacitors on the device
output. Because the bandwidth of the regulator loop is less than 300 kHz, the control circuitry cannot respond to
load changes above that frequency. This means the effective output impedance of the device at frequencies
above 300 kHz is determined only by the output capacitor(s). Ceramic capacitors provide the best performance
in this type of application.
In applications where the load is switching at high speed, the output of the device may need RF isolation from
the load. In such cases, it is recommended that some inductance be placed between the output capacitor and
the load, and good RF bypass capacitors be placed directly across the load. PCB layout is also critical in high
noise environments, because RFI/EMI is easily radiated directly into PC traces. Noisy circuitry must be isolated
from clean circuits where possible, and grounded through a separate path. At MHz frequencies, ground planes
begin to look inductive and RFI/EMI can cause ground bounce across the ground plane. In multi-layer PC Board
applications, care must be taken in layout so that noisy power and ground planes do not radiate directly into
adjacent layers which carry analog power and ground.
8.2.2.6 Output Noise
Noise is specified in two ways:
• Spot noise or output noise density is the RMS sum of all noise sources, measured at the regulator output, at
a specific frequency (measured with a 1-Hz bandwidth). This type of noise is usually plotted on a curve as a
function of frequency.
• Total output noise or broadband noise is the RMS sum of spot noise over a specified bandwidth, usually
several decades of frequencies.
Spot noise is measured in units µV/√Hz or nV/√Hz and total output noise is measured in µV(RMS). The primary
source of noise in low-dropout regulators is the internal reference. In CMOS regulators, noise has a lowfrequency component and a high frequency component, which depend strongly on the silicon area and quiescent
current.
Noise can generally be reduced in two ways: by increasing the transistor area or increasing the reference
current. However, enlarging the transistors increases die size, and increasing the reference current means higher
total supply current (GND pin current).
8.2.2.7 Power Dissipation/Heatsinking
The maximum power dissipation (PD(MAX)) of the LP38501-ADJ and LP38503-ADJ is limited by the maximum
junction temperature of 125°C, along with the maximum ambient temperature (TA(MAX)) of the application, and the
thermal resistance (RθJA) of the package. Under all possible conditions, the junction temperature (TJ) must be
within the range specified in the Recommended Operating Conditions. The total power dissipation of the device
is given by:
PD = ((VIN − VOUT) × IOUT) + (VIN × IGND)
where
•
IGND is the operating ground current of the device (specified under Electrical Characteristics).
(3)
The maximum allowable junction temperature rise (ΔTJ) depends on the maximum expected ambient
temperature (TA(MAX)) of the application, and the maximum allowable junction temperature (TJ(MAX)):
ΔTJ = TJ(MAX)− TA(MAX)
(4)
The maximum allowable value for junction-to-ambient thermal resistance, RθJA, can be calculated using the
formula:
RθJA = ΔTJ / PD(MAX)
(5)
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
17
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
The LP38501-ADJ and LP38503-ADJ are available in the DDPAK/TO-263 and TO-263 packages. The thermal
resistance depends on the amount of copper area allocated to heat transfer.
8.2.3 Application Curves
Figure 27. Turnon Time
Figure 26. Turnon Time
Figure 28. Load Transient Response: 10-μF Ceramic, 75 A/μs di/dt
9 Power Supply Recommendations
The LP38501-ADJ and LP38503-ADJ devices are designed to operate from an input voltage supply range
between 2.7 V and 5.5 V. The input voltage range provides adequate headroom in order for the device to have a
regulated output. This input supply must be well regulated. An input capacitor of at least 10 μF is required.
18
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
LP38501-ADJ, LP38503-ADJ
www.ti.com
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
10 Layout
10.1 Layout Guidelines
Good layout practices minimize voltage error and prevent instability which can result from ground loops. The
input and output capacitors must be directly connected to the device pins with short traces that have no other
current flowing in them (Kelvin connect).
The best way to do this is to place the capacitors very near the device and make connections directly to the
device pins via short traces on the top layer of the PCB. The regulator ground pin must be connected through
vias to the internal or backside ground plane so that the regulator has a single point ground.
The external resistors which set the output voltage must also be located very near the device with all connections
directly tied via short traces to the pins of the device (Kelvin connect). Do not connect the resistive divider to the
load point or DC error could be induced.
10.2 Layout Examples
R2
EN
ADJ
Pull-up
Resistor
R1
IN
OUT
Input
Capacitor
Output
Capacitor
Ground
Figure 29. LP38501-ADJ TO-263 Layout
R2
N/C
ADJ
R1
IN
OUT
Input
Capacitor
Output
Capacitor
Ground
Figure 30. LP38503-ADJ TO-263 Layout
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
Submit Documentation Feedback
19
LP38501-ADJ, LP38503-ADJ
SNVS522I – AUGUST 2007 – REVISED AUGUST 2015
www.ti.com
11 Device and Documentation Support
11.1 Documentation Support
11.1.1 Related Links
Table 2 lists quick access links. Categories include technical documents, support and community resources,
tools and software, and quick access to sample or buy.
Table 2. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
LP38501-ADJ
Click here
Click here
Click here
Click here
Click here
LP38503-ADJ
Click here
Click here
Click here
Click here
Click here
11.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.3 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.4 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
20
Submit Documentation Feedback
Copyright © 2007–2015, Texas Instruments Incorporated
Product Folder Links: LP38501-ADJ LP38503-ADJ
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
LP38501ATJ-ADJ/NOPB
ACTIVE
TO-263
NDQ
5
1000
RoHS & Green
SN
Level-1-260C-UNLIM
-40 to 125
LP38501A
TJ-ADJ
LP38501TJ-ADJ/NOPB
ACTIVE
TO-263
NDQ
5
1000
RoHS & Green
SN
Level-1-260C-UNLIM
LP38501TS-ADJ/NOPB
ACTIVE
DDPAK/
TO-263
KTT
5
45
RoHS-Exempt
& Green
SN
Level-3-245C-168 HR
-40 to 125
LP38501
TS-ADJ
LP38501TSX-ADJ/NOPB
ACTIVE
DDPAK/
TO-263
KTT
5
500
RoHS-Exempt
& Green
SN
Level-3-245C-168 HR
-40 to 125
LP38501
TS-ADJ
LP38503ATJ-ADJ/NOPB
ACTIVE
TO-263
NDQ
5
1000
RoHS & Green
SN
Level-1-260C-UNLIM
-40 to 125
LP38503A
TJ-ADJ
LP38503TJ-ADJ/NOPB
ACTIVE
TO-263
NDQ
5
1000
RoHS & Green
SN
Level-1-260C-UNLIM
-40 to 125
LP38503
TJ-ADJ
LP38503TS-ADJ/NOPB
ACTIVE
DDPAK/
TO-263
KTT
5
45
RoHS-Exempt
& Green
SN
Level-3-245C-168 HR
-40 to 125
LP38503
TS-ADJ
LP38503TSX-ADJ/NOPB
ACTIVE
DDPAK/
TO-263
KTT
5
500
RoHS-Exempt
& Green
SN
Level-3-245C-168 HR
-40 to 125
LP38503
TS-ADJ
LP38501
TJ-ADJ
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
