LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
LP3992 Micropower 1.5-V CMOS Voltage Regulator With Shutdown Control
1 Features
3 Description
•
•
•
•
•
•
•
•
•
•
•
•
•
The LP3992 regulator is designed to meet the
requirements of portable, battery-powered systems
providing an accurate output voltage, low noise, and
low quiescent current. Battery life is prolonged by the
ability of the LP3992 to provide a 1.5-V output from
the low input voltage of 1.9 V. Additionally, when
switched to a shutdown mode via a logic signal at the
enable (EN) pin, the power consumption is reduced
to virtually zero. The LP3992 also features shortcircuit and thermal-shutdown protection.
1
Input Voltage: 1.9 V to 5.2 V
Operation From a Low Input Voltage: 1.9 V
Accurate Output Voltage: 1.5 V ± 0.09 V
Quiescent Current in Shutdown: < 1.5 µA
Stable With an Output Capacitor: 1 µF
Ensured Output Current: 30 mA
Low Output Voltage Noise: 300 µVRMS
Low Quiescent Current: 29-µA Typical
Stable With a Ceramic Capacitor
Logic Controlled Enable
Fast Turnon and Turnoff
Thermal-Overload and Short-Circuit Protection
–40°C to +125°C Junction Temperature Range
The LP3992 is designed to be stable with spacesaving ceramic capacitors as small as 1 µF.
Performance is specified for a –40°C to +125°C
temperature range.
For output voltages other than 1.5 V, and for
additional package options, contact TI.
2 Applications
•
•
•
•
•
Device Information(1)
PART NUMBER
GSM Portable Phones
CDMA Cellular Handsets
Wideband CDMA Cellular Handsets
Bluetooth Devices
Portable Information Appliances

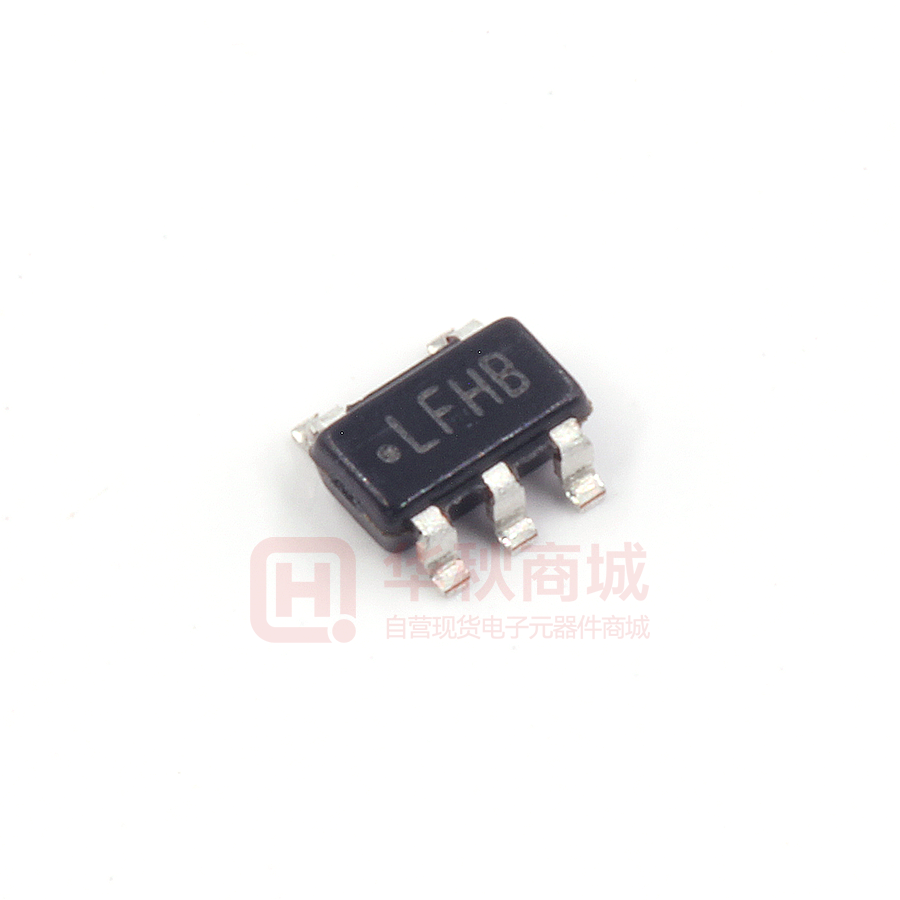

LP3992
PACKAGE
SOT-23 (5)
BODY SIZE (NOM)
2.90 mm × 1.60 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Typical Application
IN
VIN
OUT
VOUT
CIN
1 PF
VEN
LP3992
EN
CAP
High= ON
Low= OFF
COUT
GND
1 PF
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
Table of Contents
1
2
3
4
5
6
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
6.7
4
4
4
4
5
5
7
Absolute Maximum Ratings ......................................
ESD Ratings ............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ................................................
Typical Characteristics.............................................
7
Parameter Measurement Information .................. 9
8
Detailed Description ............................................ 10
7.1 Input Test Signals ..................................................... 9
8.1 Overview ................................................................. 10
8.2 Functional Block Diagram ....................................... 10
8.3 Feature Description................................................. 11
8.4 Device Functional Modes........................................ 11
9
Application And Implementation........................ 12
9.1 Application Information .......................................... 12
9.2 Typical Application .................................................. 12
10 Power Supply Recommendations ..................... 15
11 Layout................................................................... 15
11.1 Layout Guidelines ................................................. 15
11.2 Layout Example .................................................... 15
12 Device and Documentation Support ................. 16
12.1
12.2
12.3
12.4
12.5
Documentation Support ........................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
16
16
16
16
16
13 Mechanical, Packaging, and Orderable
Information ........................................................... 16
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (February 2013) to Revision C
Page
•
Added Device Information and Pin Configuration and Functions sections, ESD Ratings and Thermal Information
tables, Feature Description, Device Functional Modes, Application and Implementation, Power Supply
Recommendations, Layout, Device and Documentation Support, and Mechanical, Packaging, and Orderable
Information sections; update pin names from Vin to IN; Vout to OUT; Cout to CAP and SD to EN ..................................... 1
•
Deleted lead temperature from Abs Max table - it is in POA ................................................................................................. 4
•
Added updated thermal information ....................................................................................................................................... 4
Changes from Revision A (May 2004) to Revision B
•
2
Page
Changed layout of National Data Sheet to TI format ........................................................................................................... 11
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
LP3992
www.ti.com
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
5 Pin Configuration and Functions
DBV Package
5-Pin SOT-23
Top View
EN
3
GND
2
4
CAP
IN
1
5
OUT
Pin Functions
PIN
NO.
NAME
TYPE
DESCRIPTION
1
IN
Input
2
GND
Ground
Voltage supply input
3
EN
Input
4
CAP
Output
Output capacitor connection. Internally connected to VOUT connection. This is the
recommended device connection for the 1-µF output capacitor to ensure a stable output.
5
OUT
Output
Voltage output. Connect this output to the load circuit.
Common ground
Shutdown input — disables the regulator when ≤ 0.4 V, enables the regulator when ≥ 1.15 V.
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
3
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1) (2) (3)
MIN
MAX
UNIT
–0.3
6.5
V
–0.3 to (VIN + 0.3)
6.5
V
–0.3
6.5
V
568
mW
150
°C
150
°C
Input voltage
Output voltage
Shutdown input voltage
Maximum power dissipation
Junction temperature
Storage temperature, Tstg
(1)
(2)
(3)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltages are with respect to the potential at the GND pin.
If Military/Aerospace specified devices are required, contact the TI Sales Office/Distributors for availability and specifications.
6.2 ESD Ratings
VALUE
Electrostatic
discharge
V(ESD)
(1)
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±2000
Machine model
±200
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
MIN
Input voltage
Shutdown input voltage
Junction temperature
NOM
MAX
5.2
0
6
V
–40
125
°C
454
mW
Power dissipation at 25°C
(1)
UNIT
1.9
V
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. For ensured
performance limits and associated test conditions, see Electrical Characteristics.
6.4 Thermal Information
LP3992
THERMAL METRIC (1)
DBV (SOT-23)
UNIT
5 PINS
RθJA
Junction-to-ambient thermal resistance
170.5
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
124.4
°C/W
RθJB
Junction-to-board thermal resistance
30.9
°C/W
ψJT
Junction-to-top characterization parameter
17.6
°C/W
ψJB
Junction-to-board characterization parameter
30.8
°C/W
(1)
4
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
LP3992
www.ti.com
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
6.5 Electrical Characteristics
Unless otherwise noted, VEN = 1.15, VIN = VOUT + 1 V, CIN = 1 µF, IOUT = 1 mA, COUT = 1 µF; typical values and limits apply for
TJ = 25°C, and minimum and maximum limits apply over the full temperature range for operation, −40°C to +125°C. (1)
PARAMETER
VIN
ΔVOUT
ILOAD
TEST CONDITIONS
MIN
MAX
UNIT
TJ = 25°C
1.9
5.2
mV
Output voltage tolerance
Over full line and load regulation.
–90
90
mV
Line regulation error
VIN = (VOUT(NOM) + 1 V) to 5.2 V,
IOUT = 1 mA
–0.27
0.27
%/V
Load regulation error
IOUT = 1 mA to 30 mA
100
220
µV/mA
VEN = 1.15 V, IOUT = 0 mA
26
50
VEN = 1.15 V, IOUT = 30 mA
29
50
0.003
1.5
Load current
See
IQ
Quiescent current
ISC
Short-circuit current limit
(2)
and
(3)
0
VEN = 0.4 V
PSRR
Power Supply Rejection Ratio
EEN
Output noise voltage (3)
TSHUTDOWN
TYP
Input voltage
µA
See (4)
90
ƒ = 1 kHz, IOUT = 30 mA
40
ƒ = 20 kHz, IOUT = 30 mA
30
BW = 10 Hz to 100 kHz, VIN = 4.2 V
mA
dB
300
Thermal shutdown temperature
µA
µVRMS
160
Thermal shutdown hysteresis
°C
20
ENABLE CONTROL CHARACTERISTICS
IEN
Maximum input current at EN
input
VEN = 0 V and VIN = 5.2 V
VIL
Low input threshold
VIN = 1.8 V to 5.2 V
VIH
High input threshold
VIN = 1.8 V to 5.2 V
Line transient response |δVOUT|
Trise = Tfall = 10 µS (3)
60
Load transient response |δVOUT|
Trise = Tfall = 1 µS
IOUT = 100 µA to 5 mA (3)
60
Transient
response
(1)
(2)
(3)
(4)
0.001
µA
0.4
V
1.15
V
mV
All limits are ensured. All electrical characteristics having room-temperature limits are tested during production at TJ = 25°C or correlated
using Statistical Quality Control methods. Operation over the temperature specification is specified by correlating the electrical
characteristics to process and temperature variations and applying statistical process control.
The device maintains the regulated output voltage without the load.
This electrical specification is specified by design.
Short-circuit current is measured on the input supply line at the point when the short-circuit condition reduces the output voltage to 95%
of its nominal value.
6.6 Timing Requirements
MIN
(1)
to 95% level
(3)
tON2
Turnon time
tOFF1
Turnoff time (1), 85% to 50% of VOUT(NOM) (4)
tOFF2
Turnoff time (1), 95% to 5% level (5)
(1)
(2)
(3)
(4)
(5)
NOM
Turnon time (1), 50% to 85% of VOUT(NOM) (2)
tON1
MAX
UNIT
15
40
µs
µs
µs
40
15
µs
This electrical specification is ensured by design.
Time for VOUT to rise from 50% to 85% of VOUT(NOM) (Figure 1).
Time from VEN = 1.15 V to VOUT = 95% (VOUT(NOM)) (Figure 1).
Time for VOUT to fall from 85% to 50% of VOUT(NOM) (Figure 1).
Time from VEN = 0.4 V to VOUT = 5% (VOUT(NOM) (Figure 1).
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
5
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
Figure 1. tON and tOFF Timing Diagram
6
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
LP3992
www.ti.com
6.7
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
Typical Characteristics
Unless otherwise specified, CIN = COUT = 1-µF ceramic, VIN = 2.8 V, TA = 25°C, EN pin is tied to VIN.
Figure 2. Output Voltage Change vs Temperature
25°C
Figure 3. Ground Current vs Load Current
125°C
Figure 4. Ground Current vs VIN
Figure 5. Ground Current vs VIN
Figure 6. Short-Circuit Current
Figure 7. Short-Circuit Current
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
7
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
Typical Characteristics (continued)
Unless otherwise specified, CIN = COUT = 1-µF ceramic, VIN = 2.8 V, TA = 25°C, EN pin is tied to VIN.
Figure 8. Line Transient Response
Figure 9. Line Transient Response
Figure 10. Turnon, Turnoff Timing
Figure 11. Turnon, Turnoff Timing
Figure 12. Ripple Rejection
8
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
LP3992
www.ti.com
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
7 Parameter Measurement Information
7.1 Input Test Signals
Figure 13. Line Transient Input Test Signal
Figure 14. PSRR Input Test Signal
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
9
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
8 Detailed Description
8.1 Overview
The LP3992 device is a CMOS voltage regulator with a low-input operating-voltage tolerance. Key protection
circuits, including thermal-overload and short-circuit protection, are integrated in the device. Using the EN pin,
the device may be controlled to provide a SHUTDOWN state, in which negligible supply current is drawn. The
LP3992 is designed to be stable with space-saving ceramic capacitors.
8.2 Functional Block Diagram
OUT
IN
+
Current Limit
Thermal Limit
CAP
VBG
Fast
Turnoff
EN
+
HI = ON
LOW = OFF
SD
VIH
GND
LP3992
10
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
LP3992
www.ti.com
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
8.3 Feature Description
8.3.1 Shutdown and Enable
The LP3992 may be switched ON or OFF by a logic input at the EN pin. A high voltage at the EN pin turns the
device on. A low voltage on the EN pin will disable the regulator, and will activate the fast turnoff circuitry to
discharge the output capacitance. When the regulator is disabled the device typically consumes 3 nA.
If the application does not require the EN feature, the EN pin must be tied to VIN to keep the regulator output
permanently on.
To ensure proper operation, the signal source used to drive the EN input must be able to swing above and below
the specified turnon or turnoff voltage thresholds listed in the Electrical Characteristics under VIL and VIH.
8.3.2 Fast Turnon and Turnoff
The controlled shutdown feature of the device provides a fast turn off by discharging the output capacitor via an
internal FET device. This discharge is current limited by the RDSON of this switch. Fast turnon is ensured by
control circuitry within the reference block allowing a very fast ramp of the output voltage to reach the target
voltage.
8.4 Device Functional Modes
8.4.1 Enable Operation
The LP3992 may be switched ON or OFF by a logic input at the EN pin. A high voltage at the EN pin turns the
device on. A low voltage on the EN pin will disable the regulator, and will activate the fast turnoff circuitry to
discharge the output capacitance. When the regulator is disabled the device typically consumes 3 nA.
If the application does not require the EN feature, the EN pin should be tied to VIN to keep the regulator output
permanently on.
To ensure proper operation, the signal source used to drive the EN input must be able to swing above and below
the specified turnon or turnoff voltage thresholds listed in the Electrical Characteristics under VIL and VIH.
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
11
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
9 Application And Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The LP3992 can provide 30-mA output current with 1.9-V to 5.2-V input. It is stable with 1-μF ceramic input and
output capacitors. Typical output noise is 300 μVRMS at frequencies from 10 Hz to 100 kHz. Typical power supply
rejection is 40 dB at 1 kHz.
9.2 Typical Application
IN
VIN
OUT
VOUT
CIN
1 PF
VEN
LP3992
EN
CAP
High= ON
Low= OFF
COUT
GND
1 PF
Figure 15. LP3992 Typical Application
9.2.1 Design Requirements
For typical CMOS voltage regulator applications, use the parameters listed in Table 1.
Table 1. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
Minimum input voltage
1.9 V
Output voltage
1.5 ± 0.09 V
Output current
30 mA
9.2.2 Detailed Design Procedure
9.2.2.1
External Capacitors
In common with most regulators, the LP3992 requires external capacitors for regulator stability. The device is
specifically designed for portable applications requiring minimum board space and smallest components. These
capacitors must be correctly selected for good performance.
12
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
LP3992
www.ti.com
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
9.2.2.2 Input Capacitor
An input capacitor is required for stability. It is recommended that a 1-µF capacitor be connected between the
LP3992 IN pin and ground (this capacitance value may be increased without limit).
This capacitor must be located a distance of not more than 1 cm from the IN pin and returned to a clean analog
ground. Any good-quality ceramic, tantalum, or film capacitor may be used at the input.
NOTE
Tantalum capacitors can suffer catastrophic failures due to surge current when connected
to a low-impedance source of power (like a battery or a very large capacitor). If a tantalum
capacitor is used at the input, it must be ensured by the manufacturer to have a surge
current rating sufficient for the application.
There are no requirements for the equivalent series resistance (ESR) on the input capacitor, but tolerance and
temperature coefficient must be considered when selecting the capacitor to ensure the capacitance will remain ≊
1 µF over the entire operating temperature range.
9.2.2.3 Output Capacitor
The LP3992 is designed specifically to work with very small ceramic output capacitors. A 1-µF ceramic capacitor
(dielectric types Z5U, Y5V or X7R) with ESR from 5 mΩ to 500 mΩ, is suitable in the LP3992 application circuit.
For this device the output capacitor should be connected between the CAP pin and ground. It is also possible to
connect the output capacitor directly to the OUT pin. In this case the CAP pin must be left open-circuit or tied
directly to the OUT pin.
Tantalum or film capacitors may also be used at the device output, CAP (or OUT), but these are not as attractive
for reasons of size and cost (see Capacitor Characteristics).
The output capacitor must meet the requirement for the minimum value of capacitance and also have an ESR
value that is within the 5-mΩ to 500-mΩ range for stability.
Table 2. Recommended Output Capacitor
PARAMETER
COUT
(1)
Output capacitor
TEST CONDITIONS
Capacitance (1)
ESR
MIN
TYP
0.7
1
5
MAX
UNIT
µF
500
mΩ
The capacitor tolerance should be ±30% or better over the temperature range. The recommended capacitor type is X7R however,
dependant on the application X5R, Y5V, and Z5U can also be used.
9.2.2.4 No-Load Stability
The LP3992 will remain stable and in regulation with no external load. This is an important consideration in some
circuits, for example CMOS RAM keep-alive applications.
9.2.2.5 Capacitor Characteristics
The LP3992 is designed to work with ceramic capacitors on the output to take advantage of the benefits they
offer. For capacitance values in the 1-µF to 4.7-µF range, ceramic capacitors are the smallest, least expensive,
and have the lowest ESR values, thus making them best for eliminating high frequency noise. The ESR of a
typical 1-µF ceramic capacitor is in the 20-mΩ to 40-mΩ range that easily meets the ESR requirement for
stability for the LP3992.
The temperature performance of ceramic capacitors varies by type. Most large-value ceramic capacitors
(≥ 2.2 µF) are manufactured with Z5U or Y5V temperature characteristics, which results in the capacitance
dropping by more than 50% as the temperature goes from 25°C to 85°C.
A better choice for temperature coefficient in a ceramic capacitor is X7R. This type of capacitor is the most stable
and holds the capacitance within ±15% over the temperature range.
Tantalum capacitors are less desirable than ceramic for use as output capacitors because they are more
expensive when comparing equivalent capacitance and voltage ratings in the 1-µF to 4.7-µF range.
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
13
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
Another important consideration is that tantalum capacitors have higher ESR values than equivalent size
ceramics. This means that while it may be possible to find a tantalum capacitor with an ESR value within the
stable range, it would have to be larger in capacitance (which means bigger and more costly) than a ceramic
capacitor with the same ESR value. Also, the ESR of a typical tantalum increases about 2:1 as the temperature
goes from 25°C down to –40°C, so some guard band must be allowed.
9.2.2.6 Power Dissipation
The permissible power dissipation for any package is a measure of the capability of the device to pass heat from
the power source, the junctions of the device, to the ultimate heat sink, the ambient environment. Thus, the
power dissipation is dependent on the ambient temperature and the thermal resistance across the various
interfaces between the die and ambient air (see Equation 1).
TA(MAX) = TJ(MAX-OP) − (PD(MAX) × RθJA)
(1)
The allowable power dissipation for the device in a given package can be calculated:
PD = TJ(MAX) – TA / RθJA
(2)
The actual power dissipation across the device can be represented by Equation 3:
PD = (VIN − VOUT) × IOUT
(3)
This establishes the relationship between the power dissipation allowed due to thermal consideration, the voltage
drop across the device, and the continuous current capability of the device. Equation 2 and Equation 3 must be
used to determine the optimum operating conditions for the device in the application.
This thermal resistance (RθJA) is highly dependent on the heat-spreading capability of the particular PCB design
and therefore varies according to the total copper area, copper weight, and location of the planes. The RθJA
recorded in Thermal Information is determined by the specific EIA/JEDEC JESD51-7 standard for PCB and
copper-spreading area and is to be used only as a relative measure of package thermal performance. For a welldesigned thermal layout, RθJA is actually the sum of the SOT-23 package junction-to-board thermal resistance
(RθJB) plus the thermal resistance contribution by the PCB copper area acting as a heatsink.
9.2.2.7 Estimating Junction Temperature
The EIA/JEDEC standard recommends the use of psi (Ψ) thermal characteristics to estimate the junction
temperatures of surface mount devices on a typical PCB board application. These characteristics are not true
thermal resistance values, but rather package specific thermal characteristics that offer practical and relative
means of estimating junction temperatures. These psi metrics are determined to be significantly independent of
copper-spreading area. The key thermal characteristics (ΨJT and ΨJB) are given in Thermal Information and are
used in accordance with Equation 4 or Equation 5.
TJ(MAX) = TTOP + (ΨJT × PD(MAX))
where
•
•
PD(MAX) is explained in Equation 2
TTOP is the temperature measured at the center-top of the device package.
TJ(MAX) = TBOARD + (ΨJB × PD(MAX))
(4)
where
•
•
PD(MAX) is explained in Equation 2.
TBOARD is the PCB surface temperature measured 1-mm from the device package and centered on the
package edge.
(5)
For more information about the thermal characteristics ΨJT and ΨJB, see TI Application Report Semiconductor
and IC Package Thermal Metrics (SPRA953); for more information about measuring TTOP and TBOARD, see the TI
Application Report Using New Thermal Metrics (SBVA025); and for more information about the EIA/JEDEC
JESD51 PCB used for validating RθJA, see the TI Application Report Thermal Characteristics of Linear and Logic
Packages Using JEDEC PCB Designs (SZZA017). Aforementioned application notes are available at
www.ti.com.
14
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
LP3992
www.ti.com
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
9.2.3 Application Curves
Figure 16. Load Transient Response
Figure 17. Load Transient Response
10 Power Supply Recommendations
The LP3992 is designed to operate from an input voltage supply range from 1.9 V to 5.2 V.
11 Layout
11.1 Layout Guidelines
The dynamic performance of the LP3992 is dependant on the layout of the PCB. PCB layout practices that are
adequate for typical LDOs may degrade the PSRR, noise, or transient performance of the device.
Best performance is achieved by placing CIN and COUT on the same side of the PCB as the LP3992 and as close
as is practical to the package. The ground connections for CIN and COUT must be routed back to the LP3992
GND pin using as wide and as short a copper trace as is practical.
Avoid layout connections that have any combination of long trace length, narrow trace width, or vias. These add
parasitic inductances and resistance that result in inferior performance, especially during transient conditions.
11.2 Layout Example
VIN
1
IN
GND
2
GND
VEN
3
EN
CIN
OUT
VOUT
5
COUT
CAP
GND
4
Figure 18. LP3992 Layout Example
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
15
LP3992
SNVS192C – OCTOBER 2002 – REVISED NOVEMBER 2015
www.ti.com
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation see the following:
• TI Application Report Semiconductor and IC Package Thermal Metrics (SPRA953)
• TI Application Report Using New Thermal Metrics (SBVA025)
• TI Application Report Thermal Characteristics of Linear and Logic Packages Using JEDEC PCB Designs
(SZZA017)
12.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.3 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
16
Submit Documentation Feedback
Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: LP3992
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
LP3992IMFX-1.5/NOPB
ACTIVE
SOT-23
DBV
5
3000
RoHS & Green
SN
Level-1-260C-UNLIM
-40 to 125
LFHB
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
