LP5009, LP5012
LP5009,
LP5012
SLVSEH2B – MAY 2019 – REVISED
AUGUST
2020
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
www.ti.com
LP50xx 9-, 12-Channel, 12-Bit PWM Ultra-low Quiescent Current
I2C RGB LED Drivers
1 Features
2 Applications
•
LED lighting, indicator lights, and fun lights for:
•
•
•
•
•
•
•
•
Operating voltage range:
– VCC range: 2.7 V to 5.5 V
– EN, SDA, and SCL pins compatible with
1.8-V, 3.3-V, and 5-V power rails
– Output maximum voltage: 6 V
12 Constant-current sinks with high precision
– 25.5 mA Maximum per channel with VCC in full
range
– 35 mA Maximum per channel when VCC ≥ 3.3 V
– Device-to-device error: ±5%; channel-tochannel error: ±5%
Ultra-low quiescent current:
– Shutdown mode: 1 µA (maximum) with EN low
– Power-saving mode: 10 µA (typical) with EN
high and all LEDs off for > 30 ms
Integrated 12-bit, 29-kHz PWM generator for each
channel:
– Independent color-mixing register per channel
– Independent brightness-control register per
RGB LED module
– Optional logarithmic- or linear-scale brightness
control
– Integrated 3-phase PWM-shifting scheme
3 Programmable banks (R, G, B) for easy software
control of each color
2 External hardware address pins allow connecting
up to 4 devices
Broadcast slave address allows configuring
multiple devices simultaneously
Auto-increment allows writing or reading
consecutive registers within one transmission
Up to 400-kHz fast-mode I2C speed
•
•
•
•
•
•
•
•
Smart speaker (with voice assistant)
Smart home appliances
Video doorbell
Electronic smart lock
Smoke and heat detector
STB and DVR
Smart router
Handheld device
3 Description
In smart homes and other applications that use
human-machine-interaction, high-performance RGB
LED drivers are required. LED animation effects such
as flashing, breathing and chasing that greatly
improves user experience, and minimal system noise
is essential.
The LP50xx device is an 9- or 12-channel constant
current sink LED driver. The LP50xx device includes
integrated color mixing and brightness control, and
pre-configuration simplifies the software coding
process. Integrated 12-bit, 29-kHz PWM generators
for each channel enable smooth, vivid color for LEDs,
and eliminate audible noise.
Device Information
PART
NUMBER(1)
LP5009
LP5012
LP5009
LP5012
(1)
PACKAGE
BODY SIZE (NOM)
WQFN (20)
3.00 mm × 3.00 mm
TSSOP (24)
7.80 mm × 4.40 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
VCC
VMCU
CVCC
VLED
VCC
OUT0
EN
OUT1
SDA
SCL
OUT2
ADDR0
MCU
ADDR1
LP5012
OUT09
VCAP
CVCAP
OUT10
IREF
RIREF
GND
OUT11
Simplified Schematic
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
Submit Document Feedback
Copyright
© 2020 Texas
Instruments
Incorporated
intellectual
property
matters
and other important disclaimers. PRODUCTION DATA.
Product Folder Links: LP5009 LP5012
1
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Description (continued).................................................. 3
6 Pin Configuration and Functions...................................4
7 Specifications.................................................................. 7
7.1 Absolute Maximum Ratings........................................ 7
7.2 ESD Ratings............................................................... 7
7.3 Recommended Operating Conditions.........................7
7.4 Thermal Information....................................................7
7.5 Electrical Characteristics.............................................8
7.6 Timing Characteristics.................................................9
7.7 Typical Characteristics.............................................. 10
8 Detailed Description......................................................12
8.1 Overview................................................................... 12
8.2 Functional Block Diagram......................................... 12
8.3 Feature Description...................................................12
8.4 Device Functional Modes..........................................18
8.5 Programming............................................................ 19
8.6 Register Maps...........................................................23
9 Application and Implementation.................................. 35
9.1 Application Information............................................. 35
9.2 Typical Application.................................................... 35
10 Power Supply Recommendations..............................37
11 Layout........................................................................... 37
11.1 Layout Guidelines................................................... 37
11.2 Layout Examples.....................................................38
12 Device and Documentation Support..........................40
12.1 Related Links.......................................................... 40
12.2 Receiving Notification of Documentation Updates..40
12.3 Support Resources................................................. 40
12.4 Trademarks............................................................. 40
12.5 Electrostatic Discharge Caution..............................40
12.6 Glossary..................................................................40
13 Mechanical, Packaging, and Orderable
Information.................................................................... 40
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (July 2019) to Revision B (August 2020)
Page
• Updated the numbering format for tables, figures and cross-references throughout the document...................1
• Added PW package option to data sheet .......................................................................................................... 1
Changes from Revision * (May 2019) to Revision A (July 2019)
Page
• Changed from Advance Information to Production Data ................................................................................... 1
2
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
5 Description (continued)
The LP50xx device controls each LED output with a 12-bit PWM resolution at 29-kHz switching frequency, which
helps achieve a smooth dimming effect and eliminates audible noise. The independent color mixing and intensity
control registers make the software coding straightforward. When targeting a fade-in, fade-out type breathing
effect, the global R, G, B bank control reduces the microcontroller loading significantly. The LP50xx device also
implements a PWM phase-shifting function to help reduce the input power budget when LEDs turn on
simultaneously.
The LP50xx device implements an automatic power-saving mode to achieve ultra-low quiescent current. When
channels are all off for 30 ms, the device total power consumption is down to 10 µA, which makes the LP50xx
device a potential choice for battery-powered end equipment.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
3
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
IREF
EN
SCL
SDA
VCC
20
19
18
17
16
6 Pin Configuration and Functions
VCAP
1
15
ADDR1
OUT0
2
14
ADDR0
OUT1
3
13
NC
Thermal
Pad
9
10
OUT8
NC
OUT7
11
8
5
OUT6
OUT3
7
NC
OUT5
12
6
4
OUT4
OUT2
Not to scale
VCAP
1
OUT0
2
OUT1
IREF
EN
SCL
SDA
VCC
20
19
18
17
16

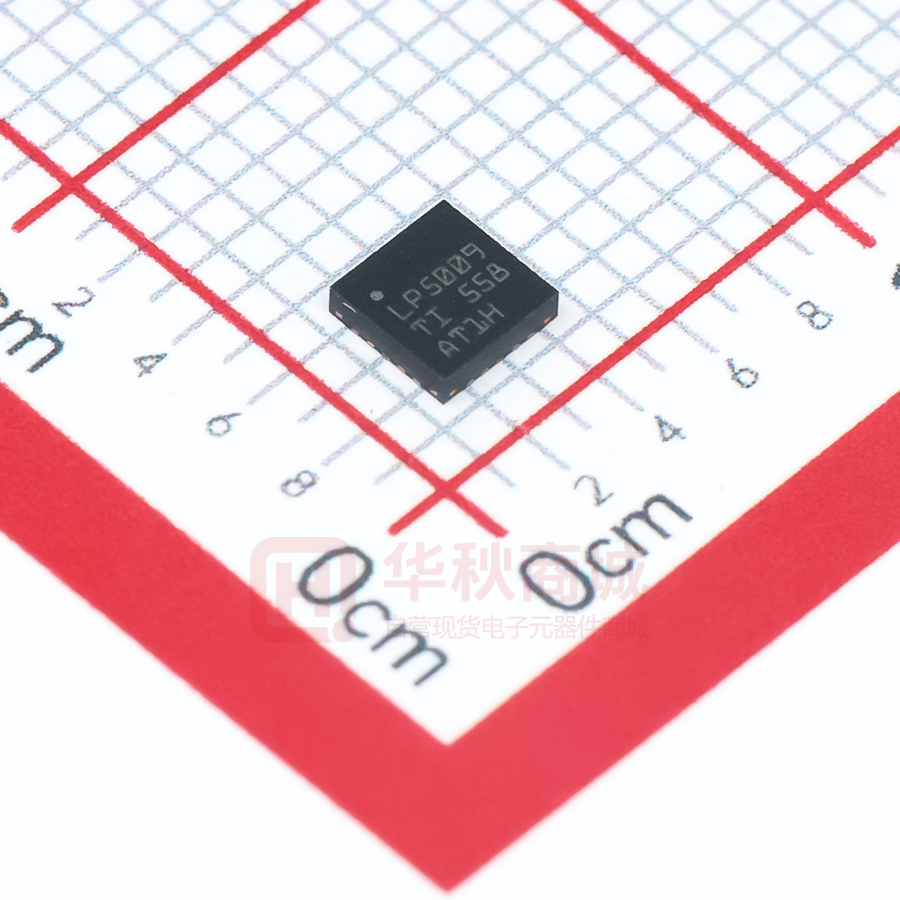

Figure 6-1. LP5009 RUK Package 20-Pin WQFN With Exposed Thermal Pad Top View
Thermal
3
15
ADDR1
14
ADDR0
13
OUT11
Pad
9
10
OUT8
OUT9
OUT7
11
8
5
OUT6
OUT3
7
OUT10
OUT5
12
6
4
OUT4
OUT2
Not to scale
Figure 6-2. LP5012 RUK Package 20-Pin WQFN With Exposed Thermal Pad Top View
4
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
ADDR0
1
24
NC
AGND
2
23
NC
ADDR1
3
22
NC
VCC
4
21
OUT8
SDA
5
20
OUT7
PGND
6
19
OUT6
SCL
7
18
DGND
EN
8
17
OUT5
IREF
9
16
OUT4
VCAP
10
15
OUT3
NC
11
14
OUT2
OUT0
12
13
OUT1
Figure 6-3. LP5009 PW Package 24-Pin TSSOP Top View
ADDR0
1
24
OUT11
AGND
2
23
OUT10
ADDR1
3
22
OUT9
VCC
4
21
OUT8
SDA
5
20
OUT7
PGND
6
19
OUT6
SCL
7
18
DGND
EN
8
17
OUT5
IREF
9
16
OUT4
VCAP
10
15
OUT3
NC
11
14
OUT2
OUT0
12
13
OUT1
Figure 6-4. LP5012 PW Package 24-Pin TSSOP Top View
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
5
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Pin Functions
PIN
RUK NO.
NAME
I/O
DESCRIPTION
LP5009
LP5012
LP5009
LP5012
ADDR0
14
14
1
1
—
I2C slave-address selection pin. This pin must not be left floating.
ADDR1
15
15
3
3
—
I2C slave-address selection pin. This pin must not be left floating.
EN
19
19
8
8
I
IREF
20
20
9
9
—
Output current-reference global-setting pin.
11, 12, 13
—
22, 23,
24
—
—
No internal connection.
OUT0
2
2
12
12
O
Current sink output 0. If not used, this pin can be left floating.
OUT1
3
3
13
13
O
Current sink output 1. If not used, this pin can be left floating.
OUT2
4
4
14
14
O
Current sink output 2. If not used, this pin can be left floating.
OUT3
5
5
15
15
O
Current sink output 3. If not used, this pin can be left floating.
OUT4
6
6
16
16
O
Current sink output 4. If not used, this pin can be left floating.
OUT5
7
7
17
17
O
Current sink output 5. If not used, this pin can be left floating.
OUT6
8
8
19
19
O
Current sink output 6. If not used, this pin can be left floating.
OUT7
9
9
20
20
O
Current sink output 7. If not used, this pin can be left floating.
OUT8
10
10
21
21
O
Current sink output 8. If not used, this pin can be left floating.
OUT9
—
11
—
22
O
Current sink output 9. If not used, this pin can be left floating.
OUT10
—
12
—
23
O
Current sink output 10. If not used, this pin can be left floating.
OUT11
—
13
—
24
O
Current sink output 11. If not used, this pin can be left floating.
SCL
18
18
7
7
I
I2C bus clock line. If not used, this pin must be connected to GND
or VCC.
SDA
17
17
5
5
I/O
I2C bus data line. If not used, this pin must be connected to GND
or VCC.
VCAP
1
1
10
10
—
Internal LDO output pin, this pin must be connected to a 1-µF
capacitor to GND. Place the capacitor as close to the device as
possible.
VCC
16
16
4
4
—
Power supply.
GND
Thermal
pad
Thermal
pad
—
—
—
Exposed thermal pad also serves the ground pin for the WQFN
package.
AGND
—
—
2
2
—
Analog circuits ground. AGND, PGND and DGND must be
conntected together.
PGND
—
—
6
6
—
Power ground. AGND, PGND and DGND must be conntected
together.
DGND
—
—
18
18
—
Digital circuits ground. AGND, PGND and DGND must be
conntected together.
NC
6
PW NO.
Chip enable input pin.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
7 Specifications
7.1 Absolute Maximum Ratings
over operating ambient temperature range (unless otherwise noted)(1)
MIN
MAX
Voltage on EN, IREF, OUTx, SCL, SDA, VCC
–0.3
6
V
Voltage on ADDRx
–0.3
VCC + 0.3
V
–0.3
2
V
Voltage on VCAP
Continuous power dissipation
UNIT
Internally limited
Junction temperature, TJ-MAX
–40
125
°C
Storage temperature, Tstg
–65
150
°C
(1)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)
±4000
Charged-device model (CDM), per JEDEC specification JESD22-C101(2)
±1500
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Manufacturing with
less than 500-V HBM is possible with the necessary precautions.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Manufacturing with
less than 250-V CDM is possible with the necessary precautions.
7.3 Recommended Operating Conditions
over operating ambient temperature range (unless otherwise noted)
MIN
MAX
2.7
5.5
V
Voltage on OUTx
0
5.5
V
Voltage on ADDRx, EN, SDA, SCL
0
5.5
V
Operating ambient temperature, TA
–40
85
°C
Input voltage on VCC
UNIT
7.4 Thermal Information
LP5009 or LP5012
THERMAL METRIC(1)
RUK (QFN)
PW (TSSOP)
20 PINS
24 Pins
UNIT
RθJA
Junction-to-ambient thermal resistance
53.7
98.3
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
55.3
41.5
°C/W
RθJB
Junction-to-board thermal resistance
27.4
53.5
°C/W
ψJT
Junction-to-top characterization parameter
1.9
5.0
°C/W
ψJB
Junction-to-board characterization parameter
27.4
53.1
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
12.9
n/a
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
7
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
7.5 Electrical Characteristics
over operating ambient temperature range (–40°C < TA< 85°C) (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
POWER SUPPLIES (VCC)
VVCC
Supply voltage
2.7
VEN = 0 V
Standby supply current
5.5
V
0.2
1
VEN = 3.3 V, Chip_EN = 0 (bit)
6
10
Normal-mode supply current
With 10-mA LED current per OUTx
4
6
mA
Power-save mode supply current
VEN = 3.3 V, Chip_EN = 1 (bit),
Power_Save_EN = 1 (bit), all the LEDs off
duration > tPSM
6
10
µA
VUVR
Undervoltage restart
VVCC rising
2.5
V
VUVF
Undervoltage shutdown
VVCC falling
VUV_HYS
Undervoltage shutdown hysteresis
IVCC
Shutdown supply current
2
µA
V
0.2
V
OUTPUT STAGE (OUTx)
Maximum sink current (OUT0–OUTx) (For VVCC in full range, Max_Current_Option =
LP5012, x = 11. For LP5009, x = 8.)
0 (bit), PWM = 100%
IMAX
mA
Maximum sink current (OUT0–OUTx) (For VVCC ≥ 3.3 V, Max_Current_Option = 1
LP5012, x = 11. For LP5009, x = 8.)
(bit), PWM = 100%
35
Internal sink current limit (OUT0–OUTx)
(For LP5012, x = 11. For LP5009, x = 8.)
VVCC in full range, Max_Current_Option =
0 (bit), VIREF = 0 V
35
55
85
Internal sink current limit (OUT0–OUTx)
(For LP5012, x = 11. For LP5009, x = 8.)
VVCC ≥ 3.3V, Max_Current_Option=1 (bit),
VIREF = 0 V
40
75
120
Ilkg
Leakage current (OUT0–OUTx) (For
LP5012, x = 11. For LP5009, x = 8.)
PWM = 0%
0.1
1
IERR_DD
Device to device current error, IERR_DD =
(IAVE - ISET)/ISET × 100%
Channels' current are set to 10 mA. PWM
= 100% at 25°C. Already includes the
VIREF and KIREF tolerance
–5%
5%
IERR_CC
Channel to channel current error, IERR_CC
= (IOUTX - IAVE)/IAVE × 100%
Channels' current are set to 10 mA. PWM
= 100% at 25°C. Already includes the
VIREF and KIREF tolerance
–5%
5%
ILIM
mA
VIREF
IREF voltage
0.7
KIREF
IREF ratio
105
ƒPWM
PWM switching frequency
VSAT
8
25.5
Output saturation voltage
21
VVCC in full range, Max_Current_Option =
0 (bit), output current set to 20 mA, the
voltage when the LED current has
dropped 5%
VVCC ≥ 3.3 V, Max_Current_Option = 1
(bit), output current set to 20 mA, the
voltage when the LED current has
dropped 5%
Submit Document Feedback
V
29
0.25
µA
kHz
0.35
V
0.3
0.4
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
7.5 Electrical Characteristics (continued)
over operating ambient temperature range (–40°C < TA< 85°C) (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
LOGIC INPUTS (EN, SCL, SDA, ADDRx)
VIL
Low level input voltage
VIH
High level input voltage
1.4
ILOGIC
Input current
–1
VSDA
SDA output low level
0.4
V
1
µA
0.4
V
V
IPULLUP = 5 mA
PROTECTION CIRCUITS
T(TSD)
Thermal-shutdown junction temperature
T(HYS)
Thermal shutdown temperature hysteresis
160
°C
15
°C
7.6 Timing Characteristics
over operating ambient temperature range (-40°C < TA< 85°C) (unless otherwise noted)
PARAMETER
MIN
ƒOSC
Internal oscillator frequency
tPSM
Power save mode deglitch time
tEN_H
EN first rising edge until first I2C access
tEN_L
EN first falling edge until first
ƒSCL
I2C clock frequency
TYP
MAX
15
I2C
20
reset
30
UNIT
MHz
40
ms
500
µs
3
400
µs
kHz
1
Hold time (repeated) START condition
0.6
µs
2
Clock low time
1.3
µs
3
Clock high time
600
ns
4
Setup time for a repeated START condition
600
ns
5
Data hold time
6
Data setup time
7
Rise time of SDA and SCL
20 + 0.1 Cb
300
ns
8
Fall time of SDA and SCL
15 + 0.1 Cb
300
ns
9
Setup time for STOP condition
600
ns
10
Bus free time between a STOP and a START condition
1.3
µs
Cb
Capacitive load parameter for each bus line Load of 1 pF
corresponds to one nanosecond.
10
0
ns
100
ns
200
pF
Figure 7-1. I2C Timing Parameters
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
9
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
35
32.5
30
27.5
25
22.5
20
17.5
15
12.5
10
7.5
5
2.5
0
40
35
Output Current (mA)
Output Current (mA)
7.7 Typical Characteristics
30
25
5mA-Average Current
10mA-Average Current
25.5mA-Average Current
35mA-Average Current
20
15
10
5
0
5
0
-40 -30 -20 -10
10 15 20 25 30 35 40 45 50 55 60 65 70
RIREF(k:)
D005
Figure 7-2. IOUT Target vs RIREF
0 10 20 30 40 50 60 70 80 90
Ambient Temperature (°C)
D001
VCC = 3.3 V
Figure 7-3. Output Current vs Temperature
40
2
35
1.6
Max in 5mA
Min in 5mA
Max in 10mA
Min in 10mA
Max in 25.5mA
Min in 25.5mA
0.8
25
5mA-Average Current
10mA-Average Current
25.5mA-Average Current
35mA-Average Current
20
15
Accuracy (%)
Output Current (mA)
1.2
30
0.4
0
-0.4
-0.8
10
-1.2
5
-1.6
0
-40 -30 -20 -10
VCC = 5 V
0.055
0.05
1.2
0.045
0.4
Max in 5mA
Min in 5mA
Max in 10mA
Min in 10mA
Max in 25.5mA
Min in 25.5mA
-0.4
-0.8
Output Current (A)
2
0.8
Accuracy (%)
Figure 7-5. Channel-to-Channel Current Accuracy
1.6
0
0 10 20 30 40 50 60 70 80 90
Ambient Temperature (°C)
D003
VCC = 3.3 V
Figure 7-4. Output Current vs Temperature
50-PA IREF
100-PA IREF
150-PA IREF
200-PA IREF
250-PA IREF
300-PA IREF
350-PA IREF
0.04
0.035
0.03
0.025
0.02
0.015
-1.2
0.01
-1.6
0.005
-2
-40 -30 -20 -10
0
0 10 20 30 40 50 60 70 80 90
Ambient Temperature (°C)
D004
VCC = 5 V
0
0.25
0.5
0.75 1 1.25 1.5 1.75
Output Pin Voltage (V)
2
2.25
2.5
D006
VCC = 3.3 V
Figure 7-6. Channel-to-Channel Current Accuracy
vs Temperature
10
-2
-40 -30 -20 -10
0 10 20 30 40 50 60 70 80 90
Ambient Temperature (°C)
D002
Figure 7-7. OUT Pin Voltage vs Current
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
0.055
50-PA IREF
100-PA IREF
150-PA IREF
0.05
Output Current (A)
0.045
200-PA IREF
250-PA IREF
300-PA IREF
350-PA IREF
0.04
0.035
0.03
0.025
0.02
0.015
0.01
0.005
0
0
0.25
0.5
0.75 1 1.25 1.5 1.75
Output Pin Voltage (V)
2
2.25
2.5
D007
VCC = 5 V
Figure 7-8. OUT Pin Voltage vs Output Current
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
11
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8 Detailed Description
8.1 Overview
The LP50xx device is an 9- or 12-channel constant-current-sink LED driver. The LP50xx device includes all
necessary power rails, an on-chip oscillator, and a two-wire serial I2C interface. The maximum constant-current
value of all channels is set by a single external resistor. Two hardware address pins allow up to four devices on
the same bus. An automatic power-saving mode is implemented to keep the total current consumption under 10
µA, which makes the LP50xx device a potential choice for battery-powered end equipment.
The LP50xx device is optimized for RGB LEDs regarding both live effects and software efforts. The LP50xx
device controls each LED output with 12-bit PWM resolution at 29-kHz switching frequency, which helps achieve
a smooth dimming effect and eliminates audible noise. The independent color-mixing and intensity-control
registers make the software coding straightforward. When targeting a fade-in, fade-out type breathing effect, the
global RGB bank control reduces the microcontroller loading significantly. The LP50xx device also implements a
PWM phase-shifting function to help reduce the input power budget when LEDs turn on simultaneously.
8.2 Functional Block Diagram
VCC
VLED
VCC
Bandgap
OUT0
OUT1
V1P8
LDO
VCAP
Oscillator
15MHz
EN
12 Bits
29 kHz
PWM
Generators
SDA
SCL
OUT2
OUT9
Digital
Interface
Digital Control
OUT10
ADDR0
ADDR1
IREF
OUT11
IREF Setting Current
GND
Thermal Shutdown
8.3 Feature Description
8.3.1 PWM Control for Each Channel
Most traditional LED drivers are designed for the single-color LEDs, in which the high-resolution PWM generator
is used for intensity control only. However, for RGB LEDs, both the color mixing and intensity control must be
addressed to achieve the target effect. With the traditional solution, the users must handle the color mixing and
intensity control simultaneously with a single PWM register. Several undesired effects occur: the limited dimming
steps, the complex software design and the color distortion when using a logarithmic scale control.
The LP50xx device is designed with independent color mixing and intensity control, which makes the RGB LED
effects fancy and the control experience straightforward. With the inputs of the color-mixing register and the
intensity-control register, the final PWM generator output for each channel is 12-bit resolution and 29-kHz
dimming frequency, which helps achieve a smooth dimming effect and eliminates audible noise. See Figure 8-1.
12
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
Color-Mixing
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Brightness-Control
PWM Generators
12 Bits / 29KHz PWM
OUT0
12 Bits / 29KHz PWM
OUT1
8 Bits Color
12 Bits / 29KHz PWM
OUT2
8 Bits Color
12 Bits / 29KHz PWM
OUT9
12 Bits / 29KHz PWM
OUT10
12 Bits / 29KHz PWM
OUT11
8 Bits Color
8 Bits Color
8 Bits Color
8 Bits Brightness
8 Bits Brightness
8 Bits Color
Figure 8-1. PWM Control Scheme for Each Channel
8.3.1.1 Independent Color Mixing Per RGB LED Module
Each output channel has its own individual 8-bit color-setting register (OUTx_COLOR). The device allows every
RGB LED module to achieve >16 million (256 × 256 × 256) color-mixing.
8.3.1.2 Independent Intensity Control Per RGB LED Module
When color is fixed, the independent intensity-control is used to achieve accurate and flexible dimming control
for every RGB LED module.
8.3.1.2.1 Intensity-Control Register Configuration
Every three consecutive output channels are assigned to their respective intensity-control register
(LEDx_BRIGHTNESS). For example, OUT0, OUT1, and OUT2 are assigned to LED0_BRIGHTNESS, so it is
recommended to connect the RGB LEDs in the sequence as shown in Table 8-1. The LP50xx device allows 256step intensity control for each RGB LED module, which helps achieve a smooth dimming effect.
Keeping FFh (default value) in the LED0_BRIGHTNESS register results in 100% dimming duty cycle. With this
setting, users can just configure the color mixing register by channel to achieve the target dimming effect in a
single-color LED application.
8.3.1.2.2 Logarithmic- or Linear-Scale Intensity Control
For human-eye-friendly visual performance, a logarithmic-scale dimming curve is usually implemented in LED
drivers. However, for RGB LEDs, if using a single register to achieve both color mixing and intensity control,
color distortion can be observed easily when using a logarithmic scale. The LP50xx device, with independent
color-mixing and intensity-control registers, implements the logarithmic scale dimming control inside the intensity
control function, which solves the color distortion issue effectively. See Figure 8-2. Also, the LP50xx device
allows users to configure the dimming scale either logarithmically or linearly through the global Log_Scale_EN
register. If a special dimming curve is desired, using the linear scale with software correction is the most flexible
approach. See Figure 8-3.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
13
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Brightness Control
8 Bits Brightness
Linear OR Logarithmic
Log_Scale_EN
8 Bits Brightness
Linear OR Logarithmic
Figure 8-2. Logarithmic- or Linear-Scale Intensity Control
Logarithmic Scale Dimming Curve
100%
80%
80%
PWM Output Duty
PWM Output Duty
Linear Scale Dimming Curve
100%
60%
40%
20%
60%
40%
20%
0%
0%
0
32
64
96
128
160
192
224
255
0
32
LEDx_BRIGHTNESS Register Input
64
96
128
160
192
224
255
LEDx_BRIGHTNESS Register Input
Figure 8-3. Logarithmic vs Linear Dimming Curve
8.3.1.3 12-Bit, 29-kHz PWM Generator Per Channel
8.3.1.3.1 PWM Generator
With the inputs of the color mixing and the intensity control, the final output PWM duty cycle is defined as the
product obtained by multiplying the color-mixing register value by the related intensity-control register value. The
final output PWM duty cycle has 12 bits of control accuracy, which is achieved by a 9 bits of pure PWM
resolution and 3 bits of digital dithering control. For 3-bit dithering, every eighth pulse is made 1 LSB longer to
increase the average value by 1 / 8th. The LP50xx device allows users to enable or disable the dithering function
through the PWM_Dithering_EN register. When enabled (default), the output PWM duty-cycle accuracy is 12
bits. When disabled, the output PWM duty-cycle accuracy is 9 bits.
To eliminate the audible noise due to the PWM switching, the LP50xx device sets the PWM switching frequency
at 29 kHz, above the 20-kHz human hearing range.
8.3.1.4 PWM Phase-Shifting
A PWM phase-shifting scheme allows delaying the time when each LED driver is active. When the LED drivers
are not activated simultaneously, the peak load current from the pre-stage power supply is significantly
14
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
decreased. The scheme also reduces input-current ripple and ceramic-capacitor audible ringing. LED drivers are
grouped into three different phases.
•
•
•
Phase 1—the rising edge of the PWM pulse is fixed. The falling edge of the pulse is changed when the duty
cycle changes. Phase 1 is applied to LED0, LED3, LED6, LED9.
Phase 2—the middle point of the PWM pulse is fixed. The pulse spreads in both directions when the PWM
duty cycle is increased. Phase 2 is applied to LED1, LED4, LED7, LED10.
Phase 3—the falling edge of the PWM pulse is fixed. The rising edge of the pulse is changed when the duty
cycle changes. Phase 3 is applied to LED2, LED5, LED8, LED11.
Cycle Time
LED0
Phase 1
LED3
LED9
LED1
Phase 2
LED4
LED10
LED2
Phase 3
LED5
LED11
Phase 1
Phase 2
Phase 3
Figure 8-4. PWM Phase-Shifting
8.3.2 LED Bank Control
For most LED-animation effects, like blinking and breathing, all the RGB LEDs have the same lighting pattern.
Instead of controlling the individual LED separately, which occupies the microcontroller resources heavily, the
LP50xx device provides an easy coding approach, the LED bank control.
Each channel can be configured as either independent control or bank control through the LEDx_Bank_EN
register. When LEDx_Bank_EN = 0 (default), the LED is controlled independently by the related color-mixing and
intensity-control registers. When LEDx_Bank_EN = 1, the LP50xx device drives the LEDs in LED bank-control
mode. The LED bank has its own independent PWM control scheme, which is the same structure as the PWM
scheme of each channel. See PWM Control for Each Channel for more details. When a channel is configured in
LED bank-control mode, the related color mixing and intensity control is governed by the bank control registers
(BANK_A_COLOR, BANK_B_COLOR, BANK_C_COLOR, and BANK_BRIGHTNESS) regardless of the inputs
on its own color-mixing and intensity-control registers.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
15
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Bank Color-Mixing
Bank A:
8 Bits Color
Bank B:
8 Bits Color
Bank C:
8 Bits Color
Bank Brightness-Control
Bank PWM Generators
12 Bits / 29kHz PWM
8 Bits Brightness
12 Bits / 29kHz PWM
12 Bits / 29kHz PWM
Figure 8-5. Bank PWM Control Scheme
Table 8-1. Bank Number and LED Number Assignment
OUT NUMBER
BANK NUMBER
OUT0
Bank A
OUT1
Bank B
OUT2
Bank C
OUT3
Bank A
OUT4
Bank B
OUT5
Bank C
OUT6
Bank A
OUT7
Bank B
OUT8
Bank C
OUT9 (LP5012 only)
Bank A
OUT10 (LP5012 only)
Bank B
OUT11 (LP5012 only)
Bank C
RGB LED MODULE NUMBER
LED0
LED1
LED2
LED3
With the bank control configuration, the LP50xx device enables users to achieve smooth and live LED effects
globally with an ultrasimple software effort. Figure 8-6 shows an example using LED0 as an independent RGB
indicator and others with group breathing effect.
Bank A
CH3/6/9
Independent
CH0/1/2
Bank B
CH4/7/10
Bank C
CH5/8/11
Figure 8-6. Bank PWM Control Example
16
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.3.3 Current Range Setting
The constant-current value (ISET) of all 12 channels is set by a single external resistor, RIREF. The value of RIREF
can be calculated by Equation 1.
RIREF
KIREF u
VIREF
ISET
(1)
where:
•
•
KIREF = 105
VIREF = 0.7 V
With the IREF pin floating, the output current is close to zero. With the IREF pin shorted to GND, the LP50xx
device provides internal current-limit protection, and the output-channel maximum current is limited to ILIM.
The LP50xx device supports two levels of maximum output current, IMAX.
•
•
When VCC is in the range from 2.7 V to 5.5 V, and the Max_Current_Option (bit) = 0, IMAX = 25.5 mA.
When VCC is in the range from 3.3 V to 5.5 V, and the Max_Current_Option (bit) = 1, IMAX = 35 mA.
8.3.4 Automatic Power-Save Mode
When all the LED outputs are inactive, the LP50xx device is able to enter power-save mode automatically, thus
lowering idle-current consumption down to 10 μA (typical). Automatic power-save mode is enabled when register
bit Power_Save_EN = 1 (default) and all the LEDs are off for a duration of > 30 ms. Almost all analog blocks are
powered down in power-save mode. If any I2C command to the device occurs, the LP50xx device returns to
NORMAL mode.
8.3.5 Protection Features
8.3.5.1 Thermal Shutdown
The LP50xx device implements a thermal shutdown mechanism to protect the device from damage due to
overheating. When the junction temperature rises to 160°C (typical), the device switches into shutdown mode.
The LP50xx device releases thermal shutdown when the junction temperature of the device is reduced to 145°C
(typical).
8.3.5.2 UVLO
The LP50xx device has an internal comparator that monitors the voltage at VCC. When VCC is below VUVF, reset
is active and the LP50xx device is in the INITIALIZATION state.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
17
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.4 Device Functional Modes
VCC Power Up
EN = L
SHUTDOWN
From all states
EN = H
RESET = FF or UVLO = H
From all states
INITIALIZATION
STANDBY
Chip_EN = 1
Chip_EN = 0
TSD=H
I2C Command
POWER SAVE
THERMAL
SHUTDOWN
NORMAL
Power_Save_EN =1 and
All LEDs off > 30ms
TSD=L
Figure 8-7. Functional Modes
•
•
•
•
•
•
18
INITIALIZATION: The device enters into INITIALIZATION mode when EN = H. In this mode, all the registers
are reset. Entry can also be from any state, if the RESET (register) = FFh or UVLO is active.
NORMAL: The device enters the NORMAL mode when Chip_EN (register) = 1. ICC is 10 mA (typical).
POWER SAVE: The device automatically enters the POWER SAVE mode when Power_Save_EN (register) =
1 and all the LEDs are off for a duration of > 30 ms. In POWER SAVE mode, analog blocks are disabled to
minimize power consumption, but the registers retain the data and keep it available via I2C. ICC is 10 µA
(typical). In case of any I2C command to this device, it returns to the NORMAL mode.
SHUTDOWN: The device enters into SHUTDOWN mode from all states on VCC power up or when EN = L.
ICC is < 1 µA (maximum).
STANDBY: The device enters the STANDBY mode when Chip_EN (register) = 0. In this mode, all the OUTx
pins are shut down, but the registers retain the data and keep it available via I2C. STANDBY is the lowpower-consumption mode, when all circuit functions are disabled. ICC is 10 µA (typical).
THERMAL SHUTDOWN: The device automatically enters the THERMAL SHUTDOWN mode when the
junction temperature exceeds 160°C (typical). In this mode, all the OUTx outputs are shut down. If the
junction temperature decreases below 145°C (typical), the device returns to the NORMAL mode.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.5 Programming
8.5.1 I2C Interface
The I2C-compatible two-wire serial interface provides access to the programmable functions and registers on the
device. This protocol uses a two-wire interface for bidirectional communications between the devices connected
to the bus. The two interface lines are the serial data line (SDA) and the serial clock line (SCL). Every device on
the bus is assigned a unique address and acts as either a master or a slave depending on whether it generates
or receives the serial clock, SCL. The SCL and SDA lines must each have a pullup resistor placed somewhere
on the line and remain HIGH even when the bus is idle.
8.5.1.1 Data Validity
The data on SDA line must be stable during the HIGH period of the clock signal (SCL). In other words, the state
of the data line can only be changed when the clock signal is LOW.
SDA
SCL
Data Li ne
Stable;
Data V alid
Chang e
of Data
Allo wed
Figure 8-8. Data Validity
8.5.1.2 Start and Stop Conditions
START and STOP conditions classify the beginning and the end of the data transfer session. A START condition
is defined as the SDA signal transitioning from HIGH to LOW while the SCL line is HIGH. A STOP condition is
defined as the SDA transitioning from LOW to HIGH while SCL is HIGH. The bus master always generates
START and STOP conditions. The bus is considered to be busy after a START condition and free after a STOP
condition. During data transmission, the bus master can generate repeated START conditions. First START and
repeated START conditions are functionally equivalent.
SDA
SCL
S
P
Start Cond itio n
Stop Condition
Figure 8-9. Start and Stop Conditions
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
19
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.5.1.3 Transferring Data
Every byte put on the SDA line must be eight bits long, with the most-significant bit (MSB) being transferred first.
Each byte of data must be followed by an acknowledge bit. The acknowledge-related clock pulse is generated
by the master. The master releases the SDA line (HIGH) during the acknowledge clock pulse. The device pulls
down the SDA line during the ninth clock pulse, signifying an acknowledge. The device generates an
acknowledge after each byte has been received.
There is one exception to the acknowledge-after-every-byte rule. When the master is the receiver, it must
indicate to the transmitter an end of data by not acknowledging (negative acknowledge) the last byte clocked out
of the slave. This negative acknowledge still includes the acknowledge clock pulse (generated by the master),
but the SDA line is not pulled down.
After the START condition, the bus master sends a chip address. This address is seven bits long followed by an
eighth bit which is a data direction bit (READ or WRITE). For the eighth bit, a 0 indicates a WRITE, and a 1
indicates a READ. The second byte selects the register to which the data is written. The third byte contains data
to write to the selected register.
Data O utp ut
by Tran smitte r
NACK
Data O utp ut
by Tran smitte r
ACK
SCL Fr om
Master
1
2
8
Start
Condition
9
Clock Pulse fo r
Acknowledgment
Figure 8-10. Acknowledge and Not Acknowledge on I2C Bus
8.5.1.4 I2C Slave Addressing
The device slave address is defined by connecting GND or VCC to the ADDR0 and ADDR1 pins. A total of four
independent slave addresses can be realized by combinations when GND or VCC is connected to the ADDR0
and ADDR1 pins (see Table 8-2 and Table 8-3).
The device responds to a broadcast slave address regardless of the setting of the ADDR0 and ADDR1 pins.
Global writes to the broadcast address can be used for configuring all devices simultaneously. The device
supports global read using a broadcast address; however, the data read is only valid if all devices on the I2C bus
contain the same value in the addressed register.
20
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Table 8-2. Slave-Address Combinations
SLAVE ADDRESS
ADDR1
ADDR0
GND
GND
0010100
GND
VCC
0010101
VCC
GND
0010110
VCC
VCC
0010111
INDEPENDENT
BROADCAST
0001100
Table 8-3. Chip Address
SLAVE ADDRESS
Bit 7
Bit 6
Bit 5
Bit 4
R/ W
Bit 3
Bit 2
Bit 1
Bit 0
Independent
0
0
1
0
1
ADDR1
ADDR0
1 or 0
Broadcast
0
0
0
1
1
0
0
1 or 0
8.5.1.5 Control-Register Write Cycle
•
•
•
•
•
•
•
•
•
The master device generates a start condition.
The master device sends the slave address (7 bits) and the data direction bit (R/ W = 0).
The slave device sends an acknowledge signal if the slave address is correct.
The master device sends the control register address (8 bits).
The slave device sends an acknowledge signal.
The master device sends the data byte to be written to the addressed register.
The slave device sends an acknowledge signal.
If the master device sends further data bytes, the control register address of the slave is incremented by 1
after the acknowledge signal. To reduce program load time, the device supports address auto incrementation.
The register address is incremented after each 8 data bits.
The write cycle ends when the master device creates a stop condition.
ack from slave
star t
ack from slave
MSB Chip Addr LSB w ack MSB Register Ad dr L SB ack
ack from slave
MSB Data L SB
ack
stop
Figure 8-11. Write Cycle
8.5.1.6 Control-Register Read Cycle
•
•
•
•
•
•
•
•
•
•
•
The master device generates a start condition.
The master device sends the slave address (7 bits) and the data direction bit (R/ W = 0).
The slave device sends an acknowledge signal if the slave address is correct.
The master device sends the control register address (8 bits).
The slave device sends an acknowledge signal.
The master device generates a repeated-start condition.
The master device sends the slave address (7 bits) and the data direction bit (R/ W = 1).
The slave device sends an acknowledge signal if the slave address is correct.
The slave device sends the data byte from the addressed register.
If the master device sends an acknowledge signal, the control-register address is incremented by 1. The
slave device sends the data byte from the addressed register. To reduce program load time, the device
supports address auto incrementation. The register address is incremented after each 8 data bits.
The read cycle ends when the master device does not generate an acknowledge signal after a data byte and
generates a stop condition.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
21
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
ack from slave
star t
MSB Chip Addr LSB w
ack from slave repeated start
MSB Register Addr LSB
rs
ack from slave
MSB Chip Addr LSB r
data from slave nack from master
MSB Data L SB
stop
Figure 8-12. Read Cycle
8.5.1.7 Auto-Increment Feature
The auto-increment feature allows writing or reading several consecutive registers within one transmission. For
example, when an 8-bit word is sent to the device, the internal address index counter is incremented by 1, and
the next register is written. The auto-increment feature is enabled by default and can be disabled by setting the
Auto_Incr_EN bit = 0 in the DEVICE_CONFIG1 register. The auto-increment feature is applied for the full
register address from 0h to FFh.
22
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.6 Register Maps
Table 8-4 lists the memory-mapped registers of the device.
Table 8-4. Register Maps
REGISTER
NAME
ADDR
TYPE
D7
D6
DEVICE_
CONFIG0
00h
R/ W
RESERVED
Chip_EN
DEVICE_
CONFIG1
01h
R/ W
LED_CONFIG0
02h
R/ W
BANK_
BRIGHTNESS
03h
R/ W
Bank_Brightness
FFh
BANK_A_
COLOR
04h
R/ W
Bank_A_Color
00h
BANK_B_
COLOR
05h
R/ W
Bank_B_Color
00h
BANK_C_
COLOR
06h
R/ W
Bank_C_Color
00h
LED0_
BRIGHTNESS
07h
R/ W
LED0_Brightness
FFh
LED1_
BRIGHTNESS
08h
R/ W
LED1_Brightness
FFh
LED2_
BRIGHTNESS
09h
R/ W
LED2_Brightness
FFh
LED3_
BRIGHTNESS
0Ah
R/ W
LED3_Brightness
(Only for LP5012)
FFh
OUT0_COLOR
0Bh
R/ W
OUT0_Color
00h
OUT1_COLOR
0Ch
R/ W
OUT1_Color
00h
OUT2_COLOR
0Dh
R/ W
OUT2_Color
00h
OUT3_COLOR
0Eh
R/ W
OUT3_Color
00h
OUT4_COLOR
0Fh
R/ W
OUT4_Color
00h
OUT5_COLOR
10h
R/ W
OUT5_Color
00h
OUT6_COLOR
11h
R/ W
OUT6_Color
00h
OUT7_COLOR
12h
R/ W
OUT7_Color
00h
OUT8_COLOR
13h
R/ W
OUT8_Color
00h
RESERVED
D5
D4
D3
D2
D1
D0
RESERVED
Log_Scale_EN
RESERVED
Power_Save_
EN
Auto_Incr_EN
PWM_
Dithering_EN
DEFAULT
00h
Max_Current_
Option
LED_Global Off
3Ch
LED3_Bank_EN
(Only for
LED2_Bank_EN LED1_Bank_EN LED0_Bank_EN
LP5012)
00h
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
23
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Table 8-4. Register Maps (continued)
REGISTER
NAME
ADDR
TYPE
OUT9_COLOR
14h
R/ W
OUT9_Color
(Only for LP5012)
00h
OUT10_COLOR
15h
R/ W
OUT10_Color
(Only for LP5012)
00h
OUT11_COLOR
16h
R/ W
OUT11_Color
(Only for LP5012)
00h
RESET
17h
W
Reset
00h
24
D7
D6
D5
D4
D3
Submit Document Feedback
D2
D1
D0
DEFAULT
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Table 8-5. Access Type Codes
ACCESS TYPE
CODE
DESCRIPTION
Read Type
R
R
Read
W
Write
Write Type
W
Reset or Default Value
Value after reset or the default
value
-n
8.6.1 DEVICE_CONFIG0 (Address = 0h) [reset = 0h]
DEVICE_CONFIG0 is shown in Figure 8-13 and described in Table 8-6.
Return to Table 8-4.
Figure 8-13. DEVICE_CONFIG0 Register
7
6
5
4
3
2
RESERVED
Chip_EN
RESERVED
R/ W-0h
R/ W-0h
R/ W-0h
1
0
1
0
Table 8-6. DEVICE_CONFIG0 Register Field Descriptions
Bit
Field
Type
Reset
Description
7
RESERVED
R/ W
0h
Reserved
6
Chip_EN
R/ W
0h
1 = LP50xx enabled
0 = LP50xx not enabled
RESERVED
R/ W
0h
Reserved
5–0
8.6.2 DEVICE_CONFIG1 (Address = 1h) [reset = 3Ch]
DEVICE_CONFIG1 is shown in Figure 8-14 and described in Table 8-7.
Return to Table 8-4.
Figure 8-14. DEVICE_CONFIG1 Register
7
6
5
4
RESERVED
Log_Scale_EN
Power_Save_E
N
3
Auto_Incr_EN
R/ W-0h
R/ W-1h
R/ W-1h
R/ W-1h
2
PWM_Dithering Optional_Headr
LED_Global Off
_EN
oom
R/ W-1h
R/ W-0h
R/ W-0h
Table 8-7. DEVICE_CONFIG1 Register Field Descriptions
Bit
Field
Type
Reset
Description
7–6
RESERVED
R/ W
0h
Reserved
5
Log_Scale_EN
R/ W
1h
1 = Logarithmic scale dimming curve enabled
0 = Linear scale dimming curve enabled
4
Power_Save_EN
R/ W
1h
1 = Automatic power-saving mode enabled
0 = Automatic power-saving mode not enabled
3
Auto_Incr_EN
R/ W
1h
1 = Automatic increment mode enabled
0 = Automatic increment mode not enabled
2
PWM_Dithering_EN
R/ W
1h
1 = PWM dithering mode enabled
0 = PWM dithering mode not enabled
1
Max_Current_Option
R/ W
0h
1 = Output maximum current IMAX = 35 mA.
0 = Output maximum current IMAX = 25.5 mA.
0
LED_Global Off
R/ W
0h
1 = Shut down all LEDs
0 = Normal operation
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
25
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.6.3 LED_CONFIG0 (Address = 2h) [reset = 00h]
LED_CONFIG0 is shown in Figure 8-15 and described in Table 8-8.
Return to Table 8-4.
Figure 8-15. LED_CONFIG0 Register
7
6
5
4
3
2
1
0
LED0_Bank_E
LED3_Bank_EN LED2_Bank_EN LED1_Bank_EN
N
RESERVED
R/ W-0h
R/ W-0h
R/ W-0h
R/ W-0h
R/ W-0h
Table 8-8. LED_CONFIG0 Register Field Descriptions
Bit
Field
Type
Reset
Description
7-4
RESERVED
R/ W
0h
Reserved
3
LED3_Bank_EN
R/ W
0h
1 = LED3 bank control mode enabled
0 = LED3 Independent control mode enabled
2
LED2_Bank_EN
R/ W
0h
1 = LED2 bank control mode enabled
0 = LED2 independent control mode enabled
1
LED1_Bank_EN
R/ W
0h
1 = LED1 bank control mode enabled
0 = LED1 independent control mode enabled
0
LED0_Bank_EN
R/ W
0h
1 = LED0 bank control mode enabled
0 = LED0 independent control mode enabled
8.6.4 BANK_BRIGHTNESS (Address = 3h) [reset = FFh]
BANK_BRIGHTNESS is shown in Figure 8-16 and described in Table 8-9.
Return to Table 8-4.
Figure 8-16. BANK_BRIGHTNESS Register
7
6
5
4
3
2
1
0
1
0
Bank_Brightness
R/ W-FFh
Table 8-9. BANK_BRIGHTNESS Register Field Descriptions
Bit
Field
7–0
Type
Bank_Brightness
R/ W
Reset
Description
FFh
FFh = 100% of full brightness
...
80h = 50% of full brightness
...
00h = 0% of full brightness
8.6.5 BANK_A_COLOR (Address = 4h) [reset = 00h]
BANK_A_COLOR is shown in Figure 8-17 and described in Table 8-10.
Return to Table 8-4.
Figure 8-17. BANK_A_COLOR Register
7
6
5
4
3
2
Bank_A_Color
R/ W-0h
26
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Table 8-10. BANK_A_COLOR Register Field Descriptions
Bit
7–0
Field
Bank_A_Color
Type
R/ W
Reset
Description
0h
FFh = The color mixing percentage is 100%.
...
80h = The color mixing percentage is 50%.
...
00h = The color mixing percentage is 0%.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
27
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.6.6 BANK_B_COLOR (Address = 5h) [reset = 00h]
BANK_B_COLOR is shown in Figure 8-18 and described in Table 8-11.
Return to Table 8-4.
Figure 8-18. BANK_B_COLOR Register
7
6
5
4
3
2
1
0
Bank_B_Color
R/ W-0h
Table 8-11. BANK_B_COLOR Register Field Descriptions
Bit
Field
7–0
Type
Bank_B_Color
R/ W
Reset
Description
0h
FFh = The color mixing percentage is 100%.
...
80h = The color mixing percentage is 50%.
...
00h = The color mixing percentage is 0%.
8.6.7 BANK_C_COLOR (Address = 6h) [reset = 00h]
BANK_C_COLOR is shown in Figure 8-19 and described in Table 8-12.
Return to Table 8-4.
Figure 8-19. BANK_C_COLOR Register
7
6
5
4
3
2
1
0
Bank_C_Color
R/ W-0h
Table 8-12. BANK_C_COLOR Register Field Descriptions
Bit
Field
7–0
Type
Bank_C_Color
R/ W
Reset
Description
0h
FFh = The color mixing percentage is 100%.
...
80h = The color mixing percentage is 50%.
...
00h = The color mixing percentage is 0%.
8.6.8 LED0_BRIGHTNESS (Address = 7h) [reset = FFh]
LED0_BRIGHTNESS is shown in Figure 8-20 and described in Table 8-13.
Return to Table 8-4.
Figure 8-20. LED0_BRIGHTNESS Register
7
6
5
4
3
2
1
0
LED0_Brightness
R/ W-FFh
Table 8-13. LED0_BRIGHTNESS Register Field Descriptions
Bit
7–0
Field
LED0_Brightness
Type
R/ W
Reset
Description
FFh
FFh = 100% of full intensity
...
80h = 50% of full intensity
...
00h = 0% of full intensity
8.6.9 LED1_BRIGHTNESS (Address = 8h) [reset = FFh]
LED1_BRIGHTNESS is shown in Figure 8-21 and described in Table 8-14.
28
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Return to Table 8-4.
Figure 8-21. LED1_BRIGHTNESS Register
7
6
5
4
3
2
1
0
1
0
1
0
LED1_Brightness
R/ W-FFh
Table 8-14. LED1_BRIGHTNESS Register Field Descriptions
Bit
Field
7–0
Type
LED1_Brightness
R/ W
Reset
Description
FFh
FFh = 100% of full intensity
...
80h = 50% of full intensity
...
00h = 0% of full intensity
8.6.10 LED2_BRIGHTNESS (Address = 9h) [reset = FFh]
LED2_BRIGHTNESS is shown in Figure 8-22 and described in Table 8-15.
Return to Table 8-4.
Figure 8-22. LED2_BRIGHTNESS Register
7
6
5
4
3
2
LED2_Brightness
R/ W-FFh
Table 8-15. LED2_BRIGHTNESS Register Field Descriptions
Bit
Field
7–0
Type
LED2_Brightness
R/ W
Reset
Description
FFh
FFh = 100% of full intensity
...
80h = 50% of full intensity
...
00h = 0% of full intensity
8.6.11 LED3_BRIGHTNESS (Address = 0Ah) [reset = FFh]
LED3_BRIGHTNESS is shown in Figure 8-23 and described in Table 8-16.
Return to Table 8-4.
Figure 8-23. LED3_BRIGHTNESS Register
7
6
5
4
3
2
LED3_Brightness
R/ W-FFh
Table 8-16. LED3_BRIGHTNESS Register Field Descriptions
Bit
7–0
Field
LED3_Brightness
Type
R/ W
Reset
Description
FFh
FFh = 100% of full intensity
...
80h = 50% of full intensity
...
00h = 0% of full intensity
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
29
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.6.12 OUT0_COLOR (Address = 0Bh) [reset = 00h]
OUT0_COLOR is shown in Figure 8-24 and described in Table 8-17.
Return to Table 8-4.
Figure 8-24. OUT0_COLOR Register
7
6
5
4
3
2
1
0
OUT0_Color
R/ W-00h
Table 8-17. OUT0_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT0_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.13 OUT1_COLOR (Address = 0Ch) [reset = 00h]
OUT1_COLOR is shown in Figure 8-25 and described in Table 8-18.
Return to Table 8-4.
Figure 8-25. OUT1_COLOR Register
7
6
5
4
3
2
1
0
OUT1_Color
R/ W-00h
Table 8-18. OUT1_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT1_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.14 OUT2_COLOR (Address = 0Dh) [reset = 00h]
OUT2_COLOR is shown in Figure 8-26 and described in Table 8-19.
Return to Table 8-4.
Figure 8-26. OUT2_COLOR Register
7
6
5
4
3
2
1
0
OUT2_Color
R/ W-00h
Table 8-19. OUT2_COLOR Register Field Descriptions
Bit
7–0
Field
OUT2_Color
Type
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.15 OUT3_COLOR (Address = 0Eh) [reset = 00h]
OUT3_COLOR is shown in Figure 8-27 and described in Table 8-20.
30
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Return to Table 8-4.
Figure 8-27. OUT3_COLOR Register
7
6
5
4
3
2
1
0
OUT3_Color
R/ W-00h
Table 8-20. OUT3_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT3_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.16 OUT4_COLOR (Address = 0Fh) [reset = 00h]
OUT4_COLOR is shown in Figure 8-28 and described in Table 8-21.
Return to Table 8-4.
Figure 8-28. OUT4_COLOR Register
7
6
5
4
3
2
1
0
OUT4_Color
R/ W-00h
Table 8-21. OUT4_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT4_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.17 OUT5_COLOR (Address = 10h) [reset = 00h]
OUT5_COLOR is shown in Figure 8-29 and described in Table 8-22.
Return to Table 8-4.
Figure 8-29. OUT5_COLOR Register
7
6
5
4
3
2
1
0
OUT5_Color
R/ W-00h
Table 8-22. OUT5_COLOR Register Field Descriptions
Bit
7–0
Field
OUT5_Color
Type
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
31
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
8.6.18 OUT6_COLOR (Address = 11h) [reset = 00h]
OUT6_COLOR is shown in Figure 8-30 and described in Table 8-23.
Return to Table 8-4.
Figure 8-30. OUT6_COLOR Register
7
6
5
4
3
2
1
0
OUT6_Color
R/ W-00h
Table 8-23. OUT6_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT6_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.19 OUT7_COLOR (Address = 12h) [reset = 00h]
OUT7_COLOR is shown in Figure 8-31 and described in Table 8-24.
Return to Table 8-4.
Figure 8-31. OUT7_COLOR Register
7
6
5
4
3
2
1
0
OUT7_Color
R/ W-00h
Table 8-24. OUT7_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT7_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.20 OUT8_COLOR (Address = 13h) [reset = 00h]
OUT8_COLOR is shown in Figure 8-32 and described in Table 8-25.
Return to Table 8-4.
Figure 8-32. OUT8_COLOR Register
7
6
5
4
3
2
1
0
OUT8_Color
R/ W-00h
Table 8-25. OUT8_COLOR Register Field Descriptions
Bit
7–0
Field
OUT8_Color
Type
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.21 OUT9_COLOR (Address = 14h) [reset = 00h]
OUT9_COLOR is shown in Figure 8-33 and described in Table 8-26.
32
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Return to Table 8-4.
Figure 8-33. OUT9_COLOR Register
7
6
5
4
3
2
1
0
OUT9_Color
R/ W-00h
Table 8-26. OUT9_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT9_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.22 OUT10_COLOR (Address = 15h) [reset = 00h]
OUT10_COLOR is shown in Figure 8-34 and described in Table 8-27.
Return to Table 8-4.
Figure 8-34. OUT10_COLOR Register
7
6
5
4
3
2
1
0
OUT10_Color
R/ W-00h
Table 8-27. OUT10_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT10_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.23 OUT11_COLOR (Address = 16h) [reset = 00h]
OUT11_COLOR is shown in Figure 8-35 and described in Table 8-28.
Return to Table 8-4.
Figure 8-35. OUT11_COLOR Register
7
6
5
4
3
2
1
0
OUT11_Color
R/ W-00h
Table 8-28. OUT11_COLOR Register Field Descriptions
Bit
Field
7–0
Type
OUT11_Color
R/ W
Reset
Description
00h
FFh = The color mixing percentage is 0%.
...
80h =The color mixing percentage is 50%.
...
00h = The color mixing percentage is 100%.
8.6.24 RESET (Address = 17h) [reset = 00h]
RESET is shown in Figure 8-36 and described in Table 8-29.
Return to Table 8-4.
Figure 8-36. RESET Register
7
6
5
4
3
2
1
0
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
33
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
Figure 8-36. RESET Register (continued)
Reset
W-00h
Table 8-29. OUT14_COLOR Register Field Descriptions
34
Bit
Field
Type
Reset
Description
7–0
Reset
W
00h
FFh = Reset all the registers to default value.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
9 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and TI
does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes. Customers should validate and test their design
implementation to confirm system functionality.
9.1 Application Information
The LP50xx device is a 9- or 12-channel constant-current-sink LED driver. The LP50xx device improves the user
experience in color mixing and intensity control, for both live effects and coding effort. The optimized
performance for RGB LEDs makes it a good choice for human-machine interaction applications.
9.2 Typical Application
The LP50xx design supports up to four devices in parallel with different configurations on the ADDR0 and
ADDR1 pins.
VCC
VMCU
CVCC
VLED
RPULLUP
VC
C
RPULLUP
OUT0
EN
OUT1
SDA
SCL
OUT2
ADDR
0
MCU
ADDR
1
LP5012
OUT9
VCAP
CVCAP
OUT10
IREF
RIREF
GND
VCC
OUT11
CVCC
VLED
VC
C
OUT0
EN
OUT1
SDA
SCL
OUT2
ADDR
0
ADDR
1
LP5012
OUT9
VCAP
CVCAP
OUT10
IREF
RIREF
GND
OUT11
Figure 9-1. Driving Dual LP5012 Application Example
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
35
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
9.2.1 Design Requirements
Set the LED current to 15 mA using the RIREF resistor. Select the proper value for the other external
components, like VCAP pin capacitor and the SCL/SDA pullup resisters.
9.2.2 Detailed Design Procedure
LP50xx scales up the reference current (IREF) set by the external resistor (RIREF) to sink the output current (IOUT)
at each output port. The following formula can be used to calculate the external resistor (RIREF):
RIREF =KIREF ×
VIREF
ISET
(2)
The SCL and SDA lines must each have a pullup resistor placed somewhere on the line (the pullup resistors are
normally located on the bus master). In typical applications, values of 1.8 kΩ to 4.7 kΩ are used.
VCAP is internal LDO output pin. This pin must be connected through a 1-µF capacitor to GND. Place the
capacitor as close to the device as possible.
TI recommends having a 1-µF capacitor between VCC and GND to ensure proper operation. Place the capacitor
as close to the device as possible.
9.2.3 Application Curves
The test condition for Figure 9-2 is that the testing under bank control, with the register’s (0x04, 0x05, 0x06)
value is 0xF0.
The test condition for Figure 9-3 is that the testing under bank control, with the register’s (0x04, 0x05, 0x06)
value is 0x0F.
Figure 9-2. Current Waveform of OUT0, OUT1,
OUT2 and OUT3
36
Figure 9-3. Current Waveform of OUT0, OUT1,
OUT2 and OUT3
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
10 Power Supply Recommendations
The device is designed to operate from a VVCC input-voltage supply range from 2.7 V and 5.5 V. This input
supply must be well-regulated and able to withstand maximum input current and maintain stable voltage without
voltage drop even in a load-transition condition (start-up or rapid intensity change). The resistance of the input
supply rail must be low enough that the input-current transient does not cause a drop below a 2.7-V level in the
LP50xx VVCC supply voltage.
11 Layout
11.1 Layout Guidelines
To prevent thermal shutdown, the junction temperature, TJ, must be less than T(TSD). If the voltage drop across
the output channels is high, the device power dissipation can be large. The LP50xx device has very good
thermal performance because of the thermal pad design; however, the PCB layout is also very important to
ensure that the device has good thermal performance. Good PCB design can optimize heat transfer, which is
essential for the long-term reliability of the device.
Use the following guidelines when designing the device layout:
•
•
•
•
Place the CVCAP, CVCCand RIREF as close to the device as possible. Also, TI recommends putting the ground
plane as Figure 11-1 and Figure 11-2.
Maximize the copper coverage on the PCB to increase the thermal conductivity of the board. The major heat
flow path from the package to the ambient is through copper on the PCB. Maximum copper density is
extremely important when no heat sinks are attached to the PCB on the other side from the package.
Add as many thermal vias as possible directly under the package ground pad to optimize the thermal
conductivity of the board.
Use either plated-shut or plugged and capped vias for all the thermal vias on both sides of the board to
prevent solder voids. To ensure reliability and performance, the solder coverage must be at least 85%.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
37
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
11.2 Layout Examples
IREF
EN
SCL
SDA
VCC
19
18
17
16
GND
20
GND
VCAP
1
15
ADDR1
To LED
OUT0
2
14
ADDR0
To LED
OUT1
3
To LED
OUT2
4
12
To LED
OUT3
5
11
GND
10
OUT8
To LED
9
OUT7
To LED
8
OUT6
To LED
7
OUT5
To LED
6
13
OUT4
To LED
GND
GND
Figure 11-1. LP5009RUK Layout Example
IREF
EN
SCL
SDA
VCC
19
18
17
16
GND
20
GND
VCAP
1
15
ADDR1
To LED
OUT0
2
14
ADDR0
To LED
OUT1
3
13
OUT11 To LED
To LED
OUT2
4
12
OUT10 To LED
To LED
OUT3
5
11
OUT9
10
OUT8
To LED
9
OUT7
To LED
8
OUT6
To LED
7
OUT5
To LED
6
OUT4
To LED
GND
GND
To LED
GND
Figure 11-2. LP5012RUK Layout Example
38
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
CVCC
GND
RIREF
CVCAP
To LED
ADDR0
1
24
AGND
2
23
ADDR1
3
22
VCC
4
21
OUT8
To LED
SDA
5
20
OUT7
To LED
PGND
6
19
OUT6
To LED
GND
SCL
7
18
DGND
EN
8
17
OUT5
To LED
IREF
9
16
OUT4
To LED
VCAP
10
15
OUT3
To LED
NC
11
14
OUT2
To LED
OUT0
12
13
OUT1
To LED
Figure 11-3. LP5009PW Layout Example
CVCC
GND
RIREF
CVCAP
To LED
ADDR0
1
24
OUT11
To LED
AGND
2
23
OUT10
To LED
ADDR1
3
22
OUT9
To LED
VCC
4
21
OUT8
To LED
SDA
5
20
OUT7
To LED
PGND
6
19
OUT6
To LED
GND
SCL
7
18
DGND
EN
8
17
OUT5
To LED
IREF
9
16
OUT4
To LED
VCAP
10
15
OUT3
To LED
NC
11
14
OUT2
To LED
OUT0
12
13
OUT1
To LED
Figure 11-4. LP5012PW Layout Example
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
39
LP5009, LP5012
www.ti.com
SLVSEH2B – MAY 2019 – REVISED AUGUST 2020
12 Device and Documentation Support
12.1 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to order now.
Table 12-1. Related Links
PARTS
PRODUCT FOLDER
ORDER NOW
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
LP5009
Click here
Click here
Click here
Click here
Click here
LP5012
Click here
Click here
Click here
Click here
Click here
12.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.3 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
12.4 Trademarks
TI E2E™ is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
12.6 Glossary
TI Glossary
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the mostcurrent data available for the designated devices. This data is subject to change without notice and without
revision of this document. For browser-based versions of this data sheet, see the left-hand navigation pane.
40
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: LP5009 LP5012
PACKAGE OPTION ADDENDUM
www.ti.com
28-Sep-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
LP5009PWR
ACTIVE
TSSOP
PW
24
2000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
LP5009PWR
LP5009RUKR
ACTIVE
WQFN
RUK
20
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
LP5009
LP5012PWR
ACTIVE
TSSOP
PW
24
2000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
LP5012PWR
LP5012RUKR
ACTIVE
WQFN
RUK
20
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
LP5012
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
