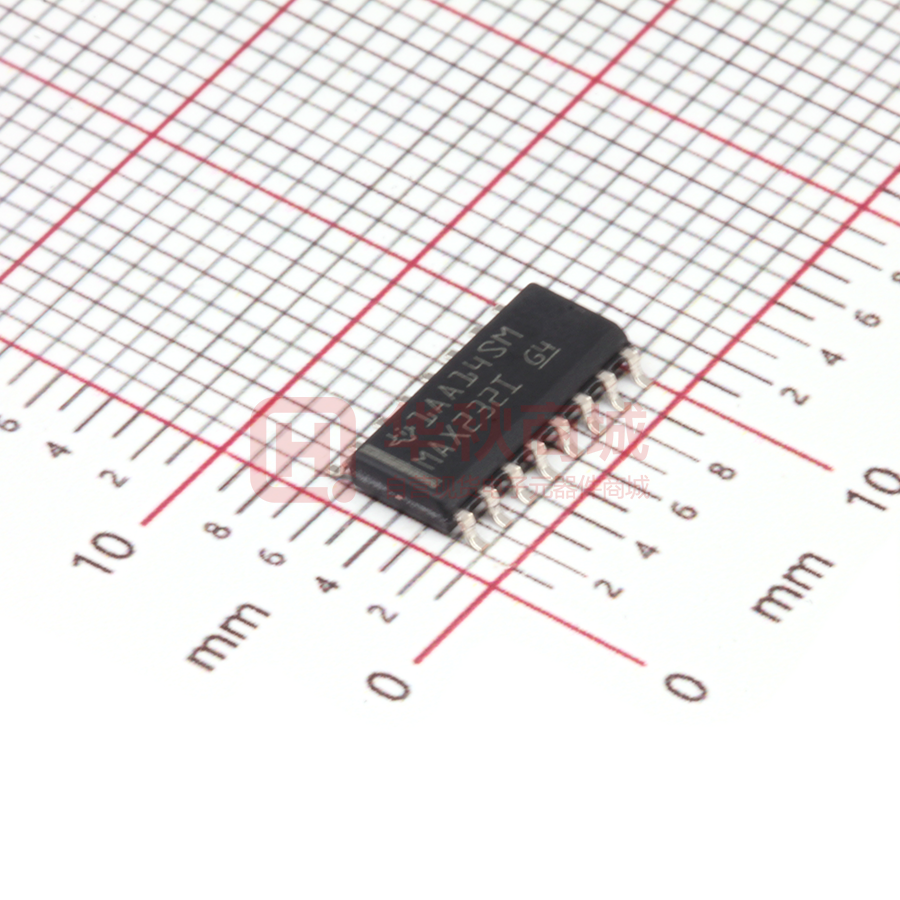

MAX232, MAX232I
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
MAX232x Dual EIA-232 Drivers/Receivers
1 Features
3 Description
•
The MAX232 device is a dual driver/receiver that
includes a capacitive voltage generator to supply
TIA/EIA-232-F voltage levels from a single 5-V
supply. Each receiver converts TIA/EIA-232-F inputs
to 5-V TTL/CMOS levels. These receivers have a
typical threshold of 1.3 V, a typical hysteresis of 0.5
V, and can accept ±30-V inputs. Each driver converts
TTL/CMOS input levels into TIA/EIA-232-F levels.
1
•
•
•
•
•
•
•
Meets or Exceeds TIA/EIA-232-F and ITU
Recommendation V.28
Operates From a Single 5-V Power Supply With
1.0-µF Charge-Pump Capacitors
Operates up to 120 kbit/s
Two Drivers and Two Receivers
±30-V Input Levels
Low Supply Current: 8 mA Typical
ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
Upgrade With Improved ESD (15-kV HBM) and
0.1-µF Charge-Pump Capacitors is Available With
the MAX202 Device
Device Information(1)
ORDER NUMBER
MAX232x
BODY SIZE
SOIC (16)
9.90 mm × 3.91 mm
SOIC (16)
10.30 mm × 7.50 mm
PDIP (16)
19.30 mm × 6.35 mm
SOP (16)
10.3 mm × 5.30 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
2 Applications
•
•
•
•
•
PACKAGE (PIN)
TIA/EIA-232-F
Battery-Powered Systems
Terminals
Modems
Computers
4 Simplified Schematic
5V
POWER
2
2
ROUT
2
TOUT
RS232
2
RIN
RS232
TX
TIN
RX
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
MAX232, MAX232I
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
9
Features ..................................................................
Applications ...........................................................
Description .............................................................
Simplified Schematic.............................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
1
2
3
4
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
4
4
4
4
4
5
5
5
6
Absolute Maximum Ratings .....................................
Handling Ratings.......................................................
Recommended Operating Conditions ......................
Thermal Information ..................................................
Electrical Characteristics –– Device .........................
Electrical Characteristics –– Driver ...........................
Electrical Characteristics –– Receiver .....................
Switching Characteristics .........................................
Typical Characteristics ..............................................
Parameter Measurement Information .................. 7
Detailed Description .............................................. 9
9.1
9.2
9.3
9.4
Overview ...................................................................
Functional Block Diagram .........................................
Feature Description...................................................
Device Functional Modes..........................................
9
9
9
9
10 Application and Implementation........................ 10
10.1 Application Information.......................................... 10
10.2 Typical Application ................................................ 10
11 Power Supply Recommendations ..................... 11
12 Layout................................................................... 11
12.1 Layout Guidelines ................................................. 11
12.2 Layout Example .................................................... 11
13 Device and Documentation Support ................. 12
13.1
13.2
13.3
13.4
Related Links ........................................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
12
12
12
12
14 Mechanical, Packaging, and Orderable
Information ........................................................... 12
5 Revision History
Changes from Revision L (March 2004) to Revision M
Page
•
Removed Ordering Information table. .................................................................................................................................... 1
•
Added Handling Rating table, Feature Description section, Device Functional Modes, Application and
Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation
Support section, and Mechanical, Packaging, and Orderable Information section................................................................ 1
•
Moved Tstg to Handling Ratings table. .................................................................................................................................... 4
2
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
MAX232, MAX232I
www.ti.com
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
6 Pin Configuration and Functions
Top View
MAX232 . . . D, DW, N, OR NS PACKAGE
MAX232I . . . D, DW, OR N PACKAGE
(TOP VIEW)
C1+
VS+
C1−
C2+
C2−
VS−
T2OUT
R2IN
1
16
2
15
3
14
4
13
5
12
6
11
7
10
8
9
VCC
GND
T1OUT
R1IN
R1OUT
T1IN
T2IN
R2OUT
Pin Functions
PIN
NAME
NO.
C1+
1
VS+
C1-
TYPE
DESCRIPTION
—
Positive lead of C1 capacitor
2
O
Positive charge pump output for storage capacitor only
3
—
Negative lead of C1 capacitor
C2+
4
—
Positive lead of C2 capacitor
C2-
5
—
Negative lead of C2 capacitor
VS-
6
O
Negative charge pump output for storage capacitor only
T2OUT, T1OUT
7, 14
O
RS232 line data output (to remote RS232 system)
R2IN, R1IN
8, 13
I
RS232 line data input (from remote RS232 system)
R2OUT, R1OUT
9, 12
O
Logic data output (to UART)
T2IN, T1IN
10, 11
I
Logic data input (from UART)
GND
15
—
Ground
VCC
16
—
Supply Voltage, Connect to external 5V power supply
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
3
MAX232, MAX232I
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings (1)
over operating free-air temperature range (unless otherwise noted)
VCC
Input Supply voltage range (2)
VS+
Positive output supply voltage range
VS–
Negative output supply voltage range
VI
Input voltage range
VO
Output voltage range
(1)
(2)
MAX
6
V
VCC – 0.3
15
V
–0.3
–15
V
–0.3
VCC + 0.3
T1IN, T2IN
R1IN, R2IN
Short-circuit duration
TJ
MIN
–0.3
UNIT
V
±30
T1OUT, T2OUT
VS– – 0.3
VS+ + 0.3
R1OUT, R2OUT
–0.3
VCC + 0.3
T1OUT, T2OUT
V
Unlimited
Operating virtual junction temperature
150
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltages are with respect to network GND.
7.2 Handling Ratings
Tstg
V(ESD)
(1)
(2)
MIN
MAX
UNIT
-65
150
°C
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
pins (1)
0
2000
Charged device model (CDM), per JEDEC specification
JESD22-C101, all pins (2)
0
1000
Storage temperature range
Electrostatic discharge
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
MIN
NOM
MAX
4.5
5
5.5
UNIT
VCC
Supply voltage
VIH
High-level input voltage (T1IN,T2IN)
V
VIL
Low-level input voltage (T1IN, T2IN)
0.8
V
R1IN,
R2IN
Receiver input voltage
±30
V
TA
Operating free-air temperature
2
V
MAX232
0
70
MAX232I
–40
85
°C
7.4 Thermal Information
THERMAL METRIC (1)
RθJA
(1)
Junction-to-ambient thermal resistance
MAX232xD
MAX232xDW
MAX232xN
SOIC
SOIC wide
PDIP
MAX232xNS
SOP
16 PINS
16 PINS
16 PINS
16 PINS
73
57
67
64
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report (SPRA953).
7.5 Electrical Characteristics –– Device
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 6)
TEST CONDITIONS (1)
PARAMETER
ICC
(1)
(2)
4
Supply current
VCC = 5.5V, all outputs open, TA = 25°C
MIN
TYP (2)
MAX
8
10
UNIT
mA
Test conditions are C1–C4 = 1 μF at VCC = 5 V ± 0.5 V
All typical values are at VCC = 5 V, and TA = 25°C.
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
MAX232, MAX232I
www.ti.com
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
7.6 Electrical Characteristics –– Driver
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
TEST CONDITIONS (1)
PARAMETER
VOH
High-level output voltage
T1OUT, T2OUT
RL = 3 kΩ to GND
VOL
Low-level output voltage (3)
T1OUT, T2OUT
RL = 3 kΩ to GND
rO
Output resistance
T1OUT, T2OUT
VS+ = VS– = 0, VO = ±2 V
IOS (4)
Short-circuit output current
T1OUT, T2OUT
VCC = 5.5 V, VO = 0 V
IIS
Short-circuit input current
T1IN, T2IN
VI = 0
(1)
(2)
(3)
(4)
MIN TYP (2)
5
MAX
7
–7
UNIT
V
–5
300
V
Ω
±10
mA
200
µA
Test conditions are C1–C4 = 1 μF at VCC = 5 V ± 0.5 V
All typical values are at VCC = 5 V, TA = 25°C.
The algebraic convention, in which the least-positive (most negative) value is designated minimum, is used in this data sheet for logic
voltage levels only.
Not more than one output should be shorted at a time.
7.7 Electrical Characteristics –– Receiver
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
TEST CONDITIONS (1)
PARAMETER
MIN
TYP (2)
MAX
High-level output voltage
R1OUT, R2OUT
IOH = –1 mA
VOL
Low-level output voltage (3)
R1OUT, R2OUT
IOL = 3.2 mA
VIT+
Receiver positive-going input threshold
voltage
R1IN, R2IN
VCC = 5 V, TA = 25°C
VIT–
Receiver negative-going input threshold
R1IN, R2IN
voltage
VCC = 5 V, TA = 25°C
0.8
1.2
Vhys
Input hysteresis voltage
R1IN, R2IN
VCC = 5 V
0.2
0.5
1
V
rI
Receiver input resistance
R1IN, R2IN
VCC = 5 V, TA = 25°C
3
5
7
kΩ
(1)
(2)
(3)
3.5
UNIT
VOH
V
1.7
0.4
V
2.4
V
V
Test conditions are C1–C4 = 1 μF at VCC = 5 V ± 0.5 V.
All typical values are at VCC = 5 V, TA = 25°C.
The algebraic convention, in which the least-positive (most negative) value is designated minimum, is used in this data sheet for logic
voltage levels only.
7.8 Switching Characteristics
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
TEST CONDITIONS (1)
PARAMETER
SR
Driver slew rate
RL = 3 kΩ to 7 kΩ, see Figure 4
SR(t)
Driver transition region slew rate
see Figure 5
Data rate
tPLH®)
tPHL®)
(1)
MIN
TYP (1)
MAX
UNIT
30
V/μs
3
V/μs
One TOUT switching
120
kbit/s
Receiver propagation delay time,
low- to high-level output
TTL load, see Figure 3
500
ns
Receiver propagation delay time,
high- to low-level output
TTL load, see Figure 3
500
ns
Test conditions are C1–C4 = 1 μF at VCC = 5 V ± 0.5 V.
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
5
MAX232, MAX232I
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
www.ti.com
10
9
8
7
6
5
4
3
2
1
0
±1
±2
±3
±4
±5
±6
±7
±8
±9
±10
±11
±12
Voltage (V)
Voltage (V)
7.9 Typical Characteristics
VOL
VOH
1
2
3
4
5
Load resistance (k )
6
7
TIN
TOUT (to RIN)
ROUT
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Time ( s)
C001
Figure 1. TOUT VOH & VOL vs Load Resistance, Both
Drivers Loaded
6
12
11
10
9
8
7
6
5
4
3
2
1
0
±1
±2
±3
±4
±5
±6
±7
±8
C001
Figure 2. Driver to Receiver Loopback Timing Waveform
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
MAX232, MAX232I
www.ti.com
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
8 Parameter Measurement Information
VCC
Pulse
Generator
(see Note A)
RL = 1.3 kΩ
R1OUT
or
R2OUT
R1IN
or
R2IN
See Note C
CL = 50 pF
(see Note B)
TEST CIRCUIT
≤10 ns
≤10 ns
Input
10%
90%
50%
90%
50%
3V
10%
0V
500 ns
tPLH
tPHL
VOH
Output
1.5 V
1.5 V
VOL
WAVEFORMS
A.
The pulse generator has the following characteristics: ZO = 50 Ω, duty cycle ≤ 50%.
B.
CL includes probe and jig capacitance.
C.
All diodes are 1N3064 or equivalent.
Figure 3. Receiver Test Circuit and Waveforms for tPHL and tPLH Measurements
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
7
MAX232, MAX232I
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
www.ti.com
Parameter Measurement Information (continued)
T1IN or T2IN
Pulse
Generator
(see Note A)
T1OUT or T2OUT
EIA-232 Output
CL = 10 pF
(see Note B)
RL
TEST CIRCUIT
≤10 ns
≤10 ns
90%
50%
Input
10%
3V
90%
50%
10%
0V
5 µs
tPLH
tPHL
90%
Output
VOH
90%
10%
10%
VOL
tTLH
tTHL
0.8 (V
SR =
–V )
0.8 (V
–V
)
OH
OL
OL
OH
or
t
t
TLH
THL
WAVEFORMS
A.
The pulse generator has the following characteristics: ZO = 50 Ω, duty cycle ≤ 50%.
B.
CL includes probe and jig capacitance.
Figure 4. Driver Test Circuit and Waveforms for tPHL and tPLH Measurements (5-μs Input)
Pulse
Generator
(see Note A)
EIA-232 Output
3 kΩ
CL = 2.5 nF
TEST CIRCUIT
≤10 ns
≤10 ns
Input
90%
1.5 V
10%
90%
1.5 V
10%
20 µs
tTLH
tTHL
Output
3V
3V
−3 V
−3 V
SR =
t
THL
6V
or t
VOH
VOL
TLH
WAVEFORMS
A.
The pulse generator has the following characteristics: ZO = 50 Ω, duty cycle ≤ 50%.
Figure 5. Test Circuit and Waveforms for tTHL and tTLH Measurements (20-μs Input)
8
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
MAX232, MAX232I
www.ti.com
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
9 Detailed Description
9.1 Overview
The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator using four capacitors to
supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can
accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. The driver, receiver,
and voltage-generator functions are available as cells in the Texas Instruments LinASIC™ library. Outputs are
protected against shorts to ground.
9.2 Functional Block Diagram
5V
POWER
2
2
TOUT
RS232
2
RIN
RS232
TX
TIN
2
ROUT
RX
9.3 Feature Description
9.3.1 Power
The power block increases and inverts the 5V supply for the RS232 driver using a charge pump that requires
four 1-µF external capacitors.
9.3.2 RS232 Driver
Two drivers interface standard logic level to RS232 levels. Internal pull up resistors on TIN inputs ensures a high
input when the line is high impedance.
9.3.3 RS232 Receiver
Two receivers interface RS232 levels to standard logic levels. An open input will result in a high output on ROUT.
9.4 Device Functional Modes
9.4.1 VCC powered by 5V
The device will be in normal operation.
9.4.2 VCC unpowered
When MAX232 is unpowered, it can be safely connected to an active remote RS232 device.
Table 1. Function Table Each Driver (1)
(1)
INPUT
OUTPUT
TIN
TOUT
L
H
H
L
H = high level, L = low level, X = irrelevant, Z = high impedance
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
9
MAX232, MAX232I
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
www.ti.com
Table 2. Function Table Each Receiver (1)
(1)
INPUTS
OUTPUT
RIN
ROUT
L
H
H
L
Open
H
H = high level, L = low level, X = irrelevant, Z = high impedance (off),
Open = disconnected input or connected driver off
10 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
10.1 Application Information
For proper operation add capacitors as shown in Figure 6. Pins 9 through 12 connect to UART or general
purpose logic lines. EIA-232 lines will connect to a connector or cable.
10.2 Typical Application
5V
CBYPASS = 1 µF
+
−
16
1
C1
1 µF 3
4
C2
1 µF 5
From CMOS or TTL
To CMOS or TTL
C3†
VCC
C1+
8.5 V
VS+
C1−
VS−
C2+
1 µF
2
6
−8.5 V
C4
+
C2−
11
14
10
7
12
13
9
8
1 µF
EIA-232 Output
EIA-232 Output
EIA-232 Input
EIA-232 Input
0V
15
GND
† C3 can be connected to VCC or GND.
NOTES: A. Resistor values shown are nominal.
B. Nonpolarized ceramic capacitors are acceptable. If polarized tantalum or electrolytic capacitors are used, they should be
connected as shown. In addition to the 1-µF capacitors shown, the MAX202 can operate with 0.1-µF capacitors.
Figure 6. Typical Operating Circuit
10.2.1 Design Requirements
•
•
VCC minimum is 4.5 V and maximum is 5.5 V.
Maximum recommended bit rate is 120 kbps.
10.2.2 Detailed Design Procedure
Use 1 uF tantalum or ceramic capacitors.
10
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
MAX232, MAX232I
www.ti.com
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
Typical Application (continued)
10
9
8
7
6
5
4
3
2
1
0
±1
±2
±3
±4
±5
±6
±7
±8
±9
±10
±11
±12
Voltage (V)
Voltage (V)
10.2.3 Application Curves
VOL
VOH
1
2
3
4
5
6
7
Load resistance (k )
12
11
10
9
8
7
6
5
4
3
2
1
0
±1
±2
±3
±4
±5
±6
±7
±8
TIN
TOUT (to RIN)
ROUT
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Time ( s)
C001
Figure 7. TOUT VOH & VOL vs Load Resistance, Both
Drivers Loaded
C001
Figure 8. Driver to Receiver Loopback Timing Waveform
11 Power Supply Recommendations
The VCC voltage should be connected to the same power source used for logic device connected to TIN pins.
VCC should be between 4.5V and 5.5V.
12 Layout
12.1 Layout Guidelines
Keep the external capacitor traces short. This is more important on C1 and C2 nodes that have the fastest rise
and fall times.
12.2 Layout Example
Ground
1 C1+
VCC 16
1 µF
1 µF
2 VS+
GND 15
3 C1-
T1OUT 14
4 C2+
R1IN 13
5 C2-
R1OUT 12
6 VS-
T1IN 11
7 T2OUT
T2IN 10
VCC
1 µF
Ground
1 µF
Ground
1 µF
8 R2IN
R2OUT 9
Figure 9. Layout Schematic
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
11
MAX232, MAX232I
SLLS047M – FEBRUARY 1989 – REVISED NOVEMBER 2014
www.ti.com
13 Device and Documentation Support
13.1 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 3. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
MAX232
Click here
Click here
Click here
Click here
Click here
MAX232I
Click here
Click here
Click here
Click here
Click here
13.2 Trademarks
All trademarks are the property of their respective owners.
13.3 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
13.4 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms and definitions.
14 Mechanical, Packaging, and Orderable Information
The following pages include mechanical packaging and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser based versions of this data sheet, refer to the left hand navigation.
12
Submit Documentation Feedback
Copyright © 1989–2014, Texas Instruments Incorporated
Product Folder Links: MAX232
PACKAGE OPTION ADDENDUM
www.ti.com
24-Aug-2018
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
MAX232D
ACTIVE
SOIC
D
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DE4
ACTIVE
SOIC
D
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DG4
ACTIVE
SOIC
D
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DR
ACTIVE
SOIC
D
16
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU | CU SN
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DRE4
ACTIVE
SOIC
D
16
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DRG4
ACTIVE
SOIC
D
16
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DW
ACTIVE
SOIC
DW
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DWE4
ACTIVE
SOIC
DW
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DWG4
ACTIVE
SOIC
DW
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DWR
ACTIVE
SOIC
DW
16
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DWRE4
ACTIVE
SOIC
DW
16
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232DWRG4
ACTIVE
SOIC
DW
16
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
MAX232ID
ACTIVE
SOIC
D
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
MAX232IDG4
ACTIVE
SOIC
D
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
MAX232IDR
ACTIVE
SOIC
D
16
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
MAX232IDW
ACTIVE
SOIC
DW
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
MAX232IDWG4
ACTIVE
SOIC
DW
16
40
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
24-Aug-2018
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
MAX232IDWR
ACTIVE
SOIC
DW
16
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
MAX232IDWRE4
ACTIVE
SOIC
DW
16
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
MAX232IDWRG4
ACTIVE
SOIC
DW
16
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
MAX232I
MAX232IN
ACTIVE
PDIP
N
16
25
Green (RoHS
& no Sb/Br)
CU NIPDAU
N / A for Pkg Type
-40 to 85
MAX232IN
MAX232INE4
ACTIVE
PDIP
N
16
25
Green (RoHS
& no Sb/Br)
CU NIPDAU
N / A for Pkg Type
-40 to 85
MAX232IN
MAX232N
ACTIVE
PDIP
N
16
25
Green (RoHS
& no Sb/Br)
CU NIPDAU
N / A for Pkg Type
0 to 70
MAX232N
MAX232NE4
ACTIVE
PDIP
N
16
25
Green (RoHS
& no Sb/Br)
CU NIPDAU
N / A for Pkg Type
0 to 70
MAX232N
MAX232NSR
ACTIVE
SO
NS
16
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
0 to 70
MAX232
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
