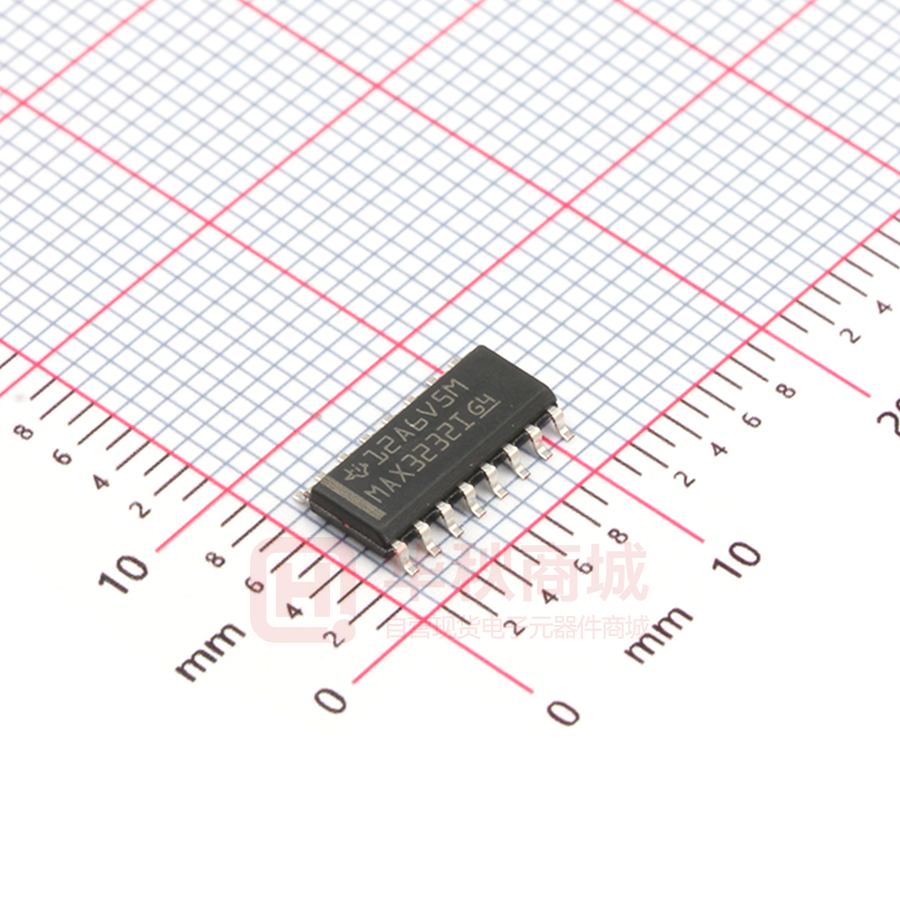

MAX3232IDR


      ±      SLLS410I − JANUARY 2000 − REVISED JANUARY 2004 D RS-232 Bus-Pin ESD Protection Exceeds D D D D D D D D D D, DB, DW, OR PW PACKAGE (TOP VIEW) ±15 kV Using Human-Body Model (HBM) Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards Operates With 3-V to 5.5-V VCC Supply Operates Up To 250 kbit/s Two Drivers and Two Receivers Low Supply Current . . . 300 µA Typical External Capacitors . . . 4 × 0.1 µF Accepts 5-V Logic Input With 3.3-V Supply Alternative High-Speed Pin-Compatible Device (1 Mbit/s) − SNx5C3232 Applications − Battery-Powered Systems, PDAs, Notebooks, Laptops, Palmtop PCs, and Hand-Held Equipment C1+ V+ C1− C2+ C2− V− DOUT2 RIN2 1 16 2 15 3 14 4 13 5 12 6 11 7 10 8 9 VCC GND DOUT1 RIN1 ROUT1 DIN1 DIN2 ROUT2 description/ordering information ORDERING INFORMATION ORDERABLE PART NUMBER PACKAGE† TA SOIC (D) SOIC (DW) −0°C to 70°C SSOP (DB) TSSOP (PW) SOIC (D) SOIC (DW) −40°C to 85°C SSOP (DB) TSSOP (PW) Tube of 40 MAX3232CD Reel of 2500 MAX3232CDR Tube of 40 MAX3232CDW Reel of 2000 MAX3232CDWR Tube of 80 MAX3232CDB Reel of 2000 MAX3232CDBR Tube of 90 MAX3232CPW Reel of 2000 MAX3232CPWR Tube of 40 MAX3232ID Reel of 2500 MAX3232IDR Tube of 40 MAX3232IDW Reel of 2000 MAX3232IDWR Tube of 80 MAX3232IDB Reel of 2000 MAX3232IDBR Tube of 90 MAX3232IPW Reel of 2000 MAX3232IPWR TOP-SIDE MARKING MAX3232C MAX3232C MA3232C MA3232C MAX3232I MAX3232I MB3232I MB3232I † Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. Copyright  2004, Texas Instruments Incorporated     !"# $ %&'# "$  (&)*%"# +"#' +&%#$ %! # $('%%"#$ (' #,' #'!$  '-"$ $#&!'#$ $#"+"+ .""#/ +&%# (%'$$0 +'$ # '%'$$"*/ %*&+' #'$#0  "** (""!'#'$ POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 1 

      ±      SLLS410I − JANUARY 2000 − REVISED JANUARY 2004 description/ordering information (continued) The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate. Function Tables EACH DRIVER INPUT DIN OUTPUT DOUT L H H L H = high level, L = low level EACH RECEIVER INPUT RIN OUTPUT ROUT L H H L Open H H = high level, L = low level, Open = input disconnected or connected driver off logic diagram (positive logic) 11 14 DIN1 DOUT1 10 7 DIN2 DOUT2 12 13 ROUT1 RIN1 9 ROUT2 2 POST OFFICE BOX 655303 8 RIN2 • DALLAS, TEXAS 75265 

      ±      SLLS410I − JANUARY 2000 − REVISED JANUARY 2004 absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to 6 V Positive output supply voltage range, V+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to 7 V Negative output supply voltage range, V− (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to −7 V Supply voltage difference, V+ − V− (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 V Input voltage range, VI: Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to 6 V Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −25 V to 25 V Output voltage range, VO: Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −13.2 V to 13.2 V Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V Package thermal impedance, θJA (see Notes 2 and 3): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73°C/W DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . 82°C/W DW package . . . . . . . . . . . . . . . . . . . . . . . . . . 57°C/W PW package . . . . . . . . . . . . . . . . . . . . . . . . . 108°C/W Operating virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C † Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. All voltages are with respect to network GND. 2. Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ(max) − TA)/θJA. Operating at the absolute maximum TJ of 150°C can affect reliability. 3. The package thermal impedance is calculated in accordance with JESD 51-7. recommended operating conditions (see Note 4 and Figure 4) Supply voltage VIH Driver high-level input voltage VIL Driver low-level input voltage VCC = 5 V DIN Driver input voltage DIN VI Receiver input voltage TA Operating free-air temperature DIN VCC = 3.3 V VCC = 5 V VCC = 3.3 V MAX3232C MAX3232I MIN NOM MAX 3 3.3 3.6 4.5 5 5.5 UNIT V 2 V 2.4 0.8 0 5.5 −25 25 0 70 −40 85 V V °C NOTE 4: Test conditions are C1−C4 = 0.1 µF at VCC = 3.3 V ± 0.3 V; C1 = 0.047 µF, C2−C4 = 0.33 µF at VCC = 5 V ± 0.5 V. electrical characteristics over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Note 4 and Figure 4) PARAMETER TEST CONDITIONS ICC MIN TYP‡ Supply current No load, VCC = 3.3 V or 5 V 0.3 ‡ All typical values are at VCC = 3.3 V or VCC = 5 V, and TA = 25°C. NOTE 4: Test conditions are C1−C4 = 0.1 µF at VCC = 3.3 V ± 0.3 V; C1 = 0.047 µF, C2−C4 = 0.33 µF at VCC = 5 V ± 0.5 V. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 MAX 1 UNIT mA 3 

      ±      SLLS410I − JANUARY 2000 − REVISED JANUARY 2004 DRIVER SECTION electrical characteristics over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Note 4 and Figure 4) PARAMETER TEST CONDITIONS MIN TYP† VOH VOL High-level output voltage DOUT at RL = 3 kΩ to GND, DIN = GND 5 5.4 Low-level output voltage DOUT at RL = 3 kΩ to GND, DIN = VCC −5 −5.4 IIH IIL High-level input current VI = VCC VI at GND IOS‡ Low-level input current Short-circuit output current VCC = 3.6 V, VCC = 5.5 V, VO = 0 V VO = 0 V MAX UNIT V V ±0.01 ±1 µA ±0.01 ±1 µA ±35 ±60 mA ro Output resistance VCC, V+, and V− = 0 V, VO = ±2 V 300 10M W † All typical values are at VCC = 3.3 V or VCC = 5 V, and TA = 25°C. ‡ Short-circuit durations should be controlled to prevent exceeding the device absolute power dissipation ratings, and not more than one output should be shorted at a time. NOTE 4: Test conditions are C1−C4 = 0.1 µF at VCC = 3.3 V ± 0.3 V; C1 = 0.047 µF, C2−C4 = 0.33 µF at VCC = 5 V ± 0.5 V. switching characteristics over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Note 4 and Figure 4) PARAMETER TEST CONDITIONS Maximum data rate CL = 1000 pF, One DOUT switching, RL = 3 kΩ, See Figure 1 tsk(p) Pulse skew§ CL = 150 pF to 2500 pF RL = 3 kΩ to 7 kΩ, See Figure 2 SR(tr) Slew rate, transition region (see Figure 1) RL = 3 kΩ to 7 kΩ, VCC = 3.3 V MIN TYP† 150 250 kbit/s 300 ns CL = 150 pF to 1000 pF 6 30 CL = 150 pF to 2500 pF 4 30 † All typical values are at VCC = 3.3 V or VCC = 5 V, and TA = 25°C. § Pulse skew is defined as |tPLH − tPHL| of each channel of the same device. NOTE 4: Test conditions are C1−C4 = 0.1 µF at VCC = 3.3 V ± 0.3 V; C1 = 0.047 µF, C2−C4 = 0.33 µF at VCC = 5 V ± 0.5 V. 4 POST OFFICE BOX 655303 MAX • DALLAS, TEXAS 75265 UNIT V/µs 

      ±      SLLS410I − JANUARY 2000 − REVISED JANUARY 2004 RECEIVER SECTION electrical characteristics over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Note 4 and Figure 4) PARAMETER VOH VOL TEST CONDITIONS High-level output voltage MIN IOH = −1 mA IOL = 1.6 mA Low-level output voltage VIT+ Positive-going input threshold voltage VCC = 3.3 V VCC = 5 V VIT− Negative-going input threshold voltage VCC = 3.3 V VCC = 5 V Vhys ri Input hysteresis (VIT+ − VIT−) VCC−0.6 V TYP† MAX UNIT VCC−0.1 V V 0.4 1.5 2.4 1.8 2.4 0.6 1.2 0.8 1.5 V V V 0.3 V VI = ±3 V to ±25 V 3 5 † All typical values are at VCC = 3.3 V or VCC = 5 V, and TA = 25°C. NOTE 4: Test conditions are C1−C4 = 0.1 µF at VCC = 3.3 V ± 0.3 V; C1 = 0.047 µF, C2−C4 = 0.33 µF at VCC = 5 V ± 0.5 V. Input resistance 7 kW switching characteristics over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Note 4 and Figure 3) PARAMETER TEST CONDITIONS tPLH tPHL Propagation delay time, low- to high-level output tsk(p) Pulse skew‡ CL= 150 pF Propagation delay time, high- to low-level output MIN TYP† MAX UNIT 300 ns 300 ns 300 ns † All typical values are at VCC = 3.3 V or VCC = 5 V, and TA = 25°C. ‡ Pulse skew is defined as |tPLH − tPHL| of each channel of the same device. NOTE 4: Test conditions are C1−C4 = 0.1 µF at VCC = 3.3 V ± 0.3 V; C1 = 0.047 µF, C2−C4 = 0.33 µF at VCC = 5 V ± 0.5 V. PARAMETER MEASUREMENT INFORMATION 3V Input Generator (see Note B) 1.5 V RS-232 Output 50 Ω RL 1.5 V 0V tTHL CL (see Note A) Output tTLH 3V −3 V TEST CIRCUIT SR(tr) + t THL 6V or t 3V −3 V VOH VOL VOLTAGE WAVEFORMS TLH NOTES: A. CL includes probe and jig capacitance. B. The pulse generator has the following characteristics: PRR = 250 kbit/s, ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns. Figure 1. Driver Slew Rate POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 5 

      ±      SLLS410I − JANUARY 2000 − REVISED JANUARY 2004 PARAMETER MEASUREMENT INFORMATION 3V Generator (see Note B) RS-232 Output 50 Ω RL 1.5 V Input 1.5 V 0V CL (see Note A) tPHL tPLH VOH 50% 50% Output VOL TEST CIRCUIT VOLTAGE WAVEFORMS NOTES: A. CL includes probe and jig capacitance. B. The pulse generator has the following characteristics: PRR = 250 kbit/s, ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns. Figure 2. Driver Pulse Skew 3V Input 1.5 V 1.5 V −3 V Output Generator (see Note B) 50 Ω tPHL CL (see Note A) tPLH VOH 50% Output 50% VOL TEST CIRCUIT VOLTAGE WAVEFORMS NOTES: A. CL includes probe and jig capacitance. B. The pulse generator has the following characteristics: ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns. Figure 3. Receiver Propagation Delay Times 6 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 

      ±      SLLS410I − JANUARY 2000 − REVISED JANUARY 2004 APPLICATION INFORMATION 1 + CBYPASS − = 0.1µF + C1 − VCC 16 C1+ 2 †+ C3 − 3 4 V+ GND 14 DOUT1 C1− 13 C2+ + C2 15 RIN1 5 kΩ − 5 C2− 12 6 C4 DOUT2 RIN2 − V− 11 ROUT1 DIN1 + 7 10 8 9 DIN2 ROUT2 5 kΩ † C3 can be connected to VCC or GND. NOTES: A. Resistor values shown are nominal. B. Nonpolarized ceramic capacitors are acceptable. If polarized tantalum or electrolytic capacitors are used, they should be connected as shown. VCC vs CAPACITOR VALUES VCC C1 C2, C3, C4 3.3 V ± 0.3 V 5 V ± 0.5 V 3 V to 5.5 V 0.1 µF 0.047 µF 0.1 µF 0.1 µF 0.33 µF 0.47 µF Figure 4. Typical Operating Circuit and Capacitor Values POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 7 PACKAGE OPTION ADDENDUM www.ti.com 23-Jan-2012 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Drawing Pins Package Qty Eco Plan (2) Lead/ Ball Finish MSL Peak Temp MAX3232CD ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDB ACTIVE SSOP DB 16 80 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDBE4 ACTIVE SSOP DB 16 80 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDBG4 ACTIVE SSOP DB 16 80 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDBR ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDBRE4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDBRG4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDE4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDG4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDR ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDRE4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDRG4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDW ACTIVE SOIC DW 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDWG4 ACTIVE SOIC DW 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDWR ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDWRE4 ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CDWRG4 ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM Addendum-Page 1 (3) Samples (Requires Login) PACKAGE OPTION ADDENDUM www.ti.com Orderable Device 23-Jan-2012 Status (1) Package Type Package Drawing Pins Package Qty Eco Plan (2) Lead/ Ball Finish MSL Peak Temp MAX3232CPW ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CPWE4 ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CPWG4 ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CPWR ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CPWRE4 ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232CPWRG4 ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232ID ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDB ACTIVE SSOP DB 16 80 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDBE4 ACTIVE SSOP DB 16 80 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDBG4 ACTIVE SSOP DB 16 80 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDBR ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDBRE4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDBRG4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDE4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDG4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDR ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDRE4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDRG4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM Addendum-Page 2 (3) Samples (Requires Login) PACKAGE OPTION ADDENDUM www.ti.com Orderable Device 23-Jan-2012 Status (1) Package Type Package Drawing Pins Package Qty Eco Plan (2) Lead/ Ball Finish MSL Peak Temp MAX3232IDW ACTIVE SOIC DW 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDWE4 ACTIVE SOIC DW 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDWG4 ACTIVE SOIC DW 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDWR ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDWRE4 ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IDWRG4 ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IPW ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IPWE4 ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IPWG4 ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IPWR ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IPWRE4 ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM MAX3232IPWRG4 ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM (3) Samples (Requires Login) (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details. TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Addendum-Page 3 PACKAGE OPTION ADDENDUM www.ti.com 23-Jan-2012 Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material) (3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. OTHER QUALIFIED VERSIONS OF MAX3232 : • Enhanced Product: MAX3232-EP NOTE: Qualified Version Definitions: • Enhanced Product - Supports Defense, Aerospace and Medical Applications Addendum-Page 4 PACKAGE MATERIALS INFORMATION www.ti.com 26-Jun-2012 TAPE AND REEL INFORMATION *All dimensions are nominal Device MAX3232CDBR Package Package Pins Type Drawing SPQ Reel Reel A0 Diameter Width (mm) (mm) W1 (mm) B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant SSOP DB 16 2000 330.0 16.4 8.2 6.6 2.5 12.0 16.0 Q1 MAX3232CDWR SOIC DW 16 2000 330.0 16.4 10.75 10.7 2.7 12.0 16.0 Q1 MAX3232CPWR TSSOP PW 16 2000 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1 MAX3232CPWR TSSOP PW 16 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1 MAX3232CPWRG4 TSSOP PW 16 2000 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1 MAX3232IDBR SSOP DB 16 2000 330.0 16.4 8.2 6.6 2.5 12.0 16.0 Q1 MAX3232IDWR SOIC DW 16 2000 330.0 16.4 10.75 10.7 2.7 12.0 16.0 Q1 MAX3232IPWR TSSOP PW 16 2000 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1 Pack Materials-Page 1 PACKAGE MATERIALS INFORMATION www.ti.com 26-Jun-2012 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) MAX3232CDBR SSOP DB 16 2000 346.0 346.0 33.0 MAX3232CDWR SOIC DW 16 2000 366.0 364.0 50.0 MAX3232CPWR TSSOP PW 16 2000 346.0 346.0 29.0 MAX3232CPWR TSSOP PW 16 2000 364.0 364.0 27.0 MAX3232CPWRG4 TSSOP PW 16 2000 346.0 346.0 29.0 MAX3232IDBR SSOP DB 16 2000 346.0 346.0 33.0 MAX3232IDWR SOIC DW 16 2000 366.0 364.0 50.0 MAX3232IPWR TSSOP PW 16 2000 346.0 346.0 29.0 Pack Materials-Page 2 MECHANICAL DATA MSSO002E – JANUARY 1995 – REVISED DECEMBER 2001 DB (R-PDSO-G**) PLASTIC SMALL-OUTLINE 28 PINS SHOWN 0,38 0,22 0,65 28 0,15 M 15 0,25 0,09 8,20 7,40 5,60 5,00 Gage Plane 1 14 0,25 A 0°–ā8° 0,95 0,55 Seating Plane 2,00 MAX 0,10 0,05 MIN PINS ** 14 16 20 24 28 30 38 A MAX 6,50 6,50 7,50 8,50 10,50 10,50 12,90 A MIN 5,90 5,90 6,90 7,90 9,90 9,90 12,30 DIM 4040065 /E 12/01 NOTES: A. B. C. D. All linear dimensions are in millimeters. This drawing is subject to change without notice. Body dimensions do not include mold flash or protrusion not to exceed 0,15. Falls within JEDEC MO-150 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment. TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed. TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards. TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI. Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions. Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications. TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use. TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions: Products Applications Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Mobile Processors www.ti.com/omap Wireless Connectivity www.ti.com/wirelessconnectivity TI E2E Community Home Page e2e.ti.com Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2012, Texas Instruments Incorporated
