OPA549
OPA
549
OPA
549
SBOS093E – MARCH 1999 – REVISED OCTOBER 2005
High-Voltage, High-Current
OPERATIONAL AMPLIFIER
FEATURES
DESCRIPTION
● HIGH OUTPUT CURRENT:
8A Continuous
10A Peak
● WIDE POWER-SUPPLY RANGE:
Single Supply: +8V to +60V
Dual Supply: ±4V to ±30V
● WIDE OUTPUT VOLTAGE SWING
● FULLY PROTECTED:
Thermal Shutdown
Adjustable Current Limit
● OUTPUT DISABLE CONTROL
● THERMAL SHUTDOWN INDICATOR
● HIGH SLEW RATE: 9V/µs
● CONTROL REFERENCE PIN
● 11-LEAD POWER PACKAGE
The OPA549 is a low-cost, high-voltage/high-current operational amplifier ideal for driving a wide variety of loads. This
laser-trimmed monolithic integrated circuit provides excellent
low-level signal accuracy and high output voltage and current.
The OPA549 operates from either single or dual supplies for
design flexibility. The input common-mode range extends
below the negative supply.
The OPA549 is internally protected against over-temperature
conditions and current overloads. In addition, the OPA549
provides an accurate, user-selected current limit. Unlike
other designs which use a “power” resistor in series with the
output current path, the OPA549 senses the load indirectly.
This allows the current limit to be adjusted from 0A to 10A
with a resistor/potentiometer, or controlled digitally with a
voltage-out or current-out Digital-to-Analog Converter (DAC).
The Enable/Status (E/S) pin provides two functions. It can be
monitored to determine if the device is in thermal shutdown,
and it can be forced low to disable the output stage and
effectively disconnect the load.
APPLICATIONS
●
●
●
●
●
●
VALVE, ACTUATOR DRIVERS
SYNCHRO, SERVO DRIVERS
POWER SUPPLIES
TEST EQUIPMENT
TRANSDUCER EXCITATION
AUDIO POWER AMPLIFIERS

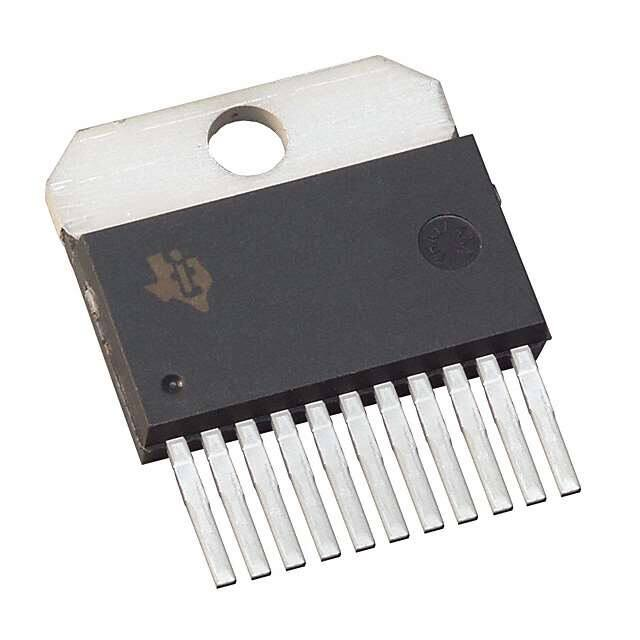

The OPA549 is available in an 11-lead power package. Its
copper tab allows easy mounting to a heat sink for excellent
thermal performance. Operation is specified over the extended industrial temperature range, –40°C to +85°C.
V+
OPA549
VO
ILIM
Ref
RCL
RCL sets the current limit
value from 0A to 10A.
(Very Low Power Dissipation)
ES Pin
E/S
Forced Low: Output disabled.
Indicates Low: Thermal shutdown.
V–
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
Copyright © 1999-2005, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
www.ti.com
ABSOLUTE MAXIMUM RATINGS(1)
ELECTROSTATIC
DISCHARGE SENSITIVITY
Output Current ................................................ See SOA Curve (Figure 6)
Supply Voltage, V+ to V– ................................................................... 60V
Input Voltage Range ....................................... (V–) – 0.5V to (V+) + 0.5V
Input Shutdown Voltage ................................................... Ref – 0.5 to V+
Operating Temperature .................................................. –40°C to +125°C
Storage Temperature ..................................................... –55°C to +125°C
Junction Temperature ...................................................................... 150°C
Lead Temperature (soldering, 10s) ................................................. 300°C
ESD Capability (Human Body Model) ............................................. 2000V
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may be
more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
NOTE: (1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods may degrade device reliability.
PACKAGE/ORDERING INFORMATION
For the most current package and ordering information, see
the Package Option Addendum at the end of this datasheet
or see the TI website at www.ti.com.
CONNECTION DIAGRAM
Tab connected to V–. Do not use to conduct current.
2
4
6
+In
1
3
8
Ref
5
7
–In
VO
ILIM
10
9
11
E/S
V–
V+
Connect both pins 1 and 2 to output.
Connect both pins 5 and 7 to V–.
Connect both pins 10 and 11 to V+.
2
OPA549
www.ti.com
SBOS093E
ELECTRICAL CHARACTERISTICS
Boldface limits apply over the specified temperature range, TA = –40°C to +85°C.
At TCASE = +25°C, VS = ±30V, Ref = 0V, and E/S pin open, unless otherwise noted.
OPA549T, S
PARAMETER
OFFSET VOLTAGE
VOS
Input Offset Voltage
vs Temperature
dVOS/dT
vs Power Supply
PSRR
INPUT BIAS CURRENT(1)
Input Bias Current(2)
IB
vs Temperature
Input Offset Current
IOS
NOISE
Input Voltage Noise Density
en
Current Noise Density
in
INPUT VOLTAGE RANGE
Common-Mode Voltage Range: Positive
VCM
Negative VCM
Common-Mode Rejection Ratio
CMRR
INPUT IMPEDANCE
Differential
Common-Mode
OPEN-LOOP GAIN
Open-Loop Voltage Gain
AOL
FREQUENCY RESPONSE
Gain Bandwidth Product
GBW
Slew Rate
SR
Full-Power Bandwidth
Settling Time: ±0.1%
THD+N
Total Harmonic Distortion + Noise(3)
OUTPUT
Voltage Output, Positive
Negative
Positive
Negative
Negative
Maximum Continuous Current Output: dc(4)
ac(4)
Output Current Limit
Current Limit Range
Current Limit Equation
Current Limit Tolerance(1)
Capacitive Load Drive (Stable Operation) CLOAD
Output Disabled
Leakage Current
Output Capacitance
OUTPUT ENABLE/STATUS (E/S) PIN
Shutdown Input Mode
VE/S High (output enabled)
VE/S Low (output disabled)
IE/S High (output enabled)
IE/S Low (output disabled)
Output Disable Time
Output Enable Time
Thermal Shutdown Status Output
Normal Operation
Thermally Shutdown
Junction Temperature, Shutdown
Reset from Shutdown
Ref (Reference Pin for Control Signals)
Voltage Range
Current(2)
POWER SUPPLY
Specified Voltage
VS
Operating Voltage Range, (V+) – (V–)
Quiescent Current
IQ
Quiescent Current in Shutdown Mode
TEMPERATURE RANGE
Specified Range
Operating Range
Storage Range
Thermal Resistance, θJC
Thermal Resistance, θJA
CONDITION
MIN
TYP
MAX
UNITS
±1
±5
mV
µV/°C
µV/V
VCM = 0V, IO = 0
TCASE = –40°C to +85°C
VS = ±4V to ±30V, Ref = V–
±20
25
100
VCM = 0V
TCASE = –40°C to +85°C
VCM = 0V
–100
±0.5
±5
–500
f = 1kHz
f = 1kHz
70
1
nV/√Hz
pA/√Hz
(V+) – 2.3
(V–) – 0.2
95
V
V
dB
107 || 6
109 || 4
Ω || pF
Ω || pF
110
100
dB
dB
0.9
9
See Typical Curve
20
0.015
MHz
V/µs
(V+) – 2.7
(V–) + 1.4
(V+) – 4.3
(V–) + 3.9
(V–) + 0.1
V
V
V
V
V
A
A rms
Linear Operation
Linear Operation
VCM = (V–) – 0.1V to (V+) – 3V
VO = ±25V, RL = 1kΩ
VO = ±25V, RL = 4Ω
(V+) – 3
(V–) – 0.1
80
100
G = 1, 50Vp-p Step, RL = 4Ω
G = –10, 50V Step
f = 1kHz,RL = 4Ω,G = +3, Power = 25W
IO = 2A
IO = –2A
IO = 8A
IO = –8A
RL = 8Ω to V–
Waveform Cannot Exceed 10A peak
(V+) – 3.2
(V–) + 1.7
(V+) – 4.8
(V–) + 4.6
(V–) + 0.3
±8
8
±50
µs
%
0 to ±10
ILIM = 15800 • 4.75V/(7500Ω + RCL)
±200
±500
See Typical Curve
RCL = 7.5kΩ (ILIM = ±5A), RL = 4Ω
Output Disabled, VO = 0V
Output Disabled
–2000
E/S Pin Open or Forced High
E/S Pin Forced Low
E/S Pin Indicates High
E/S Pin Indicates Low
(Ref) + 2.4
Sourcing 20µA
Sinking 5µA, TJ > 160°C
(Ref) + 2.4
±200
750
+2000
(Ref) + 0.8
–50
–55
1
3
(Ref) + 3.5
(Ref) + 0.2
+160
+140
V–
(Ref) + 0.8
(V+) – 8
–3.5
±30
8
ILIM Connected to Ref IO = 0
ILIM Connected to Ref
±26
±6
–40
–40
–55
No Heat Sink
60
±35
+85
+125
+125
1.4
30
nA
nA/°C
nA
A
A
mA
µA
pF
V
V
µA
µA
µs
µs
V
V
°C
°C
V
mA
V
V
mA
mA
°C
°C
°C
°C/W
°C/W
NOTES: (1) High-speed test at TJ = +25°C. (2) Positive conventional current is defined as flowing into the terminal. (3) See “Total Harmonic Distortion + Noise vs
Frequency” in the Typical Characteristics section for additional power levels. (4) See “Safe Operating Area” (SOA) in the Typical Characteristics section.
OPA549
SBOS093E
www.ti.com
3
TYPICAL CHARACTERISTICS
At TCASE = +25°C, VS = ±30V, and E/S pin open, unless otherwise noted.
OPEN-LOOP GAIN AND PHASE
vs FREQUENCY
INPUT BIAS CURRENT vs TEMPERATURE
–130
100
–20
–120
–40
60
–60
40
–80
20
–100
0
–120
–20
–140
Gain (dB)
80
–40
1
10
100
1k
10k
100k
1M
Input Bias Current (nA)
0
Phase (°)
120
–IB
+IB
–110
–100
–90
–80
–70
–60
–50
–40
–60 –40
–160
10M
–20
0
20
9
8
8
8A
Current Limit (A)
Current Limit (A)
80
100 120 140
+ILIM, 8A
–ILIM, 8A
7
6
5A
5
4
3
2A
6
+ILIM, 5A
5
–ILIM, 5A
4
3
2
2
1
1
0
–75
60
CURRENT LIMIT vs SUPPLY VOLTAGE
CURRENT LIMIT vs TEMPERATURE
9
7
40
Temperature (°C)
Frequency (Hz)
+ILIM, 2A
–ILIM, 2A
0
–50
–25
0
25
50
75
100
0
125
5
10
15
20
25
Temperature (°C)
INPUT BIAS CURRENT
vs COMMON-MODE VOLTAGE
QUIESCENT CURRENT vs TEMPERATURE
30
–200
VS = ±30V
–180
25
–160
Quiescent Current (mA)
Input Bias Current (nA)
30
Supply Voltage (V)
–140
–120
–100
–80
–60
–40
20
VS = ±5V
15
10
IQ Shutdown (output disabled)
5
–20
–0
–30
–20
–10
0
10
20
0
–75
30
4
–50
–25
0
25
50
75
100
125
Temperature (°C)
Common-Mode Voltage (V)
OPA549
www.ti.com
SBOS093E
TYPICAL CHARACTERISTICS (Cont.)
At TCASE = +25°C, VS = ±30V, and E/S pin open, unless otherwise noted.
POWER-SUPPLY REJECTION RATIO
vs FREQUENCY
COMMON-MODE REJECTION RATIO vs FREQUENCY
120
Power-Supply Rejection Ratio (dB)
Common-Mode Rejection (dB)
100
90
80
70
60
50
40
100
80
–PSRR
60
+PSRR
40
20
0
10
100
1k
10k
100k
10
100
1k
10k
100k
1M
Frequency (Hz)
Frequency (Hz)
VOLTAGE NOISE DENSITY vs FREQUENCY
OPEN-LOOP GAIN, COMMON-MODE REJECTION RATIO,
AND POWER-SUPPLY REJECTION RATIO
vs TEMPERATURE
300
120
AOL, CMRR, PSRR (dB)
Voltage Noise (nV/√Hz)
250
200
150
100
110
AOL
100
PSRR
90
CMRR
50
0
10
100
1k
10k
80
–75
100k
50
100
125
GAIN-BANDWIDTH PRODUCT AND
SLEW RATE vs TEMPERATURE
TOTAL HARMONIC DISTORTION + NOISE
vs FREQUENCY
16
15
GBW
0.8
14
0.7
13
0.6
12
0.5
11
0.4
10
SR+
0.3
9
0.2
1
G = +3
RL = 4Ω
THD+N (%)
1
75W
10W
0.1
1W
0.1W
0.01
8
SR–
0.1
7
0.001
6
–50
–25
0
25
50
75
100
20
125
100
1k
10k
20k
Frequency (Hz)
Temperature (°C)
OPA549
SBOS093E
0
Temperature (°C)
0.9
0
–75
–50
Frequency (Hz)
Slew Rate (V/µs)
Gain-Bandwidth Product (MHz)
1
www.ti.com
5
TYPICAL CHARACTERISTICS (Cont.)
At TCASE = +25°C, VS = ±30V, and E/S pin open, unless otherwise noted.
OUTPUT VOLTAGE SWING vs TEMPERATURE
OUTPUT VOLTAGE SWING vs OUTPUT CURRENT
5
5
IO = +8A
4
VSUPPLY – VOUT (V)
VSUPPLY– VOUT (V)
(V+) – VO
(V–) – VO
3
2
1
IO = –8A
3
IO = +2A
2
IO = –2A
1
0
0
0
2
4
6
8
–75
10
–50
–25
0
25
50
75
Output Current (A)
Temperature (°C)
MAXIMUM OUTPUT VOLTAGE SWING
vs FREQUENCY
OUTPUT LEAKAGE CURRENT
vs APPLIED OUTPUT VOLTAGE
30
5
Maximum output
voltage without
slew rate-induced
distortion.
4
Leakage Current (mA)
25
Output Voltage (Vp)
4
20
15
10
100
125
30
40
Leakage current with output disabled.
3
2
1
RCL = ∞
0
RCL = 0
–1
–2
–3
5
–4
0
10k
100k
–5
–40
1M
–30
–20
–10
0
10
20
Frequency (Hz)
Output Voltage (V)
OFFSET VOLTAGE
PRODUCTION DISTRIBUTION
OFFSET VOLTAGE DRIFT
PRODUCTION DISTRIBUTION
25
25
20
20
Percent of Amplifiers (%)
Percent of Amplifiers (%)
1k
15
10
5
0
15
10
5
0
4
8
12
16
20
24
28
32
36
40
44
48
52
56
60
64
68
72
76
80
84
–4.7
–4.23
–3.76
–3.29
–2.82
–2.35
–1.88
–1.41
–0.94
–0.47
0
0.47
0.94
1.41
1.88
2.35
2.82
3.29
3.76
4.23
4.7
0
Offset Voltage (µV/°C)
Offset Voltage (mV)
6
OPA549
www.ti.com
SBOS093E
TYPICAL CHARACTERISTICS (Cont.)
At TCASE = +25°C, VS = ±30V, and E/S pin open, unless otherwise noted.
LARGE-SIGNAL STEP RESPONSE
G = 3, CL = 1000pF
SMALL-SIGNAL OVERSHOOT
vs LOAD CAPACITANCE
70
60
G = +1
40
10V/div
Overshoot (%)
50
30
20
G = –1
10
0
0
5k
10k
15k
20k
25k
30k
5µs/div
35k
Load Capacitance (pF)
SMALL-SIGNAL STEP RESPONSE
G = 3, CL = 1000pF
50mV/div
100mV/div
SMALL-SIGNAL STEP RESPONSE
G = 1, CL = 1000pF
2.5µs/div
2.5µs/div
OPA549
SBOS093E
www.ti.com
7
APPLICATIONS INFORMATION
Figure 1 shows the OPA549 connected as a basic noninverting
amplifier. The OPA549 can be used in virtually any op amp
configuration.
Power-supply terminals should be bypassed with low series
impedance capacitors. The technique shown in Figure 1, using
a ceramic and tantalum type in parallel, is recommended.
Power-supply wiring should have low series impedance.
Be sure to connect both output pins (pins 1 and 2).
10µF
+
0.1µF(2)
R2
10, 11
9
1, 2
VO
OPA549
8
VIN
Ref
4
6
ILIM(1)
ZL
G = 1+
5, 7
ADJUSTABLE CURRENT LIMIT
Although the design of the OPA549 allows output currents up
to 10A, it is not recommended that the device be operated
continuously at that level. The highest rated continuous
current capability is 8A. Continuously running the OPA549 at
output currents greater than 8A will degrade long-term reliability.
E/S
3
The OPA549 features a reference (Ref) pin to which the ILIM
and the E/S pin are referred. Ref simply provides a reference
point accessible to the user that can be set to V–, ground, or
any reference of the user’s choice. Ref cannot be set below
the negative supply or above (V+) – 8V. If the minimum VS
is used, Ref must be set at V–.
The OPA549’s accurate, user-defined current limit can be set
from 0A to 10A by controlling the input to the ILIM pin. Unlike
other designs, which use a power resistor in series with the
output current path, the OPA549 senses the load indirectly.
This allows the current limit to be set with a 0µA to 633µA
control signal. In contrast, other designs require a limiting
resistor to handle the full output current (up to 10A in this
case).
V+
R1
CONTROL REFERENCE (Ref) PIN
R2
R1
Operation of the OPA549 with current limit less than 1A
results in reduced current limit accuracy. Applications requiring lower output current may be better suited to the OPA547
or OPA548.
0.1µF(2)
10µF
+
Resistor-Controlled Current Limit
See Figure 2a for a simplified schematic of the internal
circuitry used to set the current limit. Leaving the ILIM pin open
programs the output current to zero, while connecting ILIM
directly to Ref programs the maximum output current limit,
typically 10A.
V–
NOTES: (1) ILIM connected to Ref gives the maximum
current limit, 10A (peak). (2) Connect capacitors directly to
package power-supply pins.
With the OPA549, the simplest method for adjusting the
current limit uses a resistor or potentiometer connected
between the ILIM pin and Ref according to Equation 1:
FIGURE 1. Basic Circuit Connections.
POWER SUPPLIES
RCL =
The OPA549 operates from single (+8V to +60V) or dual
(±4V to ±30V) supplies with excellent performance. Most
behavior remains unchanged throughout the full operating
voltage range. Parameters that vary significantly with operating voltage are shown in the Typical Characteristics. Some
applications do not require equal positive and negative output voltage swing. Power-supply voltages do not need to be
equal. The OPA549 can operate with as little as 8V between
the supplies and with up to 60V between the supplies. For
example, the positive supply could be set to 55V with the
negative supply at –5V. Be sure to connect both V– pins
(pins 5 and 7) to the negative power supply, and both V+
pins (pins 10 and 11) to the positive power supply.
Package tab is internally connected to V–; however, do
not use the tab to conduct current.
75kV
– 7.5kΩ
ILIM
(1)
Refer to Figure 2 for commonly used values.
Digitally-Controlled Current Limit
The low-level control signal (0µA to 633µA) also allows the
current limit to be digitally controlled by setting either a
current (ISET) or voltage (VSET). The output current ILIM can be
adjusted by varying ISET according to Equation 2:
ISET = ILIM/15800
(2)
Figure 2b demonstrates a circuit configuration implementing
this feature.
The output current ILIM can be adjusted by varying VSET
according to Equation 3:
VSET = (Ref) + 4.75V – (7500W)(ILIM)/15800
(3)
Figure 11 demonstrates a circuit configuration implementing
this feature.
8
OPA549
www.ti.com
SBOS093E
(a) RESISTOR METHOD
(b) DAC METHOD (Current or Voltage)
Max IO = ILIM
±ILIM =
7500Ω
4.75V
(4.75) (15800)
Max IO = ILIM
7500Ω + RCL
±ILIM =15800 ISET
8
6
RCL =
Ref
15800 (4.75V)
=
ILIM
75kΩ
ILIM
7500Ω
4.75V
ISET
8
RCL
0.01µF
(optional, for noisy
environments)
6
– 7500Ω
D/A
Ref
ISET = ILIM/15800
VSET = (Ref) + 4.75V – (7500Ω) (ILIM)/15800
– 7.5kΩ
OPA549 CURRENT LIMIT: 0A to 10A
DESIRED
CURRENT LIMIT
RESISTOR(1)
(RCL)
CURRENT
(ISET)
VOLTAGE
(VSET)
0A(2)
2.5A
3A
4A
5A
6A
7A
8A
9A
10A
ILIM Open
22.6kΩ
17.4kΩ
11.3kΩ
7.5kΩ
4.99kΩ
3.24kΩ
1.87kΩ
845Ω
ILIM Connected to Ref
0µA
158µA
190µA
253µA
316µA
380µA
443µA
506µA
570µA
633µA
(Ref) + 4.75V
(Ref) + 3.56V
(Ref) + 3.33V
(Ref) + 2.85V
(Ref) + 2.38V
(Ref) + 1.90V
(Ref) + 1.43V
(Ref) + 0.95V
(Ref) + 0.48V
(Ref)
NOTES: (1) Resistors are nearest standard 1% values. (2) Offset in the current limit circuitry
may introduce approximately ±0.25A variation at low current limit values.
FIGURE 2. Adjustable Current Limit.
ENABLE/STATUS (E/S) PIN
The Enable/Status Pin provides two unique functions:
1) output disable by forcing the pin low, and 2) thermal
shutdown indication by monitoring the voltage level at the
pin. Either or both of these functions can be utilized in an
application. For normal operation (output enabled), the E/S
pin can be left open or driven high (at least 2.4V above Ref).
A small value capacitor connected between the E/S pin and
CREF may be required for noisy applications.
OPA549
E/S
Ref
CMOS or TTL
Logic
Ground
Output Disable
To disable the output, the E/S pin is pulled to a logic low (no
greater than 0.8V above Ref). Typically the output is shut down
in 1µs. To return the output to an enabled state, the E/S pin
should be disconnected (open) or pulled to at least 2.4V above
Ref. It should be noted that driving the E/S pin high (output
enabled) does not defeat internal thermal shutdown; however,
it does prevent the user from monitoring the thermal shutdown
status. Figure 3 shows an example implementing this function.
This function not only conserves power during idle periods
(quiescent current drops to approximately 6mA) but also allows
multiplexing in multi-channel applications. See Figure 12 for two
FIGURE 3. Output Disable.
OPA549s in a switched amplifier configuration. The on/off state
of the two amplifiers is controlled by the voltage on the E/S pin.
Under these conditions, the disabled device will behave like a
750pF load. Slewing faster than 3V/µs will cause leakage
current to rapidly increase in devices that are disabled, and will
contribute additional load. At high temperature (125°C), the
slewing threshold drops to approximately 2V/µs. Input signals
must be limited to avoid excessive slewing in multiplexed
applications.
OPA549
SBOS093E
www.ti.com
9
Thermal Shutdown Status
20
The OPA549 has thermal shutdown circuitry that protects the
amplifier from damage. The thermal protection circuitry disables the output when the junction temperature reaches
approximately 160°C and allows the device to cool. When the
junction temperature cools to approximately 140°C, the output
circuitry is automatically re-enabled. Depending on load and
signal conditions, the thermal protection circuit may cycle on
and off. The E/S pin can be monitored to determine if the
device is in shutdown. During normal operation, the voltage on
the E/S pin is typically 3.5V above Ref. Once shutdown has
occurred, this voltage drops to approximately 200mV above
Ref. Figure 4 shows an example implementing this function.
10
Output Current (A)
PD
PD
Output current can
be limited to less
than 8A—see text.
1
PD
=9
0W
TC = 25°C
=4
7W
=1
8W
TC = 85°C
Pulse Operation Only
(Limit rms current to ≤ 8A)
0.1
1
2
5
10
TC = 125°C
20
50
100
VS – VO (V)
OPA549
Ref
FIGURE 6. Safe Operating Area.
E/S
HCT
E/S pin can interface
with standard HCT logic
inputs. Logic ground is
referred to Ref.
Logic
Ground
FIGURE 4. Thermal Shutdown Status.
External logic circuitry or an LED can be used to indicate if
the output has been thermally shutdown, see Figure 10.
Output Disable and Thermal Shutdown Status
As mentioned earlier, the OPA549’s output can be disabled
and the disable status can be monitored simultaneously.
Figure 5 provides an example of interfacing to the E/S pin.
OPA549
E/S
Open-drain logic output can disable
the amplifier's output with a logic low.
HCT logic input monitors thermal
shutdown status during normal
operation.
HCT
(Thermal Status
Shutdown)
Power dissipation depends on power supply, signal, and load
conditions. For dc signals, power dissipation is equal to the
product of output current times the voltage across the conducting output transistor. Power dissipation can be minimized by using the lowest possible power-supply voltage
necessary to assure the required output voltage swing.
THERMAL PROTECTION
Logic
Ground
FIGURE 5. Output Disable and Thermal Shutdown Status.
SAFE OPERATING AREA
Stress on the output transistors is determined both by the
output current and by the output voltage across the conducting output transistor, VS – VO. The power dissipated by the
output transistor is equal to the product of the output current
and the voltage across the conducting transistor, VS – VO.
The Safe Operating Area (SOA curve, Figure 6) shows the
permissible range of voltage and current.
10
POWER DISSIPATION
For resistive loads, the maximum power dissipation occurs at
a dc output voltage of one-half the power-supply voltage.
Dissipation with ac signals is lower. Application Bulletin
SBOA022 explains how to calculate or measure power
dissipation with unusual signals and loads.
Ref
Open Drain
(Output Disable)
The safe output current decreases as VS – VO increases.
Output short circuits are a very demanding case for SOA. A
short circuit to ground forces the full power-supply voltage
(V+ or V–) across the conducting transistor. Increasing the
case temperature reduces the safe output current that can be
tolerated without activating the thermal shutdown circuit of
the OPA549. For further insight on SOA, consult Application
Report SBOA022 at the Texas Instruments web site
(www.ti.com).
Power dissipated in the OPA549 will cause the junction
temperature to rise. Internal thermal shutdown circuitry shuts
down the output when the die temperature reaches approximately 160°C and resets when the die has cooled to 140°C.
Depending on load and signal conditions, the thermal protection circuit may cycle on and off. This limits the dissipation of
the amplifier but may have an undesirable effect on the load.
Any tendency to activate the thermal protection circuit indicates excessive power dissipation or an inadequate heat
sink. For reliable operation, junction temperature should be
limited to 125°C maximum. To estimate the margin of safety
in a complete design (including heat sink) increase the
ambient temperature until the thermal protection is triggered.
OPA549
www.ti.com
SBOS093E
Use worst-case load and signal conditions. For good reliability, thermal protection should trigger more than 35°C above
the maximum expected ambient condition of your application. This produces a junction temperature of 125°C at the
maximum expected ambient condition.
The internal protection circuitry of the OPA549 was designed
to protect against overload conditions. It was not intended to
replace proper heat sinking. Continuously running the OPA549
into thermal shutdown will degrade reliability.
AMPLIFIER MOUNTING AND HEAT SINKING
Most applications require a heat sink to assure that the
maximum operating junction temperature (125°C) is not
exceeded. In addition, the junction temperature should be
kept as low as possible for increased reliability. Junction
temperature can be determined according to the Equations:
where
=
=
=
=
=
=
=
(4)
(5)
θHA = [(TJ – TA)/PD] – θJC – θCH
θHA = [(125°C – 40°C)/10W] – 1.4°C/W – 0.5°C/W
θHA = 6.6°C/W
To maintain junction temperature below 125°C, the heat sink
selected must have a θHA less than 6.6°C/W. In other words,
the heat sink temperature rise above ambient must be less
than 66°C (6.6°C/W • 10W). For example, at 10W Thermalloy
model number 6396B has a heat sink temperature rise of 56°C
(θHA = 56°C/10W = 5.6°C/W), which is below the required 66°C
required in this example. Thermalloy model number 6399B has
a sink temperature rise of 33°C (θHA = 33°C/10W = 3.3°C/W),
which is also below the required 66°C required in this example.
Figure 7 shows power dissipation versus ambient temperature
for a 11-lead power ZIP package with the Thermalloy 6396B
and 6399B heat sinks.
Junction Temperature (°C)
Ambient Temperature (°C)
Power Dissipated (W)
Junction-to-Case Thermal Resistance (°C/W)
Case-to-Heat Sink Thermal Resistance (°C/W)
Heat Sink-to-Ambient Thermal Resistance (°C/W)
Junction-to-Air Thermal Resistance (°C/W)
30
PD = (TJ (max) – TA)/ θJA
(TJ (max) – 150°C)
Power Dissipation (W)
TJ
TA
PD
θJC
θCH
θHA
θJA
TJ = TA + PDθJA
θJA = θJC + θCH + θHA
compound used (if any) also affect θCH. A typical θCH for a
mounted 11-lead power ZIP package is 0.5°C/W. Now we
can solve for θHA:
Figure 7 shows maximum power dissipation versus ambient
temperature with and without the use of a heat sink. Using a
heat sink significantly increases the maximum power dissipation at a given ambient temperature, as shown in Figure 7.
Combining Equations (4) and (5) gives:
TJ = TA + PD ( θJC + θCH + θHA )
(6)
TJ, TA, and PD are given. θJC is provided in the Specifications
Table, 1.4°C/W (dc). θCH can be obtained from the heat sink
manufacturer. Its value depends on heat sink size, area, and
material used. Semiconductor package type, mounting screw
torque, insulating material used (if any), and thermal joint
with No Heat Sink,
0
0
25
50
75
100
125
Ambient Temperature (°C)
Thermalloy 6399B
assume
OPA549
θ HA
θ CH
θ JC
θ JA
=
=
=
=
5.6°C/W
0.5°C/W
1.4°C/W
7.5°C/W
Thermalloy 6396B
assume
OPA549
θ HA
θ CH
θ JC
θ JA
=
=
=
=
3.3°C/W
0.5°C/W
1.4°C/W
5.2°C/W
FIGURE 7. Maximum Power Dissipation vs Ambient Temperature.
Another variable to consider is natural convection versus
forced convection air flow. Forced-air cooling by a small fan
can lower θCA (θCH + θHA) dramatically. Some heat sink
manufacturers provide thermal data for both of these cases.
Heat sink performance is generally specified under idealized
conditions that may be difficult to achieve in an actual
application. For additional information on determining heat
sink requirements, consult Application Report SBOA021.
OPA549
SBOS093E
with Thermalloy 6396B
Heat Sink, θJA = 7.5°C/W
10
θJA = 30°C/W
The challenge in selecting the heat sink required lies in
determining the power dissipated by the OPA549. For dc
output, power dissipation is simply the load current times the
voltage developed across the conducting output transistor,
PD = IL (VS – VO). Other loads are not as simple. Consult the
SBOA022 Application Report for further insight on calculating power dissipation. Once power dissipation for an application is known, the proper heat sink can be selected.
Heat Sink Selection Example—An 11-lead power ZIP package is dissipating 10 Watts. The maximum expected ambient
temperature is 40°C. Find the proper heat sink to keep the
junction temperature below 125°C (150°C minus 25°C safety
margin).
with Thermalloy 6399B
Heat Sink, θJA = 5.2°C/W
20
www.ti.com
11
As mentioned earlier, once a heat sink has been selected,
the complete design should be tested under worst-case load
and signal conditions to ensure proper thermal protection.
Any tendency to activate the thermal protection circuitry may
indicate inadequate heat sinking.
avoided with clamp diodes from the output terminal to the
power supplies, as shown in Figure 8. Schottky rectifier
diodes with a 8A or greater continuous rating are recommended.
The tab of the 11-lead power ZIP package is electrically
connected to the negative supply, V–. It may be desirable to
isolate the tab of the 11-lead power ZIP package from its
mounting surface with a mica (or other film) insulator. For
lowest overall thermal resistance, it is best to isolate the
entire heat sink/OPA549 structure from the mounting surface
rather than to use an insulator between the semiconductor
and heat sink.
VOLTAGE SOURCE APPLICATION
OUTPUT STAGE COMPENSATION
Figure 9 illustrates how to use the OPA549 to provide an
accurate voltage source with only three external resistors.
First, the current limit resistor, RCL, is chosen according to
the desired output current. The resulting voltage at the ILIM
pin is constant and stable over temperature. This voltage,
VCL, is connected to the noninverting input of the op amp and
used as a voltage reference, thus eliminating the need for an
external reference. The feedback resistors are selected to
gain VCL to the desired output voltage level.
The complex load impedances common in power op amp
applications can cause output stage instability. For normal
operation, output compensation circuitry is typically not required. However, for difficult loads or if the OPA549 is intended to be driven into current limit, an R/C network may be
required. Figure 8 shows an output R/C compensation (snubber) network which generally provides excellent stability.
R1
R2
V+
VO = VCL (1 + R2/R1)
4.75V
V+
7500Ω
Ref
VCL
R2
20kΩ
R1
5kΩ
G=–
R2
= –4
R1
IO =
15800 (4.75V)
7500Ω + RCL
ILIM
VIN
V–
D1
0.01µF
(Optional, for noisy
environments)
OPA549
D2
10Ω
(Carbon)
Uses voltage developed at ILIM pin
as a moderately accurate reference
voltage.
Motor
0.01µF
For Example:
If ILIM = 7.9A, RCL = 2kΩ
V–
D1, D2 : Schottky Diodes
VCL =
FIGURE 8. Motor Drive Circuit.
2kΩ • 4.75V
(2kΩ + 7500Ω)
= 1V
Desired VO = 10V, G =
A snubber circuit may also enhance stability when driving
large capacitive loads (> 1000pF) or inductive loads (motors,
loads separated from the amplifier by long cables). Typically,
3Ω to 10Ω resistors in series with 0.01µF to 0.1µF capacitors
is adequate. Some variations in circuit values may be required
with certain loads.
OUTPUT PROTECTION
Reactive and EMF-generating loads can return load current
to the amplifier, causing the output voltage to exceed the
power-supply voltage. This damaging condition can be
12
RCL
10
1
= 10
R1 = 1kΩ and R2 = 9kΩ
FIGURE 9. Voltage Source.
PROGRAMMABLE POWER SUPPLY
A programmable source/sink power supply can easily be
built using the OPA549. Both the output voltage and output
current are user-controlled. See Figure 10 for a circuit using
potentiometers to adjust the output voltage and current while
Figure 11 uses DACs. An LED connected to the E/S pin
through a logic gate indicates if the OPA549 is in thermal
shutdown.
OPA549
www.ti.com
SBOS093E
1kΩ
9kΩ
= 10
1kΩ
G=1+
+5V
10.5kΩ
Output
Adjust
V+ = +30V
V– = 0V
9kΩ
10kΩ
3
VO = 1V to 25V
IO = 0 to 10A
OPA549
0.12V to 2.5V
4
ILIM 8
6
9 E/S
Ref
R ≥ 250Ω
74HCT04
499Ω
+5V
V–
1kΩ
Current
Limit
Adjust
Thermal
Shutdown Status
0V to 4.75V
20kΩ
(LED)
0.01µF
FIGURE 10. Resistor-Controlled Programmable Power Supply.
V+ = +30V
V– = 0V
1kΩ
9kΩ
–5V
OUTPUT ADJUST
VREF
G = 10
+5V
VREF A
3
+5V
RFB A
1, 2
1/2 DAC7800/1/2(3)
IOUT A
VO = 7V to 25V
OPA549
10pF
9
4
1/2
OPA2336
E/S
6
Ref
DAC A
AGND A
ILIM
IO = 0A to 10A
74HCT04
R ≥ 250Ω
8
Thermal
Shutdown Status
(LED)
VREF B
RFB B
10pF
1/2 DAC7800/1/2
IOUT B
1/2
OPA2336
DAC B
0.01µF
DGND
AGND B
CURRENT LIMIT ADJUST
Choose DAC780X based on digital interface: DAC7800—12-bit
interface, DAC7801—8-bit interface + 4 bits, DAC7802—serial interface.
FIGURE 11. Digitally-Controlled Programmable Power Supply.
OPA549
SBOS093E
www.ti.com
13
R1
R2
VIN1
OPA549
OPA549
ILIM
E/S
Ref
R3
VE/S
VO
R4
RCL1
VIN2
RCL2
Close for high current
(could be open drain
output of a logic gate).
OPA549
E/S
Limit output slew rates to ≤ 3V/µs (see text).
FIGURE 13. Multiple Current Limit Values.
FIGURE 12. Switched Amplifier.
R2
4kΩ
R1
1kΩ
Master
0.1Ω
OPA549
VIN
ILIM
Ref
20A Peak
VO
G=5
Slave
0.1Ω
OPA549
ILIM
Ref
FIGURE 14. Parallel Output for Increased Output Current.
14
OPA549
www.ti.com
SBOS093E
PACKAGE OPTION ADDENDUM
www.ti.com
13-Aug-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
OPA549S
ACTIVE Power Package
KVC
11
25
RoHS & Green
SN
N / A for Pkg Type
-40 to 85
OPA549S
OPA549SG3
ACTIVE Power Package
KVC
11
25
RoHS & Green
SN
N / A for Pkg Type
-40 to 85
OPA549S
OPA549T
ACTIVE
TO-220
KV
11
25
RoHS & Green
SN
N / A for Pkg Type
-40 to 85
OPA549T
OPA549TG3
ACTIVE
TO-220
KV
11
25
RoHS & Green
SN
N / A for Pkg Type
-40 to 85
OPA549T
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
