OPA859-Q1
OPA859-Q1
SBOSA59 – FEBRUARY
2021
SBOSA59 – FEBRUARY 2021
www.ti.com
OPA859-Q1 1.8-GHz Unity-Gain Bandwidth, 3.3-nV/√Hz, FET Input Amplifier
1 Features
3 Description
•
The OPA859-Q1 is a wideband, low-noise operational
amplifier with CMOS inputs for wideband
transimpedance and voltage amplifier applications.
When the device is configured as a transimpedance
amplifier (TIA), the 0.9-GHz gain bandwidth product
(GBWP) enables high closed-loop bandwidths in lowcapacitance photodiode applications.
•
•
•
•
•
•
2 Applications
•
•
•
•
•
•
•
•
•
•
Automotive LIDAR
Time of flight (ToF) Camera
Optical Time Domain Reflectometry (OTDR)
3D Scanner
Laser Distance Measurement
Solid-State Scanning LIDAR
Optical ToF Position Sensor
Drone Vision
Silicon Photomultiplier (SiPM) Buffer Amplifier
Photomultiplier Tube Post Amplifier
The graph below shows the bandwidth and noise
performance of the OPA859-Q1 as a function of the
photodiode capacitance when the amplifier is
configured as a TIA. The total noise is calculated
along a bandwidth range extending from DC to the
calculated frequency (f) on the left scale. The
OPA859-Q1 package has a feedback pin (FB) that
simplifies the feedback network connection between
the input and the output.
The OPA859-Q1 is optimized to operate in optical
time-of-flight (ToF) systems where the OPA859-Q1 is
used with time-to-digital converters, such as the
TDC7201. Use the OPA859-Q1 to drive a high-speed
analog-to-digital converter (ADC) in high-resolution
LIDAR systems with a differential output amplifier,
such as the THS4541-Q1.
Device Information
PART NUMBER(1)
OPA859-Q1
(1)
5V
TLV3501
±
+
3.5 V
OPA859
+
Stop 2
VREF
±
Start 2
Object
CF
RF
VBIAS
5V
TLV3501
±
TDC7201
(Time-toDigital
Converter)
+
3.5 V
+
OPA859
VREF
Stop 1
±
Start 1
Closed-loop Bandwidth, f-3dB (MHz)
RF
VBIAS
For all available packages, see the package option
addendum at the end of the data sheet.
150
f-3dB, RF = 2 k:
f-3dB, RF = 5 k:
IRN, RF = 2 k:
IRN, RF = 5 k:
200
175
Pulsed Laser
Diode
MSP430
Controller
135
120
150
105
125
90
100
75
75
60
50
45
25
30
0
15
20
0
Tx
Lens
BODY SIZE (NOM)
2.00 mm × 2.00 mm
225
CF
Rx
Lens
PACKAGE
WSON (8)
2
4
6
8
10
12
14
Photodiode capacitance (pF)
16
18
Integrated Input Referred Noise, IRN (nARMS)
•
•
•
•
•
•
AEC-Q100 Qualified for Automotive Applications:
– Temperature grade 1: –40°C to +125°C, TA
High Unity-Gain Bandwidth: 1.8 GHz
Gain Bandwidth Product: 900 MHz
Ultra-Low Bias Current MOSFET Inputs: 10 pA
Low Input Voltage Noise: 3.3 nV/√Hz
Slew Rate: 1150 V/µs
Low Input Capacitance:
– Common-Mode: 0.6 pF
– Differential: 0.2 pF
Wide Input Common-Mode Range:
– 1.4 V from Positive Supply
– Includes Negative Supply
2.5 VPP Output Swing in TIA Configuration
Supply Voltage Range: 3.3 V to 5.25 V
Quiescent Current: 20.5 mA

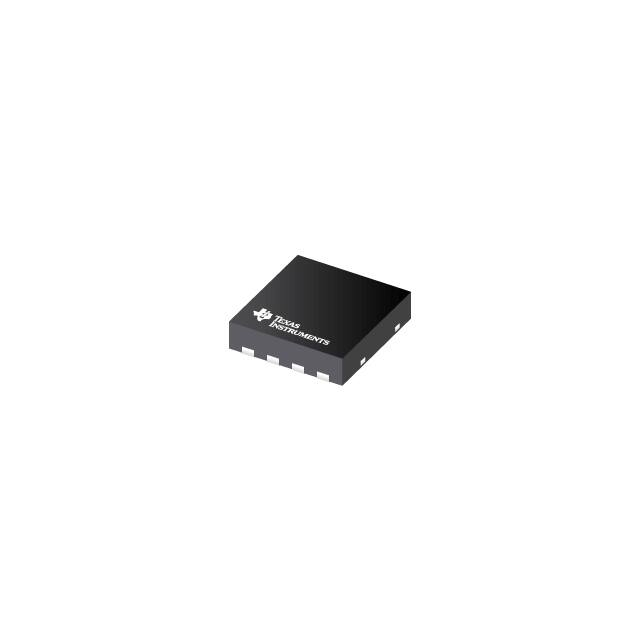

Package: 8-Pin WSON
Temperature Range: –40°C to +125°C
D409
Photodiode Capacitance vs Bandwidth and Noise
High-Speed Time-of-Flight Receiver
An©IMPORTANT
NOTICEIncorporated
at the end of this data sheet addresses availability, warranty, changes, use in
safety-critical
applications,
Copyright
2021 Texas Instruments
Submit
Document
Feedback
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Product Folder Links: OPA859-Q1
1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................4
6 Specifications.................................................................. 5
6.1 Absolute Maximum Ratings ....................................... 5
6.2 ESD Ratings .............................................................. 5
6.3 Recommended Operating Conditions ........................5
6.4 Thermal Information ...................................................5
6.5 Electrical Characteristics ............................................6
6.6 Typical Characteristics................................................ 8
7 Parameter Measurement Information.......................... 15
8 Detailed Description......................................................16
8.1 Overview................................................................... 16
8.2 Functional Block Diagram......................................... 16
8.3 Feature Description...................................................17
8.4 Device Functional Modes..........................................20
9 Application and Implementation.................................. 21
9.1 Application Information............................................. 21
9.2 Typical Application.................................................... 21
10 Power Supply Recommendations..............................23
11 Layout........................................................................... 24
11.1 Layout Guidelines................................................... 24
11.2 Layout Example...................................................... 24
12 Device and Documentation Support..........................25
12.1 Device Support....................................................... 25
12.2 Documentation Support.......................................... 25
12.3 Receiving Notification of Documentation Updates..25
12.4 Support Resources................................................. 25
12.5 Trademarks............................................................. 25
12.6 Electrostatic Discharge Caution..............................25
12.7 Glossary..................................................................25
13 Mechanical, Packaging, and Orderable
Information.................................................................... 25
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
2
DATE
REVISION
NOTES
February 2021
*
Initial Release
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
Device Comparison Table
DEVICE
INPUT TYPE
MINIMUM
STABLE GAIN
VOLTAGE
NOISE (nV/√ Hz)
INPUT
CAPACITANCE (pF)
GAIN
BANDWIDTH (GHz)
OPA855-Q1
Bipolar
7 V/V
0.98
0.8
8
OPA858-Q1
CMOS
7 V/V
2.5
0.8
5.5
OPA859-Q1
CMOS
1 V/V
3.3
0.8
0.9
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
3
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
5 Pin Configuration and Functions
FB
1
NC
2
8
PD
7
VS+
Thermal pad
IN±
3
6
OUT
IN+
4
5
VS±
Not to scale
Figure 5-1. DSG Package
8-Pin WSON With Exposed Thermal Pad
Top View
Table 5-1. Pin Functions
PIN
NAME
I/O
DESCRIPTION
FB
1
I
Feedback connection to output of amplifier
IN–
3
I
Inverting input
IN+
4
I
Noninverting input
NC
2
—
Do not connect
OUT
6
O
Amplifier output
PD
8
I
Power down connection. PD = logic low = power off mode; PD = logic high = normal operation.
VS–
5
—
Negative voltage supply
VS+
7
—
Positive voltage supply
—
Connect the thermal pad to VS–
Thermal pad
4
NO.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
VS
Total supply voltage (VS+ – VS– )
VIN+, VIN–
Input voltage
VID
Differential input voltage
VOUT
Output voltage
MIN
MAX
UNIT
5.5
V
(VS–) – 0.5
(VS+) + 0.5
V
1
V
(VS–) – 0.5
(VS+) + 0.5
V
IIN
Continuous input current
IOUT
Continuous output current(2)
TJ
Junction temperature
150
°C
TA
Operating free-air temperature
–40
125
°C
Tstg
Storage temperature
–65
150
°C
(1)
(2)
±10
mA
±100
mA
Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
Long-term continuous output current for electromigration limits.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
Electrostatic discharge
Human-body model (HBM), per AEC Q100-002(1)
± 1500
Charged-device model (CDM), per AEC
Q100-011
±1000
UNIT
V
AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
NOM
MAX
5
5.25
V
125
°C
VS
Total supply voltage (VS+ – VS– )
3.3
TA
Operating free-air temperature
–40
UNIT
6.4 Thermal Information
OPA859-Q1
THERMAL METRIC(1)
DSG (WSON)
UNIT
8 PINS
RθJA
Junction-to-ambient thermal resistance
80.1
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
100
°C/W
RθJB
Junction-to-board thermal resistance
45
°C/W
ΨJT
Junction-to-top characterization parameter
6.8
°C/W
ΨJB
Junction-to-board characterization parameter
45.2
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
22.7
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
5
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.5 Electrical Characteristics
VS+ = 5 V, VS- = 0 V, input common-mode biased at midsupply, unity gain configuration, RL = 200 Ω, output load is referenced
to midsupply, and TA ≈ +25℃ (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
AC PERFORMANCE
SSBW
Small-signal bandwidth
VOUT = 100 mVPP
1.8
GHz
LSBW
Large-signal bandwidth
VOUT = 2 VPP
400
MHz
GBWP
Gain-bandwidth product
900
MHz
Bandwidth for 0.1dB flatness
140
MHz
1150
V/µs
SR
Slew rate (10% - 90%)
VOUT = 2-V step
tr
Rise time
VOUT = 100-mV step
0.3
ns
tf
Fall time
VOUT = 100-mV step
0.3
ns
Settling time to 0.1%
VOUT = 2-V step
8
ns
Settling time to 0.001%
VOUT = 2-V step
3000
ns
Overshoot/undershoot
VOUT = 2-V step
7%
f = 10 MHz, VOUT = 2 VPP
90
f = 100 MHz, VOUT = 2 VPP
60
f = 10 MHz, VOUT = 2 VPP
86
HD2
Second-order harmonic distortion
dBc
HD3
Third-order harmonic distortion
f = 100 MHz, VOUT = 2 VPP
64
dBc
en
Input-referred voltage noise
f = 1 MHz
3.3
nV/√Hz
ZOUT
Closed-loop output impedance
f = 1 MHz
0.15
Ω
dBc
DC PERFORMANCE
AOL
Open-loop voltage gain
VOS
Input offset voltage
TA = 25°C
60
65
–5
±0.9
ΔVOS/ΔT
Input offset voltage drift
TA = –40°C to +125°C
IBN, IBI
Input bias current
IBOS
CMRR
dB
TA = 25°C
–5
±0.5
5
pA
Input offset current
TA = 25°C
–5
±0.1
5
pA
Common-mode rejection ratio
VCM = ±0.5 V
70
84
dB
1
GΩ
5
–2
mV
µV/°C
INPUT
Common-mode input resistance
CCM
Common-mode input capacitance
Differential input resistance
CDIFF
Differential input capacitance
VIH
Common-mode input range (high)
VS+ = 3.3 V, CMRR > 66 dB
VIL
Common-mode input range (low)
VS+ = 3.3 V, CMRR > 66 dB
VIH
Common-mode input range (high)
VIL
Common-mode input range (low)
CMRR > 66 dB
0.62
pF
1
GΩ
0.2
pF
1.7
1.9
V
3.4
3.6
0
TA = –40°C to +125°C, CMRR > 66 dB
0.4
V
3.3
CMRR > 66 dB
TA = –40°C to +125°C, CMRR > 66 dB
V
0
0.4
0.35
0.45
V
OUTPUT
VOH
6
Output voltage (high)
VOH
Output voltage (high)
VOL
Output voltage (low)
VOL
Output voltage (low)
VS+ = 3.3 V, TA = 25°C
TA = 25°C
2.3
2.4
3.95
4.1
V
V
TA = –40°C to +125°C
3.9
VS+ = 3.3 V, TA = 25°C
1.05
1.15
TA = 25°C
1.1
1.15
TA = –40°C to +125°C
1.2
Submit Document Feedback
V
V
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.5 Electrical Characteristics (continued)
VS+ = 5 V, VS- = 0 V, input common-mode biased at midsupply, unity gain configuration, RL = 200 Ω, output load is referenced
to midsupply, and TA ≈ +25℃ (unless otherwise noted)
PARAMETER
TEST CONDITIONS
RL = 10 Ω, AOL > 52 dB
IO_LIN
Linear output drive (sink and source)
ISC
Output short-circuit current
MIN
TYP
65
76
TA = –40°C to +125°C, RL = 10 Ω,
AOL > 52 dB
MAX
UNIT
mA
64
85
105
mA
18
20.5
24
17.5
20
23.5
18
21
24
POWER SUPPLY
VS+ = 5 V
VS+ = 3.3 V
IQ
Quiescent current
VS+ = 5.25 V
TA = 125°C
24.5
TA = –40°C
18.5
PSRR+
Positive power-supply rejection ratio
66
74
PSRR–
Negative power-supply rejection ratio
64
72
0.65
1
mA
dB
POWER DOWN
Disable voltage threshold
Amplifier OFF below this voltage
Enable voltage threshold
Amplifier ON above this voltage
Power-down quiescent current
PD bias current
Turnon time delay
Time to VOUT = 90% of final value
Turnoff time delay
V
1.5
1.8
V
70
140
µA
70
200
µA
25
ns
120
ns
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
7
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.6 Typical Characteristics
3
3
0
0
Normalized Gain (dB)
Normalized Gain (dB)
at TA = 25°C, VS+ = 2.5 V, VS– = –2.5 V, VIN+ = 0 V, Gain = 1 V/V, RF = 0 Ω, RL = 200 Ω, and output load referenced to
midsupply (unless otherwise noted)
-3
-6
-9
Gain = +1 V/V
Gain = 1 V/V
Gain = +2 V/V
Gain = +5 V/V
Gain = +20 V/V
-12
1M
10M
-3
-6
-9
VS = 3.3 V
VS = 5 V
100M
Frequency (Hz)
1G
-12
1M
5G
10M
100M
Frequency (Hz)
D300
1G
5G
D302
VOUT = 100 mVPP
VOUT = 100 mVPP; see Section 7 for circuit configuration
Figure 6-1. Small-Signal Frequency Response vs Gain
Figure 6-2. Small-Signal Frequency Response vs Supply
Voltage
2
3
1
0
Normalized Gain (dB)
Normalized Gain (dB)
0
-3
-6
-9
-2
-3
-4
-5
-6
RL = 100 :
RL = 200 :
RL = 400 :
-12
1M
-1
-7
10M
100M
Frequency (Hz)
1G
-8
1M
5G
D303
VOUT = 100 mVPP
1G
5G
D304
4
2
Normalized Gain (dB)
0
Normalized Gain (dB)
100M
Frequency (Hz)
Figure 6-4. Small-Signal Frequency Response vs Ambient
Temperature
3
-3
-6
-9
VS = r1.65 V, VOUT = 100 mVPP, VCM = 0 V
VS = r2.5 V, VOUT = 100 mVPP, VCM = 0.9 V
VS = r2.5 V, VOUT = 2 VPP, VCM = 0 V
-15
1M
Gain = 20 V/V
10M
Frequency (Hz)
0
-2
-4
-6
-8
-10
-12
1M
100M
D301
RF = 453 Ω
RS = 18 :, CL = 10 pF
RS = 9.1 :, CL = 47 pF
RS = 6.2 :, CL = 100 pF
RS = 2 :, CL = 1 nF
10M
100M
Frequency (Hz)
1G
D305
VOUT = 100 mVPP, See Figure 7-4 for circuit configuration
Figure 6-5. Frequency Response at Gain = 20 V/V
8
10M
VOUT = 100 mVPP
Figure 6-3. Small-Signal Frequency Response vs Output Load
-12
TA = 125qC
TA = 85qC
TA = 25qC
TA = 0qC
TA = 40qC
Figure 6-6. Small-Signal Frequency Response vs Capacitive
Load
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.6 Typical Characteristics (continued)
at TA = 25°C, VS+ = 2.5 V, VS– = –2.5 V, VIN+ = 0 V, Gain = 1 V/V, RF = 0 Ω, RL = 200 Ω, and output load referenced to
midsupply (unless otherwise noted)
0.2
3
0.1
Normalized Gain (dB)
-3
-6
-9
Gain = +1 V/V
Gain = 1 V/V
Gain = +2 V/V
Gain = +5 V/V
Gain = +20 V/V
-12
1M
0
-0.1
-0.2
-0.3
-0.4
10M
100M
Frequency (Hz)
-0.5
1M
1G
10M
Frequency (Hz)
D306
VOUT = 2 VPP
Figure 6-8. Large-Signal Response for 0.1-dB Gain Flatness
75
Open-Loop Magnitude (dB)
Closed-Loop Output Impedance (:)
100
10
1
0.1
0.01
100k
1M
10M
Frequency (Hz)
45
AOL Magnitude (dB)
AOL Phase (q)
60
-45
30
-90
15
-135
0
-180
-15
10k
100M
0
45
-225
100k
1M
10M
100M
Frequency (Hz)
D309
Small-Signal Response
1G
D310
Small-Signal Response
Figure 6-9. Closed-Loop Output Impedance vs Frequency
Figure 6-10. Open-Loop Magnitude and Phase vs Frequency
4
Input Referred Voltage Noise (nV/—Hz)
100
Input Referred Voltage Noise (nV/—Hz)
D307
VOUT = 2 VPP
Figure 6-7. Large-Signal Frequency Response vs Gain
10
1
1k
100M
Open-Loop Phase (q)
Normalized Gain (dB)
0
10k
100k
1M
Frequency (Hz)
10M
100M
3.8
3.6
3.4
3.2
3
2.8
2.6
-40
-20
D311
0
20
40
60
80
100
Ambient Temperature (qC)
120
140
D312
Frequency 10 MHz
Figure 6-11. Voltage Noise Density vs Frequency
Figure 6-12. Voltage Noise Density vs Ambient Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
9
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.6 Typical Characteristics (continued)
at TA = 25°C, VS+ = 2.5 V, VS– = –2.5 V, VIN+ = 0 V, Gain = 1 V/V, RF = 0 Ω, RL = 200 Ω, and output load referenced to
midsupply (unless otherwise noted)
-40
-60
-50
Harmonic Distortion (dBc)
Harmonic Distortion (dBc)
-50
-40
HD2, VOUT = 0.5 VPP
HD2, VOUT = 1 VPP
HD2, VOUT = 2 VPP
HD2, VOUT = 2.5 VPP
-70
-80
-90
-100
-110
-120
1M
10M
Frequency (Hz)
-90
-100
D313
-50
-70
-80
-90
-100
-110
10M
Frequency (Hz)
-70
-80
-90
-100
-120
1M
100M
D315
100M
D316
Figure 6-16. Harmonic Distortion (HD3) vs Output Load
-40
HD2, Gain = 1 V/V, RF = 0 :
HD2, Gain = 1 V/V, RF = 150 :
HD2, Gain = 2 V/V, RF = 150 :
HD2, Gain = 5 V/V, RF = 453 :
-50
Harmonic Distortion (dBc)
Harmonic Distortion (dBc)
10M
Frequency (Hz)
VOUT = 2 VPP
-40
-70
-80
-90
-100
-110
-60
HD3, Gain = 1 V/V, RF = 0 :
HD3, Gain = 1 V/V, RF = 150 :
HD3, Gain = 2 V/V, RF = 150 :
HD3, Gain = 5 V/V, RF = 453 :
-70
-80
-90
-100
-110
10M
Frequency (Hz)
100M
-120
1M
D317
VOUT = 2 VPP
10M
Frequency (Hz)
100M
D318
VOUT = 2 VPP
Figure 6-17. Harmonic Distortion (HD2) vs Gain
10
HD3, RL = 100 :
HD3, RL = 200 :
HD3, RL = 400 :
-110
Figure 6-15. Harmonic Distortion (HD2) vs Output Load
-120
1M
D314
-60
VOUT = 2 VPP
-60
100M
-40
HD2, RL = 100 :
HD2, RL = 200 :
HD2, RL = 400 :
-60
-50
10M
Frequency (Hz)
Figure 6-14. Harmonic Distortion (HD3) vs Output Swing
Harmonic Distortion (dBc)
Harmonic Distortion (dBc)
-80
-120
1M
100M
-40
-120
1M
-70
-110
Figure 6-13. Harmonic Distortion (HD2) vs Output Swing
-50
-60
HD3, VOUT = 0.5 VPP
HD3, VOUT = 1 VPP
HD3, VOUT = 2 VPP
HD3, VOUT = 2.5 VPP
Figure 6-18. Harmonic Distortion (HD3) vs Gain
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.6 Typical Characteristics (continued)
at TA = 25°C, VS+ = 2.5 V, VS– = –2.5 V, VIN+ = 0 V, Gain = 1 V/V, RF = 0 Ω, RL = 200 Ω, and output load referenced to
midsupply (unless otherwise noted)
60
1.25
Input
Output
Input
Output
1
0.75
Voltage Swing (V)
Voltage Swing (mV)
40
20
0
-20
0.5
0.25
0
-0.25
-0.5
-0.75
-40
-1
-60
-1.25
Time (5 ns/div)
Time (5 ns/div)
D319
Average Rise and Fall Time (10% - 90%) = 450 ps
Figure 6-19. Small-Signal Transient Response
Figure 6-20. Large-Signal Transient Response
4
0.075
3
0.05
2
Voltage Swing (V)
Voltage Swing (mV)
D320
Slew Rate: Falling = 1160 V/µs, Rising = 1400 V/µs
0.025
0
-0.025
-0.05
RS = 18 :, CL = 10 pF
RS = 9.1 :, CL = 47 pF
RS = 6.2 :, CL = 100 pF
RS = 2 :, CL = 1 nF
1
0
-1
-2
-3
Ideal Output
Measured Output
-4
-0.075
Time (10 ns/div)
Time (5 ns/div)
D322
D321
Gain = 5 V/V, RF = 453 Ω, 2x Output Overdrive
See Figure 7-4 for circuit configuration
Figure 6-22. Output Overload Response
3
3
2
2
Voltage Swing (V)
Voltage Swing (V)
Figure 6-21. Small-Signal Transient Response vs Capacitive
Load
1
0
-1
-2
Power Down (PD)
Output
1
0
-1
-2
Power Down (PD)
Output
-3
-3
Time (5 ns/div)
Time (5 ns/div)
D324
D323
Figure 6-23. Turnon Transient Response
Figure 6-24. Turnoff Transient Response
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
11
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.6 Typical Characteristics (continued)
at TA = 25°C, VS+ = 2.5 V, VS– = –2.5 V, VIN+ = 0 V, Gain = 1 V/V, RF = 0 Ω, RL = 200 Ω, and output load referenced to
midsupply (unless otherwise noted)
80
CMRR
Power Supply Rejection Ratio (dB)
Common-Mode Rejection Ratio (dB)
100
80
60
40
20
0
10k
100k
1M
10M
Frequency (Hz)
100M
PSRR+
PSRR
60
40
20
0
-20
10k
1G
100k
D325
Small-Signal Response
1M
10M
Frequency (Hz)
100M
1G
D326
Small-Signal Response
Figure 6-25. Common-Mode Rejection Ratio vs Frequency
Figure 6-26. Power Supply Rejection Ratio vs Frequency
24
21.5
21.25
23
Quiescent Current (mA)
Quiescent Current (mA)
21
20.75
20.5
20.25
20
19.75
19.5
19
3
3.25
3.5
3.75
4
4.25 4.5
Total Supply Voltage (V)
4.75
5
21
20
19
Unit 1
Unit 2
19.25
22
Unit 1
Unit 2
18
-40
5.25
2 Typical Units
80
1
78
0.75
76
0.5
Offset Voltage (mV)
Quiescent Current (PA)
20
40
60
80
100
Ambient Temperature (qC)
120
140
D361
2 Typical Units
Figure 6-28. Quiescent Current vs Ambient Temperature
74
72
70
Unit 1
Unit 2
Unit 3
0.25
0
-0.25
68
-0.5
66
-0.75
-1
-20
0
20
40
60
80
100
Ambient Temperature (qC)
120
140
3
3.25
D362
32 Units Tested
3.5
3.75
4
4.25 4.5
Total Supply Voltage (V)
4.75
5
5.25
D363
3 Typical Units
Figure 6-29. Quiescent Current (Amplifier Disabled) vs Ambient
Temperature
12
0
VS = 5 V
Figure 6-27. Quiescent Current vs Supply Voltage
64
-40
-20
D360
Figure 6-30. Offset Voltage vs Supply Voltage
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.6 Typical Characteristics (continued)
at TA = 25°C, VS+ = 2.5 V, VS– = –2.5 V, VIN+ = 0 V, Gain = 1 V/V, RF = 0 Ω, RL = 200 Ω, and output load referenced to
midsupply (unless otherwise noted)
2
0.8
Unit 1
Unit 2
Unit 3
1.5
0.4
Offset Voltage (mV)
Offset Voltage (mV)
0.6
0.2
0
-0.2
1
0.5
0
-0.4
-0.5
-0.6
-0.8
-40
-1
-20
0
20
40
60
80
100
Ambient Temperature (qC)
µ = –2.1 µV/°C
σ = 2 µV/°C
120
140
0
32 Units Tested
1
VS = 5 V
Figure 6-31. Offset Voltage vs Ambient Temperature
1.5
2
2.5
3
3.5
Common-Mode Voltage (V)
4
4.5
D366
3 Typical Units
Figure 6-32. Offset Voltage vs Input Common-Mode Voltage
1.5
5
TA = -40qC
TA = +25qC
TA = +125qC
4
3
1
Offset Voltage (mV)
Offset Voltage (mV)
0.5
D364
0.5
2
1
0
-1
-2
0
-3
Unit 1
Unit 2
Unit 3
-4
-0.5
-5
0
0.5
1
1.5
2
2.5
3
Common-Mode Voltage
3.5
4
4.5
1
1.5
2
D367
VS = 5 V
VS = 5 V
Figure 6-33. Offset Voltage vs Input Common-Mode Voltage vs
Ambient Temperature
2.5
3
Output Voltage (V)
3.5
4
4.5
D369
3 Typical Units
Figure 6-34. Offset Voltage vs Output Swing
10n
4
3
Input Bias Current (A)
Offset Voltage (mV)
1n
2
1
100p
0
-1
-2
1p
TA = -40qC
TA = +25qC
TA = +125qC
-3
-4
1
1.5
2
2.5
3
Output Voltage (V)
3.5
4
10p
4.5
0.1p
-40
Unit 1
Unit 2
Unit 3
-20
D370
VS = 5 V
0
20
40
60
80
100
Ambient Temperature (qC)
120
140
D371
3 Typical Units
Figure 6-35. Offset Voltage vs Output Swing vs Ambient
Temperature
Figure 6-36. Input Bias Current vs Ambient Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
13
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
6.6 Typical Characteristics (continued)
at TA = 25°C, VS+ = 2.5 V, VS– = –2.5 V, VIN+ = 0 V, Gain = 1 V/V, RF = 0 Ω, RL = 200 Ω, and output load referenced to
midsupply (unless otherwise noted)
5
2.4
TA = -40qC
TA = +25qC
TA = +125qC
0
2.2
Output Voltage (V)
Input Bias Current (pA)
-5
-10
-15
-20
-25
-30
-35
-40
2
1.8
1.6
1.4
1.2
-45
-50
0
0.5
1
1.5
2
2.5
3
Common-Mode Voltage (V)
3.5
1
-120
4
-100
-80
-60
-40
Output Current (mA)
D372
VS = 5 V
-20
0
D373
VS = 5 V
Figure 6-37. Input Bias Current vs Input Common-Mode Voltage
Figure 6-38. Output Swing vs Sinking Current
7000
4.5
4
6000
Amplifiers (Count)
3
2.5
2
1.5
TA = -40qC
TA = +25qC
TA = +125qC
3000
2000
D374
VS = 5 V
µ = 20.8 mA
σ = 0.25 mA
24
23.5
23
22.5
9150 Units Tested
Figure 6-40. Quiescent Current Distribution
2000
4500
1750
4000
3500
2000
Offset Voltage (mV)
µ = –0.38 mV
σ = 0.97 mV
D341
9150 Units Tested
Figure 6-41. Offset Voltage Distribution
Input Bias Current (pA)
µ = –0.55 pA
σ = 0.23 pA
1.5
1.25
1
0.75
0
0.5
0
0.25
500
0
250
-5
-4.5
-4
-3.5
-3
-2.5
-2
-1.5
-1
-0.5
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
1000
-0.25
1500
500
-0.5
750
2500
-0.75
1000
3000
-1
1250
-1.5
Amplifiers (Count)
1500
Amplifiers (Count)
D340
Quiescent Current (mA)
Figure 6-39. Output Swing vs Sourcing Current
14
22
120
21.5
100
21
40
60
80
Output Current (mA)
20.5
20
20
0
0
19.5
0
19
1000
18
0.5
4000
18.5
1
5000
-1.25
Output Voltage (V)
3.5
D342
9150 Units Tested
Figure 6-42. Input Bias Current Distribution
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
7 Parameter Measurement Information
The various test setup configurations for the OPA859-Q1 are shown in the figures below. When configuring the
OPA859-Q1 as a noninverting amplifier in gains less 3 V/V, set RF = 150 Ω. When configuring the OPA859-Q1
as a noninverting amplifier in gains of 4 V/V and greater, set RF = 453 Ω.
GND
50
2.5 V
50
50Source
169
+
±
í2.5 V
50
71.5
50Measurement
System
GND
GND
Figure 7-1. Unity-Gain Buffer Configuration
2.5 V
50
50Source
169
+
50Measurement
System
±
í2.5 V
RG
50
71.5
GND
RF
GND
GND
RG values depend on gain configuration
Figure 7-2. Noninverting Configuration
2.5 V
169
+
GND
50Source
50Measurement
System
±
í2.5 V
50
150
50
71.5
GND
150
GND
75
GND
Figure 7-3. Inverting Configuration (Gain = –1 V/V)
GND
50
50Source
2.5 V
50
+
RS
169
±
í2.5 V
CL
GND
75
GND
50
50Measurement
System
GND
Figure 7-4. Capacitive Load Driver Configuration
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
15
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
8 Detailed Description
8.1 Overview
The ultra-wide, 900-MHz gain bandwidth product (GBWP) of the OPA859-Q1, combined with the broadband
voltage noise of 3.3 nV/√Hz, produces a viable amplifier for wideband transimpedance applications, high-speed
data acquisition systems, and applications with weak signal inputs that require low-noise and high-gain front
ends. The OPA859-Q1 combines multiple features to optimize dynamic performance. In addition to the wide
small-signal bandwidth, the OPA859-Q1 has 400 MHz of large-signal bandwidth (VOUT = 2 VPP), and a slew rate
of 1150 V/µs.
The OPA859-Q1 is offered in a 2-mm × 2-mm, 8-pin WSON package that features a feedback (FB) pin for a
simple feedback network connection between the amplifiers output and inverting input. Excess capacitance on
an amplifiers input pin can reduce phase margin causing instability. This problem is exacerbated in the case of
very wideband amplifiers like the OPA859-Q1. To reduce the effects of stray capacitance on the input node, the
OPA859-Q1 pinout features an isolation pin (NC) between the feedback and inverting input pins that increases
the physical spacing between them thereby reducing parasitic coupling at high frequencies. The OPA859-Q1
also features a very low capacitance input stage with only 0.8-pF of total input capacitance.
8.2 Functional Block Diagram
The OPA859-Q1 is a classic voltage feedback operational amplifier (op amp) with two high-impedance inputs
and a low-impedance output. Standard application circuits are supported, like the two basic options shown in
Figure 8-1 and Figure 8-2. The DC operating point for each configuration is level-shifted by the reference voltage
(VREF), which is typically set to midsupply in single-supply operation. VREF is typically connected to ground in
split-supply applications.
VSIG
VS+
VREF
VIN
(1 + RF / RG) × VSIG
+
VOUT
VREF
±
RG
VS±
VREF
RF
Figure 8-1. Noninverting Amplifier
VS+
VREF
VSIG
VREF
±(RF / RG) × VSIG
+
VOUT
VIN
RG
VREF
±
VS±
RF
Figure 8-2. Inverting Amplifier
16
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
8.3 Feature Description
8.3.1 Input and ESD Protection
The OPA859-Q1 is fabricated on a low-voltage, high-speed, BiCMOS process. The internal, junction breakdown
voltages are low for these small geometry devices, and as a result, all device pins are protected with internal
ESD protection diodes to the power supplies as Figure 8-3 shows. There are two antiparallel diodes between the
inputs of the amplifier that clamp the inputs during an overrange or fault condition.
VS+
Power Supply
ESD Cell
VIN+
+
VOUT
±
VINí
FB
VSí
Figure 8-3. Internal ESD Structure
8.3.2 Feedback Pin
The OPA859-Q1 pin layout is optimized to minimize parasitic inductance and capacitance, which is a critical care
about in high-speed analog design. The FB pin (pin 1) is internally connected to the output of the amplifier. The
FB pin is separated from the inverting input of the amplifier (pin 3) by a no connect (NC) pin (pin 2). The NC pin
must be left floating. There are two advantages to this pin layout:
1. A feedback resistor (RF) can connect between the FB and IN– pin on the same side of the package (see
Figure 8-4) rather than going around the package.
2. The isolation created by the NC pin minimizes the capacitive coupling between the FB and IN– pins by
increasing the physical separation between the pins.
RF
FB 1
8
PD
NC 2
7
VS+
6
OUT
5
VS±
±
IN± 3
+
IN+ 4
Figure 8-4. RF Connection Between FB and IN– Pins
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
17
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
8.3.3 Wide Gain-Bandwidth Product
Figure 6-10 shows the open-loop magnitude and phase response of the OPA859-Q1. Calculate the gain
bandwidth product of any op amp by determining the frequency at which the AOL is 40 dB and multiplying that
frequency by a factor of 100. The open-loop response shows the OPA859-Q1 to have approximately 63° of
phase-margin when configured as a unity-gain buffer.
Figure 8-5 shows the open-loop magnitude (AOL) of the OPA859-Q1 as a function of temperature. The results
show approximately 5° of phase-margin variation over the entire temperature range. Semiconductor process
variation is the naturally occurring variation in the attributes of a transistor (Early-voltage, β, channel-length, and
width) and other passive elements (resistors and capacitors) when fabricated into an integrated circuit. The
process variation can occur across devices on a single wafer or across devices over multiple wafer lots over
time. Typically the variation across a single wafer is tightly controlled. Figure 8-6 shows the AOL magnitude of the
OPA859-Q1 as a function of process variation over time. The results show the AOL curve for the nominal process
corner and the variation one standard deviation from the nominal. The simulated results show less than 2° of
phase-margin difference within a standard deviation of process variation when the amplifier is configured as a
unity-gain bufffer.
75
75
AOL at 40qC
AOL at 25qC
AOL at +125qC
60
Open-Loop Gain (dB)
Open-Loop Gain (dB)
60
45
30
15
1M
10M
100M
Frequency (Hz)
30
15
-15
100k
1G
D404
Figure 8-5. Open-Loop Gain vs Temperature
18
45
0
0
-15
100k
AOL ( V)
AOL (Typ.)
AOL ( V)
1M
10M
100M
Frequency (Hz)
1G
D405
Figure 8-6. Open-Loop Gain vs Process Variation
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
8.3.4 Slew Rate and Output Stage
In addition to wide bandwidth, the OPA859-Q1 features a high slew rate of 2750 V/µs. The slew rate is a critical
parameter in high-speed pulse applications with narrow sub-10-ns pulses, such as optical time-domain
reflectometry (OTDR) and LIDAR. The high slew rate of the OPA859-Q1 implies that the device accurately
reproduces a 2-V, sub-ns pulse edge, as seen in Figure 6-20. The wide bandwidth and slew rate of the OPA859Q1 make it an excellent amplifier for high-speed signal-chain front ends.
Figure 8-7 shows the open-loop output impedance of the OPA859-Q1 as a function of frequency. To achieve
high slew rates and low output impedance across frequency, the output swing of the OPA859-Q1 is limited to
approximately 3 V. The OPA859-Q1 is typically used in conjunction with high-speed pipeline ADCs and flash
ADCs that have limited input ranges. Therefore, the OPA859-Q1 output swing range coupled with the classleading voltage noise specification for a CMOS amplifier maximizes the overall dynamic range of the signal
chain.
Open-Loop Output Impedance (ohms)
20
18
16
14
12
10
8
6
4
2
0
10k
100k
1M
10M
100M
Frequency (Hz)
1G
10G
D601
Figure 8-7. Open-Loop Output Impedance (ZOL) vs Frequency
8.3.5 Current Noise
The input impedance of CMOS and JFET input amplifiers at low frequencies exceed several GΩs. However, at
higher frequencies, the transistors parasitic capacitance to the drain, source, and substrate reduces the
impedance. The high impedance at low frequencies eliminates any bias current and the associated shot noise.
At higher frequencies, the input current noise increases (see Figure 8-8) as a result of capacitive coupling
between the CMOS gate oxide and the underlying transistor channel. This phenomenon is a natural artifact of
the construction of the transistor and is unavoidable.
100p
Current Noise (A/—Hz)
10p
1p
100f
10f
1f
1k
10k
100k
1M
10M
Frequency (Hz)
100M
1G
D607
Figure 8-8. Input Current Noise (IBN and IBI) vs Frequency
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
19
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
8.4 Device Functional Modes
8.4.1 Split-Supply and Single-Supply Operation
The OPA859-Q1 can be configured with single-sided supplies or split-supplies as shown in Figure 10-1. Splitsupply operation using balanced supplies with the input common-mode set to ground eases lab testing because
most signal generators, network analyzers, spectrum analyzers, and other lab equipment typically reference
inputs and outputs to ground. In split-supply operation, the thermal pad must be connected to the negative
supply.
Newer systems use a single power supply to improve efficiency and reduce the cost of the extra power supply.
The OPA859-Q1 can be used with a single positive supply (negative supply at ground) with no change in
performance if the input common-mode and output swing are biased within the linear operation of the device. In
single-supply operation, level shift the DC input and output reference voltages by half the difference between the
power supply rails. This configuration maintains the input common-mode and output load reference at midsupply.
To eliminate gain errors, the source driving the reference input common-mode voltage must have low output
impedance across the frequency range of interest. In this case, the thermal pad must be connected to ground.
8.4.2 Power-Down Mode
The OPA859-Q1 features a power-down mode to reduce the quiescent current to conserve power. Figure 6-23
and Figure 6-24 show the transient response of the OPA859-Q1 as the PD pin toggles between the disabled and
enabled states.
The PD disable and enable threshold voltages are with reference to the negative supply. If the amplifier is
configured with the positive supply at 3.3 V and the negative supply at ground, then the disable and enable
threshold voltages are 0.65 V and 1.8 V, respectively. If the amplifier is configured with ±1.65 V supplies, then
the threshold voltages are at –1 V and 0.15 V. If the amplifier is configured with ±2.5 V supplies, then the
threshold voltages are at –1.85 V and –0.7 V.
25
25
20
20
Quiescent Current (mA)
Quiescent Current (mA)
Figure 8-9 shows the switching behavior of a typical amplifier as the PD pin is swept down from the enabled
state to the disabled state. Similarly, Figure 8-10 shows the switching behavior of a typical amplifier as the PD
pin is swept up from the disabled state to the enabled state. The small difference in the switching thresholds
between the down sweep and the up sweep is caused by the hysteresis designed into the amplifier to increase
immunity to noise on the PD pin.
15
10
5
15
10
5
TA = -40qC
TA = 25qC
TA = 125qC
0
TA = -40qC
TA = 25qC
TA = 125qC
0
-2
-1.5
-1
-0.5
0
0.5
Power Down Voltage (V)
1
1.5
2
-2
D200
Figure 8-9. Switching Threshold ( PD Pin Swept
from High to Low)
-1.5
-1
-0.5
0
0.5
Power Down Voltage (V)
1
1.5
2
D201
Figure 8-10. Switching Threshold ( PD Pin Swept
from Low to High)
Connecting the PD pin low disables the amplifier and places the output in a high-impedance state. When the
amplifier is configured as a noninverting amplifier, the feedback (RF) and gain (RG) resistor network form a
parallel load to the output of the amplifier. To protect the input stage of the amplifier, the OPA859-Q1 uses
internal, back-to-back protection diodes between the inverting and noninverting input pins as Figure 8-3 shows.
In the power-down state, if the differential voltage between the input pins of the amplifier exceeds a diode
voltage drop, an additional low-impedance path is created between the noninverting input pin and the output pin.
20
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
9 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and TI
does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes, as well as validating and testing their design
implementation to confirm system functionality.
9.1 Application Information
The OPA859-Q1 offers high input impedance, very high-bandwidth, high slew-rate, low noise, and better than –
60 dBc of distortion performance at frequencies up to 100 MHz. These features make this device an excellent
front-end buffer in high-speed data acquisition systems. The wide bandwidth also makes this amplifier an
excellent choice for high-gain active filter systems.
9.2 Typical Application
Figure 9-1 shows the OPA859-Q1 configured as a transimpedance amplifier (U1) in a wide-bandwidth, optical
front-end system. A second OPA859-Q1 configured as a unity-gain buffer (U2) sets a dc offset voltage to the
THS4520. The THS4520 is used to convert the single-ended transimpedance output of the OPA859-Q1 into a
differential output signal. The THS4520 drives the input of the ADS54J64, 14-bit, 1-GSPS analog-to-digital
converter (ADC) that digitizes the analog signal.
CF
VBIAS
RF
5V
3.5 V
±
U1
+
499
OPA859
VOCM = 1.3 V
5V
2.95 V
±
U2
+
OPA859
499
499
5V
+ ±
± +
Low-pass
filter
ADS54J64
499
Figure 9-1. OPA859-Q1 as Both a TIA and a Buffer in an Optical Front-End System
9.2.1 Design Requirements
The objective is to design a low noise, wideband optical front-end system using the OPA859-Q1 as a
transimpedance amplifier. The design requirements are:
• Amplifier supply voltage: 5 V
• TIA common-mode voltage: 3.5 V
• THS4520 gain: 1 V/V
• ADC input common-mode voltage: 1.3 V
• ADC analog differential input range: 1.1 VPP
9.2.2 Detailed Design Procedure
The OPA859-Q1 meets the growing demand for wideband, low-noise photodiode amplifiers. The closed-loop
bandwidth of a transimpedance amplifier is a function of the following:
1. The total input capacitance (CIN). This total includes the photodiode capacitance, the input capacitance of the
amplifier (common-mode and differential capacitance) and any stray capacitance from the PCB.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
21
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
2. The op amp gain bandwidth product (GBWP).
3. The transimpedance gain (RF).
Figure 9-1 shows the OPA859-Q1 configured as a TIA, with the avalanche photodiode (APD) reverse biased so
that the APD cathode is tied to a large positive bias voltage. In this configuration, the APD sources current into
the op amp feedback loop so that the output swings in a negative direction relative to the input common-mode
voltage. To maximize the output swing in the negative direction, the OPA859-Q1 common-mode voltage is set
close to the positive limit; only 1.5 V from the positive supply rail. The feedback resistance (RF) and the input
capacitance (CIN) form a zero in the noise gain that results in instability if left unchecked. To counteract the effect
of the zero, a pole is inserted into the noise gain transfer function by adding the feedback capacitor (CF).
The Transimpedance Considerations for High-Speed Amplifiers Application Report discusses theories and
equations that show how to compensate a transimpedance amplifier for a particular transimpedance gain and
input capacitance. The bandwidth and compensation equations from the application report are available in an
Excel® calculator. What You Need To Know About Transimpedance Amplifiers – Part 1 provides a link to the
calculator.
The equations and calculators in the referenced application report and blog posts are used to model the
bandwidth (f–3dB) and noise (IRN) performance of the OPA859-Q1 configured as a TIA. The resultant
performance is shown in Figure 9-2 and Figure 9-3. The left-side Y-axis shows the closed-loop bandwidth
performance, whereas the right side of the graph shows the integrated input-referred noise. The noise bandwidth
to calculate IRN for a fixed RF and CPD is set equal to the f–3dB frequency. Figure 9-2 shows the amplifier
performance as a function of photodiode capacitance (CPD) for RF = 10 kΩ and 20 kΩ. Increasing CPD
decreases the closed-loop bandwidth. To maximize bandwidth, make sure to reduce any stray parasitic
capacitance from the PCB. The OPA859-Q1 is designed with 0.8 pF of total input capacitance to minimize the
effect of stray capacitance on system performance. Figure 9-3 shows the amplifier performance as a function of
RF for CPD = 1 pF and 2 pF. Increasing RF results in lower bandwidth. To maximize the signal-to-noise ratio
(SNR) in an optical front-end system, maximize the gain in the TIA stage. Increasing RF by a factor of X
increases the signal level by X, but only increases the resistor noise contribution by √X, thereby improving SNR.
The OPA859-Q1 configured as a unity-gain buffer drives a dc offset voltage of 2.95 V into the lower half of the
THS4520. To maximize the dynamic range of the ADC, the two OPA859 amplifiers drive a differential commonmode of 3.5 V and 2.95 V into the THS4520. The dc offset voltage of the buffer amplifier can be derived using
Equation 1.
VBUF _ DC
VTIA _ CM
§
¨
¨ 1 u VADC _ DIFF _ IN
¨2
§ RF ·
¨
¨
¸
¨
© RG ¹
©
·
¸
¸
¸
¸
¸
¹
(1)
where
•
•
•
VTIA_CM is the common-mode voltage of the TIA (3.5 V)
VADC_DIFF_IN is the differential input voltage range of the ADC (1.1 VPP)
RF and RG are the feedback resistance (499 Ω) and gain resistance (499 Ω) of the THS4520 differential
amplifier
The low-pass filter between the THS4520 and the ADC54J64 minimizes high-frequency noise and maximizes
SNR. The ADC54J64 has an internal buffer that isolates the output of the THS4520 from the ADC samplingcapacitor input, so a traditional charge bucket filter is not required.
22
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
200
175
135
120
150
105
125
90
100
75
75
60
50
45
25
30
0
0
2
4
6
8
10
12
14
Photodiode capacitance (pF)
16
15
20
18
350
Closed-loop Bandwidth, f-3dB (MHz)
150
f-3dB, RF = 2 k:
f-3dB, RF = 5 k:
IRN, RF = 2 k:
IRN, RF = 5 k:
Integrated Input Referred Noise, IRN (nARMS)
Closed-loop Bandwidth, f-3dB (MHz)
225
140
f-3dB, CF = 0.5 pF
f-3dB, CF = 1 pF
120
IRN, CF = 0.5 pF
IRN, RF = 1 pF
100
300
250
200
80
150
60
100
40
50
20
0
1
10
Feedback Resistance (k:)
D409
Figure 9-2. Bandwidth and Noise vs Photodiode Capacitance
0
100
Integrated Input Referred Noise, IRN (nARMS)
9.2.3 Application Curves
D410
Figure 9-3. Bandwidth and Noise vs Feedback Resistance
10 Power Supply Recommendations
The OPA859-Q1 operates on supplies from 3.3 V to 5.25 V. The OPA859-Q1 operates on single-sided supplies,
split and balanced bipolar supplies, and unbalanced bipolar supplies. Because the OPA859-Q1 does not feature
rail-to-rail inputs or outputs, the input common-mode and output swing ranges are limited at 3.3-V supplies.
a) Single supply configuration
VS+
VS+
2
+
0.1 …F
RG
75
6.8 …F
RF
453
±
50-Ÿ 6RXUFH
+
VI
200
RT
49.9
VS+
2
VS+
2
b) Split supply configuration
VS+
+
0.1 …F
RG
75
6.8 …F
RF
453
±
50-Ÿ 6RXUFH
+
VI
200
+
RT
49.9
0.1 …F
6.8 …F
VS±
Figure 10-1. Split and Single Supply Circuit Configuration , Gain = 7 V/V
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
23
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
11 Layout
11.1 Layout Guidelines
Achieving optimum performance with a high-frequency amplifier like the OPA859-Q1 requires careful attention to
board layout parasitics and external component types. Recommendations that optimize performance include:
•
•
•
Minimize parasitic capacitance from the signal I/O pins to ac ground. Parasitic capacitance on the
output and inverting input pins can cause instability. To reduce unwanted capacitance, cut out the power and
ground traces under the signal input and output pins. Otherwise, ground and power planes must be unbroken
elsewhere on the board. When configuring the amplifier as a TIA, if the required feedback capacitor is less
than 0.15 pF, consider using two series resistors, each of half the value of a single resistor in the feedback
loop to minimize the parasitic capacitance from the resistor.
Minimize the distance (less than 0.25-in) from the power-supply pins to high-frequency bypass
capacitors. Use high-quality, 100-pF to 0.1-µF, C0G and NPO-type decoupling capacitors with voltage
ratings at least three times greater than the amplifiers maximum power supplies. This configuration makes
sure that there is a low-impedance path to the amplifiers power-supply pins across the amplifiers gain
bandwidth specification. At the device pins, do not allow the ground and power plane layout to be in close
proximity to the signal I/O pins. Avoid narrow power and ground traces to minimize inductance between the
pins and the decoupling capacitors. The power-supply connections must always be decoupled with these
capacitors. Larger (2.2-µF to 6.8-µF) decoupling capacitors that are effective at lower frequency must be
used on the supply pins. Place these decoupling capacitors further from the device. Share the decoupling
capacitors among several devices in the same area of the printed circuit board (PCB).
Careful selection and placement of external components preserves the high-frequency performance
of the OPA859-Q1. Use low-reactance resistors. Surface-mount resistors work best and allow a tighter
overall layout. Never use wirewound resistors in a high-frequency application. Because the output pin and
inverting input pin are the most sensitive to parasitic capacitance, always position the feedback and series
output resistor, if any, as close to the output pin as possible. Place other network components (such as
noninverting input termination resistors) close to the package. Even with a low parasitic capacitance shunting
the external resistors, high resistor values create significant time constants that can degrade performance.
When configuring the OPA859-Q1 as a voltage amplifier, keep resistor values as low as possible and
consistent with load driving considerations. Decreasing the resistor values keeps the resistor noise terms low
and minimizes the effect of the parasitic capacitance. However, lower resistor values increase the dynamic
power consumption because RF and RG become part of the output load network of the amplifier.
11.2 Layout Example
Representative schematic
Connect PD to VS+ to enable the
amplifier
VS+
CBYP
1
RS
+
±
CBYP
VSRG
RF
NC (Pin 2) isolates the IN- and FB
pins thereby reducing capacitive
coupling
2
7
Thermal
Pad
RF
Place gain and feedback resistors
close to pins to minimize stray
capacitance
8
3
CBYP
6
RS
RG
4
5
CBYP
Ground and power plane exist on
inner layers.
Connect the thermal pad to the
negative supply pin
Ground and power plane removed
from inner layers. Ground fill on
outer layers also removed
Place bypass capacitor
close to power pins
Figure 11-1. Layout Recommendation
24
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
OPA859-Q1
www.ti.com
SBOSA59 – FEBRUARY 2021
12 Device and Documentation Support
12.1 Device Support
12.1.1 Development Support
•
•
•
LIDAR Pulsed Time of Flight Reference Design
LIDAR-Pulsed Time-of-Flight Reference Design Using High-Speed Data Converters
Wide Bandwidth Optical Front-end Reference Design
12.2 Documentation Support
12.2.1 Related Documentation
For related documentation see the following:
• Texas Instruments, OPA858EVM user's guide
• Texas Instruments, Training Video: High-Speed Transimpedance Amplifier Design Flow
• Texas Instruments, Training Video: How to Design Transimpedance Amplifier Circuits
• Texas Instruments, Training Video: How to Convert a TINA-TI Model into a Generic SPICE Model
• Texas Instruments, Transimpedance Considerations for High-Speed Amplifiers application report
• Texas Instruments, What You Need To Know About Transimpedance Amplifiers – Part 1
• Texas Instruments What You Need To Know About Transimpedance Amplifiers – Part 2
12.3 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.4 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
12.5 Trademarks
TI E2E™ is a trademark of Texas Instruments.
Excel® is a registered trademark of Microsoft Corporation.
All trademarks are the property of their respective owners.
12.6 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
12.7 Glossary
TI Glossary
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: OPA859-Q1
25
PACKAGE OPTION ADDENDUM
www.ti.com
23-Apr-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
OPA859QDSGRQ1
ACTIVE
WSON
DSG
8
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 125
859Q
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
