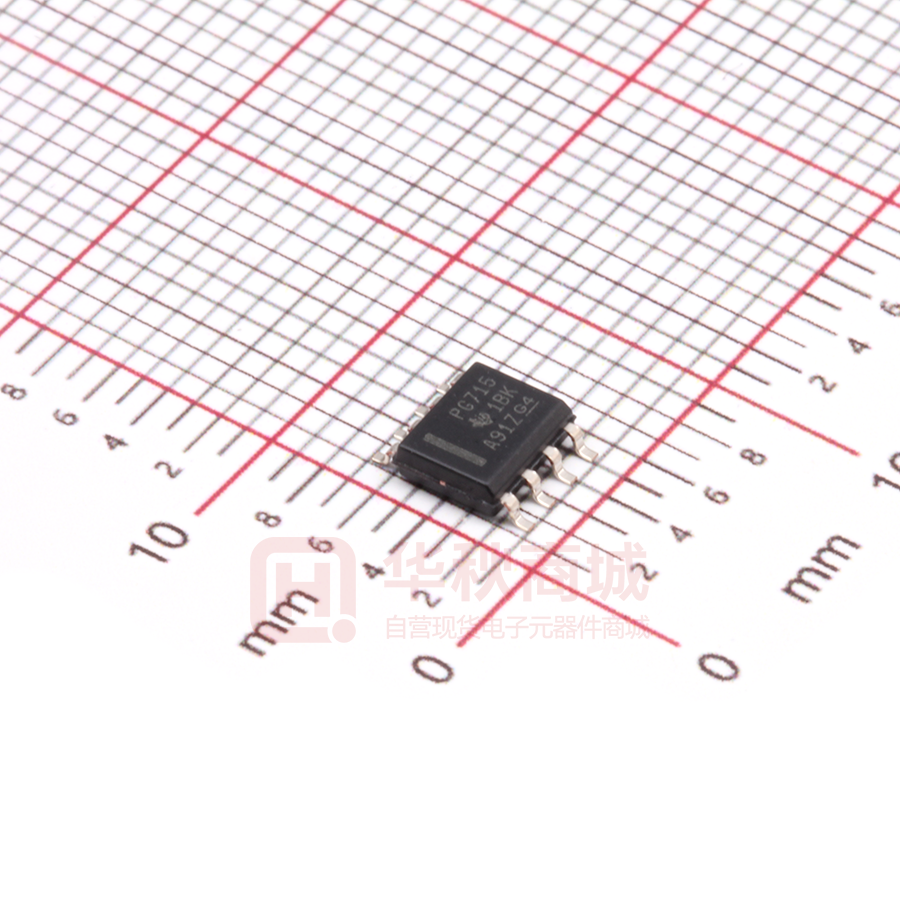

P82B715DR

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 P82B715 I2C Bus Extender 1 Features 2 Applications • • • • 1 • • • • • • • • Operating Power-Supply Voltage Range of 3 V to 12 V Supports Bidirectional Data Transfer of I2C Bus Signals Allows Bus Capacitance of 400 pF on Main I2C Bus (Sx/Sy Side) and 3000 pF on Transmission Side (Lx/Ly Side) Dual Bidirectional Unity-Voltage-Gain Buffer With No External Directional Control Required Drives 10× Lower-Impedance Bus Wiring for Improved Noise Immunity Multi-Drop Distribution of I2C Signals Using LowCost Twisted-Pair Cables I2C Bus Operation Over 50 Meters of Twisted-Pair Wire Latch-up Performance Exceeds 100 mA Per JESD 78, Class II ESD Protection Exceeds JESD 22 – 2500-V Human-Body Model (A114-A) – 400-V Machine Model (A115-A) – 1000-V Charged-Device Model (C101) HDMI DDC Long I2C Communications Industrial Communications 3 Description The P82B715 is a device for buffering highlycapacitive I2C bus systems, and it supports bidirectional data transfer through the I2C bus. The P82B715 buffers both the serial data (SDA) and serial clock (SCL) signals on the I2C bus and allows for extension of the I2C bus, while retaining all the operating modes and features of the I2C system. Device Information(1) PART NUMBER P82B715 PACKAGE BODY SIZE (NOM) SOIC (8) 4.90 mm × 3.91 mm PDIP (8) 9.81 mm × 6.35 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Block Diagram VCC P82B715 Sx/SDA Buffer Lx/LDA Sy/SCL Buffer Ly/LCL GND 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 6.7 4 4 4 4 5 5 6 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Switching Characteristics .......................................... Typical Characteristics .............................................. Parameter Measurement Information .................. 6 Detailed Description .............................................. 7 8.1 Overview ................................................................... 7 8.2 Functional Block Diagram ......................................... 7 8.3 Feature Description................................................... 7 8.4 Device Functional Modes.......................................... 8 9 Application and Implementation .......................... 9 9.1 Application Information.............................................. 9 9.2 Typical Application .................................................... 9 10 Power Supply Recommendations ..................... 13 11 Layout................................................................... 13 11.1 Layout Guidelines ................................................. 13 11.2 Layout Example .................................................... 13 12 Device and Documentation Support ................. 14 12.1 12.2 12.3 12.4 Community Resource............................................ Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 14 14 14 14 13 Mechanical, Packaging, and Orderable Information ........................................................... 14 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision A (February 2008) to Revision B • 2 Page Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ................................................................................................. 1 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 P82B715 www.ti.com SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 5 Pin Configuration and Functions P Package 8-Pin PDIP Top View NC D Package 8-Pin SOIC Top View 8 1 VCC NC 1 8 VCC Lx 2 7 Ly Sx 3 6 Sy GND 4 5 NC Lx 2 7 Ly Sx 3 6 Sy GND 4 5 NC NC – No internal connection Pin Functions PIN NO. NAME I/O DESCRIPTION 1 NC — No connection 2 Lx I/O Buffered serial data bus or LDA 3 Sx I/O Serial data bus or SDA. Connect to VCC of I2C master through a pullup resistor. 4 GND — Ground 5 NC — No connection 6 Sy I/O Serial clock bus or SCL. Connect to VCC of I2C master through a pullup resistor. 7 Ly I/O Buffered serial clock bus or LCL 8 VCC I Supply voltage Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 3 P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) VCC Supply voltage 2 Vb MAX UNIT 12 V I C bus voltage Sx or Sy 0 VCC Buffered bus voltage Lx or Ly 0 VCC IO Continuous output current ICC Continuous current through VCC or GND Tstg Storage temperature (1) MIN –0.3 Sx or Sy 60 Lx or Ly 60 –55 V mA 60 mA 125 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±2500 Charged-device model (CDM), per JEDEC specification JESD22C101 (2) ±1000 Machine model (MM) ±400 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions MIN MAX VCC Supply voltage (1) 4.5 12 V TA Operating free-air temperature –40 85 °C (1) UNIT Operation with reduced performance is possible down to 3 V. Typical static sinking performance is not degraded at 3 V, but the dynamic sink currents while the output is being driven through VCC/2 are reduced and can increase fall times. Timing-critical designs should accommodate the specified minimums. 6.4 Thermal Information P82B715 THERMAL METRIC (1) D (SOIC) P (PDIP) 8 PINS 8 PINS UNIT RθJA Junction-to-ambient thermal resistance 105.3 48.9 °C/W RθJC(top) Junction-to-case (top) thermal resistance 51.1 38.1 °C/W RθJB Junction-to-board thermal resistance 46.2 26.1 °C/W ψJT Junction-to-top characterization parameter 8.5 15.4 °C/W ψJB Junction-to-board characterization parameter 45.6 26 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance N/A N/A °C/W (1) 4 For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 P82B715 www.ti.com SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 6.5 Electrical Characteristics VCC = 5 V, TA = 25°C, voltages are specified with respect to GND (unless otherwise specified) PARAMETER ICC TEST CONDITIONS Quiescent supply current Output sink current on I2C bus IIOS IIOL Input current from buffered bus 14 VCC = 12 V 15 Both I2C inputs low, Both buffered outputs sinking 30 mA 22 Lx, Ly Input current from I2C bus Sx, Sy Lx, Ly Leakage current on buffered bus Zin/Zout (1) Input/output impedance VCC > 3 V, VSx, VSy (low) = 0.4 V, VLx, VLy (low) on buffered bus = 0.3 V, ILx, ILy = –3 mA (1) 2.6 VLx, VLy (low) = 0.4 V, VSx, VSy (low) on I2C bus = 0.3 V 30 3 V < VCC < 4.5 V, VLx, VLy (low) = 0.4 V to 1.5 V, ISx, ISy sinking on I2C bus < –4 mA 24 3 V < VCC < 4.5 V, VLx, VLy (low) = 1.5 V to VCC, ISx, ISy sinking on I2C bus = –7 mA 24 MAX UNIT mA mA mA ILx, ILy sink on buffered bus = 30 mA –3.2 VCC > 3 V, ISx, ISy sink on I2C bus = 3 mA (1) (1) II TYP Sx = Sy = VCC Sx, Sy Output sink current on buffered bus MIN –3 VCC = 3 V to 12 V, VLx, VLy = VCC, VSx, VSy = VCC 200 VSx < VLx, Buffer is active 8 10 mA μA 13 Buffer is passive in this test. The Sx/Sy sink current flows through an internal resistor to the driver connected at the Lx/Ly I/O. 6.6 Switching Characteristics VCC = 5 V, TA = 25°C, no capacitive loads, voltages are specified with respect to GND (unless otherwise specified) PARAMETER TEST CONDITIONS FROM (INPUT) TO (OUTPUT) MIN TYP MAX UNIT BUFFER DELAY TIMES trise/fall (1) (2) Delay time to VLx voltage crossing VCC/2 for input drive current step ISx at Sx (1) (see Figure 2) RLx pullup = 270 Ω ISx ISy VLx VLy 250 ns Buffer delay time, switching edges between VLx input and VSx output (2) RLx pullup = 4700 Ω VLx VLy VSx VSy 0 ns A conventional input-output delay is not observed in the Sx/Lx voltage waveforms, because the input and output pins are internally tied with a 30-Ω resistor so they show equal logic voltage levels to within 100 mV. When connected in an I2C system, an Sx/Sy input pin cannot rise/fall until the buffered bus load at the output pin has been driven by the internal amplifier. This test measures the bus propagation delay caused to falling or rising voltages at the Lx/Ly output (as well as the Sx/Sy input) by the amplifier’s response time. The figure given is measured with a drive current as shown in Figure 2. Because this is a dynamic bus test in which a corresponding bus driving IC has an output voltage well above 0.4 V, 6 mA is used instead of the static 3 mA. The signal path Lx to Sx and Ly to Sy is passive through the internal 30-Ω resistor. There is no amplifier involved and essentially no signal propagation delay. Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 5 P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 www.ti.com 6.7 Typical Characteristics 0.2 VOL (V) 0.15 0.1 0.05 0 0 5 10 15 ILX (mA) 20 25 30 D001 Figure 1. Typical VOL of Lx/Ly (RPU on Sx = 4.7 kΩ, TA = 25 C, VSX = 0 V) 7 Parameter Measurement Information 5V Input Current 270 Ω 4.7 kΩ Sx Lx P82B715 Input 4.7 kΩ Lx Sx P82B715 5V Output Input and Output Voltage 0V td I = 6 mA td Figure 2. Test Circuit for Delay Times 6 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 P82B715 www.ti.com SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 8 Detailed Description 8.1 Overview The I2C bus capacitance limit of 400 pF restricts practical communication distances to a few meters. One of the advantages of the P82B715 is that it can isolate bus capacitance such that the total loading (devices, connectors, traces and wires) of the new bus or remote I2C nodes are not apparent to other I2C buses (or nodes). This is achieved by using one P82B715 device at each end of a long cable. The pin Lx of one P82B715 device must be connected to Lx of the second P82B715 (similarly for Ly). This allows the total system capacitance load to be around 3000 pF. The P82B715 uses unidirectional analog current amplification to increase the current sink capability of I2C chips to change the 400-pF I2C bus specification limit into a 3-nF bus wiring capacitance limit. That means longer cables or lower-cost general-purpose wiring may be used to connect two separate I2C-based systems, without worrying about the special voltage levels associated with other I2C bus buffers. Multiple P82B715s can be connected together in a star or multipoint architecture by their Lx/Ly ports, without limit, as long as the total capacitance of the system remains less than about 3000 pF (400 pF or less when referenced to any Sx/Sy connection). In that arrangement, the master and/or slave devices are attached to the Sx/Sy port of each P82B715. In normal use, the power-supply voltages at each end of the low-impedance buffered bus line should be the same. If these differ by a significant amount, noise margin is sacrificed. Two or more Sx or Sy I/Os can be interconnected and are also fully compatible with bus buffers that use voltagelevel offsets (such as the TCA9517) because it duplicates and transmits the offset voltage. 8.2 Functional Block Diagram VCC P82B715 Sx/SDA Buffer Lx/LDA Sy/SCL Buffer Ly/LCL GND 8.3 Feature Description 8.3.1 Sx and Sy The I2C pins (Sx and Sy) are designed to interface with a normal I2C bus. The maximum I2C bus supply voltage is 12 V. The Sx and Sy pins contain identical circuitry and can be used interchangeably as SCL or SDA. 8.3.2 Lx and Ly The Lx and Ly pins are designed to interface with the high capacitance bus. This port of the device features circuitry to assist in sinking large amounts of currents required to operate a large capacitance bus at high speeds. More on this circuitry can be found in Lx/Ly Buffered Bus Circuitry. 8.3.3 Lx/Ly Buffered Bus Circuitry On the special low-impedance or buffered-line side, the corresponding output becomes the LDA data line or LCL clock line. The P82B715 provides current amplification from its I2C bus to its low impedance or buffered bus. Whenever current is flowing out of Sx into an I2C chip driving the I2C bus low, its amplifier sinks ten times that current into Lx, to drive the buffered bus low (see Figure 3). To minimize interference and ensure stability, the current rise and fall times of the Lx drive amplifier are internally controlled. The P82B715 does not amplify signal Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 7 P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 www.ti.com Feature Description (continued) currents flowing into Sx on the I2C bus driven by currents flowing out of Lx on the buffered side. A buffered bus logic low signal at Lx passes through the internal 30-Ω resistor to drive the I2C bus low. This signal current amplification, dependent on its direction, preserves the multi-master bidirectional open-collector/open-drain characteristic of any connected I2C bus lines and the new low-impedance bus. Bus logic-signal voltage levels are clamped at (VCC + 0.7 V) but, otherwise, are independent of the supply voltage, VCC. ISx = ILx ILx = 10 ´ ISx ISx ISx Current Sense 30 W 2 I C Bus Sx Lx Buffered Bus 9 ´ ISx VCC + – GND Figure 3. Equivalent Circuit (One-Half of P82B715) 8.4 Device Functional Modes The P82B715 has two modes when powered, which depend on the state of the I2C bus. 8.4.1 Idle Bus When the I2C bus is idle and high, little or no current flows through the device. In this case, the Lx/Ly buffer is not turned on. 8.4.2 Active-Low Bus When a device connected to the Sx / Sy side of the device is transmitting a 0, a large amount of current will flow through the P82B715, which activates the internal pulldown to assist with the large capacitance. 8 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 P82B715 www.ti.com SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information The P82B715 can operate with a supply voltage from 3 V to 12 V, but the logic-signal levels at Sx/Lx are independent of the supply voltage. They remain at the levels presented to the chip by the attached devices. The maximum static I2C bus sink current, 3 mA, flowing in either direction in the internal current sense resistor, causes a difference less than 100 mV in the bus logic low levels at Sx and Lx. This makes P82B715 fully compatible with all logic signal drivers, including TTL. The P82B715 cannot modify the bus logic signal voltage levels, but it contains internal diodes connected between Lx/Sx and VCC that conduct and limit the logic signal swing if the applied logic levels would have exceeded the supply voltage by more than 0.7 V. In normal applications, external pullup resistors pull the connected buses up to the desired voltage high level. Usually this is the supply voltage, VCC, but for very low logic voltages, it is necessary to use a VCC of at least 3.3 V and preferably higher. Note that full performance over temperature is ensured only from 4.5 V. Specification deratings apply when its supply voltage is reduced below 4.5 V. The absolute minimum VCC is 3 V. 9.2 Typical Application By using two (or more) P82B715 devices, a subsystem can be built that retains the interface characteristics of a normal I2C device so that the subsystem may be included in, or added to, any I2C or related system. The subsystem features a low-impedance or buffered bus capable of driving large wiring capacitance (see Figure 4). VCC P82B715 P82B715 LDA ½ SDA SDA ½ 2 IC Device Long Cable SCL LCL ½ Special Buffered Bus Standard 2 I C Bus SCL ½ Special Buffered Bus Standard 2 I C Bus Figure 4. Minimum Subsystem Diagram 9.2.1 Design Requirements Table 1 lists the design parameters for this example. Table 1. Design Parameters PARAMETER DESCRIPTION VALUE VCC Supply Voltage 3.3 V CLx Capacitance on the Lx / Ly bus 3000 pF RPU_Sx Pullup resistor for the Sx / Sy bus 4700 Ω RPU_Lx Pullup resistor for the Lx / Ly bus 330 Ω Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 9 P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 www.ti.com 9.2.2 Detailed Design Procedure 9.2.2.1 I2C Systems As in standard I2C systems, pullup resistors are required to provide the logic high levels on the buffered bus, as the standard open-collector configuration is retained. The size and number of pullup resistors depends on the system. If P82B715 devices are to be permanently connected into a system, the circuit may be configured with only one pullup resistor on the buffered bus and none on the I2C buses, but the system design is simplified, and performance is improved by fitting separate pullups on each section of the bus. When a subsystem using P82B715 may be optionally connected to an existing I2C system that already has a pullup, the effects of the subsystem pullups acting in parallel with the existing I2C bus pullup must be considered. 9.2.2.2 Pullup Resistance Calculation When calculating the pullup resistance values, the gain of the buffer introduces scaling factors that must be applied to the system components. In practical systems, the pullup resistance value is calculated to meet the rise time limit for I2C systems. As an approximation, this limit is satisfied in a 100-kHz system if the time constant of the total system (product of the net resistance and net capacitance) is set to 1 μs or less. In systems using the P82B715, it is convenient to set the total system time constant by considering each bus node separately (that is, the I2C nodes and the buffered bus node) and selecting a separate pullup resistor for each node to provide time constants of less than 1 μs. If each node complies then the system requirement is also met. This arrangement, using multiple pullups as shown in Figure 5, provides the best system performance and allows stand-alone operation of individual I2C buses if parts of the extended system are disconnected or reconnected. For each bus section, the pullup resistor is calculated as: R = 1 μs/(Cdevice + Cwiring) where • • Cdevice = Sum of any connected device capacitances Cwiring = Total wiring and stray capacitance on the bus section (1) The 1 μs is an approximation with a safety factor to the theoretical time constant necessary to meet the specified 1-μs bus rise-time specification in a system with variable logic thresholds, where the CMOS limits of 30% and 70% of VCC apply. The calculated value is 1.18 μs. If these capacitances cannot be measured or calculated, an approximation can be made by assuming that each device presents 10 pF of load capacitance and 10 pF of trace capacitance, and that cables range from 50 pF to 100 pF per meter. VCC = 5 V R1 SDA 2 IC1 R3 R2 Sx Lx Lx SDA Sx 2 IC2 Buffered Bus SCL Sy Ly Ly SCL Sy VCC = 5 V R4 Lx Sx Ly Sy SDA 2 IC3 SCL Figure 5. Single Pullup Buffered Bus If only a single pullup is used, it must be placed on the buffered bus (as R2 in Figure 5) and the associated total system capacitance calculated by combining the individual bus capacitances into an equivalent capacitive loading on the buffered bus. 10 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 P82B715 www.ti.com SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 This equivalent capacitance is the sum of the capacitance on the buffered bus plus ten times the sum of the capacitances on all the connected I2C nodes. The calculated value should not exceed 4 nF. The single buffered bus pullup resistor is then calculated to achieve the 1-μs rise time, and it provides the pullup for the buffered bus and for all other connected I2C bus nodes included in the calculation. 9.2.2.3 Calculating Bus Drive Currents Figure 5 shows three P82B715 devices connected to a common buffered bus. The associated bus capacitances are omitted for clarity, but assume the resistors have been selected to give R-C products of less than 1 μs so the bus rise-time requirement is satisfied. An I2C device connected at I2C 1 and holding the SDA bus low must sink the current flowing in its local pullup R1, plus, with assistance from the P82B715, the currents in R2, R3, and R4. Because the resistors R3 and R4 act to pull the bus nodes I2C 2 and I2C 3 and their corresponding Sx pins to a voltage higher than the voltage at the Lx pins, their buffer amplifiers are inactive. The SDA at Sx of I2C 2 and I2C 3 is pulled low by the low at Lx through the internal 30-Ω resistor that links Lx to Sx. So the effective current that must be sunk by the P82B715 buffer on I2C 1 at its Lx pin is the sum of the currents in R2, R3, and R4. The Sx current that must be sunk by an I2C device at I2C 1 due to the buffer gain action is 1/10 of the Lx current. So the effective pullup determining the current to be sunk by an I2C device at I2C 1 is R1 in parallel with resistors ten times the values of R2, R3, and R4. If R1 = R3 = R4 = 10 kΩ, and R2 = 1 kΩ, the effective pullup load at I2C 1 is 10 kΩ||10 kΩ||100 kΩ||100 kΩ = 4.55 kΩ. The same calculation applies for I2C 2 or I2C 3. To calculate the current sunk by the Lx pin of the buffer at I2C 1, note that the current in R1 is sunk directly by the device at I2C 1. The buffer, therefore, sinks only the currents flowing in R2, R3, and R4, so the effective pullup is R2 in parallel with R3 and R4. In this example that is 1 kΩ||10 kΩ||10 kΩ = 833 Ω. For a 5.5-V supply and 0.4-V low, the buffer is sinking 16.3 mA. The P82B715 has a static sink rating of 30 mA at Lx. The requirement is that the pullup on the buffered bus, in parallel with all other pullups that it is indirectly pulling low on Sx pins of other P82B715 devices, does not cause this 30-mA limit to be exceeded. The minimum pullup resistance in a 5-V ± 10% system is 170 Ω. The general requirement is: (VCC(max) – 0.4)/RP < 30 mA where • Rp = Parallel combination of all pullup resistors driven by the Lx pin of the P82B715 (2) Figure 6 shows calculations for an expanded I2C bus with 3 nF of cable capacitance. Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 11 P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 www.ti.com Proposed Bus Expansion Local Bus VCC 5V 2 SDA R1 R3 R2 IC Sx Lx LDA SDA Lx Sx 2 IC 2 IC 3 nF = Cable Wiring Capacitance SDA GND Effective Capacitance 2 Local Bus I C Devices 20 pF 2 2 × I C Devices Strays P82B715 20 pF 10 pF Total 50 pF 2 Effective Capacitance 2 Remote I C Devices Effective Capacitance Buffered Line 2 Wiring Capacitance Total 1 × I C Devices Strays 3000 pF = 20 kΩ R2 = 10 pF P82B715 10 pF 10 pF Total 30 pF 3000 pF 2 Remote I C Pullup Buffered Bus Pullup Local I C Pullup 1 µs R1 = 50 pF 0V 1 µs = 330 Ω 3000 pF R3 = 1 µs = 33 kΩ 30 pF Figure 6. Typical Loading Calculations 9.2.3 Application Curve 3.5 3 Lx/Ly Sx/Sy Voltage (V) 2.5 2 1.5 1 0.5 0 Time D002 Figure 7. Voltage On Bus (3000 pF on Lx/Ly With RPU = 330 Ω) 12 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 P82B715 www.ti.com SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 10 Power Supply Recommendations The P82B715 power supply requirements can be see in the Recommended Operating Conditions. Note that the P82B715 can operate down to 3 V, but at reduced performance. 11 Layout 11.1 Layout Guidelines General layout best practices are recommended. It is common to have a dedicated ground plane on an inner layer of the board, and pins that are connected to ground must have a low-impedance path to the ground place in the form of wide polygon pours, and multiple vias. Bypass and decoupling capacitors are commonly used to control the voltage on the VCC pin, using a larger capacitor to provide additional power in the event of a short power supply glitch (typically 1 μF), and a smaller capacitor (typically 0.1 μF) to filter out high-frequency ripple. 11.2 Layout Example = VIA to ground plane To high-capacitance bus 0603 Cap NC VCC Lx Ly Sx Sy GND NC To low-capacitance bus Figure 8. D Package Example Layout Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 13 P82B715 SCPS145B – DECEMBER 2007 – REVISED FEBRUARY 2016 www.ti.com 12 Device and Documentation Support 12.1 Community Resource The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.2 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.3 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 12.4 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 14 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated Product Folder Links: P82B715 PACKAGE OPTION ADDENDUM www.ti.com 14-Aug-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) P82B715D ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 PG715 P82B715DG4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 PG715 P82B715DR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 PG715 P82B715DRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 PG715 P82B715P ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -40 to 85 P82B715P P82B715PE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -40 to 85 P82B715P (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
