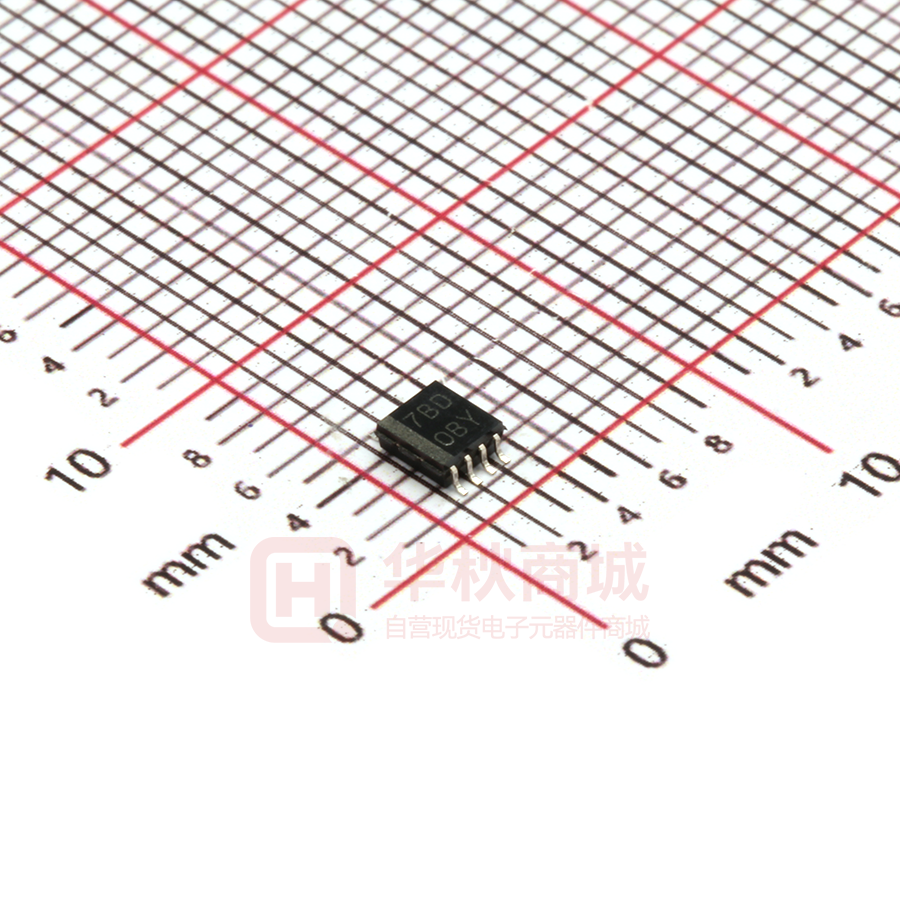

PCA9306DCTR

PCA9306DCTR

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    SM8_2.95X2.8MM

  • 描述:

    双双向I2C总线和SMBus电压电平转换器

  • 数据手册
  • 价格&库存
PCA9306DCTR 数据手册
PCA9306 SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 PCA9306 Dual Bidirectional I2C Bus and SMBus Voltage-Level Translator 1 Features 2 Applications • • • • • • • • • • • • • • 2-Bit bidirectional translator for SDA and SCL lines in mixed-mode I2C Applications I2C and SMBus compatible Less than 1.5-ns maximum propagation delay to accommodate standard-mode and fast-mode I2C devices and multiple controllers Allows voltage-level translation between – 1.2-V VREF1 and 1.8-V, 2.5-V, 3.3-V, or 5-V VREF2 – 1.8-V VREF1 and 2.5-V, 3.3-V, or 5-V VREF2 – 2.5-V VREF1 and 3.3-V or 5-V VREF2 – 3.3-V VREF1 and 5-V VREF2 Provides bidirectional voltage translation with no direction pin Low 3.5-Ω ON-state resistance between input and output ports provides less signal distortion Open-drain I2C I/O ports (SCL1, SDA1, SCL2, and SDA2) 5-V Tolerant I2C I/O ports to support mixed-mode signal operation High-impedance SCL1, SDA1, SCL2, and SDA2 pins for EN = low Lockup-free operation for isolation when EN = low Flow-through pinout for ease of printed-circuitboard trace routing Latch-up performance exceeds 100 mA Per JESD 78, class II ESD protection exceeds JESD 22 – 2000-V Human-body model (A114-A) – 1000-V Charged-device model (C101) • • • • I2C, SMBus, PMBus, MDIO, UART, low-speed SDIO, GPIO, and other two-signal interfaces Servers Routers (telecom switching equipment) Personal Computers Industrial Automation 3 Description The PCA9306 device is a dual bidirectional I2C and SMBus voltage-level translator with an enable (EN) input, and is operational from 1.2-V to 3.3-V VREF1 and 1.8-V to 5.5-V VREF2. The PCA9306 device allows bidirectional voltage translations between 1.2 V and 5 V, without the use of a direction pin. The low ON-state resistance (RON) of the switch allows connections to be made with minimal propagation delay. When EN is high, the translator switch is ON, and the SCL1 and SDA1 I/O are connected to the SCL2 and SDA2 I/O, respectively, allowing bidirectional data flow between ports. When EN is low, the translator switch is off, and a high-impedance state exists between ports. In addition to voltage translation, the PCA9306 device can be used to isolate a 400-kHz bus from a 100-kHz bus by controlling the EN pin to disconnect the slower bus during fast-mode communication. Device Information PART NUMBER PCA9306 (1) PACKAGE(1) BODY SIZE (NOM) SSOP (8) 2.95 mm x 2.80 mm VSSOP (8) 2.30 mm x 2.00 mm X2SON (8) 1.40 mm x 1.00 mm DSBGA (8) 1.98 mm x 0.98 mm For all available packages, see the orderable addendum at the end of the datasheet. 200 NŸ VREF2 VREF1 EN PCA9306 I2C or SMBus controller (processor) SCL1 SCL2 SDA1 SDA2 I2C target devices GND Simplified Application Diagram An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 Table of Contents 1 Features............................................................................1 2 Applications..................................................................... 1 3 Description.......................................................................1 4 Revision History.............................................................. 2 5 Pin Configuration and Functions...................................4 6 Specifications.................................................................. 5 6.1 Absolute Maximum Ratings........................................ 5 6.2 ESD Ratings............................................................... 5 6.3 Recommended Operating Conditions.........................5 6.4 Thermal Information....................................................6 6.5 Electrical Characteristics.............................................6 6.6 Switching Characteristics AC Performance (Translating Down) (EN = 3.3 V)................................... 7 6.7 Switching Characteristics AC Performance (Translating Down) (EN = 2.5 V)................................... 7 6.8 Switching Characteristics AC Performance (Translating Up) (EN = 3.3 V)........................................7 6.9 Switching Characteristics AC Performance (Translating Up) (EN = 2.5 V)........................................7 6.10 Typical Characteristics.............................................. 8 7 Parameter Measurement Information............................ 9 8 Detailed Description......................................................10 8.1 Overview................................................................... 10 8.2 Functional Block Diagram......................................... 15 8.3 Feature Description...................................................15 8.4 Device Functional Modes..........................................15 9 Application and Implementation.................................. 16 9.1 Application Information............................................. 16 9.2 Typical Application.................................................... 16 10 Power Supply Recommendations..............................20 11 Layout........................................................................... 21 11.1 Layout Guidelines................................................... 21 11.2 Layout Example...................................................... 21 12 Device and Documentation Support..........................22 12.1 Receiving Notification of Documentation Updates..22 12.2 Support Resources................................................. 22 12.3 Trademarks............................................................. 22 12.4 Electrostatic Discharge Caution..............................22 12.5 Glossary..................................................................22 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision M (April 2019) to Revision N (October 2021) Page • Globally changed instances of legacy terminology to controller and target where I2C is mentioned................. 1 • Changed the Thermal Information table values for the DCT and DCU packages.............................................. 6 • Changed the MIN and MAX values of VIK in the Electrical Characteristics table............................................... 6 • Changed tPHL to show the package values in the Switching Characteristics AC Performance (Translating Down) (EN = 3.3 V) table....................................................................................................................................7 • Changed tPHL to show the package values in the Switching Characteristics AC Performance (Translating Down) (EN = 2.5 V) table....................................................................................................................................7 • Changed tPHL to show the package values in the Switching Characteristics AC Performance (Translating Up) (EN = 3.3 V) table............................................................................................................................................... 7 • Changed tPHL to show the package values in the Switching Characteristics AC Performance (Translating Up) (EN = 2.5 V) table............................................................................................................................................... 7 Changes from Revision L (April 2016) to Revision M (April 2019) Page • Changed the DQE package family From: VSSON to X2SON............................................................................ 4 • Added new section to Overview ...................................................................................................................... 10 • Changed the labels in Figure 9-4. The red curve is > 2 V, the black curve is ≤ 2 V. ........................................19 Changes from Revision K (October 2014) to Revision L (April 2016) Page • Changed "ON-State Connection " to "ON-state Resistance"..............................................................................1 • Deleted machine model ESD rating ...................................................................................................................1 • Added "bus" following "100-kHz" in the last sentence of the Description section...............................................1 • Changed body-size dimensions in the Device Information table ....................................................................... 1 • Replaced pinout diagrams.................................................................................................................................. 4 • Added I/O column to the Pin Functions table .................................................................................................... 4 • Deleted RVH package from Pin Configuration and Functions section .............................................................. 4 • Moved Tstg from Handling Ratings to Absolute Maximum Ratings ....................................................................5 • Added a note following the Electrical Characteristics table................................................................................ 6 • Added Figure 7-1 to the Parameter Measurement Information section..............................................................9 2 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com • • • • SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 Changed Figure 7-2 ...........................................................................................................................................9 Changed "repeater" to "level shifter" in second paragraph of the Overview section ....................................... 10 Deleted the last row of the Design Requirements table. ..................................................................................17 Corrected equation from fknee= 0.5 / RT (10%–80%) to fknee= 0.5 / RT (10%–90%)........................................ 18 Changes from Revision J (October 2010) to Revision K (December 2012) Page • Added Pin Configuration and Functions section, Handling Rating table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ............................................................................................................................................................... 1 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 3 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 5 Pin Configuration and Functions GND GND 1 8 EN 2 7 V 1 8 EN 2 7 V SCL1 3 6 SCL2 SDA1 4 5 SDA2 V V REF1   REF2 SCL1 3 6 SCL2 SDA1 4 5 SDA2 REF1   REF2     Figure 5-2. DCU Package 8-Pin VSSOP Top View Figure 5-1. DCT Package 8-Pin SSOP Top View A GND 1 8 EN 2 7 V SCL1 3 6 SCL2 SDA1 4 5 SDA2 V REF1   REF2 1 2 GND EN   B Figure 5-3. DQE Package 8-Pin X2SON Top View V REF1 ! V REF2 C SCL1 SCL2 D SDA1 SDA2 ! Figure 5-4. YZT Package 8-Pin DSBGA Top View Table 5-1. Pin Functions PIN NO. 4 I/O DESCRIPTION DCT, DCU, DQE YZT EN 8 A2 I GND 1 A1 — Ground, 0 V SCL1 3 C1 I/O Serial clock, low-voltage side SCL2 6 C2 I/O Serial clock, high-voltage side SDA1 4 D1 I/O Serial data, low-voltage side SDA2 5 D2 I/O Serial data, high-voltage side VREF1 2 B1 I Low-voltage-side reference supply voltage for SCL1 and SDA1 VREF2 7 B2 I High-voltage-side reference supply voltage for SCL2 and SDA2 NAME Switch enable input Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 6 Specifications 6.1 Absolute Maximum Ratings over operating ambient temperature range (unless otherwise noted) see (1) MIN MAX VREF1 DC reference voltage range –0.5 7 V VREF2 DC reference bias voltage range –0.5 7 V –0.5 7 V Input voltage range(2) VI VI/O Input/output voltage range(2) –0.5 Continuous channel current IIK Input clamp current VI < 0 Tj(max) Maximum junction temperature Tstg (1) (2) Storage temperature range –65 7 UNIT V 128 mA –50 mA 125 °C 150 °C Operation outside the Absolute Maximum Ratings may cause permanent device damage. Absolute maximum ratings do not imply functional operation of the device at these or any other conditions beyond those listed under Recommended Operating Conditions. If briefly operating outside the Recommended Operating Conditions but within the Absolute Maximum Ratings, the device may not sustain damage, but it may not be fully functional. Operating the device in this manner may affect device reliability, functionality, performance, and shorten the device lifetime. The input and input/output negative voltage ratings may be exceeded if the input and output current ratings are observed. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 Charged device model (CDM), per ANSI/ESDA/JEDEC JS-0011, all pins(2) ±1000 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions MAX UNIT VI/O Input/output voltage 0 5.5 V VREF1 (1) Reference voltage 0 5.5 V (1) VREF2 SCL1, SDA1, SCL2, SDA2 MIN Reference voltage 0 5.5 V EN Enable input voltage 0 5.5 V IPASS Pass switch current 64 mA TA Operating ambient temperature 85 °C (1) –40 To support translation, VREF1 supports 1.2 V to VREF2 - 0.6 V. VREF2 must be between VREF1 + 0.6 V to 5.5 V. See Section 9.2 for more information. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 5 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 6.4 Thermal Information PCA9306 THERMAL RθJA METRIC(1) DCU DQE YZT 8 PINS 8 PINS 8 PINS UNIT 254.1 275.5 246.5 125.5 °C/W RθJC(top) Junction-to-case (top) thermal resistance 148.6 127.1 149.1 1 °C/W RθJB Junction-to-board thermal resistance 168.8 186.9 100 62.7 °C/W ψJT Junction-to-top characterization parameter 70.1 65.7 17.1 3.4 °C/W ψJB Junction-to-board characterization parameter 167.4 185.9 99.8 62.7 °C/W (1) Junction-to-ambient thermal resistance DCT 8 PINS For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. 6.5 Electrical Characteristics over recommended operating ambient temperature range (unless otherwise noted) PARAMETER MIN -1.2 VIK Input clamp voltage II = –18 mA, EN = 0 V IIH Input leakage current VI = 5 V, EN = 0 V Ci (EN) Input capacitance Cio(off) Off capacitance SCLn, SDAn VO = 3 V or 0, EN = 0 V Cio(on) On capacitance SCLn, SDAn VO = 3 V or 0, EN = 3 V VI = 3 V or 0 VI = 0 RON (2) (1) (2) (3) 6 TEST CONDITIONS On-state resistance SCLn, SDAn VI = 0 TYP(1) MAX 0 V 5 μA 11 IO = 64 mA IO = 15 mA VI = 2.4 V(3) IO = 15 mA VI = 1.7 V(3) IO = 15 mA pF 4 6 pF pF 10.5 12.5 EN = 4.5 V 3.5 5.5 EN = 3 V 4.7 7 EN = 2.3 V 6.3 9.5 EN = 1.5 V 25.5 32 1 6 15 EN = 3 V 20 60 140 EN = 2.3 V 20 60 140 EN = 4.5 V UNIT Ω All typical values are at TA = 25°C. Measured by the voltage drop between the SCL1 and SCL2, or SDA1 and SDA2 terminals, at the indicated current through the switch. Minimum ON-state resistance is determined by the lowest voltage of the two terminals. Measured in current sink configuration only (See Figure 7-1) Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 6.6 Switching Characteristics AC Performance (Translating Down) (EN = 3.3 V) over recommended operating ambient temperature range, EN = 3.3 V, VIH = 3.3 V, VIL = 0, VM = 1.15 V (unless otherwise noted) (see Figure 7-1). PARAMETER(1) FROM (INPUT) TO (OUTPUT) Package SCL1 or SDA1 YZT, DQE tPLH tPHL (1) CL = 50 pF MIN MAX 0 SCL2 or SDA2 DCU, DCT 0 0.8 1.2 CL = 30 pF MIN MAX 0 0.6 0 1 CL = 15 pF MIN MAX 0 0 UNIT 0.3 0.5 ns 0.75 Translating down: the high-voltage side driving toward the low-voltage side 6.7 Switching Characteristics AC Performance (Translating Down) (EN = 2.5 V) over recommended operating ambient temperature range, EN = 2.5 V, VIH = 3.3 V, VIL = 0, VM = 0.75 V (unless otherwise noted) (see Figure 7-1). PARAMETER(1) FROM (INPUT) TO (OUTPUT) Package tPLH tPHL (1) SCL2 or SDA2 SCL1 or SDA1 YZT, DQE DCT, DCU CL = 50 pF MIN MAX CL = 30 pF MIN MAX CL = 15 pF MIN MAX 0 1 0 0.7 0 0 1.3 0 1 0 UNIT 0.4 0.6 ns 0.75 Translating down: the high-voltage side driving toward the low-voltage side 6.8 Switching Characteristics AC Performance (Translating Up) (EN = 3.3 V) over recommended operating ambient temperature range, EN = 3.3 V, VIH = 2.3 V, VIL = 0, VT = 3.3 V, VM = 1.15 V, RL = 300 Ω (unless otherwise noted) (see Figure 7-1). PARAMETER(1) FROM (INPUT) TO (OUTPUT) Packages tPLH tPHL (1) CL = 50 pF MIN MAX 0 SCL1 or SDA1 SCL2 or SDA2 YZT, DQE DCU, DCT 0 0.9 1.4 1.7 CL = 30 pF MIN MAX 0 0 0.6 1.1 1.4 CL = 15 pF MIN MAX 0 0 UNIT 0.4 0.7 ns 1.0 Translating up: the low-voltage side driving toward the high-voltage side 6.9 Switching Characteristics AC Performance (Translating Up) (EN = 2.5 V) over recommended operating ambient temperature range, EN = 2.5 V, VIH = 2.3 V, VIL = 0, VT = 3.3 V, VM = 0.75 V, RL = 300 Ω (unless otherwise noted) (see Figure 7-1). PARAMETER(1) FROM (INPUT) TO (OUTPUT) Packages SCL1 or SDA1 SCL2 or SDA2 YZT, DQE tPLH tPHL (1) CL = 50 pF MIN MAX 0 DCT, DCU 0 1 1.3 2.1 CL = 30 pF MIN MAX 0 0 0.6 1.3 1.7 CL = 15 pF MIN MAX 0 0 UNIT 0.4 0.8 ns 1.3 Translating up: the low-voltage side driving toward the high-voltage side Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 7 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 6.10 Typical Characteristics 100 300 25qC (Room Temp.) 85qC -40qC 90 250 80 70 RON (:) RON (:) 200 150 100 60 50 40 30 20 25qC (Room Temp.) 85qC -40qC 50 10 0 0 0 0.5 1 1.5 2 2.5 3 VSDA1 or VSCL1 (V) VEN = 1.5 V 3.5 4 4.5 0 0.5 1 D001 II = 15 mA 1.5 2 2.5 3 VSDA1 or VSCL1 (V) VEN = 4.5 V Figure 6-1. On-Resistance (RON) vs Input Voltage (VSDA1 or VSCL1) 3.5 4 4.5 D001 II = 15 mA Figure 6-2. On-Resistance (RON) vs Input Voltage (VSDA1 or VSCL1) 0 Bandwidth (dB) -2 -4 -6 -8 -10 100x103 1x106 10x106 Frequency (Hz) 100x106 VEN = 2.5 V 1x109 D001 VBIAS = GND Figure 6-3. Typical Bandwidth of PCA9306 8 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 7 Parameter Measurement Information VEN VEN IO Source Current VI + IO*RON VI VI - IO*RON VI a) Current Source Configuration IO Sink Current b) Current Sink Configuration Figure 7-1. Current Source and Current Sink Configurations for RON Measurements SWITCH USAGE S1 Translating up S2 Translating down VT RL S1 VIH Open From Output under Test VM S2 VM Input CL (see Note A) VIL tPLH VOH VM Load Circuit tPHL Output VM VOL NOTES: A. CL includes probe and jig capacitance B. All input pulses are supplied by generators having the following characteristics: WZZ G 10 MHz, ZO = 50 Q , tr G 2 ns, tf G 2 ns. C. The outputs are measured one at a time, with one transition per measurement. Figure 7-2. Load Circuit for Outputs Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 9 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 8 Detailed Description 8.1 Overview The PCA9306 device is a dual bidirectional I2C and SMBus voltage-level translator with an enable (EN) input and operates without use of a direction pin. The voltage supply range for VREF1 is 1.2 V to 3.3 V and the supply range for VREF2 is 1.8 V to 5.5 V. The PCA9306 device can also be used to run two buses, one at 400-kHz operating frequency and the other at 100-kHz operating frequency. If the two buses are operating at different frequencies, the 100-kHz bus must be disconnected by using the EN pin when the 400-kHz operation of the main bus is required. If the controller is running at 400 kHz, the maximum system operating frequency may be less than 400 kHz because of the delays added by the level shifter. In I2C applications, the bus capacitance limit of 400 pF restricts the number of devices and bus length. The capacitive load on both sides of the PCA9306 device must be taken into account when approximating the total load of the system, ensuring the sum of both sides is under 400 pF. Both the SDA and SCL channels of the PCA9306 device have the same electrical characteristics, and there is minimal deviation from one output to another in voltage or propagation delay. This is a benefit over discretetransistor voltage-translation solutions, because the fabrication of the switch is symmetrical. The translator provides excellent ESD protection to lower-voltage devices and at the same time protects less-ESD-resistant devices. 8.1.1 Definition of threshold voltage This document references a threshold voltage denoted as Vth, which appears multiple times throughout this document when discussing the NFET between VREF1 and VREF2. The value of Vth is approximately 0.6 V at room temperature. 8.1.2 Correct Device Set Up In a normal set up shown in Figure 8-1, the enable pin and VREF2 are shorted together and tied to a 200-kΩ resistor, and a reference voltage equal to VREF1 plus the FET threshold voltage is established. This reference voltage is used to help pass lows from one side to another more effectively while still separating the different pull up voltages on both sides. VCC2 = +3.3 V Normal Setup VCC1 < VCC2 200 kŸ VCC1 = +1.8 V EN +1.8 V + VTH RPU RPU RPU RPU + Vgs VREF1 - VREF2 IREF2 = 4 µA SDA1 SDA2 SCL1 SCL2 Figure 8-1. Normal Setup Care should be taken to ensure VREF2 has an external resistor tied between it and VCC2. If VREF2 is tied directly to the VCC2 rail without a resistor, then there is no external resistance from the VCC2 to VCC1 to limit the current such as in Figure 8-2. This effectively looks like a low impedance path for current to travel through and potentially break the pass FET if the current flowing through the pass FET is larger than the absolute 10 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 maximum continuous channel current specified in section 6.1. The continuous channel current is larger with a higher voltage difference between VCC1 and VCC2. Figure 8-2 shows an improper set up. If VCC2 is larger than VCC1 but less than Vth, the impedance between VCC1 and VCC2 is high resulting in a low drain to source current, which does not cause damage to the device. Concern arises when VCC2 becomes larger than VCC1 by Vth. During this event, the NFET turns on and begin to conduct current. This current is dependent on the gate to source voltage and drain to source voltage. VCC2 = +3.3 V Abnormal Setup VCC1 < VCC2 200k Ÿ VCC1 = +1.8 V EN RPU RPU RPU RPU + Vgs VREF1 - VREF2 SDA1 SDA2 SCL1 SCL2 Figure 8-2. Abnormal Setup 8.1.3 Disconnecting an I2C target from the Main I2C Bus Using the EN Pin PCA9306 can be used as a switch to disconnect one side of the device from the main I2C bus. This can be advantageous in multiple situations. One instance of this situation is if there are devices on the I2C bus which only supports fast mode (400 kHz) while other devices on the bus support fast mode plus (1 MHz). An example of this is displayed in Figure 8-3. 3.3 V I2C bus (1 MHz) PCA9306 EN 3.3 V I2C bus (400 kHz) GPIO Note: GPIO logic high must not exceed 3.3 V +Vth in this example Figure 8-3. Example of an I2C bus with multiple supported frequencies In this situation, if the controller is on the 1 MHz side then communicating at 1 MHz should not be attempted if PCA9306 were enabled. It needs to be disabled for PCA9306 to avoid possibly glitching state machines in devices which were designed to operate correctly at 400 kHz or slower. When PCA9306 is disabled, the controller can communicate with the 1 MHz devices without disturbing the 400 kHz bus. When the PCA9306 is enabled, communication across both sides at 400 kHz is acceptable. 8.1.4 Supporting Remote Board Insertion to Backplane with PCA9306 Another situation where PCA9306 is advantageous when using its enable feature is when a remote board with I2C lines needs to be attached to a main board (backplane) with an I2C bus such as in Figure 8-4. If connecting a remote board to a backplane is not done properly, the connection could result in data corruption during a transaction or the insertion could generate an unintended pulse on the SCL line. Which could glitch an I2C device state machine causing the I2C bus to get stuck. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 11 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 Main Board 3.3 V I2C bus Remote Board 3.3 V I2C bus PCA9306 EN GPIO Note: GPIO logic high must not exceed 3.3 V +Vth in this example Figure 8-4. An example of connecting a remote board to a main board (backplane) PCA9306 can be used to support this application because it can be disabled while making the connection. Then it is enabled once the remote board is powered on and the buses on both sides are IDLE. 8.1.5 Switch Configuration PCA9306 has the capability of being used with its VREF1 voltage equal to VREF2. This essentially turns the device from a translator to a device which can be used as a switch, and in some situations this can be useful. The switch configuration is shown in Figure 8-5 and translation mode is shown in Figure 8-6. VCC2 GPIO: high logic does not exceed Vref2 + Vth VCC1 200 k Where Vcc2 = Vcc1 VCC1 VCC1 R Vref1 Vref2 VCC2 VCC2 EN R R PCA9306 SCL1 SCL2 SDA1 SDA2 Switch Configuration: Vref1 = Vref2 and Enable is controlled by a GPIO Figure 8-5. Switch Configuration VCC2 VCC1 200 k VCC1 VCC1 R Vref1 Vref2 VCC2 VCC2 EN R R PCA9306 SCL1 SCL2 SDA1 SDA2 Translation Configuration where Vcc2 >= Vref1 + 0.7 V Figure 8-6. Translation Configuration When PCA9306 is in the switch configuration (VREF1 = VREF2), the propagation delays are different compared to the translator configuration. Taking a look at the propagation delays, if the pull up resistance and capacitance on both sides of the bus are equal, then in switch mode the PCA9306 has the same propagation delay from side one to two and side two to one. The propagation delays become lower when VCC1/VCC2 is larger. For 12 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 example, the propagation delay at 1.8 V is longer than at 5 V in the switching configuration. When PCA9306 is in translation mode, side one propagate lows to side two faster than side two can propagate lows to side 1. This time difference becomes larger the larger the difference between VCC2 and VCC1 becomes. 8.1.6 Controller on Side 1 or Side 2 of Device I2C and SMBus are bidirectional protocol meaning devices on the bus can both transmit and receive data. PCA9306 was designed to allow for signals to be able to be transmitted from either side, thus allowing for the controller to be able to placed on either side of the device. Figure 8-7 shows the controller on side two as opposed to the diagram on page 1 of this data sheet. VCC2 VCC1 200 k Vref1 Vref2 EN PCA9306 SCL1 SCL2 SDA1 SDA2 I2C or SMBus controller (processor) I2C target devices Figure 8-7. Controller on side 2 of PCA9306 8.1.7 LDO and PCA9306 Concerns The VREF1 pin can be supplied by a low-dropout regulator (LDO), but in some cases the LDO may lose its regulation because of the bias current from VREF2 to VREF1. If the LDO cannot sink the bias current, then the current has no other paths to ground and instead charges up the capacitance on the VREF1 node (both external and parasitic). This results in an increase in voltage on the VREF1 node. If no other paths for current to flow are established (such as back biasing of body diodes or clamping diodes through other devices on the VREF1 node), then the VREF1 voltage ends up stabilizing when Vgs of the pass FET is equal to Vth. This means VREF1 node voltage is VCC2 - Vth. Note that any targets/controllers running off of the LDO now see the VCC2 - Vth voltage which may cause damage to those targets/controllers if they are not rated to handle the increased voltage. Translator Setup with Vref1 provided by LDO and no path for bias current VCC2 = +3.3 V 200 kŸ VCC1 < VCC2 EN Ven = Vref1 + VTH PCA9306 LDO Vout + + Vgs VREF1 = Vcc2 - Vth VREF1 pin VREF2 pin Ibias = (Vcc2 ± Ven) / 200 k CREF1 Figure 8-8. Example of no leakage current path when using LDO To make sure the LDO does not lose regulation due to the bias current of PCA9306, a weak pull down resistor can be placed on VREF1 to ground to provide a path for the bias current to travel. The recommended pull down resistor is calculated by Equation 4 where 0.75 gives about 25% margin for error incase bias current increases during operation. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 13 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 VCC2 = +3.3 V Translator Setup 200 kŸ VCC1 < VCC2 EN Ven = Vref1 + VTH PCA9306 LDO Vgs - Vout = +1.8 V + VREF1 VREF2 Rpulldown CREF1 Ibias = (Vcc2 ± Ven) / 200 k Figure 8-9. Example with Leakage current path when using an LDO Ven = VREF1 + Vth (1) where • Vth is approximately 0.6 V Ibias = (VCC2 - Ven)/200k (2) Rpulldown = VOUT/Ibias (3) Recommended Rpulldown = Rpulldown x 0.75 (4) 8.1.8 Current Limiting Resistance on VREF2 The resistor is used to limit the current between VREF2 and VREF1 (denoted as RCC) and helps to establish the reference voltage on the enable pin. The 200k resistor can be changed to a lower value; however, the bias current proportionally increases as the resistor decreases. Ibias = (VCC2 - Ven)/RCC : Ven = VREF1 + Vth (5) where • Vth is approximately 0.6V Keep in mind RCC should not be sized low enough that ICC exceeds the absolute maximum continuous channel current specified in section 6.1 which is described in Equation 6. RCC(min) ≥ (VCC2 - Ven)/0.128 : Ven = VREF1 + Vth (6) where • 14 Vth is approximately 0.6V Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 8.2 Functional Block Diagram Figure 8-10. Block Diagram of PCA9306 8.3 Feature Description 8.3.1 Enable (EN) Pin The PCA9306 device is a double-pole, single-throw switch in which the gate of the transistors is controlled by the voltage on the EN pin. In Figure 9-1, the PCA9306 device is always enabled when power is applied to VREF2. In Figure 9-2, the device is enabled when a control signal from a processor is in a logic-high state. 8.3.2 Voltage Translation The primary feature of the PCA9306 device is translating voltage from an I2C bus referenced to VREF1 up to an I2C bus referenced to VDPU, to which VREF2 is connected through a 200-kΩ pullup resistor. Translation on a standard, open-drain I2C bus is achieved by simply connecting pullup resistors from SCL1 and SDA1 to VREF1 and connecting pullup resistors from SCL2 and SDA2 to VDPU. Information on sizing the pullup resistors can be found in the Sizing Pullup Resistors section. 8.4 Device Functional Modes (1) INPUT EN(1) TRANSLATOR FUNCTION H Logic Lows are propagated from one side to the other, Logic Highs blocked (independent pull up resistors passively drive the line high) L Disconnect The SCL switch conducts if EN is ≥ 0.6 V higher than SCL1 or SCL2. The same is true of SDA. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 15 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 9 Application and Implementation Note Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes, as well as validating and testing their design implementation to confirm system functionality. 9.1 Application Information 9.1.1 General Applications of I2C As with the standard I2C system, pullup resistors are required to provide the logic-high levels on the translator bus. The size of these pullup resistors depends on the system, but each side of the repeater must have a pullup resistor. The device is designed to work with standard-mode and fast-mode I2C devices in addition to SMBus devices. Standard-mode I2C devices only specify 3 mA in a generic I2C system where standard-mode devices and multiple controllers are possible. Under certain conditions, high termination currents can be used. When the SDA1 or SDA2 port is low, the clamp is in the ON state, and a low-resistance connection exists between the SDA1 and SDA2 ports. Assuming the higher voltage is on the SDA2 port when the SDA2 port is high, the voltage on the SDA1 port is limited to the voltage set by VREF1. When the SDA1 port is high, the SDA2 port is pulled to the pullup supply voltage of the drain (VDPU) by the pullup resistors. This functionality allows a seamless translation between higher and lower voltages selected by the user, without the need for directional control. The SCL1-SCL2 channel also functions in the same way as the SDA1-SDA2 channel. 9.2 Typical Application Figure 9-1 and Figure 9-2 show how these pullup resistors are connected in a typical application, as well as two options for connecting the EN pin. VDPU = 3.3 V 200 kΩ PCA9306 VREF1 = 1.8 V EN 8 RPU 2 VREF1 RPU VCC VREF2 RPU 3 SCL RPU 7 SCL1 SCL2 VCC 6 SCL SW 2 I C Bus Controller 2 I C Bus Device 4 SDA GND SDA2 SDA1 5 SDA SW GND GND 1 Figure 9-1. Typical Application Circuit (Switch Always Enabled) 16 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 VDPU = 3.3 V 3.3-V Enable Signal On Off 200 k Ω PCA9306 EN VREF1 = 1.8 V RPU 2 VREF2 VREF1 RPU 8 RPU 7 RPU VCC 3 SCL SCL1 VCC SW SCL2 6 SCL I2C Bus Device I2C Bus Controller 4 SDA SDA1 SW SDA2 5 SDA GND GND GND 1 Figure 9-2. Typical Application Circuit (Switch Enable Control) 9.2.1 Design Requirements MIN TYP(1) MAX UNIT VREF2 Reference voltage VREF1 + 0.6 2.1 EN Enable input voltage VREF1 + 0.6 VREF1 Reference voltage 1.2 IPASS Pass switch current 6 mA IREF Reference-transistor current 5 μA (1) 5 V 2.1 5 V 1.5 4.4 V All typical values are at TA = 25°C. 9.2.2 Detailed Design Procedure 9.2.2.1 Bidirectional Voltage Translation For the bidirectional clamping configuration (higher voltage to lower voltage or lower voltage to higher voltage), the EN input must be connected to VREF2 and both pins pulled to high-side VDPU through a pullup resistor (typically 200 kΩ). This allows VREF2 to regulate the EN input. A 100-pF filter capacitor connected to VREF2 is recommended. The I2C bus controller output can be push-pull or open-drain (pullup resistors may be required) and the I2C bus device output can be open-drain (pullup resistors are required to pull the SCL2 and SDA2 outputs to VDPU). However, if either output is push-pull, data must be unidirectional or the outputs must be 3-state capable and be controlled by some direction-control mechanism to prevent high-to-low contentions in either direction. If both outputs are open-drain, no direction control is needed. 9.2.2.2 Sizing Pullup Resistors To get an estimate for the range of values that can be used for the pullup resistor, please refer to the application note SLVA689. Figure 9-3 and Figure 9-4 respectively show the maximum and minimum pullup resistance allowable by the I2C specification for standard-mode (100 kHz) and fast-mode (400 kHz) operation. Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 17 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 9.2.2.3 PCA9306 Bandwidth The maximum frequency of the PCA9306 device depends on the application. The device can operate at speeds of > 100 MHz given the correct conditions. The maximum frequency is dependent upon the loading of the application. Figure 6-3 shows a bandwidth measurement of the PCA9306 device using a two-port network analyzer. However, this is an analog type of measurement. For digital applications, the signal should not degrade up to the fifth harmonic of the digital signal. As a rule of thumb, the frequency bandwidth should be at least five times the maximum digital clock rate. This component of the signal is very important in determining the overall shape of the digital signal. In the case of the PCA9306 device, digital clock frequency of >100 MHz can be achieved. The PCA9306 device does not provide any drive capability like the PCA9515 or PCA9517 series of devices. Therefore, higher-frequency applications require higher drive strength from the host side. No pullup resistor is needed on the host side (3.3 V) if the PCA9306 device is being driven by standard CMOS push-pull output driver. Ideally, it is best to minimize the trace length from the PCA9306 device on the sink side (1.8 V) to minimize signal degradation. You can then use a simple formula to compute the maximum practical frequency component or the knee frequency (fknee). All fast edges have an infinite spectrum of frequency components. However, there is an inflection (or knee) in the frequency spectrum of fast edges where frequency components higher than fknee are insignificant in determining the shape of the signal. To calculate fknee: fknee= 0.5 / RT (10%–90%) (7) fknee = 0.4 / RT (20%–80%) (8) For signals with rise-time characteristics based on 10- to 90-percent thresholds, fknee is equal to 0.5 divided by the rise time of the signal. For signals with rise-time characteristics based on 20- to 80-percent thresholds, which is very common in many current device specifications, fknee is equal to 0.4 divided by the rise time of the signal. Some guidelines to follow that help maximize the performance of the device: • Keep trace length to a minimum by placing the PCA9306 device close to the I2C output of the processor. • The trace length should be less than half the time of flight to reduce ringing and line reflections or nonmonotonic behavior in the switching region. • To reduce overshoots, a pullup resistor can be added on the 1.8 V side; be aware that a slower fall time is to be expected. 18 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 9.2.3 Application Curve 25 Standard-mode Fast-mode Rp(max) (kOhm) 20 15 10 5 VDPUX < 2 V VDPUX > 2 V 0 0 50 100 150 200 250 Cb (pF) Standard mode (fSCL = 100 kHz, tr = 1 μs) 300 350 400 450 D008 Fast mode (fSCL = 400 kHz, tr = 300 ns) Figure 9-3. Maximum Pullup Resistance (Rp(max)) vs Bus Capacitance (Cb) VOL = 0.2 x VDPUX , IOL = 2 mA when VDPUX ≤ 2 V VOL = 0.4 V, IOL = 3 mA when VDPUX > 2 V Figure 9-4. Minimum Pullup Resistance (Rp(min)) vs Pullup Reference Voltage (VDPUX) Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 19 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 10 Power Supply Recommendations For supplying power to the PCA9306 device, the VREF1 pin can be connected directly to a power supply. The VREF2 pin must be connected to the VDPU power supply through a 200-kΩ resistor. Failure to have a high-impedance resistor between VREF2 and VDPU results in excessive current draw and unreliable device operation. It is also worth noting, that in order to support voltage translation, the PCA9306 must have the EN and VREF2 pins shorted and then pulled up to VDPU through a high-impedance resistor. 20 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 11 Layout 11.1 Layout Guidelines For printed-circuit board (PCB) layout of the PCA9306 device, common PCB layout practices should be followed, but additional concerns related to high-speed data transfer such as matched impedances and differential pairs are not a concern for I2C signal speeds. In all PCB layouts, it is a best practice to avoid right angles in signal traces, to fan out signal traces away from each other on leaving the vicinity of an integrated circuit (IC), and to use thicker trace widths to carry higher amounts of current that commonly pass through power and ground traces. The 100-pF filter capacitor should be placed as close to VREF2 as possible. A larger decoupling capacitor can also be used, but a longer time constant of two capacitors and the 200-kΩ resistor results in longer turnon and turnoff times for the PCA9306 device. These best practices are shown in Figure 11-1. For the layout example provided in Figure 11-1, it would be possible to fabricate a PCB with only two layers by using the top layer for signal routing and the bottom layer as a split plane for power (VCC) and ground (GND). However, a four-layer board is preferable for boards with higher-density signal routing. On a four-layer PCB, it is common to route signals on the top and bottom layer, dedicate one internal layer to a ground plane, and dedicate the other internal layer to a power plane. In a board layout using planes or split planes for power and ground, vias are placed directly next to the surface-mount component pad, which must attach to VCC or GND, and the via is connected electrically to the internal layer or the other side of the board. Vias are also used when a signal trace must be routed to the opposite side of the board, but this technique is not demonstrated in Figure 11-1. 11.2 Layout Example Figure 11-1. PCA9306 Layout Example Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 21 PCA9306 www.ti.com SCPS113N – OCTOBER 2004 – REVISED OCTOBER 2021 12 Device and Documentation Support 12.1 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 12.2 Support Resources TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight from the experts. Search existing answers or ask your own question to get the quick design help you need. Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. 12.3 Trademarks TI E2E™ is a trademark of Texas Instruments. All trademarks are the property of their respective owners. 12.4 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 12.5 Glossary TI Glossary This glossary lists and explains terms, acronyms, and definitions. Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the mostcurrent data available for the designated device. This data is subject to change without notice and without revision of this document. For browser-based versions of this data sheet, see the left-hand navigation pane. 22 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Product Folder Links: PCA9306 PACKAGE OPTION ADDENDUM www.ti.com 2-Aug-2022 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) Samples (4/5) (6) PCA9306DCTR ACTIVE SM8 DCT 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BD (G, S, Y) PCA9306DCTRE4 LIFEBUY SM8 DCT 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BD (G, S, Y) PCA9306DCTRG4 LIFEBUY SM8 DCT 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BD (G, S, Y) PCA9306DCTT ACTIVE SM8 DCT 8 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BD (G, S, Y) PCA9306DCTTE4 LIFEBUY SM8 DCT 8 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BD (G, S, Y) PCA9306DCTTG4 LIFEBUY SM8 DCT 8 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BD (G, S, Y) PCA9306DCUR ACTIVE VSSOP DCU 8 3000 RoHS & Green NIPDAU | SN | NIPDAUAG Level-1-260C-UNLIM -40 to 85 (29O4, 7BDP, 7BDS, 7BDY) Samples Samples Samples PCA9306DCURE4 LIFEBUY VSSOP DCU 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BDS PCA9306DCURG4 LIFEBUY VSSOP DCU 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BDS PCA9306DCUT ACTIVE VSSOP DCU 8 250 RoHS & Green NIPDAU | SN | NIPDAUAG Level-1-260C-UNLIM -40 to 85 (29O4, 7BDP, 7BDS, 7BDY) PCA9306DCUTE4 LIFEBUY VSSOP DCU 8 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BDS PCA9306DCUTG4 LIFEBUY VSSOP DCU 8 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7BDS PCA9306DQER ACTIVE X2SON DQE 8 5000 RoHS & Green NIPDAU | NIPDAUAG Level-1-260C-UNLIM -40 to 85 (3M, 7F) Samples PCA9306YZTR ACTIVE DSBGA YZT 8 3000 RoHS & Green Level-1-260C-UNLIM -40 to 85 7F Samples SNAGCU (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com 2-Aug-2022 RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
PCA9306DCTR 价格&库存

很抱歉,暂时无法提供与“PCA9306DCTR”相匹配的价格&库存,您可以联系我们找货

免费人工找货
PCA9306DCTR
  •  国内价格
  • 1+0.87120
  • 10+0.79920
  • 30+0.78480
  • 100+0.74160

库存:501
