PCM1690
Burr-Brown Audio
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
PCM1690 24-Bit, 192-kHz Sampling, Enhanced Multi-Level ΔΣ,
Eight-Channel Audio Digital-to-Analog Converter
1 Features
2 Applications
•
•
•
•
•
•
•
•
1
•
•
•
•
•
•
•
•
•
24-Bit Delta-Sigma DAC
8-Channel DAC:
– High Performance: Differential, fS = 48 kHz
– THD+N: –94 dB
– SNR: 113 dB
– Dynamic Range: 113 dB
– Sampling Rate: 8 kHz to 192 kHz
– System Clock: 128 fS, 192 fS, 256 fS, 384 fS,
512 fS, 768 fS, 1152 fS
– Differential Voltage Output: 8 VPP
– Analog Lowpass Filter Included
– 4x/8x Oversampling Digital Filter:
– Passband Ripple: ±0.0018 dB
– Stop Band Attenuation: –75 dB
– Zero Flag
Flexible Audio Interface:
– I/F Format: I2S™, Left-/Right-Justified, DSP,
TDM
– Data Length: 16, 20, 24, 32 Bits
Flexible Mode Control:
– 3-Wire SPI, 2-Wire I2C-Compatible Serial
Control Interface, or
Hardware Control
Multiple Functions Through SPI or I2C I/F:
– Audio I/F Format Select: I2S, Left-Justified,
Right-Justified, DSP, TDM
– Digital Attenuation and Soft Mute
– Digital De-Emphasis: 32 kHz, 44.1 kHz,
48 kHz
– Data Polarity Control
– Power Down
Multiple Functions Through H/W Control:
– Audio I/F Format Select: I2S, TDM
– Digital De-Emphasis Filter: 44.1 kHz
Analog Mute by Clock Halt Detection
External RESET Pin
Power Supplies:
– 5 V for Analog and 3.3 V for Digital

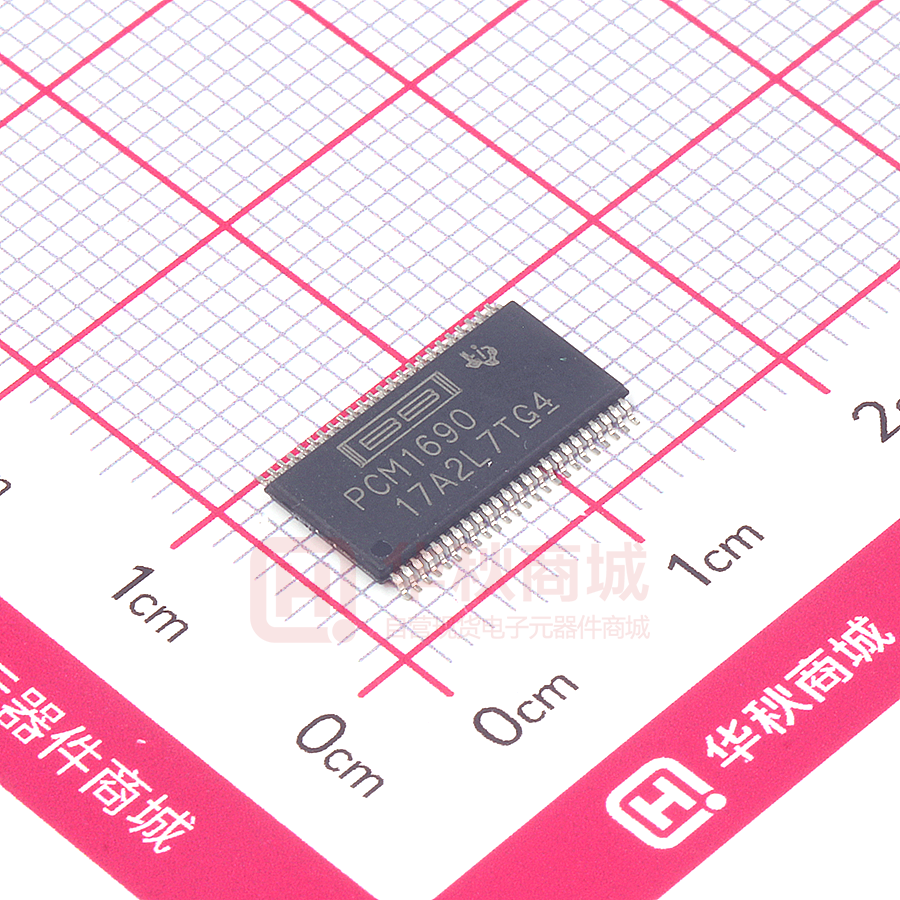

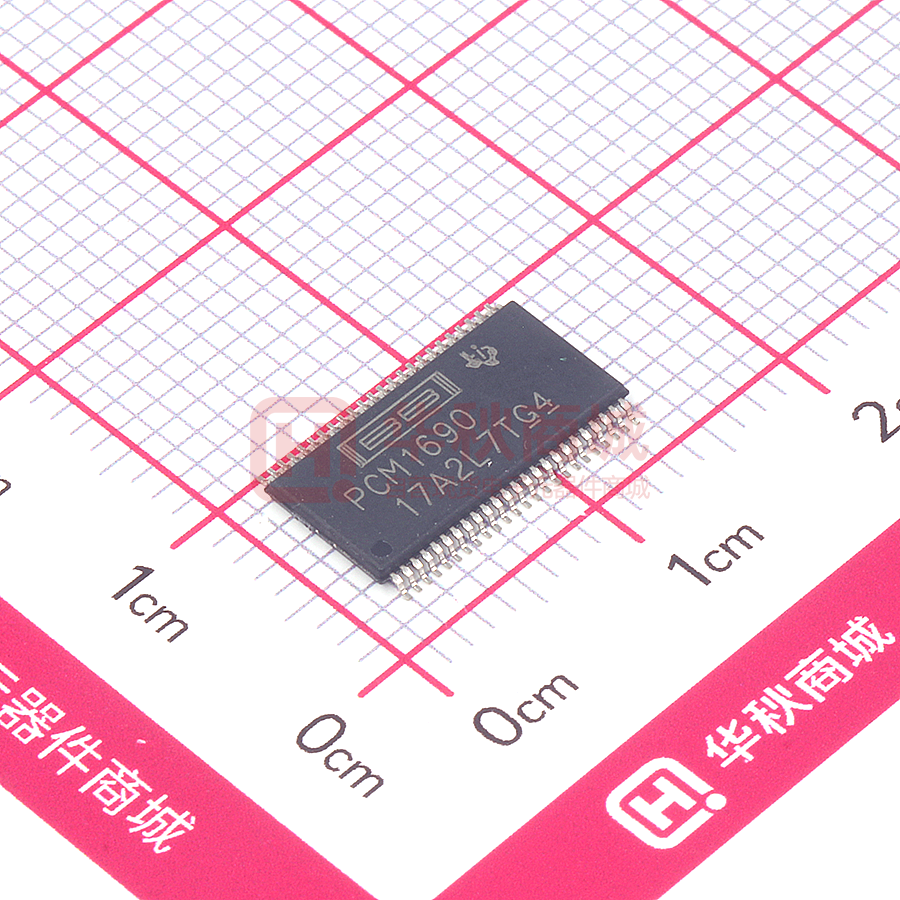

Package: HTSSOP-48
Operating Temperature Range:
– –40°C to +85°C
Blu-ray™ DVD Players
HD DVD Players
AV Receivers
Home Theaters
Car Audio External Amplifiers
Car Audio AVN Applications
3 Description
The PCM1690 device is a high-performance, singlechip, 24-bit, eight-channel, audio digital-to-analog
converter (DAC) with differential outputs. The eightchannel, 24-bit DAC employs an enhanced, multilevel delta-sigma (ΔΣ) modulator and supports 8-kHz
to 192-kHz sampling rates and a 16-/20-/24-/32-bit
width digital audio input word on the audio interface.
The audio interface of the PCM1690 supports the
time-division-multiplexed (TDM) format in addition to
the standard I2S, left-justified, right-justified, and DSP
formats.
The PCM1690 can be controlled through a three-wire,
SPI-compatible interface, or two-wire, I2C-compatible
serial interface in software, which provides access to
all functions including digital attenuation, soft mute,
de-emphasis, and so forth. Also, hardware control
mode provides a subset of user-programmable
functions through two control pins. The PCM1690 is
available in a 12-mm × 8-mm (12-mm × 6-mm body)
HTSSOP-48 package.
Device Information(1)
PART NUMBER
PCM1690
PACKAGE
BODY SIZE (NOM)
HTSSOP (48)
12.50 mm × 6.10 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Simplified Application Diagram
DSP
/4 Data
LRCK
BCK
LPF
PCM1690
TPA3116D2
x8
LPF
TPA3116D2
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Table of Contents
1
2
3
4
5
6
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
5
6.1
6.2
6.3
6.4
6.5
6.6
6.7
Absolute Maximum Ratings ..................................... 5
ESD Ratings.............................................................. 5
Recommended Operating Conditions....................... 5
Thermal Information .................................................. 6
Electrical Characteristics: Digital Input/Output.......... 6
Electrical Characteristics: DAC ................................. 7
Electrical Characteristics: Power-Supply
Requirements............................................................. 8
6.8 System Clock Timing Requirements......................... 8
6.9 Audio Interface Timing Requirements for LeftJustified, Right-Justified, and I2S Data Formats........ 9
6.10 Audio Interface Timing Requirements for DSP and
TDM Data Formats .................................................... 9
6.11 Three-Wire Serial Control Interface Timing
Requirements............................................................. 9
6.12 SCL and SDA Control Interface Timing
Requirements............................................................. 9
6.13 Typical Characteristics .......................................... 12
7
Detailed Description ............................................ 17
7.1
7.2
7.3
7.4
7.5
8
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
Register Maps .........................................................
17
17
18
24
28
Application and Implementation ........................ 35
8.1 Application Information............................................ 35
8.2 Typical Application ................................................. 36
9 Power Supply Recommendations...................... 39
10 Layout................................................................... 39
10.1 Layout Guidelines ................................................. 39
10.2 Layout Example .................................................... 39
11 Device and Documentation Support ................. 40
11.1
11.2
11.3
11.4
11.5
11.6
Device Support......................................................
Documentation Support ........................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
40
40
40
40
40
40
12 Mechanical, Packaging, and Orderable
Information ........................................................... 40
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (January 2009) to Revision B
•
Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional
Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1
Changes from Original (October 2008) to Revision A
•
2
Page
Page
Changed Figure 41 .............................................................................................................................................................. 37
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
5 Pin Configuration and Functions
DCA Package
48-Pin HTSSOP With PowerPAD
Top View
RSV2
1
48 RSV2
RSV1
2
47 VCC2
RSV2
3
46 AGND2
RSV1
4
45 RSV2
RSV2
5
44 VOUT1-
LRCK
6
43 VOUT1+
BCK
7
42 VOUT2-
DIN1
8
41 VOUT2+
DIN2
9
40 VOUT3-
DIN3 10
39 VOUT3+
DIN4 11
38 VOUT4-
VDD 12
37 VOUT4+
PCM1690
Thermal Pad
DGND 13
36 VOUT5-
SCKI 14
35 VOUT5+
RST 15
34 VOUT6-
ZERO1 16
33 VOUT6+
ZERO2 17
32 VOUT7-
AMUTEI 18
31 VOUT7+
AMUTEO 19
30 VOUT8-
MD/SDA/DEMP 20
29 VOUT8+
28 RSV2
MC/SCL/FMT 21
27 AGND1
MS/ADR0/RSV 22
26 VCOM
TEST/ADR1/RSV 23
25 VCC1
MODE 24
Pin Functions
PIN
I/O
PULLDOWN
5-V
TOLERANT
1
—
—
—
Reserved, tied to analog ground
2
—
—
—
Reserved, left open
RSV2
3
—
—
—
Reserved, tied to analog ground
RSV1
4
—
—
—
Reserved, left open
RSV2
5
—
—
—
Reserved, tied to analog ground
LRCK
6
I
Yes
No
Audio data word clock input
BCK
7
I
Yes
No
Audio data bit clock input
DIN1
8
I
No
No
Audio data input for DAC1 and DAC2
DIN2
9
I
No
No
Audio data input for DAC3 and DAC4
DIN3
10
I
No
No
Audio data input for DAC5 and DAC6
NAME
PIN
RSV2
RSV1
DESCRIPTION
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
3
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Pin Functions (continued)
PIN
I/O
PULLDOWN
5-V
TOLERANT
11
I
No
No
Audio data input for DAC7 and DAC8
12
—
—
—
Digital power supply, +3.3 V
DGND
13
—
—
—
Digital ground
SCKI
14
I
No
Yes
System clock input
RST
15
I
Yes
Yes
Reset and power-down control input with active low
ZERO1
16
O
No
No
Zero detect flag output 1
ZERO2
17
O
No
No
Zero detect flag output 2
AMUTEI
18
I
No
Yes
Analog mute control input with active low
AMUTEO
19
O
No
Yes
Analog mute status output (1) with active low
MD/SDA/DEMP
20
I/O
No
Yes
Input data for SPI, data for I2C (1), de-emphasis control for
hardware control mode
MC/SCL/FMT
21
I
No
Yes
Clock for SPI, clock for I2C, format select for hardware
control mode
MS/ADR0/RSV
22
I
Yes
Yes
Chip Select for SPI, address select 0 for I2C, reserve (set
low) for hardware control mode
TEST/ADR1/RSV
23
I/O
No
Yes
Test (factory use, left open) for SPI, address select 1 for
I2C, reserve (set low) for hardware control mode
MODE
24
I
No
No
Control port mode selection. Tied to VDD: SPI, left open:
H/W mode, tied to DGND: I2C
VCC1
25
—
—
—
Analog power supply 1, +5 V
VCOM
26
—
—
—
Voltage common decoupling
AGND1
27
—
—
—
Analog ground 1
RSV2
28
—
—
—
Reserved, tied to analog ground
VOUT8+
29
O
No
No
Positive analog output from DAC8
VOUT8-
30
O
No
No
Negative analog output from DAC8
VOUT7+
31
O
No
No
Positive analog output from DAC7
VOUT7-
32
O
No
No
Negative analog output from DAC7
VOUT6+
33
O
No
No
Positive analog output from DAC6
VOUT6-
34
O
No
No
Negative analog output from DAC6
VOUT5+
35
O
No
No
Positive analog output from DAC5
VOUT5-
36
O
No
No
Negative analog output from DAC5
VOUT4+
37
O
No
No
Positive analog output from DAC4
VOUT4-
38
O
No
No
Negative analog output from DAC4
VOUT3+
39
O
No
No
Positive analog output from DAC3
VOUT3-
40
O
No
No
Negative analog output from DAC3
VOUT2+
41
O
No
No
Positive analog output from DAC2
VOUT2-
42
O
No
No
Negative analog output from DAC2
VOUT1+
43
O
No
No
Positive analog output from DAC1
VOUT1-
44
O
No
No
Negative analog output from DAC1
RSV2
45
—
—
—
Reserved, tied to analog ground
AGND2
46
—
—
—
Analog ground 2
VCC2
47
—
—
—
Analog power supply 2, +5 V
RSV2
48
—
—
—
Reserved, tied to analog ground
NAME
PIN
DIN4
VDD
(1)
4
DESCRIPTION
Open-drain configuration in out mode.
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
6 Specifications
6.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted). (1)
PARAMETER
Supply voltage
MIN
MAX
UNIT
VCC1, VCC2
–0.3
6.5
V
VDD
–0.3
4
V
Ground voltage
differences
AGND1, AGND2, DGND
–0.1
0.1
V
Supply voltage
differences
VCC1, VCC2
–0.1
0.1
V
RST, TEST, MS, MC, MD, SCKI, AMUTEI, AMUTEO
–0.3
6.5
V
BCK, LRCK, DIN1/2/3/4, MODE, ZERO1, ZERO2
–0.3
(VDD + 0.3) <
4
V
Analog input voltage
VCOM, VOUT1–8±
–0.3
(VCC + 0.3) <
6.5
V
Input current
(all pins except supplies)
–10
10
mA
–40
125
°C
150
°C
Digital input voltage
Ambient temperature
under bias
Junction temperature
Lead temperature
(soldering, 5s)
260
°C
Package temperature
(IR reflow, peak)
260
°C
Storage temperature
Tstg
150
°C
(1)
–55
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±1000
Charged-device model (CDM), per JEDEC specification JESD22C101 (2)
±250
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
Over operating free-air temperature range (unless otherwise noted).
MIN
NOM
MAX
4.5
5
5.5
V
Digital supply voltage, VDD
3
3.3
3.6
V
Digital Interface
LVTTL compatible
Analog supply voltage, VCC
Digital input clock frequency
Analog output voltage
Analog output load resistance
Sampling frequency, LRCK
System clock frequency, SCKI
UNIT
8
192
kHz
2.048
36.864
MHz
Differential
8
VPP
To AC-coupled GND
5
kΩ
To DC-coupled GND
15
kΩ
Analog output load capacitance
50
pF
Digital output load capacitance
20
pF
85
°C
Operating free-air temperature
PCM1690 consumer grade
–40
25
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
5
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
6.4 Thermal Information
PCM1690
THERMAL METRIC (1)
DCA (HTSSOP)
UNIT
48 PINS
RθJA
Junction-to-ambient thermal resistance
29.2
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
10.2
°C/W
RθJB
Junction-to-board thermal resistance
10.3
°C/W
ψJT
Junction-to-top characterization parameter
0.3
°C/W
ψJB
Junction-to-board characterization parameter
10.2
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
0.4
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
6.5 Electrical Characteristics: Digital Input/Output
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and Sampling
Mode = Auto, unless otherwise noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
8
48
192
kHz
2.048
36.864
MHz
2
VDD
VDC
0.8
VDC
5.5
VDC
0.8
VDC
DATA FORMAT
fS
Sampling frequency
128 fS, 192 fS, 256 fS,
384 fS, 512 fS, 768 fS,
1152 fS
System clock frequency
INPUT LOGIC
Input logic level, high (BCK, LRCK, and DIN
(1) (2)
VIL
Input logic level, low (BCK, LRCK, and DIN (
(1) (2)
VIH
Input logic current, high (SCKI, ADR5/ADR1/RSV,
MC/SCL/FMT, MD/SDA/DEMP, and AMUTEI (3) (4))
VIL
Input logic current, low (SCKI, ADR5/ADR1/RSV,
MC/SCL/FMT, MD/SDA/DEMP, and AMUTEI (3) (4))
IIH
Input logic current, high (SCKI, TEST/ADR1/RSV,
MC/SCL/FMT, MD/SDA/DEMP, and AMUTEI (2) (3))
VIN = VDD
±10
μA
IIL
Input logic current, low (SCKI, TEST/ADR1/RSV,
MC/SCL/FMT, MD/SDA/DEMP, and AMUTEI (2) (3))
VIN = 0 V
±10
μA
IIH
Input logic current, high (BCK, LRCK, REST,
MSI/ADR0/RSV (1) (4))
VIN = VDD
100
μA
IIL
Input logic current, high (BCK, LRCK, REST,
MSI/ADR0/RSV (1) (4))
VIN = 0 V
±10
μA
VIH
)
)
2
65
OUTPUT LOGIC
VOH
Output logic level, high (ZERO1 and ZERO2 (5))
VOL
Output logic level, low (ZERO1 and ZERO2 (5)
(6)
IOUT = –4 mA
)
2.4
VDC
IOUT = +4 mA
0.4
VDC
REFERENCE OUTPUT
0.5 ×
VCC1
VCOM output voltage
VCOM output impedance
7.5
Allowable VCOM output source/sink current
(1)
(2)
(3)
(4)
(5)
(6)
6
V
kΩ
1
μA
BCK and LRCK (Schmitt trigger input with 50-kΩ typical internal pull-down resistor).
DIN1/2/3/4 (Schmitt trigger input).
SCKI, TEST/ADR1/RSV, MC/SCL/FMT, MD/SDA/DEMP, and AMUTEI (Schmitt trigger input, 5-V tolerant).
RST and MS/ADR0/RSV (Schmitt trigger input with 50-kΩ typical internal pull-down resistor, 5-V tolerant).
ZERO1 and ZERO2.
SDA (I2C mode, open-drain low output) and AMUTEO (open-drain low output).
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
6.6 Electrical Characteristics: DAC
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and Sampling
Mode = Auto, unless otherwise noted.
PARAMETER
TEST CONDITIONS
RESOLUTION
MIN
TYP
16
24
MAX
UNIT
Bits
DC ACCURACY
Gain mismatch channel-to-channel
±2
±6
% of
FSR
Gain error
±2
±6
% of
FSR
Bipolar zero error
±1
DYNAMIC PERFORMANCE (1)
THD+N
(2)
Total harmonic distortion + noise
fS = 48 kHz, VOUT = 0 dB
–94
fS = 96 kHz, VOUT = 0 dB
–94
dB
fS = 192 kHz, VOUT = 0 dB
–94
dB
fS = 48 kHz, EIAJ, A-weighted
Dynamic range
Sighnal-to-noise ratio
dB
113
dB
113
dB
fS = 192 kHz, EIAJ, A-weighted
113
dB
113
dB
fS = 96 kHz, EIAJ, A-weighted
113
dB
fS = 192 kHz, EIAJ, A-weighted
113
dB
fS = 48 kHz
Channel separation
(between one channel and others)
106
–88
fS = 96 kHz, EIAJ, A-weighted
fS = 48 kHz, EIAJ, A-weighted
SNR
% of
FSR
106
109
dB
fS = 96 kHz
103
109
dB
fS = 192 kHz
108
dB
1.6 ×
VCC1
VPP
0.5 ×
VCC1
V
ANALOG OUTPUT
Output voltage
Differential
Center voltage
Load impedance
LPF frequency response
To AC-coupled GND (3)
5
To DC-coupled GND (3)
15
kΩ
kΩ
f = 20 kHz
–0.04
dB
f = 44 kHz
–0.18
dB
DIGITAL FILTER PERFORMANCE WITH SHARP ROLL-OFF
Except SCKI = 128 fS and 192 fS
0.454 ×
fS
Hz
SCKI = 128 fS and 192 fS
0.432 ×
fS
Hz
0.432 ×
fS
Hz
Passband (single, dual)
Passband (quad)
Except SCKI = 128 fS and 192 fS
0.546 ×
fS
Hz
SCKI = 128 fS and 192 fS
0.569 ×
fS
Hz
0.569 ×
fS
Hz
Stop band (single, dual)
Stop band (quad)
(1)
(2)
(3)
Passband ripple
< 0.454 × fS, 0.432 × fS
Stop band attenuation
> 0.546 × fS, 0.569 × fS
±0.0018
–75
dB
dB
In differential mode at VOUTx± pin, fOUT = 1 kHz, using Audio Precision System II, Average mode with 20-kHz LPF and 400-Hz HPF.
fS = 48 kHz: SCKI = 512 fS (single), fS = 96 kHz : SCKI = 256 fS (dual), fS = 192 kHz : SCKI = 128 fS (quad).
Allowable minimum input resistance of differential to single-ended converter with D to S Gain = G is calculated as (1 + 2G)/(1 + G) × 5k
for AC-coupled and (1+ 0.9G)/(1 + G) × 15k for DC-coupled connection; refer to Figure 39 and Figure 40 of the Application Information
section.
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
7
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Electrical Characteristics: DAC (continued)
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and Sampling
Mode = Auto, unless otherwise noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
DIGITAL FILTER PERFORMANCE WITH SLOW ROLL-OFF
0.328 ×
fS
Passband
Hz
0.673 ×
fS
Stop band
Passband ripple
< 0.328 × fS
Stop band attenuation
> 0.673 × fS
Hz
±0.0013
dB
–75
dB
DIGITAL FILTER PERFORMANCE
Except SCKI = 128 fS and 192 fS
28/fS
s
SCKI = 128 fS and 192 fS
19/fS
s
Group delay time (quad)
19/fS
s
De-emphasis error
±0.1
dB
Group delay time (single, dual)
6.7 Electrical Characteristics: Power-Supply Requirements
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and Sampling
Mode = Auto, unless otherwise noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
4.5
5
5.5
VDC
3
POWER-SUPPLY REQUIREMENTS
VCC1/2
VDD
Voltage range
ICC
3.3
3.6
VDC
fS = 48 kHz
74
110
mA
fS = 192 kHz
74
Full power-down
Supply current
(1)
57
fS = 192 kHz
Full power-down
90
mA
76
(1)
mA
μA
60
558
fS = 48 kHz fS = 192 kHz Full power-down (1)
Power dissipation
μA
170
fS = 48 kHz
IDD
mA
847
mW
621
mW
1.05
mW
TEMPERATURE RANGE
Operating temperature
(1)
PCM1690 Consumer grade
–40
85
°C
SCKI, BCK, and LRCK stopped.
6.8 System Clock Timing Requirements
(see Figure 1)
MIN
MAX
UNIT
tSCY
System clock cycle time
27
ns
tSCH
System clock width high
10
ns
tSCL
System clock width low
10
—
System clock duty cycle
8
40%
Submit Documentation Feedback
ns
60%
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
6.9 Audio Interface Timing Requirements for Left-Justified, Right-Justified, and I2S Data
Formats
(see Figure 2)
MIN
MAX
UNIT
tBCY
BCK cycle time
75
ns
tBCH
BCK pulse width high
35
ns
tBCL
BCK pulse width low
35
ns
tLRS
LRCK set-up time to BCK rising edge
10
ns
tLRH
LRCK hold time to BCK rising edge
10
ns
tDIS
DIN1/2/3/4 set-up time to BCK rising edge
10
ns
tDIH
DIN1/2/3/4 hold time to BCK rising edge
10
ns
6.10 Audio Interface Timing Requirements for DSP and TDM Data Formats
(see Figure 3)
MIN
MAX
UNIT
tBCY
BCK cycle time
40
ns
tBCH
BCK pulse width high
15
ns
tBCL
BCK pulse width low
tLRW
15
ns
LRCK pulse width high (DSP format)
tBCY
tBCY
1/fS – tBCY
LRCK pulse width high (TDM format)
tBCY
tLRS
LRCK set-up time to BCK rising edge
10
ns
tLRH
LRCK hold time to BCK rising edge
10
ns
tDIS
DIN1/2/3/4 set-up time to BCK rising edge
10
ns
tDIH
DIN1/2/3/4 hold time to BCK rising edge
10
ns
6.11 Three-Wire Serial Control Interface Timing Requirements
(see Figure 4)
MIN
MAX
UNIT
tMCY
MC pulse cycle time
100
ns
tMCL
MC low-level time
40
ns
tMCH
MC high-level time
40
ns
tMHH
MS high-level time
tMCY
ns
tMSS
MS falling edge to MC rising edge
30
ns
tMSH
MS rising edge from MC rising edge for LSB
15
ns
tMDH
MD hold time
15
ns
tMDS
MD set-up time
15
ns
6.12
SCL and SDA Control Interface Timing Requirements
(see Figure 5)
STANDARD MODE
MIN
FAST MODE
MAX
MIN
100
MAX
UNIT
400
kHz
fSCL
SCL clock frequency
tBUF
Bus free time between STOP and START condition
4.7
1.3
μs
tLOW
Low period of the SCL clock
4.7
1.3
μs
tHI
High period of the SCL clock
4
0.6
μs
tS-SU
Set-up time for START/Repeated START condition
4.7
0.6
μs
tS-HD
Hold time for START/Repeated START condition
4.0
0.6
μs
tD-SU
Data set-up time
250
100
tD-HD
Data hold time
tSCL-R
Rise time of SCL signal
0
ns
3450
0
900
ns
1000
20 + 0.1 CB
300
ns
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
9
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
SCL and SDA Control Interface Timing Requirements (continued)
(see Figure 5)
STANDARD MODE
MIN
MAX
FAST MODE
MIN
MAX
UNIT
tSCL-F
Fall time of SCL signal
1000
20 + 0.1 CB
300
ns
tSDA-R
Rise time of SDA signal
1000
20 + 0.1 CB
300
ns
tSDA-F
Fall time of SDA signal
1000
20 + 0.1 CB
300
tP-SU
Set-up time for STOP condition
tGW
Allowable glitch width
N/A
50
CB
Capacitive load for SDA and SCL line
400
100
VNH
Noise margin at high level for each connected device
(including hysteresis)
0.2 × VDD
0.2 × VDD
V
VNL
Noise margin at low level for each connected device
(including hysteresis)
0.1 × VDD
0.1 × VDD
V
VHYS
Hysteresis of Schmitt trigger input
N/A
0.05 × VDD
V
4
ns
μs
0.6
pF
tSCH
High
2.0 V
System Clock
(SCKI)
0.8 V
Low
tSCY
tSCL
Figure 1. System Clock Timing Requirements
tBCH
tBCL
BCK
(Input)
1.4 V
tBCY
tLRH
tLRS
LRCK
(Input)
1.4 V
tDIS
tDIH
DIN1/2/3/4
1.4 V
Figure 2. Audio Interface Timing Requirements for Left-Justified, Right-Justified, and I 2S Data Formats
tBCL
tBCH
BCK
(Input)
1.4 V
tBCY
tLRH
tLRS
LRCK
(Input)
1.4 V
tDIS
tDIH
tLRW
DIN1/2/3/4
1.4 V
Figure 3. Audio Interface Timing Requirements for DSP and TDM Data Formats
10
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
tMHH
MS
1.4 V
tMCH
tMSS
tMCL
tMSH
MC
1.4 V
tMDS
ADR0
MSB (R/W)
MD
tMCY
tMDH
LSB (D0)
D7
1.4 V
Figure 4. Three-Wire Serial Control Interface Timing
Repeated
START
START
tBUF
STOP
tD-HD
tD-SU
tSDA-R
tP-SU
SDA
tSCL-R
SCL
tSDA-F
tS-HD
tLOW
tSCL-F
tS-HD
tHI
tS-SU
Figure 5. SCL and SDA Control Interface Timing
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
11
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
6.13 Typical Characteristics
6.13.1 Digital Filter
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and
Sampling Mode = Auto, unless otherwise noted.
0.010
0
Sharp
Slow
0.008
Amplitude (dB)
Amplitude (dB)
0.006
0.004
0.002
0
-0.002
Sharp
Slow
-20
-0.004
-40
-60
-80
-100
-0.006
-120
-0.008
-140
-0.010
0
0.1
0.2
0.3
0.5
0.4
0
1
Normalized Frequency (fS)
Figure 6. Frequency Response Passband
(Single Rate)
0
Sharp
Slow
0.008
Amplitude (dB)
0.004
0.002
0
-0.002
-0.004
Sharp
Slow
-20
0.006
Amplitude (dB)
4
3
Figure 7. Frequency Response
(Dual Rate)
0.010
-40
-60
-80
-100
-0.006
-120
-0.008
-140
-0.010
0
0.1
0.2
0.3
0.4
0.5
0
Normalized Frequency (fS)
0.5
1.0
1.5
2.0
Normalized Frequency (fS)
Figure 8. Frequency Response Passband
(Dual Rate)
12
2
Normalized Frequency (fS)
Submit Documentation Feedback
Figure 9. Frequency Response
(Quad Rate)
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
Digital Filter (continued)
0.010
Sharp
Slow
0.008
Amplitude (dB)
0.006
0.004
0.002
0
-0.002
-0.004
-0.006
-0.008
-0.010
0
0.2
0.1
0.3
0.5
0.4
Normalized Frequency (fS)
Figure 10. Frequency Response Passband
(Quad Rate)
6.13.2 Digital De-Emphasis Filter
0
0
-1
-1
-2
-2
-3
-3
Amplitude (dB)
Amplitude (dB)
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and
Sampling Mode = Auto, unless otherwise noted.
-4
-5
-6
-4
-5
-6
-7
-7
-8
-8
-9
-9
-10
-10
0
2
4
6
8
10
12
14
16
18
20
22
0
Frequency (kHz)
2
4
6
8
10
12
14
16
18
20
Frequency (kHz)
fS = 48 kHz
fS = 44.1 kHz
Figure 11. De-emphasis Characteristic
Figure 12. De-emphasis Characteristic
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
13
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Digital De-Emphasis Filter (continued)
0
0
-1
-10
-3
Amplitude (dB)
Amplitude (dB)
-2
-4
-5
-6
-20
-30
-7
-8
-40
-9
-10
0
2
4
6
8
10
-50
12
14
1k
10k
100k
1M
Frequency (kHz)
Frequency (Hz)
Figure 13. De-emphasis Characteristic
Figure 14. Analog Filter Characteristic
10M
fS = 32 kHz
14
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
6.13.3 Dynamic Performance
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and
Sampling Mode = Auto, unless otherwise noted.
118
Dynamic Range and SNR (dB)
-90
THD+N (dB)
-92
-94
-96
-98
-100
116
Dynamic Range
114
SNR
112
110
108
106
-102
-40
-15
35
10
60
85
-40
-15
Temperature (°C)
Figure 15. THD+N vs Temperature
85
Dynamic Range and SNR (dB)
118
-92
THD+N (dB)
60
Figure 16. Dynamic Range and SNR vs Temperature
-90
-94
-96
-98
-100
-102
4.50
35
10
Temperature (°C)
4.75
5.00
5.25
5.50
116
Dynamic Range
114
SNR
112
110
108
106
4.50
4.75
5.00
5.25
5.50
Supply Voltage (V)
Supply Voltage (V)
Figure 17. THD+N vs Supply Voltage
Figure 18. Dynamic Range and SNR vs Supply Voltage
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
15
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
6.13.4 Output Spectrum
0
0
-20
-20
-40
-40
Amplitude (dB)
Amplitude (dB)
All specifications at TA = 25°C, VCC1 = VCC2 = 5 V, VDD = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, and
Sampling Mode = Auto, unless otherwise noted.
-60
-80
-100
-60
-80
-100
-120
-120
-140
-140
-160
-160
0
5
20
15
10
0
5
10
Frequency (kHz)
15
20
Frequency (kHz)
0 dB, N = 32768
–60 dB, N = 32768
Figure 19. Output Spectrum
Figure 20. Output Spectrum
0
-20
Amplitude (dB)
-40
-60
-80
-100
-120
-140
-160
0
5
10
15
20
Frequency (kHz)
BPZ, N = 32768
Figure 21. Output Spectrum
16
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
7 Detailed Description
7.1 Overview
The PCM1690 is a high-performance, multi-channel DAC targeted for consumer audio applications such as Bluray DVD players and HD DVD players, as well as home multi-channel audio applications (such as home theaters
and A/V receivers). The PCM1690 consists of an eight-channel DAC. The DAC output type is fixed with a
differential configuration. The PCM1690 supports 16-/20-/24-/32-bit linear PCM input data in I2S- and left-justified
audio formats, and 24-bit linear PCM input data in right-justified, DSP, and TDM formats for various sampling
frequencies from 8 kHz to 192 kHz. The TDM format is useful for saving bus line interface numbers for multichannel audio data communication between the DAC and a digital audio processor. The PCM1690 offers three
modes for device control: two-wire I2C software, three-wire SPI software, and hardware modes.
• Audio data interface formats: I2S, LJ, RJ, DSP, TDM
• Audio data word length: 16, 20, 24, 32 Bits
• Audio data format: MSB first, twos complement
7.2 Functional Block Diagram
VOUT1+
DIN1
DIN2
DIN3
DIN4
BCK
LRCK
Audio Interface
SCKI
SCK Manager
DAC
VOUT1VOUT2+
DAC
VOUT2VOUT3+
TEST/ADR1/RSV
MS/ADR0/RSV
MC/SCL/FMT
MD/SDA/DEMP
MODE
ZERO1
ZERO2
AMUTEI
AMUTEO
RST
VCC1
AGND1
VCC2
AGND2
VDD
DGND
VCOM
DAC
VOUT3VOUT4+
DAC
Control Interface
VOUT4-
Digital Filter
and
Volume
2
(SPI/I C/HW)
VOUT5+
DAC
VOUT5VOUT6+
DAC
VOUT6VOUT7+
DAC
VOUT7-
Power Supply and
Common Voltage
VOUT8+
DAC
VOUT8-
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
17
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
7.3 Feature Description
7.3.1 Analog Outputs
The PCM1690 includes eight DACs, each with individual pairs of differential voltage outputs pins. The full-scale
output voltage is (1.6 × VCC1) VPP at the differential output mode. A DC-coupled load is allowed in addition to an
AC-coupled load if the load resistance conforms to the specification. These balanced outputs are each capable
of driving 0.8 VCC1 (4 VPP) typical into a 5-kΩ, AC-coupled or 15-kΩ, DC-coupled load with VCC1 = +5 V. The
internal output amplifiers for VOUT1 through VOUT8 are biased to the DC common voltage, equal to (0.5 ×
VCC1).
The output amplifiers include an RC continuous-time filter that helps to reduce the out-of-band noise energy
present at the DAC outputs as a result of the noise shaping characteristics of the PCM1690 delta-sigma (ΔΣ)
DACs. The frequency response of this filter is shown in the Analog Filter Characteristic (Figure 14). By itself, this
filter is not enough to attenuate the out-of-band noise to an acceptable level for most applications. An external
lowpass filter is required to provide sufficient out-of-band noise rejection. Further discussion of DAC post-filter
circuits is provided in the Application Information section.
Table 1. Pin Assignments in Differential Output Mode
DIGITAL INPUT
DIN1
DIN2
DIN3
DIN4
CHANNEL
DIFFERENTIAL OUTPUT
1 (DAC1)
VOUT1+, VOUT1–
2 (DAC2)
VOUT2+, VOUT2–
3 (DAC3)
VOUT3+, VOUT3–
4 (DAC4)
VOUT4+, VOUT4–
5 (DAC5)
VOUT5+, VOUT5–
6 (DAC6)
VOUT6+, VOUT6–
7 (DAC7)
VOUT7+, VOUT7–
8 (DAC8)
VOUT8+, VOUT8–
7.3.2 Voltage Reference VCOM
The PCM1690 includes a pin for the common-mode voltage output, VCOM. This pin must be connected to the
analog ground through a decoupling capacitor. This pin can also be used to bias external high-impedance
circuits, if they are required.
7.3.3 System Clock Input
The PCM1690 requires an external system clock input applied at the SCKI input for DAC operation. The system
clock operates at an integer multiple of the sampling frequency, or fS. The multiples supported in DAC operation
include 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, and 1152 fS. Details for these system clock multiples are
shown in Table 2. Figure 1 and System Clock Timing Requirements show the SCKI timing requirements.
Table 2. System Clock Frequencies for Common Audio Sampling Rates
DEFAULT
SAMPLING
MODE
Single rate
Dual rate
Quad rate
18
SAMPLING
FREQUENCY
fS (kHz)
SYSTEM CLOCK FREQUENCY (MHz)
128 fS
192 fS
256 fS
384 fS
512 fS
768 fS
1152 fS
8
N/A
N/A
2.0480
3.0720
4.0960
6.1440
9.2160
16
2.0480
3.0720
4.0960
6.1440
8.1920
12.2880
18.4320
32
4.0960
6.1440
8.1920
12.2880
16.3840
24.5760
36.8640
44.1
5.6448
8.4672
11.2896
16.9344
22.5792
33.8688
N/A
48
6.1440
9.2160
12.2880
18.4320
24.5760
36.8640
N/A
88.2
11.2896
16.9344
22.5792
33.8688
N/A
N/A
N/A
96
12.2880
18.4320
24.5760
36.8640
N/A
N/A
N/A
176.4
22.5792
33.8688
N/A
N/A
N/A
N/A
N/A
192
24.5760
36.8640
N/A
N/A
N/A
N/A
N/A
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
7.3.4 Sampling Mode
The PCM1690 supports three sampling modes (single rate, dual rate, and quad rate) in DAC operation. In single
rate mode, the DAC operates at an oversampling frequency of x128 (except when SCKI = 128 fS and 192 fS).
This mode is supported for sampling frequencies less than 50 kHz. In dual rate mode, the DAC operates at an
oversampling frequency of x64; this mode is supported for sampling frequencies less than 100 kHz. In quad rate
mode, the DAC operates at an oversampling frequency of x32. The sampling mode is automatically selected
according to the ratio of system clock frequency and sampling frequency by default (that is, single rate for 512 fS,
768 fS, and 1152 fS; dual rate for 256 fS and 384 fS; and quad rate for 128 fS and 192 fS), but manual selection is
also possible for specified combinations through the serial mode control register.
Table 3 and Figure 22 show the relation among the oversampling rate (OSR) of the digital filter and ΔΣ
modulator, the noise-free shaped bandwidth, and each sampling mode setting.
Table 3. DAC Filter OSR, Modulator OSR, and Noise-Free Shaped Bandwidth for Each Sampling Mode
SAMPLING
MODE
REGISTER
SETTING
Auto
Single
Dual
Quad
(1)
(2)
NOISE-FREE SHAPED BANDWIDTH (kHz) (1)
SYSTEM CLOCK
FREQUENCY
(xfS)
fS = 48 kHz
512, 768, 1152
40
256, 384
20
128, 192 (2)
fS = 192 kHz
DIGITAL FILTER
OSR
MODULATOR
OSR
N/A
N/A
×8
x128
40
N/A
x8
x64
10
20
40
x4
x32
512, 768, 1152
40
N/A
N/A
x8
x128
256, 384
40
N/A
N/A
x8
x128
128, 192 (2)
20
N/A
N/A
x4
x64
fS = 96 kHz
256, 384
20
40
N/A
x8
x64
128, 192 (2)
20
40
N/A
x4
x64
128, 192 (2)
10
20
40
x4
x32
Bandwidth in which noise is shaped out.
Quad mode filter characteristic is applied.
0
DSM_Single
DSM_Dual
DSM_Quad
-20
Amplitude (dB)
-40
DF_Single
DF_Dual
DF_Quad
-60
-80
-100
-120
-140
-160
-180
-200
0
0.5
1.0
1.5
2.0
Normalized Frequency (fS)
Figure 22. ΔΣ Modulator and Digital Filter Characteristic
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
19
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
7.3.5 Reset Operation
The PCM1690 has both an internal power-on reset circuit and an external reset circuit. The sequences for both
reset circuits are shown in Figure 23 and Figure 24. Figure 23 describes the timing at the internal power-on
reset. Initialization is triggered automatically at the point where VDD exceeds 2.2 V typical, and the internal reset
is released after 3846 SCKI clock cycles from power-on if RST is held high and SCKI is provided. VOUT from the
DACs are forced to the VCOM level initially (that is, 0.5 × VCC1) and settle at a specified level according to the
rising VCC. If synchronization among SCKI, BCK, and LRCK is maintained, VOUT provides an output that
corresponds to DIN after 3846 SCKI clocks from power-on. If the synchronization is not held, the internal reset is
not released, and both operating modes are maintained at reset and power-down states; after synchronization
forms again, the DAC returns to normal operation with the previous sequences.
Figure 24 shows a timing diagram at the external reset. RST accepts an externally-forced reset with RST low,
and provides a device reset and power-down state that achieves the lowest power dissipation state available in
the PCM1690. If RST goes from high to low under synchronization among SCKI, BCK, and LRCK, the internal
reset is asserted, all registers and memory are reset, and finally the PCM1690 enters into all power-down states.
At the same time, VOUT is immediately forced into the AGND1 level. To begin normal operation again, toggle
RST high; the same power-up sequence is performed as the power-on reset shown in Figure 23.
The PCM1690 does not require particular power-on sequences for VCC and VDD; it allows VDD on and then
VCC on, or VCC on and then VDD on. From the viewpoint of the Absolute Maximum Ratings , however,
simultaneous power-on is recommended for avoiding unexpected responses on VOUTx. Figure 23 shows the
response for VCC on with VDD on.
(VDD = 3.3 V, typ)
VDD
0V
(VDD = 2.2 V, typ)
SCKI,
BCK,
LRCK
RST
Synchronous Clocks
3846 ´ SCKI
Normal Operation
Internal Reset
VOUT1± to
VOUT8±
0.5 ´ VCC
VCOM
(0.5 ´ VCC1)
Figure 23. Power-On-Reset Timing Requirements
(VDD = 3.3 V, typ)
VDD
SCKI,
BCK,
LRCK
0V
Synchronous Clocks
Synchronous Clocks
100 ns (min)
RST
3846 ´ SCKI
Internal Reset
Normal Operation
Power-Down
Normal Operation
VOUT1± to
VOUT8±
0.5 ´ VCC
Figure 24. External Reset Timing Requirements
20
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
7.3.6 Zero Flag
The PCM1690 has two ZERO flag pins (ZERO1 and ZERO2) that can be assigned to the combinations shown in
Table 4. Zero flag combinations are selected through control register settings. If the input data of the left and
right channel of all assigned channels remain at '0' for 1024 sampling periods (LRCK clock periods), the
ZERO1/2 bits are set to a high level, logic '1' state. Furthermore, if the input data of any channels of assigned
channels read '1', the ZERO1/2 are set to a low level, logic '0' state, immediately. Zero data detection is
supported for 16-/20-/24-bit data width, but is not supported for 32-bit data width.
The active polarity of the zero flag output can be inverted through control register settings. The reset default is
active high for zero detection. In parallel hardware control mode, ZERO1 and ZERO2 are fixed with combination
A shown in Table 4.
Table 4. Zero Flag Outputs Combination
ZERO FLAG COMBINATION
ZERO1
ZERO2
A
DATA1, left channel
DATA1, right channel
B
DATA1–4
DATA1–4
C
DATA4
DATA1–3
D
DATA1
DATA2–4
7.3.7 AMUTE Control
The PCM1690 has an AMUTE control input, status output pins, and functionality. AMUTEI is the input control pin
of the internal analog mute circuit. An AMUTEI low input causes the DAC output to cut-off from the digital input
and forces it to the center level (0.5 VCC1). AMUTEO is the status output pin of the internal analog mute circuit.
AMUTEO low indicates the analog mute control circuit is active because of a programmed condition (such as an
SCKI halt, asynchronous detect, zero detect, or issue with the DAC disable command) that forces the DAC
outputs to a center level. Because AMUTEI is not terminated internally and AMUTEO is an open-drain output,
pull-ups by the appropriate resistors are required for proper operation.
Additionally, because the AMUTEI pin control and power-down control in register (OPEDA when high, PSMDA
when low) do not function together, AMUTEI takes priority over power-down control. Therefore, power-down
control is ignored during AMUTEI low, and AMUTEI low forces the DAC output to a center level (0.5 VCC1) even
if the power-down control is asserted.
7.3.8 Three-Wire (SPI) Serial Control
The PCM1690 includes an SPI-compatible serial port that operates asynchronously with the audio serial
interface. The control interface consists of MD/SDA/DEMP, MC/SCL/FMT, and MS/ADR0/RSV. MD is the serial
data input to program the mode control registers. MC is the serial bit clock that shifts the data into the control
port. MS is the select input to enable the mode control port.
7.3.9 Control Data Word Format
All single write operations via the serial control port use 16-bit data words. Figure 25 shows the control data word
format. The first bit (fixed at '0') is for write controls; after the first bit are seven other bits, labeled ADR[6:0] that
set the register address for the write operation. The eight least significant bits (LSBs), D[7:0] on MD, contain the
data to be written to the register specified by ADR[6:0].
MSB
0
LSB
ADR6
ADR5
ADR4
ADR3
ADR2
ADR1
ADR0
D7
D6
Register Address
D5
D3
D4
D2
D1
D0
Register Data
Figure 25. Control Data Word Format for MD
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
21
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
7.3.10 Register Write Operation
Figure 26 shows the functional timing diagram for single write operations on the serial control port. MS is held at
a high state until a register is to be written. To start the register write cycle, MS is set to a low state. 16 clocks
are then provided on MC, corresponding to the 16 bits of the control data word on MD. After the 16th clock cycle
has been completed, MS is set high to latch the data into the indexed mode control register.
Also, the PCM1690 supports multiple write operations in addition to single write operations, which can be
performed by sending the following N-times of the 8-bit register data after the first 16-bit register address and
register data while keeping the MC clocks and MS at a low state. Closing a multiple write operation can be
accomplished by setting MS to a high state.
MS
MC
MD
(1)
X
(1)
'0'
ADR6 ADR5 ADR4 ADR3 ADR2 ADR1 ADR0
D7
D6
D5
D4
D3
D2
D1
D0
X
X
0
ADR6
X = don't care.
Figure 26. Register Write Operation
7.3.11 Two-Wire (I2C) Serial Control
The PCM1690 supports an I2C-compatible serial bus and data transmission protocol for fast mode configured as
a slave device. This protocol is explained in the I2C specification 2.0.
The PCM1690 has a 7-bit slave address, as shown in Figure 27. The first five bits are the most significant bits
(MSB) of the slave address and are factory-preset to 10011. The next two bits of the address byte are selectable
bits that can be set by MS/ADR0/RSV and TEST/ADR1/RSV. A maximum of four PCM1690s can be connected
on the same bus at any one time. Each PCM1690 responds when it receives its own slave address.
MSB
1
LSB
0
0
1
1
ADR1
ADR0
R/W
Figure 27. Slave Address
22
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
7.3.12 Packet Protocol
A master device must control the packet protocol, which consists of a start condition, slave address with the
read/write bit, data if a write operation is required, acknowledgment if a read operation is required, and stop
condition. The PCM1690 supports both slave receiver and transmitter functions. Details about DATA for both
write and read operations are described in Figure 28.
SDA
SCL
1 to 7
St
Slave Address
8
9
(1)
R/W
ACK
1 to 8
(2)
DATA
(3)
9
1 to 8
9
9
ACK
DATA
ACK
ACK
Sp
Start
Condition
Stop
Condition
(1)
R/W: Read operation if '1'; write operation otherwise.
(2)
ACK: Acknowledgment of a byte if '0', not Acknowledgment of a byte if '1'.
(3)
DATA: Eight bits (byte); details are described in the Write Operation and Read Operation sections.
Figure 28. I2C Packet Control Protocol
7.3.13 Write Operation
The PCM1690 supports a receiver function. A master device can write to any PCM1690 register using single or
multiple accesses. The master sends a PCM1690 slave address with a write bit, a register address, and the
data. If multiple access is required, the address is that of the starting register, followed by the data to be
transferred. When valid data are received, the index register automatically increments by one. When the register
address reaches &h4F, the next value is &h40. When undefined registers are accessed, the PCM1690 does not
send an acknowledgment. Figure 29 shows a diagram of the write operation. The register address and write data
are in 8-bit, MSB-first format.
Transmitter
M
M
M
S
M
S
M
S
M
S
S
M
Data Type
St
Slave Address
W
ACK
Reg Address
ACK
Write Data 1
ACK
Write Data 2
ACK
ACK
Sp
NOTE: M = Master device, S = Slave device, St = Start condition, W = Write, ACK = Acknowledge, and Sp = Stop
condition.
Figure 29. Framework for Write Operation
7.3.14 Read Operation
A master device can read the registers of the PCM1690. The value of the register address is stored in an indirect
index register in advance. The master sends the PCM1690 slave address with a read bit after storing the register
address. Then the PCM1690 transfers the data that the index register points to. Figure 30 shows a diagram of
the read operation.
Transmitter
M
M
M
S
M
S
M
M
M
S
S
M
M
Data Type
St
Slave Address
W
ACK
Reg Address
ACK
Sr
Slave Address
R
ACK
Read Data
NACK
Sp
NOTE: M = Master device, S = Slave device, St = Start condition, Sr = Repeated start condition, W = Write, R =
Read, ACK = Acknowledge, NACK = Not acknowledge, and Sp = Stop condition.
NOTE: The slave address after the repeated start condition must be the same as the previous slave address.
Figure 30. Framework for Read Operation
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
23
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
7.3.15 Timing Requirements: SCL and SDA
A detailed timing diagram for SCL and SDA is shown in Figure 5.
7.4 Device Functional Modes
7.4.1 Audio Serial Port Operation
The PCM1690 audio serial port consists of six signals: BCK, LRCK, DIN1, DIN2, DIN3, and DIN4. BCK is a bit
clock input. LRCK is a left/right word clock input or frame synchronization clock input. DIN1/2/3/4 are the audio
data inputs for VOUT1–8.
7.4.2 Audio Data Interface Formats and Timing
The PCM1690 supports 10 audio data interface formats: 16-/20-/24-/32-bit I2S, 16-/20-/24-/32-bit left-justified, 24bit right-justified, 16-bit right-justified, 24-bit left-justified mode DSP, 24-bit I2S mode DSP, 24-bit left-justified
mode TDM, 24-bit I2S mode TDM, 24-bit left-justified mode high-speed TDM, and 24-bit I2S mode high-speed
TDM. In the case of I2S, left-justified, and right-justified data formats, 64 BCKs, 48 BCKs, and 32 BCKs per
LRCK period are supported; but 48 BCKs are limited in 192/384/768 fS SCKI, and 32 BCKs are limited in 16-bit
right-justified only. In the case of TDM data format in single rate, BCK, LRCK, and DIN1 are used. In the case of
TDM data format in dual rate, BCK, LRCK, and DIN1/2 are used. In the case of high-speed TDM format in dual
rate, BCK, LRCK, and DIN1 are used. In the case of high-speed TDM format in quad rate, BCK, LRCK, and
DIN1/2 are used. TDM format and high-speed TDM format are supported only at SCKI = 512 fS, 256 fS, 128 fS,
and fBCK ≤ fSCKI. The audio data formats are selected by MC/SCL/FMT in hardware control mode and by control
register settings in software control mode. All data must be in binary twos complement and MSB first.
Table 5 summarizes the applicable formats and describes the relationships among them and the respective
restrictions with mode control. Figure 31 through Figure 37 show 10 audio interface data formats.
Table 5. Audio Data Interface Formats and Sampling Rate, Bit Clock, and System Clock Restrictions
CONTROL
MODE
FORMAT
DATA BITS
2
16/20/24/32
BCK RATE (xfS)
APPLICABLE PINS
(2)
192 kHz
128 to 1152
64, 48
DIN1/2/3/4
24, 16
192 kHz
128 to 1152 (2)
64, 48, 32 (16 bit) (3)
DIN1/2/3/4
I2S/Left-Justified DSP
24
192 kHz
128 to 768
64
DIN1/2/3/4
24
48 kHz
256, 512
256
DIN1
DIN1/2
I2S/ Left-Justified TDM
24
96 kHz
128, 256
128
High-Speed I2S/LeftJustified TDM
24
96 kHz
256
256
DIN1
24
192 kHz
128
128
DIN1/2
I2S
16/20/24/32 (1)
192 kHz
128 to 1152 (2)
64, 48
DIN1/2/3/4
24
48 kHz
512
256
DIN1
24
96 kHz
256
128
DIN1/2
Hardware
control
(1)
(2)
(3)
SCKI RATE (xfS)
Right-Justified
I S/Left-Justified
Software
control
(1)
MAX LRCK
FREQUENCY (fS)
I2S TDM
32-bit data length is acceptable only for BCK = 64 fS and when using I2S and Left-Justified format.
1152 fS is acceptable only for fS = 32 kHz, BCK = 64 fS, and when using I2S, Left-Justified, and 24-bit Right-Justified format.
BCK = 32 fS is supported only for 16-bit data length.
Ch 1 (DIN1) or Ch 3 (DIN2)
Ch 5 (DIN3) or Ch 7 (DIN4)
LRCK
Ch 2 (DIN1) or Ch 4 (DIN2)
Ch 6 (DIN3) or Ch 8 (DIN4)
BCK
DIN1/2/3/4
N M L
2
1 0
LSB
MSB
N M L
2
MSB
1 0
LSB
N = 15/19/23/31, M = 14/18/22/30, and L = 13/17/21/29
Figure 31. Audio Data Format: 16-/20-/24-/32-Bit I2S
24
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
LRCK
Ch 2 (DIN1) or Ch 4 (DIN2)
Ch 6 (DIN3) or Ch 8 (DIN4)
Ch 1 (DIN1) or Ch 3 (DIN2)
Ch 5 (DIN3) or Ch 7 (DIN4)
BCK
DIN1/2/3/4
N M L
2
N M L
1 0
LSB
MSB
1 0
2
N
LSB
MSB
N = 15/19/23/31, M = 14/18/22/30, and L = 13/17/21/29
Figure 32. Audio Data Format: 16-/20-/24-/32-Bit Left-Justified
Ch 2 (DIN1) or Ch 4 (DIN2)
Ch 6 (DIN3) or Ch 8 (DIN4)
Ch 1 (DIN1) or Ch 3 (DIN2)
Ch 5 (DIN3) or Ch 7 (DIN4)
LRCK
BCK
DIN1/2/3/4
0
23 22 21
2
MSB
1
0
23 22 21
LSB
2
MSB
1
0
LSB
Figure 33. Audio Data Format: 24-Bit Right-Justified
LRCK
Ch 2 (DIN1) or Ch 4 (DIN2)
Ch 6 (DIN3) or Ch 8 (DIN4)
Ch 1 (DIN1) or Ch 3 (DIN2)
Ch 5 (DIN3) or Ch 7 (DIN4)
BCK
DIN1/2/3/4
15 14 13
0
2
MSB
1 0
15 14 13
LSB
2
MSB
1 0
LSB
Figure 34. Audio Data Format: 16-Bit Right-Justified
1/fS (64 BCKs)
Ch 1 (DIN1) or Ch 3 (DIN2)
Ch 5 (DIN3) or Ch 7 (DIN4)
LRCK
Ch 2 (DIN1) or Ch 4 (DIN2)
Ch 6 (DIN3) or Ch 8 (DIN4)
BCK
Left-Justified Mode
DIN1/2/3/4
23 22 21
2
1
0
2
1
23 22 21
2
1
0
2
1
23 22 21
2
I S Mode
DIN1/2/3/4
23 22 21
0
23 22 21
0
23 22
Figure 35. Audio Data Format: 24-Bit DSP Format
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
25
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
1/fS (256 BCKs at Single Rate, 128 BCKs at Dual Rate)
LRCK
BCK
Left-Justified Mode
DIN1
(Single)
2
I S Mode
DIN1
(Single)
Left-Justified Mode
DIN1/2
(Dual)
23 22
23 22
23 22
0
23 22
Ch 2
32 BCKs
0
23 22
23 22
0
1 0
23 22
0
23 22
Ch 3
32 BCKs
23 22
0
23 22
Ch 4
32 BCKs
0
23 22
Ch 1/Ch 5
32 BCKs
2
I S Mode
DIN1/2
(Dual)
0
Ch 1
32 BCKs
23 22
0
1 0
23 22
23 22
23 22
0
23 22
Ch 6
32 BCKs
0
23 22
Ch 2/Ch 6
32 BCKs
1 0
0
Ch 5
32 BCKs
23 22
0
23 22
Ch 7
32 BCKs
0
1 0
23 22
0
23 22
23 22
23 22
23 22
0
1 0
Ch 3/Ch 7
32 BCKs
1 0
0
Ch 8
32 BCKs
23 22
23 22
Ch 4/Ch 8
32 BCKs
1 0
23 22
1 0
23 22
SCKI = 128 fS, 256 fS, and 512 fS Only
Figure 36. Audio Data Format: 24-Bit TDM Format
1/fS (256 BCKs at Dual Rate, 128 BCKs at Quad Rate)
LRCK
BCK
Left-Justified Mode
DIN1
(Dual)
2
I S Mode
DIN1
(Dual)
Left-Justified Mode
DIN1/2
(Quad)
23 22
23 22
Ch 1
32 BCKs
23 22
23 22
0
23 22
Ch 2
32 BCKs
0
23 22
1 0
23 22
1 0
0
23 22
Ch 3
32 BCKs
0
23 22
23 22
Ch 1/Ch 5
32 BCKs
2
I S Mode
DIN1/2
(Quad)
0
0
23 22
Ch 4
32 BCKs
0
23 22
1 0
1 0
23 22
Ch 5
32 BCKs
0
23 22
0
23 22
Ch 6
32 BCKs
0
23 22
Ch 2/Ch 6
32 BCKs
23 22
0
23 22
1 0
1 0
23 22
Ch 7
32 BCKs
0
23 22
0
23 22
Ch 8
32 BCKs
0
23 22
Ch 3/Ch 7
32 BCKs
23 22
0
23 22
1 0
0
23 22
23 22
Ch 4/Ch 8
32 BCKs
23 22
1 0
23 22
SCKI = 128 fS and 256 fS Only
Figure 37. Audio Data Format: 24-Bit High-Speed TDM Format
7.4.3 Synchronization With the Digital Audio System
The PCM1690 operates under the system clock (SCKI) and the audio sampling rate (LRCK). Therefore, SCKI
and LRCK must have a specific relationship. The PCM1690 does not need a specific phase relationship between
the audio interface clocks (LRCK, BCK) and the system clock (SCKI), but does require a specific frequency
relationship (ratiometric) between LRCK, BCK, and SCKI.
If the relationship between SCKI and LRCK changes more than ±2 BCK clocks because of jitter, sampling
frequency change, etc., the DAC internal operation stops within 1/fS, and the analog output is forced into VCOM
(0.5 VCC1) until re-synchronization between SCKI, LRCK, and BCK completes and then 38/fS (single, dual rate)
or 29/fS (quad rate) passes. In the event the change is less than ±2 BCKs, re-synchronization does not occur,
and this analog output control and discontinuity does not occur.
26
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
Figure 38 shows the DAC analog output during loss of synchronization. During undefined data periods, some
noise may be generated in the audio signal. Also, the transition of normal to undefined data and undefined (or
zero) data to normal data creates a discontinuity of data on the analog outputs, which then may generate some
noise in the audio signal.
DAC outputs (VOUTx) hold the previous state if the system clock halts, but the asynchronous and resynchronization processes will occur after the system clock resumes.
State of
Synchronization
Asynchronous
Synchronous
Synchronous
Within 1/fS
Undefined Data
DAC
VOUTX±
38/fS (single, dual rate)
29/fS (quad rate)
VCOM
(0.5 VCC1)
Normal
Normal
Figure 38. DAC Outputs During Loss of Synchronization
7.4.4 Mode Control
The PCM1690 includes three mode control interfaces with two oversampling configurations, depending on the
input state of the MODE pin, as shown in Table 6. The pull-up and pull-down resistors must each be less than 10
kΩ.
Table 6. Mode Control Selection
MODE
Tied to DGND, low
Left open
Tied to VDD, high
MODE CONTROL INTERFACE
Two-wire (I2C) serial control, selectable oversampling configuration
Two-wire parallel control, auto mode oversampling configuration
Three-wire (SPI) serial control, selectable oversampling configuration
The input state of the MODE pin is sampled at the moment of power-on, or during a low-to-high transition of the
RST pin, with the system clock input. Therefore, input changes after reset are ignored until the next power-on or
reset. From the mode control selection described in Table 6, the functions of four pins are changed, as shown in
Table 7.
Table 7. Pin Functions for Interface Mode
PIN ASSIGNMENTS
PIN
SPI
I2C
H/W
20
MD (input)
SDA (input/output)
DEMP (input)
21
MC (input)
SCL (input)
FMT (input)
22
MS (input)
ADR0 (input)
RSV (input, low)
23
Test (output, open)
ADR1 (input)
RSV (input, low)
In serial mode control, the actual mode control is performed by register writes (and reads) through the SPI- or
I2C-compatible serial control port. In parallel mode control, two specific functions are controlled directly through
the high/low control of two specific pins, as described in the following section.
7.4.5 Parallel Hardware Control
The functions shown in Table 8 and Table 9 are controlled by two pins, DEMP and FMT, in parallel hardware
control mode. The DEMP pin controls the 44.1-kHz digital de-emphasis function of all eight channels. The FMT
pin controls the audio interface format for all eight channels.
Table 8. DEMP Functionality
DEMP
DESCRIPTION
Low
De-emphasis off
High
44.1 kHz de-emphasis on
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
27
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Table 9. FMT Functionality
FMT
DESCRIPTION
Low
16-/20-/24-/32-bit I2S format
High
24-bit I2S mode TDM format
7.5 Register Maps
7.5.1 Control Register Definitions (Software Mode Only)
The PCM1690 has many user-programmable functions that are accessed via control registers, and are
programmed through the SPI or I2C serial control port. Table 10 shows the available mode control functions
along with reset default conditions and associated register address. Table 11 lists the register map.
Table 10. User-Programmable Mode Control Functions
RESET DEFAULT
REGISTER
LABEL
Mode control register reset
FUNCTION
Normal operation
64
MRST
System reset
Normal operation
64
SRST
Mute disabled
64
AMUTE[3:0]
Auto
64
SRDA[1:0]
Power save
65
PSMDA
2
I S
65
FMTDA[3:0]
Normal operation
66
OPEDA[3:0]
Sharp roll-off
66
FLT[3:0]
Normal
67
REVDA[8:1]
Soft mute control
Mute disabled
68
MUTDA[8:1]
Zero flag
Not detected
69
ZERO[8:1]
0 dB to –63 dB, 0.5 dB step
70
DAMS
Disabled
70
DEMP[1:0]
70
AZRO[1:0]
Analog mute function control
Sampling mode selection
Power-save mode selection
Audio interface format selection
Operation control
Digital filter roll-off control
Output phase selection
Digital attenuation mode
Digital de-emphasis function control
ZERO1: DIN1, left-channel
Zero flag function selection
ZERO2: DIN1, right-channel
Zero flag polarity selection
Digital attenuation level setting
High for detection
70
ZREV
0 dB, no attenuation
71–79
ATDAx[7:0]
Table 11. Register Map
ADR[6:0]
(1)
28
DATA[7:0]
DEC
HEX
B7
B6
B5
B4
B3
B2
64
40
65
41
MRST
SRST
AMUTE3
AMUTE2
AMUTE1
AMUTE0
SRDA1
SRDA0
PSMDA
RSV (1)
RSV (1)
RSV (1)
FMTDA3
FMTDA2
FMTDA1
FMTDA0
66
42
OPEDA3
OPEDA2
OPEDA1
OPEDA0
FLT3
FLT2
FLT1
FLT0
67
43
REVDA8
REVDA7
REVDA6
REVDA5
REVDA4
REVDA3
REVDA2
REVDA1
68
44
MUTDA8
MUTDA7
MUTDA6
MUTDA5
MUTDA4
MUTDA3
MUTDA2
MUTDA1
69
45
ZERO8
ZERO7
ZERO6
ZERO5
ZERO4
ZERO3
ZERO2
ZERO1
70
46
DAMS
RSV (1)
DEMP1
DEMP0
RSV (1)
AZRO1
AZRO0
ZREV
71
47
(1)
(1)
(1)
(1)
(1)
(1)
(1)
RSV (1)
72
48
ATDA17
ATDA16
ATDA15
ATDA14
ATDA13
ATDA12
ATDA11
ATDA10
73
49
ATDA27
ATDA26
ATDA25
ATDA24
ATDA23
ATDA22
ATDA21
ATDA20
74
4A
ATDA37
ATDA36
ATDA35
ATDA34
ATDA33
ATDA32
ATDA31
ATDA30
75
4B
ATDA47
ATDA46
ATDA45
ATDA44
ATDA43
ATDA42
ATDA41
ATDA40
76
4C
ATDA57
ATDA56
ATDA55
ATDA54
ATDA53
ATDA52
ATDA51
ATDA50
77
4D
ATDA67
ATDA66
ATDA65
ATDA64
ATDA63
ATDA62
ATDA61
ATDA60
RSV
RSV
RSV
RSV
RSV
RSV
B1
RSV
B0
RSV must be set to '0'.
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
Table 11. Register Map (continued)
ADR[6:0]
DATA[7:0]
DEC
HEX
B7
B6
B5
B4
B3
B2
B1
B0
78
4E
ATDA77
ATDA76
ATDA75
ATDA74
ATDA73
ATDA72
ATDA71
ATDA70
79
4F
ATDA87
ATDA86
ATDA85
ATDA84
ATDA83
ATDA82
ATDA81
ATDA80
B2
AMUTE0
B1
SRDA1
B0
SRDA0
7.5.2 Register Definitions
Table 12. Register 64 (Hex 40)
DEC
64
MRST
HEX
40
B7
MRST
B6
SRST
B5
AMUTE3
B4
AMUTE2
B3
AMUTE1
Mode control register reset
This bit sets the mode control register reset to the default value. Pop noise may be generated. Returning the MRST bit to
'1' is unnecessary because it is automatically set to '1' after the mode control register is reset.
Default value = 1.
MRST
SRST
Mode control register reset
0
Set default value
1
Normal operation (default)
System reset
This bit controls the system reset, which includes the resynchronization between the system clock and sampling clock,
and DAC operation restart. The mode control register is not reset and the PCM1789 does not go into a power-down state.
Returning the SRST bit to '1' is unnecessary; it is automatically set to '1' after triggering a system reset.
Default value = 1.
SRST
AMUTE[3:0]
System reset
0
Resynchronization
1
Normal operation (default)
Analog mute function control
These bits control the enabling/disabling of each source event that triggers the analog mute control circuit.
Default value = 0000.
AMUTE
SRDA[1:0]
Analog mute function control
xxx0
Disable analog mute control by SCKI halt
xxx1
Enable analog mute control by SCKI halt
xx0x
Disable analog mute control by asynchronous detect
xx1x
Enable analog mute control by asynchronous detect
x0xx
Disable analog mute control by ZERO1 and ZERO2 detect
x1xx
Enable analog mute control by ZERO1 and ZERO2 detect
0xxx
Disable analog mute control by DAC disable command
1xxx
Enable analog mute control by DAC disable command
Sampling mode selection
These bits control the sampling mode of DAC operation. In Auto mode, the sampling mode is automatically set according
to multiples between the system clock and sampling clock: single rate for 512 fS, 768 fS, and 1152 fS, dual rate for 256 fS
or 384 fS, and quad rate for 128 fS and 192 fS.
Default value = 00.
SRDA
Sampling mode selection
00
Auto (default)
01
Single rate
10
Dual rate
11
Quad rate
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
29
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Table 13. Register 65 (Hex 41)
DEC
65
PSMDA
HEX
41
B7
PSMDA
B6
RSV
B5
RSV
B4
RSV
B3
FMTDA3
B2
FMTDA2
B1
FMTDA1
B0
FMTDA0
Power-save mode selection
This bit selects the power-save mode for the OPEDA[3:0] function. When PSMDA = 0, OPEDA[3:0] controls the powersave mode and normal operation. When PSMDA = 1, OPEDA functions controls the DAC disable (not power-save mode)
and normal operation.
Default value: 0.
PSMDA
RSV
Power-save mode selection
0
Power-save enable mode (default)
1
Power-save disable mode
Reserved
Reserved; do not use.
FMTDA[3:0]
Audio interface format selection
These bits control the audio interface format for DAC operation. Details of the format, and any related restrictions with the
system clock are described in the Audio Data Interface Formats and Timing section.
Default value: 0000 (16-/20-/24-/32-bit I2S format).
FMTDA
Audio interface format selection
0000
16-/20-/24-/32-bit I2S format (default)
0001
16-/20-/24-/32-bit left-justified format
0010
24-bit right-justified format
0011
16-bit right-justified format
0100
24-bit I2S mode DSP format
0101
24-bit left-justified mode DSP format
0110
24-bit I2S mode TDM format
0111
24-bit left-justified mode TDM format
1000
24-bit high-speed I2S mode TDM format
1001
24-bit high-speed left-justified mode TDM format
101x
Reserved
11xx
Reserved
1
Slow roll-off
Table 14. Register 66 (Hex 42)
DEC
66
OPEDA[3:0]
HEX
42
B7
OPEDA3
B6
OPEDA2
B5
OPEDA1
B4
OPEDA0
B3
FLT3
B2
FLT2
B1
FLT1
B0
FLT0
Operation control
These bits control the DAC operation mode. In operation disable mode, the DAC output is cut off from DIN and the
internal DAC data are reset. If PSMDA = 1, the DAC output is forced into VCOM. IF PSMDA = 0, the DAC output is
forced into AGND and the DAC goes into a power-down state. For normal operating mode, these bits must be '0'. The
serial mode control is effective during operation disable mode.
Default value: 0000.
OPEDA
30
Operation control
xxx0
DAC1/2 normal operation
xxx1
DAC1/2 operation disable with or without power save
xx0x
DAC3/4 normal operation
xx1x
DAC3/4 operation disable with or without power save
x0xx
DAC5/6 normal operation
x1xx
DAC5/6 operation disable with or without power save
0xxx
DAC7/8 normal operation
1xxx
DAC7/8 operation disable with or without power save
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
FLT[3:0]
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
Digital filter roll-off control
These bits allow users to select the digital filter roll-off that is best suited to their applications. Sharp and slow filter roll-off
selections are available. The filter responses for these selections are shown in the Typical Characteristics section of this
data sheet.
Default value: 0000.
FLT
Digital filter roll-off control
xxx0
DAC1/2 sharp roll-off
xxx1
DAC1/2 slow roll-off
xx0x
DAC3/4 sharp roll-off
xx1x
DAC3/4 slow roll-off
x0xx
DAC5/6 sharp roll-off
x1xx
DAC5/6 slow roll-off
0xxx
DAC7/8 sharp roll-off
1xxx
DAC7/8 slow roll-off
Table 15. Register 67 (Hex 43)
DEC
67
REVDA[8:1]
HEX
43
B7
REVDA8
B6
REVDA7
B5
REVDA6
B4
REVDA5
B3
REVDA4
B2
REVDA3
B1
REVDA2
B0
REVDA1
B2
MUTDA3
B1
MUTDA2
B0
MUTDA1
Output phase selection
These bits are used to control the phase of DAC analog signal outputs.
Default value: 0000 0000.
REVDA
Output phase selection
xxxx xxx0
DAC1 normal output
xxxx xxx1
DAC1 inverted output
xxxx xx0x
DAC2 normal output
xxxx xx1x
DAC2 inverted output
xxxx x0xx
DAC3 normal output
xxxx x1xx
DAC3 inverted output
xxxx 0xxx
DAC4 normal output
xxxx 1xxx
DAC4 inverted output
xxx0 xxxx
DAC5 normal output
xxx1 xxxx
DAC5 inverted output
xx0x xxxx
DAC6 normal output
xx1x xxxx
DAC6 inverted output
x0xx xxxx
DAC7 normal output
x1xx xxxx
DAC7 inverted output
0xxx xxxx
DAC8 normal output
1xxx xxxx
DAC8 inverted output
Table 16. Register 68 (Hex 44)
DEC
68
MUTDA[8:1]
HEX
44
B7
MUTDA8
B6
MUTDA7
B5
MUTDA6
B4
MUTDA5
B3
MUTDA4
Soft Mute control
These bits are used to enable or disable the Soft Mute function for the corresponding DAC outputs, VOUT. The Soft Mute
function is incorporated into the digital attenuators. When mute is disabled (MUTDA[8:1] = 0), the attenuator and DAC
operate normally. When mute is enabled by setting MUTDA[8:1] = 1, the digital attenuator for the corresponding output is
decreased from the current setting to infinite attenuation. By setting MUTDA[8:1] = 0, the attenuator is increased to the
last attenuation level in the same manner as it is for decreasing levels. This configuration reduces pop and zipper noise
during muting of the DAC output. This Soft Mute control uses the same resource of digital attenuation level setting. Mute
control has priority over the digital attenuation level setting.
Default value: 0000 0000.
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
31
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
MUTDA
www.ti.com
Soft Mute control
xxxx xxx0
DAC1 Mute disabled
xxxx xxx1
DAC1 Mute enabled
xxxx xx0x
DAC2 Mute disabled
xxxx xx1x
DAC2 Mute enabled
xxxx x0xx
DAC3 Mute disabled
xxxx x1xx
DAC3 Mute enabled
xxxx 0xxx
DAC4 Mute disabled
xxxx 1xxx
DAC4 Mute enabled
xxx0 xxxx
DAC5 Mute disabled
xxx1 xxxx
DAC5 Mute enabled
xx0x xxxx
DAC6 Mute disabled
xx1x xxxx
DAC6 Mute enabled
x0xx xxxx
DAC7 Mute disabled
x1xx xxxx
DAC7 Mute enabled
0xxx xxxx
DAC8 Mute disabled
1xxx xxxx
DAC8 Mute enabled
Table 17. Register 69 (Hex 45)
DEC
69
ZERO[8:1]
HEX
45
B7
ZERO8
B6
ZERO7
B5
ZERO6
B4
ZERO5
B3
ZERO4
B2
ZERO3
B1
ZERO2
B0
ZERO1
Zero flag (read-only)
These bits indicate the present status of the zero detect circuit for each DAC channel; these bits are read-only.
ZERO
32
Zero flag
xxxx xxx0
DAC1 zero input not detected
xxxx xxx1
DAC1 zero input detected
xxxx xx0x
DAC2 zero input not detected
xxxx xx1x
DAC2 zero input detected
xxxx x0xx
DAC3 zero input not detected
xxxx x1xx
DAC3 zero input detected
xxxx 0xxx
DAC4 zero input not detected
xxxx 1xxx
DAC4 zero input detected
xxx0 xxxx
DAC5 zero input not detected
xxx1 xxxx
DAC5 zero input detected
xx0x xxxx
DAC6 zero input not detected
xx1x xxxx
DAC6 zero input detected
x0xx xxxx
DAC7 zero input not detected
x1xx xxxx
DAC7 zero input detected
0xxx xxxx
DAC8 zero input not detected
1xxx xxxx
DAC8 zero input detected
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
Table 18. Register 70 (Hex 46)
DEC
70
DAMS
HEX
46
B7
DAMS
B6
RSV
B5
DEMP1
B4
DEMP0
B3
RSV
B2
AZRO1
B1
AZRO0
B0
ZREV
Digital attenuation mode
This bit selects the attenuation mode.
Default value: 0.
DAMS
RSV
Digital attenuation mode
0
Fine step: 0.5-dB step for 0 dB to –63 dB range (default)
1
Wide range: 1-dB step for 0 dB to –100 dB range
Reserved
Reserved; do not use.
DEMP[1:0]
Digital de-emphasis function/sampling rate control
These bits are used to disable or enable the various sampling frequencies of the digital de-emphasis function.
Default value: 00.
DEMP
AZRO[1:0]
Digital de-emphasis function/sampling rate control
00
Disable (default)
01
48 kHz enable
10
44.1 kHz enable
11
32 kHz enable
Zero flag channel combination selection
The AZRO[1:0] bits are used to select the zero flag channel combination for ZERO1 and ZERO2.
If the analog mute function control by ZERO flags is used, AZRO[1:0] must not be set '00'; otherwise, analog mute works
even if the data of DATA2–4 are not zero.
Default value: 00B.
AZRO
ZREV
Zero flag combination selection
00
Combination A: ZERO1 = DATA1 left channel, ZERO2 = DATA1 right channel (default)
01
Combination B: ZERO1 = DATA1–4, ZERO2 = DATA1–4
10
Combination C: ZERO1 = DATA4, ZERO2 = DATA1–3
11
Combination D: ZERO1 = DATA1, ZERO2 = DATA2–4
Zero flag polarity selection
This bit controls the polarity of the zero flag pin.
Default value: 0.
ZREV
Zero flag polarity selection
0
High for zero detect (default)
1
Low for zero detect
Table 19. Registers 71-79 (Hex 47-49, 4A-4F)
DEC
71
72
73
74
75
76
77
78
79
HEX
47
48
49
4A
4B
4C
4D
4E
4F
B7
RSV
ATDA17
ATDA27
ATDA37
ATDA47
ATDA57
ATDA67
ATDA77
ATDA87
B6
RSV
ATDA16
ATDA26
ATDA36
ATDA46
ATDA56
ATDA66
ATDA76
ATDA86
B5
RSV
ATDA15
ATDA25
ATDA35
ATDA45
ATDA55
ATDA65
ATDA75
ATDA85
B4
RSV
ATDA14
ATDA24
ATDA34
ATDA44
ATDA54
ATDA64
ATDA74
ATDA84
B3
RSV
ATDA13
ATDA23
ATDA33
ATDA43
ATDA53
ATDA63
ATDA73
ATDA83
B2
RSV
ATDA12
ATDA22
ATDA32
ATDA42
ATDA52
ATDA62
ATDA72
ATDA82
B1
RSV
ATDA11
ATDA21
ATDA31
ATDA41
ATDA51
ATDA61
ATDA71
ATDA81
B0
RSV
ATDA10
ATDA20
ATDA30
ATDA40
ATDA50
ATDA60
ATDA70
ATDA80
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
33
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
RSV
www.ti.com
Reserved
Reserved; do not use.
ATDAx[7:0]
Digital attenuation level setting
Where x = 1 to 8, corresponding to the DAC output (VOUTx).
Each DAC output (VOUT1 through VOUT8) has a digital attenuation function. The attenuation level can be set from 0 dB to
R dB, in S-dB steps. Changes in attenuator levels are made by incrementing or decrementing one step (S dB) for every
8/fS time interval until the programmed attenuator setting is reached. Alternatively, the attenuation level can be set to
infinite attenuation (or mute). R (Range) and S (Step) is –63 and 0.5 for DAMS = 0 and –100 and 1.0 for DAMS = 1,
respectively. The DAMS bit is defined in Register 70 (46h). Table 20 shows attenuation levels for various settings.
The attenuation level for each channel can be set individually using the following formula:
Attenuation level (dB) = S × (ATDAx[7:0]DEC – 255)
where ATDAx[7:0]DEC = 0 through 255.
For ATDAx[7:0]DEC = 0 through 128 with DAMS = 0 or 0 through 154 with DAMS = 1, attenuation is set to infinite
attenuation (mute).
Default value: 1111 1111.
Table 20. Attenuation Levels for Various Settings
ATDAx[7:0]
34
ATTENUATION LEVEL SETTING
BINARY
DECIMAL
DAMS = 0
DAMS = 1
1111 1111
255
0 dB, no attenuation (default)
0 dB, no attenuation (default)
1111 1110
254
–0.5 dB
–1 dB
1111 1101
253
–1.0 dB
–2 dB
...
...
...
...
1001 1100
156
–45.9 dB
–99 dB
1001 1011
155
–50.0 dB
–100 dB
1001 1010
154
–50.5 dB
Mute
...
...
...
...
1000 0010
130
–62.5 dB
Mute
1000 0001
129
–63.0 dB
Mute
0000 0000
128
Mute
Mute
...
...
...
...
0000 0000
0
Mute
Mute
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
8.1.1 Lowpass Filter and Differential-to-Single-Ended Converter for DAC Outputs
ΔΣ DACs use noise-shaping techniques to improve in-band signal-to-noise ratio (SNR) performance at the
expense of generating increased out-of-band noise above the Nyquist frequency, or fS/2. The out-of-band noise
must be lowpass filtered in order to provide optimal converter performance. This filtering is accomplished by a
combination of on-chip and external lowpass filters.
Figure 39 and Figure 40 show the recommended external differential-to-single-ended converter with lowpass
active filter circuits for AC-coupled and DC-coupled applications. These circuits are second-order Butterworth
filters using a multiple feedback (MFB) circuit arrangement that reduces sensitivity to passive component
variations over frequency and temperature. For more information regarding MFB active filter designs, please
refer to Applications Bulletin SBAA055, Dynamic Performance Testing of Digital Audio D/A Converters, available
from the TI web site (www.ti.com) or the local Texas Instruments' sales office.
Because the overall system performance is defined by the quality of the DACs and the associated analog output
circuitry, high-quality audio op amps are recommended for the active filters. Texas Instruments’ OPA2134,
OPA2353, and NE5532A dual op amps are shown in Figure 39 and Figure 40, and are recommended for use
with the PCM1690.
R2
C2
R1
R3
47W
C1
+
VOUT(4 VPP)
10 mF
+
VOUT+
(4 VPP)
10 mF
R1
Analog Output
(2 VRMS)
R3
R2
C2
NOTE: Amplifier is an NE5532A x1/2 or OPA2134 x1/2; R1 = 7.5-kΩ; R2 = 5.6-kΩ; R3 = 360-Ω; C1 = 3300-pF; C2 =
680-pF; Gain = 0.747; f–3 dB = 53 kHz.
Figure 39. AC-Coupled, Post-LPF and Differential to Single-Ended Buffer
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
35
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Application Information (continued)
R2
C2
VOUT+
(4 VPP)
VOUT(4 VPP)
R1
R3
47W
C1
R1
Analog Output
(2 VRMS)
R3
R2
C2
NOTE: Amplifier is an NE5532A x1/2 or OPA2134 x1/2; R1 = 15-kΩ; R2 = 11-kΩ; R3 = 820-Ω; C1 = 1500-pF; C2 =
330-pF; Gain = 0.733; f–3 dB = 54 kHz.
Figure 40. DC-Coupled, Post-LPF and Differential to Single-Ended Buffer
8.2 Typical Application
A basic connection diagram is shown in Figure 41, with the necessary power-supply bypassing and decoupling
components. Texas Instruments’ PLL170X is used to generate the system clock input at SCKI, as well as to
generate the clock for the audio signal processor. The use of series resistors (22 Ω to 100 Ω) are recommended
for SCKI, LRCK, BCK, DIN1, DIN2, DIN3, and DIN4 for electromagnetic interference (EMI) reduction.
36
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
Typical Application (continued)
PCM1690
R1
R2
R3
Audio DSP or
Decoder
R4
R5
R6
1
RSV2
RSV2 48
2
RSV1
VCC2 47
3
RSV2
AGND2 46
4
RSV1
RSV2 45
5
RSV2
VOUT1- 44
6
LRCK
VOUT1+ 43
7
BCK
VOUT2- 42
8
DIN1
VOUT2+ 41
9
DIN2
VOUT3- 40
10 DIN3
VOUT3+ 39
11 DIN4
VOUT4- 38
12 VDD
VOUT4+ 37
13 DGND
VOUT5- 36
14 SCKI
VOUT5+ 35
15 RST
VOUT6- 34
16 ZERO1
VOUT6+ 33
17 ZERO2
VOUT7- 32
18 AMUTEI
VOUT7+ 31
19 AMUTEO
VOUT8- 30
20 MD/SDA/DEMP
VOUT8+ 29
C3
C1
R7
PLL170x
R8
mC or mP
LPF and Buffer
R9
21 MC/SCL/FMT
22 MS/ADR0/RSV
23 TEST/ADR1/RSV
24 MODE
Termination
Circuit
RSV2 28
AGND1 27
VCOM 26
+
C4
C2
VCC1 25
+5 V
+
+
C6
+3.3 V
C5
0V
24
3.3 V
R10
24
R10
24
0V
(High)
(Open)
(Low)
NOTE: C1 through C3 are 1-μF ceramic capacitors. C4 through C6 are 10-μF electrolytic capacitors. R1 through R7 are
22-Ω to 100-Ω resistors. R8 and R9 are resistors appropriate for pull-up. R10 is less than 10 kΩ.
Figure 41. Basic Connection Diagram
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
37
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
Typical Application (continued)
8.2.1 Design Requirements
• Control: Hardware, I2C, or SPI
• Audio Input: PCM Serial data, TDM, or DSP
• Audio Output: (1.6 × VCC1) Vpp analog audio biased to (0.5 × VCC1) V
• Master Clock: PLL170X IC
8.2.2 Detailed Design Procedure
8.2.2.1
Hardware Control Method
There are 3 ways to control the PCM1690, hardware control, SPI, or I2C. Hardware control will provide a limited
access to control features available in the PCM1690 but can be implemented with pull up and pull downs, or with
GPIO of a microcontroller. Control via SPI or I2C will provide access to all control registers and features but will
require a digital device that can implement SPI or I2C.
8.2.2.2 Audio Input
For Audio Input there are 3 options, PCM serial data, TDM, or DSP. All three will support the same quality of
audio data, but having these 3 options to match the audio sources available outputs allows for greater flexibility.
This selection is made by configuring the MODE pin which is detailed in Table 6 and shown in Pin Functions.
8.2.2.3 Audio Output
The output of the PCM1690 will produce a differential (1.6 × VCC1) Vpp signal at full scale into a 5-kΩ load, that
must be filtered before being sent to an amplifier. Outputs Vout1 through Vout 8 will be biased at (0.5 × VCC1)
V.
8.2.2.4 Master Clock
The master clock can come from wither a dedicated IC such as the PLL170X series, a crystal or the audio
source IC. What is important is that the audio source and the PCM1690 are driven from the same source so that
the audio clocks will be synchronous.
8.2.3 Application Curve
0
Sharp
Slow
Amplitude (dB)
-20
-40
-60
-80
-100
-120
-140
0
1
2
4
3
Normalized Frequency (fS)
Figure 42. Frequency Response
(Single Rate)
38
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PCM1690
www.ti.com
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
9 Power Supply Recommendations
The PCM1690 requires 5 V for the analog supply and 3.3 V for the digital supply. The 5-V supply is used to
power the DAC analog and output filter circuitry, and the 3.3-V supply is used to power the digital filter and serial
interface circuitry. For best performance, it is recommended to use a linear regulator with the 5-V and 3.3-V
supplies.
Five capacitors are required for supply bypassing (see Figure 41). These capacitors must be located as close as
possible to the PCM1690 package. The 10-μF capacitors are aluminum electrolytic, while the three 1-μF
capacitors are ceramic.
10 Layout
10.1 Layout Guidelines
A typical printed-circuit-board (PCB) layout for the PCM1690 is shown in Figure 43. A ground plane is
recommended, with the analog and digital sections being isolated from one another using a split or cut in the
circuit board. The PCM1690 must be oriented with the digital I/O pins facing the ground plane split/cut to allow
for short, direct connections to the digital audio interface and control signals originating from the digital section of
the board.
Separate power supplies are recommended for the digital and analog sections of the board. This configuration
prevents the switching noise present on the digital supply from contaminating the analog power supply and
degrading the dynamic performance of the PCM1690.
10.2 Layout Example
Analog Power
Digital Power
+3.3 VD
AGND
DGND
+5 VA +VS -VS
VDD VCC
Digital Logic
and
Audio
Processor
DGND
PCM1690
Output
Circuits
Digital
Ground
AGND
Digital Section
Analog Section
Analog
Ground
Return Path for 3.3 VD and Digital Signals
Figure 43. Recommended PCB Layout
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
39
PCM1690
SBAS448B – OCTOBER 2008 – REVISED AUGUST 2015
www.ti.com
11 Device and Documentation Support
11.1 Device Support
11.1.1 Development Support
For the PMC1690 application support, see the following:
• SoundPlus(TM) High Performance Audio Operational Amplifiers, OPA2134
• 3.3 V Dual PLL Multi-Clock Generator, PLL170X
• Dual Low-Noise Operational Amplifier, NE5532A
• High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier(TM) Series, OPA2353
11.2 Documentation Support
11.2.1 Related Documentation
For related documentation, see the following:
Dynamic Performance Testing of Digital Audio D/A Converters, SBAA055
11.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.4 Trademarks
E2E is a trademark of Texas Instruments.
Blu-ray is a trademark of Blu-ray Disk Association.
I2S is a trademark of NXP Semiconductors.
All other trademarks are the property of their respective owners.
11.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
40
Submit Documentation Feedback
Copyright © 2008–2015, Texas Instruments Incorporated
Product Folder Links: PCM1690
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
PCM1690DCA
ACTIVE
HTSSOP
DCA
48
40
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 85
PCM1690
PCM1690DCAR
ACTIVE
HTSSOP
DCA
48
2000
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 85
PCM1690
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
