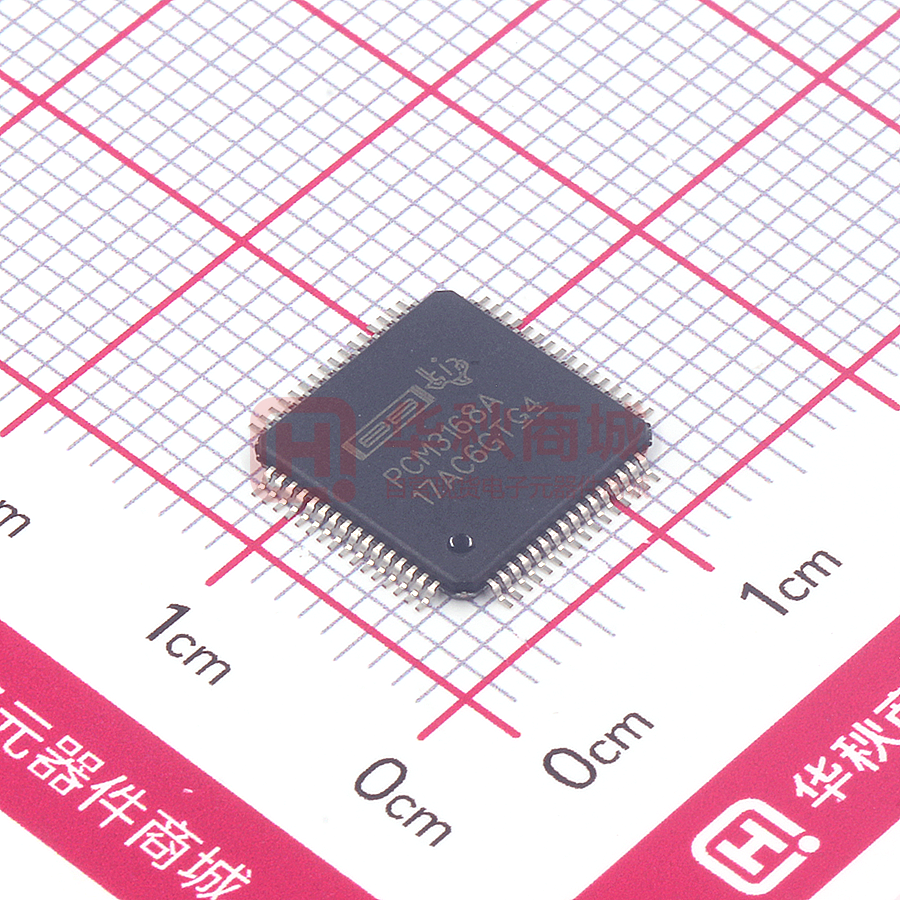

PCM3168APAPR

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents Reference Design PCM3168A Burr-Brown Audio SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 PCM3168A 24-Bit, 96-kHz/192-kHz, 6-In/8-Out Audio Codec With Differential Input/Output • • • • • • • • 2 Applications • • • • Car Audio External Amplifiers Car Audio AVN Applications Home Theaters AV Receivers 3 Description The PCM3168A device is a high-performance, singlechip, 24-bit, 6-in/8-out, audio coder and decoder (codecs) with single-ended and differential-selectable analog inputs and differential outputs. Device Information(1) PART NUMBER PCM3168A PACKAGE BODY SIZE (NOM) HTQFP (64) 10.00 mm x 10.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Simplified Application Diagram DSP 6 Channel Differential Analog Audio Source Input Filters PCM3168A I2C • 24-Bit ΔΣ ADC and DAC Six-ChanneL ADC: – High Performance: Differential and SingleEnded, fS = 48 kHz – THD+N: –93 dB (Differential and SingleEnded) – SNR: 107 dB (Differential), 104 dB (Single-Ended) – Dynamic Range: 107 dB (Differential), 104 dB (Single-Ended) – Sampling Rate: 8 kHz to 96 kHz – System Clock: 256 fS, 384 fS, 512 fS, 768 fS – Differential Voltage Input: 2 VRMS – Single-Ended Voltage Input: 1 VRMS – Decimation Filter: – Passband Ripple: ±0.035 dB – Stop Band Attenuation: –75 dB – On-Chip, Highpass Filter: 0.96 Hz at fS = 48 kHz – Overflow Flag Eight-Channel DAC: – High Performance: Differential, fS = 48 kHz – THD+N: –94 dB – SNR: 112 dB – Dynamic Range: 112 dB – Sampling Rate: 8 kHz to 192 kHz – System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS – Differential Voltage Output: 8 VPP – Analog Lowpass Filter Included – 4x/8x Oversampling Digital Filter: – Passband Ripple: ±0.0018 dB – Stop Band Attenuation: –75 dB – Zero Flag Flexible Mode Control: – Four-Wire SPI™, Two-Wire I2C™ Compatible Serial Control Interface or Hardware Control Multi Functions Through SPI or I2C I/F: – Audio I/F Mode and Format Select for ADC and DAC – Digital Attenuation and Soft Mute for ADC and DAC – Digital De-Emphasis: 32, 44.1, and 48 kHz for DAC Multi Functions Through H/W Control: – Audio I/F Mode/Format Select – Digital De-Emphasis Filter: 44.1 kHz for DAC External Reset Pin: – ADC/DAC Simultaneous Audio Interface Mode: – ADC/DAC Independent Master and Slave Audio Data Format: – ADC/DAC Independent I2S™, Left-Justified, Right-Justified, DSP, TDM Power Supplies: 5 V for Analog and 3.3 V for Digital Package: HTQFP-64 Operating Temperature Range: – Consumer Grade: –40°C to 85°C – Automotive Audio Grade: –40°C to 105°C OVF/ZERO • • 1 • TDM 1 Features x4 TAS5424 C-Q1 x4 x4 TAS5424 C-Q1 x4 Output Filters 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Description (continued)......................................... Device Comparison Table..................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 3 4 7 8.1 8.2 8.3 8.4 8.5 8.6 8.7 8.8 Absolute Maximum Ratings ..................................... 7 ESD Ratings.............................................................. 8 Recommended Operating Conditions....................... 8 Thermal Information .................................................. 8 Electrical Characteristics........................................... 9 Timing Requirements: System Clock...................... 12 Timing Requirements: Power-On Reset ................. 13 Timing Requirements: Audio Interface for LeftJustified, Right-Justified, and I2S (Slave Mode) ...... 13 8.9 Timing Requirements: Audio Interface for LeftJustified, Right-Justified, and I2S (Master Mode) .... 13 8.10 Timing Requirements: Audio Interface for DSP and TDM (Slave Mode)................................................... 14 8.11 Timing Requirements: Audio Interface for DSP and TDM (Master Mode)................................................. 14 8.12 Timing Requirements: DAC Outputs and ADC Outputs..................................................................... 14 8.13 Timing Requirements: Four-Wire Serial Control Interface ................................................................... 15 8.14 Timing Requirements: SCL and SDA Control Interface ................................................................... 15 8.15 Typical Characteristics .......................................... 19 9 Detailed Description ............................................ 24 9.1 9.2 9.3 9.4 9.5 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ Register Maps ......................................................... 24 24 25 31 36 10 Application and Implementation........................ 51 10.1 Application Information.......................................... 51 10.2 Typical Application ................................................ 51 10.3 System Examples ................................................. 53 11 Power Supply Recommendations ..................... 54 12 Layout................................................................... 55 12.1 Layout Guidelines ................................................. 55 12.2 Layout Example .................................................... 57 13 Device and Documentation Support ................. 58 13.1 13.2 13.3 13.4 13.5 13.6 Device Support...................................................... Documentation Support ........................................ Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 58 58 58 58 58 58 14 Mechanical, Packaging, and Orderable Information ........................................................... 58 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Original (September 2008) to Revision A • 2 Page Added ESD Ratings table, Feature Description section, Device Functional Modes section, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section. .............................................................. 1 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 5 Description (continued) The six-channel, 24-bit analog-to-digital converter (ADC) employs a delta-sigma (ΔΣ) modulator and supports 8-kHz to 96-kHz sampling rates and a 16-bit/24-bit width digital audio output word on the audio interface. The eight-channel, 24-bit digital-to-analog converter (DAC) employs a ΔΣ modulator and supports 8-kHz to 192-kHz sampling rates and a 16-bit/24-bit width digital audio input word on the audio interface. Each audio interface supports I2S, left-justified, right-justified, and DSP formats with 16-bit/24-bit word width. In addition, the PCM3168A device supports the time-division-multiplexed (TDM) format. The PCM3168A device can be controlled through a four-wire, SPI-compatible interface, or two-wire, I2Ccompatible serial interface in software, which provides access to all functions including digital attenuation, soft mute, de-emphasis, and so forth. Also, hardware control mode provides a subset of user-programmable functions through four control pins. The PCM3168A device is available in a 12-mm × 12-mm (10-mm × 10-mm body) HTQFP-64 PowerPAD™ package. 6 Device Comparison Table PART ADCs DACs CONTROL 2 AUTOMOTIVE GRADE PCM3168A 6 8 SPI, I C No PCM3168A-Q1 6 8 SPI, I2C Yes Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 3 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 7 Pin Configuration and Functions VIN6+ VIN6- VIN5+ VIN5- VREFAD2 AREFAD1 VIN4+ VIN4- VIN3+ VIN3- VIN2+ VIN2- VIN1+ VIN1- AGNDAD1 VCCAD1 PAP Package 64-Pin HTQFP With PowerPAD Top View 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 VCOMAD 1 48 MODE AGNDAD2 2 47 DGND1 VCCAD2 3 46 VDD1 RST 4 45 MS/ADR0/MD0 OVF 5 44 MDO/ADR1/MD1 LRCKAD 6 43 MDI/SDA/DEMP BCKAD 7 42 MC/SCL/FMT DOUT1 8 41 SCKI DOUT2 9 40 DIN4 PCM3168A PCM3168A-Q1 PowerPAD (Connected to Analog Ground) 4 VCCDA1 14 35 LRCKDA VCOMDA 15 34 VCCDA2 AGNDDA1 16 33 AGNDDA2 17 18 19 20 21 22 23 24 25 26 27 28 29 Submit Documentation Feedback 30 31 32 VOUT1- BCKDA VOUT1+ 36 VOUT2- 13 VOUT2+ ZERO VOUT3- DIN1 VOUT3+ 37 VOUT4- 12 VOUT4+ VDD2 VOUT5- DIN2 VOUT5+ 38 VOUT6- 11 VOUT6+ DGND2 VOUT7- DIN3 VOUT7+ 39 VOUT8- 10 VOUT8+ DOUT3 Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Pin Functions PIN NO. NAME I/O PULLDOWN 5-V TOLERANT DESCRIPTION 1 VCOMAD — No No ADC analog common voltage decoupling 2 AGNDAD2 — No No Analog ground 2 for ADC 3 VCCAD2 — No No ADC analog power supply 2, 5 V 4 RST I Yes Yes Reset and power-down control input with active low 5 OVF O No No Overflow flag output for ADC 6 LRCKAD I/O Yes No Audio data word clock input/output for ADC 7 BCKAD I/O Yes No Audio data bit clock input/output for ADC 8 DOUT1 O No No Audio data digital output for ADC1 and ADC2 9 DOUT2 O No No Audio data digital output for ADC3 and ADC4 10 DOUT3 O No No Audio data digital output for ADC5 and ADC6 11 DGND2 — No No Digital ground 2 12 VDD2 — No No Digital power supply 2, 3.3 V 13 ZERO O No No Zero detect flag output for DAC 14 VCCDA1 — No No DAC analog power supply 1, 5 V 15 VCOMDA — No No DAC voltage common decoupling 16 AGNDDA1 — No No Analog ground 1 for DAC 17 VOUT8+ O No No Positive analog output from DAC8 18 VOUT8– O No No Negative analog output from DAC8 19 VOUT7+ O No No Positive analog output from DAC7 20 VOUT7– O No No Negative analog output from DAC7 21 VOUT6+ O No No Positive analog output from DAC6 22 VOUT6– O No No Negative analog output from DAC6 23 VOUT5+ O No No Positive analog output from DAC5 24 VOUT5– O No No Negative analog output from DAC5 25 VOUT4+ O No No Positive analog output from DAC4 26 VOUT4– O No No Negative analog output from DAC4 27 VOUT3+ O No No Positive analog output from DAC3 28 VOUT3– O No No Negative analog output from DAC3 29 VOUT2+ O No No Positive analog output from DAC2 30 VOUT2– O No No Negative analog output from DAC2 31 VOUT1+ O No No Positive analog output from DAC1 32 VOUT1– O No No Negative analog output from DAC1 33 AGNDDA2 — No No Analog ground 2 for DAC 34 VCCDA2 — No No DAC analog power supply 2, 5 V 35 LRCKDA I/O Yes No Audio data word clock input/output for DAC 36 BCKDA I/O Yes No Audio data bit clock input/output for DAC 37 DIN1 I No No Audio data input for DAC1 and DAC2 38 DIN2 I No No Audio data input for DAC3 and DAC4 39 DIN3 I No No Audio data input for DAC5 and DAC6 40 DIN4 I No No Audio data Input for DAC7 and DAC8 41 SCKI I No Yes System clock input 42 MC/SCL/FMT I No Yes Clock for SPI, clock for I2C, format select for hardware control mode 43 MDI/SDA/DEMP I/O No Yes Input data for SPI, data for I2C (1), de-emphasis control for hardware control mode (1) Open-drain configuration in I2C. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 5 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Pin Functions (continued) PIN NO. NAME I/O PULLDOWN 5-V TOLERANT DESCRIPTION 44 MDO/ADR1/MD1 I/O No No Output data for SPI (2), address select 1 for I2C, mode select 1 for hardware control mode 45 MS/ADR0/MD0 I Yes Yes Chip select for SPI, address select 0 for I2C, mode select 0 for hardware control mode 46 VDD1 — No No Digital power supply 1, 3.3 V 47 DGND1 — No No Digital ground 1 48 MODE I No No Control port mode selection. Tied to VDD: SPI, pull-up: H/W singleended input, pull-down: H/W and differential input, tied to DGND: I2C 49 VCCAD1 — No No ADC analog power supply 1, 5 V 50 AGNDAD1 — No No Analog ground 1 for ADC 51 VIN1– I No No Negative analog input to ADC1 52 VIN1+ I No No Positive analog input to ADC1 53 VIN2– I No No Negative analog input to ADC2 54 VIN2+ I No No Positive analog input to ADC2 55 VIN3– I No No Negative analog input to ADC3 56 VIN3+ I No No Positive analog input to ADC3 57 VIN4– I No No Negative analog input to ADC4 58 VIN4+ I No No Positive analog input to ADC4 59 VREFAD1 — No No ADC analog reference voltage 1 decoupling 60 VREFAD2 — No No ADC analog reference voltage 2 decoupling 61 VIN5– I No No Negative analog input to ADC5 62 VIN5+ I No No Positive analog input to ADC5 63 VIN6– I No No Negative analog input to ADC6 64 VIN6+ I No No Positive analog input to ADC6 (2) 6 3-state (Hi-Z) operation in SPI. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 8 Specifications 8.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted). (1) Supply voltage Ground voltage differences Supply voltage differences Digital input voltage Analog input voltage MIN MAX VCCAD1 –0.3 6.5 VCCAD2 –0.3 6.5 VCCDA1 –0.3 6.5 VCCDA2 –0.3 6.5 VDD1 –0.3 4 VDD2 –0.3 4 AGNDAD1 –0.1 0.1 AGNDAD2 –0.1 0.1 AGNDDA1 –0.1 0.1 AGNDDA2 –0.1 0.1 DGND1 –0.1 0.1 DGND2 –0.1 0.1 VCCAD1 –0.1 0.1 VCCAD2 –0.1 0.1 VCCDA1 –0.1 0.1 VCCDA2 –0.1 0.1 VDD1 –0.1 0.1 VDD2 –0.1 0.1 RST –0.3 6.5 MS –0.3 6.5 MC –0.3 6.5 MDI –0.3 6.5 SCK –0.3 6.5 BCKAD/DA –0.3 (VDD + 0.3) < +4.0 LRCKAD/DA –0.3 (VDD + 0.3) < +4.0 DIN1/2/3/4 –0.3 (VDD + 0.3) < +4.0 DOUT1/2/3 –0.3 (VDD + 0.3) < +4.0 MODE –0.3 (VDD + 0.3) < +4.0 OVF –0.3 (VDD + 0.3) < +4.0 ZERO –0.3 (VDD + 0.3) < +4.0 MDO –0.3 (VDD + 0.3) < +4.0 VIN1-6± –0.3 (VCC + 0.3) < +6.5 VCOMAD/DA –0.3 (VCC + 0.3) < +6.5 VOUT1-8± –0.3 (VCC + 0.3) < +6.5 VREFAD1/2 –0.3 (VCC + 0.3) < +6.5 UNIT V V V V V Input current (all pins except supplies) –10 10 mA Ambient temperature range (under bias) –40 125 °C Junction temperature 150 °C Lead temperature (soldering, 5s) 260 °C Package temperature (IR reflow, peak) 260 °C 150 °C Storage temperature, Tstg (1) –55 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 7 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 8.2 ESD Ratings VALUE Electrostatic discharge V(ESD) (1) (2) Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±4000 Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) ±750 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 8.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted). MIN NOM MAX UNIT VCC Analog supply voltage 4.5 5.0 5.5 V VDD Digital supply voltage 3.0 3.3 3.6 V Digital Interface LVTTL compatible Sampling frequency, LRCKAD/LRCKDA (1) Digital input clock frequency VI Analog input level VO Analog output voltage System clock frequency, SCKI 96/192 (1) 8 2.048 36.864 kHz MHz Single-ended 1 VRMS Differential 2 VRMS 8 VPP Differential To AC-coupled GND 5 kΩ To DC-coupled GND 15 kΩ VOLR Analog output load resistance VOLC Analog output load capacitance 50 pF DOLC Digital output load capacitance 20 pF TA Operating free-air temperature 85 °C (1) PCM3168A Consumer grade –40 25 192 kHz is supported only for DAC. 8.4 Thermal Information PCM3168A THERMAL METRIC (1) PAP (HTQFP) UNIT 64 PINS RθJA Junction-to-ambient thermal resistance 26.1 °C/W RθJC(top) Junction-to-case (top) thermal resistance 7.7 °C/W RθJB Junction-to-board thermal resistance 8.9 °C/W ψJT Junction-to-top characterization parameter 0.2 °C/W ψJB Junction-to-board characterization parameter 8.7 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance 0.2 °C/W (1) 8 For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 8.5 Electrical Characteristics At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DATA FORMAT I2S, LJ, RJ, DSP, TDM Audio data interface format Audio data word length 16, 24 Audio data format fS Sampling frequency, ADC fS Sampling frequency, DAC System clock frequency Bits MSB first, twos complement 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS 8 48 96 kHz 8 48 192 kHz 2.048 36.864 MHz 2 VDD INPUT LOGIC VIH (1) (2) VIL (1) (2) VIH (3) (4) VIL (3) (4) IIH (2) (3) IIL (2) (3) IIH (1) (4) IIL (1) (4) Input logic level 0.8 2 Input logic level Input logic level Input logic level 5.5 0.8 VIN = VDD ±10 VIN = 0 V ±10 VIN = VDD 65 VIN = 0 V VDC VDC μA 100 μA ±10 OUTPUT LOGIC VOH (5) VOL (5) (6) Output logic level IOUT = –4 mA 2.4 IOUT = 4 mA 0.4 VDC REFERENCE INPUT/OUTPUT VREFAD1 output voltage VCCAD1 V VREFAD2 output voltage AGNDAD1 V VCOMAD output voltage 0.5 × VCCAD1 VCOMAD output impedance V 10 Allowable VCOMAD output source/sink current kΩ μA 1 VCOMDA output voltage 0.5 × VCCDA1 VCOMDA output impedance V 7.5 Allowable VCOMDA output source/sink current kΩ μA 1 ADC CHARACTERISTICS Resolution Full-scale input voltage 16 24 Bits VIN = 0 dB, Single-ended 0.2 × VCCAD1 VRMS VIN = 0 dB, Differential 0.4 × VCCAD1 VRMS Center voltage 0.5 × VCCAD1 V Input impedance 45 kΩ Common-mode rejection ratio 80 dB DC ACCURACY (1) (2) (3) (4) (5) (6) Gain mismatch channel-to-channel Full-scale input, VIN ±2.0 ±6 % of FSR Gain error Full-scale input, VIN ±2.0 ±6 % of FSR Bipolar zero error Highpass filter bypass, VIN ±1.0 % of FSR BCKAD, BCKDA, LRCKAD, and LRCKDA (in slave mode, Schmitt trigger input with 50-kΩ typical internal pulldown resistor). DIN1/2/3/4 and MDO/ADR1/MD1. (Except SPI mode, Schmitt trigger input). SCKI, MDI/SDA/DEMP, and MC/SCL/FMT (Schmitt trigger input, 5-V tolerant). RST and MS/ADR0/MD0 (Schmitt trigger input with 50-kΩ typical internal pulldown resistor, 5-V tolerant). BCKAD, BCKDA, LRCKAD, and LRCKDA (in master mode), DOUT1/2/3, ZERO, OVF, and MDO/ADR1/MD1 (in SPI mode). SDA (in I2C mode, open-drain low output). Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 9 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Electrical Characteristics (continued) At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX fS = 48 kHz, Differential –93 –87 fS = 96 kHz, Differential –93 fS = 48 kHz, Single-ended –93 fS = 96 kHz, Single-ended –93 UNIT DYNAMIC PERFORMANCE (7) (8) THD+N, VIN = –1 dB fS = 48 kHz, A-weighted, differential Dynamic range 100 107 fS = 48 kHz, A-weighted, single-ended 104 fS = 96 kHz, A-weighted, single-ended 104 dB 100 107 fS = 96 kHz, A-weighted, differential 107 fS = 48 kHz, A-weighted, single-ended 104 fS = 96 kHz, A-weighted, single-ended 104 dB fS = 48 kHz, Differential Channel separation (between one channel and others) 107 fS = 96 kHz, A-weighted, differential fS = 48 kHz, A-weighted, differential S/N ratio dB 98 104 fS = 96 kHz, Differential 104 fS = 48 kHz, Single-ended 101 fS = 96 kHz, Single-ended 101 dB DIGITAL FILTER PERFORMANCE Passband (single) 0.454 × fS Hz Passband (dual) 0.454 × fS Hz Stop band (single) 0.555 × fS Stop band (dual) Hz 0.597 × fS Passband ripple < 0.454 × fS, 0.454 × fS Stop band attenuation > 0.555 × fS, 0.597 × fS Hz ±0.035 dB –75 dB Group delay time (single) 27 / fS sec Group delay time (dual) 17 / fS sec 0.02 × fS / 1000 Hz 24 Bits Highpass filter frequency response –3 dB DAC CHARACTERISTICS Resolution 16 DC ACCURACY (7) (8) 10 Gain mismatch channel-to-channel ±2.0 ±6 % of FSR Gain error ±2.0 ±6 % of FSR Bipolar zero error ±1.0 % of FSR In differential mode at VINx± pin, fIN = 1 kHz, using Audio Precision System II, RMS mode with 20-kHz lowpass filter and 400-Hz highpass filter. fS = 48 kHz : SCKI = 512 fS (single), fS = 96 kHz : SCKI = 256 fS (dual), fS = 192 kHz : SCKI = 128 fS (quad). Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Electrical Characteristics (continued) At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX fS = 48 kHz –94 –88 fS = 96 kHz –94 fS = 192 kHz –94 UNIT DYNAMIC PERFORMANCE (9) (10) THD+N, VOUT = 0 dB fS = 48 kHz, EIAJ, Aweighted Dynamic range 105 S/N ratio 112 fS = 192 kHz, EIAJ, Aweighted 112 105 112 fS = 192 kHz, EIAJ, Aweighted 112 102 dB 112 fS = 96 kHz, EIAJ, Aweighted fS = 48 kHz Channel separation (between one channel and others) 112 fS = 96 kHz, EIAJ, Aweighted fS = 48 kHz, EIAJ, Aweighted dB dB 108 fS = 96 kHz 108 fS = 192 kHz 108 dB ANALOG OUTPUT Output voltage Differential Center voltage Load impedance Lowpass filter frequency response DIGITAL FILTER PERFORMANCE (12) (11) 5 To DC-coupled GND (11) 15 To AC-coupled GND 1.6 × VCCDA1 VPP 0.5 × VCCDA1 V kΩ f = 20 kHz –0.04 f = 44 kHz –0.18 dB Slow roll-off Passband (single, dual) 0.454 × fS Hz Passband (quad) 0.432 × fS Hz Stop band (single, dual) 0.546 × fS Stop band (quad) 0.569 × fS Passband ripple ≤ 0.454 × fS Stop band attenuation > 0.546 × fS, 0.569 × fS DIGITAL FILTER PERFORMANCE Hz Hz ±0.0018 –75 dB dB Slow roll-off Passband 0.328 × fS Stop band 0.673 × fS Passband ripple < 0.328 × fS Stop band attenuation > 0.673 × fS Hz Hz ±0.0013 –75 dB dB (9) In differential mode at VOUTx± pin, fOUT = 1 kHz, using Audio Precision System II, RMS mode with 20-kHz lowpass filter and 400-Hz highpass filter. (10) fS = 48 kHz : SCKI = 512 fS (single), fS = 96 kHz : SCKI = 256 fS (dual), fS = 192 kHz : SCKI = 128 fS (quad). (11) Allowable minimum input resistance of differential to single-ended converter with D to S Gain = G is calculated as (1 + 2G)/(1 + G) × 5k for AC-coupled and (1+ 0.9G)/(1 + G) × 15k for DC-coupled connection, refer to Figure 61 and Figure 62 of the Application Information section. (12) Exclude single and dual at 128 fS, 192 fS system clock and quad at 256 fS to 768 fS system clock, and specifications for quad, single, and dual are respectively applied in reverse for them. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 11 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Electrical Characteristics (continued) At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DIGITAL FILTER PERFORMANCE (12) Group delay time (single, dual) 28/fS sec Group delay time (quad) 19/fS sec De-emphasis error ±0.1 dB POWER-SUPPLY REQUIREMENTS VCCxx1/2 VDD1/2 4.5 5.0 5.5 3.0 3.3 3.6 fS = 48 kHz/ADC, fS = 48 kHz/DAC 162 210 fS = 96 kHz/ADC, fS = 192 kHz/DAC 162 mA Full power-down (13) 300 μA fS = 48 kHz/ADC, fS = 48 kHz/DAC 106 fS = 96 kHz/ADC, fS = 192 kHz/DAC 127 mA 50 μA Voltage range ICC Supply current IDD Full power-down Power dissipation (13) fS = 48 kHz/ADC, fS = 48 kHz/DAC 1160 fS = 96 kHz/ADC, fS = 192 kHz/DAC 1230 fS = 48 kHz/ADC, Powerdown/DAC 660 Power-down/ADC, fS = 48 kHz/DAC 633 Full power-down (13) 1.67 130 VDC mA mA 1480 mW TEMPERATURE RANGE θJA Operating temperature PCM3168A Consumer grade Thermal resistance HTQFP-64 –40 85 21 °C °C/W (13) Halt SCKI, BCKAD, BCKDA, LRCKAD, and LRCKDA. 8.6 Timing Requirements: System Clock Refer to Figure 1. MIN MAX UNIT tSCY System clock pulse cycle time 27 ns tSCH System clock pulse width high 10 ns tSCL System clock pulse width low 10 ns tDTY System clock pulse duty cycle 12 40% Submit Documentation Feedback 60% Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 8.7 Timing Requirements: Power-On Reset Refer to Figure 2. SINGLE DUAL QUAD UNIT tDACDLY1 DAC delay time internal reset release to VOUT start 3600 7200 14400 Period of LRCKDA tDACDLY2 DAC fade-in/fade-out time 2048 4096 8192 Period of LRCKDA tADCDLY1 ADC delay time internal reset release to DOUT start 4800 9600 N/A Period of LRCKAD tADCDLY2 ADC fade-in/fade-out time 2048 4096 N/A Period of LRCKAD 8.8 Timing Requirements: Audio Interface for Left-Justified, Right-Justified, and I2S (Slave Mode) (1) Refer to Figure 3. MIN NOM MAX UNIT tBCY BCKAD/DA cycle time 75 ns tBCH BCKAD/DA pulse width high 35 ns tBCL BCKAD/DA pulse width low 35 ns tLRS LRCKAD/DA setup time to BCKAD/DA rising edge 10 ns tLRH LRCKAD/DA hold time to BCKAD/DA rising edge 10 ns tDIS DIN1/2/3/4 setup time to BCKDA rising edge 10 ns tDIH DIN1/2/3/4 hold time to BCKDA rising edge 10 ns tDOD DOUT1/2/3 delay time from BCKAD falling edge (1) 0 30 ns Load capacitance of output is 20 pF. 8.9 Timing Requirements: Audio Interface for Left-Justified, Right-Justified, and I2S (Master Mode) (1) Refer to Figure 4. MIN TYP MAX tBCY BCKAD/DA cycle time tBCH BCKAD/DA pulse width high 0.4 × tBCY 0.5 × tBCY 0.6 × tBCY tBCL BCKAD/DA pulse width low 0.4 × tBCY 0.5 × tBCY 0.6 × tBCY tLRD LRCKAD/DA delay time from BCKAD/DA falling edge tDIS DIN1/2/3/4 setup time to BCKDA rising edge 10 tDIH DIN1/2/3/4 hold time to BCKDA rising edge 10 tDOD DOUT1/2/3 delay time from BCKAD falling edge (1) UNIT 1 / (64 × fS) –10 –10 20 ns ns ns 20 ns Load capacitance of output is 20 pF. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 13 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 8.10 Timing Requirements: Audio Interface for DSP and TDM (Slave Mode) (1) Refer to Figure 5. MIN tBCY tBCH tBCL tLRW TYP MAX UNIT BCKAD cycle time 75 ns BCKDA cycle time 40 ns BCKAD pulse width high 35 ns BCKDA pulse width high 15 ns BCKAD pulse width low 35 ns BCKDA pulse width low 15 ns LRCKAD/DA pulse width high (DSP format) tBCY LRCKAD/DA pulse width high (TDM format) tBCY 1 / fS – tBCY tLRS LRCKAD/DA setup time to BCKAD/DA rising edge 10 ns tLRH LRCKAD/DA hold time to BCKAD/DA rising edge 10 ns tDIS DIN1/2/3/4 setup time to BCKDA rising edge 10 ns tDIH DIN1/2/3/4 hold time to BCKDA rising edge 10 tDOD DOUT1/2/3 delay time from BCKAD falling edge (1) ns 0 30 ns Load capacitance of output is 20 pF. 8.11 Timing Requirements: Audio Interface for DSP and TDM (Master Mode) (1) Refer to Figure 6. MIN BCKAD/DA cycle time (DSP format) tBCY TYP MAX BCKAD/DA cycle time (TDM format, single rate) 1 / (256 × fS) BCKAD/DA cycle time (TDM format, dual rate) 1 / (128 × fS) tBCH BCKAD/DA pulse width high 0.4 × tBCY 0.5 × tBCY 0.6 × tBCY tBCL BCKAD/DA pulse width low 0.4 × tBCY 0.5 × tBCY 0.6 × tBCY tLRW LRCKAD/DA pulse width high (DSP format) tBCY LRCKAD/DA pulse width high (TDM format) 1 / (2 × fS) tLRD LRCKAD/DA delay time from BCKAD/DA falling edge tDIS DIN1/2/3/4 setup time to BCKDA rising edge 10 tDIH DIN1/2/3/4 hold time to BCKDA rising edge 10 tDOD DOUT1/2/3 delay time from BCKAD falling edge (1) UNIT 1 / (64 × fS) –10 20 ns ns ns –10 20 ns Load capacitance of output is 20 pF. 8.12 Timing Requirements: DAC Outputs and ADC Outputs Refer to Figure 7. SINGLE DUAL QUAD UNIT tDACDLY3 DAC delay synchronization detect to normal data 38 38 29 Period of LRCKDA tADCDLY3 ADC delay synchronization detect to normal data 60 60 N/A Period of LRCKAD 14 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 8.13 Timing Requirements: Four-Wire Serial Control Interface (1) Refer to Figure 8. MIN MAX UNIT tMCY MC pulse cycle time 100 ns tMCL MC low-level time 40 ns tMCH MC high-level time 40 ns tMHH MS high-level time tMCY ns tMSS MS falling edge to MC rising edge 30 ns tMSH MS rising edge from MC rising edge for LSB 15 ns tMDH MDI hold time 15 ns tMDS MDI setup time 15 tMDD MDO enable or delay time from MC falling edge 0 30 ns tMDR MDO disable time from MS rising edge 0 30 ns (1) ns These timing parameters are critical for proper control port operation. 8.14 Timing Requirements: SCL and SDA Control Interface Refer to Figure 9. STANDARD MODE MIN FAST MODE MAX MIN MAX 100 UNIT fSCL SCL clock frequency tBUF Bus free time between STOP and START condition 4.7 1.3 μs tLOW Low period of the SCL clock 4.7 1.3 μs tHI High period of the SCL clock 4.0 0.6 μs tS-SU Setup time for START/Repeated START condition 4.7 0.6 μs tS-HD Hold time for START/Repeated START condition 4.0 0.6 μs tD-SU Data setup time 250 100 tD-HD Data hold time 0 400 kHz ns 3450 0 900 ns 300 ns tSCL-R Rise time of SCL signal 1000 20 + (0.1 × CB) tSCL-F Fall time of SCL signal 1000 20 + (0.1 × CB) 300 ns tSDA-R Rise time of SDA signal 1000 20 + (0.1 × CB) 300 ns tSDA-F Fall time of SDA signal 1000 20 + (0.1 × CB) 300 ns tP-SU Setup time for STOP condition tGW Allowable glitch width N/A 50 CB Capacitive load for SDA and SCL line 400 100 VNH Noise margin at high level for each connected device (including hysteresis) 0.2 × VDD 0.2 × VDD V VNL Noise margin at low level for each connected device (including hysteresis) 0.1 × VDD 0.1 × VDD V VHYS Hysteresis of Schmitt-trigger input N/A 0.05 × VDD V 4.0 μs 0.6 pF tSCH High 2.0 V System Clock (SCKI) 0.8 V Low tSCY tSCL Figure 1. System Clock Timing Requirements Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 15 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com (VDD = 3.3 V, typ) VDD (VDD = 2.2 V, typ) 0V SCKI, BCKAD/DA, LRCKAD/DA Synchronous Clocks RST 3846 ´ SCKI Normal Operation Internal Reset tDACDLY2 tDACDLY1 VOUT1± to VOUT8± 0.5 ´ VCC VCOMDA (0.5 ´ VCCDA1) tADCDLY2 tADCDLY1 DOUT1/2/3 Fade-In ZERO Figure 2. Power-On Reset Timing Requirements tBCH tBCL BCKAD/DA (Input) 1.4 V tBCY tLRH tLRS LRCKAD/DA (Input) 1.4 V tDOD DOUT1/2/3 0.5 ´ VDD tDIS tDIH DIN1/2/3/4 1.4 V Figure 3. Audio Interface Timing Requirements for Left-Justified, Right-Justified, and I 2S Data Formats (Slave Mode) 16 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 tBCH tBCL BCKAD/DA (Output) 0.5 ´ VDD tLRD tBCY tLRW LRCKAD/DA (Output) 0.5 ´ VDD tDOD DOUT1/2/3 0.5 ´ VDD tDIS tDIH DIN1/2/3/4 1.4 V Figure 4. Audio Interface Timing Requirements for Left-Justified, Right-Justified, and I 2S Data Formats (Master Mode) tBCL tBCH BCKAD/DA (Input) 1.4 V tBCY tLRH tLRS LRCKAD/DA (Input) 1.4 V tLRW tDOD DOUT1/2/3 0.5 ´ VDD tDIS tDIH DIN1/2/3/4 1.4 V Figure 5. Audio Interface Timing Requirements for DSP and TDM Data Formats (Slave Mode) tBCH tBCL BCKAD/DA (Output) 0.5 ´ VDD tLRD tBCY LRCKAD/DA (Output) tLRW 0.5 ´ VDD tDOD DOUT1/2/3 0.5 ´ VDD tDIS tDIH DIN1/2/3/4 1.4 V Figure 6. Audio Interface Timing Requirements for DSP and TDM Data Formats (Master Mode) Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 17 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 State of Synchronization www.ti.com Asynchronous Synchronous Synchronous Within 1/fS tDACDLY3 Undefined Data DAC VOUTX± VCOMDA (0.5VCCDA1) Normal Normal tADCDLY3 Undefined Data ADC DOUTX Normal Normal ZERO Figure 7. DAC Outputs and ADC Outputs for Loss of Synchronization tMHH MS 1.4 V tMCH tMSS tMCL tMSH MC 1.4 V tMDS MSB (R/W) MDI tMCY tMDH LSB (D0) MSB (D7) ADR0 1.4 V tMDD Hi-Z MDO tMDR tMDD MSB (D7) LSB (D0) Hi-Z 0.5 ´ VDD (1) These timing parameters are critical for proper control port operation. Figure 8. Four-Wire Serial Control Interface Timing Repeated START START tBUF STOP tD-HD tD-SU tSDA-R tP-SU SDA tSCL-R tSDA-F tS-HD tLOW SCL tSCL-F tS-HD tHI tS-SU Figure 9. SCL and SDA Control Interface Timing 18 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 8.15 Typical Characteristics 8.15.1 ADC Digital Filter At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. 0 0.20 -20 0.15 0.10 -60 Amplitude (dB) Amplitude (dB) -40 -80 -100 -120 -140 0.05 0 -0.05 -0.10 -160 -0.15 -180 -0.20 -200 0 2 4 8 6 0 0.1 Normalized Frequency (fS) Figure 10. Frequency Response (Single Rate) 0 0.20 -20 0.15 0.5 0.4 0.10 -60 Amplitude (dB) Amplitude (dB) 0.3 Figure 11. Frequency Response Passband (Single Rate) -40 -80 -100 -120 -140 0.05 0 -0.05 -0.10 -160 -0.15 -180 -0.20 -200 0 1 2 4 3 0 0.1 Normalized Frequency (fS) 0.2 0.3 0.5 0.4 Normalized Frequency (fS) Figure 12. Frequency Response (Dual Rate) Figure 13. Frequency Response Passband (Dual Rate) 0 0 -5 -0.05 -10 -0.10 Amplitude (dB) Amplitude (dB) 0.2 Normalized Frequency (fS) -15 -20 -25 -0.15 -0.20 -0.25 -30 -0.30 -35 -0.35 -40 -0.40 0 0.0002 0.0004 0.0006 0.0008 0.0010 0 Normalized Frequency (fS) 0.002 0.004 0.006 0.008 0.010 Normalized Frequency (fS) Figure 14. HPF Frequency Response Figure 15. HPF Frequency Response Passband Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 19 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 8.15.2 DAC Digital Filter At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. 0 0.010 Sharp Slow Sharp Slow 0.008 0.006 -40 Amplitude (dB) Amplitude (dB) -20 -60 -80 0.004 0.002 0 -0.002 -0.004 -100 -0.006 -120 -0.008 -140 0 1 2 -0.010 4 3 0 0.1 Normalized Frequency (fS) Figure 16. Frequency Response (Single Rate) 0.5 Sharp Slow 0.008 0.006 -40 Amplitude (dB) Amplitude (dB) 0.4 0.010 Sharp Slow -20 -60 -80 0.004 0.002 0 -0.002 -0.004 -100 -0.006 -120 -0.008 -140 0 1 2 -0.010 4 3 0 0.1 Normalized Frequency (fS) 0.2 0.3 0.4 0.5 Normalized Frequency (fS) Figure 18. Frequency Response (Dual Rate) Figure 19. Frequency Response Passband (Dual Rate) 0.010 0 Sharp Slow -20 Sharp Slow 0.008 0.006 -40 Amplitude (dB) Amplitude (dB) 0.3 Figure 17. Frequency Response Passband (Single Rate) 0 -60 -80 0.004 0.002 0 -0.002 -0.004 -100 -0.006 -120 -0.008 -140 0 0.5 1.0 2.0 1.5 -0.010 0 0.1 0.2 0.3 0.4 0.5 Normalized Frequency (fS) Normalized Frequency (fS) Figure 20. Frequency Response (Quad Rate) 20 0.2 Normalized Frequency (fS) Figure 21. Frequency Response Passband (Quad Rate) Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 DAC Digital Filter (continued) 0 0 -1 -1 -2 -2 -3 -3 Amplitude (dB) Amplitude (dB) At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. -4 -5 -6 -4 -5 -6 -7 -7 -8 -8 -9 -9 -10 -10 0 4 2 6 10 8 12 14 16 18 20 22 0 4 2 6 10 8 12 14 16 18 20 Frequency (kHz) Frequency (kHz) Figure 22. De-Emphasis Characteristic (FS = 48 kHz) Figure 23. De-Emphasis Characteristic (FS = 44 kHz) 0 0 -1 -10 -3 Amplitude (dB) Amplitude (dB) -2 -4 -5 -6 -20 -30 -7 -8 -40 -9 -10 0 2 4 6 8 10 -50 12 14 1k 10k 1M 100k 10M Frequency (kHz) Frequency (Hz) Figure 24. De-Emphasis Characteristic (FS = 32 kHz) Figure 25. Analog Filter Characteristic 8.15.3 ADC Performance At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. 112 Dynamic Range and SNR (dB) -88 THD+N (dB) -90 -92 -94 -96 -98 110 SNR 108 Dynamic Range 106 104 102 100 -100 -50 -25 0 25 50 75 100 125 -50 Temperature (°C) -25 0 25 50 75 100 125 Temperature (°C) Figure 26. THD+N At –1 dB vs Temperature Figure 27. Dynamic Range and SNR vs Temperature Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 21 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com ADC Performance (continued) At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. 112 Dynamic Range and SNR (dB) -88 THD+N (dB) -90 -92 -94 -96 -98 -100 4.50 4.75 5.25 5.00 110 SNR 108 Dynamic Range 106 104 102 100 4.50 5.50 4.75 5.25 5.00 5.50 Supply Voltage (V) Supply Voltage (V) Figure 28. THD+N At –1 dB vs Supply Voltage Figure 29. Dynamic Range and SNR vs Supply Voltage 8.15.4 DAC Performance At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. 116 Dynamic Range and SNR (dB) -90 THD+N (dB) -92 -94 -96 -98 -100 114 Dynamic Range 112 SNR 110 108 106 104 -102 -50 -25 0 25 50 75 100 125 -50 -25 0 Temperature (°C) Figure 30. THD+N vs Temperature Dynamic Range and SNR (dB) THD+N (dB) 75 100 125 116 -92 -94 -96 -98 -100 22 50 Figure 31. Dynamic Range and SNR vs Temperature -90 -102 4.50 25 Temperature (°C) 4.75 5.00 5.25 5.50 114 Dynamic Range 112 SNR 110 108 106 104 4.50 4.75 5.00 5.25 5.50 Supply Voltage (V) Supply Voltage (V) Figure 32. THD+N vs Supply Voltage Figure 33. Dynamic Range and SNR vs Supply Voltage Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 8.15.5 Output Spectrum 0 0 -20 -20 -40 -40 Amplitude (dB) Amplitude (dB) At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. -60 -80 -100 -60 -80 -100 -120 -120 -140 -140 -160 -160 0 5 20 15 10 0 5 Frequency (kHz) 10 15 20 Frequency (kHz) Figure 34. ADC Output Spectrum (–60 dB, N = 32768) Figure 35. DAC Output Spectrum (–60 dB, N = 32768) 8.15.6 Power-Supply At TA = 25°C, VCCAD1 = VCCAD2 = VCCDA1 = VCCDA2 = 5 V, VDD1 = VDD2 = 3.3 V, fS = 48 kHz, SCKI = 512 fS, 24-bit data, Sampling Mode = Auto for ADC and DAC, and Interface Mode = Slave for ADC and DAC, unless otherwise noted. 200 ICC IDD Power-Supply Current (mA) 180 160 140 120 100 80 60 40 20 0 Operation DAC Off ADC Off Clock Off Power-Save Condition Figure 36. Power-Supply Current vs Power-Save Condition Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 23 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 9 Detailed Description 9.1 Overview The PCM3168A device is a high-performance, multi-channel codec targeted for automotive audio applications, such as external amplifiers, as well as home multi-channel audio applications (for example, home theaters and A/V receivers). The PCM3168A device consists of six-channel analog-to-digital converters (ADCs) and eightchannel digital-to-analog converters (DACs). The ADC input is selectable between single-ended and differential inputs. The DAC output type is fixed with a differential configuration. The PCM3168A device supports 24-bit linear PCM input and output data in standard audio formats (left-justified, right-justified, and I2S), DSP and TDM formats, and various sample frequencies from 8 kHz to 192 kHz (the ADC configuration supports only up to 96 kHz). The TDM format is useful to save interface bus line numbers for multi-channel audio data communication between the codec and digital audio processor. The PCM3168A device offers three modes for device control: two-wire I2C software, four-wire SPI software, and hardware modes. VIN1+ BCKDA LRCKDA DIN4 DIN3 DIN2 DIN1 SCKI DOUT3 DOUT2 DOUT1 BCKAD LRCKAD 9.2 Functional Block Diagram VOUT1+ Audio Serial Interface and Clock Control ADC DAC VIN1- VOUT1- VIN2+ VOUT2+ DAC ADC VIN2- VOUT2- VIN3+ VOUT3+ DAC ADC VIN3- VOUT3- VIN4+ VOUT4+ ADC Digital Filter and Volume Digital Filter and Volume VIN4VIN5+ ADC DAC VOUT4VOUT5+ DAC VIN5- VOUT5- VIN6+ VOUT6+ DAC ADC VIN6- VOUT6VOUT7+ DAC VDD1 VDD2 DGND1 DGND2 VOUT7VOUT8+ DAC VOUT8- 24 Mode Control Port 2 ZERO MC/SCL/FMT MDI/SDA/DEMP MDO/ADR1/MD1 MS/ADR0/MD0 MODE RST (SPI/I C) OVF VCOMDA VCOMAD VREFAD2 Common and Reference VREFAD1 VCCAD1/2 VCCDA1/2 AGNDAD1/2 AGNDDA1/2 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 9.3 Feature Description 9.3.1 Analog Inputs The PCM3168A device includes six ADCs, each with individual pairs of differential voltage input pins, as shown in Table 1. Additionally, the PCM3168A device has the capability of single-ended inputs. The full-scale input voltage is (0.2 × VCCAD1) VRMS at the single-ended input mode and (0.4 × VCCAD1) VRMS at the differential input mode. The input mode is selected by the MODE pin in hardware control mode or by register settings in the software control mode. In single-ended mode, VINx+ pins are used and VINx– pins must be terminated with AGNDAD1/2 through a capacitor or terminated with VCOMAD. Table 1. Pin Assignments in Differential and Single-Ended Input Modes CHANNEL DIFFERENTIAL INPUT MODE SINGLE-ENDED INPUT MODE 1 (ADC1) VIN1+, VIN1– VIN1+ 2 (ADC2) VIN2+, VIN2– VIN2+ 3 (ADC3) VIN3+, VIN3– VIN3+ 4 (ADC4) VIN4+, VIN4– VIN4+ 5 (ADC5) VIN5+, VIN5– VIN5+ 6 (ADC6) VIN6+, VIN6– VIN6+ 9.3.2 Analog Outputs The The PCM3168A device includes eight DACs, each with individual pairs of differential voltage inputs pins, as shown in Table 2. The full-scale output voltage is (1.6 × VCCDA1) VPP in differential mode. DC-coupled loads are allowed in addition to ac-coupled loads if the load resistance conforms to the specification. Table 2. Pin Assignments for Differential Output CHANNEL DIFFERENTIAL OUTPUT 1 (DAC1) VOUT1+, VOUT1– 2 (DAC2) VOUT2+, VOUT2– 3 (DAC3) VOUT3+, VOUT3– 4 (DAC4) VOUT4+, VOUT4– 5 (DAC5) VOUT5+, VOUT5– 6 (DAC6) VOUT6+, VOUT6– 7 (DAC7) VOUT7+, VOUT7– 8 (DAC8) VOUT8+, VOUT8– 9.3.3 Voltage References The PCM3168A device includes two internal references for the six-channel ADCs; these references correspond to the outputs VREFAD1 and VREFAD2. Both reference pins should be connected with an analog ground via decoupling capacitors. In addition, the PCM3168A device includes two pins for common-mode voltage output (VCOMDA for DACs and VCOMAD for ADCs). These pins should be also connected with an analog ground via decoupling capacitors. Furthermore, both common pins can be used to bias external high-impedance circuits, if they are required. 9.3.4 System Clock Input The PCM3168A device requires an external system clock input applied at the SCKI input for ADC and DAC operation. The system clock operates at an integer multiple of the sampling frequency, or fS. The multiples supported in ADC operation include 256 fS, 384 fS, 512 fS, and 768 fS; the multiples supported in DAC operation include 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, and 768 fS. Details for these system clock multiples are shown in Table 3. Figure 1 shows the SCKI timing requirements. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 25 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table 3. System Clock Frequencies for Common Audio Sampling Rates SAMPLING FREQUENCY DEFAULT SAMPLING MODE SYSTEM CLOCK FREQUENCY (MHz) fS (kHz) Single rate 128 fS (1) (2) (1) 256 fS 384 fS 512 fS (2) 768 fS 8 N/A N/A 2.0480 3.0720 4.0960 6.1440 2.0480 (1) 3.0720 (1) 4.0960 6.1440 (2) 8.1920 12.2880 32 4.0960 (1) 6.1440 (1) 8.1920 12.2880 (2) 16.3840 24.5760 (1) (1) (2) 11.2896 16.9344 22.5792 33.8688 48 5.6488 6.1440 (1) 9.2160 (1) 12.2880 18.4320 (2) 24.5760 36.8640 88.2 11.2896 (1) 16.9344 (1) 22.5792 33.8688 N/A N/A (1) (1) 96 Quad rate (1) 192 fS 16 44.1 Dual rate (1) 12.2880 8.4672 24.5760 36.8640 N/A N/A 176.4 (1) 22.5792 (1) 18.4320 33.8688 (1) N/A N/A N/A N/A 192 (1) 24.5760 (1) 36.8640 (1) N/A N/A N/A N/A Supported only by DAC operation Requires 50% duty cycle for stable ADC performance. 9.3.5 Sampling Mode The PCM3168A device supports two sampling modes (single rate and dual rate) in ADC operation, and three sampling modes (single rate, dual rate, and quad rate) in DAC operation. In single rate mode, the ADC and DAC operate at an oversampling frequency of x128 (except when SCKI = 128 fS and 192 fS). This mode is supported for sampling frequencies less than 50 kHz. In dual rate mode, the ADC and DAC operate at an oversampling frequency of x64; this mode is supported for sampling frequencies less than 100 kHz. In quad rate mode, the DAC operates at an oversampling frequency of x32. The sampling mode is automatically selected according to the ratio of system clock frequency and sampling frequency by default (for example, single rate for 512 fS and 768 fS, dual rate for 256 fS and 384 fS, and quad rate for 128 fS and 192 fS), but manual selection is also possible for specified combinations through the serial mode control resistor. Table 4 and Figure 37 show the relation between the oversampling rate (OSR) of the ΔΣ modulator, noise-free shaped bandwidth, and each sampling mode setting for ADC operation. Table 5 and Figure 38 describe the relation between the oversampling rate of the digital filter and ΔΣ modulator, noise-free shaped bandwidth, and each sampling mode setting for DAC operation. Table 4. ADC Modulator OSR and Noise-Free Shaped Bandwidth for Each Sampling Mode SAMPLING MODE REGISTER SETTING Auto Single Dual NOISE-FREE SHAPED BANDWIDTH (kHz) SYSTEM CLOCK RATE (fS) MODULATOR OSR fS = 48 kHz fS = 96 kHz 512, 768 40 N/A 256, 384 20 40 x64 512, 768 40 N/A x128 256, 384 40 N/A x128 256, 384 20 40 x64 x128 Table 5. DAC Digital Filter OSR, Modulator OSR, and Noise-Free Shaped Bandwidth for Each Sampling Mode SAMPLING MODE REGISTER SETTING Auto SYSTEM CLOCK RATE (fS) NOISE-FREE SHAPED BANDWIDTH DIGITAL FILTER OSR MODULATOR OSR N/A x8 x128 N/A x8 x64 40 x4 x32 fS = 48 kHz fS = 96 kHz fS = 192 kHz 512, 768 40 N/A 256, 384 20 40 10 20 128, 192 (1) (2) (1) (2) Supported only by DAC operation. Quad mode filter characteristic is applied. 26 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 5. DAC Digital Filter OSR, Modulator OSR, and Noise-Free Shaped Bandwidth for Each Sampling Mode (continued) SAMPLING MODE REGISTER SETTING NOISE-FREE SHAPED BANDWIDTH SYSTEM CLOCK RATE (fS) Single Quad MODULATOR OSR N/A x8 x128 N/A x8 x128 fS = 96 kHz fS = 192 kHz 512, 768 40 N/A 256, 384 40 N/A 128, 192 Dual DIGITAL FILTER OSR fS = 48 kHz (1) (2) 20 N/A N/A x4 x64 256, 384 20 40 N/A x8 x64 128, 192 (1) (2) 20 40 N/A x4 x64 (1) (2) 10 20 40 x4 x32 128, 192 spacer 0 -60 -40 -80 -100 -120 -80 -100 -120 -140 -160 -160 -180 -180 0 0.5 1.0 2.0 1.5 DF_Single DF_Dual DF_Quad -60 -140 -200 DSM_Single DSM_Dual DSM_Quad -20 Amplitude (dB) -40 Amplitude (dB) 0 DSM_Single DSM_Dual DF_Single DF_Dual -20 -200 0 Normalized Frequency (fS) 0.5 1.0 1.5 2.0 Normalized Frequency (fS) Figure 37. ADC ΔΣ Modulator and Digital Filter Characteristic Figure 38. DAC ΔΣ Modulator and Digital Filter Characteristic 9.3.6 Reset Operation The PCM3168A device has both an internal power-on reset circuit and an external reset circuit. The sequences for both reset circuits are illustrated in Figure 2, Timing Requirements: Power-On Reset, and Figure 39. Figure 2 and Timing Requirements: Power-On Reset describe the timing chart at the internal power-on reset. Initialization is triggered automatically at the point where VDD exceeds 2.2 V typical, and the internal reset is released after 3846 SCKI clock cycles from power-on if RST is kept high and SCKI is provided. VOUT from the DACs are forced to the VCOMDA level initially (0.5 × VCCDA1) and settles at a specified level according to the rising VCC. If synchronization among SCKI, BCKAD/DA, and LRCKAD/DA is maintained, VOUT starts to output with a fadein sequence after tDACDLY1 from the internal reset release; VOUT then provides an output that corresponds to DIN after (3846 SCKI + tDACDLY1 + tDACDLY2) from power-on. Meanwhile, DOUT from the ADCs begins to output with a fade-in sequence after tADCDLY1 from the internal reset release; DOUT then provides output corresponding to VIN after (3846 SCKI + tADCDLY1 + tADCDLY2) from power-on. If the synchronization is not held, the internal reset is not released and both operating modes are maintained at reset and power-down states; after the synchronization forms again, both the DAC and ADC return to normal operation with the above sequences. Figure 39 illustrates a timing chart at the external reset. RST accepts an external forced reset by RST = low, and provides a device reset and power-down state that makes the lowest power dissipation state available in the PCM3168A device. If RST goes from high to low under synchronization among SCKI, BCKAD/DA, and LRCKAD/DA, the internal reset is asserted, all registers and memory are reset, and finally the PCM3168A device enters into an all power-down state. At the same time, VOUT is immediately forced into the AGNDDA1 level and DOUT becomes 0. To begin normal operation again, toggle RST high; the same power-up sequence as poweron reset shown in Figure 2 is performed. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 27 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com The PCM3168A device does not require particular power-on sequences for VCC and VDD; it allows VDD on and then VCC on, or VCC on and then VDD on. From the viewpoint of the Absolute Maximum Ratings, however, simultaneous power-on is recommended for avoiding unexpected responses on VOUTx and DOUTx. Figure 2 illustrates the response for VCC on with VDD on. (VDD = 3.3 V, typ) VDD SCKI, BCKAD/DA, LRCKAD/DA 0V Synchronous Clocks Synchronous Clocks 100 ns (min) RST 3846 ´ SCKI Internal Reset Normal Operation Normal Operation Power-Down tDACDLY2 tDACDLY1 VOUT1± to VOUT8± 0.5 ´ VCC tADCDLY1 DOUT1/2/3 tADCDLY2 Fade-In ZERO Figure 39. External Reset Timing Requirements 9.3.7 Highpass Filter (HPF) The PCM3168A device includes a highpass filter (HPF) for all ADC channels in order to remove the DC component of the digitized input signal. The filter is located at the output of the digital decimation filter. The –3-dB corner frequency for the HPF scales with the output sampling rate, where f–3 dB = 0.020 × fS/1000. When fS = 48 kHz, f–3 dB is 0.96 Hz. The HPF function can be disabled (bypassed) by the BYP bits in two channels. 9.3.8 Overflow Flag The PCM3168A device includes an overflow flag output for all ADC channels. As soon as any of the six-channel ADC digital outputs exceed the full-scale range, an overflow flag is forced high on the OVF pin. The overflow flag is held high for 1024 LRCKAD clock cycles. In parallel, overflow flag information is stored in the OVF bits of the mode control register, and the OVF bit is held until the mode control register is read. The overflow flag polarity can be changed by the OVFP bit. The OVF pin also indicates internal reset completion by transmitting a 4096 SCKI width pulse. 9.3.9 Zero Flag The PCM3168A device includes a zero flag output for all DAC channels. When all of the eight-channel DACs digital inputs have continued as zero data for 1024 LRCKDA clock cycles, the zero flag is forced high on ZERO. In parallel, zero flag information is stored in the ZERO bits according to channel. The zero flag polarity can be changed by the ZREV bit. Also, the zero flag function can be selected by the AZRO bits. AND or OR logic for stereo, six channels, and eight channels can be selected. 9.3.10 Four-Wire (SPI) Serial Control The PCM3168A device includes an SPI-compatible serial port that operates asynchronously with the audio serial interface. The control interface consists of MDI/SDA/DEMP, MDO/ADR1/MD1, MC/SCL/FMT, and MS/ADR0/MD0. MDI is the serial data input to program the mode control registers. MDO is the serial data output to read back register settings and some flags. MDO is inactive (Hi-Z, high impedance) during MS = high. MC is the serial bit clock that shifts the data into the control port. MS is the select input to enable the mode control port. 28 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 9.3.11 Control Data Word Format All single write/read operations through the serial control port use 16-bit data words. Figure 40 shows the control data word format. The first bit is for read/write controls; 0 indicates a write operation and 1 indicates a read operation. Following the first bit are seven other bits, labeled ADR[6:0] that set the register address for the write/read operation. The eight least significant bits (LSBs), D[7:0] on MDI or MDO, contain the data to be written to the register specified by ADR[6:0], or the data read from the register specified by ADR[6:0]. MSB R/W LSB ADR6 ADR5 ADR4 ADR3 ADR2 ADR1 ADR0 D7 D6 D5 Register Address D3 D4 D2 D1 D0 Register Data Figure 40. Control Data Word Format for MDI 9.3.12 Register Write Operation Figure 41 shows the functional timing diagram for single write operations on the serial control port. MS is held at a high state until a register must be written. To start the register write cycle, MS is set to a low state. 16 clocks are then provided on MC, corresponding to the 16 bits of the control data word on MDI. After the 16th clock cycle has been completed, MS is set high to latch the data into the indexed mode control register. Also, the PCM3168A device supports multiple write operations in addition to single write operations, which can be performed by sending the following N-times of the 8-bit register data after the first 16-bit register address and register data while keeping the MC clocks and MS at a low state. Closing a multiple write operation can be accomplished by setting MS to a high state. MS MC MDI X (1) '0' ADR6 ADR5 ADR4 ADR3 ADR2 ADR1 ADR0 D7 D6 D5 D3 D4 D2 D1 D0 X X R/W ADR6 (1) X = Don't care Figure 41. Register Write Operation 9.3.13 Register Read Operation Figure 42 shows the functional timing diagram for single read operations on the serial control port. MS is held at a high state until a register must be read. To start the register read cycle, MS is set to a low state. 16 clocks are then provided on MC, corresponding to the first eight bits of the control data word on MDI and the second eight bits of the read-back data word from MDO. After the 16th clock cycle has been completed, MS is held high for the next write or read operation. MDO remains in a high impedance state except during the eight MC clock periods of the actual data transfer. MS MC MDI MDO (1) X '1' Don't Care (X) ADR6 ADR5 ADR4 ADR3 ADR2 ADR1 ADR0 Hi-Z D7 D6 D5 D4 D3 D2 R/W ADR6 D1 D0 Hi-Z (1) X = Don't care Figure 42. Register Read Operation Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 29 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 9.3.14 Two-Wire (I2C) Serial Control The PCM3168A device supports an I2C-compatible serial bus and data transmission protocol for fast mode configured as a slave device. This protocol is explained in the I2C specification, version 2.0. The PCM3168A device has a 7-bit slave address, as shown in Figure 43. The first five bits are the most significant bits (MSB) of the slave address and are factory-preset to 10001. The next two bits of the address byte are selectable bits that can be set by MS/ADR0/MD0 and MDO/ADR1/MD1. A maximum of four PCM3168A device can be connected on the same bus at any one time. Each device responds when it receives its own slave address. MSB LSB 0 1 0 0 1 ADR0 ADR1 R/W Figure 43. Slave Address 9.3.15 Packet Protocol A master device must control the packet protocol, which consists of the start condition, slave address with the read/write bit, data if a write operation is required, acknowledgement if a read operation is required, and stop condition. The PCM3168A device supports both slave receiver and transmitter functions. Details about DATA for both write and read operations are described in Figure 44. SDA SCL 1 to 7 St Slave Address 8 9 (1) R/W ACK 1 to 8 (2) DATA (3) 9 1 to 8 9 9 ACK DATA ACK ACK Sp Start Condition Stop Condition (1) R/W: Read operation if 1; write operation otherwise. (2) ACK: Acknowledgement of a byte if 0, not Acknowledgement of a byite if 1. (3) DATA: Eight bits (byte); details are described in the Write Operation and Read Operation sections. Figure 44. DATA Operation 9.3.16 Write Operation The PCM3168A device supports a receiver function. A master device can write to any PCM3168A device register using single or multiple accesses. The master sends a PCM3168A device slave address with a write bit, a register address, and the data. If multiple access is required, the address is that of the starting register, followed by the data to be transferred. When the data are received properly, the index register is incremented by one automatically. When the index register reaches 0x5E, the next value is 0x40. When undefined registers are accessed, the PCM3168A device does not send an acknowledgment. Figure 45 illustrates a diagram of the write operation. The register address and write data are in 8-bit, MSB-first format. Transmitter M M Data Type St Slave Address M S M S M S M S S M W ACK Reg Address ACK Write Data 1 ACK Write Data 2 ACK ACK Sp (1) M = Master device, S = Slave device, St = Start condition, W = Write, ACK = Acknowledge, and Sp = Stop condition. Figure 45. Framework for Write Operation 9.3.17 Read Operation A master device can read the registers from 0x40 to 0x5E of the PCM3168A device. The value of the register address is stored in an indirect index register in advance. The master sends the PCM3168A slave address with a read bit after storing the register address. Then the PCM3168A device transfers the data of the register with address that is in the indirect index register. Figure 46 shows a diagram of the read operation. 30 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Transmitter M M M S M S M M M S S M M Data Type St Slave Address W ACK Reg Address ACK Sr Slave Address R ACK Read Data NACK Sp (1) M = Master device, S = Slave device, St = Start condition, Sr = Repeated start condition, W = Write, R = Read, ACK = Acknowledge, NACK = Not acknowledge, and Sp = Stop condition. NOTE: The slave address after the repeated start condition must be the same as the previous address. Figure 46. Framework for Read Operation 9.4 Device Functional Modes 9.4.1 Mode Control The PCM3168A device includes four-way mode control selectable by MODE pin, as shown in Table 6. The pullup and pull-down resistors must be 220 kΩ ±5%. This mode control selection is sampled only when the internal reset is released by a power-on reset or by a low-to-high transition of the external reset (RST pin); a system clock is also required. Table 6. Mode Control Selection MODE Tied to DGND Tied to DGND through pull-down resistor Tied to VDD through pull-up resistor Tied to VDD MODE CONTROL INTERFACE Two-wire (I2C) serial control, selectable analog input configuration H/W (hardware control), differential analog input H/W (hardware control), single-ended analog input Four-wire (SPI) serial control, selectable analog input configuration From the mode control selection described in Table 6, the functions of four pins are changed, as shown in Table 7. Table 7. Pin Functions PIN ASSIGNMENTS PIN SPI I2C H/W MD0 MS/ADR0/MD0 MS ADR0 MDO/ADR1/MD1 MDO ADR1 MD1 MDI/SDA/DEMP MDI SDA DEMP MC/SCL/FMT MC SCL FMT Both serial controls are available while RST = high and after internal reset completion, which is indicated as a negative transition (high ≥ low) of a 4096 × SCKI width pulse on the OVF pin. 9.4.2 Hardware Control Mode Configuration The data format is selected by the MC/SCL/FMT pin between I2S format and I2S mode in TDM format, as shown in Table 8. Table 8. Data Format Selection FMT MODE CONTROL INTERFACE I2S audio data format Low High 2 I S mode, TDM audio data format (supported only for SCKI = 128 fS, 256 fS, or 512 fS) Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 31 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com The de-emphasis filter is enabled by the MDI/SDA/DEMP pin. The de-emphasis frequency is fixed at 44.1 kHz in hardware control mode, as shown in Table 9. The software mode provides full selections of 32 kHz, 44.1 kHz, and 48 kHz. Table 9. Hardware Control Mode DEMP (DE-EMPHASIS FILTER ENABLE) DESCRIPTION Low 44.1 kHz, de-emphasis disabled High 44.1 kHz, de-emphasis enabled The audio interface and the sampling mode are selected by the MS/ADR0/MD0 and MDO/ADR1/MD1 pins. The selectable multiple of the master mode audio interface is limited between 256 fS, 384 fS, and 512 fS; the selectable sampling mode is limited as shown in Table 10. The software mode provides full selections. Table 10. Selectable Sampling Mode DESCRIPTION MD1 MD0 INTERFACE MODE ADC Low Low (1) (2) Low High Slave (1) Master, 512 fS SAMPLING MODE DAC ADC Slave Slave (1) Single rate Auto (2) (1) Dual rate Auto (2) Dual rate Auto (2) High Low Master, 384 fS Slave High High Master, 256 fS Slave (1) Auto (2) DAC (1) Auto (2) The multiples between system clock and sampling frequency are automatically detected; 256 fS, 384 fS, 512 fS, and 768 fS are acceptable for ADC operation, and 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, and 768 fS are acceptable for DAC operation. The sampling mode is automatically set as single rate for 512 fS and 768 fS, dual rate for 256 fS and 384 fS, and quad rate for 128 fS and 198 fS, according to the detected multiples between the system clock and sampling clock. 9.4.3 Audio Serial Port Operation The PCM3168A device audio serial port consists of 11 signals: BCKDA, BCKAD, LRCKDA, LRCKAD, DIN1, DIN2, DIN3, DIN4, DOUT1, DOUT2, and DOUT3. The PCM3168A device also supports audio-interface mode, slave mode, and master mode. The BCKAD/DA is a bit clock input at the slave mode and an output at the master mode. The LRCKAD/DA is a left/right word clock or frame synchronization clock input at slave mode and output at master mode. The DIN1/2/3/4 are the audio data inputs for the DAC. The DOUT1/2/3 are the audio data outputs from the ADC. BCKAD, LRCKAD and DOUT1/2/3 are used for the ADC, and BCKDA, LRCKDA and DIN1/2/3/4 are used for the DAC. 9.4.4 Audio Data Interface Formats and Timing The PCM3168A device supports eight audio data interface formats for the ADC and DAC separately in both master and slave modes: 24-bit I2S, 24-bit left-justified, 24-bit right-justified, 16-bit right-justified, 24-bit leftjustified mode DSP, 24-bit I2S mode DSP, 24-bit left-justified mode TDM, and 24-bit I2S mode TDM format. The PCM3168A device also supports two audio data interface formats for the DAC and slave mode: 24-bit leftjustified mode high-speed TDM and 24-bit I2S mode high-speed TDM format. In the case of I2S, left-justified, and right-justified data formats, 64 BCKs, 48 BCKs, and 32 BCKs per LRCK period are supported, but 48 BCKs are limited in slave mode and 32 BCKs are limited in slave mode 16-bit right-justified only. In the case of TDM data format in single rate, BCKAD/DA, LRCKAD/DA, DOUT1, and DIN1 are used. In the case of TDM data format in dual rate, BCKAD/DA, LRCKAD/DA, DOUT1/2, and DIN1/2 are used. In the case of high-speed TDM format in dual rate, BCKDA, LRCKDA, and DIN1 are used. In the case of high-speed TDM format in quad rate, BCKDA, LRCKDA, and DIN1/2 are used. TDM format and high-speed TDM format are supported only at SCKI = 512 fS, 256 fS, 128 fS, and fBCK ≤ fSCKI. The audio data formats are selected by MC/SCL/FMT in hardware control mode and registers 65 and 81 in software control mode. All data must be in binary twos complement, MSB first. Figure 47 through Figure 53 show 10 audio interface data formats. Table 11 summarizes the applicable formats and describes the relationships among them and the respective restrictions with mode control. 32 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 11. Audio Data Interface Formats and Sampling Rate, Bit Clock, and System Clock Restrictions CONTROL MODE FORMAT I/F MODE I2S/Left-Justified Master/Slave I2S/ Left-Justified TDM High-Speed I2S/LeftJustified TDM Slave and DAC Only (3) I2S Hardware control (1) (2) (3) Master (ADC), Slave I2S TDM BCK RATE (xfS) 64, 48 (slave) 24, 16 I2S/Left-Justified DSP SCKI RATE (xfS) 24 Right-Justified Software control MAX LRCK FREQUENCY (fS) DATA BITS 96 kHz (ADC) 192 kHz (DAC) APPLICABLE PINS (1) 64, 48 (slave) (1), 32 (slave, 16 bit) (1) 256 to 768 (ADC) 128 to 768 (DAC) 24 DOUT1/2/3 DIN1/2/3/4 64 24 48 kHz 256, 512 256 DOUT1, DIN1 24 96 kHz 128 (DAC) (2), 256 128 DOUT1/2, DIN1/2 24 96 kHz 256 256 DIN1 24 192 kHz 128 128 DIN1/2 24 96 kHz (ADC) 192 kHz (DAC) 256 to 768 (ADC) 128 to 768 (DAC) 64, 48 (slave) (1) DOUT1/2/3 DIN1/2/3/4 24 48 kHz 512 256 DOUT1, DIN1 24 96 kHz 256 128 DOUT1/2, DIN1/2 BCK = 48 fS, 32 fS is supported only in slave mode; BCK = 32 fS is supported only for 16-bit data length. SCKI = 128 fS is supported only for DAC. High-Speed I2S/Left-Justified TDM format is supported only for DAC operation in slave mode. Ch 1 (Dx1) or Ch 3 (Dx2) Ch 5 (Dx3) or Ch 7 (DIN4) LRCKAD/DA Ch 2 (Dx1) or Ch 4 (Dx2) Ch 6 (Dx3) or Ch 8 (DIN4) BCKAD/DA DIN1/2/3/4 23 22 21 2 1 0 DOUT1/2/3 23 22 21 LSB MSB 23 22 21 2 1 0 MSB 2 1 0 2 1 0 MSB LSB 23 22 21 LSB LSB MSB Figure 47. Audio Data Format: 24-Bit I2S LRCKAD/DA Ch 2 (Dx1) or Ch 4 (Dx2) Ch 6 (Dx3) or Ch 8 (DIN4) Ch 1 (Dx1) or Ch 3 (Dx2) Ch 5 (Dx3) or Ch 7 (DIN4) BCKAD/DA DIN1/2/3/4 23 22 21 2 DOUT1/2/3 1 0 23 22 21 LSB MSB 23 22 21 2 MSB 2 1 0 2 23 22 21 MSB LSB 23 1 0 LSB MSB 23 1 0 LSB Figure 48. Audio Data Format: 24-Bit Left-Justified Ch 2 (Dx1) or Ch 4 (Cx2) Ch 6 (Dx3) or Ch 8 (DIN4) Ch 1 (Dx1) or Ch 3 (Cx2) Ch 5 (Dx3) or Ch 7 (DIN4) LRCKAD/DA BCKAD/DA DIN1/2/3/4 0 23 22 21 2 1 MSB DOUT1/2/3 0 23 22 21 MSB 0 LSB 2 1 0 LSB 23 22 21 2 1 MSB 0 LSB 23 22 21 2 MSB 1 0 LSB Figure 49. Audio Data Format: 24-Bit Right-Justified Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 33 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 LRCKAD/DA www.ti.com Ch 2 (Dx1) or Ch 4 (Dx2) Ch 6 (Dx3) or Ch 8 (DIN4) Ch 1 (Dx1) or Ch 3 (Dx2) Ch 5 (Dx3) or Ch 7 (DIN4) BCKAD/DA DIN1/2/3/4 15 14 13 0 2 1 0 MSB DOUT1/2/3 15 14 13 0 15 14 13 LSB 2 1 0 MSB 2 1 0 2 1 0 MSB LSB 15 14 13 LSB MSB LSB Figure 50. Audio Data Format: 16-Bit Right-Justified 1/fS (64 BCKs) Ch 1 (Dx1) or Ch 3 (Dx2) (Ch 5 (Dx3) or Ch 7 (DIN4) LRCKAD/DA Ch 2 (Dx1) or Ch 4 (Dx2) (Ch 6 (Dx3) or Ch 8 (DIN4) BCKAD/DA Left-Justified Mode DIN1/2/3/4 DOUT1/2/3 23 22 21 2 1 0 2 1 23 22 21 2 1 0 2 1 23 22 21 2 I S Mode DIN1/2/3/4 DOUT1/2/3 23 22 21 0 23 22 21 0 23 22 Figure 51. Audio Data Format: 24-Bit DSP Format 1/fS (256 BCKs at Single Rate, 128 BCKs at Dual Rate) LRCKAD/DA (Master) LRCKAD/DA (Slave) BCKAD/DA Left-Justified Mode DIN1, DOUT1 (Single) 2 I S Mode DIN1, DOUT1 (Single) Left-Justified Mode DIN1/2, DOUT1/2 (Dual) 23 22 23 22 23 22 23 22 0 23 22 Ch 2 32 BCKs 0 23 22 1 0 23 22 1 0 0 23 22 Ch 3 32 BCKs 0 23 22 23 22 Ch 1/Ch 5 32 BCKs 2 I S Mode DIN1/2, DOUT1/2 (Dual) 0 Ch 1 32 BCKs 0 23 22 Ch 4 32 BCKs 0 23 22 1 0 0 23 22 1 0 23 22 0 23 22 Ch 6 32 BCKs 0 23 22 Ch 2/Ch 6 32 BCKs 23 22 0 Ch 5 32 BCKs 23 22 1 0 0 23 22 23 22 Ch 3/Ch 7 32 BCKs 23 22 1 0 0 23 22 Ch 7 32 BCKs 0 23 22 Ch 8 32 BCKs 0 23 22 1 0 0 23 22 23 22 Ch 4/Ch 8 32 BCKs 23 22 1 0 23 22 Figure 52. Audio Data Format: 24-Bit TDM Format (SCKI = 128 fS, 256 fS, and 512 fS Only) 34 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 1/fS (256 BCKs at Dual Rate, 128 BCKs at Quad Rate) LRCKDA (Slave) BCKDA Left-Justified Mode DIN1 (Dual) 2 I S Mode DIN1 (Dual) Left-Justified Mode DIN1/2 (Quad) 23 22 23 22 Ch 1 32 BCKs 23 22 23 22 0 23 22 Ch 2 32 BCKs 0 23 22 23 22 0 23 22 Ch 3 32 BCKs 0 1 0 23 22 23 22 Ch 1/Ch 5 32 BCKs 2 I S Mode DIN1/2 (Quad) 0 1 0 0 23 22 Ch 4 32 BCKs 0 23 22 1 0 1 0 23 22 Ch 5 32 BCKs 0 23 22 0 23 22 Ch 6 32 BCKs 0 23 22 Ch 2/Ch 6 32 BCKs 23 22 0 23 22 1 0 1 0 23 22 Ch 7 32 BCKs 0 23 22 0 23 22 Ch 8 32 BCKs 0 23 22 Ch 3/Ch 7 32 BCKs 23 22 0 23 22 1 0 0 23 22 23 22 Ch 4/Ch 8 32 BCKs 23 22 1 0 23 22 Figure 53. Audio Data Format: 24-Bit High-Speed TDM Format (SCKI = 128 fS, 256 fS, DAC, and Slave Mode Only) 9.4.5 Synchronization With the Digital Audio System The PCM3168A device operates under the system clock (SCKI) and the audio sampling rate (LRCKAD/DA). Therefore, SCKI and LRCKAD/DA must have a specific relationship in slave mode. The PCM3168A device does not need a specific phase relationship between the audio interface clocks (LRCKAD/DA, BCKAD/DA) and the system clock (SCKI), but does require a specific frequency relationship (ratiometric) between LRCKAD/DA, BCKAD/DA, and SCKI. If the relationship between SCKI and LRCKDA changes more than ±2 BCKDA clocks because of jitter, sampling frequency change, and so forth, the DAC internal operation halts within 1 / fS, and the analog output is forced into VCOMDA (0.5 VCCDA1) until re-synchronization between SCKI, LRCKDA, and BCKDA is completed and then tDACDLY3 passes. If the relationship between SCKI and LRCKAD changes more than ±2 BCKADs because of jitter, sampling frequency change, and so forth, the ADC internal operation halts within 1 / fS, and the digital output is forced into a 0 code until re-synchronization between SCKI, LRCKAD, and BCKAD is completed and then tADCDLY3 passes. In the event the change is less than ±2 BCKAD/DAs, re-synchronization does not occur, and this analog/digital output control and discontinuity do not occur. Figure 7 shows the DAC analog output and ADC digital output for loss of synchronization. During undefined data periods, some noise may be generated in the audio signal. Also, the transition of normal to undefined data and undefined (or zero) data to normal data creates a discontinuity of data on the analog and digital outputs, which then may generate some noise in the audio signal. Both ADC outputs (DOUTx) and DAC outputs (VOUTx) hold the previous state if the system clock halts, but the asynchronous and re-synchronization processes would occur after the system clock resumes. Figure 7 shows DAC outputs and ADC outputs for loss of synchronization. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 35 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 9.5 Register Maps Table 12. Register Map ADDRESS 36 DATA DAC HEX B7 B6 B5 B4 B3 B2 B1 B0 64 40 MRST SRST — — — — SRDA1 SRDA0 65 41 PSMDA MSDA2 MSDA1 MSDA0 FMTDA3 FMTDA2 FMTDA1 FMTDA0 66 42 OPEDA3 OPEDA2 OPEDA1 OPEDA0 FLT3 FLT2 FLT1 FLT0 67 43 REVDA8 REVDA7 REVDA6 REVDA5 REVDA4 REVDA3 REVDA2 REVDA1 68 44 MUTDA8 MUTDA7 MUTDA6 MUTDA5 MUTDA4 MUTDA3 MUTDA2 MUTDA1 69 45 ZERO8 ZERO7 ZERO6 ZERO5 ZERO4 ZERO3 ZERO2 ZERO1 70 46 ATMDDA ATSPDA DEMP1 DEMP0 AZRO2 AZRO1 AZRO0 ZREV 71 47 ATDA07 ATDA06 ATDA05 ATDA04 ATDA03 ATDA02 ATDA01 ATDA00 72 48 ATDA17 ATDA16 ATDA15 ATDA14 ATDA13 ATDA12 ATDA11 ATDA10 73 49 ATDA27 ATDA26 ATDA25 ATDA24 ATDA23 ATDA22 ATDA21 ATDA20 74 4A ATDA37 ATDA36 ATDA35 ATDA34 ATDA33 ATDA32 ATDA31 ATDA30 75 4B ATDA47 ATDA46 ATDA45 ATDA44 ATDA43 ATDA42 ATDA41 ATDA40 76 4C ATDA57 ATDA56 ATDA55 ATDA54 ATDA53 ATDA52 ATDA51 ATDA50 77 4D ATDA67 ATDA66 ATDA65 ATDA64 ATDA63 ATDA62 ATDA61 ATDA60 78 4E ATDA77 ATDA76 ATDA75 ATDA74 ATDA73 ATDA72 ATDA71 ATDA70 79 4F ATDA87 ATDA86 ATDA85 ATDA84 ATDA83 ATDA82 ATDA81 ATDA80 80 50 — — — — — — SRAD1 SRAD0 81 51 — MSAD2 MSAD1 MSAD0 — FMTAD2 FMTAD1 FMTAD0 82 52 — PSVAD2 PSVAD1 PSVAD0 — BYP2 BYP1 BYP0 83 53 — — SEAD6 SEAD5 SEAD4 SEAD3 SEAD2 SEAD1 84 54 — — REVAD6 REVAD5 REVAD4 REVAD3 REVAD2 REVAD1 85 55 — — MUTAD6 MUTAD5 MUTAD4 MUTAD3 MUTAD2 MUTAD1 86 56 — — OVF6 OVF5 OVF4 OVF3 OVF2 OVF1 87 57 ATMDAD ATSPAD — — — — — OVFP 88 58 ATAD07 ATAD06 ATAD05 ATAD04 ATAD03 ATAD02 ATAD01 ATAD00 89 59 ATAD17 ATAD16 ATAD15 ATAD14 ATAD13 ATAD12 ATAD11 ATAD10 90 5A ATAD27 ATAD26 ATAD25 ATAD24 ATAD23 ATAD22 ATAD21 ATAD20 91 5B ATAD37 ATAD36 ATAD35 ATAD34 ATAD33 ATAD32 ATAD31 ATAD30 92 5C ATAD47 ATAD46 ATAD45 ATAD44 ATAD43 ATAD42 ATAD41 ATAD40 93 5D ATAD57 ATAD56 ATAD55 ATAD54 ATAD53 ATAD52 ATAD51 ATAD50 94 5E ATAD67 ATAD66 ATAD65 ATAD64 ATAD63 ATAD62 ATAD61 ATAD60 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 9.5.1 Control Register Definitions (Software Mode Only) The PCM3168A device has many user-programmable functions that are accessed through control registers, and is programmed through the SPI or I2C serial control port. Table 13 shows the available mode control functions along with reset default conditions and associated register address. Table 12 lists the register map. Table 13. User-Programmable Mode Control Functions RESET DEFAULT REGISTER LABEL Mode control register reset for ADC and DAC operation FUNCTION Normal operation 64 MRST System reset for ADC and DAC operation Normal operation 64 SRST Auto 64 SRDA[1:0] DAC power-save mode selection Power save 65 PSMDA DAC master/slave mode selection Slave 65 MSDA[2:0] I2S 65 FMTDA[3:0] Normal operation 66 OPEDA[3:0] Sharp roll-off 66 FLT[3:0] Normal 67 REVDA[8:1] DAC soft mute control Mute disabled 68 MUTDA[8:1] DAC zero flag Not detected 69 ZERO[8:1] DAC digital attenuation mode Channel independent 70 ATMDDA DAC digital attenuation speed N × 2048/fS 70 ATSPDA Disabled 70 DEMP[1:0] DAC zero flag function selection Independent 70 AZRO[2:0] DAC zero flag polarity selection High for detection 70 ZREV 0 dB, no attenuation 71–79 ATDAx[7:0] ADC sampling mode selection Auto 80 SRAD[1:0] ADC master/slave mode selection Slave 81 MSAD[2:0] I2S 81 FMTAD[2:0] ADC power-save control Normal operation 82 PSVAD[2:0] ADC HPF bypass control Normal output, HPF enabled 82 BYP[2:0] Differential 83 SEAD[6:1] Normal 84 REVAD[6:1] ADC soft mute control Mute disabled 85 MUTAD[6:1] ADC overflow flag Not detected 86 OVF[6:1] Channel independent 87 ATMDAD ATSPAD DAC sampling mode selection DAC audio interface format selection DAC operation control DAC digital filter roll-off control DAC output phase selection DAC digital de-emphasis function control DAC digital attenuation level shifting ADC audio interface format selection ADC input configuration control ADC input phase selection ADC digital attenuation mode ADC digital attenuation speed N × 2048/fS 87 ADC overflow flag polarity selection High for detection 87 OVFP ADC digital attenuation level setting 0 dB, no gain or attenuation 88–94 ATADx[7:0] Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 37 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 9.5.2 Register Definitions Table 14. Register: Reset Control DEC 64 MRST HEX 40 B7 MRST B6 SRST B5 — B4 — B3 — B2 — B1 SRDA1 B0 SRDA0 Mode control register reset for the ADC and DAC This bit sets the mode control register reset to the default value. Pop-noise may be generated. Returning the MRST bit to 1 is unneccesary, because it is automatically set to 1 after the mode control register is reset. Default value = 1. MRST SRST Mode control register reset 0 Set default value 1 Normal operation (default) System reset for the ADC and DAC This bit controls system reset, the relation between system clock and sampling clock re-synchronization, and ADC operation and DAC operation restart. The mode control register is not reset and the PCM3168A device does not go into a power-down state. The fade-in sequence is supported in the resume process, but pop-noise may be generated. Returning the SRST bit to 1 is unneccesary; it is automatically set to 1 after triggering a system reset. Default value = 1. SRST SRDA[1:0] System reset 0 Resynchronization 1 Normal operation (default) DAC Sampling mode select These bits control the sampling mode of DAC operation. In Auto mode, the sampling mode is automatically set according to multiples between the system clock and sampling clock, single rate for 512 fS and 768 fS, dual rate for 256 fS or 384 fS, and quad rate for 128 fS and 192 fS. Default value = 00. SRDA 38 DAC Sampling mode select 00 Auto (default) 01 Single rate 10 Dual rate 11 Quad rate Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 15. Register: DAC Control 1 DEC 65 PSMDA HEX 41 B7 PSMDA B6 MSDA2 B5 MSDA1 B4 MSDA0 B3 FMTDA3 B2 FMTDA2 B1 FMTDA1 B0 FMTDA0 DAC Power-save mode select This bit selects the power-save mode for the OPEDA[3:0] function. OPEDA[3:0] is the control of power-save mode and normal operation for PSMDA = 0, or OPEDA[3:0] works as the control of DAC disable (not power-save mode) and normal operation for PSMDA = 1. Default value: 0. PSMDA MSDA[2:0] DAC Power-save mode select 0 Power-save enable mode (default) 1 Power-save disable mode DAC Master/slave mode select These bits control the audio interface mode for DAC operation. Default value: 000 (slave mode). MSDA FMTDA[3:0] DAC Master/slave mode select 000 Slave mode (default) 001 Master mode, 768 fS 010 Master mode, 512 fS 011 Master mode, 384 fS 100 Master mode, 256 fS 101 Master mode, 192 fS 110 Master mode, 128 fS 111 Reserved DAC Audio interface format select These bits control the audio interface format for DAC operation. Details of the format, and any related restrictions with the system clock and master/slave mode, are described in Audio Data Interface Formats and Timing. Default value: 0000 (24-bit I2S format). FMTDA DAC Audio interface format select 0000 24-bit I2S format (default) 0001 24-bit left-justified format 0010 24-bit right-justified format 0011 16-bit right-justified format 0100 24-bit I2S mode DSP format 0101 24-bit left-justified mode DSP format 0110 24-bit I2S mode TDM format 0111 24-bit left-justified mode TDM format 1000 24-bit high-speed I2S mode TDM format 1001 24-bit high-speed left-justified mode TDM format 101x Reserved 11xx Reserved Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 39 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table 16. Register: DAC Control 2 DEC 66 OPEDA[3:0] HEX 42 B7 OPEDA3 B6 OPEDA2 B5 OPEDA1 B4 OPEDA0 B3 FLT3 B2 FLT2 B1 FLT1 B0 FLT0 DAC Operation control These bits control the DAC operation mode. In operation disable mode, the DAC output is cut off from DIN with a fade-out sequence, and the internal DAC data is reset. DAC output is forced into VCOMDA if PSMDA = 1, or DAC output is forced into AGNDDA and goes into a power-down state if PSMDA = 0. For normal operating mode, a fade-in sequence is applied on the DAC output in resume process. The serial mode control is effective during operation disable mode. A wait time greater than tDACDLY2 is required for the status change because of power-save control turning on/off. Default value: 0000. FLT[3:0] OPEDA DAC Operation control xxx0 DAC1/2 normal operation xxx1 DAC1/2 operation disable with or without power save xx0x DAC3/4 normal operation xx1x DAC3/4 operation disable with or without power save x0xx DAC5/6 normal operation x1xx DAC5/6 operation disable with or without power save 0xxx DAC7/8 normal operation 1xxx DAC7/8 operation disable with or without power save DAC Digital filter roll-off control The FLT[3:0] bits allow users to select the digital filter roll-off that is best suited to their applications. Sharp and Slow filter roll-off selections are available. The filter responses for these selections are shown in Typical Characteristics. Default value: 0000. 40 FLT DAC Digital filter roll-off control xxx0 DAC1/2 sharp roll-off xxx1 DAC1/2 slow roll-off xx0x DAC3/4 sharp roll-off xx1x DAC3/4 slow roll-off x0xx DAC5/6 sharp roll-off x1xx DAC5/6 slow roll-off 0xxx DAC7/8 sharp roll-off 1xxx DAC7/8 slow roll-off Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 17. Register: DAC Output Phase DEC 67 REVDA[8:1] HEX 43 B7 REVDA8 B6 REVDA7 B5 REVDA6 B4 REVDA5 B3 REVDA4 B2 REVDA3 B1 REVDA2 B0 REVDA1 DAC Output phase select The REVDA[8:1] bits are used to control the phase of DAC analog signal outputs. Default value: 0000 0000. REVDA DAC Output phase select3 xxxx xxx0 DAC1 normal output xxxx xxx1 DAC1 inverted output xxxx xx0x DAC2 normal output xxxx xx1x DAC2 inverted output xxxx x0xx DAC3 normal output xxxx x1xx DAC3 inverted output xxxx 0xxx DAC4 normal output xxxx 1xxx DAC4 inverted output xxx0 xxxx DAC5 normal output xxx1 xxxx DAC5 inverted output xx0x xxxx DAC6 normal output xx1x xxxx DAC6 inverted output x0xx xxxx DAC7 normal output x1xx xxxx DAC7 inverted output 0xxx xxxx DAC8 normal output 1xxx xxxx DAC8 inverted output Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 41 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table 18. Register: DAC Soft Mute Control DEC 68 MUTDA[8:1] HEX 44 B7 MUTDA8 B6 MUTDA7 B5 MUTDA6 B4 MUTDA5 B3 MUTDA4 B2 MUTDA3 B1 MUTDA2 B0 MUTDA1 DAC Soft Mute control These bits are used to enable or disable the Soft Mute function for the corresponding DAC outputs, VOUT. The Soft Mute function is incorporated into the digital attenuators. When Mute is disabled (MUTDA[8:1] = 0), the attenuator and DAC operate normally. When Mute is enabled by setting MUTDA[8:1] = 1, the digital attenuator for the corresponding output decreases from the current setting to infinite attenuation with an s-curve response and time set by ATSPDA. By setting MUTDA[8:1] = 0, the attenuator increases to the last attenuation level with s-curve response in the same manner as it is for decreasing levels. This configuration provides pop and zipper noise-free muting of the DAC output. The Soft Mute control uses the same digital attenuation level resource setting as the DAC. Mute control has priority over the digital attenuation level setting. Default value: 0000 0000. MUTDA 42 DAC Soft Mute control xxxx xxx0 DAC1 Mute disabled xxxx xxx1 DAC1 Mute enabled xxxx xx0x DAC2 Mute disabled xxxx xx1x DAC2 Mute enabled xxxx x0xx DAC3 Mute disabled xxxx x1xx DAC3 Mute enabled xxxx 0xxx DAC4 Mute disabled xxxx 1xxx DAC4 Mute enabled xxx0 xxxx DAC5 Mute disabled xxx1 xxxx DAC5 Mute enabled xx0x xxxx DAC6 Mute disabled xx1x xxxx DAC6 Mute enabled x0xx xxxx DAC7 Mute disabled x1xx xxxx DAC7 Mute enabled 0xxx xxxx DAC8 Mute disabled 1xxx xxxx DAC8 Mute enabled Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 19. Register: DAC Zero Flag DEC 69 ZERO[8:1] HEX 45 B7 ZERO8 B6 ZERO7 B5 ZERO6 B4 ZERO5 B3 ZERO4 B2 ZERO3 B1 ZERO2 B0 ZERO1 DAC Zero flag (read-only) These bits indicate the present status of the zero detect circuit for each DAC channel; these bits are read-only. ZERO DAC Zero flag xxxx xxx0 DAC1 zero input not detected xxxx xxx1 DAC1 zero input detected xxxx xx0x DAC2 zero input not detected xxxx xx1x DAC2 zero input detected xxxx x0xx DAC3 zero input not detected xxxx x1xx DAC3 zero input detected xxxx 0xxx DAC4 zero input not detected xxxx 1xxx DAC4 zero input detected xxx0 xxxx DAC5 zero input not detected xxx1 xxxx DAC5 zero input detected xx0x xxxx DAC6 zero input not detected xx1x xxxx DAC6 zero input detected x0xx xxxx DAC7 zero input not detected x1xx xxxx DAC7 zero input detected 0xxx xxxx DAC8 zero input not detected 1xxx xxxx DAC8 zero input detected Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 43 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table 20. Register: DAC Control 3 DEC 70 ATMDDA HEX 46 B7 ATMDDA B6 ATSPDA B5 DEMP1 B4 DEMP0 B3 AZRO2 B2 AZRO1 B1 AZRO0 B0 ZREV DAC Attenuation mode This bit controls the DAC attenuation mode. ATDA1[7:0] to ATDA8[7:0] are simply used for ATMDDA = 0, and ATDA0[7:0] + ATDA1[7:0] to ATDA0[7:0] + ATDA8[7:0] in decibel number are used for ATMDDA = 1. Default value: 0. ATMDDA ATSPDA DAC Attenuation mode 0 Each channel with independent data (default) 1 All channels with preset (independent) data + master (common) data in decibel number DAC Attenuation speed This bit controls the DAC attenuation speed. N × 2048/fS for ATSPDA = 0 and N × 4096/fS for ATSPDA = 1. N is automatically selected according to the DAC sampling mode, SRDA, N = 1 for single rate, N = 2 for dual rate, and N = 4 for quad rate. Default value: 0. ATSPDA DEMP[1:0] DAC Attenuation speed 0 N × 2048/fS (default) 1 N × 4096/fS DAC Digital de-emphasis function/sampling rate control These bits are used to control the enable/disable and sampling frequency of the digital de-emphasis function. Default value: 00. DEMP AZRO[2:0] DAC Digital de-emphasis function/sampling rate control 00 Disable (default) 01 48 kHz enable 10 44.1 kHz enable 11 32 kHz enable DAC Zero flag function select The AZRO[2:0] bits are used to select the function of the zero flag pin. Default value: 000. AZRO ZREV DAC Zero flag function select 000 DAC1/2/3/4/5/6/7/8 (8 channel) zero input detect with AND logic (default) 001 DAC1/2/3/4/5/6/7/8 (8 channel) zero input detect with OR logic 010 DAC1/2/3/4/5/6 (6 channel) zero input detect with AND logic 011 DAC1/2/3/4/5/6 (6 channel) zero input detect with OR logic 100 DAC7/8 (2 channel) zero input detect with AND logic 101 DAC7/8 (2 channel) zero input detect with OR logic 11x Reserved DAC Zero flag polarity select This bit controls the polarity of the zero flag pin. Default value: 0. ZREV 44 DAC Zero flag polarity select 0 High for zero detect (default) 1 Low for zero detect Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 21. Register: DAC Attenuation DEC 71 72 73 74 75 76 77 78 79 ATDAx[7:0] HEX 47 48 49 4A 4B 4C 4D 4E 4F B7 ATDA07 ATDA17 ATDA27 ATDA37 ATDA47 ATDA57 ATDA67 ATDA77 ATDA87 B6 ATDA06 ATDA16 ATDA26 ATDA36 ATDA46 ATDA56 ATDA66 ATDA76 ATDA86 B5 ATDA05 ATDA15 ATDA25 ATDA35 ATDA45 ATDA55 ATDA65 ATDA75 ATDA85 B4 ATDA04 ATDA14 ATDA24 ATDA34 ATDA44 ATDA54 ATDA64 ATDA74 ATDA84 B3 ATDA03 ATDA13 ATDA23 ATDA33 ATDA43 ATDA53 ATDA63 ATDA73 ATDA83 B2 ATDA02 ATDA12 ATDA22 ATDA32 ATDA42 ATDA52 ATDA62 ATDA72 ATDA82 B1 ATDA01 ATDA11 ATDA21 ATDA31 ATDA41 ATDA51 ATDA61 ATDA71 ATDA81 B0 ATDA00 ATDA10 ATDA20 ATDA30 ATDA40 ATDA50 ATDA60 ATDA70 ATDA80 DAC Digital attenuation level setting Where x = 0 and 1 to 8, corresponding to the DAC channel, DACx (x = 1 to 8). Each DAC channel (VOUTx) has a digital attenuator function. The attenuation level can be set from 0 dB to –100 dB in 0.5-dB steps, and also can be set to infinite attenuation (mute). The attenuation level change from current value to target value is performed by incrementing or decrementing with s-curve responses and a time set by ATSPDA. While an attenuation level change sequence is in progress, new processing of the attenuation level change for new commands are ignored; any new commands are overwritten into the command buffer. The last command for the attenuation level change is performed after the present attenuation level change sequence is finished. The attenuation level for each channel can be set individually using the following formula; the table below shows attenuation levels for various settings. Attenuation level (dB) = 0.5 × (ATDAx[7:0]DEC – 255), where ATDAx[7:0]DEC = 0 through 255 for ATDAx[7:0]DEC = 0 through 54, attenuation is set to infinite attenuation (Mute). ATDA0[7:0] are used to control all channels at the same time with attenuation data of ATDA0[7:0] + ATDAx[7:0] in decibel number, when ATMDDA is set to 1. This scheme provides preset and master volume operation. Default value: 1111 1111. Decimal value Attenuation level setting 1111 1111 ATDAx 255 0 dB, no attenuation (default) 1111 1110 254 –0.5 dB 1111 1101 253 –1.0 dB ... ... 1000 0001 129 –63.0 dB 1000 0000 128 –63.5 dB 0111 1111 ... 127 –64 dB ... ... ... 0011 1000 56 –99.5 dB 0011 0111 55 –100 dB 0011 0110 54 Mute ... ... ... 0000 0000 0 Mute Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 45 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table 22. Register: ADC Sampling Mode DEC 80 SRAD[1:0] HEX 50 B7 — B6 — B5 — B4 — B3 — B2 — B1 SRAD1 B0 SRAD0 ADC Sampling mode select These bits control the sampling mode of ADC operation. In Auto mode, the sampling mode is automatically set according to multiples between system clock and sampling clock, single rate for 512 fS and 768 fS, and dual rate for 256 fS and 384 fS. Default value: 00. SRAD ADC Sampling mode select 00 Auto (default) 01 Single rate 10 Dual rate 11 Reserved Table 23. Register: ADC Control 1 DEC 81 MSAD[2:0] HEX 51 B7 — B6 MSAD2 B5 MSAD1 B4 MSAD0 B3 — B2 FMTAD2 B1 FMTAD1 B0 FMTAD0 ADC Master/slave mode select These bits control the audio interface mode for ADC operation. Default value: 000 (slave mode). MSAD FMTAD[2:0] ADC Master/slave mode select 000 Slave mode (default) 001 Master mode, 768 fS 010 Master mode, 512 fS 011 Master mode, 384 fS 100 Master mode, 256 fS 101 Reserved 110 Reserved 111 Reserved ADC Audio interface format select These bits control the audio interface format for ADC operation. The format details and restrictions related to the system clock and master/slave mode are described in Audio Data Interface Formats and Timing. Default value: 000 (24-bit I2S format). FMTAD 46 ADC Audio interface format select 000 24-bit I2S format (default) 001 24-bit left-justified format 010 24-bit right-justified format 011 16-bit right-justified format 100 24-bit I2S mode DSP format 101 24-bit left-justified mode DSP format 110 24-bit I2S mode TDM format 111 24-bit left-justified mode TDM format Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 24. Register: ADC Control 2 DEC 82 PSVAD[2:0] HEX 52 B7 — B6 PSVAD2 B5 PSVAD1 B4 PSVAD0 B3 — B2 BYP2 B1 BYP1 B0 BYP0 ADC Power-save control These bits control the ADC power-save mode. In power-save mode, DOUT is forced into ZERO with a fade-out sequence, the internal ADC data are reset, and the ADC goes into a power-down state. For power-save mode release, a fade-in sequence is applied on DOUT in resume process. The serial mode control is enabled during this mode. Wait times greater than tADCDLY2 are required for the status change because of the power-save control turning on/off. Default value: 000. BYP[2:0] PSVAD ADC Power-save control xx0 ADC1/2 normal operation xx1 ADC1/2 power-save mode x0x ADC3/4 normal operation x1x ADC3/4 power-save mode 0xx ADC5/6 normal operation 1xx ADC5/6 power-save mode ADC HPF bypass control These bits control the HPF function and dc components of the input signal; internal dc offset is converted in bypass mode. Default value: 000. BYP ADC HPF bypass control xx0 ADC1/2 normal output, HPF enabled xx1 ADC1/2 bypassed output, HPF disabled x0x ADC3/4 normal output, HPF enabled x1x ADC3/4 bypassed output, HPF disabled 0xx ADC5/6 normal output, HPF enabled 1xx ADC5/6 bypassed output, HPF disabled Table 25. Register: ADC Input Configuration DEC 83 SEAD[6:1] HEX 53 B7 — B6 — B5 SEAD6 B4 SEAD5 B3 SEAD4 B2 SEAD3 B1 SEAD2 B0 SEAD1 ADC Input configuration control These bits control the input configuration of each ADC channel, differential or single-ended. Default value: 00 0000 (all ADC channels have differential inputs). SEAD ADC Input configuration xx xxx0 ADC1 differential input xx xxx1 ADC1 single-ended input xx xx0x ADC2 differential input xx xx1x ADC2 single-ended input xx x0xx ADC3 differential input xx x1xx ADC3 single-ended input xx 0xxx ADC4 differential input xx 1xxx ADC4 single-ended input x0 xxxx ADC5 differential input x1 xxxx ADC5 single-ended input 0x xxxx ADC6 differential input 1x xxxx ADC6 single-ended input Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 47 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table 26. Register: ADC Input Phase DEC 84 REVAD[6:1] HEX 54 B7 — B6 — B5 REVAD6 B4 REVAD5 B3 REVAD4 B2 REVAD3 B1 REVAD2 B0 REVAD1 B2 MUTAD3 B1 MUTAD2 B0 MUTAD1 ADC Input phase select These bits are used to control the phase of analog signal inputs. Default value: 00 0000. REVAD ADC Input phase select xx xxx0 ADC1 normal input xx xxx1 ADC1 inverted input xx xx0x ADC2 normal input xx xx1x ADC2 inverted input xx x0xx ADC3 normal input xx x1xx ADC3 inverted input xx 0xxx ADC4 normal input xx 1xxx ADC4 inverted input x0 xxxx ADC5 normal input x1 xxxx ADC5 inverted input 0x xxxx ADC6 normal input 1x xxxx ADC6 inverted input Table 27. Register: ADC Soft Mute DEC 85 MUTAD[6:1] HEX 55 B7 — B6 — B5 MUTAD6 B4 MUTAD5 B3 MUTAD4 ADC Soft Mute control These bits are used to enable or disable the Soft Mute function for the corresponding ADC outputs, DOUT. The Soft Mute function is incorporated into the digital attenuators. When Mute is disabled (MUTAD[6:1] = 0), the attenuator and ADC operate normally. When Mute is enabled by setting MUTAD[6:1] = 1, the digital attenuator for the corresponding output decreases from the current setting to infinite attenuation with an s-curve responses and time set by ATSPAD. By setting MUTAD[6:1] = 0, the attenuator increases to the last attenuation level with the s-curve response in same manner as for decreasing levels. This provides pop and zipper noise-free muting for the ADC input. The Soft Mute control uses the same digital attenuation level resource setting as the ADC. Mute control has priority over the digital attenuation level setting. Default value: 00 0000. 48 MUTAD ADC Soft Mute control xx xxx0 ADC1 Mute disabled xx xxx1 ADC1 Mute enabled xx xx0x ADC2 Mute disabled xx xx1x ADC2 Mute enabled xx x0xx ADC3 Mute disabled xx x1xx ADC3 Mute enabled xx 0xxx ADC4 Mute disabled xx 1xxx ADC4 Mute enabled x0 xxxx ADC5 Mute disabled x1 xxxx ADC5 Mute enabled 0x xxxx ADC6 Mute disabled 1x xxxx ADC6 Mute enabled Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 Table 28. Register: ADC Overflow Flag DEC 86 OVF[6:1] HEX 56 B7 — B6 — B5 OVF6 B4 OVF5 B3 OVF4 B2 OVF3 B1 OVF2 B0 OVF1 ADC Overflow flag (read-only) These bits indicate the status information of an overflow detect circuit for each ADC channel; these bits are read only. 1 means an overflow has been detected in the past, and reading this register resets all OVF bits. OVF ADC Overflow flag xx xxx0 ADC1 overflow input not detected xx xxx1 ADC1 overflow input detected xx xx0x ADC2 overflow input not detected xx xx1x ADC2 overflow input detected xx x0xx ADC3 overflow input not detected xx x1xx ADC3 overflow input detected xx 0xxx ADC4 overflow input not detected xx 1xx3x ADC4 overflow input detected x0 xxxx ADC5 overflow input not detected x1 xxxx ADC5 overflow input detected 0x xxxx ADC6 overflow input not detected 1x xxxx ADC6 overflow input detected Table 29. Register: ADC Control 3 DEC 87 ATMDAD HEX 57 B7 ATMDAD B6 ATSPAD B5 — B4 — B3 — B2 — B1 — B0 OVFP ADC Attenuation mode This bit controls the ADC attenuation mode. ATAD1[7:0] to ATAD6[7:0] are simply used for ATMDAD = 0, and ATAD0[7:0] + ATAD1[7:0] to ATAD0[7:0] + ATAD6[7:0] in decibel number are used for ATMDAD = 1. Default value: 0. ATMDAD ATSPAD ADC Attenuation mode 0 Each channel with independent data (default) 1 All channels with preset (independent) data + master (common) data in decibel number ADC Attenuation speed This bit controls the ADC attenuation Speed, N × 2048/fS for ATSPAD = 0 and N × 4096/fS for ATSPAD = 1. N is automatically selected according to the ADC sampling mode, SRAD: N = 1 for single and N = 2 for dual rate. Default value: 0. ATSPAD OVFP ADC Attenuation speed 0 N × 2048/fS (default) 1 N × 4096/fS ADC Overflow flag polarity select This bit controls the polarity of the overflow flag pin. Default value: 0. OVFP ADC Overflow flag polarity select 0 High for overflow detect (default) 1 Low for overflow detect Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 49 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Table 30. Register: ADC Attenuation DEC 88 89 90 91 92 93 94 ATADx[7:0] HEX 58 59 5A 5B 5C 5D 5E B7 ATAD07 ATAD17 ATAD27 ATAD37 ATAD47 ATAD57 ATAD67 B6 ATAD06 ATAD16 ATAD26 ATAD36 ATAD46 ATAD56 ATAD66 B5 ATAD05 ATAD15 ATAD25 ATAD35 ATAD45 ATAD55 ATAD65 B4 ATAD04 ATAD14 ATAD24 ATAD34 ATAD44 ATAD54 ATAD64 B3 ATAD03 ATAD13 ATAD23 ATAD33 ATAD43 ATAD53 ATAD63 B2 ATAD02 ATAD12 ATAD22 ATAD32 ATAD42 ATAD52 ATAD62 B1 ATAD01 ATAD11 ATAD21 ATAD31 ATAD41 ATAD51 ATAD61 B0 ATAD00 ATAD10 ATAD20 ATAD30 ATAD40 ATAD50 ATAD60 ADC Digital attenuation level setting Where x = 0 and 1 to 6, corresponding to the ADC channel, ADCx (x = 1 to 6). Each ADC channel has a digital attenuator function with 20-dB gain. The attenuation level can be set from 20 dB to –100 dB in 0.5-dB steps, and also can be set to infinite attenuation (mute). The attenuation level change from current value to target value is performed by increment or decrement with s-curve response and time set by ATSPAD. While the attenuation level change sequence is in progress, new processing of an attenuation level change for a new command is ignored; the new command is overwritten into the command buffer. The last command for an attenuation level change is performed after the present attenuation level change sequence is finished. The attenuation level for each channel can be set individually using the following formula, and the above table shows attenuation levels for various settings. Attenuation level (dB) = 0.5 × (ATADx[7:0]DEC – 215), where ATADx[7:0]DEC = 0 through 255 for ATADx[7:0]DEC = 0 through 14, attenuation is set to infinite attenuation (Mute). ATAD0[7:0] is used to control all channels at the same time with attenuation data of ATAD0[7:0] + ATADx[7:0] in decibel number, though maximum level is limited within +20 dB, when ATMDAD is set to 1. This scheme provides preset and master volume operation. Default value: 1101 0111. Decimal value Attenuation level setting 1111 1111 ATADx 255 20.0 dB 1111 1110 254 19.5 dB 1111 1101 253 19.0 dB ... ... 1101 1000 216 0.5 dB 1101 0111 215 0 dB, no attenuation (default) 1101 0110 214 –0.5 dB ... ... ... 0001 0000 16 –99.5 dB 0000 1111 15 –100.0 dB 0000 1110 14 Mute ... ... ... 0000 0000 0 Mute ... 50 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 10 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 10.1 Application Information A typical circuit connection for six-channel analog in and eight-channel analog out is shown in Figure 54. 10.2 Typical Application Digital Audio Processor 5V 0V C3 C8 + C4 + C11 C9 + + C10 BCKDA LRCKDA DIN4 DIN3 DIN2 DIN1 SCKI DOUT3 DOUT2 DOUT1 R12 VOUT1- VIN2- VOUT2+ VIN3+ VOUT2- VIN3- VOUT3+ VIN4+ VOUT3- VIN4- VOUT4+ VIN5+ VOUT4- VIN5- VOUT5+ VIN6+ VOUT5- PCM3168A PCM3168A-Q1 VOUT6- DGND1 VOUT7+ VDD2 VOUT7- DGND2 VOUT8+ VCCAD1 VOUT8- AGNDA1 VCCDA1 VCCAD2 AGNDDA1 AGNDAD2 VREFAD1 VREFAD2 Termination Analog Output LPF and Buffer Analog Output LPF and Buffer Analog Output LPF and Buffer Analog Output LPF and Buffer VOUT6+ VDD1 VCOMAD Analog Output LPF and Buffer VCCDA2 AGNDDA2 VCOMDA Analog Output LPF and Buffer Analog Output LPF and Buffer Analog Output LPF and Buffer C5 C6 C12 + ZERO C2 R11 VOUT1+ VIN6C1 C7 R10 VIN2+ OVF 0V + R9 VIN1- MODE 3.3 V R8 MC/SCL/FMT Analog Input R7 MDI/SDA/DEMP Analog Input R6 MDO/ADR1/MD1 Analog Input R5 MS/ADR0/MD0 Analog Input R4 RST Analog Input R3 BCKAD VIN1+ Analog Input R2 LRCKAD R1 Control MCU C1 through C6 are 1-μF ceramic capacitors dependent on power-supply quality. C7 and C8 are 10-μF electrolytic capacitors dependent on power-supply quality. C9 and C10 are 10-μF electrolytic capacitors. C11 and C12 are 10-μF electrolytic capacitors. R1 through R12 are 22-Ω to 100-Ω resistors. Figure 54. Example Board Layout Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 51 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Typical Application (continued) 10.2.1 Design Requirements For this design example, use the parameters listed in Table 31. Table 31. Design Parameters DESIGN PARAMETER EXAMPLE VALUE Audio input PCM audio, differential analog audio Audio output PCM audio, differential analog audio Control I2C, SPI 10.2.2 Detailed Design Procedure 10.2.2.1 Analog Input and Output It is recommended that input and output filters be used to condition the inputs and outputs. Input filters can be used to convert a single ended signal into a differential signal while also attenuating out of band noise. Another use of an input filter for the ADC it to reduce a 2-VRMS signal to a 1-VRMS input, which is the limit of the ADC input. Output filters can be used to go from differential to single ended, while reducing a differential signal that is 8 VPP to a 2-VRMS signal. The output filter can also attenuate out of band noise. 10.2.2.2 PCM Interface The PCM3168A has the capability of inputting 8 PCM channels over 4 data pins in normal PCM mode, or can operate in TDM mode to take in 8 channels on one data pin. The PCM3168A can also output up to 6 PCM channels over 3 data pins, or over 1 pin in TDM mode. 0 0 -20 -20 -40 -40 Amplitude (dB) Amplitude (dB) 10.2.3 Application Curves -60 -80 -100 -60 -80 -100 -120 -120 -140 -140 -160 -160 0 5 10 20 15 0 Frequency (kHz) 10 15 20 Frequency (kHz) –1 dB, N = 32768 0 dB, N = 32768 Figure 55. ADC Output Spectrum 52 5 Submit Documentation Feedback Figure 56. DAC Output Spectrum Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 10.3 System Examples 10.3.1 Typical Circuit Connections Termination for mode control: Any one of the circuits shown in Figure 57 must be applied according to the necessary mode or configuration. Resistor value must be 220-kΩ, ±5% tolerant. The PowerPAD must be tied to the ground plane with enough electrical and thermal conductivity; see the example board layout in Figure 54. 3.3 V 48 3.3 V 48 48 48 (1) (2) 0V 0V (3) (4) Figure 57. Typical Circuit Connections Typical interface circuits for analog input and analog output are shown in Figure 58 through Figure 62. R2 1.5 kW R2 470 pF C1 22 pF 1.5 kW R1 R3 R3 VIN(1 VRMS) VIN+ (1 VRMS) 4.7 kW R2 R2 C2 470 pF C1 10 mF 4.7 kW + Analog Input (2 VRMS) R2 R1 R3 C2 VIN+ (1 VRMS) C1 0.1 mF Analog Input (2 VRMS) 10 mF R1 + VCOMAD R3 VIN(1 VRMS) VCOMAD 0.1 mF Amplifier is an NE5532A x2 or OPA2134 x2; R1 = 1.5-kΩ resistor; R2 = 750-Ω resistor; R3 = 47-Ω resistor; C1 = 3300-pF capacitor; C2 = 0.01-μF capacitor; Gain = 1; f–3 dB = 45 kHz. Amplifier is an NE5532A x1 or OPA2134 x1; R1 = 3-kΩ resistor; R2 = 1.5-kΩ resistor; R3 = 47-Ω resistor; C1 = 2200-pF capacitor; C2 = 0.01-μF capacitor; Gain = 1; f–3 dB = 48 kHz. Figure 58. Single-Ended to Differential Buffer and Anti-Aliasing LPF For Differential ADC Input Figure 59. Single-Ended to Differential Buffer and Anti-Aliasing LPF For Differential ADC Input Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 53 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com System Examples (continued) R2 R2 C2 C1 10 mF R1 R3 VOUT+ (4 VPP) 10 mF R1 R3 47W C1 + C2 VIN+ (1 VRMS) VOUT(4 VPP) + + Analog Input (2 VRMS) 10 mF Analog Output (2 VRMS) R3 R1 R2 VIN- C2 C2 0.1 mF VCOMAD Amplifier is an NE5532A x1 or OPA2134 x1; R1 = 3-kΩ resistor; R2 = 1.5-kΩ resistor; R3 = 47-Ω resistor; C1 = 2200-pF capacitor; C2 = 0.022-μF capacitor; Gain = 0.5; f–3 dB = 48 kHz. Figure 60. Buffer and Anti-Aliasing LPF for SingleEnded ADC Input R2 47W C1 R1 1 mF + VOUT+ (4 VPP) Analog Input+ (1 VRMS) R3 1 mF R1 VIN(1 VRMS) + VOUT(4 VPP) Figure 61. Post-LPF and Differential to SingleEnded Buffer for DAC Output (AC-Coupled) Analog Input(1 VRMS) C2 R1 Amplifier is an NE5532A x1/2 or OPA2134 x1/2; R1 = 7.5-kΩ resistor; R2 = 5.6-kΩ resistor; R3 = 360-Ω resistor; C1 = 3300-pF capacitor; C2 = 680-pF capacitor; Gain = 0.747; f–3 dB = 53 kHz. R1 C1 VIN+ (1 VRMS) Analog Output (2 VRMS) R3 R2 C2 Amplifier is an NE5532A x1/2 or OPA2134 x1/2; R1 = 15-kΩ resistor; R2 = 11-kΩ resistor; R3 = 820-Ω resistor; C1 = 1500-pF capacitor; C2 = 330-pF capacitor; Gain = 0.733; f–3 dB = 54 kHz. Figure 62. Post-LPF and Differential to SingleEnded Buffer for DAC Output (DC-Coupled) Figure 63. Basic Differential Input Circuit With AntiAliasing LPF for Differential ADC Input 11 Power Supply Recommendations The PCM3168A requires a 5-V and 3.3-V nominal supply rail. The 3.3-V supply rail is needed for VDD1 and VDD2. The 5-V supply rail is needed for VCCAD1, VCCAD2, VCCDA1, and VCCDA2. The decoupling capacitors for the power supplies should be placed close to the device terminals. 54 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 12 Layout 12.1 Layout Guidelines 12.1.1 Power-Supply Pins (VCCAD1/2, VCCDA1/2, and VDD1/2) The digital and analog power-supply pins of the PCM3168A device should be bypassed to the corresponding ground pins with 1-μF ceramic capacitors placed as close to the pins as possible. Each power-supply line (VCC and VDD) to the PCM3168A device should be bypassed to the corresponding ground pins with 10-μF electrolytic capacitors to maximize the dynamic performance of the ADC and DAC. Although the PCM3168A device has two power lines to maximize the potential of dynamic performance, using one common source (for instance, a 5-V power supply for VCC and a 3.3-V power supply for VDD generated from one common source) is recommended to avoid unexpected power-supply trouble such as latch-up or incorrect power-supply conditions. Also, simultaneous power-on/off of VCC and VDD is recommended to avoid unexpected transient responses in outputs, though the power-supply sequence of VCC and VDD is not specified in the operation and absolute maximum ratings point of view. 12.1.2 Grounding (AGNDAD1/2, AGNDDA1/2, and DGND1/2) To maximize the dynamic performance of the PCM3168A device, the analog and digital grounds are not connected internally. These pins should have very low impedances to avoid digital noise and signal components feeding back into the analog ground. All ground pins should be connected directly to each other under the part, and the device should be connected to the analog ground of the application, as with acceptable analog layout practices; this layout reduces the potential of noise problems. 12.1.3 VIN1±, VIN2±, VIN3±, VIN4±, VIN5±, and VIN6± Pins In case of direct interface to VINx±, 1-μF electrolytic capacitors are recommended because the ac-coupling capacitor (which gives a 2-Hz HPF corner frequency and 47-Ω and 0.1-μF to 470-Ω and 0.001-μF differential LPF) is recommended as the anti-aliasing filter that gives a 160-kHz LPF corner frequency. If signal source impedance is not enough (too low) or input line length to the VINx± is not enough (too short), insertion of an analog front-end buffer (see Figure 58 to Figure 60) is recommended to maximize the dynamic performance. The voltage coefficient of the capacitor for an anti-aliasing filter should be considered to maximize the THD performance. A film-type capacitor is recommended; if a ceramic capacitor is used, a relatively higher voltage type is recommended. There are three ways to terminate any unused input pins. First, terminate these pins to AGNDAD with 0.001-μF to 1-μF capacitors. This termination is applied on unused pins whose channels are configured in single-ended mode. The second form of termination is to connect the positive (+) pin and negative (–) pins together and terminating these to AGNDAD with 0.001-μF to 1-μF capacitors. This option applies to unused pins with channels that are configured in differential mode. The last termination method is to terminate the pins directly to VCOMAD; this option can be applied on unused pins with unused channels combined into two channels that are then configured in power-save mode. 12.1.4 VCOMAD and VCOMDA Pins 10-μF electrolytic capacitors are recommended between VCOMAD and AGNDAD, and VCOMDA and AGNDDA to ensure a low source impedance of ADC and DAC common voltages. These capacitors should be located as close to each pin as possible to reduce dynamic errors on the ADC and DAC common voltages. 12.1.5 VREFAD1/2 Pins 10-μF electrolytic capacitors are recommended between VREFAD1/2 and AGNDAD to ensure low source impedances of ADC references. These capacitors should be located as close to each pin as possible to reduce dynamic errors on ADC references. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 55 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com Layout Guidelines (continued) 12.1.6 VOUT1±, VOU2±, VOUT3±, VOUT4±, VOUT5±, VOUT6±, VOUT7±, and VOUT8± Pins The differential to single-ended buffer with post LPF can be directly connected (without capacitors) to these output pins (see Figure 62), thereby minimizing the use of coupling capacitors for the 2-VRMS outputs. The op amp and resistors must be determined with consideration of degrading some performance through this differential to single-ended and LPF buffer; there is about 1.5-dB degradation seen in the examples of Figure 61 and Figure 62. 12.1.7 MODE Pin This pin is a logic input with quad-state input capability. The MODE pin is high when connected to VDD, low when connected to DGND, and pulled up or pulled down through an external resistor and for the two mid-states in order to distinguish the four input states. The pull-up or pull-down resistor must be 220 kΩ, ±5% in tolerance. Note that the state of the MODE pin is only sampled by a power-on or a low-to-high transition of the RST pin. 12.1.8 RST Pin When the MODE pin setting changes to change the operating mode, the new mode setting does not take effect immediately; a RST pin toggle is required to make the new mode setting valid, and for the new mode to take effect. 12.1.9 OVF Pin The OVF pin has two functions. It is primarily the flag for ADC overflow occurrence detection. It is also used to indicate that the internal reset sequence is complete and that the device is ready to enter serial mode control. 12.1.10 System Clock and Audio Interface Clocks The quality of SCKI may influence dynamic performance, because the PCM3168A device (both the ADC and DAC) operates based on SCKI. Therefore, it may be required to consider the jitter, duty, and rise and fall time of the system clock. In slave mode, the PCM3168A device does not require a specific timing relationship between BCKAD/LRCKAD and SCKI, and BCKDA/LRCKDA and SCKI; however, there is a possibility of performance degradation with a certain timing relationship between them. In that case, specific timing relationship control might resolve this performance degradation. In master mode, there is a possibility of performance degradation because of heavy loads on BCKAD/LRCKAD, BCKDA/LRCKDA, and DOUT1/2/3. It is recommended to load these pins as lightly as possible. Note that all output clocks and signals go low; they do not go into a high-impedance state during power-save mode. 12.1.11 PowerPAD The PowerPAD of the PCM3168A device is internally connected to the substrate of the silicon. It should be connected to the ground plane with sufficient low conductance in electrical and thermal; see Figure 54. The PowerPAD size is 7.25 mm x 7.00 mm (0.725 cm × 0.7 cm). 12.1.12 External Mute Control For power-down ON/OFF control without the pop-noise that is generated by a DC level change on the DAC output, the external mute control is generally required. Use of the following control sequence is recommended: external mute ON, codec power-down ON, SCKI stop and resume if necessary, codec power-down OFF, and external mute OFF control. 56 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PCM3168A www.ti.com SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 12.2 Layout Example It is recommended to place a top layer ground pour for shielding around PCM3168 and connect to lower main PCB ground plane by multiple vias Resistors on PCM audio interfaces are for reducing reflections of high frequency signals if needed. These resistors should be between 22 Q v 100 Q Analog Inputs +5V 10 F + + Analog Inputs 10 F 10 F 55 54 VIN5- VREFAD2 AREFAD1 VIN4+ VIN4- VIN3+ VIN3- VIN2+ 1 VCOMAD 2 AGNDAD2 3 VCCAD2 4 53 52 51 50 49 VCCAD1 56 AGNDAD1 57 VIN1- 58 VIN2- 59 VIN1+ 60 See Mode Pin in Layout Guidelines for configuration MODE 48 DGND1 47 VDD1 46 RST MS,ADR0,MD0 45 5 OVF MDO,ADR1,MD1 44 6 LRCKAD MDI,SDA,DEMP 43 1 F 10 F +5V PCM Audio Output Interface 1 F 7 BCKAD MC,SCL,FMT 42 8 DOUT1 SCKI 41 9 DOUT2 DIN4 40 10 DOUT3 DIN3 39 11 DGND2 DIN2 38 12 VDD2 DIN1 37 13 ZERO BCKDA 36 14 VCCDA1 LRCKDA 35 15 VCOMDA VCCDA2 34 PCM3168 +3.3V +5V 10 F +3.3V Serial and Hardware Control Interface PCM Audio Input Interface 1 F 10 F 1 F 24 VOUT1+ 23 25 26 27 28 29 30 31 AGNDDA2 VOUT1- 22 VOUT2- 21 VOUT2+ VOUT5- 20 VOUT3- VOUT5+ 19 VOUT3+ VOUT6- 18 VOUT4+ VOUT6+ 17 VOUT4- VOUT7- 16 VOUT7+ 10 F AGNDDA1 VOUT8- + VOUT8+ 10 F 61 VIN6- + 62 VIN5+ 10 F 63 VIN6+ 1 F 64 33 +5V 1 F 10 F 32 Analog Outputs Top Layer Ground Pour and PowerPad Top Layer Signal Traces Pad to top layer ground pour Figure 64. PCM3168A Board Layout Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A 57 PCM3168A SBAS452A – SEPTEMBER 2008 – REVISED JANUARY 2016 www.ti.com 13 Device and Documentation Support 13.1 Device Support 13.1.1 Third-Party Products Disclaimer TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE. 13.2 Documentation Support 13.2.1 Related Documentation For related documentation, refer to the following: • PCM3168PAP IBIS Model Analog & Mixed-Signal (SLAC203) • PurePath™ Console Motherboard User's Guide (SLOU366) 13.3 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 13.4 Trademarks E2E is a trademark of Texas Instruments. PowerPAD is a trademark of Texas Instruments Incorporated. SPI is a trademark of Motorola. I2C, I2S are trademarks of NXP Semiconductors. All other trademarks are the property of their respective owners. 13.5 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 13.6 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 14 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 58 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: PCM3168A PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) PCM3168APAP ACTIVE HTQFP PAP 64 160 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 PCM3168A PCM3168APAPR ACTIVE HTQFP PAP 64 1000 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 PCM3168A PCM3168APAPRG4 ACTIVE HTQFP PAP 64 1000 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 PCM3168A PCM3168ATPAPQ1 ACTIVE HTQFP PAP 64 160 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 105 PCM3168AQ1 PCM3168ATPAPRQ1 ACTIVE HTQFP PAP 64 1000 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 105 PCM3168AQ1 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
