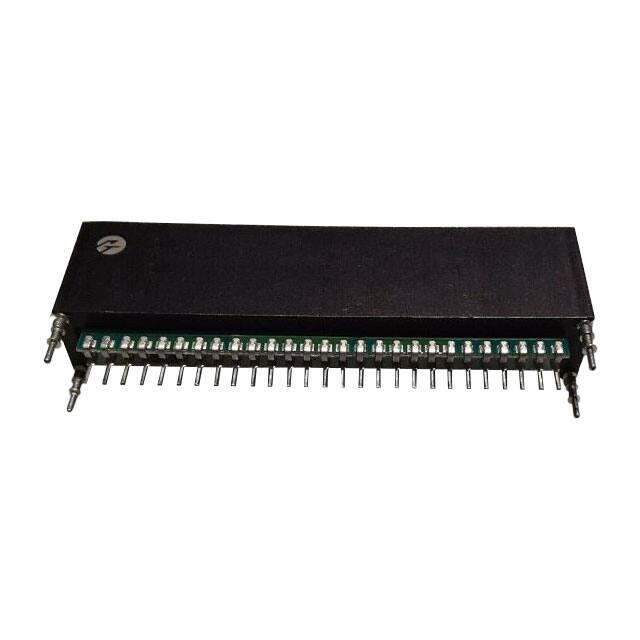

PT7701A

For assistance or to order, call (800) 531-5782 PT7700 Series SLTS077 15 AMP HIGH-PERFORMANCE “BIG HAMMER” PROGRAMMABLE ISR The PT7700 is a new series of highperformance, 15 Amp Integrated Switching Regulators (ISRs) housed in a 27-pin SIP package. The 15A capability allows easy integration of the latest high-speed, lowvoltage µPs and bus drivers into existing 5V systems. The PT7700 series has been designed to work in parallel with one or more of the PT7749 - 15A current boosters for increased Iout in increments of 15A. Features Standard Application • Single-Device: +5V input • 4-bit Programmable: 2V to 3.5V@15A or 1.3V to 2V @ 15A output • High Efficiency • Input Voltage Range: 4.5V to 5.5V • Differential Remote Sense • 27-pin SIP Package: Two products are offered in the series with different output voltage ranges that are easily programmed with a 4 bit input compatible with Intel’s Pentium Pro Processor. A differential remote sense is also provided which automatically compensates for any voltage drop from the ISR to the load. An input filter and 1200µF of output capacitance are required for proper operation. Cin = Required 330µF electrolytic (x4) Cout = Required 330µF electrolytic (x4) L1 = Required 1µH input choke PROGRAMMING PINS VID0 VID1 VID2 VID3 REMOTE SENSE (+) 4 3 2 1 L1 VIN 1µH CIN + + + 27 + Ordering Information ❏ = 2 to 3.5 Volts PT7701❏ ❏ = 1.3 to 2 Volts PT7702❏ N = Vertical through-hole A = Horizontal through-hole C = Horizontal surface-mount 26 PT7700 7 - 11 Revised 5/31/00 13 - 19 5 VOUT 20 - 25 12 COUT + + + + LOAD Programming Information PT7701 PT7702 Vout Vout SYNC OUT GND VID3 VID2 VID1 VID0 GND STBY* Remote Sense Vout 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 Sync Out Note: REMOTE SENSE (-) Pin-Out Information V = 1.0”(H) x 3”(L) x 0.55”(W) H = 0.55”(H) x 3”(L) x 1.5”(W) Pin 1 2 3 4 5 6 7 8 9 • Parallelable with PT7749 15A “Current Boosters” Specifications Function VID0 VID1 VID2 VID3 STBY* - Stand-by Vin Vin Vin Vin Pin 10 11 12 13 14 15 16 17 18 Function Pin 19 20 21 22 23 24 25 26 27 Vin Vin Remote Sense Gnd GND GND GND GND GND GND Function GND Vout Vout Vout Vout Vout Vout For STBY* pin; open = output enabled; ground = output disabled. 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 2.0V 2.1V 2.2V 2.3V 2.4V 2.5V 2.6V 2.7V 2.8V 2.9V 3.0V 3.1V 3.2V 3.3V 3.4V 3.5V Logic 0 = Pin 12 (remote sense gnd) potential Logic 1 = Open circuit (no pull-up resistors) PT7700 SERIES Characteristics (T A = 25°C unless noted) Output Current Symbols Io Conditions 4.5V ≤ Vin ≤ 5.5V Min 0.1 (1) Typ — Max 15 (2) Units ADC Input Voltage Range Vin 0.1A ≤ Io ≤ 15A 4.5 (3) — 5.5 VDC Static Voltage Tolerance Vo Vin = +5V, Io = 15A 0°C ≤ Ta ≤ +55°C Vo - 0.05 — Vo +0.05 VDC Line Regulation Regline 4.5V ≤ Vin ≤ 5.5V, Io = 15A — ±10 — mV Load Regulation Regload Vin = +5V, 0.1 ≤ Io ≤ 15A — ±10 — mV Vo Ripple/Noise pk-pk Vn Vin = +5V, Io = 15A — 50 — mV Transient Response with Cout = 1200µF ttr Vos Io step between 7.5A and 15A Vo over/undershoot — — 100 200 — — µSec mV Efficiency η Vin = +5V, Io = 10A — — — — — 89 87 85 79 77 — — — — — % % % % % Switching Frequency ƒo 4.5V ≤ Vin ≤ 5.5V 0.1A ≤ Io ≤ 15A 650 700 750 kHz Operating Temperature Ta Forced Air Flow = 200 LFM Over Vin and Io Ranges 0 — +55 °C Vo Vo Vo Vo Vo = 3.3V = 2.9V = 2.5V = 1.8V = 1.5V 1.30V 1.35V 1.40V 1.45V 1.50V 1.55V 1.60V 1.65V 1.70V 1.75V 1.80V 1.85V 1.90V 1.95V 2.00V 2.05V Storage Temperature Ts — -40 — +125 °C Weight — — — TBD — grams Relative Humidity — Non-condensing 0 — 95 % (1) ISR will operate down to no load with reduced specifications Please note that this product is not short-circuit protected. (2) The PT7700 series can be easily paralleled with one or more of the PT7749 slave modules to provide increased output current in increments of 15A. Please contact Power Trends for the appropriate application note. (3) The minimum input voltage is 4.5V or Vout+1.2V, whichever is greater. Output Capacitors: The PT7700 series requires A minimum output capacitance of 1200µF for proper operation. To reduce ESR, Power Trends recommends using four 330µF electrolytic capacitors in parallel. Input Filter: An input filter is required for all applications. The input inductor must be sized to handle 15ADC with a typical value of 1µH. The input capacitance must be rated for 14Arms of ripple current. Power Trends recommends using four Sanyo OSCON style capacitors with a 3.5Arms ripple current rating in parallel (p/n 6SA330M). Power Trends, Inc. 27715 Diehl Road, Warrenville, IL 60555 USA (800) 531-5782 Fax: (630) 393-6902 http://www.ti.com/powertrends IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment. TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed. TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards. TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI. Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions. Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications. TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use. TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions: Products Amplifiers Data Converters DSP Clocks and Timers Interface Logic Power Mgmt Microcontrollers RFID RF/IF and ZigBee® Solutions amplifier.ti.com dataconverter.ti.com dsp.ti.com www.ti.com/clocks interface.ti.com logic.ti.com power.ti.com microcontroller.ti.com www.ti-rfid.com www.ti.com/lprf Applications Audio Automotive Broadband Digital Control Medical Military Optical Networking Security Telephony Video & Imaging Wireless www.ti.com/audio www.ti.com/automotive www.ti.com/broadband www.ti.com/digitalcontrol www.ti.com/medical www.ti.com/military www.ti.com/opticalnetwork www.ti.com/security www.ti.com/telephony www.ti.com/video www.ti.com/wireless Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2008, Texas Instruments Incorporated
