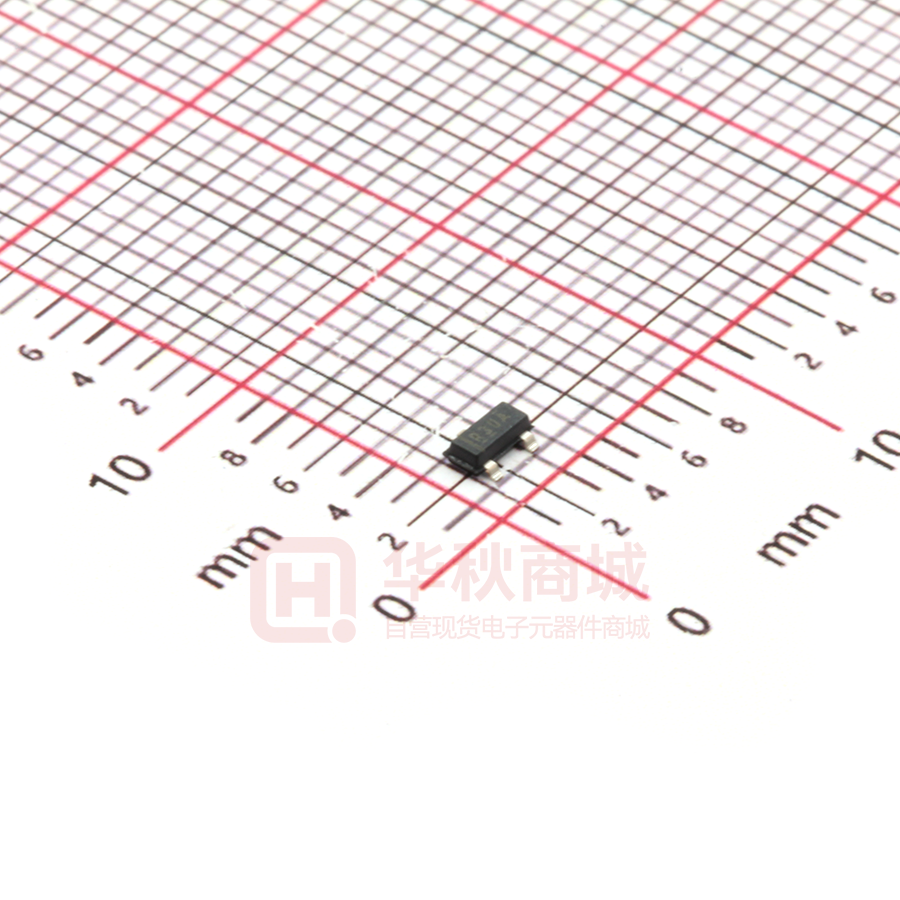

REF3012AIDBZR

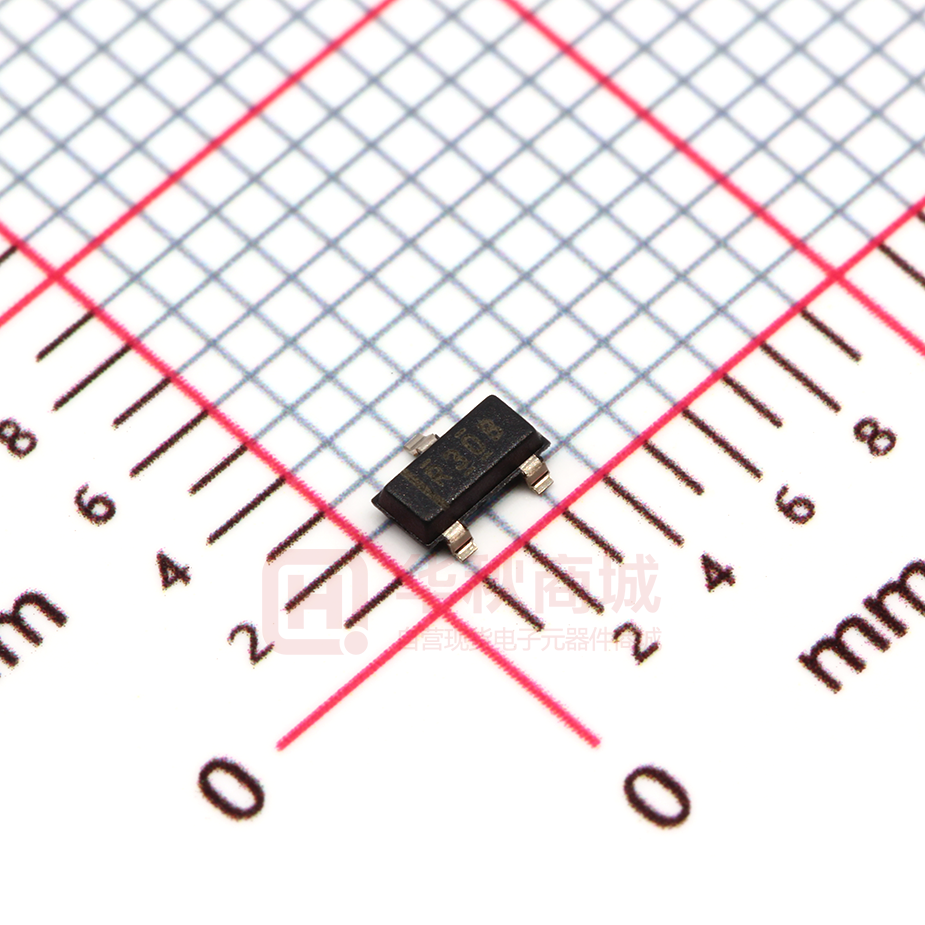

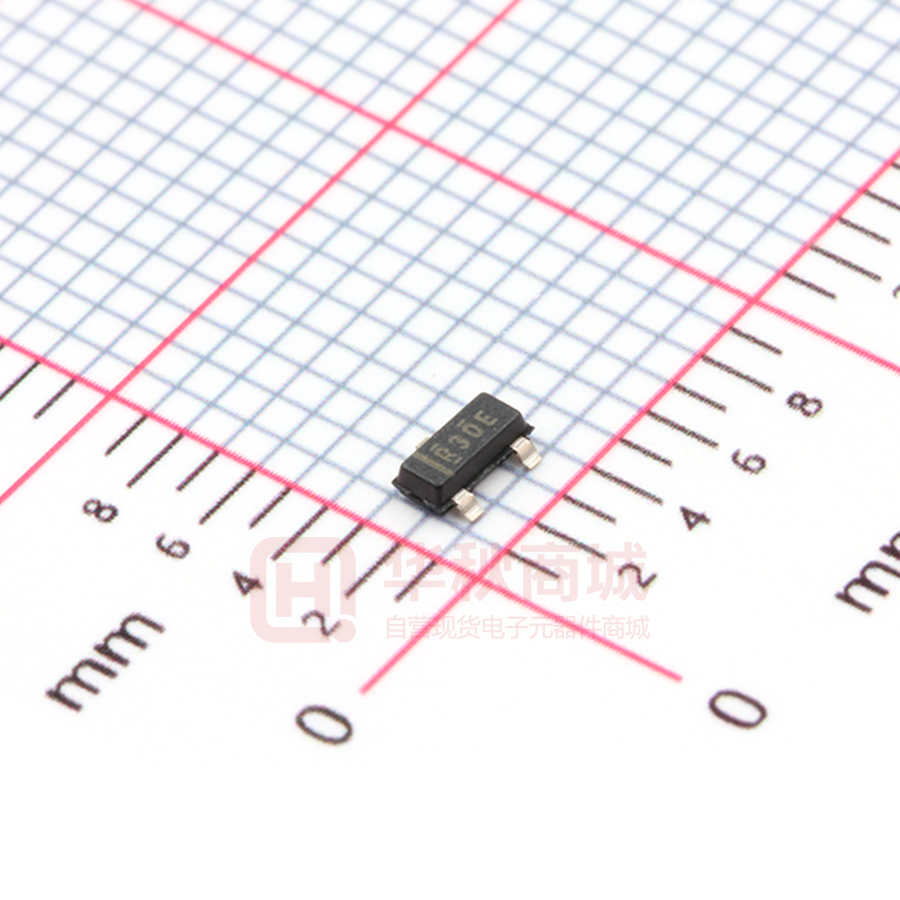

REF3012 REF3020 REF3025 REF3030 REF3033 REF3040 SBVS032E – MARCH 2002 – REVISED MARCH 2004 50ppm/°C Max, 50µA in SOT23-3 CMOS VOLTAGE REFERENCE FEATURES q MicroSIZE PACKAGE: SOT23-3 q LOW DROPOUT: 1mV q HIGH OUTPUT CURRENT: 25mA q HIGH ACCURACY: 0.2% q LOW IQ: 50µA max q EXCELLENT SPECIFIED DRIFT PERFORMANCE: 50ppm/°C (max) from 0°C to +70°C 75ppm/°C (max) from –40°C to +125°C DESCRIPTION The REF30xx is a precision, low power, low voltage dropout voltage reference family available in a tiny SOT23-3. The REF30xx small size and low power consumption (50µA max) make it ideal for portable and battery-powered applications. The REF30xx does not require a load capacitor, but is stable with any capacitive load. Unloaded, the REF30xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, –40°C to +125°C. APPLICATIONS q PORTABLE, BATTERY-POWERED EQUIPMENT q DATA ACQUISITION SYSTEMS q MEDICAL EQUIPMENT q HAND-HELD TEST EQUIPMENT PRODUCT REF3012 REF3020 REF3025 REF3030 REF3033 REF3040 VOLTAGE (V) 1.25 2.048 2.5 3.0 3.3 4.096 DROPOUT VOLTAGE vs LOAD CURRENT 350 IN 1 REF3012 REF3020 REF3025 REF3030 REF3033 REF3040 SOT23-3 300 Dropout Voltage (mV) 250 200 150 100 50 0 0 5 10 15 20 25 30 Load Current (mA) 3 GND OUT 2 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 2002-2004, Texas Instruments Incorporated www.ti.com ABSOLUTE MAXIMUM RATINGS(1) Supply Voltage, V+ to V– ................................................................... 7.0V Output Short-Circuit(2) .............................................................. Continuous Operating Temperature .................................................. –40°C to +125°C Storage Temperature ..................................................... –65°C to +150°C Junction Temperature .................................................................... +150°C Lead Temperature (soldering, 10s) ............................................... +300°C NOTES: (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these, or any other conditions beyond those specified, is not implied. (2) Short circuit to ground. ELECTROSTATIC DISCHARGE SENSITIVITY This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. PACKAGE/ORDERING INFORMATION(1) PACKAGE DESIGNATOR DBZ SPECIFIED TEMPERATURE RANGE –40°C to +125°C PACKAGE MARKING R30A ORDERING NUMBER REF3012AIDBZT REF3012AIDBZR REF3020AIDBZT REF3020AIDBZR REF3025AIDBZT REF3025AIDBZR REF3030AIDBZRT REF3030AIDBZR REF3033AIDBZT REF3033AIDBZR REF3040AIDBZT REF3040AIDBZR TRANSPORT MEDIA, QUANTITY Tape and Reel, 250 Tape and Reel, 3000 Tape and Reel, 250 Tape and Reel, 3000 Tape and Reel, 250 Tape and Reel, 3000 Tape and Reel, 250 Tape and Reel, 3000 Tape and Reel, 250 Tape and Reel, 3000 Tape and Reel, 250 Tape and Reel, 3000 PRODUCT REF3012 PACKAGE-LEAD SO T23-3 " REF3020 " SOT23-3 " DBZ " –40°C to +125°C " R30B " REF3025 " SOT23-3 " DBZ " –40°C to +125°C " R30C " REF3030 " SOT23-3 " DBZ " –40°C to +125°C " R30F " REF3033 " SOT23-3 " DBZ " –40°C to +125°C " R30D " REF3040 " SOT23-3 " DBZ " –40°C to +125°C " R30E " " " " " NOTES: (1) For the most current package and ordering information, see the Package Option Addendum located at the end of this data sheet. ELECTRICAL CHARACTERISTICS Boldface limits apply over the specified temperature range, TA = –40°C to +125°C. At TA = +25°C, ILOAD = 0mA, VIN = 5V, unless otherwise noted. REF30xx PARAMETER CONDITIONS MIN TYP MAX UNITS REF3012(1) - 1.25V OUTPUT VOLTAGE Initial Accuracy NOISE Output Voltage Noise Voltage Noise LINE REGULATION VOUT 1.2475 1.25 1.2525 0.2 V % µVp-p µVrms 190 µV/V f = 0.1Hz to 10Hz f = 10Hz to 10kHz 1.8V ≤ VIN ≤ 5.5V 14 42 60 REF3020 – 2.048 OUTPUT VOLTAGE Initial Accuracy NOISE Output Voltage Noise Voltage Noise LINE REGULATION VOUT 2.044 2.048 2.052 0.2 V % µVp-p µVrms 290 µV/V f = 0.1Hz to 10Hz f = 10Hz to 10kHz VREF + 50mV ≤ VIN ≤ 5.5V 23 65 110 REF3025 – 2.5V OUTPUT VOLTAGE Initial Accuracy NOISE Output Voltage Noise Voltage Noise LINE REGULATION VOUT 2.495 2.50 2.505 0.2 V % µVp-p µVrms 325 µV/V f = 0.1Hz to 10Hz f = 10Hz to 10kHz VREF + 50mV ≤ VIN ≤ 5.5V 28 80 120 2 REF3012, 3020, 3025, 3030, 3033, 3040 www.ti.com SBVS032E ELECTRICAL CHARACTERISTICS Boldface limits apply over the specified temperature range, TA = –40°C to +125°C. At TA = +25°C, ILOAD = 0mA, VIN = 5V, unless otherwise noted. REF30xx PARAMETER CONDITIONS MIN TYP MAX UNITS REF3030 – 3.0V OUTPUT VOLTAGE Initial Accuracy NOISE Output Voltage Noise Voltage Noise LINE REGULATION VOUT 2.994 3.0 3.006 0.2 V % µVp-p µVrms 375 µV/V f = 0.1Hz to 10Hz f = 10Hz to 10kHz VREF + 50mV ≤ VIN ≤ 5.5V 33 94 120 REF3033 – 3.3V OUTPUT VOLTAGE Initial Accuracy NOISE Output Voltage Noise Voltage Noise LINE REGULATION VOUT 3.294 3.30 3.306 0.2 V % µVp-p µVrms 400 µV/V f = 0.1Hz to 10Hz f = 10Hz to 10kHz VREF + 50mV ≤ VIN ≤ 5.5V 36 105 130 REF3040 – 4.096V OUTPUT VOLTAGE Initial Accuracy NOISE Output Voltage Noise Voltage Noise LINE REGULATION VOUT 4.088 4.096 4.104 0.2 V % µVp-p µVrms 410 µV/V f = 0.1Hz to 10Hz f = 10Hz to 10kHz VREF + 50mV ≤ VIN ≤ 5.5V 45 128 160 REF3012, REF3020, REF3025, REF3030, REF3033, REF3040 OUTPUT VOLTAGE TEMP DRIFT(2) dVOUT/dT 0°C ≤ TA ≤ +70°C –30°C ≤ TA ≤ +85°C –40°C ≤ TA ≤ +85°C –40°C ≤ TA ≤ +125°C 0-1000h 1000-2000h LOAD REGULATION(3) THERMAL HYSTERESIS(4) DROPOUT VOLTAGE SHORT-CIRCUIT CURRENT TURN ON SETTLING TIME POWER SUPPLY Voltage Over Temperature Quiescent Current Over Temperature TEMPERATURE RANGE Specified Range Operating Range Storage Range Thermal Resistance SOT23-3 Surface-Mount VS IQ –40°C ≤ TA ≤ +125°C –40 –40 –65 dVOUT/dILOAD dT VIN – VOUT ISC to 0.1% at VIN = 5V with CL = 0 IL = 0 –40°C ≤ TA ≤ +125°C VREF + 0.001(5) VREF + 0.05 42 0mA < ILOAD < 25mA, VIN = VREF + 500mV(1) 20 28 30 35 24 15 3 25 1 45 120 5.5 5.5 50 59 +125 +125 +150 110 336 100 100 50 50 60 65 75 ppm/°C ppm/°C ppm/°C ppm/°C ppm ppm µV/mA ppm mV mA µs V V µA LONG-TERM STABILITY µA °C °C °C °C/W °C/W θJC θJA NOTES: (1) (2) (3) (4) (5) Minimum supply voltage for REF3012 is 1.8V. Box Method used to determine over temperature drift. Typical value of load regulation reflects measurements using a force and sense contacts, see text Load Regulation. Thermal hysteresis procedure is explained in more detail in Applications Information section of data sheet. For IL > 0, see Typical Characteristic curves. REF3012, 3020, 3025, 3030, 3033, 3040 SBVS032E 3 www.ti.com TYPICAL CHARACTERISTICS At TA = +25°C, VIN = +5V power supply, REF3025 is used for typical characteristics, unless otherwise noted. TEMPERATURE DRIFT (0°C to +70°C) 50 45 40 100 90 80 TEMPERATURE DRIFT (–40°C to +125°C) Number of Units Number of Units 35 30 25 20 15 10 5 0 5 10 15 20 25 30 35 40 45 50 55 60 65 Drift (ppm/°C) 70 60 50 40 30 20 10 0 5 10 15 20 25 30 35 40 45 50 55 60 65 Drift (ppm/°C) OUTPUT VOLTAGE vs TEMPERATURE 2.502 Maximum Load Current (mA) MAXIMUM LOAD CURRENT vs TEMPERATURE 35 30 25 20 15 10 5 2.500 Output Voltage (V) 2.498 2.496 2.494 2.492 2.490 –40 –20 0 20 40 60 80 100 120 140 Temperature (°C) –40 –20 0 20 40 60 80 100 120 140 Temperature (°C) LOAD REGULATION vs TEMPERATURE 6 5 4 3 2 1 0 –40 –20 0 20 40 60 80 100 120 140 Temperature (°C) 60 50 40 QUIESCENT CURRENT vs TEMPERATURE Load Regulation (µV/mA) IQ (µA) 30 20 10 0 –40 –20 0 20 40 60 80 100 120 140 Temperature (°C) 4 REF3012, 3020, 3025, 3030, 3033, 3040 www.ti.com SBVS032E TYPICAL CHARACTERISTICS (Cont.) At TA = +25°C, VIN = +5V power supply, REF3025 is used for typical characteristics, unless otherwise noted. LINE REGULATION vs TEMPERATURE 200 100 OUTPUT IMPEDANCE vs FREQUENCY Output Impedance (dB) Line Regulation (µV/V) 150 10 100 1 50 0 0.1 –50 –40 –20 0 20 40 60 80 100 120 140 Temperature (°C) 0.01 1 10 100 1k 10k 100k Frequency (Hz) POWER-SUPPLY REJECTION RATIO vs FREQUENCY 90 80 70 OUTPUT VOLTAGE vs SUPPLY VOLTAGE (No Load) 2.500010 2.500000 2.499990 Output Voltage (V) 60 PSRR (dB) 50 40 30 20 10 0 1 10 100 1k 10k 100k Frequency (Hz) 2.499980 2.499970 2.499960 2.499950 2.499940 2.499930 2.499920 2.5 3 3.5 4 4.5 5 5.5 6 Supply (V) OUTPUT VOLTAGE vs SUPPLY VOLTAGE (ILOAD = 25mA) 2.500200 2.500100 2.500000 Output Voltage (V) Output Voltage (V) 2.500010 2.500000 2.499990 2.499980 2.499970 2.499960 2.499950 2.499940 2.499930 OUTPUT VOLTAGE vs LOAD CURRENT 2.499900 2.499800 2.499700 2.499600 2.499500 2.499400 2.499300 2.5 3 3.5 4 4.5 5 5.5 6 Supply (V) 0 5 10 15 20 25 30 Load Current (mA) REF3012, 3020, 3025, 3030, 3033, 3040 SBVS032E 5 www.ti.com TYPICAL CHARACTERISTICS (Cont.) At TA = +25°C, VIN = +5V power supply, REF3025 is used for typical characteristics, unless otherwise noted. STEP RESPONSE, CL = 0, 3V STARTUP STEP RESPONSE, CL = 0, 5V STARTUP 3V/div 1V/div 40µs/div 1V/div VOUT 5V/div VIN VIN VOUT 10µs/div LINE TRANSIENT RESPONSE IL = 1mA 0-1mA LOAD TRANSIENT (CL = 0) 500mV/div VIN 20mV/div IL = 0mA 50mV/div VOUT VOUT 10µs/div 10µs/div 0-5mA LOAD TRANSIENT (CL = 0) IL = 5mA IL = 0mA IL = 6mA 1-6mA LOAD TRANSIENT (CL =1µF) IL = 0mA 20mV/div VOUT 20mV/div 10µs/div VOUT 40µs/div 6 REF3012, 3020, 3025, 3030, 3033, 3040 www.ti.com SBVS032E TYPICAL CHARACTERISTICS (Cont.) At TA = +25°C, VIN = +5V power supply, REF3025 is used for typical characteristics, unless otherwise noted. 1-25mA LOAD TRANSIENT (CL = 1µF) IL = 25mA IL = 1mA 0.1Hz TO 10Hz NOISE 20mV/div VOUT 100µs/div 10µV/div 1.0s/div LONG-TERM STABILITY 0 TO 1000 HOURS 80 80 LONG-TERM STABILITY 1000 TO 2000 HOURS Absolute Output Voltage Drift (ppm) Absolute Output Voltage Drift (ppm) 0 100 200 300 400 500 600 700 800 900 1000 70 60 50 40 30 20 10 0 Time (hours) 70 60 50 40 30 20 10 0 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 Time (hours) LONG-TERM STABILITY 0 TO 2000 HOURS 80 Absolute Output Voltage Drift (ppm) 70 60 50 40 30 20 10 0 0 200 400 600 800 1000 1200 1400 1600 1800 2000 Time (hours) REF3012, 3020, 3025, 3030, 3033, 3040 SBVS032E 7 www.ti.com THEORY OF OPERATION The REF30xx is a series, CMOS, precision bandgap voltage reference. Its basic topology is shown in Figure 1. The transistors Q1 and Q2 are biased such that the current density of Q1 is greater than that of Q2. The difference of the two base-emitter voltages, Vbe1 – Vbe2, has a positive temperature coefficient and is forced across resistor R1. This voltage is gained up and added to the base-emitter voltage of Q2, which has a negative coefficient. The resulting output voltage is virtually independent of temperature. The curvature of the bandgap voltage, as seen in the typical curve, “Output Voltage vs Temperature,” is due to the slightly nonlinear temperature coefficient of the base-emitter voltage of Q2. The REF30xx features a low quiescent current, which is extremely stable over changes in both temperature and supply. The typical room temperature quiescent current is 42µA, and the maximum quiescent current over temperature is just 59µA. Additionally, the quiescent current typically changes less than 2.5µA over the entire supply range, as shown in Figure 3. Supply voltages below the specified levels can cause the REF30xx to momentarily draw currents greater than the typical quiescent current. Using a power supply with a fast rising edge and low output impedance easily prevents this. SUPPLY CURRENT vs INPUT VOLTAGE 42.5 42.0 IQ (µA) 41.5 41.0 + + Vbe1 Vbe2 – – R1 40.5 Q1 Q2 40.0 1 1.5 2 2.5 3 3.5 VIN (V) 4 4.5 5 5.5 6 FIGURE 3. Supply Current vs Supply Voltage. FIGURE 1. Simplified Schematic of Bandgap Reference. THERMAL HYSTERESIS APPLICATION INFORMATION The REF30xx does not require a load capacitor, and is stable with any capacitive load. Figure 2 shows typical connections required for operation of the REF30xx. A supply bypass capacitor of 0.47µF is recommended. Thermal hysteresis for the REF30xx is defined as the change in output voltage after operating the device at 25°C, cycling the device through the specified temperature range, and returning to 25°C, and can be expressed as:  abs VPRE – VPOST  6 VHYST =   • 10 (ppm) VNOM   Where: VHYST = Calculated hysteresis VPRE = Output voltage measured at 25°C pretemperature cycling VIN 1 0.47µF REF30xx 3 VOUT 2 VPOST = Output voltage measured when device has been operated at 25°C, cycled through specified range –40°C to +125°C and returned to operation at 25°C. FIGURE 2. Typical Connections for Operating REF30xx. TEMPERATURE DRIFT The REF30xx is designed to exhibit minimal drift error, defined as the change in output voltage over varying temperature. Using the “box” method of drift measurement, the REF30xx features a typical drift coefficient of 20ppm from 0°C to 70°C— the primary temperature range of use for many applications. For industrial temperature ranges of –40°C to 125°C, the REF30xx family drift increases to a typical value of 50ppm. SUPPLY VOLTAGE The REF30xx family of references features an extremely low dropout voltage. With the exception of the REF3012, which has a minimum supply requirement of 1.8V, the REF30xx can be operated with a supply of only 1mV above the output voltage in an unloaded condition. For loaded conditions, a typical dropout voltage versus load is shown on the cover page. 8 REF3012, 3020, 3025, 3030, 3033, 3040 www.ti.com SBVS032E NOISE PERFORMANCE The REF30xx generates noise less than 50µVp-p between frequencies of 0.1Hz to 10Hz, and can be seen in the Typical Characteristic Curve “0.1 to 10Hz Voltage Noise.” The noise voltage of the REF30xx increases with output voltage and operating temperature. Additional filtering may be used to improve output noise levels, although care should be taken to ensure the output impedance does not degrade AC performance. LONG TERM STABILITY Long term stability refers to the change of the output voltage of a reference over a period of months or years. This effect lessens as time progresses as is apparent by the long term stability curves. The typical drift value for the REF30xx is 24ppm from 0-1000 hours, and 15ppm from 1000-2000 hours. This parameter is characterized by measuring 30 units at regular intervals for a period of 2000 hours. LOAD REGULATION Load regulation is defined as the change in output voltage due to changes in load current. Load regulation for the REF30xx is measured using force and sense contacts as pictured in Figure 4. The force and sense lines tied to the contact area of the output pin reduce the impact of contact and trace resistance, resulting in accurate measurement of the load regulation contributed solely by the REF30xx. For applications requiring improved load regulation, force and sense lines should be used. APPLICATION CIRCUITS Negative Reference Voltage For applications requiring a negative and positive reference voltage, the OPA703 and REF30xx can be used to provide a dual supply reference from a ±5V supply. Figure 5 shows the REF3025 used to provide a ±2.5V supply reference voltage. The low offset voltage and low drift of the OPA703 complement the low drift performance of the REF30xx to provide an accurate solution for split-supply applications. +5V REF3025 10kΩ +2.5V 10kΩ +5V OPA703 –2.5V –5V FIGURE 5. REF3025 Combined with OPA703 to Create Positive and Negative Reference Voltages. DATA ACQUISITION Output Pin Contact and Trace Resistance + VOUT – Sense Line IL Force Line Load Meter Often data acquisition systems require stable voltage references to maintain necessary accuracy. The REF30xx family features stability and a wide range of voltages suitable for most micro-controllers and data converters. Figure 6 and Figure 7 show two basic data acquisition systems. FIGURE 4. Accurate Load Regulation of REF30xx. REF3012, 3020, 3025, 3030, 3033, 3040 SBVS032E 9 www.ti.com 3.3V 5Ω REF3033 GND + 1µF to 10µF V+ ADS7822 VREF 0.1µF VIN +In –In GND CS DOUT DCLOCK VCC VS + 1µF to 10µF Microcontroller FIGURE 6. Basic Data Acquisition System 1. 2.5V Supply 2.5V 5Ω + 1µF to 10µF VIN REF3012 VOUT 1.25V 0.1µF GND 0V to 1.25V +In –In ADS8324 VREF VCC + 1µF to 10µF Microcontroller VS CS DOUT DCLOCK GND FIGURE 7. Basic Data Acquisition System 2. 10 REF3012, 3020, 3025, 3030, 3033, 3040 www.ti.com SBVS032E PACKAGE OPTION ADDENDUM www.ti.com 6-Apr-2007 PACKAGING INFORMATION Orderable Device REF3012AIDBZR REF3012AIDBZRG4 REF3012AIDBZT REF3012AIDBZTG4 REF3020AIDBZR REF3020AIDBZRG4 REF3020AIDBZT REF3020AIDBZTG4 REF3025AIDBZR REF3025AIDBZRG4 REF3025AIDBZT REF3025AIDBZTG4 REF3030AIDBZR REF3030AIDBZRG4 REF3030AIDBZT REF3030AIDBZTG4 REF3033AIDBZR REF3033AIDBZRG4 REF3033AIDBZT REF3033AIDBZTG4 REF3040AIDBZR REF3040AIDBZRG4 REF3040AIDBZT REF3040AIDBZTG4 (1) Status (1) ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE Package Type SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 Package Drawing DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ DBZ Pins Package Eco Plan (2) Qty 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3000 Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 250 250 Green (RoHS & no Sb/Br) Green (RoHS & no Sb/Br) Lead/Ball Finish CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU CU NIPDAU MSL Peak Temp (3) Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM Level-1-260C-UNLIM 3000 Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 250 250 Green (RoHS & no Sb/Br) Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 250 250 Green (RoHS & no Sb/Br) Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 250 250 Green (RoHS & no Sb/Br) Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 250 250 Green (RoHS & no Sb/Br) Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 3000 Green (RoHS & no Sb/Br) 250 250 Green (RoHS & no Sb/Br) Green (RoHS & no Sb/Br) The marketing status values are defined as follows: Addendum-Page 1 PACKAGE OPTION ADDENDUM www.ti.com 6-Apr-2007 ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details. TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material) (3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. Addendum-Page 2 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment. TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed. TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards. TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI. Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions: Products Amplifiers Data Converters DSP Interface Logic Power Mgmt Microcontrollers Low Power Wireless amplifier.ti.com dataconverter.ti.com dsp.ti.com interface.ti.com logic.ti.com power.ti.com microcontroller.ti.com www.ti.com/lpw Applications Audio Automotive Broadband Digital Control Military Optical Networking Security Telephony Video & Imaging Wireless www.ti.com/audio www.ti.com/automotive www.ti.com/broadband www.ti.com/digitalcontrol www.ti.com/military www.ti.com/opticalnetwork www.ti.com/security www.ti.com/telephony www.ti.com/video www.ti.com/wireless Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265 Copyright © 2007, Texas Instruments Incorporated
