User's Guide
SLLU233 – December 2015
SN6505A and SN6505B Evaluation Module
This document describes the SN6505A and SN6505B evaluation module (EVM). It allows designers to
analyze and evaluate the SN6505A and SN6505B oscillator/power driver from TI.
In addition to the SN6505A and SN6505B, the EVM contains a small form-factor transformer, simple
rectifier circuit, and voltage regulator. This combination simulates a complete isolated power supply
system suitable for many different applications.
1
2
3
Contents
Introduction ...................................................................................................................
1.1
Overview .............................................................................................................
1.2
SN6505xEVM Kit Contents ........................................................................................
Printed-Circuit Board ........................................................................................................
2.1
SN6505xEVM Operation ...........................................................................................
2.2
Bill of Materials and Schematic ...................................................................................
SN6505xEVM Printed Circuit Board.......................................................................................
2
2
2
2
3
4
6
List of Figures
1
SN6505xEVM Pinout and Functional Block Diagram ................................................................... 2
2
SN6505xEVM Schematic
3
4
5
6
..................................................................................................
SN6505xEVM Top Layer View .............................................................................................
SN6505xEVM Bottom Layer View .........................................................................................
SN6505xEVM View ..........................................................................................................
SN6505xEVM View ..........................................................................................................
5
6
6
6
6
List of Tables
1
SN6505xEVM Bill of Materials ............................................................................................. 4
SLLU233 – December 2015
Submit Documentation Feedback
SN6505A and SN6505B Evaluation Module
Copyright © 2015, Texas Instruments Incorporated
1
Introduction
1
Introduction
1.1
Overview
www.ti.com
This SN6505A and SN6505B evaluation module allows the user to evaluate the performance and features
of the SN6505A and SN6505B in an actual isolated power application. This includes the transformer,
rectifier, and low-dropout (LDO) voltage regulator shown in Figure 1.
The complementary output signals (D1 and D2) from the SN6505x are ground-referenced, N-channel,
power switches that drive the primary side of the center-tapped transformer. The secondary of the
transformer has its center-tap referenced to an isolated ground, and the complementary outputs are
rectified through a simple two-diode bridge. The make-before-break feature of the two driver outputs from
the SN6505x ensures that only one side of the transformer is driven at a time. After being rectified, the dc
voltage is smoothed and routed to the TPS76701QD voltage regulator. The regulator outputs a stable,
regulated +5-Vdc output that is used to drive downstream circuitry.
The EVM is the SN6505x EVM which is configured for +5-Vdc/ input and +5-Vdc output.
Figure 1. SN6505xEVM Pinout and Functional Block Diagram
1.2
SN6505xEVM Kit Contents
•
•
•
2
SN6505xEVM Printed-Circuit Board
SN6505xEVM Evaluation Module User’s Guide
SN6505x data sheet
Printed-Circuit Board

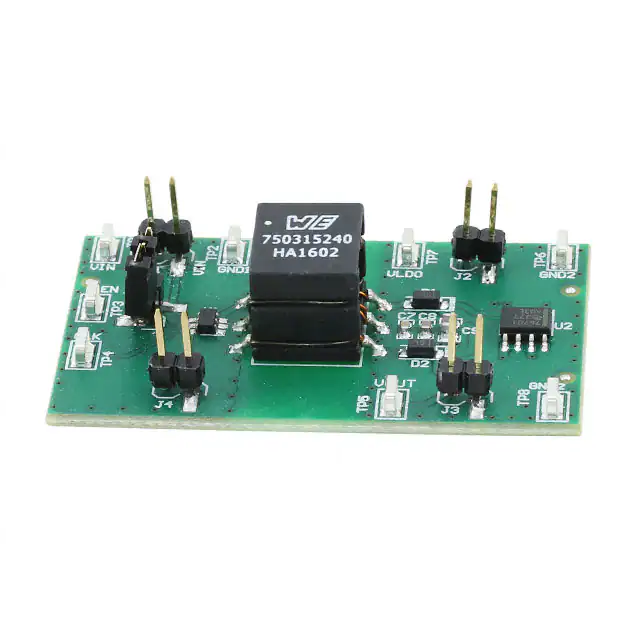

The SN6505xEVM printed-circuit board (PCB) contains an SN6505x, transformer, and voltage regulator.
The board has separate and isolated grounds across the isolation transformer allowing evaluation of the
isolated power supply system contained on the EVM. Although the transformer secondary can be wound
to provide any isolated voltage, the EVM uses a transformer with a 1:1.1 turns ratio, ideal for generating
the rectified voltage required by the TPS76701QD regulator.
Refer to the SN6505xEVM schematic and bill of materials (BOM) to become familiar with the PCB
components and layout. The PCB files (Gerber/ODB) are available from TI on request.
2
SN6505A and SN6505B Evaluation Module
Copyright © 2015, Texas Instruments Incorporated
SLLU233 – December 2015
Submit Documentation Feedback
Printed-Circuit Board
www.ti.com
2.1
2.1.1
SN6505xEVM Operation
Left-Side Operation: SN6505x and Transformer Primary
DC Power – The SN6505x (installed on the left-side of the isolation transformer) is operated using either a
single +5-V (±10%), or single +5-V (±10%) dc power supply. On this EVM, the turns-ratio of the
transformer is 1:1.1, providing a slight step-up voltage function. This allows evaluation of the system
performance using a supply voltage anywhere within the range of +5-Vdc to 5.5-Vdc. The small amount of
dc current required also allows operation of the EVM from a battery. The input dc power supply must be
connected to the J1 terminal block on the left side of the EVM. No other controls are required to operate
the EVM. The SN6505X oscillates and drives the transformer when dc voltage is applied.
2.1.2
Right-Side Operation
DC Output Power – The right side of the isolation transformer contains a two-diode rectifier, filter
capacitors, and a voltage regulator. Because the purpose of the EVM is to generate isolated power across
the transformer, a separate power supply on the right side of the EVM is unnecessary. The rectified,
unregulated output voltage is observed at TP5. Monitor the output from the transformer while varying the
input voltage to the SN6505X. The regulated output is available at TP7. Connect external circuitry and/or
loading to evaluate the operating range, line regulation, load regulation, and efficiency of the EVM. Note
that the ground reference on the right side of the transformer (GND2) is not connected to the ground of
the SN6505X (GND1). This demonstrates the isolation feature of the EVM.
CAUTION
Although the transformer has an isolation rating of 2.5-kVrms for 750315371 and
5-kVrms for 750315240, the PCB provides only 50 V of isolation between GND1
and GND2 to prevent electrical shock or injury. Do not attempt to apply high
voltage between GND1 and GND2
2.1.3
Functional Test Procedure
Please find the functional test procedure for the SN6505x EVM board.
1. Insert Shunt J5.
2. Connect 5-V , 200 mA Voltage source between TP1 (VIN) and TP2 (GND1)
3. Measure voltage with a DMM at TP5 (VOUT) w.r.t TP8 (GND2) should be greater than 5.5-V
4. Measure voltage with DMM at TP7 (VLDO) w.r.t. TP6 (GND2) should be between 4.9-V and 5.1-V.
SLLU233 – December 2015
Submit Documentation Feedback
SN6505A and SN6505B Evaluation Module
Copyright © 2015, Texas Instruments Incorporated
3
Printed-Circuit Board
2.2
www.ti.com
Bill of Materials and Schematic
2.2.1
Bill of Materials
The bill of materials for the SN6505xEVM is shown in Table 1.
Table 1. SN6505xEVM Bill of Materials
Designator
Quantity Value
Description
PCB
1
Printed Circuit Board
C1, C4, C7
3
0.1-uF
CAP, CERM, 0.1 µF, 25 V, +/- 5%,
X7R, 0603
C2, C5, C8
3
1-uF
C3, C6, C9
3
D1, D2
2
H1, H2, H3,
H4
Package Reference PartNumber
Manufacturer
INT008 (for
SN6505ADBVR)
INT021 (for
SN6505BDBVR)
Any
0603
06033C104JAT2A
AVX
CAP, CERM, 1 µF, 50 V, +/- 10%,
X5R, 0603
0603
GRM188R61H105
KAALD
MuRata
10-uF
CAP, CERM, 10 µF, 35 V, +/- 10%,
X5R, 0805
0805
GRM21BR6YA106
KE43L
MuRata
40-V
Diode, Schottky, 40 V, 1 A, SOD123
SOD-123
1N5819HW-7-F
Diodes Inc.
4
Bumpon, Hemisphere, 0.25 X
0.075, Clear
75x250 mil
SJ5382
3M
J1, J2, J3, J4,
J5
5
Header, 2.54 mm, 2x1, Gold, R/A,
SMT
Header, 2.54 mm,
2x1, R/A, SMT
87898-0204
Molex
LBL1
1
Thermal Transfer Printable Labels,
0.650" W x 0.200" H - 10,000 per
roll
PCB Label 0.650"H
x 0.200"W
THT-14-423-10
Brady
R1
1
97.6k
RES, 97.6 k, 1%, 0.1 W, 0603
0603
CRCW060397K6F
KEA
Vishay-Dale
R2
1
30.1k
RES, 30.1 k, 1%, 0.1 W, 0603
0603
CRCW060330K1F
KEA
Vishay-Dale
SH-J5
1
T1
1
Shunt, 100mil, Gold plated, Black
Shunt 2 pos. 100 mil 881545-2
TE Connectivity
105 uH
Transformer, 105 uH, SMT
12.60x8.30mm
750315371 (for
SN6505BDBVR)
Wurth Elektronik
110 uH
Transformer, 110 uH, SMT
10.41x12.32mm
750315240 (for
SN6505ADBVR)
Wurth Elektronik
Test Point,
Miniature, SMT
5019
Keystone
TP1, TP2,
TP3, TP4,
TP5, TP6,
TP7, TP8
8
Test Point, Miniature, SMT
U1
1
LOW-NOISE 1A TRANSFORMER
DBV0006A
DRIVERS FOR ISOLATED POWER
SUPPLIES, DBV0006A
SN6505BDBVR
Texas
Instruments
LOW-NOISE 1A TRANSFORMER
DBV0006A
DRIVERS FOR ISOLATED POWER
SUPPLIES, DBV0006A
SN6505ADBVR
Texas
Instruments
U2
1
Single Output Fast Transient
Response LDO, 1 A, Adjustable 1.5
to 5.5 V Output, 2.7 to 10 V Input,
with Low IQ, 8-pin SOIC (D), -40 to
125 degC, Green (RoHS & no
Sb/Br)
D0008A
TPS76701QD
Texas
Instruments
FID1, FID2,
FID3
0
Fiducial mark. There is nothing to
buy or mount.
Fiducial
N/A
N/A
4
SN6505A and SN6505B Evaluation Module
Copyright © 2015, Texas Instruments Incorporated
SLLU233 – December 2015
Submit Documentation Feedback
Printed-Circuit Board
www.ti.com
2.2.2
Schematic
Figure 2 shows the electrical schematic for the SN6505xEVM.
Figure 2. SN6505xEVM Schematic
SLLU233 – December 2015
Submit Documentation Feedback
SN6505A and SN6505B Evaluation Module
Copyright © 2015, Texas Instruments Incorporated
5
SN6505xEVM Printed Circuit Board
3
www.ti.com
SN6505xEVM Printed Circuit Board
Figure 3 through Figure 6 contain the PCB layout views.
6
Figure 3. SN6505xEVM Top Layer View
Figure 4. SN6505xEVM Bottom Layer View
Figure 5. SN6505xEVM View
Figure 6. SN6505xEVM View
SN6505A and SN6505B Evaluation Module
Copyright © 2015, Texas Instruments Incorporated
SLLU233 – December 2015
Submit Documentation Feedback
STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES
1.
Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or
documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein.
Acceptance of the EVM is expressly subject to the following terms and conditions.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility
evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not
finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For
clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions
set forth herein but rather shall be subject to the applicable terms and conditions that accompany such Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,
or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production
system.
2
Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms and conditions do not apply to Software. The warranty, if any, for Software is covered in the applicable Software
License Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM
to User. Notwithstanding the foregoing, TI shall not be liable for any defects that are caused by neglect, misuse or mistreatment
by an entity other than TI, including improper installation or testing, or for any EVMs that have been altered or modified in any
way by an entity other than TI. Moreover, TI shall not be liable for any defects that result from User's design, specifications or
instructions for such EVMs. Testing and other quality control techniques are used to the extent TI deems necessary or as
mandated by government requirements. TI does not test all parameters of each EVM.
2.3 If any EVM fails to conform to the warranty set forth above, TI's sole liability shall be at its option to repair or replace such EVM,
or credit User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the
warranty period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to
repair or replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall
be warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day
warranty period.
3
Regulatory Notices:
3.1 United States
3.1.1
Notice applicable to EVMs not FCC-Approved:
This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit
to determine whether to incorporate such items in a finished product and software developers to write software applications for
use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless
all required FCC equipment authorizations are first obtained. Operation is subject to the condition that this product not cause
harmful interference to licensed radio stations and that this product accept harmful interference. Unless the assembled kit is
designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must operate under the authority of
an FCC license holder or must secure an experimental authorization under part 5 of this chapter.
3.1.2
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1
For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le
présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le
manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur
3.3 Japan
3.3.1
Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に
輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2
Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified
by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required by Radio Law of
Japan to follow the instructions below with respect to EVMs:
1.
2.
3.
Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal
Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for
Enforcement of Radio Law of Japan,
Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to
EVMs, or
Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan
with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note
that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.
SPACER
SPACER
SPACER
SPACER
SPACER
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1.
2.
3.
電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用
いただく。
実験局の免許を取得後ご使用いただく。
技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ
ンスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
3.3.3
Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/
/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
SPACER
4
EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT
LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling
or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information
related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1
User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user
guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and
customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input
and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or
property damage. If there are questions concerning performance ratings and specifications, User should contact a TI
field representative prior to connecting interface electronics including input power and intended loads. Any loads applied
outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible
permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any
load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.
During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit
components may have elevated case temperatures. These components include but are not limited to linear regulators,
switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may become
very warm.
4.3.2
EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the
dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.
User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,
affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic
and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely
limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and
liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or
designees.
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,
state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all
responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and
liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local
requirements.
5.
Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate
as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as
accurate, complete, reliable, current, or error-free.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
6.
Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY WRITTEN DESIGN MATERIALS PROVIDED WITH THE EVM (AND THE
DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL FAULTS." TI DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY
THIRD PARTY PATENTS, COPYRIGHTS, TRADE SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS AND
CONDITIONS SHALL BE CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY
OTHER INDUSTRIAL OR INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD
PARTY, TO USE THE EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY
INVENTION, DISCOVERY OR IMPROVEMENT MADE, CONCEIVED OR ACQUIRED PRIOR TO OR AFTER DELIVERY OF
THE EVM.
7.
USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,
EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY
HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS AND CONDITIONS. THIS OBLIGATION
SHALL APPLY WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY
OTHER LEGAL THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
8.
Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE
TERMS ANDCONDITIONS OR THE USE OF THE EVMS PROVIDED HEREUNDER, REGARDLESS OF WHETHER TI HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED
TO, COST OF REMOVAL OR REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES, RETESTING, OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS,
LOSS OF SAVINGS, LOSS OF USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL
BE BROUGHT AGAINST TI MORE THAN ONE YEAR AFTER THE RELATED CAUSE OF ACTION HAS OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY WARRANTY OR OTHER OBLIGATION
ARISING OUT OF OR IN CONNECTION WITH THESE TERMS AND CONDITIONS, OR ANY USE OF ANY TI EVM
PROVIDED HEREUNDER, EXCEED THE TOTAL AMOUNT PAID TO TI FOR THE PARTICULAR UNITS SOLD UNDER
THESE TERMS AND CONDITIONS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE CLAIMED. THE EXISTENCE
OF MORE THAN ONE CLAIM AGAINST THE PARTICULAR UNITS SOLD TO USER UNDER THESE TERMS AND
CONDITIONS SHALL NOT ENLARGE OR EXTEND THIS LIMIT.
9.
Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)
will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in
a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable
order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),
excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,
without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to
these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.
Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief
in any United States or foreign court.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2015, Texas Instruments Incorporated
spacer
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2015, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
