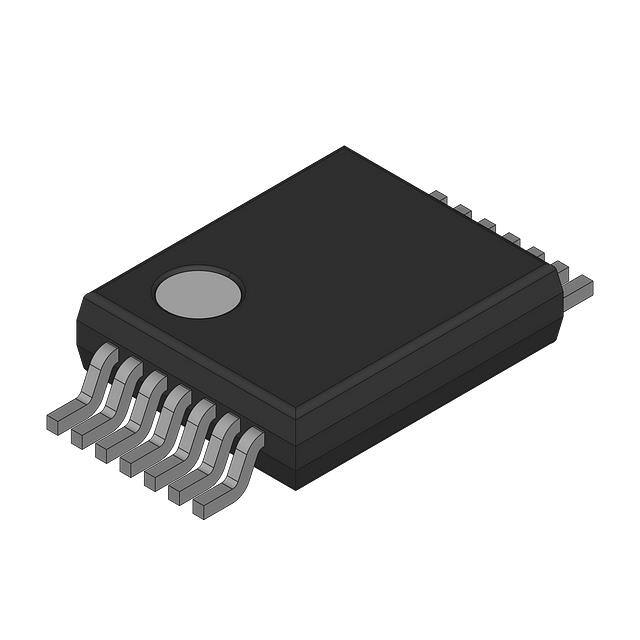

SN74AHC4066DGVR

SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 D 2-V to 5.5-V VCC Operation D Supports Mixed-Mode Voltage Operation on All Ports High On-Off Output-Voltage Ratio Low Crosstalk Between Switches Individual Switch Controls Extremely Low Input Current ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101) 1A 1B 2B 2A 2C 3C GND 1 14 2 13 3 12 4 11 5 10 6 9 7 8 VCC 1C 4C 4A 4B 3B 3A RGY PACKAGE (TOP VIEW) 1B 2B 2A 2C 3C This switch is designed to handle both analog and digital signals. Each switch permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. VCC This quadruple silicon-gate CMOS analog switch is designed for 2-V to 5.5-V VCC operation. 1A description/ordering information 1 14 2 13 1C 3 12 4C 4 11 4A 5 10 4B 9 3B 6 Each switch section has its own enable-input control (C). A high-level voltage applied to C turns on the associated switch section. GND 7 Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. 8 3A D D D D D D, DB, DGV, N, NS, OR PW PACKAGE (TOP VIEW) NC − No internal connection ORDERING INFORMATION Tube SN74AHC4066N SN74AHC4066N QFN − RGY Tape and reel SN74AHC4066RGYR HA4066 Tube SN74AHC4066D Tape and reel SN74AHC4066DR Tube SN74AHC4066NS Tape and reel SN74AHC4066NSR Tube SN74AHC4066DB Tape and reel SN74AHC4066DBR Tube SN74AHC4066PW Tape and reel SN74AHC4066PWR Tape and reel SN74AHC4066DGVR SOP − NS SSOP − DB TSSOP − PW TVSOP − DGV † TOP-SIDE MARKING PDIP − N SOIC − D −40°C to 85°C ORDERABLE PART NUMBER PACKAGE† TA AHC4066 AHC4066 HA4066 HA4066 HA4066 Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. Copyright © 2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 1 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 FUNCTION TABLE (each switch) INPUT CONTROL (C) SWITCH L OFF H ON logic diagram (positive logic) A VCC VCC B C One of Four Switches absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V Switch I/O voltage range, VIO (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to VCC + 0.5 V Control-input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −20 mA I/O diode current, IIOK (VIO < 0 or VIO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA On-state switch current, IT (VIO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA Package thermal impedance, θJA (see Note 3): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W (see Note 3): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W (see Note 3): DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W (see Note 3): N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W (see Note 3): NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76°C/W (see Note 3): PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W (see Note 4): RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C † Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 2. This value is limited to 5.5 V maximum. 3. The package thermal impedance is calculated in accordance with JESD 51-7. 4. The package thermal impedance is calculated in accordance with JESD 51-5. 2 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 recommended operating conditions (see Note 5) VCC Supply voltage VCC = 2 V VIH High level input voltage, High-level voltage control inputs MIN MAX 2† 5.5 Low level input voltage, Low-level voltage control inputs V 1.5 VCC = 2.3 V to 2.7 V VCC × 0.7 VCC = 3 V to 3.6 V VCC × 0.7 VCC = 4.5 V to 5.5 V VCC × 0.7 VCC = 2 V VIL UNIT V 0.5 VCC = 2.3 V to 2.7 V VCC × 0.3 VCC = 3 V to 3.6 V VCC × 0.3 VCC = 4.5 V to 5.5 V VCC × 0.3 V VI Control input voltage 0 5.5 V VIO Input/output voltage 0 VCC V Δt/Δv Input transition rise or fall rate VCC = 2.3 V to 2.7 V 200 VCC = 3 V to 3.6 V 100 VCC = 4.5 V to 5.5 V TA Operating free-air temperature ns/V 20 −40 85 °C † With supply voltages at or near 2 V, the analog switch on-state resistance becomes very nonlinear. Only digital signals should be transmitted at these low supply voltages. NOTE 5: All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature number SCBA004. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 3 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 electrical characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER VCC TA = 25°C MIN TYP MAX MIN MAX UNIT IT = −1 mA,, VI = VCC or GND, VC = VIH (see Figure 1) 2.3 V 38 180 225 3V 29 150 190 4.5 V 21 75 100 IT = −1 mA, VI = VCC to GND, VC = VIH 2.3 V 143 500 600 3V 57 180 225 4.5 V 31 100 125 Difference in on-state on state resistance between switches IT = −1 mA, VI = VCC to GND, VC = VIH 2.3 V 6 30 40 3V 3 20 30 4.5 V 2 15 20 Control input current VI = 5.5 V or GND 0 to 5.5 V ±0.1 ±1 μA IS(off) Off-state switch leakage current VI = VCC and VO = GND, or VI = GND and VO = VCC, VC = VIL (see Figure 2) 5.5 V ±0.1 ±1 μA IS(on) On-state switch leakage current VI = VCC or GND, VC = VIH (see Figure 3) 5.5 V ±0.1 ±1 μA ICC Supply current VI = VCC or GND 5.5 V 20 μA Cic Control input capacitance 1.5 pF Cio Switch input/output capacitance 5.5 pF CF Feed-through capacitance 0.5 pF ron ron(p) Δron II 4 TEST CONDITIONS On-state switch resistance P k Peak on-state resistance POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 Ω Ω Ω SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 switching characteristics over recommended operating free-air temperature range, VCC = 2.5 V ± 0.2 V (unless otherwise noted) PARAMETER FROM (INPUT) TO (OUTPUT) TEST CONDITIONS TA = 25°C MIN TYP MAX MIN MAX UNIT tPLH tPHL Propagation delay time A or B B or A CL = 15 pF, (see Figure 4) 1.2 10 16 ns tPZH tPZL Switch turn-on time C A or B CL = 15 pF, RL = 1 kΩ (see Figure 5) 3.3 15 20 ns tPLZ tPHZ Switch turn-off time C A or B CL = 15 pF, RL = 1 kΩ (see Figure 5) 6 15 23 ns tPLH tPHL Propagation delay time A or B B or A CL = 50 pF, (see Figure 4) 2.6 12 18 ns tPZH tPZL Switch turn-on time C A or B CL = 50 pF, RL = 1 kΩ (see Figure 5) 4.2 25 32 ns tPLZ tPHZ Switch turn-off time C A or B CL = 50 pF, RL = 1 kΩ (see Figure 5) 9.6 25 32 ns switching characteristics over recommended operating free-air temperature range, VCC = 3.3 V ± 0.3 V (unless otherwise noted) PARAMETER FROM (INPUT) TO (OUTPUT) TEST CONDITIONS TA = 25°C MIN TYP MAX MIN MAX UNIT tPLH tPHL Propagation delay time A or B B or A CL = 15 pF, (see Figure 4) 0.8 6 10 ns tPZH tPZL Switch turn-on time C A or B CL = 15 pF, RL = 1 kΩ (see Figure 5) 2.3 11 15 ns tPLZ tPHZ Switch turn-off time C A or B CL = 15 pF, RL = 1 kΩ (see Figure 5) 4.5 11 15 ns tPLH tPHL Propagation delay time A or B B or A CL = 50 pF, (see Figure 4) 1.5 9 12 ns tPZH tPZL Switch turn-on time C A or B CL = 50 pF, RL = 1 kΩ (see Figure 5) 3 18 22 ns tPLZ tPHZ Switch turn-off time C A or B CL = 50 pF, RL = 1 kΩ (see Figure 5) 7.2 18 22 ns POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 5 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 switching characteristics over recommended operating free-air temperature range, VCC = 5 V ± 0.5 V (unless otherwise noted) PARAMETER FROM (INPUT) TO (OUTPUT) TEST CONDITIONS TA = 25°C MIN TYP MAX MIN MAX UNIT tPLH tPHL Propagation delay time A or B B or A CL = 15 pF, (see Figure 4) 0.3 4 7 ns tPZH tPZL Switch turn-on time C A or B CL = 15 pF, RL = 1 kΩ (see Figure 5) 1.6 7 10 ns tPLZ tPHZ Switch turn-off time C A or B CL = 15 pF, RL = 1 kΩ (see Figure 5) 3.2 7 10 ns tPLH tPHL Propagation delay time A or B B or A CL = 50 pF, (see Figure 4) 0.6 6 8 ns tPZH tPZL Switch turn-on time C A or B CL = 50 pF, RL = 1 kΩ (see Figure 5) 2.1 12 16 ns tPLZ tPHZ Switch turn-off time C A or B CL = 50 pF, RL = 1 kΩ (see Figure 5) 5.1 12 16 ns analog switch characteristics over operating free-air temperature range (unless otherwise noted) PARAMETER F Frequency response (switch on) Crosstalk C t lk (between any switches) Crosstalk (control input to signal output) Feed-through F d th h attenuation tt ti (switch off) Sine-wave distortion FROM (INPUT) A or B A or B C A or B A or B TO (OUTPUT ) B or A B or A A or B B or A B or A TA = 25°C TEST CONDITIONS VCC CL = 50 pF, RL = 600 Ω, fin = 1 MHz (sine wave) 20log10(VO/VI) = −3 dB (see Figure 6) CL = 50 pF, RL = 600 Ω, fin i = 1 MHz (sine wave) (see Figure 7) CL = 50 pF, RL = 600 Ω, fin i = 1 MHz (square wave) (see Figure 8) CL = 50 pF, RL = 600 Ω, fin = 1 MHz (see Figure 9) CL= 50 pF, pF RL = 10 kΩ kΩ, fin = 1 kHz (sine wave) (see Figure 10) VI = 2 Vp-p VI = 2.5 Vp-p VI = 4 Vp-p UNIT MIN TYP 2.3 V 30 3V 35 4.5 V 50 2.3 V −45 3V −45 4.5 V −45 2.3 V 15 3V 20 4.5 V 50 2.3 V −40 3V −40 4.5 V −40 2.3 V 0.1 3V 0.1 4.5 V 0.1 MAX MHz dB mV dB % operating characteristics, TA = 25°C PARAMETER Cpd 6 TEST CONDITIONS Power dissipation capacitance CL = 50 pF, POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 f = 10 MHz TYP UNIT 4.5 pF SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 PARAMETER MEASUREMENT INFORMATION VCC VC = VIH VCC VI = VCC or GND VO (ON) GND r on + VI – VO 10 –3 W 1 mA V VI − VO Figure 1. On-State Resistance Test Circuit VCC VC = VIL VCC VI A (OFF) VO GND Condition 1: VI = 0, VO = VCC Condition 2: VI = VCC, VO = 0 Figure 2. Off-State Switch Leakage-Current Test Circuit VCC VC = VIH VCC VI A (ON) Open GND VI = VCC or GND Figure 3. On-State Leakage-Current Test Circuit POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 7 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 PARAMETER MEASUREMENT INFORMATION VCC VC = VIH VCC VI VO (ON) 50 Ω CL GND TEST CIRCUIT tr VI A or B tf 90% 50% 10% VCC 90% 50% 10% tPLH 0V tPHL VOH VO B or A 50% 50% VOL VOLTAGE WAVEFORMS Figure 4. Propagation Delay Time, Signal Input to Signal Output 8 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 PARAMETER MEASUREMENT INFORMATION VCC 50 Ω VC VCC VI S1 VO RL = 1 kΩ TEST S1 S2 tPZL tPZH tPLZ tPHZ GND VCC GND VCC VCC GND VCC GND S2 CL GND TEST CIRCUIT VCC VC VCC 50% 50% 0V 0V tPZL tPZH ≈VCC VO VOL VOH 50% 50% ≈0 V (tPZL, tPZH) VCC VC VCC 50% 50% 0V 0V tPLZ tPHZ ≈VCC VO VOL VOH VOL + 0.3 V VOH − 0.3 V ≈0 V (tPLZ, tPHZ) VOLTAGE WAVEFORMS Figure 5. Switching Time (tPZL, tPLZ, tPZH, tPHZ), Control to Signal Output POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 9 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 PARAMETER MEASUREMENT INFORMATION VCC VCC 0.1 μF fin VCC VI VO (ON) GND 50 Ω RL = 600 Ω CL = 50 pF VCC/2 Figure 6. Frequency Response (Switch On) VCC VC = VCC 50 Ω VCC VI fin VO1 (ON) 0.1 μF 600 Ω GND RL = 600 Ω CL = 50 pF VCC/2 VI VCC VC = GND VCC (OFF) 600 Ω VO2 GND RL = 600 Ω CL = 50 pF VCC/2 Figure 7. Crosstalk Between Any Two Switches VCC 50 Ω VC VCC VO GND 600 Ω VCC/2 RL = 600 Ω CL = 50 pF VCC/2 Figure 8. Crosstalk (Control Input − Switch Output) 10 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 SN74AHC4066 QUADRUPLE BILATERAL ANALOG SWITCH SCLS511 − JUNE 2003 PARAMETER MEASUREMENT INFORMATION VCC VC = GND 0.1 μF fin 50 Ω VI VCC VO (OFF) GND 600 Ω RL = 600 Ω CL = 50 pF VCC/2 VCC/2 Figure 9. Feed-Through Attenuation (Switch Off) VCC VC = VCC 10 μF fin 600 Ω VI 10 μF VCC VO (ON) GND RL = 10 kΩ CL = 50 pF VCC/2 Figure 10. Sine-Wave Distortion POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 11 PACKAGE OPTION ADDENDUM www.ti.com 18-Aug-2022 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) Samples (4/5) (6) SN74AHC4066D ACTIVE SOIC D 14 50 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 AHC4066 Samples SN74AHC4066DBR ACTIVE SSOP DB 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 HA4066 Samples SN74AHC4066DGVR ACTIVE TVSOP DGV 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 HA4066 Samples SN74AHC4066DR ACTIVE SOIC D 14 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 AHC4066 Samples SN74AHC4066N ACTIVE PDIP N 14 25 RoHS & Non-Green NIPDAU N / A for Pkg Type -40 to 85 SN74AHC4066N Samples SN74AHC4066NSR ACTIVE SO NS 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 AHC4066 Samples SN74AHC4066PW ACTIVE TSSOP PW 14 90 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 HA4066 Samples SN74AHC4066PWR ACTIVE TSSOP PW 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 HA4066 Samples SN74AHC4066RGYR ACTIVE VQFN RGY 14 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 HA4066 Samples (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
