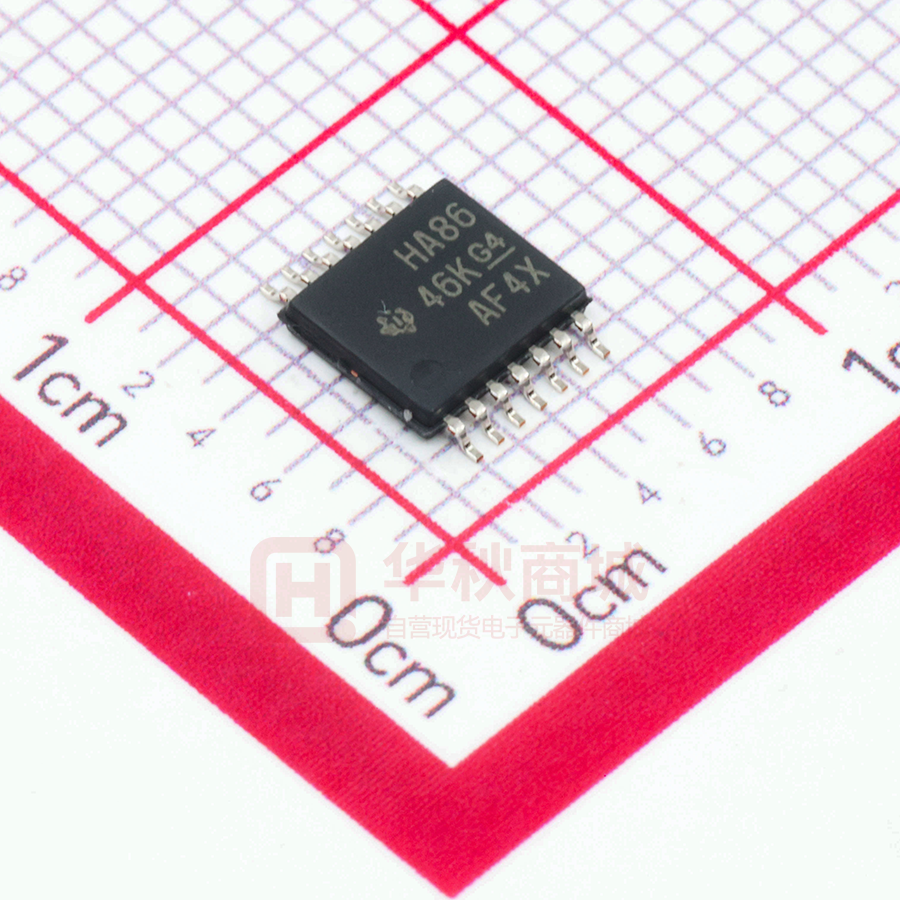

SN74AHC86PWR

SN54AHC86 SN74AHC86 www.ti.com SCLS249J – OCTOBER 1995 – REVISED JUNE 2013 QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES Check for Samples: SN54AHC86, SN74AHC86 FEATURES 1 Operating Range 2-V to 5.5-V VCC Latch-Up Performance Exceeds 250 mA Per JESD 17 2 13 3 12 4 11 5 10 6 9 7 8 VCC 4B 4A 4Y 3B 3A 3Y 1B 1Y 2A 2B 2Y 14 1B 1A NC VCC 4B 1 13 4B 2 3 12 4A 4 4Y 10 3B 9 3A 11 5 6 7 8 SN54AHC86 . . . FK PACKAGE (TOP VIEW) 1Y NC 2A NC 2B 4 3 2 1 20 19 18 5 17 6 16 7 15 8 14 9 10 11 12 13 4A NC 4Y NC 3B 2Y GND NC 3Y 3A 14 VCC 1 SN74AHC86 . . . RGY PACKAGE (TOP VIEW) 3Y 1A 1B 1Y 2A 2B 2Y GND ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A) – 1000-V Charged-Device Model (C101) 1A SN54AHC86 . . . J OR W PACKAGE SN74AHC86 . . . D, DB, DGV, N, NS, OR PW PACKAGE (TOP VIEW) • GND • • NC − No internal connection DESCRIPTION The ’AHC86 devices are quadruple 2-input exclusive-OR gates. These devices perform the Boolean function Y = A ⊕ B or Y = AB + AB in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output. FUNCTION TABLE (EACH GATE) INPUTS A OUTPUT B Y L L L L H H H L H H H L 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 1995–2013, Texas Instruments Incorporated SN54AHC86 SN74AHC86 SCLS249J – OCTOBER 1995 – REVISED JUNE 2013 www.ti.com EXCLUSIVE–OR LOGIC An exclusive-OR gate has many applications, some of which can be represented better by alternativelogic symbols. EXCLUSIVE OR =1 These are five equivalent exclusive-OR symbols valid for an SN74AHC86 gate in positive logic; negation may be shown at any two ports. LOGIC-IDENTITY ELEMENT EVEN-PARITY ELEMENT = ODD-PARITY ELEMENT 2k The output is active (low) if all inputs stand at the same logic level (i.e., A = B). 2k + 1 The output is active (low) if an even number of inputs (i.e., 0 or 2) are active. The output is active (high) if an odd number of inputs (i.e., only 1 of the 2) are active. ABSOLUTE MAXIMUM RATINGS over operating free-air temperature range (unless otherwise noted) (1) VALUE UNIT Supply voltage range, VCC –0.5 to 7 V Input voltage range, VI (2) –0.5 to 7 V Output voltage range, VO (2) –0.5 to VCC + 0.5 V Input clamp current, IIK (VI < 0) –20 mA Output clamp current, IOK (VO < 0 or VO > VCC) ±20 mA Continuous output current, IO (VO = 0 to VCC) ±25 mA Continuous current through VCC or GND ±50 mA D package (3) 86 DB package (3) DGV package Package thermal impedance, θJA 96 (3) 127 N package (3) 80 NS package (3) 76 PW package (3) 113 RGY package (4) 47 Storage temperature range, Tstg (1) (2) (3) (4) 2 °C/W –65 to 150 °C Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. The package thermal impedance is calculated in accordance with JESD 51-7. The package thermal impedance is calculated in accordance with JESD 51-5 Submit Documentation Feedback Copyright © 1995–2013, Texas Instruments Incorporated Product Folder Links: SN54AHC86 SN74AHC86 SN54AHC86 SN74AHC86 www.ti.com SCLS249J – OCTOBER 1995 – REVISED JUNE 2013 RECOMMENDED OPERATING CONDITIONS (1) SN54AHC86 VCC Supply voltage VCC= 2 V VIH High-level input voltage VCC= 3V VCC= 5.5 V MAX 2 5.5 1.5 Low-level Input voltage Input voltage VO Output voltage IOL Low-level output current Δt/Δv Input Transition rise or fall rate TA Operating free-air temperature (1) 5.5 2.1 0.5 VCC= 3 V High-level output current 2 UNIT V 1.5 3.85 V 0.5 0.9 0.9 1.65 1.65 V 0 5.5 0 5.5 V 0 VCC 0 VCC V VCC= 2 V IOH MAX 2.1 VCC= 5.5 V VI MIN 3.85 VCC= 2 V VIL SN74AHC86 MIN –50 –50 VCC= 3.3 V ± 0.3 V –4 –4 VCC= 5 V ± 0.5 V –8 –8 VCC= 2 V 50 50 VCC= 3.3 V ± 0.3 V 4 4 VCC= 5 V ± 0.5 V 8 8 100 100 20 20 VCC= 3.3 V ± 0.3 V VCC= 5 V ± 0.5 V –55 125 –40 125 mA mA ns/V °C All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature number SCBA004. Copyright © 1995–2013, Texas Instruments Incorporated Product Folder Links: SN54AHC86 SN74AHC86 Submit Documentation Feedback 3 SN54AHC86 SN74AHC86 SCLS249J – OCTOBER 1995 – REVISED JUNE 2013 www.ti.com ELECTRICAL CHARACTERISTICS over operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS IOH = –50 µA SN54AHC86 SN74AHC86 MAX MIN MAX MIN TA = –40°C TO 125°C Recommended MIN TYP 2V 1.9 2 1.9 1.9 1.9 MAX MIN 2.9 2.9 3 2.9 2.9 4.4 4.5 4.4 4.4 4.4 IOH = –4 mA 3V 2.58 2.48 2.48 2.48 IOH = –8 mA 4.5 V 3.94 VOL ICC VI = VCC or GND, Ci VI = VCC or GND IO = 0 V 3.8 0.1 0.1 0.1 0.1 3V 0.1 0.1 0.1 0.1 4.5 V 0.1 0.1 0.1 0.1 3V 0.36 0.5 0.44 0.5 4.5 V 0.36 0.5 0.44 0.5 ±0.1 (1) ±1 ±1 µA 20 20 20 µA 0 V to 5.5 V VI = 5.5 V or GND 3.8 MAX 2V IOH = 4 mA IOH = 8 mA 3.8 UNIT SN74AHC86 3V IOL = 50 µA (1) TA = –40°C TO 85°C 4.5 V VOH II TA = 25°C VCC TA = –55°C TO 125°C 5.5 V ±1 2 5V 4 10 10 V pF On products compliant to MIL-PRF-38535, this parameter is not production tested at VCC = 0 V. SWITCHING CHARACTERISTICS over recommended operating free-air temperature range, VCC = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 1) PARAMETER tPLH tPHL tPLH tPHL (1) FROM (INPUT) TO (OUTPUT) LOAD CAPACITANCE A or B Y CL = 15 pF A or B Y CL = 50 pF TA = 25°C TA = –40°C TO 125°C TA = –55°C TO 125°C TA = –40°C TO 85°C SN54AHC86 SN74AHC86 SN74AHC86 MIN MIN MIN MAX MAX Recommended TYP MAX 7 (1) 11 (1) 1 (1) 13 (1) 1 13 1 13 7 (1) 11 (1) 1 (1) 13 (1) 1 13 1 13 9.5 14.5 1 16.5 1 16.5 1 16.5 9.5 14.5 1 16.5 1 16.5 1 16.5 UNIT MAX ns ns On products compliant to MIL-PRF-38535, this parameter is not production tested. SWITCHING CHARACTERISTICS over recommended operating free-air temperature range, VCC = 5 V ± 0.5 V (unless otherwise noted) (see Figure 1) PARAMETER tPLH tPHL tPLH tPHL (1) 4 FROM (INPUT) TO (OUTPUT) LOAD CAPACITANCE A or B Y CL = 15 pF A or B Y CL = 50 pF TA = 25°C TA = –55°C TO 125°C TA = –40°C TO 85°C SN54AHC86 SN74AHC86 MIN MIN MAX TA = –40°C TO 125°C Recommended UNIT SN74AHC86 TYP MAX 4.8 (1) 6.8 (1) 1 (1) 8 (1) 1 MAX 8 MIN 1 MAX 8 4.8 (1) 6.8 (1) 1 (1) 8 (1) 1 8 1 8 6.3 8.8 1 10 1 10 1 10 6.3 8.8 1 10 1 10 1 10 ns ns On products compliant to MIL-PRF-38535, this parameter is not production tested. Submit Documentation Feedback Copyright © 1995–2013, Texas Instruments Incorporated Product Folder Links: SN54AHC86 SN74AHC86 SN54AHC86 SN74AHC86 www.ti.com SCLS249J – OCTOBER 1995 – REVISED JUNE 2013 NOISE CHARACTERISTICS VCC = 5 V, CL = 50 pF, TA = 25°C (1) SN74AHC86 PARAMETER MIN TYP UNIT MAX VOL(P) Quiet output, maximum dynamic VOL 0.3 0.8 V VOL(V) Quiet output, minimum dynamic VOL –0.3 –0.8 V VOH(V) Quiet output, minimum dynamic VOH 4.4 VIH(D) High-level dynamic input voltage 3.5 VIL(D) Low-level dynamic input voltage (1) V V 1.5 V Characteristics are for surface-mount packages only. OPERATING CHARACTERISTICS VCC = 5 V, TA = 25°C PARAMETER Cpd Power dissipation capacitance TEST CONDITIONS No load, Copyright © 1995–2013, Texas Instruments Incorporated Product Folder Links: SN54AHC86 SN74AHC86 f = 1 MHz TYP 18 UNIT pF Submit Documentation Feedback 5 SN54AHC86 SN74AHC86 SCLS249J – OCTOBER 1995 – REVISED JUNE 2013 www.ti.com PARAMETER MEASUREMENT INFORMATION VCC From Output Under Test RL = 1 kΩ From Output Under Test Test Point S1 Open TEST GND CL (see Note A) CL (see Note A) S1 tPLH/tPHL tPLZ/tPZL tPHZ/tPZH Open Drain Open VCC GND VCC LOAD CIRCUIT FOR 3-STATE AND OPEN-DRAIN OUTPUTS LOAD CIRCUIT FOR TOTEM-POLE OUTPUTS VCC 50% VCC Timing Input tw tsu VCC 50% VCC 50% VCC Input 0V th VCC 50% VCC Data Input 50% VCC 0V 0V VOLTAGE WAVEFORMS SETUP AND HOLD TIMES VOLTAGE WAVEFORMS PULSE DURATION VCC 50% VCC Input 50% VCC 0V tPLH tPHL VOH In-Phase Output 50% VCC 50% VCC VOL tPHL Out-of-Phase Output Output Waveform 1 S1 at VCC (see Note B) 50% VCC VOH 50% VCC VOL VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES INVERTING AND NONINVERTING OUTPUTS 50% VCC 0V tPZL tPLZ ≈VCC 50% VCC tPZH tPLH 50% VCC VCC Output Control Output Waveform 2 S1 at GND (see Note B) VOL + 0.3 V VOL tPHZ 50% VCC VOH − 0.3 V VOH ≈0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES LOW- AND HIGH-LEVEL ENABLING A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr ≤ 3 ns, tf ≤ 3 ns. D. The outputs are measured one at a time with one input transition per measurement. E. All parameters and waveforms are not applicable to all devices. Figure 1. Load Circuit and Voltage Waveforms 6 Submit Documentation Feedback Copyright © 1995–2013, Texas Instruments Incorporated Product Folder Links: SN54AHC86 SN74AHC86 SN54AHC86 SN74AHC86 www.ti.com SCLS249J – OCTOBER 1995 – REVISED JUNE 2013 REVISION HISTORY Changes from Revision I (July 2003) to Revision J Page • Changed document format from Quicksilver to DocZone. .................................................................................................... 1 • Extended operating temperature range to 125°C ................................................................................................................. 3 Copyright © 1995–2013, Texas Instruments Incorporated Product Folder Links: SN54AHC86 SN74AHC86 Submit Documentation Feedback 7 PACKAGE OPTION ADDENDUM www.ti.com 10-Jun-2022 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) Samples (4/5) (6) 5962-9681601Q2A ACTIVE LCCC FK 20 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 59629681601Q2A SNJ54AHC 86FK 5962-9681601QCA ACTIVE CDIP J 14 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 5962-9681601QC A SNJ54AHC86J 5962-9681601QDA ACTIVE CFP W 14 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 5962-9681601QD A SNJ54AHC86W SN74AHC86D ACTIVE SOIC D 14 50 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 AHC86 Samples SN74AHC86DBR ACTIVE SSOP DB 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 HA86 Samples SN74AHC86DGVR ACTIVE TVSOP DGV 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 HA86 Samples SN74AHC86DR ACTIVE SOIC D 14 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 AHC86 Samples SN74AHC86N ACTIVE PDIP N 14 25 RoHS & Green NIPDAU N / A for Pkg Type -40 to 125 SN74AHC86N Samples SN74AHC86NSR ACTIVE SO NS 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 AHC86 Samples SN74AHC86PW ACTIVE TSSOP PW 14 90 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 HA86 Samples SN74AHC86PWR ACTIVE TSSOP PW 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 HA86 Samples SN74AHC86PWRG4 ACTIVE TSSOP PW 14 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 HA86 Samples SN74AHC86RGYR ACTIVE VQFN RGY 14 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 HA86 Samples SNJ54AHC86FK ACTIVE LCCC FK 20 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 59629681601Q2A SNJ54AHC 86FK SNJ54AHC86J ACTIVE CDIP J 14 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 5962-9681601QC A SNJ54AHC86J Addendum-Page 1 Samples Samples Samples Samples Samples PACKAGE OPTION ADDENDUM www.ti.com Orderable Device 10-Jun-2022 Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) (3) Device Marking Samples (4/5) (6) SNJ54AHC86W ACTIVE CFP W 14 1 Non-RoHS & Green SNPB N / A for Pkg Type -55 to 125 5962-9681601QD A SNJ54AHC86W (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
