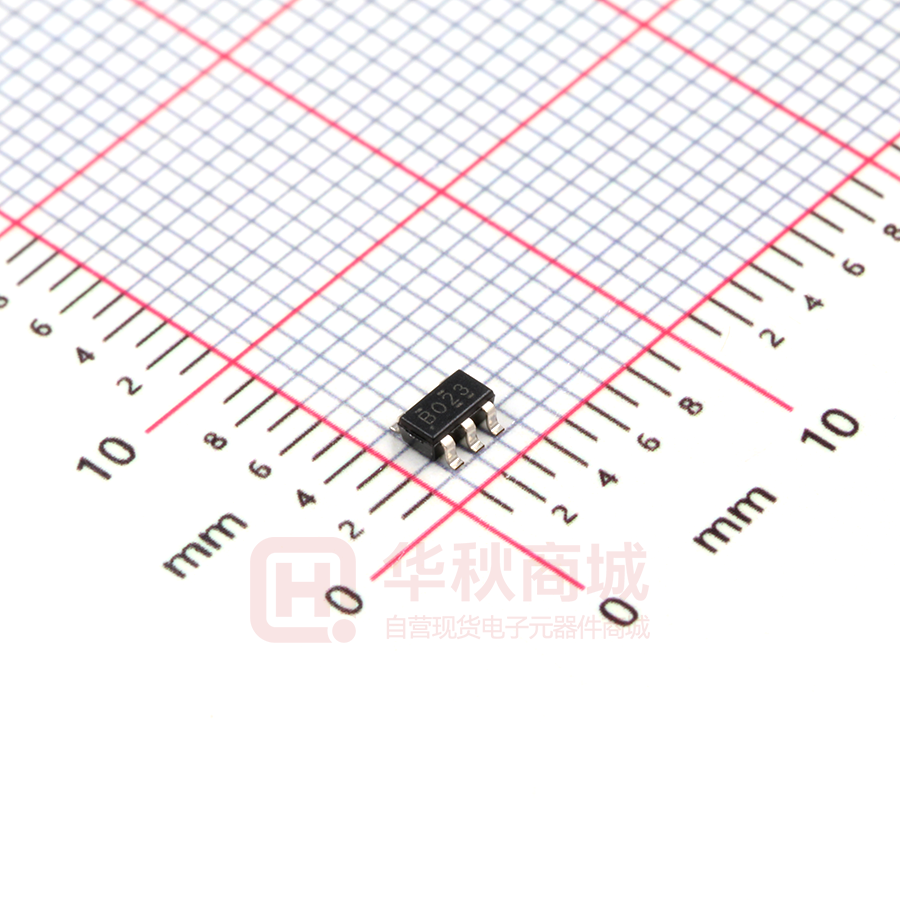

SN74AHCT1G02DBVR

SN74AHCT1G02 SINGLE 2-INPUT POSITIVE-NOR GATE SCLS341K – APRIL 1996 – REVISED FEBRUARY 2003 D D D D D D D DBV OR DCK PACKAGE (TOP VIEW) Operating Range of 4.5 V to 5.5 V Max tpd of 6.5 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A) – 1000-V Charged-Device Model (C101) A B GND 1 5 VCC 4 Y 2 3 description/ordering information This device contains a single 2-input NOR gate that performs the Boolean function Y = A • B or Y = A + B in positive logic. ORDERING INFORMATION ORDERABLE PART NUMBER PACKAGE† TA SOT (SOT-23) – DBV –40°C 40°C to 85°C SOT (SC-70) (SC 70) – DCK Reel of 3000 SN74AHCT1G02DBVR Reel of 250 SN74AHCT1G02DBVT Reel of 3000 SN74AHCT1G02DCKR Reel of 250 SN74AHCT1G02DCKT TOP-SIDE MARKING‡ B02 B02_ BB BB_ † Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package. ‡ The actual top-side marking has one additional character that designates the assembly/test site. FUNCTION TABLE (each gate) INPUTS A B OUTPUT Y H X L X H L L L H logic diagram (positive logic) A B 1 4 2 Y Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. Copyright  2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 1 SN74AHCT1G02 SINGLE 2-INPUT POSITIVE-NOR GATE SCLS341K – APRIL 1996 – REVISED FEBRUARY 2003 absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 7 V Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 7 V Output voltage range, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to VCC + 0.5 V Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –20 mA Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA Package thermal impedance, θJA (see Note 2): DBV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206°C/W DCK package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252°C/W Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to 150°C † Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 2. The package thermal impedance is calculated in accordance with JESD 51-7. recommended operating conditions (see Note 3) VCC VIH Supply voltage VIL VI Low-level input voltage Input voltage VO IOH Output voltage IOL ∆t/∆v Low-level output current MIN MAX 4.5 5.5 High-level input voltage 2 UNIT V V 0.8 V 0 5.5 V 0 VCC –8 High-level output current Input transition rise or fall rate V mA 8 mA 20 ns/V TA Operating free-air temperature –40 85 °C NOTE 3: All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature number SCBA004. electrical characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS VCC VOH IOH = –50 µA IOH = –8 mA 45V 4.5 VOL IOL = 50 µA IOL = 8 mA 45V 4.5 II ICC VI = 5.5 V or GND VI = VCC or GND, ∆ICC‡ Ci One input at 3.4 V, 0 V to 5.5 V IO = 0 Other inputs at GND or VCC MIN 4.4 TA = 25°C TYP MAX MIN 4.5 4.4 3.94 POST OFFICE BOX 655303 UNIT V 3.8 0.1 0.1 0.36 0.44 ±0.1 ±1 V µA 5.5 V 1 10 µA 5.5 V 1.35 1.5 mA 10 pF VI = VCC or GND 5V 4 10 ‡ This is the increase in supply current for each input at one of the specified TTL voltage levels rather than 0 V or VCC. 2 MAX • DALLAS, TEXAS 75265 SN74AHCT1G02 SINGLE 2-INPUT POSITIVE-NOR GATE SCLS341K – APRIL 1996 – REVISED FEBRUARY 2003 switching characteristics over recommended operating free-air temperature range, VCC = 5 V ± 0.5 V (unless otherwise noted) (see Figure 1) PARAMETER FROM (INPUT) TO (OUTPUT) LOAD CAPACITANCE tPLH tPHL A or B Y CL = 15 pF tPLH tPHL A or B Y CL = 50 pF MIN TA = 25°C TYP MAX MIN MAX 2.4 5.5 1 6.5 3.5 5.5 1 6.5 3.4 7.5 1 8.5 4.5 7.5 1 8.5 UNIT ns ns operating characteristics, VCC = 5 V, TA = 25°C PARAMETER Cpd TEST CONDITIONS Power dissipation capacitance No load, POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 f = 1 MHz TYP 17 UNIT pF 3 SN74AHCT1G02 SINGLE 2-INPUT POSITIVE-NOR GATE SCLS341K – APRIL 1996 – REVISED FEBRUARY 2003 PARAMETER MEASUREMENT INFORMATION From Output Under Test Test Point RL = 1 kΩ From Output Under Test VCC Open S1 TEST GND CL (see Note A) CL (see Note A) S1 tPLH/tPHL tPLZ/tPZL tPHZ/tPZH Open Drain Open VCC GND VCC LOAD CIRCUIT FOR 3-STATE AND OPEN-DRAIN OUTPUTS LOAD CIRCUIT FOR TOTEM-POLE OUTPUTS 3V 1.5 V Timing Input 0V tw 3V 1.5 V Input 1.5 V th tsu 3V 1.5 V Data Input 1.5 V 0V 0V VOLTAGE WAVEFORMS PULSE DURATION VOLTAGE WAVEFORMS SETUP AND HOLD TIMES 3V 1.5 V Input 1.5 V 0V tPLH In-Phase Output tPHL 50% VCC tPHL Out-of-Phase Output VOH 50% VCC VOL Output Waveform 1 S1 at VCC (see Note B) VOH 50% VCC VOL 1.5 V tPLZ ≈VCC 50% VCC Output Waveform 2 S1 at GND (see Note B) VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES INVERTING AND NONINVERTING OUTPUTS 1.5 V 0V tPZL tPZH tPLH 50% VCC 3V Output Control VOL + 0.3 V VOL tPHZ 50% VCC VOH – 0.3 V VOH ≈0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES LOW- AND HIGH-LEVEL ENABLING NOTES: A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr ≤ 3 ns, tf ≤ 3 ns. D. The outputs are measured one at a time with one input transition per measurement. E. All parameters and waveforms are not applicable to all devices. Figure 1. Load Circuit and Voltage Waveforms 4 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) 74AHCT1G02DBVRG4 ACTIVE SOT-23 DBV 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 B02G 74AHCT1G02DBVTG4 ACTIVE SOT-23 DBV 5 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 B02G 74AHCT1G02DCKRE4 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 BB3 74AHCT1G02DCKRG4 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 BB3 SN74AHCT1G02DBVR ACTIVE SOT-23 DBV 5 3000 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 85 (B023, B02G, B02J, B02S) SN74AHCT1G02DBVT ACTIVE SOT-23 DBV 5 250 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 85 (B023, B02G, B02J, B02S) SN74AHCT1G02DCKR ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 85 (BB3, BBG, BBJ, BB S) SN74AHCT1G02DCKT ACTIVE SC70 DCK 5 250 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 85 (BB3, BBG, BBJ, BB S) (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
