SN54AHCT245, SN74AHCT245
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
SNx4AHCT245 Octal Bus Transceivers With 3-State Outputs
1 Features
3 Description
•
•
The SNx4AHCT245 octal bus transceivers are
designed for asynchronous two-way communication
between data buses. These parts operate from 4.5 V
to 5.5 V.
1
•
•
Inputs Are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA Per
JESD 17
ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters.
Device Information(1)
PART NUMBER
SNx4AHCT245
PACKAGE
BODY SIZE (NOM)
PDIP (20)
25.40 x 6.35 mm
SOP (20)
12.60 x 5.30 mm
SSOP (20)
7.50 x 5.30 mm
TVSOP (20)
5.00 x 4.40 mm
SOIC (20)
12.80 x 7.50 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
2 Applications
•
•
•
•
•
•
Servers
PCs and Notebooks
Network Switches
Wearable Health and Fitness Devices
Telecom Infrastructures
Electronic Points of Sale
4 Simplified Schematic
1
DIR
19
OE
A1
2
18
B1
To Seven Other Channels
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
SN54AHCT245, SN74AHCT245
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
9
Features ..................................................................
Applications ...........................................................
Description .............................................................
Simplified Schematic.............................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
1
2
3
4
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
4
4
4
5
5
6
6
6
6
Absolute Maximum Ratings ......................................
Handling Ratings.......................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Switching Characteristics.........................................
Noise Characteristics ................................................
Operating Characteristics ........................................
Typical Characteristics ..............................................
Parameter Measurement Information .................. 7
Detailed Description .............................................. 8
9.1
9.2
9.3
9.4
Overview ...................................................................
Functional Block Diagram .........................................
Feature Description...................................................
Device Functional Modes..........................................
8
8
8
8
10 Application and Implementation.......................... 9
10.1 Application Information............................................ 9
10.2 Typical Application .................................................. 9
11 Power Supply Recommendations ..................... 10
12 Layout................................................................... 10
12.1 Layout Guidelines ................................................. 10
12.2 Layout Example .................................................... 10
13 Device and Documentation Support ................. 11
13.1
13.2
13.3
13.4
Related Links ........................................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
11
11
11
11
14 Mechanical, Packaging, and Orderable
Information ........................................................... 11
5 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision O (August 2013) to Revision P
Page
•
Updated document to new TI data sheet format. ................................................................................................................... 1
•
Added Military Disclaimer to Features list. ............................................................................................................................ 1
•
Added Applications. ................................................................................................................................................................ 1
•
Added Pin Functions table. .................................................................................................................................................... 3
•
Added Handling Ratings table. ............................................................................................................................................... 4
•
Added Thermal Information table. .......................................................................................................................................... 5
•
Added Typical Characteristics. ............................................................................................................................................... 6
•
Added Detailed Description section........................................................................................................................................ 8
•
Added Application and Implementation section...................................................................................................................... 9
Changes from Revision N (March 2005) to Revision O
Page
•
Removed Ordering Information table. .................................................................................................................................... 1
•
Extended operating temperature range to 125°C................................................................................................................... 4
2
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
SN54AHCT245, SN74AHCT245
www.ti.com
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
6 Pin Configuration and Functions
19
3
18
4
17
5
6
16
15
7
14
8
13
9
12
10
11
A1
A2
A3
A4
A5
A6
A7
A8
20
19 OE
18 B1
2
3
17 B2
16 B3
4
5
15 B4
14 B5
6
7
13 B6
12 B7
8
9
10
11
A3
A4
A5
A6
A7
OE
1
A2
A1
DIR
VCC
VCC
VCC
OE
B1
B2
B3
B4
B5
B6
B7
B8
SN54AHCT245 . . . FK PACKAGE
(TOP VIEW)
4
3 2 1 20 19
18
5
17
6
16
7
15
8
14
9 10 11 12 13
B1
B2
B3
B4
B5
A8
GND
B8
B7
B6
2
20
B8
1
DIR
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
SN74AHCT245 . . . RGY PACKAGE
(TOP VIEW)
GND
SN54AHCT245 . . . J OR W PACKAGE
SN74AHCT245 . . . DB, DGV, DW, N, NS,
OR PW PACKAGE
(TOP VIEW)
Pin Functions
PIN
NO.
NAME
I/O
DESCRIPTION
1
DIR
—
Direction Pin
2
A1
I/O
A1 Input/Output
3
A2
I/O
A2 Input/Output
4
A3
I/O
A3 Input/Output
5
A4
I/O
A4 Input/Output
6
A5
I/O
A5 Input/Output
7
A6
I/O
A6 Input/Output
8
A7
I/O
A7 Input/Output
9
A8
I/O
A8 Input/Output
10
GND
—
Ground Pin
11
B8
I/O
B8 Input/Output
12
B7
I/O
B7 Input/Output
13
B6
I/O
B6 Input/Output
14
B5
I/O
B5 Input/Output
15
B4
I/O
B4 Input/Output
16
B3
I/O
B3 Input/Output
17
B2
I/O
B2 Input/Output
18
B1
I/O
B1 Input/Output
19
OE
I
20
VCC
—
Output Enable
Power Pin
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
Submit Documentation Feedback
3
SN54AHCT245, SN74AHCT245
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
VCC
Supply voltage range
(2)
VI
Input voltage range
VO
Output voltage range (2)
Control inputs
IIK
Input clamp current
VI < 0
IOK
Output clamp current
IO
Continuous output current
MIN
MAX
–0.5
7
V
–0.5
7
V
–0.5
VCC + 0.5
Control inputs
(2)
V
–20
mA
VO < 0 or VO > VCC
±20
mA
VO = 0 to VCC
±25
mA
±75
mA
Continuous current through VCC or GND
(1)
UNIT
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
7.2 Handling Ratings
Tstg
Storage temperature range
V(ESD)
(1)
(2)
Electrostatic discharge
MIN
MAX
UNIT
°C
–65
150
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
pins (1)
0
2000
Charged device model (CDM), per JEDEC specification
JESD22-C101, all pins (2)
0
1000
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
SN54AHCT245
SN74AHCT245
MIN
MAX
MIN
MAX
4.5
5.5
4.5
5.5
UNIT
VCC
Supply voltage
VIH
High-level input voltage
VIL
Low-level Input voltage
VI
Input voltage
0
5.5
VO
Output voltage
0
VCC
IOH
High-level output current
–8
–8
IOL
Low-level output current
8
8
mA
Δt/Δv
Input Transition rise and fall rate
20
20
ns/V
TA
Operating free-air temperature
125
°C
(1)
4
2
2
0.8
–55
125
V
V
0.8
V
0
5.5
V
0
VCC
V
–40
mA
All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
SN54AHCT245, SN74AHCT245
www.ti.com
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
7.4 Thermal Information
SN74AHCT245
THERMAL METRIC (1)
DB
DGV
DW
N
NS
PW
RGY
UNIT
20 PINS
RθJA
Junction-to-ambient thermal
resistance
96.0
116.1
79.8
51.5
77.1
102.8
35.1
RθJC(top)
Junction-to-case (top) thermal
resistance
57.7
31.3
45.8
38.2
43.6
36.8
43.3
RθJB
Junction-to-board thermal resistance
51.2
57.6
47.4
32.4
44.6
53.8
12.9
ψJT
Junction-to-top characterization
parameter
19.4
1.0
18.5
24.6
17.2
2.5
0.9
ψJB
Junction-to-board characterization
parameter
50.8
56.9
47.0
32.3
44.2
53.3
12.9
RθJC(bot)
Junction-to-case (bottom) thermal
resistance
n/a
n/a
n/a
n/a
n/a
n/a
7.9
(1)
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
7.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
VCC
IOH = –50 µA
VOH
4.5 V
IOH = –8 mA
IOL = 50 µA
VOL
MIN
TYP
4.4
4.5
MAX
3.94
4.5 V
IOH = 8 mA
SN54AHCT245
–55°C TO 125°C
TA = 25°C
MIN
MAX
SN74AHCT245
–40°C TO 85°C
MIN
MAX
Recommended
SN74AHCT245
–40°C TO 125°C
MIN
4.4
4.4
4.4
3.8
3.8
3.7
UNIT
MAX
V
0.1
0.1
0.1
0.1
0.36
0.44
0.44
0.44
V
II
OE or DIR
VI = 5.5 V or GND
0 to
5.5 V
±0.1
±1 (1)
±1
±1
µA
IOZ
A or B
inputs (2)
VO = VCC or GND
5.5 V
±.25
±2.5
±2.5
±2.5
µA
5.5 V
4
40
40
40
µA
5.5 V
1.35
1.5
1.5
1.5
mA
ICC
ΔICC
VI = VCC or GND,
IO = 0
One input at 3.4 V,
Other inputs at VCC or GND
(3)
Ci
OE or DIR
VI = VCC or GND
5V
2.5
Cio
A or B
inputs
VI = VCC or GND
5V
4
(1)
(2)
(3)
10
10
pF
pF
On products compliant to MIL-PRF-38535, this parameter is not production tested at VCC = 0 V.
For I/O ports, the parameter IOZ includes the input leakage current.
This is the increase in supply current for each input at one of the specified TTL voltage levels, rather than 0 V or VCC.
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
Submit Documentation Feedback
5
SN54AHCT245, SN74AHCT245
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
7.6
www.ti.com
Switching Characteristics
over recommended operating free-air temperature range, VCC = 5 V ± 0.5 V (unless otherwise noted) (see Figure 2)
PARAMETER
tPLH
tPHL
tPZH
tPZL
tPHZ
tPLZ
tPLH
tPHL
tPZH
tPZL
tPHZ
tPLZ
FROM
(INPUT)
A or B
TO
(OUTPUT)
LOAD
CAPACITANCE
B or A
CL = 15 pF
OE
A or B
CL = 15 pF
OE
A or B
CL = 15 pF
A or B
B or A
CL = 50 pF
OE
A or B
CL = 50 pF
OE
A or B
CL = 50 pF
tsk(o)
(1)
(2)
CL = 50 pF
SN54AHCT245
–55°C TO 125°C
TA = 25°C
TYP
MAX
MIN
MAX
7.7 (1)
1 (1)
10 (1)
1
8.5
1
10
4.5 (1)
7.7 (1)
1 (1)
10 (1)
1
8.5
1
10
(1)
(1)
(1)
(1)
13.8
1
MAX
16
MIN
MAX
Recommended
SN74AHCT245
–40°C TO 125°C
4.5 (1)
8.9
MIN
SN74AHCT245
–40°C TO 85°C
1
15
1
16
8.9 (1)
13.8 (1)
1 (1)
16 (1)
1
15
1
16
9.2 (1)
14.4 (1)
1 (1)
16.5 (1)
1
15.5
1
16.5
9.2 (1)
14.4 (1)
1 (1)
16.5 (1)
1
15.5
1
16.5
5.3
8.7
1
11
1
9.5
1
11
5.3
8.7
1
11
1
9.5
1
11
9.7
14.8
1
17
1
16
1
17
9.7
14.8
1
17
1
16
1
17
10
15.4
1
17.5
1
16.5
1
17.5
10
15.4
1
17.5
1
16.5
1
17.5
1 (2)
UNIT
ns
ns
ns
ns
ns
ns
1
ns
On products compliant to MIL-PRF-38535, this parameter is not production tested.
On products compliant to MIL-PRF-38535, this parameter does not apply.
7.7 Noise Characteristics
VCC = 5 V, CL = 50 pF, TA = 25°C (1)
SN74AHCT245
PARAMETER
VOH(V)
Quiet output, minimum dynamic VOH
VIH(D)
High-level dynamic input voltage
VIL(D)
Low-level dynamic input voltage
(1)
7.8
MIN
TYP
MAX
UNIT
4
V
2
V
0.8
V
Characteristics are for surface-mount packages only.
Operating Characteristics
VCC = 5 V, TA = 25°C
PARAMETER
Cpd
TEST CONDITIONS
Power dissipation capacitance
No load,
f = 1 MHz
TYP
13
UNIT
pF
7.9 Typical Characteristics
7
6
TPD (ns)
5
4
3
2
1
TPD in ns
0
-100
-50
0
50
Temperature (qC)
100
150
D001
Figure 1. SN74AHCT245 TPD vs Temperature, 15 pF Load
6
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
SN54AHCT245, SN74AHCT245
www.ti.com
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
8 Parameter Measurement Information
Test
Point
From Output
Under Test
RL = 1 kΩ
From Output
Under Test
S1
VCC
Open
TEST
GND
CL
(see Note A)
CL
(see Note A)
S1
tPLH/tPHL
tPLZ/tPZL
tPHZ/tPZH
Open Drain
Open
VCC
GND
VCC
LOAD CIRCUIT FOR
3-STATE AND OPEN-DRAIN OUTPUTS
LOAD CIRCUIT FOR
TOTEM-POLE OUTPUTS
3V
1.5 V
Timing Input
0V
tw
3V
1.5 V
Input
1.5 V
th
tsu
3V
1.5 V
Data Input
1.5 V
0V
0V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
3V
1.5 V
Input
1.5 V
0V
tPLH
In-Phase
Output
tPHL
50% VCC
tPHL
Out-of-Phase
Output
VOH
50% VCC
VOL
Output
Waveform 1
S1 at VCC
(see Note B)
VOH
50% VCC
VOL
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
INVERTING AND NONINVERTING OUTPUTS
1.5 V
1.5 V
0V
tPLZ
tPZL
≈VCC
50% VCC
VOL + 0.3 V
VOL
tPHZ
tPZH
tPLH
50% VCC
3V
Output
Control
Output
Waveform 2
S1 at GND
(see Note B)
50% VCC
VOH − 0.3 V
VOH
≈0 V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
LOW- AND HIGH-LEVEL ENABLING
A.
CL includes probe and jig capacitance.
B.
Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output
control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output
control.
C.
All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr ≤ 3 ns,
tf ≤ 3 ns.
D.
The outputs are measured one at a time with one input transition per measurement.
E.
All parameters and waveforms are not applicable to all devices.
Figure 2. Load Circuit and Voltage Waveforms
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
Submit Documentation Feedback
7
SN54AHCT245, SN74AHCT245
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
www.ti.com
9 Detailed Description
9.1 Overview
The SNx7ACHT245 octal bus transceivers are designed for asynchronous two-way communication between data
buses. The control-function implementation minimizes external timing requirements. The SNx4AHCT245 devices
allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level
at the direction– control (DIR) input. The output-enable (OE) input can be used to disable the device so that the
buses effectively are isolated. To ensure the high-impedance state during power up or power down, OE should
be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking
capability of the driver.
9.2 Functional Block Diagram
1
DIR
19
OE
2
A1
18
B1
To Seven Other Channels
Figure 3. Logic Diagram (Positive Logic)
9.3 Feature Description
•
•
•
VCC is optimized at 5 V
Allows up voltage translation from 3.3 V to 5 V
– Inputs Accept VIH levels of 2 V
Slow edge rates minimize output ringing
9.4 Device Functional Modes
Table 1. Function Table
(Each Transceiver)
INPUTS
OE
8
Submit Documentation Feedback
DIR
OPERATION
L
L
B data to A bus
L
H
A data to B bus
H
X
Isolation
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
SN54AHCT245, SN74AHCT245
www.ti.com
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
10 Application and Implementation
10.1 Application Information
The SN74AHCT245 is a low drive CMOS device that can be used for a multitude of bus interface type
applications where output ringing is a concern. The low drive and slow edge rates will minimize overshoot and
undershoot on the outputs. The input switching levels have been lowered to accommodate TTL inputs of 0.8 V
VIL and 2 V VIH. This feature makes it ideal for translating up from 3.3 V to 5 V. The figure below shows this type
of translation.
10.2 Typical Application
Regulated 5 V
OE
VCC
DIR
A1
B1
5 V LEDs, Relays,
3.3 V µC
or other system boards
A8
B8
GND
Figure 4. Typical Application Diagram
10.2.1 Design Requirements
This device uses CMOS technology and has balanced output drive. Care should be taken to avoid bus
contention because it can drive currents that would exceed maximum limits. The high drive will also create fast
edges into light loads so routing and load conditions should be considered to prevent ringing.
10.2.2 Detailed Design Procedure
• Recommended input conditions
– Specified high and low levels. See (VIH and VIL) in the Recommended Operating Conditions table.
– Specified high and low levels. See (VIH and VIL) in the Recommended Operating Conditions table.
– Inputs are overvoltage tolerant allowing them to go as high as 5.5 V at any valid VCC
• Recommend output conditions
– Load currents should not exceed 25 mA per output and 50 mA total for the part
– Outputs should not be pulled above VCC
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
Submit Documentation Feedback
9
SN54AHCT245, SN74AHCT245
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
www.ti.com
Typical Application (continued)
10.2.3 Application Curves
Output
Input
Figure 5. Typical Application Curve
11 Power Supply Recommendations
The power supply can be any voltage between the MIN and MAX supply voltage rating located in the
Recommended Operating Conditions table.
Each VCC pin should have a good bypass capacitor to prevent power disturbance. For devices with a single
supply, 0.1 μf is recommended; if there are multiple VCC pins, then 0.01 μf or 0.022 μf is recommended for each
power pin. It is acceptable to parallel multiple bypass caps to reject different frequencies of noise. A 0.1 μf and a
1 μf are commonly used in parallel. The bypass capacitor should be installed as close to the power pin as
possible for best results.
12 Layout
12.1 Layout Guidelines
When using multiple-bit logic devices, inputs should never float.
In many cases, functions or parts of functions of digital logic devices are unused, for example, when only two
inputs of a triple-input AND gate are used or only 3 of the 4 buffer gates are used. Such input pins should not
be left unconnected because the undefined voltages at the outside connections result in undefined
operational states. Figure 6 specifies the rules that must be observed under all circumstances. All unused
inputs of digital logic devices must be connected to a high or low bias to prevent them from floating. The
logic level that should be applied to any particular unused input depends on the function of the device.
Generally they will be tied to GND or VCC, whichever makes more sense or is more convenient. It is
generally acceptable to float outputs, unless the part is a transceiver. If the transceiver has an output enable
pin, it will disable the output section of the part when asserted. This will not disable the input section of the
I/Os, so they cannot float when disabled.
12.2 Layout Example
Vcc
Unused Input
Input
Output
Output
Unused Input
Input
Figure 6. Layout Diagram
10
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
SN54AHCT245, SN74AHCT245
www.ti.com
SCLS233P – OCTOBER 1995 – REVISED JULY 2014
13 Device and Documentation Support
13.1 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 2. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
SN54AHCT245
Click here
Click here
Click here
Click here
Click here
SN74AHCT245
Click here
Click here
Click here
Click here
Click here
13.2 Trademarks
All trademarks are the property of their respective owners.
13.3 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
13.4 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
14 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN54AHCT245 SN74AHCT245
Submit Documentation Feedback
11
PACKAGE OPTION ADDENDUM
www.ti.com
13-Oct-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
5962-9681901Q2A
ACTIVE
LCCC
FK
20
1
Non-RoHS
& Green
SNPB
N / A for Pkg Type
-55 to 125
59629681901Q2A
SNJ54AHCT
245FK
5962-9681901QRA
ACTIVE
CDIP
J
20
1
Non-RoHS
& Green
SNPB
N / A for Pkg Type
-55 to 125
5962-9681901QR
A
SNJ54AHCT245J
5962-9681901QSA
ACTIVE
CFP
W
20
1
Non-RoHS
& Green
SNPB
N / A for Pkg Type
-55 to 125
5962-9681901QS
A
SNJ54AHCT245W
SN74AHCT245DBR
ACTIVE
SSOP
DB
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245DBRG4
ACTIVE
SSOP
DB
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245DGVR
ACTIVE
TVSOP
DGV
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245DW
ACTIVE
SOIC
DW
20
25
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
AHCT245
SN74AHCT245DWR
ACTIVE
SOIC
DW
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
AHCT245
SN74AHCT245N
ACTIVE
PDIP
N
20
20
RoHS &
Non-Green
NIPDAU
N / A for Pkg Type
-40 to 125
SN74AHCT245N
SN74AHCT245NSR
ACTIVE
SO
NS
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
AHCT245
SN74AHCT245PW
ACTIVE
TSSOP
PW
20
70
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245PWG4
ACTIVE
TSSOP
PW
20
70
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
HB245

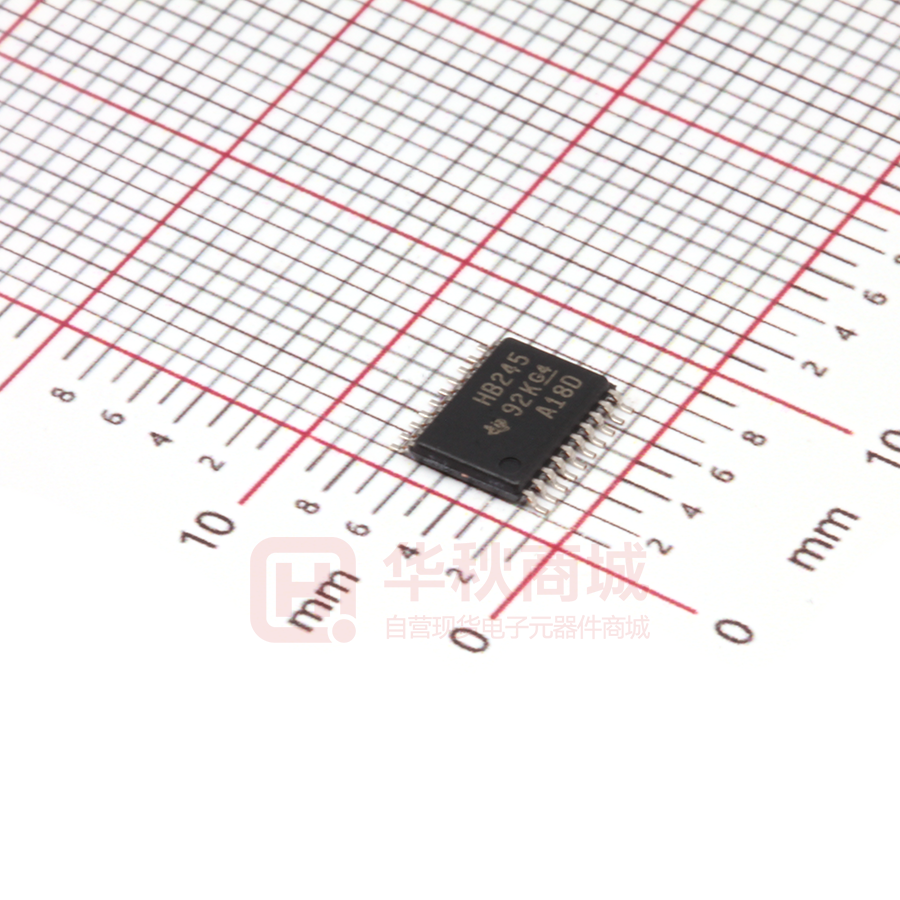

SN74AHCT245PWR
ACTIVE
TSSOP
PW
20
2000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245PWRE4
ACTIVE
TSSOP
PW
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245PWRG3
ACTIVE
TSSOP
PW
20
2000
RoHS & Green
SN
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245PWRG4
ACTIVE
TSSOP
PW
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
HB245
SN74AHCT245RGYR
ACTIVE
VQFN
RGY
20
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 125
HB245
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
Orderable Device
13-Oct-2021
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
(3)
Device Marking
(4/5)
(6)
SNJ54AHCT245FK
ACTIVE
LCCC
FK
20
1
Non-RoHS
& Green
SNPB
N / A for Pkg Type
-55 to 125
59629681901Q2A
SNJ54AHCT
245FK
SNJ54AHCT245J
ACTIVE
CDIP
J
20
1
Non-RoHS
& Green
SNPB
N / A for Pkg Type
-55 to 125
5962-9681901QR
A
SNJ54AHCT245J
SNJ54AHCT245W
ACTIVE
CFP
W
20
1
Non-RoHS
& Green
SNPB
N / A for Pkg Type
-55 to 125
5962-9681901QS
A
SNJ54AHCT245W
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
