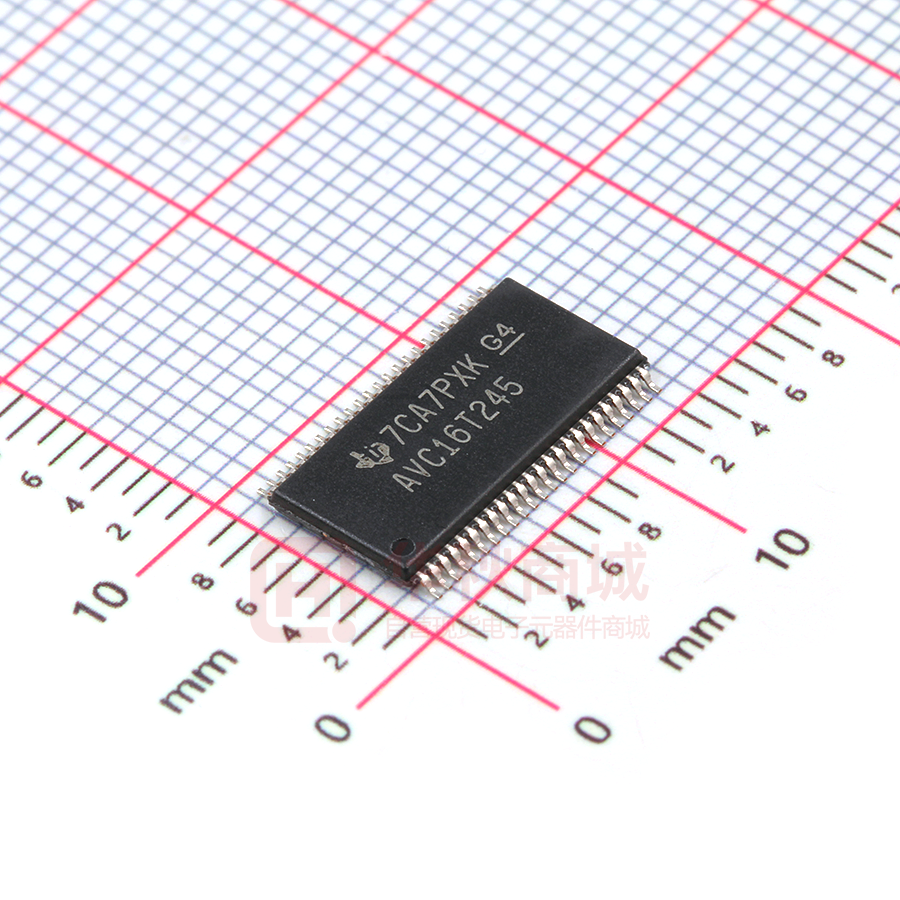

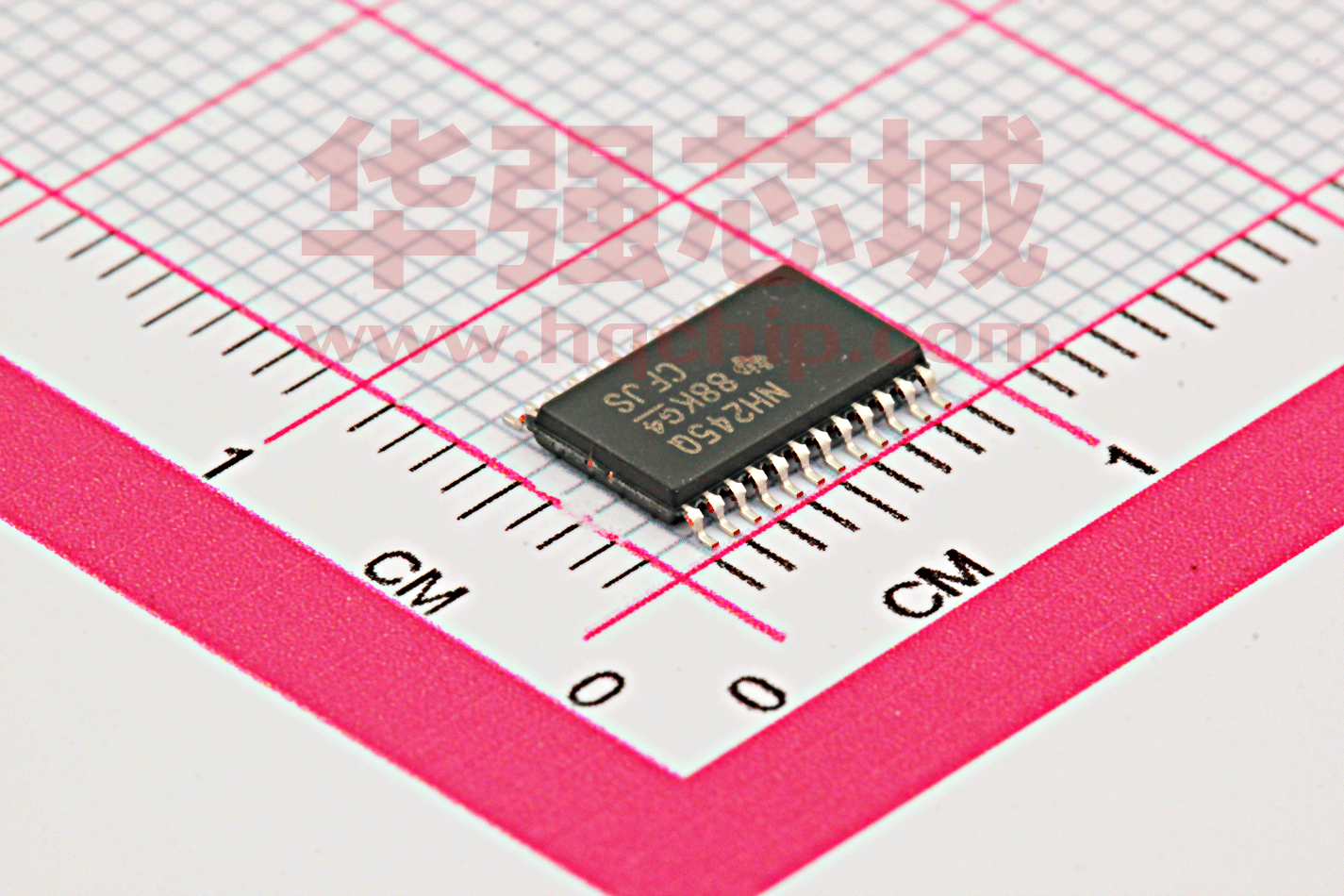

SN74AVC16T245DGGR

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents SN74AVC16T245 SCES551E – FEBRUARY 2004 – REVISED NOVEMBER 2015 SN74AVC16T245 16-Bit Dual-Supply Bus Transceiver with Configurable Level-Shifting / Voltage Translation and Tri-State Outputs 1 Features 3 Description • This 16-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC16T245 device is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. The device is operational with VCCA/VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes. 1 • • • • • • • • Control Inputs VIH/VIL Levels Are Referenced to VCCA Voltage VCC Isolation Feature – If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State Overvoltage-Tolerant Inputs and Outputs Allow Mixed-Voltage-Mode Data Communications Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2 V to 3.6 V Power-Supply Range Ioff Supports Partial-Power-Down Mode Operation I/Os Are 4.6 V Tolerant Maximum Data Rates – 380 Mbps (1.8 V to 3.3 V Level-Shifting) – 200 Mbps (
