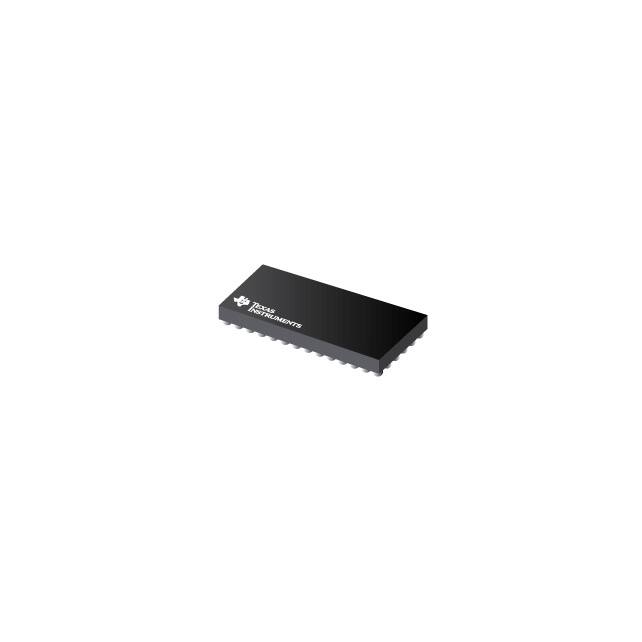

SN74AVC24T245NMUR

SN74AVC24T245 SN74AVC24T245 SCES552E – FEBRUARY 2004 – REVISED AUGUST 2020 SCES552E – FEBRUARY 2004 – REVISED AUGUST 2020 www.ti.com 24-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation And 3State Outputs 1 Features • • • • • • • • • Control Inputs VIH/VIL Levels Are Referenced to VCCA Voltage VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State Overvoltage-Tolerant Inputs/Outputs Allow MixedVoltage-Mode Data Communications Fully Configurable Dual-Rail Design Allows Each Port to Operate Over Full 1.2-V to 3.6-V PowerSupply Range Ioff Supports Partial-Power-Down Mode Operation I/Os Are 4.6-V Tolerant Max Data Rates – 380 Mbps (1.8-V to 3.3-V Translation) – 200 Mbps (
