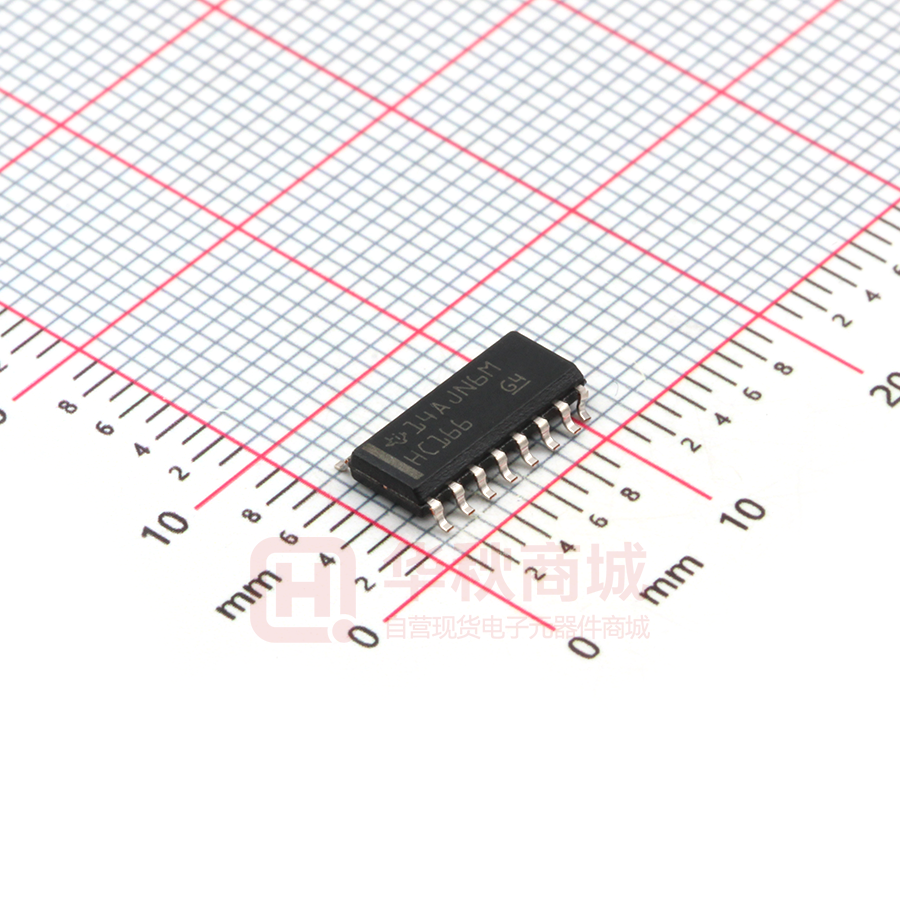

SN74HC166DR


    


SCLS117D − DECEMBER 1982 − REVISED SEPTEMBER 2003 D D D D D Wide Operating Voltage Range of 2 V to 6 V Outputs Can Drive Up To 10 LSTTL Loads Low Power Consumption, 80-µA Max ICC Typical tpd = 13 ns ±4-mA Output Drive at 5 V D D D D Low Input Current of 1 µA Max Synchronous Load Direct Overriding Clear Parallel-to-Serial Conversion SN54HC166 . . . J OR W PACKAGE SN74HC166 . . . D, DB, N, NS, OR PW PACKAGE (TOP VIEW) 16 2 15 3 14 4 13 5 12 6 11 7 10 8 9 VCC SH/LD H QH G F E CLR A SER NC VCC SH/LD 1 B C NC D CLK INH 4 3 2 1 20 19 18 5 17 6 16 7 15 8 14 9 10 11 12 13 H QH NC G F CLK GND NC CLR E SER A B C D CLK INH CLK GND SN54HC166 . . . FK PACKAGE (TOP VIEW) NC − No internal connection description/ordering information ORDERING INFORMATION PACKAGE† TA PDIP − N SN74HC166N Tube of 40 SN74HC166D Reel of 2500 SN74HC166DR Reel of 250 SN74HC166DT SOP − NS Reel of 2000 SN74HC166NSR HC166 SSOP − DB Reel of 2000 SN74HC166DBR HC166 Tube of 90 SN74HC166PW Reel of 2000 SN74HC166PWR Reel of 250 SN74HC166PWT CDIP − J Tube of 25 SNJ54HC166J SNJ54HC166J CFP − W Tube of 150 SNJ54HC166W SNJ54HC166W LCCC − FK Tube of 55 SNJ54HC166FK TSSOP − PW −55°C −55 C to 125 125°C C TOP-SIDE MARKING Tube of 25 SOIC − D −40°C −40 C to 85 85°C C ORDERABLE PART NUMBER SN74HC166N HC166 HC166 SNJ54HC166FK † Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. Copyright  2003, Texas Instruments Incorporated   !" # $%&" !#  '%()$!" *!"&+ *%$"# $ " #'&$$!"# '& ",& "&#  &-!# #"%&"# #"!*!* .!!"/+ *%$" '$&##0 *&# " &$&##!)/ $)%*& "&#"0  !)) '!!&"&#+  '*%$"# $')!" " 122 !)) '!!&"&# !& "&#"&* %)&## ",&.#& "&*+  !)) ",& '*%$"# '*%$" '$&##0 *&# " &$&##!)/ $)%*& "&#"0  !)) '!!&"&#+ POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 1 

    


SCLS117D − DECEMBER 1982 − REVISED SEPTEMBER 2003 description/ordering information (continued) These parallel-in or serial-in, serial-out registers feature gated clock (CLK, CLK INH) inputs and an overriding clear (CLR) input. The parallel-in or serial-in modes are established by the shift/ load (SH/LD) input. When high, SH/LD enables the serial (SER) data input and couples the eight flip-flops for serial shifting with each clock (CLK) pulse. When low, the parallel (broadside) data inputs are enabled, and synchronous loading occurs on the next clock pulse. During parallel loading, serial data flow is inhibited. Clocking is accomplished on the low-to-high-level edge of CLK through a 2-input positive-NOR gate, permitting one input to be used as a clock-enable or clock-inhibit function. Holding either CLK or CLK INH high inhibits clocking; holding either low enables the other clock input. This allows the system clock to be free running, and the register can be stopped on command with the other clock input. CLK INH should be changed to the high level only when CLK is high. CLR overrides all other inputs, including CLK, and resets all flip-flops to zero. FUNCTION TABLE OUTPUTS INPUTS INTERNAL QH CLR SH/LD CLK INH CLK SER PARALLEL A...H L X X X X X L L L H X L L X X QA0 QB0 QH0 QA QB H L L ↑ X a...h a b h H H L ↑ H X H QAn QGn H H L ↑ L X L QAn QGn H X H ↑ X X QA0 QB0 QH0 logic diagram (positive logic) A SH/LD SER 15 B 2 C D 3 4 1D C1 R 1D C1 R E F H 10 11 12 14 1D C1 R 1D C1 R 1D C1 R 1D C1 R 1D C1 R 1 CLK INH CLK CLR 6 7 1D C1 R 9 13 Pin numbers shown are for the D, DB, J, N, NS, PW, and W packages. 2 G 5 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 QH 

    


SCLS117D − DECEMBER 1982 − REVISED SEPTEMBER 2003 typical clear, shift, load, inhibit, and shift sequence CLK CLK INH CLR SER SH/LD Parallel Inputs A H B L C H D L E H F L G H H H QH Serial Shift Clear H Inhibit H L H L H L H Serial Shift Load absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA Package thermal impedance, θJA (see Note 2): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73°C/W DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82°C/W N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67°C/W NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64°C/W PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108°C/W Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C † Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 2. The package thermal impedance is calculated in accordance with JESD 51-7. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 3 

    


SCLS117D − DECEMBER 1982 − REVISED SEPTEMBER 2003 recommended operating conditions (see Note 3) SN54HC166 VCC Supply voltage VIH VCC = 2 V VCC = 4.5 V High-level input voltage VCC = 6 V VCC = 2 V VIL VI VO Input voltage NOM MAX 2 5 6 NOM MAX 2 5 6 1.5 3.15 3.15 4.2 4.2 0 VCC = 6 V UNIT V V 0.5 0.5 1.35 1.35 1.8 1.8 VCC VCC VCC = 2 V VCC = 4.5 V Input transition rise/fall time MIN 1.5 0 Output voltage ∆t/∆v† MIN VCC = 4.5 V VCC = 6 V Low-level input voltage SN74HC166 0 VCC VCC 0 1000 1000 500 500 400 400 V V V ns TA Operating free-air temperature −55 125 −40 85 °C NOTE 3: All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature number SCBA004. † If this device is used in the threshold region (from VILmax = 0.5 V to VIHmin = 1.5 V), there is a potential to go into the wrong state from induced grounding, causing double clocking. Operating with the inputs at tt = 1000 ns and VCC = 2 V does not damage the device; however, functionally, the CLK inputs are not ensured while in the shift, count, or toggle operating modes. electrical characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS IOH = −20 µA VOH VI = VIH or VIL IOH = −4 mA IOH = −5.2 mA IOL = 20 µA VOL VI = VIH or VIL IOL = 4 mA IOL = 5.2 mA II ICC Ci 4 VI = VCC or 0 VI = VCC or 0, IO = 0 TA = 25°C TYP MAX SN54HC166 SN74HC166 VCC MIN 2V 1.9 1.998 1.9 1.9 4.5 V 4.4 4.499 4.4 4.4 6V 5.9 5.999 5.9 5.9 4.5 V 3.98 4.3 3.7 3.84 6V 5.48 5.8 MIN MAX 5.2 MIN MAX UNIT V 5.34 2V 0.002 0.1 0.1 0.1 4.5 V 0.001 0.1 0.1 0.1 6V 0.001 0.1 0.1 0.1 4.5 V 0.17 0.26 0.4 0.33 6V 0.15 0.26 0.4 0.33 6V ±0.1 ±100 ±1000 ±1000 nA 8 160 80 µA 10 10 10 pF 6V 2 V to 6 V POST OFFICE BOX 655303 3 • DALLAS, TEXAS 75265 V 

    


SCLS117D − DECEMBER 1982 − REVISED SEPTEMBER 2003 timing requirements over recommended operating free-air temperature range (unless otherwise noted) VCC fclock Clock frequency CLR low tw Pulse duration CLK high or low SH/LD high before CLK↑ SER before CLK↑ tsu Setup time CLK INH low before CLK↑ Data before CLK↑ CLR inactive before CLK↑ SH/LD high after CLK↑ SER after CLK CLK↑ th Hold time CLK INH high after CLK↑ Data after CLK CLK↑ POST OFFICE BOX 655303 TA = 25°C MIN MAX SN54HC166 MIN MAX SN74HC166 MIN MAX 2V 6 4.2 5 4.5 V 31 21 25 6V 36 25 29 2V 100 150 125 4.5 V 20 30 25 6V 17 26 21 2V 80 120 100 4.5 V 16 24 20 6V 14 20 17 2V 145 220 180 4.5 V 29 44 36 6V 25 38 31 2V 80 120 100 4.5 V 16 24 20 6V 14 20 17 2V 100 150 125 4.5 V 20 30 25 6V 17 26 21 2V 80 120 100 4.5 V 16 24 20 6V 14 20 17 2V 40 60 50 4.5 V 8 12 10 6V 7 10 9 2V 0 0 0 4.5 V 0 0 0 6V 0 0 0 2V 5 5 5 4.5 V 5 5 5 6V 5 5 5 2V 0 0 0 4.5 V 0 0 0 6V 0 0 0 2V 5 5 5 4.5 V 5 5 5 6V 5 5 5 • DALLAS, TEXAS 75265 UNIT MHz ns ns ns 5 

    


SCLS117D − DECEMBER 1982 − REVISED SEPTEMBER 2003 switching characteristics over recommended operating free-air temperature range, CL = 50 pF (unless otherwise noted) (see Figure 1) PARAMETER FROM (INPUT) TO (OUTPUT) fmax tPHL tpd CLR CLK tt QH QH Any VCC MIN TA = 25°C TYP MAX SN54HC166 MIN MAX SN74HC166 MIN 2V 6 11 4.2 5 4.5 V 31 36 21 25 6V 36 45 25 29 MAX UNIT MHz 2V 62 120 180 150 4.5 V 18 24 36 30 6V 13 20 31 26 2V 75 150 225 190 4.5 V 15 30 45 38 6V 13 26 38 32 2V 38 75 110 95 4.5 V 8 15 22 19 6V 6 13 19 16 ns ns ns operating characteristics, TA = 25°C PARAMETER Cpd 6 TEST CONDITIONS Power dissipation capacitance No load POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 TYP 50 UNIT pF 

    


SCLS117D − DECEMBER 1982 − REVISED SEPTEMBER 2003 PARAMETER MEASUREMENT INFORMATION From Output Under Test VCC High-Level Pulse Test Point 50% 50% 0V tw CL = 50 pF (see Note A) VCC Low-Level Pulse 50% 50% 0V LOAD CIRCUIT VOLTAGE WAVEFORMS PULSE DURATIONS Input VCC 50% 50% 0V tPLH Reference Input VCC 50% In-Phase Output 50% 10% 0V tsu Data Input 50% 10% 90% tr tPHL VCC 50% 10% 0 V 90% 90% tr th 90% tPHL Out-of-Phase Output 90% VOLTAGE WAVEFORMS SETUP AND HOLD AND INPUT RISE AND FALL TIMES tPLH 50% 10% tf tf VOH 50% 10% VOL tf 50% 10% 90% VOH VOL tr VOLTAGE WAVEFORMS PROPAGATION DELAY AND OUTPUT TRANSITION TIMES NOTES: A. CL includes probe and test-fixture capacitance. B. Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 6 ns, tf = 6 ns. C. For clock inputs, fmax is measured when the input duty cycle is 50%. D. The outputs are measured one at a time with one input transition per measurement. E. tPLH and tPHL are the same as tpd. Figure 1. Load Circuit and Voltage Waveforms POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 7 PACKAGE OPTION ADDENDUM www.ti.com 15-Oct-2009 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Drawing Pins Package Eco Plan (2) Qty Lead/Ball Finish MSL Peak Temp (3) 5962-9050101Q2A ACTIVE LCCC FK 20 1 TBD 5962-9050101QEA ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type 5962-9050101VEA ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type SN54HC166J ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type SN74HC166D ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DBR ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DBRE4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DBRG4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DE4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DG4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DR ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DRE4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DRG4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DT ACTIVE SOIC D 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DTE4 ACTIVE SOIC D 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166DTG4 ACTIVE SOIC D 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166N ACTIVE PDIP N 16 25 Pb-Free (RoHS) CU NIPDAU N / A for Pkg Type SN74HC166NE4 ACTIVE PDIP N 16 25 Pb-Free (RoHS) CU NIPDAU N / A for Pkg Type SN74HC166NSR ACTIVE SO NS 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166NSRE4 ACTIVE SO NS 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166NSRG4 ACTIVE SO NS 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PW ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PWE4 ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PWG4 ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PWR ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PWRE4 ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PWRG4 ACTIVE TSSOP PW 16 2000 Green (RoHS & CU NIPDAU Level-1-260C-UNLIM Addendum-Page 1 POST-PLATE N / A for Pkg Type PACKAGE OPTION ADDENDUM www.ti.com 15-Oct-2009 Orderable Device Status (1) Package Type Package Drawing Pins Package Eco Plan (2) Qty SN74HC166PWT ACTIVE TSSOP PW 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PWTE4 ACTIVE TSSOP PW 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SN74HC166PWTG4 ACTIVE TSSOP PW 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM SNJ54HC166FK ACTIVE LCCC FK 20 1 TBD SNJ54HC166J ACTIVE CDIP J 16 1 TBD Lead/Ball Finish MSL Peak Temp (3) no Sb/Br) POST-PLATE N / A for Pkg Type A42 N / A for Pkg Type (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details. TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material) (3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. Addendum-Page 2 PACKAGE MATERIALS INFORMATION www.ti.com 19-Mar-2008 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Type Drawing SN74HC166DBR SSOP SPQ Reel Reel Diameter Width (mm) W1 (mm) A0 (mm) B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant 12.0 16.0 Q1 DB 16 2000 330.0 16.4 8.2 6.6 2.5 SN74HC166DR SOIC D 16 2500 330.0 16.4 6.5 10.3 2.1 8.0 16.0 Q1 SN74HC166NSR SO NS 16 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1 SN74HC166PWR TSSOP PW 16 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1 Pack Materials-Page 1 PACKAGE MATERIALS INFORMATION www.ti.com 19-Mar-2008 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) SN74HC166DBR SSOP DB 16 2000 346.0 346.0 33.0 SN74HC166DR SOIC D 16 2500 333.2 345.9 28.6 SN74HC166NSR SO NS 16 2000 346.0 346.0 33.0 SN74HC166PWR TSSOP PW 16 2000 346.0 346.0 29.0 Pack Materials-Page 2 MECHANICAL DATA MSSO002E – JANUARY 1995 – REVISED DECEMBER 2001 DB (R-PDSO-G**) PLASTIC SMALL-OUTLINE 28 PINS SHOWN 0,38 0,22 0,65 28 0,15 M 15 0,25 0,09 8,20 7,40 5,60 5,00 Gage Plane 1 14 0,25 A 0°–ā8° 0,95 0,55 Seating Plane 2,00 MAX 0,10 0,05 MIN PINS ** 14 16 20 24 28 30 38 A MAX 6,50 6,50 7,50 8,50 10,50 10,50 12,90 A MIN 5,90 5,90 6,90 7,90 9,90 9,90 12,30 DIM 4040065 /E 12/01 NOTES: A. B. C. D. All linear dimensions are in millimeters. This drawing is subject to change without notice. Body dimensions do not include mold flash or protrusion not to exceed 0,15. Falls within JEDEC MO-150 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 MECHANICAL DATA MLCC006B – OCTOBER 1996 FK (S-CQCC-N**) LEADLESS CERAMIC CHIP CARRIER 28 TERMINAL SHOWN 18 17 16 15 14 13 NO. OF TERMINALS ** 12 19 11 20 10 A B MIN MAX MIN MAX 20 0.342 (8,69) 0.358 (9,09) 0.307 (7,80) 0.358 (9,09) 28 0.442 (11,23) 0.458 (11,63) 0.406 (10,31) 0.458 (11,63) 21 9 22 8 44 0.640 (16,26) 0.660 (16,76) 0.495 (12,58) 0.560 (14,22) 23 7 52 0.739 (18,78) 0.761 (19,32) 0.495 (12,58) 0.560 (14,22) 24 6 68 0.938 (23,83) 0.962 (24,43) 0.850 (21,6) 0.858 (21,8) 84 1.141 (28,99) 1.165 (29,59) 1.047 (26,6) 1.063 (27,0) B SQ A SQ 25 5 26 27 28 1 2 3 4 0.080 (2,03) 0.064 (1,63) 0.020 (0,51) 0.010 (0,25) 0.020 (0,51) 0.010 (0,25) 0.055 (1,40) 0.045 (1,14) 0.045 (1,14) 0.035 (0,89) 0.045 (1,14) 0.035 (0,89) 0.028 (0,71) 0.022 (0,54) 0.050 (1,27) 4040140 / D 10/96 NOTES: A. B. C. D. E. All linear dimensions are in inches (millimeters). This drawing is subject to change without notice. This package can be hermetically sealed with a metal lid. The terminals are gold plated. Falls within JEDEC MS-004 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 MECHANICAL DATA MTSS001C – JANUARY 1995 – REVISED FEBRUARY 1999 PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE 14 PINS SHOWN 0,30 0,19 0,65 14 0,10 M 8 0,15 NOM 4,50 4,30 6,60 6,20 Gage Plane 0,25 1 7 0°– 8° A 0,75 0,50 Seating Plane 0,15 0,05 1,20 MAX PINS ** 0,10 8 14 16 20 24 28 A MAX 3,10 5,10 5,10 6,60 7,90 9,80 A MIN 2,90 4,90 4,90 6,40 7,70 9,60 DIM 4040064/F 01/97 NOTES: A. B. C. D. All linear dimensions are in millimeters. This drawing is subject to change without notice. Body dimensions do not include mold flash or protrusion not to exceed 0,15. Falls within JEDEC MO-153 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 PACKAGE OPTION ADDENDUM www.ti.com 24-Aug-2018 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) 5962-9050101Q2A ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type -55 to 125 59629050101Q2A SNJ54HC 166FK 5962-9050101QEA ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 5962-9050101QE A SNJ54HC166J 5962-9050101VEA ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 5962-9050101VE A SNV54HC166J SN54HC166J ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 SN54HC166J SN74HC166D ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166DBR ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166DR ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166DRE4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166DRG4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166N ACTIVE PDIP N 16 25 Green (RoHS & no Sb/Br) CU NIPDAU N / A for Pkg Type -40 to 85 SN74HC166N SN74HC166NSR ACTIVE SO NS 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166PW ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166PWG4 ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166PWR ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -40 to 85 HC166 SN74HC166PWT ACTIVE TSSOP PW 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC166 SNJ54HC166FK ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type -55 to 125 5962- Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com Orderable Device 24-Aug-2018 Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) 9050101Q2A SNJ54HC 166FK SNJ54HC166J ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 5962-9050101QE A SNJ54HC166J (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
