SN54HC573A, SN74HC573A
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
SNx4HC573A Octal Transparent D-Type Latches With 3-State Outputs
1 Features
3 Description
•
•
The SNx4HC573A devices are octal transparent
D-type latches that feature 3-state outputs designed
specifically for driving highly capacitive or relatively
low-impedance loads. They are particularly suitable
for implementing buffer registers, I/O ports,
bidirectional bus drivers, and working registers.
1
•
•
•
•
•
Wide Operating Voltage Range from 2 V to 6 V
High-Current 3-State Outputs Drive Bus Lines
Directly up to 15 LSTTL Loads
Low Power Consumption: 80-µA Maximum ICC
Typical tpd = 21 ns
±6-mA Output Drive at 5 V
Low Input Current: 1 µA (Maximum)
Bus-Structured Pinout
While the latch-enable (LE) input is high, the
Q outputs respond to the data (D) inputs. When LE is
low, the outputs are latched to retain the data that
was set up.
2 Applications
•
•
•
Device Information(1)
Buffer Registers
Bidirectional Bus Drivers
Working Registers
PART NUMBER
PACKAGE
BODY SIZE (NOM)
SN54HC573AJ
CDIP (20)
26.92 mm × 6.92 mm
SN54HC573AW
CFP (20)
13.72 mm × 6.92 mm
SN54HC573AFK
LCCC (20)
8.89 mm × 8.89 mm
SN74HC573AN
PDIP (20)
25.40 mm × 6.35 mm

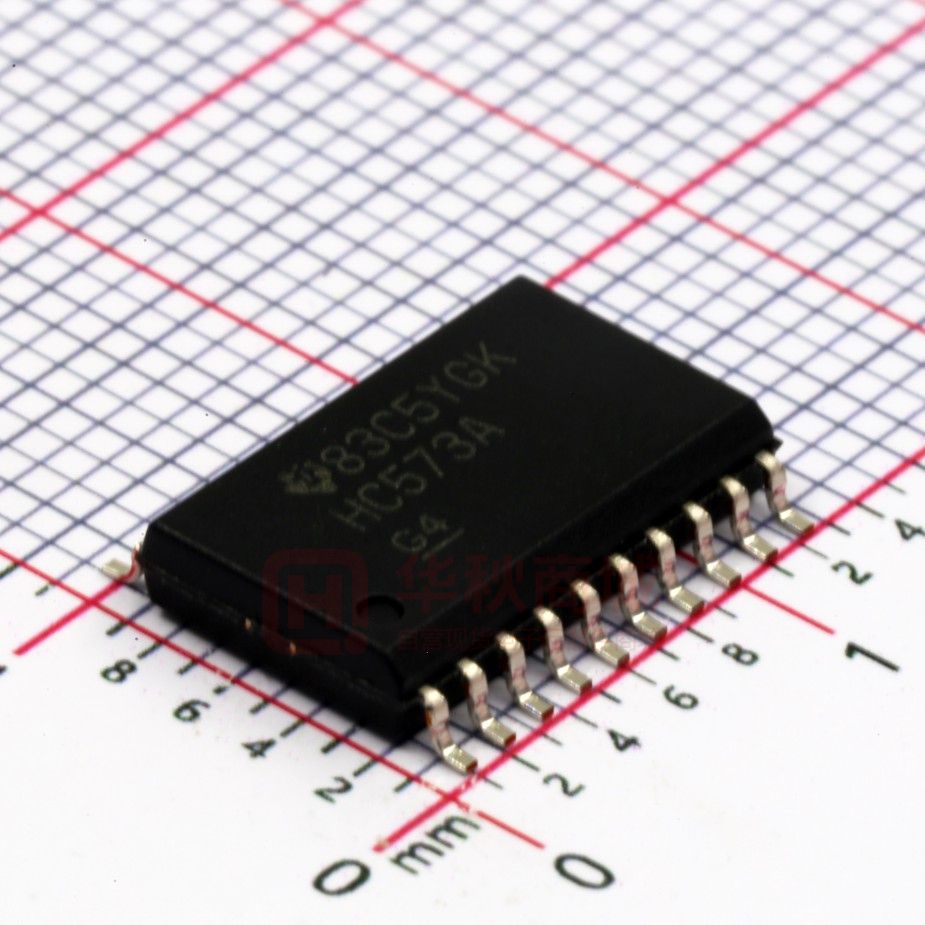

SN74HC573ADW
SOIC (20)
12.80 mm × 7.50 mm
SN74HC573ADB
SSOP (20)
7.20 mm × 5.30 mm
SN74HC573APW
TSSOP (20)
5.00 mm × 4.40 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Logic Diagram (Positive Logic)
OE
LE
1
11
C1
1D
2
19
1Q
1D
To Seven Other Channels
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
On products compliant to MIL-PRF-38535, all parameters are
tested unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
SN54HC573A, SN74HC573A
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
4
4
4
5
5
6
6
8
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ................................................
Switching Characteristics ..........................................
Typical Characteristics ..............................................
Parameter Measurement Information .................. 9
Detailed Description ............................................ 10
8.1 Overview ................................................................. 10
8.2 Functional Block Diagram ....................................... 10
8.3 Feature Description................................................. 10
8.4 Device Functional Modes........................................ 10
9
Application and Implementation ........................ 11
9.1 Application Information............................................ 11
9.2 Typical Application .................................................. 11
10 Power Supply Recommendations ..................... 12
11 Layout................................................................... 12
11.1 Layout Guidelines ................................................. 12
11.2 Layout Example .................................................... 12
12 Device and Documentation Support ................. 13
12.1
12.2
12.3
12.4
12.5
12.6
12.7
Documentation Support ........................................
Related Links ........................................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
13
13
13
13
13
13
13
13 Mechanical, Packaging, and Orderable
Information ........................................................... 13
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision E (September 2003) to Revision F
Page
•
Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section .................................................................................................. 1
•
Deleted Ordering Information table; see POA at the end of the data sheet........................................................................... 1
•
Changed Package thermal impedance, RθJA, values from 70 to 92.5 (DB), from 58 to 78.3 (DW), from 69 to 49.1
(N), and from 83 to 101.1 (PW) .............................................................................................................................................. 5
2
Submit Documentation Feedback
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
SN54HC573A, SN74HC573A
www.ti.com
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
5 Pin Configuration and Functions
DB, DW, J, N, PW, or W Packages
20-Pin SSOP, SOIC, CDIP, PDIP, TSSOP, or CFP
Top View
3
18
2Q
3D
4
17
3Q
4D
5
16
4Q
5D
6
15
5Q
6D
7
14
7D
8
8D
4D
5
17
3Q
6Q
5D
6
16
4Q
13
7Q
6D
7
15
5Q
9
12
8Q
7D
8
14
6Q
10
11
LE
13
2Q
12
18
11
4
10
3D
9
GND
1Q
2D
19
1Q
VCC
19
20
2
OE
1D
1
VCC
1D
20
2
1
2D
OE
3
FK Package
20-Pin LCCC
Top View
7Q
8Q
LE
GND
8D
Not to scale
Not to scale
Pin Functions
PIN
NO.
NAME
I/O
DESCRIPTION
1
OE
I
Output enable
2
1D
I
1D input
3
2D
I
2D input
4
3D
I
3D input
5
4D
I
4D input
6
5D
I
5D input
7
6D
I
6D input
8
7D
I
7D input
9
8D
I
8D input
10
GND
—
Ground
11
LE
I
Latch enable input
12
8Q
O
8Q output
13
7Q
O
7Q output
14
6Q
O
6Q output
15
5Q
O
5Q output
16
4Q
O
4Q output
17
3Q
O
3Q output
18
2Q
O
2Q output
19
1Q
O
1Q output
20
VCC
—
Power pin
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
Submit Documentation Feedback
3
SN54HC573A, SN74HC573A
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
VCC
Supply voltage
(2)
MIN
MAX
UNIT
–0.5
7
V
IIK
Input clamp current
VI < 0 or VI > VCC
±20
mA
IOK
Output clamp current (2)
VO < 0 or VO > VCC
±20
mA
IO
Continuous output current
VO = 0 to VCC
±35
mA
Continuous current through VCC or GND
±70
mA
TJ
Junction temperature
150
°C
Tstg
Storage temperature
150
°C
(1)
(2)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
±3500
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
UNIT
V
±1000
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
VCC
Supply voltage
VCC = 2 V
VIH
High-level input voltage
MIN
NOM
MAX
2
5
6
VCC = 4.5 V
3.15
0.5
VCC = 4.5 V
1.35
VCC = 6 V
VI
Input voltage
VO
Output voltage
0
0
TA
(1)
4
Input transition (rise and fall) time
Operating free-air temperature
V
1.8
VCC = 2 V
tt
V
4.2
VCC = 2 V
Low-level input voltage
V
1.5
VCC = 6 V
VIL
UNIT
VCC
V
VCC
V
1000
VCC = 4.5 V
500
VCC = 6 V
400
SN54HC573A
–55
125
SN74HC573A
–40
85
ns
°C
All unused inputs of the device must be held at VCC or GND to ensure proper device operation. See the Implications of Slow or Floating
CMOS Inputs application report (SCBA004).
Submit Documentation Feedback
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
SN54HC573A, SN74HC573A
www.ti.com
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
6.4 Thermal Information
SN74HC573A
THERMAL METRIC (1)
DB
(SSOP)
DW
(SOIC)
N
(PDIP)
PW
(TSSOP)
UNIT
20 PINS
20 PINS
20 PINS
20 PINS
RθJA
Junction-to-ambient thermal resistance
92.5
78.3
49.1
101.1
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
53.9
42.8
35.9
35.9
°C/W
RθJB
Junction-to-board thermal resistance
47.6
46.2
30
52
°C/W
ψJT
Junction-to-top characterization parameter
19.5
18
22.4
2.4
°C/W
ψJB
Junction-to-board characterization parameter
47.2
45.7
29.9
51.5
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
6.5 Electrical Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
IOH = –20 µA
VOH
VI = VIH or VIL
IOH = –6 mA, VCC = 4.5 V
IOH = –7.8 mA, VCC = 6 V
IOL = 20 µA
VOL
VI = VIH or VIL
IOL = 6 mA, VCC = 4.5 V
MIN
TYP
VCC = 2 V
1.9
1.998
VCC = 4.5 V
4.4
4.499
VCC = 6 V
5.9
5.999
TA = 25°C
3.98
4.3
SN54HC573A
3.7
SN74HC573A
3.84
TA = 25°C
5.48
SN54HC573A
5.2
SN74HC573A
5.34
II
VI = VCC or 0, VCC = 6 V
IOZ
VO = VCC or 0, VCC = 6 V
5.8
0.002
0.1
VCC = 4.5 V
0.001
0.1
VCC = 6 V
0.001
0.1
TA = 25°C
0.17
0.26
SN54HC573A
0.4
SN74HC573A
0.33
0.15
0.4
SN74HC573A
0.33
±0.1
SNx4HC573A
TA = 25°C
VI = VCC or 0, IO = 0, VCC = 6 V
Ci
±10
SN74HC573A
±5
Cpd
160
SN74HC573A
80
TA = 25°C, no load
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
µA
8
SN54HC573A
VCC = 2 V to 6 V
Power dissipation
capacitance
per latch
nA
±0.5
SN54HC573A
TA = 25°C
ICC
±100
±1000
±0.01
V
0.26
SN54HC573A
TA = 25°C
UNIT
V
VCC = 2 V
TA = 25°C
IOL = 7.8 mA, VCC = 6 V
MAX
3
10
50
Submit Documentation Feedback
µA
pF
pF
5
SN54HC573A, SN74HC573A
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
www.ti.com
6.6 Timing Requirements
over operating free-air temperature range (unless otherwise noted)
MIN
TA = 25°C
VCC = 2 V
tw
Pulse duration, LE high
VCC = 4.5 V
VCC = 6 V
VCC = 2 V
tsu
Setup time, data before LE↓
VCC = 4.5 V
VCC = 2 V
th
Hold time, data after LE↓
MAX
UNIT
80
SN54HC573A
120
SN74HC573A
100
TA = 25°C
16
SN54HC573A
24
SN74HC573A
20
TA = 25°C
14
SN54HC573A
20
SN74HC573A
17
TA = 25°C
50
SN54HC573A
75
SN74HC573A
63
TA = 25°C
10
SN54HC573A
15
SN74HC573A
13
TA = 25°C
VCC = 6 V
NOM
ns
ns
9
SN54HC573A
13
SN74HC573A
11
TA = 25°C
20
SNx4HC573A
24
VCC = 4.5 V
5
VCC = 6 V
5
ns
6.7 Switching Characteristics
over operating free-air temperature range (unless otherwise noted; see Figure 2)
PARAMETER
TEST CONDITIONS
MIN
TA = 25°C
VCC = 2 V
VCC = 4.5 V
MAX
77
175
SN54HC573A
265
SN74HC573A
220
TA = 25°C
CL = 50 pF, from D (input)
to Q (output)
TYP
26
SN54HC573A
VCC = 6 V
44
23
SN54HC573A
TA = 25°C
VCC = 2 V
38
87
SN54HC573A
CL = 50 pF, from LE (input)
to any Q (output)
VCC = 4.5 V
SN54HC573A
6
Submit Documentation Feedback
35
53
SN74HC573A
VCC = 6 V
ns
220
27
TA = 25°C
175
265
SN74HC573A
TA = 25°C
30
45
SN74HC573A
tpd
35
53
SN74HC573A
TA = 25°C
UNIT
44
23
30
SN54HC573A
45
SN74HC573A
38
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
SN54HC573A, SN74HC573A
www.ti.com
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
Switching Characteristics (continued)
over operating free-air temperature range (unless otherwise noted; see Figure 2)
PARAMETER
TEST CONDITIONS
MIN
TA = 25°C
VCC = 2 V
CL = 50 pF, from OE (input)
to any Q (output)
VCC = 4.5 V
68
150
225
SN74HC573A
190
24
45
SN74HC573A
38
21
SN54HC573A
VCC = 2 V
tdis
VCC = 4.5 V
190
23
45
SN74HC573A
38
21
SN54HC573A
TA = 25°C
CL = 50 pF to any Q (output)
VCC = 4.5 V
75
8
SN54HC573A
VCC = 6 V
VCC = 4.5 V
15
13
95
300
SN74HC573A
250
33
60
SN74HC573A
50
21
SN54HC573A
TA = 25°C
VCC = 2 V
43
103
SN54HC573A
TA = 25°C
VCC = 4.5 V
45
67
57
29
40
SN54HC573A
60
SN74HC573A
50
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
ns
285
33
SN74HC573A
VCC = 6 V
225
335
SN54HC573A
TA = 25°C
34
51
SN74HC573A
CL = 150 pF, from LE (input) to
any Q (output)
40
SN54HC573A
SN74HC573A
tpd
200
SN54HC573A
TA = 25°C
VCC = 6 V
10
SN74HC573A
TA = 25°C
CL = 150 pF, from D (input)
to Q (output)
ns
15
6
SN54HC573A
TA = 25°C
VCC = 2 V
12
18
SN74HC573A
TA = 25°C
60
90
SN74HC573A
tt
26
32
28
SN54HC573A
TA = 25°C
ns
38
SN74HC573A
VCC = 2 V
30
SN54HC573A
TA = 25°C
VCC = 6 V
150
225
SN74HC573A
CL = 50 pF, from OE (input)
to any Q (output)
26
32
47
SN54HC573A
TA = 25°C
ns
38
SN74HC573A
TA = 25°C
UNIT
30
SN54HC573A
TA = 25°C
VCC = 6 V
MAX
SN54HC573A
TA = 25°C
ten
TYP
Submit Documentation Feedback
7
SN54HC573A, SN74HC573A
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
www.ti.com
Switching Characteristics (continued)
over operating free-air temperature range (unless otherwise noted; see Figure 2)
PARAMETER
TEST CONDITIONS
MIN
TA = 25°C
VCC = 2 V
CL = 150 pF, from OE (input)
to any Q (output)
VCC = 4.5 V
85
200
300
SN74HC573A
250
29
60
SN74HC573A
50
26
SN54HC573A
60
SN54HC573A
265
TA = 25°C
VCC = 4.5 V
17
42
SN54HC573A
63
SN74HC573A
53
TA = 25°C
VCC = 6 V
210
315
SN74HC573A
CL = 150 pF to any Q (output)
34
43
TA = 25°C
tt
ns
51
SN74HC573A
VCC = 2 V
UNIT
40
SN54HC573A
TA = 25°C
VCC = 6 V
MAX
SN54HC573A
TA = 25°C
ten
TYP
14
ns
36
SN54HC573A
53
SN74HC573A
45
6.8 Typical Characteristics
250
CL 50pF
CL 150pF
225
TPD Max(ns)
200
175
150
125
100
75
50
25
2
2.5
3
3.5
4
Vcc
4.5
5
5.5
6
D001
Figure 1. Maximum Propagation Delay Curves
8
Submit Documentation Feedback
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
SN54HC573A, SN74HC573A
www.ti.com
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
7 Parameter Measurement Information
VCC
PARAMETER
S1
Test
Point
From Output
Under Test
ten
RL
tPZH
RL
CL
50 pF
or
150 pF
1 kΩ
tPZL
tdis
S2
tPLZ
1 kΩ
50 pF
−−
50 pF
or
150 pF
tpd or tt
LOAD CIRCUIT
50%
Open
Open
Closed
Closed
Open
Open
Open
50%
0V
50%
tsu
0V
tw
Data
50%
Input 10%
VCC
Low-Level
Pulse
50%
50%
50%
0V
tPLH
50%
10%
tPHL
90%
90%
tr
tPHL
90%
VOH
50%
10% V
OL
tf
tPLH
50%
10%
90%
90%
VCC
50%
10% 0 V
tf
VOLTAGE WAVEFORMS
SETUP AND HOLD AND INPUT RISE AND FALL TIMES
VCC
50%
th
tr
0V
VOLTAGE WAVEFORMS
PULSE DURATIONS
Out-ofPhase
Output
Closed
VCC
Reference
Input
VCC
High-Level
Pulse
In-Phase
Output
S2
Closed
tPHZ
CL
(see Note A)
Input
S1
Open
50%
10%
tf
90%
VOH
VOL
tr
VOLTAGE WAVEFORMS
PROPAGATION DELAY AND OUTPUT TRANSITION TIMES
Output
Control
(Low-Level
Enabling)
VCC
50%
50%
0V
tPZL
Output
Waveform 1
(See Note B)
tPLZ
≈VCC
≈VCC
50%
10%
tPZH
tPHZ
Output
Waveform 2
(See Note B)
50%
90%
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES FOR 3-STATE OUTPUTS
CL includes probe and test-fixture capacitance.
B.
Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output
control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the
output control.
C.
Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having
the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 6 ns, tf = 6 ns.
D.
The outputs are measured one at a time with one input transition per measurement.
E.
tPLZ and tPHZ are the same as tdis.
tPZL and tPZH are the same as ten.
G.
tPLH and tPHL are the same as tpd.
VOH
≈0 V
A.
F.
VOL
Figure 2. Load Circuit and Voltage Waveforms
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
Submit Documentation Feedback
9
SN54HC573A, SN74HC573A
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
www.ti.com
8 Detailed Description
8.1 Overview
The SNx4HC573A devices are octal transparent D-type latches that feature 3-state outputs designed specifically
for driving highly capacitive or relatively low-impedance loads. A buffered output-enable (OE) input can be used
to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In
the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state
and increased drive provide the capability to drive bus lines without interface or pullup components.
To ensure the high-impedance state during power up or power down, OE must be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
OE does not affect the internal operations of the latches. Old data can be retained or new data can be entered
while the outputs are in the high-impedance state.
8.2 Functional Block Diagram
OE
LE
1
11
C1
1D
2
19
1Q
1D
To Seven Other Channels
Copyright © 2016, Texas Instruments Incorporated
Figure 3. Logic Diagram (Positive Logic)
8.3 Feature Description
The SNx4HC573A is a high current 3-state output device which can drive bus lines directly or up to 15 LSTTL
loads. It has low power consumption up to 80-µA maximum ICC. The high speed CMOS family has typical
propagation delay of 21 ns with ±6-mA output drive at 5 V. The input leakage current is a very low 1-µA
(maximum).
8.4 Device Functional Modes
Table 1 lists the functional modes of the SNx4HC573A.
Table 1. Function Table (Each Latch)
INPUTS
10
OUTPUT
OE
LE
D
Q
L
H
H
H
L
H
L
L
L
L
X
Q0
H
X
X
Hi-Z
Submit Documentation Feedback
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
SN54HC573A, SN74HC573A
www.ti.com
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
To ensure the high-impedance state during power up or power down, OE must be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. OE does
not affect the internal operations of the latches. Old data can be retained or new data can be entered while the
outputs are in the high-impedance state. The SNx4HC573A latches can be used to store 8 bits of data. Figure 4
shows a typical application. A low trigger event latches the output to preserve the event for processing later. With
latch input high, this acts as a buffer which follows the live data at the D input when output enable pin held is low.
9.2 Typical Application
Run/Trigger
LE
Enable
OE
Live Data
Q
Output
D
Copyright © 2016, Texas Instruments Incorporated
Figure 4. Typical Application Schematic
9.2.1 Design Requirements
The SNx4HC573A device uses CMOS technology and has balanced output drive (±7.8-mA). Take care to avoid
bus contention, because it can drive currents that would exceed maximum limits.
9.2.2 Detailed Design Procedure
Design requirements must adhere to the Recommended Operating Conditions and must never exceed the
Absolute Maximum Ratings.
The inputs must have a ramp time less than input transition time mentioned in the Recommended Operating
Conditions. Slow inputs can cause oscillations at the output, false triggering, and increased current consumption.
TI recommends a Schmitt trigger device like SN74HC14 which can tolerate slower signals.
The inputs and outputs must never exceed VCC to not forward bias the internal ESD diodes. The maximum
frequency supported by this device is 28 MHz.
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
Submit Documentation Feedback
11
SN54HC573A, SN74HC573A
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
www.ti.com
Typical Application (continued)
9.2.3 Application Curve
100
CL 50pF
CL 150pF
90
80
TPD typ (ns)
70
60
50
40
30
20
2
2.5
3
3.5
4
Vcc
4.5
5
5.5
6
D001
Figure 5. Typical Propagation Delay Curves
10 Power Supply Recommendations
The power supply can be any voltage between the minimum and maximum supply voltage rating located in the
Recommended Operating Conditions table. The total current through Ground or VCC must not exceed ±70 mA as
per Absolute Maximum Ratings table.
Each VCC pin must have a good bypass capacitor to prevent power disturbance. For devices with a single supply,
TI recommends 0.1-µF capacitor; if there are multiple VCC pins, then TI recommends 0.01-µF or 0.022-µF
capacitor for each power pin. It is acceptable to parallel multiple bypass capacitors to reject different frequencies
of noise. A 0.1-µF and 1-µF capacitor are commonly used in parallel. The bypass capacitor must be installed as
close to the power pin as possible for best results.
11 Layout
11.1 Layout Guidelines
When using multiple-bit logic devices, inputs must never float.
In many cases, functions or parts of functions of digital logic devices are unused, for example, when only two
inputs of a triple-input and the gate are used, or only 3 of the 4 buffer gates are used. Such input pins must not
be left unconnected because the undefined voltages at the outside connections result in undefined operational
states. Figure 6 specifies the rules that must be observed under all circumstances. All unused inputs of digital
logic devices must be connected to a high or low bias to prevent them from floating. The logic level that must be
applied to any particular unused input depends on the function of the device. Generally, they are tied to GND or
VCC, whichever makes more sense or is more convenient. It is acceptable to float outputs, unless the part is a
transceiver. If the transceiver has an output enable pin, it disables the output section of the part when asserted.
This does not disable the input section of the I/Os, so they cannot float when disabled.
11.2 Layout Example
Vcc
Unused Input
Input
Output
Output
Unused Input
Input
Figure 6. Layout Diagram
12
Submit Documentation Feedback
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
SN54HC573A, SN74HC573A
www.ti.com
SCLS147F – DECEMBER 1982 – REVISED OCTOBER 2016
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation see the following:
Implications of Slow or Floating CMOS Inputs (SCBA004)
12.2 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 2. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
SN54HC573A
Click here
Click here
Click here
Click here
Click here
SN74HC573A
Click here
Click here
Click here
Click here
Click here
12.3 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.4 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.5 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.6 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.7 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 1982–2016, Texas Instruments Incorporated
Product Folder Links: SN54HC573A SN74HC573A
Submit Documentation Feedback
13
PACKAGE OPTION ADDENDUM
www.ti.com
24-Aug-2018
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
5962-8512801VRA
ACTIVE
CDIP
J
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
5962-8512801VR
A
SNV54HC573AJ
85128012A
ACTIVE
LCCC
FK
20
1
TBD
POST-PLATE
N / A for Pkg Type
-55 to 125
85128012A
SNJ54HC
573AFK
8512801RA
ACTIVE
CDIP
J
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
8512801RA
SNJ54HC573AJ
8512801SA
ACTIVE
CFP
W
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
8512801SA
SNJ54HC573AW
JM38510/65406BRA
ACTIVE
CDIP
J
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
JM38510/
65406BRA
M38510/65406BRA
ACTIVE
CDIP
J
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
JM38510/
65406BRA
SN54HC573AJ
ACTIVE
CDIP
J
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
SN54HC573AJ
SN74HC573ADBR
ACTIVE
SSOP
DB
20
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
HC573A
SN74HC573ADW
ACTIVE
SOIC
DW
20
25
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
HC573A
SN74HC573ADWR
ACTIVE
SOIC
DW
20
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
HC573A
SN74HC573ADWRG4
ACTIVE
SOIC
DW
20
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
HC573A
SN74HC573AN
ACTIVE
PDIP
N
20
20
Pb-Free
(RoHS)
CU NIPDAU
N / A for Pkg Type
-40 to 85
SN74HC573AN
SN74HC573ANE4
ACTIVE
PDIP
N
20
20
Pb-Free
(RoHS)
CU NIPDAU
N / A for Pkg Type
-40 to 85
SN74HC573AN
SN74HC573APWR
ACTIVE
TSSOP
PW
20
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
HC573A
SN74HC573APWRG4
ACTIVE
TSSOP
PW
20
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
HC573A
SN74HC573APWT
ACTIVE
TSSOP
PW
20
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
HC573A
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
Orderable Device
24-Aug-2018
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
SNJ54HC573AFK
ACTIVE
LCCC
FK
20
1
TBD
POST-PLATE
N / A for Pkg Type
-55 to 125
85128012A
SNJ54HC
573AFK
SNJ54HC573AJ
ACTIVE
CDIP
J
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
8512801RA
SNJ54HC573AJ
SNJ54HC573AW
ACTIVE
CFP
W
20
1
TBD
A42
N / A for Pkg Type
-55 to 125
8512801SA
SNJ54HC573AW
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
