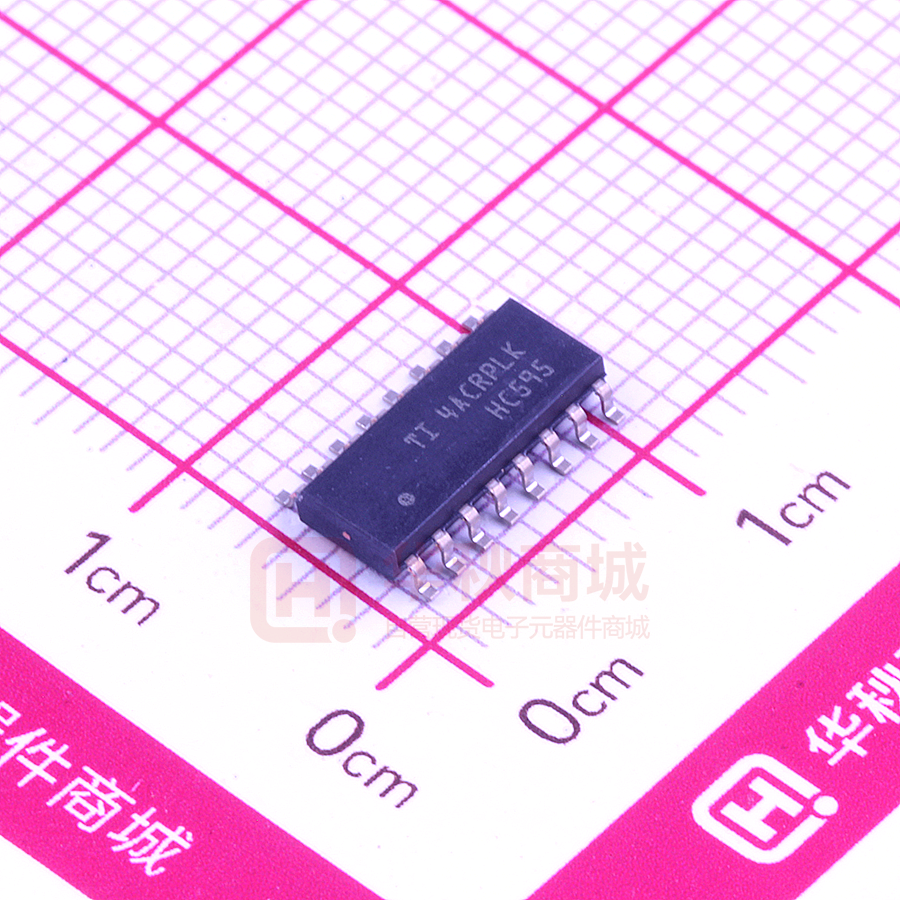

SN74HC595DR

Sample & Buy Product Folder Support & Community Tools & Software Technical Documents SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 SNx4HC595 8-Bit Shift Registers With 3-State Output Registers 1 Features 3 Description • • • The SNx4HC595 devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3state outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the outputs are in the high-impedance state. 1 • • • • • • 8-Bit Serial-In, Parallel-Out Shift Wide Operating Voltage Range of 2 V to 6 V High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads Low Power Consumption: 80-μA (Maximum) ICC tpd = 13 ns (Typical) ±6-mA Output Drive at 5 V Low Input Current: 1 μA (Maximum) Shift Register Has Direct Clear On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters. Device Information(1) PART NUMBER SN54HC595 SN74HC595 2 Applications • • • • Network Switches Power Infrastructure LED Displays Servers PACKAGE BODY SIZE (NOM) LCCC (20) 8.89 mm x 8.89 mm CDIP (16) 21.34 mm x 6.92 mm PDIP (16) 19.31 mm × 6.35 mm SOIC (16) 9.90 mm x 3.90 mm SOIC (16) 10.30 mm x 7.50 mm SSOP (16) 6.20 mm x 5.30 mm TSSOP (16) 5.00 mm x 4.40 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Logic Diagram (Positive Logic) OE RCLK SRCLR SRCLK SER 13 12 10 11 14 1D C1 R 3R C3 3S 15 2S 2R C2 R 3R C3 3S 1 2S 2R C2 R 3R C3 3S 2 2S 2R C2 R 3R C3 3S 3 2S 2R C2 R 3R C3 3S 4 2S 2R C2 R 3R C3 3S 5 2S 2R C2 R 3R C3 3S 6 2S 2R C2 R 3R C3 3S 7 QA QB QC 9 QD QE QF QG QH QH′ Pin numbers shown are for the D, DB, DW, J, N, NS, PW, and W packages. 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com Table of Contents 1 2 3 4 5 6 7 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Device Comparison Table..................................... Pin Configuration and Functions ......................... Specifications......................................................... 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 7.9 8 9 1 1 1 2 3 4 5 Absolute Maximum Ratings ...................................... 5 ESD Ratings.............................................................. 5 Recommended Operating Conditions....................... 5 Thermal Information .................................................. 6 Electrical Characteristics........................................... 6 Timing Requirements ................................................ 7 Switching Characteristics .......................................... 9 Operating Characteristics.......................................... 9 Typical Characteristics ............................................ 10 Parameter Measurement Information ................ 11 Detailed Description ............................................ 12 9.1 Overview ................................................................. 12 9.2 Functional Block Diagram ....................................... 12 9.3 Feature Description................................................. 13 9.4 Device Functional Modes........................................ 13 10 Application and Implementation........................ 14 10.1 Application Information.......................................... 14 10.2 Typical Application ................................................ 14 11 Power Supply Recommendations ..................... 16 12 Layout................................................................... 16 12.1 Layout Guidelines ................................................. 16 12.2 Layout Example .................................................... 16 13 Device and Documentation Support ................. 17 13.1 13.2 13.3 13.4 13.5 13.6 Documentation Support ........................................ Related Links ........................................................ Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 17 17 17 17 17 17 14 Mechanical, Packaging, and Orderable Information ........................................................... 17 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision H (November 2009) to Revision I Page • Added Applications section, Device Information table, Pin Configuration and Functions section, ESD Ratings table, Thermal Information table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ................................................................................................. 1 • Deleted Ordering Information table. ...................................................................................................................................... 1 • Added Military Disclaimer to Features list. ............................................................................................................................. 1 2 Submit Documentation Feedback Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 5 Device Comparison Table PART NUMBER PACKAGE BODY SIZE (NOM) SN54HC595FK LCCC (20) 8.89 mm x 8.89 mm SN54HC595J CDIP (16) 21.34 mm x 6.92 mm SN74HC595N PDIP (16) 19.31 mm × 6.35 mm SN74HC595D SOIC (16) 9.90 mm x 3.90 mm SN74HC595DW SOIC (16) 10.30 mm x 7.50 mm SN74HC595DB SSOP (16) 6.20 mm x 5.30 mm SN74HC595PW TSSOP (16) 5.00 mm x 4.40 mm Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 3 SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com 6 Pin Configuration and Functions D, N, NS, J, DB, or PW Package 16-Pin SOIC, PDIP, SO, CDIP, SSOP, or TSSOP Top View FK Package 20-Pin LCCC Top View Pin Functions PIN SOIC, PDIP, SO, CDIP, SSOP, or TSSOP LCCC GND 8 10 — OE 13 17 I Output Enable QA 15 19 O QA Output QB 1 2 O QB Output QC 2 3 O QC Output QD 3 4 O QD Output QE 4 5 O QE Output QF 5 7 O QF Output QG 6 8 O QG Output QH 7 9 O QH Output QH' 9 12 O QH' Output RCLK 12 14 I RCLK Input SER 14 18 I SER Input SRCLK 11 14 I SRCLK Input SRCLR 10 13 I SRCLR Input NAME I/O DESCRIPTION Ground Pin 1 NC — VCC — 16 11 — No Connection — Power Pin 16 4 20 Submit Documentation Feedback Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 7 Specifications 7.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) VCC MIN MAX UNIT –0.5 7 V VI < 0 or VI > VCC ±20 mA VO < 0 or VO > VCC ±20 mA VO = 0 to VCC ±35 mA Supply voltage (2) IIK Input clamp current IOK Output clamp current IO Continuous output current (2) Continuous current through VCC or GND ±70 mA TJ Junction temperature 150 °C Tstg Storage temperature 150 °C (1) (2) –65 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 7.2 ESD Ratings VALUE Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins V(ESD) (1) (2) Electrostatic discharge (1) UNIT 2000 Charged-device model (CDM), per JEDEC specification JESD22-C101, all pins (2) V 1000 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 7.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) (1) SN54HC595 VCC Supply voltage VCC = 2 V VIH High-level input voltage VCC = 4.5 V VCC = 6 V SN74HC595 MIN NOM MAX 2 5 6 MIN NOM MAX 2 5 6 1.5 1.5 3.15 3.15 4.2 VCC = 2 V VCC = 4.5 V UNIT V V 4.2 0.5 0.5 1.35 1.35 VIL Low-level input voltage VI Input voltage 0 VCC 0 VCC V VO Output voltage 0 VCC 0 VCC V VCC = 6 V 1.8 VCC = 2 V Δt/Δv TA (1) (2) Input transition rise or fall time (2) Operating free-air temperature 1.8 1000 1000 VCC = 4.5 V 500 500 VCC = 6 V 400 400 –55 125 V –40 85 ns °C All unused inputs of the device must be held at VCC or GND to ensure proper device operation. See the TI application report, Implications of Slow or Floating CMOS Inputs, SCBA004. If this device is used in the threshold region (from VILmax = 0.5 V to VIH min = 1.5 V), there is a potential to go into the wrong state from induced grounding, causing double clocking. Operating with the inputs at tt = 1000 ns and VCC = 2 V does not damage the device; however, functionally, the CLK inputs are not ensured while in the shift, count, or toggle operating modes. Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 5 SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com 7.4 Thermal Information SN74AHCT595 THERMAL METRIC RθJA (1) (1) D (SOIC) DB (SSOP) DW (SOIC) N (PDIP) NS (SO) PW (TSSOP) 16 PINS 16 PINS 16 PINS 16 PINS 16 PINS 16 PINS 73 82 57 67 64 108 Junction-to-ambient thermal resistance UNIT °C/W For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. 7.5 Electrical Characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS IOH = –20 μA VOH VI = VIH or VIL QH′, IOH = –4 mA QA – QH, IOH = –6 mA QH′, IOH = −5.2 mA QA – QH, IOH = –7.8 mA IOL = 20 μA VOL VI = VIH or VIL QH′, IOL = 4 mA QA – QH, IOL = 6 mA QH′, IOL = 5.2 mA QA – QH, IOL = 7.8 mA VCC TA = 25°C MIN TYP SN54HC595 MAX MIN SN74HC595 MAX MIN 2V 1.9 1.998 1.9 1.9 4.5 V 4.4 4.499 4.4 4.4 6V 5.9 5.999 5.9 5.9 3.98 4.3 3.7 3.84 3.98 4.3 3.7 3.84 5.48 5.8 5.2 5.34 5.48 5.8 5.2 4.5 V 6V MAX V 5.34 2V 0.002 0.1 0.1 0.1 4.5 V 0.001 0.1 0.1 0.1 6V 0.001 0.1 0.1 0.1 0.17 0.26 0.4 0.33 0.17 0.26 0.4 0.33 0.15 0.26 0.4 0.33 0.15 0.26 0.4 0.33 4.5 V 6V UNIT V II VI = VCC or 0 6V ±0.1 ±100 ±1000 ±1000 nA IOZ VO = VCC or 0, QA – QH 6V ±0.01 ±0.5 ±10 ±5 µA ICC VI = VCC or 0, IO = 0 6V 8 160 80 µA 10 10 10 pF 2 V to 6V Ci 6 Submit Documentation Feedback 3 Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 7.6 Timing Requirements over operating free-air temperature range (unless otherwise noted) VCC fclock Clock frequency SRCLK or RCLK high or low tw Pulse duration SRCLR low SER before SRCLK↑ SRCLK↑ before RCLK↑ tsu (1) Set-up time SRCLR low before RCLK↑ SRCLR high (inactive) before SRCLK↑ th (1) Hold time, SER after SRCLK↑ TA = 25°C MIN SN54HC595 MAX MIN MAX SN74HC595 MIN MAX 2V 6 4.2 5 4.5 V 31 21 25 6V 36 25 29 2V 80 120 100 4.5 V 16 24 20 6V 14 20 17 2V 80 120 100 4.5 V 16 24 20 6V 14 20 17 2V 100 150 125 4.5 V 20 30 25 6V 17 25 21 2V 75 113 94 4.5 V 15 23 19 6V 13 19 16 2V 50 75 65 4.5 V 10 15 13 6V 9 13 11 2V 50 75 60 4.5 V 10 15 12 6V 9 13 11 2V 0 0 0 4.5 V 0 0 0 6V 0 0 0 UNIT MHz ns ns ns This set-up time allows the storage register to receive stable data from the shift register. The clocks can be tied together, in which case the shift register is one clock pulse ahead of the storage register. Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 7 SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com SRCLK SER RCLK SRCLR OE QA QB QC QD QE QF QG QH QH’ NOTE: implies that the output is in 3-State mode. Figure 1. Timing Diagram 8 Submit Documentation Feedback Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 7.7 Switching Characteristics Over recommended operating free-air temperature range. PARAMETER FROM (INPUT) TO (OUTPUT) tPHL SRCLR ten OE tdis OE 2V 6 26 4.2 5 4.5 V 31 38 21 25 6V 36 42 25 29 QH′ 50 pF QA – QH 50 pF QH′ 50 pF QA – QH 50 pF QA – QH 50 pF QA – QH 50 pF tt QH′ tpd RCLK ten OE tt SN74HC595 50 pF tpd RCLK SN54HC595 VCC fmax SRCLK TA = 25°C LOAD CAPACITANCE 50 pF QA – QH 150 pf QA – QH 150 pf QA – QH 150 pf MIN TYP MAX MIN MAX MIN MAX UNIT MHz 2V 50 160 240 200 4.5 V 17 32 48 40 6V 14 27 41 34 2V 50 150 225 187 4.5 V 17 30 45 37 6V 14 26 38 32 2V 51 175 261 219 4.5 V 18 35 52 44 6V 15 30 44 37 2V 40 150 255 187 4.5 V 15 30 45 37 6V 13 26 38 32 2V 42 200 300 250 4.5 V 23 40 60 50 6V 20 34 51 43 2V 28 60 90 75 4.5 V 8 12 18 15 6V 6 10 15 13 2V 28 75 110 95 4.5 V 8 15 22 19 6V 6 13 19 16 2V 60 200 300 250 4.5 V 22 40 60 50 6V 19 34 51 43 2V 70 200 298 250 4.5 V 23 40 60 50 6V 19 34 51 43 2V 45 210 315 265 4.5 V 17 42 63 53 6V 13 36 53 45 ns ns ns ns ns ns ns ns 7.8 Operating Characteristics TA = 25°C PARAMETER Cpd Power dissipation capacitance TEST CONDITIONS TYP UNIT No load 400 pF Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 9 SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com 7.9 Typical Characteristics 40 OUTPUTS = µ+,¶ OE = µ/2:¶ 35 30 25 20 ICC(nA) 15 10 5 0 -5 0 1 2 3 VCC(V) 4 5 6 Figure 2. SN74HC595 ICC vs. VCC 10 Submit Documentation Feedback Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 8 Parameter Measurement Information VCC S1 Test Point From Output Under Test PARAMETER RL CL (see Note A) tPZH ten 1 kΩ tPZL tPHZ tdis S2 RL tPLZ 1 kΩ Reference Input VCC Data Input VCC 50% 10% 50% VCC 0V In-Phase Output 50% 10% tPHL 90% 90% tr tPHL Out-ofPhase Output 90% Open Closed Closed Open Open Open VCC th 90% 90% VCC 50% 10% 0 V tf 50% 10% tf Output Control (Low-Level Enabling) VCC 50% 50% 0V tPZL VOH 50% 10% V OL tf Output Waveform 1 (See Note B) VOH Output Waveform 2 (See Note B) tPLZ 90% tr VOL VOLTAGE WAVEFORMS PROPAGATION DELAY AND OUTPUT TRANSITION TIMES ≈VCC ≈VCC 50% 10% tPZH tPLH 50% 10% Open VOLTAGE WAVEFORMS SETUP AND HOLD AND INPUT RISE AND FALL TIMES 50% tPLH Closed tr VOLTAGE WAVEFORMS PULSE DURATIONS 50% Closed 0V 0V Input Open tsu 0V 50% 50 pF or 150 pF 50% 50% tw Low-Level Pulse S2 50 pF or 150 pF LOAD CIRCUIT 50% S1 50 pF tpd or tt High-Level Pulse CL VOL tPHZ 50% 90% VOH ≈0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES FOR 3-STATE OUTPUTS NOTES: A. CL includes probe and test-fixture capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control. C. Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 6 ns, tf = 6 ns. D. For clock inputs, fmax is measured when the input duty cycle is 50%. E. The outputs are measured one at a time, with one input transition per measurement. F. t PLZ and tPHZ are the same as tdis. G. tPZL and tPZH are the same as ten. H. tPLH and tPHL are the same as tpd. Figure 3. Load Circuit and Voltage Waveforms Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 11 SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com 9 Detailed Description 9.1 Overview The SNx4HC595 is part of the HC family of logic devices intended for CMOS applications. The SNx4HC595 is an 8-bit shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered. If both clocks are connected together, the shift register always is one clock pulse ahead of the storage register. 9.2 Functional Block Diagram OE RCLK SRCLR SRCLK SER 13 12 10 11 14 1D C1 R 3R C3 3S 15 2S 2R C2 R 3R C3 3S 1 2S 2R C2 R 3R C3 3S 2 2S 2R C2 R 3R C3 3S 3 2S 2R C2 R 3R C3 3S 4 2S 2R C2 R 3R C3 3S 5 2S 2R C2 R 3R C3 3S 6 2S 2R C2 R 3R C3 3S 7 QA QB QC 9 QD QE QF QG QH QH′ Pin numbers shown are for the D, DB, DW, J, N, NS, PW, and W packages. Figure 4. Logic Diagram (Positive Logic) 12 Submit Documentation Feedback Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 9.3 Feature Description The SNx4HC595 devices are 8-bit Serial-In, Parallel-Out Shift Registers. They have a wide operating current of 2 V to 6 V, and the high-current 3-state outputs can drive up to 15 LSTTL Loads. The devices have a low power consumption of 80-μA (Maximum) ICC. Additionally, the devices have a low input current of 1 μA (Maximum) and a ±6-mA Output Drive at 5 V. 9.4 Device Functional Modes Table 1 lists the functional modes of the SNx4HC595 devices. Table 1. Function Table INPUTS FUNCTION SER SRCLK SRCLR RCLK OE X X X X H Outputs QA – QH are disabled. X X X X L Outputs QA – QH are enabled. X X L X X Shift register is cleared. L ↑ H X X First stage of the shift register goes low. Other stages store the data of previous stage, respectively. H ↑ H X X First stage of the shift register goes high. Other stages store the data of previous stage, respectively. X X X ↑ X Shift-register data is stored in the storage register. Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 13 SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com 10 Application and Implementation 10.1 Application Information The SNx4HC595 is a low-drive CMOS device that can be used for a multitude of bus interface type applications where output ringing is a concern. The low drive and slow edge rates will minimize overshoot and undershoot on the outputs. 10.2 Typical Application SRCLR SRCLK 5 RCLK Controller OE SER 10 15 11 1 12 2 13 3 14 4 5 6 7 +5V 9 VCC 16 8 QA 560 QB 560 QC QD QE QF QG QH 560 560 560 560 560 560 Q+¶ GND 0.1 F Figure 5. Typical Application Schematic 10.2.1 Design Requirements This device uses CMOS technology and has balanced output drive. Take care to avoid bus contention because it can drive currents that would exceed maximum limits. The high drive will also create fast edges into light loads so routing and load conditions should be considered to prevent ringing. 10.2.2 Detailed Design Procedure • Recommended input conditions – Specified high and low levels. See (VIH and VIL) in the Recommended Operating Conditions table. – Specified high and low levels. See (VIH and VIL) in the Recommended Operating Conditions table. – Inputs are overvoltage tolerant allowing them to go as high as 5.5 V at any valid VCC • Recommend output conditions – Load currents should not exceed 35 mA per output and 70 mA total for the part – Outputs should not be pulled above VCC 14 Submit Documentation Feedback Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 Typical Application (continued) 10.2.3 Application Curves 60 50 40 30 tpd(ns) 20 10 0 0 2 4 VCC(V) 6 8 Figure 6. SN75HC595 tpd vs. VCC Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 15 SN54HC595, SN74HC595 SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 www.ti.com 11 Power Supply Recommendations The power supply can be any voltage between the minimum and maximum supply voltage rating located in the Recommended Operating Conditions table. Each VCC pin should have a good bypass capacitor to prevent power disturbance. For devices with a single supply, 0.1 μf is recommended; if there are multiple VCC pins, then 0.01 μf or 0.022 μf is recommended for each power pin. It is acceptable to parallel multiple bypass caps to reject different frequencies of noise. A 0.1 μf and a 1 μf are commonly used in parallel. The bypass capacitor should be installed as close to the power pin as possible for best results. 12 Layout 12.1 Layout Guidelines When using multiple-bit logic devices, inputs should never float. In many cases, functions or parts of functions of digital logic devices are unused, for example, when only two inputs of a triple-input AND gate are used or only 3 of the 4 buffer gates are used. Such input pins should not be left unconnected because the undefined voltages at the outside connections result in undefined operational states. Figure 7 specifies the rules that must be observed under all circumstances. All unused inputs of digital logic devices must be connected to a high or low bias to prevent them from floating. The logic level that should be applied to any particular unused input depends on the function of the device. Generally they will be tied to GND or VCC, whichever makes more sense or is more convenient. It is generally acceptable to float outputs, unless the part is a transceiver. If the transceiver has an output enable pin, it will disable the output section of the part when asserted. This will not disable the input section of the I/Os, so they cannot float when disabled. 12.2 Layout Example Vcc Unused Input Input Output Output Unused Input Input Figure 7. Layout Diagram 16 Submit Documentation Feedback Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 SN54HC595, SN74HC595 www.ti.com SCLS041I – DECEMBER 1982 – REVISED SEPTEMBER 2015 13 Device and Documentation Support 13.1 Documentation Support 13.1.1 Related Documentation For related documentation, see the following: Implications of Slow or Floating CMOS Inputs, SCBA004 13.2 Related Links The table below lists quick access links. Categories include technical documents, support and community resources, tools and software, and quick access to sample or buy. Table 2. Related Links PARTS PRODUCT FOLDER SAMPLE & BUY TECHNICAL DOCUMENTS TOOLS & SOFTWARE SUPPORT & COMMUNITY SN54HC595 Click here Click here Click here Click here Click here SN74HC595 Click here Click here Click here Click here Click here 13.3 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 13.4 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 13.5 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 13.6 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 14 Mechanical, Packaging, and Orderable Information The following pages include mechanical packaging and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser based versions of this data sheet, refer to the left hand navigation. Copyright © 1982–2015, Texas Instruments Incorporated Product Folder Links: SN54HC595 SN74HC595 Submit Documentation Feedback 17 PACKAGE OPTION ADDENDUM www.ti.com 24-Aug-2018 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) 5962-86816012A ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type -55 to 125 596286816012A SNJ54HC 595FK 5962-8681601EA ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 5962-8681601EA SNJ54HC595J 5962-8681601VEA ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 5962-8681601VE A SNV54HC595J 5962-8681601VFA ACTIVE CFP W 16 1 TBD A42 N / A for Pkg Type -55 to 125 5962-8681601VF A SNV54HC595W SN54HC595J ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 SN54HC595J SN74HC595D ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DBR ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DBRE4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DBRG4 ACTIVE SSOP DB 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DE4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DG4 ACTIVE SOIC D 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DR ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DRE4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DRG3 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU SN Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DRG4 ACTIVE SOIC D 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com Orderable Device 24-Aug-2018 Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) SN74HC595DT ACTIVE SOIC D 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DW ACTIVE SOIC DW 16 40 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DWR ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DWRE4 ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595DWRG4 ACTIVE SOIC DW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595N ACTIVE PDIP N 16 25 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN N / A for Pkg Type -40 to 85 SN74HC595N SN74HC595NE4 ACTIVE PDIP N 16 25 Green (RoHS & no Sb/Br) CU NIPDAU N / A for Pkg Type -40 to 85 SN74HC595N SN74HC595NSR ACTIVE SO NS 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595PW ACTIVE TSSOP PW 16 90 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595PWR ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595PWRE4 ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SN74HC595PWRG4 ACTIVE TSSOP PW 16 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC595 SNJ54HC595FK ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type -55 to 125 596286816012A SNJ54HC 595FK SNJ54HC595J ACTIVE CDIP J 16 1 TBD A42 N / A for Pkg Type -55 to 125 5962-8681601EA SNJ54HC595J (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. Addendum-Page 2 Samples PACKAGE OPTION ADDENDUM www.ti.com 24-Aug-2018 (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
