SN74LV1T32
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
SN74LV1T32 Single Power Supply 2-Input Positive OR Gate
CMOS Logic Level Shifter
1 Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Single-supply voltage translator at 5.0-V, 3.3-V,
2.5-V, and 1.8-V VCC
Operating range of 1.8 V to 5.5 V
Up translation:
– 1.2 V(1) to 1.8 V at 1.8-V VCC
– 1.5 V(1) to 2.5 V at 2.5-V VCC
– 1.8 V(1) to 3.3 V at 3.3-V VCC
– 3.3 V to 5.0 V at 5.0-V VCC
Down translation:
– 3.3 V to 1.8 V at 1.8-V VCC
– 3.3 V to 2.5 V at 2.5-V VCC
– 5.0 V to 3.3 V at 3.3-V VCC
Logic output is referenced to VCC
Output drive:
– 8 mA output drive at 5 V
– 7 mA output drive at 3.3 V
– 3 mA output drive at 1.8 V
Characterized up to 50 MHz at 3.3-V VCC
5V Tolerance on input pins
–40°C to 125°C operating temperature range
Pb-free packages available: SC-70 (DCK)
– 2 × 2.1 × 0.65 mm (height 1.1 mm)
VIH = 2.0V
VIL = 0.8V
5.0V
3.3V
System
Latch-up performance exceeds 250 mA
per JESD 17
Supports standard logic pinouts
CMOS output B compatible with AUP1G and
LVC1G families 1
2 Applications
•
•
•
•
Telecom
Portable applications
Servers
PC and notebooks
3 Description
The SN74LV1T32 is a single 2-input OR gate
with reduced input thresholds to support voltage
translation applications.
Device Information(1)
PART NUMBER
SN74LV1T32
(1)
VIH = 0.99V
VIL = 0.55V
5.0V, 3.3V
2.5V, 1.8V
1.5V, 1.2V
System
5.0V
System
BODY SIZE (NOM)
2.90 mm × 1.60 mm
DCK (SC70, 5)
2.00 mm × 1.25 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
Vcc = 5.0V
LV1Txx Logic
PACKAGE
DBV (SOT-23, 5)
Vcc = 1.8V
1.8V
System
LV1Txx Logic
Vcc = 3.3V
5.0V, 3.3V
2.5V, 1.8V
System
LV1Txx Logic
3.3V
System
VOH min = 2.4V
VIH min = 1.36V
VIL min = 0.8V
VOL max = 0.4V
Switching Thresholds for 1.8-V to 3.3-V Translation
1
Refer to the VIH/VIL and output drive for lower VCC condition.
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Related Products............................................................. 3
6 Pin Configuration and Functions...................................4
7 Specifications.................................................................. 5
7.1 Absolute Maximum Ratings........................................ 5
7.2 ESD Ratings............................................................... 5
7.3 Recommended Operating Conditions.........................6
7.4 Thermal Information....................................................6
7.5 Electrical Characteristics.............................................6
7.6 Switching Characteristics............................................7
7.7 Operating Characteristics........................................... 8
7.8 Typical Characteristics................................................ 8
8 Parameter Measurement Information............................ 9
9 Detailed Description......................................................10
9.1 Overview................................................................... 10
9.2 Functional Block Diagram......................................... 10
9.3 Feature Description...................................................10
9.4 Device Functional Modes..........................................12
10 Power Supply Recommendations..............................13
11 Layout........................................................................... 13
11.1 Layout Guidelines................................................... 13
12 Device and Documentation Support..........................14
12.1 Receiving Notification of Documentation Updates..14
12.2 Support Resources................................................. 14
12.3 Trademarks............................................................. 14
12.4 Electrostatic Discharge Caution..............................14
12.5 Glossary..................................................................14
13 Mechanical, Packaging, and Orderable
Information.................................................................... 14
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (February 2014) to Revision B (June 2022)
Page
• Updated the numbering format for tables, figures, and cross-references throughout the document..................1
• Added ESD Ratings table, Thermal Information table, Typical Characteristics section, Pin Configuration and
Functions section, Detailed Description section, Power Supply Recommendations section, Layout section,
Receiving Notification of Documentation Updates section, and Community Resources section....................... 5
• Updated Electrical characteristics table..............................................................................................................6
• Removed Ioh test condition for Voh parameter ................................................................................................... 6
• Removed Ioh = -2.3mA for Vol parameter ...........................................................................................................6
Changes from Revision * (December 2013) to Revision A (February 2014)
Page
• Updated document formatting. .......................................................................................................................... 1
• Updated VCC values for VIH parameter in the Electrical Characteristics table....................................................6
2
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
5 Related Products
DEVICE
PACKAGE
DESCRIPTION
SN74LV1T00
DCK, DBV
2-Input Positive-NAND Gate
SN74LV1T02
DCK, DBV
2-Input Positive-NOR Gate
SN74LV1T04
DCK, DBV
Inverter Gate
SN74LV1T08
DCK, DBV
2-Input Positive-AND Gate
SN74LV1T17
DCK, DBV
Single Schmitt-Trigger Buffer Gate
SN74LV1T14
DCK, DBV
Single Schmitt-Trigger Inverter Gate
SN74LV1T32
DCK, DBV
2-Input Positive-OR Gate
SN74LV1T34
DCK, DBV
Single Buffer Gate
SN74LV1T86
DCK, DBV
Single 2-Input Exclusive-Or Gate
SN74LV1T125
DCK, DBV
Single Buffer Gate with 3-state Output
SN74LV1T126
DCK, DBV
Single Buffer Gate with 3-state Output
SN74LV4T125
RGY, PW
Quadruple Bus Buffer Gate With 3-State Outputs
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
3
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
6 Pin Configuration and Functions
A
1
B
2
GND
3
5
VCC
4
Y
Figure 6-1. DCK or DBV Package, 5-Pin SC70 or SOT-23 (Top View)
Table 6-1. Pin Functions
PIN
NAME
TYPE(1)
DESCRIPTION
A
1
I
Input A
B
2
I
Input B
GND
3
G
Ground
Y
4
O
Output Y
VCC
5
P
Positive supply
(1)
4
NO.
I = Input, O = Output, I/O = Input or Output, G = Ground, P = Power.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
VCC
VI
MIN
MAX
Supply voltage range
–0.5
7.0
V
range(2)
–0.5
7.0
V
–0.5
4.6
V
–0.5
VCC + 0.5
Input voltage
Voltage range applied to any output in the high-impedance or power-off state(2)
VO
Voltage range applied to any output in the high or low
state(2)
UNIT
V
IIK
Input clamp current
VI < 0
–20
mA
IOK
Output clamp current
VO < 0 or VO > VCC
±20
mA
IO
Continuous output current
±25
mA
Continuous current through VCC or GND
±50
mA
TJ
Junction temperature
150
°C
Tstg
Storage temperature
150
°C
(1)
(2)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
7.2 ESD Ratings
VALUE
Human-body model (HBM), per ANSI/ESDA/JEDEC
V(ESD)
Electrostatic discharge
JS-001(1)
Machine Model (MM), per JEDEC specification
Charged-device model (CDM), per ANSI/ESDA/JEDEC
(1)
(2)
±2000
±200
JS-002(2)
UNIT
V
±1000
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
5
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
VCC
Supply voltage
VI
Input voltage
VO
Output voltage
IOH
High-level output current
IOL
Low-level output current
Δt/Δv
Input transition rise or fall rate
TA
Operating free-air temperature
MIN
MAX
1.6
5.5
V
0
5.5
V
0
VCC
V
VCC = 1.8 V
–3
VCC = 2.5 V
–5
VCC = 3.3 V
–7
VCC = 5.0 V
–8
VCC = 1.8 V
3
VCC = 2.5 V
5
VCC = 3.3 V
7
VCC = 5.0 V
8
VCC = 1.8 V
20
VCC = 3.3 V or 2.5 V
20
VCC = 5.0 V
(1)
UNIT
mA
mA
ns/V
20
–40
125
°C
All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
7.4 Thermal Information
THERMAL METRIC(1)
RθJA
(1)
Junction-to-ambient thermal resistance
DBV
DCK
5 PINS
5 PINS
206
252
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
7.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
VIH
VIL
6
TEST CONDITIONS
High-level
input voltage
Low-level
input voltage
VCC
TA = 25°C
MIN
TYP
TA = –40°C to +125°C
MAX
MIN
VCC = 1.65 V to 1.8 V
0.94
1.0
VCC = 2.0 V
0.99
1.03
VCC = 2.25 V to 2.5 V
1.135
1.18
VCC = 2.75 V
1.21
1.23
VCC = 3 V to 3.3 V
1.35
1.37
VCC = 3.6 V
1.47
1.48
VCC = 4.5 V to 5.0 V
2.02
2.03
VCC = 5.5 V
2.1
TYP
MAX
V
2.11
VCC = 1.65 V to 2.0 V
0.58
0.55
VCC = 2.25 V to 2.75 V
0.75
0.71
VCC = 3 V to 3.6 V
0.8
0.65
VCC = 4.5 V to 5.5 V
0.8
0.8
Submit Document Feedback
UNIT
V
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
IOH = –20 µA
VOH
1.21
1.8 V
1.5
1.45
IOH = –3 mA
2.3 V
2
1.93
IOH = –3 mA
2.5 V
2.25
2.15
IOH = –3.0 mA
3.0 V
IOH = –5.5 mA
ΔICC
2.78
2.7
2.6
2.49
2.9
2.8
3.3 V
4.5 V
4.2
4.1
4.1
3.95
MAX
5.0 V
1.65 V to 5.5 V
0.1
0.1
IOL = 2 mA
1.65 V
0.2
0.25
IOL = 3 mA
2.3 V
0.15
0.2
0.1
0.15
4.5
0.2
0.252
3.0 V
IOL = 5.5 mA
Static supply VI = 0 V or VCC,
IO = 0; open on loading
current
One input at 0.3 V or 3.4 V,
Other inputs at 0 or VCC,
IO = 0
Additional
static supply
One input at 0.3 V or 1.1 V
current
Other inputs at 0 or VCC,
IO = 0
V
0.15
0.2
0.3
0.35
0.1
±1
5.0 V
1
10
3.3 V
1
10
2.5 V
1
10
1.8 V
1
10
5.5 V
1.35
1.5
mA
1.8 V
10
10
μA
10
pF
4.5 V
A input; VI = 0 V or VCC
UNIT
V
IOL = 20 µA
IOL = 3 mA
4.6
TYP
IOH = –8 mA
IOL = 8 mA
ICC
MIN
VCC – 0.1
IOL = 4 mA
Input
leakage
current
MAX
1.28
IOH = –8 mA
II
TYP
VCC – 0.1
IOH = –4 mA
Low-level
output
voltage
TA = –40°C to +125°C
1.65 V
IOH = –5.5 mA
VOL
MIN
1.65 V to 5.5 V
IOH = –2.0 mA
High-level
output
voltage
TA = 25°C
VCC
0 V, 1.8 V, 2.5 V,
3.3 V, 5.5 V
Ci
Input
VI = VCC or GND
capacitance
3.3 V
2
Co
Output
VO = VCC or GND
capacitance
3.3 V
2.5
10
2
2.5
μA
μA
pF
7.6 Switching Characteristics
over recommended operating free-air temperature range (unless otherwise noted) (see Parameter Measurement Information)
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
FREQUENCY
(TYP)
VCC
5.0 V
DC to 50 MHz
3.3 V
tpd
Any In
Y
DC to 25 MHz
2.5 V
DC to 15 MHz
1.8 V
CL
TA = 25°C
MIN
TA = –65°C to 125°C
TYP
MAX
15 pF
4
30 pF
MIN
TYP
MAX
5
4
5
5.5
7.0
5.5
7.0
15 pF
4.8
5
5
5.5
30 pF
5
5.5
5.5
6.5
15 pF
6
6.5
7
7.5
30 pF
6.5
7.5
7.5
8.5
15 pF
10.5
11
11
12
30 pF
12
13
12
14
UNIT
ns
ns
ns
ns
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
7
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
7.7 Operating Characteristics
TA = 25°C
PARAMETER
Cpd
TEST CONDITIONS
Power dissipation capacitance
f = 1 MHz and 10 MHz
VCC
TYP
1.8 V ± 0.15 V
14
2.5 V ± 0.2 V
14
3.3 V ± 0.3 V
14
5.5 V ± 0.5 V
14
UNIT
pF
7.8 Typical Characteristics
Figure 7-1. Excellent Signal Integrity
(1.8 V to 3.3 V at 3.3-V VCC)
Figure 7-2. Excellent Signal Integrity
(3.3 V to 3.3 V at 3.3-V VCC)
Figure 7-3. Excellent Signal Integrity
(3.3 V to 1.8 V at 1.8-V VCC)
8
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
8 Parameter Measurement Information
From Output
Under Test
CL
(see Note A)
VCC = 2.5 V
± 0.2 V
VCC = 3.3 V
± 0.3 V
5, 10, 15, 30 pF
VI/2
VCC/2
5, 10, 15, 30 pF
VI/2
VCC/2
1 MΩ
CL
VMI
VMO
LOAD CIRCUIT
VI
VMI
Input
VMI
0V
tPHL
tPLH
VOH
VMO
Output
VMo
VOL
tPHL
tPLH
VOH
Output
VMo
VMo
VOL
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
INVERTING AND NONINVERTING OUTPUTS
NOTES: A.
B.
C.
D.
CL includes probe and jig capacitance.
All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, slew rate ≥ 1 V/ns.
The outputs are measured one at a time, with one transition per measurement.
tPLH and tPHL are the same as tpd.
Figure 8-1. Load Circuit and Voltage Waveforms
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
9
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
9 Detailed Description
9.1 Overview
The SN74LV1T32 device is a low-voltage CMOS gate logic that operates at a wider voltage range for industrial,
portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able
to support 1.8-V, 2.5-V, 3.3-V, and 5-V CMOS levels. The input is designed with a lower threshold circuit to
match 1.8 V input logic at VCC = 3.3 V and can be used in 1.8 V to 3.3 V level-up translation. In addition, the
5 V tolerant input pins enable down translation (that is, 3.3 V to 2.5 V output at VCC = 2.5 V). The wide VCC
range of 1.8 V to 5.5 V allows generation of desired output levels to connect to controllers or processors. The
SN74LV1T32 device is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and
undershoot caused by high-drive outputs.
9.2 Functional Block Diagram
A
B
1
4
2
Y
Figure 9-1. Logic Diagram
9.3 Feature Description
9.3.1 Clamp Diode Structure
The outputs to this device have both positive and negative clamping diodes, and the inputs to this device have
negative clamping diodes only as depicted in Figure 9-2.
CAUTION
Voltages beyond the values specified in the Absolute Maximum Ratings table can cause damage
to the device. The input and output voltage ratings may be exceeded if the input and output clampcurrent ratings are observed.
Device
VCC
+IOK
Input
Output
Logic
-IIK
-IOK
GND
Figure 9-2. Electrical Placement of Clamping Diodes for Each Input and Output
9.3.2 Balanced CMOS Push-Pull Outputs
This device includes balanced CMOS push-pull outputs. The term balanced indicates that the device can sink
and source similar currents. The drive capability of this device may create fast edges into light loads so routing
and load conditions should be considered to prevent ringing. Additionally, the outputs of this device are capable
of driving larger currents than the device can sustain without being damaged. It is important for the output power
of the device to be limited to avoid damage due to overcurrent. The electrical and thermal limits defined in the
Absolute Maximum Ratings must be followed at all times.
Unused push-pull CMOS outputs should be left disconnected.
10
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
9.3.3 LVxT Enhanced Input Voltage
The SN74LV1T32 belongs to TI's LVxT family of Logic devices with integrated voltage level translation. This
family of devices was designed with reduced input voltage thresholds to support up-translation, and inputs
tolerant of signals with up to 5.5 V levels to support down-translation. The output voltage will always be
referenced to the supply voltage (VCC), as described in the Electrical Characteristics table. To ensure proper
functionality, input signals must remain at or below the specified VIH(MIN) level for a HIGH input state, and at or
below the specified VIL(MAX) for a LOW input state. Figure 9-3 shows the typical VIH and VIL levels for the LVxT
family of devices, as well as the voltage levels for standard CMOS devices for comparison.
The inputs are high impedance and are typically modeled as a resistor in parallel with the input capacitance
given in the Electrical Characteristics. The worst case resistance is calculated with the maximum input voltage,
given in the Absolute Maximum Ratings, and the maximum input leakage current, given in the Electrical
Characteristics, using Ohm's law (R = V ÷ I).
The inputs require that input signals transition between valid logic states quickly, as defined by the input
transition time or rate in the Recommended Operating Conditions table. Failing to meet this specification
will result in excessive power consumption and could cause oscillations. More details can be found in the
Implications of Slow or Floating CMOS Inputs application report.
Do not leave inputs floating at any time during operation. Unused inputs must be terminated at VCC or GND. If
a system will not be actively driving an input at all times, a pull-up or pull-down resistor can be added to provide
a valid input voltage during these times. The resistor value will depend on multiple factors; however, a 10-kΩ
resistor is recommended and will typically meet all requirements.
3.6
3.4
3.3-V CMOS
3.2
VIH
3
VIL
HIGH Input
2.8
LOW Input
2.6
2.5-V CMOS
2.4
2.4 V (VOH)
VIN - Input Voltage (V)
2.2
2
2 V (VOH)
1.8-V CMOS
1.8
1.6
1.45 V (VOH)
1.4
1.2
1.2-V CMOS
1.1 V (VOH)
1
0.8
0.6
0.45 V (VOL)
0.4
0.4 V (VOL)
0.4 V (VOL)
0.3 V (VOL)
0.2
0
1.6
1.8
2
2.2
2.4
2.6
2.8
3
3.2
3.4
3.6
3.8
4
4.2
4.4
4.6
4.8
5
5.2
5.5
VCC - Supply Voltage (V)
Figure 9-3. LVxT Input Voltage Levels
9.3.3.1 Down Translation
Signals can be translated down using the SN74LV1T32. The voltage applied at the VCC will determine the
output voltage and the input thresholds as described in the Recommended Operating Conditions and Electrical
Characteristics tables.
When connected to a high-impedance input, the output voltage will be approximately VCC in the HIGH state, and
0 V in the LOW state. Ensure that the input signals in the HIGH state are between VIH(MIN) and 5.5 V, and input
signals in the LOW state are lower than VIL(MAX) as shown in Figure 9-3.
For example, standard CMOS inputs for devices operating at 5.0 V, 3.3 V or 2.5 V can be down-translated to
match 1.8 V CMOS signals when operating from 1.8-V VCC. See Figure 9-4.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
11
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
Down Translation Combinations:
• 1.8-V VCC – Inputs from 2.5 V, 3.3 V, and 5.0 V
• 2.5-V VCC – Inputs from 3.3 V and 5.0 V
• 3.3-V VCC – Inputs from 5.0 V
9.3.3.2 Up Translation
Input signals can be up translated using the SN74LV1T32. The voltage applied at VCC will determine the
output voltage and the input thresholds as described in the Recommended Operating Conditions and Electrical
Characteristics tables. When connected to a high-impedance input, the output voltage will be approximately VCC
in the HIGH state, and 0 V in the LOW state.
The inputs have reduced thresholds that allow for input high-state levels which are much lower than standard
values. For example, standard CMOS inputs for a device operating at a 5-V supply will have a VIH(MIN) of 3.5 V.
For the SN74LV1T32, VIH(MIN) with a 5-V supply is only 2 V, which would allow for up-translation from a typical
2.5-V to 5-V signals.
Ensure that the input signals in the HIGH state are above VIH(MIN) and input signals in the LOW state are lower
than VIL(MAX) as shown in Figure 9-4.
Up Translation Combinations:
• 1.8-V VCC – Inputs from 1.2 V
• 2.5-V VCC – Inputs from 1.8 V
• 3.3-V VCC – Inputs from 1.8 V and 2.5 V
• 5.0-V VCC – Inputs from 2.5 V and 3.3 V
VIH = 2.0 V
VIL = 0.8 V
5.0 V
3.3 V
System
VIH = 0.99 V
VIL = 0.5 V
Vcc = 5.0 V
5.0 V, 3.3 V
2.5 V, 1.8 V
1.5 V, 1.2 V
System
5.0 V
System
LV1Txx Logic
Vcc = 1.8 V
LV1Txx Logic
1.8 V
System
Figure 9-4. LVxT Up and Down Translation Example
9.4 Device Functional Modes
Function Table
INPUT(1)
(LOWER LEVEL INPUT)
A
OUTPUT(2)
(VCC CMOS)
B
Y
H
X
H
X
H
H
L
L
L
SUPPLY VCC = 3.3 V
A
B
VIH(min) = 1.35 V
VIL(max) = 0.08 V
(1)
(2)
12
Y
VOH(min) = 2.9 V
VOL(max) = 0.2 V
H = High Voltage Level, L = Low Voltage Level, X = Do not
Care, Z = High Impedance
H = Driving High, L = Driving Low, Z = High Impedance State
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
10 Power Supply Recommendations
The power supply can be any voltage between the minimum and maximum supply voltage rating located in the
Recommended Operating Conditions. Each VCC terminal should have a good bypass capacitor to prevent power
disturbance. A 0.1-μF capacitor is recommended for this device. It is acceptable to parallel multiple bypass caps
to reject different frequencies of noise. The 0.1-μF and 1-μF capacitors are commonly used in parallel. The
bypass capacitor should be installed as close to the power terminal as possible for best results, as shown in the
following layout example.
11 Layout
11.1 Layout Guidelines
When using multiple-input and multiple-channel logic devices inputs must not ever be left floating. In many
cases, functions or parts of functions of digital logic devices are unused; for example, when only two inputs of a
triple-input AND gate are used or only 3 of the 4 buffer gates are used. Such unused input pins must not be left
unconnected because the undefined voltages at the outside connections result in undefined operational states.
All unused inputs of digital logic devices must be connected to a logic high or logic low voltage, as defined by the
input voltage specifications, to prevent them from floating. The logic level that must be applied to any particular
unused input depends on the function of the device. Generally, the inputs are tied to GND or VCC, whichever
makes more sense for the logic function or is more convenient.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
13
SN74LV1T32
www.ti.com
SCLS741B – NOVEMBER 2013 – REVISED JUNE 2022
12 Device and Documentation Support
12.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on
Subscribe to updates to register and receive a weekly digest of any product information that has changed. For
change details, review the revision history included in any revised document.
12.2 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
12.3 Trademarks
TI E2E™ is a trademark of Texas Instruments.
All trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
12.5 Glossary
TI Glossary
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
14
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LV1T32
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)

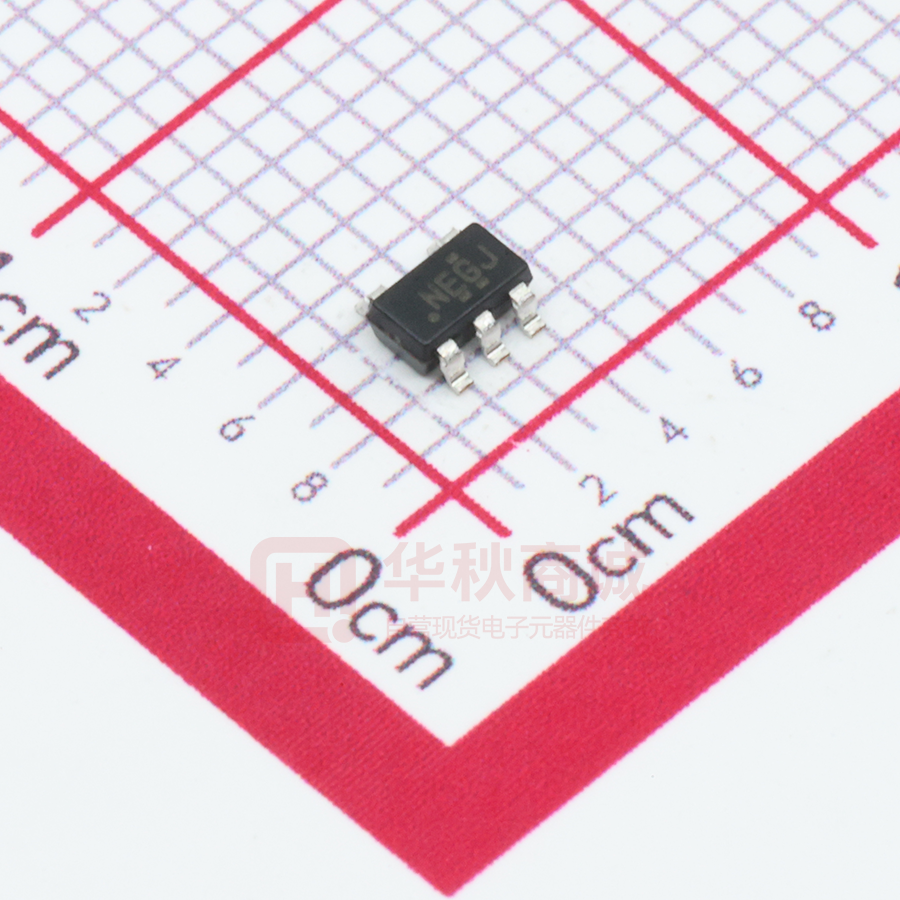

SN74LV1T32DBVR
ACTIVE
SOT-23
DBV
5
3000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 125
(NEG3, NEGJ, NEGS)
SN74LV1T32DBVRG4
ACTIVE
SOT-23
DBV
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
NEG3
SN74LV1T32DCKR
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 125
(WG3, WGJ, WGS)
SN74LV1T32DCKRG4
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
WG3
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
