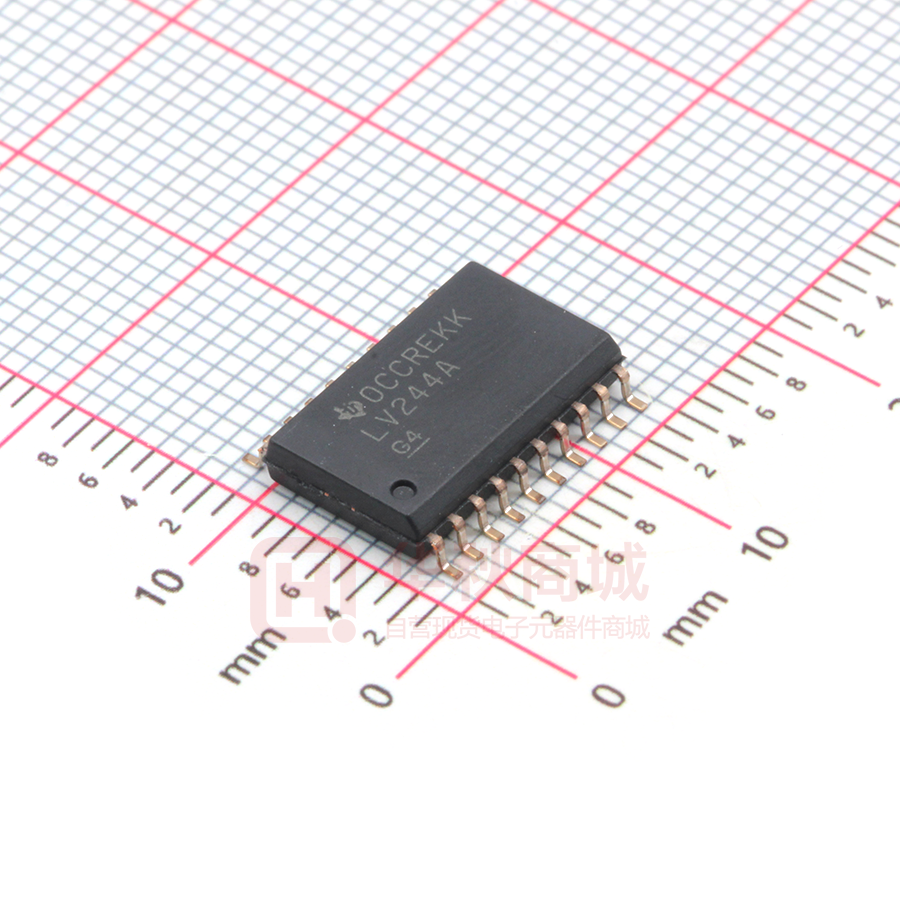

SN74LV244ADWR

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents Reference Design SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 SN74LV244A Octal Buffers and Drivers With 3-State Outputs 1 Features 2 Applications • • • • • • • 1 • • • • • 2-V to 5.5-V VCC Operation Max tpd of 6.5 ns at 5 V Typical VOLP (Output Ground Bounce) 2.3 V at VCC = 3.3 V, TA = 25°C Support Mixed-Mode Voltage Operation on All Ports Ioff Supports Partial-Power-Down Mode Operation Latch-Up Performance Exceeds 250-mA Per JESD 17 ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A) – 1000-V Charged-Device Model (C101) Servers and Network Switches LED Displays Telecom Infrastructure Motor-Drive Control Boards 3 Description The SN74LV244A octal buffers and line drivers are designed for 2-V to 5.5-V VCC operation. The SN74LV244A devices are designed specifically to improve both performance and density of the 3state memory address drivers, clock drivers, and busoriented receivers and transmitters. These devices are organized as two 4-bit line drivers with separate output-enable (OE) inputs. Device Information PART NUMBER PACKAGE (PIN) BODY SIZE SN74LV244ADGV TVSOP (20) 5.00 mm × 4.40 mm SN74LV244ADW SOIC (20) 12.80 mm × 7.50 mm SN74LV244ANS SOP (20) 12.60 mm × 5.30 mm SN74LV244APW TSSOP (20) 6.50 mm × 4.40 mm SN74LV244ARGY VQFN (20) 4.50 mm × 3.50 mm Logic Diagram (Positive Logic) 1OE 1A1 1A2 1A3 1A4 1 2OE 2 18 4 16 6 14 8 12 1Y1 2A1 1Y2 2A2 1Y3 2A3 1Y4 2A4 19 11 9 13 7 15 5 17 3 2Y1 2Y2 2Y3 2Y4 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 6.10 6.11 4 4 5 5 6 6 6 6 7 7 8 Absolute Maximum Ratings ..................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Noise Characteristics ................................................ Operating Characteristics.......................................... Switching Characteristics: VCC = 2.5 V ± 0.2 V ........ Switching Characteristics: VCC = 3.3 V ± 0.3 V ........ Switching Characteristics: VCC = 5 V ± 0.5 V ......... Typical Characteristics ............................................ Parameter Measurement Information .................. 9 Detailed Description ............................................ 10 8.1 8.2 8.3 8.4 9 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ 10 10 10 10 Application and Implementation ........................ 11 9.1 Application Information............................................ 11 9.2 Typical Application ................................................. 11 10 Power Supply Recommendations ..................... 13 11 Layout................................................................... 13 11.1 Layout Guidelines ................................................. 13 11.2 Layout Example .................................................... 13 12 Device and Documentation Support ................. 14 12.1 12.2 12.3 12.4 12.5 Documentation Support ........................................ Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 14 14 14 14 14 13 Mechanical, Packaging, and Orderable Information ........................................................... 14 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision M (June 2013) to Revision N Page • Added Device Information table, Pin Functions table, ESD Ratings table, Thermal Information table, Detailed Description section, Applications and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ...... 1 • Deleted SN54LV244A part number from the data sheet........................................................................................................ 1 • Removed the TA = –40°C to 85°C test conditions with the same values as the TA = –40°C to 125°C Recommended test conditions in the Electrical Characteristics and Switching Characteristics tables .......................................................... 6 • Removed the word 'Recommended' in the TA = –40°C to 125°C Recommended test conditions in the Electrical Characteristics and Switching Characteristics tables ............................................................................................................ 6 Changes from Revision L (August 2010) to Revision M Page • Changed document format from Quicksilver to DocZone ..................................................................................................... 1 • Changed Extended operating temperature range to 125°C ................................................................................................... 1 2 Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A SN74LV244A www.ti.com SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 5 Pin Configuration and Functions DB, DGV, DW, NS, PW Package 20-Pin SSOP, TVSOP, SOIC, SO, TSSOP Top View 3 18 4 17 5 16 6 15 7 14 8 13 9 12 10 11 VCC 2OE 1Y1 2A4 1Y2 2A3 1Y3 2A2 1Y4 2A1 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 VCC 19 1 20 19 2OE 18 1Y1 2 3 17 2A4 16 1Y2 4 5 15 2A3 14 1Y3 6 7 13 2A2 12 1Y4 8 9 10 11 2A1 20 2 1OE 1 GND 1OE 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND RGY Package 20-Pin VQFN With Exposed Thermal Pad Top View Pin Functions PIN NAME NO. I/O DESCRIPTION 1A1 2 I Input 1A2 4 I Input 1A3 6 I Input 1A4 8 I Input 1OE 1 I Output enable 1Y1 18 O Output 1Y2 16 O Output 1Y3 14 O Output 1Y4 12 O Output 2A1 11 I Input 2A2 13 I Input 2A3 15 I Input 2A4 17 I Input 2OE 19 I Output enable 2Y1 9 O Output 2Y2 7 O Output 2Y3 5 O Output 2Y4 3 O Output GND 10 — Ground VCC 20 — Power pin Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A 3 SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) VCC MIN MAX UNIT Supply voltage –0.5 7 V (2) VI Input voltage –0.5 7 V VO Voltage range applied to any output in the high-impedance or power-off state (2) –0.5 7 V VO Output voltage (2) (3) –0.5 VCC + 0.5 V IIK Input clamp current VI < 0 –20 mA IOK Output clamp current VO < 0 –50 mA IO Continuous output current VO = 0 to VCC ±35 mA ±70 mA Tj Continuous current through VCC or GND Junction temperature –65 150 °C Tstg Storage temperature –65 150 °C (1) (2) (3) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed. This value is limited to 5.5-V maximum. 6.2 ESD Ratings VALUE Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 V(ESD) (1) (2) 4 Electrostatic discharge (1) Charged-device model (CDM), per JEDEC specification JESD22C101 (2) UNIT ±2000 ±1000 V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A SN74LV244A www.ti.com SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) (1) VCC MIN MAX 2 5.5 Supply voltage VCC = 2 V VIH High-level input voltage Low-level input voltage VI Input voltage VO Output voltage VCC = 2.3 V to 2.7 V VCC × 0.7 VCC = 3 V to 3.6 V VCC × 0.7 VCC = 4.5 V to 5.5 V VCC × 0.7 V 0.5 VCC = 2.3 V to 2.7 V VCC × 0.3 VCC = 3 V to 3.6 V VCC × 0.3 VCC = 4.5 V to 5.5 V High-level output current 5.5 High or low state 0 VCC 3-state 0 5.5 Δt/Δv Input transition rise or fall rate VCC = 3 V to 3.6 V (1) µA –8 mA –16 50 VCC = 2.3 V to 2.7 V µA 2 VCC = 3 V to 3.6 V 8 VCC = 4.5 V to 5.5 V 16 VCC = 2.3 V to 2.7 V 200 VCC = 3 V to 3.6 V 100 VCC = 4.5 V to 5.5 V TA V –2 VCC = 2 V Low-level output current V –50 VCC = 2.3 V to 2.7 V VCC = 4.5 V to 5.5 V IOL V VCC × 0.3 0 VCC = 2 V IOH V 1.5 VCC = 2 V VIL UNIT mA ns/V 20 Operating free-air temperature –40 125 °C All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, SCBA004. 6.4 Thermal Information SN74LV244A THERMAL METRIC (1) DB (SSOP) DGV (TVSOP) DW (SOIC) NS (SO) PW (TSSOP) RGY (VQFN) UNIT 20 PINS 20 PINS 20 PINS 20 PINS 20 PINS 20 PINS RθJA Junction-to-ambient thermal resistance 94.7 115.9 79.4 76.9 102.6 34.9 °C/W RθJC(top) Junction-to-case (top) thermal resistance 56.7 31.1 43.8 43.4 36.7 43.1 °C/W RθJB Junction-to-board thermal resistance 49.9 57.4 47.2 44.5 53.6 12.7 °C/W ψJT Junction-to-top characterization parameter 18.7 1.0 18.8 17.0 2.4 0.9 °C/W ψJB Junction-to-board characterization parameter 49.5 56.7 46.7 44.1 53.1 12.8 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance n/a n/a n/a n/a n/a 7.8 °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A 5 SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 www.ti.com 6.5 Electrical Characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER VOH VOL TEST CONDITIONS VCC MIN TYP MAX IOH = –50 µA TA = –40°C to 125°C 2 V to 5.5 V IOH = –2 mA TA = –40°C to 125°C 2.3 V IOH = –8 mA TA = –40°C to 125°C 3V 2.48 IOH = 16 mA TA = –40°C to 125°C 4.5 V 3.8 IOL = 50 µA TA = –40°C to 125°C 2 V to 5.5 V IOL = 2 mA TA = –40°C to 125°C 2.3 V 0.4 IOL = 8 mA TA = –40°C to 125°C 3V 0.44 0.55 UNIT VCC – 0.1 2 V 0.1 V IOL = 16 mA TA = –40°C to 125°C 4.5 V II VI = 5.5 V or GND TA = –40°C to 125°C 0 to 5.5 V ±1 µA IOZ VO = VCC or GND TA = –40°C to 125°C 5.5 V ±5 µA ICC VI = VCC or GND, IO = 0 TA = –40°C to 125°C 5.5 V 20 µA Ioff VI or VO = 0 to 5.5 V TA = –40°C to 125°C 0 5 µA Ci VI = VCC or GND TA = –40°C to 125°C 3.3 V 2.3 pF 6.6 Noise Characteristics VCC = 3.3 V, CL = 50 pF, TA = 25°C (1) MIN TYP MAX UNIT VOL(P) Quiet output, maximum dynamic 0.55 V VOL(V) Quiet output, minimum dynamic –0.5 V VOH(V) Quiet output, minimum dynamic 2.9 V VIH(D) High-level dynamic input voltage VIL(D) Low-level dynamic input voltage (1) 2.31 V 0.99 V Characteristics are for surface-mount packages only. 6.7 Operating Characteristics TA = 25°C PARAMETER Cpd TEST CONDITIONS Power dissipation capacitance VCC CL = 50 pF, f = 10 MHz TYP 3.3 V 14 5V 16 UNIT pF 6.8 Switching Characteristics: VCC = 2.5 V ± 0.2 V over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3) PARAMETER FROM (INPUT) TO (OUTPUT) LOAD CAPACITANCE tpd A Y CL = 15 pF ten OE Y CL = 15 pF tdis OE Y CL = 15 pF tpd A Y CL = 50 pF ten OE Y CL = 50 pF (1) 6 TEST CONDITIONS MIN TA = 25°C TA = –40°C to 125°C 1 TA = –40°C to 125°C 9.1 14.1 9.5 (1) 15.3 18 10.8 UNIT ns ns (1) 16 1 1 14.6 (1) 17 (1) 1 TA = 25°C 12.5 15 8.9 (1) TA = 25°C TA = –40°C to 125°C (1) 7.5 TA = 25°C TA = –40°C to 125°C MAX (1) 1 TA = 25°C TA = –40°C to 125°C TYP 17.8 21 ns ns ns On products compliant to MIL-PRF-38535, this parameter is not production tested. Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A SN74LV244A www.ti.com SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 Switching Characteristics: VCC = 2.5 V ± 0.2 V (continued) over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3) PARAMETER FROM (INPUT) TO (OUTPUT) LOAD CAPACITANCE OE Y CL = 50 pF tdis tsk(o) CL = 50 pF TEST CONDITIONS MIN TA = 25°C TA = –40°C to 125°C TYP MAX 13.4 19.2 1 UNIT ns 21 TA = 25°C 2 TA = –40°C to 125°C 2 ns 6.9 Switching Characteristics: VCC = 3.3 V ± 0.3 V over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3) PARAMETER FROM (INPUT) TO (OUTPUT) LOAD CAPACITANCE tpd A Y CL = 15 pF ten OE Y CL = 15 pF tdis OE Y CL = 15 pF tpd A Y CL = 50 pF ten OE Y CL = 50 pF tdis OE Y CL = 50 pF tsk(o) (1) CL = 50 pF TEST CONDITIONS MIN TA = 25°C TA = –40°C to 125°C (1) (1) 5.4 6.3 (1) 7.6 (1) ns 11.7 (1) ns 13 6.8 1 11.9 ns 13.5 7.8 14.1 1 ns 16 TA = 25°C TA = –40°C to 125°C 10.6 (1) 1 TA = 25°C TA = –40°C to 125°C ns 12.5 TA = 25°C TA = –40°C to 125°C 8.4 UNIT 10 1 TA = 25°C TA = –40°C to 125°C MAX 1 TA = 25°C TA = –40°C to 125°C TYP 11 16 1 ns 18 TA = 25°C 1.5 TA = –40°C to 125°C 1.5 ns On products compliant to MIL-PRF-38535, this parameter is not production tested. 6.10 Switching Characteristics: VCC = 5 V ± 0.5 V over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3) PARAMETER FROM (INPUT) TO (OUTPUT) LOAD CAPACITANCE tpd A Y CL = 15 pF ten OE Y CL = 15 pF tdis OE Y CL = 15 pF tpd A Y CL = 50 pF ten OE Y CL = 50 pF tdis OE Y CL = 50 pF tsk(o) (1) TEST CONDITIONS MIN TA = 25°C TA = –40°C to 125°C 1 TA = –40°C to 125°C 1 TA = –40°C to 125°C 4.9 7.5 8.5 5.6 1 9.3 10.5 8.8 1 12.2 (1) 13.5 1 TA = 25°C 7.3 (1) 8.5 6.5 (1) TA = 25°C 5.5 UNIT 6.5 4.5 (1) TA = 25°C TA = –40°C to 125°C (1) 3.9 TA = 25°C TA = –40°C to 125°C MAX (1) 1 TA = 25°C TA = –40°C to 125°C TYP 14.2 15.5 TA = 25°C 1 TA = –40°C to 85°C 1 ns ns ns ns ns ns ns On products compliant to MIL-PRF-38535, this parameter is not production tested. Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A 7 SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 www.ti.com Input Voltage Output Voltage 6.11 Typical Characteristics Output Current Input Current Figure 1. Input Voltage vs Input Current 8 Figure 2. Output Voltage vs Output Current Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A SN74LV244A www.ti.com SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 7 Parameter Measurement Information From Output Under Test Test Point From Output Under Test RL = 1 kΩ CC Open S1 TEST GND CL (see Note A) CL (see Note A) S1 tPLH/tPHL tPLZ/tPZL tPHZ/tPZH Open Drain Open VCC GND VCC LOAD CIRCUIT FOR 3-STATE AND OPEN-DRAIN OUTPUTS LOAD CIRCUIT FOR TOTEM-POLE OUTPUTS VCC 50% VCC Timing Input 0V tw tsu VCC 50% VCC 50% VCC Input th VCC 50% VCC Data Input 50% VCC 0V 0V VOLTAGE WAVEFORMS SETUP AND HOLD TIMES VOLTAGE WAVEFORMS PULSE DURATION VCC 50% VCC Input 50% VCC tPLH In-Phase Output 50% VCC VOH 50% VCC VOL 50% VCC tPLZ ≈VCC 50% VCC tPZH VOL + 0.3 V VOL tPHZ Output Waveform 2 S1 at GND (see Note B) VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES INVERTING AND NONINVERTING OUTPUTS 50% VCC 0V Output Waveform 1 S1 at VCC (see Note B) tPLH VOH 50% VCC VOL 50% VCC tPZL tPHL tPHL Out-of-Phase Output 0V VCC Output Control 50% VCC VOH – 0.3 V VOH ≈0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES LOW- AND HIGH-LEVEL ENABLING A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr ≤ 3 ns, tf ≤ 3 ns. D. The outputs are measured one at a time, with one input transition per measurement. E. tPLZ and tPHZ are the same as tdis. F. tPZL and tPZH are the same as ten. G. tPHL and tPLH are the same as tpd. H. All parameters and waveforms are not applicable to all devices. Figure 3. Load Circuit and Voltage Waveforms Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A 9 SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 www.ti.com 8 Detailed Description 8.1 Overview The SN74LV244 devices are octal buffers grouped in fours, with each group having its own enable pin. The LV family supports high current drive of about 16 mA, thus making it suitable for driving digital signals over longer board lengths. This device is generally used to buffer or incorporate delays between the signals between two microcontroller or peripheral devices. 8.2 Functional Block Diagram 1OE 1A1 1A2 1A3 1A4 1 19 2OE 2 18 4 16 6 14 8 12 1Y1 2A1 1Y2 2A2 1Y3 2A3 1Y4 2A4 11 9 13 7 15 5 17 3 2Y1 2Y2 2Y3 2Y4 8.3 Feature Description The SN74LV244A, a part of LV family, can work over a wide voltage range from 2 V to 5.5 V. The device features a very low propagation delay of about 6.5 ns when enabled for 5-V VCC, which allows the device to be used for high-speed applications. The device supports a partial-power-down mode for low quiescent current application, thus making it the buffer of choice in power-efficient circuits. The Ioff circuitry also disables the outputs, preventing damaging current backflow through the devices when they are powered down. 8.4 Device Functional Modes The SN74LV244A devices are organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE must be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Table 1. Function Table INPUTS 10 OUTPUTS OE A Y L L L L H H H X Z Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A SN74LV244A www.ti.com SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information The SN74LV244A device can be used as an 8-channel buffer to drive signals from one controller to another device. Buffers are typically used for signals running on long traces on printed circuit boards or going through connectors linking two printed circuit boards together. Buffers are also used to create delay between the lines to match the edges of two clock or data signals. The high-current capability of the SN74LV244A device also allows a controller to drive LEDs up to 16 mA. 9.2 Typical Application 1OE 1 1A1 2 1A2 1A3 1A4 16 Controller 1B1 18 1B2 1B3 8 1B4 12 16 2OE 19 2A1 11 2A4 2B1 9 2A2 2A3 Controller Device /('¶V 2B2 2B3 17 2B4 3 Gnd VCC 10 20 0.1uF Figure 4. Typical Application Diagram Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A 11 SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 www.ti.com Typical Application (continued) 9.2.1 Design Requirements A 0.1-µF bypass capacitor must be placed between each VCC pin and GND. For best results, each capacitor must be placed as close as possible to the SN74LV244A device. 9.2.2 Detailed Design Procedure 1. Recommended input conditions: – For specified high and low levels, see VIH and VIL in Recommended Operating Conditions – Inputs and outputs are overvoltage tolerant, which allows them to go as high as 5.5 V at any valid VCC 2. Recommended output conditions: – Load currents must not exceed limits as mentioned in Recommended Operating Conditions 3. Frequency selection criterion: – Added trace resistance or capacitance can reduce maximum frequency capability; use layout practices as directed in Layout Guidelines Voltage 9.2.3 Application Curve Time Figure 5. SN74LV244A Transient response 12 Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A SN74LV244A www.ti.com SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 10 Power Supply Recommendations The power supply can be any voltage between the minimum and maximum supply-voltage rating listed in the Absolute Maximum Ratings table. Each VCC terminal must have a good bypass capacitor to prevent power disturbance. For devices with a single supply, a 0.1-μF bypass capacitor is recommended. If multiple pins are labeled VCC, then a 0.01-μF or 0.022-μF capacitor is recommended for each VCC because the VCC pins are tied together internally. For devices with dualsupply pins operating at different voltages, for example VCC and VDD, a 0.1-µF bypass capacitor is recommended for each supply pin. To reject different frequencies of noise, use multiple bypass capacitors in parallel. Capacitors with values of 0.1 μF and 1 μF are commonly used in parallel. For best results, the bypass capacitor must be installed as close as possible to the power terminal. 11 Layout 11.1 Layout Guidelines Reflections and matching are closely related to the loop antenna theory but are different enough to be discussed separately from the theory. When a PCB trace turns a corner at a 90° angle, a reflection can occur. A reflection occurs primarily because of the change of width of the trace. At the apex of the turn, the trace width increases to 1.414 times the width. This increase upsets the transmission-line characteristics, especially the distributed capacitance and self-inductance of the trace, which results in the reflection. Not all PCB traces can be straight; therefore, some traces must turn corners. Figure 6 shows progressively better techniques of rounding corners. Only the last example (BEST) maintains constant trace width and minimizes reflections. 11.2 Layout Example BETTER BEST 2W WORST 1W min. W Figure 6. Trace Example Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A 13 SN74LV244A SCLS383N – SEPTEMBER 1997 – REVISED OCTOBER 2015 www.ti.com 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation For related documentation, see the following: Implications of Slow or Floating CMOS Inputs, SCBA004 12.2 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.3 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.4 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 12.5 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 14 Submit Documentation Feedback Copyright © 1997–2015, Texas Instruments Incorporated Product Folder Links: SN74LV244A PACKAGE OPTION ADDENDUM www.ti.com 2-Apr-2022 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) SN74LV244ADBR ACTIVE SSOP DB 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADBRE4 ACTIVE SSOP DB 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADBRG4 ACTIVE SSOP DB 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADGVR ACTIVE TVSOP DGV 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADW ACTIVE SOIC DW 20 25 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADWE4 ACTIVE SOIC DW 20 25 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADWG4 ACTIVE SOIC DW 20 25 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADWR ACTIVE SOIC DW 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ADWRG4 ACTIVE SOIC DW 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ANSR ACTIVE SO NS 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 74LV244A SN74LV244APW ACTIVE TSSOP PW 20 70 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244APWG4 ACTIVE TSSOP PW 20 70 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244APWR ACTIVE TSSOP PW 20 2000 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244APWRE4 ACTIVE TSSOP PW 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244APWRG3 ACTIVE TSSOP PW 20 2000 RoHS & Green SN Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244APWRG4 ACTIVE TSSOP PW 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244APWT ACTIVE TSSOP PW 20 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 LV244A SN74LV244ARGYR ACTIVE VQFN RGY 20 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 LV244A (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com 2-Apr-2022 NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
