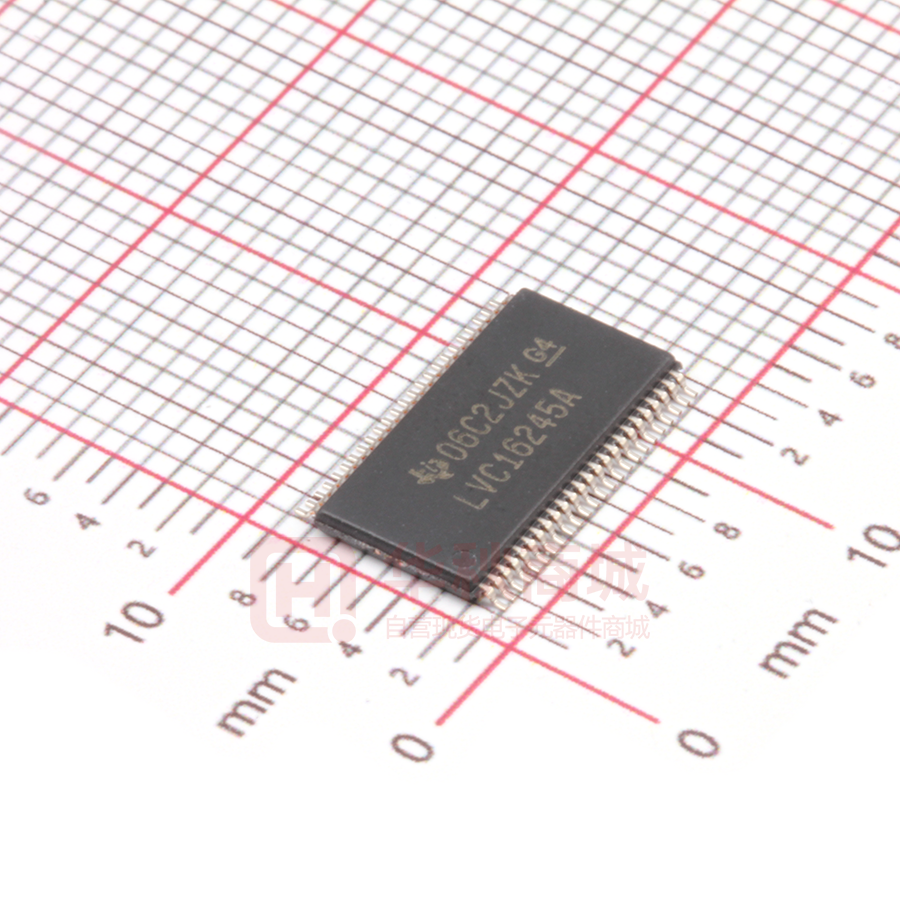

SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
SN74LVC16245A 16-Bit Bus Transceiver With 3-State Outputs
1 Features
2 Applications
•
•
•
•
•
•
1
•
•
•
•
•
•
•
•
•
Member of the Texas Instruments
Widebus™ Family
Operates From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max tpd of 4 ns at 3.3 V
Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
Supports Mixed-Mode Signal Operation on All
Ports (5-V Input/Output Voltage With
3.3-V VCC)
Ioff Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 250 mA Per
JESD 17
ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Electronic Points of Sale
Printers and Other Peripherals
Motor Drives
Wireless and Telecom Infrastructures
Wearable Health and Fitness Devices
3 Description
This 16-bit (dual-octal) noninverting bus transceiver is
designed for 1.65-V to 3.6-V VCC operation.
The SN74LVC16245A device is designed for
asynchronous communication between data buses.
This device can be used as two 8-bit transceivers or
one 16-bit transceiver.
Device Information(1)
PART NUMBER
SN74LVC16245A
PACKAGE
BODY SIZE (NOM)
TSSOP (48)
12.50 mm × 6.10 mm
TVSOP (48)
9.70 mm × 4.40 mm
SSOP (48)
15.88 mm × 7.49 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
4 Simplified Schematic
1DIR
1
2DIR
48
1A1
25
1OE
47
2A1
2
To Seven Other Channels
24
2OE
36
13
1B1
2B1
To Seven Other Channels
Pin numbers shown are for the DGG, DGV, and DL packages.
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Simplified Schematic.............................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
1
2
3
6
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
6
6
7
7
8
9
9
9
9
Absolute Maximum Ratings .....................................
Handling Ratings.......................................................
Recommended Operating Conditions ......................
Thermal Information ..................................................
Electrical Characteristics—DC Limit Changes..........
Switching Characteristics, –40°C TO 85°C...............
Switching Characteristics, –40°C TO 125°C.............
Operating Characteristics..........................................
Typical Characteristics ..............................................
Parameter Measurement Information ................ 10
9
Detailed Description ............................................ 11
9.1
9.2
9.3
9.4
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
11
11
11
11
10 Application and Implementation........................ 12
10.1 Application Information.......................................... 12
10.2 Typical Application ............................................... 12
11 Power Supply Recommendations ..................... 13
12 Layout................................................................... 14
12.1 Layout Guidelines ................................................. 14
12.2 Layout Example .................................................... 14
13 Device and Documentation Support ................. 14
13.1 Trademarks ........................................................... 14
13.2 Electrostatic Discharge Caution ............................ 14
13.3 Glossary ................................................................ 14
14 Mechanical, Packaging, and Orderable
Information ........................................................... 14
5 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision P (January 2014) to Revision Q
Page
•
Updated Ioff Feature. ............................................................................................................................................................... 1
•
Added Applications ................................................................................................................................................................. 1
•
Added Device Information table. ............................................................................................................................................ 1
•
Added Handling Ratings table. ............................................................................................................................................... 6
•
Added Thermal Information table. .......................................................................................................................................... 7
•
Added –40°C TO 125°C temperature range to Electrical Characteristics table. .................................................................... 8
•
Added Switching Characteristics table for –40°C TO 125°C temperature range. .................................................................. 9
•
Added Typical Characteristics. ............................................................................................................................................... 9
Changes from Revision O (January 2008) to Revision P
Page
•
Updated document to new TI data sheet format. ................................................................................................................... 1
•
Deleted Ordering Information table. ....................................................................................................................................... 1
•
Changed MAX operating free-air temperature from 85°C to 125°C....................................................................................... 7
2
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
SN74LVC16245A
www.ti.com
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
6 Pin Configuration and Functions
DGG, DGV, OR DL PACKAGE
(TOP VIEW)
1DIR
1B1
1B2
GND
1B3
1B4
VCC
1B5
1B6
GND
1B7
1B8
2B1
2B2
GND
2B3
2B4
VCC
2B5
2B6
GND
2B7
2B8
2DIR
1
48
2
47
3
46
4
45
5
44
6
43
7
42
8
41
9
40
10
39
11
38
12
37
13
36
14
35
15
34
16
33
17
32
18
31
19
30
20
29
21
28
22
27
23
26
24
25
1OE
1A1
1A2
GND
1A3
1A4
VCC
1A5
1A6
GND
1A7
1A8
2A1
2A2
GND
2A3
2A4
VCC
2A5
2A6
GND
2A7
2A8
2OE
Pin Functions
PIN
I/O
DESCRIPTION
1DIR
—
Direction pin 1
1B1
I/O
1B1 input or output
3
1B2
I/O
1B2 input or output
4
GND
—
Ground pin
5
1B3
I/O
1B3 input or output
6
1B4
I/O
1B4 input or output
7
VCC
—
Power pin
8
1B5
I/O
1B5 input or output
9
1B6
I/O
1B6 input or output
10
GND
—
Ground pin
11
1B7
I/O
1B7 input or output
12
1B8
I/O
1B8 input or output
13
2B1
I/O
2B1 input or output
14
2B2
I/O
2B2 input or output
15
GND
—
Ground pin
16
2B3
I/O
2B3 input or output
17
2B4
I/O
2B4 input or output
18
VCC
—
Power pin
NO.
NAME
1
2
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
3
SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
www.ti.com
Pin Functions (continued)
PIN
I/O
DESCRIPTION
2B5
I/O
2B5 input or output
2B6
I/O
2B6 input or output
21
GND
—
Ground pin
22
2B7
I/O
2B7 input or output
23
2B8
I/O
2B8 input or output
24
2DIR
—
Direction pin 2
25
2OE
I
26
2A8
I/O
2A8 input or output
27
2A7
I/O
2A7 input or output
28
GND
—
Ground pin
29
2A6
I/O
2A6 input or output
30
2A5
I/O
2A5 input or output
31
VCC
—
Power pin
32
2A4
I/O
2A4 input or output
33
2A3
I/O
2A3 input or output
34
GND
—
Ground pin
35
2A2
I/O
2A2 input or output
36
2A1
I/O
2A1 input or output
37
1A8
I/O
1A8 input or output
38
1A7
I/O
1A7 input or output
39
GND
—
Ground pin
40
1A6
I/O
1A6 input or output
41
1A5
I/O
1A5 input or output
42
VCC
—
Power pin
43
1A4
I/O
1A4 input or output
44
1A3
I/O
1A3 input or output
45
GND
—
Ground pin
46
1A2
I/O
1A2 input or output
47
1A1
I/O
1A1 input or output
48
1OE
I
NO.
NAME
19
20
4
Output Enable 2
Output Enable 1
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
SN74LVC16245A
www.ti.com
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
GQL OR ZQL PACKAGE
(TOP VIEW)
1 2 3 4 5 6
A
B
C
D
E
F
G
H
J
K
Table 1. Pin Assignments (1)
(56-Ball GQL or ZQL Package)
(1)
1
2
3
4
5
6
A
1DIR
NC
NC
NC
NC
1OE
B
1B2
1B1
GND
GND
1A1
1A2
C
1B4
1B3
VCC
VCC
1A3
1A4
D
1B6
1B5
GND
GND
1A5
1A6
E
1B8
1B7
1A7
1A8
F
2B1
2B2
2A2
2A1
G
2B3
2B4
GND
GND
2A4
2A3
H
2B5
2B6
VCC
VCC
2A6
2A5
J
2B7
2B8
GND
GND
2A8
2A7
K
2DIR
NC
NC
NC
NC
2OE
NC – No internal connection
GRD OR ZRD PACKAGE
(TOP VIEW)
1
2
3
4
5
6
A
B
C
D
E
F
G
H
J
Table 2. Pin Assignments (1)
(54-Ball GRD or ZRD Package)
(1)
1
2
3
4
5
6
A
1B1
NC
1DIR
1OE
NC
1A1
B
1B3
1B2
NC
NC
1A2
1A3
C
1B5
1B4
VCC
VCC
1A4
1A5
D
1B7
1B6
GND
GND
1A6
1A7
E
2B1
1B8
GND
GND
1A8
2A1
F
2B3
2B2
GND
GND
2A2
2A3
G
2B5
2B4
VCC
VCC
2A4
2A5
H
2B7
2B6
NC
NC
2A6
2A7
J
2B8
NC
2DIR
2OE
NC
2A8
NC – No internal connection
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
5
SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
VCC
MIN
MAX
Supply voltage range
–0.5
6.5
UNIT
V
(2)
VI
Input voltage range
–0.5
6.5
V
VO
Voltage range applied to any output in the high-impedance or power-off state (2)
–0.5
6.5
V
VO
Voltage range applied to any output in the high or low state (2) (3)
–0.5
VCC + 0.5
V
IIK
Input clamp current
VI < 0
–50
mA
IOK
Output clamp current
VO < 0
–50
mA
IO
Continuous output current
±50
mA
±100
mA
Continuous current through each VCC or GND
(1)
(2)
(3)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
The value of VCC is provided in the Recommended Operating Conditions table.
7.2 Handling Ratings
Tstg
V(ESD)
(1)
(2)
6
MIN
MAX
UNIT
–65
150
°C
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
pins (1)
0
2000
Charged device model (CDM), per JEDEC specification
JESD22-C101, all pins (2)
0
1000
Storage temperature range
Electrostatic discharge
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
SN74LVC16245A
www.ti.com
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
VCC
Supply voltage
VIH
High-level input voltage
Operating
Data retention only
MIN
MAX
1.65
3.6
0.65 × VCC
VCC = 2.3 V to 2.7 V
1.7
VCC = 2.7 V to 3.6 V
2
VCC = 1.65 V to 1.95 V
Low-level input voltage
VI
Input voltage
V
0.35 × VCC
VCC = 2.3 V to 2.7 V
0.7
VCC = 2.7 V to 3.6 V
VO
Output voltage
High-level output current
IOL
Low-level output current
Δt/Δv
Input transition rise or fall rate
TA
Operating free-air temperature
(1)
V
0.8
0
5.5
High or low state
0
VCC
3-state
0
5.5
VCC = 1.65 V
IOH
V
1.5
VCC = 1.65 V to 1.95 V
VIL
UNIT
V
V
–4
VCC = 2.3 V
–8
VCC = 2.7 V
–12
VCC = 3 V
–24
VCC = 1.65 V
4
VCC = 2.3 V
8
VCC = 2.7 V
12
VCC = 3 V
24
mA
mA
5
–40
ns/V
125
°C
All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
7.4 Thermal Information
THERMAL METRIC (1)
DGG
DGV
DL
48 PINS
48 PINS
48 PINS
RθJA
Junction-to-ambient thermal resistance
67.1
80.2
70.6
RθJC(top)
Junction-to-case (top) thermal resistance
19.9
32.7
36.8
RθJB
Junction-to-board thermal resistance
34.2
43.5
43.1
ψJT
Junction-to-top characterization parameter
1.8
4.7
13.9
ψJB
Junction-to-board characterization parameter
33.9
42.9
42.6
(1)
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
7
SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
www.ti.com
7.5 Electrical Characteristics—DC Limit Changes
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
VCC
1.65 V to
3.6 V
IOH = –100 µA
VOH
Control
inputs
II
Ioff
IOZ (2)
MAX
MIN TYP (1)
VCC – 0.2
VCC – 0.2
MAX
UNIT
1.2
1.2
IOH = –8 mA
2.3 V
1.7
1.7
2.7 V
2.2
2.2
3V
2.4
2.4
IOH = –24 mA
3V
2.2
2.2
IOL = 100 µA
1.65 V to
3.6 V
0.2
0.2
IOL = 4 mA
1.65 V
0.45
0.45
IOL = 8 mA
2.3 V
0.7
0.7
IOL = 12 mA
2.7 V
0.4
0.4
IOL = 24 mA
3V
0.55
0.55
3.6 V
±5
±5
µA
VI or VO = 5.5 V
0
±10
±20
µA
VO = 0 to 5.5 V
2.3 V to
3.6 V
±5
±5
µA
20
20
20
20
500
500
VI = 0 to 5.5 V
3.6 V ≤ VI ≤ 5.5 V (3)
IO = 0
One input at VCC – 0.6,
Other inputs at VCC or GND
ΔICC
–40°C TO 125°C
1.65 V
VI = VCC or GND
ICC
MIN TYP
(1)
IOH = –4 mA
IOH = –12 mA
VOL
–40°C TO 85°C
3.6 V
2.7 V to
3.6 V
V
V
µA
µA
Ci
Control
inputs
VI = VCC or GND
3.3 V
5
pF
Cio
A or B port
VO = VCC or GND
3.3 V
7.5
pF
(1)
(2)
(3)
8
All typical values are at VCC = 3.3 V, TA = 25°C.
For I/O ports, the parameter IOZ includes the input leakage current.
This applies in the disabled state only.
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
SN74LVC16245A
www.ti.com
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
7.6 Switching Characteristics, –40°C TO 85°C
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3)
–40°C TO 85°C
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
VCC = 2.7 V
VCC = 3.3 V
± 0.3 V
MIN
MAX
MIN
tpd
A or B
B or A
1.5
7.1
1
MAX
MIN
MAX
MIN
MAX
4.5
1
4.7
1
4.0
ns
ten
OE
A or B
1.5
8.9
tdis
OE
A or B
1.5
11.9
1
5.6
1.5
6.7
1.5
5.5
ns
1
6.8
1.5
7.1
1.5
6.6
ns
1
ns
tsk(o)
UNIT
7.7 Switching Characteristics, –40°C TO 125°C
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3)
–40°C TO 125°C
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
VCC = 2.7 V
VCC = 3.3 V
± 0.3 V
MIN
MAX
MIN
tpd
A or B
B or A
1.5
8.1
1
MAX
MIN
MAX
MIN
MAX
5.5
1
5.7
1
5.0
ns
ten
OE
A or B
1.5
9.9
tdis
OE
A or B
1.5
13.9
1
6.6
1.5
7.7
1.5
6.5
ns
1
7.8
1.5
8.1
1.5
7.6
ns
1.5
ns
tsk(o)
UNIT
7.8 Operating Characteristics
TA = 25°C
TEST
CONDITIONS
PARAMETER
Cpd
Power dissipation capacitance
per transceiver
Outputs enabled
VCC = 1.8 V
VCC = 2.5 V
VCC = 3.3 V
TYP
TYP
TYP
34
37
38
3
3
4
f = 10 MHz
Outputs disabled
UNIT
pF
7.9 Typical Characteristics
4
4
3.5
3.5
3
3
2.5
2.5
TPD - ns
TPD - ns
TPD in ns
2
2
1.5
1.5
1
1
0.5
0.5
TPD in ns
0
0
1
2
3
VCC - V
4
0
-100
-50
D001
Figure 1. TPD Across VCC at 25°C
0
50
Temperature (qC)
100
150
D002
Figure 2. TPD Across Temperature at 3.3 V
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
9
SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
www.ti.com
8 Parameter Measurement Information
VLOAD
S1
RL
From Output
Under Test
CL
(see Note A)
Open
GND
RL
TEST
S1
tPLH/tPHL
tPLZ/tPZL
tPHZ/tPZH
Open
VLOAD
GND
LOAD CIRCUIT
INPUTS
VCC
1.8 V ± 0.15 V
2.5 V ± 0.2 V
2.7 V
3.3 V ± 0.3 V
VI
tr/tf
VCC
VCC
2.7 V
2.7 V
≤2 ns
≤2 ns
≤2.5 ns
≤2.5 ns
VM
VLOAD
CL
RL
V∆
VCC/2
VCC/2
1.5 V
1.5 V
2 × VCC
2 × VCC
6V
6V
30 pF
30 pF
50 pF
50 pF
1 kΩ
500 Ω
500 Ω
500 Ω
0.15 V
0.15 V
0.3 V
0.3 V
VI
Timing Input
VM
0V
tw
tsu
VI
Input
VM
VM
th
VI
Data Input
VM
VM
0V
0V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
VI
VM
VM
Input
0V
VOH
VM
Output
VM
VOL
VM
tPLZ
VLOAD/2
VM
tPZH
VOH
Output
VM
0V
Output
Waveform 1
S1 at VLOAD
(see Note B)
tPLH
tPHL
VM
tPZL
tPHL
tPLH
VI
Output
Control
VM
VOL
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
INVERTING AND NONINVERTING OUTPUTS
Output
Waveform 2
S1 at GND
(see Note B)
VOL + V∆
VOL
tPHZ
VM
VOH − V∆
VOH
≈0 V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
LOW- AND HIGH-LEVEL ENABLING
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω.
D. The outputs are measured one at a time, with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
H. All parameters and waveforms are not applicable to all devices.
Figure 3. Load Circuit and Voltage Waveforms
10
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
SN74LVC16245A
www.ti.com
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
9 Detailed Description
9.1 Overview
The SN74LVC16245A device is designed for asynchronous communication between data buses. The controlfunction implementation minimizes external timing requirements.
This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the
A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR)
input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in
a mixed 3.3-V/5-V system environment.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,
preventing damaging current backflow through the device when it is powered down.
9.2 Functional Block Diagram
1DIR
1
2DIR
48
1A1
25
1OE
47
2A1
2
24
2OE
36
13
1B1
To Seven Other Channels
2B1
To Seven Other Channels
Pin numbers shown are for the DGG, DGV, and DL packages.
9.3 Feature Description
•
•
•
•
Wide operating voltage range from 1.65 V to 3.6 V
Allows down voltage translation
Inputs accept voltages to 5.5 V
Ioff feature allows voltages on the inputs and outputs when VCC is 0 V
9.4 Device Functional Modes
Table 3. Function Table
INPUTS
OPERATION
OE
DIR
L
L
B data to A bus
L
H
A data to B bus
H
X
Isolation
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
11
SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
www.ti.com
10 Application and Implementation
10.1 Application Information
The SN74LVC16245A device is a 16-bit bidirectional transceiver. This device can be used as two 8-bit
transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus
to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can
be used to disable the device so that the buses are effectively isolated. The device has 5.5 V tolerant inputs at
any valid VCC. This allows it to be used in multi-power systems and for down translation as well.
10.2 Typical Application
Regulated 3.6 V
OE
VCC
DIR
A1
uC or
System Logic
A8
B1
uC
System Logic
LEDs
B8
GND
Figure 4. Typical Application Schematic
12
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
SN74LVC16245A
www.ti.com
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
Typical Application (continued)
10.2.1 Design Requirements
This device uses CMOS technology and has balanced output drive. Care should be taken to avoid bus
contention because it can drive currents that would exceed maximum limits. The high drive will also create fast
edges into light loads; therefore, routing and load conditions should be considered to prevent ringing.
10.2.2 Detailed Design Procedure
1. Recommended Input Conditions
– Rise time and fall time specs: See (Δt/ΔV) in the Recommended Operating Conditions table.
– Specified high and low levels: See (VIH and VIL) in the Recommended Operating Conditions table.
– Inputs are overvoltage tolerant allowing them to go as high as 5.5 V at any valid VCC.
2. Recommend Output Conditions
– Load currents should not exceed 25 mA per output and 50 mA total for the part.
– Outputs should not be pulled above VCC.
10.2.3 Application Curves
300
250
ICC - mA
200
150
100
ICC 1.8 V
ICC 2.5 V
ICC 3.3 V
50
0
0
10
20
30
40
Frequency - MHz
50
60
D003
Figure 5. ICC vs Frequency
11 Power Supply Recommendations
The power supply can be any voltage between the MIN and MAX supply voltage rating located in the
Recommended Operating Conditions table.
Each VCC pin should have a good bypass capacitor to prevent power disturbance. For devices with a single
supply, 0.1 μF is recommended; if there are multiple VCC pins, then 0.01 μF or 0.022 μF is recommended for
each power pin. It is acceptable to parallel multiple bypass caps to reject different frequencies of noise. A 0.1 μF
and a 1 μF are commonly used in parallel. The bypass capacitor should be installed as close to the power pin as
possible for best results.
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
13
SN74LVC16245A
SCES062Q – DECEMBER 1995 – REVISED JUNE 2014
www.ti.com
12 Layout
12.1 Layout Guidelines
When using multiple-bit logic devices, inputs should never float.
In many cases, functions or parts of functions of digital logic devices are unused, for example, when only two
inputs of a triple-input AND gate are used or only 3 of the 4 buffer gates are used. Such input pins should not be
left unconnected because the undefined voltages at the outside connections result in undefined operational
states. Figure 6 specifies the rules that must be observed under all circumstances. All unused inputs of digital
logic devices must be connected to a high or low bias to prevent them from floating. The logic level that should
be applied to any particular unused input depends on the function of the device. Generally they will be tied to
GND or VCC, whichever makes more sense or is more convenient. It is generally acceptable to float outputs,
unless the part is a transceiver. If the transceiver has an output enable pin, it will disable the output section of the
part when asserted. This will not disable the input section of the IOs, so they cannot float when disabled.
12.2 Layout Example
Vcc
Input
Unused Input
Output
Unused Input
Output
Input
Figure 6. Layout Diagram
13 Device and Documentation Support
13.1 Trademarks
Widebus is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
13.2 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
13.3 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms and definitions.
14 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
14
Submit Documentation Feedback
Copyright © 1995–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC16245A
PACKAGE OPTION ADDENDUM
www.ti.com
20-Jan-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
74LVC16245ADGGRG4
ACTIVE
TSSOP
DGG
48
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LVC16245A
74LVC16245ADGVRE4
ACTIVE
TVSOP
DGV
48
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LD245A
SN74LVC16245ADGGR
ACTIVE
TSSOP
DGG
48
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LVC16245A
SN74LVC16245ADGVR
ACTIVE
TVSOP
DGV
48
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LD245A
SN74LVC16245ADL
ACTIVE
SSOP
DL
48
25
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LVC16245A
SN74LVC16245ADLR
ACTIVE
SSOP
DL
48
1000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
LVC16245A
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
