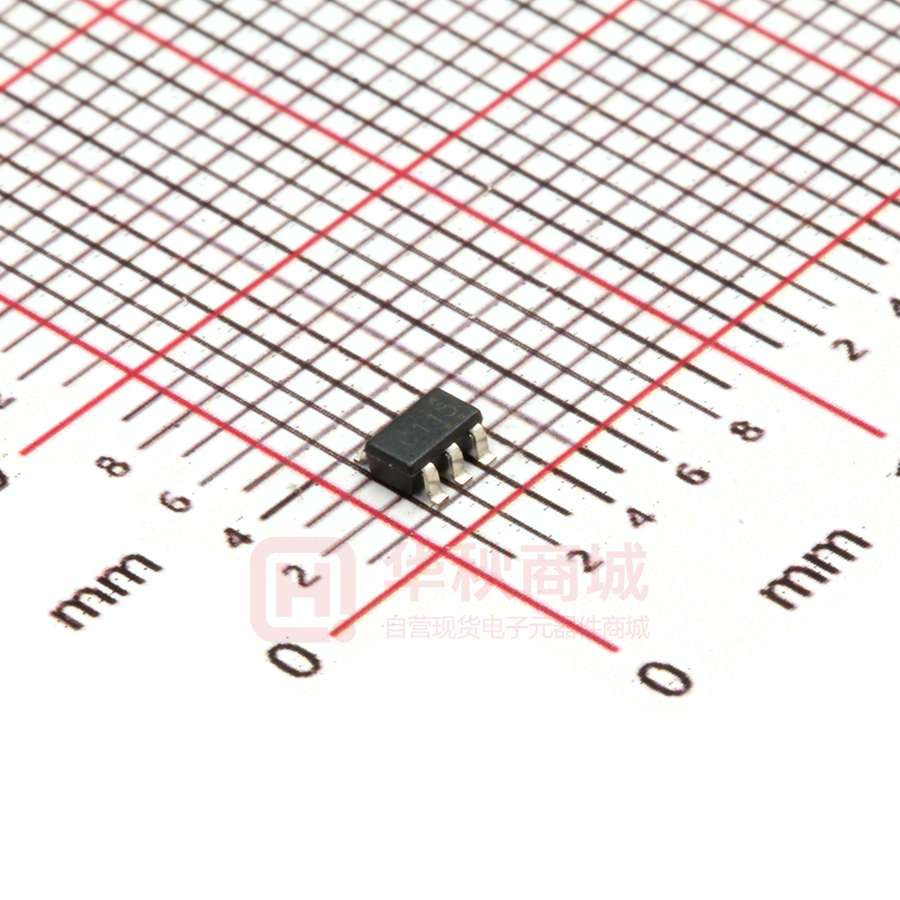

SN74LVC1G11DBVR

Product Folder Sample & Buy Technical Documents Support & Community Tools & Software Reference Design SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 SN74LVC1G11 Single 3-Input Positive-AND Gate 1 Features 3 Description • The SN74LVC1G11 performs the Boolean function Y = A • B • C or Y = A + B + C in positive logic. 1 • • • • • • • • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 1000-V Charged-Device Model (C101) Available in the Texas Instruments NanoFree™ Package Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Maximum tpd of 4.1 ns at 3.3 V Low Power Consumption, 10-μA Maximum ICC ±24-mA Output Drive at 3.3 V Ioff Supports Partial-Power-Down Mode Operation 2 Applications • • • • • • • • • • • • • • • • • • • • • • • AV Receivers DLP Front Projection System Digital Picture Frames Digital Radio Digital Still Cameras Digital Video Cameras (DVC) Embedded PCs E-Books Ethernet Switchs GPS: Personal Navigation Devices Handset: Smartphones High-Speed Data Acquisition and Generation Military: Radar and Sonar Mobile Internet Devices Notebook PC and Netbooks Network-Attached Storage (NAS) Power Line Communication Modems Server PSU STB, DVR, and Streaming Media Speakers: USB Tablets: Enterprise Video Broadcasting and Infrastructure: Scalable Platform and IP-Based Multi-Format Transcoders Wireless Headsets, Keyboards, and Mice NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) SN74LVC1G11DBV SOT-23 (6) 2.90 mm × 1.60 mm SN74LVC1G11DCK SC70 (6) 2.00 mm × 1.25 mm SN74LVC1G11DRY SON (6) 1.45 mm × 1.00 mm SN74LVC1G11DSF SON (6) 1.00 mm × 1.00 mm SN74LVC1G11YZP DSBGA (6) 1.41 mm × 0.91 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Logic Diagram (Positive Logic) A B C Y 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 www.ti.com Table of Contents 1 2 3 4 5 6 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 Absolute Maximum Ratings ..................................... 4 ESD Ratings ............................................................ 4 Recommended Operating Conditions ...................... 4 Thermal Information .................................................. 5 Electrical Characteristics........................................... 5 Switching Characteristics, CL = 15 pF, TA = –40°C to +85°C ......................................................................... 6 6.7 Switching Characteristics, CL = 30 pF or 50 pF, TA = –40°C to +85°C.......................................................... 6 6.8 Switching Characteristics, CL = 30 pF or 50 pF, TA = –40°C to +125°C........................................................ 6 6.9 Operating Characteristics.......................................... 6 6.10 Typical Characteristics ............................................ 7 7 Parameter Measurement Information .................. 8 8 Detailed Description ............................................ 10 8.1 8.2 8.3 8.4 9 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ 10 10 10 10 Application and Implementation ........................ 11 9.1 Application Information............................................ 11 9.2 Typical Application ................................................. 11 10 Power Supply Recommendations ..................... 12 11 Layout................................................................... 13 11.1 Layout Guidelines ................................................. 13 11.2 Layout Example .................................................... 13 12 Device and Documentation Support ................. 14 12.1 12.2 12.3 12.4 12.5 Documentation Support ........................................ Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ 14 14 14 14 14 13 Mechanical, Packaging, and Orderable Information ........................................................... 14 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision G (December 2015) to Revision H Page • Deleted 200-V Machine Model from Features ....................................................................................................................... 1 • Changed pinout images to improve clarity of pin names and pin numbers ........................................................................... 3 • Added DSBGA pin numbers to Pin Functions table .............................................................................................................. 3 • Added Operating free-air temperature, TA for BGA package ................................................................................................. 5 • Added Receiving Notification of Documentation Updates section ....................................................................................... 14 Changes from Revision F (December2013) to Revision G • Page Added Applications section, Device Information table, ESD Ratings table, Thermal Information table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section. ..................................................................................................................... 1 Changes from Revision E (December 2011) to Revision F Page • Updated document to new TI data sheet format. ................................................................................................................... 1 • Removed Ordering Information table. .................................................................................................................................... 1 • Updated operating temperature range ................................................................................................................................... 4 Changes from Revision D (January 2007) to Revision E • 2 Page Added DRY and DSF packages to data sheet ...................................................................................................................... 1 Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 SN74LVC1G11 www.ti.com SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 5 Pin Configuration and Functions DBV Package 6-Pin SOT-23 Top View DCK Package 6-Pin SC70 Top View A 1 6 C GND 2 5 VCC B 3 4 Y A 1 6 C GND 2 5 VCC B 3 4 Y Not to scale Not to scale YZP Package 6-Pin DSBGA Bottom View C 1 2 B Y GND B DRY Package 6-Pin SON Top View A 1 6 C GND 2 5 VCC B 3 4 Y VCC Not to scale A A C DSF Package 6-Pin SON Top View Not to scale A 1 6 C GND 2 5 VCC B 3 4 Y Not to scale See mechanical drawings for dimensions. Pin Functions PIN I/O DESCRIPTION SOT-23, SC70, SON, SON DSBGA A 1 A1 I A Input B 3 C1 I B Input C 6 A2 I C Input GND 2 B1 — Ground VCC 5 B2 — Power Supply Y 4 C2 O Y Output NAME SPACE Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 3 SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) VCC MIN MAX UNIT Supply voltage –0.5 6.5 V (2) VI Input voltage –0.5 6.5 V VO Voltage applied to any output in the high-impedance or power-off state (2) –0.5 6.5 V VO Voltage applied to any output in the high or low state (2) (3) –0.5 VCC + 0.5 V IIK Input clamp current VI < 0 –50 mA IOK Output clamp current VO < 0 –50 mA IO Continuous output current ±50 mA Continuous current through VCC or GND ±100 mA TJ Junction temperature 150 °C Tstg Storage temperature 150 °C (1) (2) (3) –65 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed. The value of VCC is provided in the Recommended Operating Conditions table. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) UNIT 2000 Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) V 1000 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions See note (1). VCC Supply voltage Operating Data retention only VCC = 1.65 V to 1.95 V VIH High-level input voltage VCC = 2.3 V to 2.7 V VCC = 3 V to 3.6 V VCC = 4.5 V to 5.5 V MIN MAX 1.65 5.5 1.5 Low-level input voltage VI Input voltage VO Output voltage 1.7 High-level output current 0.7 × VCC 0.35 × VCC VCC = 2.3 V to 2.7 V 0.7 VCC = 3 V to 3.6 V 0.8 4 0.3 × VCC 5.5 V 0 VCC V –4 VCC = 2.3 V –8 VCC = 3 V V 0 VCC = 1.65 V VCC = 4.5 V (1) V 2 VCC = 4.5 V to 5.5 V IOH V 0.65 × VCC VCC = 1.65 V to 1.95 V VIL UNIT –16 mA –24 –32 All unused inputs of the device must be held at VCC or GND to ensure proper device operation. See Implications of Slow or Floating CMOS Inputs, SCBA004. Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 SN74LVC1G11 www.ti.com SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 Recommended Operating Conditions (continued) See note(1). MIN MAX VCC = 1.65 V 4 VCC = 2.3 V IOL Low-level output current Δt/Δv 8 16 VCC = 3 V Input transition rise or fall rate Operating free-air temperature mA 24 VCC = 4.5 V 32 VCC = 1.8 V ± 0.15 V, 2.5 V ± 0.2 V 20 VCC = 3.3 V ± 0.3 V 10 VCC = 5 V ± 0.5 V TA UNIT ns/V 10 BGA package –40 85 All other packages –40 125 °C 6.4 Thermal Information SN74LVC1G11 THERMAL METRIC (1) DBV (SOT-23) DCK (SC70) DRY (SON) YZP (DSBGA) DSF (SON) 6 PINS 6 PINS 6 PINS 6 PINS 6 PINS UNIT RθJA Junction-to-ambient thermal resistance 195.9 260.1 424.6 105.8 413.7 °C/W RθJCtop Junction-to-case (top) thermal resistance 177.4 98.1 309 1.6 226.6 °C/W RθJB Junction-to-board thermal resistance 51.7 63.1 292 10.8 317 °C/W ψJT Junction-to-top characterization parameter 61.3 2.2 135.4 3.1 37.4 °C/W ψJB Junction-to-board characterization parameter 51.3 62.4 292 10.8 317 °C/W RθJCbot Junction-to-case (bottom) thermal resistance — — — — — °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. 6.5 Electrical Characteristics over operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS IOH = –100 μA VOH VCC 1.65 V to 5.5 V 1.65 V 1.2 IOH = –8 mA 2.3 V 1.9 IOH = –32 mA 4.5 V IOL = 100 μA 3.8 0.1 1.65 V 0.45 IOL = 8 mA 2.3 V 0.3 0.4 3V IOL = 32 mA All inputs 2.3 1.65 V to 5.5 V IOL = 16 mA Ioff VI or VO = 5.5 V ICC VI = 5.5 V or GND, ΔICC One input at VCC – 0.6 V, Other inputs at VCC or GND Ci VI = VCC or GND IO = 0 V 0.55 4.5 V VI = 5.5 V or GND UNIT V IOL = 4 mA IOL = 24 mA II MAX 2.4 3V IOH = –24 mA TYP VCC – 0.1 IOH = –4 mA IOH = –16 mA VOL MIN 0.55 0 to 5.5 V ±5 μA 0 ±10 μA 1.65 V to 5.5 V 10 μA 3 V to 5.5 V 500 μA 3.3 V 3.5 Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 pF 5 SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 www.ti.com 6.6 Switching Characteristics, CL = 15 pF, TA = –40°C to +85°C over recommended operating free-air temperature range, CL = 15 pF (unless otherwise noted) (see Figure 2) PARAMETER tpd FROM (INPUT) A, B, or C TO (OUTPUT) Y VCC MIN MAX VCC = 1.8 V ± 0.15 V 2.6 15.2 VCC = 2.5 V ± 0.2 V 1.6 5.6 VCC = 3.3 V ± 0.3 V 1.2 4.1 1 3.1 VCC = 5 V ± 0.5 V UNIT ns 6.7 Switching Characteristics, CL = 30 pF or 50 pF, TA = –40°C to +85°C over recommended operating free-air temperature range, CL = 30 pF or 50 pF (unless otherwise noted) (see Figure 3) PARAMETER tpd FROM (INPUT) TO (OUTPUT) A, B, or C Y VCC MIN MAX VCC = 1.8 V ± 0.15 V 2.9 17.2 VCC = 2.5 V ± 0.2 V 1.4 6.2 VCC = 3.3 V ± 0.3 V 1.3 4.9 1 3.5 VCC = 5 V ± 0.5 V UNIT ns 6.8 Switching Characteristics, CL = 30 pF or 50 pF, TA = –40°C to +125°C over recommended operating free-air temperature range, CL = 30 pF or 50 pF (unless otherwise noted) (see Figure 3) PARAMETER tpd FROM (INPUT) TO (OUTPUT) A, B, or C Y VCC MIN VCC = 1.8 V ± 0.15 V 2.9 20 VCC = 2.5 V ± 0.2 V 1.4 7.8 VCC = 3.3 V ± 0.3 V 1.3 6.2 1 4.6 VCC = 5 V ± 0.5 V MAX UNIT ns 6.9 Operating Characteristics TA = 25°C PARAMETER Cpd 6 Power dissipation capacitance TEST CONDITIONS f = 10 MHz Submit Documentation Feedback VCC TYP VCC = 1.8 V 18 VCC = 2.5 V 19 VCC = 3.3 V 20 VCC = 5 V 23 UNIT pF Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 SN74LVC1G11 www.ti.com SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 6.10 Typical Characteristics 60 40 TA = 25°C, VCC = 3 V, VIH = 3 V, VIL = 0 V, All Outputs Switching I OH – mA 20 0 –20 –40 –60 –80 –100 –1 –0.5 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 VOH – V Figure 1. Output Current Drive vs HIGH-level Output Voltage Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 7 SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 www.ti.com 7 Parameter Measurement Information VLOAD S1 RL From Output Under Test Open TEST GND CL (see Note A) S1 Open VLOAD tPLH/tPHL tPLZ/tPZL tPHZ/tPZH RL GND LOAD CIRCUIT INPUTS VCC 1.8 V ± 0.15 V 2.5 V ± 0.2 V 3.3 V ± 0.3 V 5 V ± 0.5 V VI tr/tf VCC VCC 3V VCC £2 ns £2 ns £2.5 ns £2.5 ns VM VLOAD CL RL VD VCC/2 VCC/2 1.5 V VCC/2 2 × VCC 2 × VCC 6V 2 × VCC 15 pF 15 pF 15 pF 15 pF 1 MW 1 MW 1 MW 1 MW 0.15 V 0.15 V 0.3 V 0.3 V VI Timing Input VM 0V tW tsu VI Input VM VM th VI Data Input VM VM 0V 0V VOLTAGE WAVEFORMS PULSE DURATION VOLTAGE WAVEFORMS SETUP AND HOLD TIMES VI VM Input VM 0V tPLH VOH Output VM VOL tPHL VM VM 0V Output Waveform 1 S1 at VLOAD (see Note B) tPLH tPLZ VLOAD/2 VM tPZH VOH Output VM tPZL tPHL VM VI Output Control VM VOL VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES INVERTING AND NONINVERTING OUTPUTS Output Waveform 2 S1 at GND (see Note B) VOL + VD VOL tPHZ VM VOH – VD VOH »0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES LOW- AND HIGH-LEVEL ENABLING NOTES: A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR £ 10 MHz, ZO = 50 W. D. The outputs are measured one at a time, with one transition per measurement. E. tPLZ and tPHZ are the same as tdis. F. tPZL and tPZH are the same as ten. G. tPLH and tPHL are the same as tpd. H. All parameters and waveforms are not applicable to all devices. Figure 2. Load Circuit and Voltage Waveforms 8 Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 SN74LVC1G11 www.ti.com SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 Parameter Measurement Information (continued) VLOAD S1 RL From Output Under Test Open TEST GND CL (see Note A) S1 Open VLOAD tPLH/tPHL tPLZ/tPZL tPHZ/tPZH RL GND LOAD CIRCUIT INPUTS VCC 1.8 V ± 0.15 V 2.5 V ± 0.2 V 3.3 V ± 0.3 V 5 V ± 0.5 V VI tr/tf VCC VCC 3V VCC £2 ns £2 ns £2.5 ns £2.5 ns VM VLOAD CL RL VD VCC/2 VCC/2 1.5 V VCC/2 2 × VCC 2 × VCC 6V 2 × VCC 30 pF 30 pF 50 pF 50 pF 1 kW 500 W 500 W 500 W 0.15 V 0.15 V 0.3 V 0.3 V VI Timing Input VM 0V tW tsu VI Input VM VM th VI Data Input VM VM 0V 0V VOLTAGE WAVEFORMS PULSE DURATION VOLTAGE WAVEFORMS SETUP AND HOLD TIMES VI VM Input VM 0V tPLH VOH Output VM VOL tPHL VM VM 0V tPLZ Output Waveform 1 S1 at VLOAD (see Note B) tPLH VLOAD/2 VM tPZH VOH Output VM tPZL tPHL VM VI Output Control VM VOL VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES INVERTING AND NONINVERTING OUTPUTS Output Waveform 2 S1 at GND (see Note B) VOL + VD VOL tPHZ VM VOH – VD VOH »0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES LOW- AND HIGH-LEVEL ENABLING NOTES: A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR £ 10 MHz, ZO = 50 W. D. The outputs are measured one at a time, with one transition per measurement. E. tPLZ and tPHZ are the same as tdis. F. tPZL and tPZH are the same as ten. G. tPLH and tPHL are the same as tpd. H. All parameters and waveforms are not applicable to all devices. Figure 3. Load Circuit and Voltage Waveforms Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 9 SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 www.ti.com 8 Detailed Description 8.1 Overview This 3-input AND gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G11 device features a three-input AND gate. The output state is determined by eight patterns of 3-bit input. All inputs can be connected to VCC or GND. This device is fully-specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. 8.2 Functional Block Diagram A B C Y Figure 4. Logic Diagram (Positive Logic) 8.3 Feature Description The SN74LVC1G11 device has a wide operating VCC range of 1.65 V to 5.5 V, which allows use in a broad range of systems. The 5.5-V I/Os allow down translation and also allow voltages at the inputs when VCC = 0 V. 8.4 Device Functional Modes Table 1 lists the functional modes of SN74LVC1G11. Table 1. Function Table INPUTS 10 A B C OUTPUT Y H H H H L X X L X L X L X X L L Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 SN74LVC1G11 www.ti.com SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Validate and test the design implementation to confirm system functionality. 9.1 Application Information The SN74LVC1G11 device offers logical AND configuration for many design applications. This example describes basic power sequencing using the AND gate configuration. Power sequencing is often used in applications that require a processor or other delicate device with specific voltage timing requirements in order to protect the device from malfunctioning. In the application below, the power-good signals from the supplies tell the MCU to continue an operation. 9.2 Typical Application Vcc 3.3v 0.1 F Sup ply 1 Sup ply2 MCU Sup ply 3 Figure 5. Typical Application Diagram 9.2.1 Design Requirements • • • Recommended input conditions: – For rise time and fall time specifications, see Δt/Δv in the Recommended Operating Conditions table. – For specified high and low levels, see VIH and VIL in the Recommended Operating Conditions table. – Inputs and outputs are overvoltage tolerant and can therefore go as high as 5.5 V at any valid VCC. Recommended output conditions: – Load currents must not exceed ±50 mA. Frequency selection criterion: – Figure 6 illustrates the effects of frequency on output current. – Added trace resistance and capacitance can reduce maximum frequency capability. Follow the layout practices listed in the Layout section. Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 11 SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 www.ti.com Typical Application (continued) 9.2.2 Detailed Design Procedure The SN74LVC1G11 device uses CMOS technology and has balanced output drive. Avoid bus contentions that can drive currents that can exceed maximum limits. The SN74LVC1G11 allows for performing the logical AND function with digital signals. Maintain input signals as close as possible to either 0 V or VCC for optimal operation. 9.2.3 Application Curve 5 Signal (V) 4 3 2 Vin 1 Vout 0 0 1 2 3 4 5 6 7 8 9 Time (ns) 10 C001 VCC = 5 V Figure 6. Simulated Input-to-Output Voltage Response Showing Propagation Delay 10 Power Supply Recommendations The power supply can be any voltage between the minimum and maximum supply voltage rating listed in the Recommended Operating Conditions table. To prevent power disturbance, ensure good bypass capacitance for each VCC terminal. For devices with a singlesupply, a 0.1-μF bypass capacitor is recommended. If multiple pins are labeled VCC, then a 0.01-μF or 0.022-μF capacitor is recommended for each VCC because the VCC pins are tied together internally. For devices with dual supply pins operating at different voltages, for example VCC and VDD, a 0.1-µF bypass capacitor is recommended for each supply pin. To reject different frequencies of noise, use multiple bypass capacitors in parallel. Capacitors with values of 0.1 μF and 1 μF are commonly used in parallel. Place the bypass capacitor as close to the power terminal as possible for best results. 12 Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 SN74LVC1G11 www.ti.com SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 11 Layout 11.1 Layout Guidelines When using multiple-bit logic devices, inputs must never float. In many cases, functions (or parts of functions) of digital logic devices are unused, for example, when only two inputs of a triple-input AND gate are used or when only 3 of the 4 buffer gates are used. Such input pins must not be left unconnected, because the undefined voltages at the outside connections result in undefined operational states. Figure 7 specifies the rules that must be observed under all circumstances. All unused inputs of digital logic devices must be connected to a high or low bias to prevent them from floating. The logic level that must be applied to any particular unused input depends on the function of the device. Generally they are tied to GND or VCC, whichever makes more sense or is more convenient. It is generally acceptable to float outputs, unless the part is a transceiver. If the transceiver has an output enable pin, it disables the output section of the part when asserted, which does not disable the input section of the I/Os. Therefore, the I/Os cannot float when disabled. 11.2 Layout Example Vcc Unused Input Input Output Unused Input Output Input Figure 7. Layout Diagrams Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 13 SN74LVC1G11 SCES487H – SEPTEMBER 2003 – REVISED NOVEMBER 2016 www.ti.com 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation For related documentation see the following: • Implications of Slow or Floating CMOS Inputs, SCBA004 • Selecting the Right Texas Instruments Signal Switch, SZZA030 12.2 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 12.3 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.4 Trademarks NanoFree, E2E are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. 12.5 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical packaging and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser based versions of this data sheet, refer to the left hand navigation. 14 Submit Documentation Feedback Copyright © 2003–2016, Texas Instruments Incorporated Product Folder Links: SN74LVC1G11 PACKAGE OPTION ADDENDUM www.ti.com 4-Apr-2019 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) SN74LVC1G11DBVR ACTIVE SOT-23 DBV 6 3000 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -40 to 125 (C115, C11F, C11K, C11R) SN74LVC1G11DBVRE4 ACTIVE SOT-23 DBV 6 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 125 C11F SN74LVC1G11DBVRG4 ACTIVE SOT-23 DBV 6 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 125 C11F SN74LVC1G11DCKR ACTIVE SC70 DCK 6 3000 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -40 to 125 (C35, C3F, C3J, C3 K, C3R) SN74LVC1G11DCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 125 C35 SN74LVC1G11DCKRG4 ACTIVE SC70 DCK 6 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 125 C35 SN74LVC1G11DRYR ACTIVE SON DRY 6 5000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 125 C3 SN74LVC1G11DSFR ACTIVE SON DSF 6 5000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 125 C3 SN74LVC1G11YZPR ACTIVE DSBGA YZP 6 3000 Green (RoHS & no Sb/Br) SNAGCU Level-1-260C-UNLIM -40 to 85 C3N (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
