SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
SN74LVC1T45 Single-Bit Dual-Supply Bus Transceiver With Configurable Voltage
Translation and 3-State Outputs
1 Features
3 Description
•
This single-bit noninverting bus transceiver uses two
separate configurable power-supply rails. The A port
is designed to track VCCA. VCCA accepts any supply
voltage from 1.65 V to 5.5 V. The B port is designed
to track VCCB. VCCB accepts any supply voltage from
1.65 V to 5.5 V. This allows for universal low-voltage
bidirectional translation between any of the 1.8-V,
2.5-V, 3.3-V, and 5-V voltage nodes.
1
•
•
•
•
•
•
•
•
•
ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree™
Package
Fully Configurable Dual-Rail Design Allows Each
Port to Operate Over the Full 1.65-V to 5.5-V
Power-Supply Range
VCC Isolation Feature – If Either VCC Input Is at
GND, Both Ports Are in the High-Impedance State
DIR Input Circuit Referenced to VCCA
Low Power Consumption, 4-µA Max ICC
±24-mA Output Drive at 3.3 V
Ioff Supports Partial-Power-Down Mode Operation
Max Data Rates
– 420 Mbps (3.3-V to 5-V Translation)
– 210 Mbps (Translate to 3.3 V)
– 140 Mbps (Translate to 2.5 V)
– 75 Mbps (Translate to 1.8 V)
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
Device Information(1)
PACKAGE
BODY SIZE (NOM)

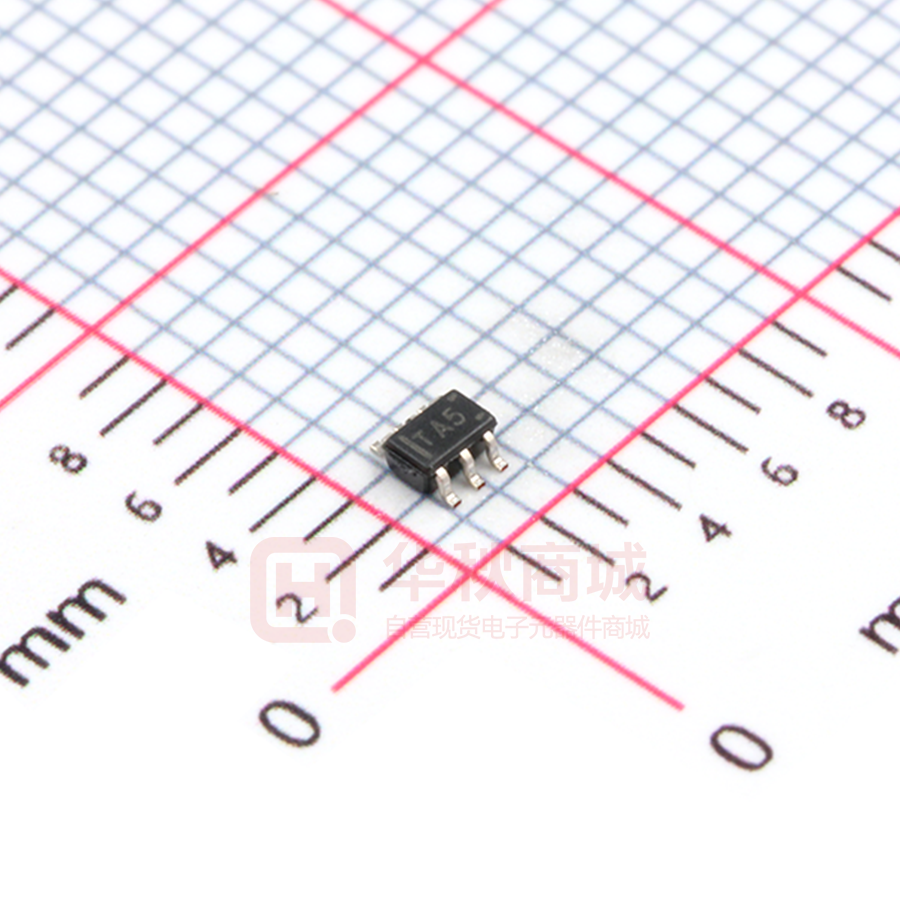

SN74LVC1T45DRLR
PART NUMBER
SOT (6)
1.60 mm × 1.20 mm
SN74LVC1T45DBVR
SOT-23 (6)
2.90 mm × 1.60 mm
SN74LVC1T45DCKR SC70 (6)
2.00 mm × 1.25 mm
SN74LVC1T45DPKR
USON (6)
1.60 mm × 1.60 mm
SN74LVC1T45YZPR
DSBGA (6)
1.39 mm × 0.90 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
2 Applications
•
•
•
•
The SN74LVC1T45 is designed for asynchronous
communication between two data buses. The logic
levels of the direction-control (DIR) input activate
either the B-port outputs or the A-port outputs. The
device transmits data from the A bus to the B bus
when the B-port outputs are activated and from the B
bus to the A bus when the A-port outputs are
activated. The input circuitry is always active on both
A and B ports and must have a logic HIGH or LOW
level applied to prevent excess ICC and ICCZ.
Personal Electronic
Industrial
Enterprise
Telecom
Functional Block Diagram
DIR
A
5
3
4
VCCA
B
VCCB
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Description (Continued) ........................................
Pin Configuration and Functions .........................
Specifications.........................................................
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.10
7.11
8
9
1
1
1
2
3
3
4
Absolute Maximum Ratings ...................................... 4
ESD Ratings.............................................................. 4
Recommended Operating Conditions....................... 4
Thermal Information .................................................. 5
Electrical Characteristics........................................... 6
Switching Characteristics (VCCA = 1.8 V ± 0.15 V) ... 7
Switching Characteristics (VCCA = 2.5 V ± 0.2 V) ..... 7
Switching Characteristics (VCCA = 3.3 V ± 0.3 V) ..... 8
Switching Characteristics (VCCA = 5 V ±0.5 V) ......... 8
Operating Characteristics........................................ 8
Typical Characteristics ............................................ 9
Parameter Measurement Information ................ 11
Detailed Description ............................................ 12
9.1
9.2
9.3
9.4
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
12
12
12
12
10 Applications and Implementation...................... 13
10.1 Application Information.......................................... 13
10.2 Typical Application ................................................ 13
11 Power Supply Recommendations ..................... 16
12 Layout................................................................... 16
12.1 Layout Guidelines ................................................. 16
12.2 Layout Example .................................................... 16
13 Device and Documentation Support ................. 17
13.1
13.2
13.3
13.4
13.5
13.6
Documentation Support ........................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
17
17
17
17
17
17
14 Mechanical, Packaging, and Orderable
Information ........................................................... 17
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision K (December 2014) to Revision L
Page
•
Added DPK (USON) package information.............................................................................................................................. 1
•
Added Junction temperature, TJ in Absolute Maximum Ratings ............................................................................................ 4
•
Added Documentation Support section, Receiving Notification of Documentation Updates section, and Community
Resources section ................................................................................................................................................................ 17
Changes from Revision J (December 2013) to Revision K
•
Page
Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional
Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1
Changes from Revision I (December 2011) to Revision J
Page
•
Updated document to new TI data sheet format - no specification changes. ........................................................................ 1
•
Removed ordering information. .............................................................................................................................................. 1
•
Added ESD warning. .............................................................................................................................................................. 1
2
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
5 Description (Continued)
The SN74LVC1T45 is designed so that the DIR input is powered by VCCA.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,
preventing damaging current backflow through the device when it is powered down.
The VCC isolation feature is designed so that if either VCC input is at GND, then both ports are in the highimpedance state.
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
6 Pin Configuration and Functions
DBV Package
6-Pin SOT-23
Top View
DCK Package
6-Pin SC70
Top View
DRL Package
6-Pin SOT
Top View
DPK Package
6-Pin USON
Top View
YZP Package
6-Pin DSBGA
Bottom View
Pin Functions
PIN
(1)
TYPE (1)
DESCRIPTION
NAME
DBV, DCK,
DRL, DPK
YZP
VCCA
1
A1
GND
2
A
3
B
4
C2
DIR
5
B2
I
GND (low level) determines B-port to A-port direction.
VCCB
6
A2
P
SYSTEM-2 supply voltage (1.65 V to 5.5 V)
P
SYSTEM-1 supply voltage (1.65 V to 5.5 V)
B1
G
Device GND
C1
I/O
Output level depends on VCC1 voltage.
I/O
Input threshold value depends on VCC2 voltage.
P = power, G = ground, I/O = input and output, I = input
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
3
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
VCCA
VCCB
(1)
MIN
MAX
UNIT
Supply voltage
–0.5
6.5
V
(2)
–0.5
6.5
V
–0.5
6.5
V
VI
Input voltage
VO
Voltage range applied to any output in the high-impedance or power-off state (2)
VO
Voltage range applied to any output in the high or low
state (2) (3)
A port
–0.5
VCCA + 0.5
B port
–0.5
VCCB + 0.5
IIK
Input clamp current
VI < 0
–50
mA
IOK
Output clamp current
VO < 0
–50
mA
IO
Continuous output current
±50
mA
Continuous current through VCC or GND
±100
mA
TJ
Junction temperature
150
°C
Tstg
Storage temperature
150
°C
(1)
(2)
(3)
–65
V
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
The value of VCC is provided in the recommended operating conditions table.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±2000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
±1000
Machine Model
±200
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
See
(1) (2) (3)
VCCI
VCCA
VCCB
VCCO
Supply voltage
1.65 o 1.95 V
VIH
High-level
input voltage
Data inputs (4)
2.3 to 2.7 V
3 to 3.6 V
4.5 to 5.5 V
1.65 o 1.95 V
VIL
Low-level
input voltage
Data inputs (4)
(4)
4
MAX
5.5
1.65
5.5
UNIT
V
VCCI × 0.65
1.7
V
2
VCCI × 0.7
VCCI × 0.35
2.3 to 2.7 V
0.7
3 to 3.6 V
0.8
4.5 to 5.5 V
(1)
(2)
(3)
MIN
1.65
V
VCCI × 0.3
VCCI is the VCC associated with the input port.
VCCO is the VCC associated with the output port.
All unused data inputs of the device must be held at VCCI or GND to ensure proper device operation. See the TI application report,
Implications of Slow or Floating CMOS Inputs, SCBA004.
For VCCI values not specified in the data sheet, VIH min = VCCI × 0.7 V, VIL max = VCCI × 0.3 V.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
Recommended Operating Conditions (continued)
See (1)(2)(3)
VCCI
VCCO
MIN
1.65 to 1.95 V
High-level
input voltage
VIH
DIR
(referenced to VCCA) (5)
UNIT
VCCA × 0.65
2.3 to 2.7 V
1.7
3 to 3.6 V
V
2
4.5 to 5.5 V
VCCA × 0.7
1.65 to 1.95 V
DIR
(referenced to VCCA) (5)
MAX
VCCA × 0.35
2.3 to 2.7 V
0.7
3 to 3.6 V
0.8
VIL
Low-level
input voltage
VI
Input voltage
0
5.5
V
VO
Output voltage
0
VCCO
V
4.5 to 5.5 V
VCCA × 0.3
1.65 to 1.95 V
IOH
High-level output current
–4
2.3 to 2.7 V
–8
3 to 3.6 V
–24
4.5 to 5.5 V
–32
1.65 to 1.95 V
IOL
Low-level output current
Δt/Δv
Input transition
rise or fall rate
Data inputs
Control inputs
TA
(5)
V
mA
4
2.3 to 2.7 V
8
3 to 3.6 V
24
4.5 to 5.5 V
32
1.65 to 1.95 V
20
2.3 to 2.7 V
20
3 to 3.6 V
10
4.5 to 5.5 V
5
1.65 to 5.5 V
5
Operating free-air temperature
–40
mA
ns/V
85
°C
For VCCI values not specified in the data sheet, VIH min = VCCA × 0.7 V, VIL max = VCCA × 0.3 V.
7.4 Thermal Information
SN74LVC1T45
THERMAL METRIC
(1)
DBV
(SOT-23)
DCK
(SC70)
DPK
(USON)
DRL
(SOT)
YZP
(DSBGA)
UNIT
6 PINS
RθJA
Junction-to-ambient thermal resistance
200.1
286.8
278.3
223.7
131.0
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
144.5
93.9
133.4
88.7
1.3
°C/W
RθJB
Junction-to-board thermal resistance
45.7
95.5
174.1
58.4
22.6
°C/W
ψJT
Junction-to-top characterization parameter
36.2
1.9
23.4
5.9
5.2
°C/W
ψJB
Junction-to-board characterization parameter
25.3
94.7
173.5
58.1
22.6
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
5
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
7.5 Electrical Characteristics
over recommended operating free-air temperature range, TA = –40 to +85°C (unless otherwise noted) (1) (2)
PARAMETER
TEST CONDITIONS
IOH = –100 μA
VCCA
VCCB
1.65 to 4.5 V
1.65 to 4.5 V
1.65 V
1.65 V
1.2
2.3 V
2.3 V
1.9
3V
3V
2.4
3.8
IOH = –4 mA
VOH
IOH = –8 mA
VI = VIH
IOH = –24 mA
DIR
4.5 V
0.1
1.65 V
1.65 V
0.45
2.3 V
2.3 V
0.3
IOL = 24 mA
VI = VIL
3V
3V
0.55
IOL = 32 mA
4.5 V
4.5 V
0.55
VI = VCCA or GND
A or B
VO = VCCO or GND
port
1.65 to 5.5 V
1.65 to 5.5 V
0V
0 to 5.5 V
VI = VCCI or GND, IO = 0
A port
A port at VCCA – 0.6 V,
DIR at VCCA, B port = open
DIR
DIR at VCCA – 0.6 V,
B port = open,
A port at VCCA or GND
ΔICCB
B port
B port at VCCB – 0.6 V,
DIR at GND,
A port = open
Ci
DIR
VI = VCCA or GND
Cio
A or B
VO = VCCA/B or GND
port
ΔICCA
(1)
(2)
6
±1
±2
TA = 25 °C
±1
TA = –40 to
+85°C
±2
TA = 25 °C
±1
0V
TA = –40 to
+85°C
±2
TA = 25 °C
±1
1.65 to 5.5 V
1.65 to 5.5 V
TA = –40 to
+85°C
±2
1.65 to 5.5 V
1.65 to 5.5 V
3
5.5 V
0V
2
–2
0V
5.5 V
1.65 to 5.5 V
1.65 to 5.5 V
3
5.5 V
0V
–2
0V
5.5 V
2
1.65 to 5.5 V
1.65 to 5.5 V
4
VI = VCCI or GND, IO = 0
ICCA + ICCB
(see Table 1)
TA = 25 °C
TA = –40 to
+85°C
0 to 5.5 V
VI = VCCI or GND, IO = 0
ICCB
V
1.65 to 4.5 V
B port
ICCA
VCCO – 0.1
4.5 V
VI or VO = 0 to 5.5 V
IOZ
UNIT
1.65 to 4.5 V
A port
Ioff
MAX
IOL = 100 μA
IOL = 8 mA
II
TYP
IOH = –32 mA
IOL = 4 mA
VOL
MIN
V
μA
μA
μA
μA
μA
μA
50
3 to 5.5 V
3 to 5.5 V
μA
50
3 to 5.5 V
3 to 5.5 V
50
μA
3.3 V
3.3 V
TA = 25 °C
2.5
pF
3.3 V
3.3 V
TA = 25 °C
6
pF
VCCO is the VCC associated with the output port.
VCCI is the VCC associated with the input port.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
7.6 Switching Characteristics (VCCA = 1.8 V ± 0.15 V)
over recommended operating free-air temperature range, VCCA = 1.8 V ± 0.15 V (see Figure 9)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL
(1)
tPZH (1)
tPZL (1)
(1)
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
VCCB = 1.8 V
±0.15 V
VCCB = 2.5 V
±0.2 V
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
3
17.7
2.2
10.3
1.7
8.3
1.4
7.2
2.8
14.3
2.2
8.5
1.8
7.1
1.7
7
3
17.7
2.3
16
2.1
15.5
1.9
15.1
2.8
14.3
2.1
12.9
2
12.6
1.8
12.2
5.2
19.4
4.8
18.5
4.7
18.4
5.1
17.1
2.3
10.5
2.1
10.5
2.4
10.7
3.1
10.9
7.4
21.9
4.9
11.5
4.6
10.3
2.8
8.2
4.2
16
3.7
9.2
3.3
8.4
2.4
6.4
33.7
25.2
23.9
21.5
36.2
24.4
22.9
20.4
28.2
20.8
19
18.1
33.7
27
25.5
24.1
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
7.7 Switching Characteristics (VCCA = 2.5 V ± 0.2 V)
over recommended operating free-air temperature range, VCCA = 2.5 V ± 0.2 V (see Figure 9)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL (1)
tPZH (1)
tPZL (1)
(1)
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
VCCB = 1.8 V
±0.15 V
MIN
VCCB = 2.5 V
±0.2 V
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MAX
MIN
MAX
MIN
MAX
MIN
MAX
2.3
16
1.5
8.5
1.3
6.4
1.1
5.1
2.1
12.9
1.4
7.5
1.3
5.4
0.9
4.6
2.2
10.3
1.5
8.5
1.4
8
1
7.5
2.2
8.5
1.4
7.5
1.3
7
0.9
6.2
3
8.1
3.1
8.1
2.8
8.1
3.2
8.1
1.3
5.9
1.3
5.9
1.3
5.9
1
5.8
6.5
23.7
4.1
11.4
3.9
10.2
2.4
7.1
3.9
18.9
3.2
9.6
2.8
8.4
1.8
5.3
29.2
18.1
16.4
12.8
32.2
18.9
17.2
13.3
21.9
14.4
12.3
10.9
21
15.6
13.5
12.7
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
7
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
7.8 Switching Characteristics (VCCA = 3.3 V ± 0.3 V)
over recommended operating free-air temperature range, VCCA = 3.3 V ± 0.3 V (see Figure 9)
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL
(1)
tPZH (1)
tPZL (1)
(1)
VCCB = 1.8 V
±0.15 V
VCCB = 2.5 V
±0.2 V
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
2.1
15.5
1.4
8
0.7
5.8
0.7
4.4
2
12.6
1.3
7
0.8
5
0.7
4
1.7
8.3
1.3
6.4
0.7
5.8
0.6
5.4
1.8
7.1
1.3
5.4
0.8
5
0.7
4.5
2.9
7.3
3
7.3
2.8
7.3
3.4
7.3
1.8
5.6
1.6
5.6
2.2
5.7
2.2
5.7
5.4
20.5
3.9
10.1
2.9
8.8
2.4
6.8
3.3
14.5
2.9
7.8
2.4
7.1
1.7
4.9
22.8
14.2
12.9
10.3
27.6
15.5
13.8
11.3
21.1
13.6
11.5
10.1
19.9
14.3
12.3
11.3
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
7.9 Switching Characteristics (VCCA = 5 V ±0.5 V)
over recommended operating free-air temperature range, VCCA = 5 V ±0.5 V (see Figure 9)
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL (1)
tPZH (1)
tPZL (1)
(1)
VCCB = 1.8 V
±0.15 V
VCCB = 2.5 V
±0.2 V
MIN
MAX
1.9
1.8
1.4
1.7
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
15.1
1
7.5
0.6
5.4
0.5
3.9
12.2
0.9
6.2
0.7
4.5
0.5
3.5
7.2
1
5.1
0.7
4.4
0.5
3.9
7
0.9
4.6
0.7
4
0.5
3.5
2.1
5.4
2.2
5.4
2.2
5.5
2.2
5.4
0.9
3.8
1
3.8
1
3.7
0.9
3.7
4.8
20.2
2.5
9.8
1
8.5
2.5
6.5
4.2
14.8
2.5
7.4
2.5
7
1.6
4.5
22
12.5
11.4
8.4
27.2
14.4
12.5
10
18.9
11.3
9.1
7.6
17.6
11.6
10
8.6
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
7.10 Operating Characteristics
TA = 25°C
PARAMETER
CpdA (1)
CpdB (1)
(1)
8
A-port input, B-port output
B-port input, A-port output
A-port input, B-port output
B-port input, A-port output
TEST
CONDITIONS
CL = 0 pF,
f = 10 MHz,
tr = tf = 1 ns
CL = 0 pF,
f = 10 MHz,
tr = tf = 1 ns
VCCA =
VCCB = 1.8 V
VCCA =
VCCB = 2.5 V
VCCA =
VCCB = 3.3 V
VCCA =
VCCB = 5 V
TYP
TYP
TYP
TYP
3
4
4
4
18
19
20
21
18
19
20
21
3
4
4
4
UNIT
pF
pF
Power dissipation capacitance per transceiver
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
7.11 Typical Characteristics
9
8
8
7
7
6
6
t PLH − ns
10
9
t PHL − ns
10
5
5
4
4
3
3
2
2
1
1
0
0
0
5
10
20
15
25
30
0
35
5
10
Figure 1. Typical Propagation Delay (A to B) vs Load
Capacitance
8
7
7
6
6
t PLH − ns
9
8
t PHL − ns
10
9
5
30
35
5
4
4
3
3
2
2
1
1
0
10
15
20
25
30
0
35
0
5
10
CL − pF
TA = 25°C, VCCA = 2.5 V
15
20
CL − pF
25
30
35
TA = 25°C, VCCA = 2.5 V
Figure 3. Typical Propagation Delay (A to B) vs Load
Capacitance
Figure 4. Typical Propagation Delay (B to A) vs Load
Capacitance
10
9
9
8
8
7
7
6
6
t PLH − ns
10
t PHL − ns
25
Figure 2. Typical Propagation Delay (B to A) vs Load
Capacitance
10
5
20
TA = 25°C, VCCA = 1.8 V
TA = 25°C, VCCA = 1.8 V
0
15
CL − pF
CL − pF
5
5
4
4
3
3
2
2
1
1
0
0
0
5
10
15
20
25
30
35
0
5
10
15
20
25
30
35
CL − pF
CL − pF
TA = 25°C, VCCA = 3.3 V
TA = 25°C, VCCA = 3.3 V
Figure 5. Typical Propagation Delay (A to B) vs Load
Capacitance
Figure 6. Typical Propagation Delay (B to A) vs Load
Capacitance
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
9
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
10
10
9
9
8
8
7
7
6
t PLH − ns
t PHL − ns
Typical Characteristics (continued)
5
5
4
4
3
3
2
2
1
1
0
0
5
10
15
20
CL − pF
25
30
35
0
0
5
10
15
20
25
30
35
CL − pF
TA = 25°C, VCCA = 5 V
TA = 25°C, VCCA = 5 V
Figure 7. Typical Propagation Delay (A to B) vs Load
Capacitance
10
6
Figure 8. Typical Propagation Delay (B to A) vs Load
Capacitance
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
8 Parameter Measurement Information
2 × VCCO
S1
RL
From Output
Under Test
Open
GND
CL
(see Note A)
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCCO
GND
RL
tw
LOAD CIRCUIT
VCCI
VCCI/2
Input
VCCO
CL
RL
VTP
1.8 V ± 0.15 V
2.5 V ± 0.2 V
3.3 V ± 0.3 V
5 V ± 0.5 V
15 pF
15 pF
15 pF
15 pF
2 kΩ
2 kΩ
2 kΩ
2 kΩ
0.15 V
0.15 V
0.3 V
0.3 V
VCCI/2
0V
VOLTAGE WAVEFORMS
PULSE DURATION
VCCA
Output
Control
(low-level
enabling)
VCCA/2
VCCA/2
0V
tPLZ
tPZL
VCCI
Input
VCCI/2
VCCI/2
0V
tPLH
Output
tPHL
VOH
VCCO/2
VOL
VCCO/2
VCCO
Output
Waveform 1
S1 at 2 × VCCO
(see Note B)
VCCO/2
VOL + VTP
VOL
tPHZ
tPZH
Output
Waveform 2
S1 at GND
(see Note B)
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCCO/2
VOH − VTP
VOH
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR v10 MHz, ZO = 50 Ω, dv/dt ≥ 1 V/ns.
D. The outputs are measured one at a time, with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
H. VCCI is the VCC associated with the input port.
I. VCCO is the VCC associated with the output port.
J. All parameters and waveforms are not applicable to all devices.
Figure 9. Load Circuit and Voltage Waveforms
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
11
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
9 Detailed Description
9.1 Overview
The SN74LVC1T45 is a single-bit, dual-supply, noninverting voltage level transceiver. Pin A and that direction
control pin (DIR) are supported by VCCA and pin B is supported by VCCB. The A port is able to accept I/O voltages
ranging from 1.65 V to 5.5 V, while the B port can accept I/O voltages from 1.65 V to 5.5 V. The high on the DIR
allows data transmissions from A to B and a low on the DIR allows data transmissions from B to A.
9.2 Functional Block Diagram
DIR
A
5
3
4
VCCA
B
VCCB
Figure 10. Logic Diagram (Positive Logic)
9.3 Feature Description
9.3.1 Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.65-V to 5.5-V
Power-Supply Range
Both VCCA and VCCB can be supplied at any voltage between 1.65 V and 5.5 V, making the device suitable for
translating between any of the voltage nodes (1.8-V, 2.5-V, 3.3-V, and 5-V).
9.3.2 Support High Speed Translation
The SN74LVC1T45 device supports high data rate applications. The translated signal data rate can be up to 420
Mbps when the signal is translated from 3.3 V to 5 V.
9.3.3 Ioff Supports Partial Power-Down Mode Operation
Ioff prevents backflow current by disabling I/O output circuits when device is in partial-power-down mode.
9.4 Device Functional Modes
Table 1. Function Table (1)
(1)
12
INPUT
DIR
OPERATION
L
B data to A bus
H
A data to B bus
Input circuits of the data I/Os always are active.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
10 Applications and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
10.1 Application Information
The SN74LVC1T45 device can be used in level-translation applications for interfacing devices or systems
operating at different interface voltages with one another. The maximum data rate can be up to 420 Mbps when
device translates signals from 3.3 V to 5 V.
10.2 Typical Application
10.2.1 Unidirectional Logic Level-Shifting Application
Figure 11 shows an example of the SN74LVC1T45 being used in a unidirectional logic level-shifting application.
VCC1
VCC1
VCC2
1
6
2
5
3
4
SYSTEM-1
VCC2
SYSTEM-2
Figure 11. Unidirectional Logic Level-Shifting Application
10.2.1.1 Design Requirements
For this design example, use the parameters listed in Table 2.
Table 2. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
Input voltage range
1.65 V to 5.5 V
Output voltage range
1.65 V to 5.5 V
10.2.1.2 Detailed Design Procedure
To begin the design process, determine the following:
• Input voltage range
- Use the supply voltage of the device that is driving the SN74LVC1T45 device to determine the input
voltage range. For a valid logic high the value must exceed the VIH of the input port. For a valid logic low
the value must be less than the VIL of the input port.
• Output voltage range
- Use the supply voltage of the device that the SN74LVC1T45 device is driving to determine the output
voltage range.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
13
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
10.2.1.3 Application Curve
Figure 12. Translation Up (1.8 V to 5 V) at 2.5 MHz
10.2.2 Bidirectional Logic Level-Shifting Application
Figure 13 shows the SN74LVC1T45 being used in a bidirectional logic level-shifting application. Because the
SN74LVC1T45 does not have an output-enable (OE) pin, the system designer should take precautions to avoid
bus contention between SYSTEM-1 and SYSTEM-2 when changing directions.
VCC1
VCC1
VCC2
VCC2
Pullup/Down
or Bus Hold(1)
I/O-1
Pullup/Down
or Bus Hold(1)
1
6
2
5
3
4
I/O-2
DIR CTRL
SYSTEM-1
SYSTEM-2
Figure 13. Bidirectional Logic Level-Shifting Application
10.2.2.1 Design Requirements
See Design Requirements.
10.2.2.2 Detailed Design Procedure
Table 3 shows data transmission from SYSTEM-1 to SYSTEM-2 and then from SYSTEM-2 to SYSTEM-1.
Table 3. SYSTEM-1 and SYSTEM-2 Data Transmission
STATE
DIR CTRL
I/O-1
I/O-2
1
H
Out
In
2
H
Hi-Z
Hi-Z
SYSTEM-2 is getting ready to send data to SYSTEM-1. I/O-1 and I/O-2 are disabled. The busline state depends on pullup or pulldown. (1)
3
L
Hi-Z
Hi-Z
DIR bit is flipped. I/O-1 and I/O-2 still are disabled. The bus-line state depends on pullup or
pulldown. (1)
4
L
Out
In
(1)
14
DESCRIPTION
SYSTEM-1 data to SYSTEM-2
SYSTEM-2 data to SYSTEM-1
SYSTEM-1 and SYSTEM-2 must use the same conditions, that is, both pullup or both pulldown.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
10.2.2.2.1 Enable Times
Calculate the enable times for the SN74LVC1T45 using the following formulas:
• tPZH (DIR to A) = tPLZ (DIR to B) + tPLH (B to A)
• tPZL (DIR to A) = tPHZ (DIR to B) + tPHL (B to A)
• tPZH (DIR to B) = tPLZ (DIR to A) + tPLH (A to B)
• tPZL (DIR to B) = tPHZ (DIR to A) + tPHL (A to B)
In a bidirectional application, these enable times provide the maximum delay from the time the DIR bit is
switched until an output is expected. For example, if the SN74LVC1T45 initially is transmitting from A to B, then
the DIR bit is switched; the B port of the device must be disabled before presenting it with an input. After the B
port has been disabled, an input signal applied to it appears on the corresponding A port after the specified
propagation delay.
10.2.2.3 Application Curve
Figure 14. Translation Down (5V to 1.8 V) at 2.5 MHz
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
15
SN74LVC1T45
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
www.ti.com
11 Power Supply Recommendations
The SN74LVC1T45 device uses two separate configurable power-supply rails, VCCA and VCCB. VCCA accepts any
supply voltage from 1.65 V to 5.5 V and VCCB accepts any supply voltage from 1.65 V to 5.5 V. The A port and B
port are designed to track VCCA and VCCB, respectively allowing for low-voltage bidirectional translation between
any of the 1.8-V, 2.5-V, 3.3-V and 5-V voltage nodes.
12 Layout
12.1 Layout Guidelines
To ensure reliability of the device, the following common printed-circuit board layout guidelines are
recommended:
• Bypass capacitors should be used on power supplies.
• Short trace lengths should be used to avoid excessive loading.
• Placing pads on the signal paths for loading capacitors or pullup resistors to help adjust rise and fall times of
signals depends on the system requirements
12.2 Layout Example
Figure 15. Layout Example
16
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
SN74LVC1T45
www.ti.com
SCES515L – DECEMBER 2003 – REVISED FEBRUARY 2017
13 Device and Documentation Support
13.1 Documentation Support
13.1.1 Related Documentation
For related documentation see the following:
Implications of Slow or Floating CMOS Inputs, SCBA004
13.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
13.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
13.4 Trademarks
NanoFree, E2E are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
13.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
13.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
14 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1T45
17
PACKAGE OPTION ADDENDUM
www.ti.com
30-Nov-2018
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
SN74LVC1T45DBVR
ACTIVE
SOT-23
DBV
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(CT15, CT1F, CT1R)
SN74LVC1T45DBVRE4
ACTIVE
SOT-23
DBV
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(CT15, CT1F, CT1R)
SN74LVC1T45DBVRG4
ACTIVE
SOT-23
DBV
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(CT15, CT1F, CT1R)
SN74LVC1T45DBVT
ACTIVE
SOT-23
DBV
6
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(CT15, CT1F, CT1R)
SN74LVC1T45DBVTG4
ACTIVE
SOT-23
DBV
6
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(CT15, CT1F, CT1R)
SN74LVC1T45DCKR
ACTIVE
SC70
DCK
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(TA5, TAF, TAR)
SN74LVC1T45DCKRE4
ACTIVE
SC70
DCK
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(TA5, TAF, TAR)
SN74LVC1T45DCKRG4
ACTIVE
SC70
DCK
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(TA5, TAF, TAR)
SN74LVC1T45DCKT
ACTIVE
SC70
DCK
6
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(TA5, TAF, TAR)
SN74LVC1T45DCKTE4
ACTIVE
SC70
DCK
6
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(TA5, TAF, TAR)
SN74LVC1T45DCKTG4
ACTIVE
SC70
DCK
6
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(TA5, TAF, TAR)
SN74LVC1T45DPKR
ACTIVE
USON
DPK
6
5000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
TA7
SN74LVC1T45DRLR
ACTIVE
SOT-5X3
DRL
6
4000
Green (RoHS
& no Sb/Br)
CU NIPDAU |
CU NIPDAUAG
Level-1-260C-UNLIM
-40 to 85
(TA7, TAR)
SN74LVC1T45DRLRG4
ACTIVE
SOT-5X3
DRL
6
4000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(TA7, TAR)
SN74LVC1T45YZPR
ACTIVE
DSBGA
YZP
6
3000
Green (RoHS
& no Sb/Br)
SNAGCU
Level-1-260C-UNLIM
-40 to 85
(TA2, TA7, TAN)
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
30-Nov-2018
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
