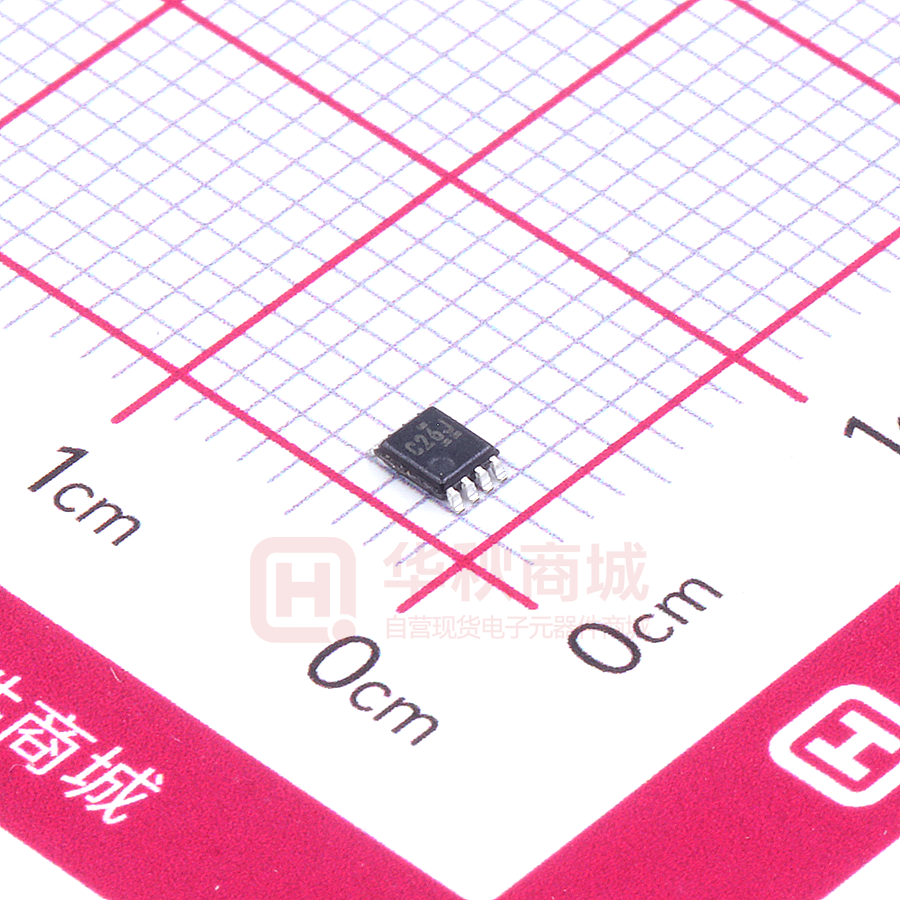

SN74LVC2G126DCUR

SN74LVC2G126DCUR

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    VSSOP8_2X2.3MM

  • 描述:

    缓冲器/驱动器 Vcc=1.65V~5.5V 具有三态输出的 SN74LVC2G126 双路总线缓冲门

  • 数据手册
  • 价格&库存
SN74LVC2G126DCUR 数据手册
SN74LVC2G126 SN74LVC2G126 SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 www.ti.com SN74LVC2G126 Dual Bus Buffer Gate With 3-State Outputs 1 Features 3 Description • These bus transceivers are designed for 1.65-V to 3.6-V V CC operation. The SN74LVC2G126 device is a dual line driver with 3-state output. The output is disabled when the output-enable input is low. • • • • • • • • • • • Available in the Texas Instruments NanoFree™ Package Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Max tpd of 4ns at 3.3V Low Power Consumption, 10-µA Max ICC ±24-mA Output Drive at 3.3 V Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection Can Be Used as a Down Translator to Translate Inputs From a Max of 5.5 V Down to the VCC Level Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model – 1000-V Charged-Device Model Device Information PART NUMBER • • BODY SIZE (NOM) SN74LVC2G126DCT SM8 (8) 2.95 mm × 2.80 mm SN74LVC2G126DCU VSSOP (8) 2.30 mm × 2.00 mm SN74LVC2G126YZP DSBGA (8) 1.91 mm × 0.91 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. 1OE 1A 1Y 2OE 2A 2 Applications • • • • • • • PACKAGE(1) 2Y Simplified Schematic Cable Modem Termination Systems High-Speed Data Acquisition and Generation Military: Radars and Sonars Motor Controls: High-Voltage Power Line Communication Modems SSDs: Internal or External Video Broadcasting and Infrastructure: Scalable Platforms Video Broadcasting: IP-Based Multi-Format Transcoders Video Communication Systems An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated intellectual property matters and other important disclaimers. PRODUCTION DATA. Product Folder Links: SN74LVC2G126 1 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 Table of Contents 1 Features............................................................................1 2 Applications..................................................................... 1 3 Description.......................................................................1 4 Revision History.............................................................. 2 5 Pin Configuration and Functions...................................3 6 Specifications.................................................................. 4 6.1 Absolute Maximum Ratings........................................ 4 6.2 ESD Ratings............................................................... 4 6.3 Recommended Operating Conditions.........................5 6.4 Thermal Information....................................................5 6.5 Electrical Characteristics.............................................6 6.6 Switching Characteristics, –40°C to +85°C.................6 6.7 Switching Characteristics, –40°C to +125°C...............6 6.8 Operating Characteristics........................................... 7 6.9 Typical Characteristics................................................ 7 7 Parameter Measurement Information............................ 8 8 Detailed Description........................................................9 8.1 Overview..................................................................... 9 8.2 Functional Block Diagram........................................... 9 8.3 Feature Description.....................................................9 8.4 Device Functional Modes............................................9 9 Application and Implementation.................................. 10 9.1 Application Information............................................. 10 9.2 Typical Application.................................................... 10 10 Power Supply Recommendations..............................11 11 Layout........................................................................... 12 11.1 Layout Guidelines................................................... 12 11.2 Layout Example...................................................... 12 12 Device and Documentation Support..........................13 12.1 Receiving Notification of Documentation Updates..13 12.2 Support Resources................................................. 13 12.3 Trademarks............................................................. 13 12.4 Electrostatic Discharge Caution..............................13 12.5 Glossary..................................................................13 13 Mechanical, Packaging, and Orderable Information.................................................................... 13 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision M (September 2016) to Revision N (September 2020) Page • Updated the numbering format for tables, figures, and cross-references throughout the document..................1 Changes from Revision L (December 2014) to Revision M (September 2016) Page • Deleted Machine Model from Features ..............................................................................................................1 • Updated Device Information table...................................................................................................................... 1 • Updated pinout images and Pin Functions table................................................................................................ 3 • Added Operating junction temperature, TJ in Absolute Maximum Ratings ........................................................4 Changes from Revision K (November 2013) to Revision L (December 2014) Page • Added Applications, Device Information table, ESD Ratings table, Typical Characteristics, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section...................................................................................................1 • Updated Features .............................................................................................................................................. 1 Changes from Revision J (January 2007) to Revision K (November 2013) Page • Deleted Ordering Information table. ...................................................................................................................1 • Updated operating temperature range................................................................................................................5 2 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 5 Pin Configuration and Functions 1OE 1 8 VCC 1A 2 7 2OE 2Y 3 6 1Y GND 4 5 2A Not to scale See mechanical drawings for dimensions. Figure 5-1. DCT or DCU Package 8-Pin SM8 or VSSOP Top View 1 2 D GND 2A C 2Y 1Y B 1A 2OE A 1OE V   CC Not to scale Figure 5-2. YZP Package 8-Pin DSBGA Bottom View Pin Functions PIN NAME SM8, VSSOP DSBGA TYPE DESCRIPTION 1A 2 B1 I 1OE 1 A1 I 1A Input 1OE Enable/Input 1Y 6 C2 O 1Y Output 2A 5 D2 I 2A Input 2OE 7 B2 I 2OE Enable/Input 2Y 3 C1 O 2Y Output GND 4 D1 — Ground Pin VCC 8 A2 — Power Pin Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 3 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted)(1) VCC MIN MAX Supply voltage –0.5 6.5 V voltage(2) –0.5 6.5 V –0.5 6.5 V –0.5 VCC + 0.5 VI Input VO Voltage range applied to any output in the high-impedance or power-off state(2) state(2) (3) UNIT VO Voltage range applied to any output in the high or low IIK Input clamp current VI < 0 –50 IOK Output clamp current VO < 0 –50 mA IO Continuous output current ±50 mA ±100 mA TJ Operating junction temperature 150 °C Tstg Storage temperature 150 °C Continuous current through VCC or GND (1) (2) (3) –65 V mA Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Section 6.3 is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The input negative-voltage and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed. The value of VCC is provided in the Section 6.3 table. 6.2 ESD Ratings V(ESD) (1) (2) 4 Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) Charged device model (CDM), per JEDEC specification JESD22-C101(2) VALUE UNIT 2000 V 1000 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted)(1) VCC Operating Supply voltage Data retention only 1.65 5.5 1.7 VCC = 3 V to 3.6 V 0.7 × VCC VCC = 1.65 V to 1.95 V Low-level input voltage VI Input voltage VO Output voltage 0.35 × VCC VCC = 2.3 V to 2.7 V 0.7 VCC = 3 V to 3.6 V 0.8 VCC = 4.5 V to 5.5 V IOH High-level output current 5.5 High or low state 0 VCC 3-state 0 5.5 VCC = 1.65 V –4 VCC = 2.3 V –8 –16 VCC = 3 V 8 16 Operating free-air temperature 32 VCC = 1.8 V ± 0.15 V, 2.5 V ± 0.2 V 20 VCC = 3.3 V ± 0.3 V 10 VCC = 5 V ± 0.5 V (1) mA 24 VCC = 4.5 V TA mA 4 VCC = 3 V Input transition rise or fall rate V –32 VCC = 2.3 V Δt/Δv V –24 VCC = 4.5 V Low-level output current V 0.3 × VCC 0 VCC = 1.65 V IOL V V 2 VCC = 4.5 V to 5.5 V VIL UNIT 0.65 × VCC VCC = 2.3 V to 2.7 V High-level input voltage MAX 1.5 VCC = 1.65 V to 1.95 V VIH MIN ns/V 5 –40 125 °C All unused inputs of the device must be held at VCC or GND to ensure proper device operation. See Implications of Slow or Floating CMOS Inputs,SCBA004. 6.4 Thermal Information SN74LVC2G126 THERMAL METRIC(1) DCT (SM8) DCU (VSSOP) YZP (DSBGA) UNIT 8 PINS RθJA (1) Junction-to-ambient thermal resistance 220 227 102 °C/W For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 5 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 6.5 Electrical Characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS 1.65 V to 5.5 V IOH = –100 µA VOH MAX MIN –40°C to +125°C MAX MIN VCC – 0.1 VCC – 0.1 VCC – 0.1 1.65 V 1.2 1.2 1.2 2.3 V 1.9 1.9 1.9 2.4 2.4 2.4 2.3 2.3 2.3 3.8 3.8 3.8 3V MAX 4.5 V IOL = 100 µA 1.65 V to 5.5 V 0.1 0.1 0.1 IOL = 4 mA 1.65 V 0.45 0.45 0.45 IOL = 8 mA 2.3 V 0.3 0.3 0.3 0.4 0.4 0.4 0.55 0.55 0.55 3V IOL = 24 mA UNIT V IOH = –32 mA IOL = 16 mA II –40°C to +85°C TYP(1) IOH = –4 mA IOH = –24 mA A or OE inputs TA = 25°C MIN IOH = –8 mA IOH = –16 mA VOL VCC V IOL = 32 mA 4.5 V 0.55 0.55 0.75 VI = 5.5 V or GND 0 to 5.5 V ±5 ±5 ±5 µA Ioff VI or VO = 5.5 V 0 ±10 ±10 ±10 µA IOZ VO = 0 to 5.5 V 3.6 V 10 10 10 µA 1.65 V to 5.5 V 10 10 10 µA 500 500 500 µA ICC VI = 5.5 V or GND ΔICC One input at VCC – 0.6 V, Other inputs at VCC or GND 3 V to 5.5 V VI = VCC or GND 3.3 V CI Data inputs Control inputs Co (1) IO = 0 3.5 pF 4 VO = VCC or GND 3.3 V 6.5 pF All typical values are at VCC = 3.3 V, TA = 25°C. 6.6 Switching Characteristics, –40°C to +85°C over recommended operating free-air temperature range (unless otherwise noted) (see Figure 7-1) –40°C to +85°C PARAMETER FROM (INPUT) TO (OUTPUT) tpd A Y VCC = 1.8 V ± 0.15 V VCC = 2.5 V ± 0.2 V VCC = 3.3 V ± 0.3 V VCC = 5 V ± 0.5 V UNIT MIN MAX MIN MAX MIN MAX MIN MAX 3.5 9.8 1.7 4.9 1.4 4 1 3.2 ns ten OE Y 3.5 10 1.7 5 1.5 4.1 1 3.1 ns tdis OE Y 1.7 12.6 1 5.7 1 4.4 1 3.3 ns 6.7 Switching Characteristics, –40°C to +125°C over recommended operating free-air temperature range (unless otherwise noted) (seeFigure 7-1 ) –40°C to +125°C 6 PARAMETER FROM (INPUT) TO (OUTPUT) tpd A Y VCC = 1.8 V ± 0.15 V VCC = 2.5 V ± 0.2 V VCC = 3.3 V ± 0.3 V VCC = 5 V ± 0.5 V UNIT MIN MAX MIN MAX MIN MAX MIN MAX 3.5 10.8 1.7 5.9 1.4 5 1 3.7 ns ten OE Y 3.5 11 1.7 6 1.5 5.1 1 3.6 ns tdis OE Y 1.7 13.6 1 6.7 1 5.4 1 3.8 ns Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 6.8 Operating Characteristics TA = 25° TEST CONDITIONS PARAMETER Cpd Power dissipation capacitance Outputs enabled VCC = 1.8 V VCC = 2.5 V VCC = 3.3 V VCC = 5 V TYP TYP TYP TYP 19 19 20 22 2 2 2 3 f = 10 MHz Outputs disabled UNIT pF 6.9 Typical Characteristics 5 2.5 2 4 1.5 3 TPD - ns TPD - ns TPD 1 0.5 2 1 TPD 0 -100 -50 0 50 Temperature - °C 100 150 0 0 1 D001 Figure 6-1. TPD Across Tempearture at 3.3 VCC 2 3 VCC - V 4 5 6 D002 Figure 6-2. TPD Across VCC at 25°C Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 7 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 7 Parameter Measurement Information VLOAD S1 RL From Output Under Test Open TEST GND CL (see Note A) S1 Open VLOAD tPLH/tPHL tPLZ/tPZL tPHZ/tPZH RL GND LOAD CIRCUIT INPUTS VCC 1.8 V ± 0.15 V 2.5 V ± 0.2 V 3.3 V ± 0.3 V 5 V ± 0.5 V VI tr/tf VCC VCC 3V VCC £2 ns £2 ns £2.5 ns £2.5 ns VM VLOAD CL RL VD VCC/2 VCC/2 1.5 V VCC/2 2 × VCC 2 × VCC 6V 2 × VCC 30 pF 30 pF 50 pF 50 pF 1 kW 500 W 500 W 500 W 0.15 V 0.15 V 0.3 V 0.3 V VI Timing Input VM 0V tW tsu VI Input VM VM th VI Data Input VM VM 0V 0V VOLTAGE WAVEFORMS PULSE DURATION VOLTAGE WAVEFORMS SETUP AND HOLD TIMES VI VM Input VM 0V tPLH VOH Output VM VOL tPHL VM VM 0V tPLZ Output Waveform 1 S1 at VLOAD (see Note B) tPLH VLOAD/2 VM tPZH VOH Output VM tPZL tPHL VM VI Output Control VM VOL VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES INVERTING AND NONINVERTING OUTPUTS Output Waveform 2 S1 at GND (see Note B) VOL + VD VOL tPHZ VM VOH – VD VOH »0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES LOW- AND HIGH-LEVEL ENABLING NOTES: A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR £ 10 MHz, ZO = 50 W. D. The outputs are measured one at a time, with one transition per measurement. E. tPLZ and tPHZ are the same as tdis. F. tPZL and tPZH are the same as ten. G. tPLH and tPHL are the same as tpd. H. All parameters and waveforms are not applicable to all devices. Figure 7-1. Load Circuit and Voltage Waveforms 8 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 8 Detailed Description 8.1 Overview The SN74LVC2G126 device contains a dual buffer gate with output enable control and performs the Boolean function Y = A. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. 8.2 Functional Block Diagram 1OE 1A 1Y 2OE 2A 2Y 8.3 Feature Description • • • • 1.65 V to 5.5 V operating voltage range Allows down voltage translation – 5 V to 3.3 V – 5 V or 3.3 V to 1.8V Inputs accept voltages to 5.5 V – 5-V tolerance on input pin Ioff feature – Allows voltage on the inputs and outputs when VCC is 0 V – Able to prevent leakage when VCC is 0 V 8.4 Device Functional Modes Table 8-1 lists the functional modes of SN74LVC2G126. Table 8-1. Function Table INPUTS OE A OUTPUT Y H H H H L L L X Z Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 9 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 9 Application and Implementation Note Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information The SN74LVC2G126 device is a high-drive CMOS device that can be used as an output enabled buffer with a high output drive, such as an LED application. It can produce 24 mA of drive current at 3.3 V, making it ideal for driving multiple outputs and good for high speed applications up to 100 MHz. The inputs are 5.5-V tolerant allowing it to translate down to VCC. 9.2 Typical Application Buffer Function Basic LED Driver VCC VCC uC or Logic uC or Logic Wired OR uC or Logic uC or Logic uC or Logic Figure 9-1. Application Schematic 9.2.1 Design Requirements This device uses CMOS technology and has balanced output drive. Take care to avoid bus contention because it can drive currents that would exceed maximum limits. Outputs can be combined to produce higher drive but the high drive also creates faster edges into light loads so routing and load conditions should be considered to prevent ringing. 9.2.2 Detailed Design Procedure 1. Recommended Input Conditions: • For rise time and fall time specifications, see Δt/ΔV in the Section 6.3 table. • For specified high and low levels, see VIH and VIL in the Section 6.3 table. • Inputs are overvoltage tolerant allowing them to go as high as 5.5 V at any valid VCC. 2. Recommended Output Conditions: • Load currents should not exceed 50 mA per output and 100 mA total for the part. 10 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 9.2.3 Application Curve 10 VCC VCC VCC VCC 9 8 1.8 V 2.5 V 3.3 V 5V ICC (mA) 7 6 5 4 3 2 1 0 0 20 40 Frequency (MHz) 60 80 D003 Figure 9-2. ICC vs Frequency 10 Power Supply Recommendations The power supply can be any voltage between the MIN and MAX supply voltage rating located in the Section 6.3 table. Each VCC terminal should have a good bypass capacitor to prevent power disturbance. For devices with a single supply, a 0.1-μF capacitor is recommended. If there are multiple VCC terminals then 0.01-μF or 0.022-μF capacitors are recommended for each power terminal. It is ok to parallel multiple bypass capacitors to reject different frequencies of noise. Multiple bypass capacitors may be paralleled to reject different frequencies of noise. Install the bypass capacitor as close to the power terminal as possible for the best results. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 11 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 11 Layout 11.1 Layout Guidelines When using multiple bit logic devices, inputs should not float. In many cases, functions or parts of functions of digital logic devices are unused. Some examples are when only two inputs of a triple-input AND gate are used, or when only 3 of the 4-buffer gates are used. Such input pins should not be left unconnected because the undefined voltages at the outside connections result in undefined operational states. Specified in Figure 11-1 are rules that must be observed under all circumstances. All unused inputs of digital logic devices must be connected to a high or low bias to prevent them from floating. The logic level that should be applied to any particular unused input depends on the function of the device. Generally they will be tied to GND or VCC, whichever makes more sense or is more convenient. It is acceptable to float outputs unless the part is a transceiver. If the transceiver has an output enable pin, it will disable the outputs section of the part when asserted. This does not disable the input section of the I/Os so they also cannot float when disabled. 11.2 Layout Example Vcc Unused Input Input Output Unused Input Output Input Figure 11-1. Layout Diagram 12 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 SN74LVC2G126 www.ti.com SCES205N – APRIL 1999 – REVISED SEPTEMBER 2020 12 Device and Documentation Support 12.1 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on Subscribe to updates to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 12.2 Support Resources TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight from the experts. Search existing answers or ask your own question to get the quick design help you need. Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. 12.3 Trademarks TI E2E™ is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.4 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 12.5 Glossary TI Glossary This glossary lists and explains terms, acronyms, and definitions. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical packaging and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser based versions of this data sheet, refer to the left hand navigation. Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated Product Folder Links: SN74LVC2G126 13 PACKAGE OPTION ADDENDUM www.ti.com 29-Jan-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) 74LVC2G126DCTRG4 ACTIVE SM8 DCT 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 C26 Z 74LVC2G126DCUTG4 ACTIVE VSSOP DCU 8 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 C26R SN74LVC2G126DCTR ACTIVE SM8 DCT 8 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 C26 Z SN74LVC2G126DCUR ACTIVE VSSOP DCU 8 3000 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 125 (C26J, C26Q, C26R) SN74LVC2G126DCUT ACTIVE VSSOP DCU 8 250 RoHS & Green NIPDAU | SN Level-1-260C-UNLIM -40 to 125 (C26J, C26Q, C26R) SN74LVC2G126YZPR ACTIVE DSBGA YZP 8 3000 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 125 (CN7, CNN) (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
