SN74LVC2T45
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
SN74LVC2T45 Dual-Bit Dual-Supply Bus Transceiver
With Configurable Voltage Translation
1 Features
3 Description
•
This dual-bit noninverting bus transceiver uses two
separate configurable power-supply rails. The A port
is designed to track VCCA. VCCA accepts any supply
voltage from 1.65 V to 5.5 V. The B port is designed
to track VCCB. VCCB accepts any supply voltage from
1.65 V to 5.5 V. This allows for universal low-voltage
bidirectional translation between any of the 1.8-V, 2.5V, 3.3-V, and 5-V voltage nodes.
Fully configurable dual-rail design allows each port
to operate over the full 1.65-V to 5.5-V powersupply range
VCC isolation feature – if either VCC input is at
GND, both ports are in the high-impedance state
DIR input circuit referenced to VCCA
Low power consumption, 4-μA maximum ICC
Available in the Texas Instruments NanoFree™
package
±24-mA output drive at 3.3 V
Ioff supports Partial-Power-Down mode operation
Maximum data rates:
– 420 Mbps (3.3-V to 5-V translation)
– 210 Mbps (translate to 3.3 V)
– 140 Mbps (translate to 2.5 V)
– 75 Mbps (translate to 1.8 V)
Latch-up performance exceeds 100 mA per JESD
78, Class II
ESD protection exceeds JESD 22
– 4000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
•
•
•
•
•
•
•
•
•
2 Applications
•
•
•
•
Personal electronic
Industrial
Enterprise
Telecom
The SN74LVC2T45 is designed for asynchronous
communication between two data buses. The logic
levels of the direction-control (DIR) input activate
either the B-port outputs or the A-port outputs. The
device transmits data from the A bus to the B bus
when the B-port outputs are activated, and from the
B bus to the A bus when the A-port outputs are
activated. The input circuitry on both A and B ports
are always active and must have a logic HIGH or
LOW level applied to prevent excess ICC and ICCZ.
The SN74LVC2T45 is designed so that VCCA supplies
the DIR input circuit. This device is fully specified
for partial-power-down applications using Ioff. The Ioff
circuitry disables the outputs, preventing damaging
current backflow through the device when it is
powered down.
The VCC isolation feature ensures that if either VCC
input is at GND, both ports are in the high-impedance
state.
Package Information(1)
PART NUMBER
DIR
5
SN74LVC2T45
A1
2
(1)
7
A2
PACKAGE
BODY SIZE (NOM)
DCT (SM8, 8)
2.95 mm × 2.80 mm
DCU (VSSOP, 8)
2.30 mm × 2.00 mm

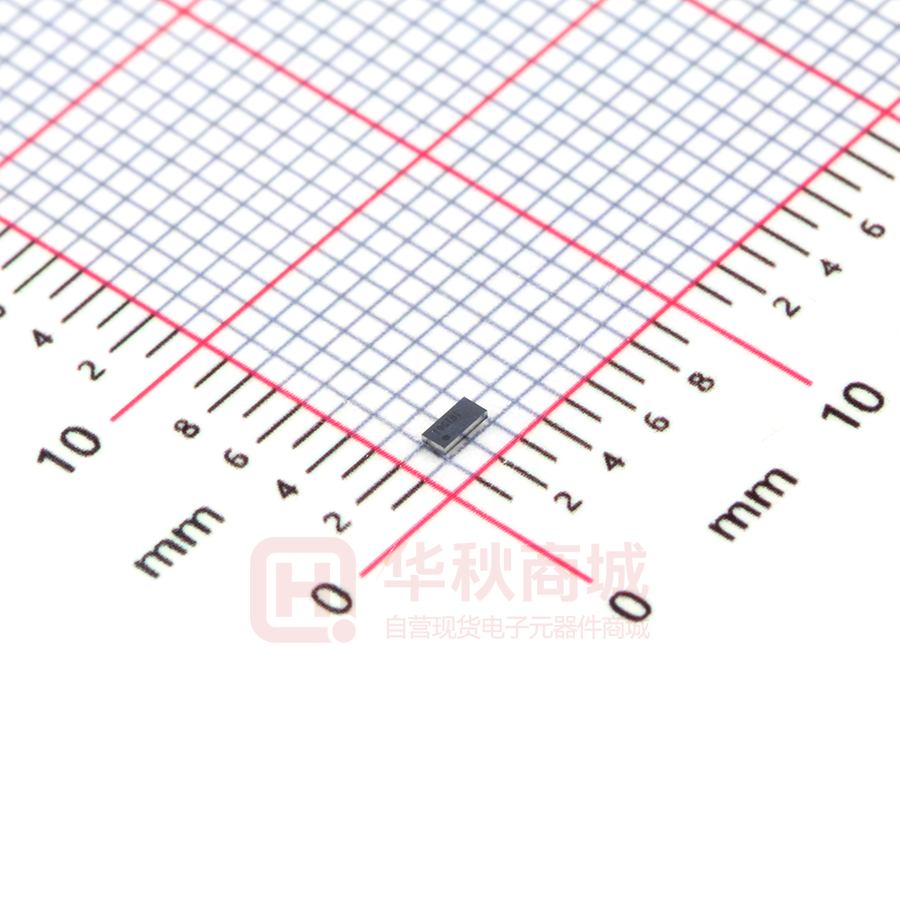

YZP (DSBGA, 8)
1.89 mm × 0.89 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
B1
3
6
VCCA
B2
VCCB
Functional Block Diagram
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings........................................ 4
6.2 ESD Ratings............................................................... 4
6.3 Recommended Operating Conditions.........................4
6.4 Thermal Information....................................................5
6.5 Electrical Characteristics.............................................6
6.6 Electrical Characteristics.............................................7
6.7 Switching Characteristics: VCCA = 1.8 V ± 0.15 V.......8
6.8 Switching Characteristics: VCCA = 2.5 V ± 0.2 V.........8
6.9 Switching Characteristics: VCCA = 3.3 V ± 0.3 V.........9
6.10 Switching Characteristics: VCCA = 5 V ± 0.5 V..........9
6.11 Operating Characteristics........................................10
6.12 Typical Characteristics............................................ 11
7 Parameter Measurement Information.......................... 14
8 Detailed Description......................................................15
8.1 Overview................................................................... 15
8.2 Functional Block Diagram......................................... 15
8.3 Feature Description...................................................15
8.4 Device Functional Modes..........................................16
9 Application and Implementation.................................. 17
9.1 Application Information............................................. 17
9.2 Typical Applications.................................................. 17
10 Power Supply Recommendations..............................21
10.1 Power-Up Considerations....................................... 21
11 Layout........................................................................... 22
11.1 Layout Guidelines................................................... 22
11.2 Layout Example...................................................... 22
12 Device and Documentation Support..........................23
12.1 Documentation Support.......................................... 23
12.2 Receiving Notification of Documentation Updates..23
12.3 Support Resources................................................. 23
12.4 Trademarks............................................................. 23
12.5 Electrostatic Discharge Caution..............................23
12.6 Glossary..................................................................23
13 Mechanical, Packaging, and Orderable
Information.................................................................... 23
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision K (June 2017) to Revision L (October 2022)
Page
• Updated the numbering format for tables, figures, and cross-references throughout the document..................1
• Updated the thermals in the Thermal Information section.................................................................................. 5
• Extended the minimum specifications for lower delays in the Switching Characteristics sections..................... 8
Changes from Revision J (October 2014) to Revision K (June 2017)
Page
• Changed data sheet title.....................................................................................................................................1
• Added Junction temperature, TJ in Absolute Maximum Ratings ....................................................................... 4
Changes from Revision I (March 2007) to Revision J (October 2014)
Page
• Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device
Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout
section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information
section ............................................................................................................................................................... 1
2
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
5 Pin Configuration and Functions
VCCA
A1
A2
GND
1
8
2
7
3
6
4
5
VCCB
B1
B2
DIR
Figure 5-1. DCT or DCU Package, 8-Pin SM8 or VSSOP (Top View)
Table 5-1. Pin Functions: DCT, DCU
PIN
NAME
TYPE(1)
NO.
DESCRIPTION
VCCA
1
P
A1
2
I/O
Input/output A1. Referenced to VCCA
A2
3
I/O
Input/output A2. Referenced to VCCA
GND
4
G
Ground
DIR
5
I
Direction control signal
B2
6
I/O
Input/output B2. Referenced to VCCB
B1
7
I/O
Input/output B1. Referenced to VCCB
VCCB
8
P
(1)
A-port supply voltage. 1.65 V ≤ VCCA ≤ 5.5 V
B-port supply voltage. 1.65 V ≤ VCCB ≤ 5.5 V
I = input, O = output, P = power, G =ground
1
2
D
GND
DIR
C
A2
B2
B
A1
B1
A
VCCA
VCCB
Not to scale
Figure 5-2. YZP Package, 8-Pin DSGBA (Bottom View)
Table 5-2. Pin Functions: YZP
PIN
NO.
NAME
A1
VCCA
A2
B1
TYPE(1)
DESCRIPTION
P
A-port supply voltage. 1.65 V ≤ VCCA ≤ 5.5 V
VCCB
P
B-port supply voltage. 1.65 V ≤ VCCB ≤ 5.5 V
A1
I/O
Input/output A1. Referenced to VCCA
B2
B1
I/O
Input/output B1. Referenced to VCCB
C1
A2
I/O
Input/output A2. Referenced to VCCA
C2
B2
I/O
Input/output B2. Referenced to VCCB
D1
GND
G
Ground
D2
DIR
I
Direction control signal
(1)
I = input, O = output, P = power, G = ground
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
3
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
VCCA
Supply voltage
VCCB
Input voltage(2)
VI
state(2)
MIN
MAX
UNIT
–0.5
6.5
V
–0.5
6.5
V
V
VO
Voltage range applied to any output in the high-impedance or power-off
–0.5
6.5
VO
Voltage range applied to any output in the high or low A port
state(2) (3)
B port
–0.5
VCCA + 0.5
–0.5
VCCB + 0.5
IIK
Input clamp current
VI < 0
–50
IOK
Output clamp current
VO < 0
–50
IO
Continuous output current
–50
50
mA
Continuous current through VCC or GND
–100
100
mA
150
°C
150
°C
TJ
Junction temperature
Tstg
Storage temperature
(1)
(2)
(3)
–65
V
mA
mA
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress
ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
The value of VCC is provided in the recommended operating conditions table.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)
±4000
Charged device model (CDM), per ANSI/ESDA/JEDEC JS-002 (2)
±1000
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)(1) (2) (3)
VCCI
VCCA
VCCB
VIH
VCCO
Supply voltage
High-level
input voltage
Data inputs(4)
MIN
MAX
1.65
5.5
1.65
5.5
1.65 V to 1.95 V
VCCI × 0.65
2.3 V to 2.7 V
1.7
3 V to 3.6 V
2
4.5 V to 5.5 V
VCCI × 0.7
1.65 V to 1.95 V
VIL
Low-level
input voltage
Data inputs(4)
4
High-level
input voltage
DIR
(referenced to VCCA)(5)
VCCI × 0.35
0.7
3 V to 3.6 V
0.8
V
VCCI × 0.3
1.65 V to 1.95 V
VCCA × 0.65
2.3 V to 2.7 V
1.7
3 V to 3.6 V
2
4.5 V to 5.5 V
VCCA × 0.7
Submit Document Feedback
V
V
2.3 V to 2.7 V
4.5 V to 5.5 V
VIH
UNIT
V
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.3 Recommended Operating Conditions (continued)
over operating free-air temperature range (unless otherwise noted)(1) (2) (3)
VCCI
VIL
Low-level
input voltage
VI
Input voltage
VO
Output voltage
DIR
(referenced to VCCA)(5)
VCCO
MIN
VCCA × 0.35
2.3 V to 2.7 V
0.7
3 V to 3.6 V
0.8
4.5 V to 5.5 V
High-level output current
IOL
Low-level output current
Δt/Δv
Data inputs
Input transition
rise or fall rate
Control input
TA
(1)
(2)
(3)
(4)
(5)
UNIT
V
VCCA × 0.3
0
5.5
V
0
VCCO
V
1.65 V to 1.95 V
IOH
MAX
1.65 V to 1.95 V
–4
2.3 V to 2.7 V
–8
3 V to 3.6 V
–24
4.5 V to 5.5 V
–32
1.65 V to 1.95 V
4
2.3 V to 2.7 V
8
3 V to 3.6 V
24
4.5 V to 5.5 V
32
1.65 V to 1.95 V
20
2.3 V to 2.7 V
20
3 V to 3.6 V
10
4.5 V to 5.5 V
5
1.65 V to 5.5 V
5
Operating free-air temperature
–40
mA
mA
ns/V
125
°C
VCCI is the VCC associated with the input port.
VCCO is the VCC associated with the output port.
All unused data inputs of the device must be held at VCCI or GND to ensure proper device operation. See Implications of Slow or
Floating CMOS Inputs, SCBA004.
For VCCI values not specified in the data sheet, VIH min = VCCI × 0.7 V, VIL max = VCCI × 0.3 V.
For VCCI values not specified in the data sheet, VIH min = VCCA × 0.7 V, VIL max = VCCA × 0.3 V.
6.4 Thermal Information
SN74LVC2T45
THERMAL METRIC(1)
DCU
DCT
YZP
UNIT
8 PINS
RθJA
Junction-to-ambient thermal resistance
246.4
195.3
105.8
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
95.4
106
1.6
°C/W
RθJB
Junction-to-board thermal resistance
157.8
110.8
10.8
°C/W
ψJT
Junction-to-top characterization parameter
37
38.3
3.1
°C/W
ψJB
Junction-to-board characterization parameter
156.9
109.3
10.8
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
5
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)(1) (2)
PARAMETER
TEST CONDITIONS
IOH = –100 μA
IOH = –8 mA
1.65 V to 4.5 V
1.65 V to 4.5 V
1.65 V
1.65 V
1.2
2.3 V
2.3 V
1.9
VI = VIH
DIR
A port
Ioff
B port
A or B
port
IOZ
ICCA
6
MAX
V
3V
2.4
3.8
IOL = 100 μA
1.65 V to 4.5 V
1.65 V to 4.5 V
0.1
1.65 V
1.65 V
0.45
VI = VIL
2.3 V
2.3 V
0.3
IOL = 24 mA
3V
3V
0.55
IOL = 32 mA
4.5 V
4.5 V
0.55
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±2
0V
0 to 5.5 V
±1
±2
0 to 5.5 V
0V
±1
±2
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±2
1.65 V to 5.5 V
1.65 V to 5.5 V
3
5V
0V
2
0V
5V
–2
1.65 V to 5.5 V
1.65 V to 5.5 V
3
5V
0V
–2
0V
5V
2
1.65 V to 5.5 V
1.65 V to 5.5 V
4
VI = VCCA or GND
VI or VO = 0 to 5.5 V
VO = VCCO or GND
A port
One A port at VCCA – 0.6 V,
DIR at VCCA,
B port = open
DIR
DIR at VCCA – 0.6 V,
B port = open,
A port at VCCA or GND
ΔICCB
B port
One B port at VCCB – 0.6 V,
DIR at GND, A port = open
CI
DIR
Cio
A or B
port
UNIT
VCCO – 0.1
4.5 V
ICCA + ICCB
V = VCCI or GND, IO = 0
(see Table 10-1) I
(1)
(2)
MIN
3V
VI = VCCI or GND, IO = 0
ΔICCA
MAX
4.5 V
VI = VCCI or GND, IO = 0
ICCB
TYP
IOH = –32 mA
IOL = 8 mA
II
MIN
IOH = –24 mA
IOL = 4 mA
VOL
–40°C to +85°C
VCCB
IOH = –4 mA
VOH
TA = 25°C
VCCA
V
µA
µA
µA
µA
µA
µA
50
3 V to 5.5 V
3 V to 5.5 V
µA
50
3 V to 5.5 V
3 V to 5.5 V
50
µA
VI = VCCA or GND
3.3 V
3.3 V
2.5
pF
VO = VCCA/B or GND
3.3 V
3.3 V
6
pF
VCCO is the VCC associated with the output port.
VCCI is the VCC associated with the input port.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.6 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)(1) (2)
PARAMETER
TEST CONDITIONS
IOH = –100 μA
IOH = –8 mA
1.65 V to 4.5 V
1.65 V to 4.5 V
1.65 V
1.65 V
1.2
2.3 V
2.3 V
1.9
VI = VIH
DIR
A port
Ioff
B port
A or B
port
IOZ
ICCA
MAX
V
3V
2.4
3.8
IOL = 100 μA
1.65 V to 4.5 V
1.65 V to 4.5 V
0.1
1.65 V
1.65 V
0.45
VI = VIL
2.3 V
2.3 V
0.3
IOL = 24 mA
3V
3V
0.55
IOL = 32 mA
4.5 V
4.5 V
0.55
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±2
0V
0 to 5.5 V
±1
±9
0 to 5.5 V
0V
±1
±9
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±9
1.65 V to 5.5 V
1.65 V to 5.5 V
4
5V
0V
2
0V
5V
–12
1.65 V to 5.5 V
1.65 V to 5.5 V
5V
0V
–12
0V
5V
2
1.65 V to 5.5 V
1.65 V to 5.5 V
4
VI = VCCA or GND
VI or VO = 0 to 5.5 V
VO = VCCO or GND
A port
One A port at VCCA – 0.6 V,
DIR at VCCA,
B port = open
DIR
DIR at VCCA – 0.6 V,
B port = open,
A port at VCCA or GND
ΔICCB
B port
One B port at VCCB – 0.6 V,
DIR at GND, A port = open
CI
DIR
Cio
A or B
port
UNIT
VCCO – 0.1
4.5 V
ICCA + ICCB
V = VCCI or GND, IO = 0
(see Table 10-1) I
(1)
(2)
MIN
3V
VI = VCCI or GND, IO = 0
ΔICCA
MAX
4.5 V
VI = VCCI or GND, IO = 0
ICCB
TYP
IOH = –32 mA
IOL = 8 mA
II
MIN
IOH = –24 mA
IOL = 4 mA
VOL
–40°C to +85°C
VCCB
IOH = –4 mA
VOH
TA = 25°C
VCCA
V
µA
µA
µA
µA
4
µA
µA
50
3 V to 5.5 V
3 V to 5.5 V
µA
50
3 V to 5.5 V
3 V to 5.5 V
50
µA
VI = VCCA or GND
3.3 V
3.3 V
2.5
pF
VO = VCCA/B or GND
3.3 V
3.3 V
6
pF
VCCO is the VCC associated with the output port.
VCCI is the VCC associated with the input port.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
7
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.7 Switching Characteristics: VCCA = 1.8 V ± 0.15 V
over recommended operating free-air temperature range, VCCA = 1.8 V ± 0.15 V (unless otherwise noted) (see Figure 7-1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL (1)
tPZH (1)
tPZL
(1)
(1)
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
VCCB = 1.8 V
±0.15 V
VCCB = 2.5 V
±0.2 V
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
3
17.7
2.2
10.3
1.7
8.3
1.4
7.2
2.8
14.3
2.2
8.5
1.8
7.1
1.7
7
3
17.7
2.3
16
2.1
15.5
1.9
15.1
2.8
14.3
2.1
12.9
2
12.6
1.8
12.2
5.5
30.9
5.5
30.5
5.5
30.5
5.5
29.3
4.3
19.7
4.2
19.6
4.1
19.5
4
19.4
6
27.9
5
14.9
5
11.3
4.1
8.6
5
19.5
3.9
12.6
4.3
9.7
2.1
7.1
37.2
28.6
25.2
22.2
42.2
27.8
23.9
20.8
37.4
29.9
27.8
26.6
45.2
39
37.6
36.3
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
6.8 Switching Characteristics: VCCA = 2.5 V ± 0.2 V
over recommended operating free-air temperature range, VCCA = 2.5 V ± 0.2 V (unless otherwise noted) (see Figure 7-1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL (1)
tPZH (1)
tPZL (1)
(1)
8
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
VCCB = 1.8 V
±0.15 V
MIN
VCCB = 2.5 V
±0.2 V
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MAX
MIN
MAX
MIN
MAX
MIN
MAX
2.3
16
1.5
8.5
1.3
6.4
1.1
5.1
2.1
12.9
1.4
7.5
1.3
5.4
0.9
4.6
2.2
10.3
1.5
8.5
1.4
8
1
7.5
2.2
8.5
1.4
7.5
1.3
7
0.9
6.2
4.2
17.1
4.2
16.8
4.1
16.8
4.1
16.5
3.2
12.6
3.2
12.5
3.2
12.3
3
12.3
6
27.9
4.7
13.9
4.7
10.5
3.5
7.6
4.2
18.9
3.6
11.2
3.6
8.9
1.4
6.2
29.2
19.7
16.9
13.7
36.4
21.4
17.5
13.8
28.6
21
18.7
17.4
30
24.3
22.2
21.1
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.9 Switching Characteristics: VCCA = 3.3 V ± 0.3 V
over recommended operating free-air temperature range, VCCA = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 7-1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL
(1)
tPZH (1)
tPZL
(1)
(1)
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
VCCB = 1.8 V
±0.15 V
VCCB = 2.5 V
±0.2 V
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
2.1
15.5
1.4
8
0.7
5.6
0.7
4.4
2
12.6
1.3
7
0.8
5
0.7
4
1.7
8.3
1.3
6.4
0.7
5.8
0.6
5.4
1.8
7.1
1.3
5.4
0.8
5
0.7
4.5
4.5
10.9
4.5
10.8
4.4
10.8
4.4
10.4
3.4
8.4
3.7
8.4
3.9
8.1
3.3
7.8
5.7
27.3
4.7
13.7
4.7
10.4
2.9
7.4
4.5
17.7
3.5
11.3
4.3
8.3
1
5.6
26
17.7
14.1
11
34.4
19.1
15.4
11.9
23.9
16.4
13.9
12.2
23.5
17.8
15.8
14.4
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
6.10 Switching Characteristics: VCCA = 5 V ± 0.5 V
over recommended operating free-air temperature range, VCCA = 5 V ± 0.5 V (unless otherwise noted) (see Figure 7-1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH (1)
tPZL
(1)
tPZH (1)
tPZL
(1)
(1)
FROM
(INPUT)
TO
(OUTPUT)
A
B
B
A
DIR
A
DIR
B
DIR
A
DIR
B
VCCB = 1.8 V
±0.15 V
VCCB = 2.5 V
±0.2 V
VCCB = 3.3 V
±0.3 V
VCCB = 5 V
±0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
1.9
15.1
1
7.5
0.6
5.4
0.5
3.9
1.8
12.2
0.9
6.2
0.7
4.5
0.5
3.5
1.4
7.2
1
5.1
0.7
4.4
0.5
3.9
1.7
7
0.9
4.6
0.7
4
0.5
3.5
2.9
8.2
2.9
7.9
2.8
7.9
2.2
7.8
1.4
6.9
1.3
6.7
0.7
6.7
0.7
6.6
5.8
26.1
4.4
13.9
4.4
10.1
1.3
7.3
4.7
16.9
3.3
11
4
7.7
1
5.6
24.1
16.1
12.1
9.5
33.1
18.5
14.1
10.8
22
14.2
12.1
10.5
20.4
14.1
12.4
11.3
ns
ns
ns
ns
ns
ns
The enable time is a calculated value, derived using the formula shown in the Enable Times section.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
9
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.11 Operating Characteristics
TA = 25°C
PARAMETER
CpdA (1)
CpdB (1)
(1)
10
A-port input,
B-port output
B-port input,
A-port output
A-port input,
B-port output
B-port input,
A-port output
TEST
CONDITIONS
CL = 0 pF,
f = 10 MHz,
tr = tf = 1 ns
VCCA =
VCCB = 1.8 V
VCCA =
VCCB = 2.5 V
VCCA =
VCCB = 3.3 V
VCCA =
VCCB = 5 V
TYP
TYP
TYP
TYP
3
4
4
4
18
19
20
21
18
19
20
21
3
4
4
4
UNIT
pF
CL = 0 pF,
f = 10 MHz,
tr = tf = 1 ns
pF
Power dissipation capacitance per transceiver.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.12 Typical Characteristics
10
10
9
9
8
8
VCCB = 1.8 V
VCCB = 1.8 V
7
6
VCCB = 2.5 V
5
6
t PLH− ns
t PHL − ns
7
VCCB = 2.5 V
5
VCCB = 3.3 V
4
4
VCCB = 5 V
3
VCCB = 3.3 V
3
VCCB = 5 V
2
2
1
1
0
0
0
5
10
15
20
25
30
0
35
5
10
15
20
25
30
35
CL − pF
CL − pF
Figure 6-1. Typical Propagation Delay of High-to-Low (A to B) vs Figure 6-2. Typical Propagation Delay of Low-to-High (A to B) vs
Load Capacitance TA = 25°C, VCCA = 1.8 V
Load Capacitance TA = 25°C, VCCA = 1.8 V
10
10
9
9
8
8
VCCB = 1.8 V
VCCB = 2.5 V
7
6
6
5
VCCB = 2.5 V
VCCB = 3.3 V
4
VCCB = 5 V
t PLH − ns
t PHL − ns
VCCB = 1.8 V
7
VCCB = 3.3 V
VCCB = 5 V
5
4
3
3
2
2
1
1
0
0
0
5
10
15
20
25
30
35
0
5
10
CL − pF
15
20
CL − pF
25
30
35
Figure 6-3. Typical Propagation Delay of High-to-Low (B to A) vs Figure 6-4. Typical Propagation Delay of Low-to-High (B to A) vs
Load Capacitance TA = 25°C, VCCA = 1.8 V
Load Capacitance TA = 25°C, VCCA = 1.8 V
10
10
9
9
7
7
VCCB = 1.8 V
6
t PLH − ns
t PHL − ns
VCCB = 1.8 V
8
8
5
6
5
VCCB = 2.5 V
4
4
VCCB = 3.3 V
3
3
VCCB = 5 V
VCCB = 2.5 V
VCCB = 3.3 V
2
2
VCCB = 5 V
1
1
0
0
0
5
10
15
20
25
30
35
0
CL − pF
5
10
15
20
25
30
35
CL − pF
Figure 6-5. Typical Propagation Delay of High-to-Low (A to B) vs Figure 6-6. Typical Propagation Delay of Low-to-High (A to B) vs
Load Capacitance TA = 25°C, VCCA = 2.5 V
Load Capacitance TA = 25°C, VCCA = 2.5 V
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
11
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.12 Typical Characteristics (continued)
10
9
9
8
8
7
7
t PHL − ns
10
t PLH − ns
6
VCCB = 1.8 V
5
4
6
VCCB = 1.8 V
5
4
3
VCCB = 3.3 V
VCCB = 5 V
2
VCCB = 2.5 V
VCCB = 3.3 V
3
VCCB = 2.5 V
VCCB = 5 V
2
1
1
0
0
5
10
15
20
CL − pF
25
30
0
35
0
5
10
15
20
25
30
35
CL − pF
Figure 6-7. Typical Propagation Delay of High-to-Low (B to A) vs Figure 6-8. Typical Propagation Delay of Low-to-High (B to A) vs
Load Capacitance TA = 25°C, VCCA = 2.5 V
Load Capacitance TA = 25°C, VCCA = 2.5 V
10
10
9
9
8
8
7
7
VCCB = 1.8 V
6
6
t PLH − ns
t PHL − ns
VCCB = 1.8 V
5
VCCB = 2.5 V
4
3
VCCB = 2.5 V
5
4
VCCB = 3.3 V
3
VCCB = 5 V
2
2
VCCB = 3.3 V
1
1
VCCB = 5 V
0
0
0
5
10
15
20
25
30
35
0
5
10
20
25
30
35
Figure 6-10. Typical Propagation Delay of Low-to-High (A to B)
vs Load Capacitance TA = 25°C, VCCA = 3.3 V
10
10
9
9
8
8
7
7
6
6
t PLH − ns
t PHL − ns
Figure 6-9. Typical Propagation Delay of High-to-Low (A to B) vs
Load Capacitance TA = 25°C, VCCA = 3.3 V
5
VCCB = 1.8 V
4
3
VCCB = 1.8 V
5
4
3
2
VCCB = 2.5 V
VCCB = 2.5 V
2
VCCB = 3.3 V
VCCB = 3.3 V
1
1
VCCB = 5 V
0
VCCB = 5 V
0
0
5
10
15
20
25
30
35
0
5
10
15
20
25
30
35
CL − pF
CL − pF
Figure 6-11. Typical Propagation Delay of High-to-Low (B to A)
vs Load Capacitance TA = 25°C, VCCA = 3.3 V
12
15
CL − pF
CL − pF
Figure 6-12. Typical Propagation Delay of Low-to-High (B to A)
vs Load Capacitance TA = 25°C, VCCA = 3.3 V
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
6.12 Typical Characteristics (continued)
10
10
9
9
8
8
7
7
VCCB = 1.8 V
VCCB = 1.8 V
t PLH − ns
t PHL − ns
6
5
4
6
5
VCCB = 2.5 V
4
VCCB = 2.5 V
VCCB = 3.3 V
3
3
VCCB = 5 V
2
2
VCCB = 3.3 V
1
0
1
VCCB = 5 V
0
0
5
10
15
20
25
30
35
0
5
10
CL − pF
9
8
8
7
7
6
6
t PLH − ns
9
t PHL− ns
10
5
3
VCCB = 2.5 V
25
30
35
Figure 6-14. Typical Propagation Delay of Low-to-High (A to B)
vs Load Capacitance TA = 25°C, VCCA = 5 V
10
4
20
CL − pF
Figure 6-13. Typical Propagation Delay of High-to-Low (A to B)
vs Load Capacitance TA = 25°C, VCCA = 5 V
VCCB = 1.8 V
15
5
VCCB = 1.8 V
4
VCCB = 2.5 V
3
2
2
VCCB = 3.3 V
VCCB = 3.3 V
VCCB = 5 V
1
VCCB = 5 V
1
0
0
0
5
10
15
20
25
30
35
0
CL − pF
5
10
15
20
25
30
35
CL − pF
Figure 6-15. Typical Propagation Delay of High-to-Low (B to A)
vs Load Capacitance TA = 25°C, VCCA = 5 V
Figure 6-16. Typical Propagation Delay of Low-to-High (B to A)
vs Load Capacitance TA = 25°C, VCCA = 5 V
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
13
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
7 Parameter Measurement Information
2 × VCCO
S1
RL
From Output
Under Test
Open
GND
CL
(see Note A)
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCCO
GND
RL
tw
LOAD CIRCUIT
VCCI
VCCI/2
Input
VCCO
CL
RL
VTP
1.8 V ± 0.15 V
2.5 V ± 0.2 V
3.3 V ± 0.3 V
5 V ± 0.5 V
15 pF
15 pF
15 pF
15 pF
2 kΩ
2 kΩ
2 kΩ
2 kΩ
0.15 V
0.15 V
0.3 V
0.3 V
VCCI/2
0V
VOLTAGE WAVEFORMS
PULSE DURATION
VCCA
Output
Control
(low-level
enabling)
VCCA/2
VCCA/2
0V
tPLZ
tPZL
VCCI
Input
VCCI/2
VCCI/2
0V
tPLH
tPHL
Output
VOH
VCCO/2
VOL
VCCO/2
VCCO
Output
Waveform 1
S1 at 2 × VCCO
(see Note B)
VCCO/2
VOL + VTP
VOL
tPHZ
tPZH
Output
Waveform 2
S1 at GND
(see Note B)
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCCO/2
VOH − VTP
VOH
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR v10 MHz, ZO = 50 Ω, dv/dt ≥ 1 V/ns.
D. The outputs are measured one at a time, with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
H. VCCI is the VCC associated with the input port.
I. VCCO is the VCC associated with the output port.
J. All parameters and waveforms are not applicable to all devices.
Figure 7-1. Load Circuit and Voltage Waveforms
14
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
8 Detailed Description
8.1 Overview
The SN74LVC2T45 is a dual-bit, dual-supply noninverting voltage level translation device. VCCA supports pin Ax
and the direction control pin, and VCCB supports pin Bx. The A port is able to accept I/O voltages ranging from
1.65 V to 5.5 V, while the B port can accept I/O voltages from 1.65 V to 5.5 V. The high on DIR allows data
transmission from A to B and a low on DIR allows data transmission from B to A.
8.2 Functional Block Diagram
DIR
5
2
A1
7
B1
3
A2
6
VCCA
B2
VCCB
Figure 8-1. Logic Diagram (Positive Logic)
8.3 Feature Description
8.3.1 Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.65-V to 5.5-V
Power-Supply Range
Both VCCA and VCCB can be supplied at any voltage between 1.65 V and 5.5 V making the device suitable for
translating between any of the voltage nodes (1.8-V, 2.5-V, 3.3-V, and 5-V).
8.3.2 Support High-Speed Translation
SN74LVC2T45 can support high data rate applications. The translated signal data rate can be up to 420 Mbps
when signal is translated from 3.3 V to 5 V.
8.3.3 Ioff Supports Partial-Power-Down Mode Operation
Ioff will prevent backflow current by disabling I/O output circuits when the device is in Partial-Power-Down mode.
The inputs and outputs for this device enter a high-impedance state when the device is powered down, inhibiting
current backflow into the device. The maximum leakage into or out of any input or output pin on the device is
specified by Ioff in the Electrical Characteristics.
8.3.4 Balanced High-Drive CMOS Push-Pull Outputs
A balanced output allows the device to sink and source similar currents. The high drive capability of this device
creates fast edges into light loads so impedance matching and load conditions should be considered to prevent
ringing. Additionally, the outputs of this device are capable of driving larger currents than the device can sustain
without being damaged. Two outputs can be connected together for a stronger output drive strength. The
electrical and thermal limits defined in the Absolute Maximum Ratings must be followed at all times.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
15
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
8.3.5 Vcc Isolation
The I/O's of both ports will enter a high-impedance state when either of the supplies are at GND, while the other
supply is still connected to the device. The maximum leakage into or out of any input or output pin on the device
is specified by Ioff in the Electrical Characteristics.
8.4 Device Functional Modes
Table 8-1 lists the functional modes of the SN74LVC2T45 device.
Table 8-1. Function Table (Each Transceiver)(1)
(1)
16
INPUT
DIR
OPERATION
L
B data to A bus
H
A data to B bus
Input circuits of the data I/Os always are active.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
9 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification,
and TI does not warrant its accuracy or completeness. TI’s customers are responsible for
determining suitability of components for their purposes, as well as validating and testing their design
implementation to confirm system functionality.
9.1 Application Information
The SN74LVC2T45 device can be used in level-translation applications for interfacing devices or systems
operating at different interface voltages with one another. The maximum data rate can be up to 420 Mbps when
the device translates signal from 3.3 V to 5 V. It is recommended to tie all unused I/Os to GND. The device
should not have any floating I/Os when changing translation direction.
9.2 Typical Applications
9.2.1 Unidirectional Logic Level-Shifting Application
Figure 9-1 shows an example of the SN74LVC2T45 being used in a unidirectional logic level-shifting application.
VCC2
VCC1
VCC1
VCC2
1
8
2
7
3
6
4
5
VCC2
VCC1
SYSTEM-1
SYSTEM-2
Figure 9-1. Unidirectional Logic Level-Shifting Application
9.2.1.1 Design Requirements
Table 9-1 lists the pins and pin descriptions of the SN74LVC2T45 connections with SYSTEM-1 and SYSTEM-2.
Table 9-1. SN74LVC2T45 Pin Connections With SYSTEM-1 and SYSTEM-2
PIN
NAME
FUNCTION
1
VCCA
VCC1
SYSTEM-1 supply voltage (1.65 V to 5.5 V)
DESCRIPTION
2
A1
OUT1
Output level depends on VCC1 voltage.
3
A2
OUT2
Output level depends on VCC1 voltage.
4
GND
GND
Device GND
5
DIR
DIR
GND (low level) determines B-port to A-port direction.
6
B2
IN2
Input threshold value depends on VCC2 voltage.
7
B1
IN1
Input threshold value depends on VCC2 voltage.
8
VCCB
VCC2
SYSTEM-2 supply voltage (1.65 V to 5.5 V)
For this design example, use the parameters listed in Table 9-2.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
17
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
Table 9-2. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
Input voltage range
1.65 V to 5.5 V
Output voltage range
1.65 V to 5.5 V
9.2.1.2 Detailed Design Procedure
To begin the design process, determine the following:
•
•
Input voltage range
– Use the supply voltage of the device that is driving the SN74LVC2T45 device to determine the input
voltage range. For a valid logic high, the value must exceed the VIH of the input port. For a valid logic low,
the value must be less than the VIL of the input port.
Output voltage range
– Use the supply voltage of the device that the SN74LVC2T45 device is driving to determine the output
voltage range.
9.2.1.3 Application Curve
18
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
9.2.2 Bidirectional Logic Level-Shifting Application
Figure 9-2 shows the SN74LVC2T45 being used in a bidirectional logic level-shifting application. Because the
SN74LVC2T45 does not have an output-enable (OE) pin, the system designer should take precautions to avoid
bus contention between SYSTEM-1 and SYSTEM-2 when changing directions.
VCC1
VCC1
VCC2
Pullup/Down
or Bus Hold(1)
Pullup/Down
or Bus Hold(1)
I/O-1
VCC2
1
8
2
7
3
6
4
5
I/O-2
DIR CTRL
SYSTEM-1
SYSTEM-2
Figure 9-2. Bidirectional Logic Level-Shifting Application
9.2.2.1 Design Requirements
Refer to Section 9.2.1.
9.2.2.2 Detailed Design Procedure
Table 9-3 provides data transmission from SYSTEM-1 to SYSTEM-2 and then from SYSTEM-2 to SYSTEM-1.
Table 9-3. Data Transmission Sequence
STATE
DIR CTRL
I/O-1
I/O-2
1
H
Out
In
2
H
Hi-Z
Hi-Z
SYSTEM-2 is getting ready to send data to SYSTEM-1. I/O-1 and I/O-2 are disabled. The
bus-line state depends on pullup or pulldown.(1)
3
L
Hi-Z
Hi-Z
DIR bit is flipped. I/O-1 and I/O-2 still are disabled. The bus-line state depends on pullup or
pulldown.(1)
4
L
In
Out
SYSTEM-2 data to SYSTEM-1
(1)
DESCRIPTION
SYSTEM-1 data to SYSTEM-2
SYSTEM-1 and SYSTEM-2 must use the same conditions, that is, both pullup or both pulldown.
9.2.2.2.1 Enable Times
Calculate the enable times for the SN74LVC2T45 using the following formulas:
•
•
•
•
tPZH (DIR to A) = tPLZ (DIR to B) + tPLH (B to A)
tPZL (DIR to A) = tPHZ (DIR to B) + tPHL (B to A)
tPZH (DIR to B) = tPLZ (DIR to A) + tPLH (A to B)
tPZL (DIR to B) = tPHZ (DIR to A) + tPHL (A to B)
In a bidirectional application, these enable times provide the maximum delay from the time the DIR bit is
switched until an output is expected. For example, if the SN74LVC2T45 initially is transmitting from A to B, then
the DIR bit is switched; the B port of the device must be disabled before presenting it with an input. After the
B port has been disabled, an input signal applied to it appears on the corresponding A port after the specified
propagation delay.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
19
SN74LVC2T45
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
www.ti.com
9.2.2.3 Application Curve
20
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: SN74LVC2T45
SN74LVC2T45
www.ti.com
SCES516L – DECEMBER 2003 – REVISED OCTOBER 2022
10 Power Supply Recommendations
10.1 Power-Up Considerations
A proper power-up sequence with inputs held at ground should be followed as listed:
1. Connect ground before any supply voltage is applied.
2. Power up VCCA.
3. VCCB can be ramped up along with or after VCCA.
The power supply can be any voltage between the minimum and maximum supply voltage rating located in
the Recommended Operating Conditions. The recommendation is to first power-up the input supply rail to help
avoid internal floating while the output supply rail ramps up. However, both power-supply rails can be ramped up
simultaneously.
Each VCC pin must have a good bypass capacitor to prevent power disturbance. For devices with a single
supply, 0.1 µF is recommended. If there are multiple VCC pins, 0.01 µF or 0.022 µF is recommended for each
power pin. It is acceptable to parallel multiple bypass capacitors to reject different frequencies of noise. 0.1-µF
and 1-µF capacitors are commonly used in parallel. The bypass capacitor must be installed as close to the
power pin as possible for best results.
Table 10-1. Typical Total Static Power Consumption (ICCA + ICCB)
VCCB
VCCA
0V
1.8 V
2.5 V
3.3 V
5V
0V
0
工商网监
湘ICP备2023018690号
