SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
SN74LVC8T245 8-Bit Dual-Supply Bus Transceiver With
Configurable Voltage Translation and 3-State Outputs
1 Features
3 Description
•
This 8-bit noninverting bus transceiver uses two
separate configurable power-supply rails. The
SN74LVC8T245 is optimized to operate with VCCA
and VCCB set at 1.65 V to 5.5 V. The A port is
designed to track VCCA. VCCA accepts any supply
voltage from 1.65 V to 5.5 V. The B port is designed
to track VCCB. VCCB accepts any supply voltage from
1.65 V to 5.5 V. This allows for universal low-voltage
bidirectional translation between any of the 1.8-V,
2.5-V, 3.3-V, and 5.5-V voltage nodes.
1
•
•
•
•
Control Inputs VIH/VIL Levels Are Referenced to
VCCA Voltage
VCC Isolation Feature – If Either VCC Input Is at
GND, All Are in the High-Impedance State
Fully Configurable Dual-Rail Design Allows Each
Port to Operate Over the Full 1.65-V to 5.5-V
Power-Supply Range
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
– 4000-V Human-Body Model (A114-A)
– 100-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
2 Applications
•
•
•
•
Personal Electronic
Industrial
Enterprise
Telecom
The SN74LVC8T245 is designed for asynchronous
communication between two data buses. The logic
levels of the direction-control (DIR) input and the
output-enable (OE) input activate either the B-port
outputs or the A-port outputs or place both output
ports into the high-impedance mode. The device
transmits data from the A bus to the B bus when the
B-port outputs are activated, and from the B bus to
the A bus when the A-port outputs are activated. The
input circuitry on both A and B ports is always active
and must have a logic HIGH or LOW level applied to
prevent excess ICC and ICCZ.
The SN74LVC8T245 is designed so that the control
pins (DIR and OE) are supplied by VCCA.
Device Information(1)
PART NUMBER
SN74LVC8T245
PACKAGE
BODY SIZE (NOM)
SSOP (24)
8.20 mm x 5.30 mm
SSOP (24)
8.65 mm x 3.90 mm
TSSOP (24)
7.80 mm x 4.40 mm
TVSOP (24)
5.00 mm x 4.40 mm
VQFN (24)
5.50 mm x 3.50 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
4 Logic Diagram (Positive Logic)
DIR
2
22
OE
A1
3
21
B1
To Seven Other Channels
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Logic Diagram (Positive Logic) ............................
Revision History.....................................................
Description (continued).........................................
Pin Configuration and Functions .........................
Specifications.........................................................
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
8.10
8.11
1
1
1
1
2
3
4
5
Absolute Maximum Ratings ..................................... 5
Handling Ratings ...................................................... 5
Recommended Operating Conditions ...................... 6
Thermal Information DB, DBQ and DGV .................. 7
Thermal Information PW and RHL............................ 7
Electrical Characteristics ......................................... 8
Switching Characteristics, VCCA = 1.8 V ± 0.15 V ... 9
Switching Characteristics, VCCA = 2.5 V ± 0.2 V ..... 9
Switching Characteristics, VCCA = 3.3 V ± 0.3 V ... 10
Switching Characteristics, VCCA = 5 V ± 0.5 V .... 10
Operating Characteristics .................................... 10
8.12 Typical Characteristics .......................................... 11
9 Parameter Measurement Information ................ 12
10 Detailed Description ........................................... 13
10.1
10.2
10.3
10.4
Overview ...............................................................
Functional Block Diagram .....................................
Feature Description...............................................
Device Functional Modes......................................
13
13
13
13
11 Application and Implementation........................ 14
11.1 Application Information.......................................... 14
11.2 Typical Application ............................................... 14
12 Power Supply Recommendations ..................... 15
13 Layout................................................................... 16
13.1 Layout Guidelines ................................................. 16
13.2 Layout Example .................................................... 16
14 Device and Documentation Support ................. 17
14.1 Trademarks ........................................................... 17
14.2 Electrostatic Discharge Caution ............................ 17
14.3 Glossary ................................................................ 17
15 Mechanical, Packaging, and Orderable
Information ........................................................... 17
5 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (June 2005) to Revision B
Page
•
Added the list of Application, Pin Functions table, Handling Rating table, Feature Description section, Device
Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout
section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information
section. .................................................................................................................................................................................. 1
•
Changed Feature From: 200-V Machine Model (A115-A) To: 100-V Machine Model (A115-A) ........................................... 1
Changes from Original (June 2005) to Revision A
•
2
Page
Changed the device From: Product Preview To: Production ................................................................................................. 1
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
6 Description (continued)
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,
preventing damaging current backflow through the device when it is powered down.
The VCC isolation feature ensures that if either VCC input is at GND, all outputs are in the high-impedance state.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
3
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
www.ti.com
7 Pin Configuration and Functions
24
2
23
3
22
4
21
5
20
6
19
7
18
8
17
9
16
10
15
11
14
12
13
VCCB
VCCB
OE
B1
B2
B3
B4
B5
B6
B7
B8
GND
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
VCCB
1
1
24
23 VCCB
22 OE
21 B1
2
3
4
6
20 B2
19 B3
7
8
18 B4
17 B5
9
10
16 B6
15 B7
5
14 B8
11
GND
12
13
GND
VCCA
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
GND
VCCA
RHL PACKAGE
(TOP VIEW)
DB, DBQ, DGV, OR PW PACKAGE
(TOP VIEW)
Pin Functions
PIN
NAME
NO.
I/O
DESCRIPTION
A1
3
I/O
Input/output A1. Referenced to VCCA.
A2
4
I/O
Input/output A2. Referenced to VCCA.
A3
5
I/O
Input/output A3. Referenced to VCCA.
A4
6
I/O
Input/output A4. Referenced to VCCA.
A5
7
I/O
Input/output A5. Referenced to VCCA.
A6
8
I/O
Input/output A6. Referenced to VCCA.
A7
9
I/O
Input/output A7. Referenced to VCCA.
A8
10
I/O
Input/output A8. Referenced to VCCA.
B1
21
I/O
Input/output B1. Referenced to VCCB.
B2
20
I/O
Input/output B2. Referenced to VCCB.
B3
19
I/O
Input/output B3. Referenced to VCCB.
B4
18
I/O
Input/output B4. Referenced to VCCB.
B5
17
I/O
Input/output B5. Referenced to VCCB.
B6
16
I/O
Input/output B6. Referenced to VCCB.
B7
15
I/O
Input/output B7. Referenced to VCCB.
B8
14
I/O
Input/output B8. Referenced to VCCB.
DIR
2
I
Direction-control signal.
GND
11, 12, 13
G
Ground
22
I
3-state output-mode enables. Pull OE high to place all outputs in 3-state mode. Referenced to
VCCA.
VCCA
1
P
A-port supply voltage. 1.65 V ≤ VCCA ≤ 5.5 V
VCCB
23, 24
P
B-port supply voltage. 1.65 V ≤ VCCA ≤ 5.5 V
OE
4
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
8 Specifications
8.1 Absolute Maximum Ratings (1)
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
–0.5
6.5
I/O ports (A port)
–0.5
6.5
I/O ports (B port)
–0.5
6.5
Control inputs
–0.5
6.5
A port
–0.5
6.5
B port
–0.5
6.5
A port
–0.5
VCCA + 0.5
B port
–0.5
VCCB + 0.5
Supply voltage range, VCCA, VCCB
Input voltage range (2)
VI
UNIT
V
V
VO
Voltage range applied to any output
in the high-impedance or power-off state (2)
VO
Voltage range applied to any output in the high or low state (2)
IIK
Input clamp current
VI < 0
–50
mA
IOK
Output clamp current
VO < 0
–50
mA
IO
Continuous output current
±50
mA
±100
mA
(3)
Continuous current through each VCCA, VCCB, and GND
(1)
(2)
(3)
V
V
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
The output positive-voltage rating may be exceeded up to 6.5 V maximum if the output current rating is observed.
8.2 Handling Ratings
MIN
MAX
UNIT
–65
150
°C
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
pins (1)
–4000
4000
Charged device model (CDM), per JEDEC specification
JESD22-C101, all pins (2)
–1000
1000
Tstg
Storage temperature range
V(ESD)
Electrostatic discharge
(1)
(2)
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
5
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
www.ti.com
8.3 Recommended Operating Conditions (1)
(2) (3) (4)
VCCI
VCCA
VCCB
VCCO
Supply voltage
1.65 V to 1.95 V
High-level
input voltage
VIH
MAX
5.5
1.65
5.5
1.7
3 V to 3.6 V
VCCI × 0.7
1.65 V to 1.95 V
VIL
Data inputs (5)
VCCI × 0.35
2.3 V to 2.7 V
0.7
3 V to 3.6 V
0.8
4.5 V to 5.5 V
High-level
input voltage
Control inputs
(referenced to VCCA) (6)
V
VCCI × 0.3
1.65 V to 1.95 V
VIH
V
V
2
4.5 V to 5.5 V
Low-level
input voltage
UNIT
VCCI × 0.65
2.3 V to 2.7 V
Data inputs (5)
MIN
1.65
VCCA × 0.65
2.3 V to 2.7 V
1.7
3 V to 3.6 V
V
2
4.5 V to 5.5 V
VCCA × 0.7
1.65 V to 1.95 V
VCCA × 0.35
2.3 V to 2.7 V
0.7
3 V to 3.6 V
0.8
VIL
Low-level
input voltage
Control inputs
(referenced to VCCA) (6)
VI
Input voltage
Control inputs
0
5.5
V
VI/O
Input/output
voltage
Active state
0
VCCO
V
3-State
0
5.5
V
4.5 V to 5.5 V
IOH
High-level output current
VCCA × 0.3
1.65 V to 1.95 V
–4
2.3 V to 2.7 V
–8
3 V to 3.6 V
–24
4.5 V to 5.5 V
–32
1.65 V to 1.95 V
IOL
Low-level output current
Δt/Δv
TA
(1)
(2)
(3)
(4)
(5)
(6)
6
Input transition
rise or fall rate
Data inputs
V
4
2.3 V to 2.7 V
8
3 V to 3.6 V
24
4.5 V to 5.5 V
32
1.65 V to 1.95 V
20
2.3 V to 2.7 V
20
3 V to 3.6 V
10
4.5 V to 5.5 V
5
Operating free-air temperature
mA
–40
85
mA
ns/V
°C
VCCI is the VCC associated with the data input port.
VCCO is the VCC associated with the output port.
All unused or driven (floating) data inputs (I/Os) of the device must be held at logic HIGH or LOW (preferably VCCI or GND) to ensure
proper device operation and minimize power. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature
number SCBA004.
All unused control inputs must be held at VCCA or GND to ensure proper device operation and minimize power comsumption.
For VCCI values not specified in the data sheet, VIH min = VCCI × 0.7 V, VIL max = VCCI × 0.3 V.
For VCCA values not specified in the data sheet, VIH min = VCCA × 0.7 V, VIL max = VCCA × 0.3 V.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
8.4 Thermal Information DB, DBQ and DGV
THERMAL METRIC (1)
DB
DBQ
DGV
24 PINS
24 PINS
24 PINS
RθJA
Junction-to-ambient thermal resistance
88.5
81.2
91.1
RθJC(top)
Junction-to-case (top) thermal resistance
48.7
44.8
23.7
RθJB
Junction-to-board thermal resistance
44.1
34.5
44.5
ψJT
Junction-to-top characterization parameter
12.8
9.5
0.6
ψJB
Junction-to-board characterization parameter
43.6
37.2
44.1
RθJC(bot)
Junction-to-case (bottom) thermal resistance
N/A
N/A
N/A
(1)
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
8.5 Thermal Information PW and RHL
THERMAL METRIC (1)
PW
RHL
24 PINS
24 PINS
RθJA
Junction-to-ambient thermal resistance
90.6
37.4
RθJC(top)
Junction-to-case (top) thermal resistance
27.6
38.1
RθJB
Junction-to-board thermal resistance
45.3
15.2
ψJT
Junction-to-top characterization parameter
1.3
0.7
ψJB
Junction-to-board characterization parameter
44.8
15.2
RθJC(bot)
Junction-to-case (bottom) thermal resistance
N/A
4.3
(1)
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
7
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
Electrical Characteristics (1)
8.6
www.ti.com
(2)
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
VOH
VOL
VCCA
VCCB
IOH = –100 μA,
TEST CONDITIONS
VI = VIH
1.65 V to 4.5 V
1.65 V to 4.5 V
IOH = –4 mA,
VI = VIH
1.65 V
1.65 V
1.2
IOH = –8 mA,
VI = VIH
2.3 V
2.3 V
1.9
IOH = –24 mA,
VI = VIH
3V
3V
2.4
IOH = –32 mA,
VI = VIH
4.5 V
4.5 V
3.8
IOL = 100 μA,
VI = VIL
1.65 V to 4.5 V
1.65 V to 4.5 V
0.1
IOL = 4 mA,
VI = VIL
1.65 V
1.65 V
0.45
IOL = 8 mA,
VI = VIL
2.3 V
2.3 V
0.3
IOL = 24 mA,
VI = VIL
3V
3V
0.55
IOL = 32 mA,
VI = VIL
4.5 V
4.5 V
0.55
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±2
0V
0 to 5.5 V
±1
±2
0 to 5.5 V
0V
±1
±2
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±2
1.65 V to 5.5 V
1.65 V to 5.5 V
15
5V
0V
15
0V
5V
–2
1.65 V to 5.5 V
1.65 V to 5.5 V
15
5V
0V
–2
0V
5V
15
1.65 V to 5.5 V
1.65 V to 5.5 V
25
II
DIR
Ioff
A or B
port
VI or VO = 0 to 5.5 V
IOZ
A or B
port
VO = VCCO or GND,
OE = VIH
ICCA
VI = VCCA or GND
VI = VCCI or GND,
ICCB
VI = VCCI or GND,
ICCA + ICCB
VI = VCCI or GND,
IO = 0
IO = 0
IO = 0
A port
One A port at VCCA – 0.6 V,
DIR at VCCA, B port = open
DIR
DIR at VCCA – 0.6 V,
B port = open,
A port at VCCA or GND
ΔICCB
B port
One B port at VCCB – 0.6 V,
DIR at GND, A port = open
Ci
Control
inputs
Cio
A or B
port
ΔICCA
(1)
(2)
8
MIN
TYP
MAX
MIN
MAX
UNIT
VCCO – 0.1
V
V
μA
μA
μA
μA
μA
μA
50
3 V to 5.5 V
μA
3 V to 5.5 V
50
3 V to 5.5 V
3 V to 5.5 V
VI = VCCA or GND
3.3 V
3.3 V
VO = VCCA/B or GND
3.3 V
3.3 V
50
μA
4
5
pF
8.5
10
pF
VCCO is the VCC associated with the output port.
VCCI is the VCC associated with the input port.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
8.7
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
Switching Characteristics, VCCA = 1.8 V ± 0.15 V
over recommended operating free-air temperature range, VCCA = 1.8 V ± 0.15 V (unless otherwise noted) (see Figure 3)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
8.8
VCCB = 1.8 V
± 0.15 V
FROM
(INPUT)
TO
(OUTPUT)
A
B
1.7
B
A
OE
MIN MAX
VCCB = 2.5 V
± 0.2 V
VCCB = 3.3 V
± 0.3 V
VCCB = 5 V
± 0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN MAX
21.9
1.3
9.2
1
7.4
0.8
7.1
ns
0.9
23.8
0.8
23.6
0.7
23.4
0.7
23.4
ns
A
1.5
29.6
1.5
29.4
1.5
29.3
1.4
29.2
ns
OE
B
2.4
32.2
1.9
13.1
1.7
12
1.3
10.3
ns
OE
A
0.4
24
0.4
23.8
0.4
23.7
0.4
23.7
ns
OE
B
1.8
32
1.5
16
1.2
12.6
0.9
10.8
ns
Switching Characteristics, VCCA = 2.5 V ± 0.2 V
over recommended operating free-air temperature range, VCCA = 2.5 V ± 0.2 V (unless otherwise noted) (see Figure 3)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
FROM
(INPUT)
TO
(OUTPUT)
A
VCCB = 1.8 V
± 0.15 V
VCCB = 2.5 V
± 0.2 V
VCCB = 3.3 V
± 0.3 V
VCCB = 5 V
± 0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
MIN MAX
B
1.5
21.4
1.2
9
0.8
6.2
0.6
4.8
ns
B
A
1.2
9.3
1
9.1
1
8.9
0.9
8.8
ns
OE
A
1.4
9
1.4
9
1.4
9
1.4
9
ns
OE
B
2.3
29.6
1.8
11
1.7
9.3
0.9
6.9
ns
OE
A
1
10.9
1
10.9
1
10.9
1
10.9
ns
OE
B
1.7
28.2
1.5
12.9
1.2
9.4
1
6.9
ns
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
9
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
8.9
www.ti.com
Switching Characteristics, VCCA = 3.3 V ± 0.3 V
over recommended operating free-air temperature range, VCCA = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 3)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
8.10
VCCB = 1.8 V
± 0.15 V
FROM
(INPUT)
TO
(OUTPUT)
A
B
1.5
B
A
OE
VCCB = 2.5 V
± 0.2 V
MIN MAX
VCCB = 3.3 V
± 0.3 V
VCCB = 5 V
± 0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN MAX
21.2
1.1
8.8
0.8
6.3
0.5
4.4
ns
0.8
7.2
0.8
6.2
0.7
6.1
0.6
6
ns
A
1.6
8.2
1.6
8.2
1.6
8.2
1.6
8.2
ns
OE
B
2.1
29
1.7
10.3
1.5
8.6
0.8
6.3
ns
OE
A
0.8
8.1
0.8
8.1
0.8
8.1
0.8
8.1
ns
OE
B
1.8
27.7
1.4
12.4
1.1
8.5
0.9
6.4
ns
Switching Characteristics, VCCA = 5 V ± 0.5 V
over recommended operating free-air temperature range, VCCA = 5 V ± 0.5 V (unless otherwise noted) (see Figure 3)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
8.11
FROM
(INPUT)
TO
(OUTPUT)
A
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
VCC = 3.3 V
± 0.3 V
VCC = 5 V
± 0.5 V
MIN MAX
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
B
1.5
21.4
1
8.8
0.7
6
0.4
4.2
ns
B
A
0.7
7
0.4
4.8
0.3
4.5
0.3
4.3
ns
OE
A
0.3
5.4
0.3
5.4
0.3
5.4
0.3
5.4
ns
OE
B
2
28.7
1.6
9.7
1.4
8
0.7
5.7
ns
OE
A
0.7
6.4
0.7
6.4
0.7
6.4
0.7
6.4
ns
OE
B
1.5
27.6
1.3
11.4
1
8.1
0.9
6
ns
Operating Characteristics
TA = 25°C
PARAMETER
CpdA
CpdB
(1)
10
(1)
A-port input, B-port output
B-port input, A-port output
(1)
TEST
CONDITIONS
A-port input, B-port output
CL = 0,
f = 10 MHz,
tr = tf = 1 ns
B-port input, A-port output
VCCA =
VCCB = 1.8 V
VCCA =
VCCB = 2.5 V
VCCA =
VCCB = 3.3 V
VCCA =
VCCB = 5 V
TYP
TYP
TYP
TYP
2
2
2
3
12
13
13
16
13
13
14
16
2
2
2
3
UNIT
pF
Power dissipation capacitance per transceiver
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
1.4
5.6
1.2
5.4
1.0
5.2
VOH Voltage (V)
VOL Voltage (V)
8.12 Typical Characteristics
0.8
0.6
0.4
4.8
4.6
o
-40 C
o
25 C
0.2
5.0
o
-40 C
o
25 C
4.4
o
o
85 C
85 C
4.2
0
0
20
40
60
80
100
0
-20
-40
-60
-80
IOL Current (mA)
IOH Current (mA)
Figure 1. Voltage vs Current
Figure 2. Voltage vs Current
-100
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
11
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
www.ti.com
9 Parameter Measurement Information
2 × VCCO
S1
RL
From Output
Under Test
Open
GND
CL
(see Note A)
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCCO
GND
RL
tw
LOAD CIRCUIT
VCCI
VCCI/2
Input
VCCO
CL
RL
VTP
1.8 V ± 0.15 V
2.5 V ± 0.2 V
3.3 V ± 0.3 V
5 V ± 0.5 V
15 pF
15 pF
15 pF
15 pF
2 kΩ
2 kΩ
2 kΩ
2 kΩ
0.15 V
0.15 V
0.3 V
0.3 V
VCCI/2
0V
VOLTAGE WAVEFORMS
PULSE DURATION
VCCA
Output
Control
(low-level
enabling)
VCCA/2
VCCA/2
0V
tPLZ
tPZL
VCCI
Input
VCCI/2
VCCI/2
0V
tPLH
Output
tPHL
VOH
VCCO/2
VOL
VCCO/2
VCCO
Output
Waveform 1
S1 at 2 × VCCO
(see Note B)
VCCO/2
VOL + VTP
VOL
tPHZ
tPZH
Output
Waveform 2
S1 at GND
(see Note B)
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCCO/2
VOH − VTP
VOH
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRRv10 MHz, ZO = 50 Ω, dv/dt ≥ 1 V/ns.
D. The outputs are measured one at a time, with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
H. VCCI is the VCC associated with the input port.
I. VCCO is the VCC associated with the output port.
J. All parameters and waveforms are not applicable to all devices.
Figure 3. Load Circuit and Voltage Waveforms
12
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
10 Detailed Description
10.1 Overview
The SN74LVC8T245 is an 8-bit, dual supply non-inverting voltage level translation. Pin Ax and direction control
pin are support by VCCA and pin Bx is support by VCCB. The A port is able to accept I/O voltages ranging from
1.65 V to 5.5 V, while the B port can accept I/O voltages from 1.65 V to 5.5 V. The high on DIR allows data
transmission from A to B and a low on DIR allows data transmission from B to A.
10.2 Functional Block Diagram
DIR
2
22
OE
A1
3
21
B1
To Seven Other Channels
Figure 4. Logic Diagram (Positive Logic)
10.3 Feature Description
10.3.1 Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.65-V to 5.5-V
Power-Supply Range
Both VCCA and VCCB can be supplied at any voltage between 1.65 V and 5.5 V making the device suitable for
translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5 V).
10.3.2 Ioff Supports Partial-Power-Down Mode Operation
Ioff prevents backflow current by disabling I/O output circuits when device is in partial-power-down mode.
10.4 Device Functional Modes
The SN74LVC8T245 is voltage level translator that can operate from 1.65 V to 5.5 V (VCCA) and 1.65 V to 5.5 V
(VCCB). The signal translation between 1.65 V and 5.5 V requires direction control and output enable control.
When OE is low and DIR is high, data transmission is from A to B. When OE is low and DIR is low, data
transmission is from B to A. When OE is high, both output ports will be high-impedance.
Table 1. Function Table (1)
(Each 8-Bit Section)
CONTROL INPUTS
(1)
OUTPUT CIRCUITS
OPERATION
OE
DIR
A PORT
B PORT
L
L
Enabled
Hi-Z
B data to A bus
L
H
Hi-Z
Enabled
A data to B bus
H
X
Hi-Z
Hi-Z
Isolation
Input circuits of the data I/Os are always active.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
13
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
www.ti.com
11 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
11.1 Application Information
The SN74LVC8T245 device can be used in level-translation applications for interfacing devices or systems
operating at different interface voltages with one another. The maximum output current can be up to 32 mA when
device is powered by 5 V.
11.2 Typical Application
1.8V
5V
0.1 F
0.1 F
VCCA
1 µF
VCCB
DIR
OE
1.8V
Controller
Data
GND
5V
System
SN74LVC8T245
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
Data
GND
GND
Figure 5. Typical Application Circuit
14
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
Typical Application (continued)
11.2.1 Design Requirements
For this design example, use the parameters listed in Table 2.
Table 2. Design Parameters
PARAMETERS
VALUES
Input voltage range
1.65 V to 5.5 V
Output voltage
1.65 V to 5.5 V
11.2.2 Detailed Design Procedure
To begin the design process, determine the following:
• Input voltage range
– Use the supply voltage of the device that is driving the SN74LVC8T245 device to determine the input
voltage range. For a valid logic high, the value must exceed the VIH of the input port. For a valid logic low,
the value must be less than the VIL of the input port.
• Output voltage range
– Use the supply voltage of the device that the SN74LVC8T245 device is driving to determine the output
voltage range.
11.2.3 Application Curve
Voltage (V)
Output (5 V)
Input (1.8 V)
Time (200 ns/div)
Figure 6. Translation Up (1.8 V to 5 V) at 2.5 MHz
12 Power Supply Recommendations
The SN74LVC8T245 device uses two separate configurable power-supply rails, VCCA and VCCB. VCCA accepts
any supply voltage from 1.65 V to 5.5 V and VCCB accepts any supply voltage from 1.65 V to 5.5 V. The A port
and B port are designed to track VCCA and VCCB respectively allowing for low-voltage bidirectional translation
between any of the 1.8-V, 2.5 -V, 3.3-V and 5-V voltage nodes.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
15
SN74LVC8T245
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
www.ti.com
13 Layout
13.1 Layout Guidelines
To
•
•
•
ensure reliability of the device, following common printed-circuit board layout guidelines is recommended.
Bypass capacitors should be used on power supplies.
Short trace lengths should be used to avoid excessive loading.
Placing pads on the signal paths for loading capacitors or pullup resistors helps adjust rise and fall times of
signals depending on the system requirements.
13.2 Layout Example
LEGEND
VIA to Power Plane
Polygonal Copper Pour
VIA to GND Plane (Inner Layer)
VCCB
VCCA
Bypass Capacitor
Bypass Capacitor
VCCA
1
VCCA
VCCB
16
2
DIR
VCCB
15
From
Controller
3
A1
OE
14
From
Controller
4
A2
B1
13
To
System
From
Controller
5
A3
B2
12
To
System
From
Controller
6
A4
B3
11
To
System
From
Controller
7
A5
B4
10
To
System
From
Controller
8
A6
B5
12
To
System
From
Controller
9
A7
B6
11
To
System
From
Controller
10
A8
B7
10
To
System
11
GND
B8
10
To
System
12
GND
GND
13
Keep OE high until VCCA and
VCCB are powered up
SN74LVC8T245
Figure 7. SN74LVC8T245 Layout
16
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
SN74LVC8T245
www.ti.com
SCES584B – JUNE 2005 – REVISED NOVEMBER 2014
14 Device and Documentation Support
14.1 Trademarks
All trademarks are the property of their respective owners.
14.2 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
14.3 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
15 Mechanical, Packaging, and Orderable Information
The following pages include mechanical packaging and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2005–2014, Texas Instruments Incorporated
Product Folder Links: SN74LVC8T245
17
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
74LVC8T245DBQRG4
ACTIVE
SSOP
DBQ
24
2500
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
LVC8T245
74LVC8T245RHLRG4
ACTIVE
VQFN
RHL
24
1000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
NH245
SN74LVC8T245DBQR
ACTIVE
SSOP
DBQ
24
2500
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
LVC8T245
SN74LVC8T245DBR
ACTIVE
SSOP
DB
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245DBRG4
ACTIVE
SSOP
DB
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245DGVR
ACTIVE
TVSOP
DGV
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245DGVRG4
ACTIVE
TVSOP
DGV
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245DWR
ACTIVE
SOIC
DW
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
LVC8T245
SN74LVC8T245DWRG4
ACTIVE
SOIC
DW
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
LVC8T245
SN74LVC8T245NSR
ACTIVE
SO
NS
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
LVC8T245
SN74LVC8T245PW
ACTIVE
TSSOP
PW
24
60
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245PWG4
ACTIVE
TSSOP
PW
24
60
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245

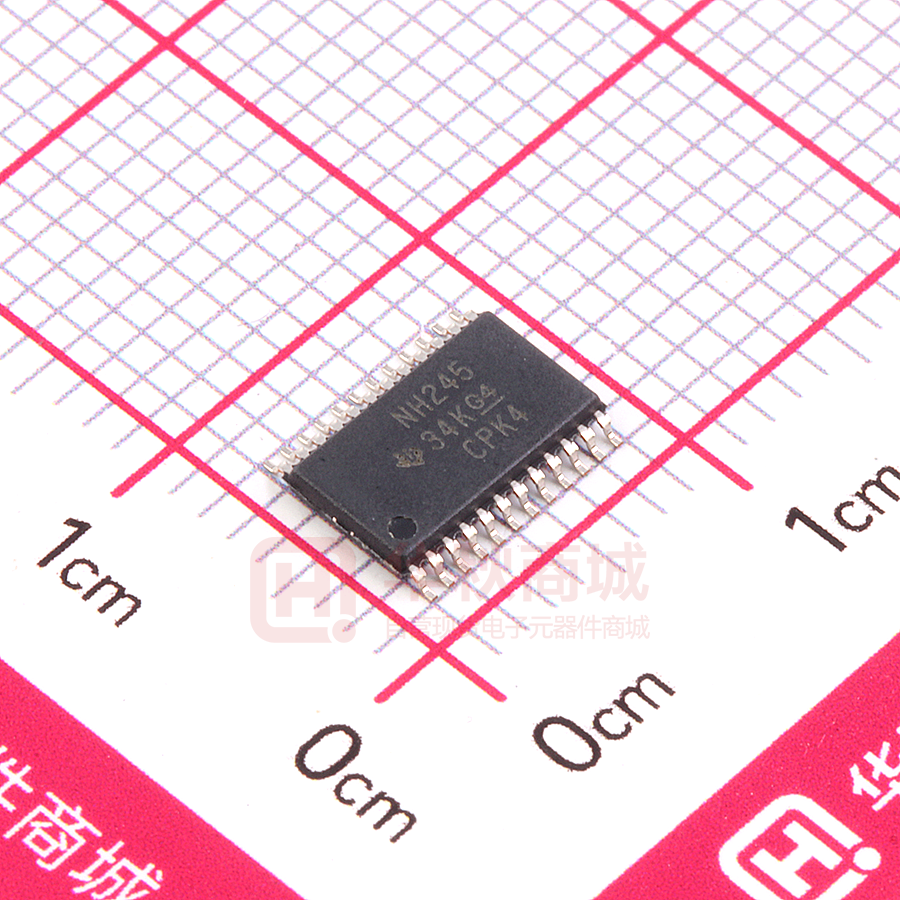

SN74LVC8T245PWR
ACTIVE
TSSOP
PW
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245PWRE4
ACTIVE
TSSOP
PW
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245PWRG4
ACTIVE
TSSOP
PW
24
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
NH245
SN74LVC8T245RHLR
ACTIVE
VQFN
RHL
24
1000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
NH245
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
