SN74LVC8T245-Q1
www.ti.com
SCES815 – SEPTEMBER 2010
8-BIT DUAL-SUPPLY BUS TRANSCEIVER
WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
Check for Samples: SN74LVC8T245-Q1
FEATURES
DESCRIPTION
•
•
This 8-bit non-inverting bus transceiver uses two
separate configurable power-supply rails. The
SN74LVC8T245-Q1 is optimized to operate with VCCA
and VCCB set at 1.65 V to 5.5 V. The A port is
designed to track VCCA. VCCA accepts any supply
voltage from 1.65 V to 5.5 V. The B port is designed
to track VCCB. VCCB accepts any supply voltage from
1.65 V to 5.5 V. This allows for universal low-voltage
bidirectional translation between any of the 1.8-V,
2.5-V, 3.3-V, and 5.5-V voltage nodes.
1
•
•
Qualified for Automotive Applications
Control Inputs VIH/VIL Levels Are Referenced to
VCCA Voltage
VCC Isolation Feature – If Either VCC Input Is at
GND, All Are in the High-Impedance State
Fully Configurable Dual-Rail Design Allows
Each Port to Operate Over the Full 1.65-V to
5.5-V Power-Supply Range
PW PACKAGE
(TOP VIEW)
The
SN74LVC8T245-Q1
is
designed
for
asynchronous communication between two data
buses. The logic levels of the direction-control (DIR)
input and the output-enable (OE) input activate either
the B-port outputs or the A-port outputs or place both
output ports into the high-impedance mode. The
device transmits data from the A bus to the B bus
when the B-port outputs are activated, and from the B
bus to the A bus when the A-port outputs are
activated. The input circuitry on both A and B ports is
always active and must have a logic HIGH or LOW
level applied to prevent excess ICC and ICCZ.
The SN74LVC8T245-Q1 is designed so that the
control pins (DIR and OE) are supplied by VCCA.
This device is fully specified for partial-power-down
applications using Ioff. The Ioff circuitry disables the
outputs, preventing damaging current backflow
through the device when it is powered down.
The VCC isolation feature ensures that if either VCC
input is at GND, all outputs are in the high-impedance
state.
To ensure the high-impedance state during power up
or power down, OE should be tied to VCC through a
pullup resistor; the minimum value of the resistor is
determined by the current-sinking capability of the
driver.
ORDERING INFORMATION (1)
PACKAGE (2)
TA
–40°C to 125°C
(1)
(2)
TSSOP – PW
Reel of 2000
ORDERABLE PART NUMBER
SN74LVC8T245QPWRQ1

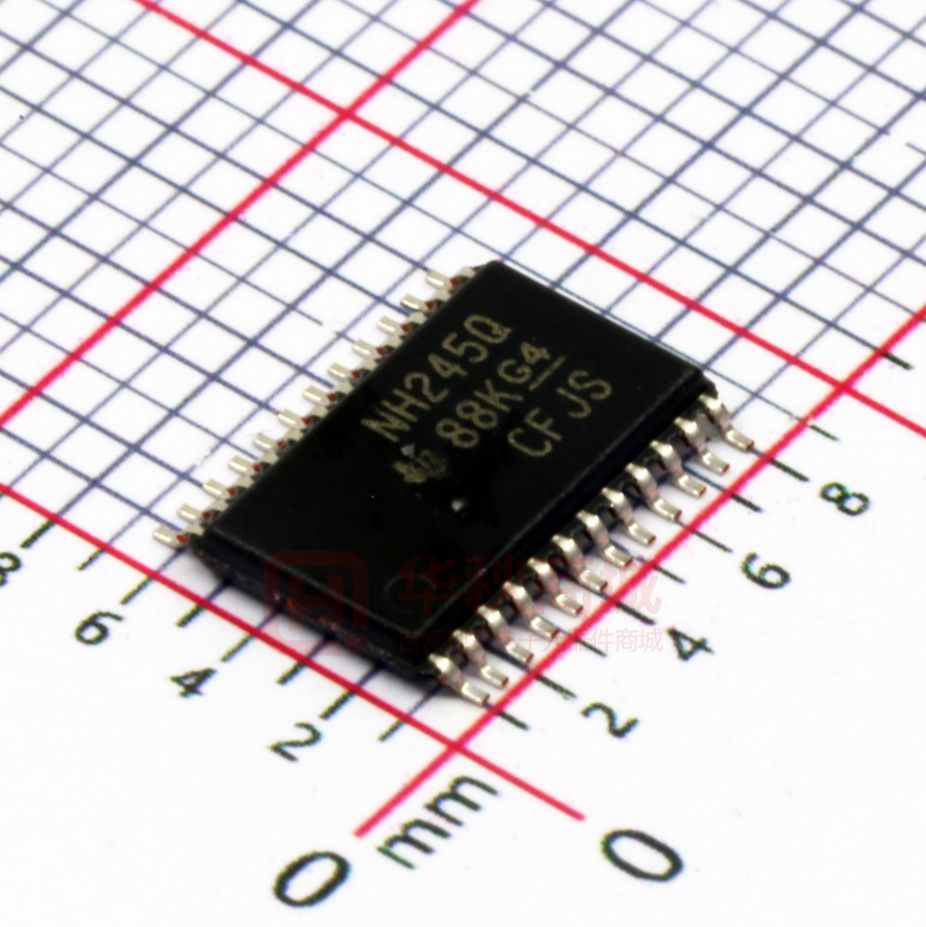

TOP-SIDE MARKING
NH245Q
For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
website at www.ti.com.
Package drawings, thermal data, and symbolization are available at www.ti.com//packaging.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright © 2010, Texas Instruments Incorporated
SN74LVC8T245-Q1
SCES815 – SEPTEMBER 2010
www.ti.com
FUNCTION TABLE (1)
(EACH 8-BIT SECTION)
CONTROL INPUTS
(1)
OUTPUT CIRCUITS
OPERATION
OE
DIR
A PORT
B PORT
L
L
Enabled
Hi-Z
B data to A bus
L
H
Hi-Z
Enabled
A data to B bus
H
X
Hi-Z
Hi-Z
Isolation
Input circuits of the data I/Os are always active.
LOGIC DIAGRAM (POSITIVE LOGIC)
DIR
2
22
OE
A1
3
21
B1
To Seven Other Channels
ABSOLUTE MAXIMUM RATINGS (1)
over operating free-air temperature range (unless otherwise noted)
VCCA
VCCB
Supply voltage range
VI
Input voltage range (2)
MIN
MAX
–0.5
6.5
I/O ports (A port)
–0.5
6.5
I/O ports (B port)
–0.5
6.5
Control inputs
–0.5
6.5
A port
–0.5
6.5
B port
–0.5
6.5
A port
–0.5 VCCA + 0.5
B port
–0.5 VCCB + 0.5
UNIT
V
V
VO
Voltage range applied to any output
in the high-impedance or power-off state (2)
VO
Voltage range applied to any output in the high or low state (2)
IIK
Input clamp current
VI < 0
–50
mA
IOK
Output clamp current
VO < 0
–50
mA
IO
Continuous output current
±50
mA
(3)
Continuous current through each VCCA, VCCB, and GND
qJA
Package thermal impedance (4)
Tstg
Storage temperature range
(1)
(2)
(3)
(4)
2
±100
PW package
–65
V
V
mA
88
°C/W
150
°C
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
The output positive-voltage rating may be exceeded up to 6.5 V maximum if the output current rating is observed.
The package thermal impedance is calculated in accordance with JESD 51-7.
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
Product Folder Link(s): SN74LVC8T245-Q1
SN74LVC8T245-Q1
www.ti.com
SCES815 – SEPTEMBER 2010
RECOMMENDED OPERATING CONDITIONS (1)
(2) (3) (4)
VCCI
VCCA
VCCB
VCCO
Supply voltage
1.65 V to 1.95 V
High-level
input voltage
VIH
MAX
5.5
1.65
5.5
1.7
3 V to 3.6 V
VCCI × 0.7
1.65 V to 1.95 V
VIL
Data inputs (5)
VCCI × 0.35
2.3 V to 2.7 V
0.7
3 V to 3.6 V
0.8
4.5 V to 5.5 V
High-level
input voltage
Control inputs
(referenced to VCCA) (6)
VCCA ×
0.65
2.3 V to 2.7 V
1.7
3 V to 3.6 V
4.5 V to 5.5 V
Low-level
input voltage
Control inputs
(referenced to VCCA) (6)
VCCA × 0.7
VCCA ×
0.35
2.3 V to 2.7 V
0.7
3 V to 3.6 V
0.8
4.5 V to 5.5 V
VI
VI/O
Input voltage
Control inputs
0
5.5
V
Input/output
voltage
Active state
0
VCCO
V
3-State
0
5.5
V
High-level output current
–4
2.3 V to 2.7 V
–8
3 V to 3.6 V
–24
4.5 V to 5.5 V
–32
1.65 V to 1.95 V
IOL
Low-level output current
Δt/Δv
Input transition
rise or fall rate
TA
Operating free-air temperature
Data inputs
(4)
(5)
(6)
mA
4
2.3 V to 2.7 V
8
3 V to 3.6 V
24
4.5 V to 5.5 V
32
1.65 V to 1.95 V
20
2.3 V to 2.7 V
20
3 V to 3.6 V
10
4.5 V to 5.5 V
(1)
(2)
(3)
V
VCCA × 0.3
1.65 V to 1.95 V
IOH
V
2
1.65 V to 1.95 V
VIL
V
VCCI × 0.3
1.65 V to 1.95 V
VIH
V
V
2
4.5 V to 5.5 V
Low-level
input voltage
UNIT
VCCI × 0.65
2.3 V to 2.7 V
Data inputs (5)
MIN
1.65
mA
ns/V
5
–40
125
°C
VCCI is the VCC associated with the data input port.
VCCO is the VCC associated with the output port.
All unused or driven (floating) data inputs (I/Os) of the device must be held at logic HIGH or LOW (preferably VCCI or GND) to ensure
proper device operation and minimize power. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature
number SCBA004.
All unused control inputs must be held at VCCA or GND to ensure proper device operation and minimize power comsumption.
For VCCI values not specified in the data sheet, VIH min = VCCI × 0.7 V, VIL max = VCCI × 0.3 V.
For VCCA values not specified in the data sheet, VIH min = VCCA × 0.7 V, VIL max = VCCA × 0.3 V.
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
Product Folder Link(s): SN74LVC8T245-Q1
3
SN74LVC8T245-Q1
SCES815 – SEPTEMBER 2010
www.ti.com
ELECTRICAL CHARACTERISTICS (1)
(2) (3)
over recommended operating free-air temperature range (unless otherwise noted)
TA = 25°C
PARAMETER
TEST CONDITIONS
VCCA
MIN
VOH
VOL
II
DIR
TYP MAX
UNIT
MIN MAX
IOH = –100 mA,
VI = VIH
1.65 V to 4.5 V
1.65 V to 4.5 V
IOH = –4 mA,
VI = VIH
1.65 V
1.65 V
1.2
IOH = –8 mA,
VI = VIH
2.3 V
2.3 V
1.9
IOH = –24 mA,
VI = VIH
3V
3V
2.4
IOH = –32 mA,
VI = VIH
4.5 V
4.5 V
3.8
IOL = 100 mA,
VI = VIL
1.65 V to 4.5 V
1.65 V to 4.5 V
0.1
IOL = 4 mA,
VI = VIL
1.65 V
1.65 V
0.45
IOL = 8 mA,
VI = VIL
2.3 V
2.3 V
0.3
IOL = 24 mA,
VI = VIL
3V
3V
0.55
IOL = 32 mA,
VI = VIL
4.5 V
4.5 V
0.55
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±2
0V
0 to 5.5 V
±2
±11
0 to 5.5 V
0V
±2
±11
1.65 V to 5.5 V
1.65 V to 5.5 V
±1
±6
1.65 V to 5.5 V
1.65 V to 5.5 V
5V
0V
20
0V
5V
–10
VI = VCCA or GND
Ioff
A or B
port
VI or VO = 0 to 5.5 V
IOZ
A or B
port
VO = VCCO or GND,
OE = VIH
ICCA
TA = -40°C to
125°C
VCCB
VI = VCCI or GND,
IO = 0
VCCO – 0.1
V
1.65 V to 5.5 V
1.65 V to 5.5 V
20
VI = VCCI or GND,
IO = 0
5V
0V
–10
0V
5V
20
ICCA + ICCB
VI = VCCI or GND,
IO = 0
1.65 V to 5.5 V
1.65 V to 5.5 V
40
A port
DIR
DIR at VCCA – 0.6 V,
B port = open,
A port at VCCA or GND
ΔICCB
B port
One B port at VCCB – 0.6 V,
DIR at GND, A port = open
Ci
Control
inputs
Cio
A or B
port
ΔICCA
(1)
(2)
(3)
4
mA
mA
mA
20
ICCB
One A port at VCCA – 0.6 V,
DIR at VCCA, B port = open
V
mA
mA
mA
50
3 V to 5.5 V
3 V to 5.5 V
mA
50
3 V to 5.5 V
3 V to 5.5 V
VI = VCCA or GND
3.3 V
3.3 V
VO = VCCA/B or GND
3.3 V
3.3 V
50
mA
4
5
pF
8.5
10
pF
VCCO is the VCC associated with the output port.
VCCI is the VCC associated with the input port.
All unused control inputs must be held at VCCA or GND to ensure proper device operation and minimize power comsumption.
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
Product Folder Link(s): SN74LVC8T245-Q1
SN74LVC8T245-Q1
www.ti.com
SCES815 – SEPTEMBER 2010
SWITCHING CHARACTERISTICS
over recommended operating free-air temperature range, VCCA = 1.8 V ± 0.15 V (unless otherwise noted) (see Figure 1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
VCCB = 1.8 V
± 0.15 V
FROM
(INPUT)
TO
(OUTPUT)
A
B
1.7
B
A
OE
MIN MAX
VCCB = 2.5 V
± 0.2 V
VCCB = 3.3 V
± 0.3 V
VCCB = 5 V
± 0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN MAX
25.9
1.3
13.2
1
11.4
0.8
11.1
ns
0.9
28.8
0.8
27.6
0.7
27.4
0.7
27.4
ns
A
1.5
33.6
1.5
33.4
1.5
33.3
1.4
33.2
ns
OE
B
2.4
36.2
1.9
17.1
1.7
16
1.3
14.3
ns
OE
A
0.4
28
0.4
27.8
0.4
27.7
0.4
27.7
ns
OE
B
1.8
40
1.5
20
1.2
16.6
0.9
14.8
ns
SWITCHING CHARACTERISTICS
over recommended operating free-air temperature range, VCCA = 2.5 V ± 0.2 V (unless otherwise noted) (see Figure 1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
FROM
(INPUT)
TO
(OUTPUT)
A
VCCB = 1.8 V
± 0.15 V
VCCB = 2.5 V
± 0.2 V
VCCB = 3.3 V
± 0.3 V
VCCB = 5 V
± 0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
MIN MAX
B
1.5
25.4
1.2
13
0.8
10.2
0.6
8.8
ns
B
A
1.2
13.3
1
13.1
1
12.9
0.9
12.8
ns
OE
A
1.4
13
1.4
13
1.4
13
1.4
13
ns
OE
B
2.3
33.6
1.8
15
1.7
14.3
0.9
10.9
ns
OE
A
1
17.2
1
17.3
1
17.2
1
17.3
ns
OE
B
1.7
32.2
1.5
18.1
1.2
14.1
1
11.2
ns
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
Product Folder Link(s): SN74LVC8T245-Q1
5
SN74LVC8T245-Q1
SCES815 – SEPTEMBER 2010
www.ti.com
SWITCHING CHARACTERISTICS
over recommended operating free-air temperature range, VCCA = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
VCCB = 1.8 V
± 0.15 V
FROM
(INPUT)
TO
(OUTPUT)
A
B
1.5
B
A
OE
VCCB = 2.5 V
± 0.2 V
MIN MAX
VCCB = 3.3 V
± 0.3 V
VCCB = 5 V
± 0.5 V
UNIT
MIN
MAX
MIN
MAX
MIN MAX
25.2
1.1
12.8
0.8
10.3
0.5
10.4
ns
0.8
11.2
0.8
10.2
0.7
10.1
0.6
10
ns
A
1.6
12.2
1.6
12.2
1.6
12.2
1.6
12.2
ns
OE
B
2.1
33
1.7
14.3
1.5
12.6
0.8
10.3
ns
OE
A
0.8
14.1
0.8
13.6
0.8
13.2
0.8
13.6
ns
OE
B
1.8
31.7
1.4
18.4
1.1
12.9
0.9
10.9
ns
SWITCHING CHARACTERISTICS
over recommended operating free-air temperature range, VCCA = 5 V ± 0.5 V (unless otherwise noted) (see Figure 1)
PARAMETER
tPLH
tPHL
tPLH
tPHL
tPHZ
tPLZ
tPHZ
tPLZ
tPZH
tPZL
tPZH
tPZL
FROM
(INPUT)
TO
(OUTPUT)
A
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
VCC = 3.3 V
± 0.3 V
VCC = 5 V
± 0.5 V
MIN MAX
UNIT
MIN
MAX
MIN
MAX
MIN
MAX
B
1.5
25.4
1
12.8
0.7
10
0.4
8.2
ns
B
A
0.7
11
0.4
8.8
0.3
8.5
0.3
8.3
ns
OE
A
0.3
9.4
0.3
9.4
0.3
9.4
0.3
9.4
ns
OE
B
2
32.7
1.6
13.7
1.4
12
0.7
9.7
ns
OE
A
0.7
10.9
0.7
10.9
0.7
10.9
0.7
10.9
ns
OE
B
1.5
31.6
1.3
18.4
1
13.7
0.9
10.7
ns
OPERATING CHARACTERISTICS
TA = 25°C
PARAMETER
CpdA
(1)
CpdB
(1)
(1)
6
TEST
CONDITIONS
A-port input, B-port output
B-port input, A-port output
A-port input, B-port output
CL = 0,
f = 10 MHz,
tr = tf = 1 ns
B-port input, A-port output
VCCA =
VCCB = 1.8 V
VCCA =
VCCB = 2.5 V
VCCA =
VCCB = 3.3 V
VCCA =
VCCB = 5 V
TYP
TYP
TYP
TYP
2
2
2
3
12
13
13
16
13
13
14
16
2
2
2
3
UNIT
pF
Power dissipation capacitance per transceiver
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
Product Folder Link(s): SN74LVC8T245-Q1
SN74LVC8T245-Q1
www.ti.com
SCES815 – SEPTEMBER 2010
PARAMETER MEASUREMENT INFORMATION
2 × VCCO
S1
RL
From Output
Under Test
Open
GND
CL
(see Note A)
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCCO
GND
RL
tw
LOAD CIRCUIT
VCCI
VCCI/2
Input
VCCO
CL
RL
VTP
1.8 V ± 0.15 V
2.5 V ± 0.2 V
3.3 V ± 0.3 V
5 V ± 0.5 V
15 pF
15 pF
15 pF
15 pF
2 kΩ
2 kΩ
2 kΩ
2 kΩ
0.15 V
0.15 V
0.3 V
0.3 V
VCCI/2
0V
VOLTAGE WAVEFORMS
PULSE DURATION
VCCA
Output
Control
(low-level
enabling)
VCCA/2
VCCA/2
0V
tPLZ
tPZL
VCCI
Input
VCCI/2
VCCI/2
0V
tPLH
Output
tPHL
VOH
VCCO/2
VOL
VCCO/2
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCCO
Output
Waveform 1
S1 at 2 × VCCO
(see Note B)
VCCO/2
VOL + VTP
VOL
tPHZ
tPZH
Output
Waveform 2
S1 at GND
(see Note B)
VCCO/2
VOH − VTP
VOH
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRRv10 MHz, ZO = 50 Ω, dv/dt ≥ 1 V/ns.
D. The outputs are measured one at a time, with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
H. VCCI is the VCC associated with the input port.
I. VCCO is the VCC associated with the output port.
J. All parameters and waveforms are not applicable to all devices.
Figure 1. Load Circuit and Voltage Waveforms
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
Product Folder Link(s): SN74LVC8T245-Q1
7
PACKAGE OPTION ADDENDUM
www.ti.com
11-Apr-2013
PACKAGING INFORMATION
Orderable Device
Status
(1)
SN74LVC8T245QPWRQ1
ACTIVE
Package Type Package Pins Package
Drawing
Qty
TSSOP
PW
24
2000
Eco Plan
Lead/Ball Finish
(2)
Green (RoHS
& no Sb/Br)
MSL Peak Temp
Op Temp (°C)
Top-Side Markings
(3)
CU NIPDAU
Level-1-260C-UNLIM
(4)
-40 to 125
NH245Q
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4)
Multiple Top-Side Markings will be inside parentheses. Only one Top-Side Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a
continuation of the previous line and the two combined represent the entire Top-Side Marking for that device.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF SN74LVC8T245-Q1 :
• Catalog: SN74LVC8T245
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
11-Apr-2013
• Enhanced Product: SN74LVC8T245-EP
NOTE: Qualified Version Definitions:
• Catalog - TI's standard catalog product
• Enhanced Product - Supports Defense, Aerospace and Medical Applications
Addendum-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
12-Sep-2013
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SN74LVC8T245QPWRQ1 TSSOP
PW
24
SPQ
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
2000
330.0
16.4
Pack Materials-Page 1
6.95
B0
(mm)
K0
(mm)
P1
(mm)
8.3
1.6
8.0
W
Pin1
(mm) Quadrant
16.0
Q1
PACKAGE MATERIALS INFORMATION
www.ti.com
12-Sep-2013
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
SN74LVC8T245QPWRQ1
TSSOP
PW
24
2000
367.0
367.0
38.0
Pack Materials-Page 2
PACKAGE OUTLINE
PW0024A
TSSOP - 1.2 mm max height
SCALE 2.000
SMALL OUTLINE PACKAGE
SEATING
PLANE
C
6.6
TYP
6.2
A
0.1 C
PIN 1 INDEX AREA
22X 0.65
24
1
2X
7.15
7.9
7.7
NOTE 3
12
13
B
0.30
0.19
0.1
C A B
24X
4.5
4.3
NOTE 4
1.2 MAX
0.25
GAGE PLANE
0.15
0.05
(0.15) TYP
SEE DETAIL A
0 -8
0.75
0.50
DETAIL A
A 20
TYPICAL
4220208/A 02/2017
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.15 mm per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side.
5. Reference JEDEC registration MO-153.
www.ti.com
EXAMPLE BOARD LAYOUT
PW0024A
TSSOP - 1.2 mm max height
SMALL OUTLINE PACKAGE
SYMM
24X (1.5)
(R0.05) TYP
1
24
24X (0.45)
22X (0.65)
SYMM
13
12
(5.8)
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE: 10X
SOLDER MASK
OPENING
SOLDER MASK
OPENING
METAL UNDER
SOLDER MASK
METAL
EXPOSED METAL
EXPOSED METAL
0.05 MAX
ALL AROUND
NON-SOLDER MASK
DEFINED
(PREFERRED)
0.05 MIN
ALL AROUND
SOLDER MASK
DEFINED
SOLDER MASK DETAILS
15.000
4220208/A 02/2017
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
www.ti.com
EXAMPLE STENCIL DESIGN
PW0024A
TSSOP - 1.2 mm max height
SMALL OUTLINE PACKAGE
24X (1.5)
SYMM
(R0.05) TYP
1
24
24X (0.45)
22X (0.65)
SYMM
12
13
(5.8)
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE: 10X
4220208/A 02/2017
NOTES: (continued)
8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
9. Board assembly site may have different recommendations for stencil design.
www.ti.com
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you
permission to use these resources only for development of an application that uses the TI products described in the resource. Other
reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third
party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,
damages, costs, losses, and liabilities arising out of your use of these resources.
TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on
ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable
warranties or warranty disclaimers for TI products.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2019, Texas Instruments Incorporated
