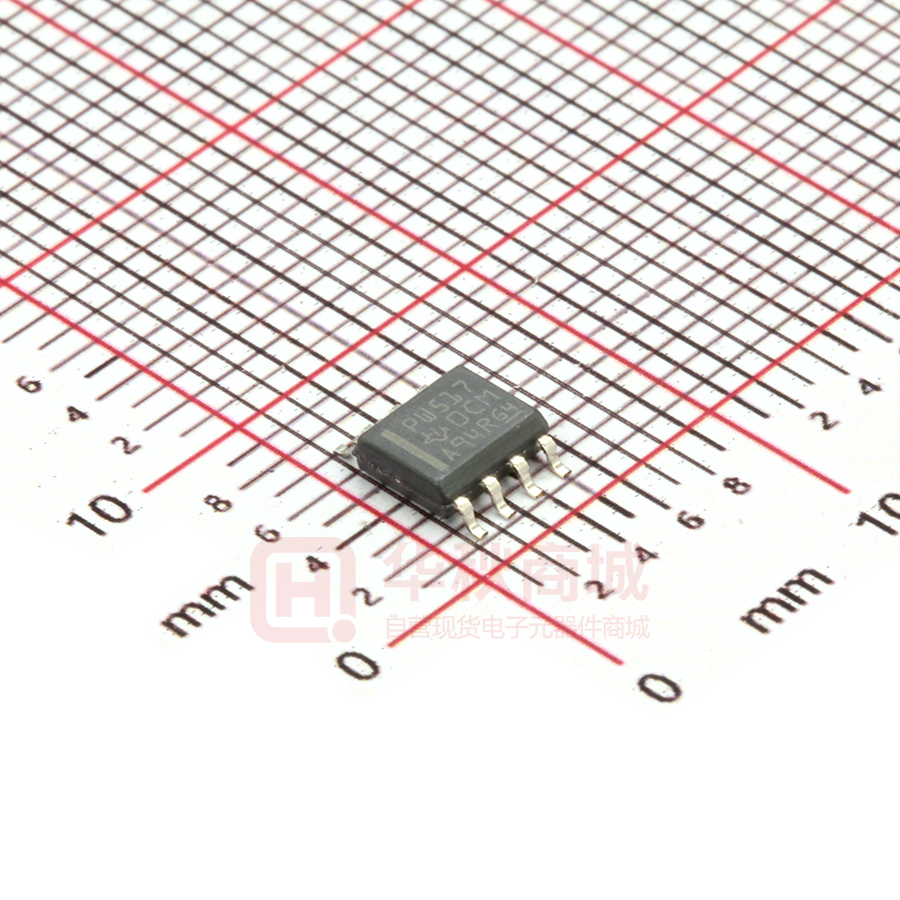

TCA9517DR

TCA9517DR

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    SOIC8_150MIL

  • 描述:

    电平移位I2C总线中继器

  • 数据手册
  • 价格&库存
TCA9517DR 数据手册
Order Now Product Folder Support & Community Tools & Software Technical Documents TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 TCA9517 Level-Shifting I2C Bus Repeater 1 Features 2 Applications • • • • • • • 1 • • • • • • • • • • Two-Channel Bidirectional Buffer I2C Bus and SMBus Compatible Operating Supply Voltage Range of 0.9 V to 5.5 V on A-side Operating Supply Voltage Range of 2.7 V to 5.5 V on B-side Voltage-Level Translation From 0.9 V - 5.5 V to 2.7 V - 5.5 V Footprint and Functional Replacement for PCA9515B Active-High Repeater-Enable Input Open-Drain I2C I/O 5.5-V Tolerant I2C and Enable Input Support Mixed-Mode Signal Operation Accommodates Standard Mode and Fast Mode I2C Devices and Multiple Masters High-Impedance I2C Pins When Powered-Off Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II ESD Protection Exceeds JESD 22 – 5500 V Human-Body Model (A114-A) – 200 V Machine Model (A115-A) – 1000 V Charged-Device Model (C101) Servers Routers (Telecom Switching Equipment) Industrial Equipment Products with Many I2C Slaves and/or Long PCB Traces 3 Description The TCA9517 is a bidirectional buffer with level shifting capabilities for I2C and SMBus systems. It provides bidirectional voltage-level translation (uptranslation/down-translation) between low voltages (down to 0.9 V) and higher voltages (2.7 V to 5.5 V) in mixed-mode applications. This device enables I2C and SMBus systems to be extended without degradation of performance, even during level shifting. The TCA9517 buffers both the serial data (SDA) and the serial clock (SCL) signals on the I2C bus, thus allowing two buses of up to 400-pF bus capacitance to be connected in an I2C application. The TCA9517 has two types of drivers: A-side drivers and B-side drivers. All inputs and I/Os are overvoltage tolerant to 5.5 V, even when the device is unpowered (VCCB and/or VCCA = 0 V). Device Information(1) PART NUMBER TCA9517 PACKAGE BODY SIZE (NOM) VSSOP (8) 3.00 mm × 3.00 mm SOIC (8) 4.90 mm x 3.91 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. Simplified Schematic 1 8 VCCA VCCB 3 SDAA SDAB 2 SCLA 5 EN 6 2 I C or SMBus Master (e.g. Processor) I2C Slave Devices TCA9517 SCLB 7 GND 4 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 9 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Description (continued)......................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 4 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 4 5 5 5 6 6 7 8 Absolute Maximum Ratings ..................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Timing Requirements ................................................ I2C Interface Switching Characteristics..................... Typical Characteristics .............................................. Parameter Measurement Information .................. 9 Detailed Description ............................................ 10 9.1 9.2 9.3 9.4 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ 10 10 11 11 10 Application and Implementation........................ 12 10.1 Application Information.......................................... 12 10.2 Typical Application ............................................... 12 11 Power Supply Recommendations ..................... 15 12 Layout................................................................... 16 12.1 Layout Guidelines ................................................. 16 12.2 Layout Example .................................................... 16 13 Device and Documentation Support ................. 17 13.1 13.2 13.3 13.4 Community Resource............................................ Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 17 17 17 17 14 Mechanical, Packaging, and Orderable Information ........................................................... 17 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision C (June 2015) to Revision D • Page Deleted VCCA < VCCB from the Design Requirements list ..................................................................................................... 12 Changes from Revision B (May 2013) to Revision C Page • Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1 • Removed Ordering Information table. .................................................................................................................................... 3 Changes from Revision A (April 2013) to Revision B • Page Updated the TOP-SIDE MARKING column of the ORDERING INFORMATION TABLE. ..................................................... 1 Changes from Original (December 2012) to Revision A Page • Added D package to document. ............................................................................................................................................. 1 • Updated the TOP-SIDE MARKING column of the ORDERING INFORMATION TABLE. ..................................................... 1 2 Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 5 Description (continued) The type of buffer design on the B-side prevents it from being used in series with devices which use static voltage offset. This is because these devices do not recognize buffered low signals as a valid low and do not propagate it as a buffered low again. The B-side drivers operate from 2.7 V to 5.5 V. The output low level for this internal buffer is approximately 0.5 V, but the input voltage must be 70 mV or more below the output low level when the output internally is driven low. The higher-voltage low signal is called a buffered low. When the B-side I/O is driven low internally, the low is not recognized as a low by the input. This feature prevents a lockup condition from occurring when the input low condition is released. The A-side drivers operate from 0.9 V to 5.5 V and drive more current. They do not require the buffered low feature (or the static offset voltage). This means that a low signal on the B-side translates to a nearly 0 V low on the A-side, which accommodates smaller voltage swings of lower-voltage logic. The output pulldown on the Aside drives a hard low, and the input level is set at 0.3 × VCCA to accommodate the need for a lower low level in systems where the low-voltage-side supply voltage is as low as 0.9 V. The A-side of two or more TCA9517 s can be connected together, allowing many topographies (See Figure 8 and Figure 9 ), with the A-side as the common bus. Also, the A-side can be connected directly to any other buffer with static- or dynamic-offset voltage. Multiple TCA9517 s can be connected in series, A-side to B-side, with no buildup in offset voltage and with only time-of-flight delays to consider. The TCA9517 cannot be connected Bside to B-side, because of the buffered low voltage from the B-side. The B-side cannot be connected to a device with rise time accelerators. VCCA is only used to provide the 0.3 × VCCA reference to the A-side input comparators and for the power-gooddetect circuit. The TCA9517 logic and all I/Os are powered by the VCCB pin. As with the standard I2C system, pullup resistors are required to provide the logic-high levels on the buffered bus. The TCA9517 has standard open-drain configuration of the I2C bus. The size of these pullup resistors depends on the system, but each side of the repeater must have a pullup resistor. The device is designed to work with Standard mode and Fast mode I2C devices in addition to SMBus devices. Standard mode I2C devices only specify 3 mA in a generic I2C system, where Standard mode devices and multiple masters are possible. Under certain conditions, higher termination currents can be used. Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 3 TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com 6 Pin Configuration and Functions D Packages 8-Pin SOIC Top View VCCA SCLA 1 2 DGK Package 8-Pin VSSOP Top View 8 7 VCCB SCLB SDAA 3 6 SDAB GND 4 5 EN VCCA 1 8 SCLA 2 7 SCLB SDAA 3 6 SDAB GND 4 5 EN VCCB Pin Functions PIN TYPE DESCRIPTION NO. NAME 1 VCCA Supply 2 SCLA Input/Output Serial clock bus, A-side. Connect to VCCA through a pull-up resistor. If unused, connect directly to ground. 3 SDAA Input/Output Serial data bus, A-side. Connect to VCCA through a pull-up resistor. If unused, connect directly to ground. 4 GND Ground 5 EN Input 6 SDAB Input/Output Serial data bus, B-side. Connect to VCCB through a pull-up resistor. If unused, connect directly to ground. 7 SCLB Input/Output Serial clock bus, B-side. Connect to VCCB through a pull-up resistor. If unused, connect directly to ground. 8 VCCB Supply A-side supply voltage (0.9 V to 5.5 V) Ground Active-high repeater enable input B-side and device supply voltage (2.7 V to 5.5 V) 7 Specifications 7.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) MIN MAX UNIT VCCB Supply voltage range –0.5 7 V VCCA Supply voltage range –0.5 7 V –0.5 7 V –0.5 7 V (2) VI Enable input voltage range VI/O I2C bus voltage range (2) IIK Input clamp current VI < 0 –50 IOK Output clamp current VO < 0 –50 IO Tstg (1) (2) 4 mA Continuous output current ±50 mA Continuous current through VCC or GND ±100 mA 150 °C Storage temperature range –65 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed. Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 7.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±5500 Charged-device model (CDM), per JEDEC specification JESD22C101 (2) ±1000 Machine model (A115-A) ±200 UNIT V JEDEC document JEP155 states that 500 V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250 V CDM allows safe manufacturing with a standard ESD control process. 7.3 Recommended Operating Conditions VCCA Supply voltage, A-side bus VCCB Supply voltage, B-side bus VIH High-level input voltage VIL Low-level input voltage IOL Low-level output current TA Operating free-air temperature (1) (2) MIN MAX 0.9 (1) 5.5 V V 2.7 5.5 SDAA, SCLA 0.7 × VCCA 5.5 SDAB, SCLB 0.7 × VCCB 5.5 EN 0.7 × VCCB UNIT V 5.5 SDAA, SCLA 0.3 × VCCA SDAB, SCLB (2) 0.3 × VCCB EN 0.3 × VCCB –40 V 6 mA 85 °C Low-level supply voltage VIL specification is for the first low level seen by the SDAB and SCLB lines. VILc is for the second and subsequent low levels seen by the SDAB and SCLB lines. See VILC and Pullup Resistor Sizing for VILC application information 7.4 Thermal Information TCA9517 THERMAL METRIC (1) DGK (VSSOP) D (SOIC) 8 PINS 8 PINS UNIT RθJA Junction-to-ambient thermal resistance 187.6 133.6 °C/W RθJC(top) Junction-to-case (top) thermal resistance 59.3 87.6 °C/W RθJB Junction-to-board thermal resistance 108.6 74.2 °C/W ψJT Junction-to-top characterization parameter 3.4 36.9 °C/W ψJB Junction-to-board characterization parameter 106.9 73.7 °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 5 TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com 7.5 Electrical Characteristics VCCB = 2.7 V to 5.5 V, GND = 0 V, TA = –40°C to 85°C (unless otherwise noted) PARAMETER VIK TEST CONDITIONS Input clamp voltage Low-level output voltage VOL II = –18 mA 2.7 V to 5.5 V SDAB, SCLB IOL = 100 μA or 6 mA, VILA = VILB = 0 V 2.7 V to 5.5 V SDAA, SCLA IOL = 6 mA SDAB, SCLB ensured by design VOL – VILc Low-level input voltage below low-level output voltage VILC SDA and SCL low-level SDAB, SCLB input voltage contention ICC VCCB 0.45 TYP II Input leakage current SDAA, SCLA 0.1 0.2 2.7 V to 5.5 V 0.4 V 1 5.5 V 1.5 5 1.5 5 3 5 IOH CI CIO High-level output leakage current Input capacitance Input/output capacitance VI = VCCB ±1 VI = 0.2 V 10 VI = VCCB VI = 0.2 V ±1 2.7 V to 5.5 V 10 SDAA, SCLA VO = 3.6 V EN VI = 3 V or 0 V SCLA, SCLB VI = 3 V or 0 V mA mA μA ±1 VI = 0.2 V SDAB, SCLB V mV VI = VCCB EN V 0.6 In contention, SDAA = SCLA = GND and SDAB = SCLB = GND SDAB, SCLB –1.2 70 Both channels low, SDAA = SCLA = GND and SDAB = SCLB = open Quiescent supply current UNIT 0.52 Both channels low, SDAA = SCLA = GND and SDAB = SCLB = open, or SDAA = SCLA = open and SDAB = SCLB = GND Quiescent supply current for VCCA MAX 2.7 V to 5.5 V Both channels high, SDAA = SCLA = VCCA and SDAB = SCLB = VCCB and EN = VCCB ICC MIN –10 10 2.7 V to 5.5 V SDAA, SDAB VI = 3 V or 0 V –30 10 3.3 V 6 10 3.3 V 8 13 0V 7 11 3.3 V 8 13 0V 7 11 μA pF pF 7.6 Timing Requirements over recommended operating free-air temperature range (unless otherwise noted) MIN tsu th (1) 6 Setup time, EN high before Start condition (1) Hold time, EN high after Stop condition (1) MAX UNIT 100 ns 100 ns EN should change state only when the global bus and the repeater port are in an idle state. Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 7.7 I2C Interface Switching Characteristics VCCB = 2.7 V to 5.5 V, GND = 0 V, TA = –40°C to 85°C (unless otherwise noted) (1) PARAMETER tPLZ Propagation delay FROM (INPUT) TO (OUTPUT) SDAB, SCLB (4) (see Figure 6) SDAA, SCLA (4) (see Figure 6) 80 141 250 SDAA, SCLA (5) (see Figure 5) SDAB, SCLB (5) (see Figure 5) 25 74 110 VCCA ≤ 2.7 V (see Figure 4) 30 76 (6) 110 VCCA ≥ 3 V (see Figure 4) 10 86 230 60 107 230 VCCA ≤ 2.7 V (see Figure 5) 10 12 15 VCCA ≥ 3 V (see Figure 5) 40 42 45 110 125 140 VCCA ≤ 2.7 V (see Figure 5) 1 52 (6) 105 VCCA ≥ 3 V (see Figure 5) 20 67 175 30 48 90 SDAB, SCLB tPZL TEST CONDITIONS SDAA, SCLA Propagation delay (5) SDAA, SCLA (see Figure 5) Transition time 80% SDAB, SCLB (see Figure 5) 20% B-side to A side Transition time 80% 20% A side to B-side (see Figure 4) (1) (2) (3) (4) (5) (6) TYP (3) MAX UNIT ns A side to B-side (see Figure 4) tTHL MIN ns (5) B-side to A side tTLH (2) ns ns Times are specified with loads of 1.35-kΩ pull-up resistance and 50-pF load capacitance on the B-side and 167-Ω pull-up and 57-pF load capacitance on the A side. Different load resistance and capacitance alter the RC time constant, thereby changing the propagation delay and transition times. pull-up voltages are VCCA on the A side and VCCB on the B-side. Typical values were measured with VCCA = VCCB = 3.3 V at TA = 25°C, unless otherwise noted. The tPLH delay data from B to A side is measured at 0.4 V on the B-side to 0.5 VCCA on the A side when VCCA is less than 2 V, and 1.5 V on the A side if VCCA is greater than 2 V. The proportional delay data from A to B-side is measured at 0.3 VCCA on the A side to 1.5 V on the B-side. Typical value measured with VCCA = 2.7 V at TA = 25°C Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 7 TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com 7.8 Typical Characteristics VCCA = 0.9 V, VCCB = 2.7 V 0.54 0.15 -40C 25C 85C -40C 25C 85C 0.125 0.53 Port B VOL (V) Port A VOL (V) 0.1 0.075 0.52 0.51 0.05 0.5 0.025 0 0.49 0 1 2 3 4 Port A IOL (mA) 5 6 0 D001 Figure 1. Port A VOL vs IOL 8 1 2 3 4 Port B IOL (mA) 5 6 D002 Figure 2. Port B VOL vs IOL Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 8 Parameter Measurement Information VCC VIN RL (see Note A) VOUT PULSE GENERATOR VCC S1 DUT GND CL = 57 pF (see Note C) RT (see Note B) TEST S1 tPLZ/tPZL VCC TEST CIRCUIT FOR OPEN-DRAIN OUTPUT Copyright © 2017, Texas Instruments Incorporated A. RL = 167 Ω (0.9 V to 2.7 V) and RL = 450 Ω (3.0 V to 5.5 V) on the A side and 1.35 kΩ on the B-side B. RT termination resistance should be equal to ZOUT of pulse generators. C. CL includes probe and jig capacitance. D. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, slew rate ≥ 1 V/ns. E. The outputs are measured one at a time, with one transition per measurement. F. tPLH and tPHL are the same as tpd. G. tPLZ and tPHZ are the same as tdis. H. tPZL and tPZH are the same as ten. Figure 3. Test Circuit 3V INPUT 1.5 V VCCA 1.5 V VCCA INPUT 0.3 VCCA 0.3 VCCA 0.1 V tPZL tPLZ 80% OUTPUT tPZL tPLZ 1.2 V 80% 0.6 V 20% 0.6 V 20% tTHL 3V 80% OUTPUT 1.5 V 20% VOL 80% 1.5 V 20% tTLH Figure 4. Waveform 1 – Propagation Delay and Transition Times for B-side to A-side Figure 5. Waveform 2 – Propagation Delay and Transition Times for A-side to B-side INPUT SDAB, SCLB 0.4 V 50% is VCCA is less than 2 V 1.5 V if VCCA is greater than 2 V OUTPUT SCLA, SDAA tPLH Figure 6. Waveform 3 – Propagation Delay for B-side to A-side Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 9 TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com 9 Detailed Description 9.1 Overview The TCA9517 is a bidirectional buffer with level shifting capabilities for I2C and SMBus systems. It provides bidirectional voltage-level translation (up-translation/down-translation) between low voltages (down to 0.9 V) and higher voltages (2.7 V to 5.5 V) in mixed-mode applications. This device enables I2C and SMBus systems to be extended without degradation of performance, even during level shifting. The TCA9517 buffers both the serial data (SDA) and the serial clock (SCL) signals on the I2C bus, thus allowing two buses of up to 400-pF bus capacitance to be connected in an I2C application. The TCA9517 has two types of drivers: A-side drivers and B-side drivers. All inputs and I/Os are over-voltage tolerant to 5.5 V, even when the device is unpowered (VCCB and/or VCCA = 0 V). 9.2 Functional Block Diagram VCCA VCCB 1 8 6 3 SDAA SDAB 7 2 SCLA SCLB VCCB 5 Pullup Resistor EN 4 GND 10 Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 9.3 Feature Description 9.3.1 Two-Channel Bidirectional Buffer The TCA9517 is a two-channel bidirectional buffer with level-shifting capabilities 9.3.2 Active-High Repeater-Enable Input The TCA9517 has an active-high enable (EN) input with an internal pull-up to VCCB, which allows the user to select when the repeater is active. This can be used to isolate a badly behaved slave on power-up reset. The EN input should change state only when the global bus and repeater port are in an idle state, to prevent system failures. 9.3.3 VOL B-Side Offset Voltage The B-side drivers operate from 2.7 V to 5.5 V. The output low level for this internal buffer is approximately 0.5 V, but the input voltage must be 70 mV or more below the output low level when the output internally is driven low. The higher-voltage low signal is called a buffered low. When the B-side I/O is driven low internally, the low is not recognized as a low by the input. This feature prevents a lockup condition from occurring when the input low condition is released. This type of design prevents 2 B-side ports from being connected to each other. 9.3.4 Standard Mode and Fast Mode Support The TCA9517 supports standard mode as well as fast mode I2C. The maximum system operating frequency will depend on system design and the delays added by the repeater. 9.3.5 Clock Stretching Support The TCA9517 can support clock stretching, but care needs to be taken to minimize the overshoot voltage presented during the hand-off between the slave and master. This is best done by increasing the pull-up resistor value. 9.4 Device Functional Modes Table 1. Function Table INPUT EN FUNCTION L Outputs disabled H SDAA = SDAB SCLA = SCLB Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 11 TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com 10 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 10.1 Application Information A typical application is shown in Figure 7. In this example, the system master is running on a 3.3 V I2C bus, and the slave is connected to a 1.2 V I2C bus. Both buses run at 400 kHz. Master devices can be placed on either bus. The TCA9517 is 5-V tolerant, so it does not require any additional circuitry to translate between 0.9 V to 5.5 V bus voltages and 2.7 V to 5.5 V bus voltages. When the A side of the TCA9517 is pulled low by a driver on the I2C bus, a comparator detects the falling edge when it goes below 0.3 × VCCA and causes the internal driver on the B-side to turn on, causing the B-side to pull down to about 0.5 V. When the B-side of the TCA9517 falls, first a CMOS hysteresis-type input detects the falling edge and causes the internal driver on the A side to turn on and pull the A-side pin down to ground. In order to illustrate what would be seen in a typical application, refer to Figure 9 and Figure 10. If the bus master in Figure 7 were to write to the slave through the TCA9517 , waveforms shown in Figure 9 would be observed on the A bus. This looks like a normal I2C transmission, except that the high level may be as low as 0.9 V, and the turn on and turn off of the acknowledge signals are slightly delayed. On the B-side bus of the TCA9517 , the clock and data lines would have a positive offset from ground equal to the VOL of the TCA9517 . After the eighth clock pulse, the data line is pulled to the VOL of the slave device, which is very close to ground in this example. At the end of the acknowledge, the level rises only to the low level set by the driver in the TCA9517 for a short delay, while the A-bus side rises above 0.3 × VCCA and then continues high. 10.2 Typical Application 1.2 V 3.3 V 10 kW BUS MASTER 400 kHz 10 kW VCCB 10 kW VCCA 10 kW SDA SDAB SDAA SDA SCL SCLB SCLA TCA9517 SCL SLAVE 400 kHz EN BUS B BUS A Figure 7. Typical Application Schematic 10.2.1 Design Requirements For the level translating application, the following should be true: • VCCA = 0.9 V to 5.5 V • VCCB = 2.7 to 5.5 V • B-side ports must not be connected together 12 Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 Typical Application (continued) 10.2.2 Detailed Design Procedure 10.2.2.1 Clock Stretching Support The TCA9517 can support clock stretching, but care needs to be taken to minimize the overshoot voltage presented during the hand-off between the slave and master. This is best done by increasing the pull-up resistor value. 10.2.2.2 VILC and Pullup Resistor Sizing For the TCA9517 to function correctly, all devices on the B-side must be able to pull the B-side below the voltage input low contention level (VILC). This means that the VOL of any device on the B-side must be below 0.4 V. VOL of a device can be adjusted by changing the IOL through the device which is set by the pull-up resistance value. The pull-up resistance on the B-side must be carefully selected to ensure that logic levels will be transferred correctly to the A-side. VCCA 10 kW VCCB 10 kW 10 kW 10 kW SDA SDAA SDAB SDA SCL SCLA SCLB SCL SLAVE 400 kHz TCA9517 BUS MASTER EN 10 kW 10 kW SDAA SDAB SDA SCLA SCLB SCL TCA9517 SLAVE 400 kHz EN 10 kW 10 kW SDAA SDAB SDA SCLA SCLB SCL TCA9517 EN SLAVE 400 kHz Figure 8. Typical Star Application Multiple A sides of TCA9517 s can be connected in a star configuration, allowing all nodes to communicate with each other. Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 13 TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com Typical Application (continued) VCCB 10 kW 10 kW 10 kW 10 kW 10 kW 10 kW 10 kW 10 kW SDA SDAA SDAB SDAA SDAB SDAA SDAB SDA SCL SCLA SCLB SCLA SCLB SCLA SCLB SCL TCA9517 EN TCA9517 EN TCA9517 EN BUS MASTER SLAVE 400 kHz Figure 9. Typical Series Application To further extend the I2C bus for long traces/cables, multiple TCA9517 s can be connected in series as long as the A-side is connected to the B-side. I2C bus slave devices can be connected to any of the bus segments. The number of devices that can be connected in series is limited by repeater delay/time-of-flight considerations on the maximum bus speed requirements. 9th CLOCK PULSE — ACKNOWLEDGE SCL SDA Figure 10. Bus A (0.9 V to 5.5 V Bus) Waveform 9th CLOCK PULSE — ACKNOWLEDGE SCL SDA VOL OF TCA9517 VOL OF SLAVE Figure 11. Bus B (2.7 V to 5.5 V Bus) Waveform 14 Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 Typical Application (continued) 10.2.3 Application Curve 3 Port A Port B Magnitude (V) 2.5 2 1.5 1 0.5 0 D003 Figure 12. Voltage Translation at 400 kHz, VCCA = 0.9 V, VCCB = 2.7 V 11 Power Supply Recommendations VCCB and VCCA can be applied in any sequence at power up. The TCA9517 includes a power-up circuit that keeps the output drivers turned off until VCCB is above 2.5 V and the VCCA is above 0.8 V. After power up and with the EN high, a low level on the A-side (below 0.3 × VCCA) turns the corresponding B-side driver (either SDA or SCL) on and drives the B-side down to approximately 0.5 V. When the A-side rises above 0.3 × VCCA, the Bside pull-down driver is turned off and the external pull-up resistor pulls the pin high. When the B-side falls first and goes below 0.3 × VCCB, the A-side driver is turned on and the A-side pulls down to 0 V. The B-side pull-down is not enabled unless the B-side voltage goes below 0.4 V. If the B-side low voltage does not go below 0.5 V, the A-side driver turns off when the B-side voltage is above 0.7 × VCCB. If the B-side low voltage goes below 0.4 V, the B-side pull-down driver is enabled, and the B-side is able to rise to only 0.5 V until the A-side rises above 0.3 × VCCA. TI recommends using a decoupling capacitor and placing it close to the VCCA and VCCB pins of a value of about 100 nF. Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 15 TCA9517 SCPS242D – DECEMBER 2012 – REVISED JULY 2017 www.ti.com 12 Layout 12.1 Layout Guidelines There are no special layout procedures required for the TCA9517 . It is recommended that the decoupling capacitors be placed as close to the VCC pins as possible. 12.2 Layout Example Figure 13 shows an example layout of the DGK package. To VCCA Plane 0402 Cap 0402 Cap = Via to GND Plane VCCA VCCB SCLA SCLB SDAA SDAB GND EN To VCCB Plane Figure 13. TCA9517A Layout Example 16 Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 TCA9517 www.ti.com SCPS242D – DECEMBER 2012 – REVISED JULY 2017 13 Device and Documentation Support 13.1 Community Resource The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 13.2 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 13.3 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 13.4 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 14 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated Product Folder Links: TCA9517 17 PACKAGE OPTION ADDENDUM www.ti.com 14-Jul-2017 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) TCA9517DGKR ACTIVE VSSOP DGK 8 2500 Green (RoHS & no Sb/Br) CU NIPDAUAG Level-1-260C-UNLIM -40 to 85 AYK TCA9517DR ACTIVE SOIC D 8 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 PW517 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
