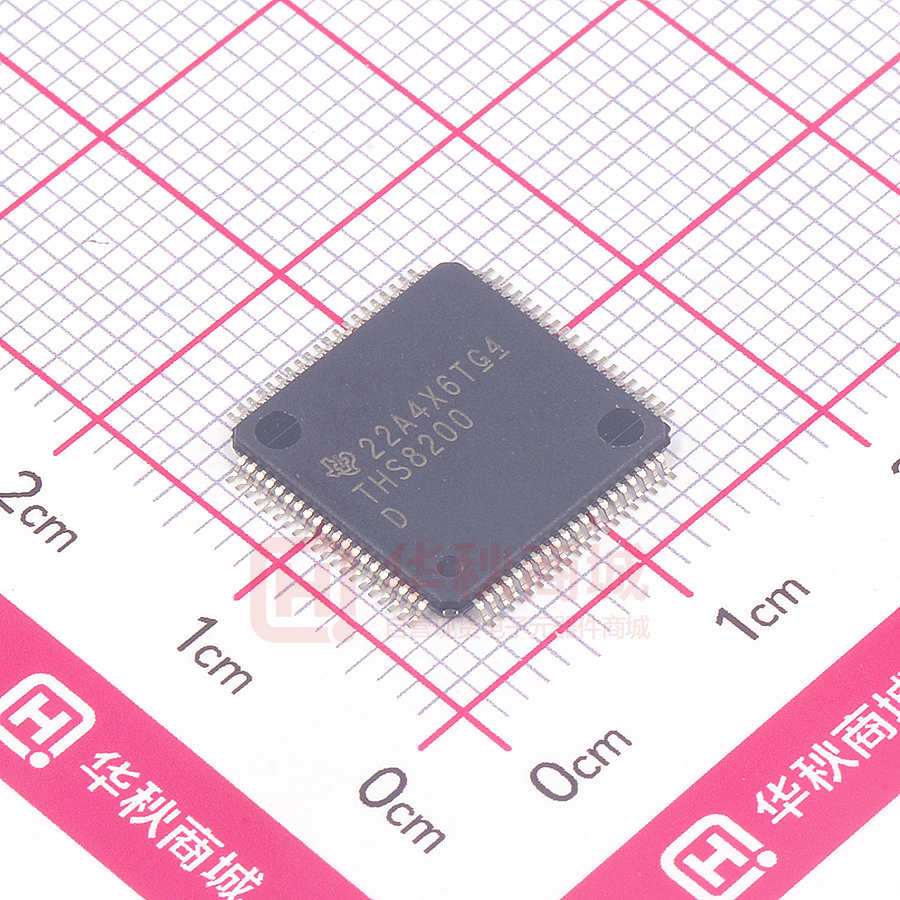

THS8200PFP

THS8200PFP

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    HTQFP80_12X12MM_EP

  • 描述:

    THS8200 三路 10 位所有格式视频 DAC

  • 数据手册
  • 价格&库存
THS8200PFP 数据手册
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 THS8200 All-Format Oversampled Component Video/PC Graphics D/A System With Three 11-Bit DACs, CGMS Data Insertion 1 Device Overview 1.1 Features 1 • Overall – Three 11-Bit 205-MSPS Digital-to-Analog Converters (DACs) With Integrated Bi-Level or Tri-Level Sync Insertion – Support for All ATSC Video Formats (Including 1080P) and PC Graphics Formats (up to UXGA at 75 Hz) • Input – Flexible 10-, 15-, 16-, 20-, 24-, or 30-Bit Digital Video Input Interface With Support for YCbCr or RGB Data, Either 4:4:4 or 4:2:2 Sampled – Video Synchronization by Hsync or Vsync Dedicated Inputs or by Extraction of Embedded SAV and EAV Codes According to ITU-R.BT601 (SDTV) or SMPTE 274M and SMPTE 296M (HDTV) – Glueless Interface to TI DVI 1.0 (With HDCP) Receivers. Can Receive Video-Over-DVI Formats According to the EIA-861 Specification and Convert to YPbPr or RGB Component Formats With Separate Syncs or Embedded Composite Sync. • Video Processing – Programmable Clip/Shift/Multiply Function for Operation With Full-Range or ITU-R.BT601 Video Range Input Data – Programmable Digital Fine-Gain Controller on Each Analog Output Channel, for Accurate Channel Matching and Programmable WhiteBalance Control – Built-In 4:2:2 to 4:4:4 Video Interpolation Filter – Built-In 2x Oversampling SDTV and HDTV Interpolation Filter for Improved Video Frequency Characteristic – Fully Programmable Digital Color Space Conversion Circuit 1.2 • • – Fully Programmable Display Timing Generator to Supply All SDTV and HDTV Composite Sync Timing Formats, Progressive and Interlaced – Fully Programmable Hsync and Vsync Outputs – Vertical Blanking Interval (VBI) Override or Data Pass-Through for VBI Data Transparency – Programmable CGMS Data Generation and Insertion • Output – Digital • ITU-R BT.656 Digital Video Output Port – Analog • Analog Component Output from SoftwareSwitchable 700-mV or 1.3-V Compliant Output DACs at 37.5-Ω Load • Programmable Video/Sync Ratio (7:3 or 10:4) • Programmable Video Pedestal • General – Built-In Video Color Bar Test Pattern Generator – Fast Mode I2C Control Interface – Configurable Master or Slave Timing Mode • Configuration Modes Allow the Device to Act as a Master Timing Source for Requesting Data From, for Example, the Video Frame Buffer (Master Mode Only Available for PC Graphics Output Modes). • Alternatively, the Device Can Slave to an External Timing Master. – DAC and Chip Power-Down Modes – Low-Power 1.8-V and 3.3-V Operation – 80-Pin PowerPAD™ Plastic Quad Flatpack Package With Efficient Heat Dissipation and Small Physical Size Applications DVD Players Digital-TV, Interactive-TV, or Internet Set-Top Boxes • • • Personal Video Recorders HDTV Display or Projection Systems Digital Video Systems 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 1.3 www.ti.com Description The THS8200 device is a complete video back-end D/A solution for DVD players, personal video recorders and set-top boxes, or any system requiring the conversion of digital component video signals into the analog domain. The THS8200 device can accept a variety of digital input formats, in 4:4:4 and 4:2:2 formats, over an interface of three, two, or one 10‑bit ports. The device synchronizes to incoming video data either through dedicated Hsync and Vsync inputs or through extraction of the sync information from embedded sync (SAV and EAV) codes inside the video stream. Alternatively, when the THS8200 is configured for generating PC graphics output, the device also provides a master timing mode in which it requests video data from an external (memory) source. The THS8200 device contains a display timing generator that is completely programmable for all standard and nonstandard video formats up to the maximum supported pixel clock of 205 MSPS. Therefore, the device supports all component video and PC graphics (VESA) formats. A fully programmable 3x3 matrixing operation is included for color space conversion. All video formats, up to the HDTV 1080I and 720P formats, can also be internally 2x oversampled. Oversampling relaxes the need for sharp external analog reconstruction filters behind the DAC and improves the video frequency characteristic. The output compliance range can be set through external adjustment resistors, and there is a choice of two settings to accommodate both component video or PC graphics (700-mV) and composite video (1.3‑V) outputs without hardware changes. An internal programmable clip/shift/multiply function on the video data assures standards-compliant video output ranges for either full 10-bit or reduced ITU-R.BT601 style video input. To avoid nonlinearities after scaling of the video range, the DACs have 11-bit resolution internally. Furthermore, a bi-level or tri-level sync with programmable amplitude (to support both 700mV:300-mV and 714-mV:286-mV video:sync ratios) can be inserted either on the green/luma channel only or on all three output channels. This sync insertion is generated from additional current sources in the DACs such that the full DAC resolution remains available for the video range and preserves 100% of the 11-bit dynamic range of the DAC for video data. The THS8200 optionally supports the pass-through of ancillary data embedded in the input video stream or can insert ancillary data into the 525P analog component output according to the CGMS data specification. Device Information (1) PART NUMBER THS8200PFP (1) (2) 2 PACKAGE BODY SIZE (2) HTQFP (80) 12 mm x 12 mm For the most current part, package, and ordering information for all available devices, see the Package Option Addendum in Section 10, or see the TI web site at www.ti.com. The package size shown here is nominal. For the package dimensions with tolerances, see the Mechanical Data in Section 10. Device Overview Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 1.4 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Functional Block Diagram Figure 1-1 shows the functional block diagram. digbypass gy_in dig_m ux dg_bias dly ifir D ata M anag er rcr_in hs_in vs_in Space ifir Convertor ifir Clip Scale dg Multiplier ifir dig_m ux bcb_in ifir Color 4:2:2 to 4:4:4 ifir12_bypass db_bias db ifir35_bypass dr_bias dr sav Display T im in g Generator eav scl_in dtg_data Three Channel DACs dr_bias dg_bias db_bias databus_in scl_out scl_en I2C Slave sda_in databus_out address addr_en hs_out vs_out cscouts sda_out sda_en ready Test B lock csmouts ifirouts do[9:0] dlclko digbypass ts tm o d e arst_func_n clkin dmanouts clk_h cdrv 2X cgen clkin clk_f clk_fx2 Clock Generator Offset Binary Signals Figure 1-1. Functional Block Diagram Device Overview Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 3 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Table of Contents 1 2 3 Device Overview ......................................... 1 6.2 Input Interface Formats 1.1 Features .............................................. 1 6.3 Clock Generator (CGEN)/Clock Driver (CDRV)..... 29 1.2 Applications ........................................... 1 6.4 Color Space Conversion (CSC) ..................... 29 1.3 Description ............................................ 2 6.5 Clip/Shift/Multiplier (CSM) ........................... 31 1.4 Functional Block Diagram ............................ 3 6.6 Interpolating Finite Impulse Response Filter (IFIR) . 34 Revision History ......................................... 4 Terminal Configuration and Functions .............. 5 6.7 Display Timing Generator (DTG) .................... 38 6.8 D/A Conversion...................................... 58 Terminal Functions ................................... 6 6.9 Test Functions Specifications 6.10 Power Down......................................... 64 4.1 ............................................ 8 Absolute Maximum Ratings .......................... 8 Handling Ratings ..................................... 8 Recommended Operating Conditions ................ 8 Power Consumption Summary ....................... 9 Power Supply ....................................... 13 Digital Inputs, DC Characteristics ................... 14 Analog (DAC) Outputs .............................. 15 Nonlinearity .......................................... 16 6.11 CGMS Insertion ..................................... 64 6.12 I2C Interface ......................................... 64 3.1 4 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 4.10 9 ............................................ 63 66 7.1 I2C Register Map .................................... 66 7.2 Register Descriptions................................ 71 7.3 THS8200 Preset Mode Line Type Definitions ....... 84 Application Information ............................... 87 8.1 Video vs Computer Graphics Application ........... 87 8.2 DVI to Analog YPbPr/RGB Application 8.3 Master vs Slave Timing Modes ..................... 88 ............. 87 Device and Documentation Support ............... 90 Device Support ...................................... 90 9.2 Documentation Support ............................. 91 9.3 Trademarks.......................................... 91 Functional Overview ................................... 21 9.4 Electrostatic Discharge Caution ..................... 91 Data Manager (DMAN) .............................. 21 9.5 Glossary ............................................. 91 5.1 6 8 I C Registers ...................................... 25 9.1 4.11 5 Analog Output Bandwidth (sinx/x corrected) at fS = 205 MSPS ........................................... 19 Output Compliance vs Full-Scale Adjustment Resistor Value....................................... 19 Vertical Sync of the HDTV 1080I Format Preset in First and Second Field, and Horizontal Line Waveform Detail .................................... 20 7 2 ............................. Detailed Functional Description ..................... 24 6.1 Data Manager (DMAN).............................. 24 10 Mechanical, Packaging, and Orderable Information .............................................. 91 2 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision D (February 2010) to Revision E • • • • • • • • • • • 4 Page Renamed Section 1 .................................................................................................................. 1 Added Device Information table and removed Ordering Information table ................................................... 2 Added Section 1.4 and moved functional block diagram to it ................................................................... 3 Corrected typo in I2CA pin name ................................................................................................... 6 Moved and renamed Section 4 ..................................................................................................... 8 Added Section 4.2 and moved Tstg to it ............................................................................................ 8 Moved and renamed Section 4.4 ................................................................................................... 9 Corrected the UNIT for ts and tH parameters .................................................................................... 14 Corrected typo in TYP value of INL with Test Conditions of "Best-fit" and "Video" ........................................ 15 Added Section 9 ..................................................................................................................... 90 Added Section 10 ................................................................................................................... 91 Revision History Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 3 Terminal Configuration and Functions Figure 3-1 shows the pinout for the PFP package. RESETB DVDD DVSS GY0 GY1 GY2 GY3 GY4 GY5 GY6 GY7 GY8 GY9 FID VDD_IO GND_IO VS_IN HS_IN RCr0 RCr1 PFP PACKAGE (TOP VIEW) 60 59 58 57 56 55 54 53 52 51 50 49 48 47 464544 HS_OUT VS_OUT SDA SCL DO9 DO8 DO7 DO6 DO5 VDD_IO D1CLKO GND_IO DO4 DO3 DO2 DO1 DO0 DVSS DVDD N.C. 43 42 41 61 40 62 39 63 38 64 37 65 36 66 35 67 34 68 33 69 32 70 31 71 30 72 29 73 28 74 27 75 26 76 25 77 24 78 23 79 22 80 2 3 4 5 6 21 7 8 9 10 11 12 13 14 15 16 17 18 19 20 N.C. GND_DLL CLKIN VDD_DLL I2CA PBKG FSADJ1 FSADJ2 COMP2 COMP1 AVDD AVSS AGY AVDD ABPb AVSS ARPr AVDD VDD_IO GND_IO 1 RCr2 RCr3 RCr4 RCr5 RCr6 RCr7 RCr8 RCr9 DVDD DVSS BCb0 BCb1 BCb2 BCb3 BCb4 BCb5 BCb6 BCb7 BCb8 BCb9 Figure 3-1. 80-Pin PFP Package (Top View) Terminal Configuration and Functions Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 5 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 3.1 www.ti.com Terminal Functions Table 3-1 describes the signals for the device. Table 3-1. Terminal Functions TERMINAL I/O (1) DESCRIPTION NAME NO. ABPb 15 O Analog output of DAC2. See AGY. ARPr 17 O Analog output of DAC3. See AGY. AGY 13 O Analog output of DAC1. With the proper setting of FSADJ, this output is capable of driving 1.3-V full scale into a 37.5-Ω load. AVDD 11, 14, 18 PWR Analog power supply, nominal 3.3 V AVSS 12, 16 PWR Analog ground 21 - 30 I 10-bit video data input port. All 10 bits or the 8 MSB of this port can be connected to the video data source. In 30-bit mode, the B data of RGB, or the Cb data of YCbCr, should be connected to this port. In 10-bit input mode, this port is unused. In 20-bit input mode, this port is used for CbCr input data. CLKIN 3 I Main clock input. Video input data on the GY[9:0]/BCb[9:0]/RCr[9:0] ports should be synchronized to CLKIN. Depending on the input data format, CLKIN is supplied to THS8200 at 1x or 2x the pixel clock frequency. COMP1 10 P Compensation pin for the internal reference amplifier. A 0.1-µF capacitor should be connected between COMP1 and analog power supply AVDD. COMP2 9 P Compensation pin for the internal reference amplifier. A 0.1-µF capacitor should be connected between COMP2 and analog power supply AVDD. D1CLKO 71 O Video ITU-R.BT656-compliant clock output. This clock output is off by default and should be activated by an I2C register setting. DO[9:5] DO[4:0] 65-69 73-77 O ITU-R.BT656 compliant video data output port. Only available when ITU-R.BT656 input format is used. Can be used to connect to external PAL/NTSC video encoder. This port is off by default and should be activated by an I2C register setting. DVDD 32, 59, 79 PWR Digital core power, nominal 1.8 V DVSS 31, 58, 78 PWR Digital core ground 47 I Field identification signal for interlaced video formats. In slave timing mode, this is an input from the video data source. In master timing mode this signal is unused, as only progressive-scan VESA formats are supported in master mode. P Full scale adjustment control 1. A resistor should be connected between FSADJ1 and analog ground AGND to control the full-scale output current of the DAC output channels. The data_fsadj I2C programming register can be used to select between two full-scale ranges, determined by FSADJ1 or FSADJ2. For 700-mV video output (1 Vpp including sync), the nominal value is 2.99 kΩ ; for 1.0-Vpp video output (1.3 Vpp including sync) output the nominal value is 2.08 kΩ. Full scale adjustment control 2. See FSADJ1. BCb[9:0] FID FSADJ1 7 FSADJ2 8 P GND_DLL 2 PWR Ground of clock doubler. Should be connected to analog ground. GND_IO 20, 45, 72 PWR I/O ring ground GY[9:0] 48-57 I HS_IN 43 I/O Horizontal source synchronization. In slave timing mode, this is an input from the video data source. In master timing mode, this is an output to the video data source with programmable timing and polarity, serving as a horizontal data qualification signal to the video source. HS_OUT 61 O Horizontal sync output (to display). Irrespective of slave/master timing mode configuration, this is always an output with timing generated by the DTG. I2CA 5 I I2C device address LSB selection N.C. 1, 80 I Manufacturing test input. Must be tied to GND for normal operation. 6 PWR 33-42 I PBKG (VSS) RCr[9:0] (1) 6 10-bit video data input port. All 10 bits or the 8 MSB of this port can be connected to the video data source. The G data of RGB or the Y data of YCbCr should be connected to this port. Port used in 10-bit mode for CbYCrY video input data; in 20-bit input mode for Y data. Substrate ground. Should be connected to analog ground. 10-bit video data input port. All 10-bits or the 8 MSB of this port can be connected to the video data source. In 30-bit mode, the R data of RGB or the Cr data of YCbCr should be connected to this port. In the 10- /20-bit input mode, this port is unused. For some input formats this port is unused. I = input, O = output, B = bidirectional, PWR = power or ground, P = passive Terminal Configuration and Functions Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Table 3-1. Terminal Functions (continued) TERMINAL NAME NO. I/O (1) DESCRIPTION RESETB 60 I Software reset pin (active low). The minimum reset duration is 200 ns. SCL 64 B Serial clock line of I2C bus interface. Open-collector. Maximum specified clock speed is 400 kHz (fast I2C). SDA 63 B Serial data line of I2C bus interface. Open-collector. VDD_DLL 4 PWR Power supply of clock doubler, 1.8 V nominal 19, 46, 70 PWR I/O ring power, 1.8 V or 3.3 V nominal VS_IN 44 I/O Vertical source synchronization. In slave timing mode, this is an input from the video data source. In master timing mode, this is an output to the video data source with programmable timing and polarity, serving as a vertical data qualification signal to the video source. VS_OUT 62 O Vertical sync output (to display). Regardless of slave/master timing mode configuration, this is always an output with timing generated by the DTG. VDD_IO Terminal Configuration and Functions Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 7 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 4 Specifications 4.1 Absolute Maximum Ratings over operating temperature range (unless otherwise noted) Supply voltage range (1) MIN MAX AVDD to AVSS, VDD_IO to GND_IO −0.5 4.5 V DVDD to DVSS, VDD_DLL to DVSS −0.5 2.5 V −0.5 VDD_IO + 0.5 V 0 70 °C Digital input voltage range to DVSS TA (1) Operating free-air temperature range UNIT Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 4.2 Tstg 4.3 Handling Ratings Storage temperature range MIN MAX UNIT –55 150 °C Recommended Operating Conditions over operating free-air temperature range, TA MIN NOM MAX 3 3.3 3.6 UNIT POWER SUPPLY AVDD Supply voltage DVDD, VDD_DLL 1.65 1.8 2 VDD_IO 1.65 1.8 or 3.3 3.6 VDD_IO = 1.8 V 0.95 VDD_IO VDD_IO = 3.3 V 2.3 VDD_IO VDD_IO = 1.8 V DVSS 0.4 VDD_IO = 3.3 V DVSS 1.15 V DIGITAL AND REFERENCE INPUTS VIH High-level input voltage VIL Low-level input voltage fclk Clock frequency 10 205 tw(CLKH) Pulse duration, clock high 40% 60% tw(CLKL) Pulse duration, clock low 40% 60% RFS FSADJ resistor 8 VOC = 700 mV 2.99 VOC = 1 V 2.08 Specifications V V MHz kΩ Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 4.4 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Power Consumption Summary Table 4-1. Power for 700-mV DAC Output Compliance + 350-mV Bias at AVDD = 3.3 V, DVDD = 1.8 V, VDD_IO = 3.3 V, VDD_DLL = 3.3 V, 1-MHz Tone on All Channels f (MHz) POWER (mW), DLL BYPASSED POWER (mW), DLL USED IAVDD (mA) IDVDD (mA) IVDD_IO (mA) IVDD_DLL (mA) 20 329.91 332.88 93.2 10.4 1.1 0.9 30 338.52 351.72 93.2 15 1.2 4 80 382.47 399.63 93.2 38.5 1.7 5.2 160 450.51 93.2 75.2 2.3 200 476.01 93.2 89 2.5 500 400 DLL Bypassed P - Power - mW DLL Used 300 200 100 V = 700 mV VIO = 3.3 V V(BIAS) = 350 mV 0 20 30 80 160 200 f - Frequency - MHz Figure 4-1. Power vs Frequency Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 9 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Table 4-2. Power for 700-mV DAC Output Compliance + 350-mV Bias at AVDD = 3.3 V, DVDD = 1.8 V, VDD_IO = 1.8 V, VDD_DLL = 3.3 V, 1-MHz Tone on All Channels f (MHz) POWER (mW), DLL BYPASSED POWER (mW), DLL USED IAVDD (mA) IDVDD (mA) IVDD_IO (mA) IVDD_DLL (mA) 20 328.26 331.23 93.2 10.4 1.1 0.9 30 336.72 349.92 93.2 15 1.2 4 397.08 5.2 80 379.92 93.2 38.5 1.7 160 447.06 93.2 75.2 2.3 200 472.26 93.2 89 2.5 500 400 DLL Bypassed P - Power - mW DLL Used 300 200 100 V = 700 mV VIO = 1.8 V V(BIAS) = 350 mV 0 20 30 80 160 200 f - Frequency - MHz Figure 4-2. Power vs Frequency 10 Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Table 4-3. Power for 1.25-V Output Compliance Without Bias at AVDD = 3.3 V, DVDD = 1.8 V, VDD_IO = 3.3 V, VDD_DLL = 3.3 V, 1-MHz Tone on All Channels f (MHz) POWER (mW), DLL BYPASSED POWER (mW), DLL USED IAVDD (mA) IDVDD (mA) IVDD_IO (mA) IVDD_DLL (mA) 20 556.95 559.92 162 10.4 1.1 0.9 30 565.56 578.76 162 15 1.2 4 626.67 5.2 80 609.51 162 38.5 1.7 160 677.55 162 75.2 2.3 200 703.05 162 89 2.5 800 700 DLL Bypassed DLL Used P - Power - mW 600 500 400 300 200 V = 1.25 V VIO = 3.3 V V(BIAS) = 0 V 100 0 20 30 80 160 200 f - Frequency - MHz Figure 4-3. Power vs Frequency Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 11 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Table 4-4. Power for 1.25-V Output Compliance Without Bias at AVDD = 3.3 V, DVDD = 1.8 V, VDD_IO = 1.8 V, VDD_DLL = 3.3 V, 1-MHz Tone on All Channels f (MHz) POWER (mW), DLL BYPASSED POWER (mW), DLL USED IAVDD (mA) IDVDD (mA) IVDD_IO (mA) IVDD_DLL (mA) 20 555.30 558.27 162 10.4 1.1 0.9 30 563.76 576.96 162 15 1.2 4 624.12 5.2 80 606.96 162 38.5 1.7 160 674.10 162 75.2 2.3 200 699.30 162 89 2.5 800 700 DLL Used P - Power - mW 600 DLL Bypassed 500 400 300 200 V = 1.25 V VIO = 1.8 V V(BIAS) = 0 V 100 0 20 30 80 160 200 f - Frequency - MHz Figure 4-4. Power vs Frequency 12 Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 4.5 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Power Supply 1-MHz FS ramp simultaneously applied to all three channels over recommended operating conditions with fCLK = 205 MHz, RFS = RFS(nom) (unless otherwise noted) PARAMETER IAVDD IDVDD IVDD_IO IVDD_DLL PD Operating analog supply current Operating digital supply current Operating I/O supply current Operating DLL supply current Power disspiation TEST CONDITIONS MIN TYP MAX 94 98 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V, VDD_IO = 3.3 V, CLK = 80 MHz Video + no bias (700 mV) 94 98 Generic + no bias (1.25 V) 162 170 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V (DLL bypassed), VDD_IO = 1.8 V, CLK = 200 MHz Video + no bias (700 mV) 94 98 Video + bias (1.05 V) 94 98 Generic + no bias (1.25 V) 162 170 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V, VDD_IO = 3.3 V, CLK = 80 MHz Video + no bias (700 mV) 38 45 Video + bias (1.05 V) 38 45 Generic + no bias (1.25 V) 38 45 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V (DLL bypassed), VDD_IO = 1.8 V, CLK = 200 MHz Video + no bias (700 mV) 89 95 Video + bias (1.05 V) 89 95 Generic + no bias (1.25 V) 89 95 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V, VDD_IO = 3.3 V, CLK = 80 MHz Video + no bias (700 mV) 1.7 2.2 Video + bias (1.05 V) 1.7 2.2 Generic + no bias (1.25 V) 1.7 2.2 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V (DLL bypassed), VDD_IO = 1.8 V, CLK = 200 MHz Video + no bias (700 mV) 1.7 2.2 Video + bias (1.05 V) 1.7 2.2 Generic + no bias (1.25 V) 1.7 2.2 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V, VDD_IO = 3.3 V, CLK = 80 MHz Video + no bias (700 mV) 4.9 5.6 Video + bias (1.05 V) 4.9 5.6 Generic + no bias (1.25 V) 4.9 5.6 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V (DLL bypassed), VDD_IO = 1.8 V, CLK = 200 MHz Video + no bias (700 mV) 4.9 5.6 Video + bias (1.05 V) 4.9 5.6 Generic + no bias (1.25 V) 4.9 5.6 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V, VDD_IO = 3.3 V, CLK = 80 MHz Video + no bias (700 mV) 398 430 Video + bias (1.05 V) 398 430 Generic + no bias (1.25 V) 641 660 AVDD = 3.3 V, DVDD = 1.8 V, VDD_DLL = 1.8 V (DLL bypassed), VDD_IO = 1.8 V, CLK = 200 MHz Video + no bias (700 mV) 489 500 Video + bias (1.05 V) 489 500 Generic + no bias (1.25 V) 700 735 Video + bias (1.05 V) Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 UNIT mA mA mA mA mW 13 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 4.6 www.ti.com Digital Inputs, DC Characteristics over recommended operating conditions with fCLK = 205 MHz, RFS = RFS(nom) (unless otherwise noted) PARAMETER IIH High-level input current IIL Low-level input current IIL(CLK) Low-level input current, CLK IIH(CLK) High-level input current, CLK CI Input capacitance GY, RCr, BCb data inputs setup time tH GY, RCr, BCb data inputs hold time ts HS_IN, VS_IN, FID inputs setup time td(D) HS_IN, VS_IN, FID inputs hold time Digital process delay (2) (3) 14 TYP VDD_IO = 3.3 V, Digital inputs and CLK at 0 V for IIL, Digital inputs and CLK at 3.6 V for IIH (2) 5 VDD_IO = 1.8 V 1.5 VDD_IO = 3.3 V 1.5 VDD_IO = 1.8 V 0.5 VDD_IO = 3.3 V 0.5 VDD_IO = 3.3 V (1) 1.5 VDD_IO = 3.3 V (1) 0.5 MAX UNIT 1 µA −1 µA 1 µA −1 µA pF ns ns ns ns 10-bit/20-bit 4:2:2 with CSM, CSC, 2x interpolation active 73 (3) 30-bit 4:4:4 33 (3) VESA clock mode (DLL, CSM, CSC, FIRs bypassed) (1) MIN TA = 25°C ts tH TEST CONDITIONS pixels 9 The HS_IN, VS_IN, and FID input setup and hold times are valid for 3.3-V I/O operation only. These sync inputs are not recommended for use with 1.8-V I/O logic levels. Defined as the delay on Y pixel data, starting from the rising edge of CLKIN, until the clock period. CSC contribution: 8 pixels, CSM contribution: 1 pixel, 2x interpolation filter contribution: 18 pixels Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 4.7 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Analog (DAC) Outputs over recommended operating conditions with fCLK = 205 MHz, RFS = RFS(nom) (unless otherwise noted) PARAMETER TEST CONDITIONS DAC resolution MIN TYP 10 (11 bit internal) 10 (11 bit internal) MAX bits +0.5/-1.2 +2/-2 Integral nonlinearity Best-fit VDD_IO = 3.3 V, CLK = 500 kHz Video (0.7 + 0.35 V bias) INL Generic (1.25 + 0 V bias) +1/-2.1 +5/-5 DNL Differential nonlinearity VDD_IO = 3.3 V, CLK = 500 kHz Video (0.7 + 0.35 V bias) +0.2/−0.3 +1/−1 Generic (1.25 + 0 V bias) +0.3/-0.5 +1/−1 PSRR Power supply ripple rejection ratio of DAC output (full scale) f = dc to 100 kHz XTALK KIMBAL Crosstalk between channels (2) Imbalance between DACs DAC output compliance voltage (video only) VOC (1) CLK = 205 MHz, -1 dB sine wave applied to active channels, offset bias applied to all channels when turned on, 37.5-Ω load on all channels CLK = 80 MHz RL = 37.5 Ω (4) 40 UNIT LSB LSB 42 1-MHz sine wave, offset bias off 49 1-MHz sine wave, offset bias on 42 10-MHz sine wave, offset bias off 49 10-MHz sine wave, offset bias on 42 30-MHz sine wave, offset bias off 48 30-MHz sine wave, offset bias on 40.5 dB dB (3) ±2% Video mode (bias offset can be added) Generic mode (bias offset cannot be added) 0.7 0.72 1.25 1.3 V CO DAC output capacitance (pin capacitance) tri DAC output current rise time 10 to 90% of full scale, CLK = 80 MHz 3.5 4.2 ns tfi DAC output current fall time 10 to 90% of full scale, CLK = 80 MHz 3.5 4.2 ns td Analog output delay Measured from falling edge of CLKIN to 50% of fullscale transition (5) 6.5 ns tsa Analog output settling time Measured from 50% of full scale transition on output to output settling, within 2% (6) 6.6 ns SFDR Spurious-free dynamic range 1 MHz, −1 dB FS digital sine input -55 10 MHz, −1 dB FS digital sine input -43 BW Bandwidth (3 dB) Eglitch Glitch energy (1) (2) (3) (4) (5) (6) 5 Full-scale code transition at 205 MSPS pF dB 90 MHz 25 pVs PSRR is defined as 20 × log(ripple voltage at DAC output / ripple voltage at AVDD input). Limits from characterization only. Crosstalk spec applies to each possible pair of the 3 DAC outputs. Limit from characterization only. The imbalance between DACs applies to all possible pairs of the three DACs. Nominal values at RFS = RFS(nom). Limit from characterization only. Excludes bias offset. This value excludes the digital process delay, tD(D). Limit from characterization only. Data is clocked in on the rising edge of CLKIN. Analog outputs become available on the falling edge of CLKIN. Limit from characterization only. Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 15 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 4.8 Nonlinearity Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) for 700 mV Without Bias INL - Integral Nonlinearity - LSB 4.8.1 www.ti.com 0.6 V = 700 mV V(BIAS) = 0 V 0.4 0.2 0.0 0 -0.2 -0.4 -0.6 0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024 832 896 960 1024 Code DNL - Differential Nonlinearity - LSB Figure 4-5. Integral Nonlinearity vs Code 0.3 V = 700 mV V(BIAS) = 0 V 0.2 0.1 0.0 0 -0.1 -0.2 -0.3 0 64 128 192 256 320 384 448 512 576 640 704 768 Code Figure 4-6. Differential Nonlinearity vs Code 16 Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) for 700 mV + 350-mV Bias INL - Integral Nonlinearity - LSB 4.8.2 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 0.8 0.6 0.4 0.2 0.0 0 -0.2 -0.4 -0.6 -0.8 -1.0 -1.2 V = 700 mV V(BIAS) = 350 mV 0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024 832 896 960 1024 Code DNL - Differential Nonlinearity - LSB Figure 4-7. Integral Nonlinearity vs Code 0.3 V = 700 mV V(BIAS) = 350 mV 0.2 0.1 0.0 0 -0.1 -0.2 -0.3 -0.4 0 64 128 192 256 320 384 448 512 576 640 704 768 Code Figure 4-8. Differential Nonlinearity vs Code Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 17 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) for 1.25 V Without Bias INL - Integral Nonlinearity - LSB 4.8.3 www.ti.com 1.0 V = 1.25 V V(BIAS) = 0 V 0.5 0.0 0 -0.5 -1.0 -1.5 -2.0 0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024 832 896 960 1024 Code DNL - Differential Nonlinearity - LSB Figure 4-9. Integral Nonlinearity vs Code 0.15 0.10 0.05 0.00 0 -0.05 -0.10 -0.15 -0.20 -0.25 V = 1.25 V, V (BIAS) = 0 V -0.30 0 64 128 192 256 320 384 448 512 576 640 704 768 Code Figure 4-10. Differential Nonlinearity vs Code 18 Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 4.9 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Analog Output Bandwidth (sinx/x corrected) at fS = 205 MSPS 1 0 -1 -2 Amplitude - dB -3 -4 -5 -6 -7 -8 -9 fS = 205 MSPS -10 0 10 20 30 40 50 60 70 80 90 100 110 f(O) - Output Frequency - MHz Figure 4-11. Amplitude vs Output Frequency VO - Output Voltage - mV 4.10 Output Compliance vs Full-Scale Adjustment Resistor Value 1300 1250 1200 1150 1100 1050 1000 950 900 850 800 750 700 650 600 550 500 RL = 37.5 Ω 450 V (BIAS) = 0 V 400 350 1.2 1.7 2.2 2.7 3.2 3.7 4.2 4.7 5.2 5.7 R(fs) - Full Scale Resistance - kW Figure 4-12. Output Voltage vs Full-Scale Resistance Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 19 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 4.11 Vertical Sync of the HDTV 1080I Format Preset in First and Second Field, and Horizontal Line Waveform Detail Vertical Blanking, First Field Vertical Blanking, Second Field Active Video Line Figure 4-13. THS8200 Output Waveforms for 1080I: Vertical Blanking in First and Second Fields, and Active Video 20 Specifications Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 5 Functional Overview 5.1 Data Manager (DMAN) The data manager is the block that transforms the selected input video data format present on the chip input buses to an internal 10-bit three-channel representation. Supported input formats include 10-/8-bit ITU-R.BT656 with embedded sync codes, 15-/16- or 24-/30-bit RGB with external sync, 20-/16-bit SMPTE274M/296M with embedded sync codes, as well as 20-/16-bit YCbCr 4:2:2 with external sync. The user can optionally include a 4:2:2 to 4:4:4 interpolation on the color data path. When a format with embedded sync is selected, DMAN also extracts H(Hsync), V(Vsync), F(FieldID) identifiers from the ITUR.BT656 (SDTV) or SMPTE274M/296M (HDTV) data stream for internal synchronization of the DTG. Alternatively, the device synchronizes to HS_IN, VS_IN, FID inputs. 5.1.1 Interpolating Finite Impulse Responses Filter (IFIR) The interpolating FIR is used to upsample the input data by 2x. In the THS8200 there are five IFIRs. The first two are used only when the input data is in 4:2:2 format for conversion to a 4:4:4 internal representation on both color difference channels. The last three IFIRs are used to upsample the internal data to the DACs on all three channels in case 2x video interpolation is enabled. By 2x oversampling the video data, the requirements for the analog reconstruction filter at the DAC outputs are relaxed so it can be built with fewer components, thereby also improving the overall video frequency characteristic (less group delay variation). All of the IFIRs can be bypassed or switched in by programming the appropriate I2C registers. The coefficients of all IFIRs are fixed. 5.1.2 Color-Space Conversion (CSC) The color-space converter block is used to convert input video data in one type of color space to output video data in another color space (for example, RGB to YCbCr, or YCbCr to RGB). This block contains a 3×3 matrix multiplier/adder and a 3×1 adder. All multiplier and adder coefficients can be programmed through the I2C interface to support any linear matrixing+offset operation on the video data. 5.1.3 Clip/Shift/Multiplier (CSM) The clip-shift-multiply block optionally clips the input code range at a programmed low/high code, shifts the input video data downwards, and multiplies the input by a programmable coefficient in the range 0−1.999. This allows for operation with a reduced input code range such as prescribed in the ITU-R.BT601 recommendation. Each channel can be independently programmed to accommodate different digital ranges for each of the three input channels. For example, for standard video signals the Y channel has a digital input range of 64−940, whereas the two other channels have an input range of 64−960. All three channels must have a DAC output range of 0−700 mV, so normally the analog voltage corresponding to 1 LSB would have to change to account for the different digital inputs. This might cause matching errors. Therefore in the THS8200 the DAC LSB does not change; rather LSB conversion is done by scaling the digital inputs to the DAC's full input range. Furthermore, the CSM output is 11 bits wide and is sent to the 11-bit DACs. The extra bit of resolution resolves nonlinearities introduced by the scaling process. The clipping function can be switched off to allow for super-white/super-black excursions. 5.1.4 Digital Multiplexer (DIGMUX) This multiplexer in front of the DACs can select between video signals at 1x or 2x the pixel clock rate. It is also used to switch in blanking/sync level data generated by the display timing generator (DTG) block and test pattern data (for example, color bars, I2C-controlled DAC levels) or to perform data insertion (CGMS) during vertical blanking. Functional Overview Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 21 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 5.1.5 www.ti.com Display Timing Generator (DTG) The display timing generator is responsible for the generation of the correct frame format including all sync, equalization and serration pulses. In master timing mode, the DTG is synchronized to external synchronization inputs, either from the dedicated device terminals HS_IN, VS_IN, and FID or is synchronized to the identifiers extracted from the input data stream, as selected by the DMAN mode. In master timing mode, the DTG generates the required field/frame format based on the externally applied pixel clock input. When active data is not being passed to the DACs, that is, during the horizontal/vertical blanking intervals, the DTG generates the correct digital words for blank, sync levels and other level excursions, such as preand post-serration pulses and equalization pulses. Horizontal timings, as well as amplitudes of negative and positive sync, HDTV broad pulses and SDTV pre- and post-equalization and serration pulses, are all I2C-programmable to accommodate, for example, the generation of both EIA.770-1 (10:4 video/sync ratio) and EIA.770-2 (7:3 video/sync ratio) compliant analog component video outputs, and to support nonstandard video timing formats. In addition or as an alternative to the composite sync inserted on green/luma channel or all analog outputs, output video timing can be carried by dedicated Hsync/Vsync output signals as well. The position, duration and polarity of Hsync and Vsync outputs are fully programmable to support, for example, the centering of the active video window within the picture frame. The DTG also controls the data multiplexer in the DIGMUX block. DIGMUX can be programmed to pass device input data only on active video lines (inserting DTG-generated blanking level during blanking intervals). Alternatively, the DTG can pass device input data also during some VBI lines (ancillary data in the input stream is passed transparently on some VBI lines). Finally, the device can also generate its own ancillary data and insert it into the analog outputs according to the CGMS data format for the 525P video format. 5.1.6 Clock Generator (CGEN) The clock generator is an analog delay-locked loop (DLL) based circuit and provides a 2x clock from the CLKIN input. The 2x clock is used by the CDRV block for 2x video interpolation. Some video formats also require a 1/2 rate clock used for 4:2:2 to 4:4:4 conversion. 5.1.7 Clock Driver (CDRV) The clock drive block generates all on-chip clocks. Its inputs are control signals from the digital logic, the original CLKIN, and the 2x clock from CGEN. Outputs include a half-rate clock, full-rate clock, and a 2x full-rate clock. The clocks are used for both optional on-chip interpolation processes: 4:2:2 to 4:4:4 interpolation and 1x to 2x video oversampling. 5.1.8 I2C Host Interface (I2CSLAVE) The I2C interface controls and programs the internal I2C registers. The THS8200 I2C interface implementation supports the fast I2C specification (SCL: 400 kHz) and allows the writing and reading of registers. An auto-increment addressing feature simplifies block register programming. The I2C interface works without a clock present on CLKIN. 5.1.9 Test Block (TST) The test block controls all the test functions of the THS8200. In addition to manufacturing test modes, this block contains several user test modes including a DAC internal ramp generator and a 75% SMPTE video color bar generator. 22 Functional Overview Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 5.1.10 D/A Converters (DACs) THS8200 contains three DACs operating at up to 205 MSPS and with an internal resolution of 11 bits. Each DAC contains an integrated video sync inserter. The syncs are inserted by means of additional current source circuits either on the green/luma (Y) channel only or on all the DAC output channels, to be compliant with both consumer (EIA, sync-on-G/Y) as well as professional (SMPTE, sync-on-all) standards. The DAC speed supports all ATSC formats, including 1080p, as well as all PC graphics (VESA) formats up to UXGA at 75 Hz (202.5 MSPS). Functional Overview Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 23 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 6 Detailed Functional Description 6.1 Data Manager (DMAN) Table 6-1. Supported Input Formats INPUT INTERFACE TIMING CONTROL SYNCHRONIZATION EMBEDDED TIMING DEDICATED TIMING X (4:2:2) X X X X (4:4:4) X (4:2:2) X X X [PRESET] HDTV-SMPTE274M progressive (1080I) X (4:4:4) X (4:2:2) X X [GENERIC] HDTV X (4:4:4) X (4:2:2) X X [PRESET] SDTV-ITU.1358 (525P) X (4:4:4) X (4:2:2) X (2) X X (3) X [PRESET] SDTV-ITU-R.BT470 (525I) X (4:4:4) X (4:2:2) X (4) X X (3) X [PRESET] SDTV-ITU-R.BT470 (625i) X (4:4:4) X (4:2:2) X (4) X X (3) X [GENERIC] SDTV X (4:4:4) X (4:2:2) 30 BIT 20 BIT [PRESET] HDTV-SMPTE296M progressive (720P) X (4:4:4) [PRESET] HDTV-SMPTE274M progressive (1080P) [PRESET] VESA (1) (2) (3) (4) (5) X (5) 10 BIT (1) 16 BIT 15 BIT X X (5) X (5) MASTER X X X SLAVE X X X When the device is configured to receive data over a 10-bit interface, the ITU-R.BT656 output bus on the THS8200 can be enabled by an I2C register bit to send the received data to an external device. In other DMAN modes, this output should remain off (data_tristate656 register). SMPTE293M-compliant Dedicated timing not supported with 10-bit interface. ITU-R.BT656-compliant Because PC graphics data is normally only 8 bits wide, only 3×8 bits (8 MSBs of each bus) are used. Color space converter bypass is required for modes with pixel clock > 150 MSPS. Table 6-1 summarizes all supported video mode configurations. Each video mode is characterized by three attributes: • Input Interface: Data is accepted over 10-, 20- or 30-bit interface (or 8- ,16-, 24-bit interface for 8-bit data when using 8 MSBs of each input data bus and connecting 2 LSBs to ground). This selection is controlled by the dman_cntl register. • Timing control: Video timing is either embedded in the data stream or supplied by dedicated timing signals. In the latter case additional Hsync (HS_IN), Vsync (VS_IN) and FieldID (FID) input signals are required to synchronize the video data source and THS8200 in the case of slave timing mode. This selection is controlled by the dtg2_embedded_timing register. • Synchronization: Video timing either is supplied to the device (slave) or the THS8200 requests video data from the source (master). This selection is controlled by the chip_ms register. NOTE Device operation with combinations of settings for the dman_cntl, dtg2_embedded_timing and chip_ms registers that result in operating modes not marked in Table 6-1 is not assured. See detailed register map description for actual register settings. 24 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Furthermore, Table 6-1 shows for which modes presets are defined. When in a preset video mode, the line-type/breakpoint-pairs that define the frame format (see Section 6.7) are preprogrammed. Therefore the user does not need to define the table with line type/breakpoint settings, nor does the field and frame size need to be programmed. However, when in preset mode, the horizontal parameters (all dtg1_spec_x registers for the line types used by the preset setting, and dtg1_total_pixels registers) still need to be programmed. Presets are available for most popular DTV video formats. Alternatively, generic modes for SDTV, HDTV or VESA can be selected, which allow full programmability of the field/frame sizes and DTG parameters. Note from the table that: • If embedded timing is used, the device is always in slave mode, because the data stream supplied to THS8200 contains the video timing information. • Master operation is only supported for PC graphics (VESA) formats. • In HDTV modes with embedded timing, data is supplied to the device over a 20-bit interface, as defined in SMPTE274/296M. • In SDTV modes with embedded timing, data is supplied to the device over a 10-bit interface. When the video format is interlaced, this interface is known as ITU-R.BT656 (525I, 625I). When the video format is progressive, only 525P is supported with embedded timing. The 625P interface can be supported with dedicated timing, using the SDTV generic mode. • In generic modes with dedicated timing, both 20 bits (4:2:2) and 30 bits (4:4:4) are supported. • In PC graphics modes (VESA generic), input data is either over the 30-bit interface or over the 16-/15bit interface and always has dedicated timing. Note that the 16-bit interface is not equivalent to a 2x8bit version of the 20-bit interface; see Section 6.2 for details. 6.2 Input Interface Formats The following figures define the input video format for each input mode, as selected by the data_dman_cntl register setting. Video data is always clocked in at the rising edge of CLKIN. NOTE For 8-bit operation with 10-bit input buses, connect only the 8 MSBs of each input bus used, and tie the 2 LSBs to ground. • 30-bit YCbCr/RGB 4:4:4 CLKIN GY[9:0]/[9:2] G0/Y0 G1/Y1 G2/Y2 G3/Y3 G4/Y4 G5/Y5 G6/Y6 G7/Y7 BCb[9:0]/[9:2] B0/Cb0 B1/Cb1 B2/Cb2 B3/Cb3 B4/Cb4 B5/Cb5 B6/Cb6 B7/Cb7 RCr[9:0]/[9:2] R0/Cr0 R1/Cr1 R2/Cr2 R3/Cr3 R4/Cr4 R5/Cr5 R6/Cr6 R7/Cr7 Figure 6-1. 24-/30-Bit RGB or YCbCr Data Format • 20-bit YCbCr 4:2:2 CLKIN is equal to the 1x pixel clock. The pixel clock equals the rate of the Y input and is 2x the rate of the 2 other channels in this input format where Cb and Cr are multiplexed onto the same input bus. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 25 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com CLKIN GY[9] Y7(0) Y7(1) Y7(2) Y7(3) Y7(0) Y7(1) Y7(2) Y7(3) GY[8] Y6(0) Y6(1) Y6(2) Y6(3) Y6(0) Y6(1) Y6(2) Y6(3) GY[7] Y5(0) Y5(1) Y5(2) Y5(3) Y5(0) Y5(1) Y5(2) Y5(3) GY[6] Y4(0) Y4(1) Y4(2) Y4(3) Y4(0) Y4(1) Y4(2) Y4(3) GY[5] Y3(0) Y3(1) Y3(2) Y3(3) Y3(0) Y3(1) Y3(2) Y3(3) GY[4] Y2(0) Y2(1) Y2(2) Y2(3) Y2(0) Y2(1) Y2(2) Y2(3) GY[3] Y1(0) Y1(1) Y1(2) Y1(3) Y1(0) Y1(1) Y1(2) Y1(3) GY[2] Y1(0) Y1(1) Y1(2) Y1(3) Y1(0) Y1(1) Y1(2) Y1(3) BCb[9] Cb7(0) Cr7(0) Cb7(2) Cr7(2) Cb7(0) Cb7'(1) Cb7(2) Cb7'(3) BCb[8] Cb6(0) Cr6(0) Cb6(2) Cr6(2) Cb6(0) Cb6'(1) Cb6(2) Cb6'(3) BCb[7] Cb5(0) Cr5(0) Cb5(2) Cr5(2) Cb5(0) Cb5'(1) Cb5(2) Cb5'(3) BCb[6] Cb4(0) Cr4(0) Cb4(2) Cr4(2) Cb4(0) Cb4'(1) Cb4(2) Cb4'(3) BCb[5] Cb3(0) Cr3(0) Cb3(2) Cr3(2) Cb3(0) Cb3'(1) Cb3(2) Cb3'(3) BCb[4] Cb2(0) Cr2(0) Cb2(2) Cr2(2) Cb2(0) Cb2'(1) Cb2(2) Cb2'(3) BCb[3] Cb1(0) Cr1(0) Cb1(2) Cr1(2) Cb1(0) Cb1'(1) Cb1(2) Cb1'(3) BCb[2] Cb0(0) Cr0(0) Cb0(2) Cr0(2) Cb0(0) Cb0'(1) Cb0(2) Cb0'(3) Data Manager TO CH1 TO CH2 RCr[9] X X X X Cr7(0) Cr7'(1) Cr7(2) Cr7'(3) RCr[8] X X X X Cr6(0) Cr6'(1) Cr6(2) Cr6'(3) RCr[7] X X X X Cr5(0) Cr5'(1) Cr5(2) Cr5'(3) RCr[6] X X X X Cr4(0) Cr4'(1) Cr4(2) Cr4'(3) RCr[5] X X X X Cr3(0) Cr3'(1) Cr3(2) Cr3'(3) RCr[4] X X X X Cr2(0) Cr2'(1) Cr2(2) Cr2'(3) RCr[3] X X X X Cr1(0) Cr1'(0) Cr1(2) Cr1'(3) RCr[2] X X X X Cr0(0) Cr0'(1) Cr0(2) Cr0'(3) TO CH3 Figure 6-2. 20-/16-Bit YCbCr 4:2:2 Data Format (16-Bit Operation Shown) When dedicated timing is used in this mode, there is a fixed relationship between the first active period of HS_IN (that is, the first CLKIN rising edge seeing HS_IN active) and a Cb color component assumed present during that clock period on the bus receiving CbCr samples. When embedded timing is used in this mode, the SAV/EAV structure also unambiguously defines the CbCr sequence, according to SMPTE274M/296M for HDTV. NOTE The figure shows the case when only 8 bits of each 10-bit input bus are used. • 26 10-bit YCbCr 4:2:2 (ITU mode) CLKIN is equal to 2x the pixel clock since all components are multiplexed on a single 10-bit bus with a 4-multiple sequence: CbYCrY. Therefore the pixel clock (that is, the Y input rate) is 1/2 of CLKIN and the Cb and Cr rate are 1/4 of CLKIN. When dedicated timing is used in this mode, there is a fixed relationship between the first active period Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com • SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 of HS_IN (that is, the first CLKIN rising edge seeing HS active) and a Cb color component assumed present during that clock period on the input bus. When embedded timing is used in this mode, the SAV/EAV structure also unambiguously defines the CbCr sequence, according to ITU-R.BT656 (for 625I and 525I) and SMPTE293M (for 525P). 16-bit RGB 4:4:4 CLKIN GY[9] R7(0) R7(1) R7(2) R7(3) G7(0) G7(1) G7(2) G7(3) GY[8] R6(0) R6(1) R6(2) R6(3) G6(0) G6(1) G6(2) G6(3) GY[7] R5(0) R5(1) R5(2) R5(3) G5(0) G5(1) G5(2) G5(3) GY[6] R4(0) R4(1) R4(2) R4(3) G4(0) G4(1) G4(2) G4(3) GY[5] R3(0) R3(1) R3(2) R3(3) G3(0) G3(1) G3(2) G3(3) GY[4] G7(0) G7(1) G7(2) G7(3) G2(0) G2(1) G2(2) G2(3) GY[3] G6(0) G6(1) G6(2) G6(3) 0 0 0 0 GY[2] G5(0) G5(1) G5(2) G5(3) 0 0 0 0 BCb[9] G4(0) G4(1) G4(2) G4(3) B7(0) B7(1) B7(2) B7(3) BCb[8] G3(0) G3(1) G3(2) G3(3) B6(0) B6(1) B6(2) B6(3) BCb[7] G2(0) G2(1) G2(2) G2(3) B5(0) B5(1) B5(2) B5(3) BCb[6] B7(0) B7(1) B7(2) B7(3) B4(0) B4(1) B4(2) B4(3) BCb[5] B6(0) B6(1) B6(2) B6(3) B3(0) B3(1) B3(2) B3(3) BCb[4] B5(0) B5(1) B5(2) B5(3) 0 0 0 0 BCb[3] B4(0) B4(1) B4(2) B4(3) 0 0 0 0 BCb[2] B3(0) B3(1) B3(2) B3(3) 0 0 0 0 RCr[9] X X X X R7(0) R7(1) R7(2) R7(3) RCr[8] X X X X R6(0) R6(1) R6(2) R6(3) RCr[7] X X X X R5(0) R5(1) R5(2) R5(3) RCr[6] X X X X R4(0) R4(1) R4(2) R4(3) RCr[5] X X X X R3(0) R3(1) R3(2) R3(3) RCr[4] X X X X 0 0 0 0 RCr[3] X X X X 0 0 0 0 RCr[2] X X X X 0 0 0 0 Data Manager TO CH1 TO CH2 TO CH3 • Figure 6-3. 16-Bit RGB 4:4:4 Data Format CLKIN is equal to 1x the pixel clock. This format is only supported in VESA mode and can be used for PC graphics applications that do not require full 8-bit resolution on each color component. 15-bit RGB 4:4:4 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 27 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com CLKIN GY[9] X X X X G7(0) G7(1) G7(2) G7(3) GY[8] R7(0) R7(1) R7(2) R7(3) G6(0) G6(1) G6(2) G6(3) GY[7] R6(0) R6(1) R6(2) R6(3) G5(0) G5(1) G5(2) G5(3) GY[6] R5(0) R5(1) R5(2) R5(3) G4(0) G4(1) G4(2) G4(3) GY[5] R4(0) R4(1) R4(2) R4(3) G3(0) G3(1) G3(2) G3(3) GY[4] R3(0) R3(1) R3(2) R3(3) 0 0 0 0 GY[3] G7(0) G7(1) G7(2) G7(3) 0 0 0 0 GY[2] G6(0) G6(1) G6(2) G6(3) 0 0 0 0 BCb[9] G5(0) G5(1) G5(2) G5(3) B7(0) B7(1) B7(2) B7(3) BCb[8] G4(0) G4(1) G4(2) G4(3) B6(0) B6(1) B6(2) B6(3) BCb[7] G3(0) G3(1) G3(2) G3(3) B5(0) B5(1) B5(2) B5(3) BCb[6] B7(0) B7(1) B7(2) B7(3) B4(0) B4(1) B4(2) B4(3) BCb[5] B6(0) B6(1) B6(2) B6(3) B3(0) B3(1) B3(2) B3(3) BCb[4] B5(0) B5(1) B5(2) B5(3) 0 0 0 0 BCb[3] B4(0) B4(1) B4(2) B4(3) 0 0 0 0 BCb[2] B3(0) B3(1) B3(2) B3(3) 0 0 0 0 RCr[9] X X X X R7(0) R7(1) R7(2) R7(3) RCr[8] X X X X R6(0) R6(1) R6(2) R6(3) RCr[7] X X X X R5(0) R5(1) R5(2) R5(3) RCr[6] X X X X R4(0) R4(1) R4(2) R4(3) RCr[5] X X X X R3(0) R3(1) R3(2) R3(3) RCr[4] X X X X 0 0 0 0 RCr[3] X X X X 0 0 0 0 RCr[2] X X X X 0 0 0 0 Data Manager TO CH1 TO CH2 TO CH3 Figure 6-4. 15-Bit RGB 4:4:4 Data Format CLKIN is equal to 1x the pixel clock. This format is only supported in VESA mode and can be used for PC graphics applications that do not require full 8-bit resolution on each color component. 28 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 6.3 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Clock Generator (CGEN)/Clock Driver (CDRV) The clock generator/clock driver blocks generate all on-chip clocks for 4:2:2 to 4:4:4 and 2x video oversampling. The DMAN setting controls whether the input data is 4:2:2 or 4:4:4 sampled, and whether a 30-, 20- or 10-bit interface is used. This selection affects the clock input frequency assumed to be present on CLKIN. • 30-bit 4:4:4: 1x pixel clock. 4:2:2 to 4:4:4 interpolation should be bypassed. Optional 2x oversampling is available for formats with pixel clock up to 80 MHz. • 20-bit 4:2:2: 1x pixel clock. 4:2:2 to 4:4:4 interpolation should be switched in, and is available for formats with pixel clock up to 150 MHz. Optional 2x oversampling available for formats with pixel clock up to 80 MHz. • 10-bit 4:2:2 (ITU): 1/2x pixel clock. 4:2:2 to 4:4:4 interpolation should be switched in, and is available for formats with pixel clock up to 150 MHz. Optional 2x oversampling is available for formats with pixel clock up to 80 MHz. The internal DLL (delay-locked loop) generates the higher clock frequencies. The user should program the input frequency range selection register, dll_freq_sel, according to the frequency present on CLK_IN when using either or both interpolation/oversampling stages. The 4:2:2 to 4:4:4 stage is switched in or bypassed, depending on the setting of data_ifir12_bypass register (interpolation only on chroma channels). This feature should only be used with YCbCr 4:2:2 input. The THS8200 can perform color space conversion to RGB depending on the CSC setting. The dtg2_rgbmode_on register should be set corresponding to the color space representation of the DAC output. The 2x oversampling stage is switched in or bypassed, depending on the setting of data_ifir35_bypass register. The user should not enable the 2x oversampling stage when the CLK_IN frequency exceeds 80 MHz, as is the case for the higher PC graphics formats and 1080P HDTV. In this case the DLL should be bypassed using the vesa_clk register to disable the 2x frequency generation. As explained in the detailed register map description for this register, it is still possible to support 20-bit 4:2:2 input in this mode (for example, for 1080P). A second bypass mode operation exists for the DLL, enabled by the dll_bypass register. When this bypass mode is active, the CLKIN input is assumed to be 2x pixel frequency. 6.4 Color Space Conversion (CSC) THS8200 contains a fully-programmable 3×3 multiply/add and 3×1 adder block that can be switched in for all video formats up to a pixel clock frequency of 150 MHz. Color space conversion is thus available for all DTV modes, including 1080P and VESA modes up to SXGA at 75 Hz (135 MSPS). The operation is done after optional 4:2:2 to 4:4:4 conversion, and thus on the 1x pixel clock video data prior to optional 2x video oversampling. The CSC block can be switched in or bypassed depending on the setting of register csc_bypass. Each of the nine floating point multiplier coefficients of the 3×3 multiply/add is represented as the combination of a 6-bit signed binary integer part, and a 10-bit fractional part. The integer part is a signed magnitude representation with the MSB as the sign bit. The fractional part is a magnitude representation; see the following example. The register nomenclature is: csc_ c where: • identifies which input channel is multiplied by this coefficient (r = red/Cr, g = green/Y, b = blue/Cb input). • identifies the integer (i) or fractional (f) part of the coefficient. • identifies the output channel from the color space converter: 1 = Yd/Gd, 2 = Cb/Bd, 3 = Cr/Rd. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 29 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com For the offset values, a value of 1/4 of the desired digital offset needs to be programmed in the individual offset register, so a typical offset of 512 (offset over 1/2 of the video range) requires programming a value of 128 decimal into the offset registers, where again defines the output channel affected, with similar convention as shown previously. Saturation logic can be switched in to avoid overflow and underflow on the result after color space conversion using the csc_uof_cntl register. An example of how to program the CSC follows. This also explains the numeric data formats. CSC configuration example: HDTV RGB to HDTV YCbCr The formulas for RGB to YCbCr conversion are: • Yd = 0.2126 × Rd + 0.7152 × Gd + 0.0722 × Bd • Cb = −0.1172 × Rd – 0.3942 × Gd + 0.5114 × Bd + 512 • Cr = 0.5114 × Rd – 0.4646 × Gd – 0.0468 × Bd + 512 To 1. 2. 3. program the red coefficient of channel 1 (Y) with the value of 0.2126 the following must be done: Realize that this is a positive value so the sign bit of the integer part is 0 (bit 5 of csc_ric1 = 0). Note that there is no integer portion of the coefficient (bit 4−bit 0 = 00000). The binary representation of the fractional part can be constructed directly from the binary equivalent of the fractional part multiplied by 1024 (0.2126 × 1024 = 217.7), rounded to the nearest integer (218) and represented as a binary 10-bit number (00 1101 1010). Using the above method all the registers for the CSC blocks can be programmed with the correct value for RGB to YCbCr conversion. Below is a complete list of register values for the above conversion. 0.2126 → csc_ric1 = 00 0000 csc_rfc1 = 00 1101 1010 0.7152 → csc_gic1 = 00 0000 csc_gfc1 = 10 1101 1100 0.0722 → csc_bic1 = 00 0000 csc_bfc1 = 00 0100 1010 −0.1172 → csc_ric2 = 10 0000 csc_rfc2 = 00 0111 1000 −0.3942 → csc_gic2 = 10 0000 csc_gfc2 = 01 1001 0100 0.5114 → csc_bic2 = 00 0000 csc_bfc2 = 10 0000 1100 0.5114 → csc_ric3 = 00 0000 csc_rfc3 = 10 0000 1100 −0.4646 → csc_gic3 = 10 0000 csc_gfc3 = 01 1101 1100 −0.0468 → csc_bic3 = 10 0000 csc_bfc3 = 00 0011 0000 For the offsets necessary in the second and third equation, the csc_offset registers need to be programmed. Add 512 to the Cb and Cr channels. The value to be programmed is 1/4 of this offset in a signed magnitude representation, thus 128 or csc_offset2 = csc_offset3 = 00 1000 0000. Packing these individual registers into the I2C register map, the programmed values are: 30 SUBADDRESS REGISTER NAME VALUE 0x04 csc_r11 0000 0000 0x05 csc_r12 1101 1010 0x06 csc_r21 1000 0000 0x07 csc_r22 0111 1000 0x08 csc_r31 0000 0010 0x09 csc_r32 0000 1100 0x0A csc_g11 0000 0010 0x0B csc_g12 1101 1100 0x0C csc_g21 1000 0001 0x0D csc_g22 1001 0100 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 SUBADDRESS REGISTER NAME VALUE 0x0E csc_g31 1000 0001 0x0F csc_g32 1101 1100 0x10 csc_b11 0000 0000 0x11 csc_b12 0100 1010 0x12 csc_b21 0000 0010 0x13 csc_b22 0000 1100 0x14 csc_b31 1000 0000 0x15 csc_b32 0011 0000 0x16 csc_offs1 0000 0000 0x17 csc_offs12 0000 1000 0x18 csc_offs23 0000 0010 0x19 csc_offs3 0000 0000 CSC configuration example: HDTV YCbCr to HDTV RGB • Gd = –0.4577 × Cr + Yd – 0.1831 × Cb +328 (= 0.6408 × 128 × 4) • Bd = 0 × Cr + Yd + 1.8142 × Cb – 929 (= −1.8142 × 128 × 4) • Rd = 1.5396 × Cr +Yd +0 × Cb – 788 (= −1.5396 × 128 × 4) In a similar manner, it can be calculated that the programming array is in this case: 6.5 SUBADDRESS REGISTER NAME VALUE 0x04 csc_r11 1000 0001 0x05 csc_r12 1101 0101 0x06 csc_r21 0000 0000 0x07 csc_r22 0000 0000 0x08 csc_r31 0000 0110 0x09 csc_r32 0010 1001 0x0A csc_g11 0000 0100 0x0B csc_g12 0000 0000 0x0C csc_g21 0000 0100 0x0D csc_g22 1000 0000 0x0E csc_g31 0000 0100 0x0F csc_g32 0000 0000 0x10 csc_b11 1000 0000 0x11 csc_b12 1011 1011 0x12 csc_b21 0000 0111 0x13 csc_b22 0100 0010 0x14 csc_b31 0000 0000 0x15 csc_b32 0000 0000 0x16 csc_offs1 0001 0100 0x17 csc_offs12 1010 1110 0x18 csc_offs23 1000 1011 0x19 csc_offs3 0001 0100 Clip/Shift/Multiplier (CSM) There are limits on the code range of the video data if sampled according to ITU or SMPTE standards. In other words, the full 10-bit range [0:1023] is not used to represent video pixels. For example, typically 64 decimal is the lowest code allowed to represent a video signal and corresponds to the blanking level. Similarly for Y, typically the maximum code is 940 decimal. Excursions outside this range can be the result of digital video processing. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 31 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com THS8200 can handle such instantaneous excursions in either of two ways: by limiting the input codes to programmable max/min values, or by allowing such excursions to occur. Depending on which approach is chosen, the user can scale up the video data in the CSM to make sure the full-scale dynamic range of the DAC is used for optimal performance when using limiting. Alternatively, the instantaneous excursions outside the code range can be output by the DAC in the analog output signal (allowing super-white/black in analog output) when this clipping is disabled. The CSM block allows the user to specify the behavior of THS8200 with such reduced-swing input video codes. It consists of the following: 1. An optional clipping of the input video data at a high and low limit, where the limits are individually programmable per channel. 2. A downward shift of the input video data, where the shift amount is individually programmable per channel. 3. A multiply (magnitude scaling) function of the video data, where the multiplier coefficient is individually programmable per channel. 6.5.1 Clipping Clipping (limiting) of the video input data can be turned on or off on a per-channel basis, and selectively at the high and/or low end, by programming the csm___clip_on registers. The high/low clipping values can be programmed on a per-channel basis using registers csm_clip__. Figure 6-5 shows a typical situation to clip ITU-R.BT601 sampled video signals. Ramping Analog Output With Clipping Effect on Top and Bottom 817.3 mV Analog Output From DACs 751.1 mV Output After Clipping Output Before Clipping 51.1 mV 0 64 255 511 767 940 1023 Input Digital Codes Figure 6-5. Effect of Clipping on Analog Output 6.5.2 Shifting Next the video data can be shifted over a programmable amount downward. The number of codes over which to shift the input video data is set per channel by programming csm_shift_. Shifting of the input video data can be done downwards over 0..255 codes inside the CSM. 32 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Ramping Analog Output With Clipping Effect on Top and Bottom 817.3 mV Analog Output From DACs 751.1 mV 700.0 mV Output After Clipping Output After Clipping and Shifting 51.1 mV 0 64 255 511 767 876 940 1023 Input Digital Codes Figure 6-6. Effect of Shifting on Clipped Analog Output Figure 6-5 and Figure 6-6 also show the analog output from the DAC if the full-scale video range over the [64..940] input would correspond to the normal 700-mV range for component video. This full-scale range is set by the selected FSADJ full-scale setting (register data_fsadj). 6.5.3 Multiplying When the 10-bit range is not fully used for video, scale the input video data to use the full 10-bit dynamic range of the DACs. Care should be taken not to overflow/underflow the available range after scaling. This multiplying control serves two purposes: • Use of the full 10-bit DAC range for inputs of reduced range. • Individual fine gain control per channel to compensate for gain errors and provide white balance control. Ramping Analog Output With 1:1.1 AC Range Fine Scaling 817.3 mV 770.0 mV Analog Output From DACs 700.0 mV Range After Scaling Up 1:1.1 DC Shifted Original AC Range 0 255 511 767 876 1023 964 Input Digital Codes Figure 6-7. Effect of Scaling the Analog Video Output Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 33 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Figure 6-7 illustrates a shifted analog ramping output. The multiplication factor could be calculated to scale this output range to the full 10-bit range of the DAC. Note that this scaling can be programmed individually per channel using registers csm_mult_. The range of the multiplication is 0..1.999, coded as a binary weighted 11-bit value, thus: csm_mult_ = (Desired scale ( 0 to 1.999) / 1.999) × 2047. Note that this approach allows to scale input code ranges that are different on each channel to an identical full-scale DAC output compliance, as is required for ITU-R.BT601 sampled signals where Y video data is represented in the range [64..940] and both Cb,Cr color difference channels are coded within the range [64..960]. All three channels need to generate a 700-mV nominal analog output compliance. Using a combination of FSADJ—adjusting the full-scale current of all DAC channels simultaneously in the analog domain—and digital CSM control, different trade-offs can be made for DAC output amplitude control, including channel matching. As discussed in Section 6.7, the user also controls the DAC output levels during blanking, negative and positive sync, pre- and post-equalization, and serration pulses. Using a combination of CSM and DTG programming, it is therefore possible to accommodate many video standards, including those that require a video blank-to-black level setup, as well as differing video/sync ratios (for example, 10:4 or 7:3). Finally, using the selectable full-scale adjustment from the FSADJ1 or FSADJ2 terminals, it is possible to switch between two analog output compliance settings with no hardware changes. Physically, the CSM output is represented internally as an 11-bit value to improve the DAC linearity at the 10-bit level after scaling. Each DAC internally is of 11-bit resolution. 6.6 Interpolating Finite Impulse Response Filter (IFIR) For relaxing the requirements of the reconstruction filter behind the DAC in the analog domain, and to take advantage of the high-speed capability of the DACs in THS8200, a 2x digital up-sampling and interpolation filter module is integrated. Figure 6-8 through Figure 6-11 show the YRGB and CbCr filtering requirements for HDTV (SMPTE274M/296M standards) and SDTV (ITU-R.BT601 standard), respectively. 1+ d 1 1- d M ag n itu d e -6 dB -40 dB -50 dB 0.20 fs 0.25 fs 0.30 fs 0.37 fs Frequency NOTE: δ = 0.05 dB. fs=74.25 MSPS for 1080I and 720P HDTV formats. Figure 6-8. PB and PR Filter Requirements Based on SMPTE 296M/274M 34 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 1+ d 1 1- d M ag n itu d e -12 dB 40 dB 50 dB 0.40 fs 0.50 fs 0.60 fs 0.73 fs Frequency NOTE: δ = 0.05 dB. fs=74.25 MSPS for 1080I and 720P HDTV formats. Figure 6-9. Y and RGB Filter Requirements Based on SMPTE 296M/274M 1+ d 1 1- d M ag n itu d e -12 dB -40 dB 5.75 6.75 8.0 Frequency (MHz) NOTE: δ = 0.05 dB Figure 6-10. Y and RGB Filter Requirements Based on ITU-R.BT601 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 35 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 1+ d 1 1- d M ag n itu d e -6 dB -40 dB 2.75 3.375 4.0 Frequency (MHz) NOTE: δ = 0.05 dB Figure 6-11. Cb and Cr Filter Requirements Based on ITU-R.BT601 36 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Figure 6-12 through Figure 6-14 illustrate the frequency and phase responses of the interpolating filters. The actual response using the finite-word length coefficients present in THS8200 is shown. The same filter characteristic is used for SDTV/HDTV modes and for both 4:2:2 to 4:4:4 interpolation (2 filters, one on each of Cb and Cr channels, switched in when a 4:2:2 input mode is selected on DMAN to interpolate chrominance from 1/2 to 1x pixel clock rate) as well as for 2x video oversampling (3 filters, one on each DAC channel, switched in when 2x interpolation is activated). xxx 0 0.01 10 9 0.008 8 0.006 20 7 0.004 Magnitude - dB Magnitude - dB 30 40 50 60 6 0.002 5 0 4 0.002 3 0.004 70 2 0.006 80 0.0081 90 0.0 0.5 1.0 1.5 2.0 3.0 2.5 0 0.01 . 0 00 3.5 0.25 0.50 0.75 1.00 1.25 1.50 f - Frequency - Rad Figure 6-13. IFIR Pass-Band Frequency Response f - Frequency - Rad Figure 6-12. IFIR Frequency Response 4 3 Magnitude - dB 2 1 0 1 2 3 4 . 00 0.5 1.0 1.5 2.0 2.5 3.0 f - Frequency - Rad Figure 6-14. IFIR Phase Response Each of the two interpolation stages can be switched in or bypassed: • Register data_ifir12_bypass controls the 4:2:2 to 4:4:4 filter bank (these filters should be set active when a 4:2:2 input mode is selected on DMAN). • Register data_ifir35_bypass controls the 1x to 2x interpolation stage and can be set active for optional 2x interpolation when an input format with pixel clock < 80 MSPS is present. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 37 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.7 6.7.1 www.ti.com Display Timing Generator (DTG) Overview of Functionality THS8200 can generate dedicated Hsync/Vsync/FieldID video synchronization outputs, as well as a composite sync inserted on either the G/Y or all analog output channels. Both types of output synchronization can be available simultaneously and programmed independently. Synchronization patterns are fully programmable to accommodate all standard VESA (PC graphics) and ATSC (DTV) formats as well as nonstandard formats. For the purpose of output video timing generation, the device is configured in HDTV, SDTV or VESA mode (dtg1_mode register). Depending on the selected DTG mode, a number of line types are available to generate the full video frame format. The timing and position of horizontal and vertical syncs, the position of horizontal and vertical blanking intervals, and the structure, position and width of equalization pulses, pre- and post-serration pulses within the vertical blanking interval are user-programmable. The DTG determines: • the frame format/field format (number of pixels/line, number of lines/field1, number of lines/field2, number of fields/frame = 1 for progressive or 2 for interlaced formats) and its synchronization to the input data source. – Registers: dtg1_total_pixels, dtg1_linecnt, dtg1_frame_size, dtg1_field_size • in slave mode, whether HS_IN, VS_IN, FID (dedicated sync inputs) are used for input video synchronization or video timing is extracted from embedded SAV/EAV codes, as well as the relative position of the video frame with respect to these synchronization signals. – Registers: dtg2_embedded_timing, dtg2_hs_in_dly, dtg2_vs_in_dly • the I/O direction of the HS_IN and VS_IN input signals (master vs slave mode), and the polarity of the HS_IN, VS_IN, and FID signals. – Registers: dtg2_hs_pol, dtg2_vs_pol, dtg2_fid_pol • the position and width of the HS_OUT, VS_OUT output signals, and their polarity. – Registers: dtg2_hlength, dtg2_hdly, dtg2_vlength1, dtg2_vdly1, dtg2_vlength2, dtg2_vdly2, dtg2_vsout_pol, dtg2_hsout_pol • field reversal within DTG. – Register: dtg1_field_flip • the active video window: width and position of horizontal blanking interval, width and position of vertical blanking interval. – Registers: dtg2_bp, dtg2_linetype and the dtg1_spec_x registers, see DTG Line Type Overview (Section 6.7.3). • the composite sync format: horizontal line timing includes serration, interlaced sync and broad pulses on each line in vertical blanking interval, width of vertical sync. – Registers: dtg1_mode, dtg1_spec_ • the behavior of the composite sync insertion: inserted on G/Y-channel only, or inserted on all channels, or no composite sync insertion; the amplitudes of the inserted negative and positive sync, the amplitudes of all serration pulses and broad pulses during the vertical blanking interval. – Registers: dtg1__sync_high, dtg1__sync_low • the DAC output amplitude during blanking and whether video data is passed or not during the active video portion of lines within the vertical blanking interval that contain no vertical sync, serration, or broad pulses. – Registers: dtg1__blank, dtg1_pass_through • the width of each color bar of the color bar test pattern. – Registers: dtg1_vesa_cbar_size 38 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 6.7.2 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Functional Description The user should program the DTG with the correct parameters for the current video format. The DTG contains a line and a pixel counter, and a state machine to determine which user−defined line waveform to output for each line on the analog outputs. The pixel counter counts horizontally up to the total number of pixels per line, programmed in 'dtg1_total_pixels'. The line counter counts up to 'dtg1_field_size' lines in the first field, and continues its count up to 'dtg1_frame_size' lines in the total frame (field1+field2). The current field is derived from the even/odd field ID signal, which is sampled at the start of the Vsync period. The source for the internal FID signal can be either the signal to the FID terminal, or can be internally derived from relative Hsync/Vsync alignment on the corresponding terminals, as selected by 'dtg2_fid_de_cntl' and the current DTG mode (VESA vs. SDTV/HDTV). See register map description of 'dtg2_fid_de_cntl' for more details. Derivation of FID from Hsync/Vsync input alignment is done according to the EIA−861 specification. There is a tolerance implemented on Hsync/Vsync transition misalignment. When the active edge of the Vsync transition occurs within ±63 clock cycles from the active edge of Hsync, both signals are interpreted as aligned, which signals field 1. Because of this timing window, the internal FieldID signal is generated later than the start of Vsync period. Since the signal is internally sampled at the start of the Vsync period to determine the current field, the field interpretation is opposite. Use the 'field_flip' register to correct this through field reversal. If the video format is progressive, only field1 exists and no FID signal is needed. However the DTG will only startup when a field 1 condition is detected i.e when FID is detected low at the start of the Vsync period. Thus in the case of a progressive video format, and when using the device with external FID input, the user must make sure to keep the FID terminal low. It is also needed for proper DTG synchronization that the programmed Hsync and Vsync input polarities are correct. Since Hsync, Vsync polarities change for different VESA PC formats, the device has built−in support to detect the incoming sync polarities. This is done by comparing the width of Hsync high ('misc_ppl') to the total line length ('dtg2_pixel_cnt') to derive the Hsync duty cycle and thus its polarity. Upon this detection, the user can program the detected incoming polarity for DTG input synchronization ('dtg2_hs_pol') – it is not set automatically by the device. The procedure is similar for Vsync polarity detection, using registers 'misc_lpf', 'dtg2_line_cnt' and 'dtg2_vs_pol'. The DTG synchronization can be separated into three functions: • Internal synchronization: How the DTG is synchronized with respect to the internal horizontal and vertical counters. • Source synchronization: How the horizontal and vertical counters are synchronized to the HS_IN/VS_IN/FID or SAV/EAV signals. • Output synchronization: how the output timings HS_OUT, VS_OUT, and the composite sync output are synchronized to the DTG and the horizontal and vertical counters. The DTG is based on a state machine that can generate a set of line types which can override the values on the DAC inputs. The DTG output is multiplexed into the data path by the DIGMUX. The selected video format preset setting, or the programmed (line type, breakpoint) table in case a generic mode is selected in dtg1_mode, determines which line type is generated for a particular line, and where this DTG output is used to override the normal DAC inputs. Internally, a fixed preconfigured number of line types exists from which the user can select. Also, for each set of line types (there are two different sets of line types possible) the user can program the horizontal duration of each predefined excursion (negative sync, positive sync, back porch, front porch, broad pulse, interlaced sync, etc.) and also the amplitude (for example, negative sync amplitude, positive sync amplitude, blank amplitude). The setting of dtg1_mode determines: • Internal synchronization: The 0H reference (horizontal reset of the DTG) is different between SDTV and HDTV. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 39 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 • 6.7.2.1 www.ti.com Output synchronization: The available set of output synchronization line types depends on these modes. The user can choose from a number of predefined line types for each mode. In each mode, the user is able to program the timings along the line. However some timings are hard coded by the selected DTG_mode (for example, rise/fall times for sync are different; see DTG Line Type Overview, Section 6.7.3) and not all line types can be selected in each DTG mode (for example, HDTV allows trilevel sync, while SDTV only allows generation of bi-level negative syncs). Predefined DTG Video Formats (Presets) While the DTG has the flexibility to generate a wide array of video output formats and their synchronization signals, the most common video formats have predefined settings for the field and frame sizes and for (line type, breakpoint) settings. When selecting a video format preset, the horizontal timings of the line types still need to be programmed. The preset only fixes the (line type, breakpoint) table. 6.7.2.2 Internal Synchronization The pixel and line counters of the DTG are reset by internal signals. In slave mode (THS8200 slaves to external video input source) these signals are derived from either the embedded SAV/EAV codes or the dedicated Hsync/Vsync/FID inputs. In master mode, these counters are in free-run and the HS_IN/VS_IN signals are generated by the THS8200 based on the programmed field/frame parameters. Master mode is only available for progressive-scan VESA modes. FID is not generated in master mode. The user can delay, in both horizontal and vertical directions, the 0-reference of the DTG by programming the input delay registers. Physically, the horizontal and vertical DTG startup values are altered. The effect is that, when a vertical or horizontal sync is received, either from dedicated inputs or from embedded SAV/EAV codes, the output frame starts at position (x,y). This ensures that, for example, the output video frame can be centered on the display. Based on the 0-reference of the DTG, the line types are generated and the DIGMUX will select between the video input and the DTG output for each line type. All horizontal timings of the different line types are programmable, including the portion of the video line seen as active video. A complete overview of all available line types in either SDTV or HDTV mode is presented in Section 6.7.3. Additionally, Hsync/Vsync outputs can be generated, synchronized to the THS8200 DAC outputs. These outputs are programmable in width, position and polarity, based on the horizontal/vertical pixel counters, and thus independently of the DTG reference. This ensures that independent synchronization is possible between the composite sync output inserted into the DAC output(s) and the dedicated Hsync/Vsync outputs. Because of their programmability, these output signals could be used for other purposes as well; for example, Vsync could be programmed as a signal active during the VBI. Figure 6-15 shows how the internal pixel and line counters are synchronized to internal HS and VS signals in slave mode. HS and VS are internal signals derived from either HS_IN, VS_IN, or from embedded SAV/EAV codes in the input video data. Since the 0-reference of the DTG is determined by these counters, the dtg2_vs_in_dly and dtg2_hs_in_dly register settings influence both HS_OUT, VS_OUT and composite sync output timing. The dtg2_vdly and dtg2_hdly settings, on the other hand, only affect HS_OUT and VS_OUT, because they are downstream of the pixel counter. Likewise, dtg2_hlength and dtg2_vlength only affect these dedicated sync output signals. 40 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 dtg2_hs_in_dly HS (Input) > RESET Counter = RESET Pixel > Counter = dtg2_hdly > RESET Counter < HS_Out < VS_Out dtg2_vs_in_dly dtg2_hlength VS (Input) > RESET Counter = RESET Line > Counter dtg2_vdly or dtg2_vdly2 = > RESET Counter dtg2_vlength or dtg2_vlength2 Figure 6-15. THS8200 DTG VS/HS Output Generation Note that both independent sets of delay registers allow accommodation of different input timing references in slave mode. When the device is configured in master mode, the delay registers can compensate for different external (frame memory) synchronization requirements. 6.7.2.3 Output Synchronization: Composite Sync The composite sync is generated from a programmed sequence of (line type, breakpoint) combinations, either user-programmed (in generic mode) or preset (in preset mode). The line type determines the waveform shape at the output of the DAC(s) with programmable amplitudes and timings. On each line, at the horizontal reference point of the DTG, the DTG decides where to start/stop the DTGgenerated data and where to pass input video data. For example, during an active video line, ancillary data can be embedded in the digital stream outside the active video portion of the line, that it might be necessary to convert to analog. Alternatively, during a nonactive video line, where normally the predefined line type would be inserted, ancillary data might need to be passed during the active video portion of the line. The amplitudes of positive, negative sync excursions and of the negative serration, pre- and postequalization and broad pulses are independently programmable between G/Y and BPb, RPr channels. Therefore sync insertion can be programmed on only the G/Y output or on all DAC outputs. To limit the number of selection bits to select the line type, and because of the fact that a set of line types can be defined that is mutually exclusive for SDTV and HDTV video modes, there are two DTG video modes: SDTV and HDTV. There is a third DTG mode (VESA) which does not use the line type/breakpoint state machine and only generates Hsync/Vsync outputs. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 41 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.7.2.4 www.ti.com Output Synchronization: Hsync/Vsync Outputs These are the HS_OUT and VS_OUT signals, of which the width, position and polarity are programmable in all DTG modes. 6.7.3 DTG Line Type Overview 6.7.3.1 HDTV Mode When an HDTV mode is selected in dtg1_mode (preset or generic), a tri-level sync is inserted on the analog output at the start of every video line. The amplitudes during negative and positive excursions are programmable, as well as the horizontal timing parameters (width, position) of both excursions. The transition time for negative-to-blank and blank-to-positive excursions during VBI is fixed to 2T, generating a tri-level sync negative-to-positive excursion of 4T. The line type is programmed in registers dtg2_linetype and is output by the DTG from the vertical field/frame position corresponding to the line number programmed in register dtg2_breakpoint, until the line number listed in the next breakpoint register is reached. An example for 1080I is shown in Figure 6-25. The DTG overrides the input video data except where specified below for the specific line types. The horizontal timings shown in Figure 6-16 and Figure 6-17 correspond to the dtg1_spec_ registers. Note that the f spec is fixed. 42 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 f f f Sp/2 V/2 V/2 Sp Sp/2 Sm/2 Sm Sm/2 a c b d e OH Line Sync Timing References 90% 10% f1 f2 f Figure 6-16. Tri-Level Line-Synchronizing Signal Waveform Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 43 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Blank Level (FULL_NTSP) 1 Line OH OH f f Broad Pulse (FULL_BTSP) d h1 k 1 Line OH OH Interlaced Sync (NTSP_NTSP) f f f a c g g 1 Line OH OH Interlaced Sync and Broad Pulse in 2nd Half (NTSP_BTSP) f f f f a f c g d h k 1 Line OH OH Broad Pulses and Interlaced Sync (BTSP_BTSP) f f f f f f f a d h c k d h k g 1 Line OH OH Broad Pulse in 1st Half With Interlaced Sync (BTSP_NTSP) f f f f f a d h c k g g 1 Line OH OH In addition: Active video linetype (ACTIVE_VIDEO) Figure 6-17. THS8200 VBI Line Types in HDTV Mode 44 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 6.7.3.2 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Active Video 2 5 1 3 6 4 7 9 8 STATE DURATION 1 Fixed at 2T 2 dtg1_spec_c-4 3 Fixed at 4T 4 dtg1_spec_e dtg1_spec_c-2 5 dtg1_total_pixels dtg1_spec_e dtg1_spec_b 6 dtg1_spec_b dtg1_spec_a-2 7 Fixed at 4T 8 dtg1_spec_a-4 9 Fixed at 2T Figure 6-18. HDTV Line Type ACTIVE_VIDEO 6.7.3.3 FULL NTSP (Full Normal Tri-Level Sync Pulse) Device input data is passed during state #5 if dtg1_pass_through is on. 2 1 3 4 5 6 7 9 8 STATE DURATION 1 Fixed at 2T 2 dtg1_spec_c-4 3 Fixed at 4T 4 dtg1_spec_e dtg1_spec_c-2 5 dtg1_total_pixels dtg1_spec_e dtg1_spec_b 6 dtg1_spec_b dtg1_spec_a-2 7 Fixed at 4T 8 dtg1_spec_a-4 9 Fixed at 2T Figure 6-19. HDTV Line Type FULL_NSTP Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 45 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.7.3.4 www.ti.com NTSP NTSP (Normal Tri-Level Sync Pulse/Normal Tri-Level Sync Pulse) 2 13 3 1 4 5 7 6 12 8 14 15 16 17 18 19 11 9 22 20 10 21 STATE DURATION 1/12 Fixed at 2T 2/13 dtg1_spec_c-4 3/14 Fixed at 4T 4/15 dtg1_spec_d_lsb dtg1_spec_c-4 5/16 Fixed at 4T 6/17 dtg1_total_pixels/2 dtg1_spec_k dtg1_spec_d-4 7/18 Fixed at 4T 8/19 dtg1_spec_k—dtg1_spec_a-12 9/20 Fixed at 4T 10/21 dtg1_spec_a-4 11/22 Fixed at 2T Figure 6-20. HDTV Line Type NTSP_NTSP 6.7.3.5 BTSP BTSP (Broad Pulse and Tri-Level Sync Pulse/Broad Pulse and Tri-Level Sync Pulse) 2 1 13 3 12 8 4 5 7 6 14 19 15 11 9 16 10 17 18 20 22 21 STATE DURATION 1/12 Fixed at 2T 2/13 dtg1_spec_c-4 3/14 Fixed at 4T 4/15 dtg1_spec_d_lsb dtg1_spec_c-4 5/16 Fixed at 4T 6/17 dtg1_total_pixels/2 dtg1_spec_k dtg1_spec_d-4 7/18 Fixed at 4T 8/19 dtg1_spec_k dtg1_spec_a-12 9/20 Fixed at 4T 10/21 dtg1_spec_a-4 11/22 Fixed at 2T Figure 6-21. HDTV Line Type BTSP_BTSP 46 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 6.7.3.6 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 NTSP BTSP (Normal Tri-Level Sync Pulse/ Broad Pulse and Tri-Level Sync Pulse) 2 1 13 3 4 5 7 6 12 8 14 19 15 11 9 16 17 18 20 10 22 21 STATE DURATION 1/12 Fixed at 2T 2/13 dtg1_spec_c-4 3/14 Fixed at 4T 4/15 dtg1_spec_d dtg1_spec_c-4 5/16 Fixed at 4T 6/17 dtg1_total_pixels/2 dtg1_spec_k dtg1_spec_d-4 7/18 Fixed at 4T 8/19 dtg1_spec_k dtg1_spec_a-12 9/20 Fixed at 4T 10/21 dtg1_spec_a-4 11/22 Fixed at 2T Figure 6-22. HDTV Line Type NTSP_BTSP 6.7.3.7 BTSP NTSP (Broad Pulse and Tri-Level Sync Pulse/Normal Tri-Level Sync Pulse) 2 1 13 3 12 8 4 5 7 6 14 15 16 11 9 10 STATE DURATION 1/12 Fixed at 2T 2/13 dtg1_spec_c-4 3/14 Fixed at 4T 4/15 dtg1_spec_d dtg1_spec_c-4 5/16 Fixed at 4T 6/17 dtg1_total_pixels/2 dtg1_spec_k dtg1_spec_d-4 7/18 Fixed at 4T 8/19 dtg1_spec_k dtg1_spec_a-12 9/20 Fixed at 4T 10/21 dtg1_spec_a-4 11/22 Fixed at 2T 17 18 19 20 22 21 Figure 6-23. HDTV Line Type BTSP_NTSP Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 47 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.7.3.8 www.ti.com Full BTSP (Full Broad Pulse and Tri-Level Sync Pulse) 2 1 3 8 4 5 7 6 9 11 10 STATE DURATION 1/12 Fixed at 2T 2/13 dtg1_spec_c-4 3/14 Fixed at 4T 4/15 dtg1_spec_d dtg1_spec_c-4 5/16 Fixed at 4T 6/17 dtg1_total_pixels/2 dtg1_spec_k dtg1_spec_d-4 7/18 Fixed at 4T 8/19 dtg1_spec_k dtg1_spec_a-12 9/20 Fixed at 4T 10/21 dtg1_spec_a-4 11/22 Fixed at 2T Figure 6-24. HDTV Line Type FULL_BTSP Example: 1080I/P THS8200 is put into 1080I mode by programming dtg1_mode = 0001. Figure 6-25 shows the required output format of both fields for 1080I and 1080P. When in 1080I preset mode, the (line type, breakpoint) table and frame and field size registers are filled out as follows internally: Breakpoints Line Type 6 BTSP_BTSP 7 NTSP_NTSP 21 FULL_NTSP 561 ACTIVE_VIDEO 563 FULL_NTSP 564 NTSP_BTSP 568 BTSP_BTSP 569 BTSP_NTSP 584 FULL_NTSP 1124 ACTIVE_VIDEO 1126 FULL_NTSP frame_size = 10001100101; 1125d field_size = 01000110011; 563d From line 1 to 5, line type BTSP_BTSP is generated. When the line counter reaches line 6, the DTG switches to line type NTSP_NTSP, etc. Note that the dtg1_spec_ registers need to be filled out with the correct values to set the horizontal line timings. 48 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 Interlace Second Field Interlace First Field Progressive No. 560 No. 1123 No. 1121 No. 561 No. 563 No. 1125 1/2 H No. 562 No. 1124 No. 1125 OV No. 1 No. 1 No. 564 No. 565 Second Field No. 2 First Field No. 2 22 H 45 H No. 566 5H 23 H No. 3 5H No. 3 5H First Field Sync Timing Reference No. 4 No. 4 No. 567 No. 5 No. 5 No. 568 No. 6 No. 6 No. 569 1/2 H No. 7 No. 7 No. 584 No. 21 No. 42 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 THS8200 Figure 6-25. Field/Frame Synchronizing Signal Waveform (1080I and 1080P Formats) Detailed Functional Description 49 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.7.3.9 www.ti.com SDTV Mode In SDTV mode, the start of a video line is signaled by the leading edge of a negative-going bi-level sync. f f 90% of Amplitude 50% of Amplitude 10% of Amplitude V f f 90% of Amplitude Sm 50% of Amplitude b a 10% of Amplitude d Figure 6-26. Horizontal Synchronization Signal Waveform 50 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 1 Line NEQ_NEQ FULL_BSP BSP_BSP FULL_NSP NEQ_BSP BSP_NEQ FULL_NEQ Active Video NSP_ACTIVE Active Video ACTIVE_NEQ Active Video ACTIVE_VIDEO c k c k1 a d d1 h h g i NOTE: All Rise/Fall times are equal to f = 2T Figure 6-27. THS8200 VBI Line Types in SDTV Mode Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 51 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 6.7.3.10 NEQ_NEQ (Negative Equalization Pulse/Negative Equalization Pulse) 4 9 5 10 3 8 1 6 2 7 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_c 3 Fixed at 2T 4 dtg1_spec_g dtg1_spec_c-4 5 Fixed at 1T 6 Fixed at 1T 7 dtg1_spec_c 8 Fixed at 2T 9 dtg1_spec_g dtg1_spec_c-4 10 Fixed at 1T Figure 6-28. SDTV Line Type NEQ_NEQ 6.7.3.11 FULL_BSP (Full Broad Sync Pulse) 4 5 3 1 2 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_i 3 Fixed at 2T 4 dtg1_total_pixels dtg1_spec_i-4 5 Fixed at 1T Figure 6-29. SDTV Line Type FULL_BSP 52 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.7.3.12 BSP_BSP (Broad Sync Pulse/Broad Sync Pulse) 4 9 10 5 3 1 8 6 2 7 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_h 3 Fixed at 2T 4 dtg1_spec_g dtg1_spec_h-4 5 Fixed at 1T 6 Fixed at 1T 7 dtg1_spec_h 8 Fixed at 2T 9 dtg1_spec_g dtg1_spec_h-4 10 Fixed at 1T Figure 6-30. SDTV Line Type BSP_BSP 6.7.3.13 FULL_NSP (Full Normal Sync Pulse) Device input data is passed during states number 4 and number 5 if dtg1_pass_through is on. 4 5 6 3 1 2 dtg1_spec_g STATE DURATION 1 Fixed at 1T 2 dtg1_spec_a 3 Fixed at 2T 4 dtg1_spec_g dtg1_spec_a-4 5 dtg1_spec_g 6 Fixed at 1T dtg1_spec_g Figure 6-31. SDTV Line Type FULL_NSP Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 53 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 6.7.3.14 NEQ_BSP (Negative Equalization Pulse/Broad Sync Pulse) 4 9 10 5 3 8 1 6 7 2 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_c 3 Fixed at 2T 4 dtg1_spec_g dtg1_spec_c-4 5 Fixed at 1T 6 Fixed at 1T 7 dtg1_spec_h 8 Fixed at 2T 9 dtg1_spec_g dtg1_spec_h-4 10 Fixed at 1T Figure 6-32. SDTV Line Type NEQ_BSP 6.7.3.15 BSP_NEQ (Broad Sync Pulse/Negative Equalization Pulse) 9 4 10 5 8 3 6 1 7 2 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_h 3 Fixed at 2T 4 dtg1_spec_g dtg1_spec_h-4 5 Fixed at 1T 6 Fixed at 1T 7 dtg1_spec_c 8 Fixed at 2T 9 dtg1_spec_g dtg1_spec_c-4 10 Fixed at 1T Figure 6-33. SDTV Line Type BSP_NEQ 54 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.7.3.16 FULL_NEQ (Full Negative Equalization Pulse) 4 5 6 3 1 2 dtg1_spec_g dtg1_spec_g STATE DURATION 1 Fixed at 1T 2 dtg1_spec_c 3 Fixed at 2T 4 dtg1_spec_g dtg1_spec_c-4 5 dtg1_spec_g 6 Fixed at 1T Figure 6-34. SDTV Line Type FULL_NEQ 6.7.3.17 NSP_ACTIVE (Normal Sync Pulse/Active Video) Video data is always passed during state number 5. 5 4 6 7 3 1 2 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_a 3 Fixed at 2T 4 dtg1_spec_g dtg1_spec_a+ dtg1_spec_d1-3 5 dtg1_spec_g dtg1_spec_d1 dtg1_spec_k 6 dtg1_spec_k1 7 Fixed at 1T Figure 6-35. SDTV Line Type NSP_ACTIVE Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 55 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 6.7.3.18 ACTIVE_NEQ (Active Video/Negative Equalization Pulse) Video data is always passed during state number 5. 5 4 6 11 7 12 3 1 10 8 2 9 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_a 3 Fixed at 2T 4 dtg1_spec_d dtg1_spec_a-3 5 dtg1_spec_g dtg1_spec_d dtg1_spec_k1 6 dtg1_spec_k-1 7 Fixed at 1T 8 Fixed at 1T 9 dtg1_spec_c 10 Fixed at 2T 11 dtg1_spec_g dtg1_spec_c-4 12 Fixed at 1T Figure 6-36. SDTV Line Type ACTIVE_NEQ 6.7.3.19 ACTIVE VIDEO Video data is always passed during state number 5. 5 4 6 7 3 1 2 STATE DURATION 1 Fixed at 1T 2 dtg1_spec_a 3 Fixed at 2T 4 dtg1_spec_d dtg1_spec_a-3 5 dtg1_total_pixels dtg1_spec_d dtg1_spec_k 6 dtg1_spec_k-1 7 Fixed at 1T Figure 6-37. SDTV Line Type ACTIVE_VIDEO 56 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Example:525I j l Second Field OE1 m n First Field Signal at the Beginning of Each First Field j l First Field OE2 m n Second Field NOTE: l = m = n = 3 j = 20 Figure 6-38. Field/Frame Synchronizing Signal Waveform (525I Format) Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 57 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com When the 525I preset is selected, the following line type sequence is active: Breakpoints Line Type 4 NEQ_NEQ 7 BSP_BSP 10 NEQ_NEQ 20 FULL_NSP 263 ACTIVE_VIDEO 264 ACTIVE_NEQ 266 NEQ_NEQ 267 NEQ_BSP 269 BSP_BSP 270 BSP_NEQ 272 NEQ_NEQ 273 FULL_NEQ 282 FULL_NSP 283 NSP_ACTIVE 526 ACTIVE_VIDEO frame_size = 1000001101; 525d field_size = 00100000111; 263d It can be seen this corresponds to the frame format shown, with 263 lines in digital field1 and 262 lines in digital field2. 6.8 D/A Conversion THS8200 contains three DACs with an internal resolution of 11 bits, and maximum speed of 205 MSPS. This allows operation with all (H)DTV formats including 1080P, and PC graphics formats up to UXGA at 75 Hz. The DAC output compliance can be selected between two full-scale ranges using the data_fsadj register. DIGMUX selects DTG output data during nonvideo line types, except when dtg1_passthrough is active: in this case video input data still is passed during the active video portion of certain line types, as identified in Section 6.7.3 on the DTG line types. THS8200 supports output in either RGB or YPbPr color spaces. When using RGB output, the dtg2_rgb_mode_on register needs to be set. In this case an offset is added to all DAC output channels to provide headroom for the negative sync. Nominally the blanking level is at 350 mV, and the 700 mV swing extends upwards. Therefore peak white corresponds to 1.05 V. When YPbPr mode is selected on this register, the offset is only added to the Y channel output; Pb and Pr outputs now have a video range from 0 to 700 mV with 0 V corresponding to internal DAC input code 0 (note that due to the CSM block this could correspond to another device input code). The Cb and Cr chroma difference channels are thus assumed to be offset binary encoded, not 2s complement. Finally, the DTG mode determines whether the DIGMUX switches in output data from the DTG. For example, in VESA mode the DACs are always driven by the video input bus. When the DTG overrides the video input bus in SDTV or HDTV modes, the actual amplitude levels output by the DACs during this time are user-programmable using the dtg1__blank , dtg1__sync_low, and dtg1__high registers. 58 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 The following sections described some of the analog component video output formats that can be generated from THS8200. 6.8.1 RGB Output Without Sync Signal Insertion/General-Purpose Application DAC In this mode, no sync signal is inserted on any of the analog outputs. HS_OUT and VS_OUT signals are generated for output video synchronization. This mode is commonly used in computer graphics video output. Two levels of full-scale output can be selected by software. For video applications, the nominal voltage levels are 0.7 V and 1.305 V. For component video applications, the nominal voltage level is 0.7 V; 1.305 V is used in NTSC/PAL composite video display. For composite video applications, the digital video stream must be encoded in an external digital NTSC/PAL encoder. The THS8200 only converts the digital composite signal to analog composite video. Figure 6-39 illustrates analog outputs without sync insertion. When the THS8200 is programmed in this mode, it can also be used as a general-purpose DAC due to the linear response to the DAC input codes. Optionally, the CSM block can be bypassed to avoid any processing on the device input codes. 1023 Analog Output Codes Input to DACs 0.700 V/1.305 V 0.000 V/0.000 V 0 Figure 6-39. RGB Without Sync Insertion or Composite Video Output Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 59 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Figure 6-40 shows the linear DAC I/O relationship for either of the two nominal full-scale settings. Ramping Output With Different Full-Scale Ranges Analog Outputs From DACs 1.305 V 0.700 V 0 255 511 767 1023 Input Digital Codes Figure 6-40. Ramping Output With Different Full-Scale Ranges 6.8.2 SMPTE-Compatible RGB Output With Sync Signal Inserted on G (Green) Channel In this mode, a tri-level (HDTV modes)/bi-level (SDTV modes) sync signal is inserted into the G channel. The nominal analog output voltage range, which is from the sync tip to the peak of active video, is from 0.0 V to 1.050 V. During the active video period, the peak-to-peak ac value (dynamic range) is 700 mV (from 350 mV to 1050 mV). The blank levels on all three channels correspond to the bottom code 64 and are at 350 mV. Figure 6-41 and Figure 6-42illustrate the analog video output signals, both the output from the G channel with a tri-level or a bi-level sync pulse inserted, as well as the outputs from R and B channels. No sync signal is inserted during the sync period on R and B channels. Alternatively, sync can be inserted on all three channels on THS8200 by appropriately programming the sync amplitude levels. On those channels where no sync is inserted, the blank levels are maintained at a 350-mV dc level. The range of active video codes on the R, G, and B channels is from 64 to 940. By definition, code 64 corresponds to blank-level output, and code 940 corresponds to peak analog output. Input codes outside this region can either be clipped by THS8200 or can be passed, depending on the CSM setting. When passed, the user should make sure not to overdrive the DAC outputs outside the DAC output compliance range if instantaneously high output codes would occur. 60 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 G Channel Output Waveform E’G 940 Codes to DACs Analog Output 1050 mV 650 mV 350 mV 64 350 mV DC Level Added During Active Video Period Blank Level 50 mV 0 mV Active Video Period Figure 6-41. G-Channel Output Waveform R and B Channel Output Waveform E’RE’B 940 Codes to DACs Analog Output 1050 mV 64 350 mV 350 mV DC Level Added During Active Video Period Blank Level 0 mV Active Video Period Figure 6-42. R- and B-Channel Output Waveform 6.8.3 SMPTE-Compatible Analog-Level Output With Sync Inserted on All RGB Channels This is another SMPTE-compatible RGB output. This mode is very similar to the mode described in Section 6.8.2, except the sync signals are inserted on all three channels. Now all three channels have the same analog output format, during both the active video period and the sync period. R, G, and B Channel Output Waveform E’R, E’ G, E’ B 940 Codes to DACs Analog Output 1050 mV 650 mV 64 350 mV 350 mV DC Level Added During Active Video Period Blank Level 50 mV 0 mV Active Video Period Figure 6-43. R-, G-, and B-Channel Output Waveform Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 61 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 6.8.4 www.ti.com SMPTE-Compatible YPbPr Output With Sync Signal Inserted on Y Channel Only In this mode, the output color space is YCrCb. The sync signal is inserted on the Y channel only. Y Channel Output Waveform E’Y 940 Codes to DACs Analog Output 1050 mV 650 mV 64 350 mV 350 mV DC Level Added During Active Video Period Blank Level 50 mV 0 mV Active Video Period Figure 6-44. Y-Channel Output Waveform The input code range of the Y channel is from 64 to 940, but the range of input codes of Cr and Cb is from 64 to 960. Analog Output of Cr and Cb Channels Without Sync Insertion 960 350 mV 512 Blank Level Codes to DACs Analog Output E’cr, E’ cb 700 mV 64 0 mV Active Video Period Blanking Interval Figure 6-45. Analog Output of Cr and Cb Channels Without Sync Insertion The blanking level of all channels is at 350 mV. Note that for the Pb and Pr output channels, there is no dc offset added, so DAC input code 0 now corresponds to 0 V dc output. Whether or not offset is added to the DAC outputs is determined from the setting of the dtg2_rgb_mode_on register. 6.8.5 SMPTE-Compatible YPbPr Output With Sync Signal Inserted on All Channels In this mode, sync signals are inserted on all three channels Y, Cr, and Cb. The Y channel output is identical to that of Section 6.8.4. The Pb and Pr channel outputs are shown below. The range of input codes to the Y channel is from 64 to 940. The range of input codes to the CrCb channels is from 64 to 960. 62 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Analog Output of Cr and Cb Channels With Sync Insertion 960 896 350 mV 512 50 mV 0 mV Blank Level 128 64 Codes to DACs Analog Output E’cr, E’ cb 700 mV 650 mV Active Video Period Blanking Interval OH Figure 6-46. Analog Output of Cr and Cb Channels With Sync Insertion The ac dynamic range during the active video period is the same on all channels, 700 mV. This means that two different code ranges are mapped to the same analog output range. Because three DACs in the THS8200 share a common full-scale adjust resistor, therefore, different input codes to the DAC result in different analog outputs. To map two code ranges into a same analog output, the input code range must be scaled in the CSM block. 6.8.6 Summary of Supported Video Formats RGB WITHOUT SYNC RGB SYNC ON G RGB SYNC ON ALL YPbPr SYNC ON Y YPbPr SYNC ON ALL 0 to 1023 64 to 940 64 to 940 64 to 940 on Y; 64 to 960 on Cr and Cb 64 to 940 on Y; 64 to 960 on Cr and Cb Peak level 700 mV or 1305 mV 1050 mV 1050 mV 1050 mV 1050 mV Blank level 0V 350 mV 350 mV 350 mV 350 mV 0 350 mV 350 mV 350 mV 350 mV Range of input codes DC level shift during active video period 6.9 Test Functions The user can activate a 75% SMPTE color bar test pattern when the device is configured in VESA mode using the vesa_colorbars register setting. The width of each color bar can be programmed using the dtg1_vesa_cbar_size register. The digital logic in front of the DACs can be completely bypassed and the DACs can be driven directly with levels programmed from the I2C interface by activating the dac_i2c_cntl register. In this case the dac_cntl registers set the DAC input codes. A fast or slow ramp signal can be internally generated and sent to the DACs using tst_fastramp and tst_slowramp registers. This could be useful for a static DAC linearity test. Alternatively, the input bus can directly drive the DACs when the tst_digbypass register is activated for tests at full speed. The delay of the Y channel can be changed in YCbCr modes with respect to Cb and Cr channels by programming the tst_ydelay register. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 63 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Finally, there is a digital output port with data encoded according to ITU-R.BT656. This is a loop-through of the original input bus, prior to any THS8200 internal processing, and thus only provides standard data when input to the THS8200 is provided in a 10-bit ITU-R BT.656 format. This output bus could be used to connect to a separate NTSC/PAL video encoder. The data_clk656_on register activates the clock output on this bus and the data_tristate656 register disables the output bus. It is recommended to disable this output when not in use. 6.10 Power Down THS8200 implements two power-down modes: dac_pwdn powers down the DAC channels but keeps all digital logic active; chip_pwdn powers down the digital logic except the I2C interface. Activating both registers enforces a complete analog/digital power down except for the I2C interface. 6.11 CGMS Insertion The THS8200 can embed data within the vertical blanking interval, encoded according to the EIA-805 data insertion standard. CGMS is an implementation of the EIA-805 standard that defines data insertion in component video interface (CVI) video signals. The THS8200 supports CGMS data insertion on line 41 of every frame in the 525P format. The data is inserted on the Y channel only; Pb and Pr channels remain at the blanking level. CGMS data insertion is enabled by activating the cgms_en register and programming the cgms_header and cgms_payload registers appropriately. The user needs to program header and payload data in the correct format, as no additional data encoding is done prior to insertion into the analog DAC output. The THS8200 only performs a play-out function for the programmed data. The CGMS encoding block assumes that a full 10bit video range is used to determine the 70% of peak-white amplitude of a logic 1 bit, as prescribed by EIA-805. The CSM does not affect the amplitude of the CGMS data insertion. CGMS is inserted on line 41 as prescribed by EIA 770 standards for progressive format display of SDTV. Fourteen bits can be inserted on this line, consisting of 6 bits header and 8 bits payload. The user can directly program these bits into the corresponding THS8200 registers. Care should be taken to format this data according to CGMS semantics; the user is referred to the original standards to determine header/payload data programming. To avoid the transmission of invalid data, the data transmitted is updated only when the CGMS register with the highest subaddress is programmed with cgms_en active. CGMS insertion is possible in either 1x or 2x interpolated video modes of the THS8200. While EIA-805 allows the inserted data to change on every frame, and also allows data packets that would span multiple lines (and therefore also multiple frames, since only 1 line/frame is used for insertion), the THS8200 does not support multiline data insertion because it is not required for CGMS. 6.12 I2C Interface The THS8200 contains a slave-only I2C interface on which both write and read are supported. The register map shows which registers support read/write (R/W) and which are read-only (R). The device supports normal and fast I2C modes (SCL up to 400 kHz). The I2C interface is also operational when no input clock is received on CLKIN. To discriminate between write and read operations, the device is addressed at separate device addresses. There is an automatic internal sub-address increment counter to efficiently write/read multiple bytes in the register map during one write/read operation. Furthermore, bit1 of the I2C device address is dependent upon the setting of the I2CA pin, as follows: • If address-selecting pin I2CA = 0, then – write address is 40h (0100 0000) – read address is 41h (0100 0001) • If address-selecting pin I2CA = 1, then – write address is 42h (0100 0010) – read address is 43h (0100 0011) 64 Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 The I2C interface supports fast I2C, that is, SCL up to 400 kHz. WRITE FORMAT S Slave address(w) A Sub-address A Data0 A S Start condition Slave address(w) 0100 0000 (0x40) if I2CA = 0, or 0100 0010 (0x42) if I2CA = 1 A Acknowledge, generated by the THS8200 Sub-address Sub-address of the first register to write, length: 1 byte Data0 First byte of the data DataN-1 Nth byte of the data P Stop condition ...... DataN-1 A P READ FORMAT First write the sub-address, where the data must be read out to the THS8200 in the format as follows: S Slave address(w) S Slave address(r) A A DataN Sub-address AM Data(N+1) AM A ...... P NAM S Start condition Slave address(r) 0100 0001 (0x41) if I2CA = 0, or 0100 0011 (0x43) if I2CA = 1 A Acknowledge, generated by the THS8200; if the transmission is successful, then A = 0, else A = 1 AM Acknowledge, generated by a master NAM Not acknowledge, generated by a master Sub-address Sub-address of the first register to read, length: 1 byte Data0 First byte of the data read DataN+1 Nth byte of the data read P Stop condition P In both write and read operations, the sub-address is incremented automatically when multiple bytes are written/read. Therefore, only the first sub-address needs to be supplied to the THS8200. Detailed Functional Description Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 65 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 7 I2C Registers 7.1 I2C Register Map R/W registers can be written and read. R registers are read-only. Table 7-1. I2C Register Map REGISTER NAME R/W SUBADDRESS BIT7 BIT6 BIT5 BIT4 0x00 BIT3 BIT2 BIT1 BIT0 ver2 ver1 ver0 chip_ms arst_ func_n Reserved 0x01 SYSTEM version R 0x02 ver7 ver6 ver5 vesa_color dll_bypass bars chip_ctl R/W 0x03 vesa_clk csc_r11 R/W 0x04 csc_ric1(5:0) csc_r12 R/W 0x05 csc_rfc1(7:0) csc_r21 R/W 0x06 csc_ric2(5:0) csc_r22 R/W 0x07 csc_rfc2(7:0) csc_r31 R/W 0x08 csc_ric3(5:0) csc_r32 R/W 0x09 csc_rfc3(7:0) csc_g11 R/W 0x0a csc_gic1(5:0) csc_g12 R/W 0x0b csc_gfc1(7:0) csc_g21 R/W 0x0c csc_gic2(5:0) csc_g22 R/W 0x0d csc_gfc2(7:0) csc_g31 R/W 0x0e csc_gic3(5:0) csc_g32 R/W 0x0f csc_gfc3(7:0) csc_b11 R/W 0x10 csc_bic1(5:0) csc_b12 R/W 0x11 csc_bfc1(7:0) csc_b21 R/W 0x12 csc_bic2(5:0) csc_b22 R/W 0x13 csc_bfc2(7:0) csc_b31 R/W 0x14 csc_bic3(5:0) csc_b32 R/W 0x15 csc_bfc3(7:0) csc_offs1 R/W 0x16 csc_offset1(9:2) csc_offs12 R/W 0x17 csc_offset1(1:0) csc_offs23 R/W 0x18 csc_offset2(3:0) csc_offs3 R/W 0x19 csc_offset3(5:0) ver4 dll_freq_ sel ver3 dac_pwdn chip_pwdn COLOR SPACE CONVERSION csc_rfc1(9:8) csc_rfc2(9:8) csc_rfc3(9:8) csc_gfc1(9:8) csc_gfc2(9:8) csc_gfc3(9:8) csc_bfc1(9:8) csc_bfc2(9:8) csc_bfc3(9:8) csc_offset2(9:4) csc_offset3(9:6) csc_ bypass c_uof_cnt l tst_ fastramp tst_ slowramp TEST tst_cntl1 R/W 0x1a st_ digbpass tst_cntl2 R/W 0x1b tst_ydelay(1:0) 0x1c data_ data_fsadj clk6 56_on tst_offset Reserved Reserved Reserved Reserved Reserved DATA PATH data_cntl R/W data_ifir12 _bypass data_ifir35 data_ _bypass tristate656 data_dman_cntl(2:0) DISPLAY TIMING GENERATION, PART 1 dtg1_y_ sync1_lsb 66 R/W 0x1d dtg1_y_blank(7:0) I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Table 7-1. I2C Register Map (continued) REGISTER NAME R/W SUBADDRESS dtg1_y_ sync2_lsb R/W 0x1e dtg1_y_sync_low(7:0) dtg1_y_ sync3_lsb R/W 0x1f dtg1_y_sync_high(7:0) dtg1_cbcr_ sync1_lsb R/W 0x20 dtg1_cbcr_blank(7:0) dtg1_cbcr_ sync2_lsb R/W 0x21 dtg1_cbcr_sync_low(7:0) dtg1_cbcr_ sync3_lsb R/W 0x22 dtg1_cbcr_sync_high(7:0) dtg1_y_ sync_msb R/W 0x23 Reserved Reserved dtg1_y_blank(9:8) dtg1_y_sync_low(9:8) dtg1_y_sync_high(9:8) dtg1_cbcr_ sync_msb R/W 0x24 Reserved Reserved dtg1_cbcr_blank(9:8) dtg1_cbcr_sync_low (9:8 ) dtg1_cbcr_ sync_high(9:8) dtg1_spec_a R/W 0x25 dtg1_spec_a(7:0) dtg1_spec_b R/W 0x26 dtg1_spec_b(7:0) dtg1_spec_c R/W 0x27 dtg1_spec_c(7:0) dtg1_spec_ d_lsb R/W 0x28 dtg1_spec_d(7:0) dtg1_spec_ d1 R/W 0x29 dtg1_spec_d1(7:0) dtg1_spec_ e_lsb R/W 0x2a dtg1_spec_e(7:0) dtg1_spec_ deh_msb R/W 0x2b dtg1_ dtg1_spec spe c_d(8) _e(8) Reserved Reserved Reserved dtg1_spec_h(9:8) dtg1_spec_ h_lsb R/W 0x2c dtg1_spec_h(7:0) dtg1_spec_ i_msb R/W 0x2d Reserved Reserved Reserved dtg1_spec_i(11:8) dtg1_spec_ i_lsb R/W 0x2e dtg1_spec_i(7:0) dtg1_spec_ k_lsb R/W 0x2f dtg1_spec_k(7:0) dtg1_spec_ k_msb R/W 0x30 Reserved Reserved Reserved Reserved dtg1_spec_ k1 R/W 0x31 dtg1_spec_k1(7:0) dtg1_spec_ g_lsb R/W 0x32 dtg1_spec_g(7:0) dtg1_spec_ g_msb R/W 0x33 Reserved Reserved Reserved Reserved dtg1_spec_g(11:8) dtg1_total_ pixels_msb R/W 0x34 Reserved Reserved Reserved dtg1_total_pixels(12:8) dtg1_total_ pixels_lsb R/W 0x35 dtg1_total_pixels(7:0) dtg1_fieldflip_ linecnt_ msb R/W 0x36 dtg1_field _flip Reserved Reserved Reserved dtg1_ linecnt_lsb R/W 0x37 dtg1_linecnt(7:0) dtg1_mode R/W 0x38 dtg1_on Reserved Reserved dtg1_pass _through dtg1_mode(3:0) dtg1_frame_ field_size_msb R/W 0x39 Reserved dtg1_frame_size(10:8) dtg1_frame_ size_lsb R/W 0x3a dtg1_frame_size(7:0) BIT7 BIT6 Reserved Reserved Reserved BIT5 BIT4 BIT3 Reserved BIT2 Reserved BIT1 BIT0 dtg1_spec_k(10:8) dtg1_linecnt(10:8) dtg1_field_size(10:8) I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 67 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Table 7-1. I2C Register Map (continued) REGISTER NAME R/W SUBADDRESS dtg1_field_ size_lsb R/W 0x3b dtg1_field_size(7:0) dtg1_vesa_ cbar_size R/W 0x3c dtg1_vesa_cbar_size(7:0) BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 DAC dac_i2c_ cntl dac_cntl_msb R/W 0x3d Reserved dac1_cntl_lsb R/W 0x3e dac1_cntl(7:0) dac2_cntl_lsb R/W 0x3f dac2_cntl(7:0) dac3_cntl_lsb R/W 0x40 dac3_cntl(7:0) dac1_cntl(9:8) dac2_cntl(9:8) dac3_cntl(9:8) CLIP/SHIFT/MULTIPLIER csm_clip_ gy_low R/W 0x41 csm_clip_gy_low(7:0) csm_clip_ bcb_low R/W 0x42 csm_clip_bcb_low(7:0) csm_clip_ rcr_low R/W 0x43 csm_clip_rcr_low(7:0) csm_clip_ gy_high R/W 0x44 csm_clip_gy_high(7:0) csm_clip_ bcb_high R/W 0x45 csm_clip_bcb_high(7:0) csm_clip_ rcr_high R/W 0x46 csm_clip_rcr_high(7:0) csm_shift_gy R/W 0x47 csm_shift_gy(7:0) csm_shift_bcb R/W 0x48 csm_shift_bcb(7:0) csm_shift_rcr R/W 0x49 csm_shift_rcr(7:0) csm_gy_ cntl_mult_ msb R/W 0x4a csm_mult _ gy_on csm_gy_ csm_shift_ high_clip_ gy_on on csm_mult_ bcb_rcr_ msb R/W 0x4b Reserved csm_mult_bcb(10:8) csm_mult_ gy_lsb R/W 0x4c csm_mult_gy(7:0) csm_mult_ bcb_lsb R/W 0x4d csm_mult_bcb(7:0) csm_mult_ rcr_lsb R/W 0x4e csm_mult_rcr(7:0) csm_rcr_ bcb_cntl R/W 0x4f csm_mult _ rcr_on csm_gy_ low_clip_ on csm_of_ cntl csm_rcr_ csm_mult_ csm_shift_ csm_shift_ high_clip_ bcb_on rcr_on bcb_on on csm_mult_gy(10:8) Reserved csm_mult_rcr(10:8) csm_rcr_ low_clip_ on csm_bcb_ high_clip_ on csm_bcb _ low_clip_ on DISPLAY TIMING GENERATION, PART 2 68 dtg2_bp1_ 2_msb R/W 0x50 Reserved dtg2_bp1(10:8) Reserved dtg2_bp2(10:8) dtg2_bp3_ 4_msb R/W 0x51 Reserved dtg2_bp3(10:8) Reserved dtg2_bp4(10:8) dtg2_bp5_ 6_msb R/W 0x52 Reserved dtg2_bp5(10:8) Reserved dtg2_bp6(10:8) dtg2_bp7_ 8_msb R/W 0x53 Reserved dtg2_bp7(10:8) Reserved dtg2_bp8(10:8) dtg2_bp9_ 10_msb R/W 0x54 Reserved dtg2_bp9(10:8) Reserved dtg2_bp10(10:8) dtg2_bp11_ 12_msb R/W 0x55 Reserved dtg2_bp11(10:8) Reserved dtg2_bp12(10:8) I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Table 7-1. I2C Register Map (continued) REGISTER NAME R/W SUBADDRESS dtg2_bp13_ 14_msb R/W 0x56 Reserved dtg2_bp13(10:8) Reserved dtg2_bp14(10:8) dtg2_bp15_ 16_msb R/W 0x57 Reserved dtg2_bp15(10:8) Reserved dtg2_bp16(10:8) dtg2_bp1_lsb R/W 0x58 dtg2_bp1(7:0) dtg2_bp2_lsb R/W 0x59 dtg2_bp2(7:0) dtg2_bp3_lsb R/W 0x5a dtg2_bp3(7:0) dtg2_bp4_lsb R/W 0x5b dtg2_bp4(7:0) dtg2_bp5_lsb R/W 0x5c dtg2_bp5(7:0) dtg2_bp6_lsb R/W 0x5d dtg2_bp6(7:0) dtg2_bp7_lsb R/W 0x5e dtg2_bp7(7:0) dtg2_bp8_lsb R/W 0x5f dtg2_bp8(7:0) dtg2_bp9_lsb R/W 0x60 dtg2_bp9(7:0) dtg2_bp10_ lsb R/W 0x61 dtg2_bp10(7:0) dtg2_bp11_ lsb R/W 0x62 dtg2_bp11(7:0) dtg2_bp12_ lsb R/W 0x63 dtg2_bp12(7:0) dtg2_bp13_ lsb R/W 0x64 dtg2_bp13(7:0) dtg2_bp14_ lsb R/W 0x65 dtg2_bp14(7:0) dtg2_bp15_ lsb R/W 0x66 dtg2_bp15(7:0) dtg2_bp16_ lsb R/W 0x67 dtg2_bp16(7:0) dtg2_ linetype1 R/W 0x68 dtg2_linetype1(3:0) dtg2_linetype2(3:0) dtg2_ linetype2 R/W 0x69 dtg2_linetype3(3:0) dtg2_linetype4(3:0) dtg2_ linetype3 R/W 0x6a dtg2_linetype5(3:0) dtg2_linetype6(3:0) dtg2_ linetype4 R/W 0x6b dtg2_linetype7(3:0) dtg2_linetype8(3:0) dtg2_ linetype5 R/W 0x6c dtg2_linetype9(3:0) dtg2_linetype10(3:0) dtg2_ linetype6 R/W 0x6d dtg2_linetype11(3:0) dtg2_linetype12(3:0) dtg2_ linetype7 R/W 0x6e dtg2_linetype13(3:0) dtg2_linetype14(3:0) dtg2_ linetype8 R/W 0x6f dtg2_linetype15(3:0) dtg2_linetype16(3:0) dtg2_hlength_ lsb R/W 0x70 dtg2_hlength(7:0) dtg2_ hlength_msb_ hdly_msb R/W 0x71 dtg2_hlength(9:8) dtg2_hdly_lsb R/W 0x72 dtg2_hdly(7:0) dtg2_ vlength1_lsb R/W 0x73 dtg2_vlength1(7:0) dtg2_ vlength1_msb_ vdly1_msb R/W 0x74 dtg2_vlength1(9:8) BIT7 BIT6 dtg2_vdly1_lsb R/W 0x75 dtg2_vdly1(7:0) dtg2_vlength2_ lsb R/W 0x76 dtg2_vlength2(7:0) dtg2_ vlength2_msb_ vdly2_msb R/W 0x77 dtg2_vlength2(9:8) dtg2_vdly2_lsb R/W 0x78 dtg2_vdly2(7:0) dtg2_hs_ in_dly_msb R/W 0x79 Reserved dtg2_hs_ in_dly_lsb R/W 0x7a dtg2_hs_in_dly(7:0) Reserved BIT5 BIT4 BIT3 BIT2 BIT1 Reserved dtg2_hdly(12:8) Reserved Reserved Reserved dtg2_vdly1(10:8) Reserved Reserved Reserved dtg2_vlength2(9:8) Reserved dtg2_hs_in_dly(12:8) BIT0 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 69 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com Table 7-1. I2C Register Map (continued) REGISTER NAME R/W SUBADDRESS dtg2_vs_in_ dly_msb R/W 0x7b Reserved dtg2_vs_in_ dly_lsb R/W 0x7c dtg2_vs_in_dly(7:0) dtg2_pixel_ cnt_msb R 0x7d dtg2_pixel_cnt(15:8) dtg2_pixel_ cnt_lsb R 0x7e dtg2_pixel_cnt(7:0) dtg2_line_ cnt_msb R 0x7f dtg2_ip_ fmt dtg2_line_ cnt_msb R 0x80 dtg2_line_cnt(7:0) 0x81 Reserved 0x82 dtg2_fid_ de_cntl dtg2_cntl R/W BIT7 BIT6 BIT5 Reserved Reserved BIT4 Reserved BIT3 Reserved Reserved dtg2_rgb_ mode_on BIT2 BIT1 BIT0 dtg2_vs_in_dly(10:8) dtg2_line_cnt(10:8) dtg2_emb edded_ timing dtg2_ vsout_pol dtg2_h sout_pol dtg2_fid_ pol dtg2_vs_ pol dtg2_hs_ pol CGMS CONTROL cgms_cntl_ header R/W 0x83 Reserved cgms_en cgms_header(5:0) cgms_payload_ msb R/W 0x84 Reserved Reserved cgms_payload(13:8) cgms_ payload_lsb R/W 0x85 cgms_payload(7:0) misc_ppl_lsb R 0x86 misc_ppl(7:0) misc_ppl_msb R 0x87 misc_ppl(7:0) misc_lpf_lsb R 0x88 misc_lpf(7:0) misc_lpf_msb R 0x89 misc_lpf(15:8) 70 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 7.2 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Register Descriptions Between { } are shown the name(s), subaddress(es) and bit position(s) where each register can be found in the register map. The default register value is shown between [ ] in binary format, and hexadecimal (h) and/or decimal (d) notation where listed. 7.2.1 System Control (Sub-Addresses 0x02−0x03) ver(7:0): Device version {version 0x02(7..0)} [0000 0000] The user can read this register to find out which version of THS8200 is in the system. vesa_clk: Clock mode selection {chip_ctl 0x03(7)} [0] 0 : Normal operation 1 : All clocks become identical, except for the half-rate clock, and the DLL is bypassed. This is used in VESA mode to support a direct 205-MHz input clock. No internal 2x interpolation is available. This mode should be used for all formats that require a >80 MSPS pixel clock because the internal DLL for 2x clock generation is specified only up to 80 MSPS. The half-rate clock is still internally generated if needed to allow, for example, 148-MHz 20-bit input (1080P). dll_bypass: DLL bypass {chip_ctl 0x03(6)} [0] 0 : DLL used for clock generation; normal operation with internally generated 2x clock. This mode should be selected for most video formats when a 1x clock is available on the device clock input, and either 1x or 2x DAC operation is desired internally (as selected by register data_ifir35_bypass) 1 : DLL bypassed for clock generation. In this case the clock input on the CLKIN pin is used directly as the 2x clock, rather than the internally generated signal from the DLL. vesa_colorbars: Color bar test pattern {chip_ctl 0x03(5)} [0] 0 : normal operation 1 : Device generates color bar pattern; external video inputs are ignored. The color bar pattern is only supported in VESA PC graphics mode, with the device configured in master mode (chip_ms = 1). dll_freq_sel: dll_freq_sel: {chip_ctl 0x03(4)} [0] Sets a frequency range for the DLL 2x clock generation. The DLL should not be used at >80 MHz. In this case the vesa_clk register should be enabled. As a consequence, 2x video interpolation is not available for formats with >80 MHz pixel clock. 0 : high frequency range: pixel clock from 40−80 MHz 1 : low frequency range: pixel clock from 10−40 MHz dac_pwdn: dac_pwdn: {chip_ctl 0x03(3)} [0] 0 : normal operation 1 : DACs go into power-down state. chip_pwdn: Chip power down {chip_ctl 0x03(2)} [0] 0 : normal operation 1 : power down of all digital logic except I2C I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 71 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com chip_ms: Chip mode select {chip_ctl 0x03(1)} [0] 0 : slave mode. Device synchronizes to incoming video sync signals, either embedded in ITU-R.BT656 interface or received from dedicated timing signals. 1 : master mode. Device requests video data and generates video input timing signals to external (memory) device, according to the programmed frame/field format. Master mode is only available when the DTG is operating in VESA mode (PC graphics signals). arst_func_n: Chip software reset {chip_ctl 0x03(0)} [1] 0 : functional block goes into reset state. I2C registers retain values. Note: the user needs to issue a software reset after input video is disconnected from the input bus and reconnected (for example after a video format change), to synchronize the internal display timing generator to the input video source properly. 1 : normal operation 7.2.2 Color Space Conversion Control (Sub-Addresses 0x04−0x19) Signed magnitude: MSB is sign bit, remaining bits are binary representation of magnitude. This is not a 2s complement notation. Magnitude: Binary representation of magnitude. csc_ric1(5:0): R/Cr input channel – G/Y output channel coefficient, integer part {csc_r11 0x04(7:2)} [00 0000] 6-bit integer portion of coefficient that is multiplied with R/Cr input, to produce G/Y output (signed magnitude format) csc_rfc1(9:0): R/Cr input channel – G/Y output channel, fractional part {csc_r11 0x04(1:0) and [00 0000 0000] csc_r12 0x05(7:0)} 10-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce G/Y output (magnitude format) csc_ric2(5:0): R/Cr input channel – B/Cb output channel, integer part {csc_r21 0x06(7:2)} {csc_r21 0x06(7:2)} 6-bit integer portion of coefficient that is multiplied with R/Cr input, to produce B/Cb output (signed magnitude format) csc_rfc2(9:0): R/Cr input channel – B/Cb output channel, fractional part {csc_r21 0x06(1:0) and [00 0000 0000] csc_r22 0x07(7:0)} 10-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce B/Cb output (magnitude format) csc_ric3(5:0): R/Cr input channel – R/Cr output channel, integer part {csc_r31 0x08(7:2)} [000000] 6-bit integer portion of coefficient that is multiplied with R/Cr input, to produce R/Cr output (signed magnitude format) csc_rfc3(9:0): R/Cr input channel − R/Cr output channel, fractional part {csc_r31 0x08(1:0) and [00 0000 0000] csc_r32 0x09(7:0)} 10-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce R/Cr output (magnitude format) 72 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 csc_gic1(5:0): G/Y input channel – G/Y output channel, integer part {csc_g11 0x0A(7:2)} [00 0000] 6-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce R/Cr output (magnitude format) csc_gfc1(9:0): G/Y input channel – G/Y output channel, fractional part {csc_g11 0x0A(1:0) and [00 0000 0000] csc_g12 0x0B(7:0)} 10-bit fractional portion of coefficient that is multiplied with G/Y input, to produce G/Y output (magnitude format) csc_gic2(5:0): G/Y input channel – B/Cb output channel, integer part {csc_g21 0x0C(7:2)} [00 0000] 6-bit integer portion of coefficient that is multiplied with G/Y input, to produce G/Y output (magnitude format) csc_gfc2(9:0): G/Y input channel – B/Cb output channel, fractional part {csc_g21 0x0C(1:0) and [00 0000 0000] csc_g22 0x0D(7:0)} 10-bit fractional portion of coefficient that is multiplied with G/Y input, to produce B/Cb output (magnitude format) csc_gic3(5:0): G/Y input channel – R/Cr output channel, integer part {csc_g31 0x0E(7:2)} {csc_g31 0x0E(7:2)} 6-bit integer portion of coefficient that is multiplied with G/Y input, to produce R/Cr output (signed magnitude format) csc_gfc3(9:0) G/Y input channel – R/Cr output channel, fractional part {csc_g31 0x0E(1:0) and [00 0000 0000] csc_g32 0x0F(7:0)} 10-bit fractional portion of coefficient that is multiplied with G/Y input, to produce R/Cr output (magnitude format) csc_bic1(5:0): B/Cb input channel – G/Y output channel, integer part {csc_b11 0x10(7:2)} [00 0000] 6-bit integer portion of coefficient that is multiplied with B/Cb input, to produce G/Y output (signed magnitude format) csc_bfc1(9:0): B/Cb input channel – G/Y output channel, fractional part {csc_b11 0x10(1:0) and [00 0000 0000] csc_b12 0x11(7:0)} 10-bit fractional portion of coefficient that is multiplied with B/Cb input, to produce G/Y output (magnitude format) csc_bic2(5:0): B/Cb input channel – B/Cb output channel, integer part {csc_b21 0x12(7:2)} [00 0000] 6-bit integer portion of coefficient that is multiplied with B/Cb input, to produce B/Cb output (signed magnitude format) I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 73 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com csc_bfc2(9:0): B/Cb input channel – B/Cb output channel, fractional part {csc_b21 0x12(1:0) and [00 0000 0000] csc_b22 0x13(7:0)} 10-bit fractional portion of coefficient that is multiplied with B/Cb input, to produce B/Cb output (magnitude format) csc_bic3(5:0): B/Cb input channel – R/Cr output channel, integer part {csc_b31 0x14(7:2)} [00 0000] 6-bit integer portion of coefficient that is multiplied with B/Cb input, to produce R/Cr output (signed magnitude format) csc_bfc3(9:0): B/Cb input channel – R/Cr output channel, fractional part {csc_b31 0x14(1:0) and [00 0000 0000] csc_b32 0x15(7:0)} 10-bit fractional portion of coefficient that is multiplied with B/Cb input, to produce R/Cr output (magnitude format) csc_offset1(9:0): DAC channel 1 offset {csc_offs1 0x16(7:0) and [00 0000 0000] csc_offs12 0x17(7:6)} Offset value for G/Y output (signed magnitude format) csc_offset2(9:0): DAC channel 2 offset {csc_offs12 0x17(5:0) and [00 0000 0000] csc_offs23 0x18(7:4)} Offset value for B/Cb output (signed magnitude format) csc_offset3(9:0): DAC channel 3 offset {csc_offs23 0x18(3:0) and [00 0000 0000] csc_offs3 0x19(7:2)} Offset value for R/Cr output (signed magnitude format) csc_bypass: Bypass for CSC block {csc_offs3 0x19(1)} [1] 0 : Color space conversion (CSC) not bypassed 1 : CSC bypassed csc_uof_cntl: Under-/overflow control for CSC block {csc_offs3 0x19(1)} [0] Controls over-/underflow protection logic on color space converter 0 : Under-/overflow protection off 1 : Under-/overflow protection on 7.2.3 Test Control (Sub-Addresses 0x1A−0x1B) tst_digbypass: Bypass to DAC inputs {tst_cntl1 0x1A(7)} [0] 0 : Normal operation; nonbypass 1 : Digital logic bypassed to directly control DACs from input bus tst_offset: Bypass for DAC offsets {tst_cntl1 0x1A(6)} [0] 0 : Normal operation; logic not bypassed 1 : Programmed offsets are always added to DAC codes regardless of mode or dtg_state 74 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 tst_ydelay(1:0): Y delay path control {tst_cntl2 0x1B(7:6)} [00] Adjusts the delay of the Y channel during YCbCr modes tst_fastramp: DAC test control, fast ramp {tst_cntl2 0x1B(1)} [0] 0 : Normal operation 1 : DAC outputs a ramp at 2x clock rate. tst_slowramp: DAC test control, slow ramp {tst_cntl2 0x1B(0)} [0] 0 : Normal operation 1 : DAC outputs a ramp at 2x clock rate divided by 64,000. This mode has a higher priority than the one set by tst_fastramp 7.2.4 Data Path Control (Sub-Address 0x1C) data_clk656_on: {data_cntl 0x1C(7)} 0 : D1CLKO output off 1 : D1CLKO output on ITU-R.BT656 output clock control [0] data_fsadj: Full-scale adjust control {data_cntl 0x1C(6)} [0] Selects which full-scale setting to use. See FSADJ terminal description for nominal full-scale adjust resistor values. 0 : Use full-scale setting from resistor connected to FSADJ2 terminal 1 : Use full-scale setting from resistor connected to FSADJ1 terminal data_ifir12_bypass: Bypass control 4:2:2 to 4:4:4 {data_cntl 0x1C(5)} [0] 0 : Interpolation filters before the CSC are in the data path, enabling 4:2:2 to 4:4:4 conversion internally. This mode should be used when the input data is in 4:2:2 format 1 : Interpolation filters before the CSC are bypassed. This mode should be used when the input data is in 4:4:4 format. data_ifir35_bypass: Bypass control 2x interpolation {data_cntl 0x1C(4)} [0] 0 : interpolation filters after the CSC are in the data path; enabling 1x to 2x interpolation of the video data. 1 : interpolation filters after the CSC are bypassed. This mode should be used when 1x DAC operation is desired. data_tristate656: ITU-R.BT656 output bus {data_cntl 0x1C(3)} [0] 0 : the ITU-R.BT656 output bus is active. 1 : the ITU-R.BT656 output bus is in the high-impedance state. data_dman_cntl(2:0): Data manager control {data_cntl 0x1C(2:0)} [011] Selects the format for the input data manager, as follows: dman_cntl MODE 000 30-bit YCbCr/RGB 4:4:4 001 16-bit RGB 4:4:4 010 15-bit RGB 4:4:4 011 20-bit YCbCr 4:2:2 100 10-bit YCbCr 4:2:2 (ITU mode) Others (Reserved) I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 75 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 7.2.5 www.ti.com Display Timing Generator Control, Part 1 (Sub-Addresses 0x1D−0x3C) dtg1_y_blank(9:0): Y channel blanking level amplitude control {dtg1_y_sync_msb 0x23(5:4) and [10 0000 0000] dtg1_y_sync1_lsb 0x1D(7:0)} Sets the amplitude of the blanking level for the Y channel dtg1_y_sync_low(9:0): Y channel low sync level amplitude control {dtg1_y_sync_msb 0x23(3:2) and [00 0000 0000] dtg1_y_sync2_lsb 0x1E(7:0)} Sets the amplitude of the negative sync and equalization/serration/broad pulses for the Y channel dtg1_y_sync_high(9:0): Y channel high sync level amplitude control {dtg1_y_sync_msb 0x23(1:0) and [11 0000 0000] dtg1_y_sync3_lsb 0x1F(7:0)} Sets the amplitude of the positive sync for the Y channel dtg1_cbcr_blank(9:0): Cb/Cr channel blanking level amplitude control {dtg1_cbcr_sync_msb 0x24(5:4) and [10 0000 0000] dtg1_cbcr_sync1_lsb 0x20(7:0)} Sets the amplitude of the blanking level for the Cb and Cr channels dtg1_cbcr_sync_low (9:0): Cb/Cr channel low sync level amplitude control {dtg1_cbcr_sync_msb 0x24(3:2) and [00 0000 0000] dtg1_cbcr_sync2_lsb 0x21(7:0)} Sets the amplitude of the negative sync and equalization/serration/broad pulses for the Cb and Cr channels dtg1_cbcr_sync_high(9:0): Cb/Cr channel high sync level amplitude control {dtg1_cbcr_sync_msb 0x24(1:0) and [11 0000 0000] dtg1_cbcr_sync3_lsb 0x22(7:0)} Sets the amplitude of the positive sync for the Cb and Cr channels dtg1_spec_a(7:0): Negative HSync width {dtg1_spec_a 0x25(7:0)} [0010 1100] = [44d] Width of negative excursion of tri-level (HDTV mode) or bi-level (SDTV mode) sync dtg1_spec_b(7:0): End of active video to 0H {dtg1_spec_b 0x26(7:0)} [0101 1000] = [88d] Distance from end of active video to start of negative sync (SDTV mode) or to negative-to-positive transition of tri-level sync (HDTV mode) dtg1_spec_c(7:0): Positive Hsync width (HDTV)/Equalization pulse (SDTV) width {dtg1_spec_c 0x27(7:0)} [0010 1100] = [44d] Width of positive excursion of tri-level (HDTV mode). Width of equalization pulses (SDTV mode) dtg1_spec_d(8:0): Sync to active video(SDTV)/sync to broad pulse(HDTV) {dtg1_spec_deh_msb 0x2B(7) and [0 1000 0100] = [132d] dtg1_spec_d_lsb 0x28(7:0)} Distance from leading edge of Hsync to start of active video (SDTV mode) or from negative-to-positive transition of tri-level sync to start of broad pulse (HDTV mode) dtg1_spec_d1(7:0): Center equalization pulse to active video (SDTV) {dtg1_spec_d1 0x29(7:0)} [0000 0000] Distance from equalization pulse at center of line to active video (SDTV mode) 76 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 dtg1_spec_e(8:0): Sync to active video (HDTV)/Color bar start (VESA) {dtg1_spec_deh_msb 0x2B(6) and [0 1100 0000] = [192d] dtg1_spec_e_lsb 0x2A(7:0)} Distance from negative-to-positive transition of tri-level sync to start of active video (HDTV mode). In case color bars are activated in VESA mode, this parameter specifies the start of the color bar with respect to the horizontal sync dtg1_spec_h(9:0): {dtg1_spec_deh_msb 0x2B(1:0) and dtg1_spec_h_lsb 0x2C(7:0)} Duration of broad pulse (SDTV mode) dtg1_spec_i(11:0): {dtg1_spec_i_msb 0x2D(3:0) and dtg1_spec_i_lsb 0x2E(7:0)} Duration of full-line broad pulse (SDTV mode) Broad pulse duration (SDTV) [00 0000 0000] Full-line broad pulse duration (SDTV) [0000 0000 0000] dtg1_spec_k(10:0): End of active video to sync (SDTV)/end of broad pulse to sync (HDTV) {dtg1_spec_k_msb 0x30(2:0) and [000 0101 1000] = [88d] dtg1_spec_k_lsb 0x2F(7:0)} Distance from end of active video to leading edge of sync (SDTV) or from end of broad pulse to negative-to-positive transition of trilevel sync (HDTV) dtg1_spec_k1(7:0): End of active video in first half of line to center equalization pulse (SDTV) {dtg1_spec_k1 0x31(7:0)} [00000000] Distance from end of active video in first half of line to center equalization pulse for SDTV line type ACTIVE_NEQ dtg1_spec_g(11:0): 1/2 of line length (SDTV) {dtg1_spec_g_msb 0x33(3:0) and [0000 0101 1000] = [88d] dtg1_spec_g_lsb 0x32(7:0)} Half the line length. Only used in the calculations of SDTV line types. dtg1_total_pixels(12:0): Total pixels per line (SDTV/HDTV/VESA) {dtg1_total_pixels_msb 0x34(4:0) and [0 0101 0010 0000] = [1312d] dtg1_total_pixels_lsb 0x35(7:0)} Total number of pixels per line. Used in all DTG modes. dtg1_field_flip: FID/F polarity select {dtg1_fieldflip_linecnt_msb 0x36(7)} [0] 0 : DTG is initialized to field1 at active VS edge when a 0 is received on FID signal or F bit 1 : DTG is initialized to field1 at active VS edge when a 1 is received on FID signal or F bit dtg1_linecnt(10:0): DTG start line number {dtg1_fieldflip_linecnt_msb 0x36(2:0) and [000 0000 0001] dtg1_linecnt_lsb 0x37(7:0)} Sets the starting line number for the DTG when Vsync input or V-bit is asserted (vertical display control) dtg1_on: {dtg1_mode 0x38(7)} 0 : DTG output held to dtg_y_blank value 1 : DTG on DTG on/off [1] dtg1_pass_through: DTG pass-through {dtg1_mode 0x38(4)} [0] 0 : Video data blocked during certain line types 1 : Video data passed during certain line types See DTG Line Types Overview (Section 6.7.3) for details. I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 77 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com dtg1_mode(3:0): DTG mode selection {dtg1_mode 0x38(3:0)} [0110] Selects the operation mode of the DTG according to the following table. Each setting is either an SDTV, HDTV or VESA format, as shown: dtg1_mode MODE 0000 ATSC mode 1080P (SMPTE 274M progressive) [HDTV] 0001 ATSC mode 1080I (SMPTE274M interlaced) [HDTV] 0010 ATSC mode 720P (SMPTE296M progressive) [HDTV] 0011 Generic mode for HDTV [HDTV] 0100 ATSC mode 480I (SDTV 525 lines interlaced) [SDTV] 0101 ATSC mode 480P (SDTV 525 lines progressive) [SDTV] 0110 VESA master [VESA] 0111 VESA slave [VESA] 1000 SDTV 625 interlaced [SDTV] 1001 Generic mode for SDTV [SDTV] Others [Null] dtg1_frame_size(10:0): Generic mode frame size {dtg1_frame_field_size_msb 0x39(6:4) and [011 0000 0000] dtg1_framesize_lsb 0x3A(7:0)} Determines number of lines per frame when in generic mode dtg1_field_size(10:0): Generic mode field size {dtg1_frame_field_size_msb 0x39(2:0) and [000 0010 0000] dtg1_fieldsize_lsb 0x3B(7:0)} Determines number of lines in field 1 when in generic mode. This number should be programmed higher than frame_size for progressive scan formats. dtg1_vesa_cbar_size(7:0): Color bar pattern, width {dtg1_vesa_cbar_size 0x3C(7:0)} [1000 0000] Sets the width of each color bar in the color bar test pattern. This test pattern is only available when the DTG is in VESA mode. 7.2.6 DAC Control (Sub-Addresses 0x3D−0x40) dac_i2c_cntl: DAC I2C control {dac_cntl_msb 0x3D(6)} [0] 0 : DAC normal operation 1 : DAC inputs are fixed to values of registers 78 dac1_cntl(9:0): {dac_cntl_msb 0x3D(5:4) and dac1_cntl_lsb 0x3E(7:0)} Direct input to G/Y DAC DAC1 input value [00 0000 0000] dac2_cntl(9:0): {dac_cntl_msb 0x3D(3:2) and dac2_cntl_lsb 0x3F(7:0)} Direct input to B/Cb DAC DAC2 input value [00 0000 0000] dac3_cntl(9:0): {dac_cntl_msb 0x3D(1:0) and dac3_cntl_lsb 0x40(7:0)} Direct input to R/Cr DAC DAC3 input value [00 0000 0000] I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 7.2.7 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Clip/Shift/Multiplier Control (Sub-Addresses 0x41−0x4F) csm_clip_gy_low(7:0): G/Y low clipping value {csm_clip_gy_low 0x41(7:0)} [0100 0000] Sets the value at which low end clipping occurs on G/Y channel, if clipping is enabled. Range is 0−255. csm_clip_bcb_low(7:0): B/Cb low clipping value {csm_clip_bcb_low 0x42(7:0)} [0100 0000] Sets the value at which low end clipping occurs on B/Cb channel, if clipping is enabled. Range is 0−255. csm_clip_rcr_low(7:0): R/Cr low clipping value {csm_clip_rcr_low 0x43(7:0)} [0100 0000] Sets the value at which low end clipping occurs on R/Cr channel, if clipping is enabled. Range is 0−255. csm_clip_gy_high(7:0): G/Y high clipping value {csm_clip_gy_high 0x44(7:0)} [0101 0011] Sets the value at which high end clipping occurs on G/Y channel, if clipping is enabled. High clip value = 1023-csm_clip_gy_high csm_clip_bcb_high(7:0): B/Cb high clipping value {csm_clip_bcb_high 0x45(7:0)} [0011 1111] Sets the value at which high end clipping occurs on B/Cb channel, if clipping is enabled. High clip value = 1023−csm_clip_bcb_high csm_clip_rcr_high(7:0): R/Cr high clipping value {csm_clip_rcr_high 0x46(7:0)} [0011 1111] Sets the value at which high end clipping occur on R/Cr channel, if clipping is enabled. High clip value = 1023−csm_clip_rcr_highs csm_shift_gy(7:0): G/Y shift value {csm_shift_gy 0x47(7:0)} [0100 0000] Value that G/Y data is shifted downwards. Range 0−255. Note: it is possible to shift the data so much that a roll over condition occurs. csm_shift_bcb(7:0): B/Cb shift value {csm_shift_bcb 0x48(7:0)} [0100 0000] Value that B/Cb data is shifted downwards. Range: 0−255. Note: It is possible to shift the data so much that a roll over condition occurs. csm_shift_rcr(7:0): R/Cr shift value {csm_shift_rcr 0x49(7:0)} [0100 0000] Value that B/Cb data is shifted downwards. Range: 0−255. Note: It is possible to shift the data so much that a roll over condition occurs. csm_mult_gy_on: {csm_gy_cntl_mult_msb 0x4A(7)} 0 : Scaling for G/Y channel off 1 : Scaling for G/Y channel on G/Y scaling on/off [0] csm_shift_gy_on: {csm_gy_cntl_mult_msb 0x4A(6)} 0 : Shifting for G/Y channel off 1 : Shifting for G/Y channel on G/Y shifting on/off [0] I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 79 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com csm_gy_high_clip_on: {csm_gy_cntl_mult_msb 0x4A(5)} 0 : G/Y data clipping at high end off 1 : G/Y data clipping at high end on G/Y high-end clipping on/off [0] csm_gy_low_clip_on: {csm_gy_cntl_mult_msb 0x4A(4)} 0 : G/Y data clipping at low end off 1 : G/Y data clipping at low end on G/Y low-end clipping on/off [0] csm_of_cntl: CSM overflow control {csm_gy_cntl_mult_msb 0x4A(3)} [1] Controls overflow protection of the CSM multiplier 0 : Overflow protection off 1 : Overflow protection on Numerical format of the CSM mult registers: The 11-bit value is a binary weighted value in the range 0−1.999. Thus: csm_mult_(10:0) = [(multiplier in range 0..1.999)/1.999] × 2047. csm_mult_gy(10:0): G/Y scaling value {csm_gy_cntl_mult_msb 0x4A(2:0) and [000 0000 0000] csm_mult_gy_lsb 0x4C(7:0)} Multiplication factor for G/Y channel in CSM. Range: 0−1.999. Note: it is possible to scale the input so much that a rollover occurs. csm_mult_bcb(10:0): B/Cb scaling value {csm_mult_bcb_rcr_msb 0x4B(6:4) and [000 0000 0000] csm_mult_bcb_lsb 0x4D(7:0)} Multiplication factor for B/Cb channel in CSM. Range: 0−1.999. Note: it is possible to scale the input so much that a rollover occurs. csm_mult_rcr(10:0): R/Cr scaling value {csm_mult_bcb_rcr_msb 0x4B(2:0) and [000 0000 0000] csm_mult_rcr_lsb 0x4E(7:0)} Multiplication factor for R/Cr channel in CSM. Range: 0−1.999. Note: it is possible to scale the input so much that a rollover occurs. 80 csm_mult_rcr_on: {csm_rcr_bcb_cntl 0x4F(7)} 0 : Scaling for R/Cr channel off 1 : Scaling for R/Cr channel on R/Cr scaling on/off [0] csm_mult_bcb_on: {csm_rcr_bcb_cntl 0x4F(6)} 0 : Scaling for B/Cb channel of 1 : Scaling for B/Cb channel on B/Cb scaling on/off [0] csm_shift_rcr_on: {csm_rcr_bcb_cntl 0x4F(5)} 0 : Shifting for R/Cr channel off 1 : Shifting for R/Cr channel on R/Cr shifting on/off [0] I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 csm_shift_bcb_on: {csm_rcr_bcb_cntl 0x4F(4)} 0 : Shifting for B/Cb channel off 1 : Shifting for B/Cb channel on B/Cb shifting on/off [0] csm_rcr_high_clip_on: {csm_rcr_bcb_cntl 0x4F(3)} 0 : R/Cr data clipping at high end off 1 : R/Cr data clipping at high end on R/Cr high-end clipping on/off [0] csm_rcr_low_clip_on: {csm_rcr_bcb_cntl 0x4F(2)} 0 : R/Cr data clipping at low end off 1 : R/Cr data clipping at low end on R/Cr low-end clipping on/off [0] csm_bcb_high_clip_on: {csm_rcr_bcb_cntl 0x4F(1)} 0 : B/Cb data clipping at high end off 1 : B/Cb data clipping at high end on B/Cb high-end clipping on/off [0] csm_bcb_low_clip_on: {csm_rcr_bcb_cntl 0x4F(0)} 0 : B/Cb data clipping at low end off 1 : B/Cb data clipping at low end on B/Cb low-end clipping on/off [0] 7.2.8 Display Timing Generator Control, Part 2 (Sub-Addresses 0x50−0x82) dtg2_bp(10:0): breakpoint line number {see register map table} [000 0000 0000] DTG outputs line type dtg2_linetype until line number of dtg2_bp is reached. (n = 1..16) dtg2_linetype(3:0): Line type for dtg2_bp {see register map table} [0000] The DTG outputs a line format corresponding to the table below until the next breakpoint line number is reached. (n = 1..16) LINE TYPE MODE 0000 ACTIVE_VIDEO 0001 FULL_NTSP 0010 FULL_BTSP 0011 NTSP_NTSP 0100 BTSP_BTSP 0101 NTSP_BTSP 0110 BTSP_NTSP 0111 ACTIVE_NEQ 1000 NSP_ACTIVE 1001 FULL_NSP 1010 FULL_BSP 1011 FULL_NEQ 1100 NEQ_NEQ 1101 BSP_BSP 1110 BSP_NEQ 1111 NEQ_BSP I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 81 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 dtg2_hlength(9:0): {dtg2_hlength_msb_hdly_msb 0x71(7:6) and dtg2_hlength_lsb 0x70(7:0)} Sets the duration of the HS_OUT output signal www.ti.com HS_OUT duration [00 0110 0000] dtg2_hdly(12:0): HS_OUT delay {dtg2_hlength_msb_hdly_msb 0x71(4:0) and [0 0000 0000 0010] dtg2_hdly_lsb 0x72(7:0)} Sets the pixel value that the HS_OUT signal is asserted on. Note: when programmed to a value higher than the total number of pixels per line, there will be no HS_OUT output. dtg2_vlength1(9:0): VS_OUT duration, field 1 {dtg2_vlength1_msb_vdly1_msb 0x74(7:6) and [00 0000 0011] dtg2_vlength1_lsb 0x73(7:0)} Sets the duration of the VS_OUT output signal during progressive scan video modes or during the vertical blank interval of field 1 in interlaced video modes. dtg2_vdly1(10:0): VS_OUT delay, field 1 {dtg2_vlength1_msb_vdly1_msb 0x74(2:0) and [000 0000 0011] dtg2_vdly1_lsb 0x75(7:0)} Sets the line number that the VS_OUT signal is asserted on for progressive video modes or for field 1 of interlaced video modes. Note: when programmed to a value higher than the total number of lines per frame, there is no VS_OUT output. dtg2_vlength2(9:0): VS_OUT duration, field 2 {dtg2_vlength2_msb_vdly2_msb 0x77(7:6) and [00 0000 0000] dtg2_vlength2_lsb 0x76(7:0)} Sets the duration of the VS_OUT output signal during the vertical blank interval of field 2 in interlaced video modes. In progressive video modes, this register must be set to all 0. dtg2_vdly2(10:0): VS_OUT delay, field 2 {dtg2_vlength2_msb_vdly2_msb 0x77(2:0) and [111 1111 1111] dtg2_vdly2_lsb 0x78(7:0)} Sets the line number that the VS_OUT signal is asserted on for field 2 of interlaced scan video modes. For progressive scan video modes, this register must be set to all 1. dtg2_hs_in_dly(12:0): DTG horizontal delay {dtg2_hs_in_dly_msb 0x79(4:0) and [0 0000 0011 1101] dtg2_hs_in_dly_lsb 0x7A(7:0)} Sets the number of pixels that the DTG startup is horizontally delayed with respect to HS input for dedicated timing modes or EAV input for embedded timing modes. Note: It is possible to delay startup past the end of a line when this delay is programmed higher than the total number of pixels per line. dtg2_vs_in_dly(10:0): DTG vertical delay {dtg2_vs_in_dly_msb 0x7B(2:0) and [000 0000 0011] dtg2_vs_in_dly_lsb 0x7C(7:0)} Sets the number of lines that the DTG startup is vertically delayed with respect to VS input for dedicated timing modes or the line counter value for embedded timing. Note: It is possible to delay startup past the end of a frame when this delay is programmed higher than the total number of lines per frame. dtg2_pixel_cnt(15:0): Pixel count readback {dtg2_pixel_cnt_msb 0x7D(7:0) and dtg2_pixel_cnt_lsb 0x7E(7:0)} Reports the number of clock 1x rising edges between consecutive Hsync input pulses 82 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 dtg2_ip_fmt: Interlaced/progressive-scan indicator {dtg2_line_cnt_msb 0x7F(7)} Indicates whether current video frame is progressive (0) or interlaced (1) dtg2_line_cnt(10:0): Line count readback {dtg2_lined_cnt_msb 0x7F(2:0) and dtg2_line_cnt_lsb 0x80(7:0)} Reports the number of Hsync input pulses between consecutive dtg_start signals (that is, over one frame period) dtg2_fid_de_cntl: FID (field-ID)/DE (data enable)input selection for FID terminal {dtg2_cntl 0x82(7)} [0] Controls interpretation of signal on FID terminal 0 : Signal interpeted as FieldID 1 : If the DTG is programmed to the VESA mode, the FID pin becomes a data-enable input pin. Data enable is assumed high during the active video window, and low outside this area. This is compatible with the DE signal from TI DVI receivers. Data is passed through the THS8200 only when data enable is high. Otherwise, the input data is overridden by the THS8200 internally programmed blanking value. If the DTG is programmed in the SDTV or HDTV video mode with dedicated timing signals, a 1 in this register location causes the THS8200 to generate an internal FieldID value from the relative alignment of Hsync and Vsync inputs, rather than using the signal on the FID input pin (which is ignored). This is for EIA-861 compliant operation for video-over-DVI 1.0 (with HDCP) where there is no dedicated FID signal available but the even/odd field ID is determined from Hsync/Vsync alignment. dtg2_rgb_mode_on: RGB/YPbPr mode selection {dtg2_cntl 0x82(6)} [1] This selection affects the relative blank vs video level position: on R,G,B, and Y channels an offset is added to the DAC outputs 0 : YPbPr mode (blanking at bottom range for Y – mid-range for Pb, Pr channels) 1 : RGB mode (blanking at bottom ranges for all channels) dtg2_embedded_timing: Video sync input source {dtg2_cntl 0x82(5)} [0] 0 : Timing of video input bus is derived from HS, VS, and FID dedicated inputs 1 : Timing of video input bus is assumed embedded in video data using SAV/EAV code sequences. dtg2_vsout_pol: {dtg2_cntl 0x82(4)} 0 : Negative polarity 1 : Positive polarity VS_OUT polarity [1] dtg2_hsout_pol: {dtg2_cntl 0x82(3)} 0 : Negative polarity 1 : Positive polarity HS_OUT polarity [1] dtg2_fid_pol: {dtg2_cntl 0x82(2)} 0 : Negative polarity 1 : Positive polarity FID polarity [1] dtg2_vs_pol: {dtg2_cntl 0x82(1)} 0 : Negative polarity 1 : Positive polarity VS_IN polarity [1] dtg2_hs_pol: {dtg2_cntl 0x82(0)} 0 : Negative polarity 1 : Positive polarity HS_IN polarity [1] I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 83 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com misc_ppl(15:0): HS high {misc_ppl_msb 0x87(7:0) and misc_ppl_lsb 0x86(7:0)} Reports the number of clock cycles HS was held high misc_lpf(15:0): VS high {misc_lpf_msb 0x89(7:0) and misc_lpf_lsb 0x88(7:0)} Reports the number of HS counts that VS was held high. 7.2.9 CGMS Control (Sub-Addresses 0x83−0x85) cgms_en: CGMS enable {cgms_cntl_header 0x83(6)} [0] 0 : No CGMS data inserted 1 : CGMS data inserted on line 41 in SDTV mode cgms_header: {cgms_cntl_header 0x83(5:0)} CGMS header [00 0000] cgms_payload(13:0): {cgms_payload_msb 0x84(5:0) and cgms_payload_lsb 0x85(7:0)} CGMS payload data CGMS payload [00 0000 0000 0000] 7.3 THS8200 Preset Mode Line Type Definitions The following are the (line type, breakpoint) combinations that are preprogrammed when selecting the corresponding DTG preset setting. 7.3.1 SMPTE_274P (1080P) Breakpoints Line Type 6 FULL_BTSP 42 FULL_NTSP 1122 ACTIVE_VIDEO 1126 FULL_NTSP frame_size = 10001100101; 1125d field_size = 11111111111; not needed 7.3.2 274M Interlaced (1080I) Breakpoints Line Type 6 BTSP_BTSP 7 NTSP_NTSP 21 FULL_NTSP 561 ACTIVE_VIDEO 563 FULL_NTSP 564 NTSP_BTSP 568 BTSP_BTSP 569 BTSP_NTSP 584 FULL_NTSP 1124 ACTIVE_VIDEO 1126 FULL_NTSP frame_size = 10001100101; 1125d field_size = 01000110011; 563d 84 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 7.3.3 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 296M Progressive (720P) Breakpoints Line Type 6 FULL_BTSP 26 FULL_NTSP 746 ACTIVE_VIDEO 751 FULL_NTSP frame_size = 01011101110; 750d field_size = 11111111111; not needed 7.3.4 SDTV 525 Interlaced Mode Breakpoints Line Type 4 NEQ_NEQ 7 BSP_BSP 10 NEQ_NEQ 20 FULL_NSP 263 ACTIVE_VIDEO 264 ACTIVE_NEQ 266 NEQ_NEQ 267 NEQ_BSP 269 BSP_BSP 270 BSP_NEQ 272 NEQ_NEQ 273 FULL_NEQ 282 FULL_NSP 283 NSP_ACTIVE 526 ACTIVE_VIDEO frame_size = 1000001101; 525d field_size = 00100000111; 263d 7.3.5 SDTV 525 Progressive Mode Breakpoints Line Type 10 FULL_NSP 16 FULL_BSP 46 FULL_NSP 526 ACTIVE_VIDEO frame_size = 01000001101; 525d field_size = 11111111111; not needed I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 85 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 7.3.6 www.ti.com SDTV 625 Interlaced Mode Breakpoints Line Type 3 BSP_BSP 4 BSP_NEQ 6 NEQ_NEQ 23 FULL_NSP 24 NSP_ACTIVE 311 ACTIVE_VIDEO 313 NEQ_NEQ 314 NEQ_BSP 316 BSP_BSP 318 NEQ_NEQ 319 FULL_NEQ 336 FULL_NSP 623 ACTIVE_VIDEO 624 ACTIVE_NEQ 626 NEQ_NEQ frame_size = 01001110001; 625d field_size = 00100111000; 312d 86 I2C Registers Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 8 Application Information 8.1 Video vs Computer Graphics Application THS8200 is a highly integrated and flexible universal analog component video/graphics generator that can be used in any application requiring D/A conversion of video/graphics signals. In a typical video application (for example, DVD player, set-top box), the THS8200 receives its input from an MPEG decoder or media processor engine and converts the signal into the analog domain, thereby generating the correct timing/frame format for the selected format. Its ITU-R.BT656 output port could be used to connect to an NTSC/PAL video encoder, such as the Texas Instruments TVP6000, for regular composite/S-video output. Note that because the DAC speed is rated up to 205 MSPS, all popular SDTV and HDTV formats, including 1080I and 720P, are supported in both 1x and 2x interpolated modes. The 1080P is supported at the 1x rate. MPEG Decoder or Media Processor Signal Receiver (From Satellite, Cable, DVD Disk) R/Y THS8200 CCIR656 HDTV Monitor G/Pb B/Pr NTSC/PAL Video Encoder SDTV (NTSC/PAL) Figure 8-1. Typical Video Application Because of its programmable Hsync/Vsync outputs, the on-chip support for RGB as well as YCbCr color spaces and its internal color space conversion circuit, and the DAC operational speed of 205 MSPS, all PC graphics formats are supported as well, up to UXGA at 75 Hz. Video interpolation is now bypassed so that the full 205 MSPS can be used for the 1x pixel clock. R 3-D/2-D Graphics Controller 24 Bits THS8200 G B VESA Compatible CRT Monitor HS_OUT VS_OUT Figure 8-2. Computer Graphics Application 8.2 DVI to Analog YPbPr/RGB Application Together with a DVI receiver, this device forms a two-chip solution to convert video or graphics formats sent over a DVI interface to an analog RGB or YPbPr format using embedded composite sync or separate Hsync, Vsync. THS8200 connects gluelessly to a DVI receiver using its data input bus and HS_IN and VS_IN terminals. TI DVI 1.0 (with HDCP) receivers provide a data enable (DE) signal that is high during the active video window. The THS8200 can be configured to interpret this DE signal on its FID terminal to automatically insert a user-programmable blanking-level amplitude outside the active video window on its analog outputs; this blanking level can be correctly positioned for either RGB or YPbPr analog outputs. The user can optionally perform color space conversion in the THS8200 and adjust offset and gain ranges through the device's CSM block. Application Information Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 87 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com When sending (interlaced) video over DVI, the EIA-861 specification describes a method to derive the fieldID signal—not directly available from a DVI1.0 (with HDCP) receiver—from the relative alignment of the Hsync and Vsync signals. The THS8200 can be configured to derive internally the correct even/odd field identification from Hsync/Vsync alignment according to this specification, instead of using the FieldID signal on its FID input terminal. This avoids the need for additional glue logic in a DVI application. 8.3 Master vs Slave Timing Modes In slave timing mode, the THS8200 output display timing is synchronized to the video data source. Display timing output signals are based on input sync signals, either fed to the device on the dedicated Hsync, Vsync, and FieldID (HS_IN, VS_IN, and FID) input terminals or based on SAV/EAV codes embedded in the input video data. GY[9:0] BPb[9:0] G/Y RPr[9:0] MPEG Decoder/ Graphics Processor/ Video Memory B/Pb R/Pr THS8200 CLKIN HS_OUT HS Drive TV or Computer Monitor VS_OUT VS FID SCL D1CLK SDA DO[9:0] To an I2C Master Device To an NTSC/PAL Encoder Figure 8-3. Slave Operation Mode of THS8200 In master timing mode, the THS8200 generates two sets of output synchronization signals. • HS_IN and VS_IN now become output signals to the video source (FID unused). • HS_OUT and VS_OUT are still output signals to display device. The intended purpose is that THS8200 requests video data from a source that requires external timing, such as video memory. 88 Application Information Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 GY[9:0] BPb[9:0] G/Y RPr[9:0] MPEG Decoder/ Graphics Processor/ Video Memory B/Pb R/Pr THS8200 CLKIN HS VS_OUT VS SCL D1CLK SDA DO[9:0] To an I2C Master Device Computer Monitor HS_OUT To an NTSC/PAL Encoder Figure 8-4. Master Operation Mode of THS8200 Application Information Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 89 THS8200 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 www.ti.com 9 Device and Documentation Support 9.1 Device Support 9.1.1 Development Support 9.1.1.1 Getting Started and Next Steps To get started with TI video and imaging product, see the Parametric Search on www.ti.com. 9.1.2 Device Nomenclature To designate the stages in the product development cycle, TI assigns prefixes to the part numbers of all devices and support tools. Each device has one of three prefixes: X, P, or null (no prefix) (for example, THS8200). Device development evolutionary flow: X Experimental device that is not necessarily representative of the final device's electrical specifications and may not use production assembly flow. P Prototype device that is not necessarily the final silicon die and may not necessarily meet final electrical specifications. null Production version of the silicon die that is fully qualified. X and P devices are shipped against the following disclaimer: "Developmental product is intended for internal evaluation purposes." Production devices and TMDS development-support tools have been characterized fully, and the quality and reliability of the device have been demonstrated fully. TI's standard warranty applies. Predictions show that prototype devices (X or P) have a greater failure rate than the standard production devices. Texas Instruments recommends that these devices not be used in any production system because their expected end-use failure rate still is undefined. Only qualified production devices are to be used. TI device nomenclature also includes a suffix with the device family name. This suffix indicates the package type (for example, PFP) and the temperature range (for example, blank is the default commercial temperature range). For orderable part numbers of THS8200 devices in the PFP package types, see the Package Option Addendum of this document, the TI website (www.ti.com), or contact your TI sales representative. 90 Device and Documentation Support Copyright © 2002–2014, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: THS8200 THS8200 www.ti.com 9.2 SLES032E – JUNE 2002 – REVISED SEPTEMBER 2014 Documentation Support The following documents describe the THS8200 device. Copies of these documents are available on the Internet at www.ti.com. Additional documents are available at www.ti.com/product/ths8200. 9.2.1 SLEA078 THS8200 PCB Layout Guidelines. Guidelines to help optimize device performance. SPRA961 High Resolution Video Using the DM642 DSP and the THS8200 Driver. Gives a brief discussion on the HDTV standards and demonstrates the hardware requirements and implementation for interfacing the DM642 video port to a THS8200. Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. TI Embedded Processors Wiki Texas Instruments Embedded Processors Wiki. Established to help developers get started with Embedded Processors from Texas Instruments and to foster innovation and growth of general knowledge about the hardware and software surrounding these devices. 9.3 Trademarks PowerPAD, E2E are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. 9.4 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 9.5 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 10 Mechanical, Packaging, and Orderable Information The following pages include mechanical packaging and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Copyright © 2002–2014, Texas Instruments Incorporated Mechanical, Packaging, and Orderable Information Submit Documentation Feedback Product Folder Links: THS8200 91 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) THS8200PFP ACTIVE HTQFP PFP 80 96 RoHS & Green NIPDAU Level-3-260C-168 HR 0 to 70 THS8200 D (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
THS8200PFP 价格&库存

很抱歉,暂时无法提供与“THS8200PFP”相匹配的价格&库存,您可以联系我们找货

免费人工找货
THS8200PFP
  •  国内价格 香港价格
  • 1+70.333211+8.72481
  • 10+54.5157610+6.76266
  • 25+50.5735325+6.27363
  • 96+46.3378096+5.74819
  • 288+43.88940288+5.44446
  • 480+42.98424480+5.33218
  • 960+41.94627960+5.20342

库存:64

THS8200PFP
  •  国内价格
  • 1+26.53692

库存:8
