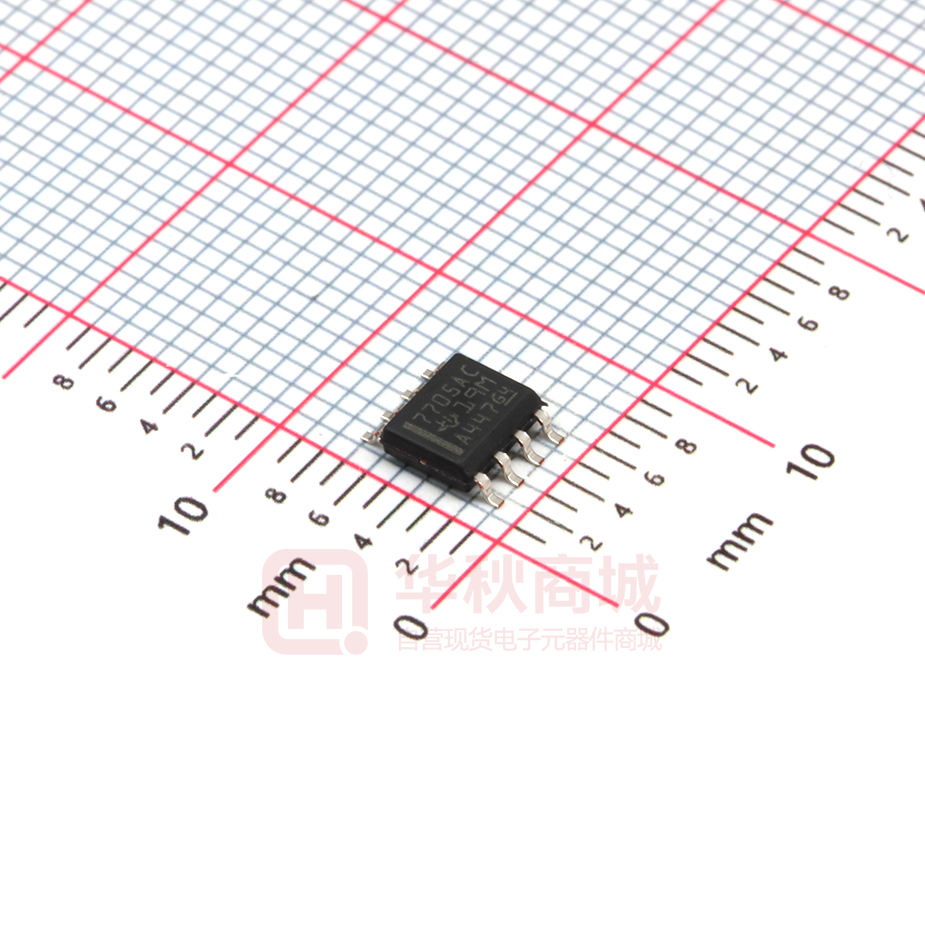

TL7705ACDR

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 TL77xxA Supply-Voltage Supervisors 1 Features 3 Description • • • • • • The TL77xxA family of integrated-circuit supplyvoltage supervisors is designed specifically for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, RESET and RESET go active. 1 Power-On Reset Generator Automatic Reset Generation After Voltage Drop Wide Supply-Voltage Range Precision Voltage Sensor Temperature-Compensated Voltage Reference Externally Adjustable Pulse Duration 2 Applications • • • • • Computers Tablets Smart Phones Servers Music Players Device Information(1) PART NUMBER TL77xxA TL7705A PACKAGE BODY SIZE (NOM) SOIC (8) 4.90 mm × 3.91 mm PDIP (8) 9.81 mm × 6.35 mm SO (8) 6.20 mm × 5.30 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. Three-Supply Monitoring 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 6.7 4 4 4 5 5 5 6 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Switching Characteristics .......................................... Typical Characteristics .............................................. Parameter Measurement Information .................. 7 Detailed Description .............................................. 8 8.1 Overview ................................................................... 8 8.2 Functional Block Diagram ......................................... 8 8.3 Feature Description................................................... 9 8.4 Device Functional Modes.......................................... 9 9 Application and Implementation ........................ 10 9.1 Application Information............................................ 10 9.2 Typical Application .................................................. 10 9.3 System Examples ................................................... 12 10 Power Supply Recommendations ..................... 14 11 Layout................................................................... 14 11.1 Layout Guidelines ................................................. 14 11.2 Layout Example .................................................... 14 12 Device and Documentation Support ................. 15 12.1 12.2 12.3 12.4 12.5 12.6 Related Links ........................................................ Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 15 15 15 15 15 15 13 Mechanical, Packaging, and Orderable Information ........................................................... 15 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision J (January 2015) to Revision K Page • Added SO (8) to Device Information table.............................................................................................................................. 1 • Changed RESET to RESET in Timing Diagram..................................................................................................................... 6 • Added Receiving Notification of Documentation Updates section ....................................................................................... 15 Changes from Revision I (July 2009) to Revision J Page • Added Applications, Device Information table, Pin Functions table, ESD Ratings table, Thermal Information table, Typical Characteristics, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section. ................................................................................................. 1 • Deleted Ordering Information table. ....................................................................................................................................... 1 2 Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A TL7702A, TL7705A, TL7709A, TL7712A, TL7715A www.ti.com SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 5 Pin Configuration and Functions TL7702A, TL7709A, TL77012A, TL7715A D or P Package TL7705A D, P, or PS Package 8-Pin SOIC, PDIP, or SO Top View REF 1 8 VCC RESIN 2 7 SENSE CT 3 6 RESET GND 4 5 RESET Not to scale Pin Functions PIN NAME NO. TYPE DESCRIPTION CT 3 I/O External timing-capacitor pin GND 4 — Device ground REF 1 O Voltage reference output RESET 6 O Supervisor reset signal output RESET 5 O Supervisor reset signal output (inverted) RESIN 2 I Reset input SENSE 7 I Sense input VCC 8 — Power Supply Copyright © 1983–2016, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A 3 TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) MIN VCC Supply voltage (2) VI Input voltage, RESIN VI Input voltage range SENSE MAX UNIT 20 V –0.3 20 V TL7702A (3) –0.3 6 V TL7705A –0.3 20 V TL7709A –0.3 20 V TL7712A, TL7715A –0.3 20 V –30 mA IOH High-level output current, IOH, RESET IOL Low-level output current, IOL, RESET 30 mA TJ Operating virtual junction temperature 150 °C Tstg Storage temperature 150 °C (1) (2) (3) –65 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. For proper operation of the TL7702A, the voltage applied to the SENSE terminal should not exceed VCC − 1 V or 6 V, whichever is less All voltage values are with respect to GND. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) UNIT 1000 Charged device model (CDM), per JEDEC specification JESD22-C101 (2) V 1000 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) VCC Supply Voltage VIH High-level input voltage at RESIN VIL Low-level input voltage at RESIN VI Input voltage, SENSE MIN MAX 3.5 18 2 UNIT V V 0.6 TL7702A 0 See (1) TL7705A 0 10 TL7709A 0 15 TL7712A 0 20 TL7715A 0 20 V V IOH High-level output current, RESET –16 mA IOL Low-level output current, RESET 16 mA TA (1) 4 Operating free-air temperature TL77xxAC TL77xxAI 0 70 –40 85 °C For proper operation of the TL7702A, the voltage applied to the SENSE terminal should not exceed VCC − 1 V or 6 V, whichever is less. Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A TL7702A, TL7705A, TL7709A, TL7712A, TL7715A www.ti.com SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 6.4 Thermal Information TL77xxA THERMAL METRIC (1) RθJA (1) D P PS 8 PINS 8 PINS 8 PINS 97 85 95 Junction-to-ambient thermal resistance UNIT °C/W For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. 6.5 Electrical Characteristics over operating free-air temperature range (unless otherwise noted) TL77xxAC TL77xxAI TEST CONDITIONS (1) PARAMETER MIN VOH High-level output voltage, RESET IOH = –16 mA VOL Low-level output voltage, RESET IOL = 16 mA Vref Reference Voltage TA = 25°C VIT– TYP VCC – 1.5 V TL7702A 2.48 2.53 2.58 TL7705A 4.5 4.55 4.6 7.5 7.6 7.7 10.6 10.8 11 13.2 13.5 13.8 TA = 25°C 15 TL7709A TA = 25°C 20 TL7712A 45 VI = 2.4 V to VCC RESIN 20 VI = 0.4 V TL7702A –100 Vref < VI < VCC – 1.5 V IOH High-level output current, RESET VO = 18 V IOL Low-level output current, RESET VO = 0 ICC Supply current All inputs and outputs open (1) mV 35 TL7715A SENSE V 10 TL7705A Input current V 2.58 TL7702A II V 2.53 Negative-going input TL7709A threshold voltage, SENSE TL7712A Hysteresis, SENS (VIT+ – VIT–) 0.4 2.48 TL7715A Vhys UNIT MAX 0.5 µA 2 50 µA –50 µA 3 mA 1.8 All electrical characteristics are measured with 0.1-µF capacitors connected at REF, CT, and VCC to GND. 6.6 Switching Characteristics over operating free-air temperature range (unless otherwise noted) Output pulse duration CT = 0.1 µF Input pulse duration at RESIN tw(S) Pulse duration at sense input to switch outputs VIH = VIT− + 200 mV, VIL = VIT− − 200 mV tpd propagation delay time, RESIN to RESET VCC = 5V tr Rise time tf Fall time (1) (2) TL77xxAC TL77xxAI TEST CONDITIONS (1) PARAMETER RESET RESET RESET RESET UNIT MIN TYP MAX 0.65 1.2 2.6 msec 0.4 µs 2 µs 1 0.2 VCC = 5 V (2) 3.5 3.5 VCC = 5 V (2) 0.2 µs µs µs All switching characteristics are measured with 0.1-µF capacitors connected at REF and VCC to GND. The rise and fall times are measured with a 4.7-kΩ load resistor at RESET and RESET. Copyright © 1983–2016, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A 5 TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 www.ti.com VCC and SENSE Threshold Voltage VCC ~ 3.6 V VCC ~ 2 V RESET td td Output Undefined Output Undefined Figure 1. Timing Diagram 6.7 Typical Characteristics 6 Figure 2. Assertion Time vs Load Resistance Figure 3. Deassertion Time vs Load Resistance Figure 4. Assertion Time vs Load Capacitance Figure 5. De-assertion Time vs Load Capacitance Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A TL7702A, TL7705A, TL7709A, TL7712A, TL7715A www.ti.com SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 7 Parameter Measurement Information Figure 6. Voltage Waveform Copyright © 1983–2016, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A 7 TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 www.ti.com 8 Detailed Description 8.1 Overview The TL77xxA family of integrated-circuit supply-voltage supervisors is designed specifically for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, RESET and RESET go active. To ensure that a complete reset occurs, the reset outputs remain active for a time delay after the voltage at the SENSE input exceeds the positive-going threshold value. During power down and when SENSE is below VIT−, the outputs remain active until VCC falls below 2 V. After this, the outputs are undefined. An external capacitor (typically 0.1 μF) must be connected to REF to reduce the influence of fast transients in the supply voltage. Five versions of this circuit are available: • TL7705A (Vt = 4.55 V): Application in TTL-systems and microcomputer systems which require a 5 volt supply (for example, TMS7000) • TL7709A (Vt = 7.6 V): Application in microcomputer systems using the TMS1XXXNLL • TL7712A (Vt = 10.8 V): Application in CMOS, microprocessor, and memory circuits with a 12 volt supply. • TL7715A (Vt = 13.5 V): Application in circuits which operate with a supply voltage of 15 V, as is found often in analog circuits. • TL7702A (Vt = 2.5 V): Application in systems where other supply voltages are used. The required trigger level my be adjusted with an external resistor divider at the SENSE input. 8.2 Functional Block Diagram The functional block diagram is shown for illustrative purposes only; the actual circuit includes a trimming network to adjust the reference voltage and sense-comparator trip point. ~100 µA A. TL7702A: R1 = 0 Ω, R2 = open TL7705A: R1 = 7.8 kΩ, R2 = 10 kΩ TL7709A: R1 = 19.7 kΩ, R2 = 10 kΩ TL7712A: R1 = 32.7 kΩ, R2 = 10 kΩ TL7715A: R1 = 43.4 kΩ, R2 = 10 kΩ B. 8 Resistor values shown are nominal. Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A TL7702A, TL7705A, TL7709A, TL7712A, TL7715A www.ti.com SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 8.3 Feature Description 8.3.1 Wide Supply-Voltage Range Th TL77xxA family operates of a wide supply voltage range of 3.5 V to 18 V. 8.3.2 Externally Adjustable Pulse Duration The time delay is determined by the value of the external capacitor CT: td = 1.3 × 104 × CT, where CT is in farads (F) and td is in seconds (s). 8.3.3 Temperature-Compensated Voltage Reference The series TL77xxA incorporates an extremely stable reference voltage source. This voltage source can also be used in applications where a constant voltage source is required. The reference voltage varies less than 10 mV over the supply voltage range of 3.5 V to 18 V. The same stability of the reference voltage is maintained, when the ambient temperature is changed. The reference's voltage varies only 16 mV when the ambient temperature is changed from –40°C to +85°C. 8.4 Device Functional Modes Figure 7 shows the timing of the various signals. In this example the SENSE input is connected to the supply voltage VCC as in typical applications of this device. The minimum supply voltage for which the function of this device is guaranteed is 3.6 V. After power-on, the outputs are undefined until the minimum supply voltage Vres is reached. For the TL77xxA the minimum supply voltage is Vres = 3 V (typical 2.5 V). Beyond the voltage Vres the capacitor CT is first kept discharged, and the outputs stay in the active state (RESET = High, RESET = Low). When the input voltage becomes higher than the threshold voltage Vt, the thyristor is turned off and the capacitor is charged. After a delay, td, the voltage at the capacitor passes the trigger level of the output comparator and the outputs become inactive. The circuit to be initialized is now set to a defined state and starts the correct operation. A. Note: SENSE Input connected to VCC Figure 7. Timing Diagram Copyright © 1983–2016, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A 9 TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 www.ti.com 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information This application shows the initialization circuit diagrams for a microprocessor system with supply voltage Vcc = 5 V. The external components required are the decoupling capacitor Cref for the reference voltage and the timing capacitor CT. The outputs of the TL77xxA are open collector outputs. In Figure 8 therefore a pull-up resistor is shown at the RESET output to ensure the correct HIGH level. 9.2 Typical Application µC = Figure 8. Reset Controller Schematic for a Microprocessor 9.2.1 Design Requirements • 5-V microprocessor supply voltage • td = 1.3 ms 9.2.2 Detailed Design Procedure • Select reasonable values for pull-up/pull-down resistors for RESET and RESET. This design uses 10 kΩ. • Choose CT = 0.1 µF to achieve td = 1.3 ms • This design uses only the active-low reset output (RESET) because the example microcontroller resets when the input is Low. 10 Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A TL7702A, TL7705A, TL7709A, TL7712A, TL7715A www.ti.com SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 Typical Application (continued) 9.2.3 Application Curves 5 5 4.5 4.5 4 RESET Voltage (V) RESET Voltage (V) 4 3.5 3 2.5 2 1.5 3.5 3 2.5 2 1.5 1 1 0.5 0.5 0 0 0 0.5 1 1.5 2 2.5 3 VCC (V) 3.5 4 4.5 0 5 Figure 9. Supervisor RESET Output Voltage vs VCC 5 5 4.5 1.5 2 2.5 3 VCC (V) 3.5 4 4.5 5 D006 4 RESET Voltage (V) 4 RESET Voltage (V) 1 Figure 10. Supervisor RESET Output Voltage vs VCC 4.5 3.5 3 2.5 2 1.5 3.5 3 2.5 2 1.5 1 1 0.5 0.5 0 4.5 0.5 D005 4.52 4.54 4.56 VCC (V) 4.58 4.6 D007 Figure 11. Supervisor RESET Output Voltage vs VCC at Transition Copyright © 1983–2016, Texas Instruments Incorporated 0 4.5 4.52 4.54 4.56 VCC (V) 4.58 4.6 D008 Figure 12. Supervisor RESET Output Voltage vs VCC at Transition Submit Documentation Feedback Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A 11 TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 www.ti.com 9.3 System Examples Figure 13. Multi Power-Supply System Reset Generation Schematic Figure 14. Eliminating Undefined States Using a P-Channel JFET Schematic 12 Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A TL7702A, TL7705A, TL7709A, TL7712A, TL7715A www.ti.com SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 System Examples (continued) Figure 15. Eliminating Undefined States Using PNP Transistor Schematic Copyright © 1983–2016, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A 13 TL7702A, TL7705A, TL7709A, TL7712A, TL7715A SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 www.ti.com 10 Power Supply Recommendations The TL77xxA devices operate within the specifications from the Recommended Operating Conditions between 3.5 V and 18 V. CAUTION These devices risk being damaged when powered by more than 20 V. 11 Layout 11.1 Layout Guidelines The voltage monitor should be placed on the printed circuit board, where there are no neighboring circuits in the which switch high currents (like bus interface circuits and power switches). When laying out the layout of the printed circuit board, take special care with the interconnects which carry analog signals. Beside the SENSE input these are the CT and Vref terminals. Noise coupled into the CT input will lead to a reduction of the output pulse width. Noise coupled into the Vref input or into the filter capacitor at this input may lead to undesired triggering of the circuit and by this to an undesired RESET pulse. Practice shows, that this malfunction when high currents flow over the interconnects of these capacitors to the GND terminal of the voltage monitor. To avoid these effects, the GND terminals of these capacitors must be connected by the shortest way to the GND terminal of the voltage monitor in so that no currents caused by other circuits flow over these wires. Figure 16 show a layout proposal for the printed circuit board. Furthermore the resistors of the voltage divider at the SENSE input of the TL7702 (R2 and R3 in Figure 16) have to be placed in so, that no noise may be coupled into this circuit. 11.2 Layout Example 1 2 3 4 8 7 6 5 Figure 16. Printed Circuit Layout for the Supply Voltage Supervisor 14 Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A TL7702A, TL7705A, TL7709A, TL7712A, TL7715A www.ti.com SLVS028K – APRIL 1983 – REVISED SEPTEMBER 2016 12 Device and Documentation Support 12.1 Related Links The table below lists quick access links. Categories include technical documents, support and community resources, tools and software, and quick access to sample or buy. Table 1. Related Links PARTS PRODUCT FOLDER SAMPLE & BUY TECHNICAL DOCUMENTS TOOLS & SOFTWARE SUPPORT & COMMUNITY TL7702A Click here Click here Click here Click here Click here TL7705A Click here Click here Click here Click here Click here TL7709A Click here Click here Click here Click here Click here TL7712A Click here Click here Click here Click here Click here TL7715A Click here Click here Click here Click here Click here 12.2 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 12.3 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.4 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.5 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 12.6 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Copyright © 1983–2016, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Links: TL7702A TL7705A TL7709A TL7712A TL7715A 15 PACKAGE OPTION ADDENDUM www.ti.com 14-Aug-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) TL7702ACD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7702AC TL7702ACDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7702AC TL7702ACDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7702AC TL7702ACP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 TL7702ACP TL7702AID ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7702AI TL7702AIDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7702AI TL7702AIDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7702AI TL7702AIP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -40 to 85 TL7702AIP TL7702AIPE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -40 to 85 TL7702AIP TL7705ACD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7705AC TL7705ACDE4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7705AC TL7705ACDG4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7705AC TL7705ACDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7705AC TL7705ACDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7705AC TL7705ACP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 TL7705ACP TL7705ACPE4 ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 TL7705ACP TL7705ACPSR ACTIVE SO PS 8 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 T7705A TL7705AID ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7705AI TL7705AIDG4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7705AI TL7705AIDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7705AI Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com 14-Aug-2021 Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) TL7705AIDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 7705AI TL7705AIP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type -40 to 85 TL7705AIP TL7709ACD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7709AC TL7709ACDG4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7709AC TL7709ACDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7709AC TL7709ACP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 TL7709ACP TL7712ACD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7712AC TL7712ACDE4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7712AC TL7712ACDG4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7712AC TL7712ACDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7712AC TL7712ACDRE4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7712AC TL7712ACDRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7712AC TL7712ACP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 TL7712ACP TL7712AIDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM TL7715ACD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7715AC TL7715ACDE4 ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 7715AC TL7715ACP ACTIVE PDIP P 8 50 RoHS & Green NIPDAU N / A for Pkg Type 0 to 70 TL7715ACP (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. Addendum-Page 2 7712AI Samples PACKAGE OPTION ADDENDUM www.ti.com 14-Aug-2021 (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
