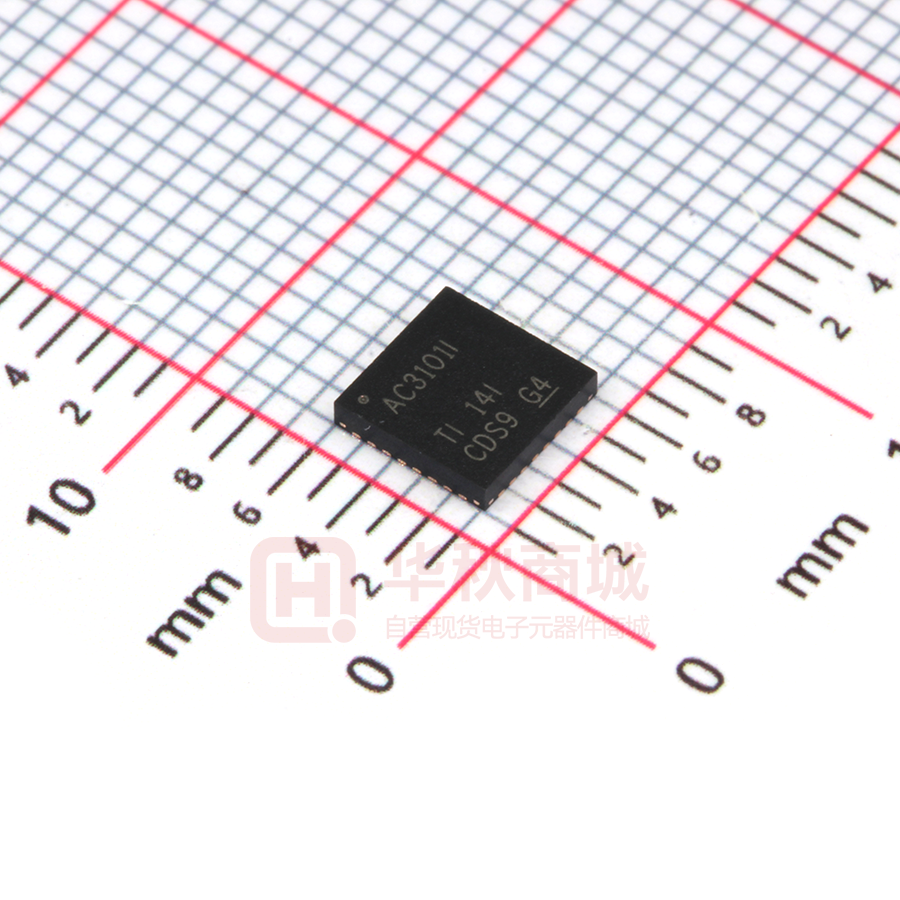

TLV320AIC3101IRHBR

Product Folder Sample & Buy Technical Documents Support & Community Tools & Software TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 TLV320AIC3101 Low-Power Stereo Audio Codec for Portable Audio/Telephony 1 Features • 1 • • • • • • • • • • • Stereo Audio DAC – 102-dBA Signal-to-Noise Ratio – 16/20/24/32-Bit Data – Supports Sample Rates From 8 kHz to 96 kHz – 3D/Bass/Treble/EQ/De-Emphasis Effects – Flexible Power Saving Modes and Performance are Available Stereo Audio ADC – 92-dBA Signal-to-Noise Ratio – Supports Sample Rates From 8 kHz to 96 kHz – Digital Signal Processing and Noise Filtering Available During Record Six Audio Input Pins – One Stereo Pair of Single-Ended Inputs – One Stereo Pair of Fully Differential Inputs Six Audio Output Drivers – Stereo Fully Differential or Single-Ended Headphone Drivers – Fully Differential Stereo Line Outputs – Stereo 8-Ω, 500-mW/Channel Speaker Drive Capability Low Power: 14-mW Stereo 48-kHz Playback With 3.3-V Analog Supply Ultralow-Power Mode With Passive Analog Bypass Programmable Input/Output Analog Gains Automatic Gain Control (AGC) for Record Programmable Microphone Bias Level Programmable PLL for Flexible Clock Generation I2C Control Bus Audio Serial Data Bus Supports I2S, Left/RightJustified, DSP, and TDM Modes • • • Extensive Modular Power Control Power Supplies: – Analog: 2.7 V–3.6 V. – Digital Core: 1.525 V–1.95 V – Digital I/O: 1.1 V–3.6 V Package: 5-mm × 5-mm 32-Pin QFN 2 Applications • • Digital Cameras Smart Cellular Phones 3 Description The TLV320AIC3101 is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations. Extensive register-based power control is included, enabling stereo 48-kHz DAC playback as low as 14 mW from a 3.3-V analog supply, making it ideal for portable battery-powered audio and telephony applications. The record path of the TLV320AIC3101 contains integrated microphone bias, digitally controlled stereo microphone preamplifier, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. Programmable filters are available during record which can remove audible noise that can occur during optical zooming in digital cameras. The playback path includes mix/mux capability from the stereo DAC and selected inputs, through programmable volume controls, to the various outputs. Device Information(1) PART NUMBER TLV320AIC3101 PACKAGE VQFN (32) BODY SIZE (NOM) 5.00 mm x 5.00 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. 4 Simplified Diagram 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 9 Features .................................................................. Applications ........................................................... Description ............................................................. Simplified Diagram ................................................ Revision History..................................................... Description (continued)......................................... Device Comparison Table..................................... Pin Configuration and Functions ......................... Specifications......................................................... 9.1 9.2 9.3 9.4 9.5 9.6 9.7 1 1 1 1 2 3 3 4 6 Absolute Maximum Ratings ...................................... 6 ESD Ratings.............................................................. 6 Recommended Operating Conditions....................... 6 Thermal Information .................................................. 7 Electrical Characteristics........................................... 7 Timing Requirements: Audio Data Serial Interface. 11 Typical Characteristics ............................................ 14 10 Parameter Measurement Information................ 15 11 Detailed Description ........................................... 16 11.1 Overview ............................................................... 16 11.2 11.3 11.4 11.5 11.6 11.7 Functional Block Diagram ..................................... Feature Description............................................... Device Functional Modes...................................... Programming......................................................... Register Maps ....................................................... Output Stage Volume Controls ............................. 17 18 38 40 43 60 12 Application and Implementation........................ 83 12.1 Application Information.......................................... 83 12.2 Typical Application ................................................ 84 13 Power Supply Recommendations ..................... 88 14 Layout................................................................... 89 14.1 Layout Guidelines ................................................. 89 14.2 Layout Example .................................................... 89 15 Device and Documentation Support ................. 90 15.1 Trademarks ........................................................... 90 15.2 Electrostatic Discharge Caution ............................ 90 15.3 Glossary ................................................................ 90 16 Mechanical, Packaging, and Orderable Information ........................................................... 90 5 Revision History Changes from Revision D (December 2008) to Revision E Page • Added the Device information table, ESD Ratings table, Applications and Implementation section, Layout section, and the Device and Documentation Support section ............................................................................................................. 1 • Changed Page0/Register 20, Bit D2 and title in table.......................................................................................................... 51 • Changed Page0/Register 23, Bit D2 and title in table.......................................................................................................... 52 • Changed Output Stage Volume Control Settings and Gains table row one, text not in correct columns ............................ 60 • Changed Page 0/Register 107 table bits D5-D4 to reserved. .............................................................................................. 73 2 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 6 Description (continued) The TLV320AIC3101 contains four high-power output drivers as well as two fully differential output drivers. The high-power output drivers are capable of driving a variety of load configurations, including up to four channels of single-ended 16-Ω headphones using ac-coupling capacitors, or stereo 16-Ω headphones in a capless output configuration. In addition, pairs of drivers can be used to drive 8-Ω speakers in a BTL configuration at 500 mW per channel. The stereo audio DAC supports sampling rates from 8 kHz to 96 kHz and includes programmable digital filtering in the DAC path for 3D, bass, treble, midrange effects, speaker equalization, and de-emphasis for 32-kHz, 44.1kHz, and 48-kHz sample rates. The stereo audio ADC supports sampling rates from 8 kHz to 96 kHz and is preceded by programmable gain amplifiers or AGC that can provide up to 59.5-dB analog gain for low-level microphone inputs. The TLV320AIC3101 provides an extremely high range of programmability for both attack (8–1,408 ms) and for decay (0.05–22.4 seconds). This extended AGC range allows the AGC to be tuned for many types of applications. For battery saving applications where neither analog nor digital signal processing are required, the device can be put in a special analog signal passthrough mode. This mode significantly reduces power consumption, as most of the device is powered down during this passthrough operation. The serial control bus supports the I2C protocol, whereas the serial audio data bus is programmable for I2S, left/right-justified, DSP, or TDM modes. A highly programmable PLL is included for flexible clock generation and support for all standard audio rates from a wide range of available MCLKs, varying from 512 kHz to 50 MHz, with special attention paid to the most-popular cases of 12-MHz, 13-MHz, 16-MHz, 19.2-MHz, and 19.68-MHz system clocks. The TLV320AIC3101 operates from an analog supply of 2.7 V–3.6 V, a digital core supply of 1.525 V–1.95 V, and a digital I/O supply of 1.1 V–3.6 V. The device is available in a 5-mm × 5-mm 32-pin QFN package. 7 Device Comparison Table DEVICE NAME DESCRIPTION TLV320AIC3101 Low-Power Stereo CODEC with 6 Inputs, 6 Outputs, Speaker/HP Amp and Enhanced Digital Effects TLV320AIC3104 Same as TLV320AIC3101, but without Speaker Amp. TLV320AIC3105 Same as TLV320AIC3101, but with all inputs Single-ended. TLV320AIC3106 Same as TLV320AIC3101, but with 10 Inputs and 7 Outputs. TLV320AIC3107 Same as TLV320AIC3101, but with 7 Inputs, 6 Outputs and Integrated Mono Class-D Amplifier Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 3 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 8 Pin Configuration and Functions BCLK WCLK DIN DOUT DVSS IOVDD SCL DVDD MCLK RHB Package (Bottom View) 1 32 2 3 4 5 6 7 8 9 SDA MIC1LM/LINE1LM RIGHT_LOP 29 12 MIC1RP/LINE1RP LEFT_LOM 28 13 MIC1RM/LINE1RM LEFT_LOP 27 14 MIC2L/LINE2L/MICDET AVSS2 26 15 MICBIAS 25 24 23 22 21 20 19 18 16 17 DRVSS AVDD AVSS1 11 DRVDD 30 HPLOUT RIGHT_LOM HPLCOM MIC1LP/LINE1LP HPRCOM 10 HPROUT 31 DRVDD RESET MIC2R/LINE2R NOTE: Connect device thermal pad to DRVSS. Pin Functions PIN DESCRIPTION NAME NO. I/O AVDD 25 — Analog DAC voltage supply, 2.7 V–3.6 V AVSS1 17 — Analog ADC ground supply, 0 V AVSS2 26 — Analog DAC ground supply, 0 V BCLK 2 I/O Audio serial data bus bit clock input/output DIN 4 I Audio serial data bus data input DOUT 5 O Audio serial data bus data output DRVDD 18 — Analog ADC and output driver voltage supply, 2.7 V–3.6 V DRVDD 24 — Analog output driver voltage supply, 2.7 V–3.6 V DRVSS 21 — Analog output driver ground supply, 0 V DVDD 32 — Digital core voltage supply, 1.525 V–1.95 V DVSS 6 — Digital core / I/O ground supply, 0 V HPLCOM 20 O High-power output driver (left – or multifunctional) HPLOUT 19 O High-power output driver (left +) HPRCOM 22 O High-power output driver (right – or multifunctional) HPROUT 23 O High-power output driver (right +) IOVDD 7 — Digital I/O voltage supply, 1.1 V–3.6 V LEFT_LOM 28 O Left line output (–) LEFT_LOP 27 O Left line output (+) MCLK 1 I Master clock input MIC1LM/LINE1LM 11 I Left input – (diff only) MIC1LP/LINE1LP 10 I Left input 1 (SE) or left input + (diff) MIC1RM/LINE1RM 13 I Right input – (diff only) MIC1RP/LINE1RP 12 I Right input 1 (SE) or right input + (diff) MIC2L/LINE2L/MICDET 14 I Left input 2 (SE); can support microphone detection 4 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Pin Functions (continued) PIN NAME NO. DESCRIPTION I/O MIC2R/LINE2R 16 I Right input 2 (SE) MICBIAS 15 O Microphone bias voltage output RESET 31 I Reset RIGHT_LOM 30 O Right line output (–) RIGHT_LOP 29 O Right line output (+) SCL 8 I/O I2C serial clock input SDA 9 I/O I2C serial data input/output WCLK 3 I/O Audio serial data bus word clock input/output Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 5 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 9 Specifications 9.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) Input voltage (2) MIN MAX UNIT AVDD to AVSS, DRVDD to DRVSS –0.3 3.9 V AVDD to DRVSS –0.3 3.9 V IOVDD to DVSS –0.3 3.9 V DVDD to DVSS –0.3 2.5 V AVDD to DRVDD –0.1 0.1 V Digital input voltage to DVSS –0.3 IOVDD + 0.3 V Analog input voltage to AVSS –0.3 AVDD + 0.3 V Operating temperature –40 Junction temperature, TJ Storage temperature, Tstg –65 Power dissipation (1) (2) 85 °C 105 °C 105 °C 0.5 W Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. ESD complicance tested to EIA/JESD22-A114-B and passed. 9.2 ESD Ratings VALUE Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 V(ESD) (1) (2) Electrostatic discharge (1) UNIT ±2000 Charged-device model (CDM), per JEDEC specification JESD22C101 (2) V ±1500 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 9.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) AVDD, DRVDD1/2 (1) Analog supply voltage DVDD (1) Digital core supply voltage IOVDD (1) Digital I/O supply voltage VI Analog full-scale 0-dB input voltage (DRVDD1 = 3.3 V) MIN NOM 2.7 3.3 3.6 V 1.8 1.95 V 1.1 1.8 3.6 V 0.707 Stereo line output load resistance 10 Stereo headphone output load resistance 16 (1) 6 Operating free-air temperature UNIT 1.525 Digital output load capacitance TA MAX VRMS kΩ Ω 10 –40 pF 85 °C Analog voltage values are with respect to AVSS1, AVSS2, DRVSS; digital voltage values are with respect to DVSS. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 9.4 Thermal Information RHB THERMAL METRIC (1) RθJA Junction-to-ambient thermal resistance 32.1 RθJC(top) Junction-to-case (top) thermal resistance 23.0 RθJB Junction-to-board thermal resistance 6.0 ψJT Junction-to-top characterization parameter 0.3 ψJB Junction-to-board characterization parameter 6.0 RθJC(bot) Junction-to-case (bottom) thermal resistance 1.4 (1) UNIT 32 PINS °C/W For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953. 9.5 Electrical Characteristics At 25°C, AVDD_DAC = DRVDD = IOVDD = 3.3 V, DVDD = 1.8 V, fS = 48 kHz, 16-bit audio data (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT AUDIO ADC Input signal level SNR Signal-to-noise ratio Dynamic range Single-ended (1) (2) (1) (2) THD Total harmonic distortion PSRR Power-supply rejection ratio 0.707 A-weighted, fS = 48 ksps, 0-dB PGA gain, inputs ac-shorted to ground 80 VRMS 92 fS = 48 ksps; 0-dB PGA gain; 1-kHz, –60-dB full-scale input signal 93 fS = 48 ksps; 0-dB PGA gain; 1-kHz, –2-dB full-scale input signal –89 217-Hz signal applied to DRVDD 55 1-kHz signal applied to DRVDD 44 dB dB –75 dB dB Input channel separation 1-kHz, –2-dB full-scale signal, MIC1L to MIC1R –71 dB Gain error fS = 48 ksps; 0-dB PGA gain; 1-kHz, –2-dB full-scale input signal 0.82 dB ADC programmable-gain amplifier maximum gain 1-kHz input tone 59.5 dB 0.5 dB ADC programmable-gain amplifier step size Input resistance MIC1L/MIC1R inputs routed to single ADC input mix attenuation = 0 dB 20 MIC1L/MIC1R inputs routed to single ADC input mix attenuation = 12 dB 80 MIC2L/MIC2R inputs routed to single ADC input mix attenuation = 0 dB 20 MIC2L/MIC2R inputs routed to single ADC input mix attenuation = 12 dB 80 MIC3L/MIC3R inputs routed to single ADC input mix attenuation = 0 dB 20 MIC3L/MIC3R inputs routed to single ADC input mix attenuation = 12 dB 80 Input resistance kΩ 80 kΩ 10 pF Input level control minimum attenuation setting 0 dB Input level control maximum attenuation setting 12 dB Input level control attenuation step size 1.5 dB Input capacitance MIC1/LINE1 inputs ANALOG PASSTHROUGH MODE RDS(on) (1) (2) Input-to-output switch resistance MIC1/LIN1 to LINEOUT 330 MIC2/LIN2 to LINEOUT 330 Ω Ratio of output level with 1-kHz full-scale sine-wave input, to the output level with the inputs short-circuited, measured A-weighted over a 20-Hz to 20-kHz bandwidth using an audio analyzer. All performance measurements done with 20-kHz low-pass filter and, where noted, A-weighted filter. Failure to use such a filter may result in higher THD+N and lower SNR and dynamic range readings than shown in the Electrical Characteristics. The low-pass filter removes out-of-band noise, which, although not audible, may affect dynamic specification values. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 7 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Electrical Characteristics (continued) At 25°C, AVDD_DAC = DRVDD = IOVDD = 3.3 V, DVDD = 1.8 V, fS = 48 kHz, 16-bit audio data (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT INPUT SIGNAL LEVEL, DIFFERENTIAL SNR Signal-to-noise ratio A-weighted, fS = 48 ksps, 0 dB PGA gain, inputs ac-shorted to ground THD Total harmonic distortion fS = 48 kHz; 0-dB PGA gain, 1-kHz, –2-dB full-scale input signal 92 dB –94 dB ADC DIGITAL DECIMATION FILTER, fS = 48 kHz From 0 to 0.39 fS ±0.1 At 0.4125 fS Filter gain –0.25 At 0.45 fS –3 At 0.5 fS dB –17.5 From 0.55 fS to 64 fS –75 Filter group delay 17/fS s MICROPHONE BIAS Programmable setting = 2 V 2 Programmable setting = 2.5 V Bias voltage 2.3 2.7 V DRVDD – 0.24 Programmable setting = DRVDD Current sourcing 2.455 Programmable setting = 2.5 V 4 mA AUDIO DAC – DIFFERENTIAL LINE OUTPUT, RLOAD = 10 kΩ Full-scale output voltage Signal-to-noise ratio PSRR (3) 1.414 0-dB input full-scale signal, output common-mode setting = 1.35 V, output volume control = 0 dB A-weighted, fS = 48 kHz, output volume control = 0 dB, no input signal, referenced to full-scale input level 90 VRMS 4 VPP 102 dB dB Dynamic range A-weighted, fS = 48 kHz, –60-dB input full-scale signal, output volume control = 0 dB, output common-mode setting = 1.35 V 97 Total harmonic distortion fS = 48 kHz; 0-dB, 1-kHz input full-scale signal; output volume control = 0 dB; output common-mode setting = 1.35 V –95 –75 dB 217-Hz signal applied to DRVDD, AVDD_DAC 78 1-kHz signal applied to DRVDD, AVDD_DAC 80 DAC channel separation 0-dB full-scale input signal between left and right lineout 86 dB DAC interchannel gain mismatch 1-kHz input, 0-dB gain 0.1 dB DAC gain error 0-dB, 1-kHz input full-scale signal; output volume control = 0 dB; output common-mode setting = 1.35 V; fS = 48 kHz –0.2 dB 0.707 VRMS Power-supply rejection ratio dB AUDIO DAC – SINGLE ENDED LINE OUTPUT, RLOAD = 10 kΩ Full-scale output voltage 0-dB input full-scale signal, output common-mode setting = 1.35 V, output volume control = 0 dB SNR Signal-to-noise ratio A-weighted, fS = 48 kHz, output volume control = 0 dB, no input signal, output common-mode setting = 1.35 V THD Total harmonic distortion DAC gain error 97 dB fS = 48 kHz; 0-dB, 1-kHz input full-scale signal; output volume control = 0 dB; output common-mode setting = 1.35 V –84 dB 0-dB, 1-kHz input full-scale signal; output volume control = 0 dB; output common-mode setting = 1.35 V; fS = 48 kHz 0.55 dB 0.707 VRMS AUDIO DAC – SINGLE-ENDED HEADPHONE OUTPUT, RLOAD = 16 Ω Full-scale output voltage SNR THD (3) 8 0-dB input full-scale signal, output common-mode setting = 1.35 V, output volume control = 0 dB A-weighted, fS = 48 kHz, output volume control = 0 dB, no input signal, referenced to full-scale input level 96 A-weighted, fS = 48 kHz, output volume control = 0 dB, no input signal, referenced to full-scale input level, 50% DAC current-boost mode 97 Dynamic range A-weighted, fS = 48 kHz, –60-dB input full-scale signal, output volume control = 0 dB, output common-mode setting = 1.35 V 91 Total harmonic distortion fS = 48 kHz, 0-dB input full-scale signal, output volume control = 0 dB, output common-mode setting = 1.35 V –71 Signal-to-noise ratio dB dB –65 dB Unless otherwise noted, all measurements use output common-mode voltage setting of 1.35 V, 0-dB output level control gain, 16-Ω single-ended load. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Electrical Characteristics (continued) At 25°C, AVDD_DAC = DRVDD = IOVDD = 3.3 V, DVDD = 1.8 V, fS = 48 kHz, 16-bit audio data (unless otherwise noted) PARAMETER PSRR TEST CONDITIONS MIN TYP MAX UNIT 217-Hz signal applied to DRVDD, AVDD_DAC 43 1-kHz signal applied to DRVDD, AVDD_DAC 41 DAC channel separation Right headphone out 89 dB DAC gain error 0-dB, 1-kHz input full-scale signal; output volume control = 0 dB; output common-mode setting = 1.35 V; fS = 48 kHz –0.85 dB 1.4142 VRMS Power-supply rejection ratio dB AUDIO DAC – DIFFERENTIAL SPEAKER OUTPUT, RLOAD = 8 Ω Full-scale output voltage 0-dB input full-scale signal, output common-mode setting = 1.35 V, output volume control = 0 dB SNR Signal-to-noise ratio A-weighted, fS = 48 kHz, output volume control = 0 dB, no input signal, output common-mode setting = 1.35 V 86 dB THD Total harmonic distortion fS = 48 kHz, 0-dB input full-scale signal, output volume control = 0 dB, output common-mode setting = 1.35 V –70 dB DAC gain error fS = 48 kHz, 0-dB input full-scale signal, output volume control = 0 dB, output common-mode setting = 1.35 V –1 dB DAC DIGITAL INTERPOLATION – FILTER fS = 48 kHz Pass band 0 Pass-band ripple dB 0.45 fS 0.55 fS Hz Stop band 0.55 fS 7.5 fS Hz 65 Group delay STEREO HEADPHONE DRIVER – AC-COUPLED OUTPUT CONFIGURATION 0-dB full-scale output voltage Programmable output common-mode voltage (applicable to line outputs also) dB 21/fS s 0.707 VRMS (3) 0-dB gain to high-power outputs. Output common-mode voltage setting = 1.35 V First option 1.35 Second option 1.5 Third option 1.65 Fourth option V 1.8 Maximum programmable output level control gain 9 dB Programmable output level control gain step size 1 dB Maximum output power Signal-to-noise ratio (4) RL = 32 Ω 15 RL = 16 Ω 30 A-weighted 94 1-kHz output, PO = 5 mW, RL = 32 Ω 1-kHz output, PO = 10 mW, RL = 32 Ω Total harmonic distortion 1-kHz output, PO = 10 mW, RL = 16 Ω 1-kHz output, PO = 20 mW, RL = 16 Ω (4) Hz Transition band Stop-band attenuation PO 0.45 fS ±0.06 mW dB –77 0.014 –76 0.016 –73 dB% 0.022 –71 0.028 Channel separation 1-kHz, 0-dB input 90 dB Power supply rejection ratio 217 Hz, 100 mVpp on AVDD, DRVDD1/2 48 dB Mute attenuation 1-kHz output 107 dB Ratio of output level with a 1-kHz full-scale input, to the output level playing an all-zero signal, measured A-weighted over a 20-Hz to 20kHz bandwidth. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 9 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Electrical Characteristics (continued) At 25°C, AVDD_DAC = DRVDD = IOVDD = 3.3 V, DVDD = 1.8 V, fS = 48 kHz, 16-bit audio data (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DIGITAL I/O VIL Input low level VIH Input high level 0.3 IOVDD –0.3 (5) VOL Output low level VOH Output high level IOVDD > 1.6 V 0.7 IOVDD IOVDD ≤ 1.6 V 1.1 V V 0.1 IOVDD 0.8 IOVDD V V CURRENT CONSUMPTION – DRVDD = AVDD_DAC = IOVDD = 3.3 V, DVDD = 1.8 V IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IIN IDVDD IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IDVDD IDRVDD + IAVDD_DAC IDVDD (5) (6) 10 0.1 RESET held low 0.2 μA 2.15 Mono ADC record, fS = 8 ksps, I2S slave, AGC off, no signal 0.48 4.1 Stereo ADC record, fS = 8 ksps, I2S slave, AGC off, no signal 0.62 Stereo ADC record, fS = 48 ksps, I2S slave, AGC off, no signal Stereo DAC playback to lineout, analog mixer bypassed, fS = 48 ksps, I2S slave 4.31 (6) 2.45 (6) 3.5 2.3 4.9 2 Stereo DAC playback to lineout, fS = 48 ksps, I S slave, no signal Stereo DAC playback to stereo single-ended headphone, fS = 48 ksps, I2S slave, no signal mA 2.3 6.7 2.3 3.11 Stereo linein to stereo lineout, no signal 0 1.4 Extra power when PLL enabled 0.9 All blocks powered down. Headset detection enabled, headset not inserted 28 2 μA When IOVDD < 1.6 V, minimum VIH is 1.1 V. Additional power is consumed when the PLL is powered. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 9.6 Timing Requirements: Audio Data Serial Interface (1) PARAMETER IOVDD = 1.1 V MIN IOVDD = 3.3 V MAX MIN MAX UNIT I2S/LJF/RJF Timing in Master Mode td(WS) ADWS/WCLK delay time 50 15 ns td(DO-WS) ADWS/WCLK to DOUT delay time 50 20 ns td(DO-BCLK) BCLK to DOUT delay time 50 15 ns ts(DI) DIN setup time 10 th(DI) DIN hold time 10 tr Rise time 30 10 ns tf Fall time 30 10 ns 6 ns 6 ns DSP Timing in Master Mode td(WS) ADWS/WCLK delay time 50 15 ns td(DO-BCLK) BCLK to DOUT delay time 50 15 ns ts(DI) DIN setup time 10 th(DI) DIN hold time 10 tr Rise time 30 10 ns tf Fall time 30 10 ns 6 ns 6 ns 2 I S/LJF/RJF Timing in Slave Mode tH(BCLK) BCLK high period 70 35 ns tL(BCLK) BCLK low period 70 35 ns ts(WS) ADWS/WCLK setup time 10 6 ns th(WS) ADWS/WCLK hold time 10 6 td(DO-WS) ADWS/WCLK to DOUT delay time (for LJF Mode only) 50 35 ns td(DO-BCLK) BCLK to DOUT delay time 50 20 ns ts(DI) DIN setup time 10 6 th(DI) DIN hold time 10 6 tr Rise time 8 4 ns tf Fall time 8 4 ns ns ns ns DSP Timing in Slave Mode tH(BCLK) BCLK high period 70 35 ns tL(BCLK) BCLK low period 70 35 ns ts(WS) ADWS/WCLK setup time 10 8 ns th(WS) ADWS/WCLK hold time 10 8 td(DO-BCLK) BCLK to DOUT delay time ts(DI) DIN setup time 10 6 th(DI) DIN hold time 10 6 tr Rise time 8 4 ns tf Fall time 8 4 ns (1) 50 ns 20 ns ns ns All timing specifications are measured at characterization but not tested at final test. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 11 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com WCLK td(WS) BCLK td(DO-WS) td(DO-BCLK) SDOUT tS(DI) th(DI) SDIN T0145-01 All specifications at 25°C, DVDD = 1.8 V. Figure 1. I2S/LJF/RJF Timing in Master Mode WCLK td(WS) td(WS) BCLK td(DO-BCLK) SDOUT tS(DI) th(DI) SDIN T0146-01 Figure 2. DSP Timing in Master Mode 12 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 WCLK tS(WS) th(WS) tH(BCLK) BCLK td(DO-WS) tL(BCLK) td(DO-BCLK) SDOUT tS(DI) th(DI) SDIN T0145-02 2 I S/LJF/RJF Timing in Slave Mode WCLK tS(WS) tS(WS) th(WS) th(WS) tL(BCLK) BCLK tH(BCLK) td(DO-BCLK) SDOUT tS(DI) th(DI) SDIN T0146-02 DSP Timing in Slave Mode Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 13 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 9.7 Typical Characteristics 0 Load = 16 Ω AC-Coupled −10 HPL DRVDD = 2.7 V −20 −30 HPR DRVDD = 2.7 V −40 THD − Total Harmonic Distortion − dB THD − Total Harmonic Distortion − dB 0 HPL DRVDD = 3.3 V HPR DRVDD = 3.3 V −50 HPR DRVDD = 3.6 V −60 HPL DRVDD = 3.6 V −70 Load = 16 Ω Capless −10 HPL DRVDD = 2.7 V −20 HPL DRVDD = 3.3 V HPR DRVDD = 2.7 V −30 HPR DRVDD = 3.3 V −40 HPR DRVDD = 3.6 V −50 −60 HPL DRVDD = 3.6 V −70 −80 −90 −80 0 10 20 30 40 50 60 70 80 90 0 100 25 50 75 100 125 150 175 200 225 250 275 300 325 G002 G001 Figure 4. THD vs Headphone Power, Capless 0 0 −20 −20 −40 −40 Amplitude − dB Amplitude − dB Figure 3. THD vs Headphone Power, AC-Coupled −60 −80 −100 −60 −80 −100 −120 −120 −140 −140 −160 −160 0 2 4 6 8 10 12 14 16 18 20 0 2 4 6 f − Frequency − kHz 8 10 12 14 16 18 G004 Figure 5. DAC to Line Output FFT Plot Figure 6. Line Input to ADC FFT Plot 0 42 Load = 8 Ω −10 40 SNR − Signal-to-Noise Ratio − dB THD − Total Harmonic Distortion − dB 20 f − Frequency − kHz G003 −20 DRVDD = 2.7 V −30 DRVDD = 3.3 V DRVDD = 3.6 V −40 −50 −60 −70 −80 Input = −65 dBFS 38 36 34 32 30 28 26 −90 24 0 100 200 300 400 500 600 0 10 P − Speaker Power − W 20 30 40 50 60 PGA Gain Setting − dB G005 Figure 7. THD vs Speaker Power, 8 Ω Load 14 350 P − Headphone Power − mW P − Headphone Power − mW G006 Figure 8. ADC SNR vs PGA Gain Setting, –65-dBFS Input Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Typical Characteristics (continued) 0.85 3.6 Left ADC 0.8 0.75 MICBIAS Output Voltage − V 3.4 Right ADC Gain Error (dB) 0.7 0.65 0.6 0.55 0.5 3.2 MICBIAS = AVDD 3.0 2.8 2.6 MICBIAS = 2.5 V 2.4 2.2 MICBIAS = 2 V 2.0 0.45 0.4 0 10 20 30 40 PGA Setting (dB) 50 60 1.8 2.7 70 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 AVDD − Supply Voltage − V G009 G007 Figure 9. ADC Gain Error vs PGA Gain Setting Figure 10. MICBIAS Output Voltage vs AVDD 3.2 MICBIAS Output Voltage − V 3.0 MICBIAS = AVDD 2.8 2.6 MICBIAS = 2.5 V 2.4 2.2 MICBIAS = 2 V 2.0 1.8 −45 −35 −25 −15 −5 5 15 25 35 45 55 TA − Ambient Temperature − °C 65 75 85 G008 Figure 11. MICBIAS Output Voltage vs Ambient Temperature 10 Parameter Measurement Information All parameters are measured according to the conditions described in the Specifications section. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 15 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11 Detailed Description 11.1 Overview The TLV320AIC3101 is a highly flexible, low-power, stereo audio codec with extensive feature integration, intended for applications in smartphones, PDAs, and portable computing, communication, and entertainment applications. Available in a 5-mm × 5-mm, 32-lead QFN, the product integrates a host of features to reduce cost, board space, and power consumption in space-constrained, battery-powered, portable applications. The TLV320AIC3101 consists of the following blocks: • Stereo audio multibit delta-sigma DAC (8 kHz–96 kHz) • Stereo audio multibit delta-sigma ADC (8 kHz–96 kHz) • Programmable digital audio effects processing (3-D, bass, treble, midrange, EQ, notch filter, de-emphasis) • Four audio inputs • Four high-power audio output drivers (headphone drive capability) • Four high-power audio output drivers (headphone/speaker drive capability) • Two fully differential line output drivers • Fully programmable PLL • Headphone/headset jack detection available as register status bit 16 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 LINE2R LINE1RM Voltage Supplies + PGA 0/+59.5dB 0.5dB Steps AGC PGA 0/+59.5dB 0.5dB Steps SW-D3 DINR Audio Clock Generation SW-D1 DINL MCLK Bias/ Reference ADC ADC DOUTR MIC2R/LINE2R MIC1RM/LINE1RM LINE1RP LINE1LM + DOUTL MIC1RP/LINE1RP MIC1LM/LINE1LM LINE1LP AGC DOUT DIN Audio Serial Bus Interface WCLK BCLK MIC1LP/LINE1LP MIC2L/LINE2L/ MICDET LINE2L Effects SW-D4 Effects DAC L DAC R Volume Control Volume Control I2C Serial Control Bus SW-D2 + + + + + VCM VCM + LINE1RM LINE1RP LINE2RP LINE1LM LINE1LP LINE2LP SW-R4 SW-R3 SW-R0 SW-R1 SW-R2 SW-L4 SW-L3 SW-L0 SW-L1 SW-L2 B0151-01 RIGHT_LOM RIGHT_LOP LEFT_LOM LEFT_LOP HPROUT HPRCOM HPLCOM HPLOUT www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 TLV320AIC3101 11.2 Functional Block Diagram SDA SCL RESET MICBIAS DVSS IOVDD DVDD DRVSS DRVDD DRVDD AVSS_DAC AVDD_DAC AVSS_ADC Submit Documentation Feedback 17 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11.3 Feature Description 11.3.1 Hardware Reset The TLV320AIC3101 requires a hardware reset after power up for proper operation. After all power supplies are at their specified values, the RESET pin must be driven low for at least 10 ns. If this reset sequence is not performed, the TLV320AIC3101 may not respond properly to register reads/writes. 11.3.2 Digital Audio Data Serial Interface Audio data is transferred between the host processor and the TLV320AIC3101 via the digital audio data serial interface. The audio bus of the TLV320AIC3101 can be configured for left- or right-justified, I2S, DSP, or TDM modes of operation, where communication with standard telephony PCM interfaces is supported within the TDM mode. These modes are all MSB-first, with data width programmable as 16, 20, 24, or 32 bits. In addition, the word clock (WCLK) and bit clock (BCLK) can be independently configured in either master or slave mode, for flexible connectivity to a wide variety of processors. The word clock (WCLK) is used to define the beginning of a frame, and may be programmed as either a pulse or a square-wave signal. The frequency of this clock corresponds to the selected ADC and DAC sampling frequencies. The bit clock (BCLK) is used to clock in and out the digital audio data across the serial bus. When in master mode, this signal can be programmed in two further modes: continuous transfer mode, and 256-clock mode. In continuous transfer mode, only the minimal number of bit clocks needed to transfer the audio data are generated, so in general the number of bit clocks per frame is two times the data width. For example, if data width is chosen as 16 bits, then 32 bit clocks are generated per frame. If the bit clock signal in master mode is to be used by a PLL in another device, it is recommended that the 16-bit or 32-bit data-width selections be used. These cases result in a low-jitter bit clock signal being generated, having frequencies of 32 fS or 64 fS. In the cases of 20-bit and 24-bt data width in master mode, the bit clocks generated in each frame are not all of equal period, due to the device not having a clean 40-fS or 48-fS clock signal readily available. The average frequency of the bit clock signal is still accurate in these cases (being 40 fS or 48 fS), but the resulting clock signal has higher jitter than in the 16-bit and 32-bit cases. In 256-clock mode, a constant 256 bit clocks per frame are generated, independent of the data width chosen. The TLV320AIC3101 further includes programmability to place the DOUT line in the high-impedance state during all bit clocks when valid data is not being sent. By combining this capability with the ability to program at what bit clock in a frame the audio data begins, time-division multiplexing (TDM) can be accomplished, resulting in multiple codecs able to use a single audio serial data bus. When the digital audio data serial interface is powered down while configured in master mode, the pins associated with the interface are put into a high-impedance state. 11.3.2.1 Right-Justified Mode In right-justified mode, the LSB of the left channel is valid on the rising edge of the bit clock preceding the falling edge of word clock. Similarly, the LSB of the right channel is valid on the rising edge of the bit clock preceding the rising edge of the word clock. 18 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Feature Description (continued) 1/fs WCLK BCLK Right Channel Left Channel SDIN/SDOUT 0 2 n–1 n–2 n–3 MSB 1 n–1 n–2 n–3 0 2 1 0 LSB T0149-01 Figure 12. Right-Justified Serial Data Bus Mode Operation 11.3.2.2 Left-Justified Mode In left-justified mode, the MSB of the right channel is valid on the rising edge of the bit clock following the falling edge of the word clock. Similarly, the MSB of the left channel is valid on the rising edge of the bit clock following the rising edge of the word clock. 1/fs WCLK BCLK Right Channel Left Channel SDIN/SDOUT 0 n–1 n–2 n–3 2 MSB 1 0 n–1 n–2 n–3 2 1 0 n–1 n–2 LSB T0150-01 Figure 13. Left-Justified Serial Data Bus Mode Operation Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 19 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Feature Description (continued) 11.3.2.3 I2S Mode In I2S mode, the MSB of the left channel is valid on the second rising edge of the bit clock after the falling edge of the word clock. Similarly, the MSB of the right channel is valid on the second rising edge of the bit clock after the rising edge of the word clock. 1/fs WCLK BCLK 1 Clock Before MSB Right Channel Left Channel SDIN/SDOUT 2 n–1 n–2 n–3 0 1 MSB 2 n–1 n–2 n–3 0 1 n–1 LSB T0151-01 Figure 14. I2S Serial Data Bus Mode Operation 11.3.2.4 DSP Mode In DSP mode, the rising edge of the word clock starts the data transfer with the left-channel data first, immediately followed by the right-channel data. Each data bit is valid on the falling edge of the bit clock. 1/fs WCLK BCLK Right Channel Left Channel SDIN/SDOUT n–1 n–2 n–3 n–4 LSB MSB 2 1 0 n–1 n–2 n–3 LSB MSB 2 1 0 n–1 LSB T0152-01 Figure 15. DSP Serial Data Bus Mode Operation 20 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Feature Description (continued) 11.3.2.5 TDM Data Transfer Time-division multiplexed data transfer can be realized in any of the left- transfer modes if the 256-clock bit-clock mode is selected, although it is recommended to be used in either left-justified mode or DSP mode. By changing the programmable offset, the bit clock in each frame where the data begins can be changed, and the serial data output driver (DOUT) can also be programmed to the high-impedance state during all bit clocks except when valid data is being put onto the bus. This allows other codecs to be programmed with different offsets and to drive their data onto the same DOUT line, just in a different slot. For incoming data, the codec simply ignores data on the bus except where it is expected, based on the programmed offset. Note that the location of the data when an offset is programmed is different, depending on what transfer mode is selected. In DSP mode, both left and right channels of data are transferred immediately adjacent to each other in the frame. This differs from left-justified mode, where the left- and right-channel data are always a half-frame apart in each frame. In this case, as the offset is programmed from zero to some higher value, both the left- and right-channel data move across the frame, but still stay a full half-frame apart from each other. This is depicted in Figure 16 for the two cases. DSP Mode Word Clock Bit Clock Data In/Out •••• N–1 N–2 1 0 N–1 N–2 •••••• 1 0 Offset Left-Channel Data Right-Channel Data Left-Justified Mode Word Clock Bit Clock Data In/Out N–1 N–2 •••• 1 Offset N–1 N–2 0 •••• 1 0 Offset Left-Channel Data Right-Channel Data T0153-01 Figure 16. DSP Mode and Left-Justified Mode, Showing the Effect of a Programmed Data-Word Offset 11.3.3 Audio Data Converters The TLV320AIC3101 supports the following standard audio sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz. The converters also can operate at different sampling rates in various combinations, which are described further as follows. The data converters are based on the concept of an fS(ref) rate that is used internal to the part, and it is related to the actual sampling rates of the converters through a series of ratios. For typical sampling rates, fS(ref) is either 44.1 kHz or 48 kHz, although it can realistically be set over a wider range of rates up to 53 kHz, with additional restrictions applying if the PLL is used. This concept is used to set the sampling rates of the ADC and DAC, and also to enable high-quality playback of low-sampling-rate data, without high-frequency audible noise being generated. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 21 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Feature Description (continued) The sampling rate of the ADC and DAC can be set to fS(ref)/NCODEC or 2 × fS(ref)/NCODEC, with NCODEC being 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, or 6 for both the NDAC and NADC settings. In the TLV320AIC3101, NDAC and NADC must be set to the same value, as the device only supports a common sample rate for the ADC and DAC channels. Therefore NCODEC = NDAC = NADC, and this is programmed by setting the value of bits D7–D4 equal to the value of bits D3–D0 in register 2, on page 0. 11.3.3.1 Audio Clock Generation The audio converters in the TLV320AIC3101 need an internal audio master clock at a frequency of 256 fS(ref), which can be obtained in a variety of manners from an external clock signal applied to the device. A more detailed diagram of the audio clock section of the TLV320AIC3101 is shown in Figure 17. MCLK BCLK PLL_CLKIN CLKDIV_CLKIN CLKDIV_IN Q = 2, 3,….., 16, 17 PLL_IN K*R/P 2/Q K = J.D J = 1, 2, 3, ...., 62, 63 D = 0000, 0001, ...., 9998, 9999 R = 1, 2, 3, 4, ...., 15, 16 P = 1, 2, ...., 7, 8 PLL_OUT CLKDIV_OUT 1/8 PLLDIV_OUT CODEC_CLKIN CODEC_CLK = 256 ´ fS(ref) CODEC DAC fS ADC fS WCLK = fS(ref) /NCODEC CODEC fS = DAC fS = ADC fS Set NCODEC = NADC = NDAC = 1, 1.5, 2, ...., 5.5, 6 DAC DRA => NDAC = 0.5 ADC DRA => NADC = 0.5 B0153-01 Figure 17. Audio Clock Generation Processing The device can accept an MCLK input from 512 kHz to 50 MHz, which can then be passed through either a programmable divider or a PLL to get the proper internal audio master clock required by the device. The BCLK input can also be used to generate the internal audio master clock. 22 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Feature Description (continued) A primary concern is proper operation of the codec at various sample rates with the limited MCLK frequencies available in the system. This device includes a highly programmable PLL to accommodate such situations easily. The integrated PLL can generate audio clocks from a wide variety of possible MCLK inputs, with particular focus paid to the standard MCLK rates already widely used. When the PLL is disabled, fS(ref) = CLKDIV_IN/(128 × Q) Where Q = 2, 3, …, 17 CLKDIV_IN can be MCLK or BCLK, selected by register 102, bits D7–D6. NOTE – when NCODEC = 1.5, 2.5, 3.5, 4.5, or 5.5, odd values of Q are not allowed. In this mode, MCLK can be as high as 50 MHz, and fS(ref) should fall within 39 kHz to 53 kHz, inclusive. When the PLL is enabled, fS(ref) = (PLLCLK_IN × K × R)/(2048 × P), where P = 1, 2, 3,…, 8 R = 1, 2, …, 16 K = J.D J = 1, 2, 3, …, 63 D = 0000, 0001, 0002, 0003, …, 9998, 9999 PLLCLK_IN can be MCLK or BCLK, selected by Page 0, register 102, bits D5–D4 P, R, J, and D are register programmable. J is the integer portion of K (the numbers to the left of the decimal point), while D is the fractional portion of K (the numbers to the right of the decimal point, assuming four digits of precision). Examples: If K = 8.5, then J = 8, D = 5000 If K = 7.12, then J = 7, D = 1200 If K = 14.03, then J = 14, D = 0300 If K = 6.0004, then J = 6, D = 0004 When the PLL is enabled and D = 0000, the following conditions must be satisfied to meet specified performance: 2 MHz ≤ ( PLLCLK_IN/P ) ≤ 20 MHz 80 MHz ≤ (PLLCLK _IN × K × R/P ) ≤ 110 MHz 4 ≤ J ≤ 55 When the PLL is enabled and D≠0000, the following conditions must be satisfied to meet specified performance: 10 MHz ≤ PLLCLK _IN/P ≤ 20 MHz 80 MHz ≤ PLLCLK _IN × K × R/P ≤ 110 MHz 4 ≤ J ≤ 11 R=1 Example: MCLK = 12 MHz and fS(ref) = 44.1 kHz Select P = 1, R = 1, K = 7.5264, which results in J = 7, D = 5264 Example: MCLK = 12 MHz and fS(ref) = 48 kHz Select P = 1, R = 1, K = 8.192, which results in J = 8, D = 1920 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 23 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Feature Description (continued) Table 1 lists several example cases of typical MCLK rates, and how to program the PLL to achieve fS(ref) = 44.1 kHz or 48 kHz. Table 1. Typical MCLK Rates fS(ref) = 44.1 kHz MCLK (MHz) P R J D ACHIEVED fS(ref) % ERROR 2.8224 1 1 32 0 44,100 0 5.6448 1 1 16 0 44,100 0 12 1 1 7 5264 44,100 0 13 1 1 6 9474 44,099.71 16 1 1 5 6448 44,100 0 19.2 1 1 4 7040 44,100 0 19.68 1 1 4 5893 44,100.3 48 4 1 7 5264 44,100 MCLK (MHz) P R J D 2.048 1 1 48 0 48,000 0 3.072 1 1 32 0 48,000 0 4.096 1 1 24 0 48,000 0 6.144 1 1 16 0 48,000 0 8.192 1 1 12 0 48,000 0 12 1 1 8 1920 48,000 0 13 1 1 7 5618 47,999.71 16 1 1 6 1440 48,000 19.2 1 1 5 1200 48,000 19.68 1 1 4 9951 47,999.79 48 4 1 8 1920 48,000 –0.0007 0.0007 0 fS(ref) = 48 kHz ACHIEVED fS(ref) % ERROR –0.0006 0 0 –0.0004 0 11.3.3.2 Stereo Audio ADC The TLV320AIC3101 includes a stereo audio ADC, which uses a delta-sigma modulator with 128-times oversampling in single-rate mode, followed by a digital decimation filter. The ADC supports sampling rates from 8 kHz to 48 kHz in single-rate mode, and up to 96 kHz in dual-rate mode. Whenever the ADC or DAC is in operation, the device requires that an audio master clock be provided and appropriate audio clock generation be set up within the device. In order to provide optimal system power dissipation, the stereo ADC can be powered one channel at a time, to support the case where only mono record capability is required. In addition, both channels can be fully powered or entirely powered down. The integrated digital decimation filter removes high-frequency content and downsamples the audio data from an initial sampling rate of 128 fS to the final output sampling rate of fS. The decimation filter provides a linear phase output response with a group delay of 17/fS. The –3-dB bandwidth of the decimation filter extends to 0.45 fS and scales with the sample rate (fS). The filter has minimum 75-dB attenuation over the stop band from 0.55 fS to 64 fS. Independent digital high-pass filters are also included with each ADC channel, with a corner frequency that can be independently set. Because of the oversampling nature of the audio ADC and the integrated digital decimation filtering, requirements for analog antialiasing filtering are very relaxed. The TLV320AIC3101 integrates a second-order analog antialiasing filter with 20-dB attenuation at 1 MHz. This filter, combined with the digital decimation filter, provides sufficient antialiasing filtering without requiring additional external components. 24 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 The ADC is preceded by a programmable gain amplifier (PGA), which allows analog gain control from 0 dB to 59.5 dB in steps of 0.5 dB. The PGA gain changes are implemented with an internal soft-stepping algorithm that only changes the actual volume level by one 0.5-dB step every one or two ADC output samples, depending on the register programming (see page 0, registers 19 and 22). This soft-stepping ensures that volume control changes occur smoothly with no audible artifacts. On reset, the PGA gain defaults to a mute condition, and on power down, the PGA soft-steps the volume to mute before shutting down. A read-only flag is set whenever the gain applied by PGA equals the desired value set by the register. The soft-stepping control can also be disabled by programming a register bit. When soft stepping is enabled, the audio master clock must be applied to the part after the ADC power-down register is written to ensure the soft-stepping to mute has completed. When the ADC power-down flag is no longer set, the audio master clock can be shut down. 11.3.3.2.1 Stereo Audio ADC High-Pass Filter Often in audio applications it is desirable to remove the dc offset from the converted audio data stream. The TLV320AIC3101 has a programmable first-order high-pass filter which can be used for this purpose. The digital filter coefficients are in 16-bit format and therefore use two 8-bit registers for each of the three coefficients, N0, N1, and D1. The transfer function of the digital high-pass filter is of the form: *1 H(z) + N0 ) N1 z *1 32768 * D1 z (1) Programming the left channel is done by writing to page 1, registers 65–70, and the right channel is programmed by writing to page 1, registers 71–76. After the coefficients have been loaded, these ADC high-pass filter coefficients can be selected by writing to page 0, register 107, bits D7–D6, and the high-pass filter can be enabled by writing to page 0, register 12, bits D7–D4. 11.3.3.2.2 Automatic Gain Control (AGC) An automatic gain control (AGC) circuit is included with the ADC and can be used to maintain nominally constant output signal amplitude when recording speech signals (it can be fully disabled if not desired). This circuitry automatically adjusts the PGA gain as the input signal becomes overly loud or very weak, such as when a person speaking into a microphone moves closer or farther from the microphone. The AGC algorithm has several programmable settings, including target gain, attack and decay time constants, noise threshold, and maximum PGA gain applicable that allow the algorithm to be fine-tuned for any particular application. The algorithm uses the absolute average of the signal (which is the average of the absolute value of the signal) as a measure of the nominal amplitude of the output signal. Note that completely independent AGC circuitry is included with each ADC channel with entirely independent control over the algorithm from one channel to the next. This is attractive in cases where two microphones are used in a system, but may have different placement in the end equipment and require different dynamic performance for optimal system operation. 11.3.3.2.2.1 Target Level The target level represents the nominal output level at which the AGC attempts to hold the ADC output signal level. The TLV320AIC3101 allows programming of eight different target levels, which can be programmed from –5.5 dB to –24 dB relative to a full-scale signal. Because the device reacts to the signal absolute average and not to peak levels, it is recommended that the target level be set with enough margin to avoid clipping at the occurrence of loud sounds. 11.3.3.2.2.2 Attack Time The attack time determines how quickly the AGC circuitry reduces the PGA gain when the input signal is too loud. It can be varied from 7 ms to 1,408 ms. The extended right-channel attack time can be programmed by writing to page 0, register 103, and the left channel is programmed by writing to page 0, register 105. 11.3.3.2.2.3 Decay Time The decay time determines how quickly the PGA gain is increased when the input signal is too low. It can be varied in the range from 0.05 s to 22.4 s. The extended right-channel decay time can be programmed by writing to page 0, register 104, and the left channel is programmed by writing to page 0, register 106. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 25 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com The actual AGC decay time maximum is based on a counter length, so the maximum decay time scales with the clock setup that is used. Table 2 shows the relationship of the NCODEC ratio to the maximum time available for the AGC decay. In practice, these maximum times are extremely long for audio applications and should not limit any practical AGC decay time that is needed by the system. Table 2. AGC Decay Time Restriction NCODEC RATIO MAXIMUM DECAY TIME (SECONDS) 1 4 1.5 5.6 2 8 2.5 9.6 3 11.2 3.5 11.2 4 16 4.5 16 5 19.2 5.5 22.4 6 22.4 11.3.3.2.2.4 Noise Gate Threshold The noise gate threshold determines the level below which if the input speech average value falls, AGC considers it as a silence and hence brings down the gain to 0 dB in steps of 0.5 dB every sample period and sets the noise threshold flag. The gain stays at 0 dB unless the input speech signal average rises above the noise threshold setting. This ensures that noise does not get gained up in the absence of speech. Noise threshold level in the AGC algorithm is programmable from –30 dB to –90 dB relative to full scale. A disable noise gate feature is also available. This operation includes programmable debounce and hysteresis functionality to avoid the AGC gain from cycling between high gain and 0 dB when signals are near the noise threshold level. When the noise threshold flag is set, the status of gain applied by the AGC and the saturation flag should be ignored. 11.3.3.2.2.5 Maximum PGA Gain Applicable The maximum PGA gain applicable allows the user to restrict the maximum PGA gain that can be applied by the AGC algorithm. This can be used for limiting PGA gain in situations where environmental noise is greater than programmed noise threshold. It can be programmed from 0 dB to 59.5 dB in steps of 0.5 dB. 26 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Input Signal Output Signal Target Level AGC Gain Decay Time Attack Time W0002-01 Figure 18. Typical Operation of the AGC Algorithm During Speech Recording Note that the time constants here are correct when the ADC is not in double-rate audio mode. The time constants are achieved using the fS(ref) value programmed in the control registers. However, if the fS(ref) is set in the registers to, for example, 48 kHz, but the actual audio clock or PLL programming actually results in a different fS(ref) in practice, then the time constants would not be correct. The actual AGC decay time maximum is based on a counter length, so the maximum decay time scales with the clock setup that is used. Table 2 shows the relationship of the NCODEC ratio to the maximum time available for the AGC decay. In practice, these maximum times are extremely long for audio applications and should not limit any practical AGC decay time that is needed by the system. 11.3.3.3 Stereo Audio DAC The TLV320AIC3101 includes a stereo audio DAC supporting sampling rates from 8 kHz to 96 kHz. Each channel of the stereo audio DAC consists of a digital audio processing block, a digital interpolation filter, multibit digital delta-sigma modulator, and an analog reconstruction filter. The DAC is designed to provide enhanced performance at low sampling rates through increased oversampling and image filtering, thereby keeping quantization noise generated within the delta-sigma modulator and signal images strongly suppressed within the audio band to beyond 20 kHz. This is realized by keeping the upsampled rate constant at 128 fS(ref) and changing the oversampling ratio as the input sample rate is changed. For an fS(ref) of 48 kHz, the digital delta-sigma modulator always operates at a rate of 6.144 MHz. This ensures that quantization noise generated within the delta-sigma modulator stays low within the frequency band below 20 kHz at all sample rates. Similarly, for an fS(ref) rate of 44.1 kHz, the digital delta-sigma modulator always operates at a rate of 5.6448 MHz. The following restrictions apply in the case when the PLL is powered down and double-rate audio mode is enabled in the DAC. Allowed Q values = 4, 8, 9, 12, 16 Q values where equivalent fS(ref) can be achieved by turning on PLL Q = 5, 6, 7 (set P = 5 / 6 / 7 and K = 16 and PLL enabled) Q = 10, 14 (set P = 5, 7 and K = 8 and PLL enabled) Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 27 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11.3.3.3.1 Digital Audio Processing for Playback The DAC channel consists of optional filters for de-emphasis and bass, treble, midrange level adjustment, speaker equalization, and 3-D effects processing. The de-emphasis function is implemented by a programmable digital filter block with fully programmable coefficients (see page 1, registers 21–26 for the left channel and page 1, registers 47–52 for the right channel). If de-emphasis is not required in a particular application, this programmable filter block can be used for some other purpose. The de-emphasis filter transfer function is given by: *1 H(z) + N0 ) N1 z *1 32768 * D1 z (2) where the N0, N1, and D1 coefficients are fully programmable individually for each channel. The coefficients that should be loaded to implement standard de-emphasis filters are given in Table 3. Table 3. De-Emphasis Coefficients for Common Audio Sampling Rates (1) SAMPLING FREQUENCY N0 N1 D1 32 kHz 16,950 –1,220 17,037 44.1 kHz 15,091 –2,877 20,555 48 kHz (1) 14,677 –3,283 21,374 The 48-kHz coefficients listed in Table 3 are used as defaults. In addition to the de-emphasis filter block, the DAC digital effects processing includes a fourth-order digital IIR filter with programmable coefficients (one set per channel). This filter is implemented as cascade of two biquad sections with frequency response given by: N0 ) 2 ǒ32768 *2 N1 z *1 ) N2 z *2 D1 z *1 * D2 z *2 N3 ) 2 Ǔǒ32768 *2 N4 z *1 ) N5 z*2 D4 z *1 * D5 z*2 Ǔ (3) The N and D coefficients are fully programmable, and the entire filter can be enabled or bypassed. The structure of the filtering when configured for independent channel processing is shown in Figure 19, with LB1 corresponding to the first left-channel biquad filter using coefficients N0, N1, N2, D1, and D2. LB2 similarly corresponds to the second left-channel biquad filter using coefficients N3, N4, N5, D4, and D5. The RB1 and RB2 filters refer to the first and second right-channel biquad filters, respectively. LB1 LB2 RB1 RB2 B0154-01 Figure 19. Structure of Digital Effects Processing for Independent Channel Processing The coefficients for this filter implement a variety of sound effects, with bass boost or treble boost being the most commonly used in portable audio applications. The default N and D coefficients in the part are given in Table 4 and implement a shelving filter with 0-dB gain from dc to approximately 150 Hz, at which point it rolls off to a 3dB attenuation for higher frequency signals, thus giving a 3-dB boost to signals below 150 Hz. The N and D coefficients are represented by 16-bit, 2s-complement numbers with values ranging from –32,768 to 32,767. 28 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 4. Default Digital Effects Processing Filter Coefficients, When in Independent Channel Processing Configuration Coefficients N0 = N3 D1 = D4 N1 = N4 D2 = D5 N2 = N5 27,619 32,131 –27,034 –31,506 26,461 The digital processing also includes capability to implement 3-D processing algorithms by providing means to process the mono mix of the stereo input, and then combine this with the individual channel signals for stereo output playback. The architecture of this processing mode, and the programmable filters available for use in the system, are shown in Figure 20. Note that the programmable attenuation block provides a method of adjusting the level of 3-D effect introduced into the final stereo output. This, combined with the fully programmable biquad filters in the system, enables the user to optimize the audio effects for a particular system and provide extensive differentiation from other systems using the same device. + + + L + + – LB1 R LB2 To Left Channel Atten + – + To Right Channel RB2 B0155-01 Figure 20. Architecture of the Digital Audio Processing When 3-D Effects are Enabled It is recommended that the digital effects filters should be disabled while the filter coefficients are being modified. While new coefficients are being written to the device over the control port, it is possible that a filter using partially updated coefficients may actually implement an unstable system and lead to oscillation or objectionable audio output. By disabling the filters, changing the coefficients, and then re-enabling the filters, these types of effects can be entirely avoided. 11.3.3.3.2 Digital Interpolation Filter The digital interpolation filter upsamples the output of the digital audio processing block by the required oversampling ratio before data is provided to the digital delta-sigma modulator and analog reconstruction filter stages. The filter provides a linear phase output with a group delay of 21/fS. In addition, programmable digital interpolation filtering is included to provide enhanced image filtering and reduce signal images caused by the upsampling process that are below 20 kHz. For example, upsampling an 8-kHz signal produces signal images at multiples of 8-kHz (i.e., 8 kHz, 16 kHz, 24 kHz, etc.). The images at 8 kHz and 16 kHz are below 20 kHz and still audible to the listener; therefore, they must be filtered heavily to maintain a good quality output. The interpolation filter is designed to maintain at least 65-dB rejection of images which are below 7.455 fS. In order to use the programmable interpolation capability, fS(ref) should be programmed to a higher rate (restricted to be in the range of 39 kHz to 53 kHz when the PLL is in use), and the actual fS is set using the NCODEC divider, where NCODEC = NDAC = NADC. For example, if fS = 8 kHz is required, then fS(ref) can be set to 48 kHz, and the DAC fS set to fS(ref)/6. This ensures that all images of the 8-kHz data are sufficiently attenuated well beyond a 20-kHz audible frequency range. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 29 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11.3.3.3.3 Delta-Sigma Audio DAC The stereo audio DAC incorporates a third-order multibit delta-sigma modulator followed by an analog reconstruction filter. The DAC provides high-resolution, low-noise performance, using oversampling and noise shaping techniques. The analog reconstruction filter design consists of a six-tap analog FIR filter followed by a continuous time RC filter. The analog FIR operates at a rate of 128 fS(ref) (6.144 MHz when fS(ref) = 48 kHz, 5.6448 MHz when fS(ref) = 44.1 kHz). Note that the DAC analog performance may be degraded by excessive clock jitter on the MCLK input. Therefore, care must be taken to keep jitter on this clock to a minimum. 11.3.3.3.4 Audio DAC Digital Volume Control The audio DAC includes a digital volume control block which implements a programmable digital gain. The volume level can be varied from 0 dB to –63.5 dB in 0.5-dB steps, in addition to a mute bit, independently for each channel. The volume level of both channels can also be changed simultaneously by the master volume control. Gain changes are implemented with a soft-stepping algorithm, which only changes the actual volume by one step per input sample, either up or down, until the desired volume is reached. The rate of soft-stepping can be slowed to one step per two input samples through a register bit. Because of soft-stepping, the host does not know when the DAC has been actually muted. This may be important if the host wishes to mute the DAC before making a significant change, such as changing sample rates. In order to help with this situation, the device provides a flag back to the host via a read-only register bit that alerts the host when the part has completed the soft-stepping and the actual volume has reached the desired volume level. The soft-stepping feature can be disabled through register programming. If soft-stepping is enabled, the MCLK signal should be kept applied to the device until the DAC power-down flag is set. When this flag is set, the internal soft-stepping process and power-down sequence is complete, and the MCLK can then be stopped if desired. The TLV320AIC3101 also includes functionality to detect when the user switches on or off the de-emphasis or digital audio processing functions, to first (1) soft-mute the DAC volume control, (2) change the operation of the digital effects processing, and (3) soft-unmute the part. This avoids any possible pop/clicks in the audio output due to instantaneous changes in the filtering. A similar algorithm is used when first powering up or powering down the DAC. The circuit begins operation at power up with the volume control muted, then soft-steps it up to the desired volume level. At power down, the logic first soft-steps the volume down to a mute level, then powers down the circuitry. 11.3.3.3.5 Increasing DAC Dynamic Range The TLV320AIC3101 allows trading off dynamic range with power consumption. The DAC dynamic range can be increased by writing to page 0, register 109, bits D7–D6. The lowest DAC current setting is the default, and the dynamic range is displayed in the datasheet table. Increasing the current can increase the DAC dynamic range by up to 1.5 dB. 11.3.3.3.6 Analog Output Common-Mode Adjustment The output common-mode voltage and output range of the analog output are determined by an internal band-gap reference, in contrast to other codecs that may use a divided version of the supply. This scheme is used to reduce the coupling of noise that may be on the supply (such as 217-Hz noise in a GSM cellphone) into the audio signal path. However, due to the possible wide variation in analog supply range (2.7 V–3.6 V), an output common-mode voltage setting of 1.35 V, which would be used for a 2.7 V supply case, would be overly conservative if the supply is actually much larger, such as 3.3 V or 3.6 V. In order to optimize device operation, the TLV320AIC3101 includes a programmable output common-mode level, which can be set by register programming to a level most appropriate to the actual supply range used by a particular customer. The output common-mode level can be varied among four different values, ranging from 1.35 V (most appropriate for low supply ranges, near 2.7 V) to 1.8 V (most appropriate for high supply ranges, near 3.6 V). Note that there is also some limitation on the range of DVDD voltage as well in determining which setting is most appropriate. 30 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 5. Appropriate Settings CM SETTING RECOMMENDED AVDD, DRVDD RECOMMENDED DVDD 1.35 2.7 V–3.6 V 1.525 V–1.95 V 1.5 3 V–3.6 V 1.65 V–1.95 V 1.65 V 3.3 V–3.6 V 1.8 V–1.95 V 1.8 V 3.6 V 1.95 V 11.3.3.3.7 Audio DAC Power Control The stereo DAC can be fully powered up or down, and in addition, the analog circuitry in each DAC channel can be powered up or down independently. This provides power savings when only a mono playback stream is needed. 11.3.4 Audio Analog Inputs The TLV320AIC3101 includes six single-ended audio inputs. These pins connect through series resistors and switches to the virtual ground terminals of two fully differential operational amplifiers (one per ADC/PGA channel). By selecting to turn on only one set of switches per operational amplifier at a time, the inputs can be effectively muxed to each ADC PGA channel. By selecting to turn on multiple sets of switches per operational amplifier at a time, mixing can also be achieved. Mixing of multiple inputs can easily lead to PGA outputs that exceed the range of the internal operational amplifiers, resulting in saturation and clipping of the mixed output signal. Whenever mixing is being implemented, the user should take adequate precautions to avoid such a saturation case from occurring. In general, the mixed signal should not exceed 2 Vp-p (single-ended). In most mixing applications, there is also a general need to adjust the levels of the individual signals being mixed. For example, if a soft signal and a large signal are to be mixed and played together, the soft signal generally should be amplified to a level comparable to the large signal before mixing. In order to accommodate this need, the TLV320AIC3101 includes input level control on each of the individual inputs before they are mixed or muxed into the ADC PGAs, with gain programmable from 0 dB to –12 dB in 1.5-dB steps. Note that this input level control is not intended to be a volume control, but instead used occasionally for level setting. Soft-stepping of the input level control settings is implemented in this device, with the speed and functionality following the settings used by the ADC PGA for soft-stepping. Figure 21 shows the single-ended mixing configuration for the left-channel ADC PGA, which enables mixing of the signals LINE1L, LINE2L, LINE1R, MIC3L, and MIC3R. The right-channel ADC PGA mix is similar, enabling mixing of the signals LINE1R, LINE2R, LINE1L, MIC3L, and MIC3R. Gain = 0, –1.5, –3, . . ., –12 dB, Mute MIC1L/LINE1L Gain = 0, –1.5, –3, . . ., –12 dB, Mute MIC2L/LINE2L/MICDET To Left ADC PGA Gain = 0, –1.5, –3, . . ., –12 dB, Mute MIC1R/LINE1R B0156-01 Figure 21. Left-Channel, Single-Ended Analog Input Mixing Configuration Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 31 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11.3.5 Analog Fully Differential Line Output Drivers The TLV320AIC3101 has two fully differential line output drivers, each capable of driving a 10-kΩ differential load. The output stage design leading to the fully differential line output drivers is shown in Figure 22 and Figure 23. This design includes extensive capability to adjust signal levels independently before any mixing occurs, beyond that already provided by the PGA gain and the DAC digital volume control. DAC_L Stereo Audio DAC DAC_L1 DAC_L2 DAC_L3 DAC_R DAC_R1 DAC_R2 DAC_R3 PGA_L PGA_R Volume Controls, Mixing LEFT_LOP DAC_L1 LEFT_LOM DAC_R1 Gain = 0 dB to 9 dB, Mute DAC_L3 PGA_L PGA_R Volume Controls, Mixing RIGHT_LOP DAC_L1 RIGHT_LOM DAC_R1 DAC_R3 Gain = 0 dB to 9 dB, Mute B0157-01 Figure 22. Architecture of the Output Stage Leading to the Fully Differential Line Output Drivers The PGA_L/R signals refer to the outputs of the ADC PGA stages that are similarly passed around the ADC to the output stage. Note that because both left- and right-channel signals are routed to all output drivers, a mono mix of any of the stereo signals can easily be obtained by setting the volume controls of both left- and rightchannel signals to –6 dB and mixing them. Undesired signals can also be disconnected from the mix as well through register control. 32 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 PGA_L 0 dB to –78 dB PGA_R 0 dB to –78 dB + DAC_L1 0 dB to –78 dB DAC_R1 0 dB to –78 dB B0158-01 Figure 23. Detail of the Volume Control and Mixing Function Shown in Figure 19 and Figure 31 The DAC_L/R signals are the outputs of the stereo audio DAC, which can be steered by register control based on the requirements of the system. If mixing of the DAC audio with other signals is not required, and the DAC output is only needed at the stereo line outputs, then it is recommended to use the routing through path DAC_L3/R3 to the fully differential stereo line outputs. This results not only in higher quality output performance, but also in lower-power operation, because the analog volume controls and mixing blocks ahead of these drivers can be powered down. If instead the DAC analog output must be routed to multiple output drivers simultaneously (such as to LEFT_LOP/M and RIGHT_LOP/M) or must be mixed with other analog signals, then the DAC outputs should be switched through the DAC_L1/R1 path. This option provides the maximum flexibility for routing of the DAC analog signals to the output drivers The TLV320AIC3101 includes an output level control on each output driver with limited gain adjustment from 0 dB to 9 dB. The output driver circuitry in this device are designed to provide a low distortion output while playing full-scale stereo DAC signals at a 0-dB gain setting. However, a higher amplitude output can be obtained at the cost of increased signal distortion at the output. This output level control allows the user to make this tradeoff based on the requirements of the end equipment. Note that this output level control is not intended to be used as a standard output volume control. It is expected to be used only sparingly for level setting, that is, adjustment of the fullscale output range of the device. 11.3.6 Analog High-Power Output Drivers The TLV320AIC3101 includes four high-power output drivers with extensive flexibility in their usage. These output drivers are individually capable of driving 30 mW each into a 16-Ω load in single-ended configuration, and they can be used in pairs to drive up to 500 mW into an 8-Ω load connected in bridge-terminated load (BTL) configuration between two driver outputs. The high-power output drivers can be configured in a variety of ways, including: 1. Driving up to two fully differential output signals 2. Driving up to four single-ended output signals 3. Driving two single-ended output signals, with one or two of the remaining drivers driving a fixed VCM level, for a pseudodifferential stereo output 4. Driving one or two 8-Ω speakers connected BTL between pairs of driver output pins 5. Driving stereo headphones in single-ended configuration with two drivers, while the remaining two drivers are connected in BTL configuration to an 8-Ω speaker Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 33 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com The output stage architecture leading to the high-power output drivers is shown in Figure 24, with the volume control and mixing blocks being effectively identical to that shown in Figure 23. Note that each of these drivers have a output level control block like those included with the line output drivers, allowing gain adjustment up to 9 dB on the output signal. As in the previous case, this output level adjustment is not intended to be used as a standard volume control, but instead is included for additional fullscale output signal level control. Two of the output drivers, HPROUT and HPLOUT, include a direct connection path for the stereo DAC outputs to be passed directly to the output drivers and bypass the analog volume controls and mixing networks, using the DAC_L2/R2 path. As in the line output case, this functionality provides the highest quality DAC playback performance with reduced power dissipation, but can only be utilized if the DAC output does not need to route to multiple output drivers simultaneously, and if mixing of the DAC output with other analog signals is not needed. PGA_L PGA_R DAC_L1 Volume Controls, Mixing Volume Level 0 dB to 9 dB, Mute HPLOUT DAC_R1 DAC_L2 PGA_L PGA_R DAC_L1 VCM Volume Controls, Mixing Volume Level 0 dB to 9 dB, Mute HPLCOM DAC_R1 PGA_L PGA_R DAC_L1 Volume Controls, Mixing VCM Volume Level 0 dB to 9 dB, Mute HPRCOM DAC_R1 DAC_R2 PGA_L PGA_R DAC_L1 Volume Controls, Mixing Volume Level 0 dB to 9 dB, Mute HPROUT DAC_R1 B0159-01 Figure 24. Architecture of the Output Stage Leading to the High-Power Output Drivers The high-power output drivers include additional circuitry to avoid artifacts on the audio output during power-on and power-off transient conditions. The user should first program the type of output configuration being used in page 0, register 14, to allow the device to select the optimal power-up scheme to avoid output artifacts. The power-up delay time for the high-power output drivers is also programmable over a wide range of time delays, from instantaneous up to 4 s, using page 0, register 42. 34 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 When these output drivers are powered down, they can be placed into a variety of output conditions based on register programming. If lowest-power operation is desired, then the outputs can be placed into a highimpedance state, and all power to the output stage is removed. However, this generally results in the output nodes drifting to rest near the upper or lower analog supply, due to small leakage currents at the pins. This then results in a longer delay requirement to avoid output artifacts during driver power on. In order to reduce this required power-on delay, the TLV320AIC3101 includes an option for the output pins of the drivers to be weakly driven to the VCM level they would normally rest at when powered with no signal applied. This output VCM level is determined by an internal band-gap voltage reference, and thus results in extra power dissipation when the drivers are in power down. However, this option provides the fastest method for transitioning the drivers from power down to full-power operation without any output artifact introduced. The device includes a further option that falls between the other two—although it requires less power drawn while the output drivers are in power down, it also takes a slightly longer delay to power up without artifact than if the band-gap reference is kept alive. In this alternate mode, the powered-down output driver pin is weakly driven to a voltage of approximately half the DRVDD1/2 supply level using an internal voltage divider. This voltage does not match the actual VCM of a fully powered driver, but due to the output voltage being close to its final value, a much shorter power-up delay time setting can be used and still avoid any audible output artifacts. These output voltage options are controlled in page 0, register 42. The high-power output drivers can also be programmed to power up first with the output level (gain) control in a highly attenuated state; then the output driver automatically reduces the output attenuation slowly to reach the programmed output gain. This capability is enabled by default but can be enabled in page 0, register40. 11.3.7 Input Impedance and VCM Control The TLV320AIC3101 includes several programmable settings to control analog input pins, particularly when they are not selected for connection to an ADC PGA. The default option allows unselected inputs to be put into a high-impedance state, such that the input impedance seen looking into the device is extremely high. Note, however, that the pins on the device do include protection diode circuits connected to AVDD and AVSS. Thus, if any voltage is driven onto a pin approximately one diode drop (~0.6 V) above AVDD or one diode drop below AVSS, these protection diodes begin conducting current, resulting in an effective impedance that no longer appears as a high-impedance state. Another programmable option for unselected analog inputs is to weakly hold them at the common-mode input voltage of the ADC PGA (which is determined by an internal band-gap voltage reference). This is useful to keep the ac-coupling capacitors connected to analog inputs biased up at a normal dc level, thus avoiding the need for them to charge up suddenly when the input is changed from being unselected to selected for connection to an ADC PGA. This option is controlled in page 0, registers 20 and 23. The user should ensure this option is disabled when an input is selected for connection to an ADC PGA or selected for the analog input bypass path, because it can corrupt the recorded input signal if left operational when an input is selected. In most cases, the analog input pins on the TLV320AIC3101 should be ac-coupled to analog input sources, the only exception to this generally being if an ADC is being used for dc voltage measurement. The ac-coupling capacitor causes a high-pass filter pole to be inserted into the analog signal path, so the size of the capacitor must be chosen to move that filter pole sufficiently low in frequency to cause minimal effect on the processed analog signal. The input impedance of the analog inputs when selected for connection to an ADC PGA varies with the setting of the input level control, starting at approximately 20 kΩ with an input level control setting of 0 dB, and increasing to approximately 80 kΩ when the input level control is set at –12 dB. For example, using a 0.1-μF ac-coupling capacitor at an analog input results in a high-pass filter pole of 80 Hz when the 0-dB input level control setting is selected. 11.3.8 MICBIAS Generation The TLV320AIC3101 includes a programmable microphone bias output voltage (MICBIAS), capable of providing output voltages of 2 V or 2.5 V (both derived from the on-chip band-gap voltage) with 4-mA output current drive. In addition, the MICBIAS may be programmed to be switched to AVDD directly through an on-chip switch, or it can be powered down completely when not needed, for power savings. This function is controlled by register programming in page 0, register 25. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 35 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11.3.9 Short-Circuit Output Protection The TLV320AIC3101 includes programmable short-circuit protection for the high-power output drivers, for maximum flexibility in a given application. By default, if these output drivers are shorted, they automatically limit the maximum amount of current that can be sourced to or sunk from a load, thereby protecting the device from an overcurrent condition. In this mode, the user can read page 0, register 95 to determine whether the part is in short-circuit protection or not, and then decide whether to program the device to power down the output drivers. However, the device includes further capability to power down an output driver automatically whenever it goes into short-circuit protection, without requiring intervention from the user. In this case, the output driver stays in a power-down condition until the user specifically programs it to power down and then power back up again, to clear the short-circuit flag. 11.3.10 Jack/Headset Detection The TLV320AIC3101 includes extensive capability to monitor a headphone, microphone, or headset jack, determine if a plug has been inserted into the jack, and then determine what type of headset/headphone is wired to the plug. Figure 25 shows one configuration of the device that enables detection and determination of headset type when a pseudo-differential (capless) stereo headphone output configuration is used. The registers used for this function are page 0, registers 14, 96, 97, and 13. The type of headset detected can be read back from page 0, register 13. Note that for best results, it is recommended to select a MICBIAS value as high as possible, and to program the output driver common-mode level at a 1.35-V or 1.5-V level. MICBIAS g Stereo s s MIC2L/LINE2L/MICDET MIC2R Cellular g s m HPLOUT Stereo + Cellular g m s AVDD To Detection Block MIC PreAmp Pwr Amp s HPROUT m = mic s = ear speaker g = ground/vcm Pwr Amp HPRCOM HPLCOM Pwr Amp To Detection Block 1.35 V B0243-02 Figure 25. Configuration of Device for Jack Detection Using a Pseudo-Differential (Capless) Headphone Output Connection A modified output configuration used when the output drivers are ac-coupled is shown in Figure 26. Note that in this mode, the device cannot accurately determine if the inserted headphone is a mono or stereo headphone. 36 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 MICBIAS g Stereo s AVDD s MIC2L/LINE2L/MICDET To Detection Block MIC2R Cellular g s m HPLOUT Stereo + Cellular g m s MIC PreAmp Pwr Amp s HPROUT Pwr Amp m = mic s = ear speaker g = ground/vcm B0244-02 Figure 26. Configuration of Device for Jack Detection Using an AC-Coupled Stereo Headphone Output Connection An output configuration for the case of the outputs driving fully differential stereo headphones is shown in Figure 27. In this mode, there is a requirement on the jack side that either HPLCOM or HPLOUT get shorted to ground if the plug is removed, which can be implemented using a spring terminal in a jack. For this mode to function properly, short-circuit detection should be enabled and configured to power down the drivers if a shortcircuit is detected. The registers that control this functionality are in page 0, register 38, bits D2–D1. Differential Headphone Connector Assembly To Detection Block SW1 MIC2L/LINE2L/MICDET HPLOUT HPLCOM HPRCOM HPROUT Pwr Amp Pwr Amp Pwr Amp Pwr Amp B0245-02 Figure 27. Configuration of Device for Jack Detection Using a Fully Differential Stereo Headphone Output Connection Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 37 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11.4 Device Functional Modes 11.4.1 Bypass Path Mode The TLV320AIC3101 is a versatile device designed for low-power applications. In some cases, only a few features of the device are required. For these applications, the unused stages of the device must be powered down to save power and an alternate route should be used. This is called a bypass path. The bypass path modes let the device to save power by turning off unused stages, like ADC, DAC and PGA. 11.4.1.1 Analog Input Bypass Path Functionality The TLV320AIC3101 includes the additional ability to route some analog input signals past the integrated data converters, for mixing with other analog signals and then direct connection to the output drivers. This capability is useful in a cellphone, for example, when a separate FM radio device provides a stereo analog output signal that needs to be routed to headphones. The TLV320AIC3101 supports this in a low-power mode by providing a direct analog path through the device to the output drivers, while all ADCs and DACs can be completely powered down to save power. When programmed correctly, the device can pass the LINE2L and LINE2R signals directly to the output stage. 11.4.1.2 ADC PGA Signal Bypass Path Functionality In addition to the input bypass path described previously, the TLV320AIC3101 also includes the ability to route the ADC PGA output signals past the ADC, for mixing with other analog signals and then direct connection to the output drivers. These bypass functions are described in more detail in the sections on output mixing and output driver configurations. 11.4.1.3 Passive Analog Bypass During Power Down Programming the TLV320AIC3101 to passive analog bypass occurs by configuring the output stage switches for passthrough. This is done by opening switches SW-L0, SW-L3, SW-R0, and SW-R3 and closing either SW-L1 or SW-L2 and SW-R1 or SW-R2. See Figure 28. Programming this mode is done by writing to page 0, register 108. Connecting the MIC1LP/LINE1LP input signal to the LEFT_LOP pin is done by closing SW-L1 and opening SWL0; this action is done by writing a 1 to page 0, register 108, bit D0. Connecting the MIC2LP/LINE2LP input signal to the LEFT_LOP pin is done by closing SW-L2 and opening SW-L0; this action is done by writing a 1 to page 0, register 108, bit D2. Connecting the MIC1LM/LINE1LM input signal to the LEFT_LOM pin is done by closing SW-L4 and opening SW-L3; this action is done by writing a 1 to page 0, register 108, bit D1. Connecting the MIC1RP/LINE1RP input signal to the RIGHT_LOP pin is done by closing SW-R1 and opening SW-R0; this action is done by writing a 1 to page 0, register 108, bit D4. Connecting the MIC2RP/LINE2RP input signal to the RIGHT_LOP pin is done by closing SW-R2 and opening SW-R0; this action is done by writing a 1 to page 0, register 108, bit D6. Connecting MIC1RM/LINE1RM input signal to the RIGHT_LOM pin is done by closing SW-R4 and opening SW-R3; this action is done by writing a 1 to page 0, register 108, bit D5. A diagram of the passive analog bypass mode configuration is shown in Figure 28. In general, connecting two switches to the same output pin should be avoided, as this error shorts two input signals together, and would likely cause distortion of the signal as the two signals are in contention. Poor frequency response would also likely occur. 38 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Device Functional Modes (continued) LINE2L SW-L2 MIC2L/LINE2L/MICDET SW-L1 SW-L0 SW-L3 LINE1LP LEFT_LOP LEFT_LOM SW-L4 MIC1LP/LINE1LP MIC1LM/LINE1LM LINE1LM LINE2R SW-R2 MIC2R/LINE2R SW-R1 SW-R0 SW-R3 LINE1RP RIGHT_LOP RIGHT_LOM SW-R4 MIC1RP/LINE1RP MIC1RM/LINE1RM LINE1RM B0174-01 Figure 28. Passive Analog Bypass Mode Configuration 11.4.2 Digital Audio Processing for Record Path In applications where record-only is selected, and DAC is powered down, the playback path signal processing blocks can be used in the ADC record path. These filtering blocks can support high-pass, low-pass, band-pass or notch filtering. In this mode, the record-only path has switches SW-D1 through SW-D4 closed, and reroutes the ADC output data through the digital signal processing blocks. Because the DAC digital signal processing blocks are being re-used, naturally the addresses of these digital filter coefficients are the same as for the DAC digital processing and are located on page 1, registers 1–52. This record-only mode is enabled by powering down both DACs by writing to page 0, register 37, bits D7–D6 (D7 = D6 = 0). Next, enable the digital filter pathway for the ADC by writing a 1 to page 0, register 107, bit D3. (Note, this pathway is only enabled if both DACs are powered down.) This record-only path can be seen in Figure 29. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 39 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com BCLK WCLK DIN DOUT Device Functional Modes (continued) AGC DINR DINL DOUTL DOUTR Digital Audio Data Serial Interface DAC Powered Down Record Path SW-D2 Left-Channel Analog Inputs + PGA 0 dB–59.5 dB, 0.5-dB Steps Effects ADC Volume Control DAC L SW-D1 DAC Powered Down Record Path AGC SW-D4 Right-Channel Analog Inputs + PGA 0 dB–59.5 dB, 0.5-dB Steps Effects ADC SW-D3 Volume Control DAC R B0173-01 Figure 29. Record-Only Mode With Digital Processing Path Enabled 11.5 Programming 11.5.1 I2C Control Interface The TLV320AIC3101 supports the I2C control protocol using 7-bit addressing and is capable of both standard and fast modes. For I2C fast mode, note that the minimum timing for each of tHD-STA, tSU-STA, and tSU-STO is 0.9 μs, as seen in Figure 30. The TLV320AIC3101 responds to the I2C address of 001 1000. I2C is a two-wire, opendrain interface supporting multiple devices and masters on a single bus. Devices on the I2C bus only drive the bus lines LOW by connecting them to ground; they never drive the bus lines HIGH. Instead, the bus wires are pulled HIGH by pullup resistors, so the bus wires are HIGH when no device is driving them LOW. This way, two devices cannot conflict; if two devices drive the bus simultaneously, there is no driver contention. 40 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Programming (continued) SDA tHD-STA ³ 0.9 ms SCL tSU-STA ³ 0.9 ms tSU-STO ³ 0.9 ms tHD-STA ³ 0.9 ms S Sr P S T0114-02 2 Figure 30. I C Interface Timing Communication on the I2C bus always takes place between two devices, one acting as the master and the other acting as the slave. Both masters and slaves can read and write, but slaves can only do so under the direction of the master. Some I2C devices can act as masters or slaves, but the TLV320AIC3101 can only act as a slave device. An I2C bus consists of two lines, SDA and SCL. SDA carries data; SCL provides the clock. All data is transmitted across the I2C bus in groups of eight bits. To send a bit on the I2C bus, the SDA line is driven to the appropriate level while SCL is LOW (a LOW on SDA indicates the bit is zero; a HIGH indicates the bit is one). Once the SDA line has settled, the SCL line is brought HIGH, then LOW. This pulse on SCL clocks the SDA bit into the receiver shift register. The I2C bus is bidirectional: the SDA line is used both for transmitting and receiving data. When a master reads from a slave, the slave drives the data line; when a master sends to a slave, the master drives the data line. Under normal circumstances the master drives the clock line. Most of the time the bus is idle, no communication is taking place, and both lines are HIGH. When communication is taking place, the bus is active. Only master devices can start a communication. They do this by causing a START condition on the bus. Normally, the data line is only allowed to change state while the clock line is LOW. If the data line changes state while the clock line is HIGH, it is either a START condition or its counterpart, a STOP condition. A START condition is when the clock line is HIGH and the data line goes from HIGH to LOW. A STOP condition is when the clock line is HIGH and the data line goes from LOW to HIGH. After the master issues a START condition, it sends a byte that indicates which slave device it wants to communicate with. This byte is called the address byte. Each device on an I2C bus has a unique 7-bit address to which it responds. (Slaves can also have 10-bit addresses; see the I2C specification for details.) The master sends an address in the address byte, together with a bit that indicates whether it wishes to read from or write to the slave device. Every byte transmitted on the I2C bus, whether it is address or data, is acknowledged with an acknowledge bit. When a master has finished sending a byte (eight data bits) to a slave, it stops driving SDA and waits for the slave to acknowledge the byte. The slave acknowledges the byte by pulling SDA LOW. The master then sends a clock pulse to clock the acknowledge bit. Similarly, when a master has finished reading a byte, it pulls SDA LOW to acknowledge this to the slave. It then sends a clock pulse to clock the bit. A not-acknowledge is performed by simply leaving SDA HIGH during an acknowledge cycle. If a device is not present on the bus, and the master attempts to address it, it receives a not-acknowledge because no device is present at that address to pull the line LOW. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 41 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Programming (continued) When a master has finished communicating with a slave, it may issue a STOP condition. When a STOP condition is issued, the bus becomes idle again. A master may also issue another START condition. When a START condition is issued while the bus is active, it is called a repeated START condition. The TLV320AIC3101 also responds to and acknowledges a general call, which consists of the master issuing a command with a slave-address byte of 00h. SCL DA(6) SDA DA(0) 7-Bit Device Address (M) Start (M) RA(7) Write (M) RA(0) 8-Bit Register Address (M) Slave Ack (S) D(7) D(0) 8-Bit Register data (M) Slave Ack (S) Slave Ack (S) Stop (M) (M) – SDA Controlled by Master (S) – SDA Controlled by Slave T0147-01 2 Figure 31. I C Write SCL DA(6) SDA Start (M) DA(0) 7-Bit Device Address (M) RA(7) Write (M) Slave Ack (S) DA(6) RA(0) 8-Bit Register Address (M) Slave Ack (S) Repeat Start (M) DA(0) 7-Bit Device Address (M) D(7) Read (M) Slave Ack (S) D(0) 8-Bit Register Data (S) Master No Ack (M) Stop (M) (M) – SDA Controlled by Master (S) – SDA Controlled by Slave T0148-01 2 Figure 32. I C Read In the case of an I2C register write, if the master does not issue a STOP condition, then the device enters autoincrement mode. So in the next eight clocks, the data on SDA is treated as data for the next incremental register. Similarly, in the case of an I2C register read, after the device has sent out the 8-bit data from the addressed register, if the master issues an acknowledge, the slave takes over control of SDA bus and transmit for the next 8 clocks the data of the next incremental register. 11.5.2 I2C Bus Debug in a Glitched System Occasionally, some systems may encounter noise or glitches on the I2C bus. In the unlikely event that this affects bus performance, then it can be useful to use the I2C Debug register. This feature terminates the I2C bus error allowing this I2C device and system to resume communications. The I2C bus error detector is enabled by default. The TLV320AIC3101 I2C error detector status can be read from page 0, register 107, bit D0. If desired, the detector can be disabled by writing to page 0, register 107, bit D2. 42 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 11.6 Register Maps The register map of the TLV320AIC3101 actually consists of two pages of registers, with each page containing 128 registers. The register at address zero on each page is used as a page-control register, and writing to this register determines the active page for the device. All subsequent read/write operations access the page that is active at the time, unless a register write is performed to change the active page. The active page defaults to page 0 on device reset. For example, at device reset, the active page defaults to page 0, and thus all register read/write operations for addresses 1 to 127 access registers in page 0. If registers on page 1 must be accessed, the user must write the 8-bit sequence 0x01 to register 0, the page control register, to change the active page from page 0 to page 1. After this write, it is recommended that the user also read back the page control register, to ensure the change in page control has occurred properly. Future read/write operations to addresses 1 to 127 now access registers in page 1. When page-0 registers must be accessed again, the user writes the 8-bit sequence 0x00 to register 0, the page control register, to change the active page back to page 0. After a recommended read of the page control register, all further read/write operations to addresses 1 to 127 access page-0 registers again. The control registers for the TLV320AIC3101 are described in detail as follows. All registers are 8 bits in width, with D7 referring to the most-significant bit of each register, and D0 referring to the least-significant bit. Table 6. Page 0/Register 0: Page Select Register BIT (1) READ/ WRITE RESET VALUE D7–D1 X 0000 000 D0 R/W 0 (1) DESCRIPTION Reserved, write only zeros to these register bits Page Select Bit Writing zero to this bit sets page 0 as the active page for following register accesses. Writing a one to this bit sets page 1 as the active page for following register accesses. It is recommended that the user read this register bit back after each write, to ensure that the proper page is being accessed for future register read/writes. When resetting registers related to routing and volume controls of output drivers, it is recommended to reset them by writing directly to the registers instead of using software reset. Table 7. Page 0/Register 1: Software Reset Register BIT READ/ WRITE RESET VALUE D7 W 0 D6–D0 W 000 0000 DESCRIPTION Software Reset Bit 0 : Don’t care 1 : Self clearing software reset Reserved. Do not write to these bits. Table 8. Page 0/Register 2: Codec Sample Rate Select Register BIT READ/ WRITE RESET VALUE D7–D4 R/W 0000 (1) DESCRIPTION ADC Sample Rate Select (1) 0000: ADC fS = fS(ref)/1 0001: ADC fS = fS(ref)/1.5 0010: ADC fS = fS(ref)/2 0011: ADC fS = fS(ref)/2.5 0100: ADC fS = fS(ref)/3 0101: ADC fS = fS(ref)/3.5 0110: ADC fS = fS(ref)/4 0111: ADC fS = fS(ref)/4.5 1000: ADC fS = fS(ref)/5 1001: ADC fS = fS(ref)/5.5 1010: ADC fS = fS(ref)/6 1011–1111: Reserved. Do not write these sequences. In the TLV320AIC3101, the ADC fS must be set equal to the DAC fS. This is done by setting the value of bits D7–D4 equal to the value of bits D3–D0. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 43 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 8. Page 0/Register 2: Codec Sample Rate Select Register (continued) BIT READ/ WRITE RESET VALUE D3–D0 R/W 0000 DESCRIPTION DAC Sample Rate Select (1) 0000: DAC fS = fS(ref)/1 0001: DAC fS = fS(ref)/1.5 0010: DAC fS = fS(ref)/2 0011: DAC fS = fS(ref)/2.5 0100: DAC fS = fS(ref)/3 0101: DAC fS = fS(ref)/3.5 0110: DAC fS = fS(ref)/4 0111: DAC fS = fS(ref)/4.5 1000: DAC fS = fS(ref)/5 1001: DAC fS = fS(ref)/5.5 1010: DAC fS = fS(ref)/6 1011–1111 : Reserved. Do not write these sequences. Table 9. Page 0/Register 3: PLL Programming Register A BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D3 R/W 0010 PLL Q Value 0000: Q = 16 0001: Q = 17 0010: Q = 2 0011: Q = 3 0100: Q = 4 … 1110: Q = 14 1111: Q = 15 D2–D0 R/W 000 PLL P Value 000: P = 8 001: P = 1 010: P = 2 011: P = 3 100: P = 4 101: P = 5 110: P = 6 111: P = 7 44 DESCRIPTION PLL Control Bit 0: PLL is disabled. 1: PLL is enabled. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 10. Page 0/Register 4: PLL Programming Register B BIT READ/ WRITE RESET VALUE D7–D2 R/W 0000 01 D1–D0 R/W 00 DESCRIPTION PLL J Value 0000 00: Reserved. Do not write this sequence. 0000 01: J = 1 0000 10: J = 2 0000 11: J = 3 … 1111 10: J = 62 1111 11: J = 63 Reserved, write only zeros to these bits Table 11. Page 0/Register 5: PLL Programming Register C (1) BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 (1) DESCRIPTION PLL D Value. Eight most-significant bits of a 14-bit unsigned integer valid values for D are from zero to 9999, represented by a 14-bit integer located in page 0, registers 5–6. Values should not be written into these registers that would result in a D value outside the valid range. Note that whenever the D value is changed, register 5 should be written, immediately followed by register 6. Even if only the MSB or LSB of the value changes, both registers should be written. Table 12. Page 0/Register 6: PLL Programming Register D BIT READ/ WRITE RESET VALUE D7–D2 R/W 0000 00 D1–D0 R 00 DESCRIPTION PLL D Value. Six least-significant bits of a 14-bit unsigned integer valid values for D are from zero to 9999, represented by a 14-bit integer located in page 0, registers 5–6. Values should not be written into these registers that would result in a D value outside the valid range. Reserved, write only zeros to these bits. Table 13. Page 0/Register 7: Codec Data-Path Setup Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 fS(ref) Setting This register setting controls timers related to the AGC time constants. 0: fS(ref) = 48 kHz 1: fS(ref) = 44.1 kHz D6 R/W 0 ADC Dual-Rate Control 0: ADC dual-rate mode is disabled. 1: ADC dual-rate mode is enabled. Note: ADC dual-rate mode must match DAC dual-rate mode. D5 R/W 0 DAC Dual-Rate Control 0: DAC dual-rate mode is disabled. 1: DAC dual-rate mode is enabled. D4–D3 R/W 00 Left-DAC Data Path Control 00: Left-DAC data path is off (muted). 01: Left-DAC data path plays left-channel input data. 10: Left-DAC data path plays right-channel input data. 11: Left-DAC data path plays mono mix of left- and right-channel input data. D2–D1 R/W 00 Right-DAC Data-Path Control 00: Right-DAC data path is off (muted). 01: Right-DAC data path plays right-channel input data. 10: Right-DAC data path plays left-channel input data. 11: Right-DAC data path plays mono mix of left- and right-channel input data. D0 R/W 0 Reserved. Only write zero to this register. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 45 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 14. Page 0/Register 8: Audio Serial Data Interface Control Register A BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 Bit Clock Directional Control 0: BCLK is an input (slave mode). 1: BCLK is an output (master mode). D6 R/W 0 Word Clock Directional Control 0: WCLK is an input (slave mode). 1: WCLK is an output (master mode). D5 R/W 0 Serial Output Data Driver (DOUT) 3-State Control 0: Do not place DOUT in high-impedance state when valid data is not being sent. 1: Place DOUT in high-impedance state when valid data is not being sent. D4 R/W 0 Bit/Word Clock Drive Control 0: BCLK/WCLK does not continue to be transmitted when running in master mode if codec is powered down. 1: BCLK/WCLK continues to be transmitted when running in master mode, even if codec is powered down. D3 R/W 0 Reserved. Do not write to this bit. D2 R/W 0 3-D Effect Control 0: Disables 3-D digital effect processing 1: Enables 3-D digital effect processing D1–D0 R/W 00 Reserved. Only write 00 to these bits. Table 15. Page 0/Register 9: Audio Serial Data Interface Control Register B BIT READ/ WRITE RESET VALUE D7–D6 R/W 00 Audio Serial Data Interface Transfer Mode 00: Serial data bus uses I2S mode. 01: Serial data bus uses DSP mode. 10: Serial data bus uses right-justified mode. 11: Serial data bus uses left-justified mode. D5–D4 R/W 00 Audio Serial Data Word Length Control 00: Audio data word length = 16 bits 01: Audio data word length = 20 bits 10: Audio data word length = 24 bits 11: Audio data word length = 32 bits D3 R/W 0 Bit Clock Rate Control This register only has effect when bit clock is programmed as an output. 0: Continuous-transfer mode used to determine master mode bit clock rate 1: 256-clock transfer mode used, resulting in 256 bit clocks per frame D2 R/W 0 DAC Re-Sync 0: Don’t care 1: Re-sync stereo DAC with codec interface if the group delay changes by more than ±DAC (fS/4). D1 R/W 0 ADC Re-Sync 0: Don’t care 1: Re-sync stereo ADC with codec interface if the group delay changes by more than ±ADC (fS/4). D0 R/W 46 DESCRIPTION Re-Sync Mute Behavior 0: Re-sync is done without soft-muting the channel (ADC/DAC). 1: Re-sync is done by internally soft-muting the channel (ADC/DAC). Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 16. Page 0/Register 10: Audio Serial Data Interface Control Register C BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D0 R/W 0000 0000 Audio Serial Data Word Offset Control This register determines where valid data is placed or expected in each frame, by controlling the offset from beginning of the frame where valid data begins. The offset is measured from the rising edge of word clock when in DSP mode. 0000 0000: Data offset = 0 bit clocks 0000 0001: Data offset = 1 bit clock 0000 0010: Data offset = 2 bit clocks … Note: In continuous transfer mode, the maximum offset is 17 for I2S/LJF/RJF modes and 16 for DSP mode. In 256-clock mode, the maximum offset is 242 for I2S/LJF/RJF and 241 for DSP modes. 1111 1110: Data offset = 254 bit clocks 1111 1111: Data offset = 255 bit clocks BIT READ/ WRITE RESET VALUE D7 R 0 Left-ADC Overflow Flag This is a sticky bit, which stays set if an overflow occurs, even if the overflow condition is removed. The register bit is reset to 0 after it is read. 0: No overflow has occurred. 1: An overflow has occurred. D6 R 0 Right-ADC Overflow Flag This is a sticky bit, which stays set if an overflow occurs, even if the overflow condition is removed. The register bit is reset to 0 after it is read. 0: No overflow has occurred. 1: An overflow has occurred. D5 R 0 Left-DAC Overflow Flag This is a sticky bit, which stays set if an overflow occurs, even if the overflow condition is removed. The register bit is reset to 0 after it is read. 0: No overflow has occurred. 1: An overflow has occurred. D4 R 0 Right-DAC Overflow Flag This is a sticky bit, which stays set if an overflow occurs, even if the overflow condition is removed. The register bit is reset to 0 after it is read. 0: No overflow has occurred. 1: An overflow has occurred. D3–D0 R/W 0001 Table 17. Page 0/Register 11: Audio Codec Overflow Flag Register DESCRIPTION PLL R Value 0000: R = 16 0001: R = 1 0010: R = 2 0011: R = 3 0100: R = 4 … 1110: R = 14 1111: R = 15 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 47 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 18. Page 0/Register 12: Audio Codec Digital Filter Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D6 R/W 00 Left-ADC High-Pass Filter Control 00: Left-ADC high-pass filter disabled 01: Left-ADC high-pass filter –3-dB frequency = 0.0045 × ADC fS 10: Left-ADC high-pass filter –3-dB frequency = 0.0125 × ADC fS 11: Left-ADC high-pass filter –3-dB frequency = 0.025 × ADC fS D5–D4 R/W 00 Right-ADC High-Pass Filter Control 00: Right-ADC high-pass filter disabled 01: Right-ADC high-pass filter –3-dB frequency = 0.0045 × ADC fS 10: Right-ADC high-pass filter –3-dB frequency = 0.0125 × ADC fS 11: Right-ADC high-pass filter –3-dB frequency = 0.025 × ADC fS D3 R/W 0 Left-DAC Digital Effects Filter Control 0: Left-DAC digital effects filter disabled (bypassed) 1: Left-DAC digital effects filter enabled D2 R/W 0 Left-DAC De-Emphasis Filter Control 0: Left-DAC de-emphasis filter disabled (bypassed) 1: Left-DAC de-emphasis filter enabled D1 R/W 0 Right-DAC Digital Effects Filter Control 0: Right-DAC digital effects filter disabled (bypassed) 1: Right-DAC digital effects filter enabled D0 R/W 0 Right-DAC De-Emphasis Filter Control 0: Right-DAC de-emphasis filter disabled (bypassed) 1: Right-DAC de-emphasis filter enabled Table 19. Page 0/Register 13: Reserved BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 48 DESCRIPTION Reserved. Write only 0000 0000 to this register. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 20. Page 0/Register 14: Headset/Button Press Detection Register B BIT READ/ WRITE RESET VALUE D7 R/W 0 Driver Capacitive Coupling 0: Programs high-power outputs for capless driver configuration 1: Programs high-power outputs for ac-coupled driver configuration D6 (1) R/W 0 Stereo Output Driver Configuration A Note: Do not set bits D6 and D3 both high at the same time. 0: A stereo fully differential output configuration is not being used 1: A stereo fully differential output configuration is being used D5 R 0 Reserved. Write only zero to this bit. D4 R 0 Headset Detection Flag 0: A headset has not been detected. 1: A headset has been detected. D3 (1) R/W 0 Stereo Output Driver Configuration B Note: Do not set bits D6 and D3 both high at the same time. 0: A stereo pseudodifferential output configuration is not being used. 1: A stereo pseudodifferential output configuration is being used. D2–D0 R 000 (1) DESCRIPTION Reserved. Write only zeros to these bits. Do not set D6 and D3 to 1 simultaneously. Table 21. Page 0/Register 15: Left-ADC PGA Gain Control Register BIT READ/ WRITE RESET VALUE D7 R/W 1 D6–D0 R/W 000 0000 DESCRIPTION Left-ADC PGA Mute 0: The left-ADC PGA is not muted. 1: The left-ADC PGA is muted. Left-ADC PGA Gain Setting 000 0000: Gain = 0 dB 000 0001: Gain = 0.5 dB 000 0010: Gain = 1 dB … 111 0110: Gain = 59 dB 111 0111: Gain = 59.5 dB 111 1000: Gain = 59.5 dB … 111 1111: Gain = 59.5 dB Table 22. Page 0/Register 16: Right-ADC PGA Gain Control Register BIT READ/ WRITE RESET VALUE D7 R/W 1 D6–D0 R/W 000 0000 DESCRIPTION Right-ADC PGA Mute 0: The right ADC PGA is not muted. 1: The right ADC PGA is muted. Right-ADC PGA Gain Setting 000 0000: Gain = 0 dB 000 0001: Gain = 0.5 dB 000 0010: Gain = 1 dB … 111 0110: Gain = 59 dB 111 0111: Gain = 59.5 dB 111 1000: Gain = 59.5 dB … 111 1111: Gain = 59.5 dB Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 49 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 23. Page 0/Register 17: MIC2L/R to Left-ADC Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D4 R/W 1111 MIC2L/LINE2L Input Level Control for Left-ADC PGA Mix Setting the input level control to one of the following gains automatically connects MIC3L to the left-ADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: MIC2L/LINE2L is not connected to the left-ADC PGA. D3–D0 R/W 1111 MIC2R/LINE2R Input Level Control for Left-ADC PGA Mix Setting the input level control to one of the following gains automatically connects MIC3R to the left-ADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: MIC2R/LINE2R is not connected to the left-ADC PGA. Table 24. Page 0/Register 18: MIC2/LINE2 to Right-ADC Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D4 R/W 1111 MIC2L/LINE2L Input Level Control for Right -DC PGA Mix Setting the input level control to one of the following gains automatically connects MIC3L to the right-ADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: MIC2L/LINE2L is not connected to the right-ADC PGA. D3–D0 R/W 1111 MIC2R/LINE2R Input Level Control for Right-ADC PGA Mix Setting the input level control to one of the following gains automatically connects MIC3R to the right-ADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: MIC2R/LINE2R is not connected to right-ADC PGA. 50 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 25. Page 0/Register 19: MIC1LP/LINE1LP to Left-ADC Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 MIC1LP/LINE1LP Single-Ended vs Fully Differential Control. If MIC1LP/LINE1LP is selected to both leftand right-ADC channels, both connections must use the same configuration (single-ended or fully differential mode). 0: MIC1LP/LINE1LP is configured in single-ended mode. 1: MIC1LP/LINE1LP and MIC1LM/LINE1LM are configured in fully differential mode. D6–D3 R/W 1111 MIC1LP/LINE1LP Input Level Control for Left-ADC PGA Mix Setting the input level control to one of the following gains automatically connects LINE1L to the left-ADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: LINE1L is not connected to the left-ADC PGA. D2 R/W 0 Left-ADC Channel Power Control 0: Left-ADC channel is powered down. 1: Left-ADC channel is powered up. D1–D0 R/W 00 Left-ADC PGA Soft-Stepping Control 00: Left-ADC PGA soft-stepping at once per fS 01: Left-ADC PGA soft-stepping at once per two fS 10–11: Left-ADC PGA soft-stepping is disabled. Table 26. Page 0/Register 20: Left Channel Analog Inputs to CM Connection Register BIT READ/ WRITE RESET VALUE D7–D3 R 0111 1 DESCRIPTION Reserved, Write only 01111 D2 0 0 = Disable the mode to connect unselected analog inputs for left channel to CM 1 = Enable the mode to connect unselected analog inputs for left channel to CM D1–D0 00 Reserved. Write only 00. Table 27. Page 0/Register 21: MIC1RP/LINE1RP to Left-ADC Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 MIC1RP/LINE1RP Single-Ended vs Fully Differential Control. If MIC1RP/LINE1RP is selected to both leftand right-ADC channels, both connections must use the same configuration (single-ended or fully differential mode). 0: MIC1RP/LINE1RP is configured in single-ended mode. 1: MIC1RP/LINE1RP and MIC1RM/LINE1RM are configured in fully differential mode. D6–D3 R/W 1111 MIC1RP/LINE1RP Input Level Control for Left-ADC PGA Mix Setting the input level control to one of the following gains automatically connects LINE1R to the left-ADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: LINE1R is not connected to the left-ADC PGA. D2–D0 R 000 Reserved. Write only zeros to these bits. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 51 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 28. Page 0/Register 22: MIC1RP/LINE1RP to Right-ADC Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 MIC1RP/LINE1RP Single-Ended vs Fully Differential Control. If MIC1RP/LINE1RP is selected to both leftand right-ADC channels, both connections must use the same configuration (single-ended or fully differential mode). 0: MIC1RP/LINE1RP is configured in single-ended mode. 1: MIC1RP/LINE1RP and MIC1RM/LINE1RM are configured in fully differential mode. D6–D3 R/W 1111 D2 R/W 0 Right-ADC Channel Power Control 0: Right-ADC channel is powered down. 1: Right-ADC channel is powered up. D1–D0 R/W 00 Right-ADC PGA Soft-Stepping Control 00: Right-ADC PGA soft-stepping at once per sample period 01: Right-ADC PGA soft-stepping at once per two sample periods 10–11: Right-ADC PGA soft-stepping is disabled. MIC1RP/LINE1RP Input Level Control for Right-ADC PGA Mix Setting the input level control to one of the following gains automatically connects LINE1R to the rightADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: LINE1R is not connected to the right-ADC PGA. Table 29. Page 0/Register 23: Right Channel Analog Inputs to CM Connection Register BIT READ/ WRITE RESET VALUE D7–D3 R/W 0111 1 DESCRIPTION Reserved, Write only 01111 D2 0 0 = Disable the mode to connect unselected analog inputs for right channel to CM 1 = Enable the mode to connect unselected analog inputs for right channel to CM D1–D0 00 Reserved. Write only 00. Table 30. Page 0/Register 24: MIC1LP/LINE1LP to Right-ADC Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D3 R/W 1111 MIC1LP/LINE1LP Input Level Control for Right-ADC PGA Mix Setting the input level control to one of the following gains automatically connects LINE1L to the rightADC PGA mix. 0000: Input level control gain = 0 dB 0001: Input level control gain = –1.5 dB 0010: Input level control gain = –3 dB 0011: Input level control gain = –4.5 dB 0100: Input level control gain = –6 dB 0101: Input level control gain = –7.5 dB 0110: Input level control gain = –9 dB 0111: Input level control gain = –10.5 dB 1000: Input level control gain = –12 dB 1001–1110: Reserved. Do not write these sequences. 1111: LINE1L is not connected to the right-ADC PGA. D2–D0 R 000 Reserved. Write only zeros to these register bits. 52 DESCRIPTION MIC1LP/LINE1LP Single-Ended vs Fully Differential Control. If MIC1LP/LINE1LP is selected to both leftand right-ADC channels, both connections must use the same configuration (single-ended or fully differential mode). 0: MIC1LP/LINE1LP is configured in single-ended mode. 1: MIC1LP/LINE1LP and MIC1LM/LINE1LM are configured in fully differential mode. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 31. Page 0/Register 25: MICBIAS Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D6 R/W 00 MICBIAS Level Control 00: MICBIAS output is powered down. 01: MICBIAS output is powered to 2 V. 10: MICBIAS output is powered to 2.5 V. 11: MICBIAS output is connected to AVDD D5–D3 R 000 Reserved. Write only zeros to these bits. D2–D0 R XXX Reserved. Write only zeros to these bits. Table 32. Page 0/Register 26: Left-AGC Control Register A BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D4 R/W 000 DESCRIPTION Left-AGC Enable 0: Left AGC is disabled. 1: Left AGC is enabled. Left-AGC Target Level 000: Left-AGC target level 001: Left-AGC target level 010: Left-AGC target level 011: Left-AGC target level 100: Left-AGC target level 101: Left-AGC target level 110: Left-AGC target level 111: Left-AGC target level = –5.5 dB = –8 dB = –10 dB = –12 dB = –14 dB = –17 dB = –20 dB = –24 dB D3–D2 R/W 00 Left-AGC Attack Time These time constants (1) are not accurate when double-rate audio mode is enabled. 00: Left-AGC attack time = 8 ms 01: Left-AGC attack time = 11 ms 10: Left-AGC attack time = 16 ms 11: Left-AGC attack time = 20 ms D1–D0 R/W 00 Left-AGC Decay Time These time constants (1) are not accurate when double-rate audio mode is enabled. 00: Left-AGC decay time = 100 ms 01: Left-AGC decay time = 200 ms 10: Left-AGC decay time = 400 ms 11: Left-AGC decay time = 500 ms (1) Time constants are valid when DRA is not enabled. The values would change if DRA is enabled. Table 33. Page 0/Register 27: Left-AGC Control Register B BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D1 R/W 1111 111 Left-AGC Maximum Gain Allowed 0000 000: Maximum gain = 0 dB 0000 001: Maximum gain = 0.5 dB 0000 010: Maximum gain = 1 dB … 1110 110: Maximum gain = 59 dB 1110 111–111 111: Maximum gain = 59.5 dB D0 R/W 0 Reserved. Write only zero to this register bit. Table 34. Page 0/Register 28: Left-AGC Control Register C BIT READ/ WRITE RESET VALUE D7–D6 R/W 00 DESCRIPTION Noise Gate Hysteresis Level Control 00: Hysteresis = 1 dB 01: Hysteresis = 2 dB 10: Hysteresis = 3 dB 11: Hysteresis is disabled Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 53 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 34. Page 0/Register 28: Left-AGC Control Register C (continued) BIT READ/ WRITE RESET VALUE D5–D1 R/W 00 000 D0 R/W 0 DESCRIPTION Left-AGC Noise Threshold Control 00 000: Left-AGC noise/silence detection disabled 00 001: Left-AGC noise threshold = –30 dB 00 010: Left-AGC noise threshold = –32 dB 00 011: Left-AGC noise threshold = –34 dB … 11 101: Left-AGC noise threshold = –86 dB 11 110: Left-AGC noise threshold = –88 dB 11 111: Left-AGC noise threshold = –90 dB Left-AGC Clip Stepping Control 0: Left-AGC clip stepping is disabled. 1: Left-AGC clip stepping is enabled. Table 35. Page 0/Register 29: Right-AGC Control Register A BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D4 R/W 000 DESCRIPTION Right-AGC Enable 0: Right AGC is disabled. 1: Right AGC is enabled. Right-AGC Target Level 000: Right-AGC target level 001: Right-AGC target level 010: Right-AGC target level 011: Right-AGC target level 100: Right-AGC target level 101: Right-AGC target level 110: Right-AGC target level 111: Right-AGC target level = = = = = = = = –5.5 dB –8 dB –10 dB –12 dB –14 dB –17 dB –20 dB –24 dB D3–D2 R/W 00 Right-AGC Attack Time These time constants are not accurate when double-rate audio mode is enabled. 00: Right-AGC attack time = 8 ms 01: Right-AGC attack time = 11 ms 10: Right-AGC attack time = 16 ms 11: Right-AGC attack time = 20 ms D1–D0 R/W 00 Right-AGC Decay Time These time constants are not accurate when double-rate audio mode is enabled. 00: Right-AGC decay time = 100 ms 01: Right-AGC decay time = 200 ms 10: Right-AGC decay time = 400 ms 11: Right-AGC decay time = 500 ms Table 36. Page 0/Register 30: Right-AGC Control Register B BIT READ/ WRITE RESET VALUE D7–D1 R/W 1111 111 D0 R/W 0 54 DESCRIPTION Right-AGC Maximum Gain Allowed 0000 000: Maximum gain = 0 dB 0000 001: Maximum gain = 0.5 dB 0000 010: Maximum gain = 1 dB … 1110 110: Maximum gain = 59 dB 1110 111–1111 111: Maximum gain = 59.5 dB Reserved. Write only zero to this register bit. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 37. Page 0/Register 31: Right-AGC Control Register C BIT READ/ WRITE RESET VALUE D7–D6 R/W 00 D5–D1 R/W 00 000 D0 R/W 0 DESCRIPTION Noise Gate Hysteresis Level Control 00: Hysteresis = 1 dB 01: Hysteresis = 2 dB 10: Hysteresis = 3 dB 11: Hysteresis is disabled. Right-AGC Noise Threshold Control 00 000: Right-AGC noise/silence detection disabled 00 001: Right-AGC noise threshold = –30 dB 00 010: Right-AGC noise threshold = –32 dB 00 011: Right-AGC noise threshold = –34 dB … 11 101: Right-AGC noise threshold = –86 dB 11 110: Right-AGC noise threshold = –88 dB 11 111: Right-AGC noise threshold = –90 dB Right-AGC Clip Stepping Control 0: Right-AGC clip stepping is disabled. 1: Right-AGC clip stepping is enabled. Table 38. Page 0/Register 32: Left-AGC Gain Register BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Left-Channel Gain Applied by AGC Algorithm 1110 1000: Gain = –12.0-dB 1110 1001: Gain = –11.5-dB 1110 1010: Gain = –11.0-dB … 0000 0000: Gain = 0.0-dB 0000 0001: Gain = +0.5-dB … 0111 0110: Gain = +59.0-dB 0111 0111: Gain = +59.5-dB Table 39. Page 0/Register 33: Right-AGC Gain Register BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Right-Channel Gain Applied by AGC Algorithm 1110 1000: Gain = –12.0-dB 1110 1001: Gain = –11.5-dB 1110 1010: Gain = –11.0-dB … 0000 0000: Gain = 0.0-dB 0000 0001: Gain = +0.5-dB … 0111 0110: Gain = +59.0-dB 0111 0111: Gain = +59.5-dB Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 55 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 40. Page 0/Register 34: Left-AGC Noise Gate Debounce Register BIT READ/ WRITE RESET VALUE D7–D3 R/W 0000 0 Left-AGC Noise Detection Debounce Control These times (1) are not accurate when double-rate audio mode is enabled. 0000 0: Debounce = 0 ms 0000 1: Debounce = 0.5 ms 0001 0: Debounce = 1 ms 0001 1: Debounce = 2 ms 0010 0: Debounce = 4 ms 0010 1: Debounce = 8 ms 0011 0: Debounce = 16 ms 0011 1: Debounce = 32 ms 0100 0: Debounce = 64 × 1 = 64 ms 0100 1: Debounce = 64 × 2 = 128 ms 0101 0: Debounce = 64 × 3 = 192 ms … 1111 0: Debounce = 64 × 23 = 1472 ms 1111 1: Debounce = 64 × 24 = 1536 ms D2–D0 R/W 000 Left-AGC Signal Detection Debounce Control These times (1) are not accurate when double-rate audio mode is enabled. 000: Debounce = 0 ms 001: Debounce = 0.5 ms 010: Debounce = 1 ms 011: Debounce = 2 ms 100: Debounce = 4 ms 101: Debounce = 8 ms 110: Debounce = 16 ms 111: Debounce = 32 ms (1) DESCRIPTION Time constants are valid when DRA is not enabled. The values change when DRA is enabled. Table 41. Page 0/Register 35: Right-AGC Noise Gate Debounce Register BIT READ/ WRITE RESET VALUE D7–D3 R/W 0000 0 Right-AGC Noise Detection Debounce Control These times (1) are not accurate when double-rate audio mode is enabled. 0000 0: Debounce = 0 ms 0000 1: Debounce = 0.5 ms 0001 0: Debounce = 1 ms 0001 1: Debounce = 2 ms 0010 0: Debounce = 4 ms 0010 1: Debounce = 8 ms 0011 0: Debounce = 16 ms 0011 1: Debounce = 32 ms 0100 0: Debounce = 64 × 1 = 64 ms 0100 1: Debounce = 64 × 2 = 128 ms 0101 0: Debounce = 64 × 3 = 192 ms … 1111 0: Debounce = 64 × 23 = 1472 ms 1111 1: Debounce = 64 × 24 = 1536 ms D2–D0 R/W 000 Right-AGC Signal Detection Debounce Control These times (1) are not accurate when double-rate audio mode is enabled. 000: Debounce = 0 ms 001: Debounce = 0.5 ms 010: Debounce = 1 ms 011: Debounce = 2 ms 100: Debounce = 4 ms 101: Debounce = 8 ms 110: Debounce = 16 ms 111: Debounce = 32 ms (1) 56 DESCRIPTION Time constants are valid when DRA is not enabled. The values would change when DRA is enabled. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 42. Page 0/Register 36: ADC Flag Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R 0 Left-ADC PGA Status 0: Applied gain and programmed gain are not the same. 1: Applied gain = programmed gain D6 R 0 Left-ADC Power Status 0: Left ADC is in a power-down state. 1: Left ADC is in a power-up state. D5 R 0 Left-AGC Signal Detection Status 0: Signal power is greater than or equal to noise threshold. 1: Signal power is less than noise threshold. D4 R 0 Left-AGC Saturation Flag 0: Left AGC is not saturated. 1: Left-AGC gain applied = maximum allowed gain for left AGC D3 R 0 Right-ADC PGA Status 0: Applied gain and programmed gain are not the same. 1: Applied gain = programmed gain D2 R 0 Right-ADC Power Status 0: Right ADC is in a power-down state. 1: Right ADC is in a power-up state. D1 R 0 Right-AGC Signal Detection Status 0: Signal power is greater than or equal to noise threshold. 1: Signal power is less than noise threshold. D0 R 0 Right-AGC Saturation Flag 0: Right AGC is not saturated. 1: Right-AGC gain applied = maximum allowed gain for right AGC Table 43. Page 0/Register 37: DAC Power and Output Driver Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 Left-DAC Power Control 0: Left DAC is not powered up. 1: Left DAC is powered up. D6 R/W 0 Right-DAC Power Control 0: Right DAC is not powered up. 1: Right DAC is powered up. D5–D4 R/W 00 HPLCOM Output Driver Configuration Control 00: HPLCOM is configured as differential of HPLOUT. 01: HPLCOM is configured as constant VCM output. 10: HPLCOM is configured as independent single-ended output. 11: Reserved. Do not write this sequence. D3–D0 R 000 Reserved. Write only zeros to these bits. Table 44. Page 0/Register 38: High-Power Output Driver Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D6 R 00 Reserved. Write only zeros to these bits. D5–D3 R/W 000 HPRCOM Output Driver Configuration Control 000: HPRCOM is configured as differential of HPROUT. 001: HPRCOM is configured as constant VCM output. 010: HPRCOM is configured as independent single-ended output. 011: HPRCOM is configured as differential of HPLCOM. 100: HPRCOM is configured as external feedback with HPLCOM as constant VCM output. 101–111: Reserved. Do not write these sequences. D2 R/W 0 Short-Circuit Protection Control 0: Short-circuit protection on all high-power output drivers is disabled. 1: Short-circuit protection on all high-power output drivers is enabled. D1 R/W 0 Short-Circuit Protection Mode Control Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 57 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 44. Page 0/Register 38: High-Power Output Driver Control Register (continued) BIT D0 READ/ WRITE R RESET VALUE 0 DESCRIPTION 0: If short-circuit protection is enabled, it limits the maximum current to the load. 1: If short-circuit protection is enabled, it powers down the output driver automatically when a short is detected. Reserved. Write only zero to this bit. Table 45. Page 0/Register 39: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 46. Page 0/Register 40: High-Power Output Stage Control Register BIT READ/ WRITE RESET VALUE D7–D6 R/W 00 D5–D2 R/W 0000 D1–D0 R/W 00 DESCRIPTION Output Common-Mode Voltage Control 00: Output common-mode voltage = 1.35 V 01: Output common-mode voltage = 1.5 V 10: Output common-mode voltage = 1.65 V 11: Output common-mode voltage = 1.8 V Reserved. Write only zeros to these bits. Output Volume Control Soft-Stepping 00: Output soft-stepping = one step per fS 01: Output soft-stepping = one step per 2 fS 10: Output soft-stepping is disabled. 11: Reserved. Do not write this sequence. Table 47. Page 0/Register 41: DAC Output Switching Control Register BIT READ/ WRITE RESET VALUE D7–D6 R/W 00 Left-DAC Output Switching Control 00: Left-DAC output selects DAC_L1 path. 01: Left-DAC output selects DAC_L3 path to left line output driver. 10: Left-DAC output selects DAC_L2 path to left high-power output drivers. 11: Reserved. Do not write this sequence. D5–D4 R/W 00 Right-DAC Output Switching Control 00: Right-DAC output selects DAC_R1 path. 01: Right-DAC output selects DAC_R3 path to right line output driver. 10: Right-DAC output selects DAC_R2 path to right high-power output drivers. 11: Reserved. Do not write this sequence. D3–D2 R/W 00 Reserved. Write only zeros to these bits. D1–D0 R/W 00 DAC Digital Volume Control Functionality 00: Left- and right-DAC channels have independent volume controls. 01: Left-DAC volume follows the right-DAC digital volume control register. 10: Right-DAC volume follows the left-DAC digital volume control register. 11: Left- and right-DAC channels have independent volume controls (same as 00). 58 DESCRIPTION Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 48. Page 0/Register 42: Output Driver Pop Reduction Register BIT READ/ WRITE RESET VALUE D7–D4 R/W 0000 D3–D2 R/W 00 Driver Ramp-Up Step Timing Control 00: Driver ramp-up step time = 0 ms 01: Driver ramp-up step time = 1 ms 10: Driver ramp-up step time = 2 ms 11: Driver ramp-up step time = 4 ms D1 R/W 0 Weak Output Common-Mode Voltage Control D0 R/W 0 BIT READ/ WRITE RESET VALUE D7 R/W 1 D6–D0 R/W 000 0000 DESCRIPTION Output Driver Power-On Delay Control 0000: Driver power-on time = 0 μs 0001: Driver power-on time = 10 μs 0010: Driver power-on time = 100 μs 0011: Driver power-on time = 1 ms 0100: Driver power-on time = 10 ms 0101: Driver power-on time = 50 ms 0110: Driver power-on time = 100 ms 0111: Driver power-on time = 200 ms 1000: Driver power-on time = 400 ms 1001: Driver power-on time = 800 ms 1010: Driver power-on time = 2 s 1011: Driver power-on time = 4 s 1100–1111: Reserved. Do not write these sequences. 0: Weakly driven output common-mode voltage is generated from resistor divider off the AVDD supply. 1: Weakly driven output common-mode voltage is generated from band-gap reference. Reserved. Write only zero to this bit. Table 49. Page 0/Register 43: Left-DAC Digital Volume Control Register DESCRIPTION Left-DAC Digital Mute 0: The left-DAC channel is not muted. 1: The left-DAC channel is muted. Left-DAC Digital Volume Control Setting 000 0000: Gain = 0 dB 000 0001: Gain = –0.5 dB 000 0010: Gain = –1 dB … 111 1101: Gain = –62.5 dB 111 1110: Gain = –63 dB 111 1111: Gain = –63.5 dB Table 50. Page 0/Register 44: Right-DAC Digital Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 1 D6–D0 R/W 000 0000 DESCRIPTION Right-DAC Digital Mute 0: The right-DAC channel is not muted. 1: The right-DAC channel is muted. Right-DAC Digital Volume Control Setting 000 0000: Gain = 0 dB 000 0001: Gain = –0.5 dB 000 0010: Gain = –1 dB … 111 1101: Gain = –62.5 dB 111 1110: Gain = –63 dB 111 1111: Gain = –63.5 dB Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 59 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 11.7 Output Stage Volume Controls A basic analog volume control with range from 0 dB to –78 dB and mute is replicated multiple times in the output stage network, connected to each of the analog signals that route to the output stage. In addition, to enable completely independent mixing operations to be performed for each output driver, each analog signal coming into the output stage may have up to seven separate volume controls. These volume controls all have approximately 0.5-dB step programmability over most of the gain range, with steps increasing slightly at the lowest attenuations. Table 51 lists the detailed gain versus programmed setting for this basic volume control. Table 51. Output Stage Volume Control Settings and Gains Gain Setting Analog Gain (dB) Gain Setting Analog Gain (dB) Gain Setting Analog Gain (dB) Gain Setting Analog Gain (dB) 0 0 0 30 60 –30.1 90 –45.2 1 –0.5 31 –15.5 61 –30.6 91 –45.8 2 –1 32 –16 62 –31.1 92 –46.2 3 –1.5 33 –16.5 63 –31.6 93 –46.7 4 –2 34 –17 64 –32.1 94 –47.4 5 –2.5 35 –17.5 65 –32.6 95 –47.9 6 –3 36 –18 66 –33.1 96 –48.2 7 –3.5 37 –18.6 67 –33.6 97 –48.7 8 –4 38 –19.1 68 –34.1 98 –49.3 9 –4.5 39 –19.6 69 –34.6 99 10 –5 40 –20.1 70 –35.1 100 –50.3 11 –5.5 41 –20.6 71 –35.7 101 –51 12 –6 42 –21.1 72 –36.1 102 –51.4 13 –6.5 43 –21.6 73 –36.7 103 –51.8 14 –7 44 –22.1 74 –37.1 104 –52.2 15 –7.5 45 –22.6 75 –37.7 105 –52.7 16 –8 46 –23.1 76 –38.2 106 –53.7 17 –8.5 47 –23.6 77 –38.7 107 –54.2 18 –9 48 –24.1 78 –39.2 108 –55.3 19 –9.5 49 –24.6 79 –39.7 109 –56.7 –50 20 –10 50 –25.1 80 –40.2 110 –58.3 21 –10.5 51 –25.6 81 –40.7 111 –60.2 22 –11 52 –26.1 82 –41.2 112 –62.7 23 –11.5 53 –26.6 83 –41.7 113 –64.3 24 –12 54 –27.1 84 –42.2 114 –66.2 25 –12.5 55 –27.6 85 –42.7 115 –68.7 26 –13 56 –28.1 86 –43.2 116 –72.2 27 –13.5 57 –28.6 87 –43.8 117 –78.3 28 –14 58 –29.1 88 –44.3 118–127 Mute 29 –14.5 59 –29.6 89 –44.8 Table 52. Page 0/Register 45: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 60 DESCRIPTION Reserved. Do not write to this register. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 53. Page 0/Register 46: PGA_L to HPLOUT Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_L Output Routing Control 0: PGA_L is not routed to HPLOUT. 1: PGA_L is routed to HPLOUT. PGA_L to HPLOUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 54. Page 0/Register 47: DAC_L1 to HPLOUT Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_L1 Output Routing Control 0: DAC_L1 is not routed to HPLOUT. 1: DAC_L1 is routed to HPLOUT. DAC_L1 to HPLOUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 55. Page 0/Register 48: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION Reserved. Do not write to this register. Table 56. Page 0/Register 49: PGA_R to HPLOUT Volume Control Register DESCRIPTION PGA_R Output Routing Control 0: PGA_R is not routed to HPLOUT. 1: PGA_R is routed to HPLOUT. PGA_R to HPLOUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 57. Page 0/Register 50: DAC_R1 to HPLOUT Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_R1 Output Routing Control 0: DAC_R1 is not routed to HPLOUT. 1: DAC_R1 is routed to HPLOUT. DAC_R1 to HPLOUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 58. Page 0/Register 51: HPLOUT Output Level Control Register BIT READ/ WRITE RESET VALUE D7–D4 R/W 0000 D3 R/W 0 DESCRIPTION HPLOUT Output Level Control 0000: Output level control = 0 dB 0001: Output level control = 1 dB 0010: Output level control = 2 dB ... 1000: Output level control = 8 dB 1001: Output level control = 9 dB 1010–1111: Reserved. Do not write these sequences. HPLOUT Mute 0: HPLOUT is muted. 1: HPLOUT is not muted. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 61 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 58. Page 0/Register 51: HPLOUT Output Level Control Register (continued) BIT READ/ WRITE RESET VALUE DESCRIPTION D2 R/W 1 HPLOUT Power-Down Drive Control 0: HPLOUT is weakly driven to a common-mode when powered down. 1: HPLOUT is high-impedance when powered down. D1 R 1 HPLOUT Volume Control Status 0: All programmed gains to HPLOUT have been applied. 1: Not all programmed gains to HPLOUT have been applied yet. D0 R/W 0 HPLOUT Power Control 0: HPLOUT is not fully powered up. 1: HPLOUT is fully powered up. Table 59. Page 0/Register 52: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 60. Page 0/Register 53: PGA_L to HPLCOM Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_L Output Routing Control 0: PGA_L is not routed to HPLCOM. 1: PGA_L is routed to HPLCOM. PGA_L to HPLCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 61. Page 0/Register 54: DAC_L1 to HPLCOM Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_L1 Output Routing Control 0: DAC_L1 is not routed to HPLCOM. 1: DAC_L1 is routed to HPLCOM. DAC_L1 to HPLCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 62. Page 0/Register 55: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION Reserved. Do not write to this register. Table 63. Page 0/Register 56: PGA_R to HPLCOM Volume Control Register DESCRIPTION PGA_R Output Routing Control 0: PGA_R is not routed to HPLCOM. 1: PGA_R is routed to HPLCOM. PGA_R to HPLCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 64. Page 0/Register 57: DAC_R1 to HPLCOM Volume Control Register 62 BIT READ/ WRITE RESET VALUE D7 R/W 0 DESCRIPTION DAC_R1 Output Routing Control 0: DAC_R1 is not routed to HPLCOM. 1: DAC_R1 is routed to HPLCOM. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 64. Page 0/Register 57: DAC_R1 to HPLCOM Volume Control Register (continued) BIT READ/ WRITE RESET VALUE D6–D0 R/W 000 0000 DESCRIPTION DAC_R1 to HPLCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 65. Page 0/Register 58: HPLCOM Output Level Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D4 R/W 0000 D3 R/W 0 HPLCOM Mute 0: HPLCOM is muted. 1: HPLCOM is not muted. D2 R/W 1 HPLCOM Power-Down Drive Control 0: HPLCOM is weakly driven to a common mode when powered down. 1: HPLCOM is high-impedance when powered down. D1 R 1 HPLCOM Volume Control Status 0: All programmed gains to HPLCOM have been applied. 1: Not all programmed gains to HPLCOM have been applied yet. D0 R/W 0 HPLCOM Power Control 0: HPLCOM is not fully powered up. 1: HPLCOM is fully powered up. HPLCOM Output Level Control 0000: Output level control = 0 dB 0001: Output level control = 1 dB 0010: Output level control = 2 dB ... 1000: Output level control = 8 dB 1001: Output level control = 9 dB 1010–1111: Reserved. Do not write these sequences. Table 66. Page 0/Register 59: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 67. Page 0/Register 60: PGA_L to HPROUT Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_L Output Routing Control 0: PGA_L is not routed to HPROUT. 1: PGA_L is routed to HPROUT PGA_L to HPROUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 68. Page 0/Register 61: DAC_L1 to HPROUT Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_L1 Output Routing Control 0: DAC_L1 is not routed to HPROUT. 1: DAC_L1 is routed to HPROUT. DAC_L1 to HPROUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 69. Page 0/Register 62: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 DESCRIPTION Reserved. Do not write to this register. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 63 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 70. Page 0/Register 63: PGA_R to HPROUT Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_R Output Routing Control 0: PGA_R is not routed to HPROUT. 1: PGA_R is routed to HPROUT. PGA_R to HPROUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 71. Page 0/Register 64: DAC_R1 to HPROUT Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_R1 Output Routing Control 0: DAC_R1 is not routed to HPROUT. 1: DAC_R1 is routed to HPROUT. DAC_R1 to HPROUT Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 72. Page 0/Register 65: HPROUT Output Level Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D4 R/W 0000 D3 R/W 0 HPROUT Mute 0: HPROUT is muted. 1: HPROUT is not muted. D2 R/W 1 HPROUT Power-Down Drive Control 0: HPROUT is weakly driven to a common mode when powered down. 1: HPROUT is high-impedance when powered down. D1 R 1 HPROUT Volume Control Status 0: All programmed gains to HPROUT have been applied. 1: Not all programmed gains to HPROUT have been applied yet. D0 R/W 0 HPROUT Power Control 0: HPROUT is not fully powered up. 1: HPROUT is fully powered up. BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 HPROUT Output Level Control 0000: Output level control = 0 dB 0001: Output level control = 1 dB 0010: Output level control = 2 dB ... 1000: Output level control = 8 dB 1001: Output level control = 9 dB 1010–1111: Reserved. Do not write these sequences. Table 73. Page 0/Register 66: Reserved Register DESCRIPTION Reserved. Do not write to this register. Table 74. Page 0/Register 67: PGA_L to HPRCOM Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 64 DESCRIPTION PGA_L Output Routing Control 0: PGA_L is not routed to HPRCOM. 1: PGA_L is routed to HPRCOM. PGA_L to HPRCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 75. Page 0/Register 68: DAC_L1 to HPRCOM Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_L1 Output Routing Control 0: DAC_L1 is not routed to HPRCOM. 1: DAC_L1 is routed to HPRCOM. DAC_L1 to HPRCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 76. Page 0/Register 69: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 77. Page 0/Register 70: PGA_R to HPRCOM Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_R Output Routing Control 0: PGA_R is not routed to HPRCOM. 1: PGA_R is routed to HPRCOM. PGA_R to HPRCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 78. Page 0/Register 71: DAC_R1 to HPRCOM Volume Control Register DESCRIPTION DAC_R1 Output Routing Control 0: DAC_R1 is not routed to HPRCOM. 1: DAC_R1 is routed to HPRCOM. DAC_R1 to HPRCOM Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 79. Page 0/Register 72: HPRCOM Output Level Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D4 R/W 0000 D3 R/W 0 HPRCOM Mute 0: HPRCOM is muted 1: HPRCOM is not muted D2 R/W 1 HPRCOM Power-Down Drive Control 0: HPRCOM is weakly driven to a common mode when powered down. 1: HPRCOM is high-impedance when powered down. D1 R 1 HPRCOM Volume Control Status 0: All programmed gains to HPRCOM have been applied. 1: Not all programmed gains to HPRCOM have been applied yet. D0 R/W 0 HPRCOM Power Control 0: HPRCOM is not fully powered up. 1: HPRCOM is fully powered up. HPRCOM Output Level Control 0000: Output level control = 0 dB 0001: Output level control = 1 dB 0010: Output level control = 2 dB ... 1000: Output level control = 8 dB 1001: Output level control = 9 dB 1010–1111: Reserved. Do not write these sequences. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 65 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 80. Page 0/Registers 73–78: Reserved BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Reserved. Do not write to these registers. Table 81. Page 0/Register 79: Reserved BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0010 DESCRIPTION Reserved. Do not write to this register. Table 82. Page 0/Register 80: Reserved BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 83. Page 0/Register 81: PGA_L to LEFT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_L Output Routing Control 0: PGA_L is not routed to LEFT_LOP/M. 1: PGA_L is routed to LEFT_LOP/M. PGA_L to LEFT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 84. Page 0/Register 82: DAC_L1 to LEFT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_L1 Output Routing Control 0: DAC_L1 is not routed to LEFT_LOP/M. 1: DAC_L1 is routed to LEFT_LOP/M. DAC_L1 to LEFT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 85. Page 0/Register 83: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 86. Page 0/Register 84: PGA_R to LEFT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_R Output Routing Control 0: PGA_R is not routed to LEFT_LOP/M. 1: PGA_R is routed to LEFT_LOP/M. PGA_R to LEFT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 87. Page 0/Register 85: DAC_R1 to LEFT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 66 DESCRIPTION DAC_R1 Output Routing Control 0: DAC_R1 is not routed to LEFT_LOP/M. 1: DAC_R1 is routed to LEFT_LOP/M. DAC_R1 to LEFT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 88. Page 0/Register 86: LEFT_LOP/M Output Level Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D4 R/W 0000 D3 R/W 0 LEFT_LOP/M Mute 0: LEFT_LOP/M is muted. 1: LEFT_LOP/M is not muted. D2 R 0 Reserved. Do not write to this register bit. D1 R 1 LEFT_LOP/M Volume Control Status 0: All programmed gains to LEFT_LOP/M have been applied. 1: Not all programmed gains to LEFT_LOP/M have been applied yet. D0 R 0 LEFT_LOP/M Power Status 0: LEFT_LOP/M is not fully powered up. 1: LEFT_LOP/M is fully powered up. LEFT_LOP/M Output Level Control 0000: Output level control = 0 dB 0001: Output level control = 1 dB 0010: Output level control = 2 dB ... 1000: Output level control = 8 dB 1001: Output level control = 9 dB 1010–1111: Reserved. Do not write these sequences. Table 89. Page 0/Register 87: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 90. Page 0/Register 88: PGA_L to RIGHT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_L Output Routing Control 0: PGA_L is not routed to RIGHT_LOP/M. 1: PGA_L is routed to RIGHT_LOP/M. PGA_L to RIGHT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 91. Page 0/Register 89: DAC_L1 to RIGHT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_L1 Output Routing Control 0: DAC_L1 is not routed to RIGHT_LOP/M. 1: DAC_L1 is routed to RIGHT_LOP/M. DAC_L1 to RIGHT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 92. Page 0/Register 90: Reserved Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0000 0000 DESCRIPTION Reserved. Do not write to this register. Table 93. Page 0/Register 91: PGA_R to RIGHT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION PGA_R Output Routing Control 0: PGA_R is not routed to RIGHT_LOP/M. 1: PGA_R is routed to RIGHT_LOP/M. PGA_R to RIGHT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 67 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 94. Page 0/Register 92: DAC_R1 to RIGHT_LOP/M Volume Control Register BIT READ/ WRITE RESET VALUE D7 R/W 0 D6–D0 R/W 000 0000 DESCRIPTION DAC_R1 Output Routing Control 0: DAC_R1 is not routed to RIGHT_LOP/M. 1: DAC_R1 is routed to RIGHT_LOP/M. DAC_R1 to RIGHT_LOP/M Analog Volume Control For 7-bit register setting versus analog gain values, see Table 51. Table 95. Page 0/Register 93: RIGHT_LOP/M Output Level Control Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D4 R/W 0000 D3 R/W 0 RIGHT_LOP/M Mute 0: RIGHT_LOP/M is muted 1: RIGHT_LOP/M is not muted D2 R 0 Reserved. Do not write to this register bit. D1 R 1 RIGHT_LOP/M Volume Control Status 0: All programmed gains to RIGHT_LOP/M have been applied. 1: Not all programmed gains to RIGHT_LOP/M have been applied yet. D0 R 0 RIGHT_LOP/M Power Status 0: RIGHT_LOP/M is not fully powered up. 1: RIGHT_LOP/M is fully powered up. RIGHT_LOP/M Output Level Control 0000: Output level control = 0 dB 0001: Output level control = 1 dB 0010: Output level control = 2 dB ... 1000: Output level control = 8 dB 1001: Output level control = 9 dB 1010–1111: Reserved. Do not write these sequences. Table 96. Page 0/Register 94: Module Power Status Register 68 BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R 0 Left-DAC Power Status 0: Left DAC is not fully powered up. 1: Left DAC is fully powered up. D6 R 0 Right-DAC Power Status 0: Right DAC is not fully powered up. 1: Right DAC is fully powered up. D5 R 0 Reserved. Write only 0 to this bit. D4 R 0 LEFT_LOP/M Power Status 0: LEFT_LOP/M output driver is powered down. 1: LEFT_LOP/M output driver is powered up. D3 R 0 RIGHT_LOP/M Power Status 0: RIGHT_LOP/M is not fully powered up. 1: RIGHT_LOP/M is fully powered up. D2 R 0 HPLOUT Driver Power Status 0: HPLOUT Driver is not fully powered up. 1: HPLOUT Driver is fully powered up. D1 R 0 HPROUT Driver Power Status 0: HPROUT Driver is not fully powered up. 1: HPROUT Driver is fully powered up. D0 R 0 Reserved. Do not write to this bit. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 97. Page 0/Register 95: Output Driver Short-Circuit Detection Status Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R 0 HPLOUT Short-Circuit Detection Status 0: No short circuit detected at HPLOUT 1: Short circuit detected at HPLOUT D6 R 0 HPROUT Short-Circuit Detection Status 0: No short circuit detected at HPROUT 1: Short circuit detected at HPROUT D5 R 0 HPLCOM Short-Circuit Detection Status 0: No short circuit detected at HPLCOM 1: Short circuit detected at HPLCOM D4 R 0 HPRCOM Short-Circuit Detection Status 0: No short circuit detected at HPRCOM 1: Short circuit detected at HPRCOM D3 R 0 HPLCOM Power Status 0: HPLCOM is not fully powered up. 1: HPLCOM is fully powered up. D2 R 0 HPRCOM Power Status 0: HPRCOM is not fully powered up. 1: HPRCOM is fully powered up. D1–D0 R 00 Reserved. Do not write to these bits. Table 98. Page 0/Register 96: Sticky Interrupt Flags Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R 0 HPLOUT Short-Circuit Detection Status 0: No short circuit detected at HPLOUT driver 1: Short circuit detected at HPLOUT driver D6 R 0 HPROUT Short-Circuit Detection Status 0: No short circuit detected at HPROUT driver 1: Short circuit detected at HPROUT driver D5 R 0 HPLCOM Short-Circuit Detection Status 0: No short circuit detected at HPLCOM driver 1: Short circuit detected at HPLCOM driver D4 R 0 HPRCOM Short-Circuit Detection Status 0: No short circuit detected at HPRCOM driver 1: Short circuit detected at HPRCOM driver D3 R 0 Reserved. Do not write to this bit. D2 R 0 Headset Detection Status 0: No headset insertion/removal is detected. 1: Headset insertion/removal is detected. D1 R 0 Left ADC AGC Noise Gate Status 0: Left ADC signal power is greater than or equal to noise threshold for left AGC. 1: Left ADC signal power is less than noise threshold for left AGC. D0 R 0 Right ADC AGC Noise Gate Status 0: Right ADC signal power is greater than or equal to noise threshold for right AGC. 1: Right ADC signal power is less than noise threshold for right AGC. Table 99. Page 0/Register 97: Real-Time Interrupt Flags Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R 0 HPLOUT Short-Circuit Detection Status 0: No short circuit detected at HPLOUT driver 1: Short circuit detected at HPLOUT driver D6 R 0 HPROUT Short-Circuit Detection Status 0: No short circuit detected at HPROUT driver 1: Short circuit detected at HPROUT driver Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 69 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 99. Page 0/Register 97: Real-Time Interrupt Flags Register (continued) BIT READ/ WRITE RESET VALUE DESCRIPTION D5 R 0 HPLCOM Short-Circuit Detection Status 0: No short circuit detected at HPLCOM driver 1: Short circuit detected at HPLCOM driver D4 R 0 HPRCOM Short-Circuit Detection Status 0: No short circuit detected at HPRCOM driver 1: Short circuit detected at HPRCOM driver D3 R 0 Reserved. Do not write to this bit. D2 R 0 Headset Detection Status 0: No headset insertion/removal is detected. 1: Headset insertion/removal is detected. D1 R 0 Left ADC AGC Noise Gate Status 0: Left ADC signal power is greater than noise threshold for left AGC. 1: Left ADC signal power lower than noise threshold for left AGC. D0 R 0 Right ADC AGC Noise Gate Status 0: Right ADC signal power is greater than noise threshold for right AGC. 1: Right ADC signal power is lower than noise threshold for right AGC. Table 100. Page 0/Register 98–100: Reserved Registers BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Reserved. Do not write to these registers. Table 101. Page 0/Register 101: Clock Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7–D1 R 0000 000 D0 R/W 0 BIT READ/ WRITE RESET VALUE D7–D6 R/W 00 CLKDIV_IN Source Selection 00: CLKDIV_IN uses MCLK 01: CLKDIV_IN uses GPIO2 10: CLKDIV_IN uses BCLK 11: Reserved. Do not use. D5–D4 R/W 00 PLLCLK_IN Source Selection 00: PLLCLK_IN uses MCLK 01: PLLCLK_IN uses GPIO2 10: PLLCLK _IN uses BCLK 11: Reserved. Do not use. D3–D0 R/W 0010 Reserved. Write only zeros to these bits. CODEC_CLKIN Source Selection 0: CODEC_CLKIN uses PLLDIV_OUT 1: CODEC_CLKIN uses CLKDIV_OUT Table 102. Page 0/Register 102: Clock Generation Control Register 70 DESCRIPTION Reserved. Write only 0010 to these bits. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 103. Page 0/Register 103: Left-AGC New Programmable Attack Time Register BIT READ/ WRITE RESET VALUE D7 R/W 0 Attack Time Register Selection 0: Attack time for the left AGC is generated from page 0, register 26. 1: Attack time for the left AGC is generated from this register. D6–D5 R/W 00 Baseline AGC Attack time 00: Left-AGC attack time = 7 ms 01: Left-AGC attack time = 8 ms 10: Left-AGC attack time = 10 ms 11: Left-AGC attack time = 11 ms D4–D2 R/W 000 Multiplication Factor for Baseline AGC 000: Multiplication factor for the baseline AGC 001: Multiplication factor for the baseline AGC 010: Multiplication factor for the baseline AGC 011: Multiplication factor for the baseline AGC 100: Multiplication factor for the baseline AGC 101: Multiplication factor for the baseline AGC 110: Multiplication factor for the baseline AGC 111: Multiplication factor for the baseline AGC D1–D0 R/W 00 DESCRIPTION attack attack attack attack attack attack attack attack time = 1 time = 2 time = 4 time = 8 time = 16 time = 32 time = 64 time = 128 Reserved. Write only zeros to these bits. Table 104. Page 0/Register 104: Left-AGC New Programmable Decay Time Register (1) BIT READ/ WRITE RESET VALUE D7 R/W 0 Decay Time Register Selection 0: Decay time for the left AGC is generated from page 0, register 26. 1: Decay time for the left AGC is generated from this register. D6–D5 R/W 00 Baseline AGC Decay Time 00: Left-AGC decay time = 50 ms 01: Left-AGC decay time = 150 ms 10: Left-AGC decay time = 250 ms 11: Left-AGC decay time = 350 ms D4–D2 R/W 000 Multiplication Factor for Baseline AGC 000: Multiplication factor for the baseline AGC 001: Multiplication factor for the baseline AGC 010: Multiplication factor for the baseline AGC 011: Multiplication factor for the baseline AGC 100: Multiplication factor for the baseline AGC 101: Multiplication factor for the baseline AGC 110: Multiplication factor for the baseline AGC 111: Multiplication factor for the baseline AGC D1–D0 (1) R/W 00 DESCRIPTION decay time = 1 decay time = 2 decay time = 4 decay time = 8 decay time = 16 decay time = 32 decay time = 64 decay time = 128 Reserved. Write only zeros to these bits. Decay time is limited based on NCODEC ratio that is selected. For NCODEC = 1, Maximum decay time = 4 seconds NCODEC = 1.5, Maximum decay time = 5.6 seconds NCODEC = 2, Maximum decay time = 8 seconds NCODEC = 2.5, Maximum decay time = 9.6 seconds NCODEC = 3 or 3.5, Maximum decay time = 11.2 seconds NCODEC = 4 or 4.5, Maximum decay time = 16 seconds NCODEC = 5, Maximum decay time = 19.2 seconds NCODEC = 5.5 or 6, Maximum decay time = 22.4 seconds Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 71 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 105. Page 0/Register 105: Right-AGC New Programmable Attack Time Register BIT READ/ WRITE RESET VALUE D7 R/W 0 Attack Time Register Selection 0: Attack time for the right AGC is generated from page 0, register 29. 1: Attack time for the right AGC is generated from this register. D6–D5 R/W 00 Baseline AGC attack time 00: Right-AGC attack time = 7 ms 01: Right-AGC attack time = 8 ms 10: Right-AGC attack time = 10 ms 11: Right-AGC attack time = 11 ms D4–D2 R/W 000 Multiplication Factor for Baseline AGC 000: Multiplication factor for the baseline AGC 001: Multiplication factor for the baseline AGC 010: Multiplication factor for the baseline AGC 011: Multiplication factor for the baseline AGC 100: Multiplication factor for the baseline AGC 101: Multiplication factor for the baseline AGC 110: Multiplication factor for the baseline AGC 111: Multiplication factor for the baseline AGC D1–D0 R/W 00 DESCRIPTION attack attack attack attack attack attack attack attack time = 1 time = 2 time = 4 time = 8 time = 16 time = 32 time = 64 time = 128 Reserved. Write only zeros to these register bits. Table 106. Page 0/Register 106: Right-AGC New Programmable Decay Time Register (1) BIT READ/ WRITE RESET VALUE D7 R/W 0 Decay Time Register Selection 0: Decay time for the right AGC is generated from page 0, register 29. 1: Decay time for the right AGC is generated from this register. D6–D5 R/W 00 Baseline AGC Decay Time 00: Right-AGC decay time = 50 ms 01: Right-AGC decay time = 150 ms 10: Right-AGC decay time = 250 ms 11: Right-AGC decay time = 350 ms D4–D2 R/W 000 Multiplication Factor for Baseline AGC 000: Multiplication factor for the baseline AGC 001: Multiplication factor for the baseline AGC 010: Multiplication factor for the baseline AGC 011: Multiplication factor for the baseline AGC 100: Multiplication factor for the baseline AGC 101: Multiplication factor for the baseline AGC 110: Multiplication factor for the baseline AGC 111: Multiplication factor for the baseline AGC D1–D0 (1) 72 R/W 00 DESCRIPTION decay time = 1 decay time = 2 decay time = 4 decay time = 8 decay time = 16 decay time = 32 decay time = 64 decay time = 128 Reserved. Write only zeros to these bits. Decay time is limited based on NCODEC ratio that is selected. For NCODEC = 1, Maximum decay time = 4 seconds NCODEC = 1.5, Maximum decay time = 5.6 seconds NCODEC = 2, Maximum decay time = 8 seconds NCODEC = 2.5, Maximum decay time = 9.6 seconds NCODEC = 3 or 3.5, Maximum decay time = 11.2 seconds NCODEC = 4 or 4.5, Maximum decay time = 16 seconds NCODEC = 5, Maximum decay time = 19.2 seconds NCODEC = 5.5 or 6, Maximum decay time = 22.4 seconds Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 107. Page 0/Register 107: New Programmable ADC Digital Path and I2C Bus Condition Register BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 Left-Channel High-Pass Filter Coefficient Selection 0: Default coefficients are used when ADC high pass is enabled. 1: Programmable coefficients are used when ADC high pass is enabled. D6 R/W 0 Right-Channel High-Pass Filter Coefficient Selection 0: Default coefficients are used when ADC high pass is enabled. 1: Programmable coefficients are used when ADC high pass is enabled. D5–D4 R/W 00 Reserved D3 R/W 0 ADC Digital Output to Programmable Filter Path Selection 0: No additional programmable filters other than the HPF are used for the ADC. 1: The programmable filter is connected to ADC output, if both DACs are powered down. D2 R/W 0 I2C Bus Condition Detector 0: Internal logic is enabled to detect an I2C bus error, and clears the bus error condition. 1: Internal logic is disabled to detect an I2C bus hang. D1 R 0 Reserved. Write only zero to this bit. D0 R 0 I2C Bus hang detection status 0: I2C bus hang is not detected. 1: I2C bus hang is detected. This bit is cleared by reading this register. Table 108. Page 0/Register 108: Passive Analog Signal Bypass Selection During Power Down Register (1) (1) BIT READ/ WRITE RESET VALUE DESCRIPTION D7 R/W 0 Reserved. Write only zero to this bit. D6 R/W 0 LINE2RP Path Selection 0: Normal signal path 1: Signal is routed by a switch to RIGHT_LOP. D5 R/W 0 LINE1RM Path Selection 0: Normal signal path 1: Signal is routed by a switch to RIGHT_LOM. D4 R/W 0 LINE1RP Path Selection 0: Normal signal path 1: Signal is routed by a switch to RIGHT_LOP. D3 R/W 0 Reserved. Write only zero to this bit. D2 R/W 0 LINE2LP Path Selection 0: Normal signal path 1: Signal is routed by a switch to LEFT_LOP. D1 R/W 0 LINE1LM Path Selection 0: Normal signal path 1: Signal is routed by a switch to LEFT_LOM. D0 R/W 0 LINE1LP Path Selection 0: Normal signal path 1: Signal is routed by a switch to LEFT_LOP. Based on the setting above, if BOTH LINE1 and LINE2 inputs are routed to the output at the same time, then the two switches used for the connection short the two input signals together on the output pins. The shorting resistance between the two input pins is two times the bypass switch resistance (Rdson). In general, this condition of shorting should be avoided, as higher drive currents are likely to occur on the circuitry that feeds these two input pins of this device. Table 109. Page 0/Register 109: DAC Quiescent Current Adjustment Register BIT READ/ WRITE RESET VALUE D7–D6 R/W 00 D5–D0 R/W 00 0000 DESCRIPTION DAC Current Adjustment 00: Default 01: 50% increase in DAC reference current 10: Reserved 11: 100% increase in DAC reference current Reserved. Write only zeros to these bits. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 73 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 110. Page 0/Register 110–127: Reserved Registers BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Reserved. Do not write to these registers. Table 111. Page 1/Register 0: Page Select Register BIT READ/ WRITE RESET VALUE D7–D1 X 0000 000 D0 R/W 0 DESCRIPTION Reserved. Write only zeros to these bits . Page Select Bit Writing zero to this bit sets page 0 as the active page for following register accesses. Writing a one to this bit sets page 1 as the active page for following register accesses. It is recommended that the user read this register bit back after each write, to ensure that the proper page is being accessed for future register read/writes. This register has the same functionality on page 0 and page 1. Table 112. Page 1/Register 1: Left-Channel Audio Effects Filter N0 Coefficient MSB Register (1) BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 1011 (1) DESCRIPTION Left-Channel Audio Effects Filter N0 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. When programming any coefficient value in Page 1, the MSB register should always be written first, immediately followed by the LSB register. Even if only the MSB or LSB of the coefficient changes, both registers should be written in this sequence. Table 113. Page 1/Register 2: Left-Channel Audio Effects Filter N0 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 0011 DESCRIPTION Left-Channel Audio Effects Filter N0 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 114. Page 1/Register 3: Left-Channel Audio Effects Filter N1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1001 0110 DESCRIPTION Left-Channel Audio Effects Filter N1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 115. Page 1/Register 4: Left-Channel Audio Effects Filter N1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0110 DESCRIPTION Left-Channel Audio Effects Filter N1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 116. Page 1/Register 5: Left-Channel Audio Effects Filter N2 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0111 74 DESCRIPTION Left-Channel Audio Effects Filter N2 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 117. Page 1/Register 6: Left-Channel Audio Effects Filter N2 Coefficient LSB BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 1101 DESCRIPTION Left-Channel Audio Effects Filter N2 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 118. Page 1/Register 7: Left-Channel Audio Effects Filter N3 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 1011 DESCRIPTION Left-Channel Audio Effects Filter N3 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 119. Page 1/Register 8: Left-Channel Audio Effects Filter N3 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 0011 DESCRIPTION Left-Channel Audio Effects Filter N3 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 120. Page 1/Register 9: Left-Channel Audio Effects Filter N4 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1001 0110 DESCRIPTION Left-Channel Audio Effects Filter N4 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 121. Page 1/Register 10: Left-Channel Audio Effects Filter N4 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0110 DESCRIPTION Left-Channel Audio Effects Filter N4 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 122. Page 1/Register 11: Left-Channel Audio Effects Filter N5 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0111 DESCRIPTION Left-Channel Audio Effects Filter N5 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 123. Page 1/Register 12: Left-Channel Audio Effects Filter N5 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 1101 DESCRIPTION Left-Channel Audio Effects Filter N5 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 124. Page 1/Register 13: Left-Channel Audio Effects Filter D1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1101 DESCRIPTION Left-Channel Audio Effects Filter D1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 75 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 125. Page 1/Register 14: Left-Channel Audio Effects Filter D1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0011 DESCRIPTION Left-Channel Audio Effects Filter D1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 126. Page 1/Register 15: Left-Channel Audio Effects Filter D2 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0100 DESCRIPTION Left-Channel Audio Effects Filter D2 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 127. Page 1/Register 16: Left-Channel Audio Effects Filter D2 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 1110 DESCRIPTION Left-Channel Audio Effects Filter D2 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 128. Page 1/Register 17: Left-Channel Audio Effects Filter D4 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1101 DESCRIPTION Left-Channel Audio Effects Filter D4 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 129. Page 1/Register 18: Left-Channel Audio Effects Filter D4 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0011 DESCRIPTION Left-Channel Audio Effects Filter D4 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 130. Page 1/Register 19: Left-Channel Audio Effects Filter D5 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0100 DESCRIPTION Left-Channel Audio Effects Filter D5 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 131. Page 1/Register 20: Left-Channel Audio Effects Filter D5 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 1110 DESCRIPTION Left-Channel Audio Effects Filter D5 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 132. Page 1/Register 21: Left-Channel De-Emphasis Filter N0 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0011 1001 76 DESCRIPTION Left-Channel De-Emphasis Filter N0 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 133. Page 1/Register 22: Left-Channel De-Emphasis Filter N0 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0101 DESCRIPTION Left-Channel De-Emphasis Filter N0 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 134. Page 1/Register 23: Left-Channel De-Emphasis Filter N1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1111 0011 DESCRIPTION Left-Channel De-Emphasis Filter N1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 135. Page 1/Register 24: Left-Channel De-Emphasis Filter N1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0010 1101 DESCRIPTION Left-Channel De-Emphasis Filter N1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 136. Page 1/Register 25: Left-Channel De-Emphasis Filter D1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0011 DESCRIPTION Left-Channel De-Emphasis Filter D1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 137. Page 1/Register 26: Left-Channel De-Emphasis Filter D1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1110 DESCRIPTION Left-Channel De-Emphasis Filter D1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 138. Page 1/Register 27: Right-Channel Audio Effects Filter N0 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 1011 DESCRIPTION Right-Channel Audio Effects Filter N0 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 139. Page 1/Register 28: Right-Channel Audio Effects Filter N0 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 0011 DESCRIPTION Right-Channel Audio Effects Filter N0 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 140. Page 1/Register 29: Right-Channel Audio Effects Filter N1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1001 0110 DESCRIPTION Right-Channel Audio Effects Filter N1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 77 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 141. Page 1/Register 30: Right-Channel Audio Effects Filter N1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0110 DESCRIPTION Right-Channel Audio Effects Filter N1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 142. Page 1/Register 31: Right-Channel Audio Effects Filter N2 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0111 DESCRIPTION Right-Channel Audio Effects Filter N2 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 143. Page 1/Register 32: Right-Channel Audio Effects Filter N2 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 1101 DESCRIPTION Right-Channel Audio Effects Filter N2 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 144. Page 1/Register 33: Right-Channel Audio Effects Filter N3 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 1011 DESCRIPTION Right-Channel Audio Effects Filter N3 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 145. Page 1/Register 34: Right-Channel Audio Effects Filter N3 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 0011 DESCRIPTION Right-Channel Audio Effects Filter N3 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 146. Page 1/Register 35: Right-Channel Audio Effects Filter N4 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1001 0110 DESCRIPTION Right-Channel Audio Effects Filter N4 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 147. Page 1/Register 36: Right-Channel Audio Effects Filter N4 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0110 DESCRIPTION Right-Channel Audio Effects Filter N4 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 148. Page 1/Register 37: Right-Channel Audio Effects Filter N5 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0110 0111 78 DESCRIPTION Right-Channel Audio Effects Filter N5 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 149. Page 1/Register 38: Right-Channel Audio Effects Filter N5 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 1101 DESCRIPTION Right-Channel Audio Effects Filter N5 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 150. Page 1/Register 39: Right-Channel Audio Effects Filter D1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1101 DESCRIPTION Right-Channel Audio Effects Filter D1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 151. Page 1/Register 40: Right-Channel Audio Effects Filter D1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0011 DESCRIPTION Right-Channel Audio Effects Filter D1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 152. Page 1/Register 41: Right-Channel Audio Effects Filter D2 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0100 DESCRIPTION Right-Channel Audio Effects Filter D2 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 153. Page 1/Register 42: Right-Channel Audio Effects Filter D2 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 1110 DESCRIPTION Right-Channel Audio Effects Filter D2 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 154. Page 1/Register 43: Right-Channel Audio Effects Filter D4 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1101 DESCRIPTION Right-Channel Audio Effects Filter D4 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 155. Page 1/Register 44: Right-Channel Audio Effects Filter D4 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0011 DESCRIPTION Right-Channel Audio Effects Filter D4 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 156. Page 1/Register 45: Right-Channel Audio Effects Filter D5 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1000 0100 DESCRIPTION Right-Channel Audio Effects Filter D5 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 79 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 157. Page 1/Register 46: Right-Channel Audio Effects Filter D5 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1110 1110 DESCRIPTION Right-Channel Audio Effects Filter D5 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 158. Page 1/Register 47: Right-Channel De-Emphasis Filter N0 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0011 1001 DESCRIPTION Right-Channel De-Emphasis Filter N0 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 159. Page 1/Register 48: Right-Channel De-Emphasis Filter N0 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0101 DESCRIPTION Right-Channel De-Emphasis Filter N0 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 160. Page 1/Register 49: Right-Channel De-Emphasis Filter N1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1111 0011 DESCRIPTION Right-Channel De-Emphasis Filter N1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 161. Page 1/Register 50: Right-Channel De-Emphasis Filter N1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0010 1101 DESCRIPTION Right-Channel De-Emphasis Filter N1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 162. Page 1/Register 51: Right-Channel De-Emphasis Filter D1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0011 DESCRIPTION Right-Channel De-Emphasis Filter D1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 163. Page 1/Register 52: Right-Channel De-Emphasis Filter D1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1110 DESCRIPTION Right-Channel De-Emphasis Filter D1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 164. Page 1/Register 53: 3-D Attenuation Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1111 80 DESCRIPTION 3-D Attenuation Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Table 165. Page 1/Register 54: 3-D Attenuation Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1111 1111 DESCRIPTION 3-D Attenuation Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 166. Page 1/Register 55–64: Reserved Registers BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 DESCRIPTION Reserved. Do not write to these registers. Table 167. Page 1/Register 65: Left-Channel ADC High-Pass Filter N0 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0011 1001 DESCRIPTION Left-Channel ADC High-Pass Filter N0 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 168. Page 1/Register 66: Left-Channel ADC High-Pass Filter N0 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0101 DESCRIPTION Left-Channel ADC High-Pass Filter N0 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 169. Page 1/Register 67: Left-Channel ADC High-Pass Filter N1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1111 0011 DESCRIPTION Left-Channel ADC High-Pass Filter N1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 170. Page 1/Register 68: Left-Channel ADC High-Pass Filter N1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0010 1101 DESCRIPTION Left-Channel ADC High-Pass Filter N1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 171. Page 1/Register 69: Left-Channel ADC High-Pass Filter D1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0011 DESCRIPTION Left-Channel ADC High-Pass Filter D1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 172. Page 1/Register 70: Left-Channel ADC High-Pass Filter D1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1110 DESCRIPTION Left-Channel ADC High-Pass Filter D1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 81 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com Table 173. Page 1/Register 71: Right-Channel ADC High-Pass Filter N0 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0011 1001 DESCRIPTION Right-Channel ADC High-Pass Filter N0 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 174. Page 1/Register 72: Right-Channel ADC High-Pass Filter N0 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0101 DESCRIPTION Right-Channel ADC High-Pass Filter N0 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 175. Page 1/Register 73: Right-Channel ADC High-Pass Filter N1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 1111 0011 DESCRIPTION Right-Channel ADC High-Pass Filter N1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 176. Page 1/Register 74: Right-Channel ADC High-Pass Filter N1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0010 1101 DESCRIPTION Right-Channel ADC High-Pass Filter N1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 177. Page 1/Register 75: Right-Channel ADC High-Pass Filter D1 Coefficient MSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0101 0011 DESCRIPTION Right-Channel ADC High-Pass Filter D1 Coefficient MSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 178. Page 1/Register 76: Right-Channel ADC High-Pass Filter D1 Coefficient LSB Register BIT READ/ WRITE RESET VALUE D7–D0 R/W 0111 1110 DESCRIPTION Right-Channel ADC High-Pass Filter D1 Coefficient LSB The 16-bit integer contained in the MSB and LSB registers for this coefficient are interpreted as a 2scomplement integer, with possible values ranging from –32,768 to 32,767. Table 179. Page 1/Registers 77–127: Reserved Registers BIT READ/ WRITE RESET VALUE D7–D0 R 0000 0000 82 DESCRIPTION Reserved. Do not write to these registers. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 12 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 12.1 Application Information The TLV320AIC3101 is a highly integrated low-power stereo audio codec with integrated stereo speaker/headphone/ line amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations. Pairs of high power drivers can be used to drive 8-Ω speakers in BTL configuration. All the features of the TLV320AIC3101 are accessed by programmable registers. External processor with I2C protocol is required to control the device. It is good practice to perform a hardware reset after initial power up to ensure that all registers are in their default states. Extensive register-based power control is included, enabling stereo 48-kHz DAC playback as low as 14-mW from a 3.3-V analog supply, making it ideal for portable battery-powered audio and telephony applications. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 83 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 12.2 Typical Application 12.2.1 AC-Coupled Headphone Output With Separate Line Outputs and External Speaker Amplifier TLV320AIC3101 is a versatile device capable of being configured in several ways suited for portable applications. This device could be configured to have two microphones with an FM tuner connected to the analog inputs. High power driver outputs can drive an external power amplifier and headphone, and still have a fully differential stereo line output. IOVDD DSP or Apps Processor AVDD_DAC DRVDD DRVDD MIC1LP/LINE1LP MIC1LM/LINE1LM 1 kW A AVDD (2.7 V–3.6 V) 0.1 mF 1 mF 1 mF 0.1 mF 0.47 mF FM Tuner MIC2L/LINE2L/MICDET MIC2R/LINE2R TLV320AIC3101 0.47 mF IOVDD MIC1RP/LINE1RP 1.525 V–1.95 V 0.1 mF 1 mF 1 mF 0.1 mF LEFT_LOP LEFT_LOM RIGHT_ROM RIGHT_ROP HPROUT HPRCOM HPLOUT HPLCOM 0.1 mF IOVDD (1.1 V–3.3 V) DVSS MIC1RM/LINE1RM A 10 mF A DVDD 0.1 mF 1 kW 0.1 mF 0.1 mF 1 mF RESET 1 kW 0.1 mF 1 kW MICBIAS SCL SDA RP MCLK BCLK WCLK DOUT DIN RP D AVSS_ADC AVSS_DAC DRVSS A LINE_OUT_L– LINE_OUT_L+ 220 mF LINE_OUT_R– LINE_OUT_R+ 220 mF External Audio Power Amplifiers TPA2012D2 (Stereo Class-D in WCSP) TPA2010D1 (Mono Class-D in WCSP) TPA2005D1 (Mono Class-D in BGA, QFN, MSOP) A 8W A 8W A S0207-02 Figure 33. Typical Connections for AC-Coupled Headphone Output With Separate Line Outputs and External Speaker Amplifier 84 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 Typical Application (continued) 12.2.1.1 Design Requirements For this design example, use the parameters shown in Table 180. Table 180. Design Parameters PARAMETER VALUE Supply Voltage (AVDD, DRVDD) 3.3 V Supply Voltage (DVDD, IOVDD) 1.8 V Analog High-Power Output Driver load 16 Ω Analog Fully Differential Line Output Driver load 10 kΩ 12.2.1.2 Detailed Design Procedure Using the Typical Application Schematic as a guide, integrate the hardware into the system. Following the recommended component placement, schematic layout and routing given in the Layout Example section, integrate the device and its supporting components into the system PCB file. • For questions and support go to the E2E forums (e2e.ti.com). If it is necessary to deviate from the recommended layout, visit the E2E forum to request a layout review. Determining sample rate and Master clock frequency is required since powering up the device as all internal timing is derived from the master clock. Refer to the Figure 17 in order to get more information of how to configure correctly the required clocks for the device. As the TLV320AIC3101 is designed for low-power applications, when powered up, the device has several features powered down. A correct routing of the TLV320AIC3101 signals is achieved by a correct setting of the device registers, powering up the required stages of the device and configuring the internal switches to follow a desired route. For more information of the device configuration and programming, refer to the TLV320AIC3101 technical documents section in ti.com (http://www.ti.com/product/TLV320AIC3101/technicaldocuments). Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 85 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 12.2.1.3 Application Curves 0 Load = 16 Ω AC-Coupled −10 HPL DRVDD = 2.7 V −20 −30 HPR DRVDD = 2.7 V −40 THD − Total Harmonic Distortion − dB THD − Total Harmonic Distortion − dB 0 HPL DRVDD = 3.3 V HPR DRVDD = 3.3 V −50 HPR DRVDD = 3.6 V −60 HPL DRVDD = 3.6 V −70 Load = 16 Ω Capless −10 HPL DRVDD = 2.7 V −20 HPL DRVDD = 3.3 V HPR DRVDD = 2.7 V −30 HPR DRVDD = 3.3 V −40 HPR DRVDD = 3.6 V −50 −60 HPL DRVDD = 3.6 V −70 −80 −90 −80 0 10 20 30 40 50 60 70 80 90 0 100 25 50 75 100 125 150 175 200 225 250 275 300 325 350 P − Headphone Power − mW P − Headphone Power − mW G002 G001 Figure 35. THD vs Headphone Power, Capless Figure 34. THD vs Headphone Power, AC-Coupled THD − Total Harmonic Distortion − dB 0 Load = 8 Ω −10 −20 DRVDD = 2.7 V −30 DRVDD = 3.3 V DRVDD = 3.6 V −40 −50 −60 −70 −80 −90 0 100 200 300 400 500 600 P − Speaker Power − W G005 Figure 36. THD vs Speaker Power, 8 Ω Load 86 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 12.2.2 Connections With Headphone and External Speaker Driver in Cell Phone Application IOVDD DSP or Apps Processor 0.1 mF AVDD_DAC DRVDD DRVDD MIC1LP/LINE1LP MIC1LM/LINE1LM 1 kW A AVDD (2.7 V–3.6 V) 0.1 mF 0.1 mF 0.1 mF 1 mF 0.1 mF 0.47 mF FM Tuner MIC2L/LINE2L/MICDET MIC2R/LINE2R TLV320AIC3101 0.47 mF IOVDD MIC1RP/LINE1RP 1.525 V–1.95 V 1 mF 1 mF LEFT_LOP LEFT_LOM DVSS RIGHT_ROM HPROUT HPRCOM HPLOUT HPLCOM 0.47 mF 0.1 mF 0.1 mF MIC1RM/LINE1RM RIGHT_ROP Analog Baseband IOVDD (1.1 V–3.3 V) A DVDD 0.47 mF 1 mF 10 mF 1 mF 1 kW RESET MICBIAS SCL SDA RP MCLK BCLK WCLK DOUT DIN RP D AVSS_ADC AVSS_DAC DRVSS A External Audio Power Amplifiers TPA2012D2 (Stereo Class-D in WCSP) TPA2010D1 (Mono Class-D in WCSP) TPA2005D1 (Mono Class-D in BGA, QFN, MSOP) 0.47 mF 0.47 mF 100 mF 8W 100 mF A 8W S0206-02 Figure 37. Typical Connections With Headphone and External Speaker Driver in Cell Phone Application 12.2.2.1 Design Requirements See Analog Fully Differential Line Output Drivers section for the design requirements. 12.2.2.2 Detailed Design Procedure See Analog Fully Differential Line Output Drivers section for the design requirements. 12.2.2.3 Application Curves See Analog Fully Differential Line Output Drivers section for the application curves. Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 87 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 13 Power Supply Recommendations The TLV320AIC3101 has been designed to be extremely tolerant of power supply sequencing. However, in some rare instances, unexpected conditions can be attributed to power supply sequencing. The following sequence provides the most robust operation. IOVDD should be powered up first. The analog supplies, which include AVDD and DRVDD, should be powered up second. The digital supply DVDD should be powered up last. Keep RESET low until all supplies are stable. The analog supplies should be greater than or equal to DVDD at all times. Figure 38. TLV320AIC3101 Power Supply Sequencing Table 181. TLV320AIC3101 Power Supply Sequencing PARAMETER MIN t1 IOVDD to AVDD, DRVDD 0 t2 AVDD to DVDD 0 t3 IOVDD, to DVDD 0 88 Submit Documentation Feedback MAX 5 UNIT ms Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 TLV320AIC3101 www.ti.com SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 14 Layout 14.1 Layout Guidelines PCB design is made considering the application, and the review is specific for each system requirements. However, general considerations can optimize the system performance. • The TLV320AIC3101 thermal pad should be connected to analog output driver ground using multiple VIAS to minimize impedance between the device and ground. • Analog and digital grounds should be separated to prevent possible digital noise from affecting the analog performance of the board. • The TLV320AIC3101 requires the decoupling capacitors to be placed as close as possible to the device power supply terminals. • If possible, route the differential audio signals differentially on the PCB. This is recommended to get better noise immunity. 14.2 Layout Example Figure 39. Layout Schematic Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 89 TLV320AIC3101 SLAS520E – FEBRUARY 2007 – REVISED DECEMBER 2014 www.ti.com 15 Device and Documentation Support 15.1 Trademarks All trademarks are the property of their respective owners. 15.2 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 15.3 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 16 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 90 Submit Documentation Feedback Copyright © 2007–2014, Texas Instruments Incorporated Product Folder Links: TLV320AIC3101 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) TLV320AIC3101IRHBR ACTIVE VQFN RHB 32 2500 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 AC3101I TLV320AIC3101IRHBT ACTIVE VQFN RHB 32 250 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 AC3101I (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
