User's Guide
SLAU266A – October 2008 – Revised October 2012
TLV320AIC3204EVM-K
This user's guide describes the characteristics, operation, and use of the TLV320AIC3204EVM-K. This
evaluation module (EVM) features a complete stereo audio codec with several inputs and outputs,
extensive audio routing, mixing, and effects capabilities. A complete circuit description, schematic
diagram, and bill of materials are also included.
The following related documents are available through the Texas Instruments Web site at www.ti.com.
EVM-Compatible Device Data Sheets
Device
Literature Number
TLV320AIC3204
SLOS602
TAS1020B
SLES025
REG1117-3.3
SBVS001
TPS767D318
SLVS209
SN74LVC125A
SCAS290
SN74LVC1G125
SCES223
SN74LVC1G07
SCES296
Contents
1
EVM Overview ............................................................................................................... 3
2
EVM Description and Basics .............................................................................................. 3
3
TLV320AIC3204EVM-K Setup and Installation ......................................................................... 7
4
AIC3204 Control Software ............................................................................................... 11
Appendix A
EVM Connector Descriptions ................................................................................... 25
Appendix B
TLV320AIC3204EVM Schematic ............................................................................... 29
Appendix C TLV320AIC3204EVM Layout Views ........................................................................... 30
Appendix D TLV320AIC3204EVM Bill of Materials ......................................................................... 34
Appendix E
USB-MODEVM Schematic ...................................................................................... 37
Appendix F
USB-MODEVM Bill of Materials ................................................................................ 38
Appendix G USB-MODEVM Protocol ......................................................................................... 40
List of Figures
.................................................................................
1
TLV320AIC3204EVM-K Block Diagram
2
Initial Screen of TLV320AIC3204EVM-K Software ..................................................................... 9
3
Compatibility Tab .......................................................................................................... 10
4
Playback Script Tab ....................................................................................................... 12
5
Playback Panel ............................................................................................................ 13
6
Recording Panel ........................................................................................................... 14
7
DRC Information Tab
8
9
.....................................................................................................
Program Codec Pop-Up Window ........................................................................................
Adaptive Filtering Panel ..................................................................................................
4
15
15
16
PowerTune is a trademark of Texas Instruments.
Windows is a registered trademark of Microsoft Corporation.
SPI is a trademark of Motorola, Inc.
I2C is a trademark of NXP.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
1
www.ti.com
10
Automatic Gain Control Panel ........................................................................................... 17
11
Dynamic Range Compression Panel ................................................................................... 18
12
Headset Detection Panel ................................................................................................. 19
13
DC Measurement Panel .................................................................................................. 20
14
Audio Inputs Panel ........................................................................................................ 21
15
Status Flags Panel ........................................................................................................ 22
16
Register Tables Panel .................................................................................................... 23
17
Command-line Interface Panel
18
Top Layer ................................................................................................................... 30
19
Mid-Layer 1 ................................................................................................................. 30
20
Mid-Layer 2 ................................................................................................................. 31
21
Bottom Layer ............................................................................................................... 31
22
Top Overlay ................................................................................................................ 32
23
Bottom Overlay ............................................................................................................ 32
24
Drill Drawing ................................................................................................................ 33
25
Composite .................................................................................................................. 33
..........................................................................................
24
List of Tables
1
USB-MODEVM SW2 Settings ............................................................................................. 5
2
List of Jumpers and Switches ............................................................................................. 5
3
Analog Interface Pinout ................................................................................................... 25
4
Alternate Analog Connectors
5
Digital Interface Pinout .................................................................................................... 27
6
Power Supply Pin Out
7
TLV320AIC3204EVM Bill of Materials .................................................................................. 34
8
USB-MODEVM Bill of Materials ......................................................................................... 38
9
USB Control Endpoint HIDSETREPORT Request .................................................................... 40
10
Data Packet Configuration
11
2
............................................................................................
....................................................................................................
...............................................................................................
GPIO Pin Assignments ...................................................................................................
TLV320AIC3204EVM-K
26
28
40
43
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
EVM Overview
www.ti.com
1
EVM Overview
1.1
Features
•
•
•
•
Full-featured evaluation board for the TLV320AIC3204 stereo audio codec.
USB connection to PC provides power, control, and streaming audio data for easy evaluation.
Onboard microphone for ADC evaluation
Connection points for external control and digital audio signals for quick connection to other
circuits/input devices.
The TLV320AIC3204EVM-K is a complete evaluation kit, which includes a universal serial bus (USB)based motherboard and evaluation software for use with a personal computer running the Microsoft
Windows® operating system (Win2000 or XP).
1.2
Introduction
The TLV320AIC3204EVM is in the Texas Instruments (TI) modular EVM form factor, which allows direct
evaluation of the device performance and operating characteristics and eases software development and
system prototyping.
The TLV320AIC3204EVM-K is a complete evaluation/demonstration kit, which includes a USB-based
motherboard called the USB-MODEVM Interface board and evaluation software for use with a personal
computer (PC) running the Microsoft Windows operating systems.
The TLV320AIC3204EVM is operational with one USB cable connection to a PC. The USB connection
provides power, control, and streaming audio data to the EVM for reduced setup and configuration. The
EVM also allows external control signals, audio data, and power for advanced operation, which allows
prototyping and connection to the rest of the development or system evaluation.
2
EVM Description and Basics
This section provides information on the analog input and output, digital control, power, and general
connection of the TLV320AIC3204EVM.
2.1
TLV320AIC3204EVM-K Block Diagram

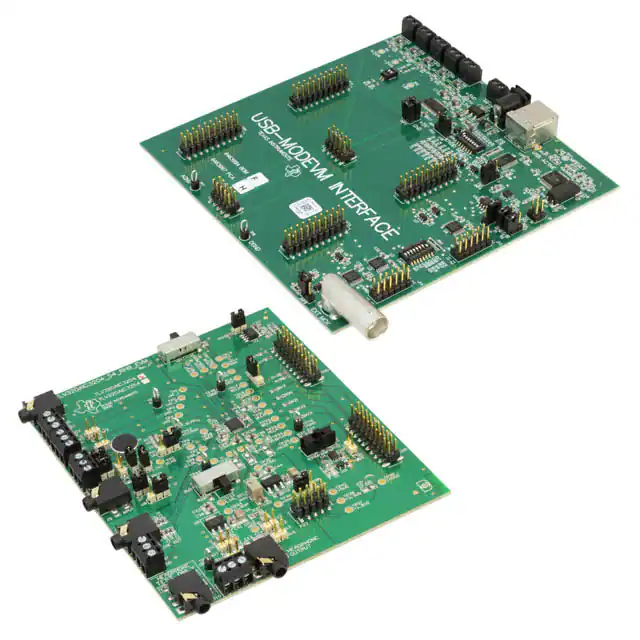

The TLV320AIC3204EVM-K consists of two separate circuit boards, the USB-MODEVM and the
TLV320AIC3204EVM. The USB-MODEVM is built around the TAS1020B streaming audio USB controller
with an 8051-based core. The motherboard features two positions for modular EVMs, or one double-wide
serial modular EVM can be installed. The TLV320AIC3204EVM is one of the double-wide modular EVMs
that is designed to work with the USB-MODEVM.
The simple diagram of Figure 1 shows how the TLV320AIC3204EVM is connected to the USB-MODEVM.
The USB-MODEVM Interface board is intended to be used in USB mode, where control of the installed
EVM is accomplished using the onboard USB controller device. Provision is made, however, for driving all
the data buses ( I2C™, SPI™, I2S, etc.) externally. The source of these signals is controlled by SW2 on
the USB-MODEVM. See Table 1 for details on the switch settings.
The USB-MODEVM has two EVM positions that allow for the connection of two small evaluation module
or one larger evaluation module. The TLV320AIC3204EVM is designed to fit over both of the smaller
evaluation module slots as shown in Figure 1
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
3
EVM Description and Basics
2.1.1
www.ti.com
USB-MODEVM Interface Board
The simple diagram of Figure 1 shows only the basic features of the USB-MODEVM Interface board.
Because the TLV320AIC3204EVM is a double-wide modular EVM, it is installed with connections to both
EVM positions, which connects the TLV320AIC3204 digital control interface to the I2C port realized using
the TAS1020B, as well as the TAS1020B digital audio interface.
In the factory configuration, the board is ready to be used with the USB-MODEVM. To view all the
functions and configuration options available on the USB-MODEVM board, see the USB-MODEVM
Interface Board schematic in Appendix G.
TLV320AIC32x4EVM
TLV320AIC32x4
USB-MODEVM
EVM Position 1
Control Interface
2
SPI, I C
TAS1020B
USB 8051
Microcontroller
EVM Position 2
USB
2
I S, AC97
Audio Interface
Figure 1. TLV320AIC3204EVM-K Block Diagram
4
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
EVM Description and Basics
www.ti.com
2.2
2.2.1
Default Configuration and Connections
USB-MODEVM
Table 1 provides a list of the SW2 settings on the USB-MODEVM. For use with the TLV320AIC3204EVM,
SW-2 positions 1, 3, 4, 5, 6, and 7 must be set to ON, whereas SW-2.2 and SW-2.8 must be set to OFF. If
the TLV320AIC3204EVM is to be used with an external audio interface, SW2.4 and SW2.5 also need to
be set to OFF and such interface must be connected as explained in Section 2.4
Table 1. USB-MODEVM SW2 Settings
SW-2 Switch Number
2.2.2
Label
Switch Description
1
A0
USB-MODEVM EEPROM I2C Address A0
ON: A0 = 0
OFF: A0 = 1
2
A1
USB-MODEVM EEPROM I2C Address A1
ON: A1 = 0
OFF: A1 = 1
3
A2
USB-MODEVM EEPROM I2C Address A2
ON: A2 = 0
OFF: A2 = 1
4
USB I2S
I2S Bus Source Selection
ON: I2S Bus connects to TAS1020
OFF: I2S Bus connects to USB-MODEVM J14
5
USB MCK
I2S Bus MCLK Source Selection
ON: MCLK connects to TAS1020
OFF: MCLK connects to USB-MODEVM J14
6
USB SPI
SPI Bus Source Selection
ON: SPI Bus connects to TAS1020
OFF: SPI Bus connects to USB-MODEVM J15
7
USB RST
RST Source Selection
ON: EVM Reset Signal comes from TAS1020
OFF: EVM Reset Signal comes from USB-MODEVM J15
8
EXT MCK
External MCLK Selection
ON: MCLK Signal is provided from USB-MODEVM J10
OFF: MCLK Signal comes from either selection of SW2-5
TLV320AIC3204EVM Jumper Locations
Table 2 provides a list of jumpers found on the EVM and their factory default conditions.
Table 2. List of Jumpers and Switches
Jumper
Default
Position
W1
2-3
When connecting 2-3, microphone bias comes from the MICBIAS pin on the device; when connecting 1-2, microphone (mic) bias is
supplied through TP8.
W2
Installed
Connects onboard Mic negative terminal to the circuit.
W3
Installed
Connects onboard Mic positive terminal to the circuit.
W4
Open
Provides mic bias to J5.3 (disconnect W2 and W3 before installing this jumper). Use for stereo electric microphones only.
W5
Installed
Provides mic bias to J5.2 and onboard Mic positive terminal.
W6
Installed
Sets the mic bias resistance to 1 kΩ. Use for differential electric mic configurations.
W7
Installed
Connects J5.3 and onboard Mic negative terminal to the circuit.
W8
2-3
Connects J5.3 and onboard Mic negative terminal to AVSS or 1-kΩ resistor.
W9
Open
Connects 16-Ω load to HPL outputs.
W10
Open
Connects 16-Ω load to HPR outputs.
W11
Open
When installed, shorts across the output capacitor on HPL; remove this jumper if using AC-coupled output drive
W12
Open
When installed, shorts across the output capacitor on HPR; remove this jumper if using AC-coupled output drive
W13
Installed
When installed, it selects onboard EEPROM as firmware source.
W14
1-2
When set to 1-2, SCLK/MIC_DET is used for SPI SCLK. When set to 2-3, SCLK/MIC_DET is used for headset detection.
Jumper Description
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
5
EVM Description and Basics
www.ti.com
Table 2. List of Jumpers and Switches (continued)
Jumper
Default
Position
Jumper Description
W15
Open
When installed, connects GPIO4 to reset AND gate (U3).
W16
Installed
Provides a means of measuring IOVDD current.
W17
Installed
Provides a means of measuring DVDD current.
W18
Installed
Provides a means of measuring LDOin/HPVDD current.
W19
Installed
Provides a means of measuring AVDD current.
W20
2-3
Sets U6 voltage source as +5VD or +5VA for LDOin/HPVDD.
W21
Installed
Connects +3.3VD voltage source to IOVDD node.
W22
Open
When installed, shorts across the input capacitor on IN2_L for DC measurement option. Remove this jumper for audio connections.
W23
Open
When installed, shorts across the input capacitor on IN2_R for DC measurement option. Remove this jumper for audio connections.
SW1
I2C
When set to I2C, the I2C signals from P12/J12 are connected to the codec and SPI_SELECT is set low. When set to SPI, the SPI
signals from P12/J12 are connected to the codec and SPI_SELECT is pulled to IOVDD.
SW2
LOW
When set to LOW, AVDD and DVDD are connected to +1.8VA and +1.8VD, respectively, and LDO_SELECT is set low. When set to
HI, AVDD, and DVDD are disconnected from other supplies and LDO_SELECT is pulled to IOVDD.
2.3
2.3.1
Analog Signal Connections
Analog Inputs
The analog input sources can be applied directly to terminal blocks J2, J3, and J4 or input jacks J1 and
J5. The connection details can be found in Appendix A.
2.3.2
Analog Output
The analog outputs are available from terminal blocks J6 and J8 or output jacks J7, J9, and J10. Note that
J10 is provided for signal-to-noise ratio (SNR) measurements only. The connection details can be found in
Appendix A.
2.4
Digital Signal Connections
The digital inputs and outputs of the EVM can be monitored through P12 and P22. If external signals need
to be connected to the EVM, digital inputs must be connected via J14 and J15 on the USB-MODEVM and
the SW2 switch must be changed accordingly (see Section 2.2.1). The connector details are available in
Section A.2.
2.5
Power Connections
The TLV320AIC3204EVM can be powered independently when being used in stand-alone operation or by
the USB-MODEVM when it is plugged onto the motherboard.
6
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K Setup and Installation
www.ti.com
2.5.1
Stand-Alone Operation
When used as a stand-alone EVM, power is applied to P23/J23 directly, making sure to reference the
supplies to the appropriate grounds on that connector.
CAUTION
Verify that all power supplies are within the safe operating limits shown on the
TLV320AIC3204 data sheet before applying power to the EVM.
P23/J23 provides connection to the common power bus for the TLV320AIC3204EVM. Power is supplied
on the pins listed in Table 6.
The TLV320AIC3204EVM-K motherboard (the USB-MODEVM Interface board) supplies power to P23/J23
of the TLV320AIC3204EVM. Power for the motherboard is supplied either through its USB connection or
via terminal blocks on that board.
2.5.2
USB-MODEVM Operation
The USB-MODEVM Interface board can be powered from several different sources:
• USB
• 6-Vdc to 10-Vdc AC/DC external wall supply (not included)
• Laboratory power supply
When powered from the USB connection, JMP6 must have a shunt from pins 1–2 (this is the default
factory configuration). When powered from 6-Vdc to 10-Vdc power supply, either through the J8 terminal
block or J9 barrel jack, JMP6 must have a shunt installed on pins 2–3. If power is applied in any of these
ways, onboard regulators generate the required supply voltages, and no further power supplies are
necessary.
If laboratory supplies are used to provide the individual voltages required by the USB-MODEVM Interface,
JMP6 must have no shunt installed. Voltages are then applied to J2 (+5VA), J3 (+5VD), J4 (+1.8VD), and
J5 (+3.3VD). The +1.8VD and +3.3VD can also be generated on the board by the onboard regulators from
the +5VD supply; to enable this configuration, the switches on SW1 need to be set to enable the
regulators by placing them in the ON position (lower position, looking at the board with text reading rightside up). If +1.8VD and +3.3VD are supplied externally, disable the onboard regulators by placing SW1
switches in the OFF position.
Each power supply voltage has an LED (D1-D7) that illuminates when the power supplies are active.
3
TLV320AIC3204EVM-K Setup and Installation
The following section provides information on using the TLV320AIC3204EVM-K, including setup, program
installation, and program usage.
NOTE: If using the EVM in stand-alone mode, the software must be installed per the following
instructions, but the hardware configuration may be different.
3.1
Software Installation
1. Download the latest version of the AIC3204 Control Software (CS) located in the
TLV320AIC3204EVM-K Product Folder.
2. Open the self-extracting installation file.
3. Extract the software to a known folder.
4. Install the EVM software by double-clicking the Setup executable, and follow the directions. The user
may be prompted to restart their computer.
This installs all the TLV320AIC3204EVM-K software and required drivers onto the PC.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
7
TLV320AIC3204EVM-K Setup and Installation
3.2
www.ti.com
EVM Connections
1. Ensure that the TLV320AIC3204EVM is installed on the USB-MODEVM Interface board, aligning J11,
J12, J21, J22, and J23 with the corresponding connectors on the USB-MODEVM.
2. Verify that the jumpers and switches are in their default conditions.
3. Attach a USB cable from the PC to the USB-MODEVM Interface board. The default configuration
provides power, control signals, and streaming audio via the USB interface from the PC. On the USBMODEVM, LEDs D3, D4, D5, and D7 illuminate to indicate that the USB is supplying power.
4. For the first connection, the PC recognizes new hardware and begins an initialization process. The
user may be prompted to identify the location of the drivers or allow the PC to automatically search for
them. Allow the automatic detection option.
5. Once the PC confirms that the hardware is operational, D2 on the USB-MODEVM illuminates to
indicate that the firmware has been loaded and the EVM is ready for use. If D2 does not illuminate,
verify that the EEPROM jumper and switch settings conform to Table 1 and Table 2.
After the TLV320AIC3204EVM-K software installation (described in Section 3.2) is complete, evaluation
and development with the TLV320AIC3204 can begin.
8
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K Setup and Installation
www.ti.com
The TLV320AIC3204EVM-K software can now be launched. The user sees an initial screen that looks
similar to Figure 2.
Figure 2. Initial Screen of TLV320AIC3204EVM-K Software
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
9
TLV320AIC3204EVM-K Setup and Installation
www.ti.com
If running the software in Windows Vista or Windows 7, right-click the AIC3204EVM-K CS shortcut and
select Properties. Configure the Compatibility tab as shown in Figure 3
Figure 3. Compatibility Tab
10
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
AIC3204 Control Software
www.ti.com
4
AIC3204 Control Software
The AIC3204 Control Software (CS) is an intuitive, easy-to-use, powerful tool to learn, evaluate, and
control the TLV320AIC3204. This tool was specifically designed to make learning the TLV320AIC3204
software easy. The following sections describe the operation of this software.
NOTE: For configuration of the codec, the TLV320AIC3204 block diagram located in the
TLV320AIC3204 data sheet is a good reference to help determine the signal routing.
4.1
Main Panel Window
The Main Panel window, shown in Figure 2, provides easy access to all the features of the AIC3204 CS.
The Firmware Name and Version boxes provide information about the firmware loaded into the EVM's
EEPROM.
The USB-MODEVM Interface drop-down menu allows the user to select which communication protocol
the TAS1020B USB Controller uses to communicate with the TLV320AIC3204 or to toggle the TAS1020B
GPIO pins. The TLV320AIC3204 supports I2C Standard, I2C Fast, and 8-bit register SPI. The USBMODEVM Interface selection is global to all panels, including the Command-Line Interface. To
communicate to the TLV320AIC3204 using SPI, SW1 must be switched towards SPI and W14 must be
set to 1-2 on the TLV320AIC3204EVM.
The Panel Selection Tree provides access to typical configurations, features, and other panels that allow
the user to control the TLV320AIC3204. The tree is divided into several categories which contain items
that pop up panels. A panel can be opened by double-clicking any item inside a category in the Panel
Selection Tree.
Below the Panel Selection Tree are three buttons that pop up the following:
•
•
•
Status Flags - Allows the user to monitor the TLV320AIC3204 status flags.
Register Tables - A tool to monitor register pages.
Command-Line Interface - A tool to execute/generate scripts and monitor register activity.
The USB LED indicates if the EVM kit is recognized by the software and the ACTIVITY LED illuminates
every time a command request is sent.
The dialog box at the bottom of the Main Panel provides feedback of the current status of the software.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
11
AIC3204 Control Software
4.1.1
www.ti.com
Typical Configurations
This category can help users to quickly become familiar with the TLV320AIC3204. Each of the panels that
can be accessed through this menu have controls relevant to the selected configuration; a tab shows the
script that will be loaded for that particular configuration. Each script includes a brief description of the
selected configuration, as shown in Figure 4.
Figure 4. Playback Script Tab
4.1.1.1
Playback
The Playback panel (shown in Figure 5) has the following configurations:
• High Performance Stereo Playback - this configuration programs the TLV320AIC3204 in PowerTune™
mode PTM_P3, for low-noise, high-performance stereo playback through both line and headphone
outputs.
• Low Power Stereo Playback - this configuration programs the TLV320AIC3204 in PowerTune mode
PTM_P1 for low-power stereo playback through both line and headphone outputs.
• Direct Analog Bypass - this configuration routes IN1_L/IN1_R to HPL/HPR.
• PGA Analog Bypass - this configuration routes IN1_L/IN1_R to the analog input amplifier (Mic PGA)
which is then routed to both the line and headphone amplifiers.
The analog inputs and outputs used for these configurations can be accessed as follows:
1. IN1_L / IN1_R - Jack J1 or terminal block J2.
2. Line outputs - Jack J7 or terminal block J6.
3. Headphone outputs - Jack J9 or terminal block J8.
12
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
AIC3204 Control Software
www.ti.com
Figure 5. Playback Panel
4.1.1.2
Recording
The Recording panel (shown in Figure 6) has the following configurations:
• High Performance Stereo Recording - this configuration programs the TLV320AIC3204 in PowerTune
mode PTM_R4, for low-noise, high-performance stereo recording. IN1_L and IN1_R are routed in a
single ended fashion.
• Low Power Stereo Recording - this configuration programs the TLV320AIC3204 in PowerTune mode
PTM_R1 for low-power stereo playback. IN1_L and IN1_R are routed in a single ended fashion.
• Differential On-Board Microphone - this configuration programs the TLV320AIC3204's IN3_L and
IN3_R as a differential pair. Jumpers related to the onboard microphone (W1 to W8) must be set to
their default configuration as described in Table 2.
The analog inputs used for these configurations can be accessed as follows:
1. IN1_L / IN1_R - Jack J1 or terminal block J2.
2. IN3_L / IN3_R - Terminal block J4. Note that the onboard jack J5 must not be used for a differential
configuration.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
13
AIC3204 Control Software
www.ti.com
Figure 6. Recording Panel
4.1.2
Features
The Features category allows the user to evaluate various features of the TLV320AIC3204. Each of the
Features panels include an Information tab that explains the feature and provides hardware setup
information for easy evaluation, as seen in Figure 7.
14
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
AIC3204 Control Software
www.ti.com
Figure 7. DRC Information Tab
Any item in the Features category can be accessed by a double-click. As soon as a Features panel
opens, a pop-up message appears asking to program the codec for that feature (see Figure 8). A
command script is sent to the codec if the OK button is clicked. This script programs all registers
necessary to evaluate the feature. This can be bypassed by clicking the Cancel button.
Figure 8. Program Codec Pop-Up Window
The script corresponding to each feature can be accessed at the Installation Directory\DATA\EVM folder.
Also, each script can be manually customized and loaded as the feature's start-up script as long as the file
name remains the same.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
15
AIC3204 Control Software
4.1.2.1
www.ti.com
Adaptive Filtering
The TLV320AIC3204 features double-buffered filter coefficients which allow real-time filtering. The
TLV320AIC3204 features up to six cascaded biquads and a first-order IIR filter per DAC channel in
various signal processing blocks.
The Parametric Equalizer tab (shown in Figure 9) allows the user to modify the frequency response of the
digital input signal that is fed afterwards into the DAC channels. This application can be useful to fine-tune
the audio frequency response for a particular small speaker and enclosure system combination. The
processing block PRB_P2 (which is used for this application) has one IIR filter and six biquads in cascade
per audio channel. The first biquad (BQ0) is configured as a gain control which provides headroom and
compensation gain to the subsequent biquads in the cascade. Biquads BQ1 to BQ5 are configured for EQ
and/or shelf filters.
The Gain Q (quality) and fc (center frequency) parameters are available for the EQ filters whereas Gain
fc (corner frequency) and Shelf Response are available for the shelf filters. These parameters can be
modified using their corresponding control. Also, by dragging a cursor in the frequency response window,
the gain and fc for each biquad can be modified.
The PRB_P2 biquad coefficients are defined as 1.23, 2s complement format. Coefficients that are equal or
larger than unity must be normalized to comply with such format when converting from decimal format.
This can be achieved by dividing all numerators of a biquad by a scale factor equal to the largest
numerator divided by 223 minus one (if the numerator is equal or larger than unity). Normalization results in
an attenuated version of the same frequency response curve. The scale factor can then be used to
compensate for the attenuation at another unused biquad.
Figure 9. Adaptive Filtering Panel
16
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
AIC3204 Control Software
www.ti.com
4.1.2.2
Automatic Gain Control
The left-channel Automatic Gain Control (AGC) can be enabled by checking the Enable Left AGC box
(Figure 10). Pressing the Capture Audio button records the left-channel audio. Its corresponding data is
displayed in the audio capture graph window. The small white window located at the bottom right of the
AGC tab displays the audio waveform of the recorded data. Ensure that the AIC32x4 EVM is selected as
the computer's default audio capture device before pressing this button. To set the TLV320AIC3204EVMK as the default audio device, open the Windows Control Panel → Sounds and Audio Devices Properties
and set the AIC32x4 EVM as the default audio recording device. Also, do not use any other media player
or audio recording software while the control software is recording.
The target level and noise threshold parameters can be modified by dragging the horizontal cursor lines
located at the audio capture graph window. Its numeric values are displayed to the right of the graph.
Noise threshold can be disabled by unchecking the Enable Noise Threshold box. The AGC Max Gain
control sets the maximum allowed AGC PGA Gain. The AGC Gain indicator bar continuously displays the
contents of Page 0/Register 93 if the Enable Polling box is checked.
Other parameters can be accessed by checking the Advanced? box. For more information about AGC,
see the Information tab and the data sheet.
Other flags related to this feature can be accessed at the Status Flags panel.
Figure 10. Automatic Gain Control Panel
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
17
AIC3204 Control Software
4.1.2.3
www.ti.com
Dynamic Range Compression
Dynamic Range Compression (DRC) can be enabled by checking the Enable Left DRC and Enable
Right DRC boxes.
The level transfer characteristic graph is a function of the applied digital gain and the threshold parameter.
The graph line is separated into two piece-wise linear regions where the red line represents the level
range in which the DRC attenuation takes place, and the green line represents the level range in which
the signal is not affected by DRC. As an example, setting the threshold to -24 dB with a gain to 24 dB
implies that an input signal strength variation from -48 dB (threshold - gain) to 0 dB results in an output
signal strength variation from -24 dB to 0 dB, or a compression ratio of 2:1. Similarly, a threshold of -3 dB
with a gain of 24 dB implies that an input signal strength variation from -27 dB to 0 dB results in an output
signal strength variation from -3 dB to 0 dB, or a ratio of 9:1. Note that a gain less than 0 dB does not
result in expansion.
The Attack and Decay are time domain parameters that control the rate in which the applied gain reaches
the target gain after the threshold level is crossed. As an example, a fast attack rate quickly reaches the
target gain once the output signal crosses the programmed threshold region.
Other flags related to this feature can be accessed at the Status Flags panel.
Figure 11. Dynamic Range Compression Panel
18
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
AIC3204 Control Software
www.ti.com
4.1.2.4
Headset Detection
The TLV320AIC3204EVM provides two terminal blocks (J8 and J4) that can be used to connect different
types of cellular headset jacks. For proper headset detection, the jack connections must comply with the
figure shown in the Headset Detection section of the datasheet.
The Headset Detection panel provides hardware setup information for a four-conductor stereo + cellular
jack, as seen in Figure 12.
As an example, if stereo headphones are connected to the four-conductor jack, the tip and ring carry the
AC-coupled HPL and HPR signal to the headphone speakers whereas the shield shorts the SCLK/MFP3
pin to ground. This results in a stereo headset detection.
Checking the Enable Polling box displays the headset type at the Headset Type Detected box.
Other flags related to this feature can be accessed at the Status Flags panel.
Figure 12. Headset Detection Panel
4.1.2.5
DC Measurement
Terminal block J3 on the TLV320AIC3204EVM can be used to evaluate the DC measurement feature.
The Information tab provides the hardware setup information.
The Left ADC (V) and Right ADC (V) boxes convert the register data to voltage. The voltage is derived
from the References shown at the upper right corner of the DC Measurement tab. The DC measurement
register data is in 2.22, 2s complement format.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
19
AIC3204 Control Software
www.ti.com
Checking the Enable Polling box displays the DC measurement data.
Other flags related to this feature can be accessed at the Status Flags panel.
Figure 13. DC Measurement Panel
4.1.3
Control Categories
The Digital Settings, Analog Settings, and Signal Processing categories provide control of many
registers and other features of the TLV320AIC3204 . These categories are intended for the advanced
user. Hovering the mouse cursor on top of a control displays a tip strip that contains page, register, and bit
information. As an example, hovering on top of IN1_R of the Audio Inputs panel, as shown in Figure 14
displays p1_r55_b7-6 which means that this control writes to Page 1/Register 55/Bits D7 to D6.
20
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
AIC3204 Control Software
www.ti.com
Figure 14. Audio Inputs Panel
Before changing a control, see the data sheet to ensure that a particular control is compatible with the
current state of the codec. As an example, some controls in the Analog Setup panel must be modified in
a particular order as described in the data sheet. Other controls must only be modified with a specific
hardware setup, such as powering up the AVDD LDO.
All
•
•
•
4.2
controls update their status with respect to the register contents in the following conditions:
A panel is opened.
The Execute Command Buffer button in the Command-Line Interface is pressed.
The Refresh button at the bottom right of a panel is pressed.
Status Flags Panel
The TLV320AIC3204 status flags can monitored in the Status Flags panel (Figure 15) which is located
below the Panel Selection Tree . Pressing the POLL button continuously reads all the registers relevant
to each flag and updates those flags accordingly. The rate at which the registers are read can be modified
by changing the value in the Polling Interval numeric control. Note that a smaller interval reduces
responsiveness of other controls, especially volume sliders, due to bandwidth limitations. By default, the
polling interval is 200 ms and can be set to a minimum of 20 ms.
The Sticky Flags tab contains indicators whose corresponding register contents clear every time a read is
performed to that register. To read all the sticky flags, click the Read Sticky Flags button.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
21
AIC3204 Control Software
www.ti.com
Figure 15. Status Flags Panel
4.3
Register Tables Panel
The contents of configuration and coefficient pages of the TLV320AIC3204 can be accessed through the
Register Tables panel (Figure 16).
The Page Number control changes to the page to be displayed in the register table. The register table
contains page information such as the register name, reset value, current value, and a bitmap of the
current value. The contents of the selected page can be exported into a spreadsheet by clicking the Dump
to Spreadsheet button.
22
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
AIC3204 Control Software
www.ti.com
Figure 16. Register Tables Panel
4.4
Command-Line Interface Panel
The Command-Line Interface panel provides a means to communicate with the TLV320AIC3204 using a
simple scripting language (described in Section G.3). The TAS1020B USB Controller (located on the USBMODEVM motherboard) handles all communication between the PC and the TLV320AIC3204.
A script is loaded into the command buffer, either by loading a script file using the File menu or by pasting
text from the clipboard using the Ctrl-V key combination (Figure 17).
When the command buffer is executed, the return data packets which result from each individual
command are displayed in the Command History control. This control is an array (with a maximum size
of 100 elements) that contains information about each command as well as status. The Interface box
displays the interface used for a particular command in the Command History array. The Command box
displays the type of command executed (i.e., write, read) for a particular interface. The Flag Retries box
displays the number of read iterations performed by a Wait for Flag command (see Section G.3 for
details). The Register Data array displays the register number and data bytes that correspond to a
particular command.
The Information tab provides additional information related to the Command History as well as
additional settings. The Syntax and Examples tabs provide useful information related to the scripting
language.
The File menu provides some options for working with scripts. The first option, Open Script File..., loads a
command file script into the command buffer. This script can then be executed by pressing the Execute
Command Buffer button. The contents of the Command Buffer can be saved using the Save Script
File... option.
Both the Command Buffer and Command History can be cleared by clicking their corresponding Clear
buttons.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM-K
23
AIC3204 Control Software
www.ti.com
Figure 17. Command-line Interface Panel
24
TLV320AIC3204EVM-K
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
www.ti.com
Appendix A EVM Connector Descriptions
This appendix contains the connection details for each of the main connectors on the EVM.
A.1
A.1.1
Analog Interface Connectors
Analog Dual-Row Socket Details, J11 and J21
The TLV320AIC3204EVM has two analog dual-row sockets located at the bottom of the board. These
sockets provide support to the EVM and connect the analog ground plane of the EVM to the USBMODEVM analog ground. Consult Samtec at www.samtec.com or call 1-800-SAMTEC-9 for a variety of
mating connector options. Table 3 summarizes the analog interface pinout for the TLV320AIC3204EVM.
Table 3. Analog Interface Pinout
PIN NUMBER
SIGNAL
DESCRIPTION
J11.1
NC
Not Connected
J11.2
NC
Not Connected
J11.3
NC
Not Connected
J11.4
NC
Not Connected
J11.5
NC
Not Connected
J11.6
NC
Not Connected
J11.7
NC
Not Connected
J11.8
NC
Not Connected
J11.9
AGND
Analog Ground
J11.10
NC
Not Connected
J11.11
AGND
Analog Ground
J11.12
NC
Not Connected
J11.13
AGND
Analog Ground
J11.14
NC
Not Connected
J11.15
NC
Not Connected
J11.16
NC
Not Connected
J11.17
AGND
Analog Ground
J11.18
NC
Not Connected
J11.19
AGND
Analog Ground
J11.20
NC
Not Connected
J21.1
NC
Not Connected
J21.2
NC
Not Connected
J21.3
NC
Not Connected
J21.4
NC
Not Connected
J21.5
NC
Not Connected
J21.6
NC
Not Connected
J21.7
NC
Not Connected
J21.8
NC
Not Connected
J21.9
AGND
Analog Ground
J21.10
NC
Not Connected
J21.11
AGND
Analog Ground
J21.12
NC
Not Connected
J21.13
AGND
Analog Ground
J21.14
NC
Not Connected
J21.15
NC
Not Connected
J21.16
NC
Not Connected
J21.17
AGND
Analog Ground
J21.18
NC
Not Connected
J21.19
AGND
Analog Ground
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
EVM Connector Descriptions
25
Analog Interface Connectors
www.ti.com
Table 3. Analog Interface Pinout (continued)
A.1.2
PIN NUMBER
SIGNAL
DESCRIPTION
J21.20
NC
Not Connected
Analog Screw Terminal and Audio Jack Details, J1 to J10
The analog inputs and outputs can be accessed through screw terminals or audio jacks.
Table 4 summarizes the screw terminals and audio jacks available on the TLV320AIC3204EVM.
Table 4. Alternate Analog Connectors
26
DESIGNATOR
PIN 1
PIN 2
PIN3
PIN4
PIN5
J1 (IN1)
AGND
IN1_L
IN1_R
NC
NC
J2 (IN1)
IN1_L
AGND
IN1_R
J3 (IN2)
IN2_L
AGND
IN2_R
J4 (EXT MIC IN)
IN3_L
AGND
IN3_R / NC
J5 (MIC INPUT)
AGND
IN3_L
IN3_R / NC
IN3_L
IN3_R / NC
J6 (LINE OUT)
LOL
AGND
LOR
J7 (LINE OUT)
AGND
LOL
LOR
NC
NC
J8 (HEADPHONE)
HPL
AGND
HPR
J9 (HEADPHONE OUTPUT)
AGND
HPL
HPR
NC
NC
J10 (HEADPHONE TEST ONLY)
AGND
HPL
HPR
NC
NC
EVM Connector Descriptions
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
Digital Interface Connectors, P12/J12 and P22/J22
www.ti.com
A.2
Digital Interface Connectors, P12/J12 and P22/J22
The TLV320AIC3204EVM is designed to easily interface with multiple control platforms. Samtec part
numbers SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient 10-pin, dual-row
header/socket combination at P12/J12 and P22/J22. These headers/sockets provide access to the digital
control and serial data pins of the device. Consult Samtec at www.samtec.com or call 1-800- SAMTEC-9
for a variety of mating connector options. Table 5 summarizes the digital interface pinout for the
TLV320AIC3204EVM.
Table 5. Digital Interface Pinout
PIN NUMBER
SIGNAL
DESCRIPTION
P12.1/J12.1
NC
Not Connected
P12.2/J12.2
NC
Not Connected
P12.3/J12.3
SCLK
SPI Serial Clock
P12.4/J12.4
DGND
Digital Ground
P12.5/J12.5
NC
Not Connected
P12.6/J12.6
NC
Not Connected
P12.7/J12.7
/SS
SPI Chip Select
P12.8/J12.8
NC
Not Connected
P12.9/J12.9
NC
Not Connected
P12.10/J12.10
DGND
Digital Ground
P12.11/J12.11
MOSI
SPI MOSI Slave Serial Data Input
P12.12/J12.12
NC
Not Connected
P12.13/J12.13
MISO
SPI MISO Slave Serial Data Output
P12.14/J12.14
RESET
TAS1020B Reset
P12.15/J12.15
NC
Not Connected
P12.16/J12.16
SCL
I2C Serial Clock
P12.17/J12.17
NC
Not Connected
P12.18/J12.18
DGND
Digital Ground
P12.19/J12.19
NC
Not Connected
P12.20/J12.20
SDA
I2C Serial Data Input/Output
P22.1/J22.1
NC
Not Connected
P22.2/J22.2
NC
Not Connected
P22.3/J22.3
BCLK
Audio Serial Data Bus Bit Clock (Input/Output)
P22.4/J22.4
DGND
Digital Ground
P22.5/J22.5
NC
Not Connected
P22.6/J22.6
NC
Not Connected
P22.7/J22.7
WCLK
Audio Serial Data Bus Word Clock (Input/Output)
P22.8/J22.8
NC
Not Connected
P22.9/J22.9
NC
Not Connected
P22.10/J22.10
DGND
Digital Ground
P22.11/J22.11
DIN
Audio Serial Data Bus Data Input (Input)
P22.12/J22.12
NC
Not Connected
P22.13/J22.13
DOUT
Audio Serial Data Bus Data Output (Output)
P22.14/J22.14
NC
Not Connected
P22.15/J22.15
NC
Not Connected
P22.16/J22.16
NC
Not Connected
P22.17/J22.17
MCLK
Master Clock Input
P22.18/J22.18
DGND
Digital Ground
P22.19/J22.19
NC
Not Connected
P22.20/J22.20
NC
Not Connected
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
EVM Connector Descriptions
27
Power Supply Connector Pin Header, P23/J23
www.ti.com
Note that P22/J22 comprises the signals needed for an I2S serial digital audio interface; the control
interface (I2C and RESET) signals are routed to P12/J12.
A.3
Power Supply Connector Pin Header, P23/J23
P23/J23 provides connection to the common power bus for the TLV320AIC3204EVM. Power is supplied
on the pins listed in Table 6.
Table 6. Power Supply Pin Out
SIGNAL
PIN NUMBER
SIGNAL
NC P23.1/J
23.1
P23.2/J2 NC
3.2
+5VA P23.3/J
23.3
P23.4/J2 NC
3.4
DGND P23.5/J
23.5
P23.6/J2 AGND
3.6
+1.8VD P23.7/J
23.7
P23.8/J2 NC
3.8
+3.3VD P23.9/J
23.9
P23.10/J +5VD
23.10
The TLV320AIC3204EVM-K motherboard (the USB-MODEVM Interface board) supplies power to P23/J23
of the TLV320AIC3204EVM. Power for the motherboard is supplied either through its USB connection or
via terminal blocks on that board.
28
EVM Connector Descriptions
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
www.ti.com
Appendix B TLV320AIC3204EVM Schematic
The schematic diagram for the TLV320AIC3204EVM is provided as a reference.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM Schematic
29
1
2
3
4
6
5
Revision History
REV
AIC3204_54_RHB
AIC3204_54_RHB.SCH
ECN Number
Approved
Daughtercard_Interface
Daughtercard_Interface.SCH
D
D
C
C
B
B
TYPICAL INPUT CONFIGURATIONS (IN3_L & IN3_R)
EXTERNAL ELECTRET
MICROPHONE CONFIGURATION
JACK LINE
INPUT CONFIGURATION
ONBOARD ELECTRET
MICROPHONE CONFIGURATION
INPUT TYPE
MODE
CODEC
INPUTS
ONBOARD MIC
JUMPERS
INPUT CONFIG
JUMPER
SETTINGS
DESCRIPTION
A
W2
W3
W4
W5
W6
W7
W8
SINGLE-ENDED
MONO
IN3_L
SINGLE-ENDED
MONO
IN3_L
SINGLE-ENDED
STEREO
IN3_L
IN3_R
DIFFERENTIAL
MONO
IN3_L
IN3_R
SINGLE-ENDED
MONO
IN3_L
SINGLE-ENDED
MONO
IN3_L
IN3_R
SINGLE-ENDED
STEREO
IN3_L
IN3_R
DIFFERENTIAL
MONO
IN3_L
IN3_R
SINGLE-ENDED
MONO
IN3_L
DIFFERENTIAL
MONO
IN3_L
IN3_R
OUT
OUT
OUT
IN
OUT
OUT
1-2
OUT
OUT
OUT
IN
OUT
OUT
1-2
OUT
OUT
IN
IN
OUT
IN
OUT
OUT
OUT
OUT
IN
IN
IN
2-3
OUT
OUT
OUT
OUT
N/A
OUT
1-2
OUT
OUT
OUT
OUT
N/A
IN
OUT
OUT
OUT
OUT
OUT
N/A
IN
OUT
OUT
OUT
OUT
OUT
N/A
IN
OUT
IN
IN
OUT
IN
OUT
IN
1-2
IN
IN
OUT
IN
IN
IN
2-3
Microphone
bias provided on
tip. IN3_R AC
coupled to
GND. Ring not
connected to
circuit.
Microphone
bias provided on
tip. IN3_R AC
coupled to
GND. Ring not
connected to
circuit.
Stereo electret
microphones.
Bias provided to
both inputs.
Ring is
connected to
IN3_R.
Differential
electret
microphone.
IN3_L &
IN3_R
configured as
differential pair.
IN3_R is
AC-coupled to
AVSS.
Ring is
connected to
IN3_R.
Ring is
connected to
IN3_R.
Differential line
in. IN3_L &
IN3_R
configured as
differential pair.
Single Ended Mono.
ti
Differential Mono.
DATA ACQUISITION PRODUCTS
HIGH PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
12500 T.I. Boulevard, Dallas, Texas 75243 USA
TITLE
ENGINEER Mike Tsecouras
TLV320AIC3204_54_RHB_EVM
DRAWN BYSteve Leggio
DOCUMENT CONTROL NO.N/A
SHEET 1
1
2
3
4
5
OF
3
SIZE A
DATE 20-Aug-2008
REV A
FILE
6
A
1
2
3
4
6
5
REVISION HISTORY
REV
D
AGND
AGND
VCOM
AGND
AGND
AGND
A3(-)
A2(-)
A1(-)
A0(-)
APPROVED
P12
J11
19
17
15
13
11
9
7
5
3
1
ENGINEERING CHANGE NUMBER
REF+
REFA7
A6
A5
A4
A3(+)
A2(+)
A1(+)
A0(+)
20
18
16
14
12
10
8
6
4
2
SCLK
/SS
MOSI
MISO
1
3
5
7
9
11
13
15
17
19
CONN_EVM_ANALOG
BOTTOM SIDE
CNTL
CLKX
CLKR
FSX
FSR
DX
DR
INT
TOUT
GPIO5
2
4
6
8
10
12
14
16
18
20
GPIO0
DGND
GPIO1
GPIO2
DGND
GPIO3
GPIO4
SCL
DGND
SDA
D
/RESET
SCL
SDA
CONN_EVM_SERIAL
TOP SIDE
J12
19
17
15
13
11
9
7
5
3
1
GPIO5
TOUT
INT
DR
DX
FSR
FSX
CLKR
CLKX
CNTL
20
18
16
14
12
10
8
6
4
2
SDA
DGND
SCL
GPIO4
GPIO3
DGND
GPIO2
GPIO1
DGND
GPIO0
CONN_EVM_SERIAL
BOTTOM SIDE
3
VIN
10
+5VD
1
2
3
+5V
TP34
+1.8VA
C38
10uF
U6
LM317
R38
3
2
+5VA
C37
47uF
C42
0.1uF
C
C43
0.1uF
HPVDD
IN
2
OUT
TP35
HPVDD
R39
240
1
W20
C41
0.1uF
+1.8VA
2
VOUT
1
C36
47uF
GND
U5
REG1117A-18
R37
ADJ
+5VA
C
C39
10uF
C44
0.1uF
R40
500
B
AGND
AGND
VCOM
AGND
AGND
AGND
A3(-)
A2(-)
A1(-)
A0(-)
REF+
REFA7
A6
A5
A4
A3(+)
A2(+)
A1(+)
A0(+)
R41
47
20
18
16
14
12
10
8
6
4
2
P22
C40
10uF
J21
19
17
15
13
11
9
7
5
3
1
BCLK
WCLK
TP36
+5VA
P23
1
3
5
7
9
+1.8VD
CONN_EVM_ANALOG
BOTTOM SIDE
DIN
DOUT
+5VA
TP37
+1.8VD
-VA
-5VA
AGND
VD1
+5VD
TP38
1
+3.3VD
2
W21
IOVDD
9
7
5
3
1
+3.3VD
+1.8VD
DGND
+5VA
+VA
+5VD
VD1
AGND
-5VA
-VA
TP40
+5VD
19
17
15
13
11
9
7
5
3
1
10
8
6
4
2
CONN_EVM_POWER
BOTTOM SIDE
TP39
TP42
TP43
MICGND AGND
TP44
AGND
TP45
DGND
2
4
6
8
10
12
14
16
18
20
GPIO0
DGND
GPIO1
GPIO2
DGND
GPIO3
GPIO4
SCL
DGND
SDA
B
GPIO5
TOUT
INT
DR
DX
FSR
FSX
CLKR
CLKX
CNTL
20
18
16
14
12
10
8
6
4
2
SDA
DGND
SCL
GPIO4
GPIO3
DGND
GPIO2
GPIO1
DGND
GPIO0
CONN_EVM_SERIAL
BOTTOM SIDE
IOVDD
TP41
HPGND
CNTL
CLKX
CLKR
FSX
FSR
DX
DR
INT
TOUT
GPIO5
CONN_EVM_SERIAL
TOP SIDE
J22
+5VD
CONN_EVM_POWER
TOP SIDE
J23
+3.3VD
IOVDD
+VA
+5VA
DGND
+1.8VD
+3.3VD
MCLK
2
4
6
8
10
1
3
5
7
9
11
13
15
17
19
ti
TP46
DGND
A
DATA ACQUISITION PRODUCTS
HIGH-PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
12500 T.I. Boulevard, Dallas, Texas 75243 USA
ENGINEER MIKE TSECOURAS
TITLE
TLV320AIC3204_54_RHB_EVM
DRAWN BY STEVE LEGGIO
DOCUMENT CONTROL NO.N/A
SHEET 2
1
2
3
4
5
OF
3
SIZE B
DATE 20-Aug-2008
REV A
FILE
6
A
1
2
3
4
6
5
Revision History
J1
2
4
5
3
1
2
TP1
IN1_L
C1
1
IN1_L
0.47uF
TP28
SCL/SSZ
2
IN1_R
0.47uF
IN2
TP3
IN2_L
C3
1
IN2_L
IN2_R
3
2
1
23
24
TP10
LOR
HPL
IN2_L
IN1_R
IN1_L
SPI_SEL
MISO
SDA/MOSI
SCL/SSZ
14
13
12
11
10
9
SCL/SS
SDA/MOSI
MISO
IN1_L
DVDD
LDO_SEL 30
DVSS
28
DIN
3
WCLK
2
BCLK
1
MCLK
R27
4.7K
R24
0
D1
/RESET
2
C13
NI R12
3
C14
NI
47uF
C22
R31
2
4
5
3
1
C19
47nF
R29
16
1
C20
47nF
+3.3VD
5
VCC
C24
U4
GND
B
A
SN74LVC1G08
1
TP12
HPR
5
6
7
8
SN74LVC2G00
2A
2B
1Y
VCC
GND
2Y
1B
1A
4
3
2
1
0
0
DIN
R21
WCLK
R22
BCLK
R23
MCLK
0
R32
10K
R33
10K
1
3
SW3
2
/RESET
+3.3VD
C25
SHOWN POSITION
"/RESET"
+3.3VD
R28
1
2
/RESET
W15
SW2:
EXTERNAL AVDD & DVDD = 0
INTERNAL AVDD & DVDD = 1
R30
16
ti
R26
4.7K
SW2
SJ1-3515-SMT
HEADPHONE
TEST ONLY
2
1
3
5
4
6
+1.8VD
8
7
9
+1.8VA
DATA ACQUISITION PRODUCTS
HIGH PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
12500 T.I. Boulevard, Dallas, Texas 75243 USA
3
4
TITLE
ENGINEER Mike Tsecouras
10
12
TLV320AIC3204_54_RHB_EVM
DRAWN BYSteve Leggio
DOCUMENT CONTROL NO.N/A
4PDT_ESW_EG4208
2
3
2
1
0.1uF
4.7K
11
1
0
DOUT
R20
0.1uF
TP33
LDO_SEL
2
W9
J10
2
HEADPHONE
RED
"RESET"
Y
47uF
W12
2
W10
R10
100
1
R9
100
R19
0
IOVDD
0
HPR
HPVDD
U3
4
332
TP11
HPL
TP19
DOUT
TP20
DIN
TP21
WCLK
TP22
BCLK
TP23
MCLK
TP24
GPIO
B
22uF
TP32
DVDD
IOVDD
1
+3.3VD
1
TP31
HPVDD
MISO
IOVDD
C21
0
SJ1-3515-SMT
HEADPHONE JACK
4
W11
2
C12
NI R11
2
4
5
3
1
DOUT
TP25
/RESET
0.1uF
C35
22uF
R18
TLV320AIC3254
C30
0.1uF
C34
1
J9
25
C29
C31
W16
10uF 2
0
PPAD
1.0uF
J8
A
2
1.0uF
MCLK
2
J7
SJ1-3515-SMT
C18
47nF
SCLK
C
C26
0.1uF
5
W17
1
2
4
5
3
1
AVDD
W18
LINE OUT
LINE OUT
100
BCLK
2
LOR
TP30
AVDD
C16
LOR
22uF
TP9
LOL
C15
WCLK
C28
1
R8
3
R17
GPIO
LOR
C11
NI
LOL
RESETZ
22
DIN
GPIO32
LOL
IN3_R
AVDD
J6
100
C17
47nF
MOSI
6
DOUT
LDO_SELECT
21
0.1uF
C33
2
/SS
R16
8
IOVDD
IN3_L
31
C10
NI
IN3_R
MICBIAS
DVDD 29
2
C10, and C11 are
not installed, but
can be used to filter
noise.
20
HPR
3
MD9745APZ-F
R7
SDA
R15
0
W14
SCLK/MIC_DET
7
IOVSS
27
1
LOL
SCL
R14
0
SCLK/MIC_DET
/RESET
0.47uF
R6
1.0K
W8
1
TP15
/SS
TP16
MOSI
TP18
MISO
REF
HPR
2
TP7
IN3_R
IN3_L
AVSS
1
W2
1
2
18
MICBIAS 19
C7
W3
1
2
0.47uF
W7
1
17
REF
SPISELECT
0.1uF
TP6
IN3_L
C6
IN1_R
R5
1.0K
TP5
MIC BIAS
2
4
5
3
1
IN2_R
R3
2.2K
EXT MIC IN
B
R13
0
0
10
12
U1
10uF
C27
1.2K
HPL
2
IN2_R
C32
HPL
C5
47uF
2
R4
IN2_L
2
W4
1
HPVDD
W6
1
26
W5
1
15
TP26
VREF
C
3
D
TP17
SCLK
16
1
R2
100K
MICROCHIP_24LC64
0
R1
1.0K
2
R36
2.7K
0
2
1
8
7
6
5
A0
VCC
A1
WP
A2
SCL
VSS SDA
TP13
SCL
TP14
SDA
MIC DET used
only with I2C
interface.
MIC BIAS SEL
W1
3
TP8
EXT.BIAS
2
1
8
7
9
0.47uF
W23
1
2
J4
ONBOARD MIC
Approved
SCLK/MIC_DET
3
SJ1-3515-SMT
4
6
11
TP4
IN2_R
C4
J5
5
W13
0.47uF
W22
1
2
2
MK1
TP29
SDA/MOSI
W19
J3
TP2
IN1_R
C2
3
R25
4.7K
4PDT_ESW_EG4208
SW1
1
2
3
TP27
SPI_SEL
1
IN1
R35
2.7K
U2
1
2
3
4
IOVDD
EXT MIC IN
D
ECN Number
0.1uF
R34
2.7K
SW1:
I2C SEL = 0
SPI SEL = 1
SJ1-3515-SMT
J2
REV
C23 +3.3VD
+3.3VD
SHEET 1
5
OF
3
SIZE A
DATE 20-Aug-2008
REV A
FILE
6
A
www.ti.com
Appendix C TLV320AIC3204EVM Layout Views
C.1
Layout Views
Figure 18. Top Layer
Figure 19. Mid-Layer 1
30
TLV320AIC3204EVM Layout Views
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
Layout Views
www.ti.com
Figure 20. Mid-Layer 2
Figure 21. Bottom Layer
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM Layout Views
31
Layout Views
www.ti.com
Figure 22. Top Overlay
Figure 23. Bottom Overlay
32
TLV320AIC3204EVM Layout Views
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
Layout Views
www.ti.com
Figure 24. Drill Drawing
Figure 25. Composite
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
TLV320AIC3204EVM Layout Views
33
www.ti.com
Appendix D TLV320AIC3204EVM Bill of Materials
The complete bill of materials for the TLV320AIC3204EVM is provided as a reference.
Table 7. TLV320AIC3204EVM Bill of Materials
PCB
Qty Value
Ref Des
Description
1
N/A
TLV320AIC3204_54_RHB_EVM_Rev Texas
A (PCB)
Instruments
Vendor
Part number
Qty Value
Ref Des
Description
Vendor
Part number
2
0
R11, R12
RES ZERO OHM 1/4W 5% 1206
S.D.
Panasonic
EJ-8GEY0R00V
12
0
R13, R14, R15, R16, R17, R18, R19, R20,
R21, R22, R23, R24
RES ZERO OHM 1/10W 5% 0603
S.D.
Panasonic
EJ-3GEY0R00V
1
2
R38
RESISTOR 2.0 OHM 1/4W 5% 1206
Panasonic
EJ-8GEYJ2R0V
1
10
R37
RES 10 OHM 1/4W 5% 1206 S.D.
Panasonic
EJ-8GEYJ100V
2
16
R29, R30
RES 16 OHM 1W 5% 2512 S.D.
Panasonic
EJ-1TYJ160U
1
47
R41
RES 47 OHM 1/10W 5% 0603 S.D.
Panasonic
EJ-3GEYJ470V
4
100
R7, R8, R9, R10
RES 100 OHM 1/10W 1% 0603 S.D.
Panasonic
EJ-3EKF1000V
1
240
R39
RES 240 OHM 1/10W 5% 0603 S.D.
Panasonic
EJ-3GEYJ241V
1
332
R31
RES 332 OHM 1/10W 1% 0603 SMD
Panasonic
ERJ3EKF3320V
1
500
R40
TRIMPOT 500 OHM 4MM TOP ADJ
SMD
Bourns Inc.
3214W-1-501E
3
1.0K
R1, R5, R6
RES 1.00K OHM 1/10W 1% 0603
SMD
Panasonic
ERJ3EKF1001V
1
1.2K
R4
RES 1.20K OHM 1/10W 1% 0603
SMD
Panasonic
ERJ3EKF1201V
1
2.2K
R3
RES 2.2K OHM 1/10W 5% 0603
SMD
Panasonic
ERJ3GEYJ222V
3
2.7K
R34, R35, R36
RES 2.7K OHM 1/10W 5% 0603
SMD
Panasonic
ERJ3GEYJ272V
4
4.7K
R25, R26, R27, R28
RES 4.7K OHM 1/10W 5% 0603
SMD
Panasonic
ERJ3GEYJ472V
2
10K
R32, R33
RES 10K OHM 1/10W 5% 0603 SMD Panasonic
ERJ3GEYJ103V
1
100K
R2
RES 100K OHM 1/10W 1% 0603
SMD
Panasonic
ERJ3EKF1003V
Qty Value
Ref Des
Description
Vendor
Part number
4
47000pF
C17, C18, C19, C20
CAP CER 47000PF 50V X7R 10%
0603
TDK
Corporation
C1608X7R1H47
3K
5
0.1uF
C26, C27, C28, C29, C30
CAP CER .10UF 6.3V X5R 10%
0402
TDK
Corporation
C1005X5R0J10
4K
3
0.1uF
C23, C24, C25
CAP CER .1UF 25V X7R 0603
TDK
Corporation
C1608X7R1E10
4K
4
0.1uF
C41, C42, C43, C44
CAP .1UF 25V CERAMIC X7R 0805
Panasonic
ECJ2VB1E104K
6
0.47uF
C1, C2, C3, C4, C6, C7
CAP CER .47UF 10V X5R 10% 0603 Panasonic
C1608X5R1A47
4K
2
1.0uF
C15, C16
CAP CERAMIC 1UF 10V X5R 0603
Panasonic
ECJBVB1A105K
2
10uF
C31, C32
CAP CERAMIC 10UF 6.3V X5R 0603 Panasonic
ECJ1VB0J106M
RESISTORS
CAPACITORS
34
TLV320AIC3204EVM Bill of Materials
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
Appendix D
www.ti.com
Table 7. TLV320AIC3204EVM Bill of Materials (continued)
3
10uF
C38, C39, C40
CAP CERAMIC 10UF 10V X5R 0805
Panasonic
ECJ2FB1A106K
3
22uF
C33, C34, C35
CAP CER 22UF 6.3V X5R 20% 0805 TDK
Corporation
C2012X5R0J22
6M
5
47uF
C5, C21, C22, C36, C37
CAP CER 47UF 10V X5R 1210
Murata
GRM32ER61A4
76KE20L
2
no value
- not
installed
C10, C11
CAP 0603
N/A
N/A
3
no value
- not
installed
C12, C13, C14
CAP 1206
N/A
N/A
INTEGRATED CIRCUITS
Qty Value
Ref Des
Description
Vendor
Part number
1
U1
Audio Codec
Texas
Instruments
TLV320AIC3204
IRHB
1
U2
IC SERIAL EEPROM 64K 2.5V 8SOIC
MicroChip
24LC64-I/SN
1
U3
Single 2-Input Positive-AND Gate
Texas
Instruments
SN74LVC1G08
DBVR
1
U4
Dual 2-Input Positive-NAND Gate
Texas
Instruments
SN74LVC2G00
DCTR
1
U5
Single Output LDO, 1.0A, Fixed(1.8V) Texas
Instruments
REG1117A-1.8
1
U6
3-Pin 1.5-A Adjustable Voltage
Regulator
Texas
Instruments
LM317DCY
MISCELLANEOUS ITEMS
Qty Value
Ref Des
Description
Vendor
Part number
1
D1
LED THIN 635NM RED DIFF 0805
SMD
Lumex
SMLLXT0805IW-TR
1
MK1
Omnidirectional Microphone Cartridge Knowles
Acoustics
MD9745APZ-F
or alternate
Knowles
Acoustics
MD9745APA-1
2
SW1-SW2
SWITCH SLIDE 4PDT 30V RT
ANGLE
E-Switch
EG4208
1
SW3
SWITCH SLIDE SPDT 30V.2A PC
MNT
E-Switch
EG1218
5
J2, J3, J4, J6, J8
Screw Terminal Block, 3 Position
On Shore
Technology
ED555/3DS
5
J1, J5, J7, J9, J10
3.5mm Audio Jack, T-R-S, SMD
CUI Inc.
SJ1-3515-SMT
or alternate
KobiConn
161-3335-E
11
not
installed
TP26, TP30, TP31, TP32, TP34, TP35, TP36, TEST POINT PC MINI .040"D RED
TP37, TP38, TP39, TP40
Keystone
Electronics
5000
29
not
installed
TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8,
TEST POINT PC MINI .040"D WHITE Keystone
TP9, TP10, TP11, TP12, TP13, TP14, TP15,
Electronics
TP16, TP17, TP18, TP19, TP20, TP21, TP22,
TP23, TP24, TP25, TP27, TP28, TP29, TP33
5002
6
TP41, TP42, TP43, TP44, TP45, TP46
TEST POINT PC MULTI PURPOSE
BLK
Keystone
Electronics
5011
2
P12, P22
20 Pin SMT Plug Header
Samtec
TSM-110-01-LDV-P
4
J11, J12, J21, J22
20 pin SMT Socket Header
Samtec
SSW-110-22-FD-VS-K
1
P23
10 Pin SMT Plug Header
Samtec
TSM-105-01-LDV-P
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
TLV320AIC3204EVM Bill of Materials
Copyright © 2008–2012, Texas Instruments Incorporated
35
Appendix D
www.ti.com
Table 7. TLV320AIC3204EVM Bill of Materials (continued)
1
J23
10 pin SMT Socket Header
Samtec
SSW-105-22-FD-VS-K
14
W2, W3, W4, W5, W6, W7, W9, W10, W11,
W12, W13, W15, W22, W23
2 Pin Thru-hole Plug Header
(Jumper), 0 .1" spacing
Samtec
TSW-102-07-LS
5
W16, W17, W18, W19, W21
Bus Wire (18-22 Gauge)
4
W1, W8, W14, W20
3 Position Jumper , 0 .1" spacing
Samtec
TSW-103-07-LS
Installed per test procedure.
Header Shorting Block
Samtec
SNT-100-BK-T
Installed
per test
procedur
e.
ATTENTION: All components must be Rhos compliant. Some part numbers may be either leaded or Rhos. Verify that purchased
components are Rhos compliant.
36
TLV320AIC3204EVM Bill of Materials
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
www.ti.com
Appendix E USB-MODEVM Schematic
The schematic diagram for USB-MODEVM Interface Board is provided as a reference.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
USB-MODEVM Schematic
37
1
2
3
4
6
5
REVISION HISTORY
REV
ENGINEERING CHANGE NUMBER
APPROVED
D
D
USB Interface
USB Interface
Daughtercard Interface
Daughtercard Interface
MCLK
BCLK
LRCLK
I2SDIN
I2SDOUT
MISO
MOSI
SS
SCLK
RESET
INT
PWR_DWN
P3.3
P3.4
P3.5
P1.0
SDA
SCL
P1.1
P1.2
P1.3
C
MCLK
BCLK
LRCLK
I2SDIN
I2SDOUT
MISO
MOSI
SS
SCLK
RESET
INT
PWR_DWN
P3.3
P3.4
P3.5
P1.0
SDA
SCL
P1.1
P1.2
P1.3
C
B
B
ti
A
DATA ACQUISITION PRODUCTS
HIGH-PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA
TITLE
ENGINEER FRYE D. ZERKETTS
untitled
DRAWN BY I. C. SPOTTS
DOCUMENT CONTROL NO.1234567
SHEET 1
1
2
3
4
5
OF
1
FILE
SIZE B
DATE dd MMM yyyy
???
6
REV A
A
1
2
3
4
6
5
REVISION HISTORY
REV
ENGINEERING CHANGE NUMBER
APPROVED
D
1
2
3
D
J11
J12
A0(-)
A1(-)
A2(-)
A3(-)
AGND
AGND
AGND
VCOM
AGND
AGND
2
4
6
8
10
12
14
16
18
20
A0(+)
A1(+)
A2(+)
A3(+)
A4
A5
A6
A7
REFREF+
1
3
5
7
9
11
13
15
17
19
+5VA
DAUGHTER-ANALOG
1
3
5
7
9
+5VD
JMP1
1
-VA
-5VA
AGND
VD1
+5VD
SCLK
TP1
TP2
J12A (TOP) = SAM_TSM-110-01-L-DV-P
J12B (BOTTOM) = SAM_SSW-110-22-F-D-VSIOVDD
+5VD
RESET
IOVDD
IOVDD
C3
TP3
PWR_DWN
2
JMP3
R21
390
2.7K
J2
+5VA
D6
SML-LX0603GW-TR
D7
SML-LX0603GW-TR
GREEN
GREEN
J3
+5VD
P3.3
P3.4
P3.5
P1.0
C
P1.1
P1.2
P1.3
P3.1-P3.2
R7
200k
+3.3VD
R8
R1
R22
390
J1
-5VA
GATE
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
INT
MOSI
1
+3.3VD
GND
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
24
23
22
21
20
19
18
17
16
15
14
13
SN74TVC3010PW
MISO
10uF
1
10uF
R6
U6
1
2
3
4
5
6
7
8
9
10
11
12
JMP4
TP4
10uF
IOVDD
SS
+5VD
C2
0.1uF
2
+5VA
C29 +3.3VD
RA2
10k
DAUGHTER-SERIAL
JMP2
C1
IOVDD
-5VA
2
4
6
8
10
DAUGHTER-POWER
TP7
TP8
AGND
DGND
1
-5VA
JMP5
2
4
6
8
10
12
14
16
18
20
200k
+VA
+5VA
DGND
+1.8VD
+3.3VD
2
JPR-2X1
C
GPIO0
DGND
GPIO1
GPIO2
DGND
GPIO3
GPIO4
SCL
DGND
SDA
J13
J11A (TOP) = SAM_TSM-110-01-L-DV-P
J11B (BOTTOM) = SAM_SSW-110-22-F-D-VS+5VA
J13A (TOP) = SAM_TSM-105-01-L-DV-P
J13B (BOTTOM) = SAM_SSW-105-22-F-D-VS-
CNTL
CLKX
CLKR
FSX
FSR
DX
DR
INT
TOUT
GPIO5
2
1
3
5
7
9
11
13
15
17
19
SCL
200k
R2
TP5
+1.8VD
C4
C5
10uF
10uF
2.7K
SDA
MCLK
I2SDOUT
J4
+1.8VD
J5
+3.3VD
I2SDIN
LRCLK
BCLK
J16
1
3
5
7
9
11
13
15
17
19
B
A0(-)
A1(-)
A2(-)
A3(-)
AGND
AGND
AGND
VCOM
AGND
AGND
J17
2
4
6
8
10
12
14
16
18
20
A0(+)
A1(+)
A2(+)
A3(+)
A4
A5
A6
A7
REFREF+
1
3
5
7
9
11
13
15
17
19
+5VA
CNTL
CLKX
CLKR
FSX
FSR
DX
DR
INT
TOUT
GPIO5
GPIO0
DGND
GPIO1
GPIO2
DGND
GPIO3
GPIO4
SCL
DGND
SDA
2
4
6
8
10
12
14
16
18
20
B
DAUGHTER-SERIAL
DAUGHTER-ANALOG
J18
J16A (TOP) = SAM_TSM-110-01-L-DV-P
J16B (BOTTOM) = SAM_SSW-110-22-F-D-VS-
+1.8VD
1
3
5
7
9
+VA
+5VA
DGND
+1.8VD
+3.3VD
-VA
-5VA
AGND
VD1
+5VD
2
4
6
8
10
-5VA
J17A (TOP) = SAM_TSM-110-01-L-DV-P
J17B (BOTTOM) = SAM_SSW-110-22-F-D-VS-
DAUGHTER-POWER
+3.3VD
+5VD
IOVDD
ti
J18A (TOP) = SAM_TSM-105-01-L-DV-P
J18B (BOTTOM) = SAM_SSW-105-22-F-D-VS-
A
DATA ACQUISITION PRODUCTS
A
HIGH-PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA
TITLE
ENGINEER RICK DOWNS
USB-MODEVM INTERFACE
DRAWN BY ROBERT BENJAMIN
DOCUMENT CONTROL NO.6463996
SHEET 2
1
2
3
4
5
OF
2
FILE
SIZE B
DATE 3-Apr-2007
REV D
C:\01_TI\designs\USB_MODEVM\usb-modevm_revD\USB Motherboard - ModEvm.ddb - Documents\SCH\Daughtercard Interface
6
1
2
3
4
6
5
REVISION HISTORY
REV
C33 +3.3VD
+3.3VD
APPROVED
C41
0.1uF
5
1
IOVDD C32
ENGINEERING CHANGE NUMBER
SDA
C31
U11
VREF1
J6
1
3
SDA1
SCL1
GND
EXTERNAL I2C
0.1uF
0.1uF
USB I2S
SN74AVC4T245PW
PCA9306DCT
+3.3VD
5
VCCB VCCA
OE1
DIR1
OE2
DIR2
1B1
1A1
1B2
1A2
2B1
2A1
2B2
2A2
GND
GND
0.1uF
SCL
C19
C
C20
J7 USB SLAVE CONN
46
47
48
1
3
5
6
7
4
16
28
45
100pF
GND
D+
DVCC
4
3
2
1
C21
R9
1.5K
R12
3.09K
.001uF
R10
27.4
897-30-004-90-000000
R11
C14
47pF
1
2
3
C13
47pF
27.4
XTALO
XTALI
PLLFILI
PLLFILO
MCLKI
PUR
DP
DM
DVSS
DVSS
DVSS
AVSS
75
I2SDIN
BCLK
LRCLK
IOVDD
J14
I2SDOUT
1
3
5
7
9
11
0.1uF
U5
1
VCCB VCCA
3
B
A
2
DIR
GND
PWR_DWN
IOVDD C26
C
U7
6
4
IOVDD 5
31
30
29
27
26
25
24
23
8
21
33
2
VCCB VCCA
B
A
DIR
GND
0.1uF
MOSI
16
15
14
13
12
11
10
9
P1.0
+3.3VD
C11
0.1uF
C12
0.1uF
R13
C27
VCCB VCCA
OE1
DIR1
OE2
DIR2
1B1
1A1
1B2
1A2
2B1
2A1
2B2
2A2
GND
GND
J15
1
2
3
4
5
6
7
8
0.1uF
1
3
5
7
9
11
2
4
6
8
10
12
EXTERNAL SPI
SN74AVC4T245PW
INT
USB SPI
P3.5
D2
P3.4
SML-LX0603YW-TR
YELLOW
P3.1-P3.2
R17
+3.3VD
100K
C36 IOVDD
C44
1uF
SML-LX0603GW-TR
+5VD
JMP6
PWR SELECT
6VDC-10VDC IN
CUI-STACK PJ102-BH
2.5 MM
GREEN
3
9
3
C16
0.33uF
VIN
GND
U2
REG1117-5
D1
C15 DL4001
0.1uF
U9
5
6
4
2
VOUT
C6
10uF
R15
10K
10
11
12
R16
10K
SW1
1
2
4
3
1IN
1IN
1EN
1GND
2GND
2EN
2IN
2IN
1RESET
1OUT
1OUT
2RESET
2OUT
2OUT
TPS767D318PWP
3.3VD ENABLE
1.8VD ENABLE
R4
10
C7
28
10uF
24
23
22
+3.3VD
18
17
10uF
IOVDD
2
D8
4
SN74LVC1G06DBV
IOVDD
0.1uF
U16
GREEN
SML-LX0603GW-TR
TP6
R25
R26
22.1k
137k
R27
R28
25.5k
76.8k
R29
R30
28k
56.2k
R31
R32
32.4k
48.7k
R33
R34
39.2k
36.5k
R35
R36
46.4k
30.9k
R37
R18
52.3k
30.1k
1
3
2
RED
C37
0.1uF
IN
OUT
EN
GND
FB
TPS73201DBV
R19
220
C8
10uF
IOVDD
R38
10M
5
SW3
4
1.2V
1.4V
1.6V
1.8V
2.0V
2.5V
3.0V
3.3V
9
10
11
12
13
14
15
16
8
7
6
5
4
3
2
1
ti
DATA ACQUISITION PRODUCTS
IOVDD SELECT
6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA
GREEN
TITLE
ENGINEER RICK DOWNS
USB-MODEVM INTERFACE
DRAWN BYROBERT BENJAMIN
DOCUMENT CONTROL NO.6463996
SHEET 1
2
3
A
HIGH PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
REGULATOR ENABLE
1
B
U14
D5
D4
SML-LX0603GW-TR
C17
0.33uF
R24
220
0.1uF
C25
1
J9
6
4
5
VCCA VCCB
A
B
GND
DIR
SN74AVC1T45DBV
SML-LX0603IW-TR
1
2
3
EXT PWR IN
1
3
2
+1.8VD
D3
+3.3VD C39
U13
0.1uF
R14
390
+3.3VD C38
5
+3.3VD
P3.3
3
649
ED555/2DS
SN74AUP1G125DBV
2
4
IOVDD
U4
P1.1
U17
0.1uF
RESET
0.1uF
C10
0.1uF
C40 IOVDD
SS
SN74AVC1T45DBV
+3.3VD C43
P1.2
C24
0.1uF
USB RST
MISO
1
3
2
SCLK
P1.3
USB ACTIVE
A
SW DIP-8
MRESET
+3.3VD
J8
1
2
3
4
5
6
7
8
0.1uF
TP11
B
16
15
14
13
12
11
10
9
2
4
6
8
10
12
EXTERNAL AUDIO DATA
+3.3VD C42
9
10
11
12
13
14
15
17
18
19
20
22
JMP7
JPR-1X3
SW2
A0
A1
A2
USB I2S
USB MCK
USB SPI
USB RST
EXT MCK
R20
MCLK
U8
TAS1020BPFB
P1.7
P1.6
P1.5
P1.4
P1.3
P1.2
P1.1
P1.0
DVDD
DVDD
DVDD
AVDD
RA1
10K
JMP8
JPR-2X1
SN74LVC1G125DBV
SN74AVC1T45DBV
33pF
6.00 MHZ
D
IOVDD
2
44
43
42
41
40
39
37
38
36
35
34
32
33pF MA-505 6.000M-C0
SCL
SDA
VREN
RESET
MCLKO2
MCLKO1
CSCLK
CDATO
CDATI
CSYNC
CRESET
CSCHNE
24LC64I/SN
X1
C18
6
4
IOVDD 5
MRESET
TEST
EXTEN
RSTO
P3.0
P3.1
P3.2/XINT
P3.3
P3.4
P3.5
NC
NC
VSS
1
2
3
C9
0.1uF
4
A0
A1
A2
VCC
0.1uF
WP
8
+3.3VD
SN74LVC1G126DBV
J10
EXT MCLK
U10
4
U1
SDA
SCL
16
15
14
13
12
11
10
9
SN74AVC4T245PW
+3.3VD C35
C23
TP10
7
2
4
4
3
1
VREF2
EN
SDA2
SCL2
7
8
5
6
USB MCK
6
2
0.1uF
U3
1
2
3
4
5
6
7
8
U15
4
2
1
TP9
R5
2.7K
C28 +3.3VD
5
R3
2.7K
C22 IOVDD
3
EXT MCK
R23
200k
0.1uF
+3.3VD C34
16
15
14
13
12
11
10
9
2
C30
0.1uF
VCCA VCCB
DIR1
OE1
DIR2
OE2
1A1
1B1
1A2
1B2
2A1
2B1
2A2
2B2
GND
GND
1
1
2
3
4
5
6
7
8
3
+3.3VD
1
+3.3VD
5
IOVDD
3
0.1uF
U12
D
4
5
OF
2
FILE
SIZE B
DATE 3-Apr-2007
REV D
C:\01_TI\designs\USB_MODEVM\usb-modevm_revD\USB Motherboard - ModEvm.ddb - Documents\SCH\USB Interface
6
www.ti.com
Appendix F USB-MODEVM Bill of Materials
The complete bill of materials for USB-MODEVM Interface Board is provided as a reference.
Table 8. USB-MODEVM Bill of Materials
Designators
Description
Manufacturer
Mfg. Part Number
R4
10Ω 1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ1300V
R10, R11
27.4Ω 1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF27R4V
R20
75Ω 1/4W 1% Chip Resistor
Panasonic
ERJ-14NF75R0U
R19
220Ω 1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ221V
R14, R21, R22
390Ω 1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ391V
R13
649Ω 1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF6490V
R9
1.5KΩ 1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ1352V
R1–R3, R5–R8
2.7KΩ 1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ272V
R12
3.09KΩ 1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF3091V
R15, R16
10KΩ 1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ1303V
R17, R18
100kΩ 1/10W 5%Chip Resistor
Panasonic
ERJ-3GEYJ1304V
RA1
10KΩ 1/8W Octal Isolated Resistor Array
CTS Corporation
742C163103JTR
C18, C19
33pF 50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H330J
C13, C14
47pF 50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H470J
C20
100pF 50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H101J
C21
1000pF 50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H102J
C15
0.1μF 16V Ceramic Chip Capacitor, ±10%, X7R
TDK
C1608X7R1C104K
C16, C17
0.33μF 16V Ceramic Chip Capacitor, ±20%, Y5V
TDK
C1608X5R1C334K
C9–C12, C22–C28
1μF 6.3V Ceramic Chip Capacitor, ±10%, X5R
TDK
C1608X5R0J1305K
C1–C8
10μF 6.3V Ceramic Chip Capacitor, ±10%, X5R
TDK
C3216X5R0J1306K
D1
50V, 1A, Diode MELF SMD
Micro Commercial Components
DL4001
D2
Yellow Light Emitting Diode
Lumex
SML-LX0603YW-TR
D3– D7
Green Light Emitting Diode
Lumex
SML-LX0603GW-TR
D5
Red Light Emitting Diode
Lumex
SML-LX0603IW-TR
Q1, Q2
N-Channel MOSFET
Zetex
ZXMN6A07F
X1
6MHz Crystal SMD
Epson
MA-505 6.000M-C0
U8
USB Streaming Controller
Texas Instruments
TAS1020BPFB
U2
5V LDO Regulator
Texas Instruments
REG1117-5
U9
3.3V/1.8V Dual Output LDO Regulator
Texas Instruments
TPS767D318PWP
U3, U4
Quad, 3-State Buffers
Texas Instruments
SN74LVC125APW
U5–U7
Single IC Buffer Driver with Open Drain o/p
Texas Instruments
SN74LVC1G07DBVR
U10
Single 3-State Buffer
Texas Instruments
SN74LVC1G125DBVR
U1
64K 2-Wire Serial EEPROM I2C
Microchip
24LC64I/SN
USB-MODEVM PCB
Texas Instruments
6463995
TP1–TP6, TP9–TP11
Miniature test point terminal
Keystone Electronics
5000
TP7, TP8
Multipurpose test point terminal
Keystone Electronics
5011
J7
USB Type B Slave Connector Thru-Hole
Mill-Max
897-30-004-90-000000
J13, J2–J5, J8
2-position terminal block
On Shore Technology
ED555/2DS
J9
2.5mm power connector
CUI Stack
PJ-102B
J130
BNC connector, female, PC mount
AMP/Tyco
414305-1
J131A, J132A, J21A, J22A
20-pin SMT plug
Samtec
TSM-110-01-L-DV-P
J131B, J132B, J21B, J22B
20-pin SMT socket
Samtec
SSW-110-22-F-D-VS-K
J133A, J23A
10-pin SMT plug
Samtec
TSM-105-01-L-DV-P
J133B, J23B
10-pin SMT socket
Samtec
SSW-105-22-F-D-VS-K
J6
4-pin double row header (2x2) 0.1"
Samtec
TSW-102-07-L-D
J134, J135
12-pin double row header (2x6) 0.1"
Samtec
TSW-106-07-L-D
JMP1–JMP4
2-position jumper, 0.1" spacing
Samtec
TSW-102-07-L-S
38
USB-MODEVM Bill of Materials
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
Appendix F
www.ti.com
Table 8. USB-MODEVM Bill of Materials (continued)
Designators
Description
Manufacturer
Mfg. Part Number
JMP8–JMP14
2-position jumper, 0.1" spacing
Samtec
TSW-102-07-L-S
JMP5, JMP6
3-position jumper, 0.1" spacing
Samtec
TSW-103-07-L-S
JMP7
3-position dual row jumper, 0.1" spacing
Samtec
TSW-103-07-L-D
SW1
SMT, half-pitch 2-position switch
C&K Division, ITT
TDA02H0SK1
SW2
SMT, half-pitch 8-position switch
C&K Division, ITT
TDA08H0SK1
Jumper plug
Samtec
SNT-100-BK-T
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
USB-MODEVM Bill of Materials
39
www.ti.com
Appendix G USB-MODEVM Protocol
G.1
USB-MODEVM Protocol
The USB-MODEVM is defined to be a Vendor-Specific class and is identified on the PC system as an NIVISA device. Because the TAS1020B has several routines in its ROM which are designed for use with
HID-class devices, HID-like structures are used, even though the USB-MODEVM is not an HID-class
device. Data is passed from the PC to the TAS1020B using the control endpoint.
Data is sent in a HIDSETREPORT (see Table 9).
Table 9. USB Control Endpoint
HIDSETREPORT Request
Part
Value
Description
bmRequestType
0x21
00100001
bRequest
0x09
SET_REPORT
wValue
0x00
don't care
wIndex
0x03
HID interface is index 3
wLength
calculated by host
Data
Data packet as described in Table 10.
The data packet consists of the following bytes, shown in Table 10:
Table 10. Data Packet Configuration
BYTE NUMBER
0
TYPE
DESCRIPTION
Interface
Specifies serial interface and operation. The two values are logically ORed.
Operation:
READ
WRITE
0x00
0x10
GPIO
SPI_16
I2C_FAST
I2C_STD
SPI_8
0x08
0x04
0x02
0x01
0x00
Interface:
1
I2C Slave Address Slave address of I2C device or MSB of 16-bit reg address for SPI
2
Length
Length of data to write/read (number of bytes)
3
Register address
Address of register for I2C or 8-bit SPI; LSB of 16-bit address for SPI
Data
Up to 60 data bytes could be written at a time. EP0 maximum length is 64. The return
packet is limited to 42 bytes, so advise only sending 32 bytes at any one time.
4..64
Example usage:
Write two bytes (AA, 55) to device starting at register 5 of an I2C device with address A0:
[0]
[1]
[2]
[3]
[4]
[5]
40
0x11
0xA0
0x02
0x05
0xAA
0x55
USB-MODEVM Protocol
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
USB-MODEVM Protocol
www.ti.com
Do the same with a fast mode I2C device:
[0]
[1]
[2]
[3]
[4]
[5]
0x12
0xA0
0x02
0x05
0xAA
0x55
Now with an SPI device which uses an 8-bit register address:
[0]
[1]
[2]
[3]
[4]
[5]
0x10
0xA0
0x02
0x05
0xAA
0x55
Now, do a 16-bit register address, as found on parts like the TSC2101. Assume the register address
(command word) is 0x10E0:
[0]
[1]
[2]
[3]
[4]
[5]
0x14
0x10 → Note: the I2C address now serves as MSB of reg address.
0x02
0xE0
0xAA
0x55
In each case, the TAS1020 returns, in an HID interrupt packet, the following:
[0]
interface byte | status
status:
REQ_ERROR 0x80
INTF_ERROR 0x40
REQ_DONE 0x20
[1]
[2]
[3]
[4..60]
for I2C interfaces, the I2C address as sent
for SPI interfaces, the read back data from SPI line for transmission of the corresponding byte
length as sent
for I2C interfaces, the reg address as sent
for SPI interfaces, the read back data from SPI line for transmission of the corresponding byte
echo of data packet sent
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
USB-MODEVM Protocol
41
USB-MODEVM Protocol
www.ti.com
If the command is sent with no problem, the returning byte [0] is the same as the sent one logically ORed
with 0x20 - in the preceding first example, the returning packet is:
[0]
[1]
[2]
[3]
[4]
[5]
0x31
0xA0
0x02
0x05
0xAA
0x55
If for some reason the interface fails (for example, the I2C device does not acknowledge), it comes back
as:
[0]
[1]
[2]
[3]
[4]
[5]
0x51 → interface | INTF_ERROR
0xA0
0x02
0x05
0xAA
0x55
If the request is malformed, that is, the interface byte (byte [0]) takes on a value which is not as previously
described, the return packet is:
[0]
[1]
[2]
[3]
[4]
[5]
0x93 → the user sent 0x13, which is not valid, so 0x93 returned
0xA0
0x02
0x05
0xAA
0x55
The preceding examples used writes. Reading is similar:
Read two bytes from device starting at register 5 of an I2C device with address A0:
[0]
[1]
[2]
[3]
42
0x01
0xA0
0x02
0x05
USB-MODEVM Protocol
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
GPIO Capability
www.ti.com
The return packet is:
[0]
[1]
[2]
[3]
[4]
[5]
0x21
0xA0
0x02
0x05
0xAA
0x55
assuming that the values written starting at Register 5 were actually written to the device.
G.2
GPIO Capability
The USB-MODEVM has seven GPIO lines. Access them by specifying the interface to be 0x08, and then
using the standard format for packets—but addresses are unnecessary. The GPIO lines are mapped into
one byte (see Table 11):
Table 11. GPIO Pin Assignments
Bit 7
6
5
4
3
2
1
0
x
P3.5
P3.4
P3.3
P1.3
P1.2
P1.1
P1.0
Example: write P3.5 to a 1, set all others to 0:
[0]
[1]
[2]
[3]
[4]
0x18
0x00
0x01
0x00
0x40
→
→
→
→
→
write, GPIO
this value is ignored
length - ALWAYS a 1
this value is ignored
01000000
The user can also read back from the GPIO to see the state of the pins. Assume the previous example
was just written to the port pins.
Example: read the GPIO
[0]
[1]
[2]
[3]
0x08
0x00
0x01
0x00
→
→
→
→
read, GPIO
this value is ignored
length - ALWAYS a 1
this value is ignored
The return packet is:
[0]
[1]
[2]
[3]
[4]
G.3
0x28
0x00
0x01
0x00
0x40
Writing Scripts
A script is simply a text file that contains data to send to the serial control buses.
Each line in a script file is one command. No provision is made for extending lines beyond one line, except
for the > command. A line is terminated by a carriage return.
The first character of a line is the command. Commands are:
I Set interface bus to use
r Read from the serial control bus
w Write to the serial control bus
> Extend repeated write commands to lines below a w
# Comment
b Break
d Delay
f
Wait for Flag
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
USB-MODEVM Protocol
43
Writing Scripts
www.ti.com
The first command, I, sets the interface to use for the commands to follow. This command must be
followed by one of the following parameters:
i2cstd
i2cfast
spi8
spi16
gpio
Standard mode I2C bus
Fast mode I2C bus
SPI bus with 8-bit register addressing
SPI bus with 16-bit register addressing
Use the USB-MODEVM GPIO capability
For example, if a fast mode I2C bus is to be used, the script begins with:
I i2cfast
A double quoted string of characters following the b command can be added to provide information to the
user about each breakpoint. When the script is executed, the software's command handler halts as soon
as a breakpoint is detected and displays the string of characters within the double quotes.
The Wait for Flag command, f, reads a specified register and verifies if the bitmap provided with the
command matches the data being read. If the data does not match, the command handler retries for up to
200 times. This feature is useful when switching buffers in parts that support the adaptive filtering mode.
The command f syntax follows:
f [i2c address] [register] [D7][D6][D5][D4][D3][D2][D1][D0] where 'i2c address' and 'register'
are in hexadecimal format and 'D7' through 'D0' are in binary format with values of 0, 1 or X for
don't care.
Anything following a comment command # is ignored by the parser, provided that it is on the same line.
The delay command d allows the user to specify a time, in milliseconds, that the script pauses before
proceeding. The delay time is entered in decimal format.
A series of byte values follows either a read or write command. Each byte value is expressed in
hexadecimal, and each byte must be separated by a space. Commands are interpreted and sent to the
TAS1020B by the program using the protocol described in Section G.1.
The first byte following an r (read) or w (write) command is the I2C slave address of the device (if I2C is
used) or the first data byte to write (if SPI is used—note that SPI interfaces are not standardized on
protocols, so the meaning of this byte varies with the device being addressed on the SPI bus). The
second byte is the starting register address that data will be written to (again, with I2C; SPI varies—see
Section G.1 for additional information about what variations may be necessary for a particular SPI mode).
Following these two bytes are data, if writing; if reading, the third byte value is the number of bytes to
read, (expressed in hexadecimal).
For example, to write the values 0xAA 0x55 to an I2C device with a slave address of 0x30, starting at a
register address of 0x03, the user writes:
#example script I i2cfast w 30 03 AA 55 r 30 03 02
This script begins with a comment, specifies that a fast I2C bus will be used, then writes 0xAA 0x55 to the
I2C slave device at address 0x30, writing the values into registers 0x03 and 0x04. The script then reads
back two bytes from the same device starting at register address 0x03. Note that the slave device value
does not change. It is unnecessary to set the R/W bit for I2C devices in the script; the read or write
commands does that.
If extensive repeated write commands are sent and commenting is desired for a group of bytes, the >
command can be used to extend the bytes to other lines that follow. A usage example for the > command
follows:
#example script for '>' command I i2cfast # Write AA and BB to registers 3 and 4, respectively w
30 03 AA BB # Write CC, DD, EE and FF to registers 5, 6, 7 and 8, respectively > CC DD EE FF #
Place a commented breakpoint b "AA BB CC DD EE FF was written, starting at register 3" # Read
back all six registers, starting at register 3 r 30 03 06
The following example demonstrates usage of the Wait for Flag command, f:
#example script for 'wait for flag' command I i2cfast # Switch to Page 44 w 30 00 2C # Switch
buffers w 30 01 05 # Wait for bit D0 to clear. 'x' denotes a don't care. f 30 01 xxxxxxx0
44
USB-MODEVM Protocol
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
Writing Scripts
www.ti.com
Any text editor can be used to write these scripts; Jedit is an editor that is highly recommended for general
usage. For more information, go to: http://www.jedit.org.
Once the script is written, it can be used in the command window by running the program, and then
selecting Open Script File... from the File menu. Locate the script and open it. The script is then displayed
in the command buffer. The user can also edit the script once it is in the buffer and save it by selecting
Save Script File... from the File menu.
Once the script is in the command buffer, it can be executed by pressing the Execute Command Buffer
button. If there are breakpoints in the script, the script executes to that point, and the user is presented
with a dialog box with a button to press to continue executing the script. When ready to proceed, push that
button and the script continues.
SLAU266A – October 2008 – Revised October 2012
Submit Documentation Feedback
Copyright © 2008–2012, Texas Instruments Incorporated
USB-MODEVM Protocol
45
EVALUATION BOARD/KIT IMPORTANT NOTICE
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES
ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have
electronics training and observe good engineering practice standards. As such, the goods being provided are not intended to be complete
in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety and environmental
measures typically found in end products that incorporate such semiconductor components or circuit boards. This evaluation board/kit does
not fall within the scope of the European Union directives regarding electromagnetic compatibility, restricted substances (RoHS), recycling
(WEEE), FCC, CE or UL, and therefore may not meet the technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO BUYER
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all
appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or
services described herein.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI’s environmental and/or
safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES
ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and can radiate radio
frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15 of FCC rules, which are
designed to provide reasonable protection against radio frequency interference. Operation of this equipment in other environments may
cause interference with radio communications, in which case the user at his own expense will be required to take whatever measures may
be required to correct this interference.
EVM WARNINGS AND RESTRICTIONS
It is important to operate the EVM daughterboard within the input voltage range specified in Table A-4 and the EVM motherboard within the
input voltage range of 6 Vdc to 10 Vdc when using an external ac/dc power source. See the USB-MODEVM Interface Power section of this
manual when using laboratory power supplies.
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are questions
concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the EVM.
Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load specification,
please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than 85°C. The EVM is designed to operate
properly with certain components above 85°C as long as the input and output ranges are maintained. These components include but are
not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of devices can be identified
using the EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during operation,
please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2008, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components which meet ISO/TS16949 requirements, mainly for automotive use. Components which
have not been so designated are neither designed nor intended for automotive use; and TI will not be responsible for any failure of such
components to meet such requirements.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
