TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
TLVx333 2-μV VOS, 0.02-μV/°C, 17-μA, CMOS Operational Amplifiers
Zero-Drift Series
1 Features
3 Description
•
•
•
•
•
•
•
•
•
The TLVx333 series of CMOS operational amplifiers
offer precision performance at a very competitive
price. These devices are members of the zero-drift
family of amplifiers that uses a proprietary autocalibration technique to simultaneously provide low
offset voltage (15 μV, max) and near-zero drift over
time and temperature at only 28 μA (max) of
quiescent current. The TLVx333 family features railto-rail input and output in addition to near-flat 1/f
noise, making this amplifier ideal for many
applications and much easier to design into a system.
These devices are optimized for low-voltage
operation as low as 1.8 V (±0.9 V) and up to 5.5 V
(±2.75 V).
1
Unmatched Price Performance
Low Offset Voltage: 2 μV
Zero Drift: 0.02 μV/°C
Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
Quiescent Current: 17 μA
Supply Voltage: 1.8 V to 5.5 V
Rail-to-Rail Input/Output
Internal EMI Filtering
microSize Packages: SOT23, SC70
2 Applications
•
•
•
•
•
•
•
Battery-Powered Instruments
Temperature Measurements
Transducer Applications
Electronic Scales
Medical Instrumentation
Handheld Test Equipment
Current Sense
The TLV333 (single version) is available in the SC705, SOT23-5, and SOIC-8 packages. The TLV2333
(dual version) is offered in VSSOP-8 and SOIC-8
packages. The TLV4333 is offered in the standard
SOIC-14 and TSSOP-14 packages. All versions are
specified for operation from –40°C to +125°C.
Device Information(1)
PART NUMBER
TLV333
TLV2333
0.1-Hz to 10-Hz Noise
TLV4333
PACKAGE
BODY SIZE (NOM)
SOIC (8)
4.90 mm × 3.91 mm
SOT-23 (5)
2.90 mm × 1.60 mm
SC70 (5)
2.00 mm × 1.25 mm
SOIC (8)
4.90 mm × 3.91 mm
VSSOP (8)
3.00 mm × 3.00 mm
SOIC (14)
8.65 mm × 3.91
TSSOP (14)
5.00 mm × 4.40 mm
500 nV/div
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
1 s/div
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
3
6
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
6
6
6
7
7
7
8
9
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information: TLV333 ...................................
Thermal Information: TLV2333 .................................
Thermal Information: TLV4333 .................................
Electrical Characteristics: VS = 1.8 V to 5.5 V ..........
Typical Characteristics ..............................................
8.3 Feature Description................................................. 12
8.4 Device Functional Modes........................................ 14
9
Application and Implementation ........................ 15
9.1 System Examples ................................................... 15
10 Power Supply Recommendations ..................... 16
11 Layout................................................................... 16
11.1 Layout Guidelines ................................................. 16
11.2 Layout Example .................................................... 17
12 Device and Documentation Support ................. 18
12.1
12.2
12.3
12.4
12.5
12.6
12.7
Detailed Description ............................................ 12
Device Support......................................................
Documentation Support ........................................
Related Links ........................................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
18
18
18
18
18
18
19
13 Mechanical, Packaging, and Orderable
Information ........................................................... 19
8.1 Overview ................................................................. 12
8.2 Functional Block Diagram ....................................... 12
4 Revision History
2
DATE
REVISION
NOTES
December 2015
*
Initial release.
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
5 Device Comparison Table
PACKAGE-LEADS
DEVICE
NO. OF
CHANNELS
SOIC
SOT23
SC70
VSSOP
TSSOP
TLV333
1
8
5
5
—
—
TLV2333
2
8
—
—
8
—
TLV4333
4
14
—
—
—
14
6 Pin Configuration and Functions
DBV Package: TLV333
5-Pin SOT23
Top View
OUT
1
V-
2
+IN
3
5
4
DCK Package: TLV333

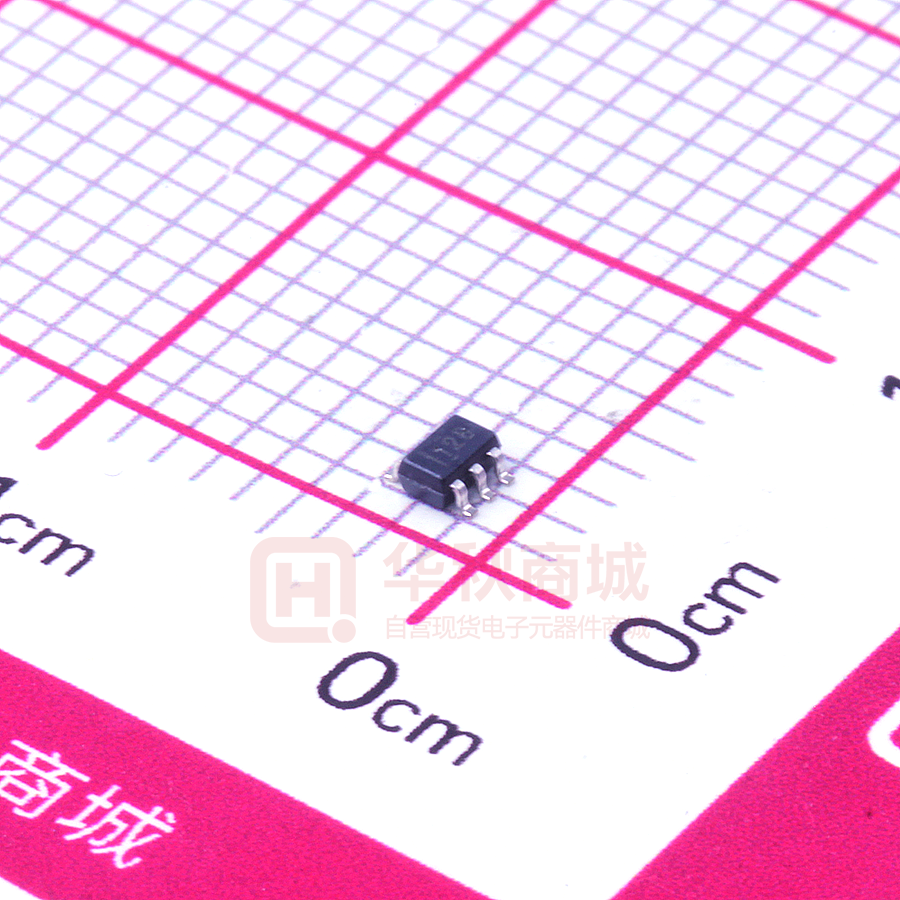

5-Pin SC70
Top View
V+
+IN
1
V-
2
-IN
3
-IN
5
V+
4
OUT
D Package: TLV333
8-Pin SOIC
Top View
(1)
(1)
(1)
1
8
NC
-IN
2
7
V+
+IN
3
6
OUT
V-
4
5
NC
NC
(1)
NC denotes no internal connection.
Pin Functions: TLV333
PIN
NO.
NAME
I/O
DESCRIPTION
DBV
(SOT23)
DCK
(SC70)
D
(SOIC)
–IN
4
3
2
I
Inverting input
+IN
3
1
3
I
Noninverting input
NC
—
—
1, 5, 8
—
No internal connection (can be left floating)
OUT
1
4
6
O
Output
V–
2
2
4
—
Negative (lowest) power supply
V+
5
5
7
—
Positive (highest) power supply
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
3
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
D Package: TLV2333
8-Pin SOIC, VSSOP
Top View
OUT A
1
8
V+
7
OUT B
A
-IN A
2
B
+IN A
3
6
-IN B
V-
4
5
+IN B
Pin Functions: TLV2333
PIN
NO.
I/O
DESCRIPTION
NAME
D
(SOIC, VSSOP)
–IN A
2
I
Inverting input, channel A
+IN A
3
I
Noninverting input, channel A
–IN B
6
I
Inverting input, channel B
+IN B
5
I
Noninverting input, channel B
OUT A
1
O
Output, channel A
OUT B
7
O
Output, channel B
V–
4
—
Negative (lowest) power supply
V+
8
—
Positive (highest) power supply
4
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
D Package: TLV4333
14-Pin SOIC
Top View
OUT A
1
-IN A
2
+IN A
PW Package: TLV4333
14-Pin TSSOP
Top View
OUT A
1
14
OUT D
-IN D
-IN A
2
13
-IN D
12
+IN D
+IN A
3
12
+IN D
11
V-
V+
4
11
V-
10
+IN C
+IN B
5
10
+IN C
-IN B
6
9
-IN C
OUT B
7
8
OUT C
14
OUT D
13
3
V+
4
+IN B
5
A
D
B
C
-IN B
6
9
-IN C
OUT B
7
8
OUT C
Pin Functions: TLV4333
PIN
NAME
NO.
I/O
DESCRIPTION
D (SOIC)
PW (TSSOP)
–IN A
2
2
I
Inverting input, channel A
+IN A
3
3
I
Noninverting input, channel A
–IN B
6
6
I
Inverting input, channel B
+IN B
5
5
I
Noninverting input, channel B
–IN C
9
9
I
Inverting input, channel C
+IN C
10
10
I
Noninverting input, channel C
–IN D
13
13
I
Inverting input, channel D
+IN D
12
12
I
Noninverting input, channel D
OUT A
1
1
O
Output, channel A
OUT B
7
7
O
Output, channel B
OUT C
8
8
O
Output, channel C
OUT D
14
14
O
Output, channel D
V–
11
11
—
Negative (lowest) power supply
V+
4
4
—
Positive (highest) power supply
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
5
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
Supply voltage
Signal input pins (2)
(V–) –0.3
(V+) + 0.3
V
Current
–10
10
mA
Operating
–40
150
Junction
150
Storage, Tstg
(3)
V
Continuous
Temperature
(2)
UNIT
7
Voltage
Output short-circuit (3)
(1)
MAX
VS = (V+) – (V–)
–65
°C
150
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
Input pins are diode-clamped to the power-supply rails. Input signals that can swing more than 0.3 V beyond the supply rails must be
current limited to 10 mA or less.
Short-circuit to ground, one amplifier per package.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±4000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
±1000
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
VS
6
NOM
MAX
UNIT
Supply voltage
1.8
5.5
V
Specified temperature range
–40
125
°C
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
7.4 Thermal Information: TLV333
TLV333
THERMAL METRIC
(1)
D
(SOIC)
DBV
(SOT23)
DCK
(SC70)
8 PINS
5 PINS
5 PINS
UNIT
RθJA
Junction-to-ambient thermal resistance
140.1
220.8
298.4
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
89.8
97.5
65.4
°C/W
RθJB
Junction-to-board thermal resistance
80.6
61.7
97.1
°C/W
ψJT
Junction-to-top characterization parameter
28.7
7.6
0.8
°C/W
ψJB
Junction-to-board characterization parameter
80.1
61.1
95.5
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
n/a
n/a
n/a
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
7.5 Thermal Information: TLV2333
TLV2333
THERMAL METRIC
(1)
D
(SOIC)
DGK
(VSSOP)
8 PINS
8 PINS
UNIT
RθJA
Junction-to-ambient thermal resistance
124.0
180.3
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
73.7
48.1
°C/W
RθJB
Junction-to-board thermal resistance
64.4
100.9
°C/W
ψJT
Junction-to-top characterization parameter
18.0
2.4
°C/W
ψJB
Junction-to-board characterization parameter
63.9
99.3
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
n/a
n/a
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
7.6 Thermal Information: TLV4333
TLV4333
THERMAL METRIC
(1)
D
(SOIC)
PW
(TSSOP)
UNIT
14 PINS
14 PINS
RθJA
Junction-to-ambient thermal resistance
83.8
120.8
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
70.7
34.3
°C/W
RθJB
Junction-to-board thermal resistance
59.5
62.8
°C/W
ψJT
Junction-to-top characterization parameter
11.6
1.0
°C/W
ψJB
Junction-to-board characterization parameter
37.7
56.5
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
n/a
n/a
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
7
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
7.7 Electrical Characteristics: VS = 1.8 V to 5.5 V
at TA = 25°C, RL = 10 kΩ connected to mid-supply, and VCM = VOUT = mid-supply (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
2
15
UNIT
OFFSET VOLTAGE
VOS
Input offset voltage (1)
VS = 5 V
dVOS/dT
VOS vs temperature
TA = –40°C to +125°C
PSRR
VOS vs power supply
VS = 1.8 V to 5.5 V
Long-term stability
0.02
1
(2)
1
Channel separation, dc
µV
µV/°C
8
(2)
µV/V
µV
0.1
µV/V
INPUT BIAS CURRENT
IB
Input bias current
Input bias current over temperature
IOS
TA = –40°C to +125°C
Input offset current
±70
pA
±150
pA
±140
pA
NOISE
en
Input voltage noise density
Input voltage noise
in
Input current noise
f = 1 kHz
55
f = 0.01 Hz to 1 Hz
0.3
f = 0.1 Hz to 10 Hz
1.1
f = 10 Hz
100
nV/√Hz
µVPP
fA/√Hz
INPUT VOLTAGE RANGE
VCM
Common-mode voltage range
CMRR
Common-mode rejection ratio
(V–) – 0.1
(V–) – 0.1 V < VCM < (V+) + 0.1 V
102
(V+) + 0.1
115
V
dB
INPUT CAPACITANCE
Differential
2
Common-mode
4
pF
OPEN-LOOP GAIN
AOL
Open-loop voltage gain
(V–) + 0.1 V< VO < (V+) – 0.1 V
102
130
dB
FREQUENCY RESPONSE
GBW
Gain-bandwidth product
CL = 100 pF
350
kHz
SR
Slew rate
G=1
0.16
V/µs
Voltage output swing from rail
TA = –40°C to +125°C
OUTPUT
ISC
Short-circuit current
CL
Capacitive load drive
ZO
Open-loop output impedance
30
70
±5
mV
mA
See Typical Characteristics
f = 350 kHz, IO = 0 mA
2
kΩ
POWER SUPPLY
VS
Specified voltage range
IQ
Quiescent current per amplifier
IO = 0 mA, TA = –40°C to +125°C
1.8
Turn-on time
VS = 5 V
17
5.5
V
28
µA
100
µs
TEMPERATURE RANGE
(1)
(2)
8
Specified range
–40
125
°C
Operating range
–40
150
°C
Storage range
–65
150
°C
Specified by design and characterization. Amplifiers are 100% production screened at 25°C to reduce defective units.
300-hour life test at 150°C demonstrated randomly distributed variation of approximately 1 µV.
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
7.8 Typical Characteristics
at TA = 25°C, CL = 0 pF, RL = 10 kΩ connected to mid-supply, VCM = VOUT = mid-supply (unless otherwise noted)
120
250
100
200
AOL (dB)
150
Phase
60
100
40
50
Phase (°)
Population
80
Gain
20
0
-50
-20
24
18
21
12
15
6
9
0
3
-3
-9
-6
-15
-12
-21
-18
-24
0
-100
10
100
1k
10k
100k
1M
Frequency (Hz)
Offset Voltage (mV)
Figure 1. Offset Voltage Production Distribution
Figure 2. Open-Loop Gain vs Frequency
140
120
120
100
+PSRR
PSRR (dB)
CMRR (dB)
100
80
60
-PSRR
80
60
40
40
20
20
0
0
1
10
100
1k
10k
100k
1
1M
10
100
Frequency (Hz)
Figure 3. Common-Mode Rejection Ratio vs Frequency
3
10k
100k
1M
Figure 4. Power-Supply Rejection Ratio vs Frequency
210
VS = ±2.75 V
VS = ±0.9 V
2
205
200
-40°C
+25°C
+125°C
0
-IB
195
1
+25°C
IB (pA)
Output Swing (V)
1k
Frequency (Hz)
-40°C
-1
-190
+125°C
+25°C
-2
-195
+IB
-200
-205
-40°C
-3
190
-210
0
1
2
3
4
5
6
7
8
9
10
0
1
Output Current (mA)
Figure 5. Output Voltage Swing vs Output Current
2
3
4
5
Common-Mode Voltage (V)
Figure 6. Input Bias Current vs Common-Mode Voltage
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
9
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
Typical Characteristics (continued)
at TA = 25°C, CL = 0 pF, RL = 10 kΩ connected to mid-supply, VCM = VOUT = mid-supply (unless otherwise noted)
250
25
-IB
200
VS = 5.5 V
-IB
150
20
100
VS = 1.8 V
VS = 5.5 V
VS = 1.8 V
0
-50
15
IQ (mA)
IB (pA)
50
10
-100
+IB
-150
5
-200
+IB
-250
0
-25
-50
0
25
50
75
100
125
-50
-25
Temperature (°C)
75
100
125
Output Voltage (50 mV/div)
Output Voltage (1 V/div)
Time (50 ms/div)
Time (5 ms/div)
G = 1, RL = 10 kΩ
Figure 9. Large-Signal Step Response
Figure 10. Small-Signal Step Response
0
Input
2 V/div
2 V/div
50
Figure 8. Quiescent Current vs Temperature
G = 1, RL = 10 kΩ
1 V/div
Output
10 kW
1 V/div
25
Temperature (°C)
Figure 7. Input Bias Current vs Temperature
10
0
2.5 V
Input
0
0
10 kW
2.5 V
1 kW
1 kW
0
Output
OPA330
OPA330
-2.5 V
-2.5 V
Time (50 ms/div)
Time (50 ms/div)
Figure 11. Positive Overvoltage Recovery
Figure 12. Negative Overvoltage Recovery
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
Typical Characteristics (continued)
at TA = 25°C, CL = 0 pF, RL = 10 kΩ connected to mid-supply, VCM = VOUT = mid-supply (unless otherwise noted)
40
600
35
500
Overshoot (%)
Settling Time (ms)
30
400
300
200
0.001%
25
20
15
10
100
5
0.01%
0
0
1
10
10
100
100
1000
Load Capacitance (pF)
Gain (dB)
4-V step
Figure 14. Small-Signal Overshoot vs Load Capacitance
Figure 13. Settling Time vs Closed-Loop Gain
500 nV/div
1000
Continues with no 1/f (flicker) noise.
Current Noise
100
100
Voltage Noise
10
10
1
1 s/div
Current Noise (fA/ÖHz)
Voltage Noise (nV/ÖHz)
1000
10
100
1k
10k
Frequency (Hz)
Figure 16. Current and Voltage Noise Spectral Density vs
Frequency
Figure 15. 0.1-Hz to 10-Hz Noise
50
Input Bias Current (mA)
40
30
Normal Operating Range
(see the Input Differential
Voltage section in the
Applications Information)
20
10
0
-10
-20
-30
Over-Driven Condition
Over-Driven Condition
-40
-50
-1V -800
-600 -400 -200
0
200
400
600
800
Input Differential Voltage (mV)
Figure 17. Input Bias Current vs Input Differential Voltage
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
11
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
8 Detailed Description
8.1 Overview
The TLVx333 series of low-cost operational amplifiers are unity-gain stable and free from unexpected output
phase reversal. These devices use a proprietary auto-calibration technique to provide low offset voltage and very
low drift over time and temperature. The TLVx333 family also offers rail-to-rail input and output and near-flat 1/f
noise. These features make this series of op amps ideal for many applications and much easier to design into a
wide variety of systems.
8.2 Functional Block Diagram
C2
CHOP1
GM1
CHOP2
Notch
Filter
GM2
GM3
OUT
+IN
IN
C1
GM_FF
8.3 Feature Description
The TLV333, TLV2333, and TLV4333 are unity-gain stable, precision operational amplifiers free from unexpected
output phase reversal. The use of proprietary zero-drift circuitry gives the benefit of low input offset voltage over
time and temperature, as well as lowering the 1/f noise component. As a result of the high PSRR, these devices
work well in applications that run directly from battery power without regulation. The TLV333 family is optimized
for low-voltage, single-supply operation. These miniature, high-precision, low quiescent current amplifiers offer
high-impedance inputs that have a common-mode range 100 mV beyond the supplies and a rail-to-rail output
that swings within 100 mV of the supplies under normal test conditions. The TLV333 series are precision
amplifiers for cost-sensitive applications.
8.3.1 Operating Voltage
The TLV333 series op amps can be used with single or dual supplies from an operating range of VS = 1.8 V
(±0.9 V) up to 5.5 V (±2.75 V). Supply voltages greater than 7 V can permanently damage the device; see the
Absolute Maximum Ratings table. Key parameters that vary over the supply voltage or temperature range are
listed in the Typical Characteristics section.
12
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
Feature Description (continued)
8.3.2 Input Voltage
The TLV333, TLV2333, and TLV4333 input common-mode voltage range extends 0.1 V beyond the supply rails.
The TLV333 is designed to cover the full range without the troublesome transition region found in some other
rail-to-rail amplifiers.
Typically, input bias current is approximately 200 pA; however, input voltages that exceed the power supplies
can cause excessive current to flow into or out of the input pins. Momentary voltages greater than the power
supply can be tolerated if the input current is limited to 10 mA. This limitation is easily accomplished with an input
resistor, as shown in Figure 18.
5V
IOVERLOAD
10 mA max
VOUT
Device
VIN
5 kW
NOTE: A current-limiting resistor required if the input voltage exceeds the supply rails by ≥ 0.3 V.
Figure 18. Input Current Protection
8.3.3 Internal Offset Correction
The TLV333, TLV2333, and TLV4333 op amps use an auto-calibration technique with a time-continuous, 125kHz op amp in the signal path. This amplifier is zero-corrected every 8 µs using a proprietary technique. Upon
power-up, the amplifier requires approximately 100 μs to achieve specified VOS accuracy. This design has no
aliasing or flicker noise.
8.3.4 Achieving Output Swing to the Op Amp Negative Rail
Some applications require output voltage swings from 0 V to a positive full-scale voltage (such as 2.5 V) with
excellent accuracy. With most single-supply op amps, problems arise when the output signal approaches 0 V,
near the lower output swing limit of a single-supply op amp. A good single-supply op amp can swing close to
single-supply ground, but does not reach ground. The output of the TLV333, TLV2333, and TLV4333 can be
made to swing to ground, or slightly below, on a single-supply power source. This swing to ground requires the
use of another resistor and an additional, more negative, power supply than the op amp negative supply.
Connect a pull-down resistor between the output and the additional negative supply to pull the output down
below the value that the output can otherwise achieve, as shown in Figure 19.
V+ = 5 V
Device
VOUT
VIN
RP = 20 kW
Op Amp V- = GND
-5 V
Additional
Negative
Supply
Figure 19. For VOUT Range to Ground
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
13
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
Feature Description (continued)
The TLV333, TLV2333, and TLV4333 have an output stage that allows the output voltage to be pulled to its
negative supply rail, or slightly below, using the technique previously described. This technique only works with
some types of output stages. The TLV333, TLV2333, and TLV4333 are characterized to perform with this
technique; the recommended resistor value is approximately 20 kΩ. Note that this configuration increases the
current consumption by several hundreds of microamps. Accuracy is excellent down to 0 V and as low as –2 mV.
Limiting and nonlinearity occur below –2 mV, but excellent accuracy returns when the output is again driven
above –2 mV. Lowering the resistance of the pull-down resistor allows the op amp to swing even further below
the negative rail. Resistances as low as 10 kΩ can be used to achieve excellent accuracy down to –10 mV.
8.3.5 Input Differential Voltage
The typical input bias current of the TLV333 during normal operation is approximately 200 pA. In overdriven
conditions, the bias current can increase significantly (see Figure 17).The most common cause of an overdriven
condition occurs when the op amp is outside of the linear range of operation. When the output of the op amp is
driven to one of the supply rails, the feedback loop requirements cannot be satisfied and a differential input
voltage develops across the input pins. This differential input voltage results in activation of parasitic diodes
inside the front-end input chopping switches that combine with 10-kΩ electromagnetic interference (EMI) filter
resistors to create the equivalent circuit shown in Figure 20. Notice that the input bias current remains within
specification within the linear region.
10 kW
Clamp
+IN
Core
-IN
10 kW
Figure 20. Equivalent Input Circuit
8.3.6 EMI Susceptibility and Input Filtering
Operational amplifiers vary in their susceptibility to EMI. If conducted EMI enters the operational amplifier, the dc
offset observed at the amplifier output may shift from its nominal value when EMI is present. This shift is a result
of signal rectification associated with the internal semiconductor junctions. Although all operational amplifier pin
functions can be affected by EMI, the input pins are likely to be the most susceptible. The TLV333 operational
amplifier family incorporates an internal input low-pass filter that reduces the amplifier response to EMI. Both
common-mode and differential mode filtering are provided by the input filter. The filter is designed for a cutoff
frequency of approximately 8 MHz (–3 dB), with a roll-off of 20 dB per decade.
8.4 Device Functional Modes
The TLV333 devices have a single functional mode. These devices are powered on as long as the power-supply
voltage is between 1.8 V (±0.9 V) and 5.5 V (±2.75 V).
14
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 System Examples
Figure 21 shows the basic configuration for a bridge amplifier.
A low-side current shunt monitor is shown in Figure 22.
VEX
R1
5V
R R
R R
Device
VOUT
R1
VREF
Figure 21. Single Op Amp Bridge Amplifier
3V
5V
REF3130
Load
R2
49.9 kW
R1
4.99 kW
R6
71.5 kW
V
ILOAD
RSHUNT
1W
RN
56 W
Device
R4
48.7 kW
R3
4.99 kW
ADS1100
R7
1.18 kW
Stray Ground-Loop Resistance
RN
56 W
2
IC
(PGA Gain = 4)
FS = 3 V
NOTE: 1% resistors provide adequate common-mode rejection at small ground-loop errors.
Figure 22. Low-Side Current Monitor
RN are operational resistors used to isolate the ADS1100 from the noise of the digital I2C bus. Because the
ADS1100 is a 16-bit converter, a precise reference is essential for maximum accuracy. If absolute accuracy is
not required, and the 5-V power supply is sufficiently stable, the REF3130 can be omitted.
Figure 23 shows the TLV333 in a typical thermistor circuit.
100 kW
1 MW
3V
1 MW
60 kW
NTC
Thermistor
Device
Figure 23. Thermistor Measurement
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
15
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
10 Power Supply Recommendations
The TLV333 is specified for operation from 1.8 V to 5.5 V (±0.9 V to ±2.75 V); many specifications apply from
–40°C to +125°C. The Typical Characteristics section presents parameters that can exhibit significant variance
with regard to operating voltage or temperature.
CAUTION
Supply voltages larger than 7 V can permanently damage the device (see the Absolute
Maximum Ratings table).
Place 0.1-μF bypass capacitors close to the power-supply pins to reduce errors coupling in from noisy or highimpedance power supplies. For more detailed information on bypass capacitor placement, see the Layout
section.
11 Layout
11.1 Layout Guidelines
11.1.1 General Layout Guidelines
Attention to good layout practice is always recommended. Keep traces short and, when possible, use a printed
circuit board (PCB) ground plane with surface-mount components placed as close to the device pins as possible.
Place a 0.1-μF capacitor closely across the supply pins. Apply these guidelines throughout the analog circuit to
improve performance and to provide benefits such as reducing the electromagnetic interference (EMI)
susceptibility.
For lowest offset voltage and precision performance, circuit layout and mechanical conditions must be optimized.
Avoid temperature gradients that create thermoelectric (Seebeck) effects in the thermocouple junctions formed
from connecting dissimilar conductors. These thermally-generated potentials can be made to cancel by assuring
they are equal on both input terminals. Other layout and design considerations include:
• Use low thermoelectric-coefficient conditions (avoid dissimilar metals).
• Thermally isolate components from power supplies or other heat sources.
• Shield op amp and input circuitry from air currents, such as cooling fans.
Following these guidelines reduces the likelihood of junctions being at different temperatures, which can cause
thermoelectric voltages of 0.1 μV/°C or higher, depending on materials used.
16
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
11.2 Layout Example
+
VIN
VOUT
RG
RF
(Schematic Representation)
Run the input traces
as far away from
the supply lines
as possible
Place components
close to device and to
each other to reduce
parasitic errors
VS+
RF
N/C
N/C
GND
±IN
V+
VIN
+IN
OUTPUT
V±
N/C
RG
Use low-ESR,
ceramic bypass
capacitor
GND
VS±
GND
Use low-ESR, ceramic
bypass capacitor
VOUT
Ground (GND) plane on another layer
Figure 24. Layout Example
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
17
TLV333, TLV2333, TLV4333
SBOS751 – DECEMBER 2015
www.ti.com
12 Device and Documentation Support
12.1 Device Support
12.1.1 Development Support
For development support on this product, see the following:
• High-Side V-I Converter, 0 V to 2 V to 0 mA to 100 mA, 1% Full-Scale Error, TIPD102
• Low-Level V-to-I Converter Reference Design, 0-V to 5-V Input to 0-µA to 5-µA Output, TIPD107
• 18-Bit, 1-MSPS, Serial Interface, microPower, Truly-Differential Input, SAR ADC, ADS8881
• Very Low-Power, High-Speed, Rail-To-Rail Input/Output, Voltage Feedback Operational Amplifier, THS4281
• Data Acquisition Optimized for Lowest Distortion, Lowest Noise, 18-bit, 1-MSPS Reference Design, TIPD115
• Self-Calibrating, 16-Bit Analog-to-Digital Converter, ADS1100
• 20-ppm/Degrees C Max, 100-µA, SOT23-3 Series Voltage Reference, REF3130
12.2 Documentation Support
12.2.1 Related Documentation
For related documentation, see the following:
• QFN/SON PCB Attachment, SLUA271
• Quad Flatpack No-Lead Logic Packages, SCBA017
12.3 Related Links
Table 1 lists quick access links. Categories include technical documents, support and community resources,
tools and software, and quick access to sample or buy.
Table 1. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
TLV333
Click here
Click here
Click here
Click here
Click here
TLV2333
Click here
Click here
Click here
Click here
Click here
TLV4333
Click here
Click here
Click here
Click here
Click here
12.4 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.5 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.6 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
18
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
TLV333, TLV2333, TLV4333
www.ti.com
SBOS751 – DECEMBER 2015
12.7 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
Product Folder Links: TLV333 TLV2333 TLV4333
19
PACKAGE OPTION ADDENDUM
www.ti.com
1-Sep-2022
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
TLV2333IDGKR
ACTIVE
VSSOP
DGK
8
2500
RoHS & Green
NIPDAUAG | SN
Level-1-260C-UNLIM
-40 to 125
12Z6
Samples
TLV2333IDGKT
ACTIVE
VSSOP
DGK
8
250
RoHS & Green
NIPDAUAG | SN
Level-1-260C-UNLIM
-40 to 125
12Z6
Samples
TLV2333IDR
ACTIVE
SOIC
D
8
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
TLV233
Samples
TLV333IDBVR
ACTIVE
SOT-23
DBV
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
12YD
Samples
TLV333IDBVT
ACTIVE
SOT-23
DBV
5
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
12YD
Samples
TLV333IDCKR
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
12B
Samples
TLV333IDCKT
ACTIVE
SC70
DCK
5
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
12B
Samples
TLV333IDR
ACTIVE
SOIC
D
8
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
TLV333
Samples
TLV4333IDR
ACTIVE
SOIC
D
14
2500
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 125
TLV4333
Samples
TLV4333IPWR
ACTIVE
TSSOP
PW
14
2000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 125
TLV4333
Samples
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
